This concrete slab bridge once carried the CTA Red and Purple Lines over Winona Street

Uptown, Chicago, Cook County, Illinois

Owner: Chicago Transit Authority

Status: Replaced by a new bridge

Built 1922

by

Chicago, Milwaukee & St. Paul Railway and Northwestern Elevated Railroad

Design:
2-25' and 2-10' concrete slabs

Description:
Concrete slab bridge over Winona Street

Significance:

This massive vertical lift bridge carries Amtrak and the Metra Southwest Service and Heritage Corridor over the South Branch Chicago River east of Canal Street

Armour Square, Chicago, Cook County, Illinois to Lower West Side, Chicago, Cook County, Illinois

Owner: Amtrak

Status: In Use

Built 1914

by

Pennsylvania Steel Company of Steelton, Pennsylvania and Great Lakes Dredge & Dock Company of Chicago, Illinois

for

Pittsburgh, Fort Wayne & Chicago Railway

Design:
280' Parker through truss vertical lift bridge

Description:
Parker through truss vertical lift bridge over South Branch Chicago River

Significance:

This standard concrete slab bridge carries the CTA Purple Line over Hamlin Street in Evanston

Evanston, Cook County, Illinois

Owner: Chicago Transit Authority

Status: In Use

Built 1930

by

Unknown

for

Chicago, Milwaukee, St. Paul & Pacific Railroad

Design:
2-21' and 2-12' concrete slabs

Description:
Concrete slab bridge over Hamlin Street

Significance:

This large quadrangular through truss bridge crosses the CPKC line in Northbrook

Northbrook, Cook County, Illinois

Owner: Union Pacific Railroad

Status: In Use

Built 1912

by

Fort Pitt Bridge Works of Pittsburgh, Pennsylvania

for

Chicago & North Western Railway

Design:
140' quadrangular lattice through truss

Description:
Quadrangular lattice through truss bridge over CPKC

Significance:

This through plate girder bridge across Honore Street is one of several similar structures along the former Grand Trunk Western 49th Street Line

New City, Chicago, Cook County, Illinois

Owner: Canadian National Railway

Status: Abandoned

Built 1907

by

American Bridge Company of New York

for

Grand Trunk Western Railroad

Design:
45' through plate girder

Description:
Through plate girder bridge over Honore Street

Significance:

This trough floor steel stringer bridge carries the Union Pacific West line over Ashland Avenue in River Forest

River Forest, Cook County, Illinois

Owner: Union Pacific Railroad

Status: In Use

Built 1912

by

American Bridge Company of New York

for

Chicago & North Western Railway

Design:
2-27' and 2-10' trough floor steel stringer

Description:
Trough floor steel stringer bridge over Ashland Avenue

Significance:

This Pratt through truss bridge crosses the Des Plaines River near 1st Avenue in Melrose Park

Melrose Park, Cook County, Illinois

Owner: Canadian National Railway

Status: In Use

Built c. 1910

by

Unknown

for

Minneapolis, St. Paul & Sault Ste. Marie Railroad

Design:
150' Pratt through truss

Description:
Pratt through truss bridge over Des Plaines River

Significance:

This trough floor steel stringer bridge carries the Union Pacific North and Northwest Lines over Des Plaines Street

West Town, Chicago, Cook County, Illinois

Owner: Union Pacific Railroad

Status: In Use

Built 1910

by

American Bridge Company of New York and Bates & Rogers Construction Company of Chicago, Illinois

for

Chicago & North Western Railway

Design:
2-26' and 2-17' trough floor steel stringer

Description:
Trough floor steel stringer bridge over Des Plaines Street

Significance:

This iconic through truss bascule bridge carries Wells Street and the CTA Brown and Purple Lines over the Chicago River

Loop, Chicago, Cook County, Illinois to Near North Side, Chicago, Cook County, Illinois

Owner: City of Chicago

Status: In Use

Built 1922

by

Fort Pitt Bridge Company of Pittsburgh, Pennsylvania; FitzSimons & Connell Dredge & Dock Company of Chicago, Illinois and Ketler-Elliott Erection Company of Chicago, Illinois

for

City of Chicago

Design:
268' Double deck Warren through truss bascule (double leaf fixed trunnion)

Description:
Double leaf Warren through truss bascule bridge over Chicago River

Significance:

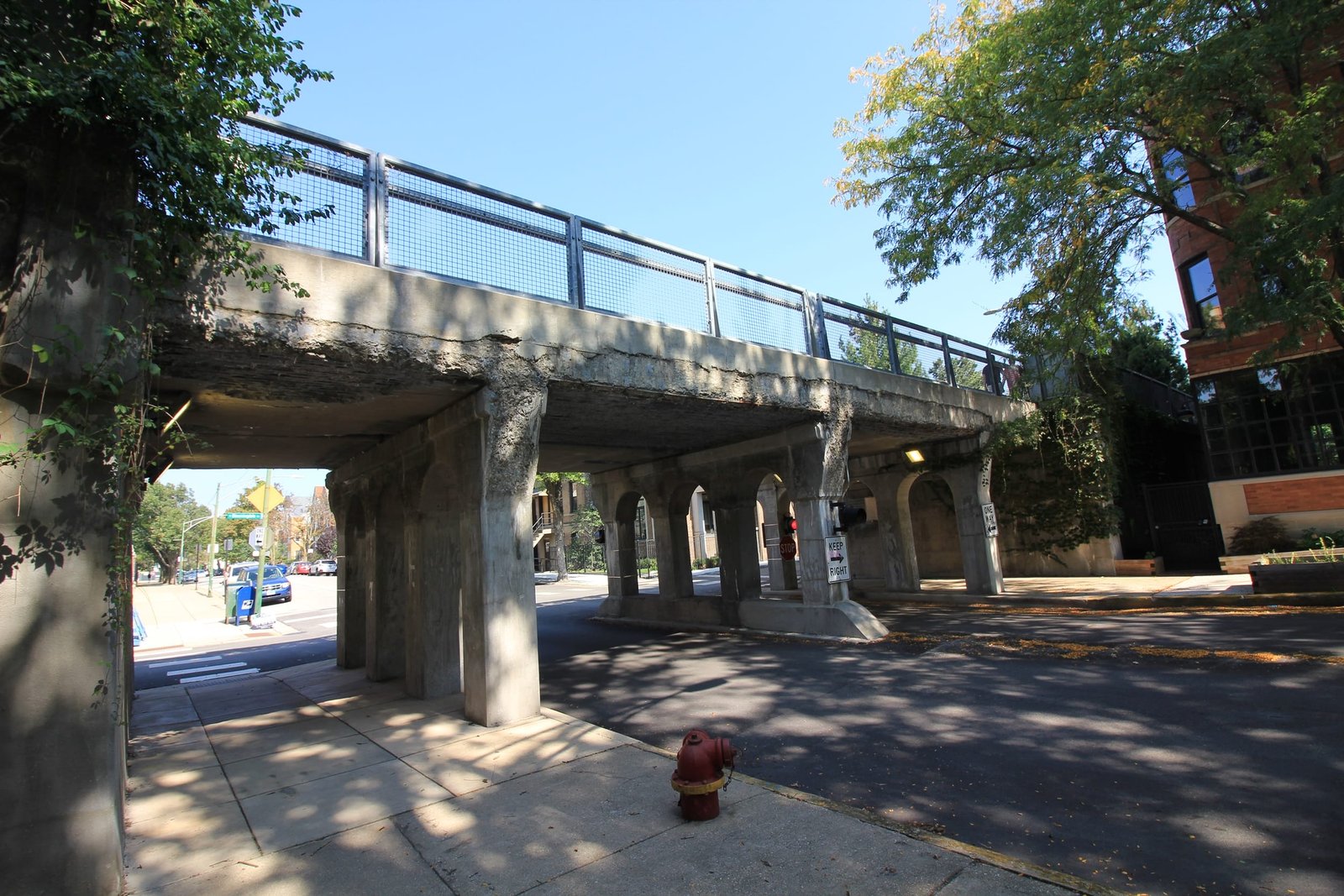

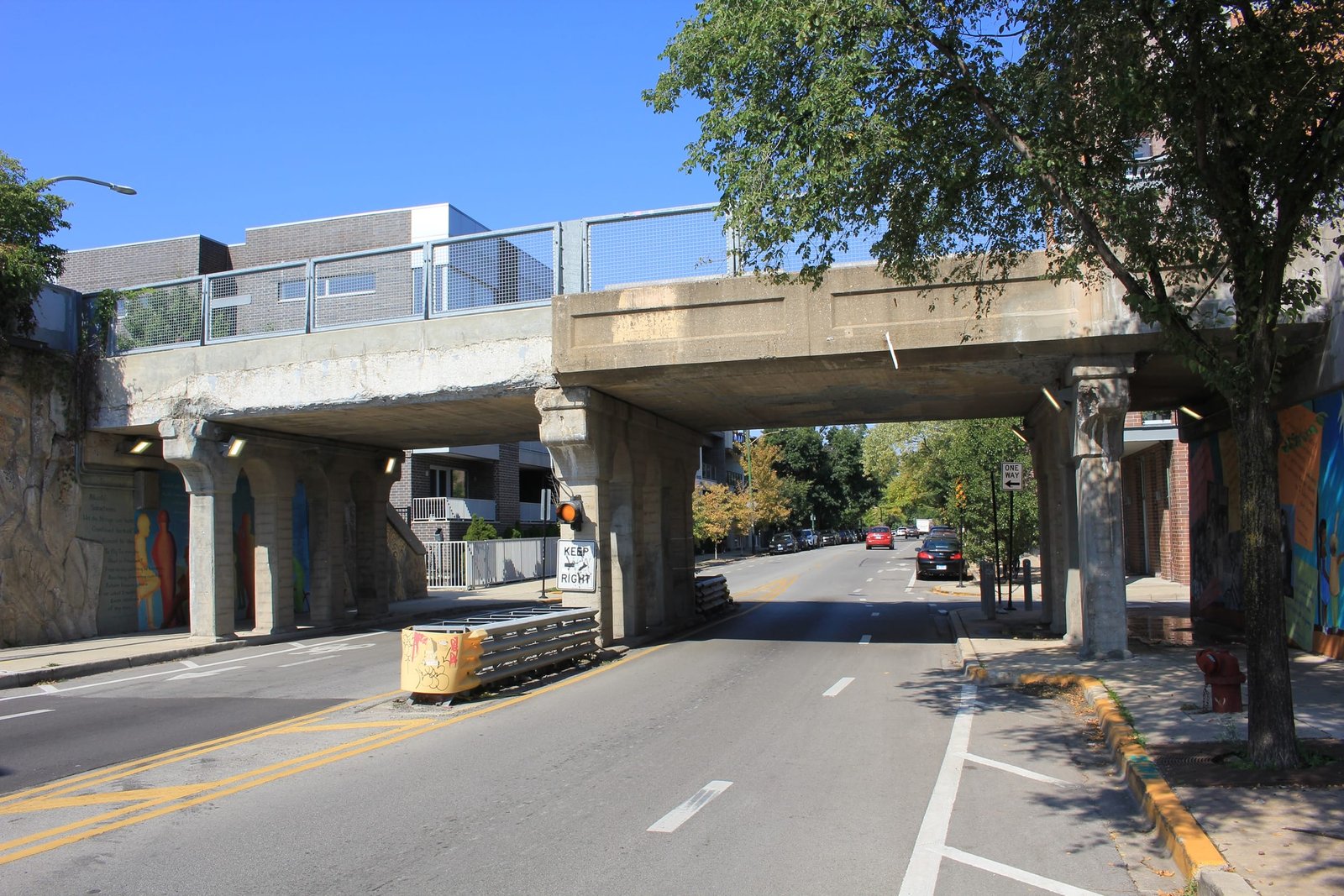

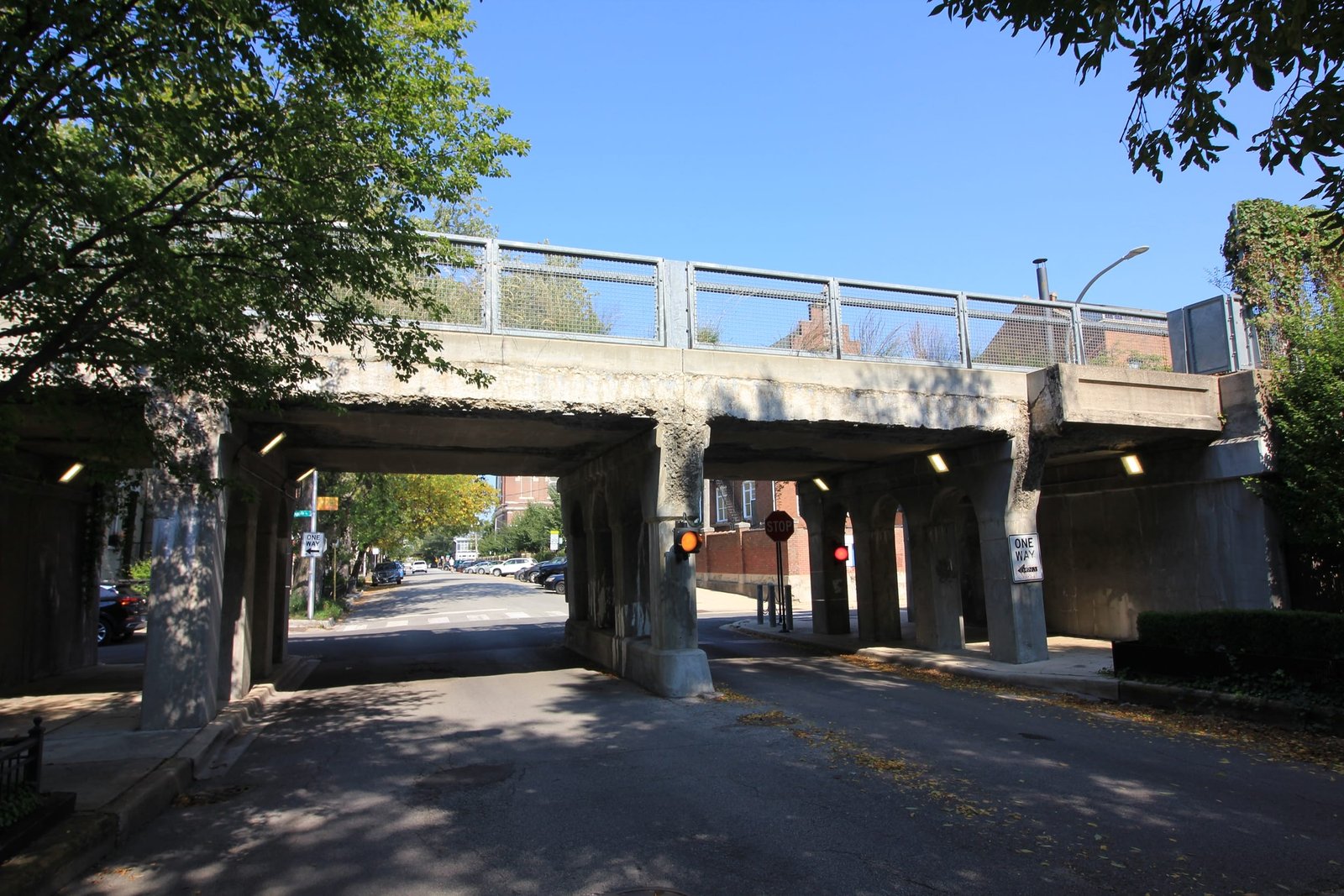

This concrete slab bridge carries the Bloomingdale (606) Trail over Leavitt Street in the West Town neighborhood of Chicago

West Town, Chicago, Cook County, Illinois to Logan Square, Chicago, Cook County, Illinois

Owner: City of Chicago

Status: Open to Pedestrian Traffic

Built 1914

by

Chicago, Milwaukee & St. Paul Railway

Design:
2-20' and 2-10' concrete slabs

Description:
Concrete slab bridge over Leavitt Street

Significance:
