This historic quadrangular lattice through truss bridge once carried an abandoned railroad spur over the Fox River in Carpentersville

Carpentersville, Kane County, Illinois

Owner: Private Owner

Status: Removed

Built 1926 using a span fabricated c. 1880

by

Leighton Bridge and Iron Works of Rochester, New York

for

Chicago & North Western Railway

Design:
99' quadrangular lattice through truss, steel stringer and timber pile trestle

Description:
Quadrangular lattice through truss bridge over Fox River

Significance:

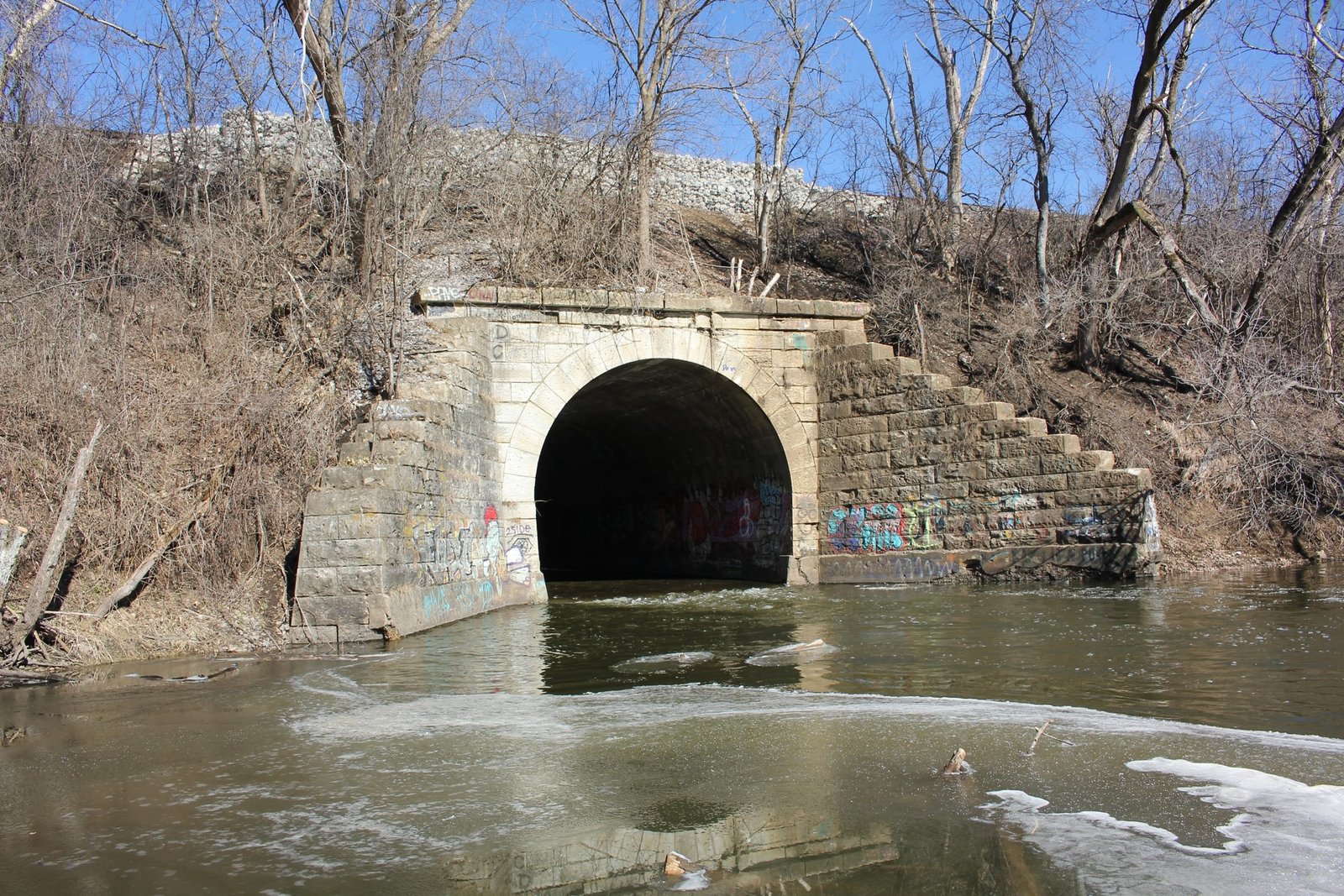

This stone arch culvert carries the former Chicago & North Western Railway over an unnamed creek on the west side of Elgin

Elgin, Kane County, Illinois

Owner: Union Pacific Railroad

Status: In Use

Built 1901

by

Unknown

for

Chicago & North Western Railway

Design:
10' stone arch culvert

Description:
Stone arch culvert over unnamed creek

Significance:

This concrete slab bridge carries the former Chicago, Burlington & Quincy Railroad over Lake Street (Illinois Route 31) in Aurora

Aurora, Kane County, Illinois

Owner: BNSF Railway

Status: In Use

Built 1921

by

Chicago, Burlington & Quincy Railroad

Design:
2-40', 1-20', 1-15' concrete slabs

Description:
Concrete slab bridge over Illinois Route 31 (Lake Street)

Significance:

This historic Pratt through truss bridge carries the Virgil Gilman Nature Trail over the Fox River in Aurora

Aurora, Kane County, Illinois

Owner: Fox Valley Park District

Status: Open to Pedestrian Traffic

Built 1897

by

Milwaukee Bridge & Iron Company of Milwaukee, Wisconsin

for

Elgin, Joliet & Eastern Railway

Design:
2-130' Pratt through trusses

Description:
Pratt through truss bridge over Fox River

Significance:

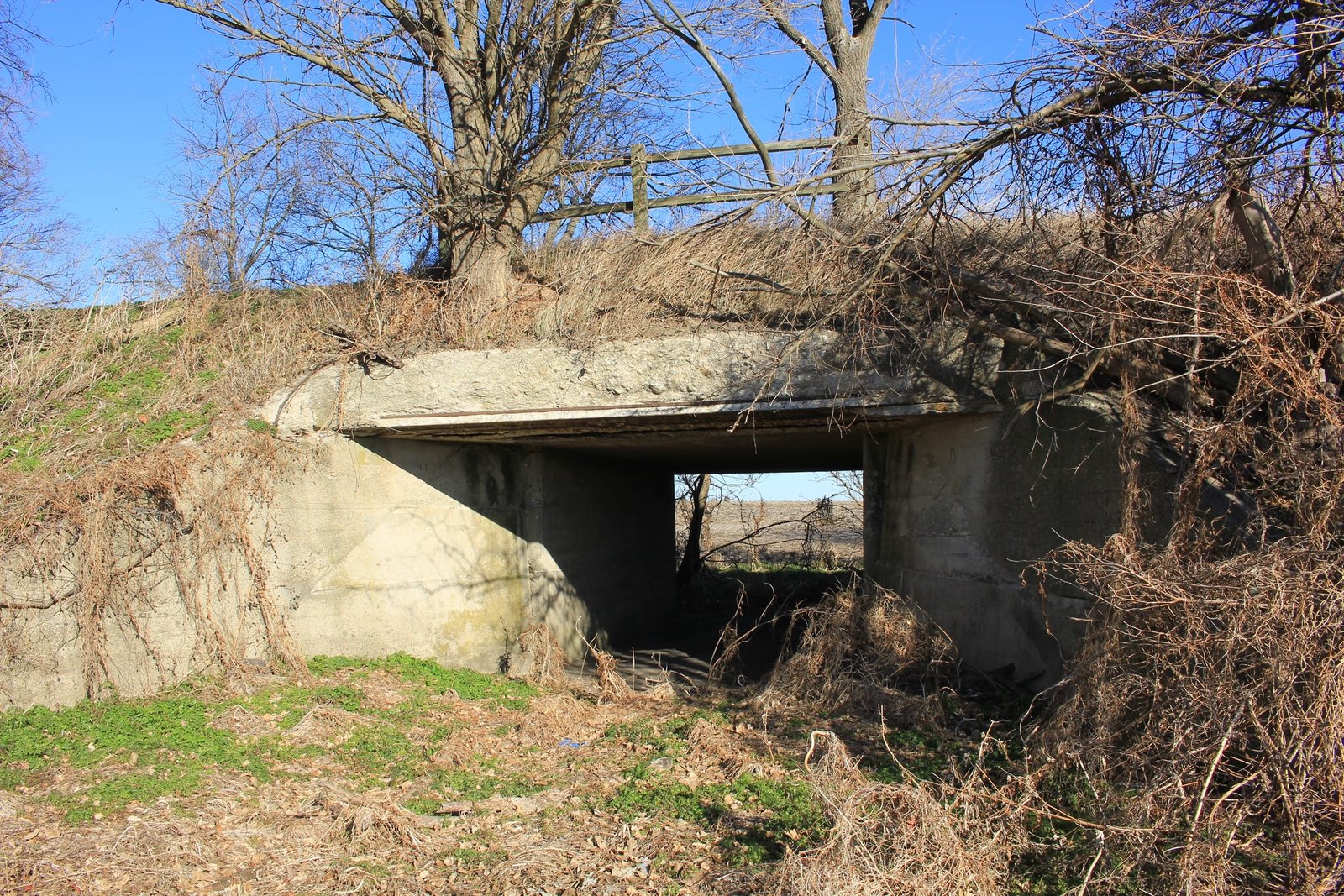

This small concrete arch culvert carries the Great Western Trail over an unnamed creek along Illinois Route 64 in Wasco

Campton Hills, Kane County, Illinois

Owner: Forest Preserve District of Kane County

Status: Open to Pedestrian Traffic

Built c. 1910

by

Unknown

for

Chicago Great Western Railway

Design:
5' concrete arch culvert

Description:
Concrete arch culvert over unnamed creek

Significance:

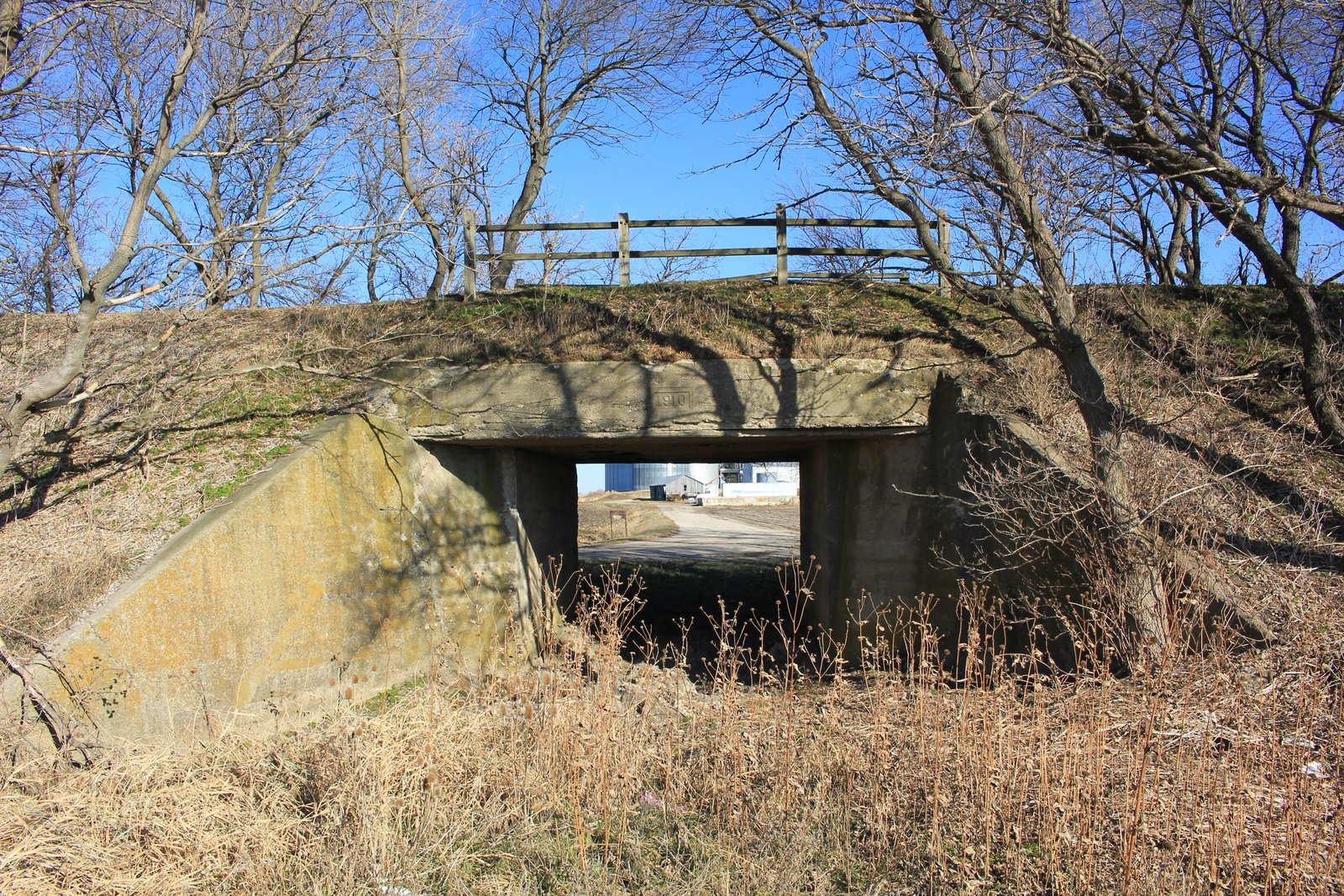

This concrete box culvert once carried the Chicago, Milwaukee & St. Paul Railway over the Elgin & Belvidere Electric Company on the west side of Elgin

Elgin, Kane County, Illinois

Owner: Canadian Pacific Kansas City Limited

Status: In Use

Built 1906

by

Chicago, Milwaukee & St. Paul Railway

Design:
14' concrete box culvert

Description:
Concrete box culvert over abandoned Elgin & Belvidere Electric Company

Significance:

This small concrete arch culvert carries the Batavia Branch of the Illinois Prairie Path over Batavia Creek near Illinois Route 25

Batavia, Kane County, Illinois

Owner: Forest Preserve District of Kane County

Status: Open to Pedestrian Traffic

Built 1901

by

Cleveland Construction Company of Akron, Ohio

for

Aurora, Elgin & Chicago Railway

Design:
10' concrete arch culvert

Description:
Concrete arch culvert over Batavia Creek

Significance:

This large concrete arch bridge is the eastern of two structures carrying the former Chicago, Burlington & Quincy Railroad over the Fox River at Hurds Island

Aurora, Kane County, Illinois

Owner: BNSF Railway

Status: In Use

Built 1920

by

Chicago, Burlington & Quincy Railroad

Design:
3-65' open spandrel concrete arch

Description:
Open spandrel concrete arch bridge over Fox River

Significance:

This large Warren deck truss bridge carries the former Illinois Central Railroad over the Fox River, Fox River Trail and the former Aurora, Elgin & Fox River Electric Company along Stearns Road

South Elgin, Kane County, Illinois

Owner: Canadian National Railway

Status: In Use

Built 1921 and 1931

by

Unknown

for

Illinois Central Railroad

Design:
6-88' Warren deck trusses

Description:
Warren deck truss bridge over Fox River, Fox River Trail and former Aurora, Elgin & Fox River Electric Company

Significance:

This small steel stringer bridge carries the Fox River Trail over an unnamed creek in the Fox River Shores Forest Preserve

Carpentersville, Kane County, Illinois

Owner: Forest Preserve District of Kane County

Status: Open to Pedestrian Traffic

Built 1902

by

Unknown

for

Chicago & North Western Railway

Design:
16' steel stringer

Description:
Steel stringer bridge over unnamed creek

Significance:
