RI Indian Creek Bridge (Council Bluffs, North)


Click the photo to view the full-size version

1/13
Date Taken:
Author:
Caption:

Name RI Indian Creek Bridge (Council Bluffs, North)
Chicago, Rock Island & Pacific Railroad Bridge #5000B
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Lassig Bridge & Iron Works of Chicago, Illinois
Substructure Builder Chicago, Rock Island & Pacific Railway Company Forces
Length 52 Feet Total
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Design Through Plate Girder
Substructure Design Concrete
Date Built 1899
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
Chicago, Rock Island & Pacific Railroad Bridge Number 5000B
Significance Local Significance
Documentation Date 10/16/2015; 2/5/2017

In 1869, the Chicago, Rock Island & Pacific Railroad (Rock Island) constructed 142 miles of new railroad, extending from the end of the existing mainline at Des Moines, Iowa to Council Bluffs, Iowa.  Originally, the line went west to Atlantic, Iowa; before turning northwest and going through Avoca, Iowa and Shelby, Iowa.  At Shelby, the line would turn back southwest, and run through Neola, Iowa and Underwood, Iowa before arriving in Council Bluffs.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads during the late 19th Century, covering much of the central United States.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.  In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.

The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. During the early 1950s, the Rock Island undertook a series of improvements in Western Iowa to eliminate harsh grades and shorten the line.  Between 1952 and 1953, the Rock Island constructed the Atlantic Cutoff, which included constructing 34 miles of new railroad between Atlantic and McClelland, Iowa.  West of McClelland, the Rock Island used the Chicago Great Western Railway (CGW) tracks to reach Council Bluffs. The new route saved 10 miles, and much of the old route was abandoned in 1953.  A short segment was retained between Walnut, Iowa and Shelby, which was abandoned in 1966.  An additional revision was made near Adair in 1954, which involved straightening the route.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Council Bluffs Subdivision between Des Moines and Council Bluffs.  Except for a short portion near Shelby, the entirety of the original mainline between Atlantic and Council Bluffs remains abandoned.

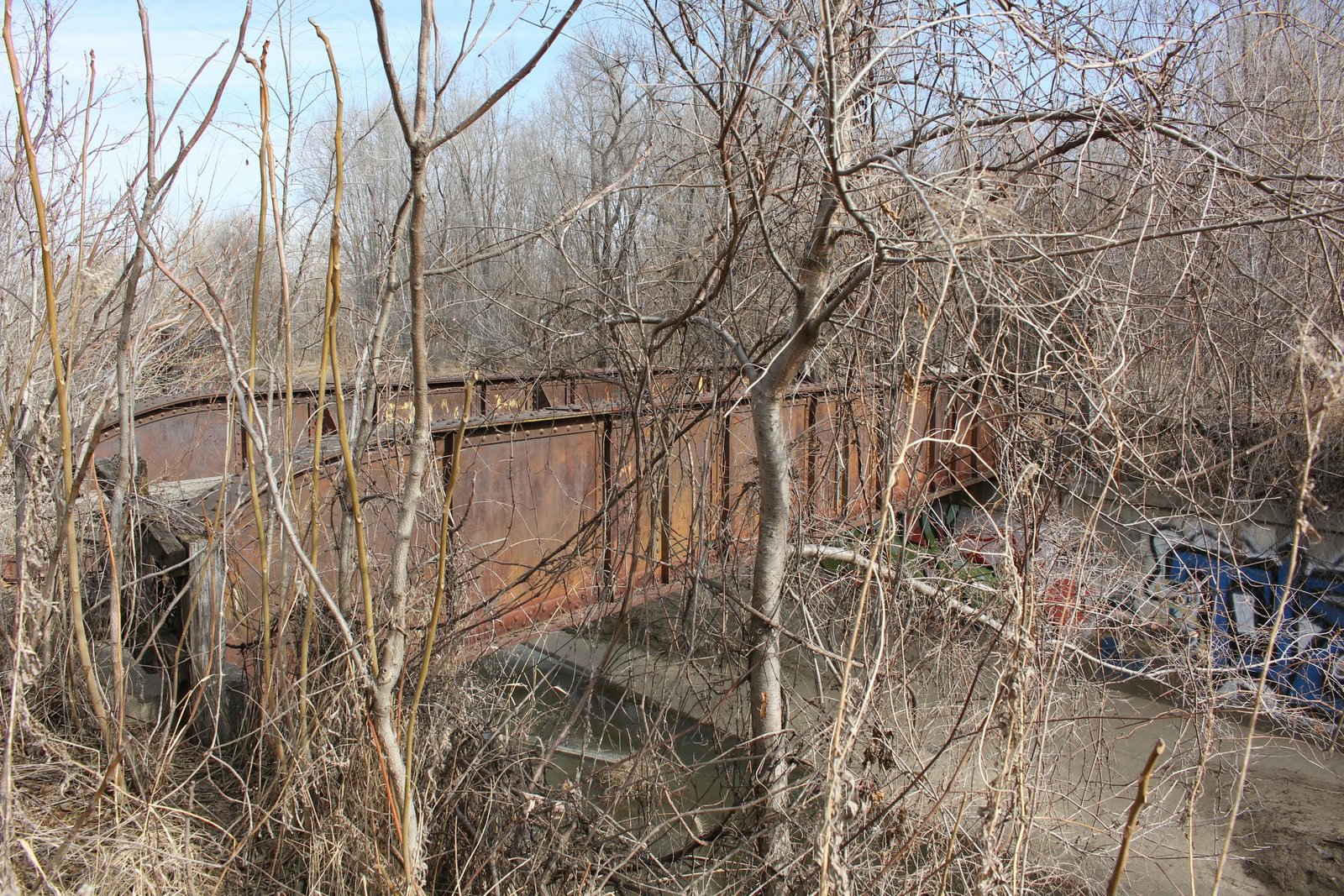

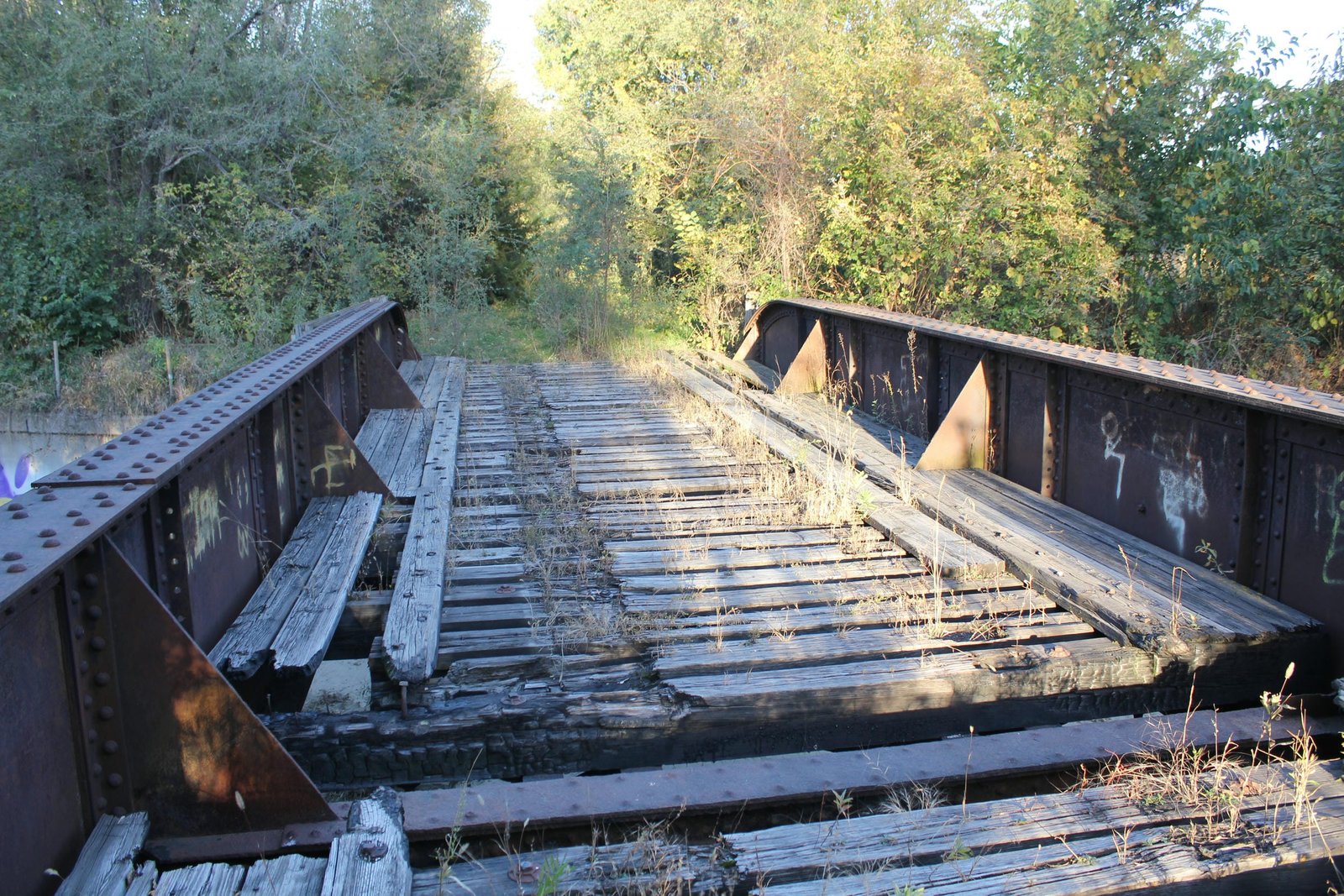

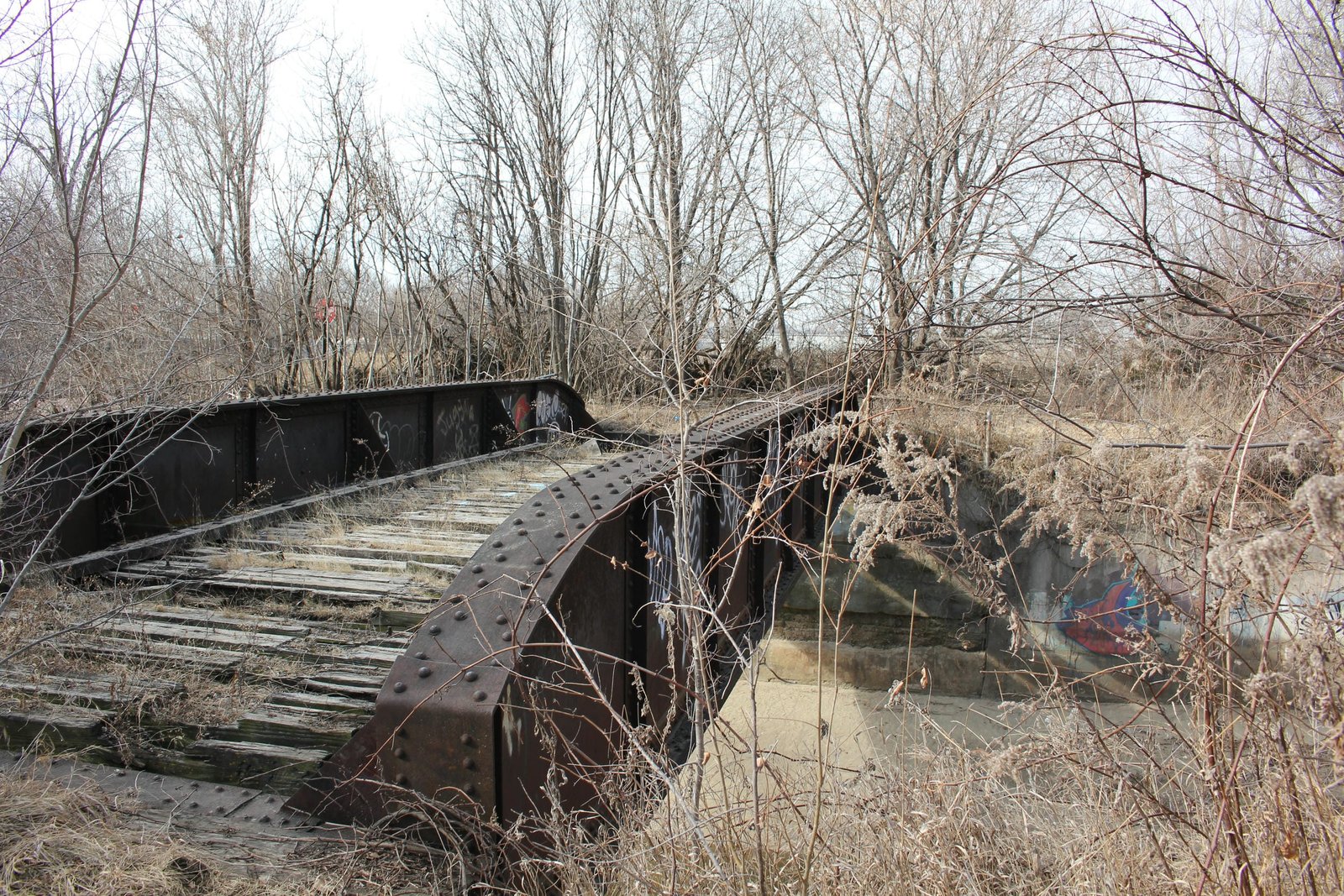

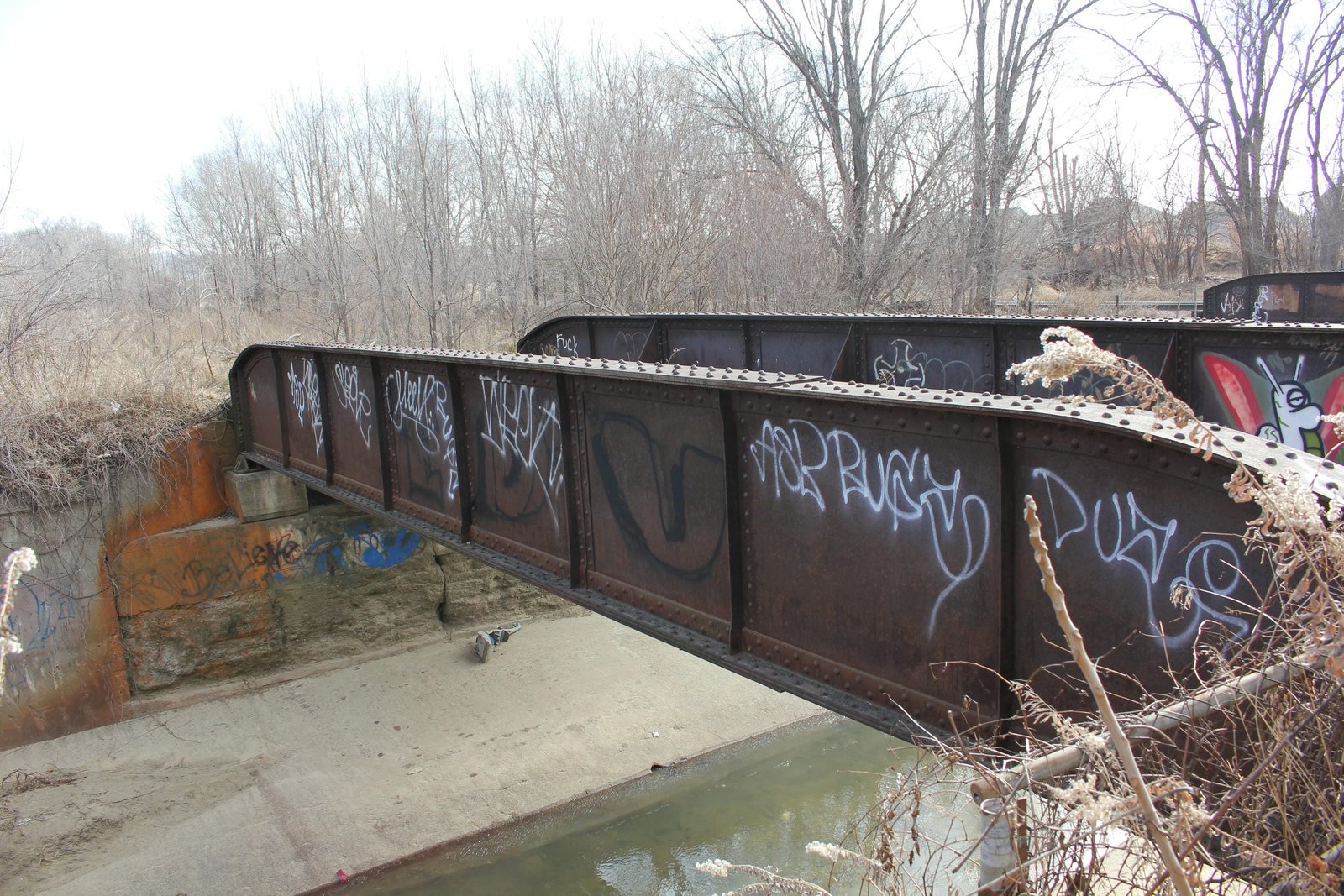

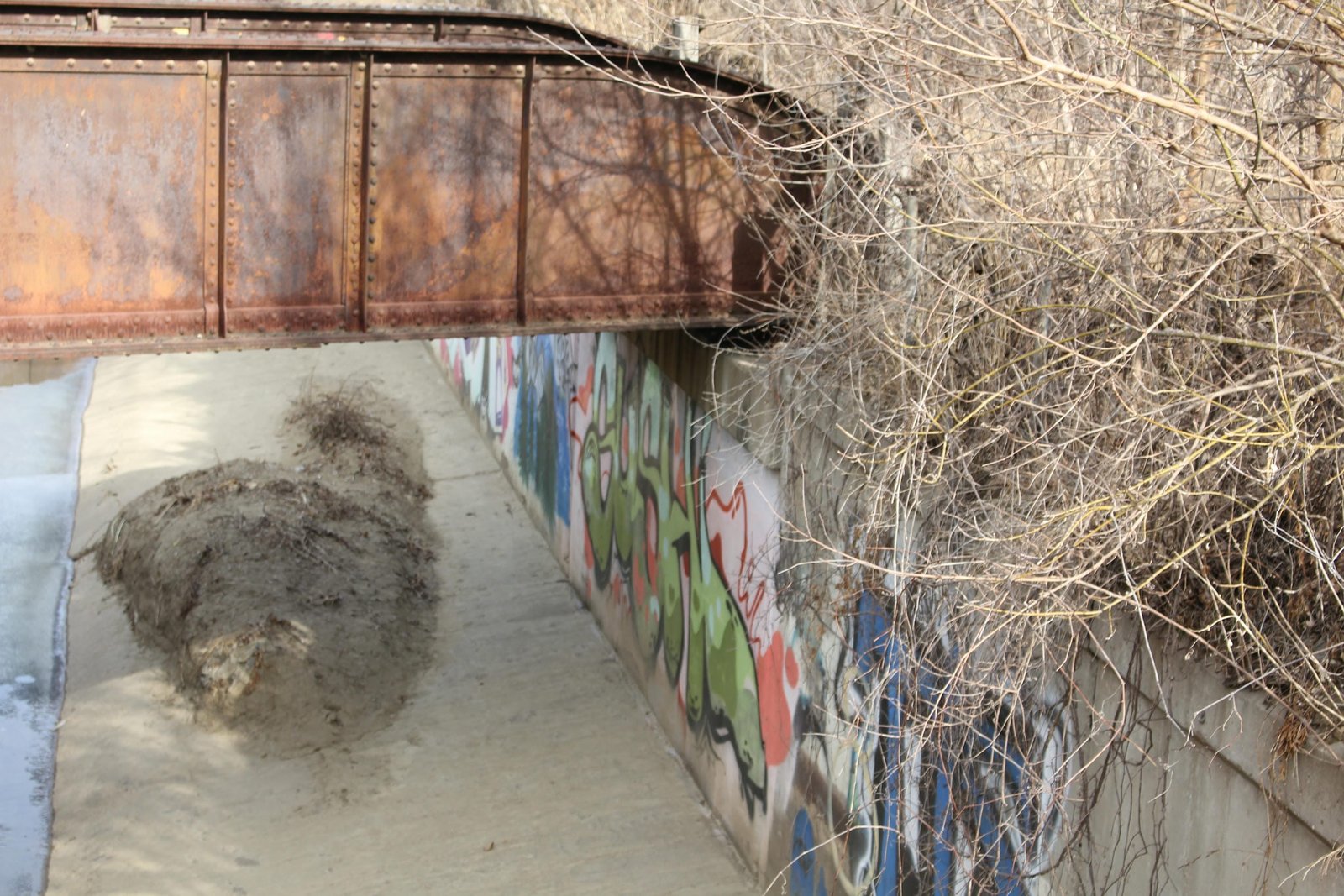

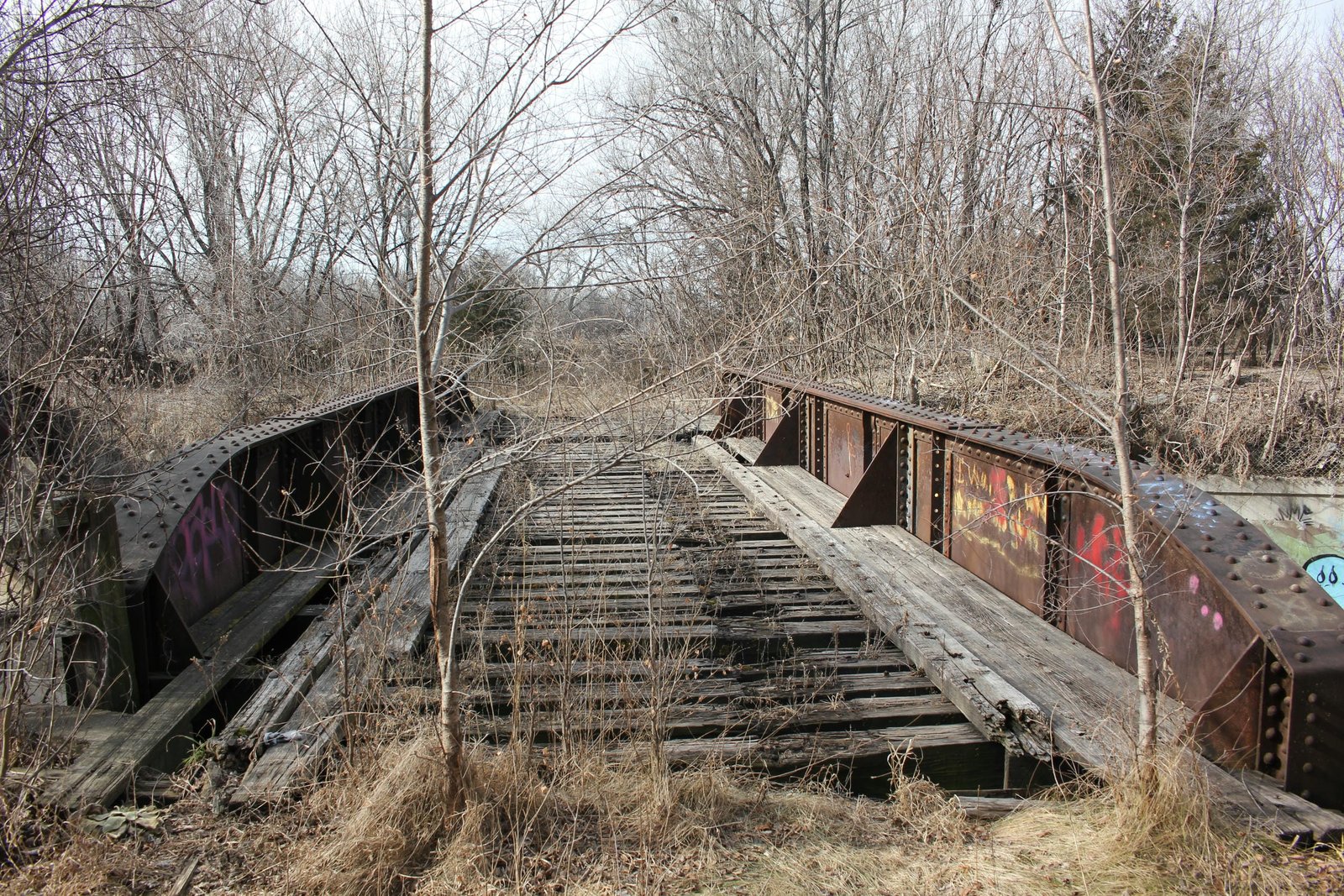

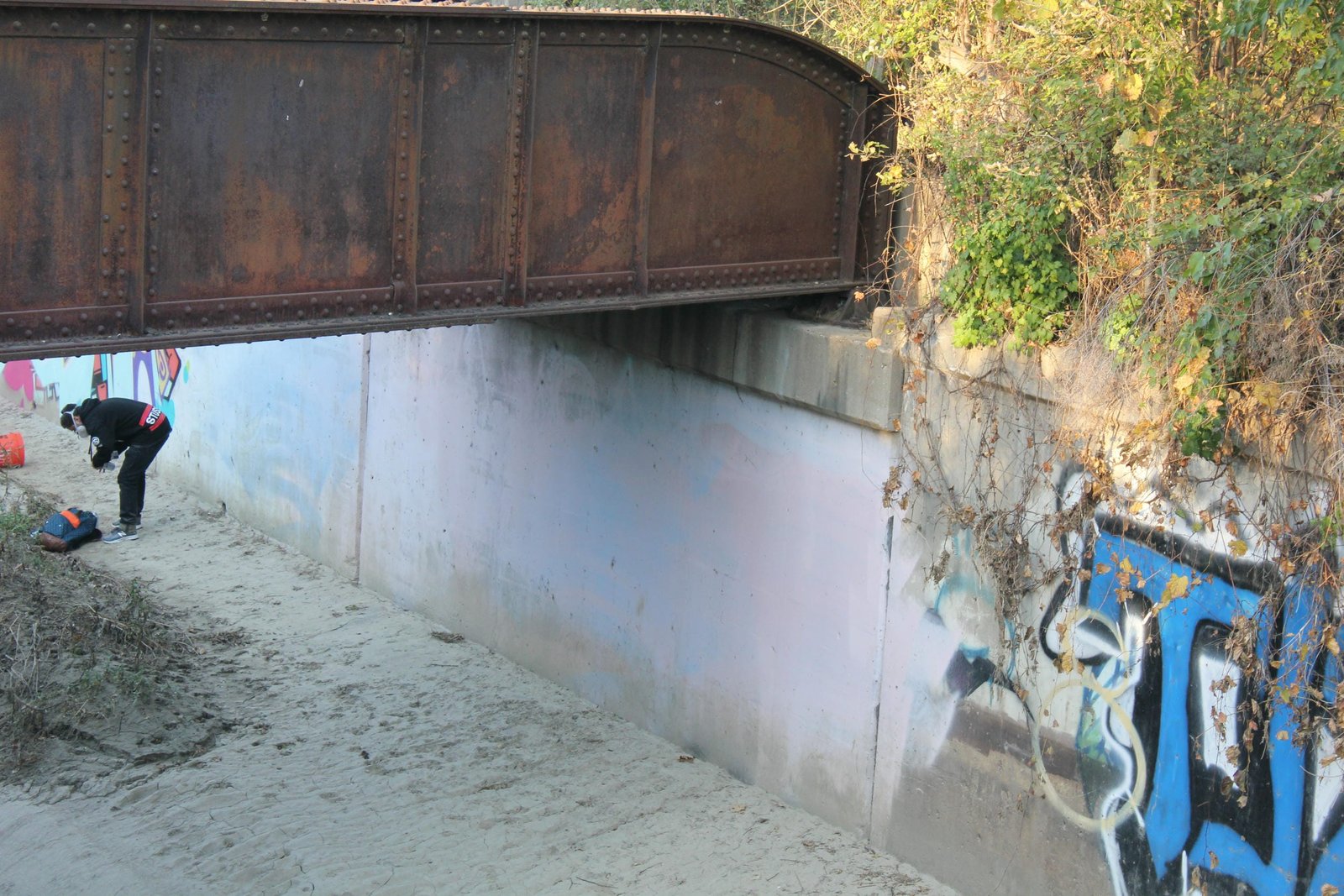

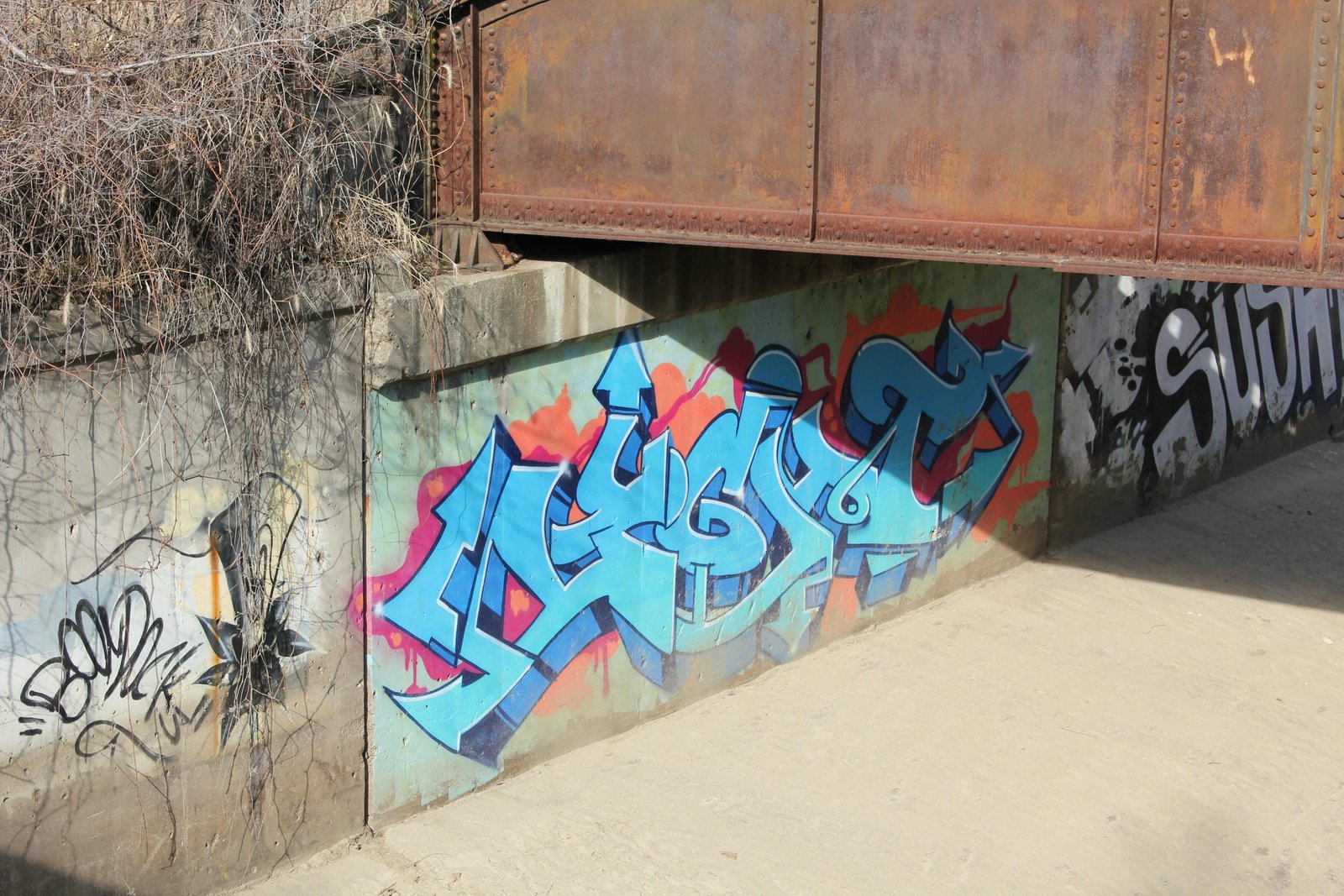

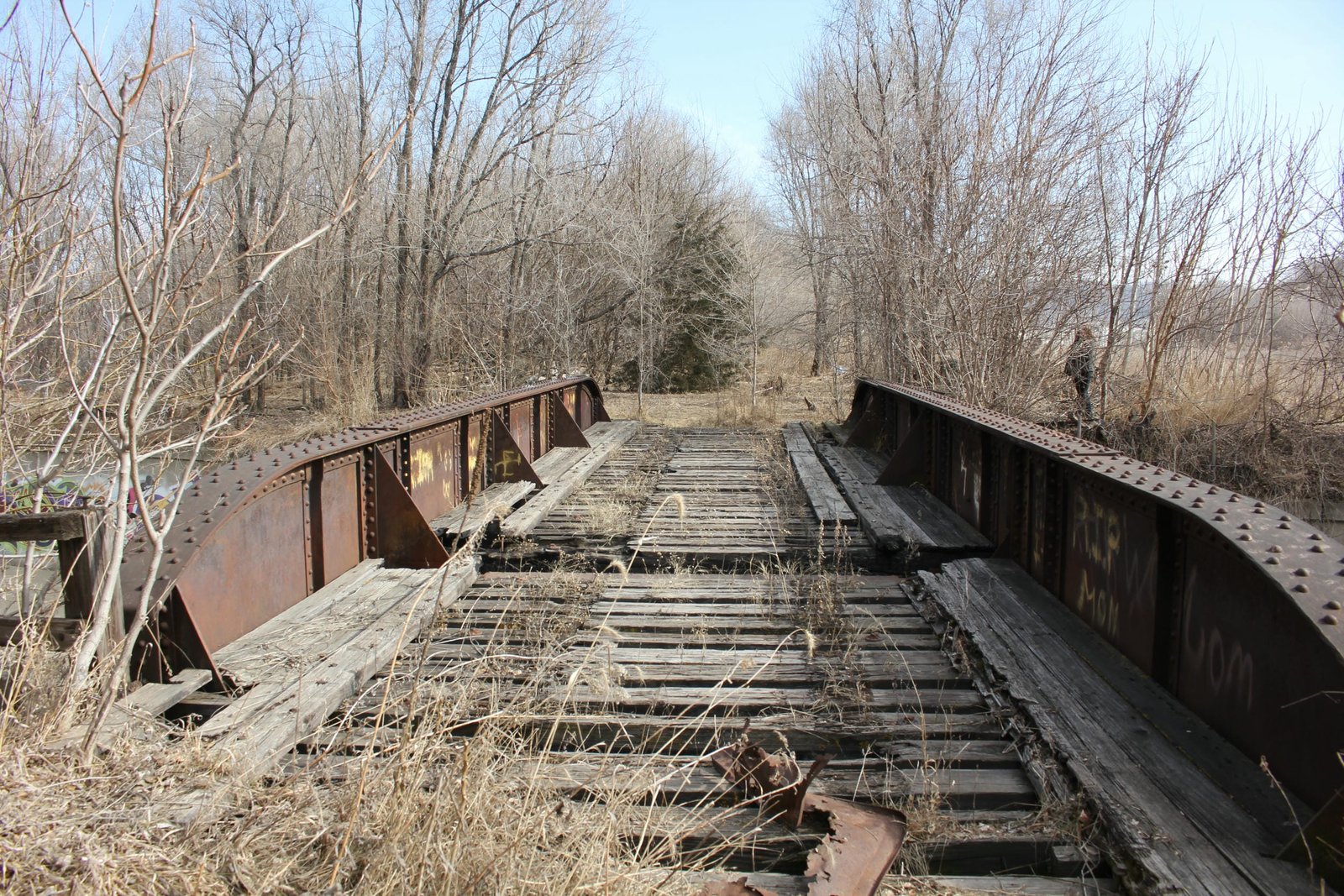

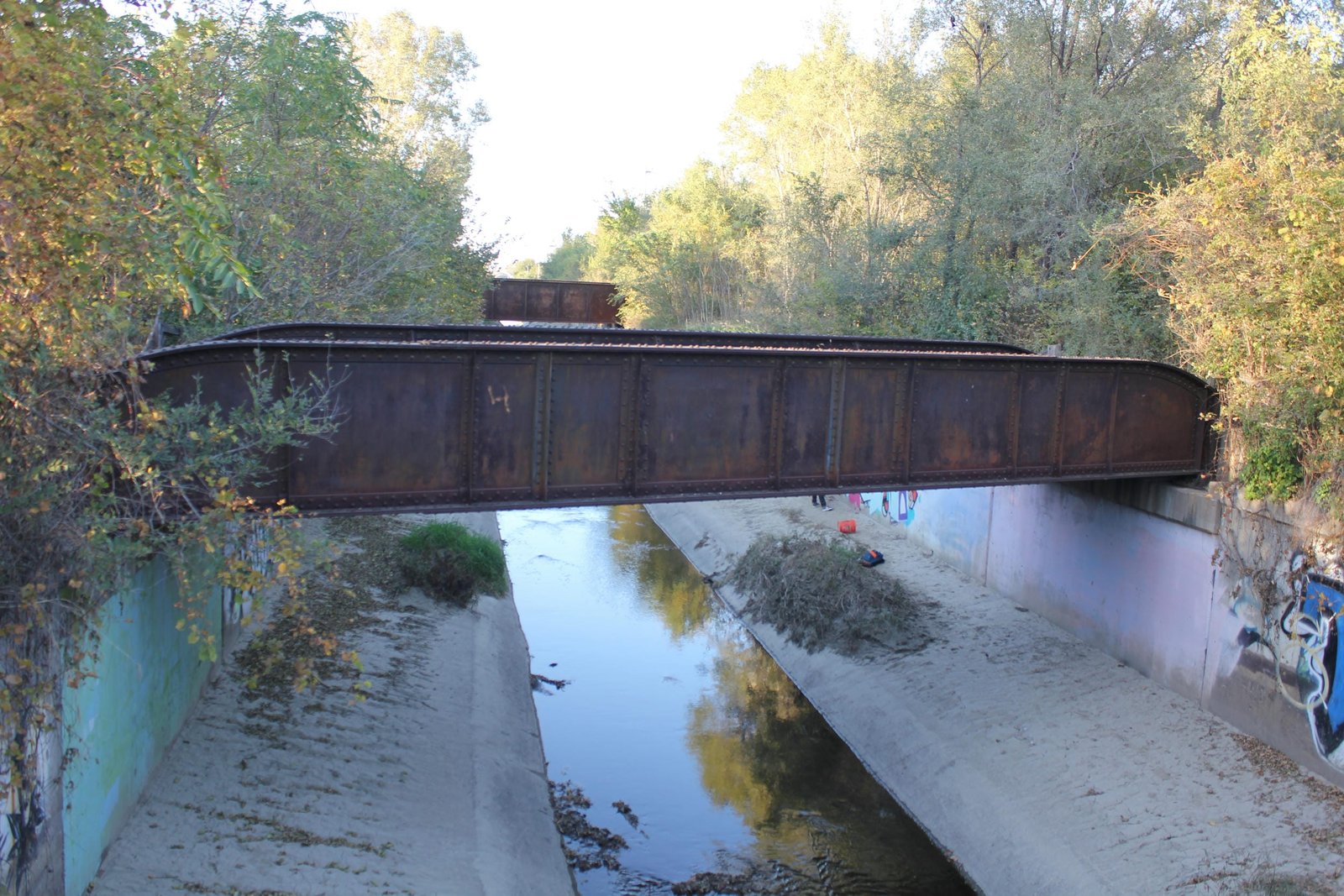

Located at the former alignment of 12th Avenue in Council Bluffs, this through plate girder bridge is the northern of two parallel structures carrying former Chicago, Rock Island & Pacific Railway (Rock Island) yard leads over Indian Creek. Since Council Bluffs was first settled, Indian Creek had been known for disastrous floods due to its narrow valley and small tributary area. The first bridge at this location was likely a timber pile trestle bridge, constructed when the line was first built. In 1898, the City of Council Bluffs ordered a number of railroads to raise and remodel their bridges across Indian Creek, giving sufficient clearance and a channel width of 42 feet. In 1899, the Rock Island constructed the present bridge. Currently, the bridge consists of a 52-foot through plate girder span, set onto concrete abutments and constructed at a slight skew. The superstructure follows a standard design, with two heavy plate girders, rounded and tapered girder ends and a standard floor. The abutments use a standard design, with a rectangular structure. It is unclear if the abutments once contained wing walls. Lassig Bridge & Iron Works fabricated the superstructure, while it is believed the substructure was constructed by labor employed by the railroad. Through plate girder spans were popular for railroad use, as they were durable and easy to construct. The only major alteration to the bridge came in the mid-1930s, when Indian Creek was channelized and any original wing walls were removed. Starting in 1936, Indian Creek was channelized, and large concrete walls were constructed to contain the creek. Today, the bridge is abandoned, and it is doubtful it will ever be reused. Overall, the bridge appears to be in fair condition, with no significant deterioration noted. The author has ranked the bridge as being locally significant, due to the common design.


Citations

Build date The Engineering Record; Volume 89, Issue 10

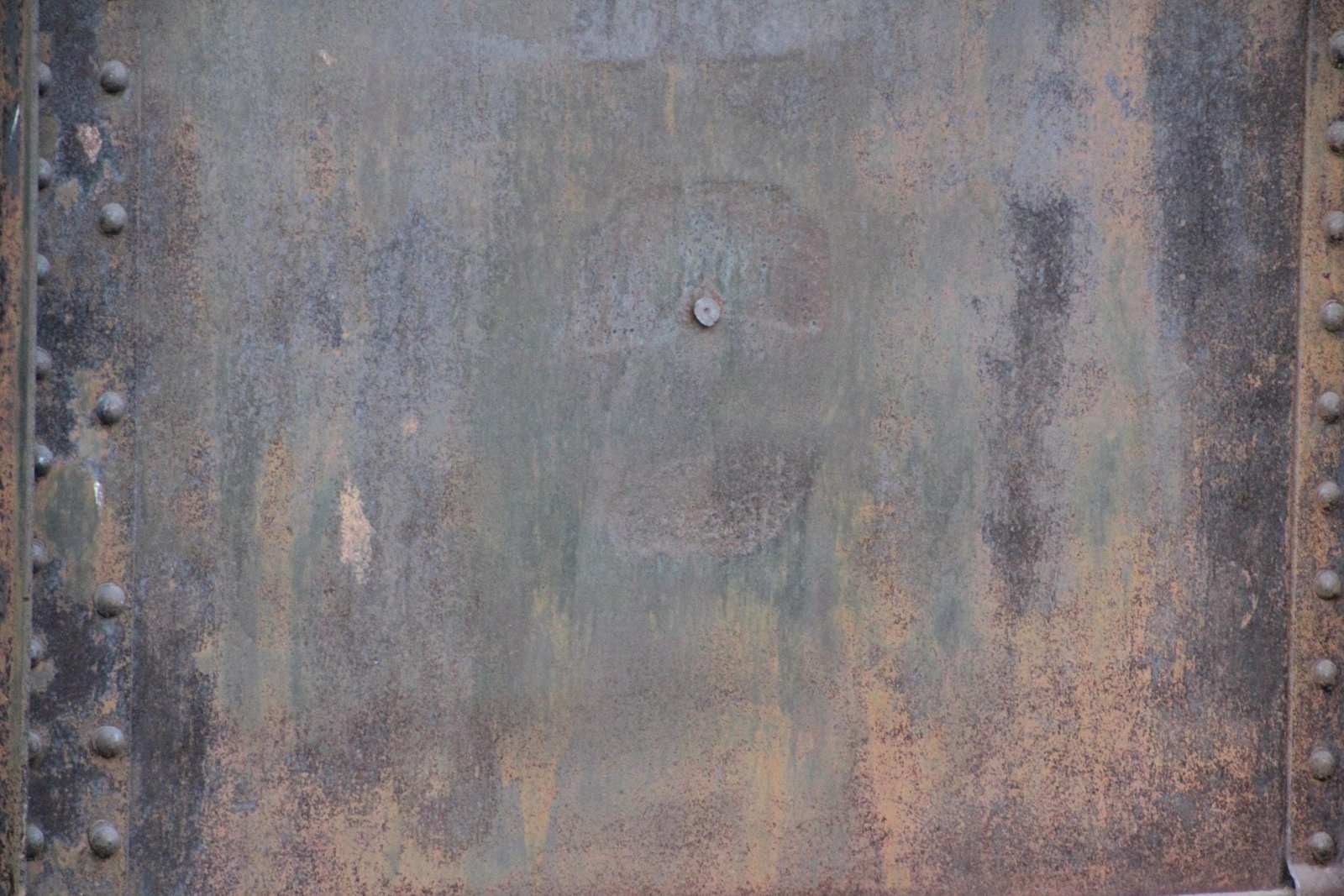

Builder (superstructure) Missing Lassig Bridge & Iron Works plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
