| Name | UP South Skunk River Bridge (Oskaloosa) Minneapolis & St. Louis Railway Bridge #489 |
| Built By | Iowa Central Railway |
| Currently Owned By | Union Pacific Railroad |
| Superstructure Contractor | Phoenix Bridge Company of Phoenixville, Pennsylvania |
| Substructure Contractor | George Cook of Minneapolis, Minnesota |
| Length | 480 Feet Total, 140 Foot Main Span |
| Width | 1 Track |
| Height Above Ground | 30 Feet (Estimated) |

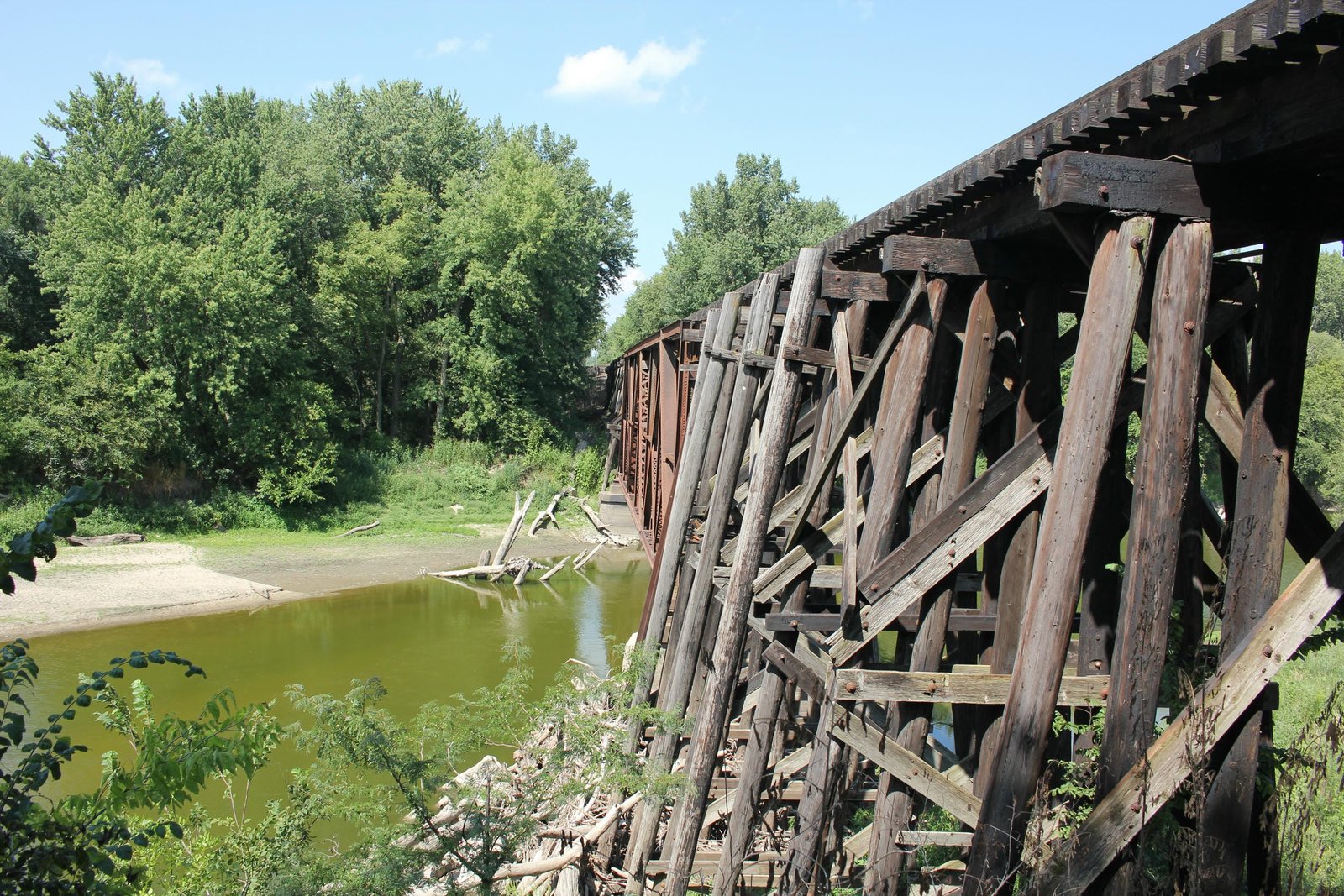

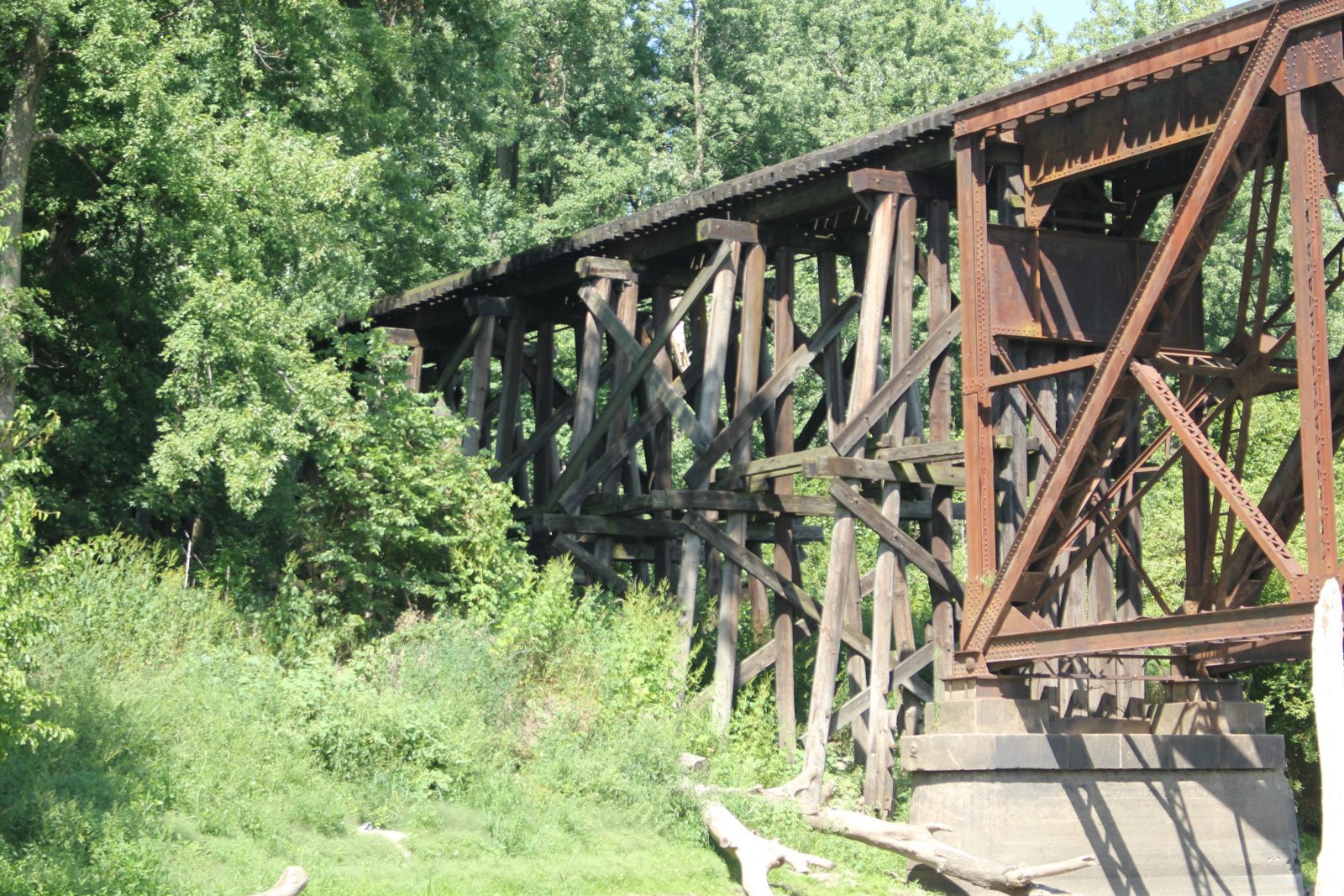

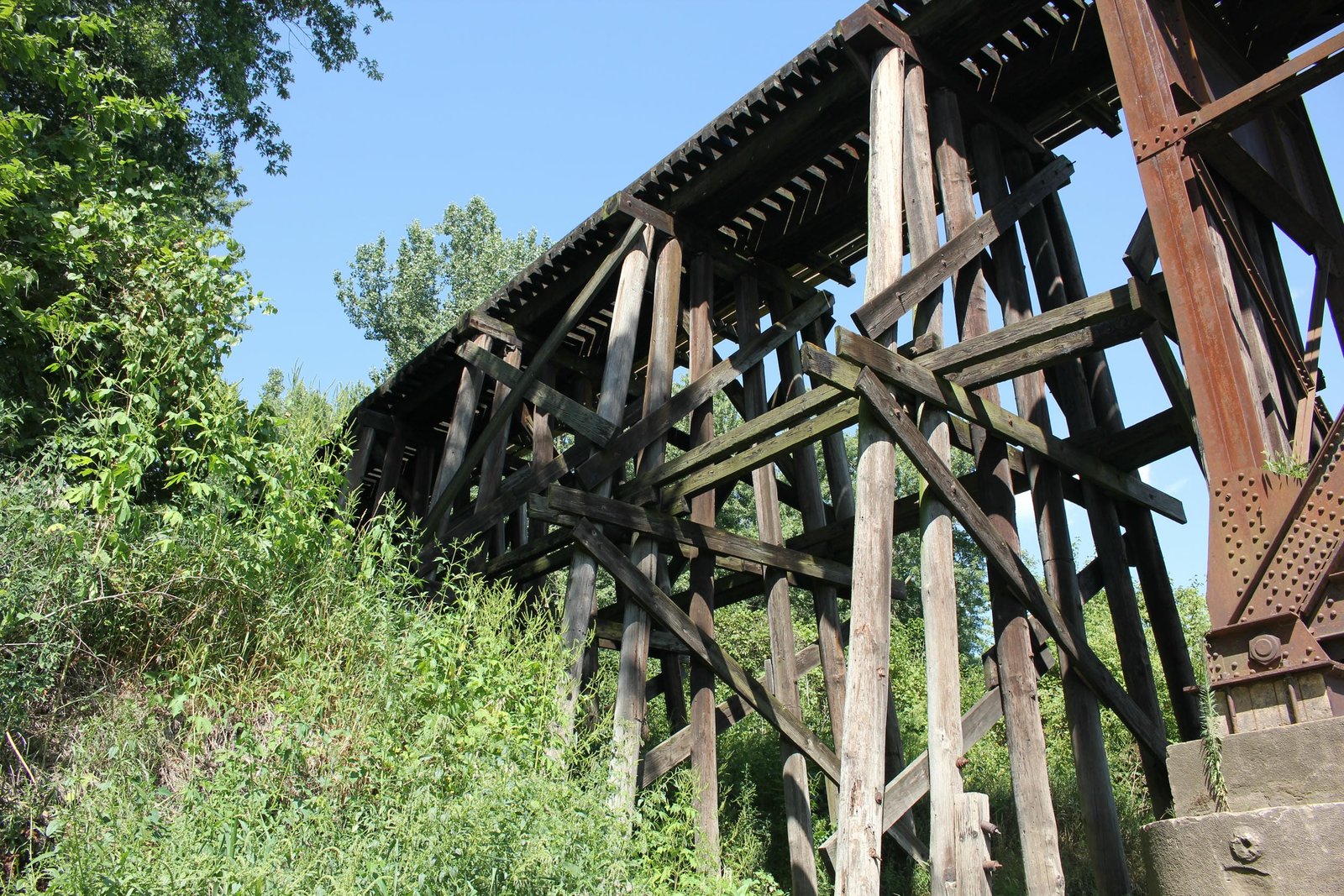

| Superstructure Design | Modified Warren Deck Truss and Timber Pile Trestle |
| Substructure Design | Concrete and Timber Pile |
| Date Built | 1901 |
| Traffic Count | 2 Trains/Day (Estimated) |
| Current Status | In Use |
| Minneapolis & St. Louis Railway Bridge Number | 489 |
| Union Pacific Railroad Bridge Number | 296.86 |
| Significance | Regional Significance |
| Documentation Date | 8/19/2017 |
In 1867, the Eldora Railroad and Coal Company (ERC) began construction on a 16 mile railroad, connecting Ackley, Iowa to Eldora, Iowa, completing the line in 1868. In September, the ERC was sold to the Iowa River Railway (IRR). Also in 1868, the IRR completed an additional 27 miles of railroad between Eldora and Marshalltown, Iowa. In September 1869, the IRR was sold to the Central Railroad Company of Iowa (CRCI). Between 1870 and 1871, the CRCI completed 65 miles of new railroad, extending from Northwood, Iowa; through Mason City, Iowa, to Ackley. Also in 1871, the CRCI completed an additional 81 miles of new railroad, extending from Marshalltown to Albia, Iowa. In 1877, the Burlington, Cedar Rapids & Northern Railway (BCR&N) completed 5 miles of new railroad between the State Line and Northwood. Between April 1877 and early 1878, the Minneapolis & St. Louis Railway (M&StL) completed 13 miles of railroad between Albert Lea, Minnesota and the Minnesota/Iowa State Line near Northwood. The BCR&N, CRCI and M&StL all had a joint agreement, where the M&StL used the BCR&N tracks to from the State Line to Northwood to interchange with the CRCI, in exchange for the BCR&N being permitted to use the CRCI and M&StL tracks between Albert Lea and Manly, Iowa. In May 1879, the CRCI was sold to the Central Iowa Railway Company (CIRC). CIRC was sold to the Iowa Railway Company in 1888, which was sold to the Iowa Central Railway (IAC) in later that year. In early 1895, the M&StL was reorganized as the Minneapolis & St. Louis Railroad (M&StL). In 1902, the ICR would be leased by the M&StL, and the IAC was formally sold to the M&StL in 1912. The BCR&N agreement was maintained after the BCR&N was purchased by the Chicago, Rock Island & Pacific Railway (Rock Island) in 1903. This section of line became part of the Rock Island "Spine Line", a major line connecting St. Paul, Minnesota and Kansas City, Missouri.
The M&StL was a small midwestern railroad, connecting Minneapolis, Minnesota to Peoria, Illinois. The Albert Lea to Oskaloosa, Iowa segment of this line formed a portion of the principal M&StL mainline. The M&StL mainly served as a bridge railroad, allowing eastern and western railroads to interchange while bypassing the congested terminals at Chicago. The Oskaloosa to Albia segment of this line largely allowed for a connection with the CB&Q and connected to coalfields in south central Iowa. Because the M&StL had light freight density and limited passenger service, the railroad survived on razor thin margins and often was in financial stress. The M&StL would later reorganize as the Minneapolis & St. Louis Railway in approximately 1920. Through the 1930s, the railroad focused on trimming excess routes and improving the financial situation. After leaving receivership in 1943, the M&StL invested significant capital upgrading infrastructure and modernizing equipment. By the 1950s, it became clear that the M&StL would need to merge with a larger railroad to survive. In 1960, the M&StL was purchased by the Chicago & North Western Railway (C&NW) during one of the first major railroad consolidations in the second half of the 20th Century. The same year, the M&StL would be abandoned between Givin and Eddyville in favor of the parallel Rock Island line.
The C&NW already operated an oversaturated railroad network in Iowa, although this line served as a north/south mainline for the C&NW. C&NW maintained this route as a secondary mainline for several years. In 1968, the C&NW purchased the Chicago Great Western Railway (CGW), which operated a parallel route between Manly and Mason City. As a result, the C&NW abandoned the line between Manly and the north side of Mason City, and sold the remaining line in Mason City to the Iowa Traction Railroad (IATR). In 1981, the C&NW purchased the Spine Line after the Rock Island went bankrupt. This line was better constructed than the former M&StL, and provided a more direct route between more major terminals. The Spine Line ran roughly parallel to this line, and at several points was within only a few miles of this line. In 1988, the C&NW petitioned to abandon the line between Hampton and Steamboat Rock, and the line was acquired by North Central Railway Association (NCRA) and operated by the Illinois Central Railroad (IC). The segment between Rockwell and Sheffield would be abandoned in 1990, and the segment between Maxon and Albia would be abandoned in 1994.
In 1995, the C&NW was purchased by Union Pacific Railroad (UP). In 2001, the segment between Hampton and Geneva was abandoned, and in 2003, a connection was constructed at Chapin so that the Sheffield to Hampton segment could be abandoned, except for a short industrial lead at Chapin. In 2006, the Iowa River Railroad was formed to purchase a segment between Steamboat Rock and Marshalltown, as well as the former NCRA line between Ackley and Steamboat Rock. In 2007, the line between Eddyville and Maxon would be abandoned. In 2012, the IARR abandoned the line between Steamboat Rock and Marshalltown. In 2019, IATR abandoned the section in Mason City sso that it could be reused as a trail. Today, UP operates the Marshalltown to Eddyville segment as the Oskaloosa Subdivision; the Albert Lea to Manly segment as part of the Albert Lea Subdivision, and the Mason City to Rockwell segment as the Rockwell Industrial Lead. IARR continues to operate a short segment between Ackley and Steamboat Rock, and UP continues to operate a short segment at Chapin. In Mason City, the line is currently being developed as the High Line Trail; while the Steamboat Rock to Marshalltown segment is currently being developed as the Iowa Rivers Edge Trail. A short trail also uses the former right-of-way between Sheffield and Chapin. The remainder of the line has been abandoned, and most has been converted to farm fields.

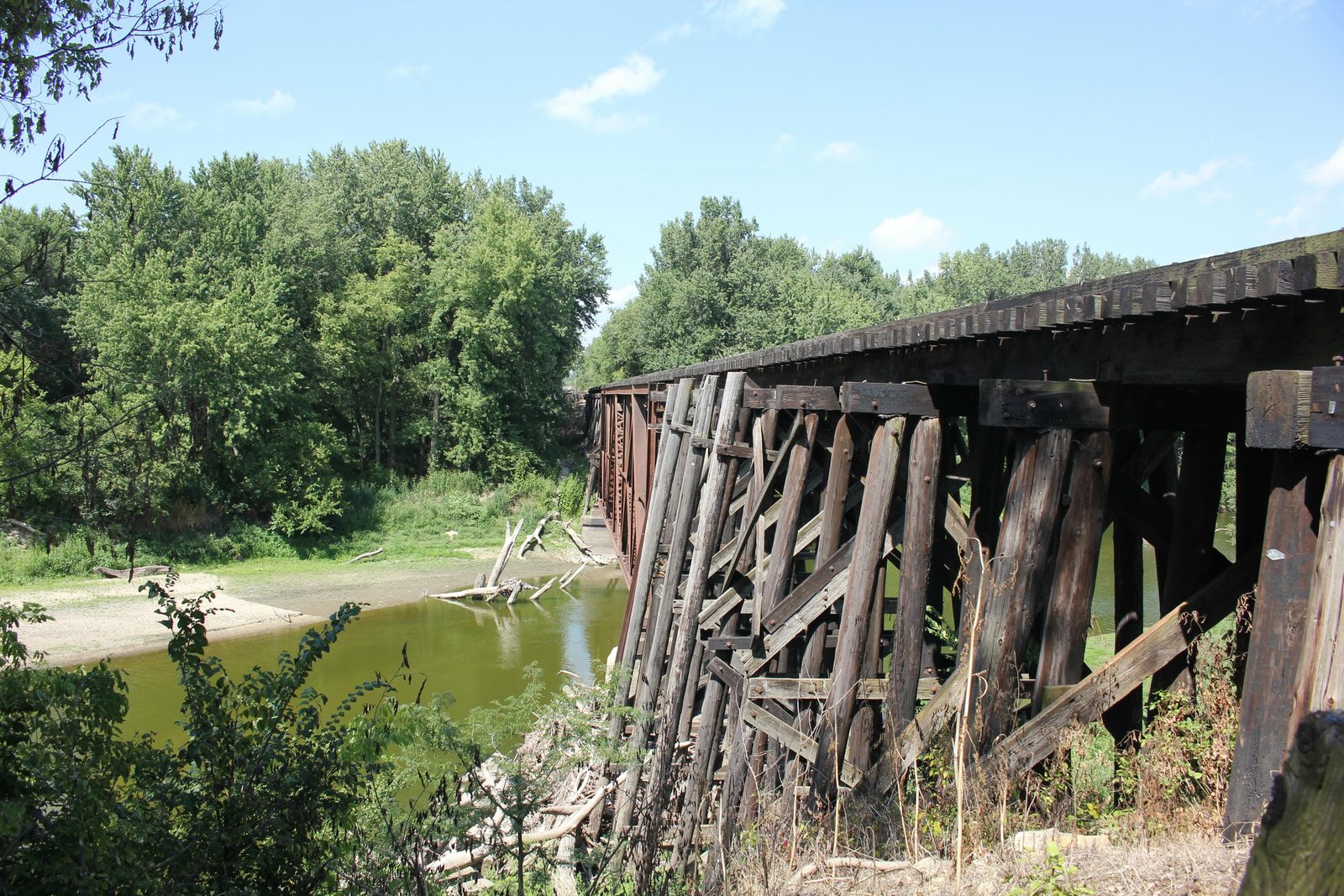

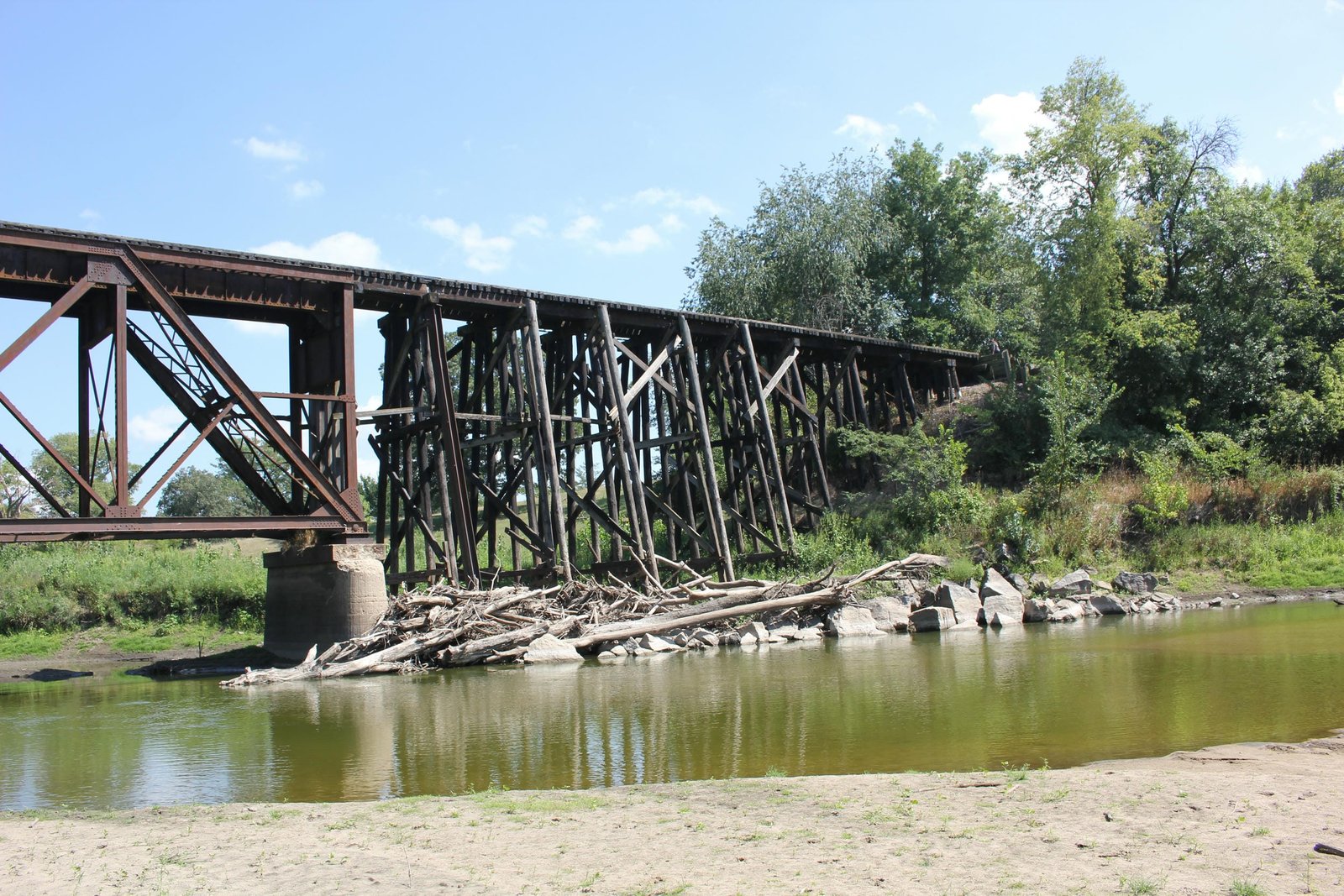

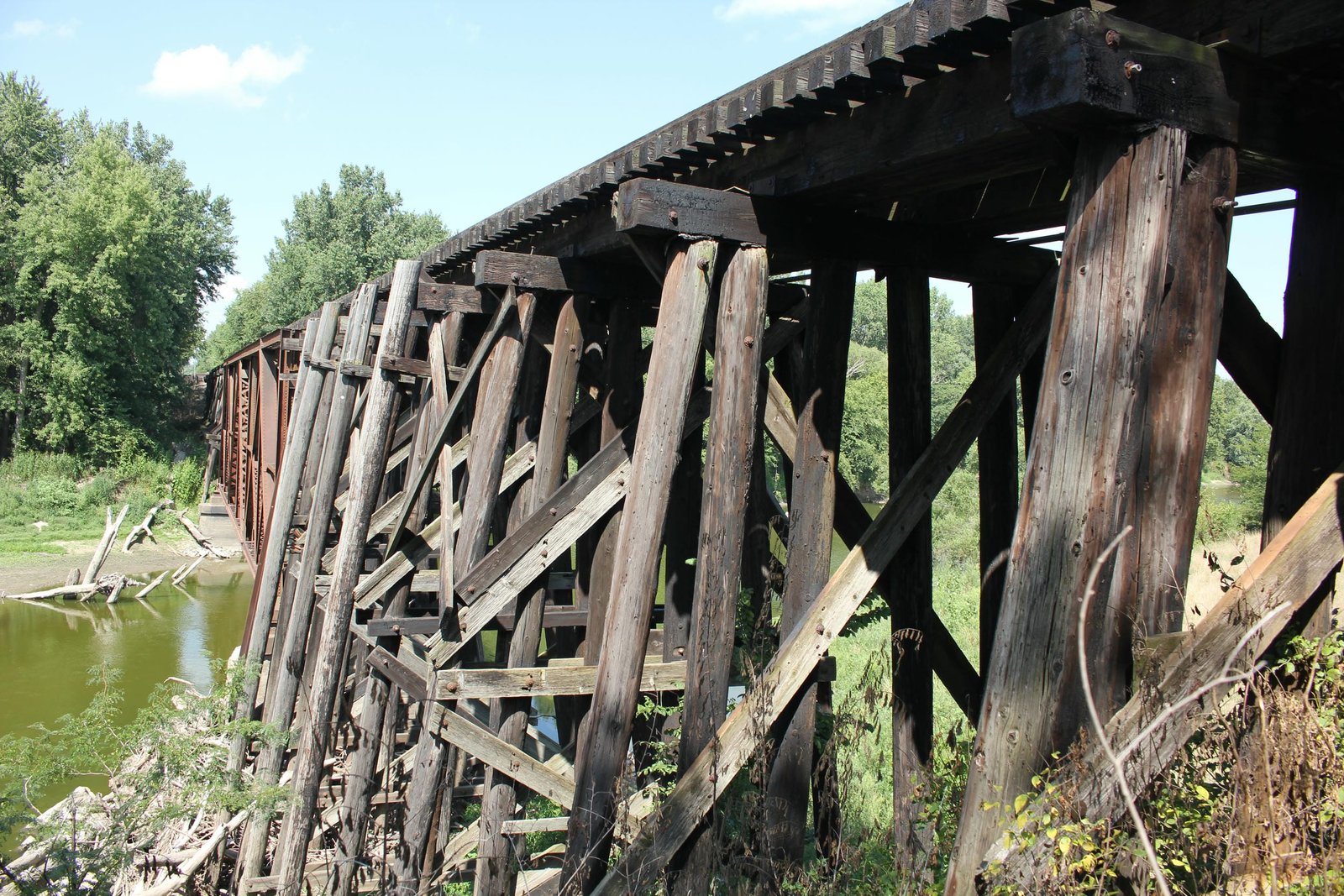

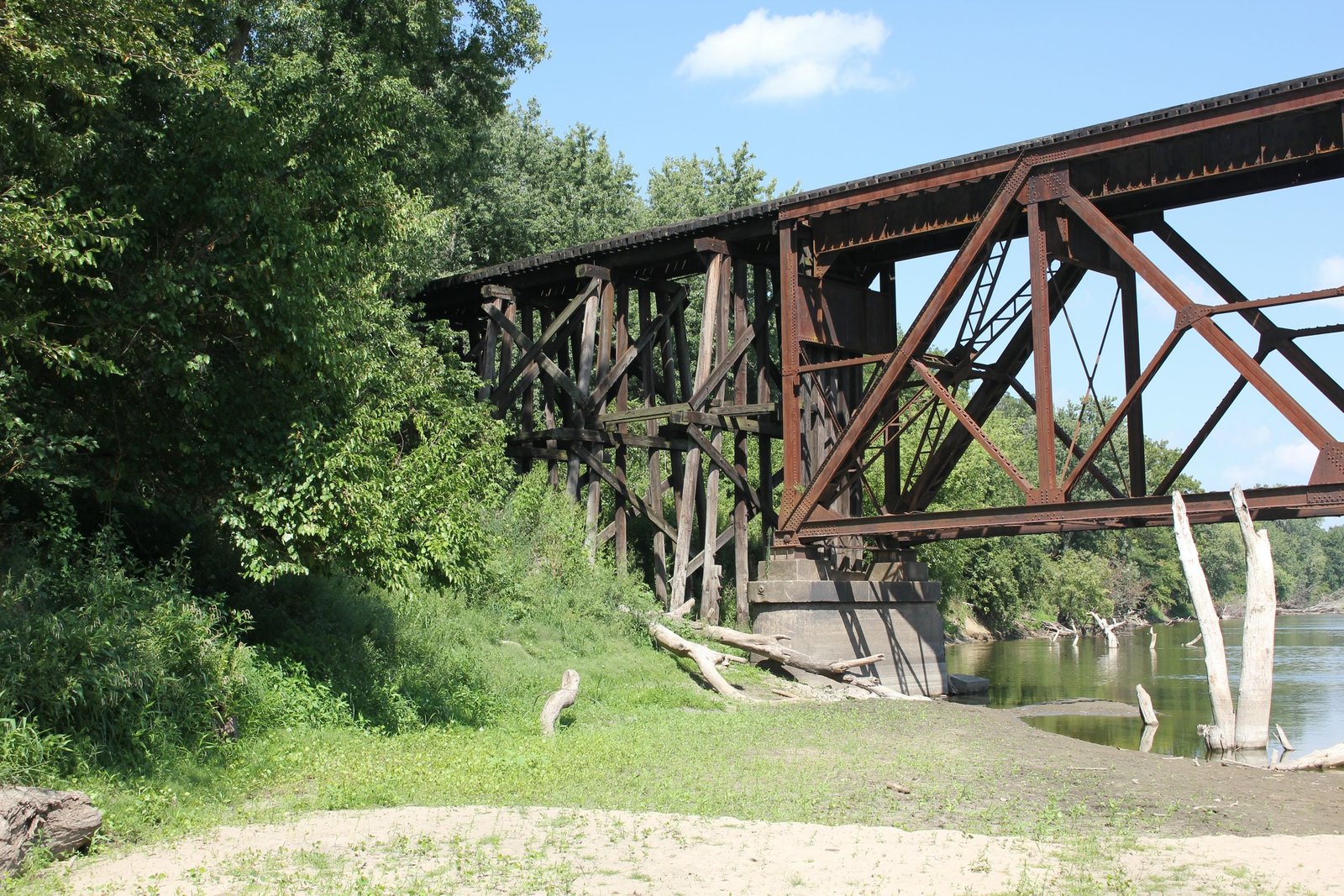

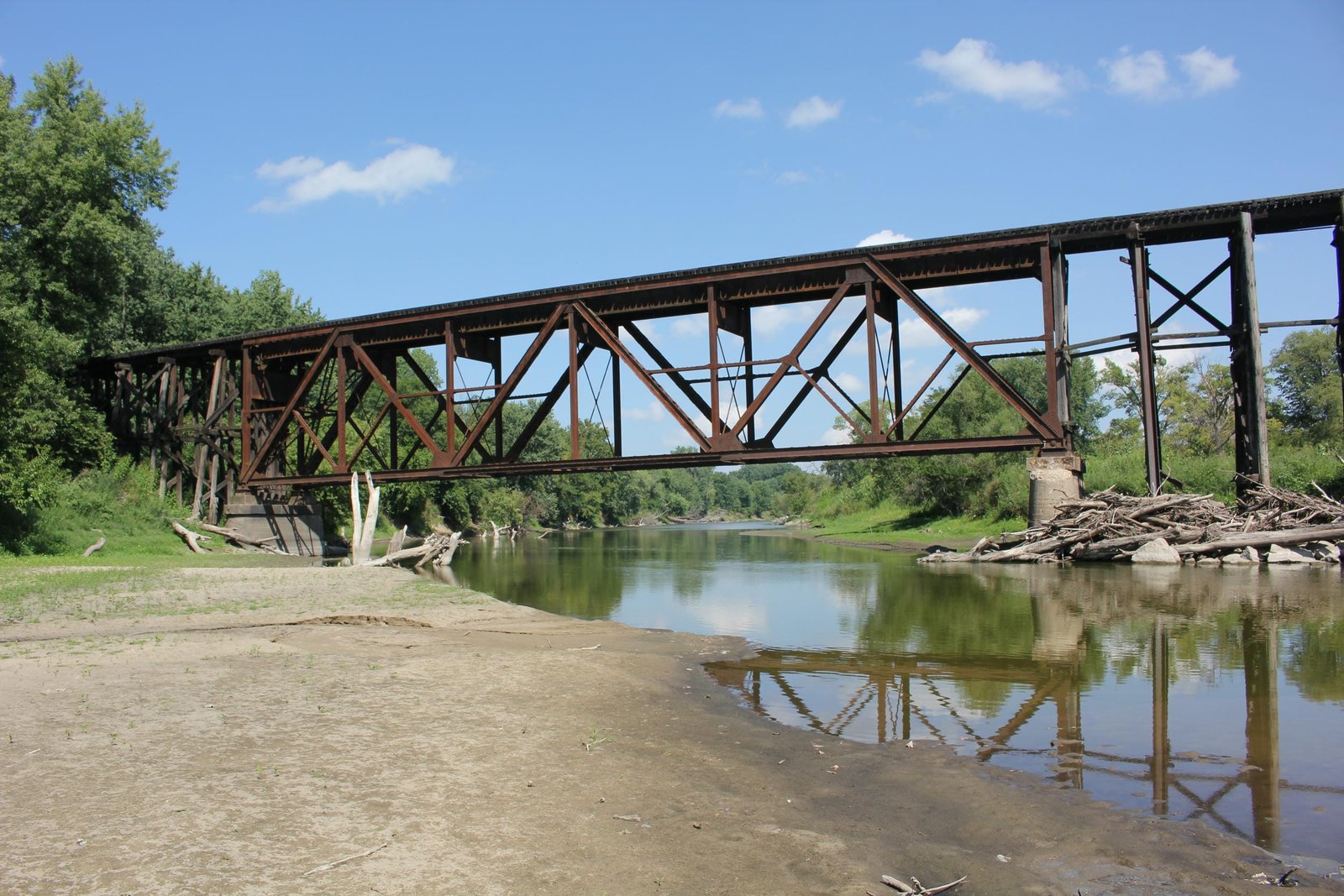

Located north of Oskaloosa, this unusual deck truss bridge carries a former Minneapolis & St. Louis Railway mainline over the South Skunk River. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. In 1880, the bridge was replaced with a 122-foot combination Howe through truss span, believed to have been set onto timber pile substructures. The bridge was renewed with an iron Pratt through truss span in 1892, although it is unclear if stone piers were constructed at that time. In the late 19th and early 20th Centuries, the Iowa Central invested significant capital into this line, replacing aging timber bridges and light iron bridges with new steel and concrete structures. In 1901, a major project was undertaken to improve the railroad through "Lacey Hill", which had harsh grades between Oskaloosa and New Sharon. Between August 1901 and July 1902, large orders were placed with the Phoenix Bridge Company for several different types of truss and girder spans. A deck truss span was ordered for the South Skunk River bridge in August 1901, and was delivered and installed later that year. Currently, the bridge consists of an unusual 140-foot, riveted, 6-panel modified Warren deck truss span, approached by ten timber pile trestle spans on the south end and sixteen spans on the north end. The truss span is set onto concrete piers, while the remainder of the bridge is supported by timber pile bents. Phoenix Bridge Company fabricated the superstructure, while the piers were constructed by George Cook. Both firms were heavily involved with bridge construction for the Iowa Central, particularly for the construction of steel bridges in the early 20th Century.

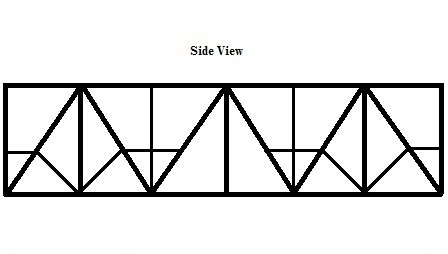

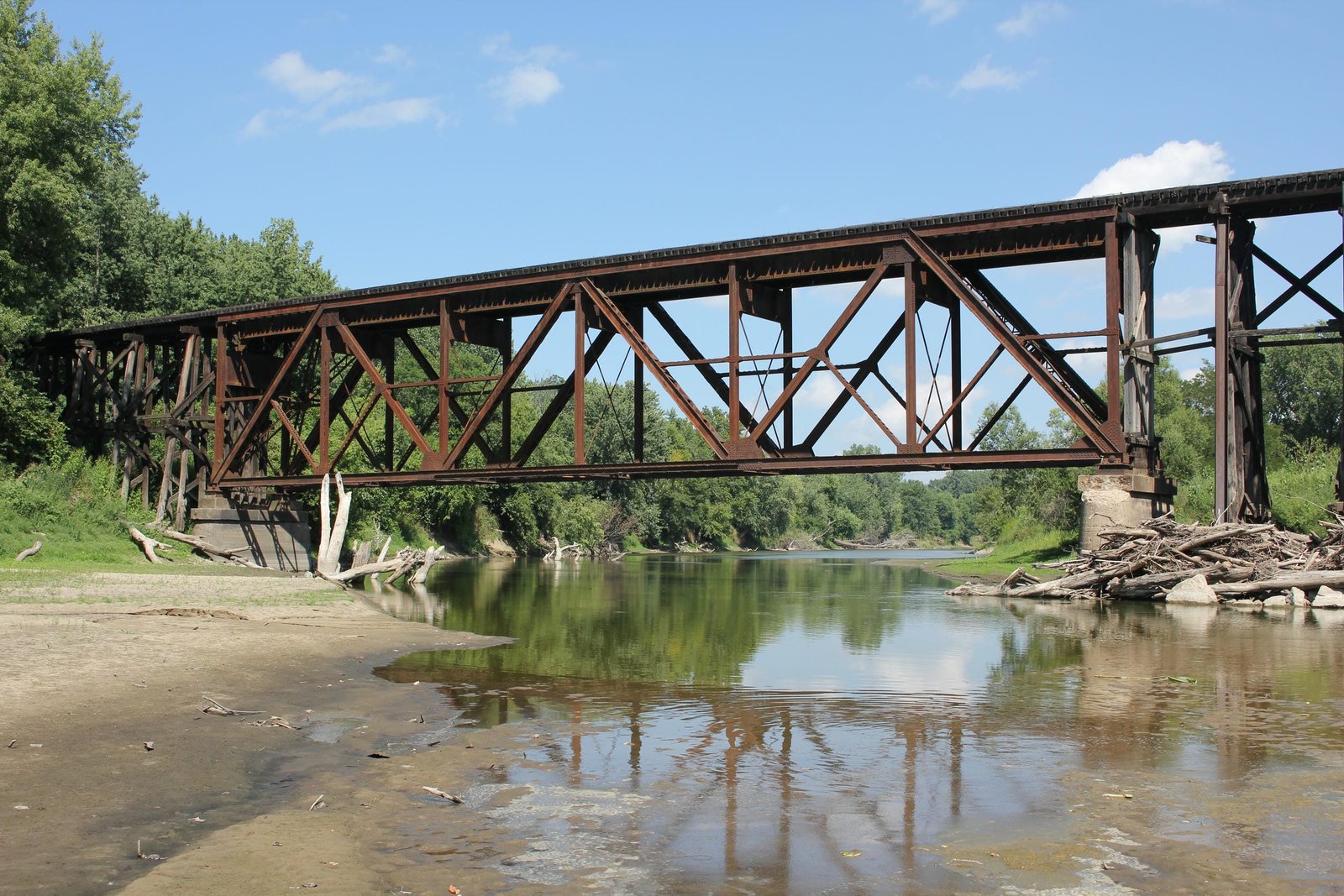

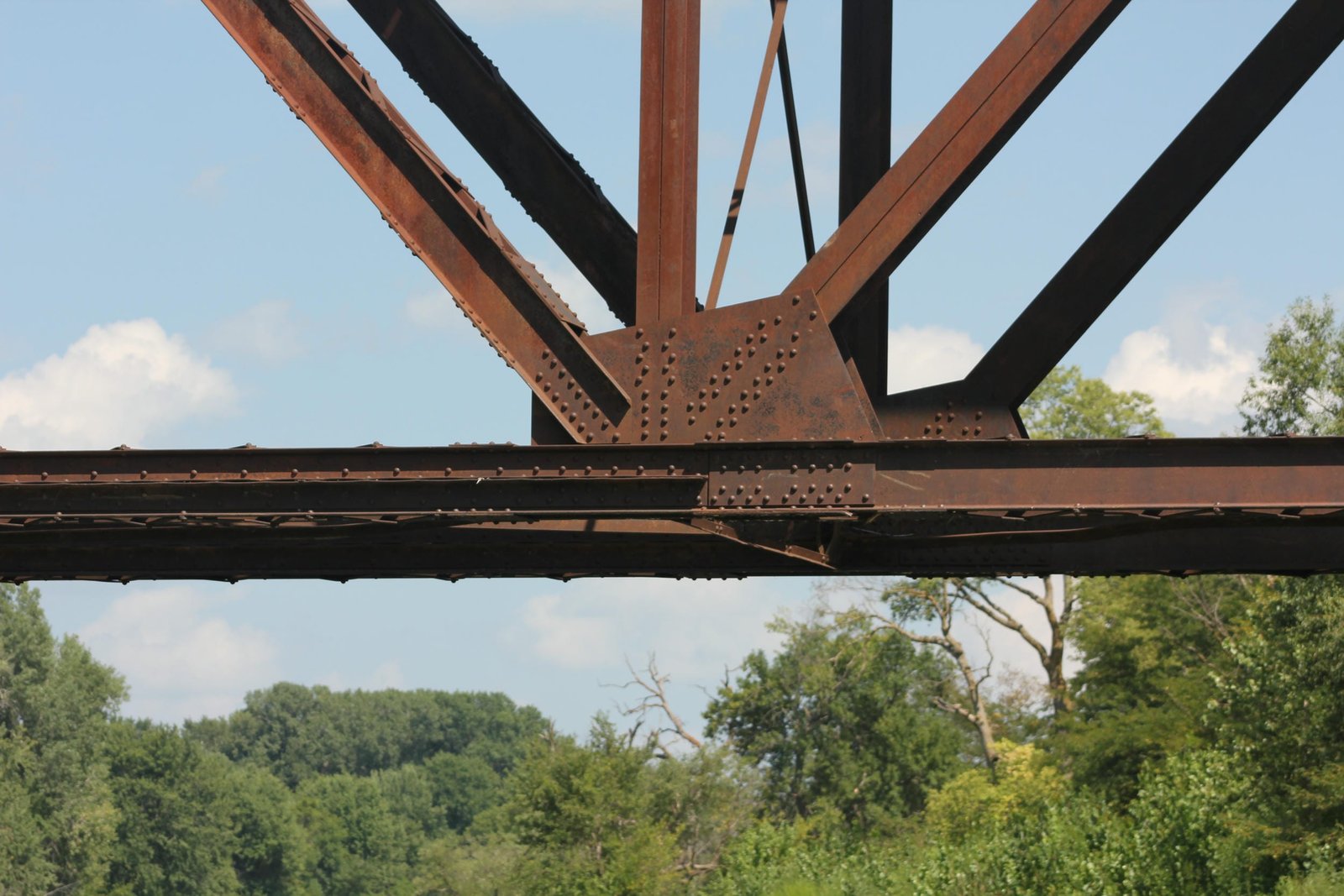

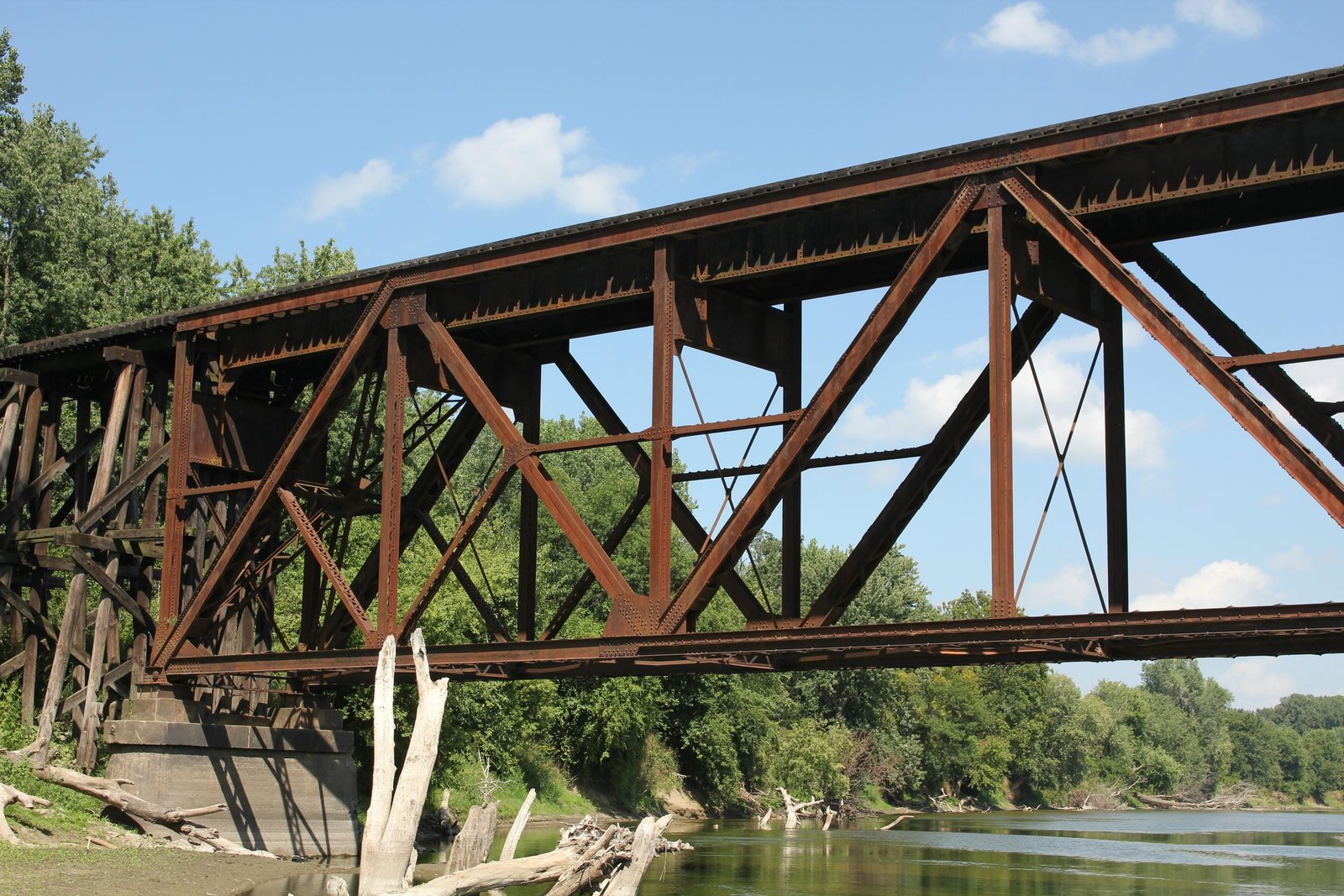

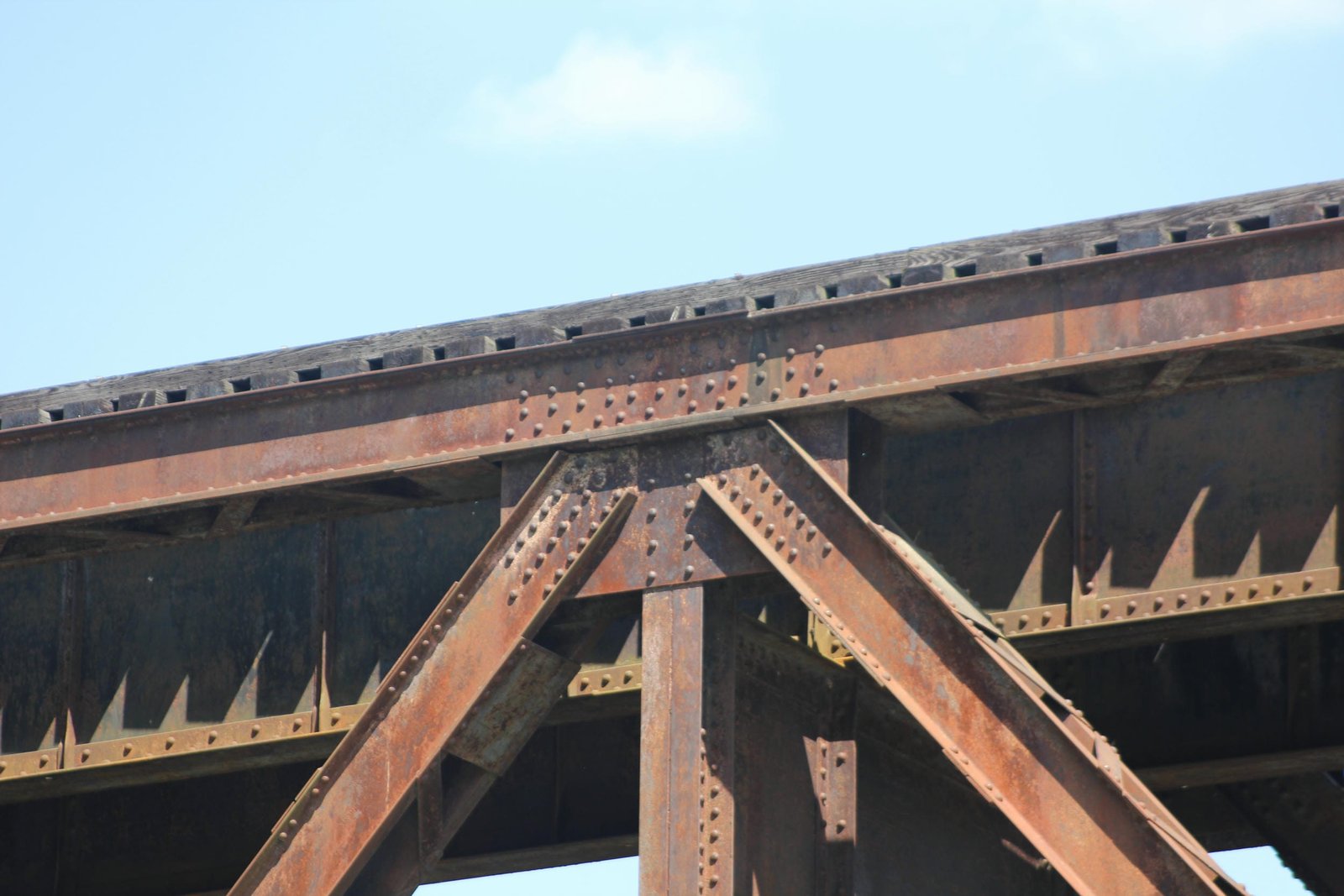

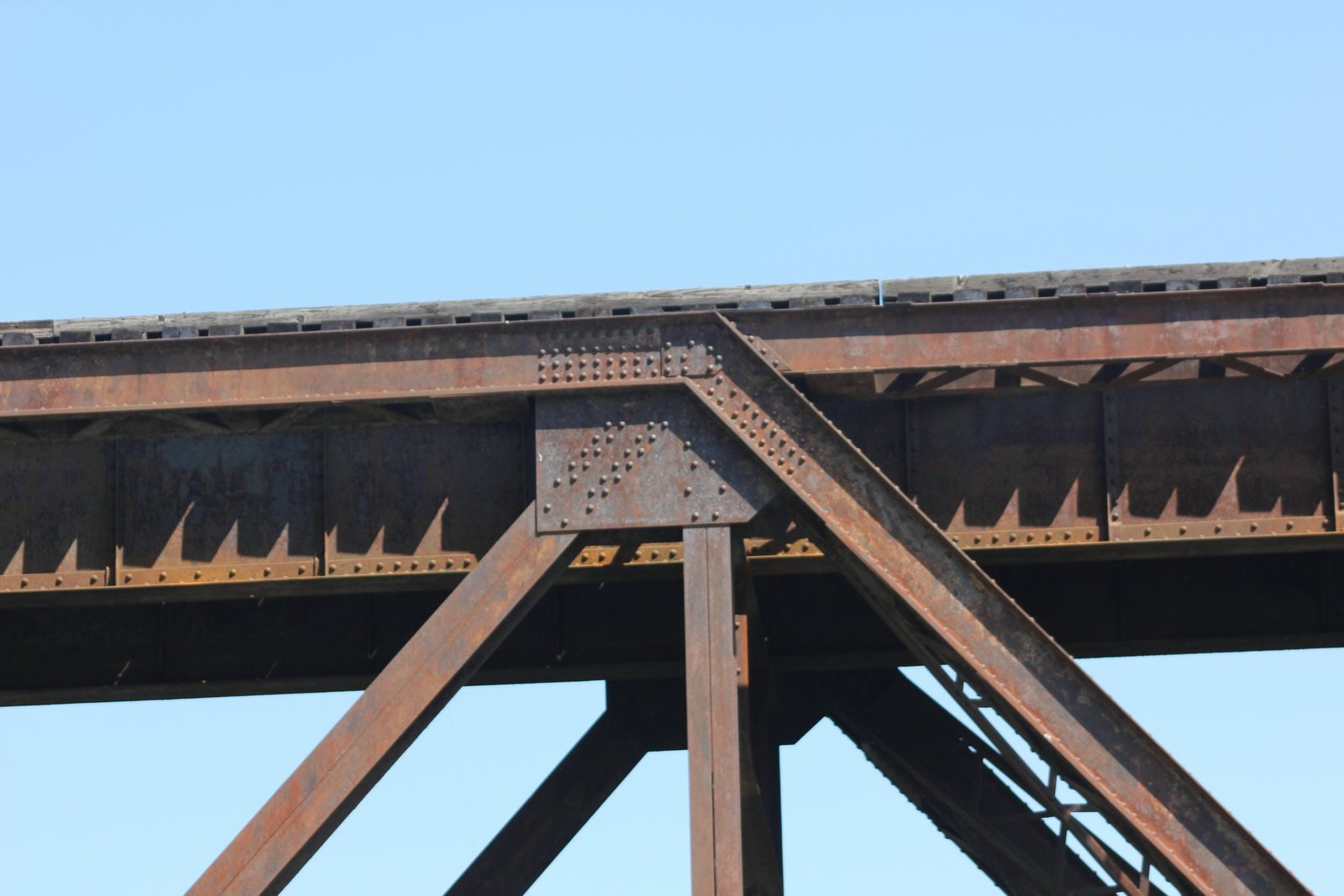

The truss span follows an unusual design, with a unique configuration, heavy floor system and built-up members. The top chord uses a built-up design, consisting of two U-shaped channels joined by V-lacing on both sides. There are two endposts present on the main span, both an inclined endpost across the outer panels and a vertical endpost to support the floor. The inclined endpost consists of a built-up design, formed from two channels connected by V-lacing on the interior and a solid plate on the exterior. The vertical endposts consist of solid beams. The bottom chord consists of two different designs, with the outer panels using a built-up beam with V-lacing on the outside, while the inside panels use two sets of channels sandwiched together and connected by V-lacing on both sides. The vertical members also use two different designs, with solid beams near the center of the truss and V-laced beams at the outer panels. All of the diagonal members are composed of V-laced beams of different styles. Unique to this bridge, additional diagonal and longitudinal members are present on this span, and both are composed of V-laced beams. The floor system is heavily constructed, with massive plate girder floorbeams and two stringers. At the end floorbeams, the floorbeams are set further down the truss than the main floorbeams. The stringers are braced by additional cross frames, similar to a traditional plate girder span. A series of V-laced beams form an "X" shape between the inclined endposts, and are connected at the intermediate connections by a transverse V-laced beam. The remainder of the interior bracing is formed with traditional L-shaped bars. Transverse bracing is present between the lower connections, and consists of V-laced beams. The piers use a standard design, consisting of rounded concrete rectangles with sandstone caps. The approach spans also use a standard design, with traditional timber pile bents and timber stringers.

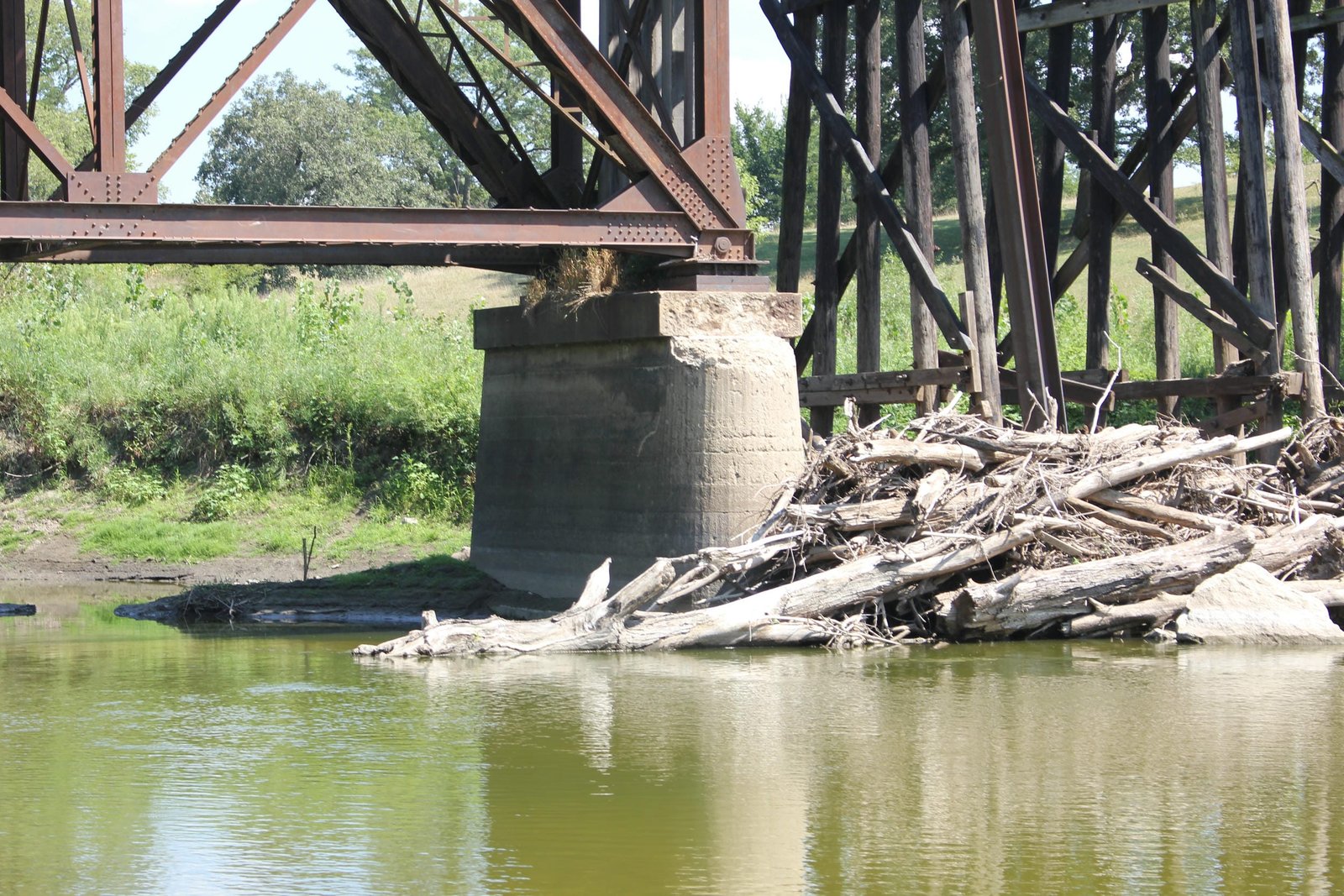

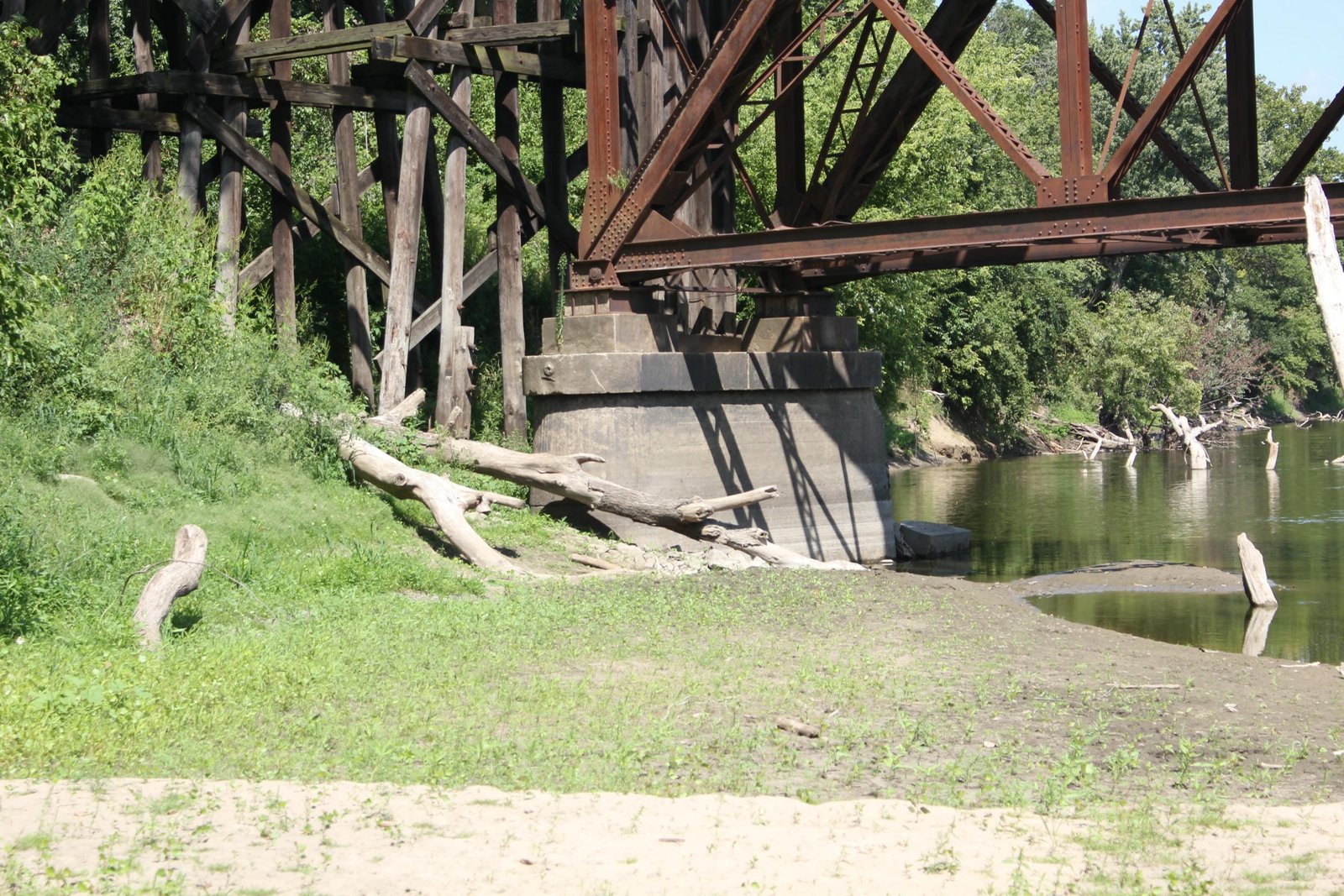

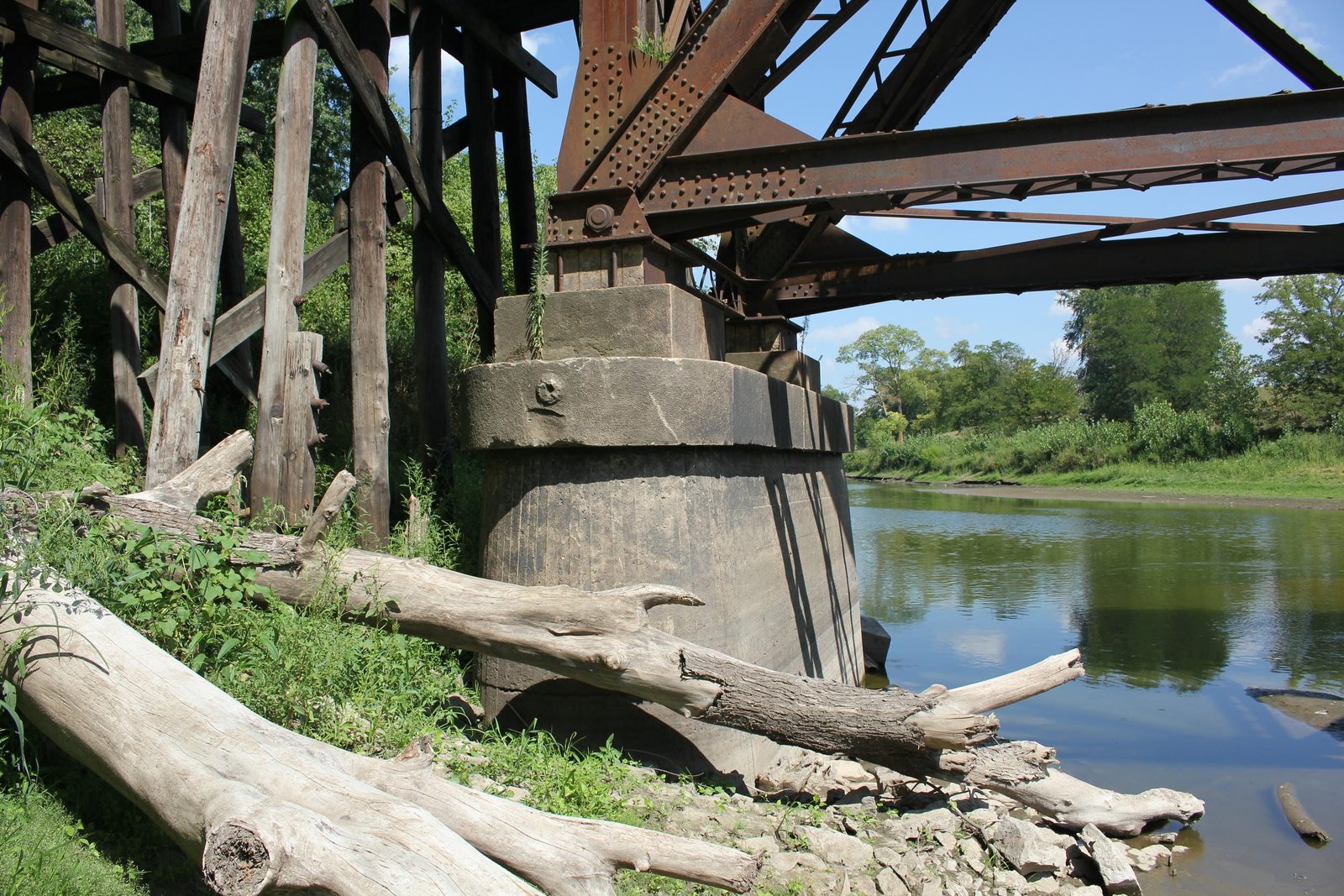

Between 1901 and 1904, a number of unusual truss designs were used for bridges along the Iowa Central Railway. All of these designs were modified from traditional Pratt and Warren designs, and it is unclear why more complex configurations were chosen. In 1901, Julius W. Schaub patented a new type of truss span, which combined pinned and riveted connections on a modified Warren configuration. It is believed that Schaub served as a consultant for the Iowa Central to design a handful of larger truss spans using the Schaub variant design. It is possible that this span was also designed by Schaub, and utilized an experimental design. As part of the same order, a similar size truss span was ordered for use at Mason City, Iowa. Unlike the span present on this bridge, the Mason City truss uses a standard Warren design constructed of similar members. Since the initial construction, the bridge has seen no significant alterations. Today, the bridge remains in use as part of a Union Pacific Railroad branch line. Overall, the bridge appears to be in fair to good condition, with some spalling noted to the piers and some deterioration to the timber components. It appears that much of the steel superstructure remains in good condition with little section loss. The author has ranked this bridge as being regionally significant, due to the unique design.
Citations
| Build date | Minneapolis & St. Louis Railway ICC Valuation Summary Report, courtesy Doug Harding collection |
| Builder (superstructure) | Phoenix Bridge Company order book; part of Phoenix Steel Company records located at the Hagley Museum |
| Builder (substructure) | The Oskaloosa Herald; September 15, 1901 |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
