Name IAIS Fourmile Creek Bridge
Chicago, Rock Island & Pacific Railroad Bridge #3531
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Unknown
Substructure Contractors Unknown
Length 220 Feet Total, 44 Foot Spans
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Stone Masonry and Concrete
Date Built c. 1905
Traffic Count 5 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 3531
Iowa Interstate Railroad Bridge Number 353.02
Significance Local Significance
Documentation Date 7/21/2012; 11/10/2012; 9/29/2017; 12/1/2017

In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa.  As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport.  In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864.  In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867.  In 1869, the line would continue to be extended west towards the Missouri River.  At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.

In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.  Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s.  The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

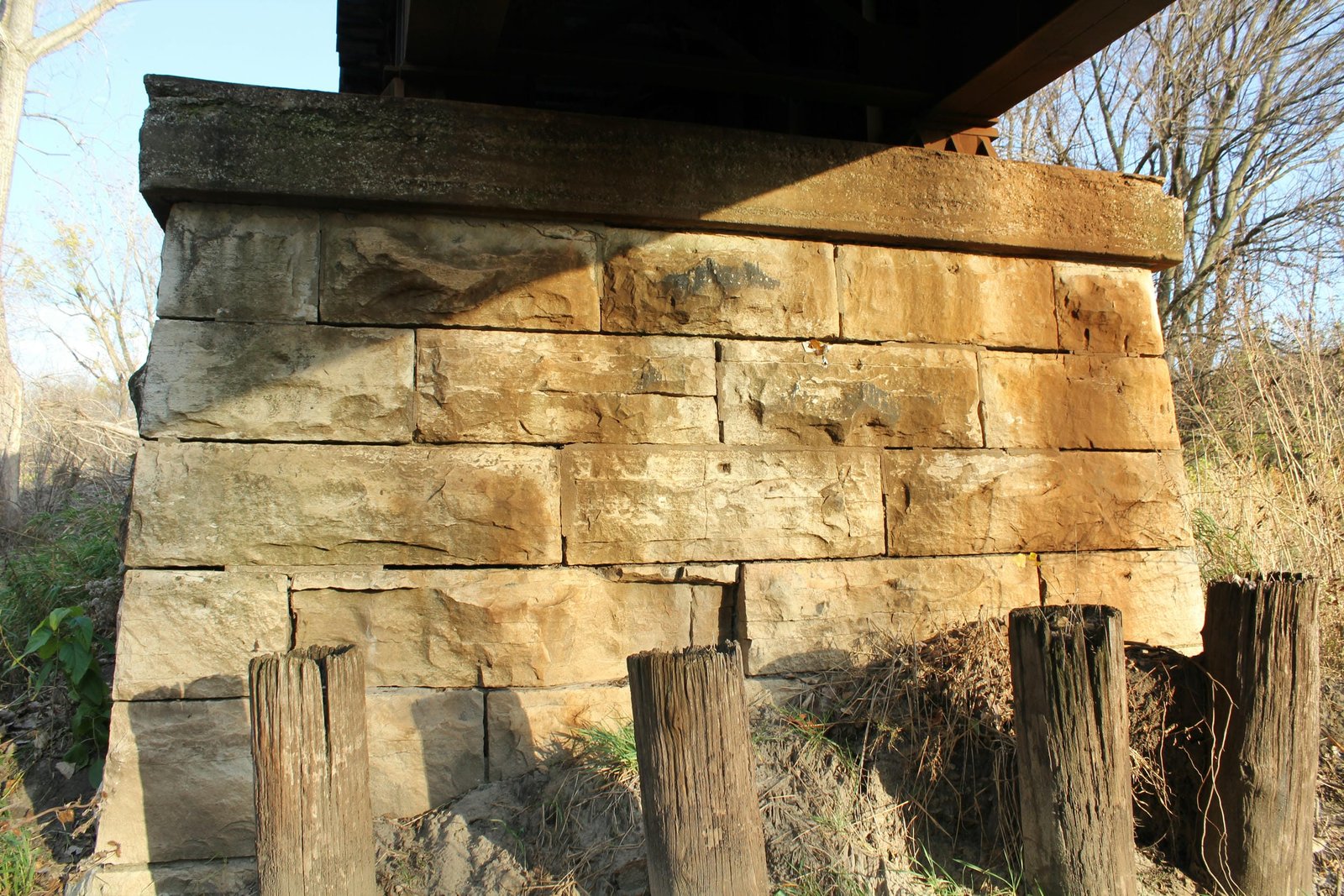

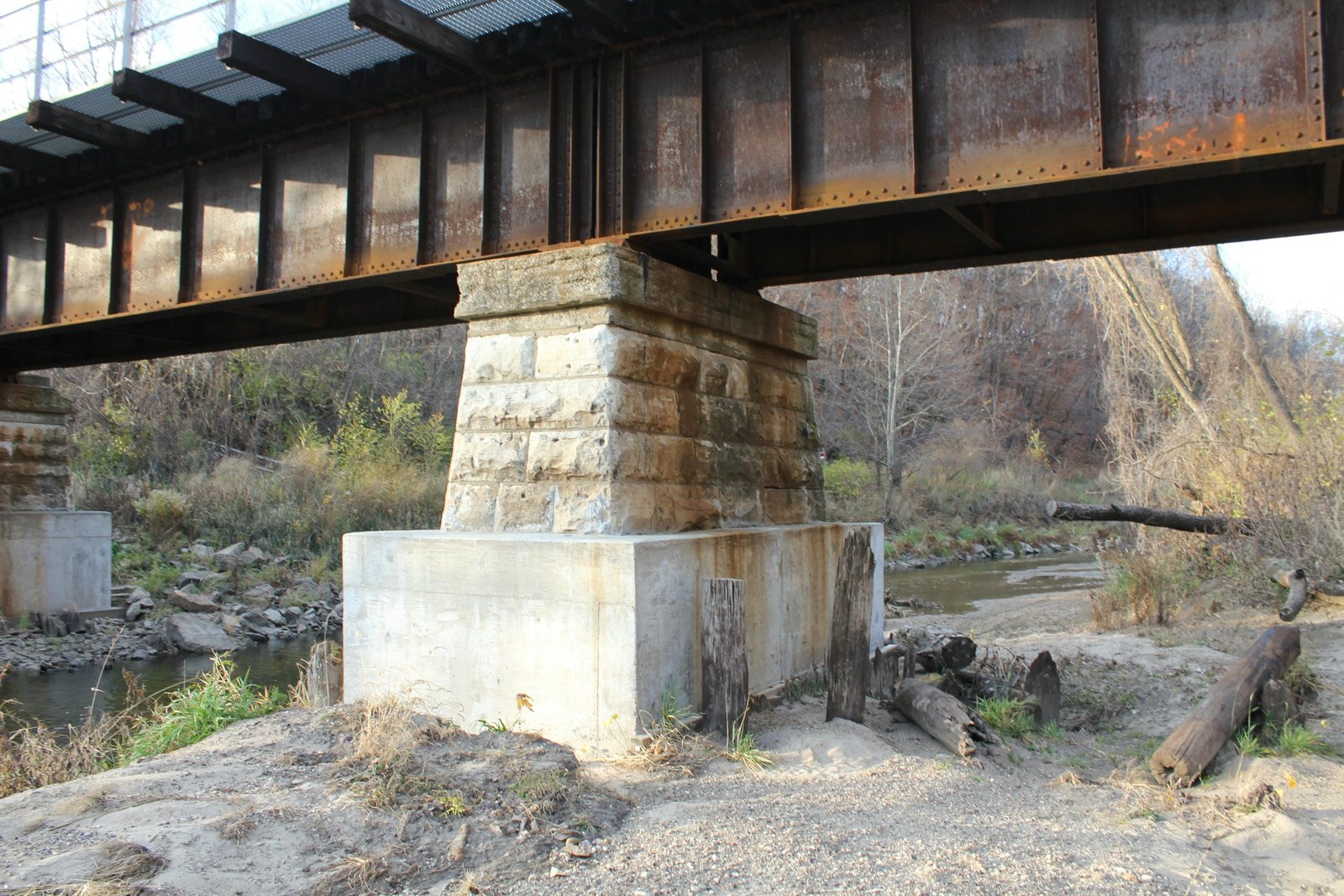

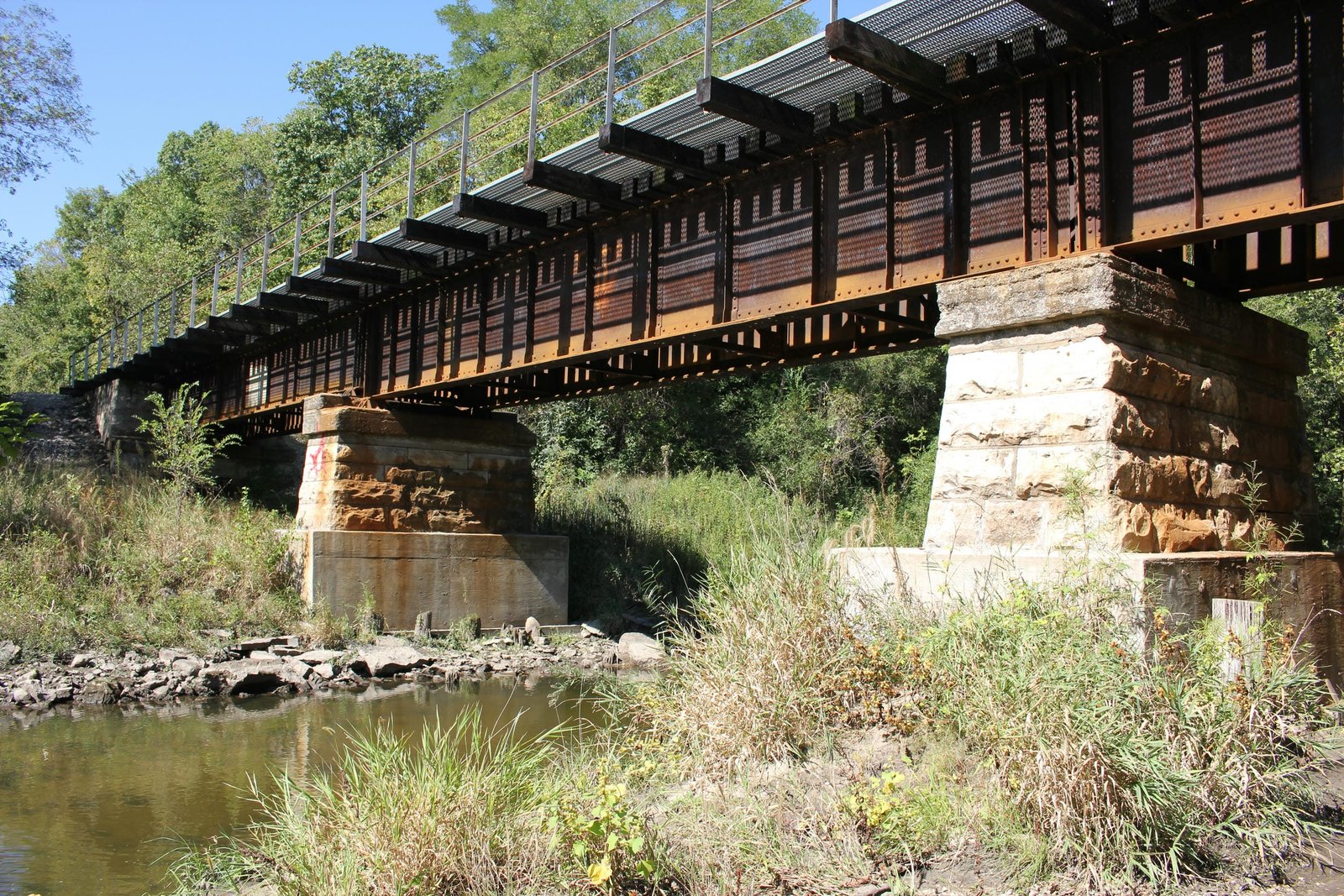

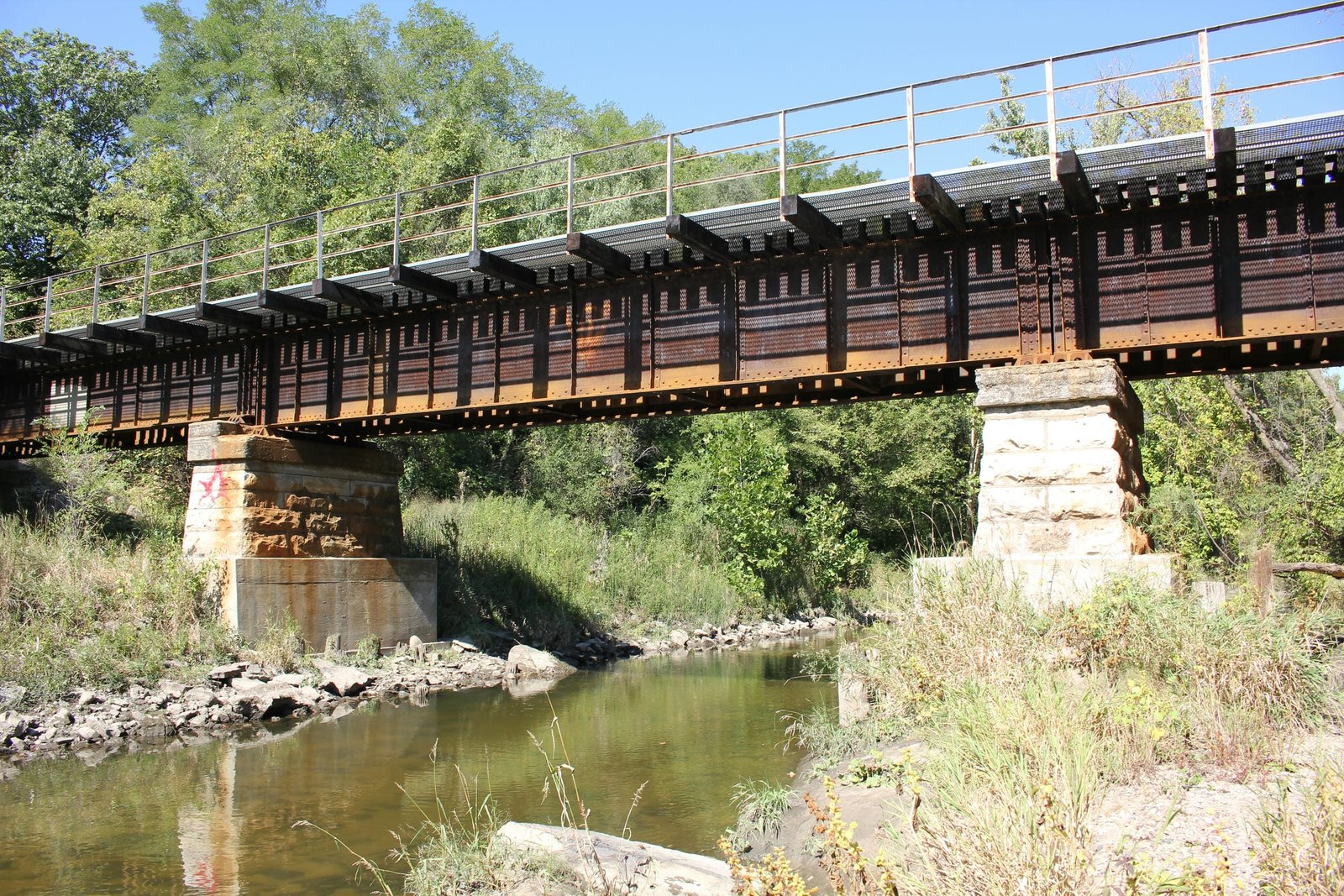

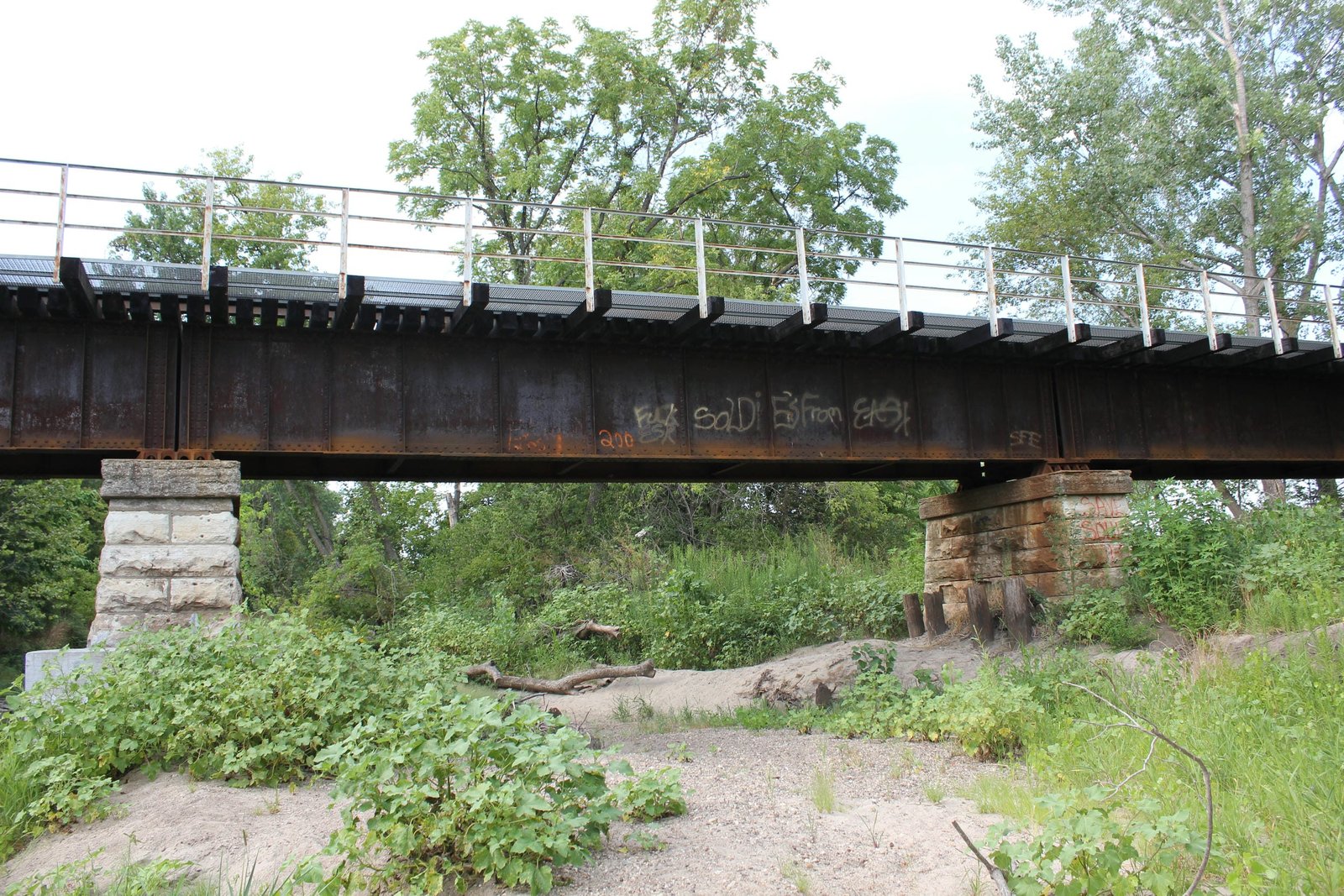

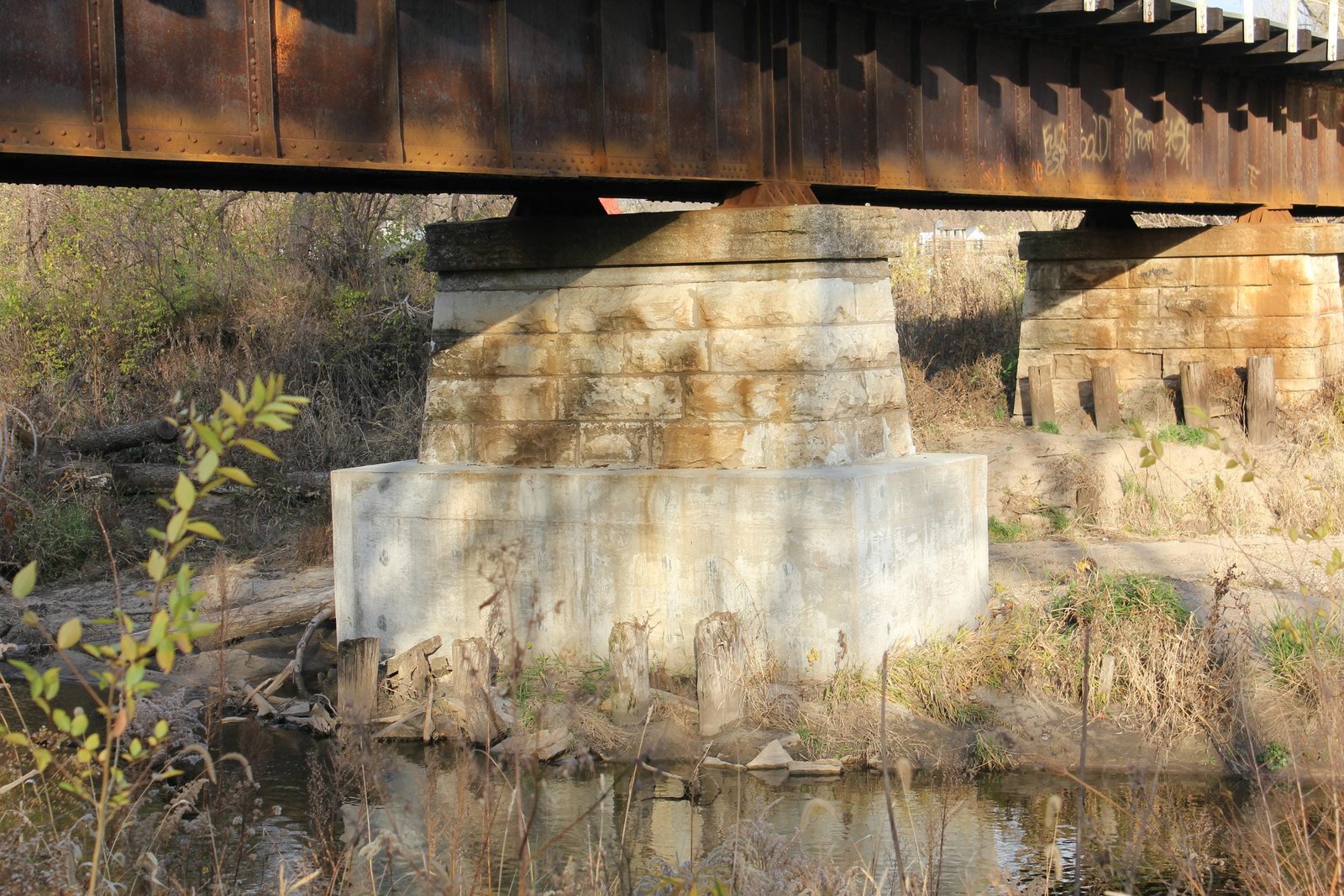

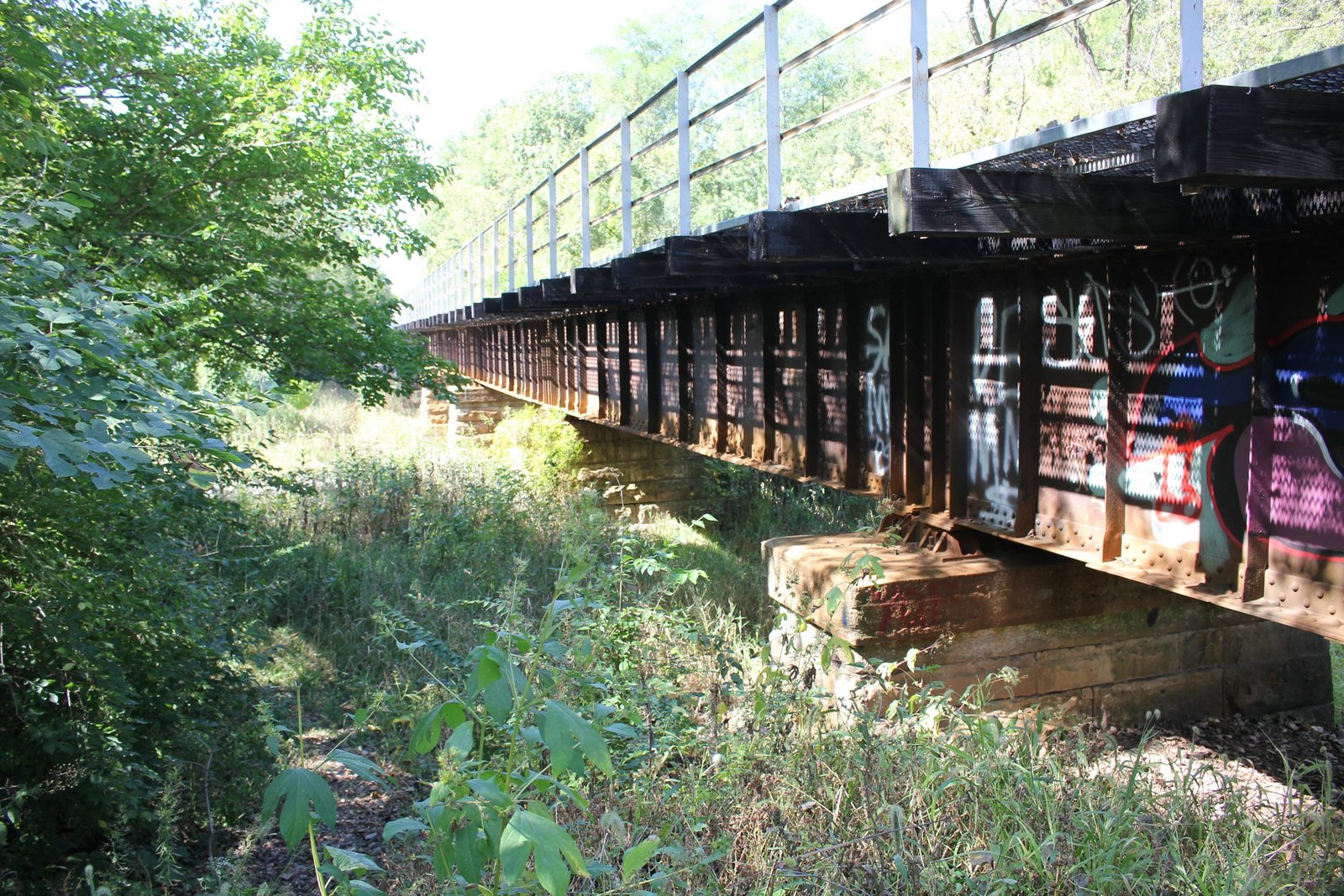

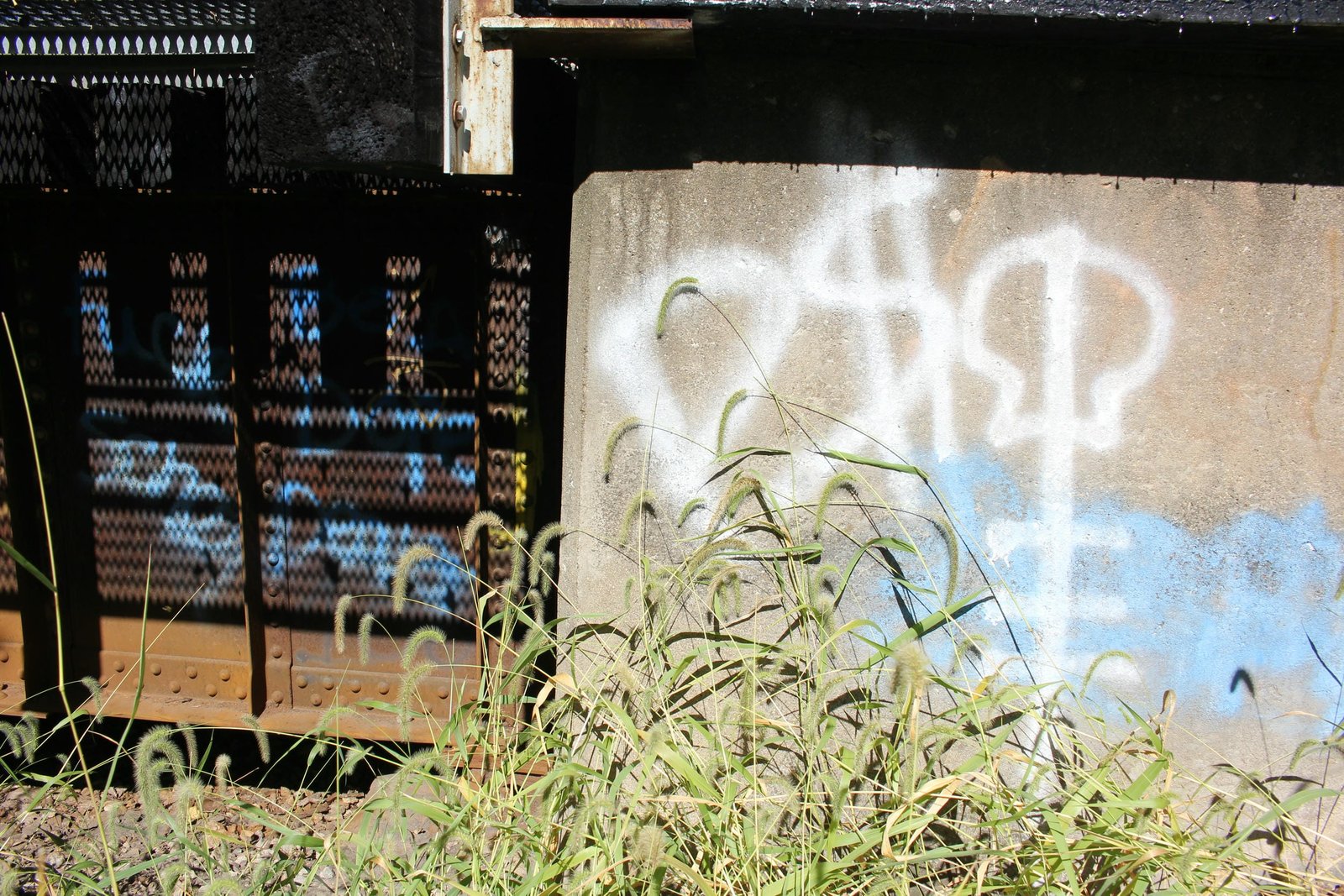

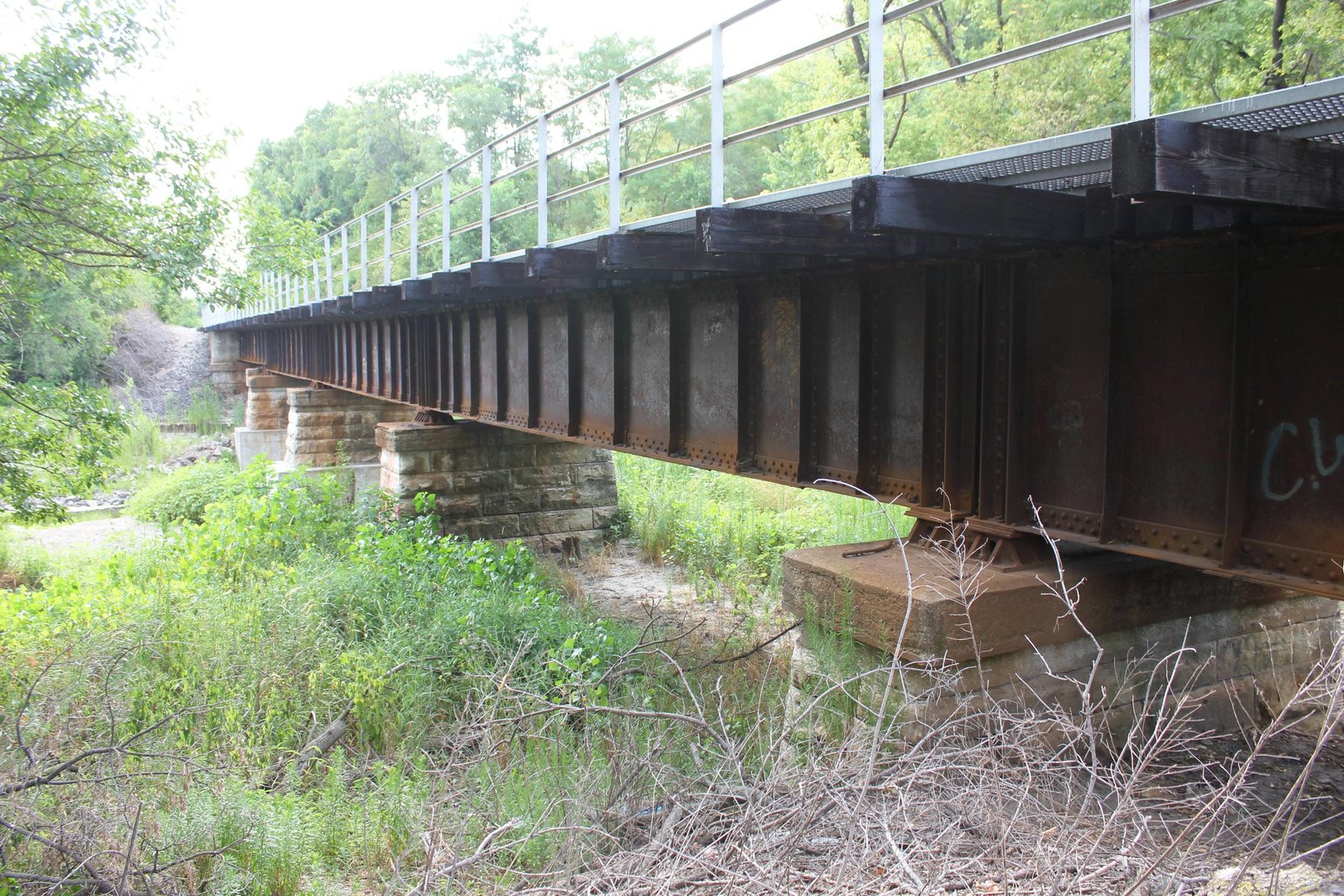

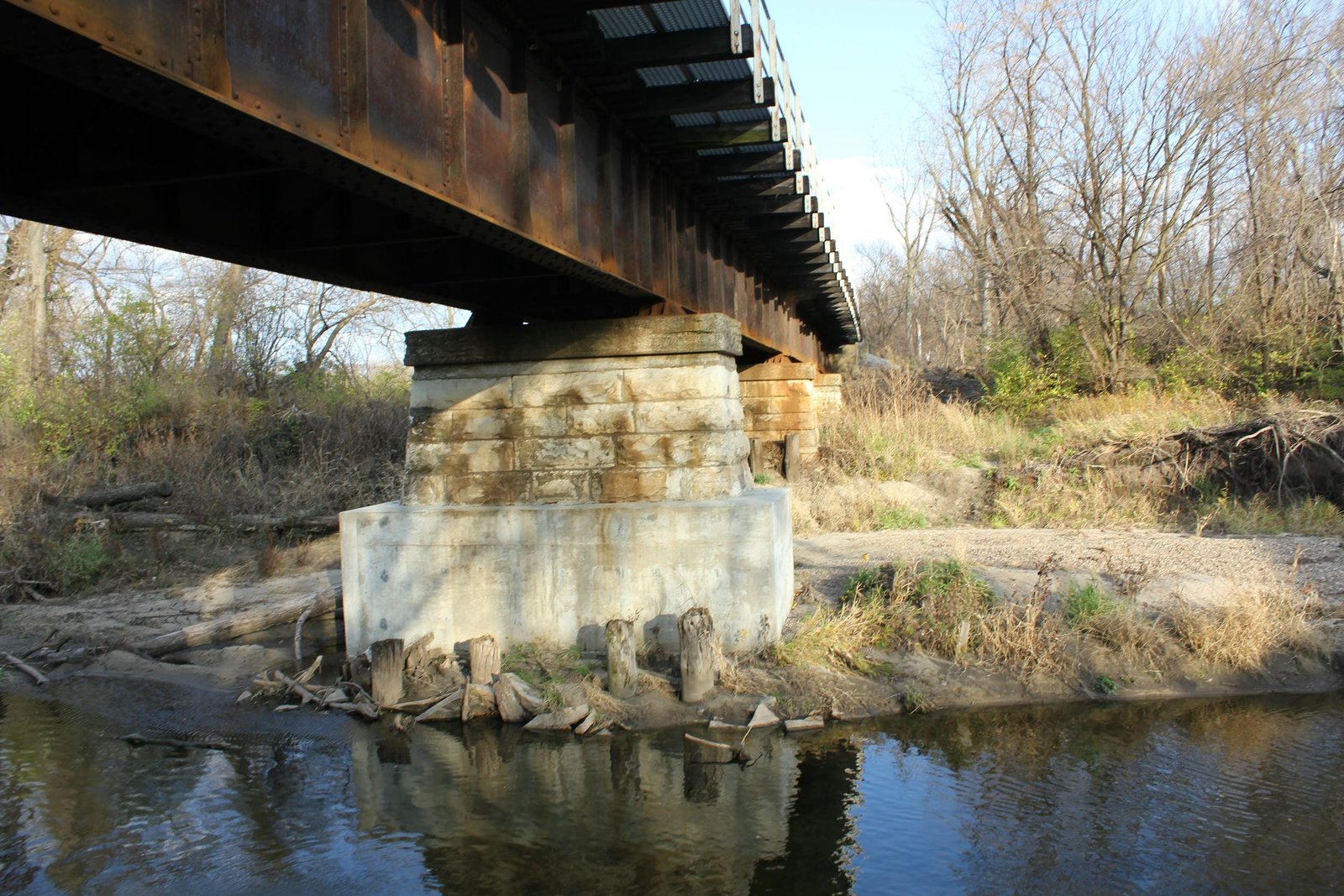

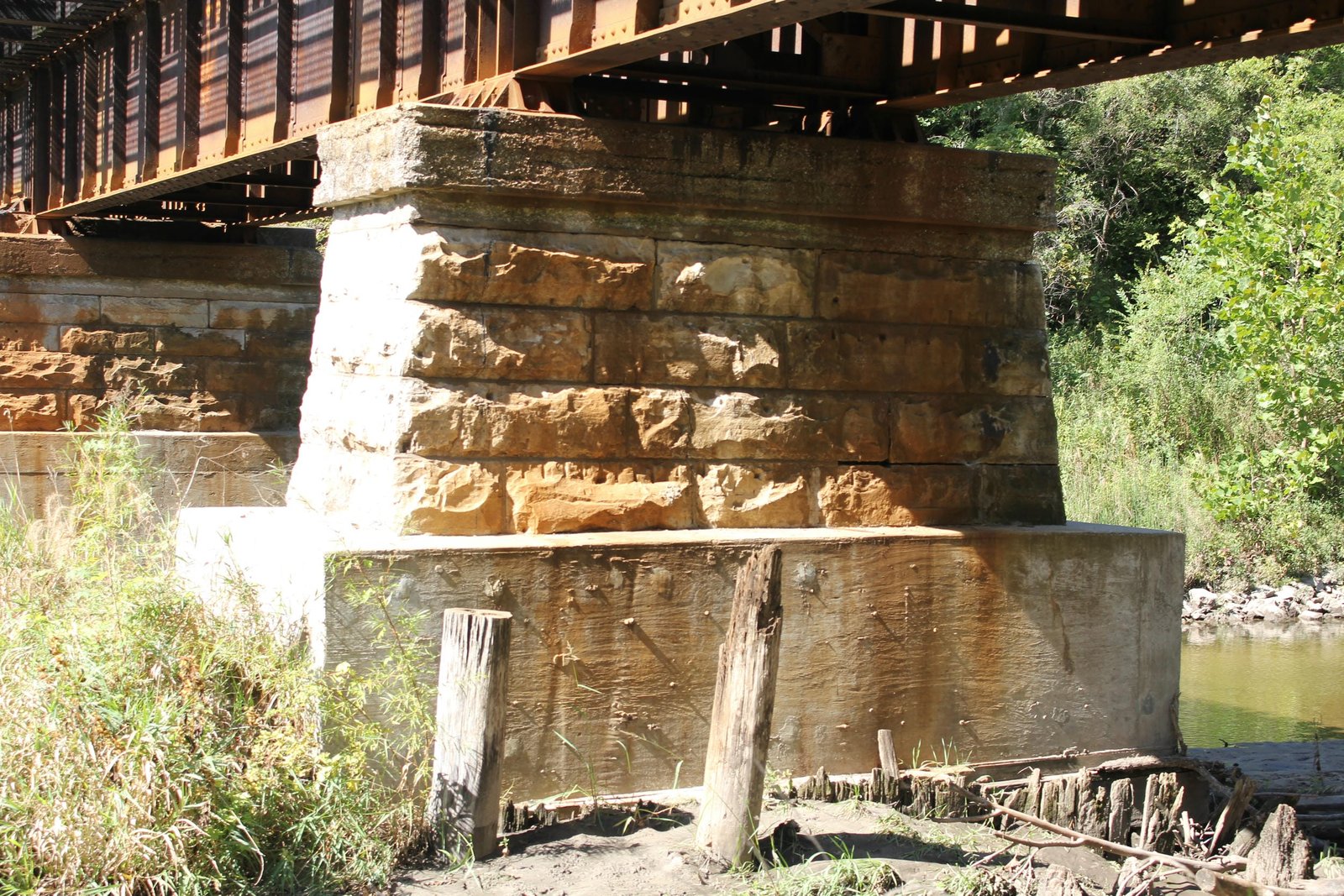

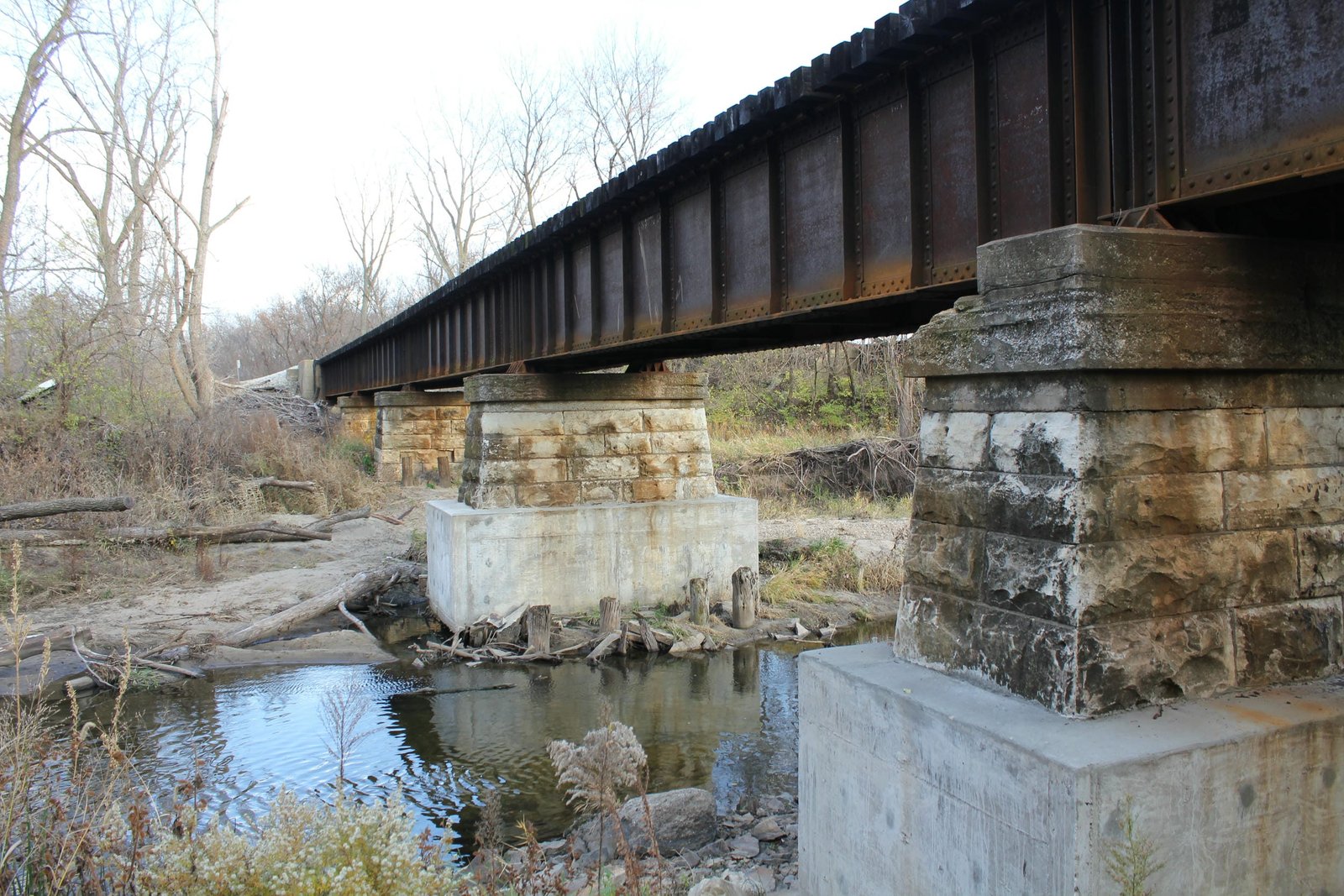

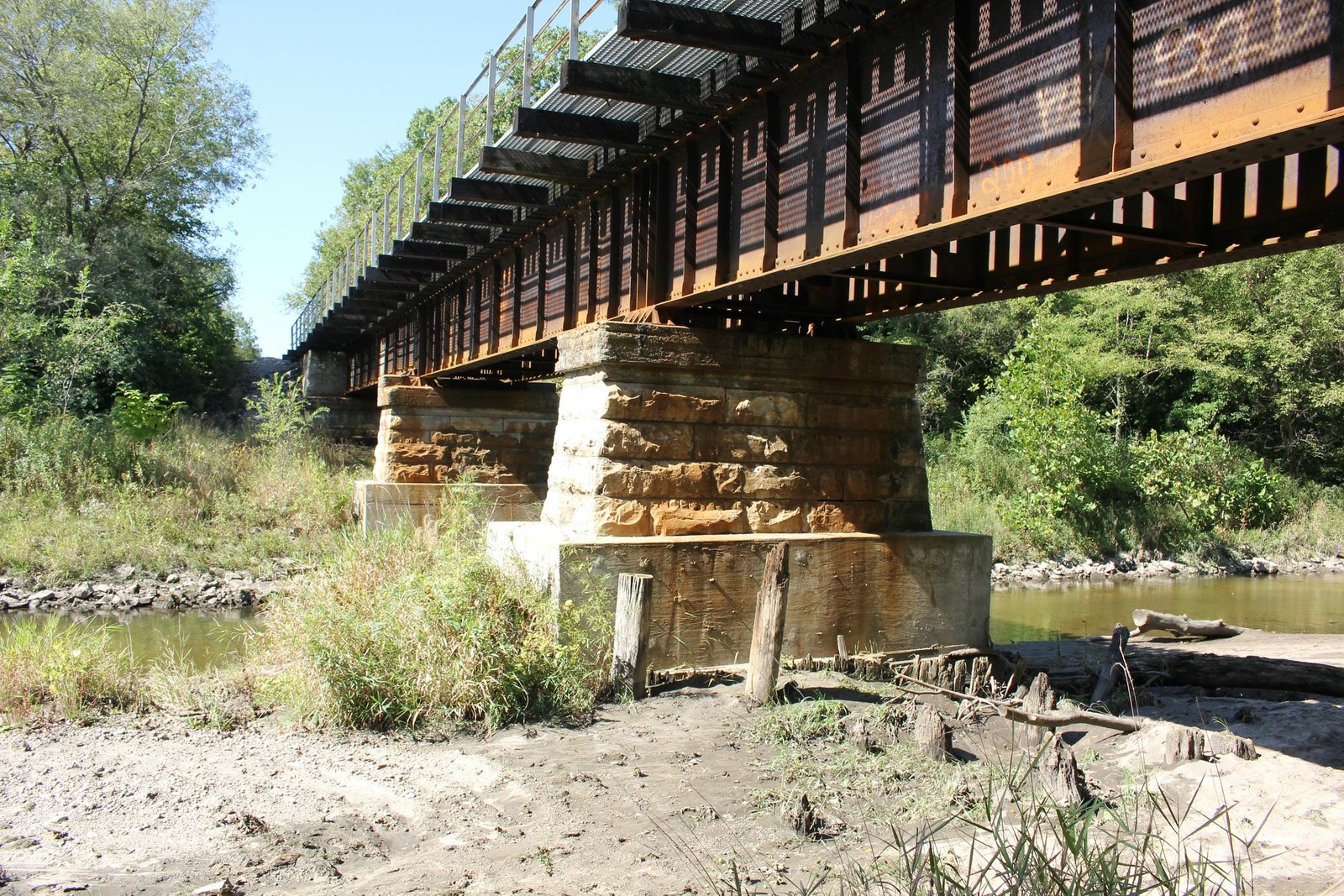

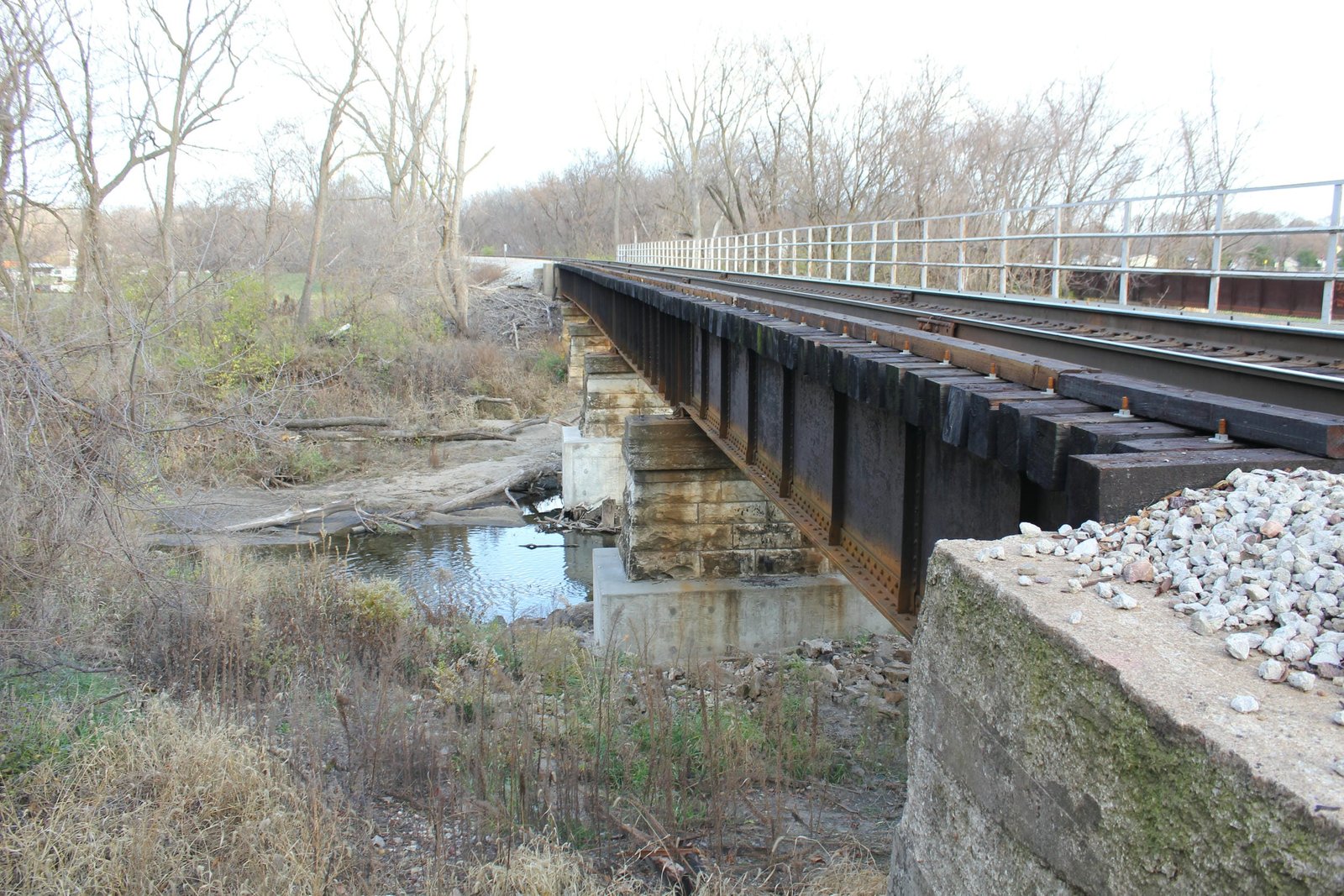

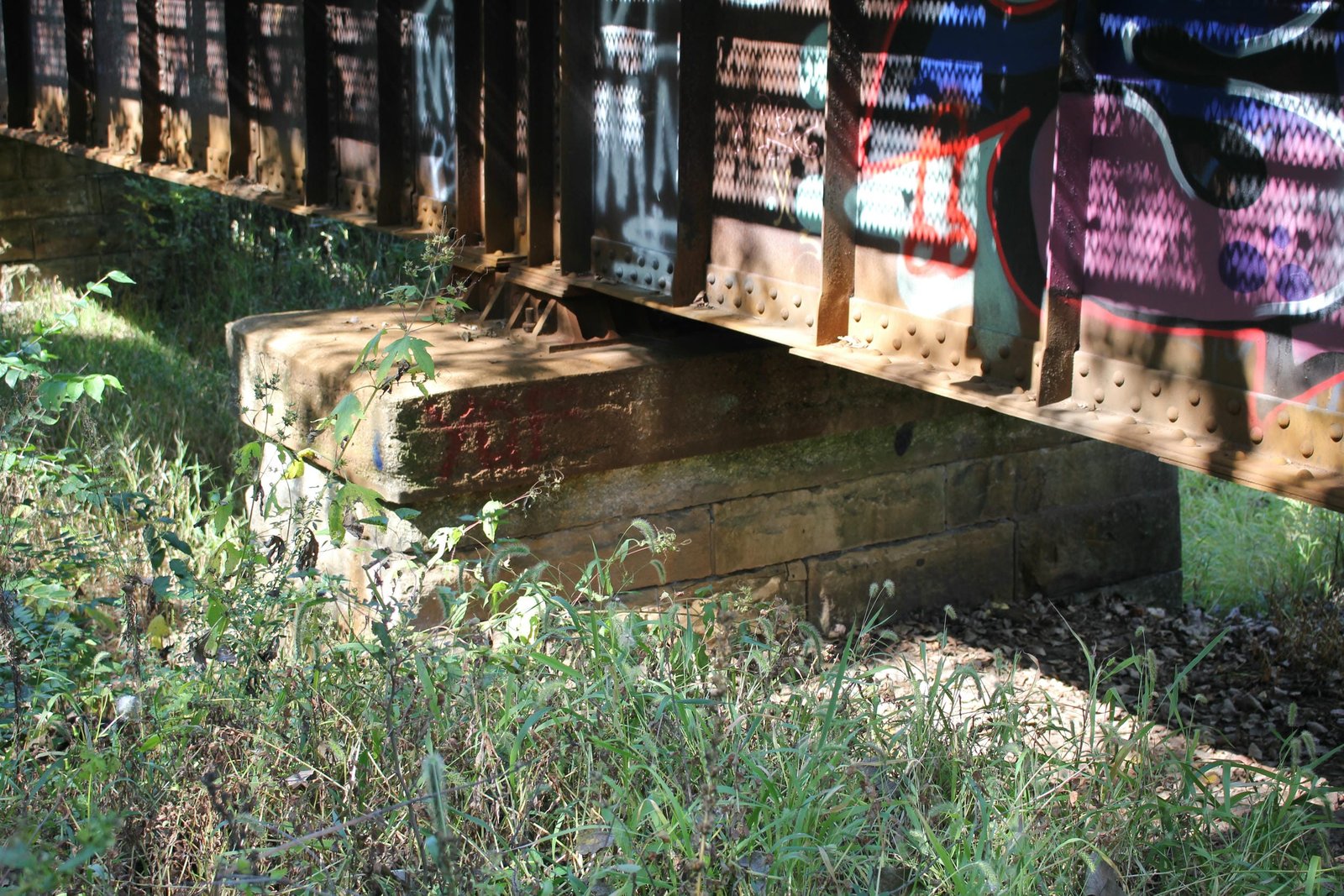

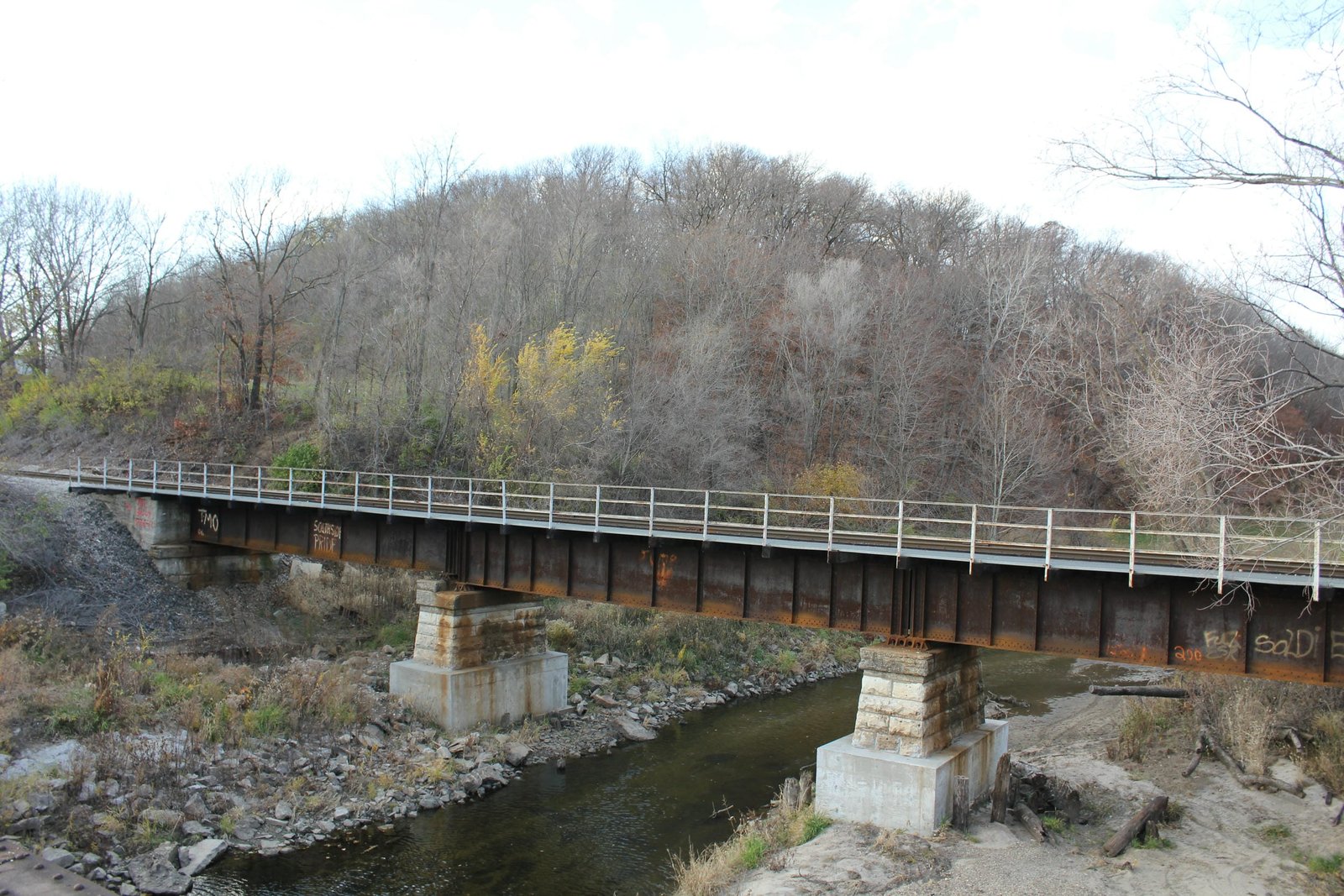

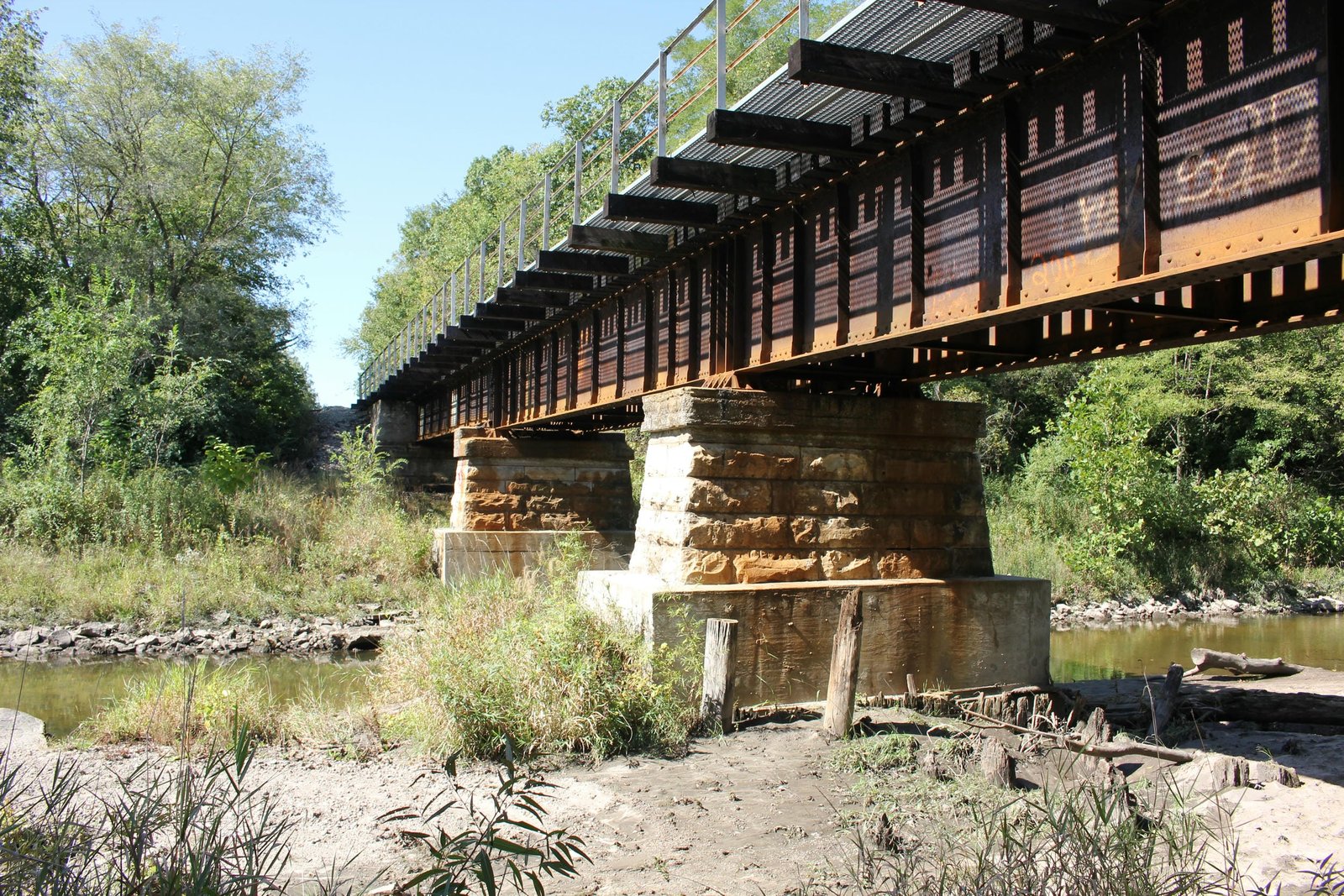

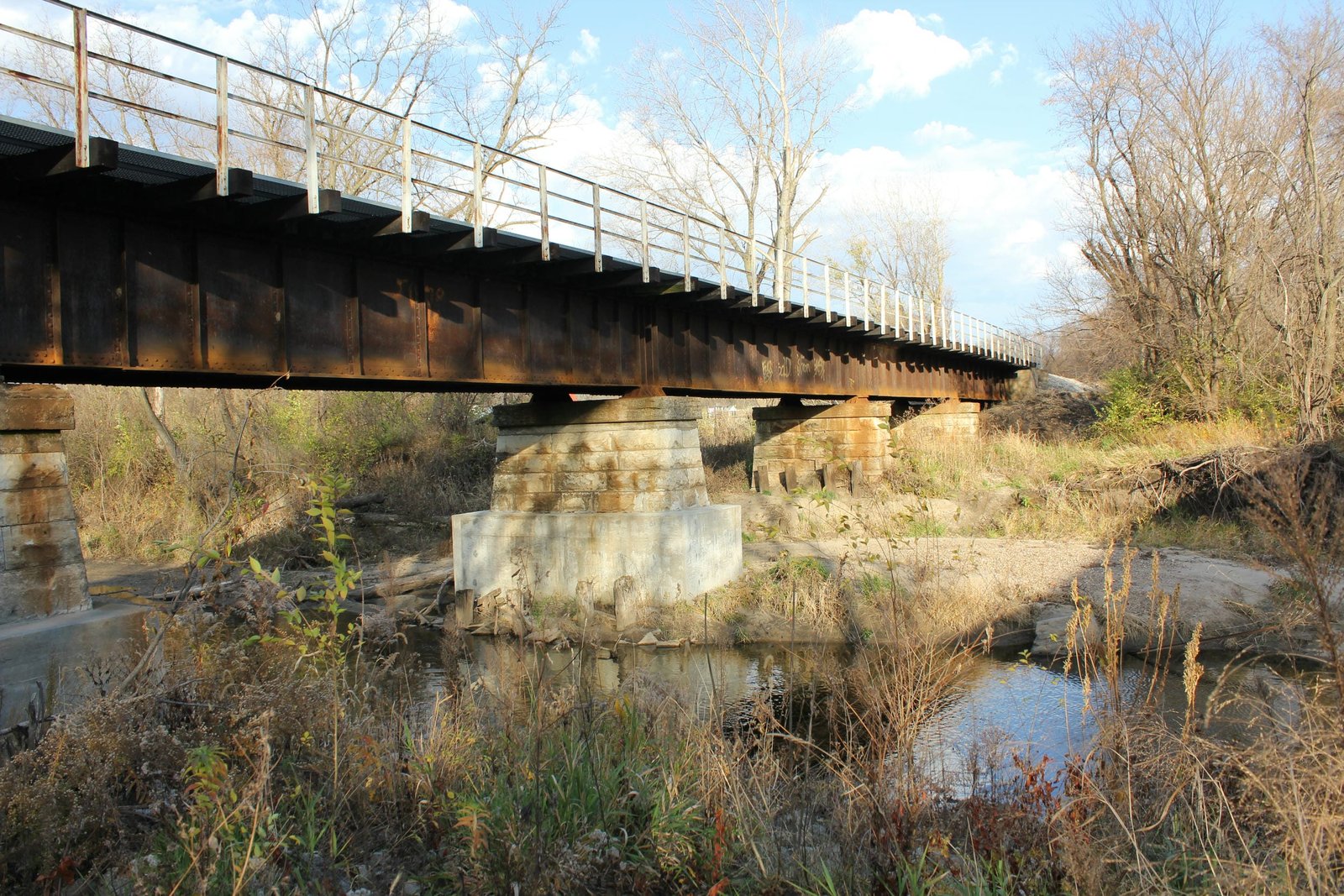

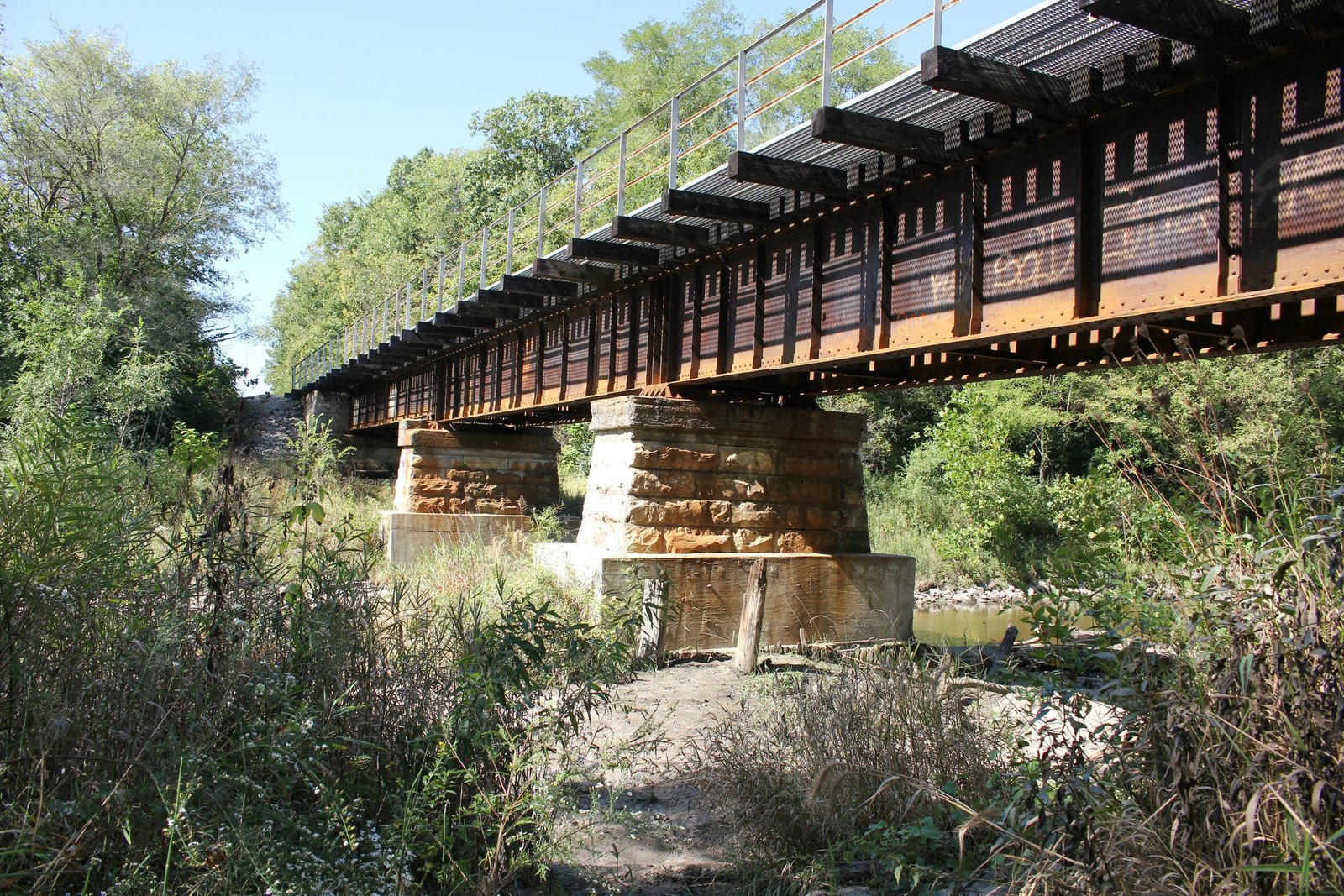

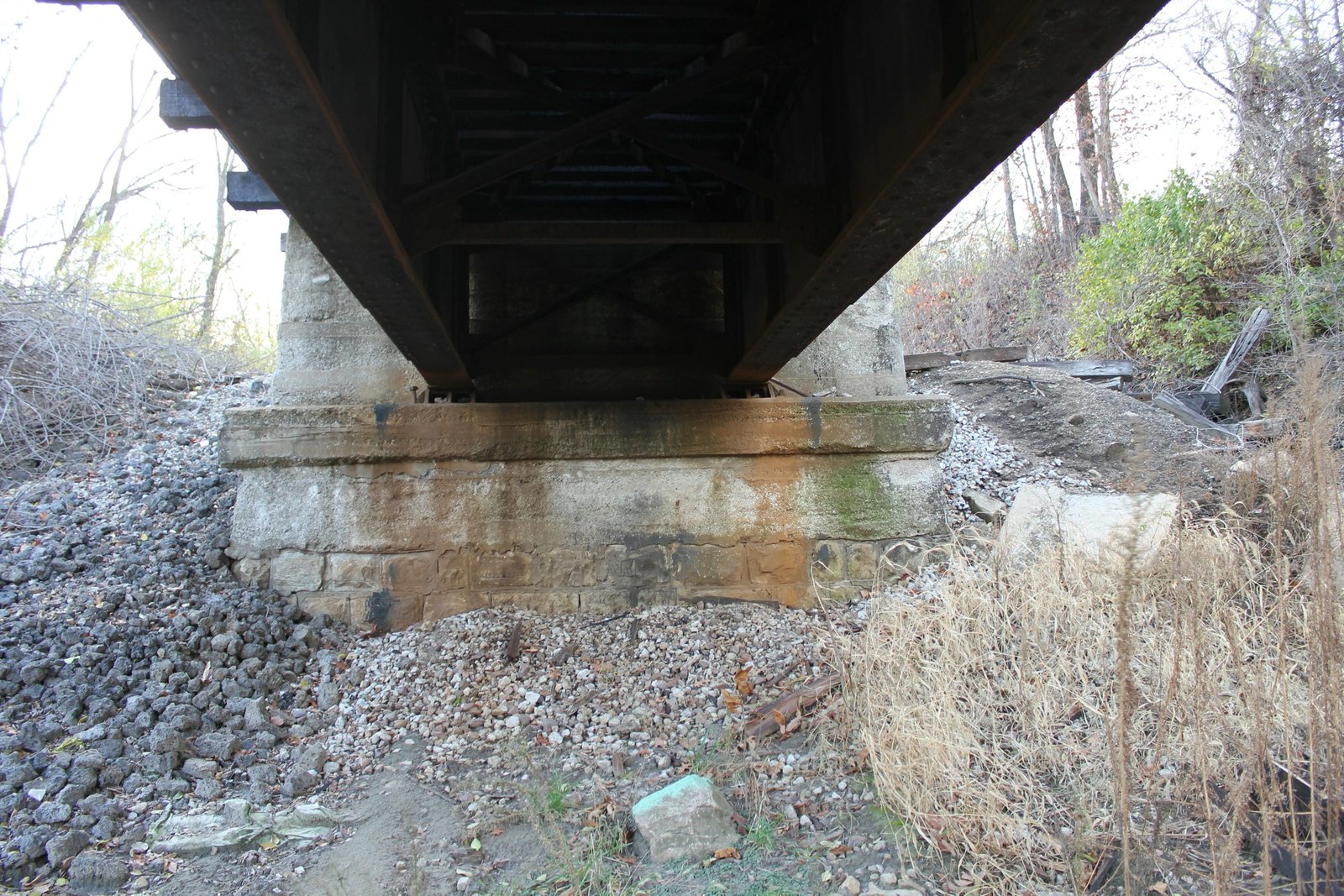

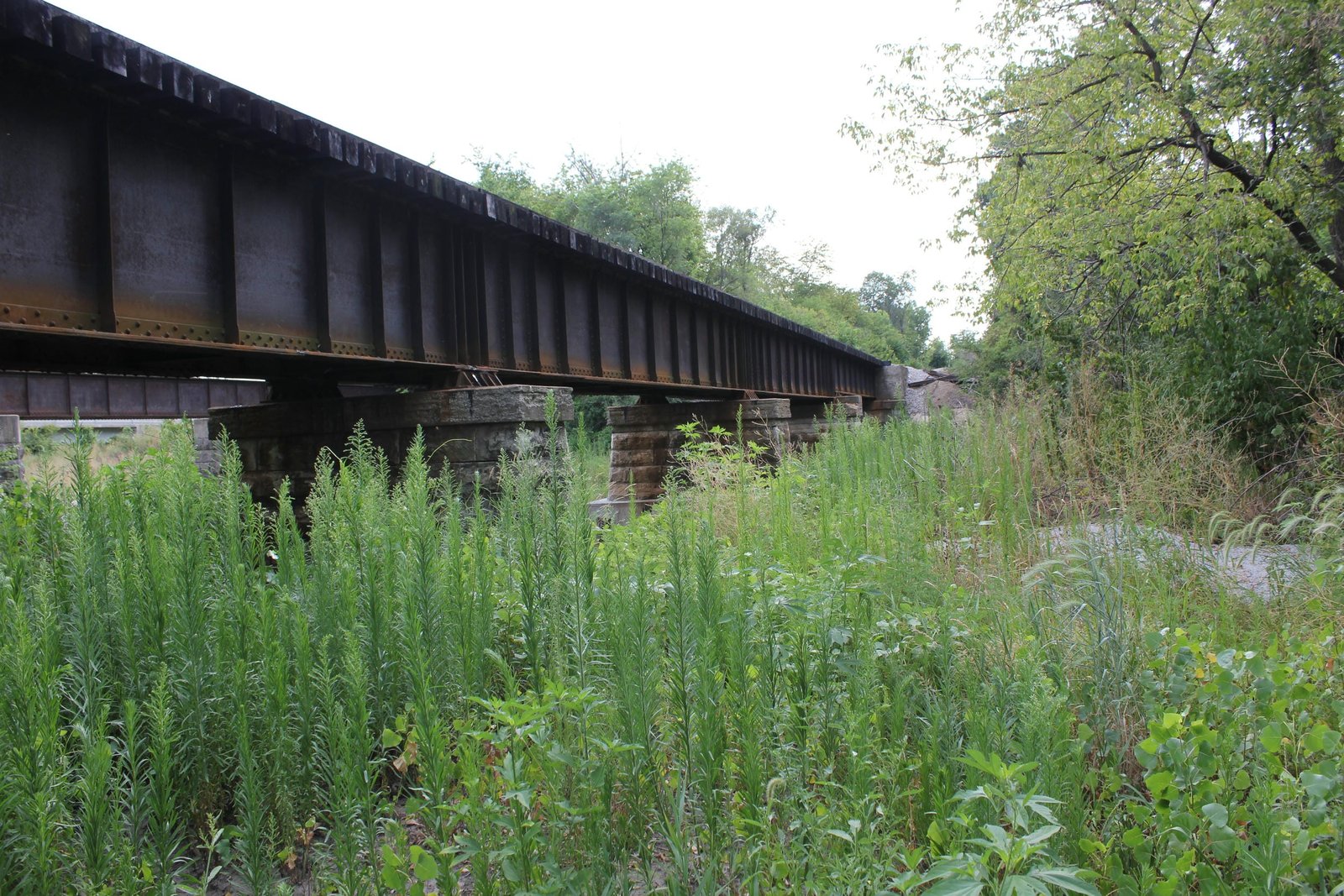

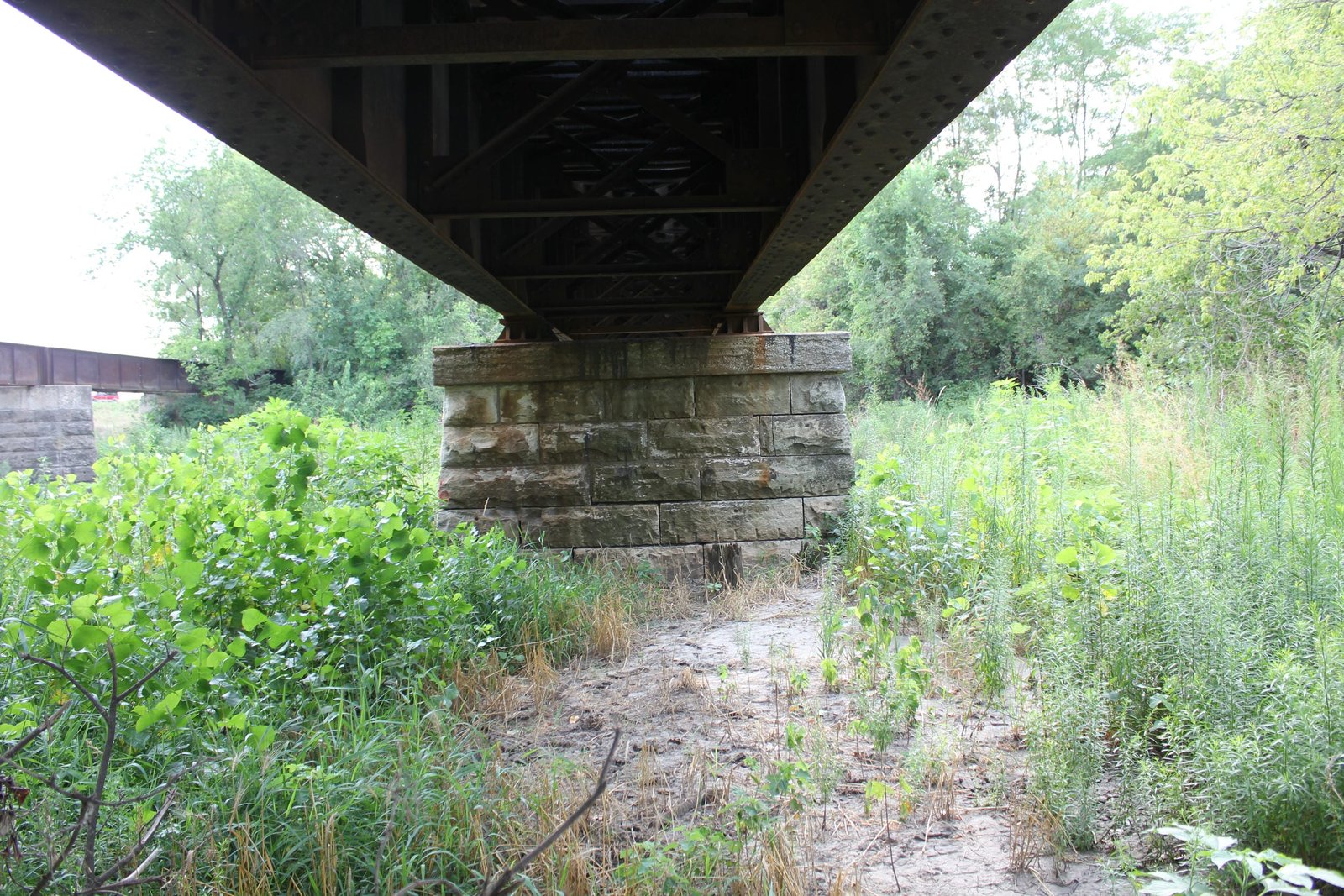

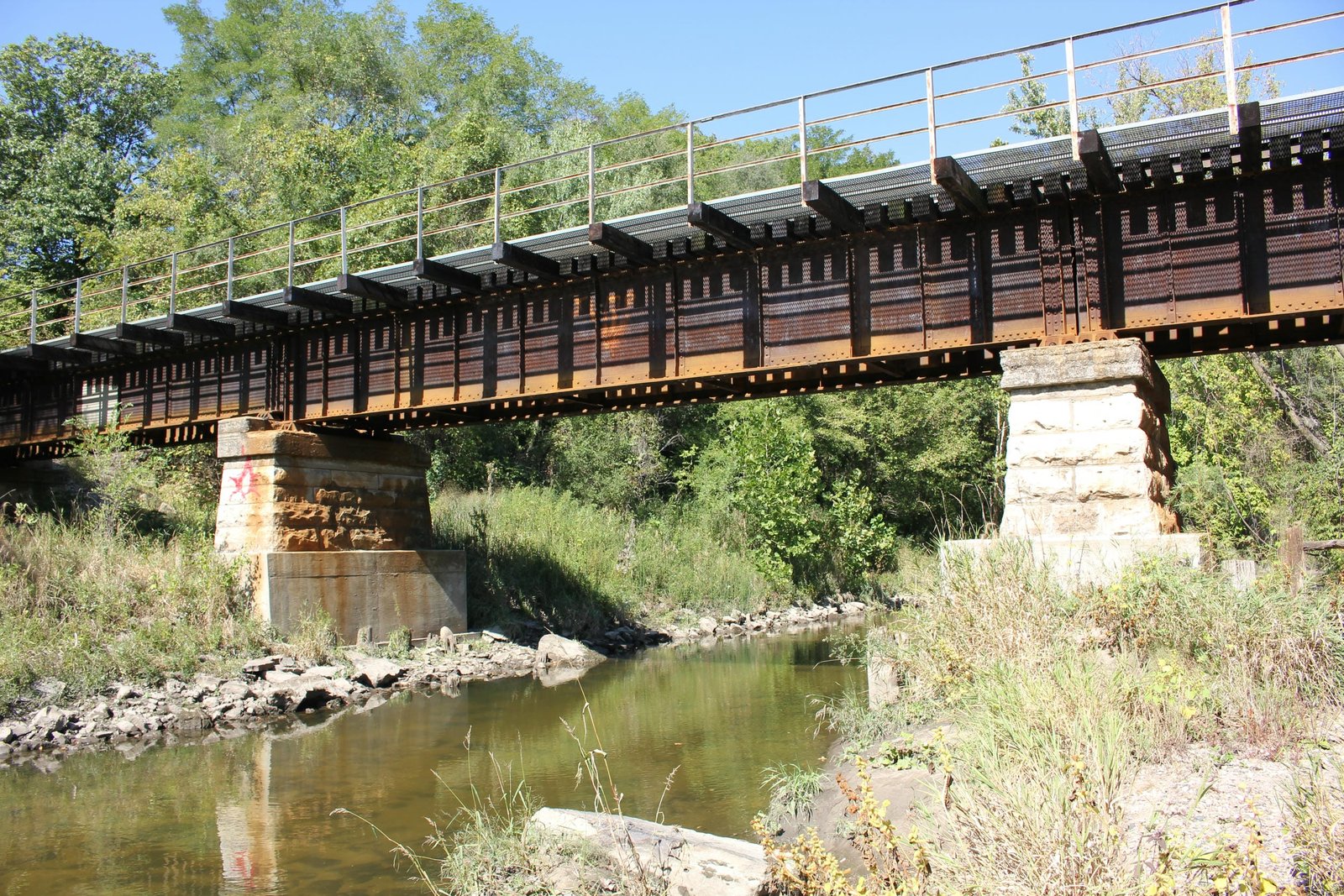

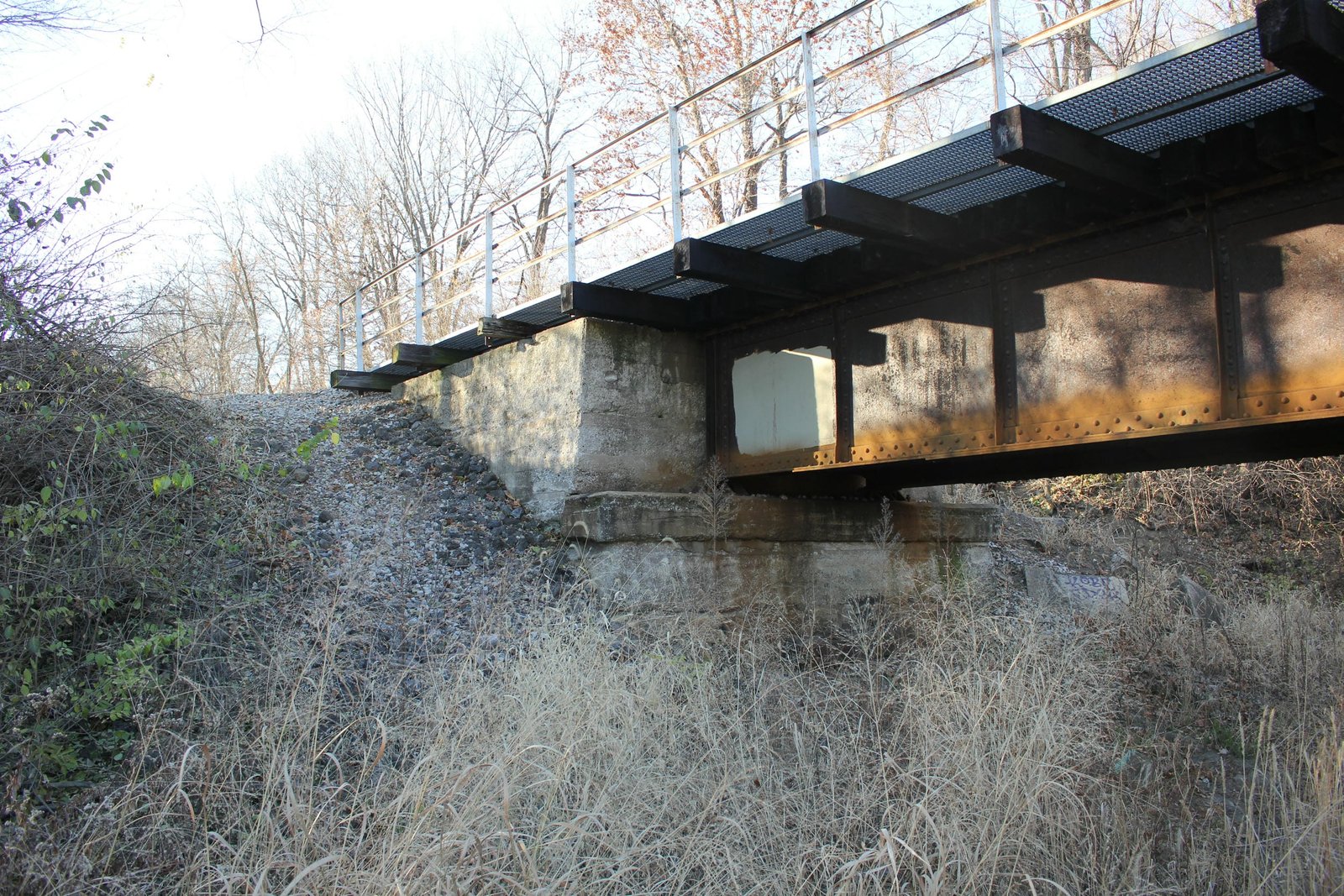

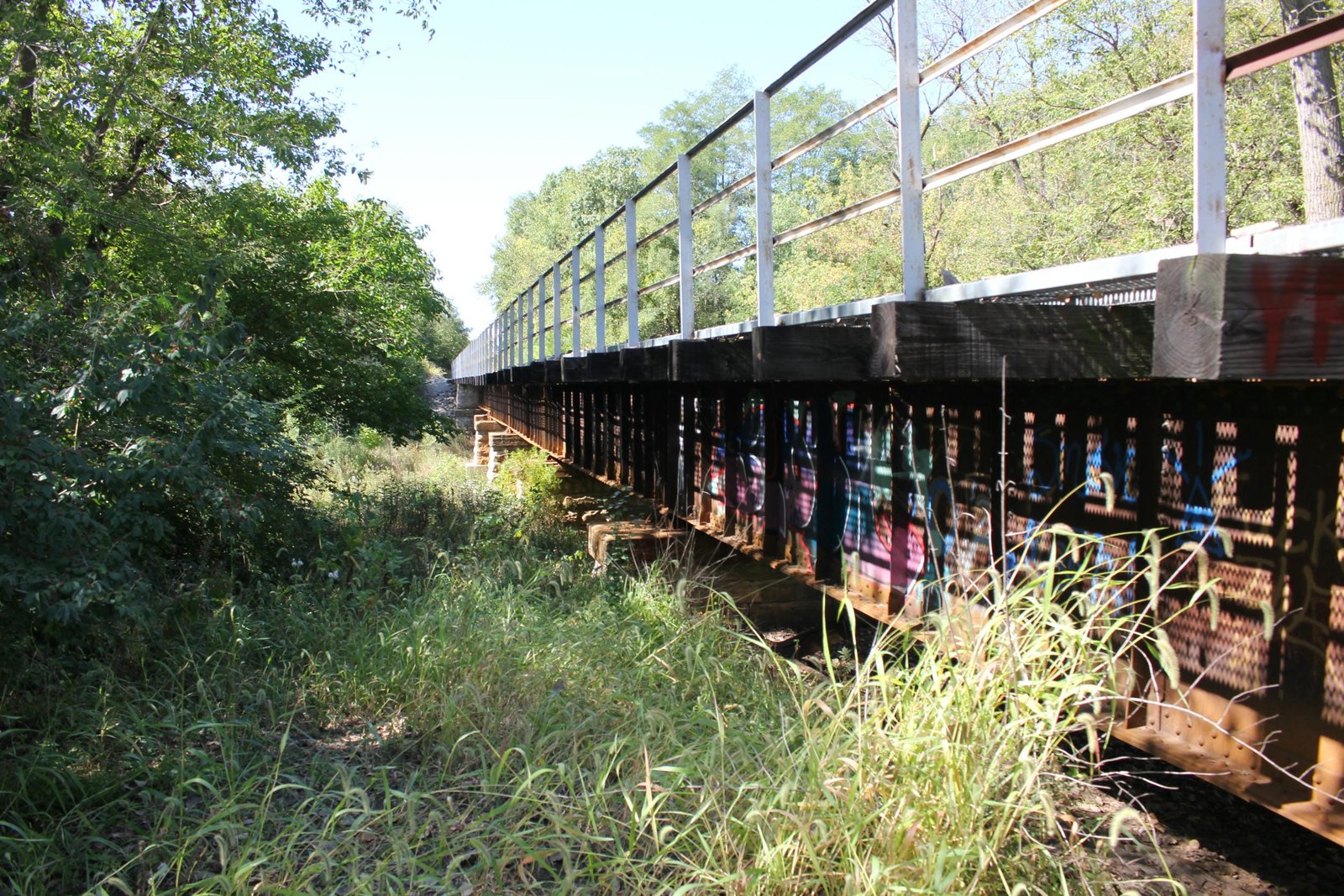

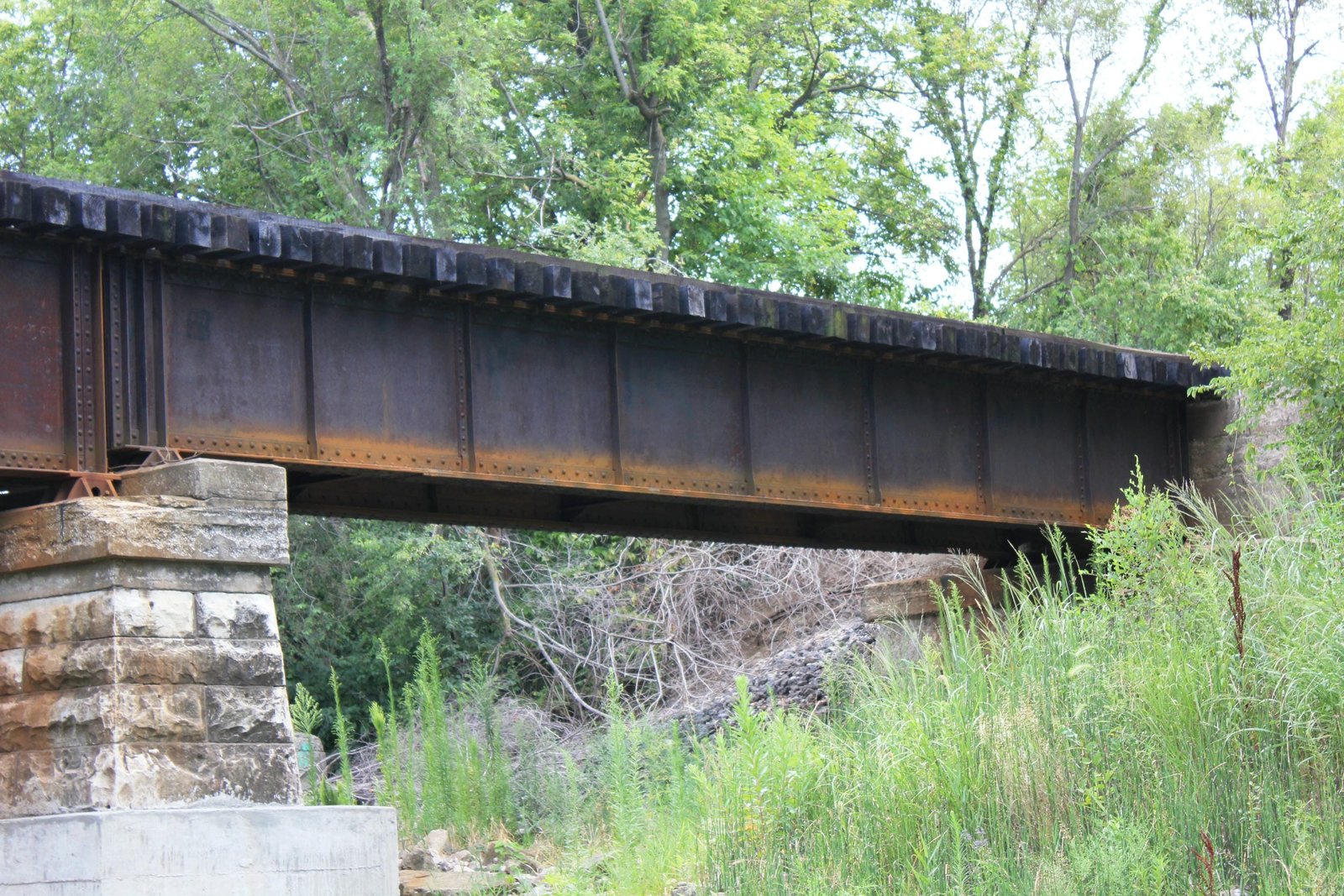

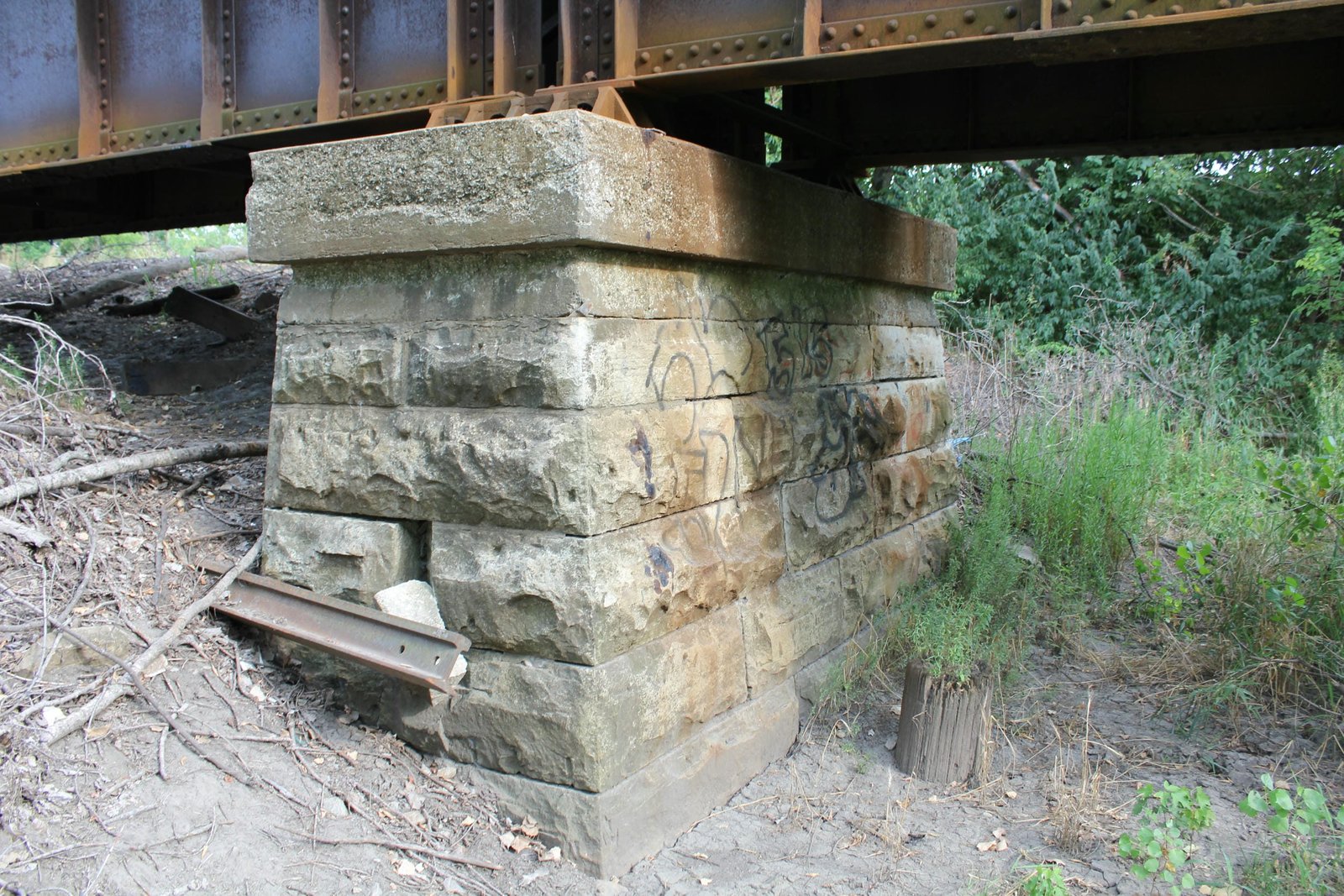

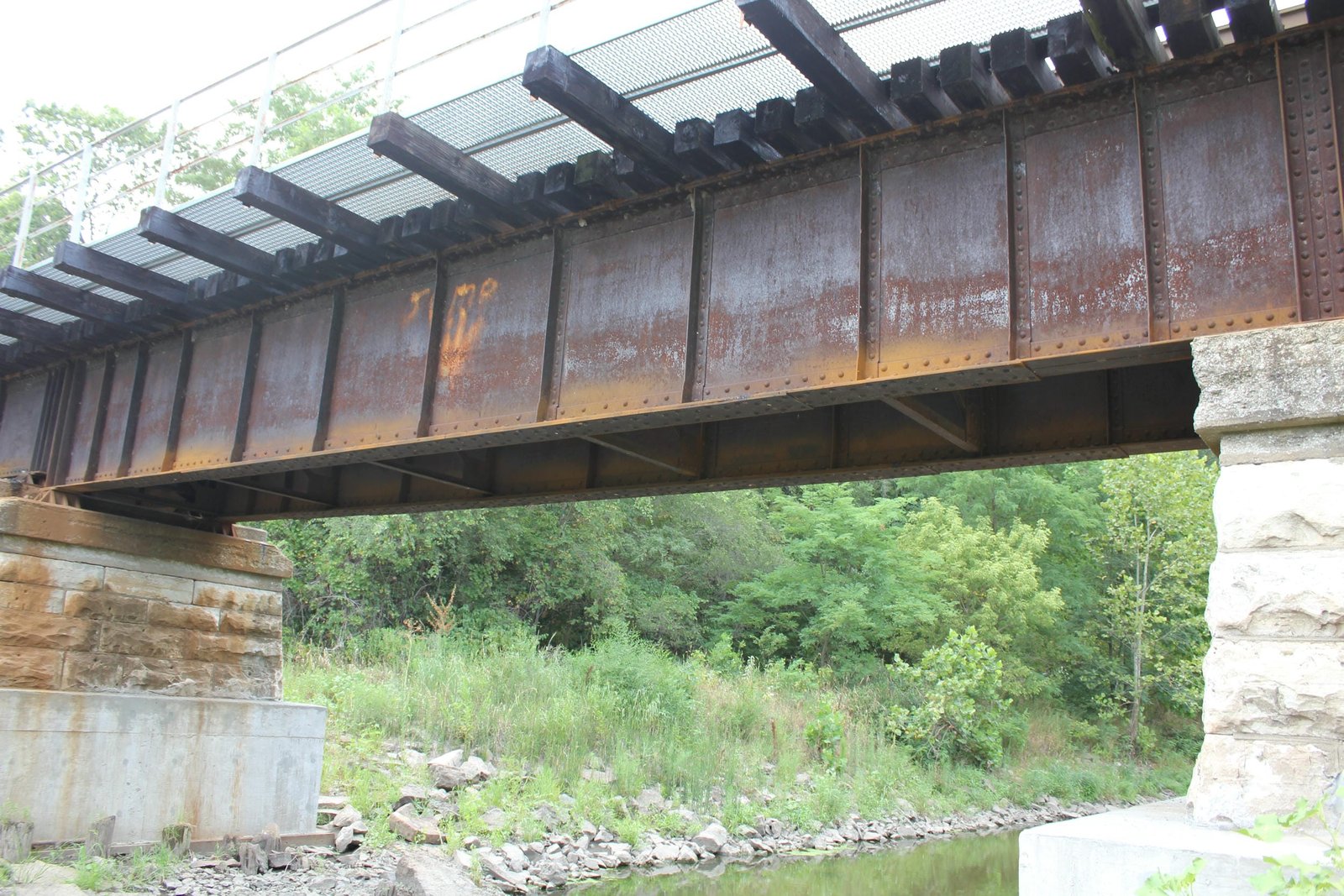

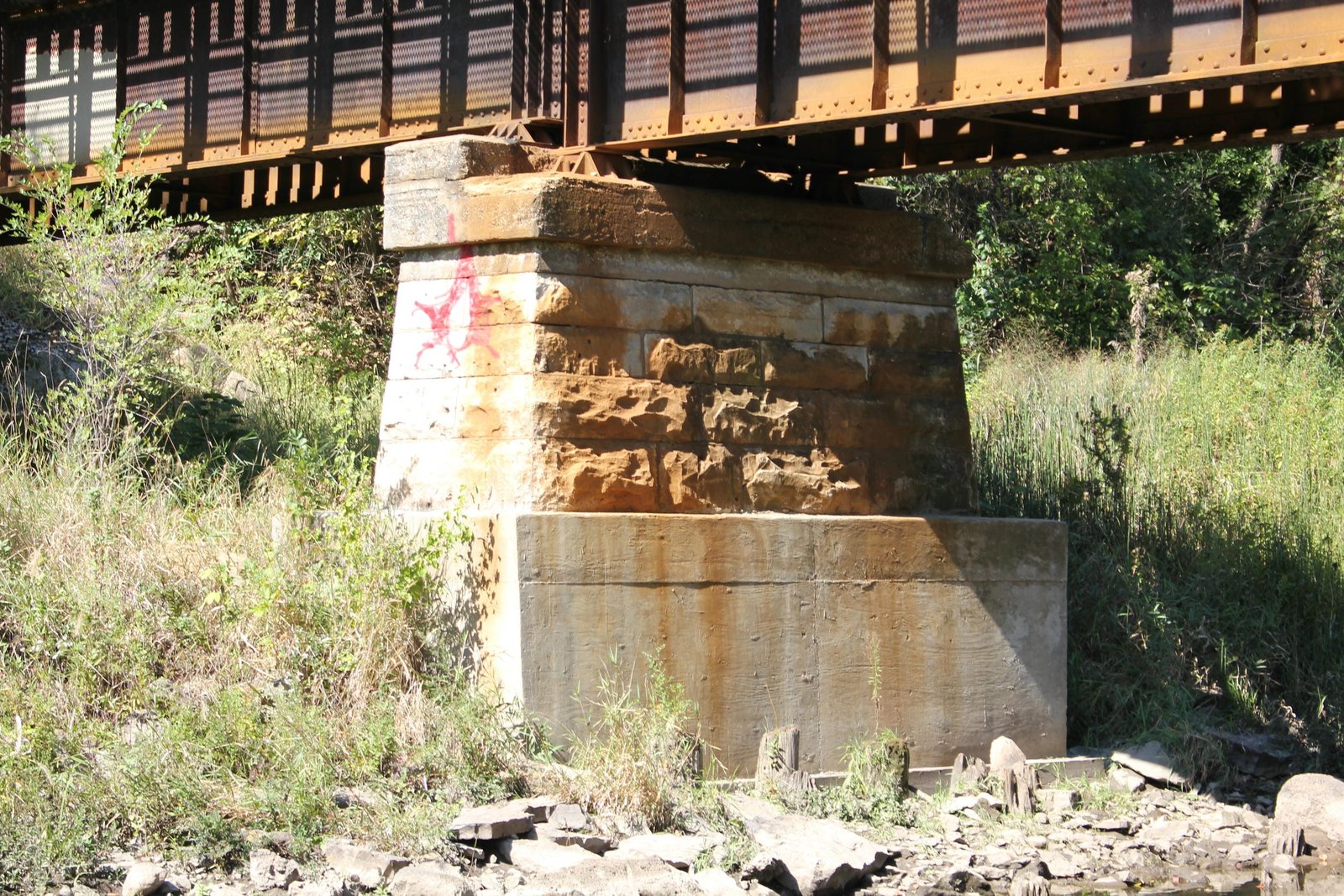

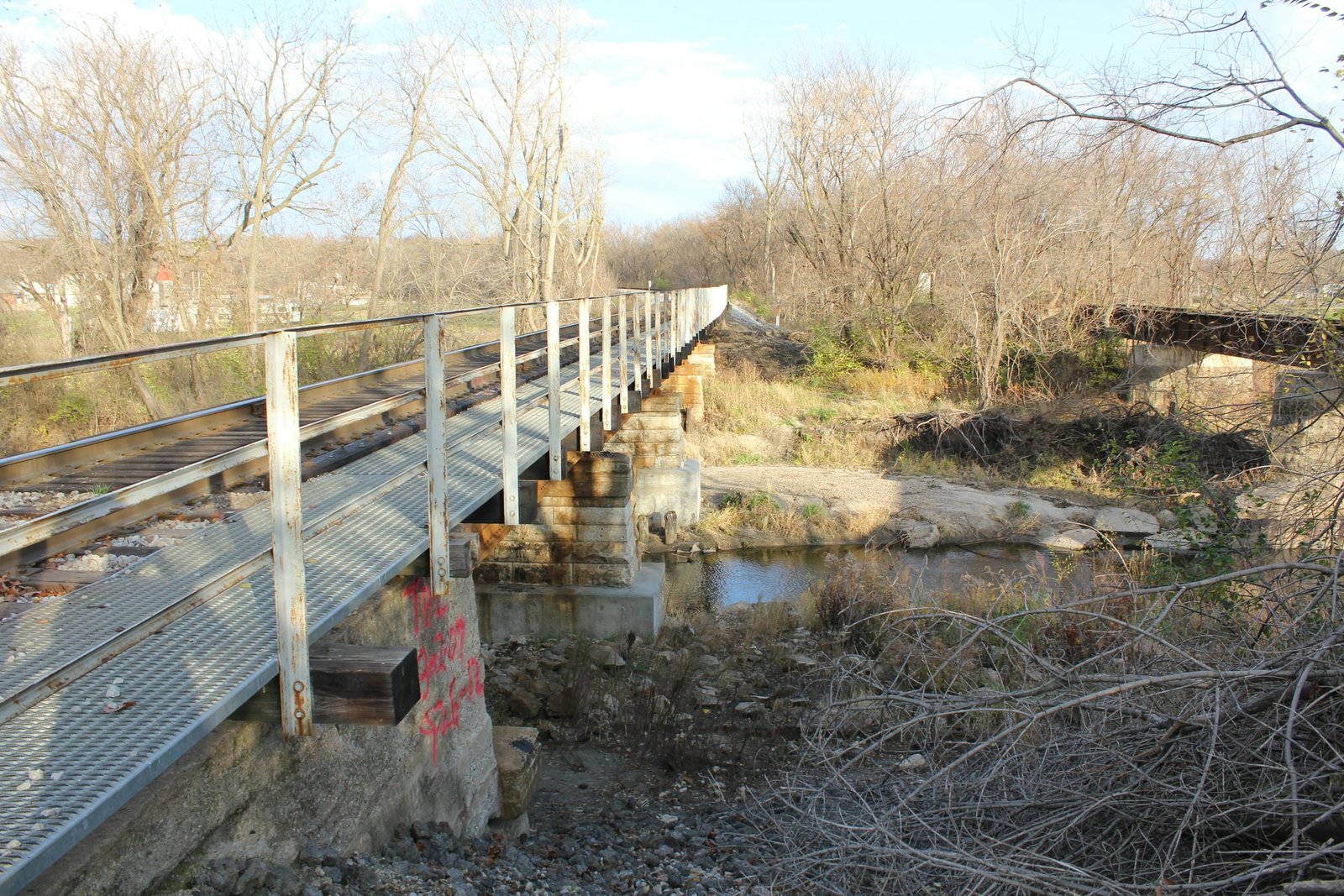

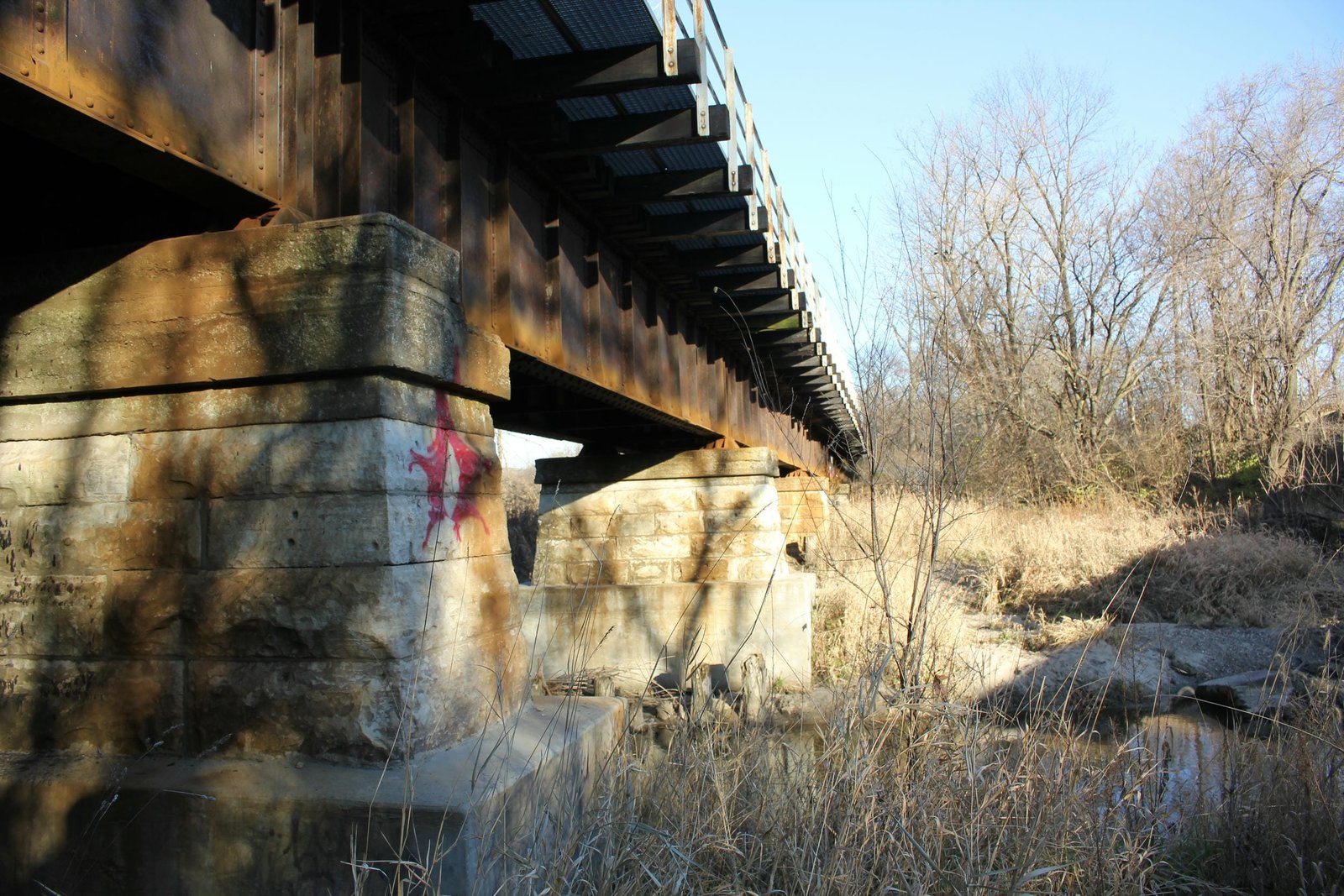

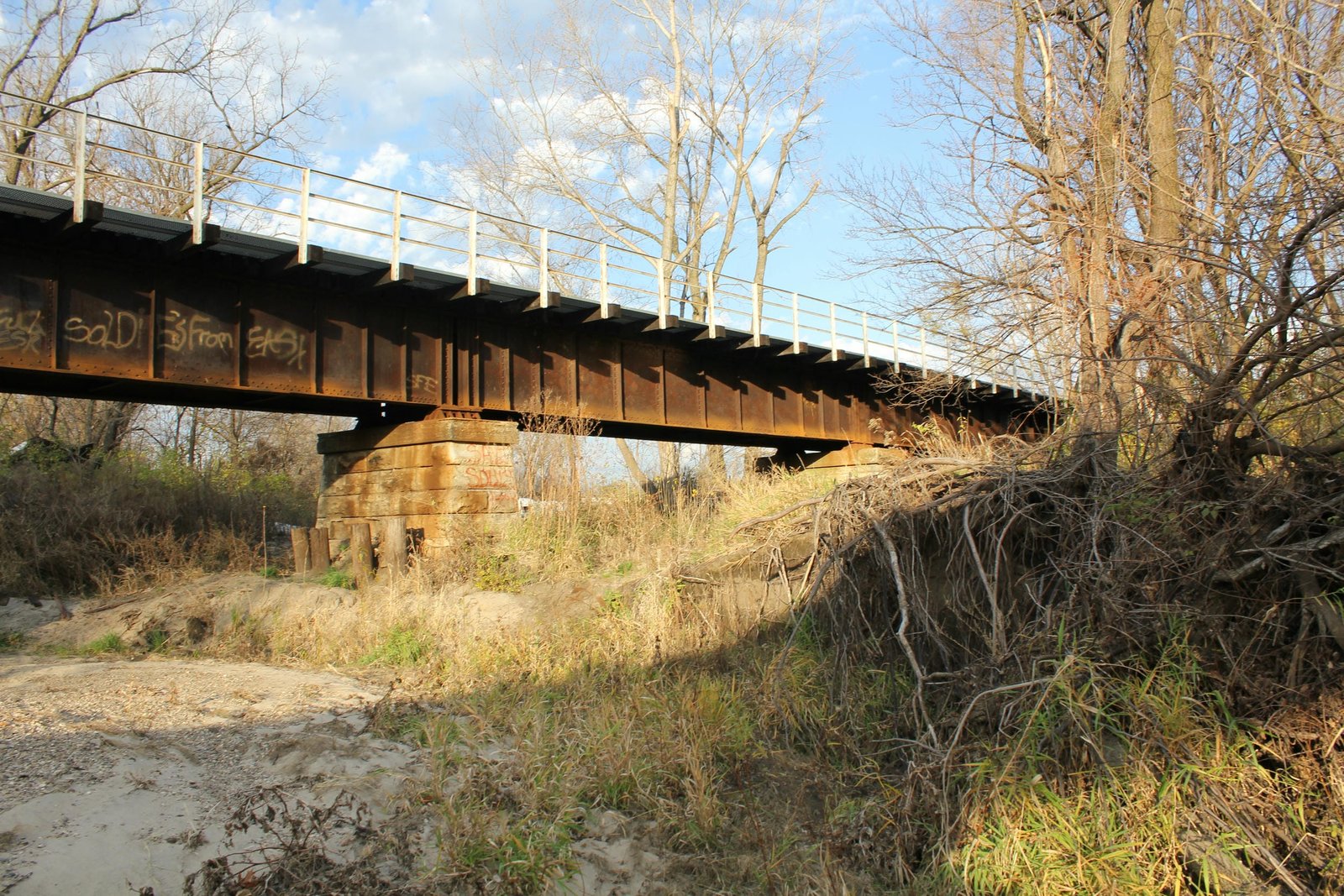

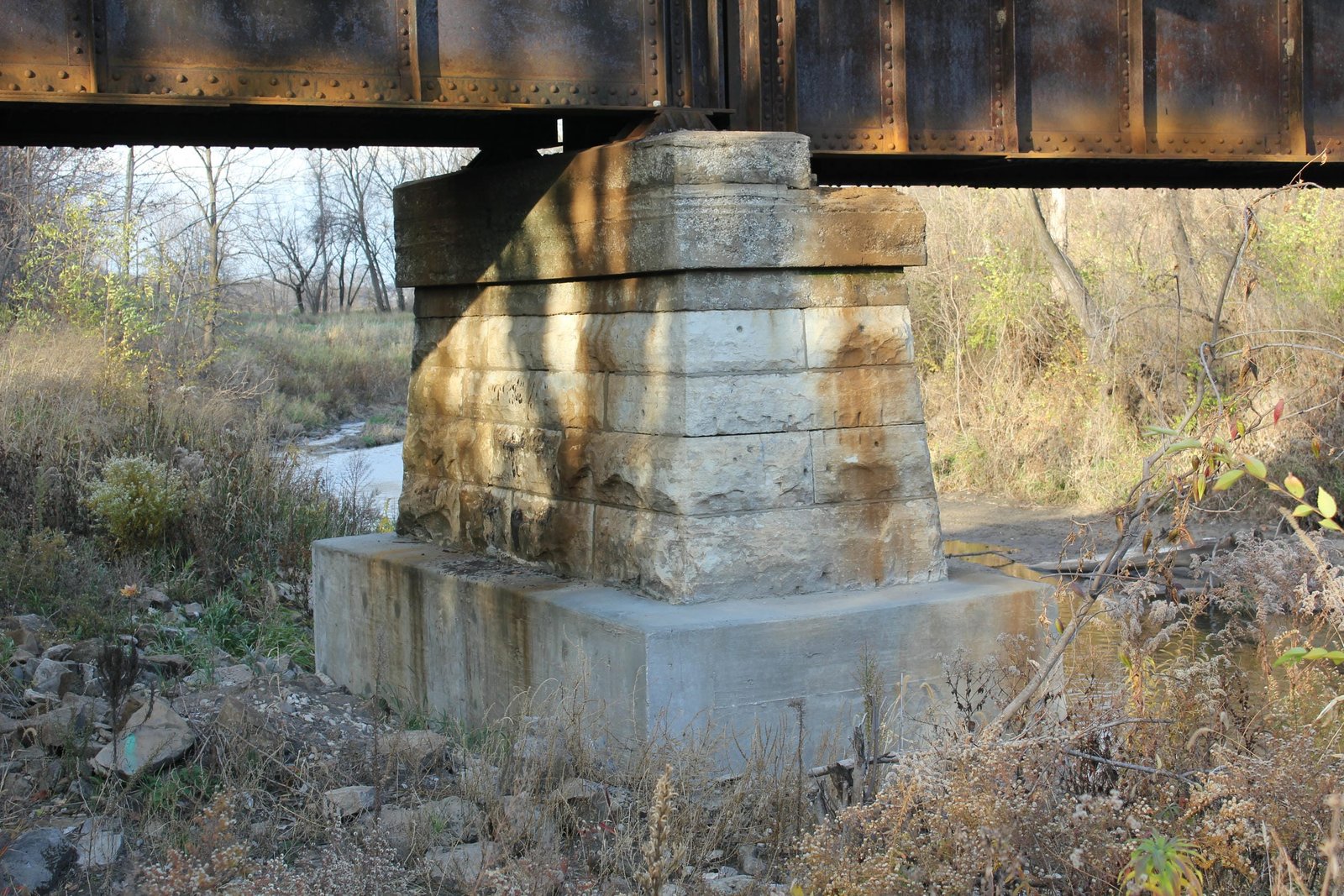

Located near Scott Avenue on the east side of Des Moines, this bridge is the northern of two similar structures carrying former Chicago, Rock Island & Pacific Railroad (Rock Island) lines over Fourmile Creek. Originally, both the Rock Island and Rock Island predecessor Keokuk & Des Moines Railway (K&DM) operated parallel bridges across Fourmile Creek at this location. By 1880, the K&DM was consolidated into the Rock Island, although two separate bridges were maintained into the late 20th Century. The first at this location likely consisted of a timber pile trestle bridge, constructed when the line was first built. It is unclear if the bridge was rebuilt with a timber truss bridge during the 1860s or 1870s. In approximately 1885, the bridge was rebuilt with five 44-foot deck plate girder spans, set onto stone substructures. By the early 20th Century, the 1885-era iron bridge had become too light for traffic, and in approximately 1905 would be replaced by the present structure. Currently, the bridge consists of five 44-foot deck plate girder spans, set onto stone piers and concrete abutments. In addition, portions of the stone piers have been capped with concrete and the bridge is set onto a heavy 4.5-degree curve. The superstructure uses a standard design, with two heavy plate girders per span and an open deck. The westernmost span is slightly lighter than the other spans, and it is unclear if it was replaced during the 20th Century. The substructures also use standard designs, with square piers and U-shaped abutments. Both abutments appear to have been constructed around older stone piers, possibly indicating there were additional spans or timber approaches. An unknown contractor fabricated the superstructure, and at least two unknown contractors were involved in constructing the substructures. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the bridge has seen a few alterations, mainly involving reinforcement of the piers with sheet metal and concrete. Today, the bridge remains in regular use as part of an Iowa Interstate Railroad mainline. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design and unclear history.


Citations

Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
