| Name | UP US-63 Bridge (Oskaloosa) Minneapolis & St. Louis Railway Bridge #573 |
| Built By | Minneapolis & St. Louis Railway |
| Currently Owned By | Union Pacific Railroad |
| Superstructure Contractor | Unknown |
| Substructure Contractor | Amos Melberg Company of Cedar Rapids, Iowa |
| Length | 157 Feet Total, 40 Foot Main Spans |
| Width | 1 Track |
| Height Above Ground | 15 Feet (Estimated) |
| Superstructure Design | Through Plate Girder |
| Substructure Design | Concrete |
| Date Built | 1954 |
| Traffic Count | 1 Train/Day (Estimated) |
| Current Status | In Use |
| Minneapolis & St. Louis Railway Bridge Number | 573 |
| Union Pacific Railroad Bridge Number | E-301.90 |
| Significance | Minimal Significance |
| Documentation Date | 2/27/2021 |
Between 1882 and 1883, the Central Iowa Railway Company (CIR) constructed 85 miles of new railroad , extending from Peoria, Illinois to Keithsburg, Illinois. Also in 1882, the Chicago, Burlington & Pacific Railroad (CB&P) constructed 98 miles of new railroad, extending from Oskaloosa, Iowa to the west bank of the Mississippi River opposite of Keithsburg. The CB&P would be consolidated into the CIR in early 1882, and the CIR would complete the work. The two railroads would be joined in 1886, when the Keithsburg Bridge Company constructed a bridge across the Mississippi River. The CIR was sold to the Iowa Central Railway (ICR) in 1888, and the Keithsburg Bridge Company would be sold to the ICR in 1901. In 1902, the ICR would be leased by the Minneapolis & St. Louis Railroad (M&StL). The M&StL would acquire the ICR in 1912, and the M&StL would later reorganize as the Minneapolis & St. Louis Railway (M&StL) in approximately 1920.
The M&StL had developed a modest sized railroad network in Minnesota, Iowa and Illinois; primarily connecting Minneapolis to agricultural markets in Iowa. This line formed the eastern mainline of the M&StL, and provided the small railroad with a connection to terminals along the Illinois River at Peoria. The M&StL was often in financial trouble, and would be purchased by
the Chicago & North Western (C&NW) in 1960. The C&NW operated their own line to Peoria, and this line quickly fell out of favor. The line was abandoned between Oskaloosa and Keithsburg in 1971, followed by the Keithsburg to Middle Grove, Illinois segment in 1976. The C&NW was purchased by the Union Pacific Railroad in 1995. The segment between Middle Grove and Peoria would be abandoned in 2008, leaving only a short segment at Oskaloosa still in operation. Today, Union Pacific Railroad continues to operate a short segment of track at Oskaloosa. The bridge across the Mississippi River is still largely intact, although portions of the bridge have been removed.

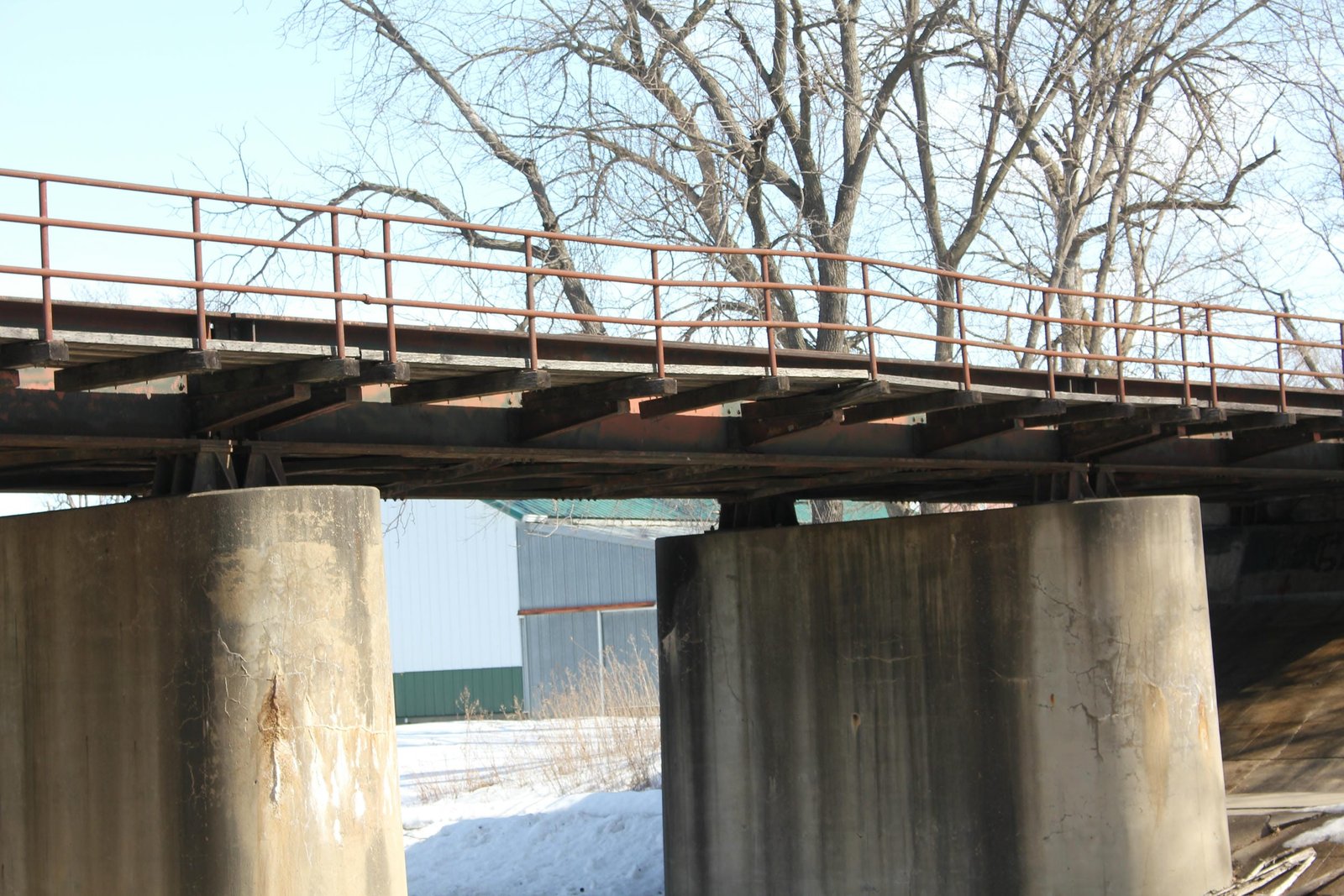

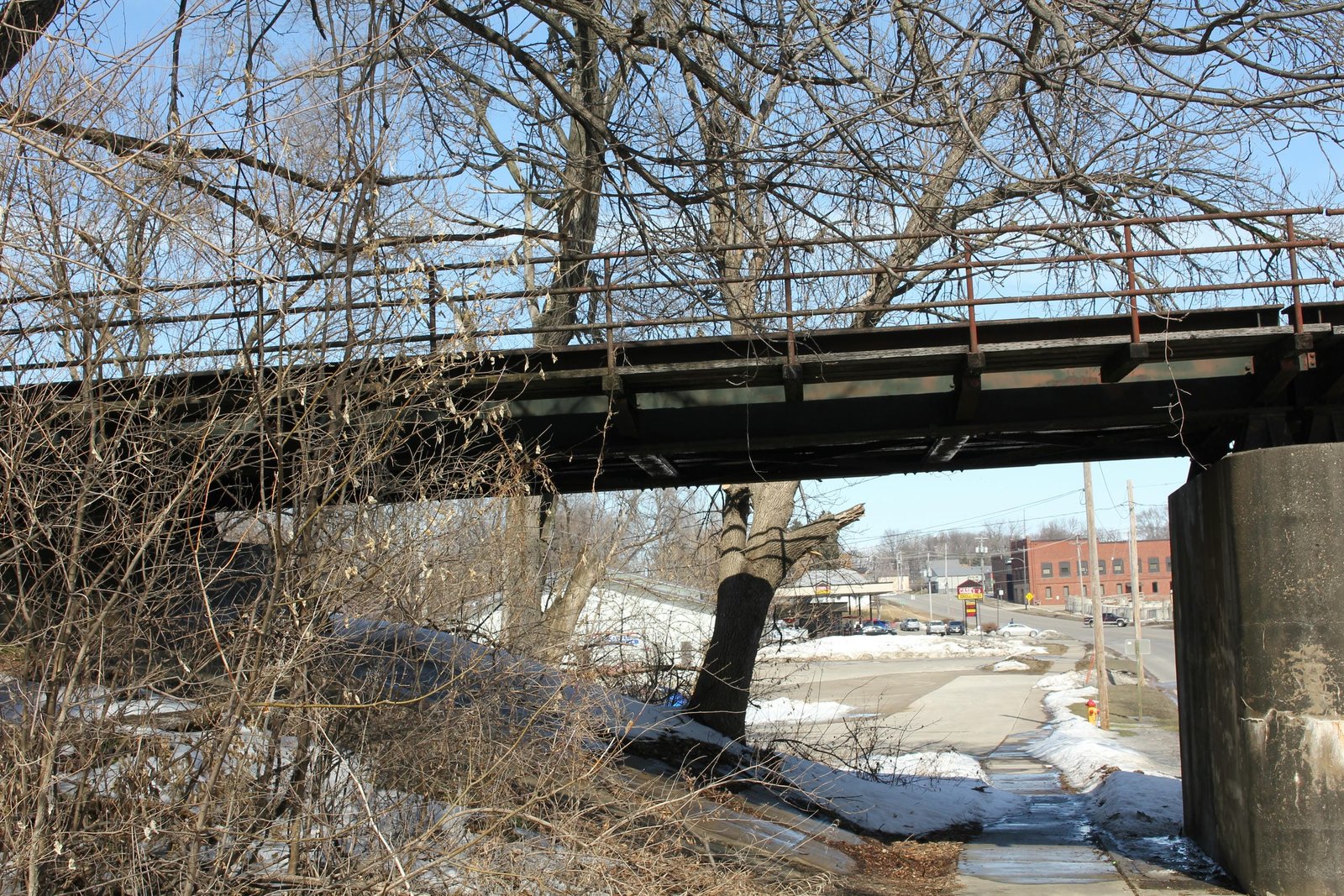

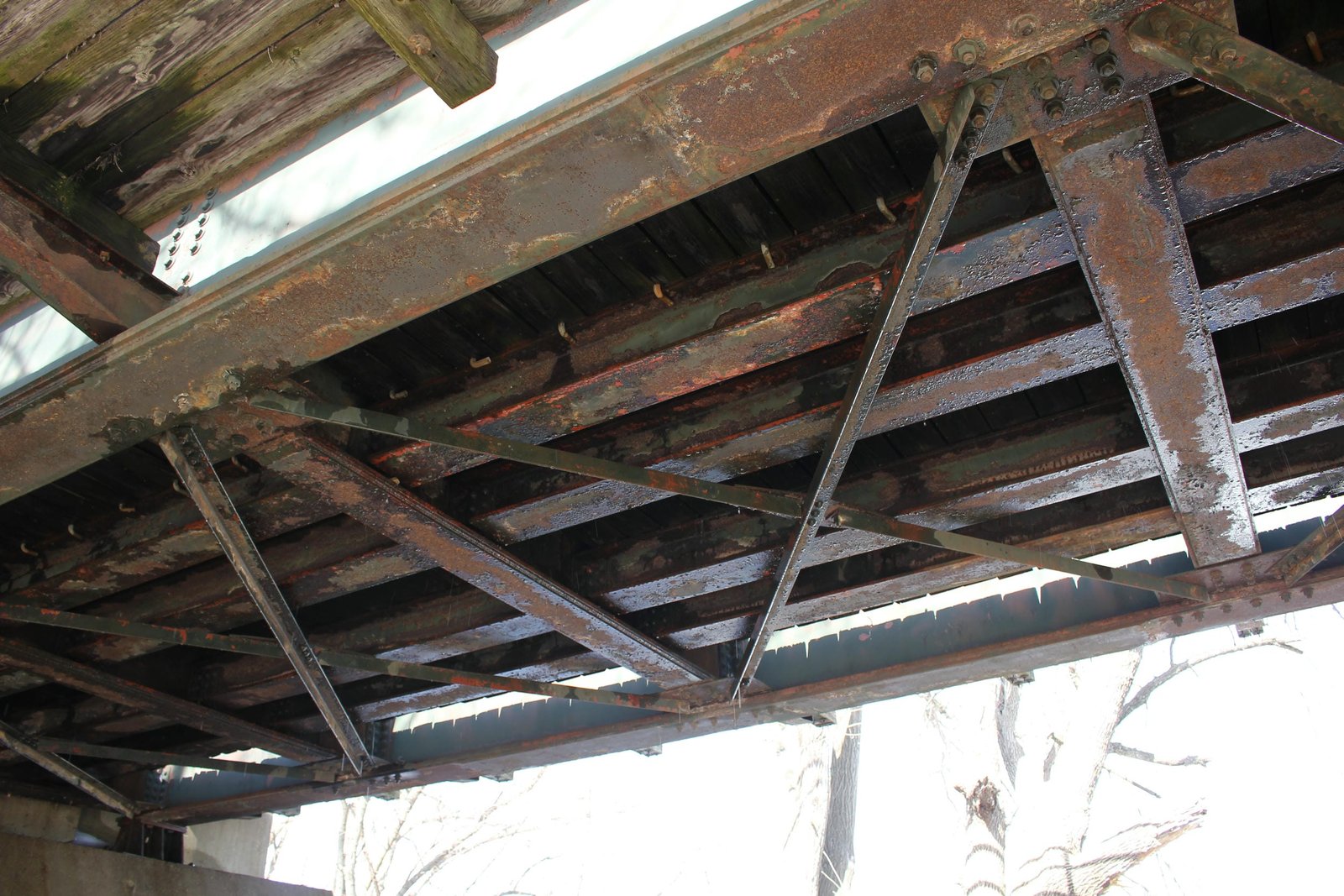

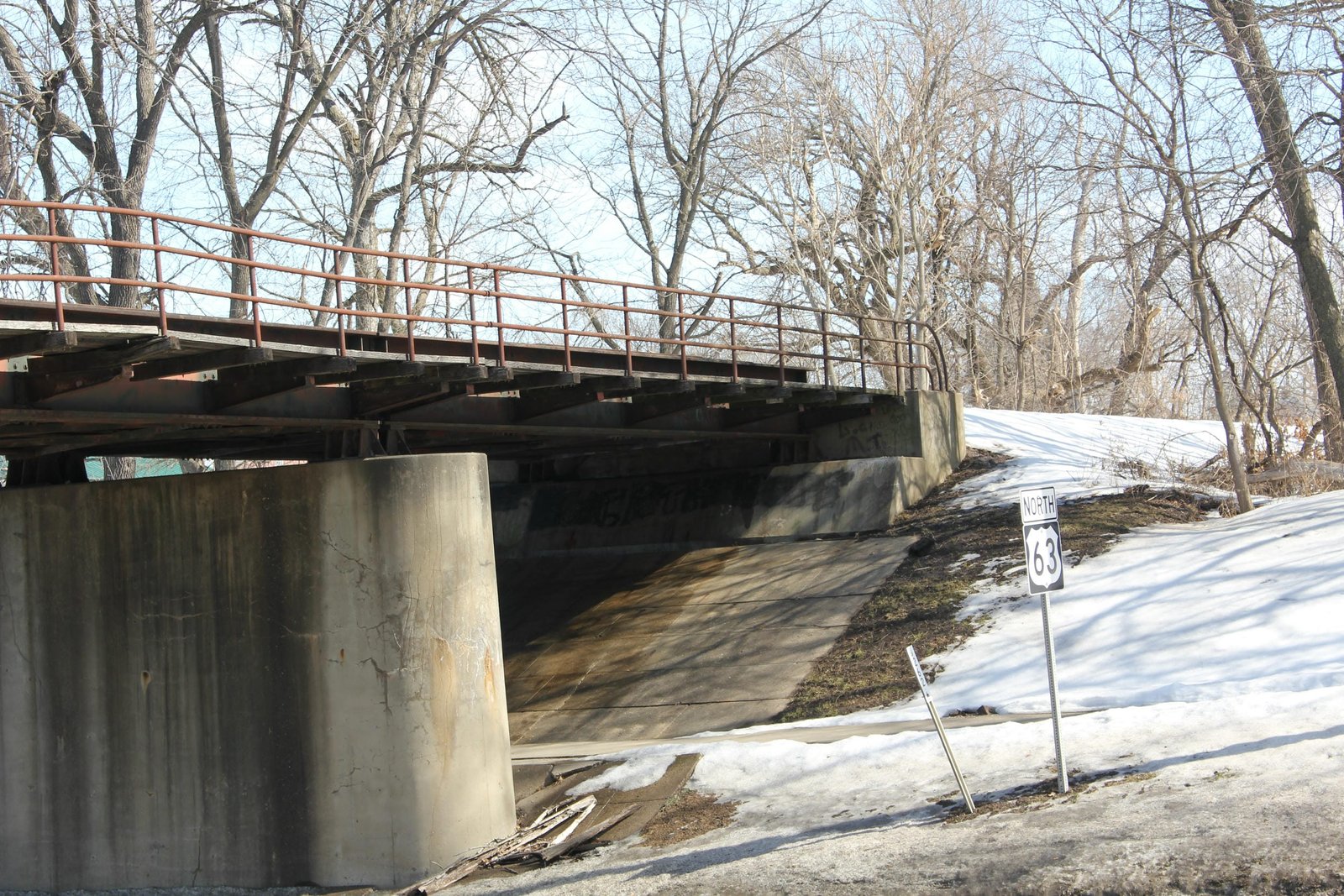

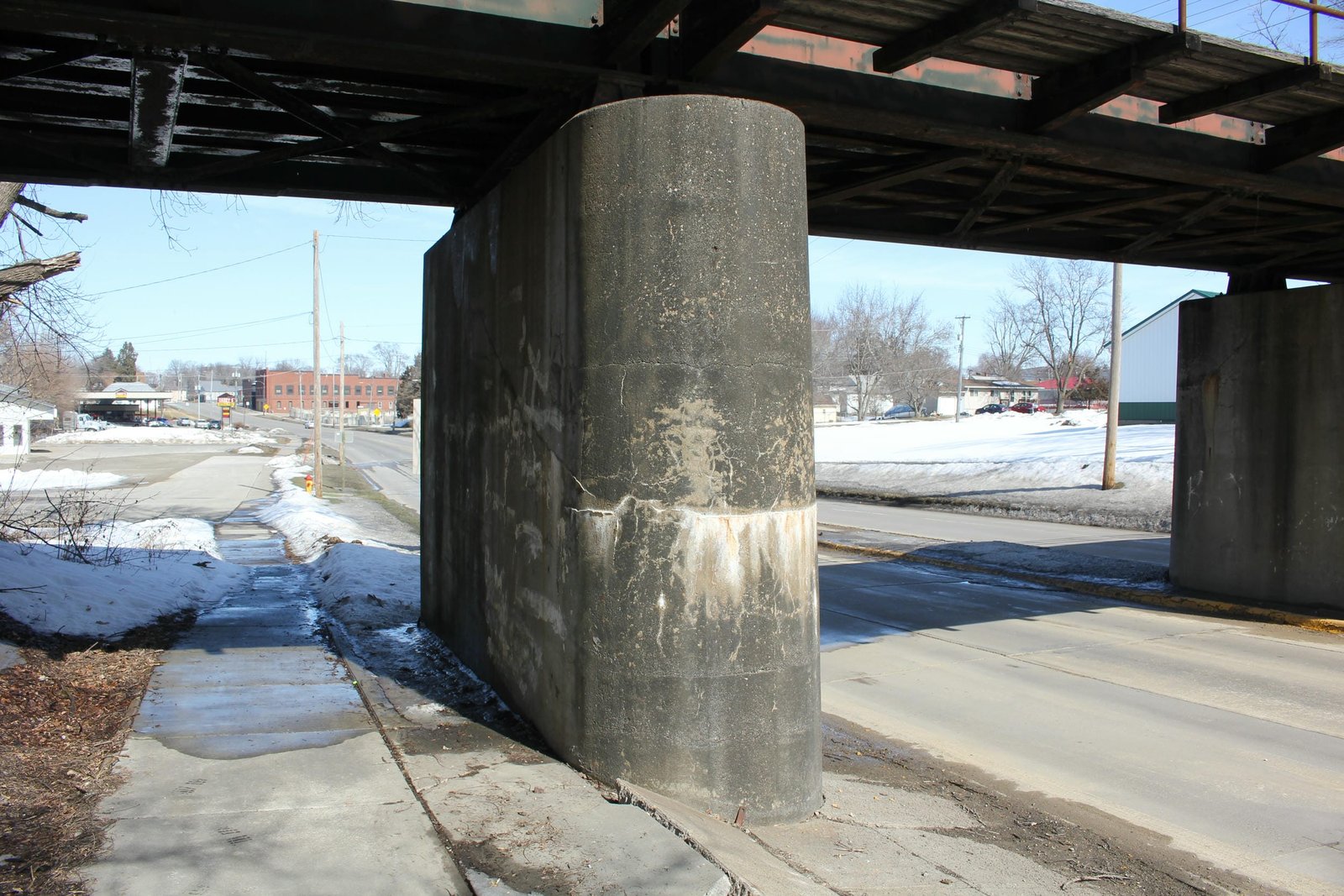

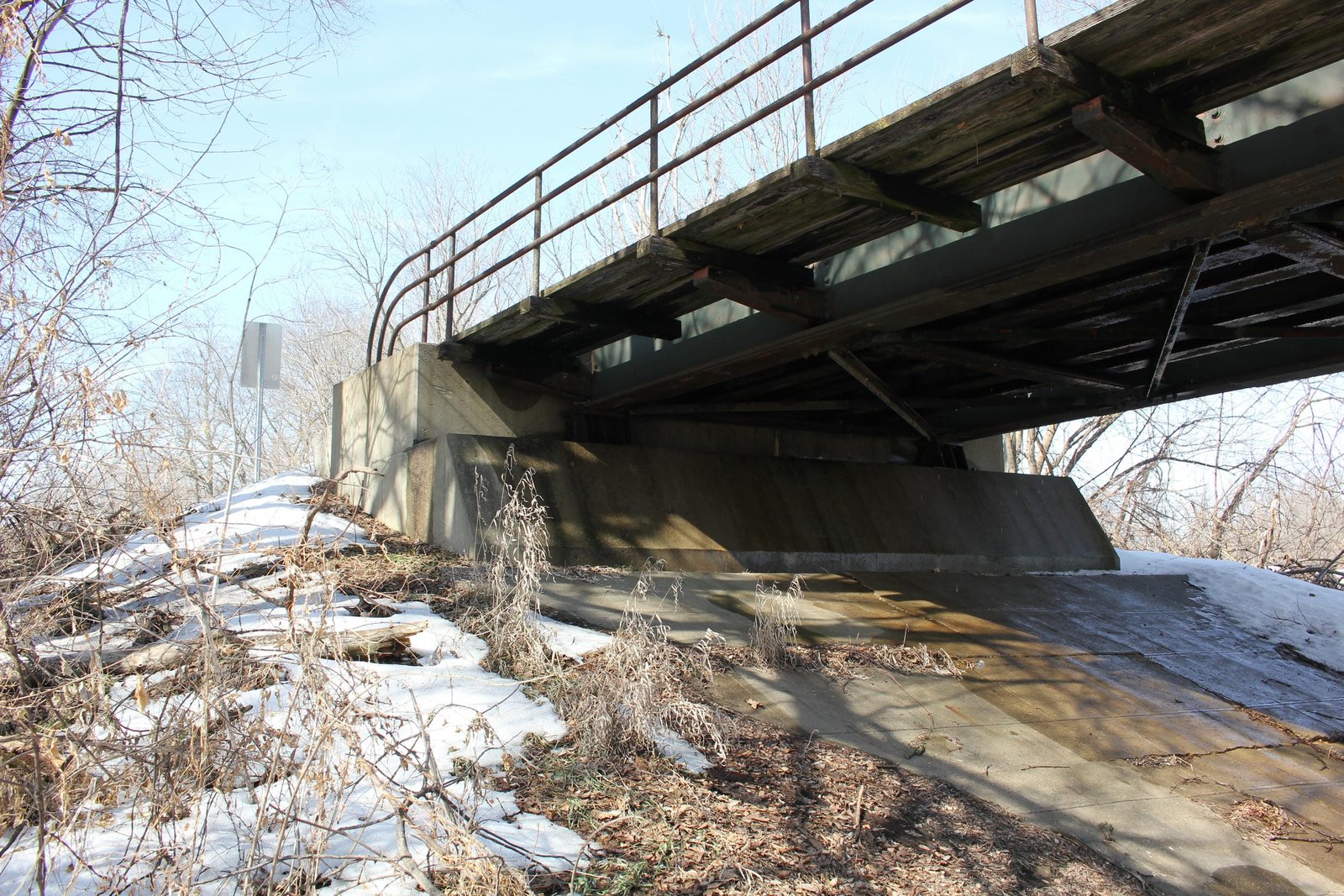

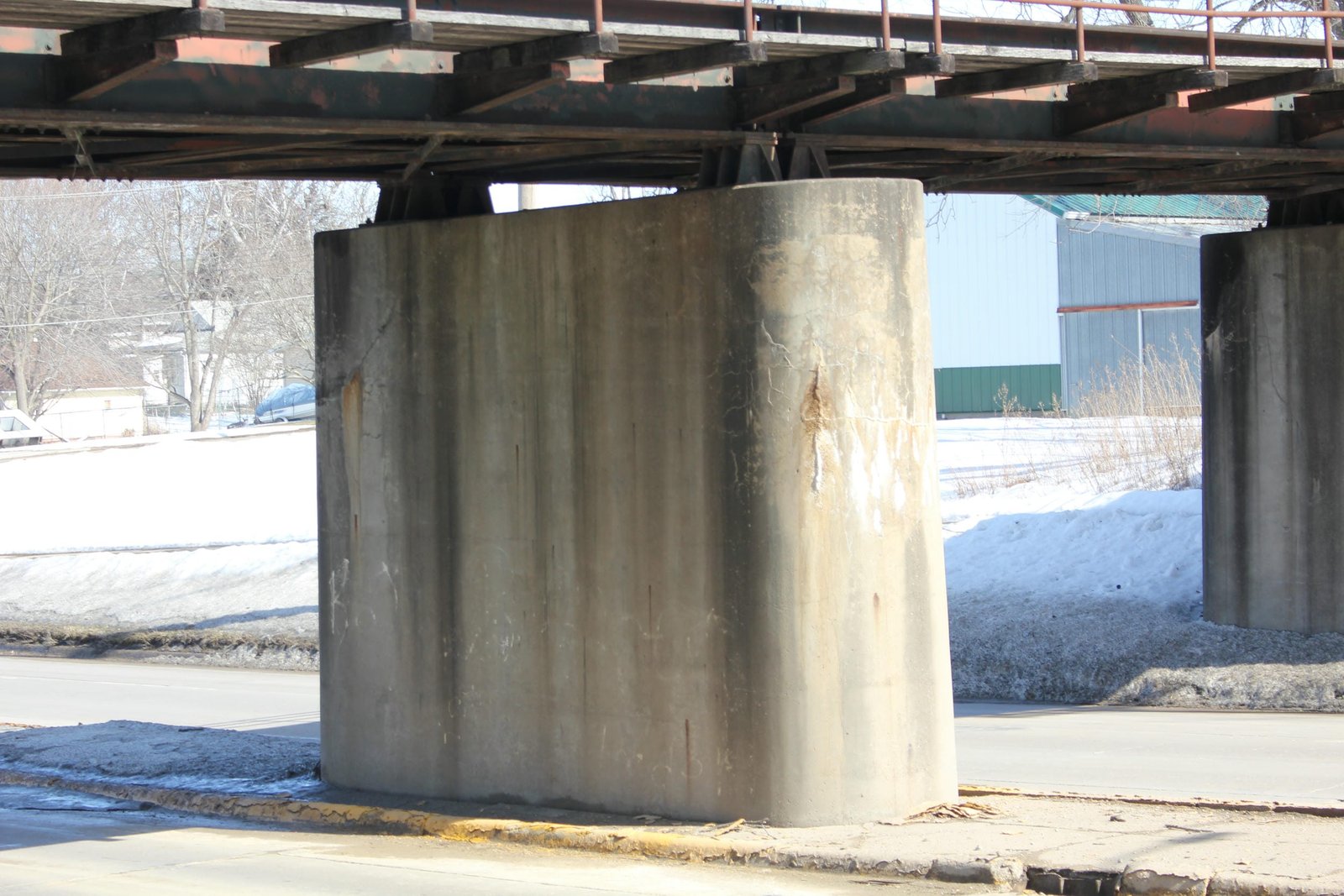

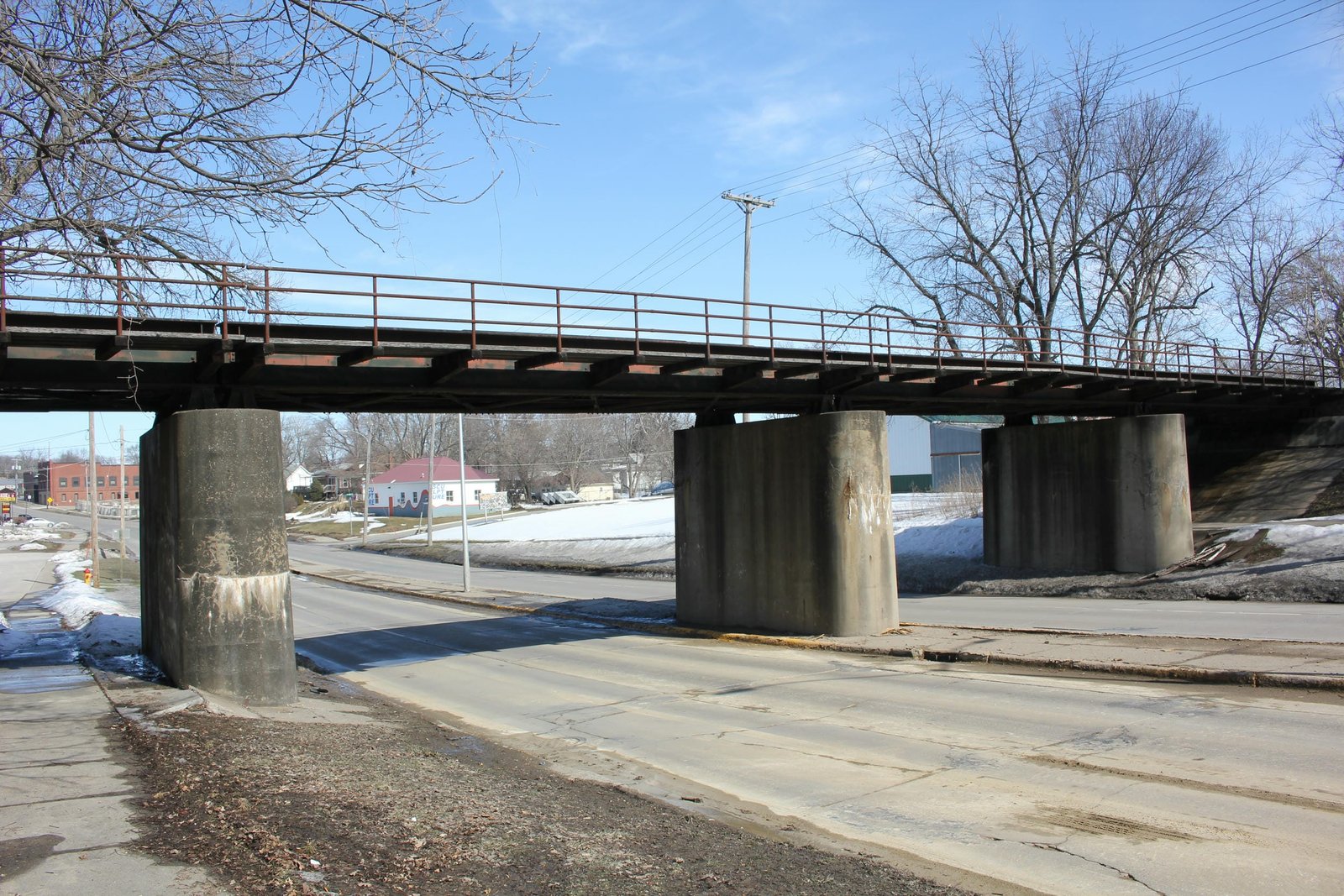

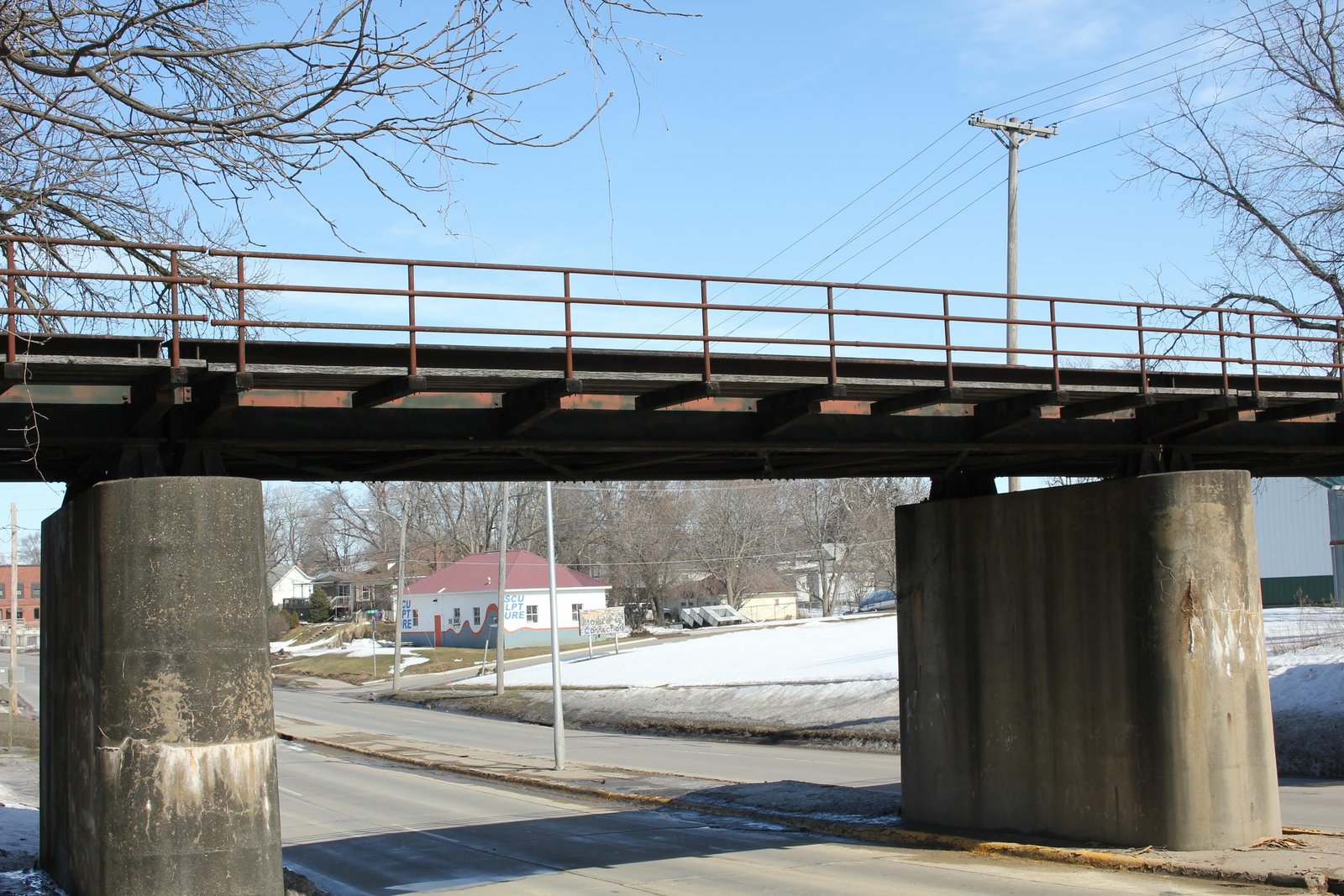

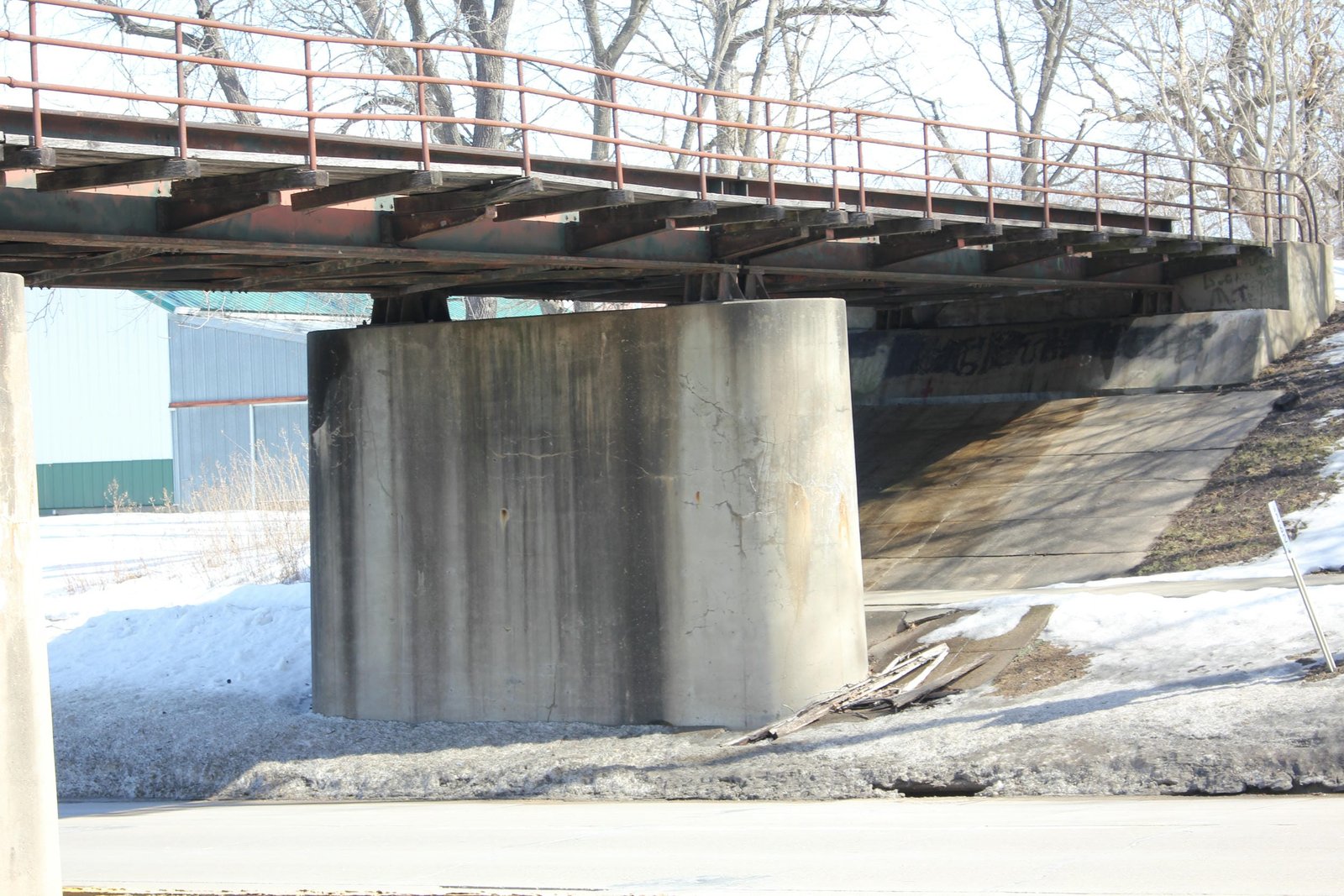

Located on the south side of Oskaloosa, this through plate girder bridge carries a former Minneapolis & St. Louis Railway mainline over US Highway 63 (Market Street). Previously, a smaller girder bridge stood at this location, which was likely constructed in the early 20th Century. In 1953, the Iowa State Highway Commission began making plans to widen US Highway 63 and construct a new underpass. The project was bid in January of 1954, and work on the structure was completed that year. Currently, the bridge consists of three 40-foot and one 37-foot through plate girder spans, set onto concrete substructures. The superstructure follows a standard design for the era, with shallow girders and four stringers that are almost as heavy as the girders. The piers use a standard rounded shape, while the abutments use a standard U-shape. An unknown contractor fabricated the superstructure, while the substructure was constructed by the Amos Melberg Company, a prominent Iowa roadway contractor. Through plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. Today, it remains in occasional use to serve industries east of Oskaloosa. Overall, the bridge appears to be in good condition, with no significant deterioration noted. The author has ranked this bridge as being minimally significant, due to the newer age and common design.
Citations
| Build date and builder (substructure) | The Cedar Rapids Gazette; January 13, 1954 |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
