| Name | IAIS Sugar Creek Bridge |
| Built By | Chicago, Rock Island & Pacific Railway |
| Currently Owned By | Iowa Interstate Railroad |
| Contractor | Unknown |
| Length | 28 Feet Total |
| Width | 1 Track (85 Feet) |
| Height Above Ground | 20 Feet (Estimated) |
| Superstructure Design | Concrete Arch |
| Substructure Design | Concrete |
| Date Built | 1910 |
| Traffic Count | 5 Trains/Day (Estimated) |
| Current Status | In Use |
| Iowa Interstate Railroad Bridge Number | 306.70 |
| Significance | Local Significance |
| Documentation Date | 2/22/2020 |
In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa. As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport. In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864. In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867. In 1869, the line would continue to be extended west towards the Missouri River. At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois. In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway. The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s. This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.
In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures. Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s. The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability. After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline. The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability. Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations. In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island. During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated. Many of the lines and equipment were scrapped. Profitable sections of railroad were prepared for sale.
In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa. In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section. In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees. Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984. After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa. Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations. Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

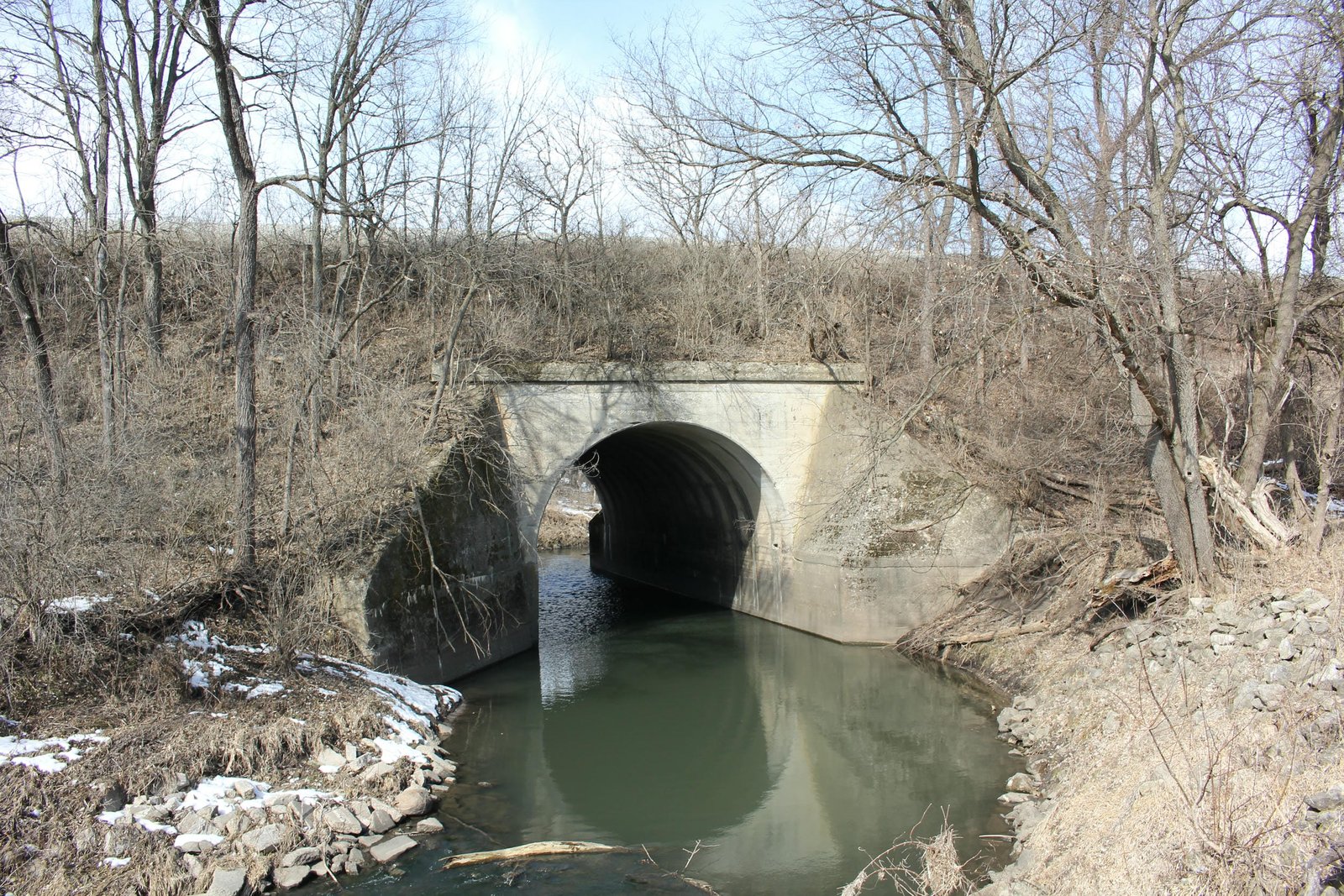

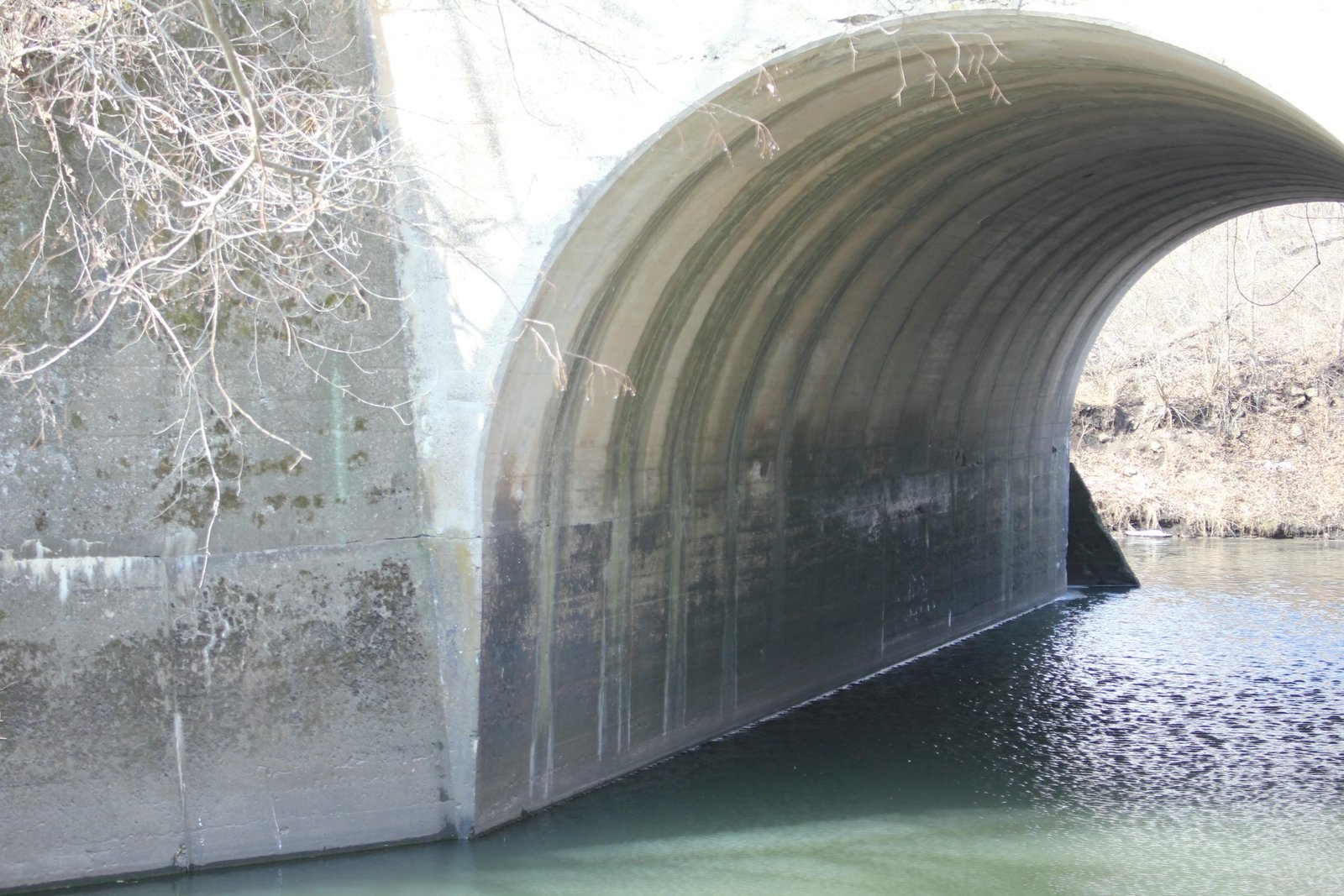

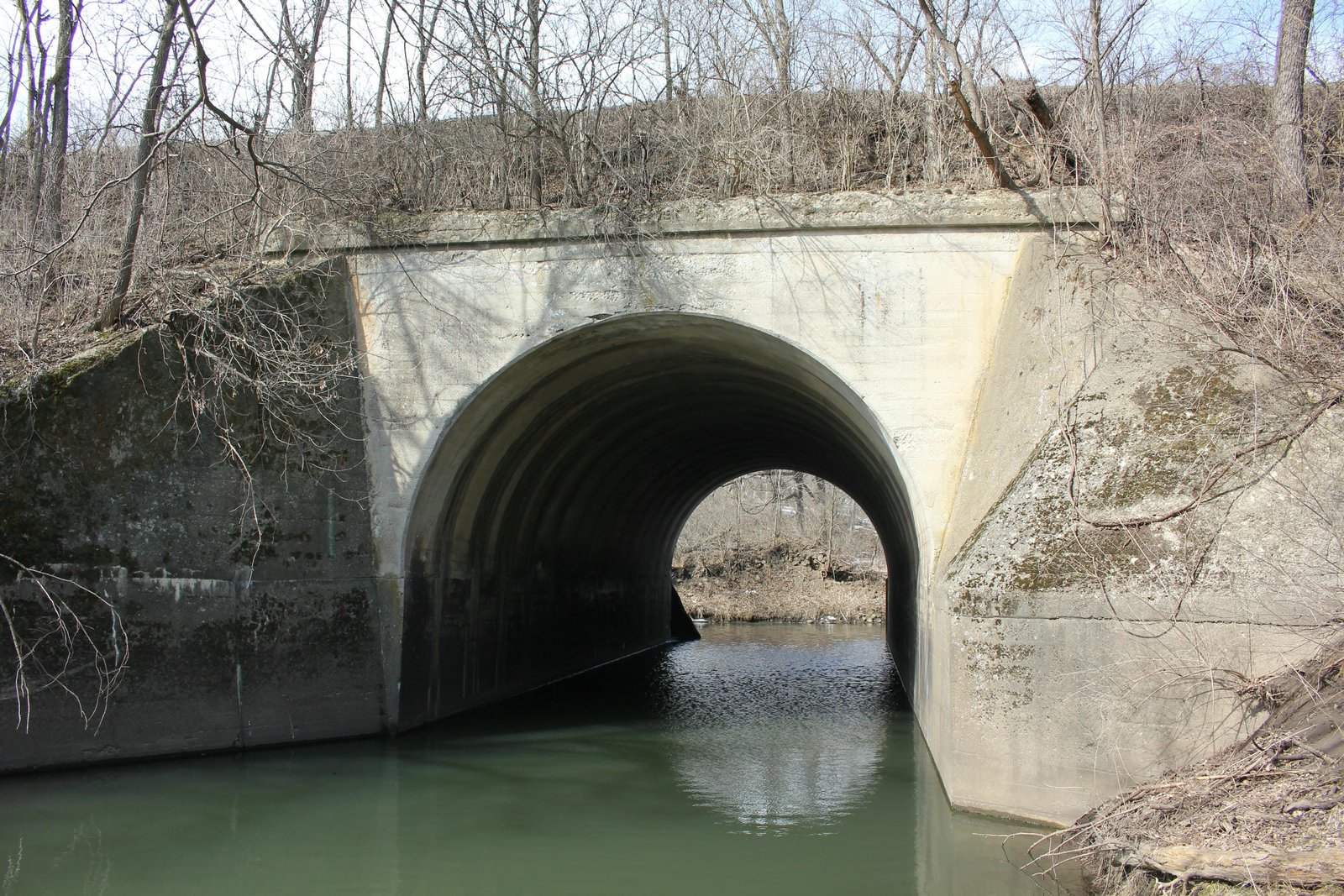

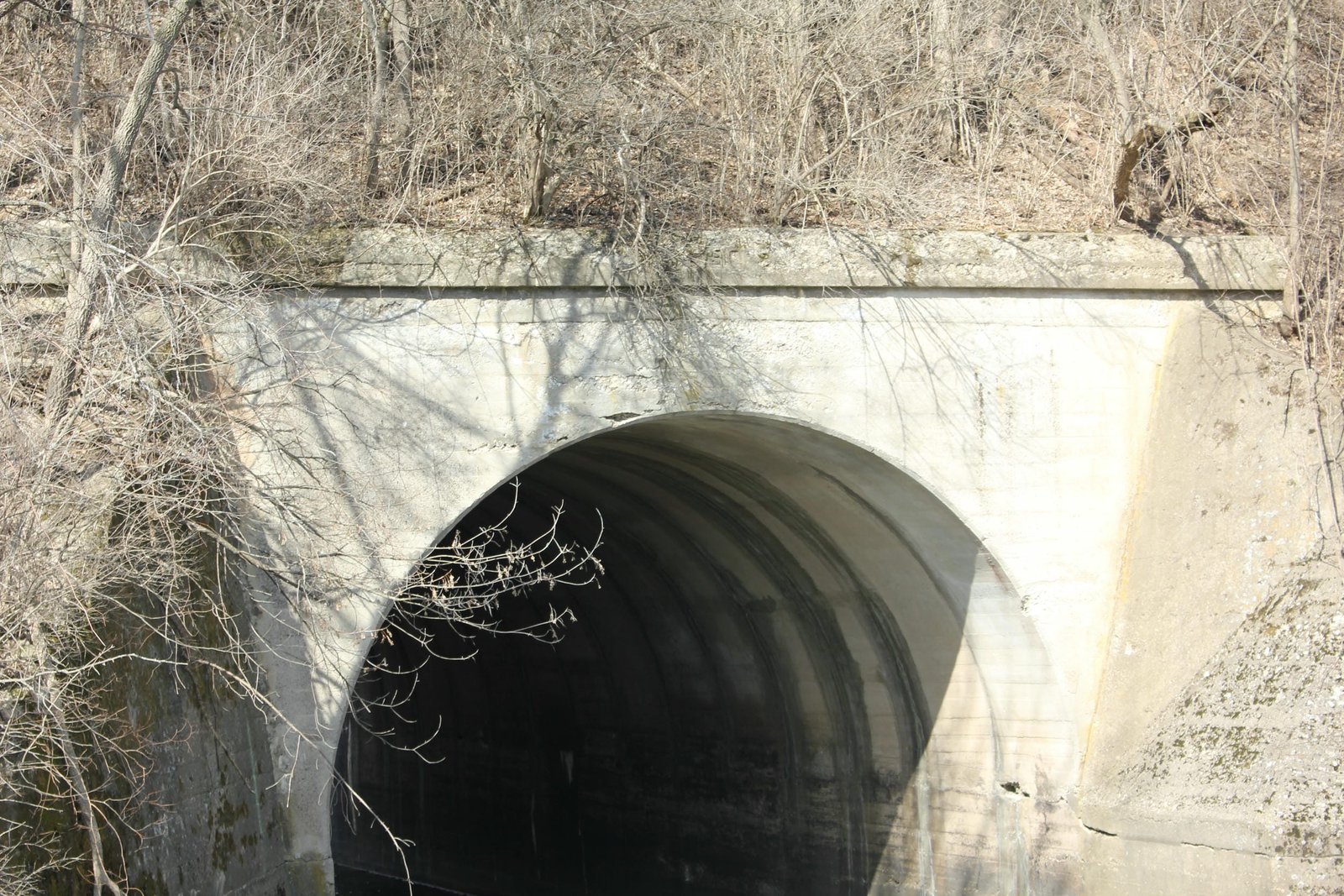

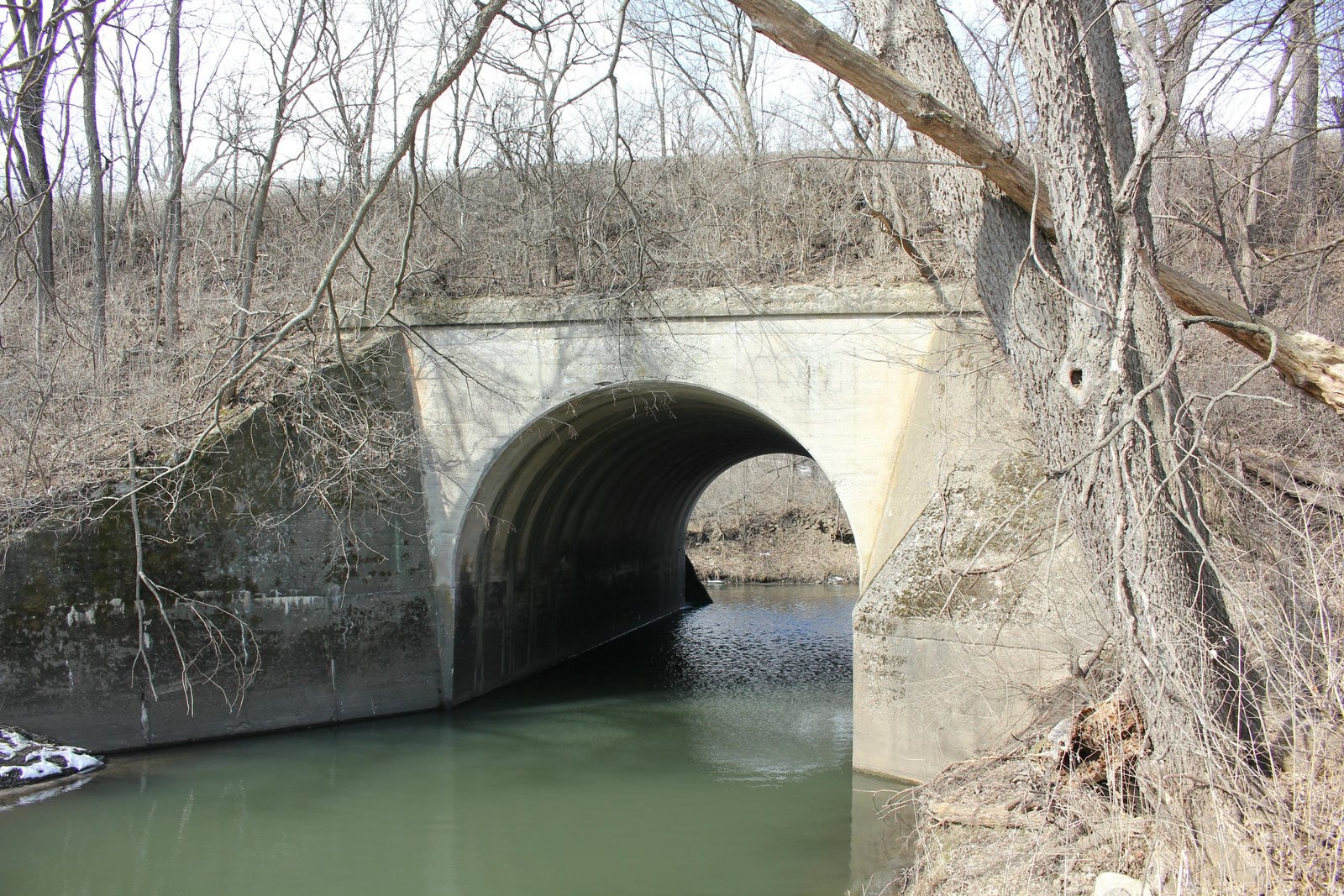

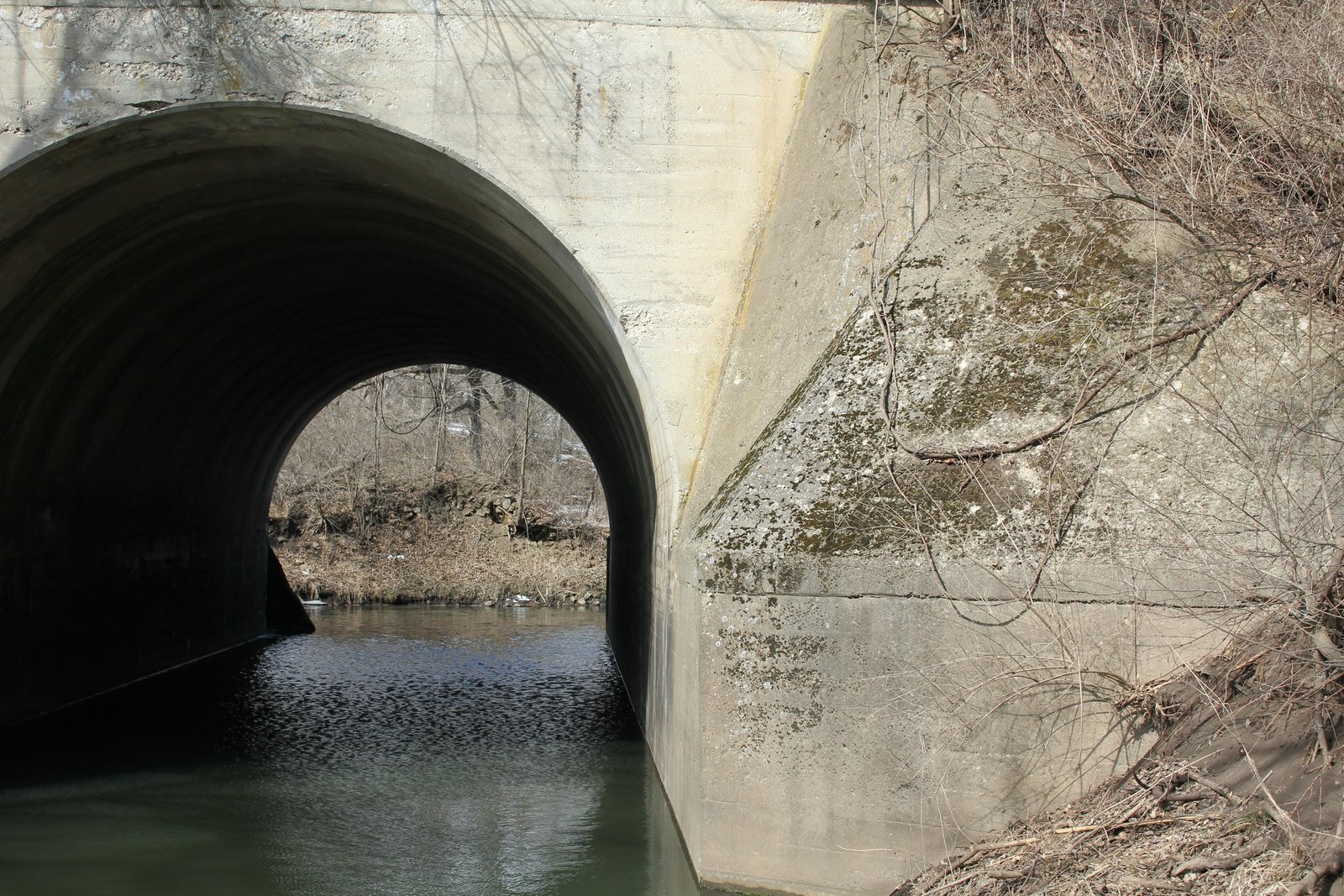

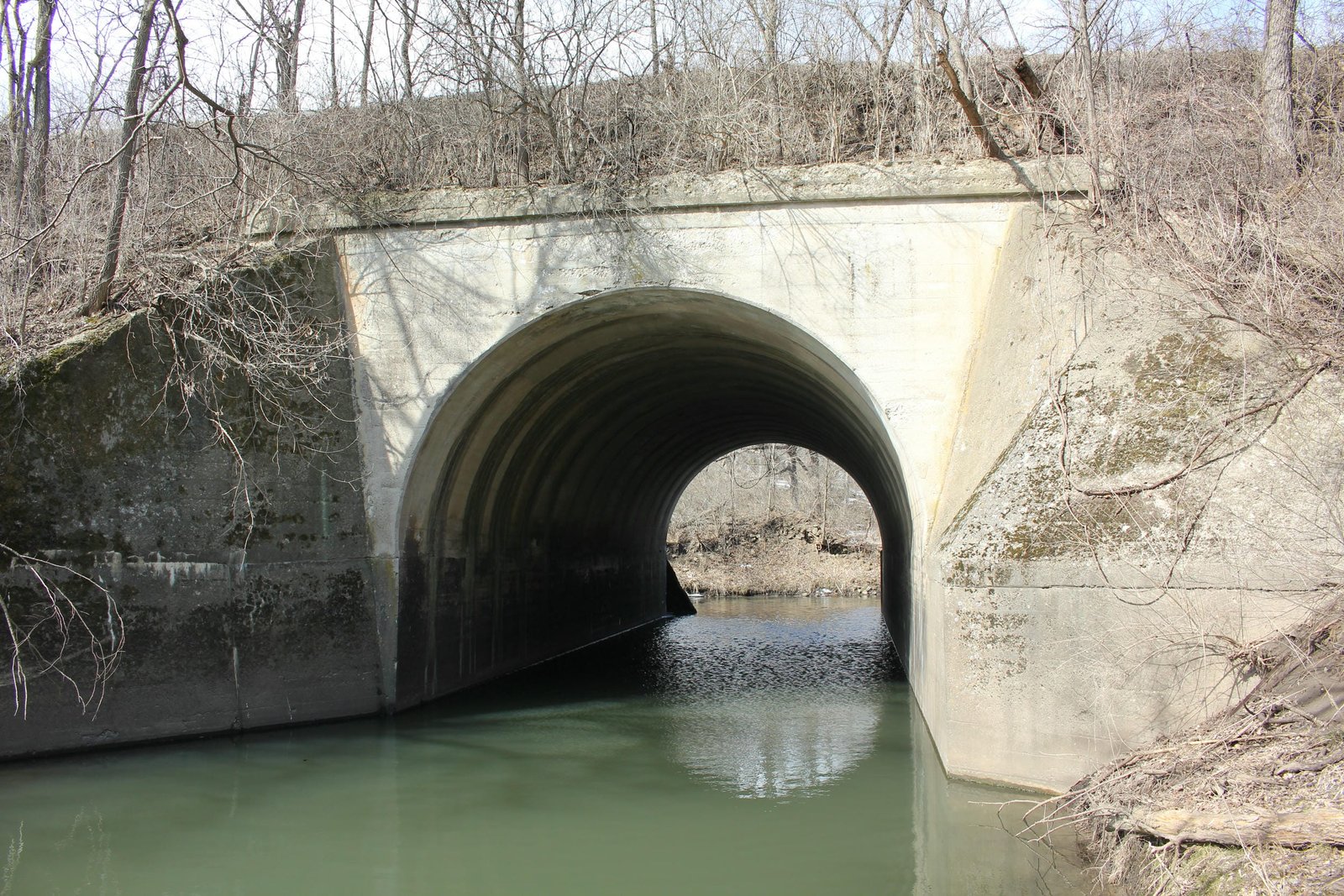

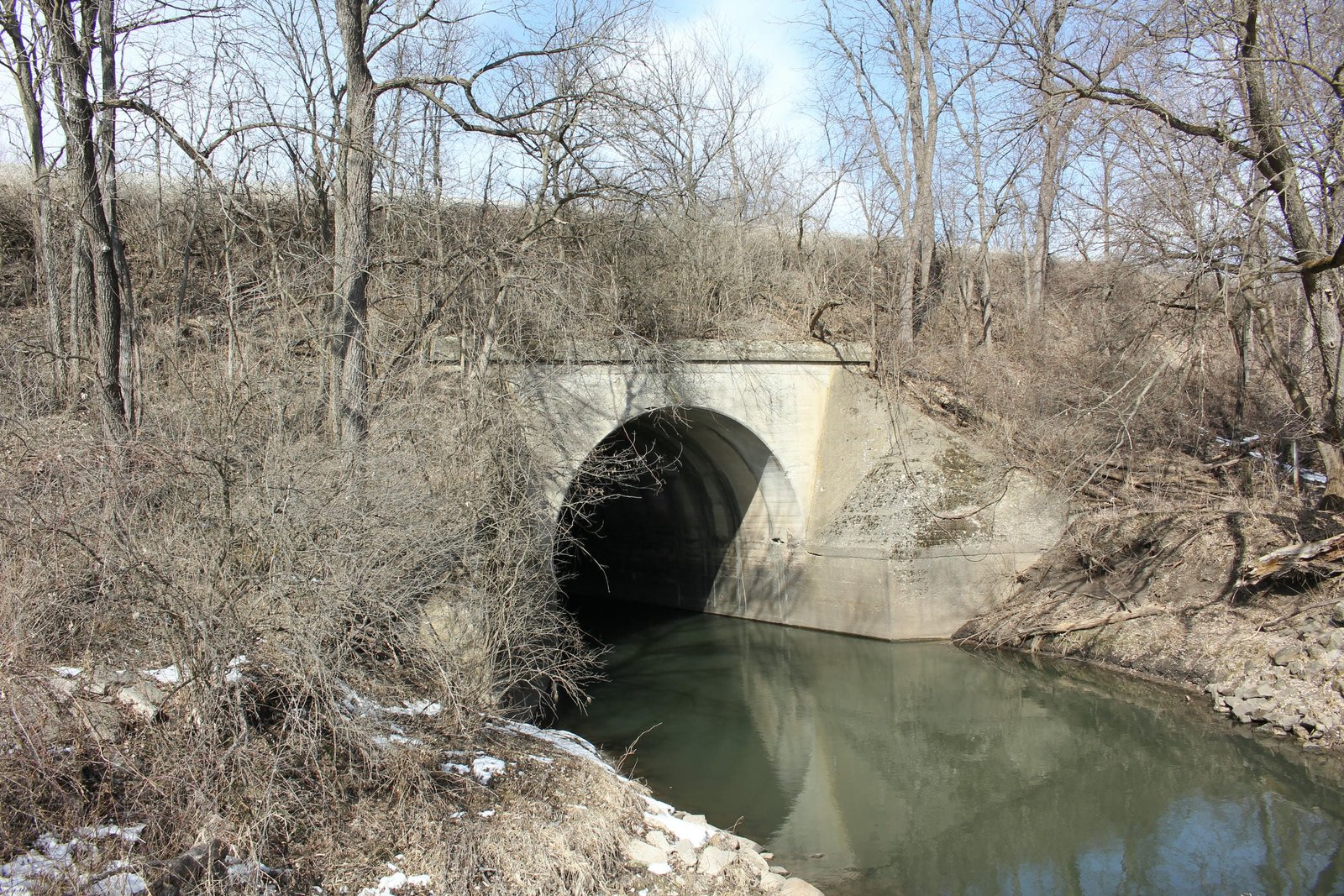

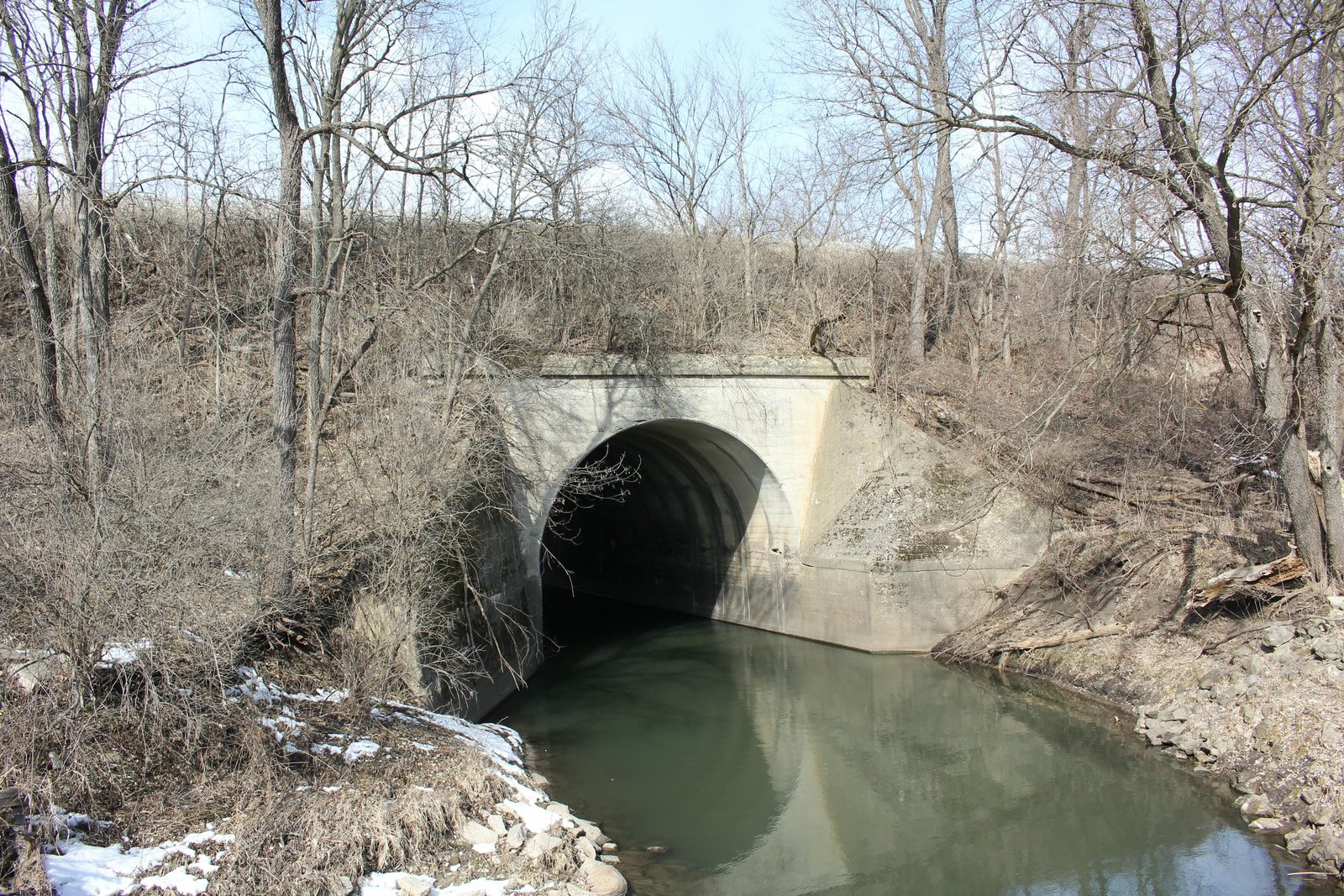

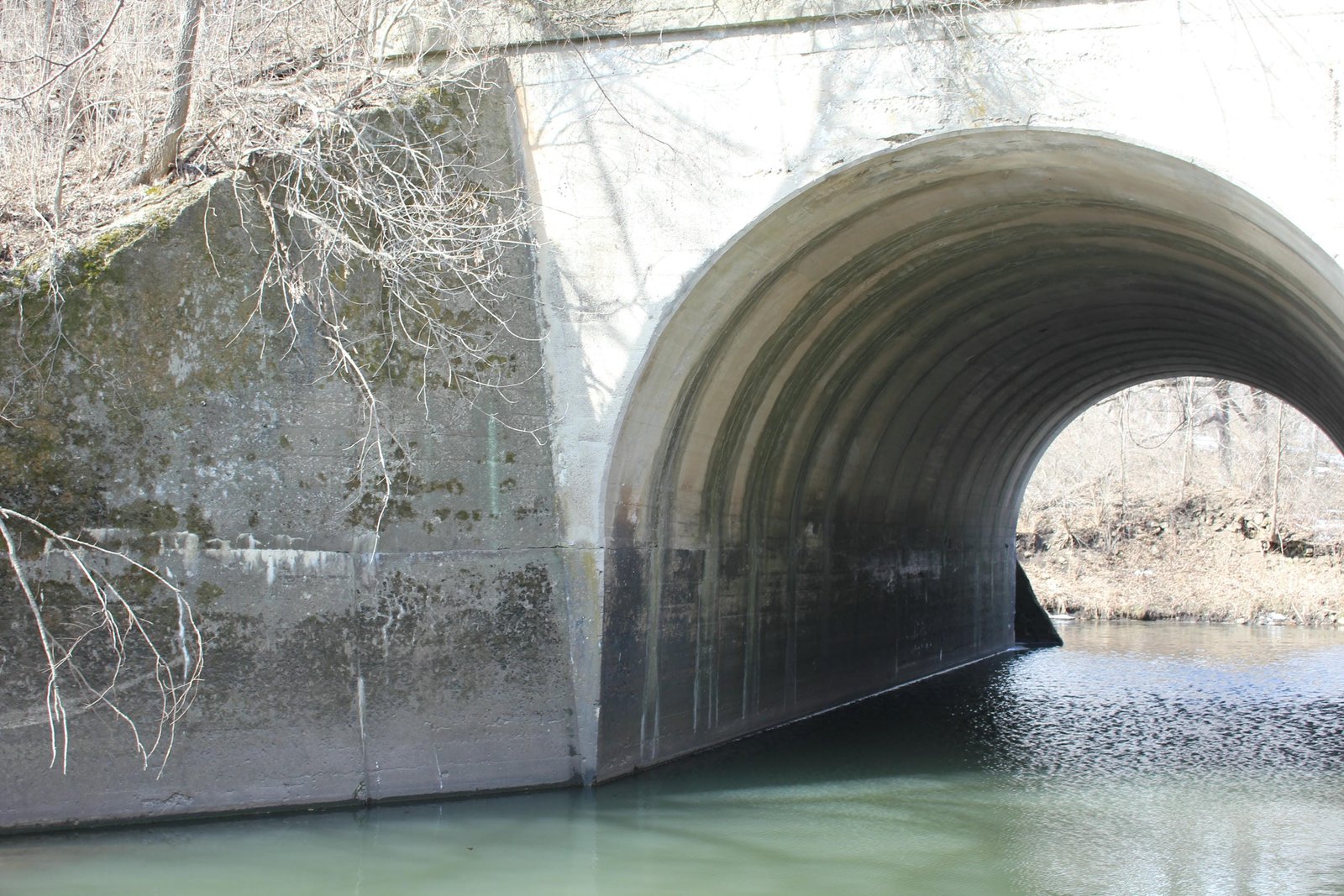

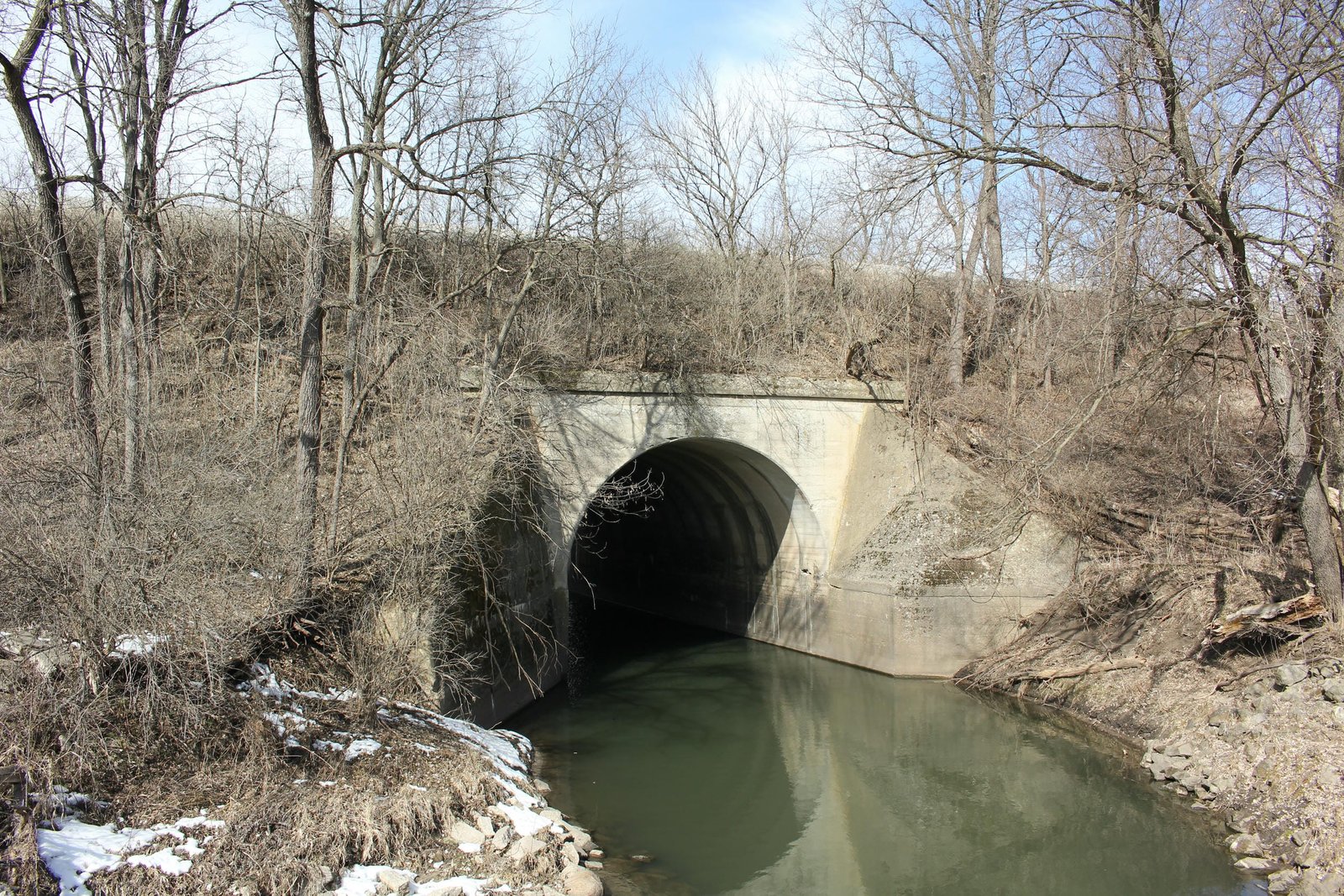

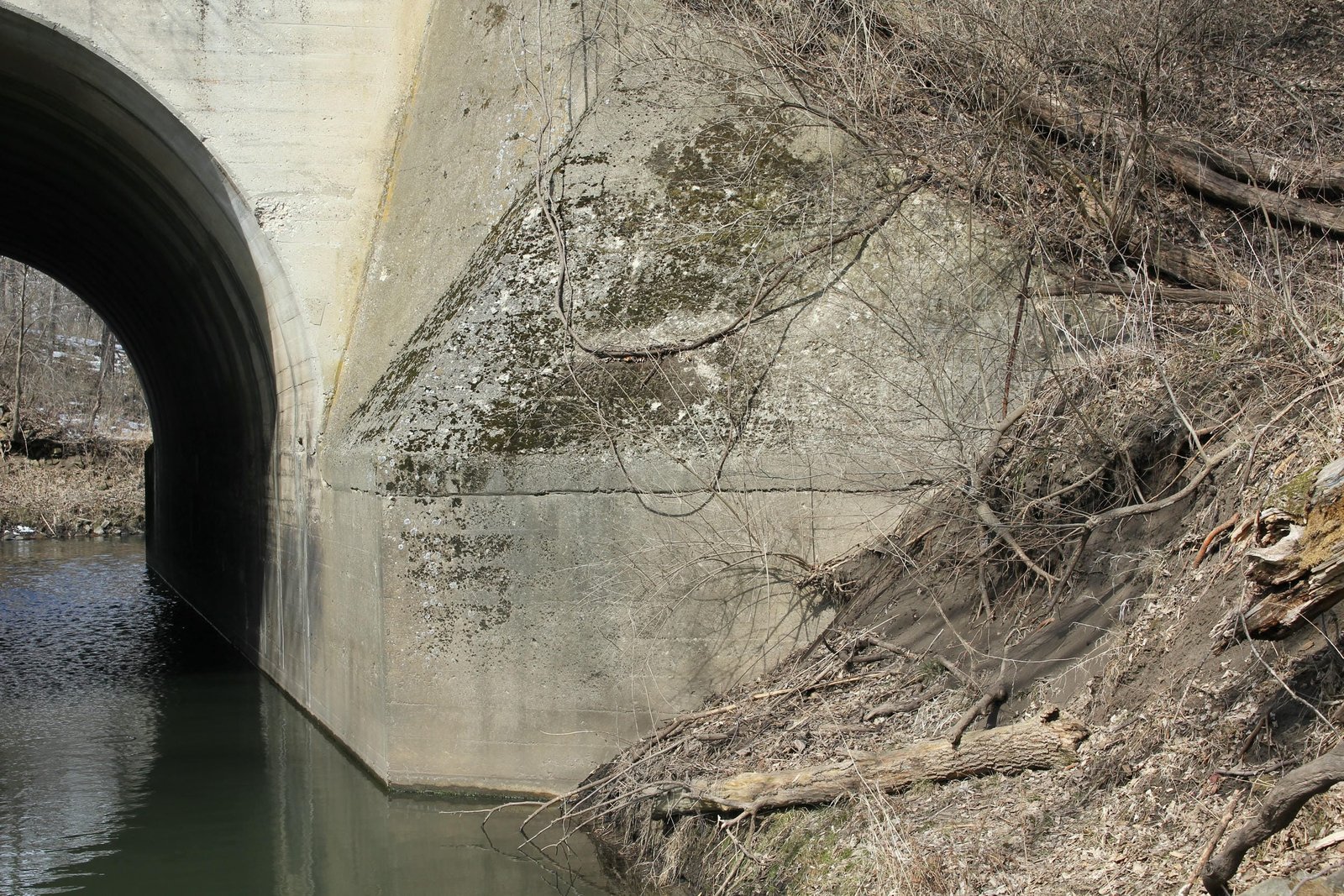

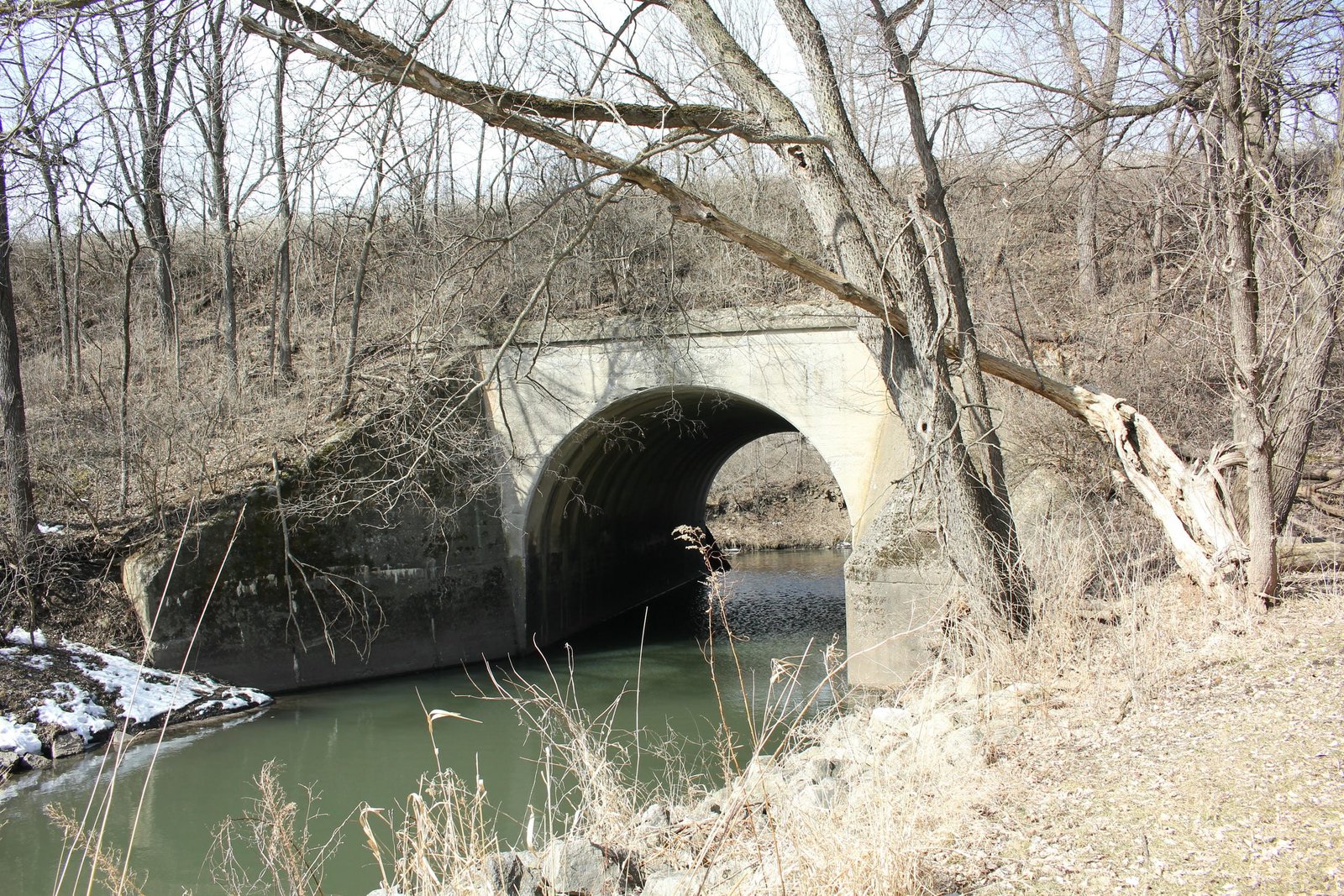

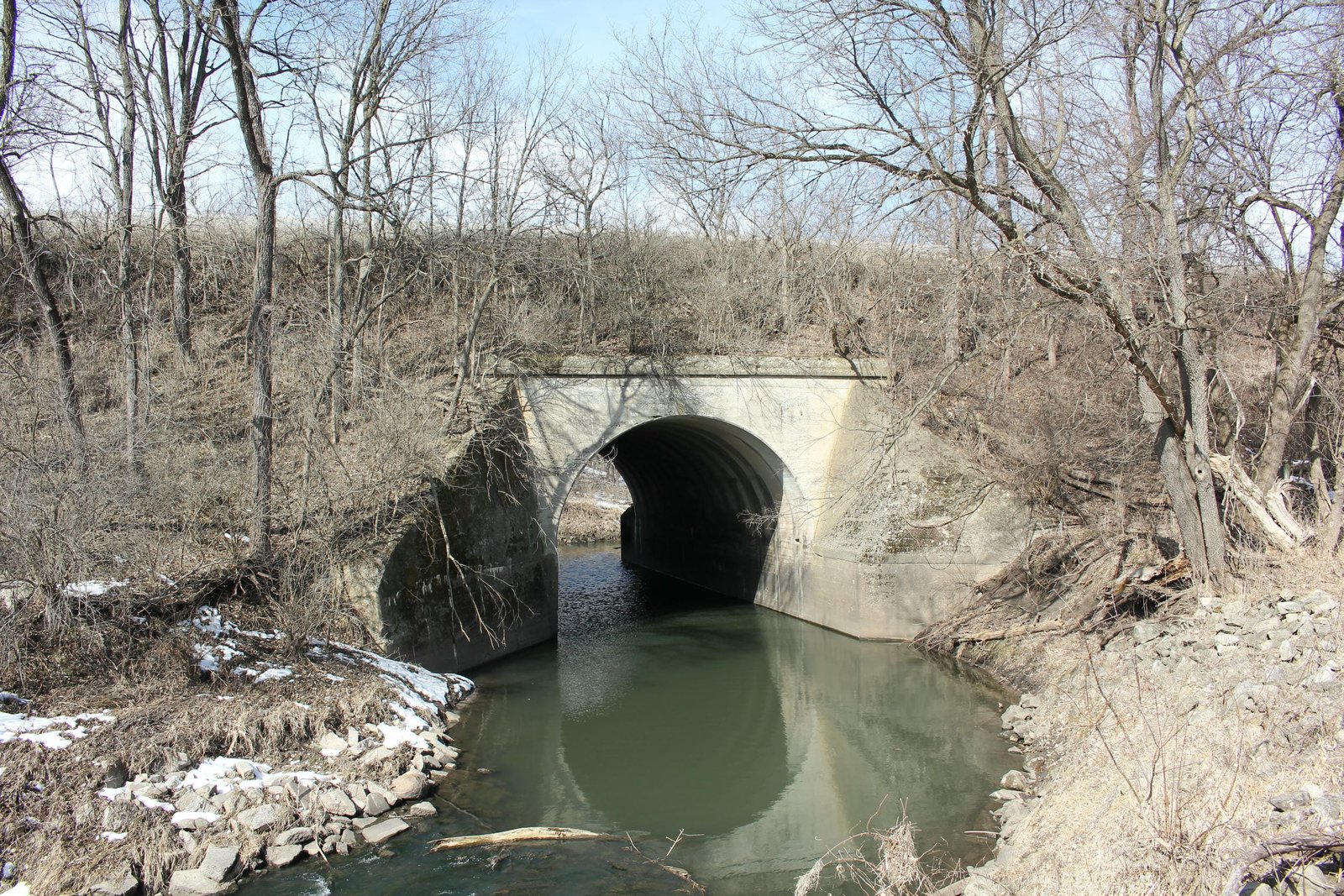

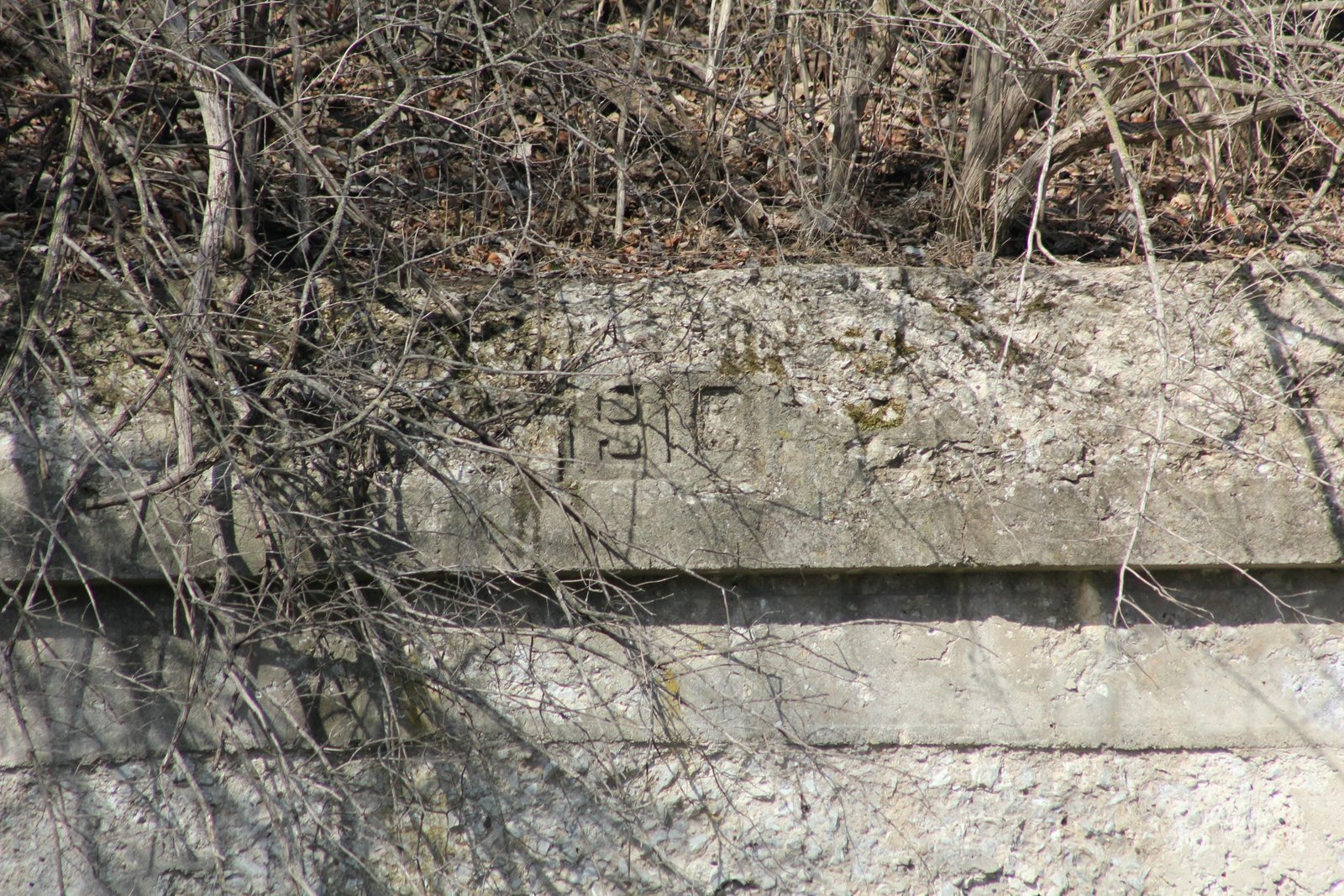

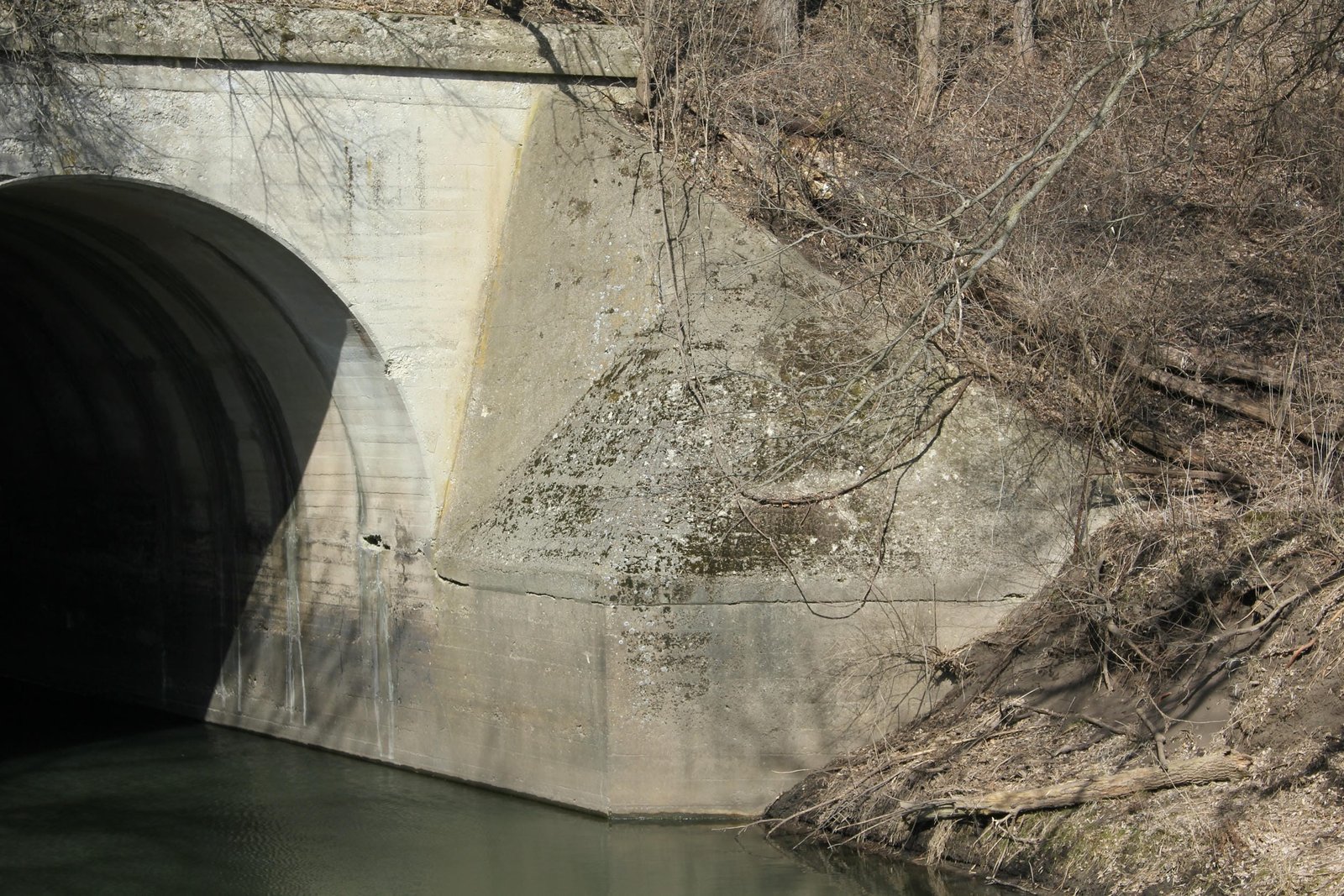

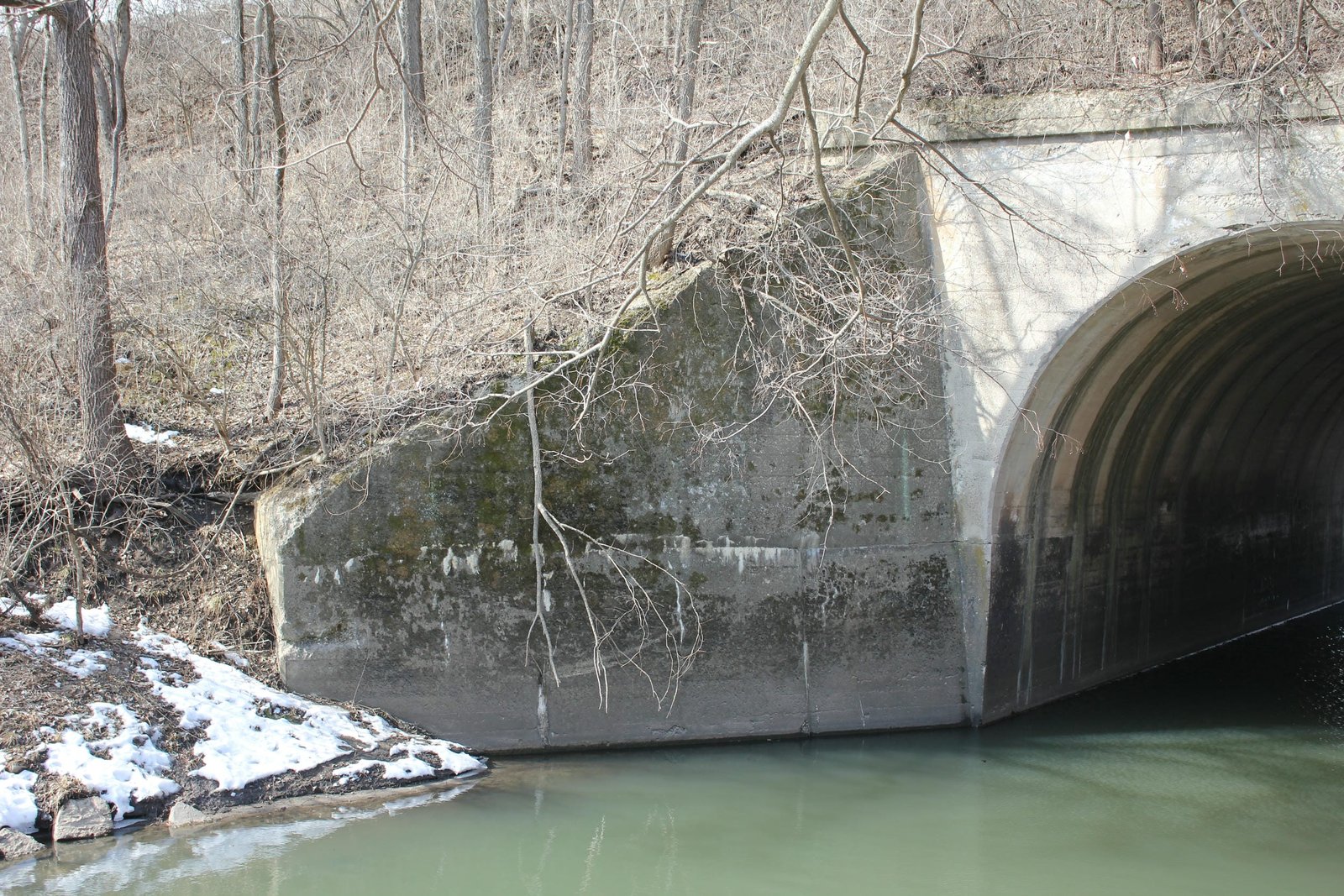

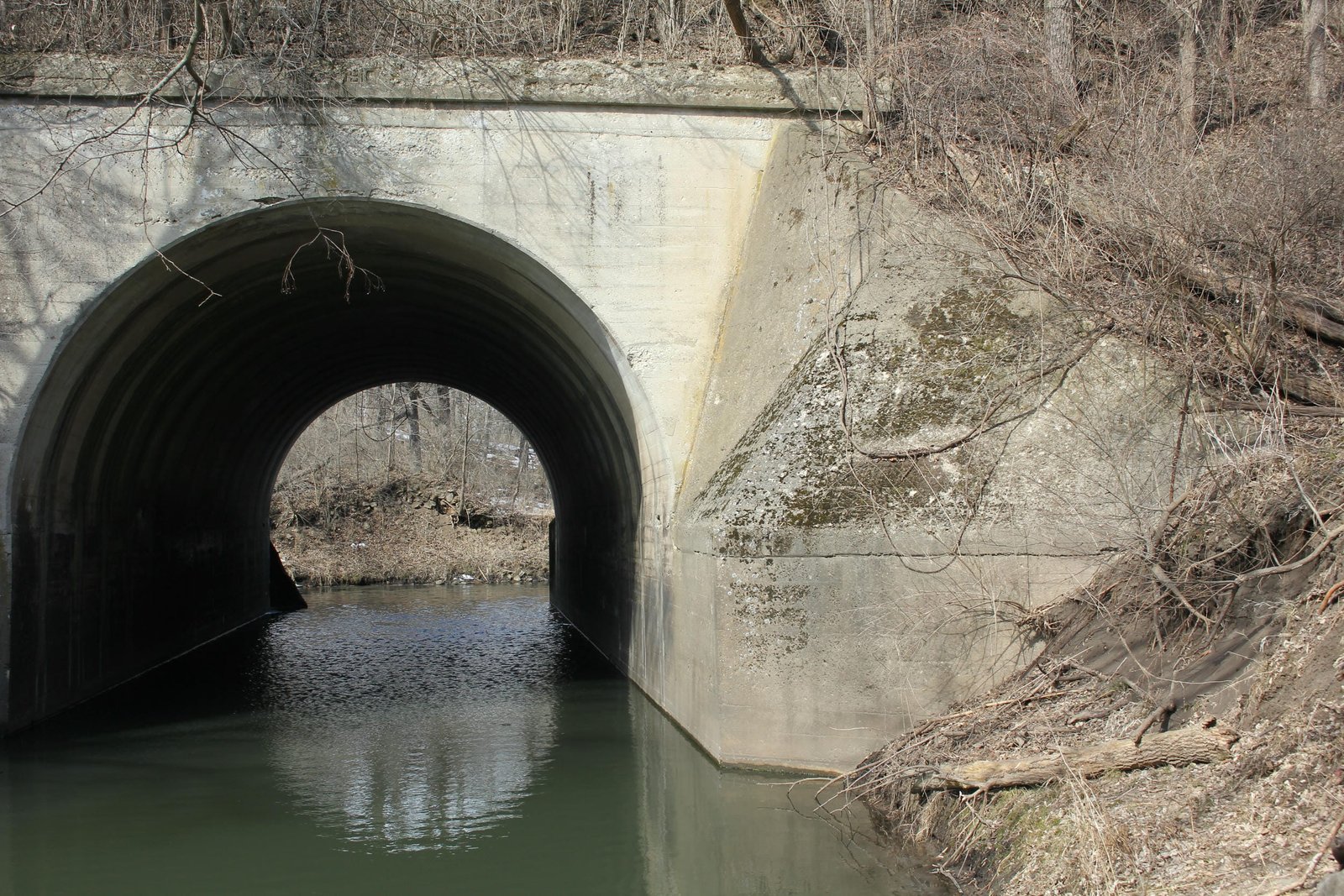

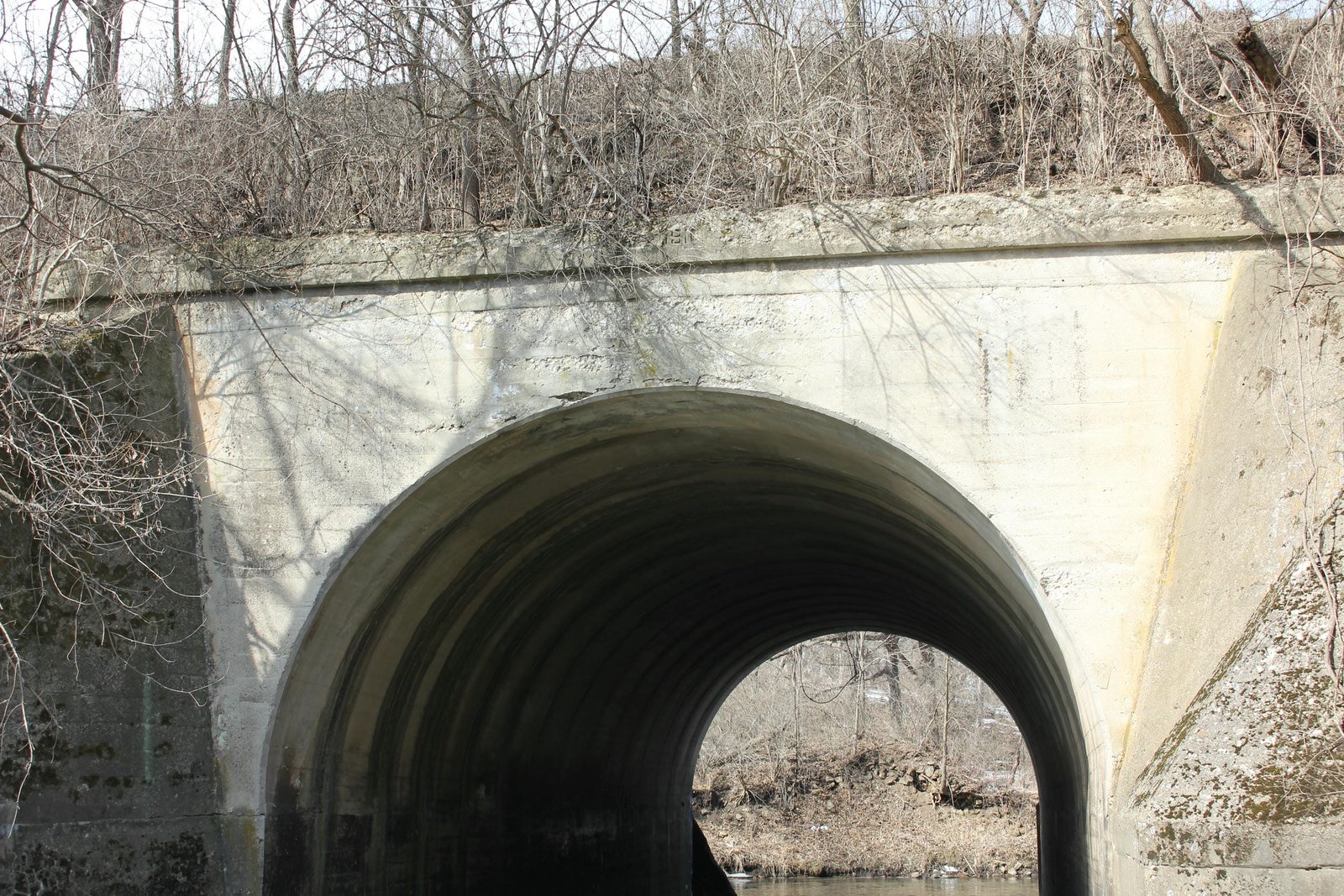

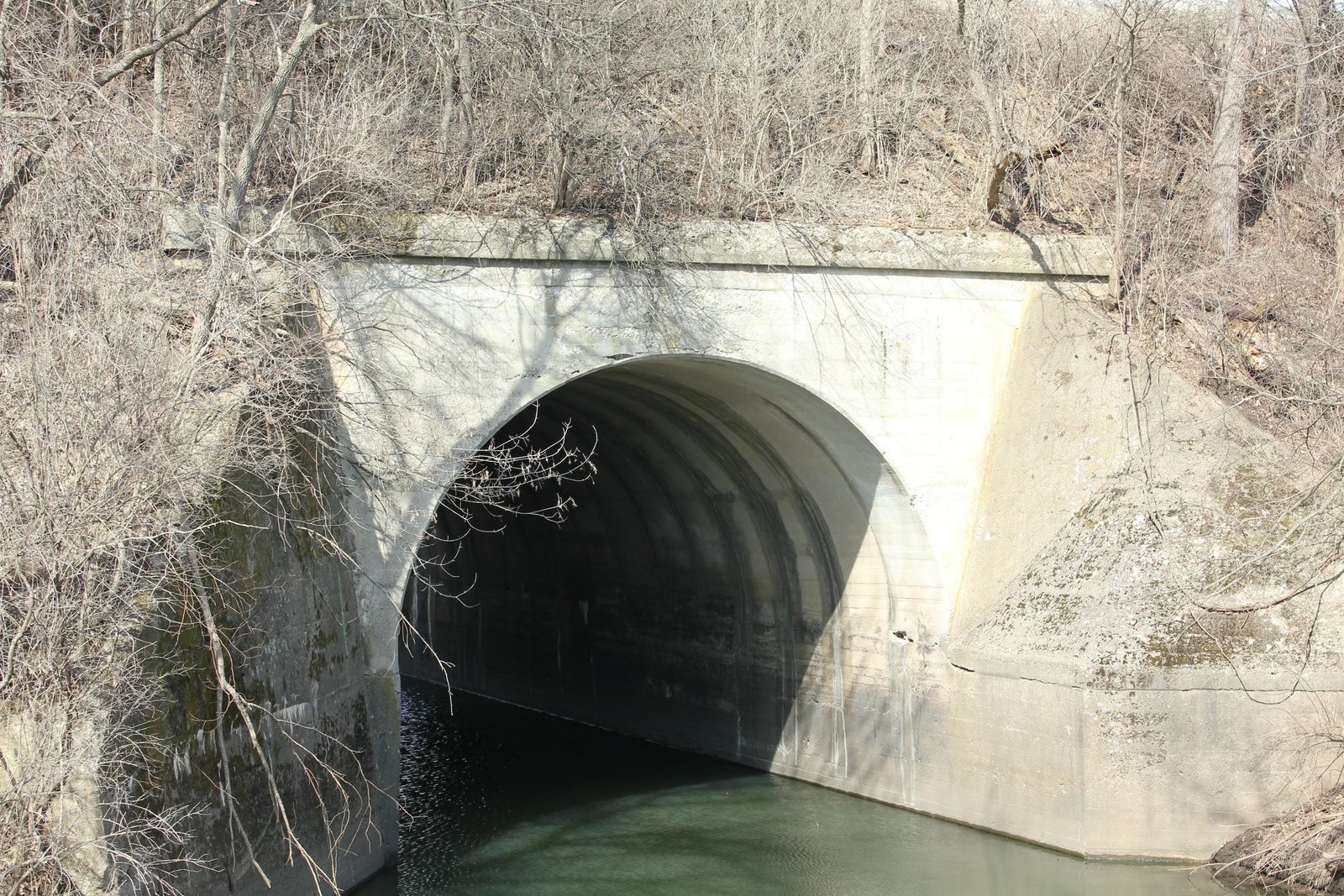

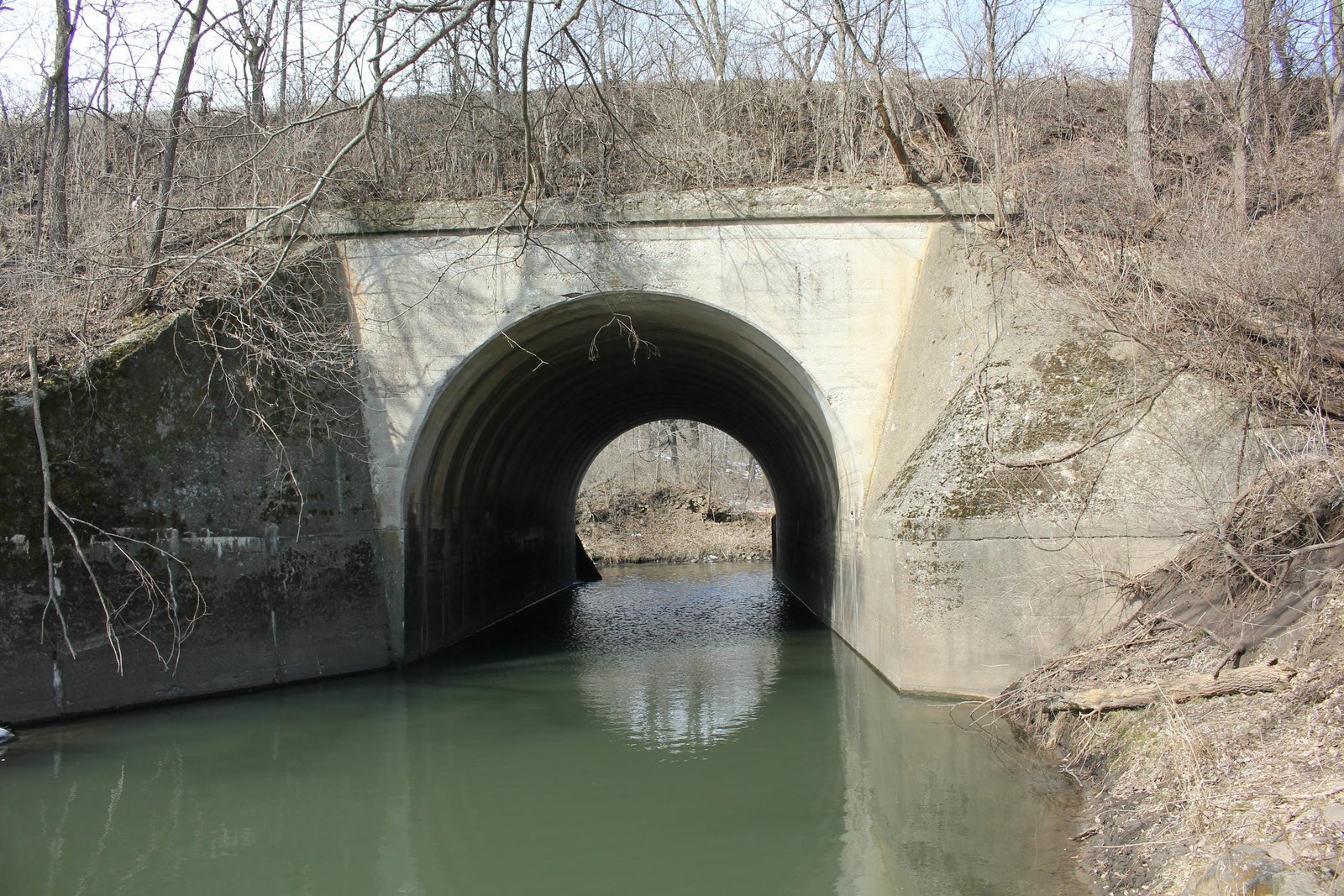

Located south of Oakland Acres, this large concrete arch bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Sugar Creek between Grinnell and Kellogg. Little is clear about the history or design of this bridge. The first bridge at this location was likely a timber pile trestle bridge, initially constructed when the line was first built. It is unclear if this bridge was replaced by a stone arch in the 1870s, if it was replaced by an iron girder bridge in the 1880s or if it remained a timber bridge into the 20th Century. In 1910, the present concrete arch bridge was constructed. It is also unclear if the structure is truly a concrete arch, or if the structure consists of a stone arch that was encased in concrete in 1910. Since a date stamp is present on the bridge, it is currently believed that it is truly a concrete arch, constructed that year. Currently, the bridge consists of a massive 28-foot by 28-foot concrete arch, set onto concrete substructures and constructed for a single track at a width of 85 feet. The superstructure follows a standard design, with a semicircular arch and normal sized headwalls. The substructures are unusual, and use two different types of wing walls. The northeast and southeast wing walls consist of massive triangular shapes, which are sloped and possibly indicate that older stonework is encased. The northwest and southwest wing walls are more traditional, with a standard thickness and a sloped design. It is also unclear if the bridge was constructed by an unknown contractor or by railroad company forces. Concrete arch spans were popular with railroads in the early 20th Century, as they were durable and could easily be constructed with minimal interruptions to railroad traffic. Since the initial construction, the bridge has seen no significant alterations. Today, it remains in regular use as part of an Iowa Interstate Railroad mainline. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.
Citations
| Build date | Date stamp |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
