UP Big Blue River Bridge (DeWitt)


Click the photo to view the full-size version

1/30
Date Taken:
Author:
Caption:

Name UP Big Blue River Bridge (DeWitt)
Chicago, Rock Island & Pacific Railroad Bridge #5948
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Union Pacific Railroad
Superstructure Contractor American Bridge Company (Lassig Branch of Chicago) (North Spans)
American Bridge Company of New York (South Spans)
Substructure Contractor List & Weatherly Construction Company of Kansas City, Missouri
Length 252 Feet Total, 63 Foot Spans
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1901 (North Spans)
1924 (South Spans)
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 5948
BNSF Railway Bridge Number 24.14
Significance Local Significance
Documentation Date 10/26/2019

In 1889, the Chicago, Rock Island & Pacific Railroad sought to connect the end of their Council Bluffs-Chicago mainline at Council Bluffs to Lincoln, Nebraska and eventually to a point southwest near Fairbury, Nebraska; where the Chicago, Kansas & Nebraska Railway (CK&N) had built in 1887.  Because the CK&N had built a considerable network of routes around Kansas, Nebraska and Colorado; this connection was desired to give the Rock Island access to Denver.  The Rock Island purchased the CK&N in 1891.  Trackage rights were secured to cross the Missouri River on the Union Pacific Bridge into Omaha, before the route turned southwest, running through Papillion and Richfield, before crossing the Platte River at South Bend.  From here, the route continued through Murdock, Alvo and Prairie Home.  By 1892, the Rock Island had reached Lincoln, passing through the east side of the city.  In 1893, work continued south, and the route was built through Rokeby, Hallam, Clatonia, DeWitt and Plymouth before finally reaching the existing line at Jansen, Nebraska.  The Rock Island was a poor railroad, facing financial trouble regularly and often in bankruptcy.  This route hosted passenger trains known as "Rockets" for many years, although passenger trains were later discontinued.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes.  Rock Island sought to keep interchange traffic between Denver and Chicago running on this line, struggling to compete with a stronger and better constructed Union Pacific system.

By 1964, the Rock Island began attempts to merge with Union Pacific, and restructure railroads west of the Mississippi River.  This merger was eventually denied, and Rock Island turned its last profit in 1965.  In the mid-1970s, the railroad was in serious decline.  The railroad received loans to attempt to fix slow orders, received new equipment and turn a profit.  By 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.  The route between Omaha and Hallam was abandoned.  The route between Jansen and Hallam was sold to Mid States Port Authority in 1984, and began operations under Union Pacific Railroad the same year.   Today, UP owns the surviving part of this line and operates it as the Hallam Subdivision.  The line through Lincoln is now the Rock Island Trail, and plans are being made to extend the trail to US-77.  East of Lincoln, a small segment is now the Dave Murdock Trail, and the Platte River Bridge is now part of the Mopac Trail.  The remainder of this line is now privately owned and abandoned.

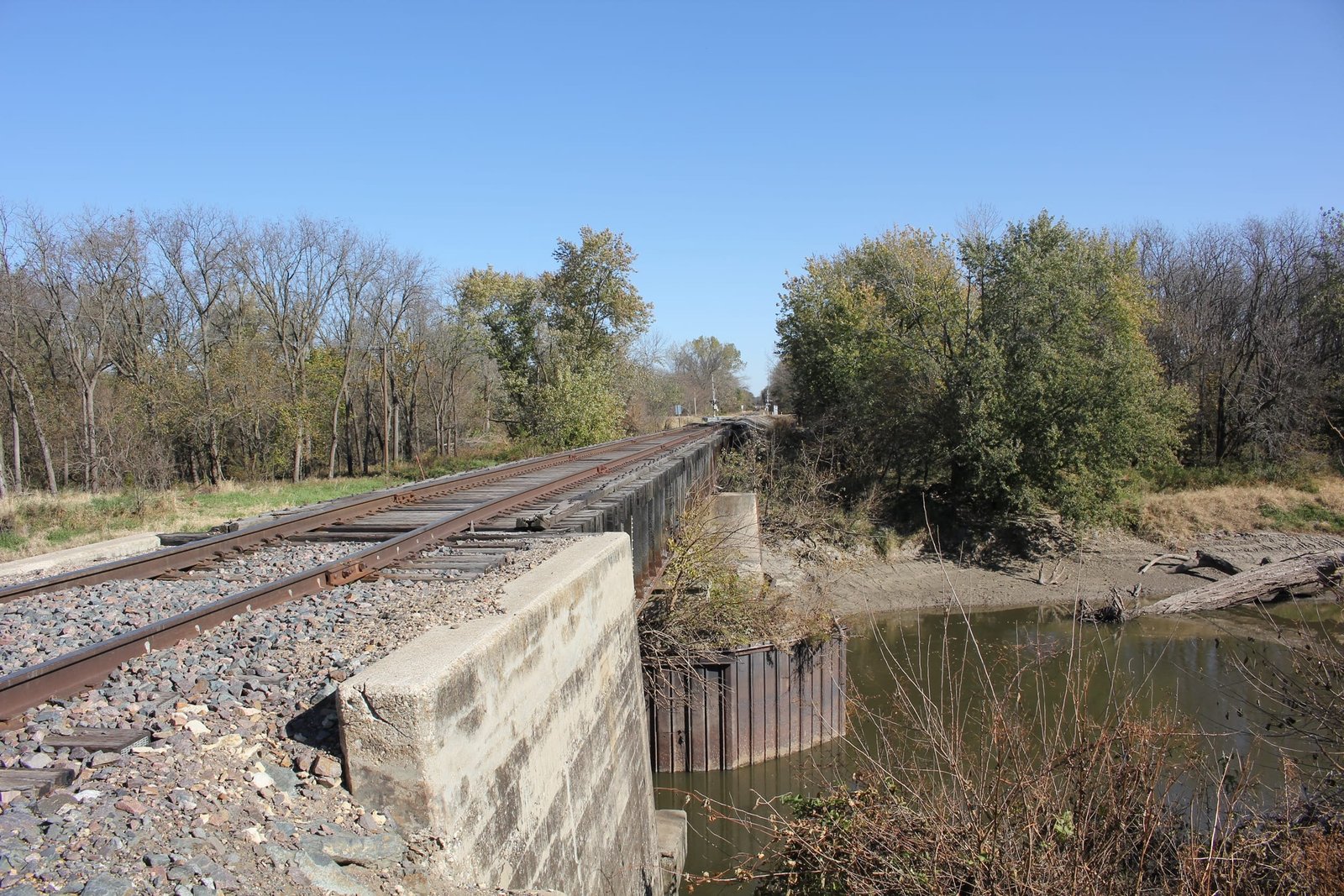

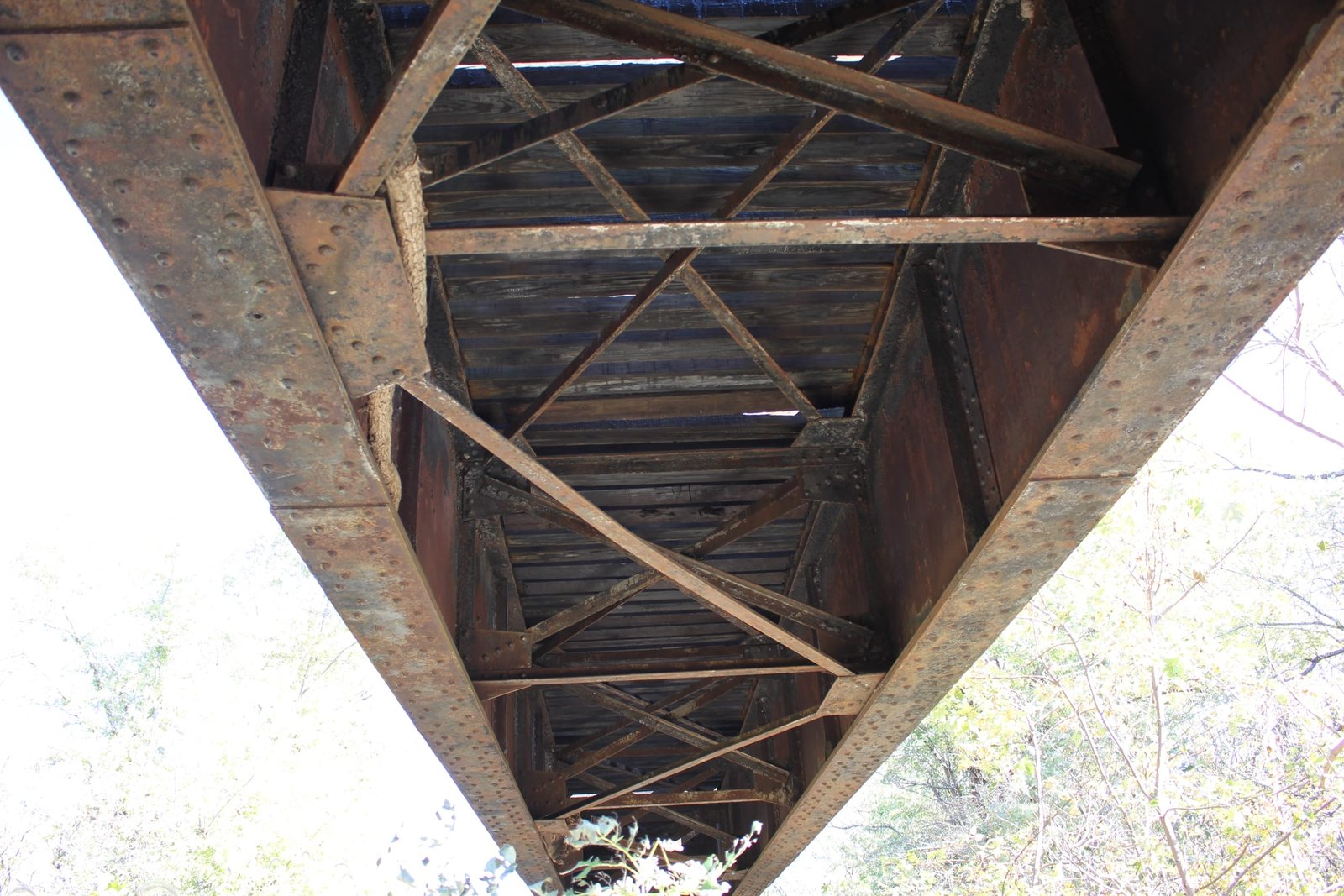

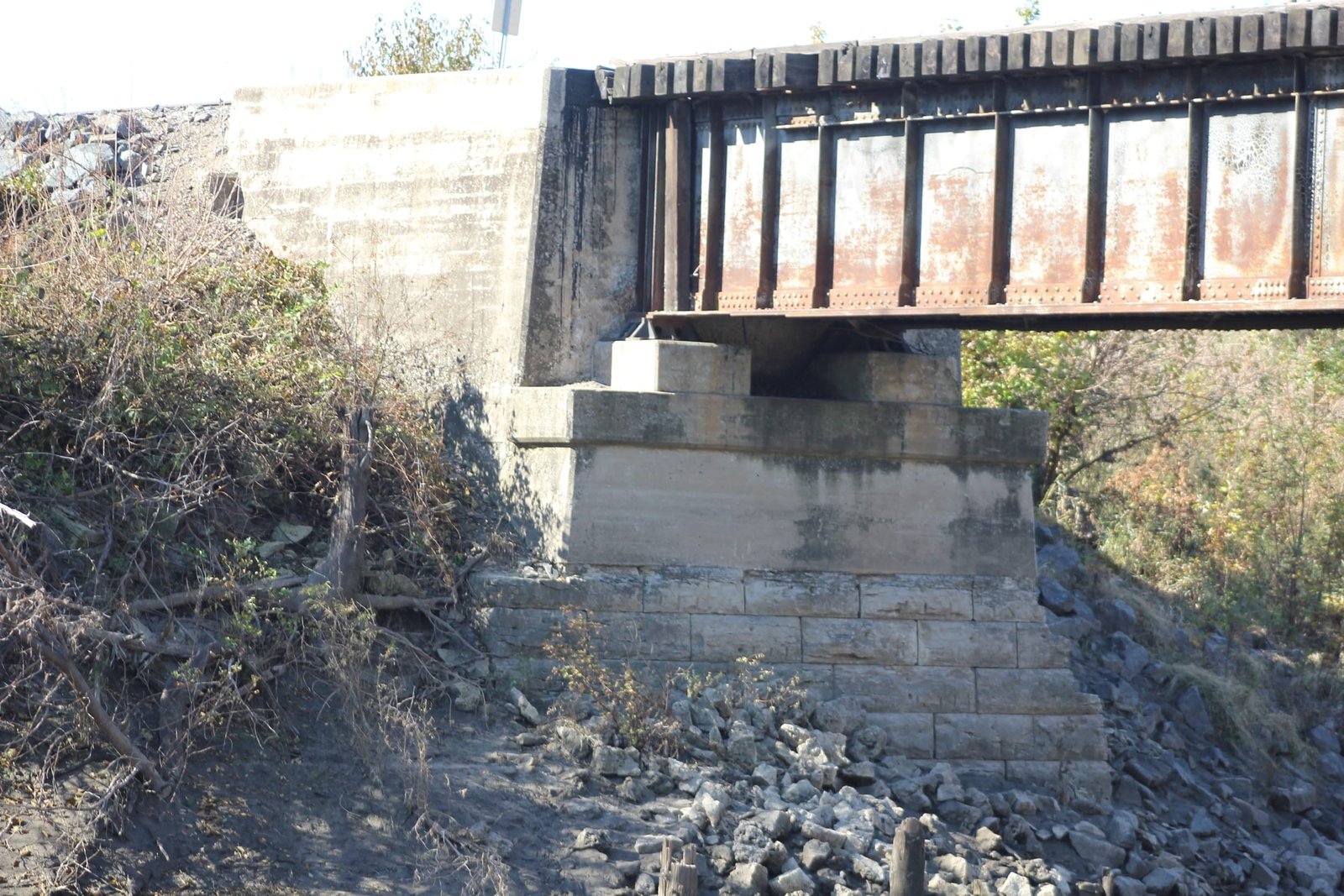

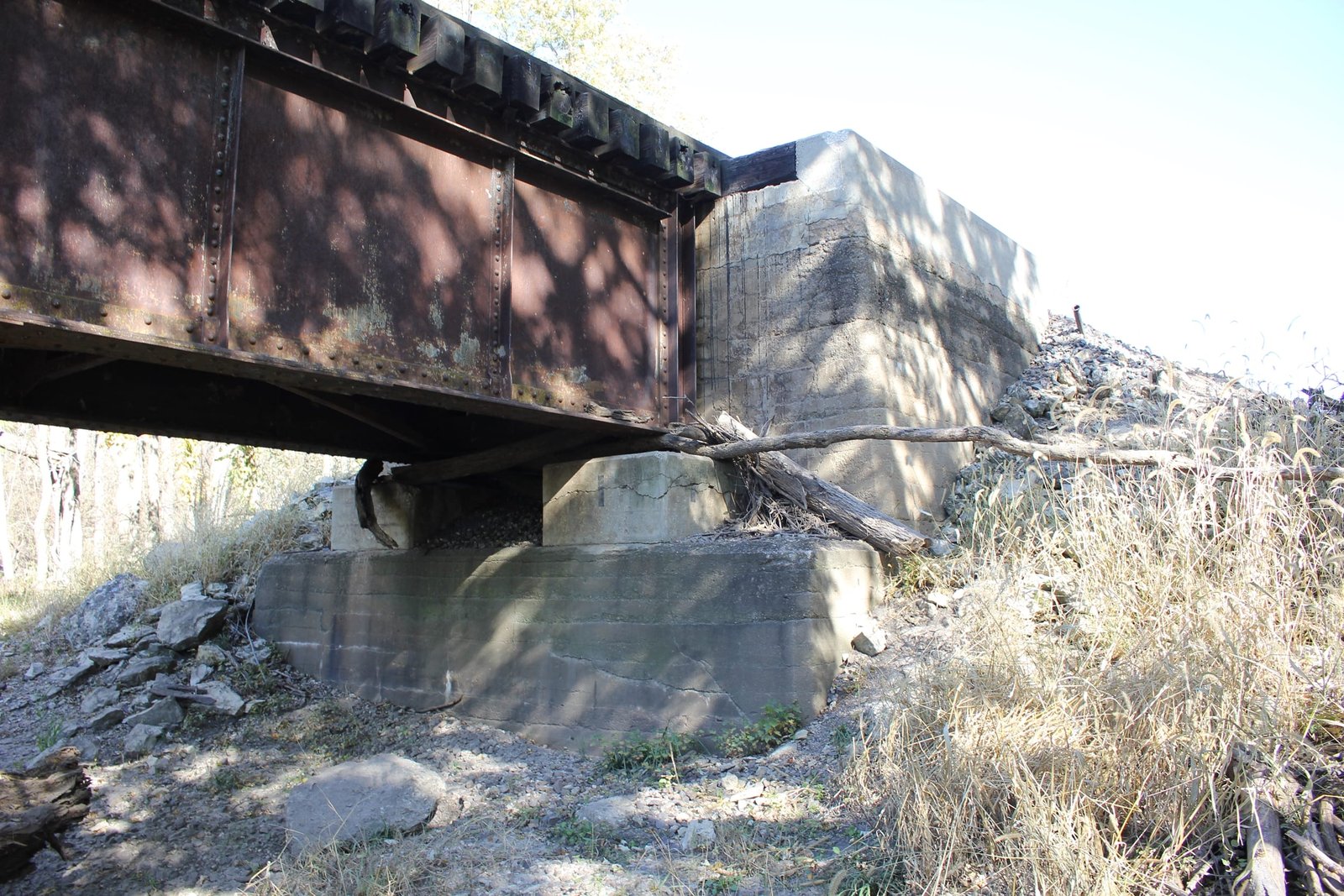

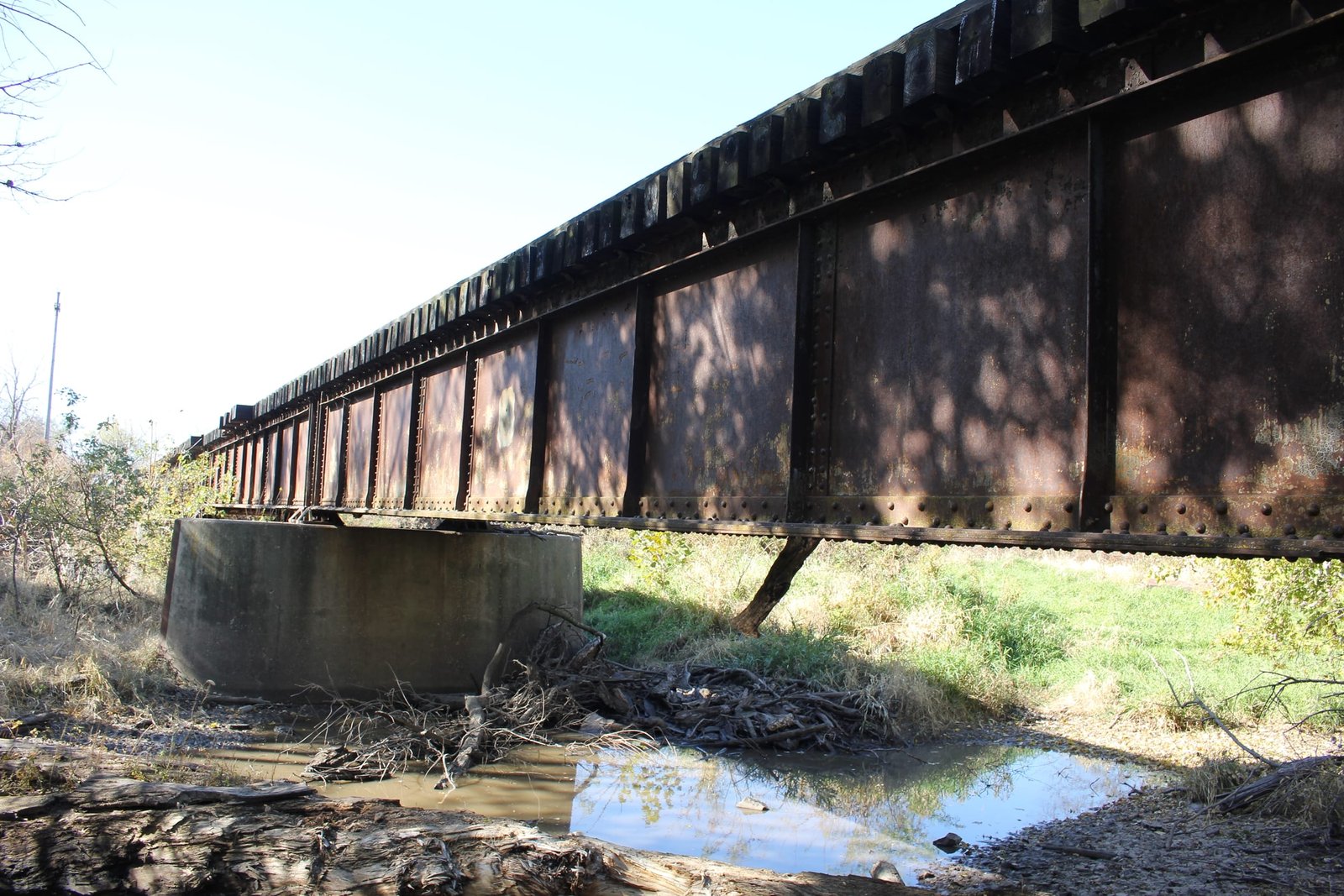

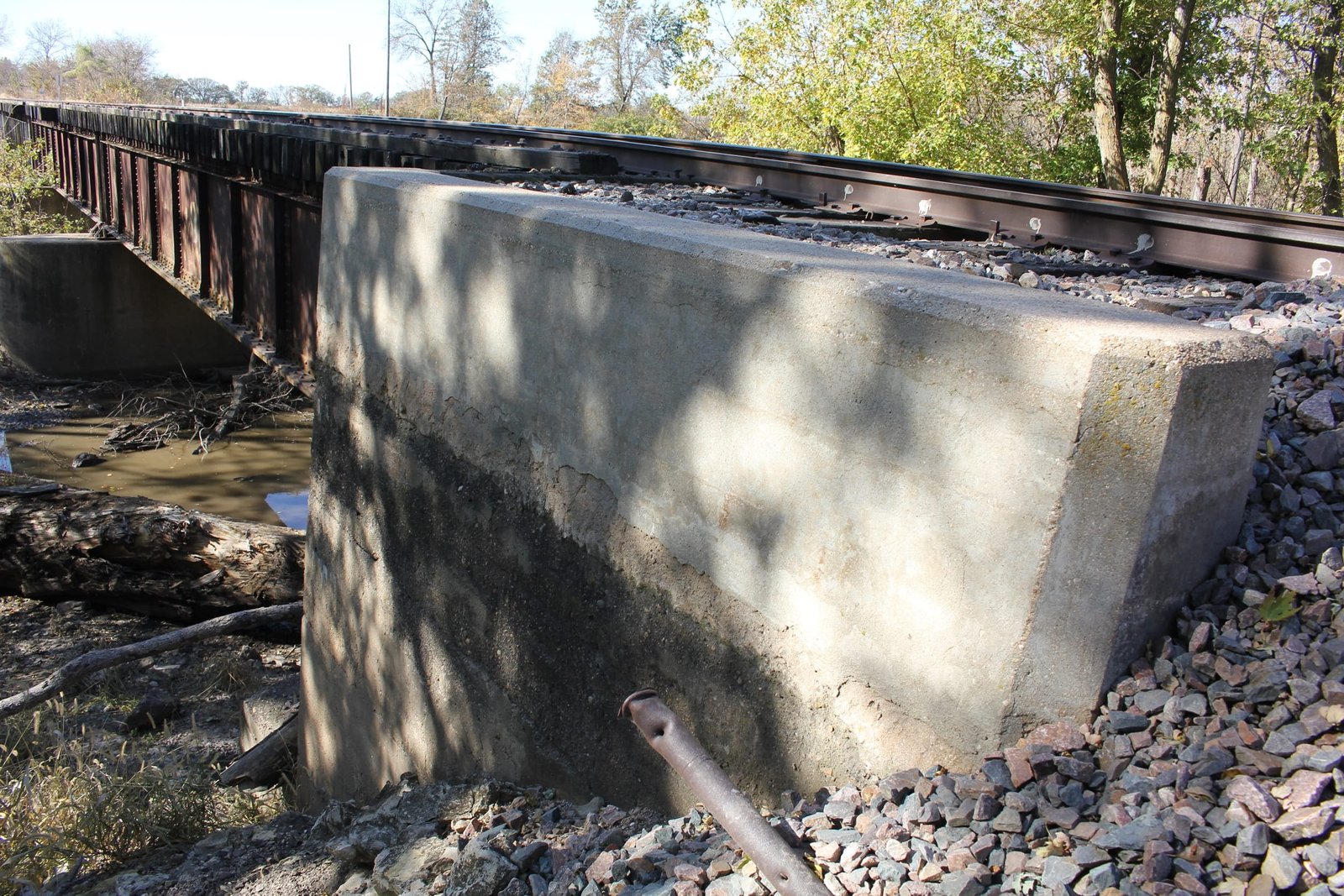

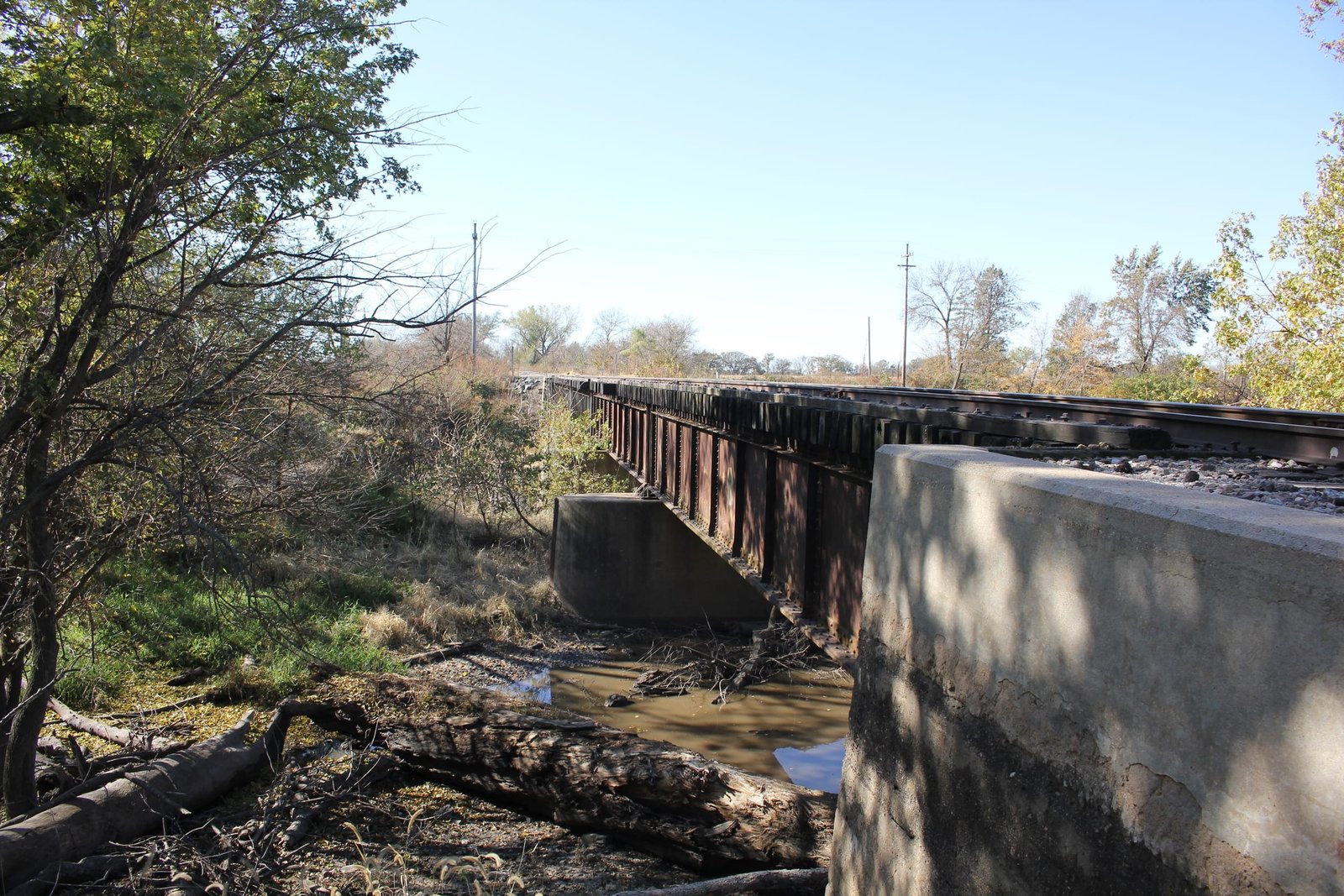

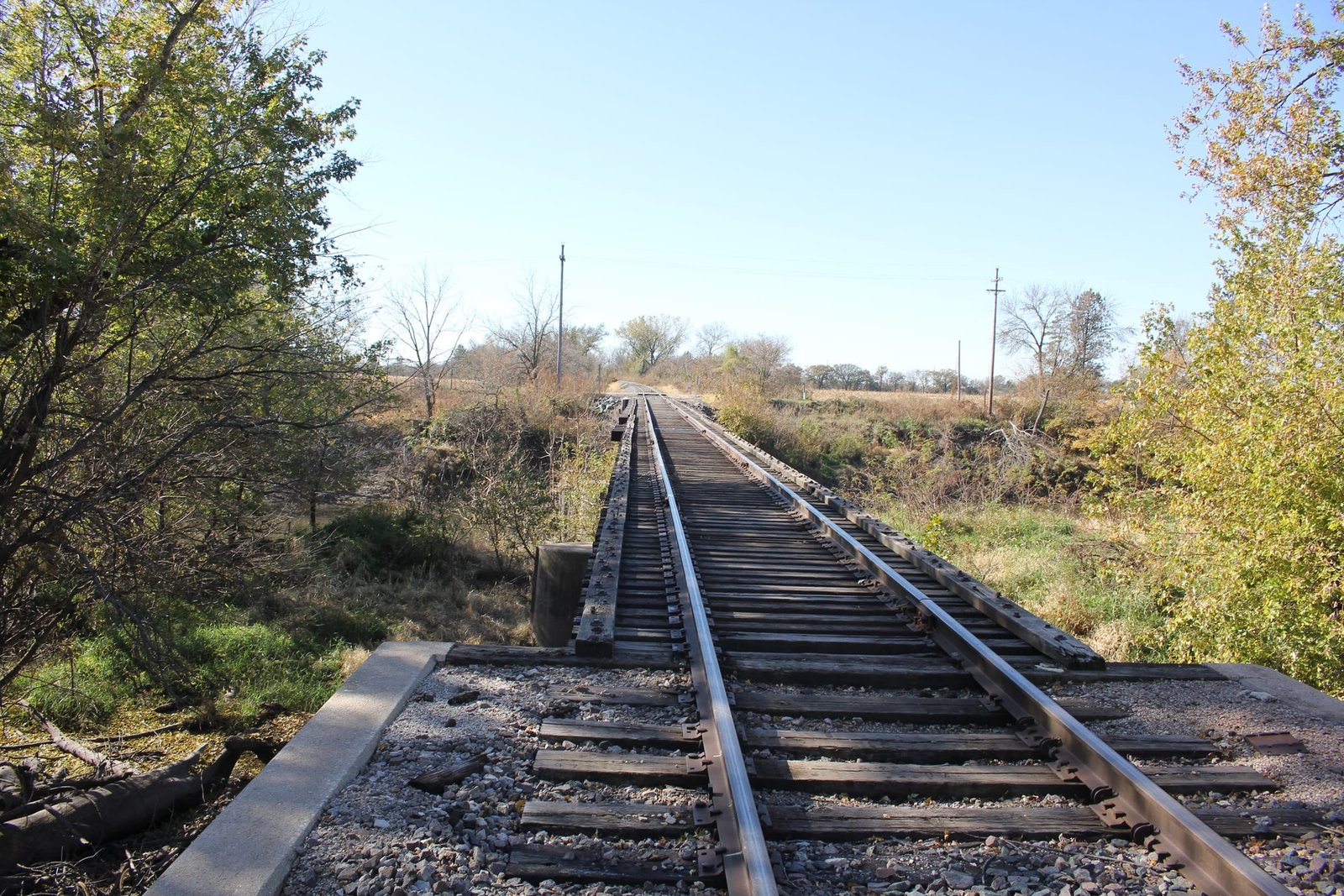

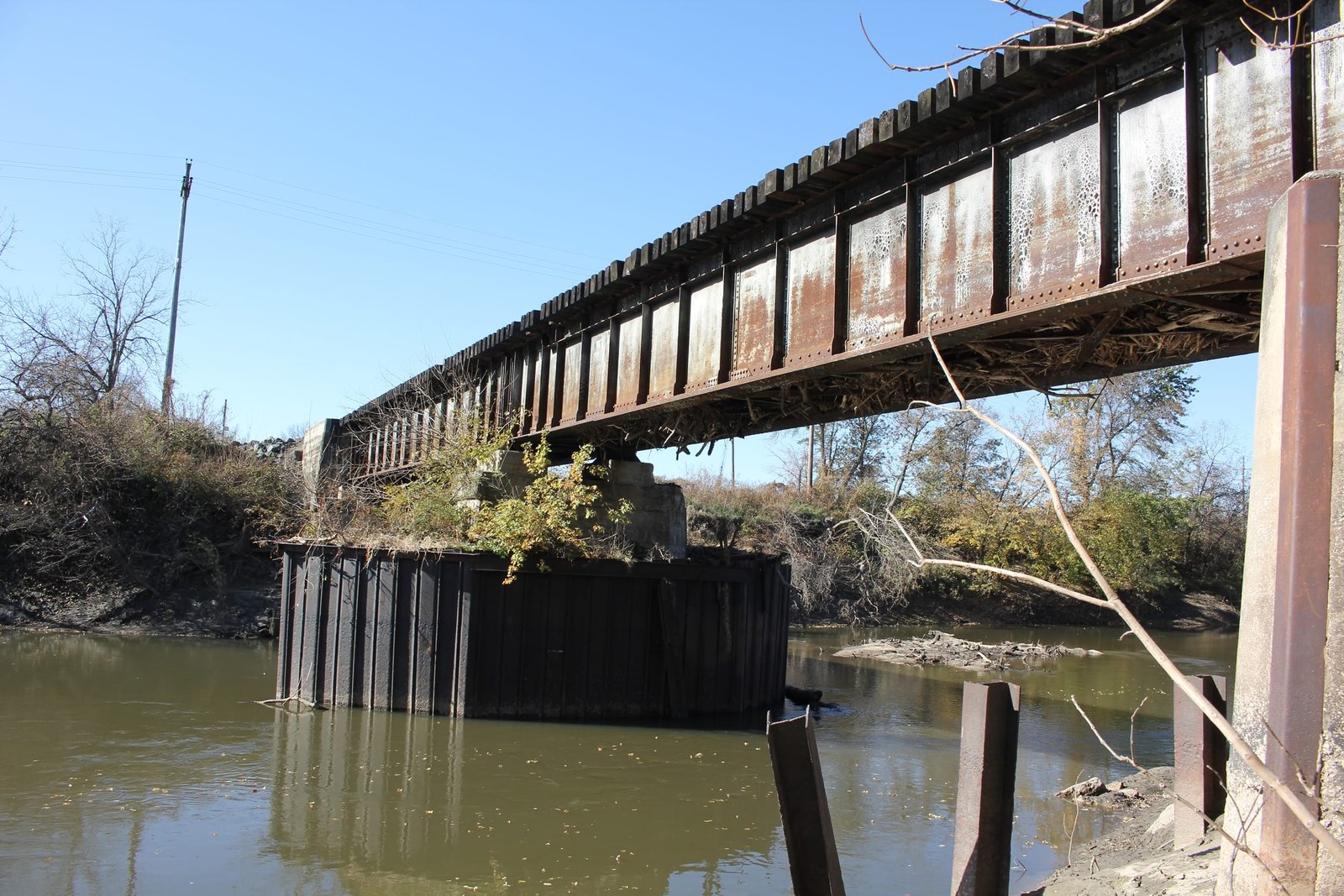

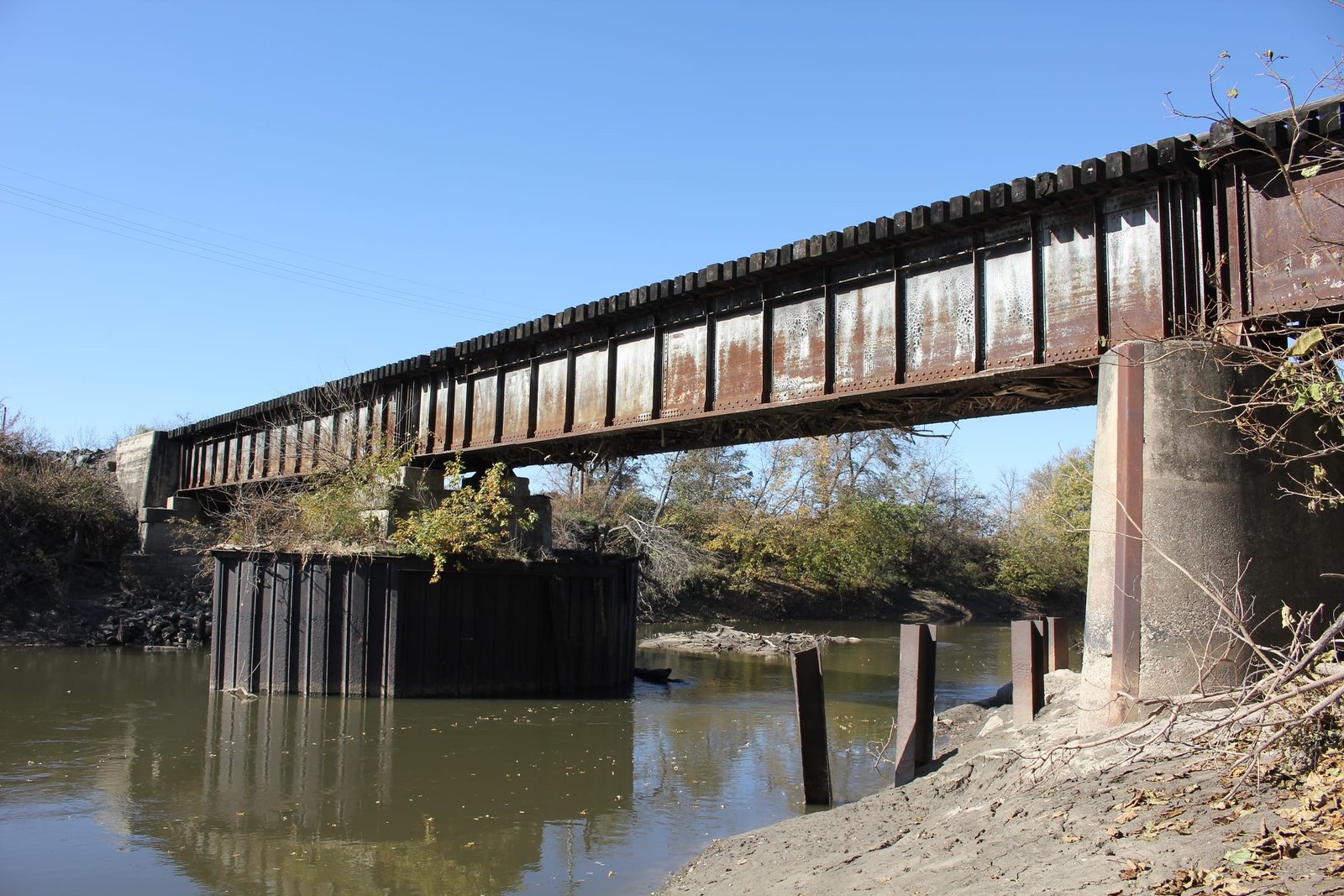

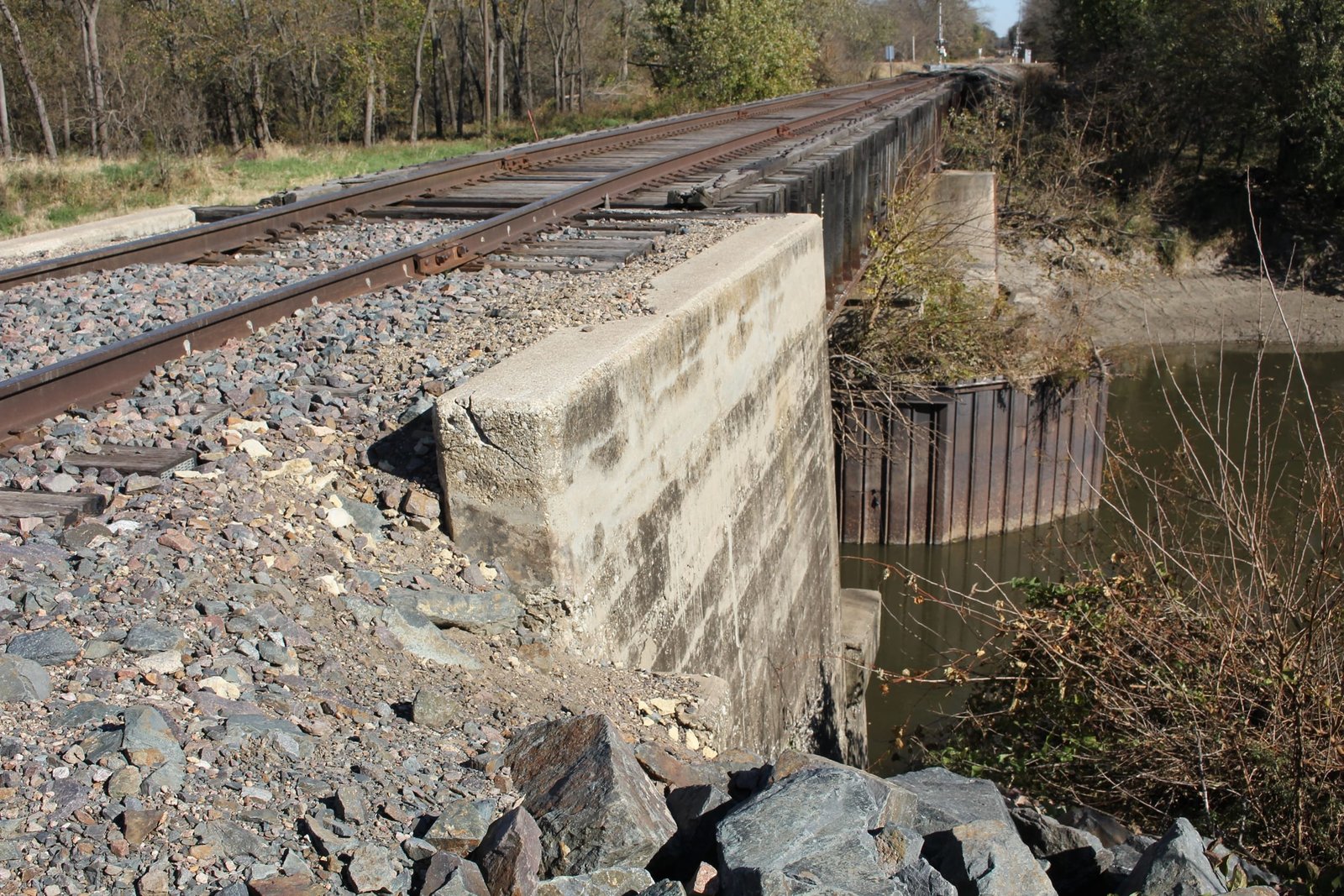

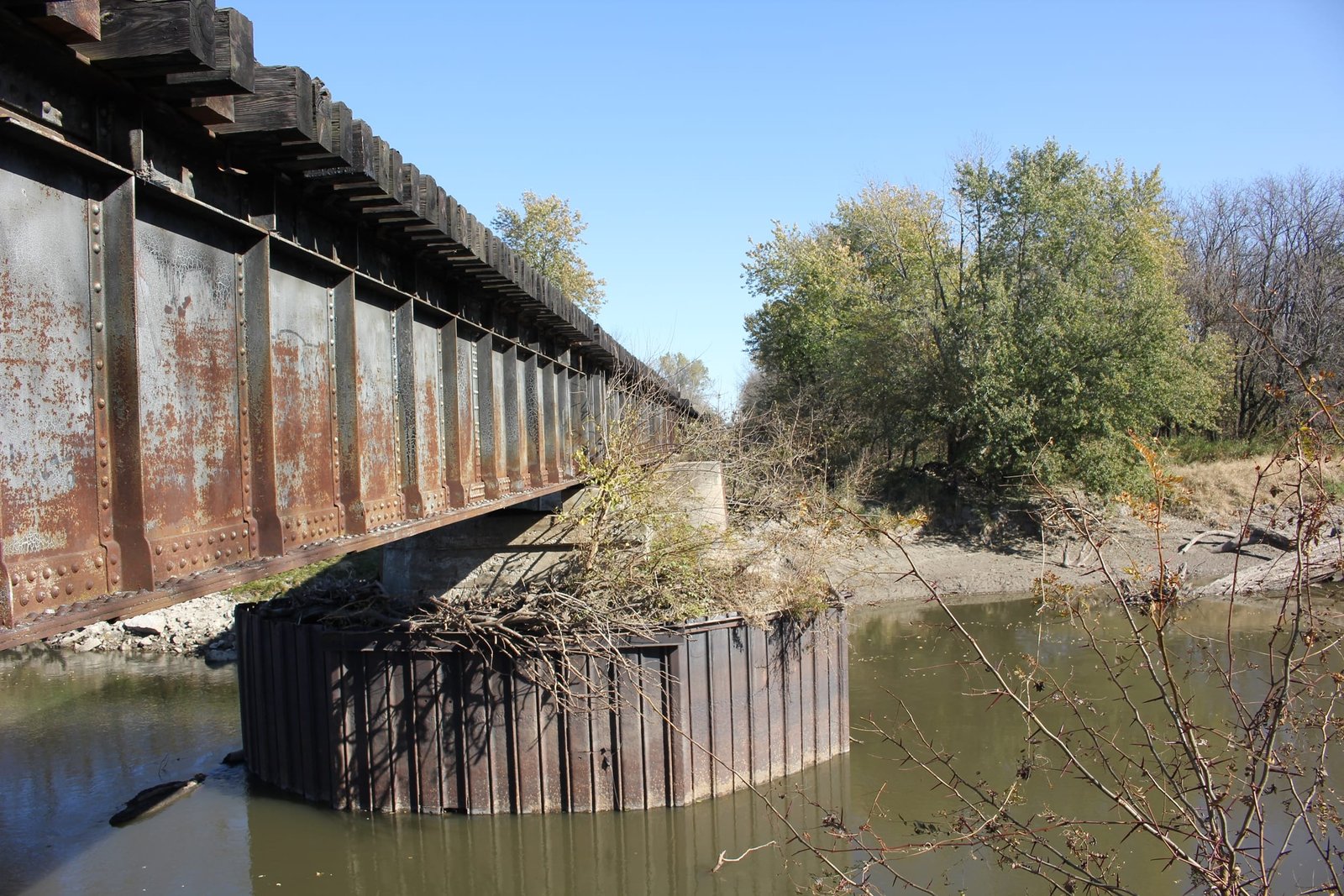

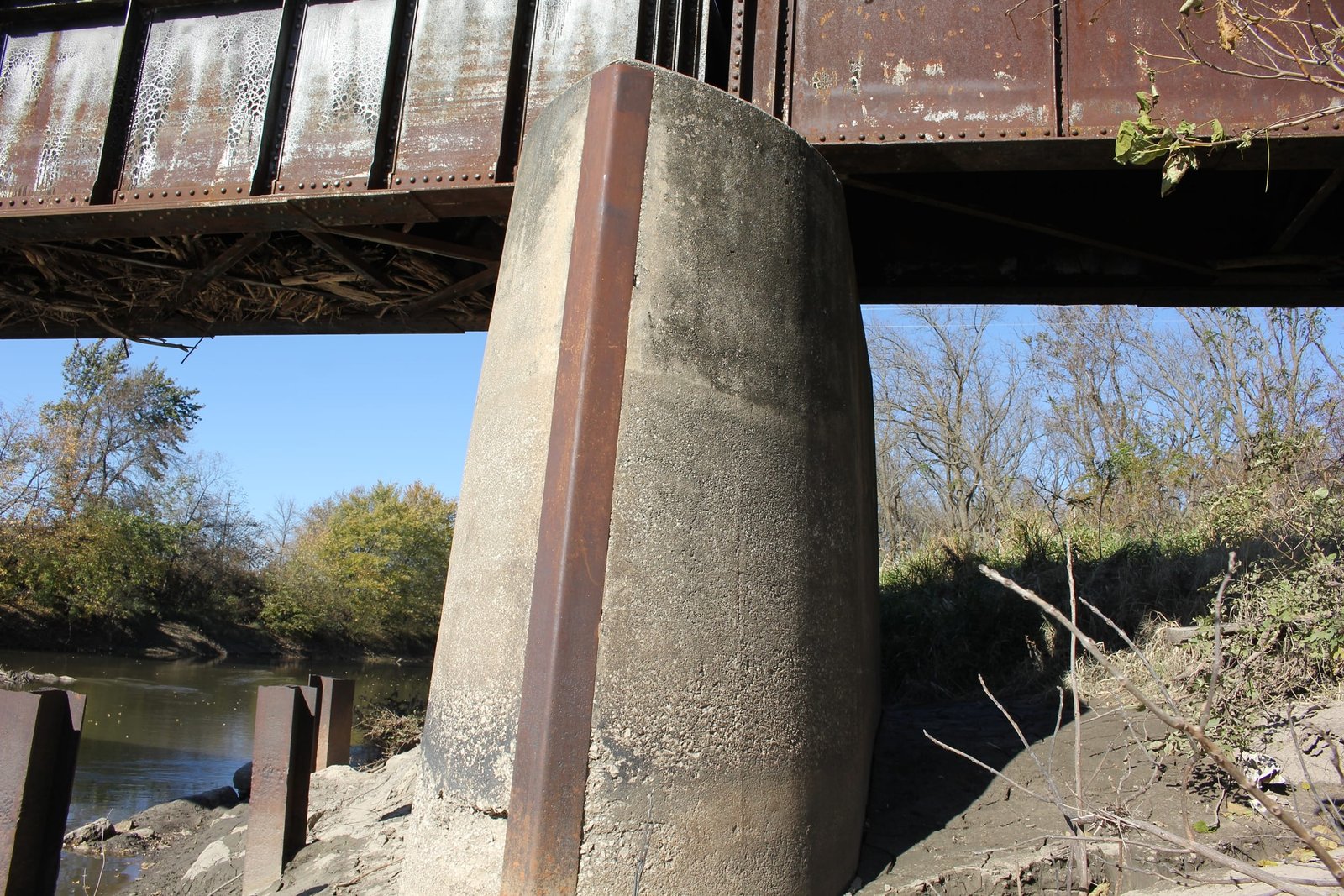

Located on the southeast side of DeWitt, this deck plate girder bridge crosses the Big Blue River. The first bridge at this location was likely a timber trestle. In 1899 and 1900, the Rock Island invested a significant amount of money to replace timber trestle bridges with new plate girder spans along this route. This particular bridge was reconstructed in 1901, and originally featured two 63-foot deck plate girder spans, set onto concrete piers. In 1924, the two southern spans were reconstructed with similar deck girder spans, and new concrete piers were built for the north spans. It seems likely that the original two spans were simply shifted to the north end of the bridge. Additional work was completed in 1952, when two piers were reconstructed. This design of bridge was commonly used by railroads throughout the United States, as it was durable and easy to construct. Overall, this bridge appears to be in fair to good condition, with no significant deterioration noted. The southern pier of this bridge has been extensively reinforced, with sheet metal repairs being made during the 1990s. The author has ranked this bridge as being locally significant, due to the common design.


Citations

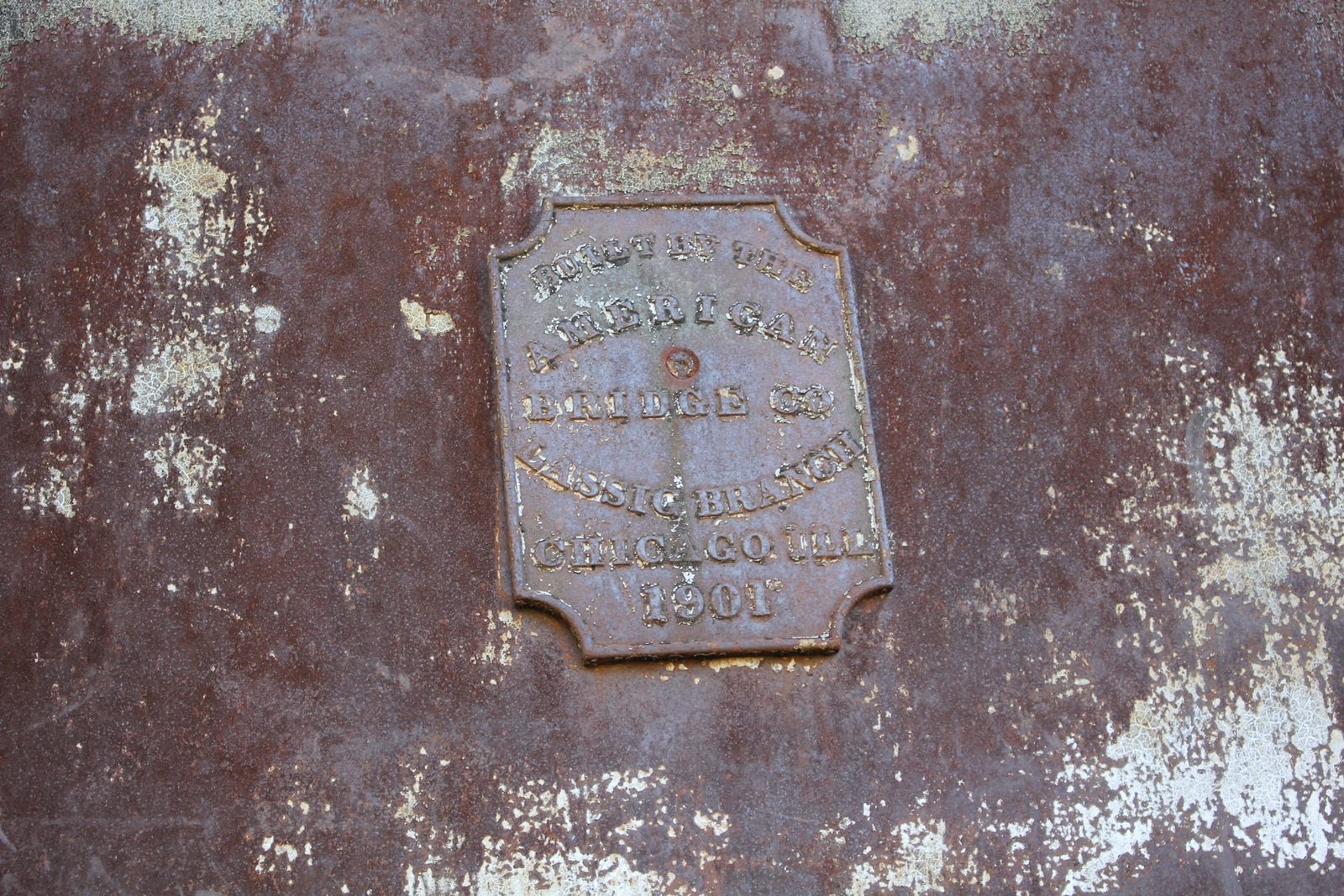

Builder and build dates American Bridge Company plaques
Builder (substructure) Railway Age; Volume 132, Issue 15
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
