| Name | UP IA-92 Bridge Chicago, Rock Island & Pacific Railroad Bridge #526 |
| Built By | Chicago, Rock Island & Pacific Railway |
| Currently Owned By | Union Pacific Railroad |
| Contractor | Harrison Engineering & Construction Company of Kansas City, Missouri |
| Length | 32 Feet Total |
| Width | 2 Tracks |
| Height Above Ground | 15 Feet (Estimated) |
| Superstructure Design | Concrete Slab |
| Substructure Design | Concrete |
| Date Built | 1933 |
| Traffic Count | 10 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago, Rock Island & Pacific Railroad Bridge Number | 526 |
| Union Pacific Railroad Bridge Number | 52.60 |
| Significance | Local Significance |
| Documentation Date | 8/4/2019 |
In 1871, the Chicago & South Western Railway constructed 61 miles of new railroad between Shearwood, Missouri and Allerton, Iowa, as part of a larger project to construct a line between Leavenworth, Kansas and Washington, Iowa. In 1873, the Des Moines, Indianola & Missouri Railroad (DMI&M) constructed a 21 mile railroad line, extending from Des Moines, Iowa south to Avon, Iowa; and west to Indianola, Iowa. Both railroads would be sold to the Iowa Northern & Missouri Southern Railroad in 1876, which was merged into the Chicago, Rock Island & Pacific Railway in 1880. The Rock Island had acquired and constructed a network of railroads, particularly in Iowa. This route served as a branch line to a small town near Des Moines. During the 1880s and 1890s, the Rock Island expanded westwards, reaching Colorado and New Mexico. Additions to the system during the early 1900s included a number of new lines in Minnesota and northern Iowa. In 1911, the St. Paul & Kansas City Short Line Railroad, a subsidiary of the Rock Island, constructed 65 miles between Avon, Iowa and Allerton, Iowa; connecting the two lines. This new line was built as part of a larger project to connect the northern and southern portions of the system. To reach Kansas City, the Rock Island utilized trackage rights over the Chicago, Burlington & Quincy Railroad from Cameron Junction to Kansas City. In 1931, the Rock Island constructed a new line from near Trenton to Birmingham, located just outside of Kansas City. From Polo to Birmingham, the route would parallel the Chicago, Milwaukee, St. Paul & Pacific Railroad tracks, and the two railroads operated as a double track route, with separate mainlines. In 1945, a new bridge across the Missouri River was jointly constructed by the two railroads.
The Rock Island had constructed and acquired a large railroad network
throughout the Midwest. The Kansas City-Des Moines-St. Paul route would become known as the "Spine Line". After World War II, the Rock Island struggled
to survive, proposing
mergers and deferring maintenance on their routes. The Rock Island
struggled to compete with a stronger and better constructed Union
Pacific system. By 1964, the Rock Island began attempts to merge with
Union Pacific, and
restructure railroads west of the Mississippi River. This merger was
eventually denied, and Rock Island turned its last profit in 1965. In
the mid-1970s, the railroad was in serious decline. The railroad
received loans to attempt to fix slow orders, received new equipment and
turn a profit. By 1978, the railroad came close to profit, but
creditors were lobbying for a complete shutdown of the Rock Island.
During the fall of 1979, a strike crippled the railroad, and by January
of 1980, the entire system was ordered to be shut down and liquidated.
Many of the lines and equipment were scrapped. Profitable sections of
railroad were prepared for sale. The Chicago & North Western Railway (C&NW) and Soo Line both had
interest in the Spine Line, with the C&NW eventually purchasing the
route. During 1982 and 1983, significant money was allocated for
rebuilding the deteriorated route, and trains began using the route. In
1995, C&NW was purchased by Union Pacific Railroad (UP). Union
Pacific continues to operate this route as the Trenton Subdivision. CPKC now operates the former Milwaukee Road portion of this segment.

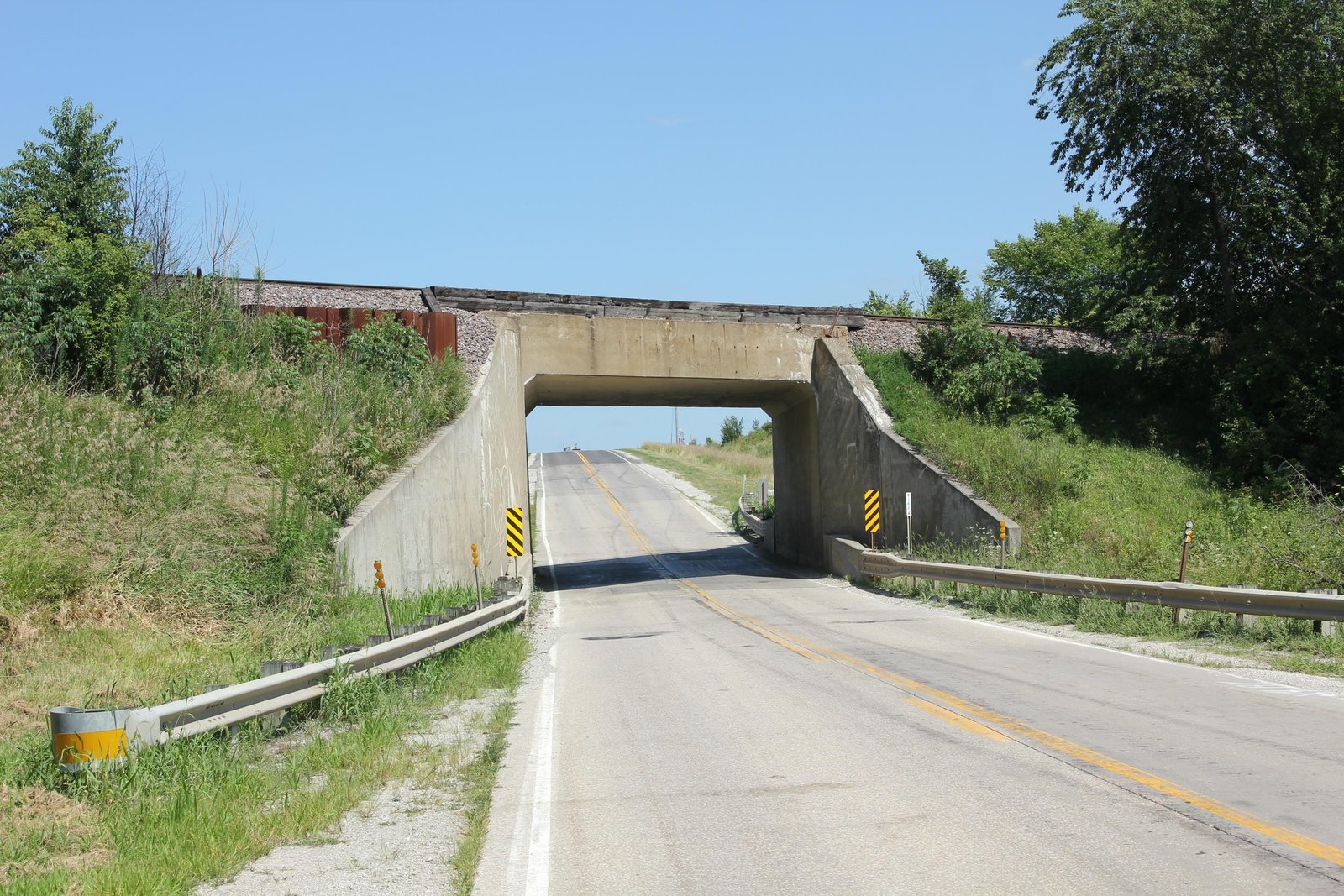

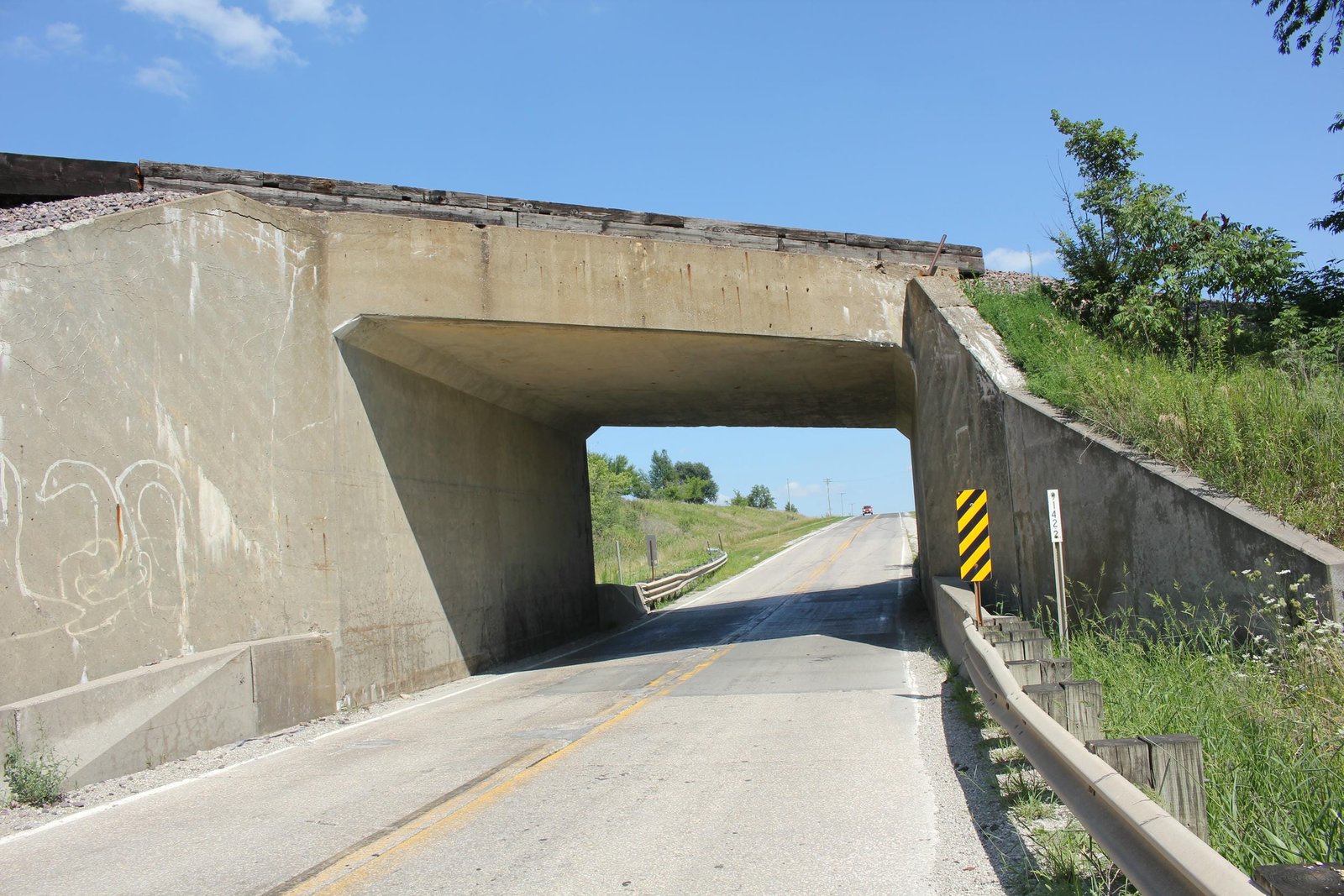

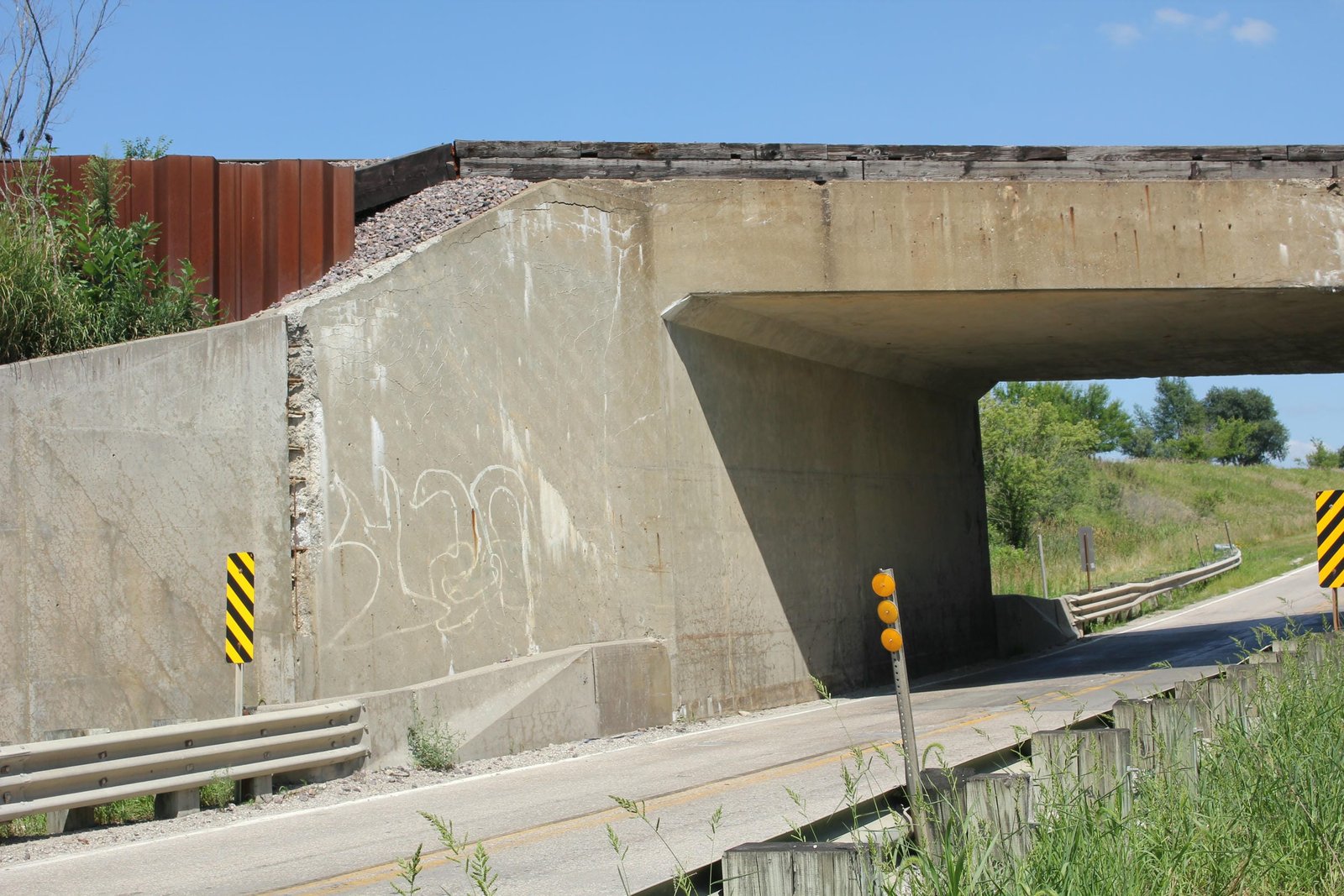

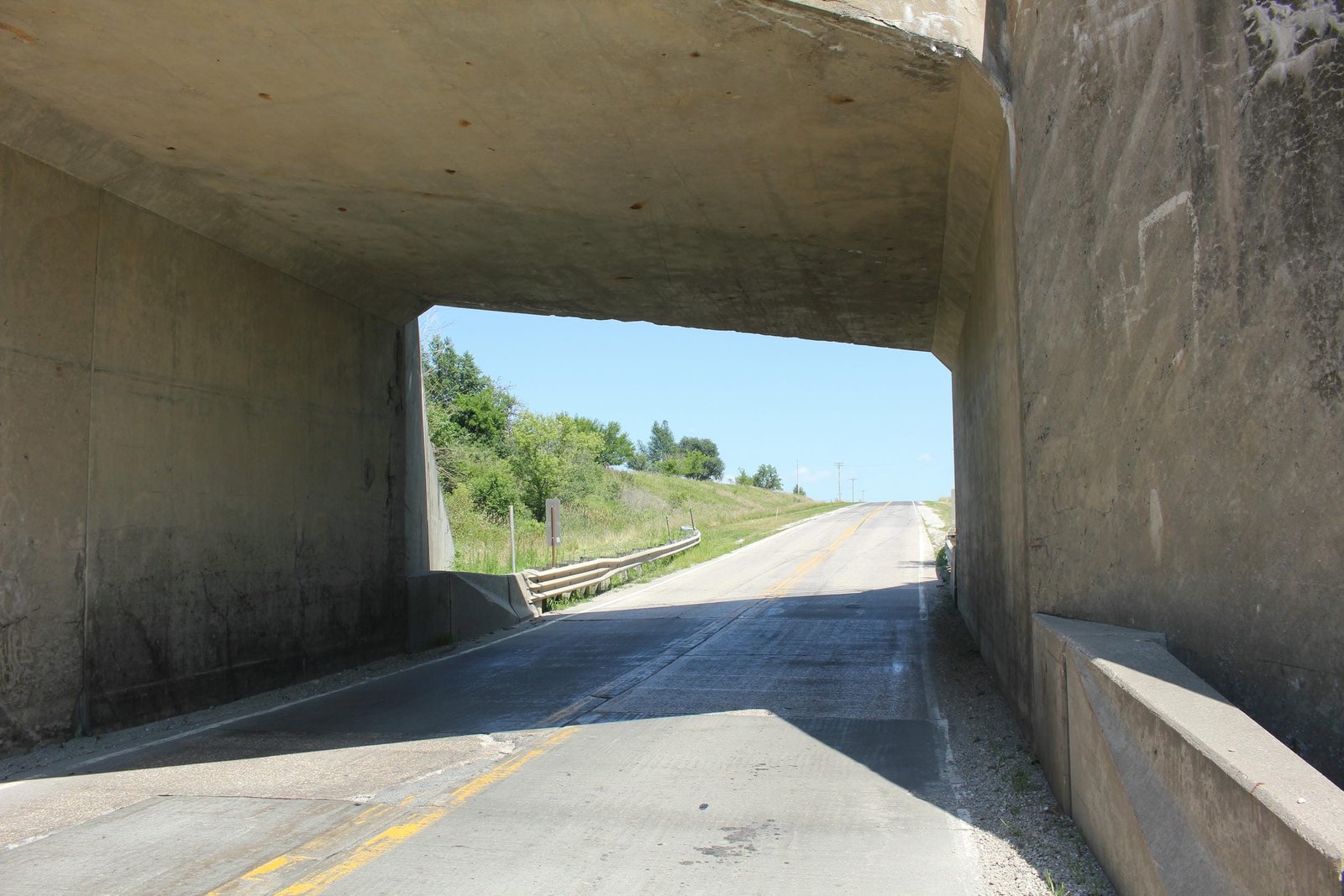

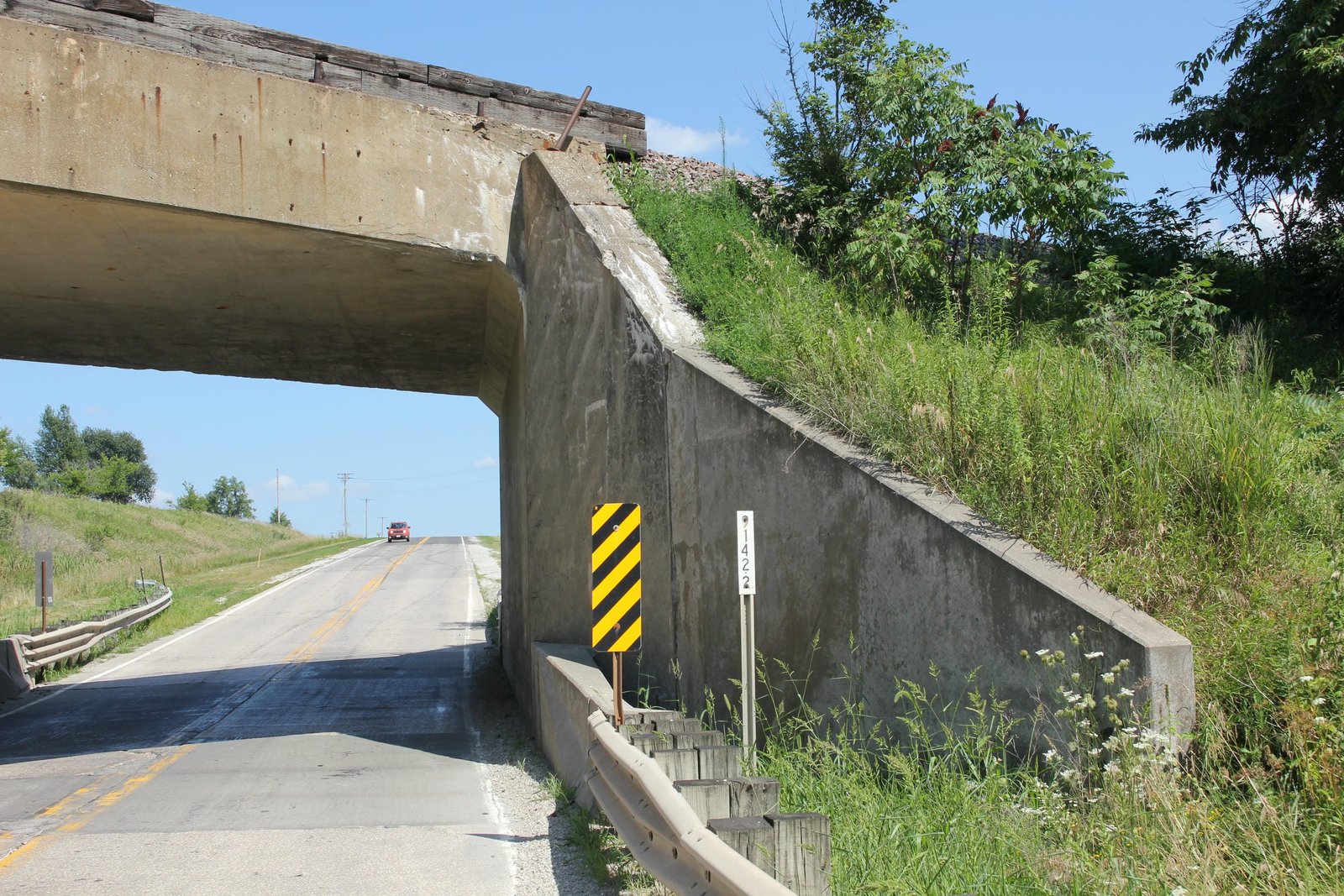

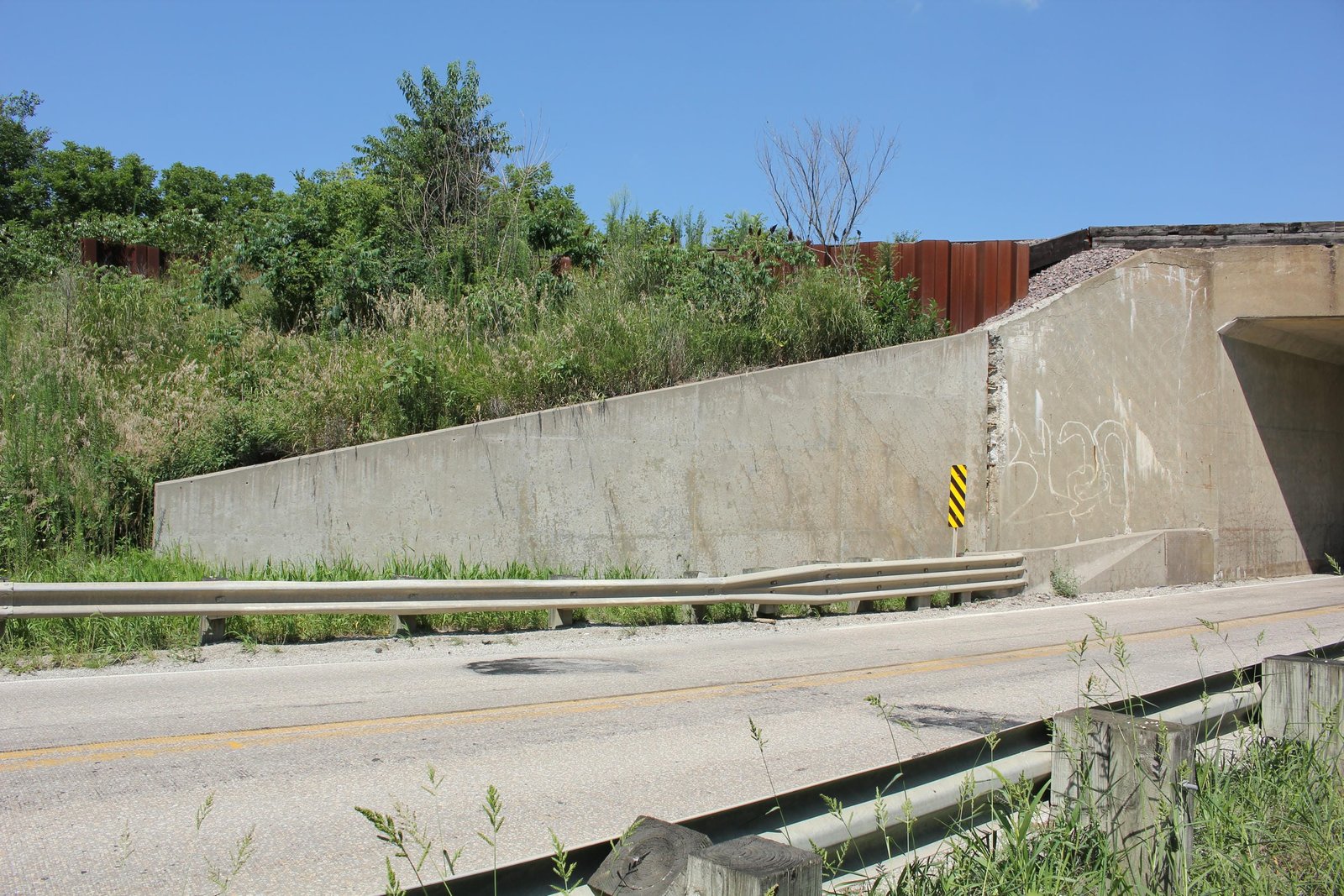

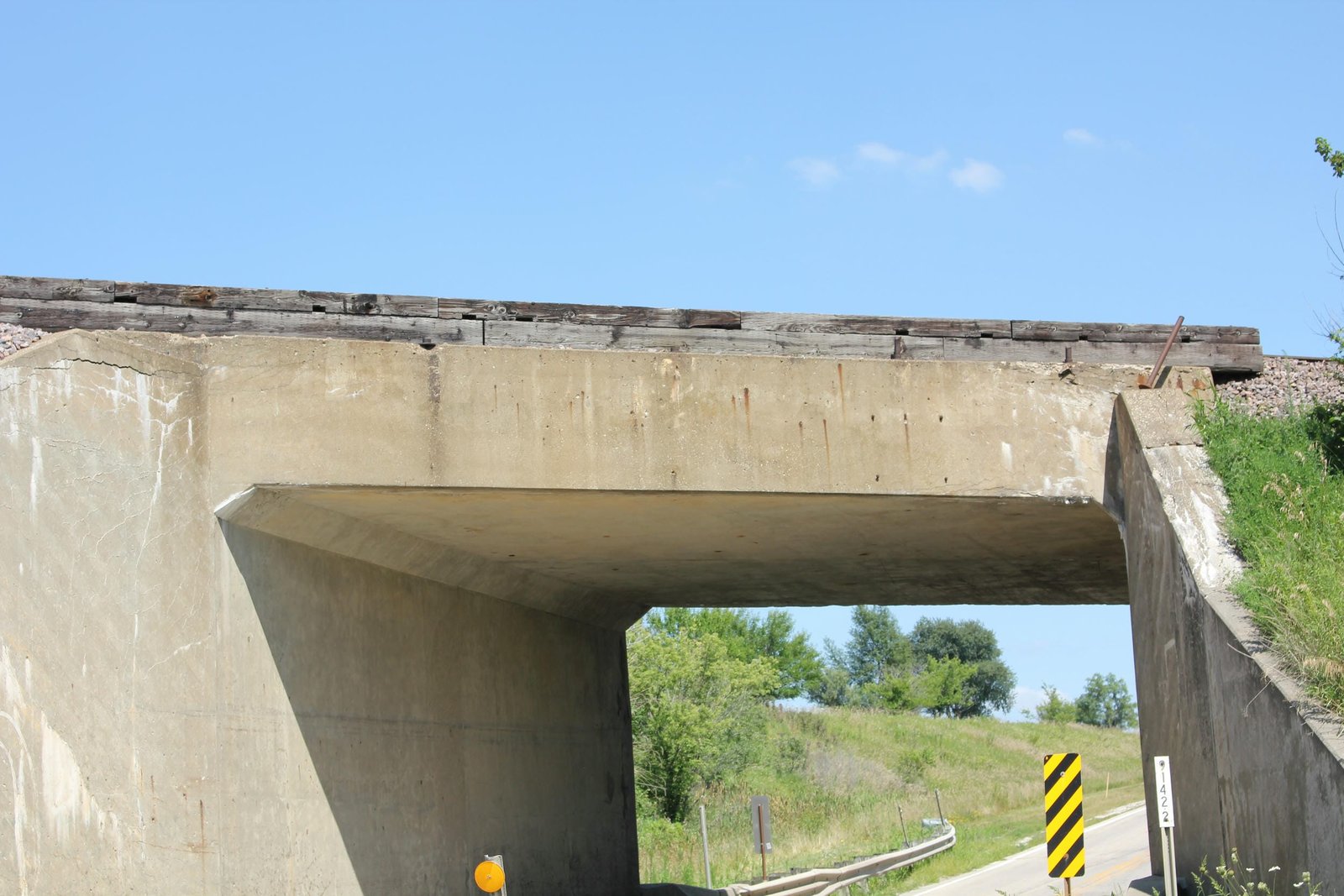

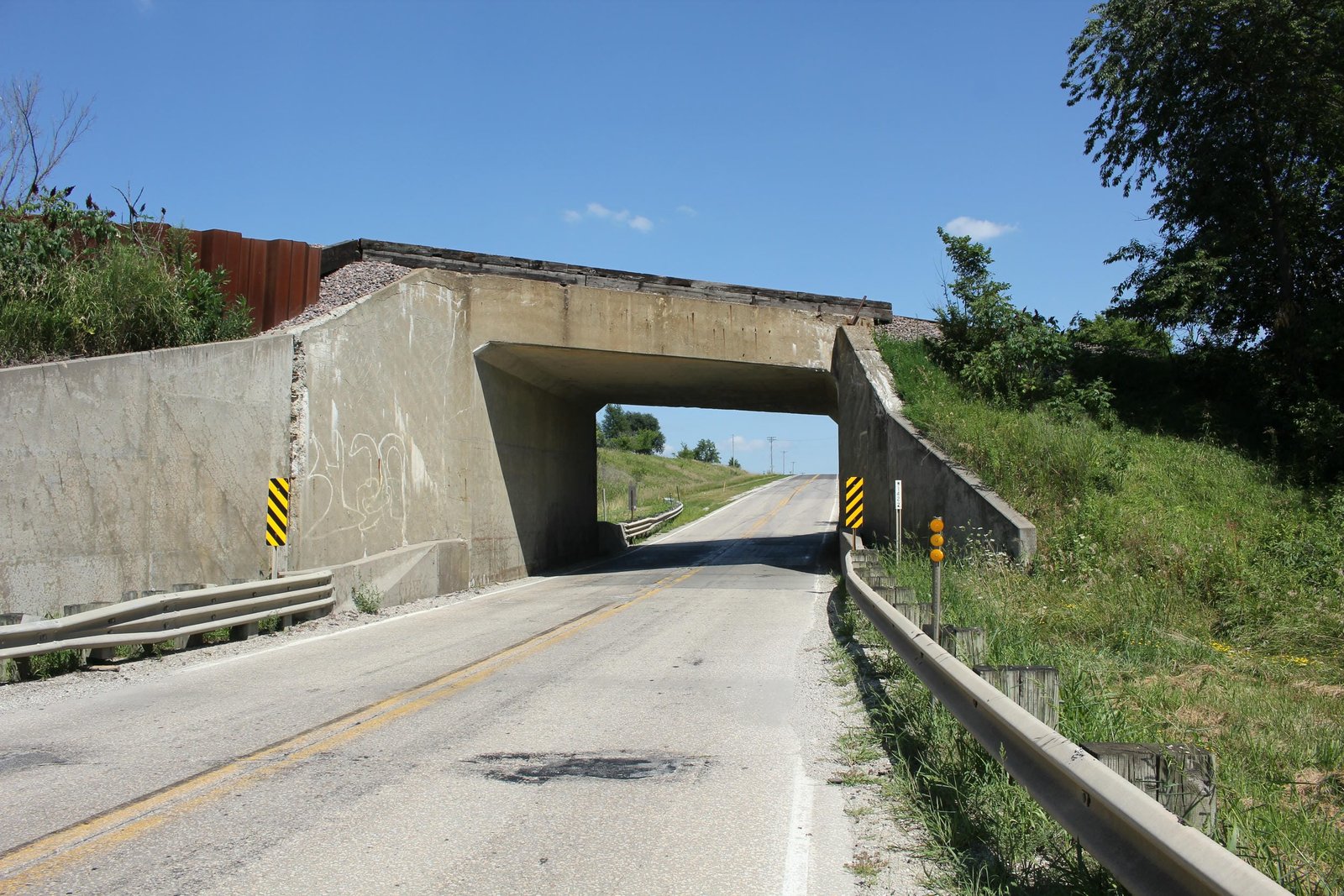

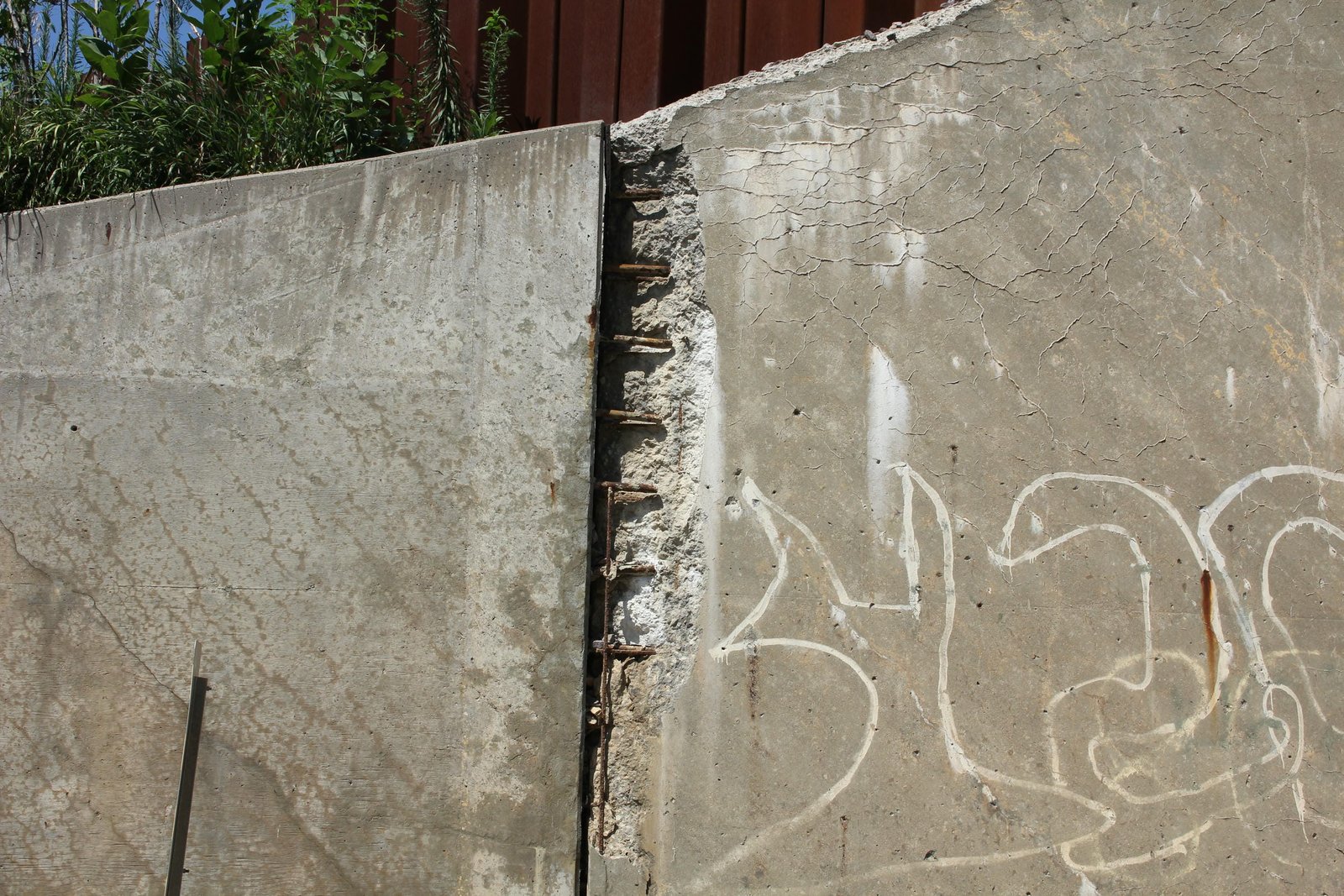

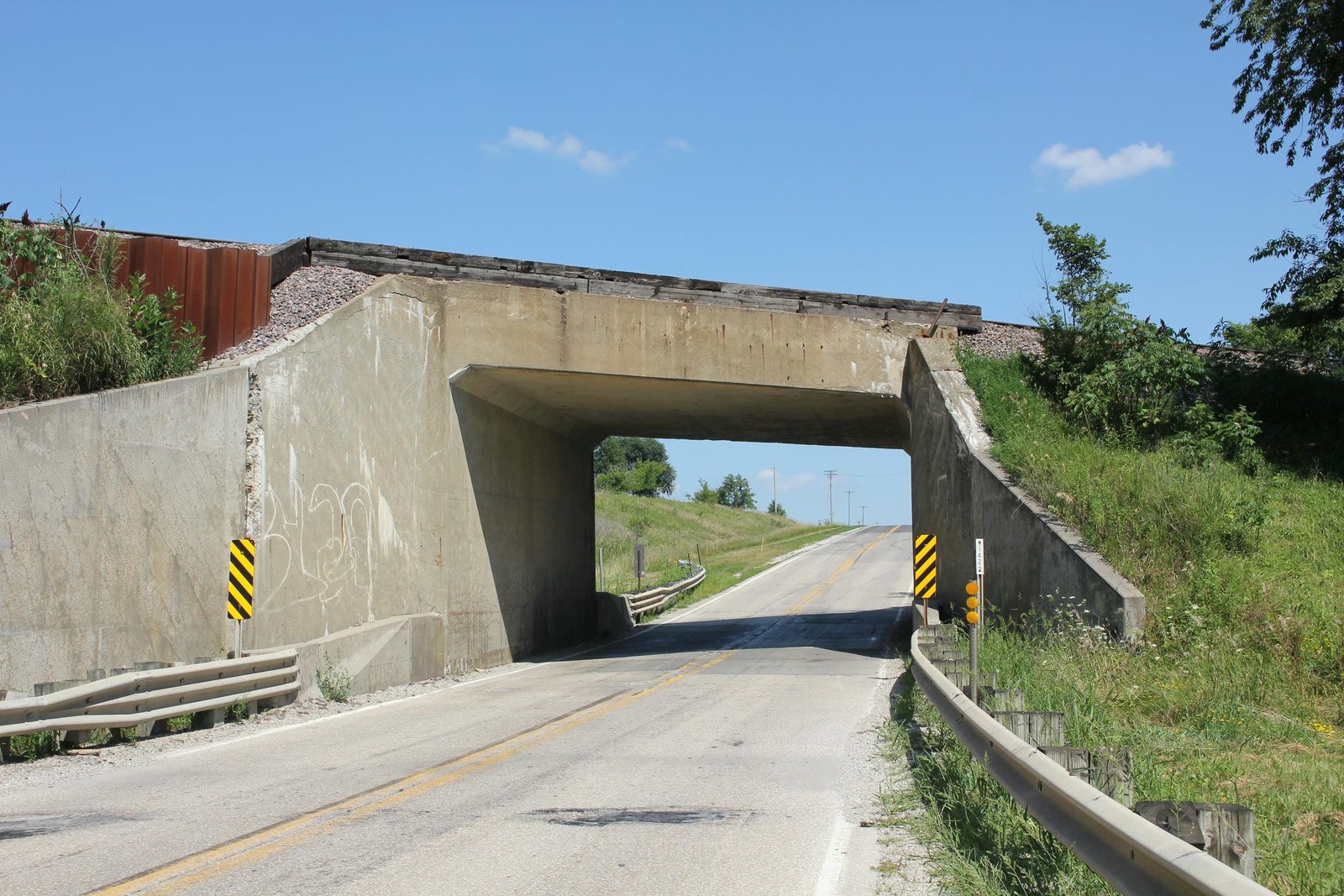

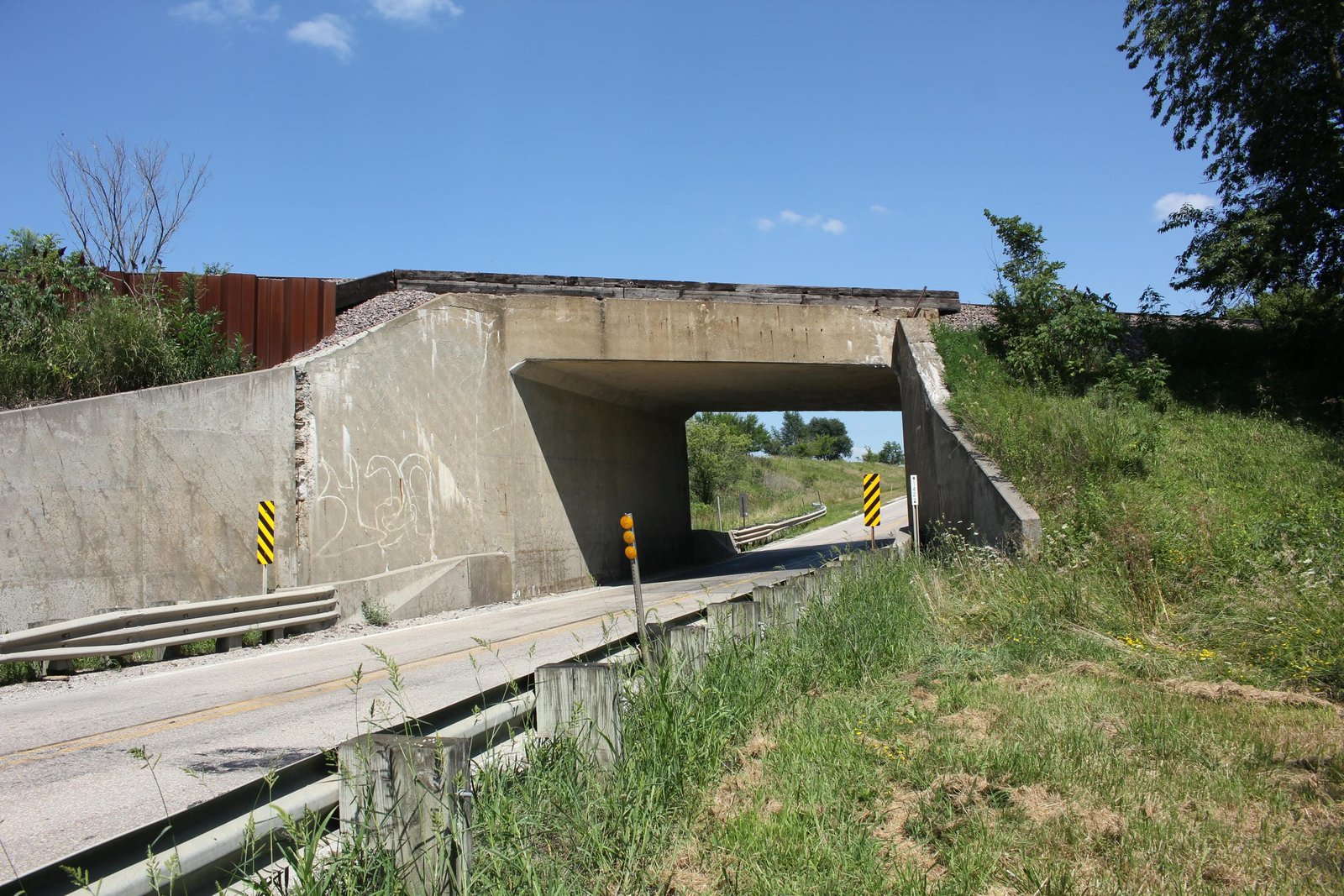

Located near the small town of Beech, this concrete slab bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Iowa Highway 92. In the early 1930s, the Iowa State Highway Commission sought to upgrade Iowa Highway 92 (then Primary Road 2) to a paved road across the state with the intention of providing the fastest route between Chicago and Omaha. Work on the project began in 1932, but soon ran into issues when it was decided an underpass was required under the busy Rock Island mainline. In late 1932, an additional contract was awarded to one of the contractors working on the paving project, and the bridge was completed in mid-1933. Currently, the bridge consists of a double track 32-foot concrete slab, set onto concrete abutments and running at a heavy skew. The bridge uses a standard design for the era, with a superstructure and substructure that were constructed monolithically. In addition, the bridge uses sloped wing walls which extend parallel to the roadway below. Harrison Engineering & Construction Company completed the structure, and it is believed that the entire bridge was paid for by the State. Concrete slab spans were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. Today, both tracks remain in use as part of a Union Pacific Railroad mainline. Overall, the bridge appears to be in fair to good condition, with relatively little spalling compared to other concrete bridges from the same era. The author has ranked this bridge as being locally significant, due to the common design.
Citations
| Builder and build date | The Indianola Tribune; April 18, 1933 |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
