Name Chicago & North Western Railway Bridge #2544
Built By Chicago & North Western Railway
Currently Owned By Humboldt County Conservation Board
Superstructure Contractor Unknown
Length 10 Feet Total
Width 1 Track (82 Feet)
Height Above Ground 10 Feet (Estimated)
Superstructure Design Stone Arch Culvert
Substructure Design Stone Masonry
Date Built 1902
Traffic Count 0 Trains/Day (Bridge is Open to Pedestrian Traffic)
Current Status Open to Pedestrian Traffic
Chicago & North Western Railway Bridge Number 2544
Significance Local Significance
Documentation Date 3/15/2019

In 1881, the Toledo & Northwestern Railway (T&NW) began construction on a 160-mile railroad line extending from Eagle Grove, Iowa towards Hawarden, Iowa. The T&NW had been leased by the Chicago & North Western Railway (C&NW) in 1879, and was awarded funding to construct additional lines in northern Iowa.  The first 30 miles were completed to Bradgate, Iowa at the end of the year, followed by an additional 115 miles between Bradgate and Hawarden in 1882. In 1883, the Dakota Central Railway (DC) continued the line, constructing an additional 125 miles between Hawarden and Iroquois, South Dakota.  The DC was another railroad leased by the C&NW, and was also awarded funding to complete railroad lines in South Dakota.  The T&NW was purchased by the C&NW in 1890, and the DC was purchased by the C&NW in 1902.  By the early 20th Century, the C&NW had developed into a significant railroad network in the midwest, with lines radiating north and west from Chicago.  In particular, the C&NW developed dozens of secondary and branch lines in Iowa to serve agricultural industries and small towns. This line served as a secondary mainline, connecting lines in western Iowa and South Dakota.  In addition, the line connected the Dakota Division mainline at Iroquois to the Iowa Division mainline at Tama, Iowa.

Due to the rapid expansion of the C&NW in the late 19th and early 20th Century, this line paralleled several other routes.  By the mid-20th Century, this line had largely become a branch line, connecting agricultural industries and small towns in western Iowa and eastern South Dakota.  By the 1970s, the C&NW sought to abandon excess trackage and consolidate service.  The first segment abandoned was from Orange City, Iowa to Hawarden in 1975.  The Beresford, South Dakota to Iroqouis segment was abandoned in 1979, and the Hawarden to Beresford segment sold to the State of South Dakota in 1980. The Marathon, Iowa to Orange City segment was also abandoned in 1980.  The D&I Railroad began operations over the Beresford Branch in 1980.  The line was further abandoned in 1982, when the Alton, Iowa to Orange City segment was abandoned.  The Eagle Grove to Rolfe, Iowa segment was abandoned in 1988, and would be sold to Wright, Humboldt and Pochahontas Counties for trail usage.  In 1995, the C&NW would be purchased by the Union Pacific Railroad (UP).  Currently, UP operates the Rolfe to Marathon segment as part of the Laurens Subdivision, and the D&I operates the Hawarden to Beresford segment.  The State of South Dakota sold the Hawarden to Beresford segment to D&I in 2021 as part of an effort to sell state-owned railroad lines.  The Rolfe to Eagle grove segment used as part of the Three Rivers Trail.  Remaining segments have been abandoned and the right-of-way largely reverted to adjacent landowers.

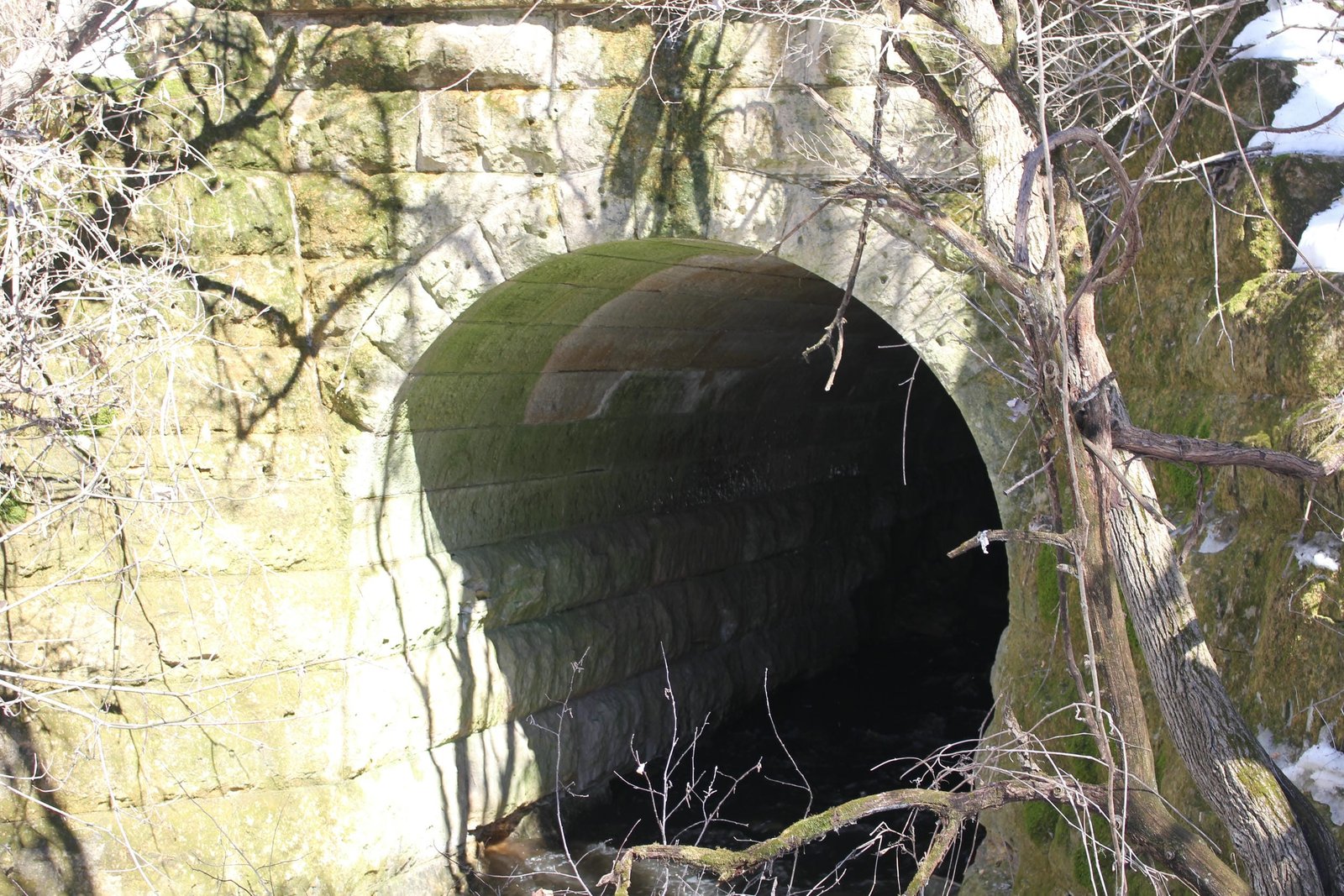

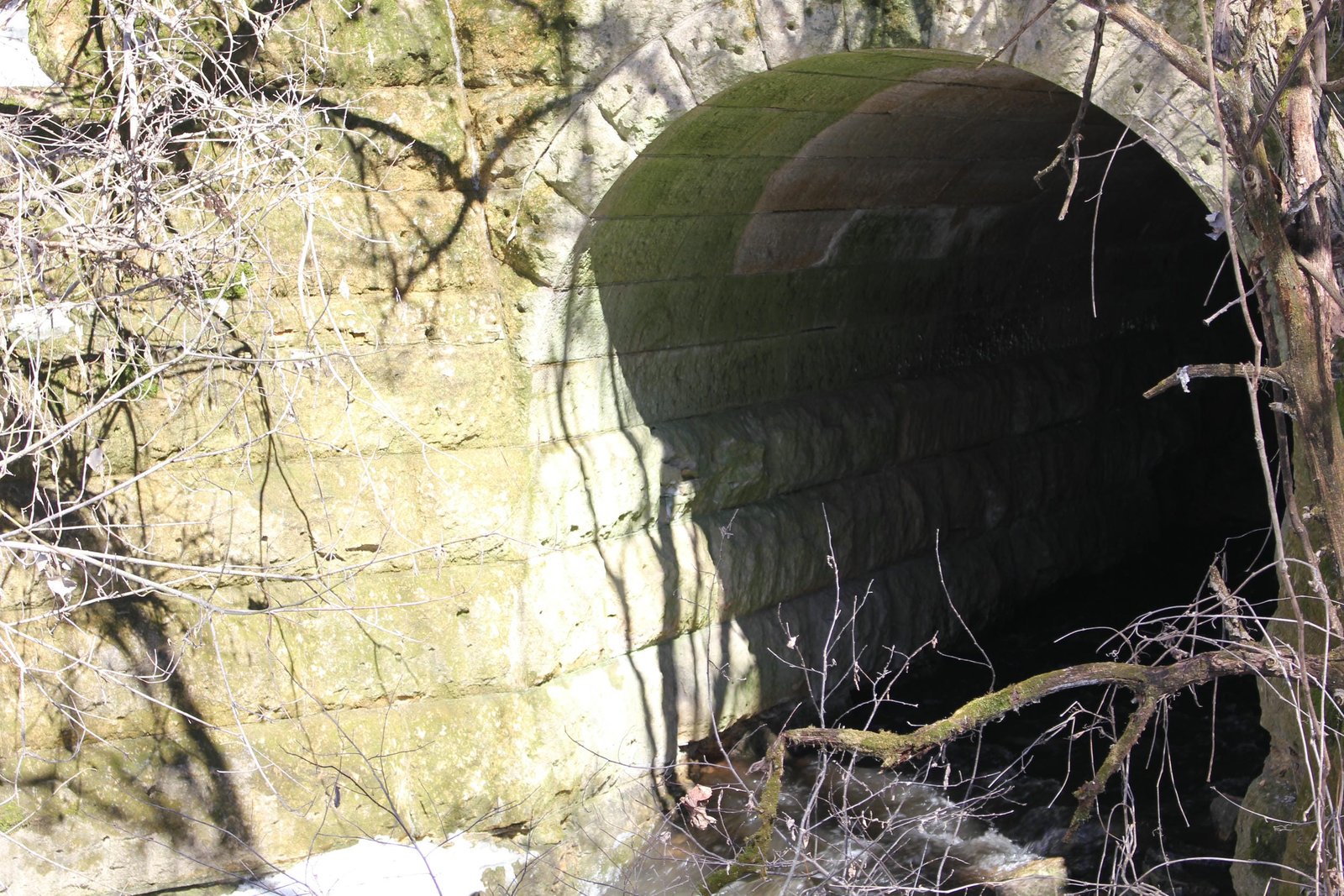

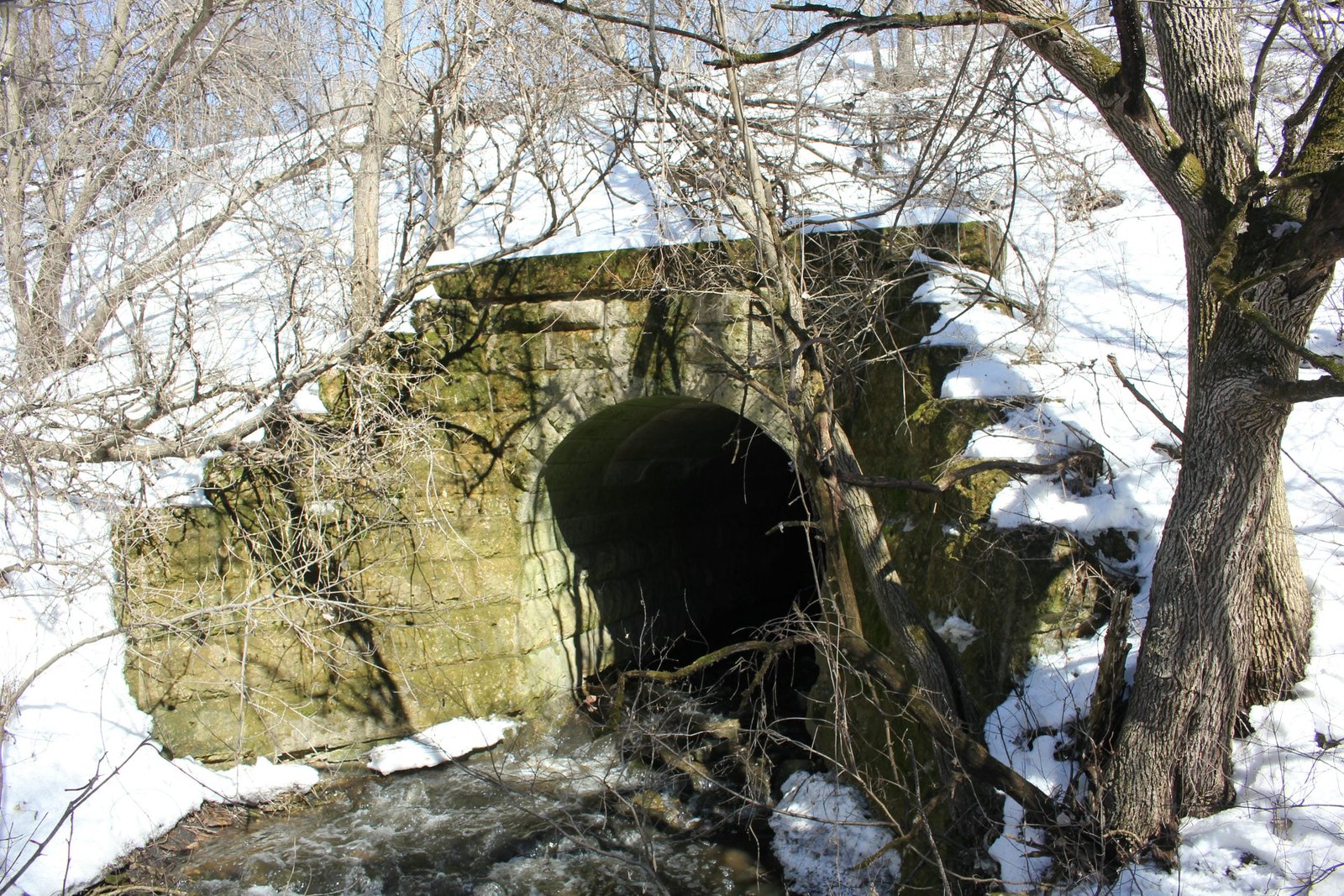

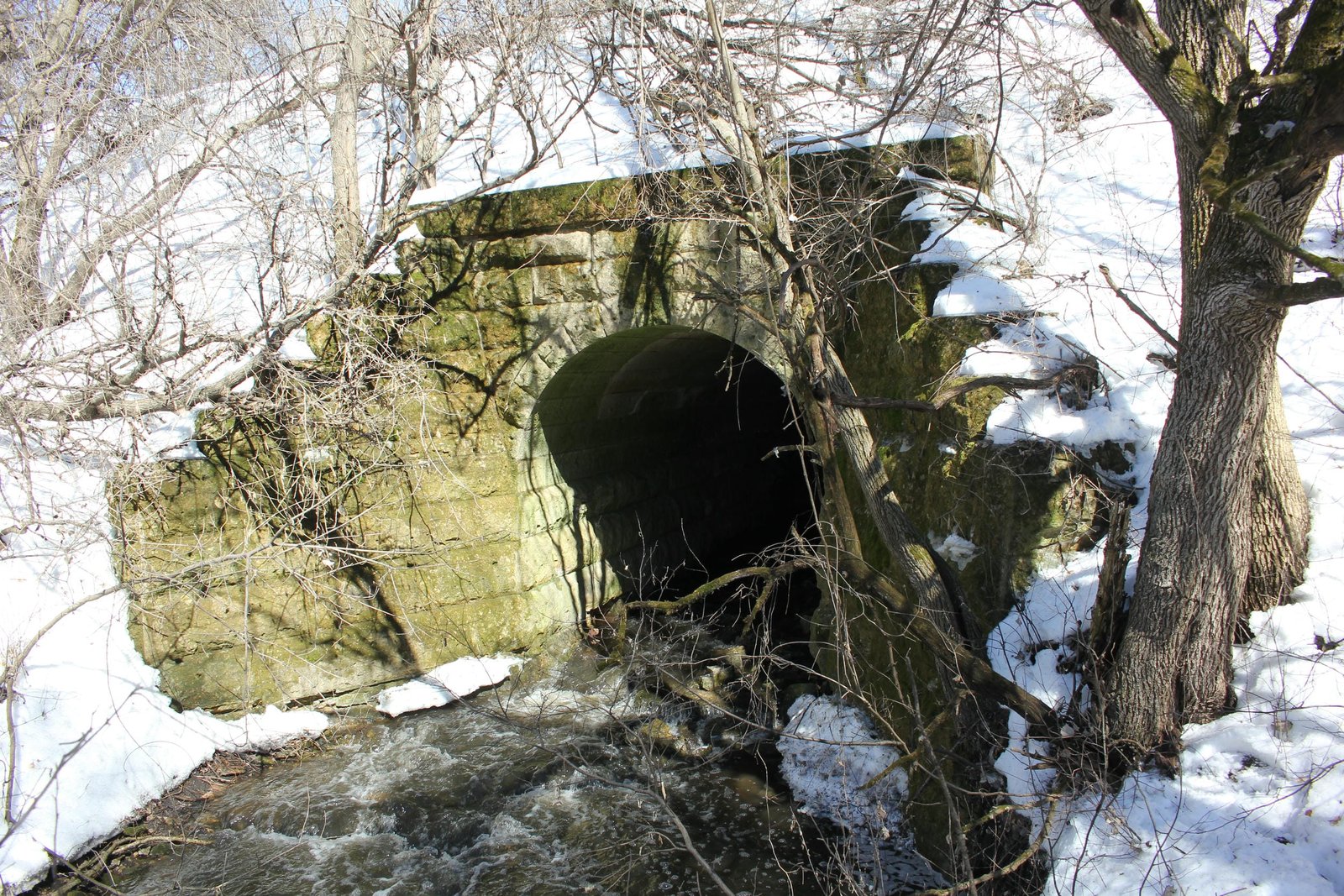

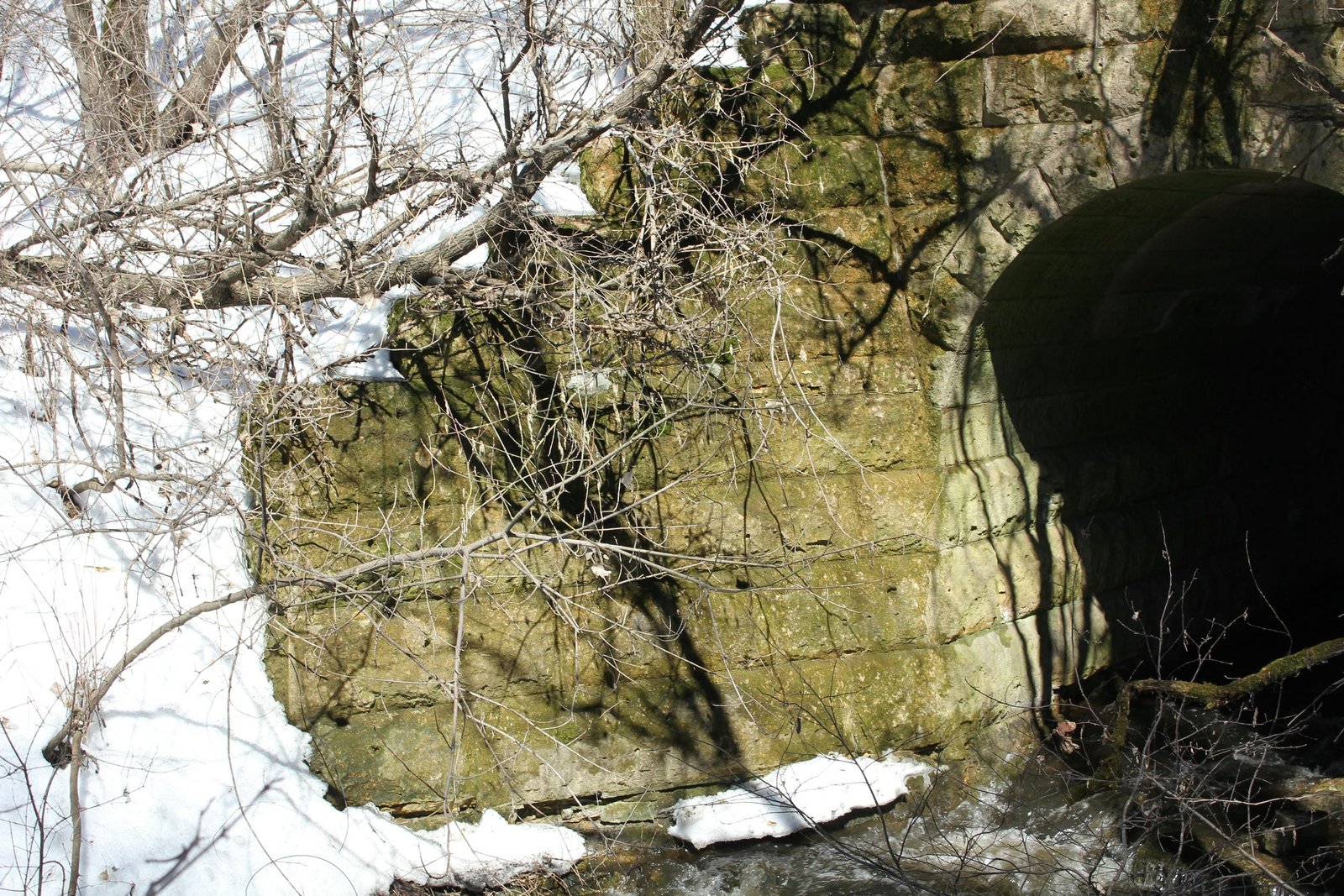

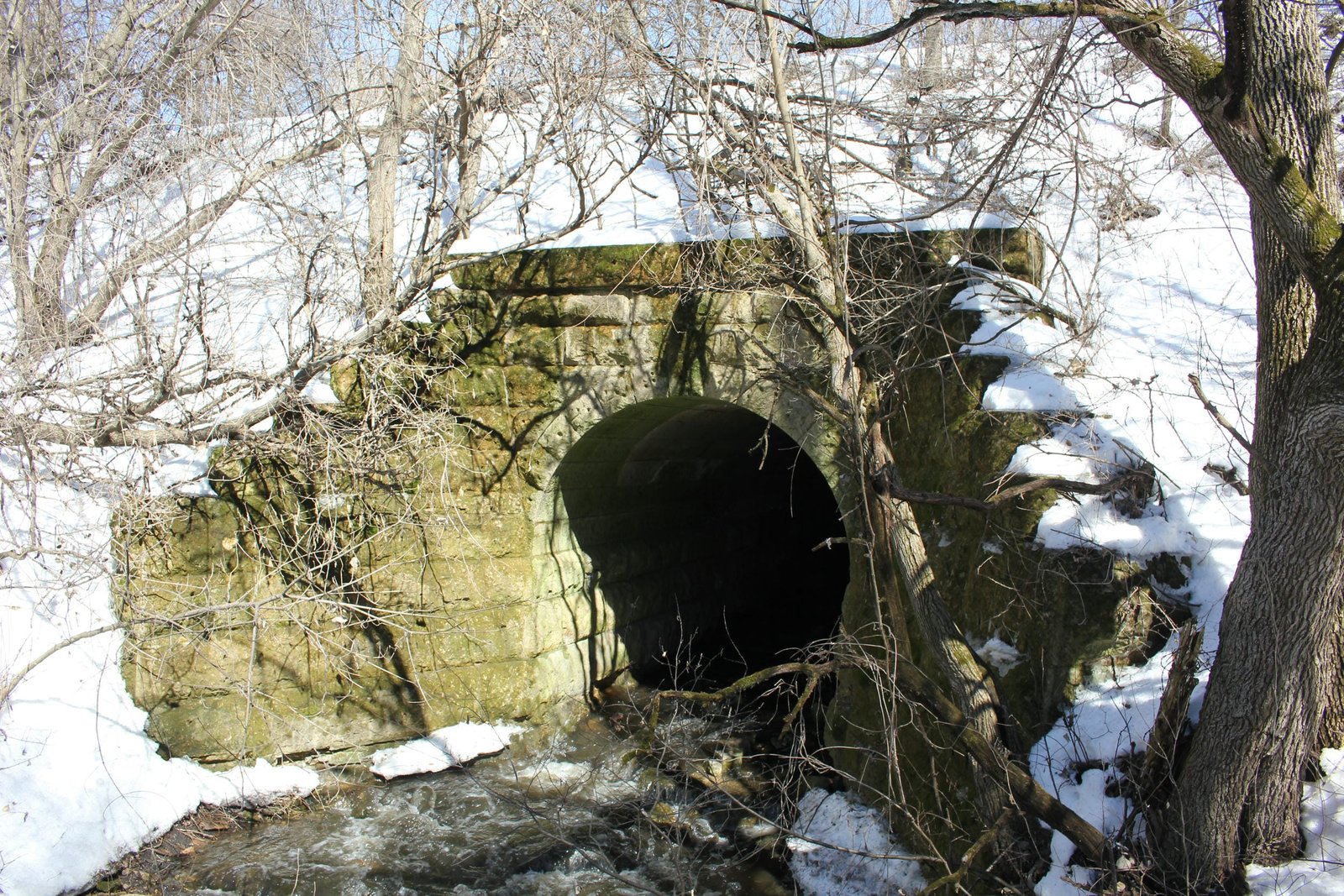

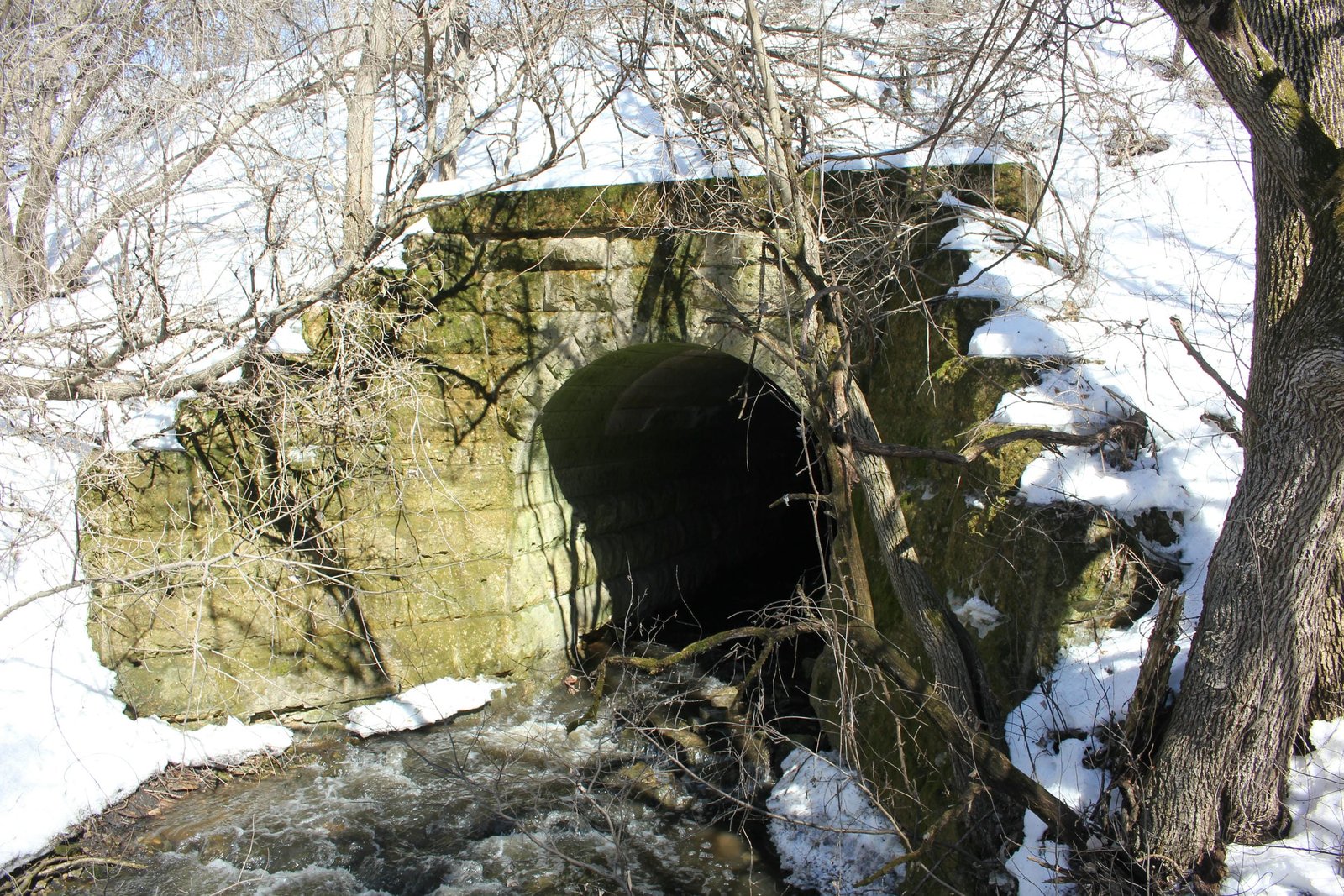

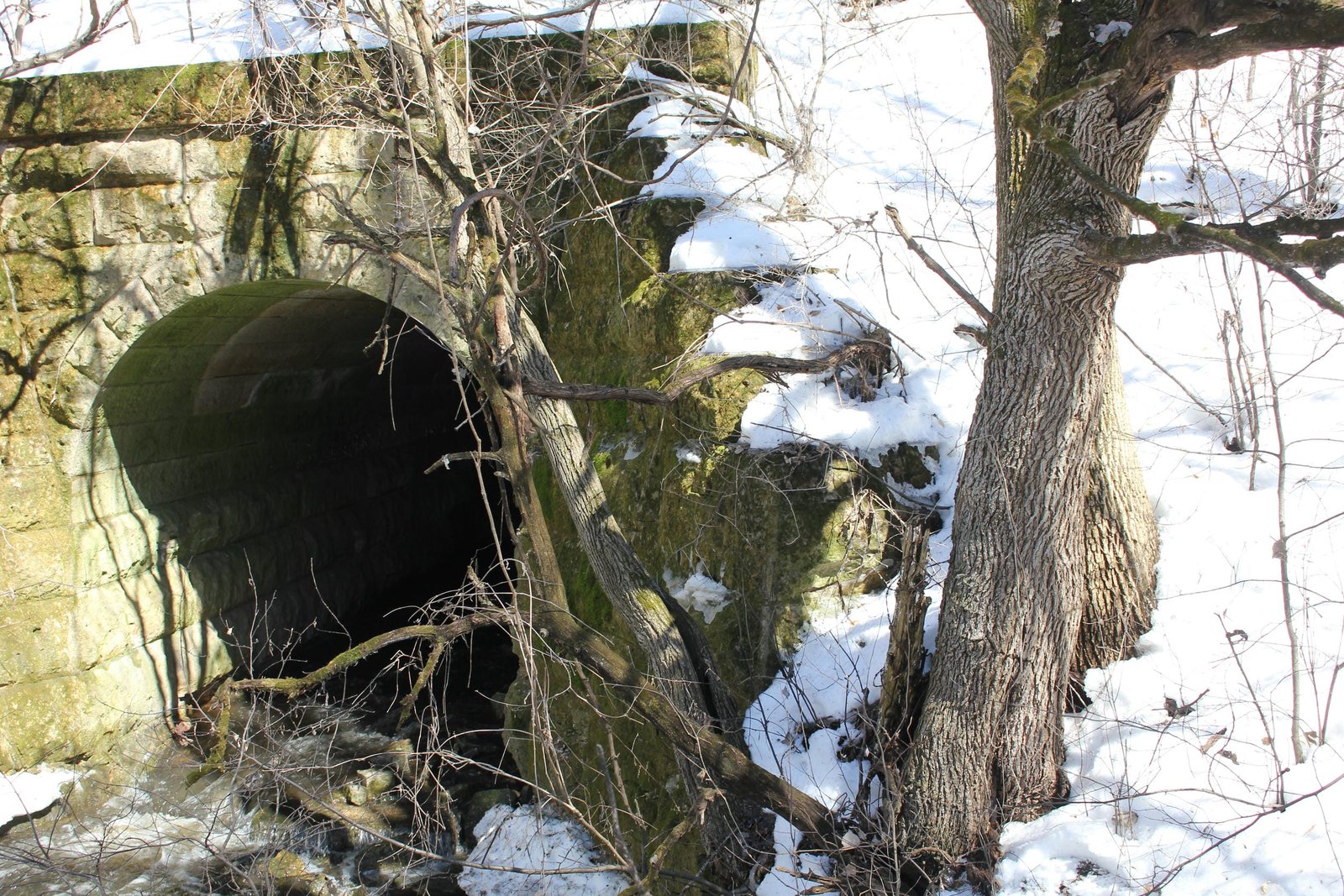

Located alongside the East Fork Des Moines River south of Dakota City, this small stone arch culvert carries a former Chicago & North Western Railway line over an unnamed creek. The first bridge at this location was a timber pile trestle, constructed when the line was first built. During the early years of the 20th Century, the C&NW invested significant capital into this line, replacing timber bridges with heavier stone and steel structures. In 1902, the trestle was filled and the present culvert was constructed. Currently, the culvert consists of a 10-foot by 9-foot stone arch culvert, set onto stone substructures and constructed at a width of 82 feet. The culvert follows a standard design, with a semicircular arch and stepped wing walls which extend from the culvert at an angle. Stone for the culvert consists of a yellow limestone, likely quarried at Mankato, Minnesota. While the contractor that constructed the culvert is unknown, it is possible that it was constructed by the Widell Company of Mankato, Minnesota; which supplied stone and constructed many of the stone bridges and culverts for the C&NW in the early 20th Century. One report indicates that this firm had the contract for all stone bridges along the Iowa Division in 1901 and 1902. Stone arches were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the culvert has seen no significant alterations. Today, it is used by the Three Rivers Trail. Overall, the culvert appears to be in fair to good condition, with most of the culvert retaining excellent integrity. The author has ranked this culvert as being locally significant, due to the common design.


Citations

Build date Chicago & North Western Railway Valuation Notes at the Chicago & North Western Historical Society Archives
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
