IAIS 490th Street Bridge


Click the photo to view the full-size version

1/10
Date Taken:
Author:
Caption:

Name IAIS 490th Street Bridge
Chicago, Rock Island & Pacific Railroad Bridge #4526
Built By Chicago, Rock Island & Pacific Railroad
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor American Bridge Company of New York
Substructure Contractor Unknown
Erection Contractor Iowa Bridge Company of Des Moines, Iowa
Length 115 Feet Total, 45 Foot Main Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1952
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 4526
Iowa Interstate Railroad Bridge Number 452.60
Significance Minimal Significance
Documentation Date 10/20/2018

In 1869, the Chicago, Rock Island & Pacific Railroad (Rock Island) constructed 142 miles of new railroad, extending from the end of the existing mainline at Des Moines, Iowa to Council Bluffs, Iowa.  Originally, the line went west to Atlantic, Iowa; before turning northwest and going through Avoca, Iowa and Shelby, Iowa.  At Shelby, the line would turn back southwest, and run through Neola, Iowa and Underwood, Iowa before arriving in Council Bluffs.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads during the late 19th Century, covering much of the central United States.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.  In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.

The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. During the early 1950s, the Rock Island undertook a series of improvements in Western Iowa to eliminate harsh grades and shorten the line.  Between 1952 and 1953, the Rock Island constructed the Atlantic Cutoff, which included constructing 34 miles of new railroad between Atlantic and McClelland, Iowa.  West of McClelland, the Rock Island used the Chicago Great Western Railway (CGW) tracks to reach Council Bluffs. The new route saved 10 miles, and much of the old route was abandoned in 1953.  A short segment was retained between Walnut, Iowa and Shelby, which was abandoned in 1966.  An additional revision was made near Adair in 1954, which involved straightening the route.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Council Bluffs Subdivision between Des Moines and Council Bluffs.  Except for a short portion near Shelby, the entirety of the original mainline between Atlantic and Council Bluffs remains abandoned.

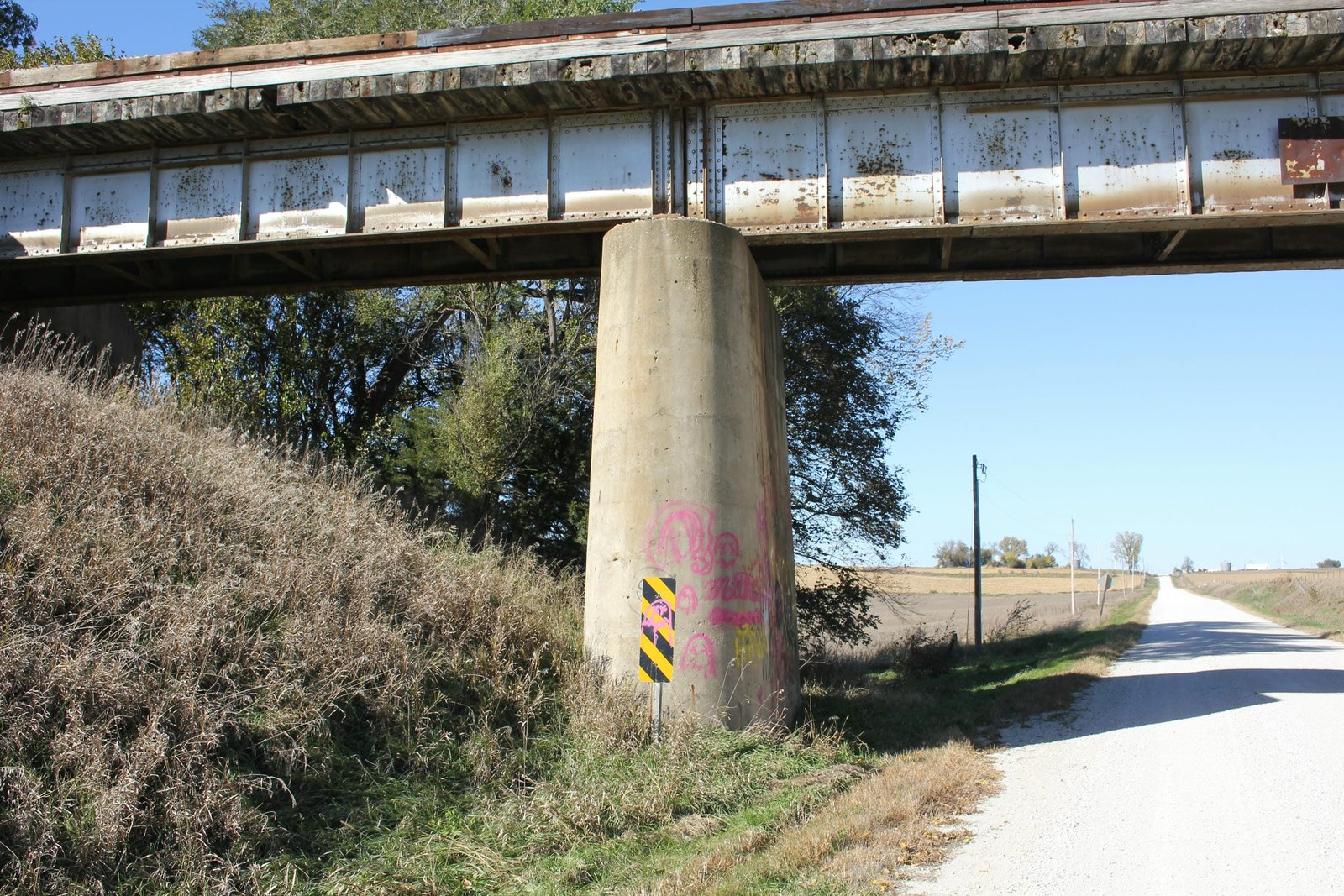

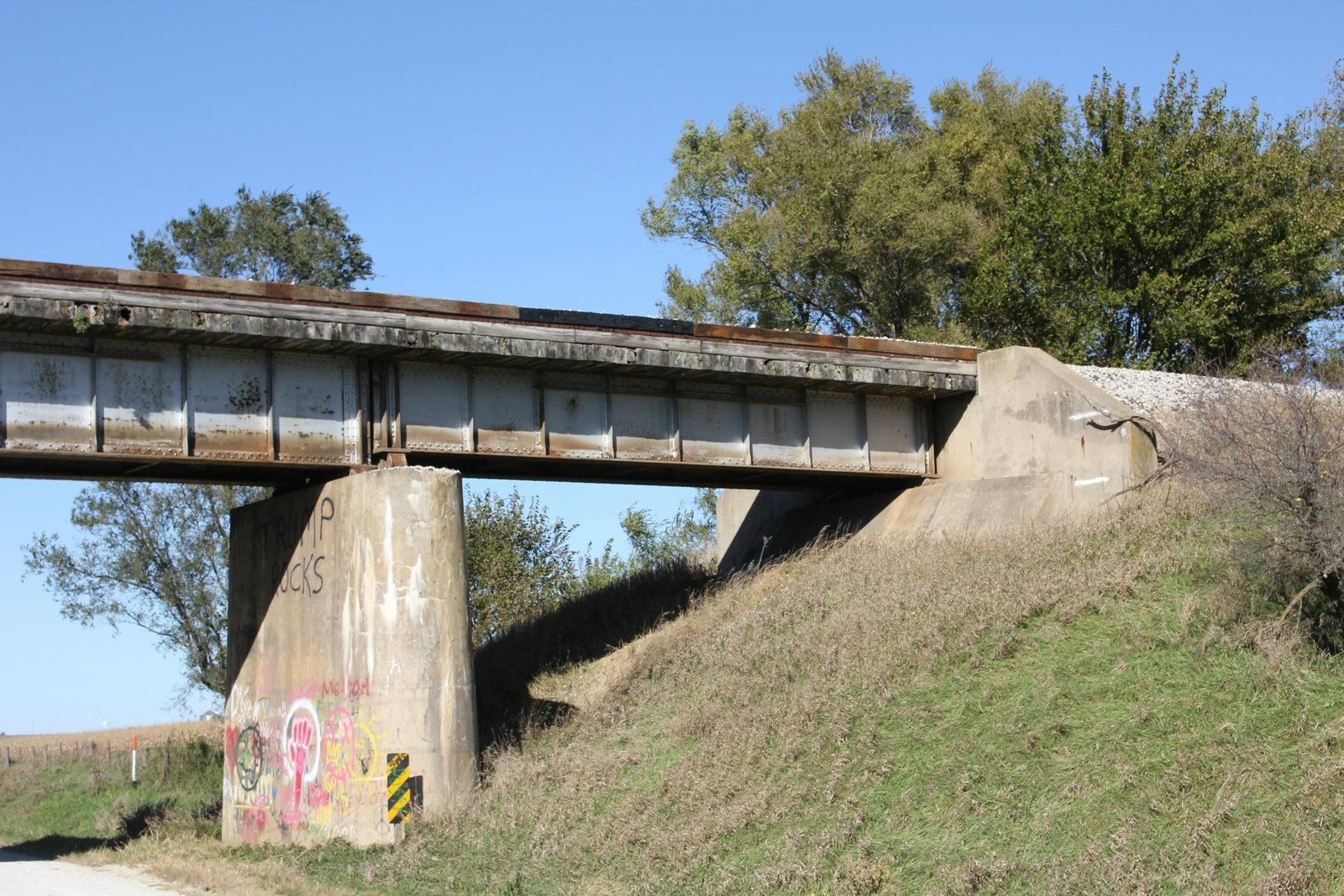

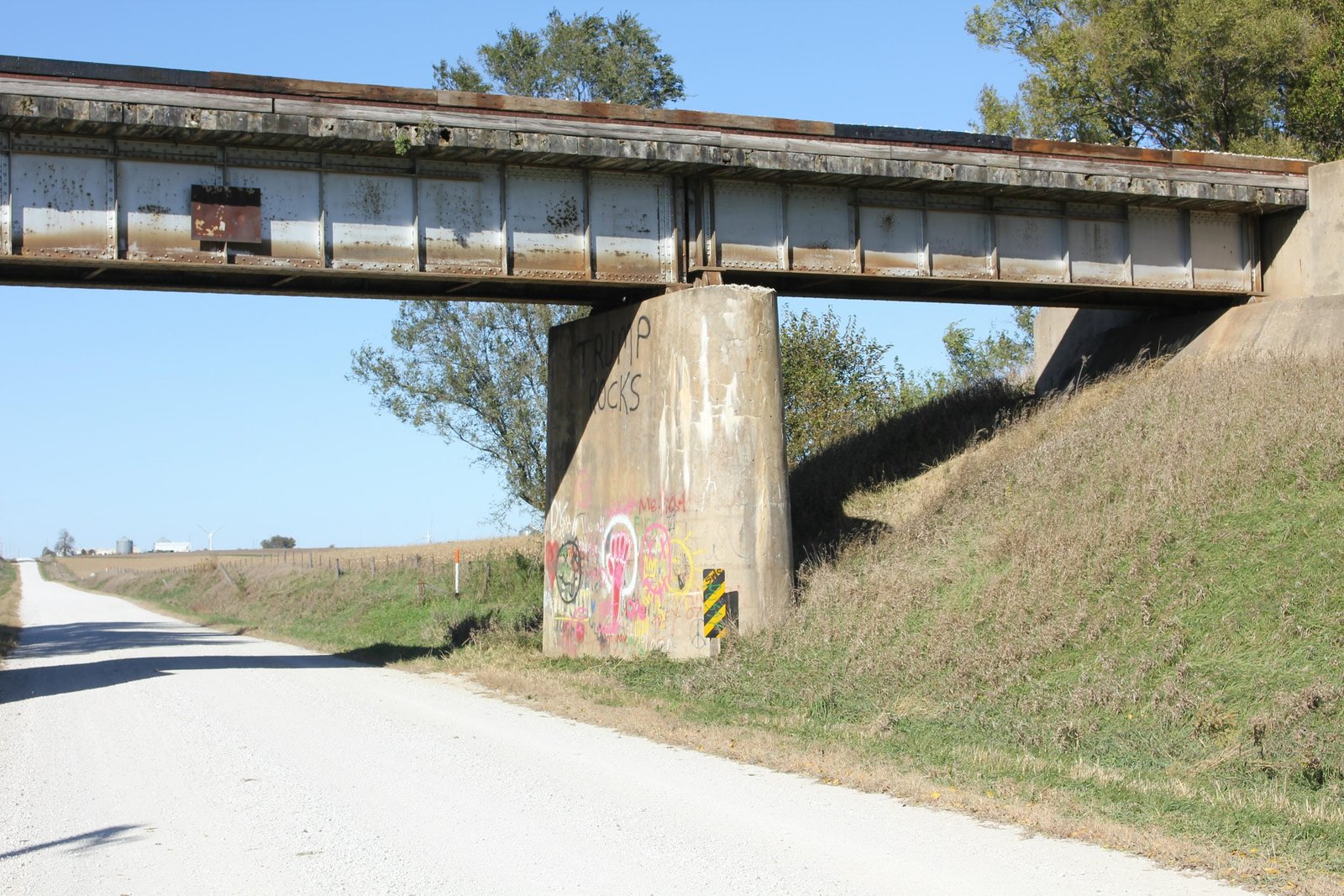

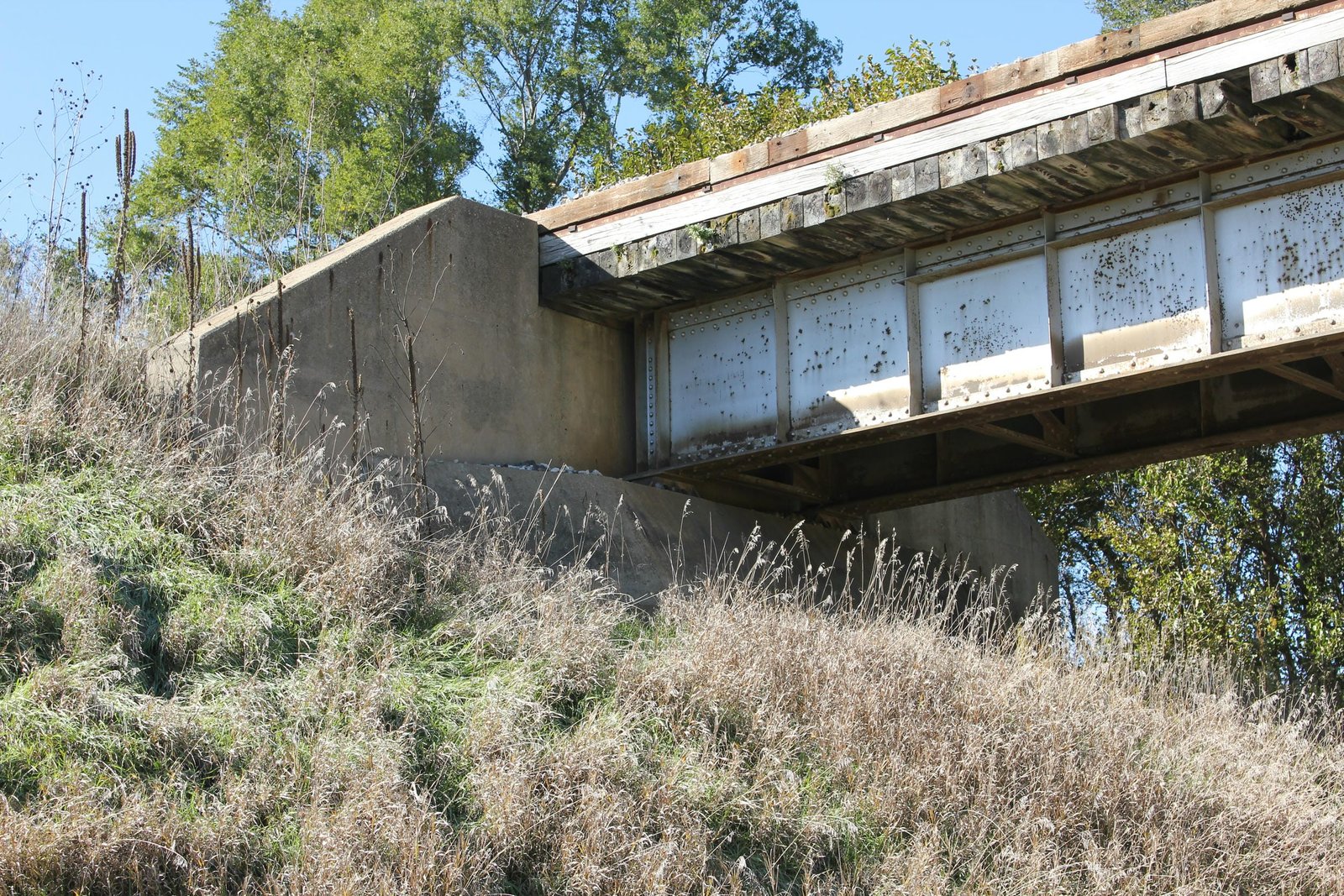

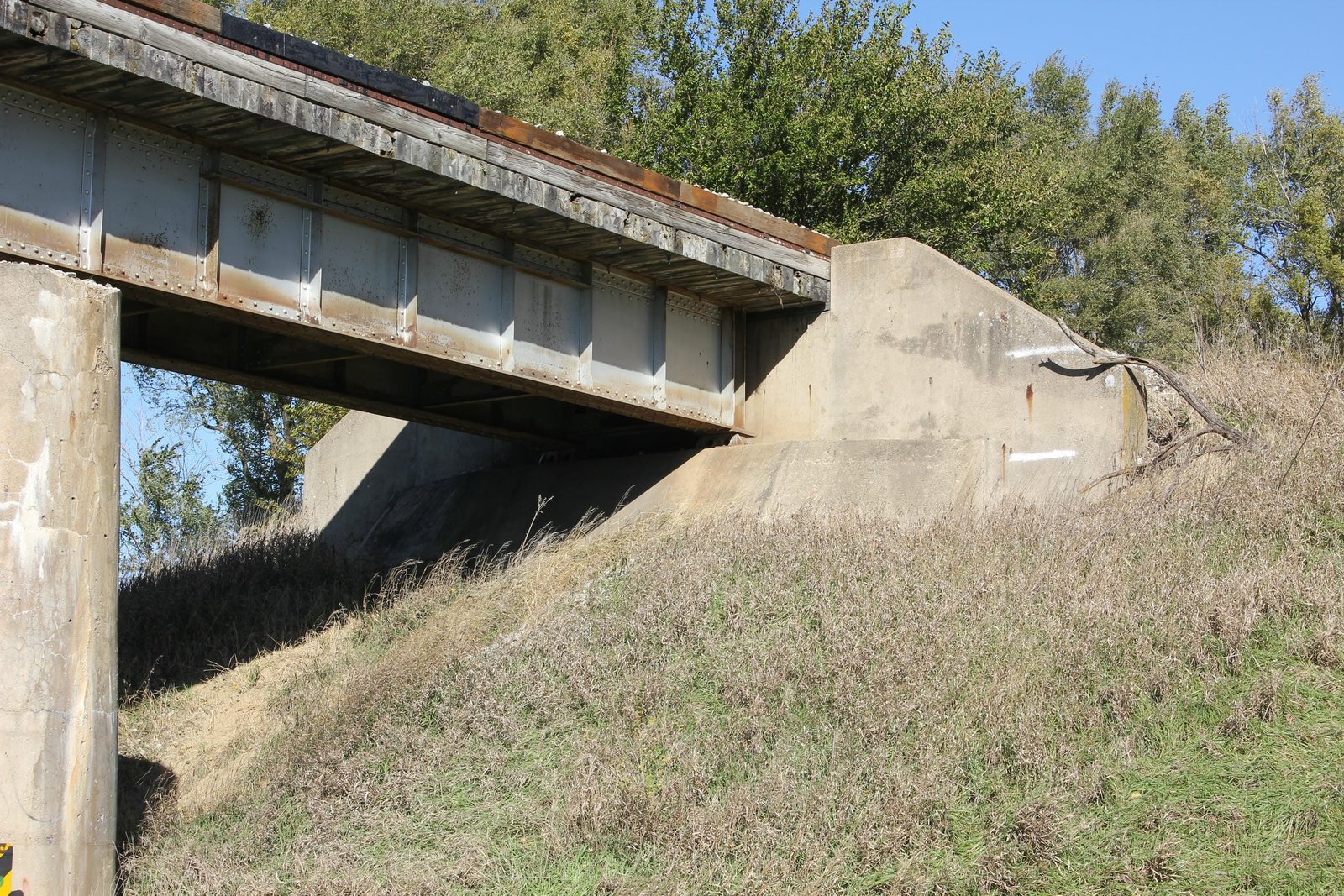

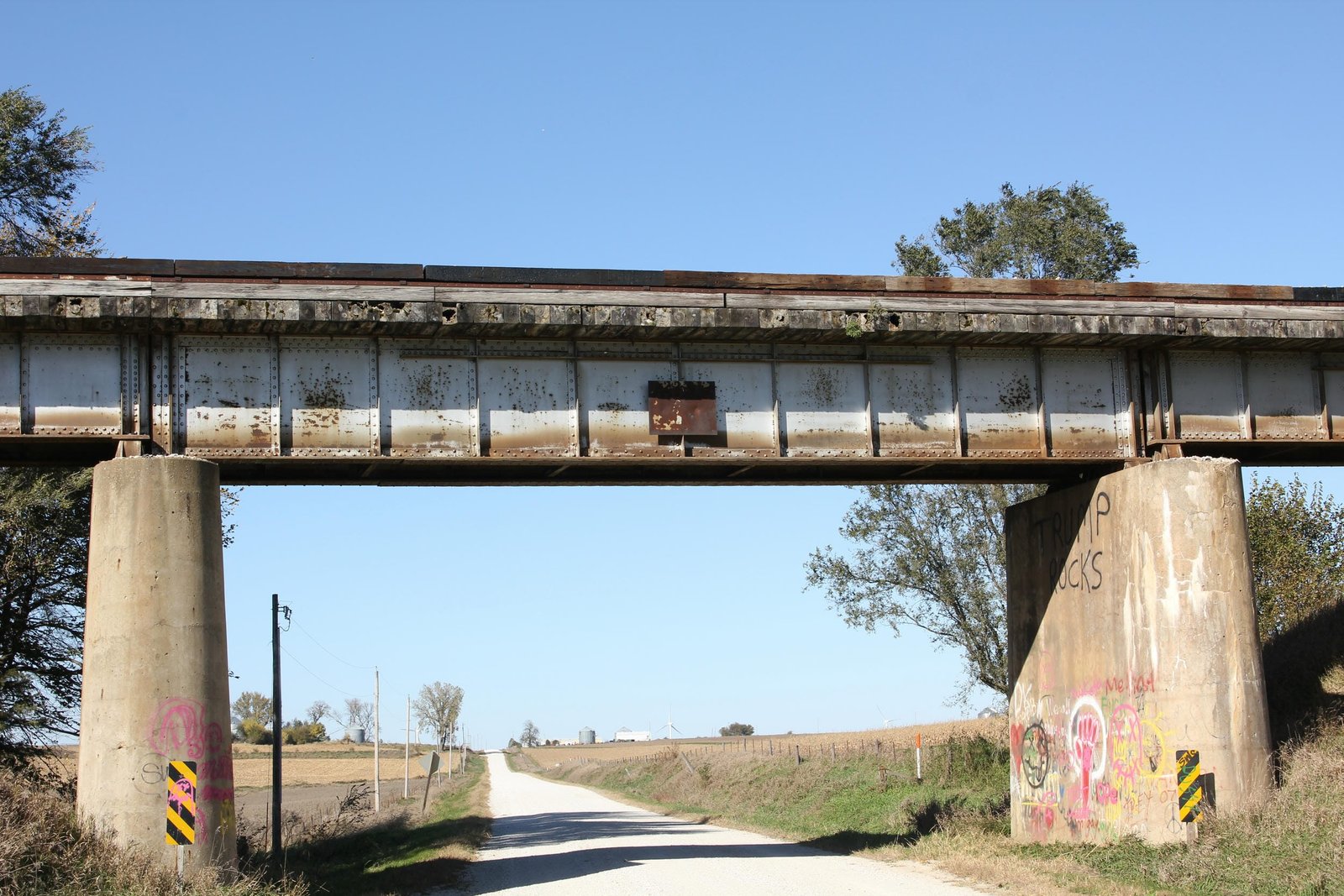

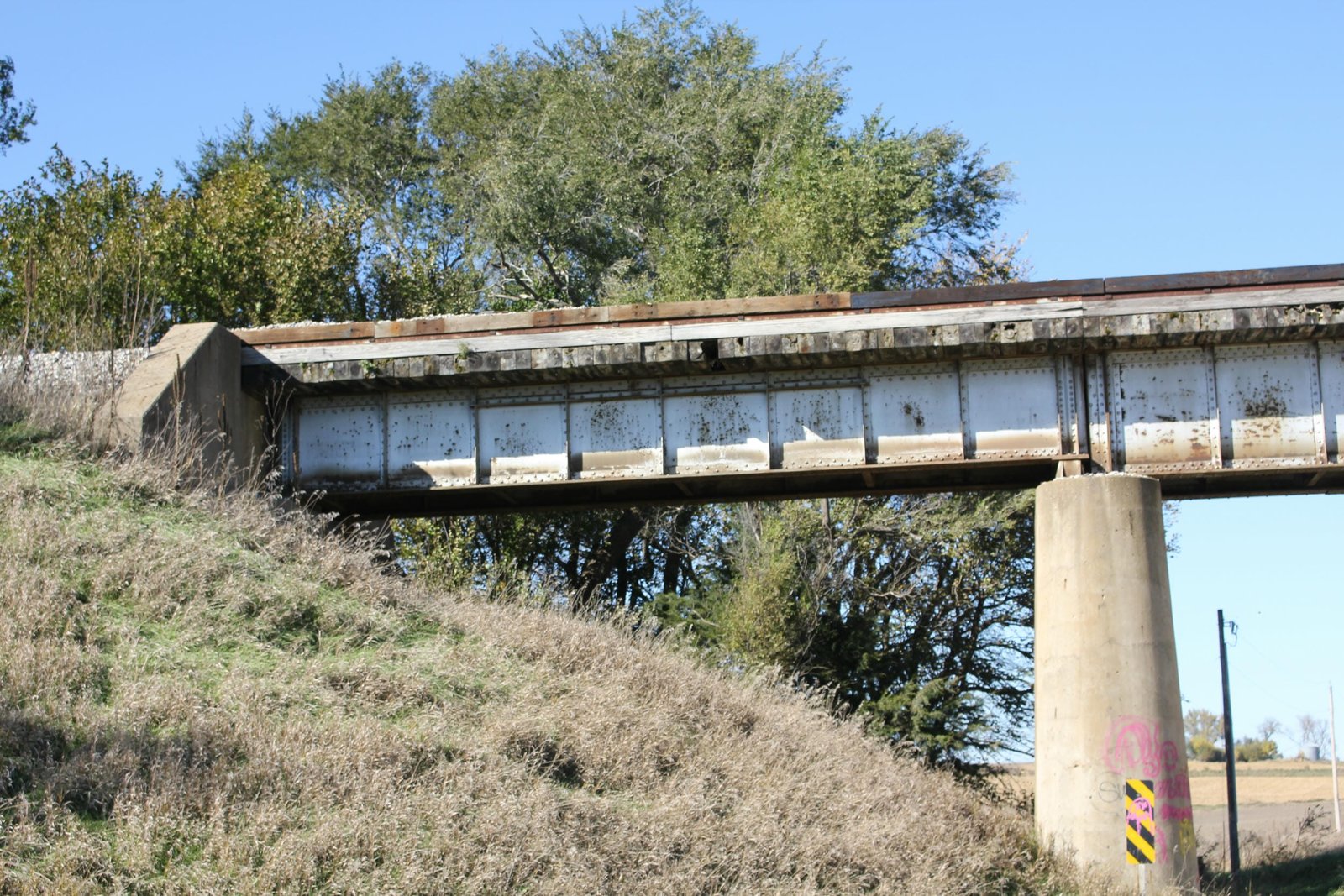

Located east of Hancock, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over 490th Street. The original Rock Island mainline followed a different alignment, turning northwest at Atlantic and passing through Walnut, Avoca, Shelby and Neola. During the 1940s and 1950s, the Rock Island invested significant capital into rebuilding and improving their network, relocating several mainlines in Iowa alone. In 1951, the Rock Island announced plans to construct a new cutoff between Atlantic and Council Bluffs, which would improve grades and curvature and significantly reduce the mileage and travel time. Work on the project began in late 1951 or early 1952, and was completed by mid-September 1953. As part of the work, a new bridge was constructed at this location in 1952. Currently, the bridge consists of a 45-foot and two 35-foot deck plate girder spans, set onto concrete substructures. The superstructure follows a standard design, with two heavy girders per span and a timber ballast deck. The substructure uses rectangular piers with rounded faces and abutments with sloped wing walls extending perpendicular from the bridge. American Bridge Company fabricated the superstructure, while the spans were erected by the Iowa Bridge Company. Three contractors, including List & Weatherly Construction Company of Kansas City, Missouri; Arcole Midwest Corporation of Chicago, Illinois and Iowa Bridge Company of Des Moines, Iowa were awarded contracts for constructing the concrete piers, abutments and culverts along this line. It is unclear which of these three contractors were awarded the contract for the substructures of this bridge. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, no significant alterations have been made to the structure. Today, the bridge remains in regular use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being minimally significant, due to the common design and newer age.


Citations

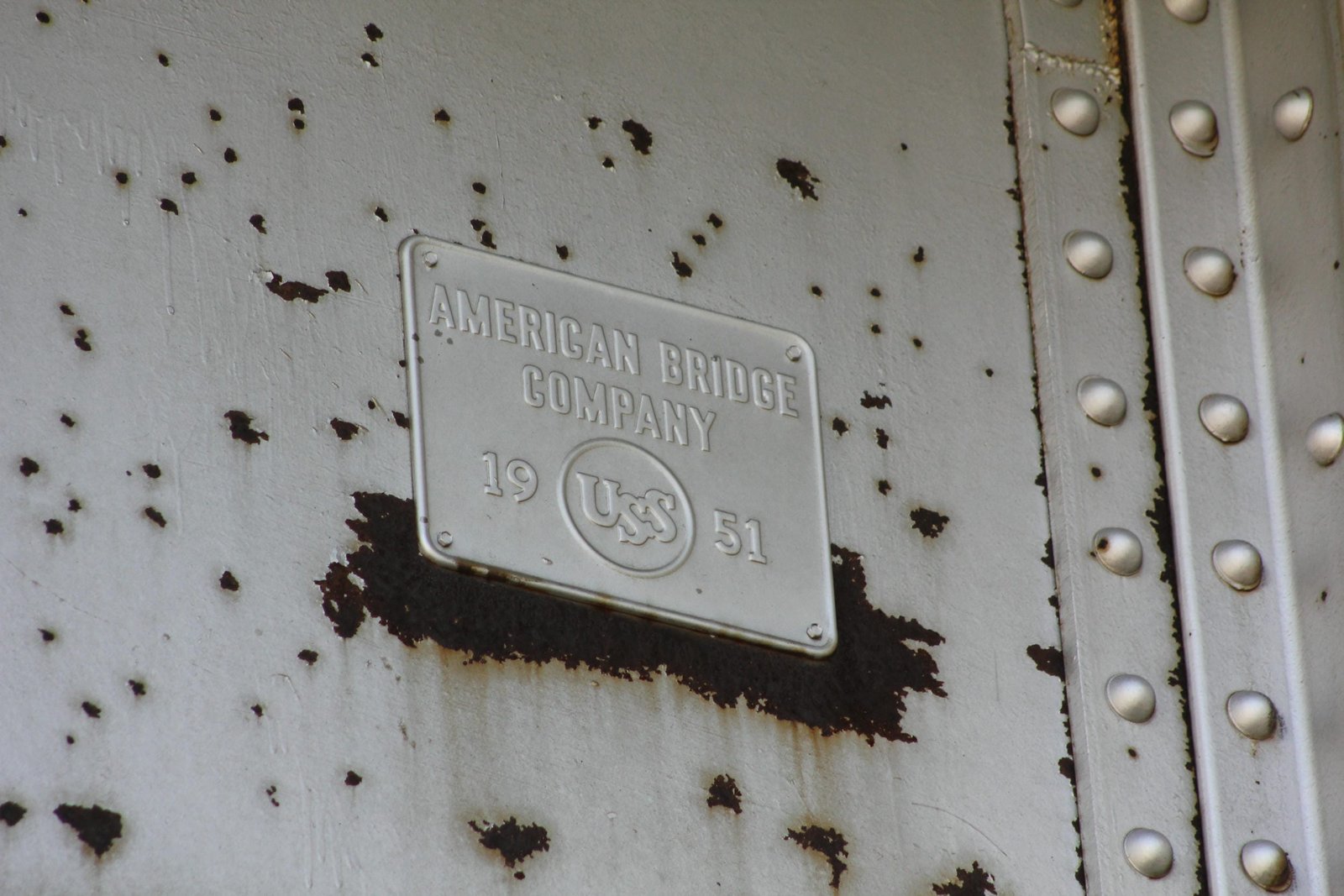

Build date and builder (superstructure) American Bridge Company plaque
Erection contractor Railway Age; Volume 136, Issue 11
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
