| Name | IAIS Dead Mans Cave Chicago, Rock Island & Pacific Railroad Bridge #2357 |
| Built By | Chicago, Rock Island & Pacific Railway |
| Currently Owned By | Iowa Interstate Railroad |
| Contractor | Unknown (North Portion) Unknown (South Portion) |
| Length | 10 Feet Total |
| Width | 2 Tracks (47 Feet) |
| Height Above Ground | 10 Feet (Estimated) |
| Superstructure Design | Stone Arch Culvert (North Portion) Concrete Railtop Box Culvert (South Portion) |
| Substructure Design | Stone Masonry (North Portion) Concrete (South Portion) |
| Date Built | c. 1870 (North Portion) 1901 (South Portion) |
| Traffic Count | 5 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago, Rock Island & Pacific Railroad Bridge Number | 2357 |
| Iowa Interstate Railroad Bridge Number | 235.70 |
| Significance | Local Significance |
| Documentation Date | 1/27/2018 |
In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa. As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport. In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864. In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867. In 1869, the line would continue to be extended west towards the Missouri River. At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois. In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway. The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s. This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.
In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures. Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s. The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability. After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline. The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability. Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations. In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island. During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated. Many of the lines and equipment were scrapped. Profitable sections of railroad were prepared for sale.
In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa. In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section. In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees. Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984. After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa. Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations. Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

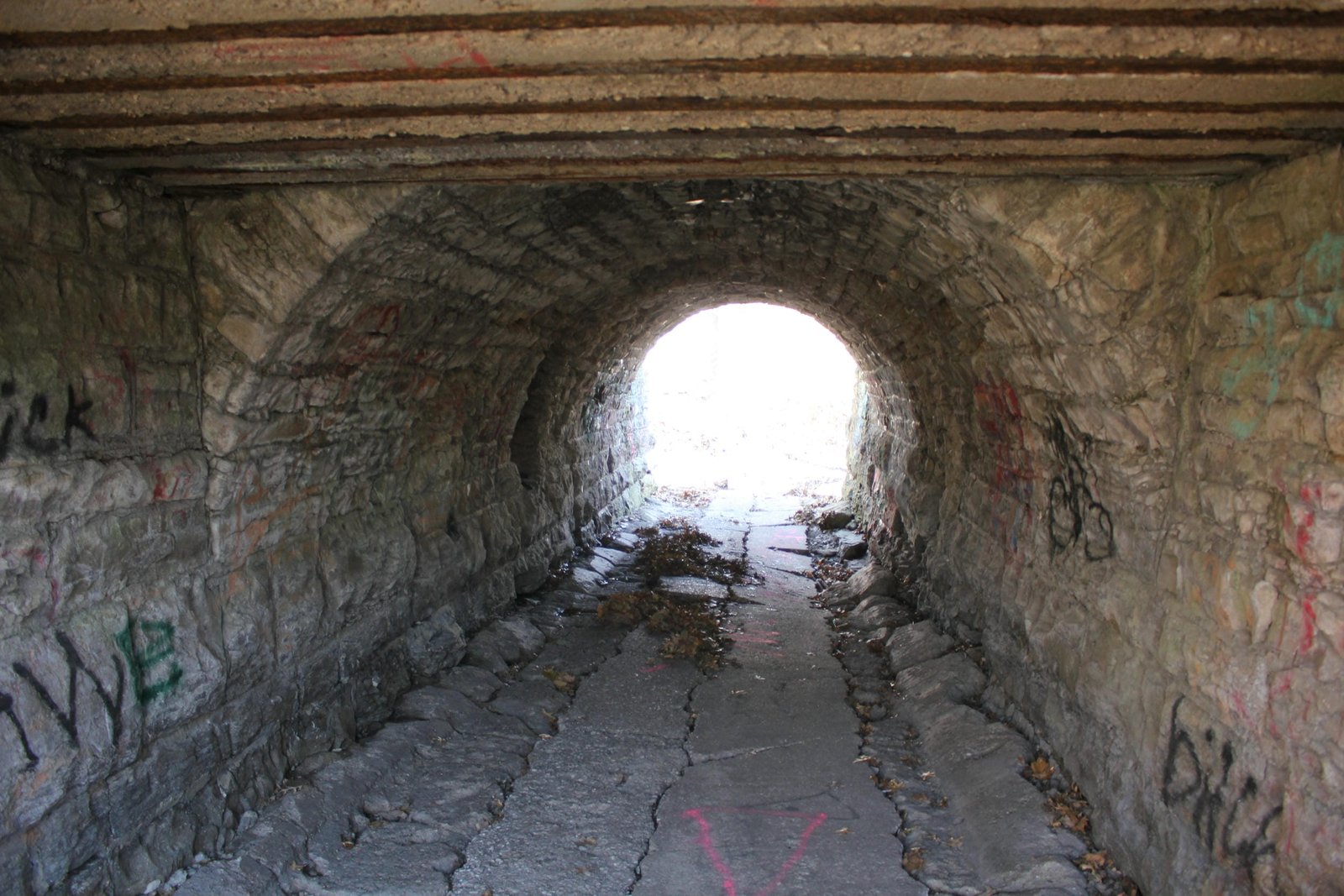

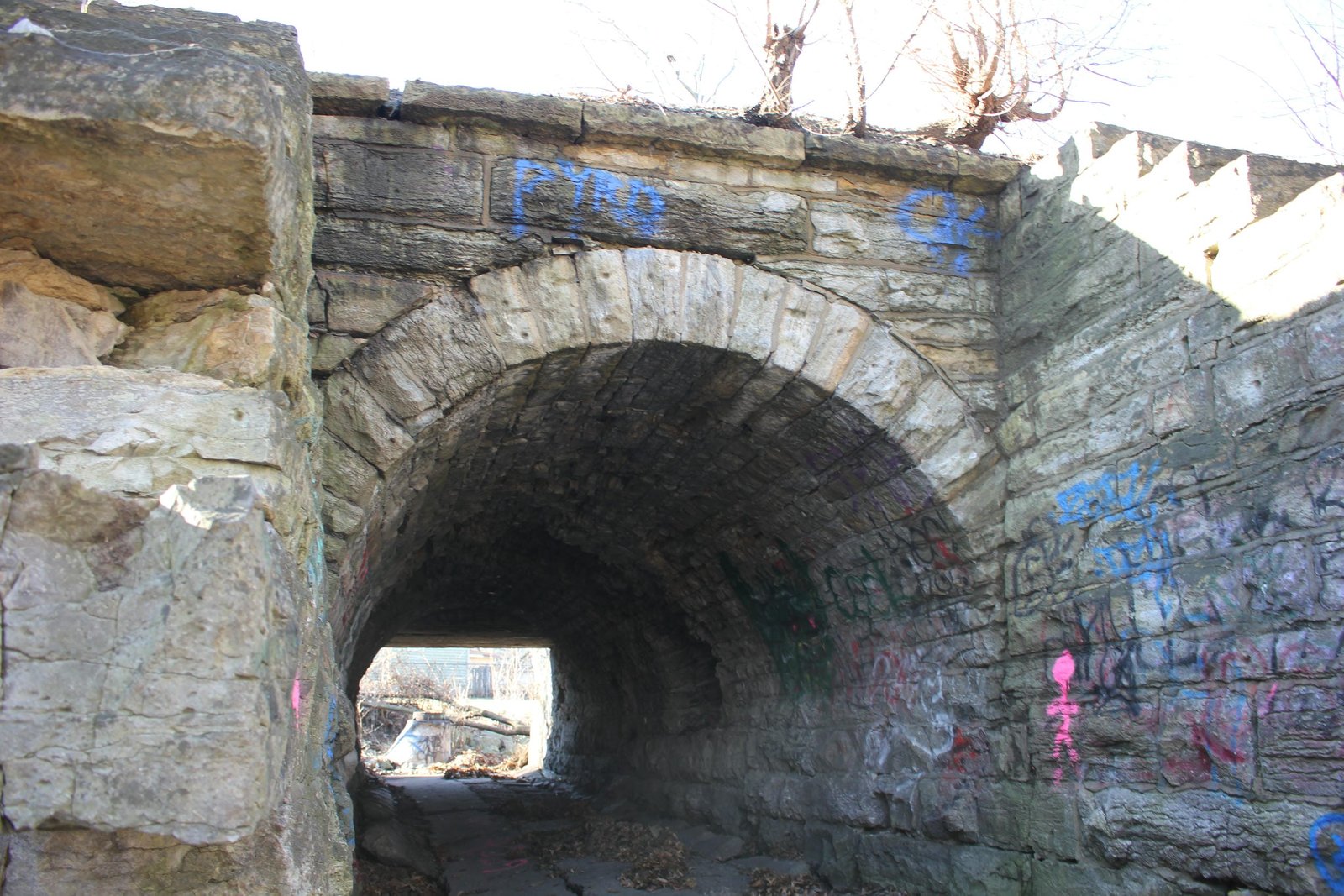

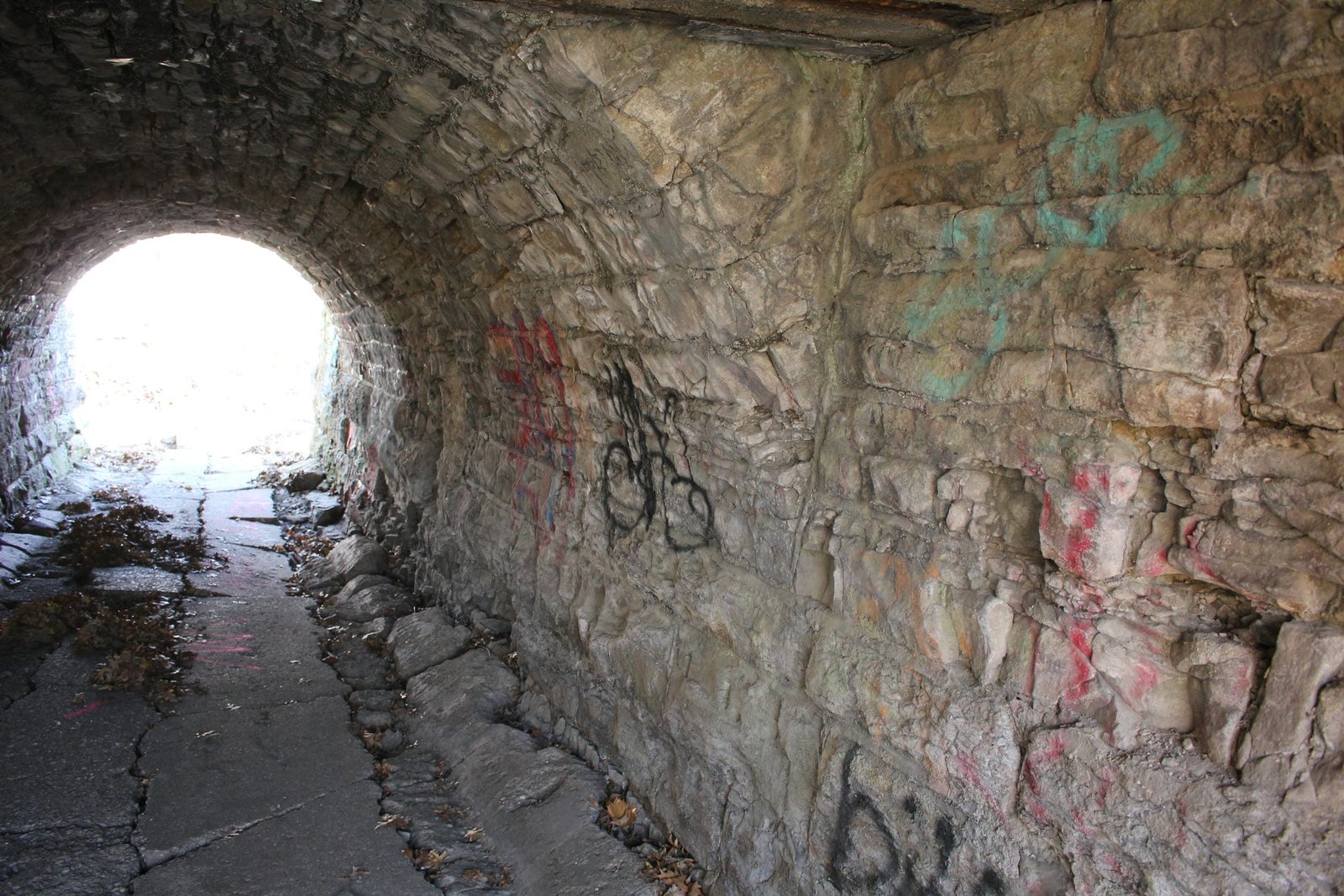

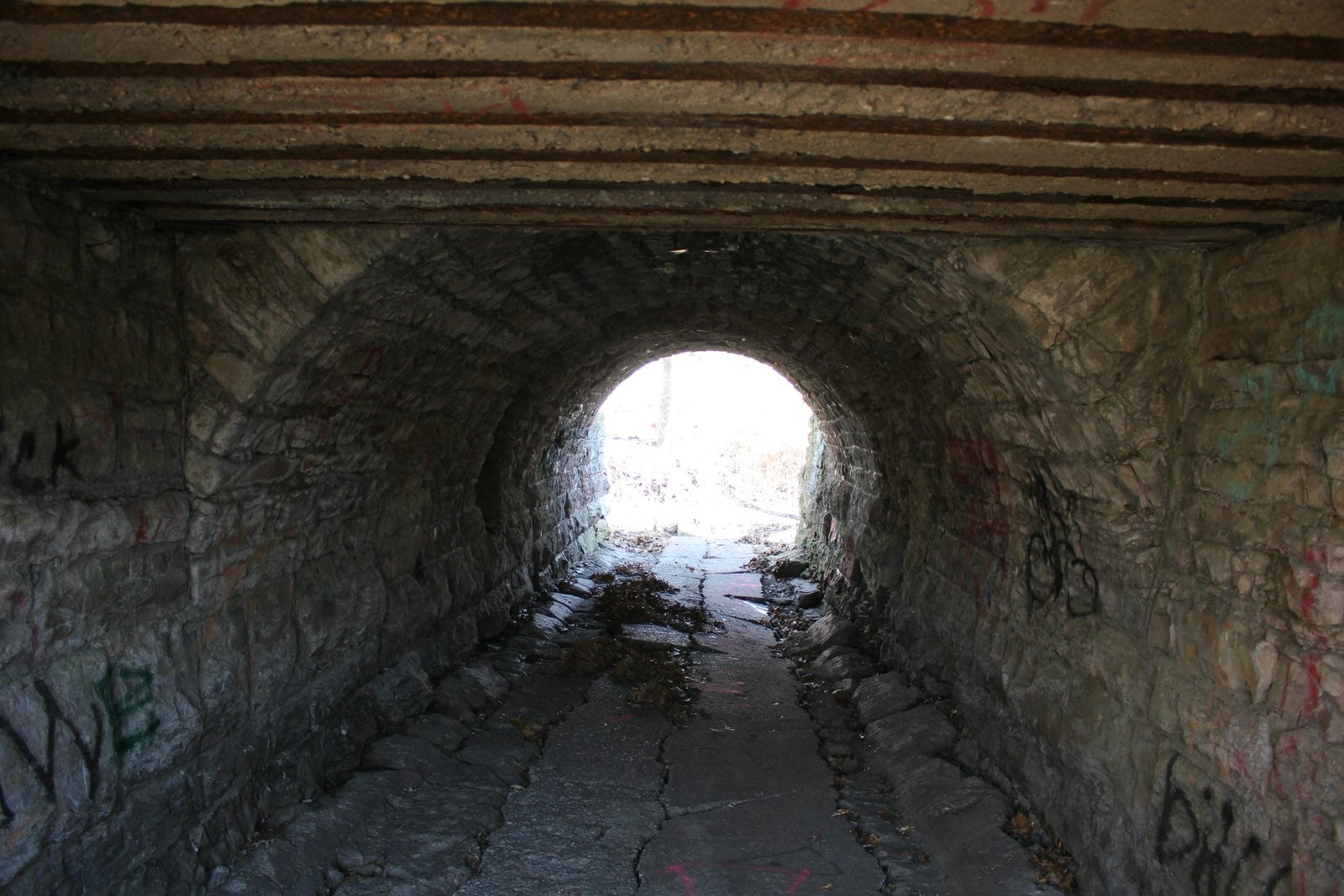

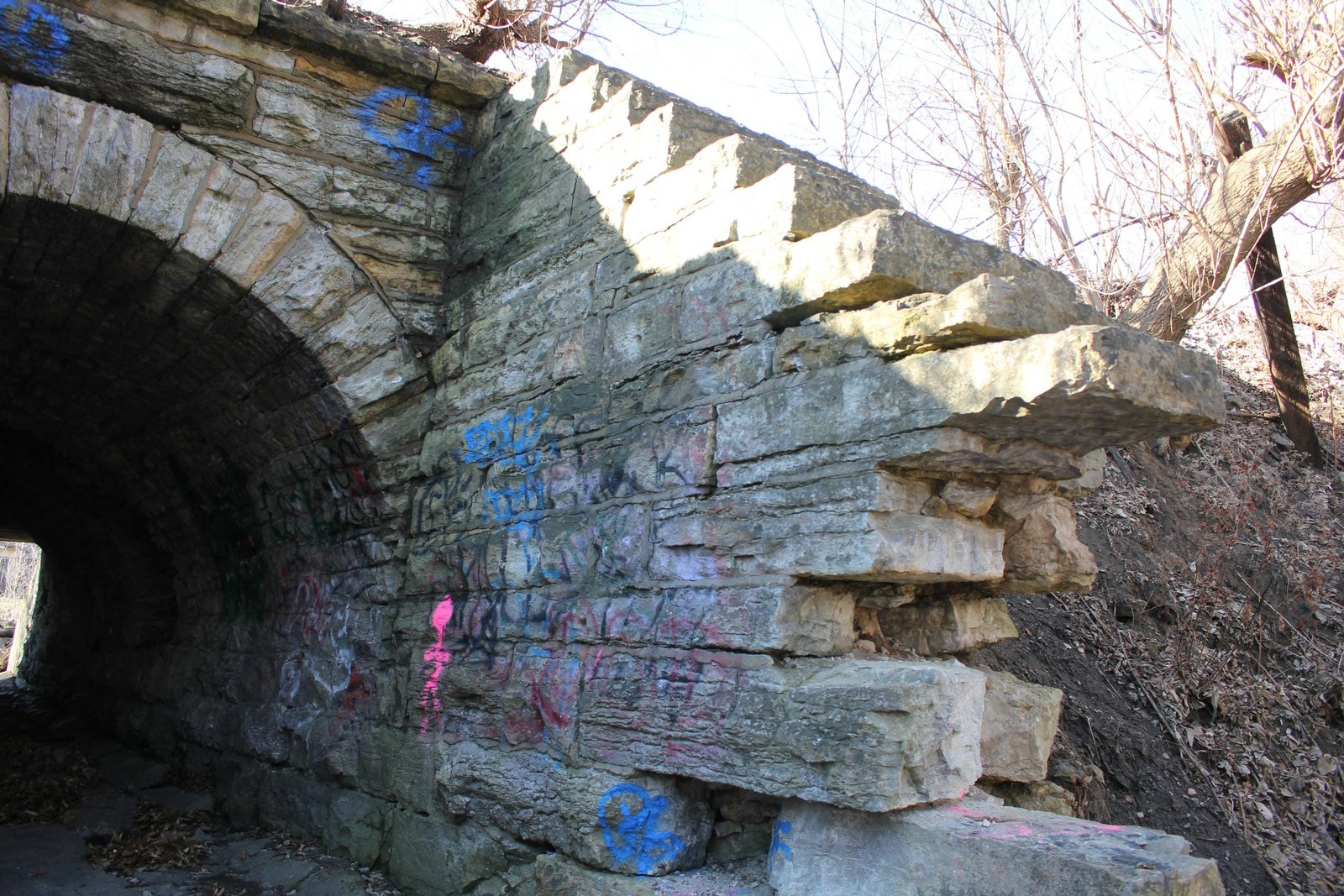

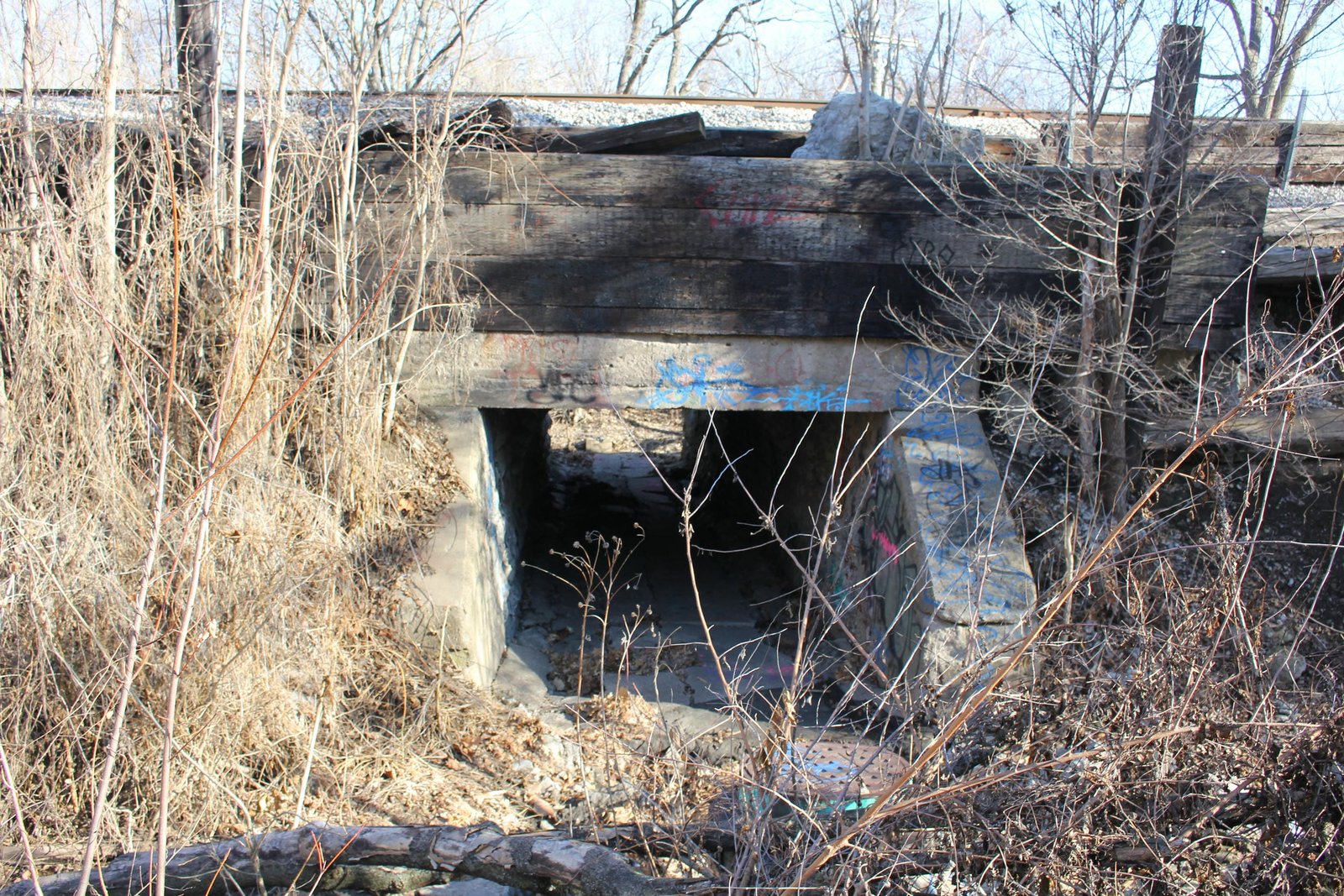

Located at the end of Pine Street in Iowa City, this culvert carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over an unnamed creek. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. Between 1870 and 1875, the Rock Island reportedly constructed several stone arch culverts along their mainline across Iowa. Newspaper reports indicate that the railroad was making significant improvements in Iowa City during the 1869 and 1870 construction seasons. It is believed that a stone arch culvert was constructed at this location in approximately 1870. During the 1901 construction season, the Rock Island double tracked their line through the east side of Iowa City. At that time, the culvert was extended south, giving the structure its present configuration. Currently, the culvert consists of two distinct portions. The north portion consists of a 10-foot by 8-foot stone arch culvert, set onto stone substructures and constructed for a single track at a width of 34 feet. The south portion consists of a 10-foot by 8-foot concrete railtop box culvert, which is built onto the original south wing walls of the stone arch and onto concrete substructures, and constructed for a single track at a width of 13 feet. The arch portion uses a standard design, with a semicircular arch, short headwalls and stepped wing walls which extend perpendicular from the structure. Stone for the structure consists of a brown limestone, quarried at an unknown location. The concrete portion also uses a standard design, with timber tie headwalls and short sloped wing walls which extend perpendicular from the structure. An unknown contractor constructed the stone portion of the culvert, while it is unclear if the south portion was constructed by an unknown contractor or by railroad company forces. Stone arches were popular for railroad use, particularly during the mid to late 19th Century. The Rock Island constructed dozens of stone arches of different sizes on their Chicago to Council Bluffs mainline, with most dating between the early 1870s and early 1880s. Concrete railtop culverts were also popular for railroad use, due to their ease of construction and durability. Since the 1901 widening, the culvert has seen no significant alterations, and today both tracks remain in regular use. Overall, the culvert is in fair condition, with some significant loss to the stone noted. The author has ranked this culvert as being locally significant, due to the common design and unclear history.
Citations
| Build date (south face) | Date stamp |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
