Name UP Butcher Creek Bridge
Chicago, Rock Island & Pacific Railroad Bridge #604
Built By Chicago, Rock Island & Pacific Railroad
Currently Owned By Union Pacific Railroad
Superstructure Contractor American Bridge Company of New York
Substructure Contractor J.C. Dunn of Chicago, Illinois (Piers)
F.K. Ketler Company of Chicago, Illinois (Abutments)
Length 190 Feet Total, 70 Foot Largest Span
Width 1 Track
Height Above Ground 25 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1912, End Spans Added 1941
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 604
Union Pacific Railroad Bridge Number 60.40
Significance Local Significance
Documentation Date 9/29/2017; 8/4/2019

In 1871, the Chicago & South Western Railway constructed 61 miles of new railroad between Shearwood, Missouri and Allerton, Iowa, as part of a larger project to construct a line between Leavenworth, Kansas and Washington, Iowa.  In 1873, the Des Moines, Indianola & Missouri Railroad (DMI&M) constructed a 21 mile railroad line, extending from Des Moines, Iowa south to Avon, Iowa; and west to Indianola, Iowa.  Both railroads would be sold to the Iowa Northern & Missouri Southern Railroad in 1876, which was merged into the Chicago, Rock Island & Pacific Railway in 1880.  The Rock Island had acquired and constructed a network of railroads, particularly in Iowa.  This route served as a branch line to a small town near Des Moines.  During the 1880s and 1890s, the Rock Island expanded westwards, reaching Colorado and New Mexico.  Additions to the system during the early 1900s included a number of new lines in Minnesota and northern Iowa.  In 1911, the St. Paul & Kansas City Short Line Railroad, a subsidiary of the Rock Island, constructed 65 miles between Avon, Iowa and Allerton, Iowa; connecting the two lines.  This new line was built as part of a larger project to connect the northern and southern portions of the system. To reach Kansas City, the Rock Island utilized trackage rights over the Chicago, Burlington & Quincy Railroad from Cameron Junction to Kansas City.  In 1931, the Rock Island constructed a new line from near Trenton to Birmingham, located just outside of Kansas City.  From Polo to Birmingham, the route would parallel the Chicago, Milwaukee, St. Paul & Pacific Railroad tracks, and the two railroads operated as a double track route, with separate mainlines.  In 1945, a new bridge across the Missouri River was jointly constructed by the two railroads.

The Rock Island had constructed and acquired a large railroad network throughout the Midwest.  The Kansas City-Des Moines-St. Paul route would become known as the "Spine Line".  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes.  The Rock Island struggled to compete with a stronger and better constructed Union Pacific system.  By 1964, the Rock Island began attempts to merge with Union Pacific, and restructure railroads west of the Mississippi River.  This merger was eventually denied, and Rock Island turned its last profit in 1965.  In the mid-1970s, the railroad was in serious decline.  The railroad received loans to attempt to fix slow orders, received new equipment and turn a profit.  By 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.  The Chicago & North Western Railway (C&NW) and Soo Line both had interest in the Spine Line, with the C&NW eventually purchasing the route.  During 1982 and 1983, significant money was allocated for rebuilding the deteriorated route, and trains began using the route.  In 1995, C&NW was purchased by Union Pacific Railroad (UP).  Union Pacific continues to operate this route as the Trenton Subdivision.  CPKC now operates the former Milwaukee Road portion of this segment.


View an article discussing the construction of this line (digitized by Google)

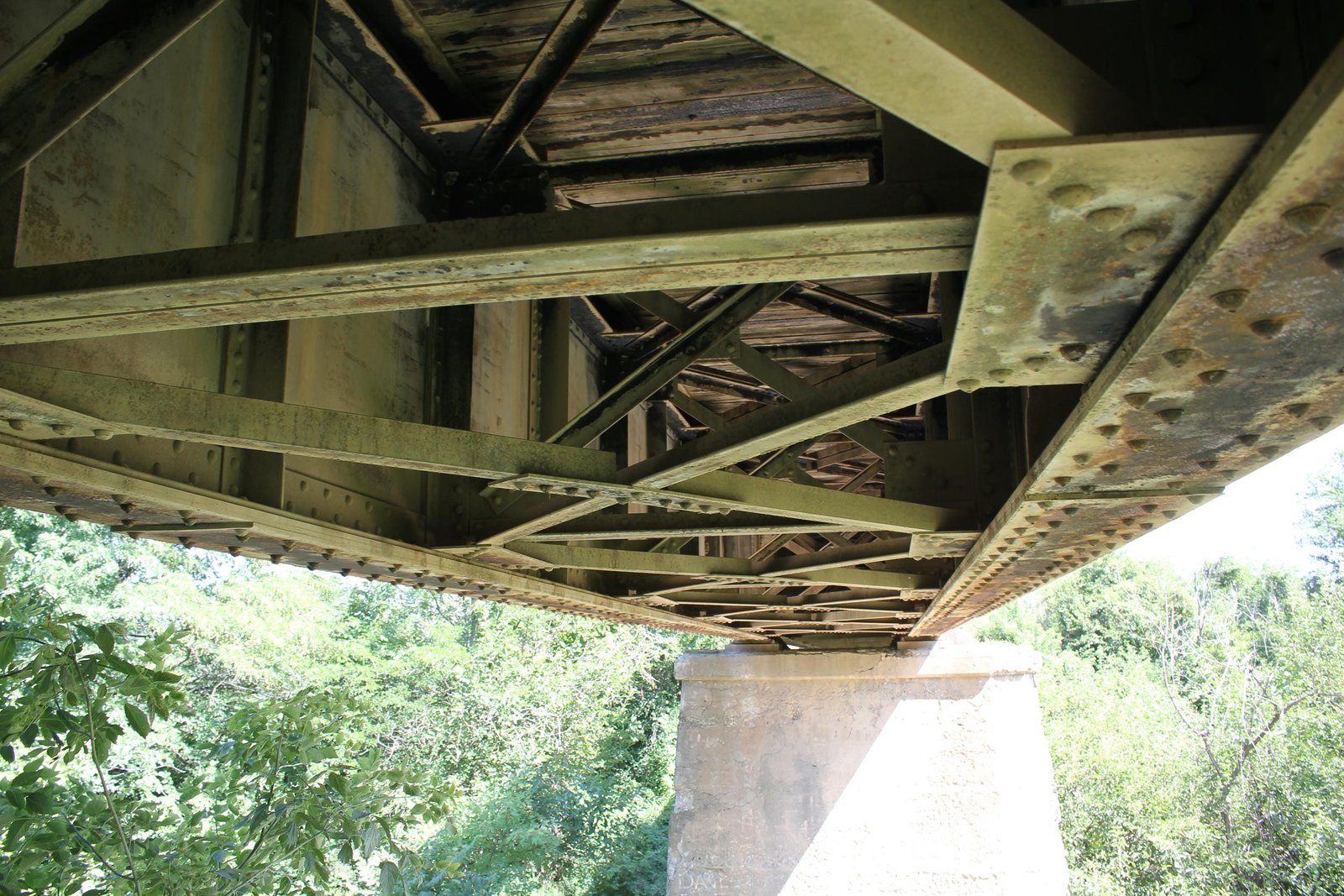

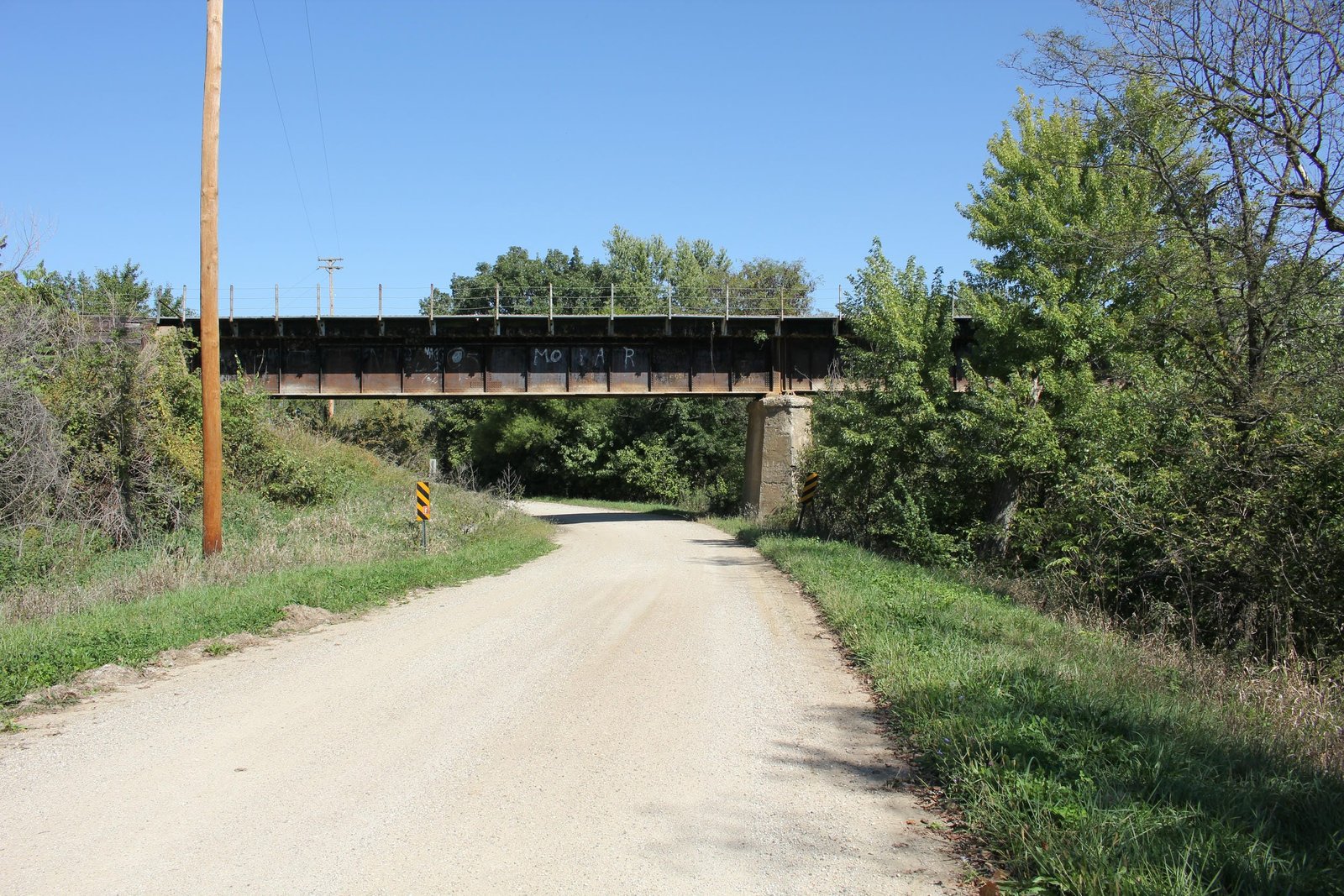

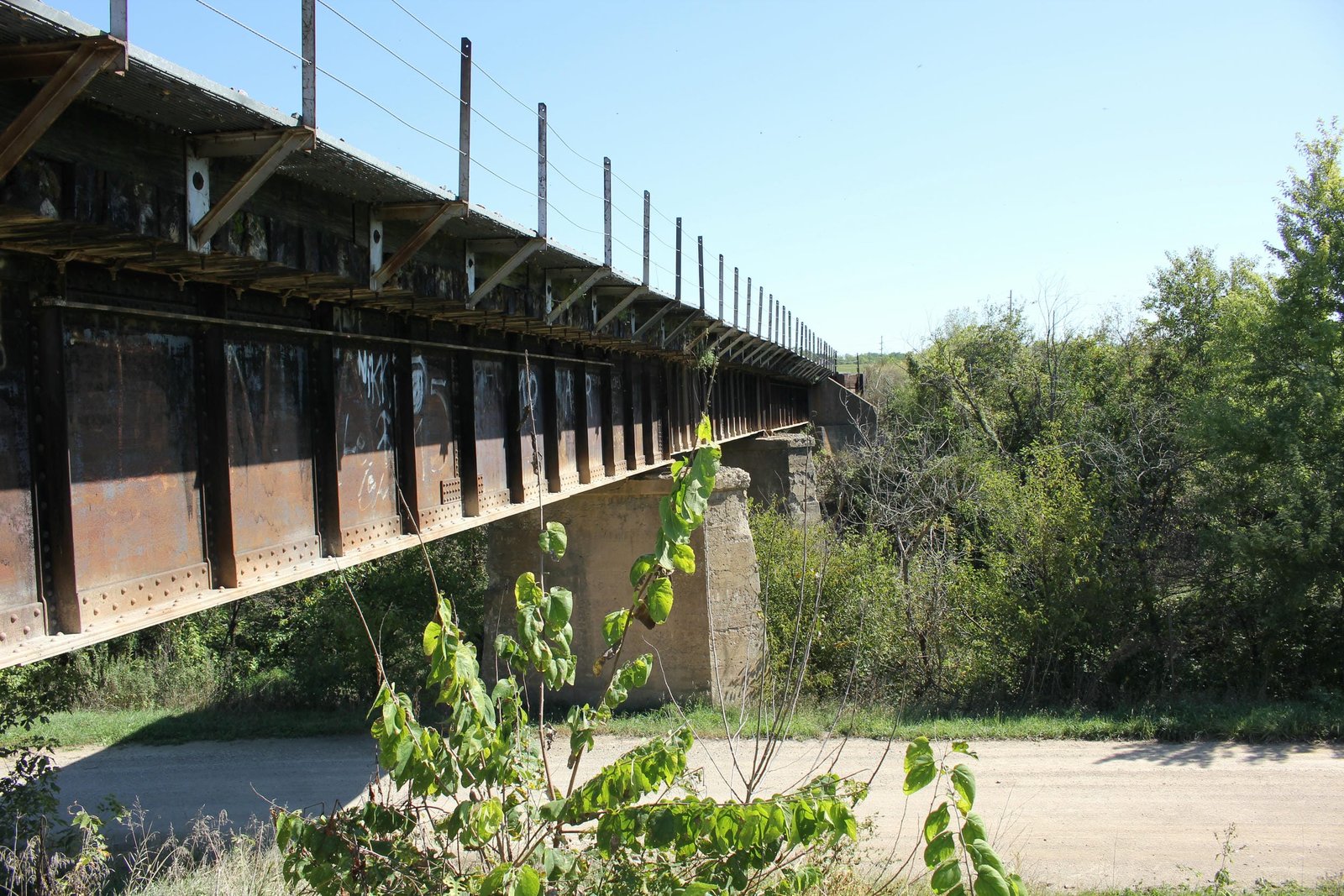

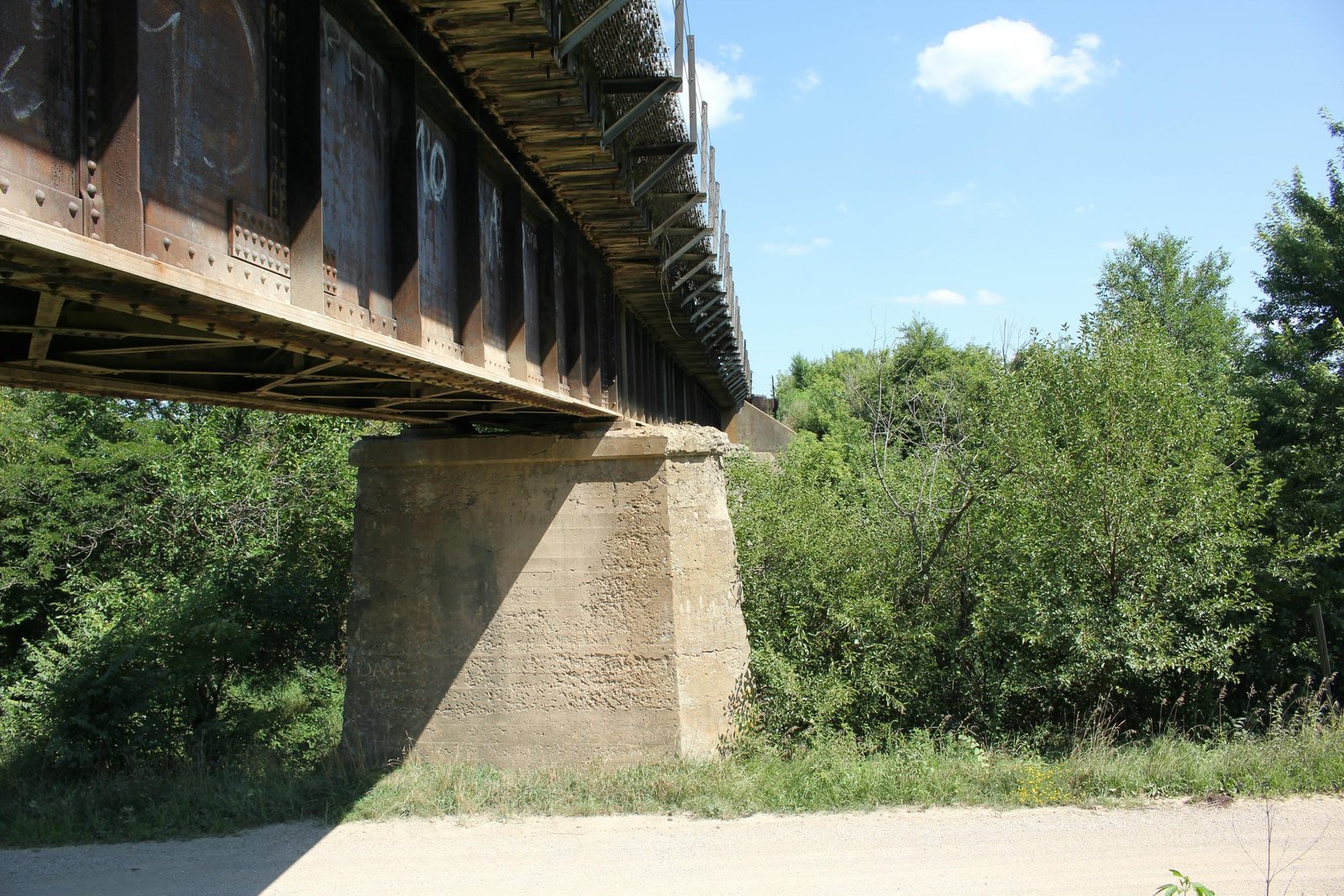

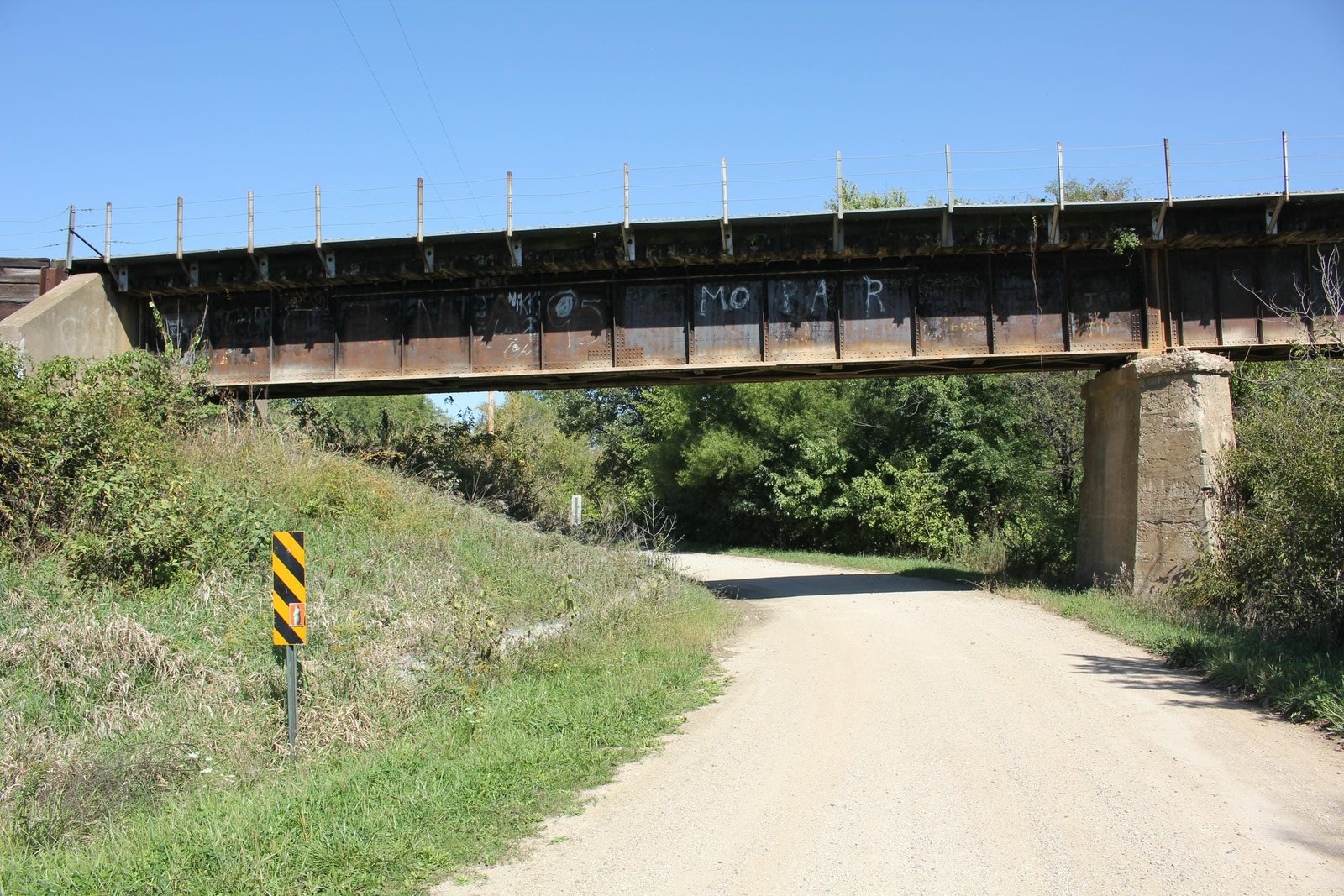

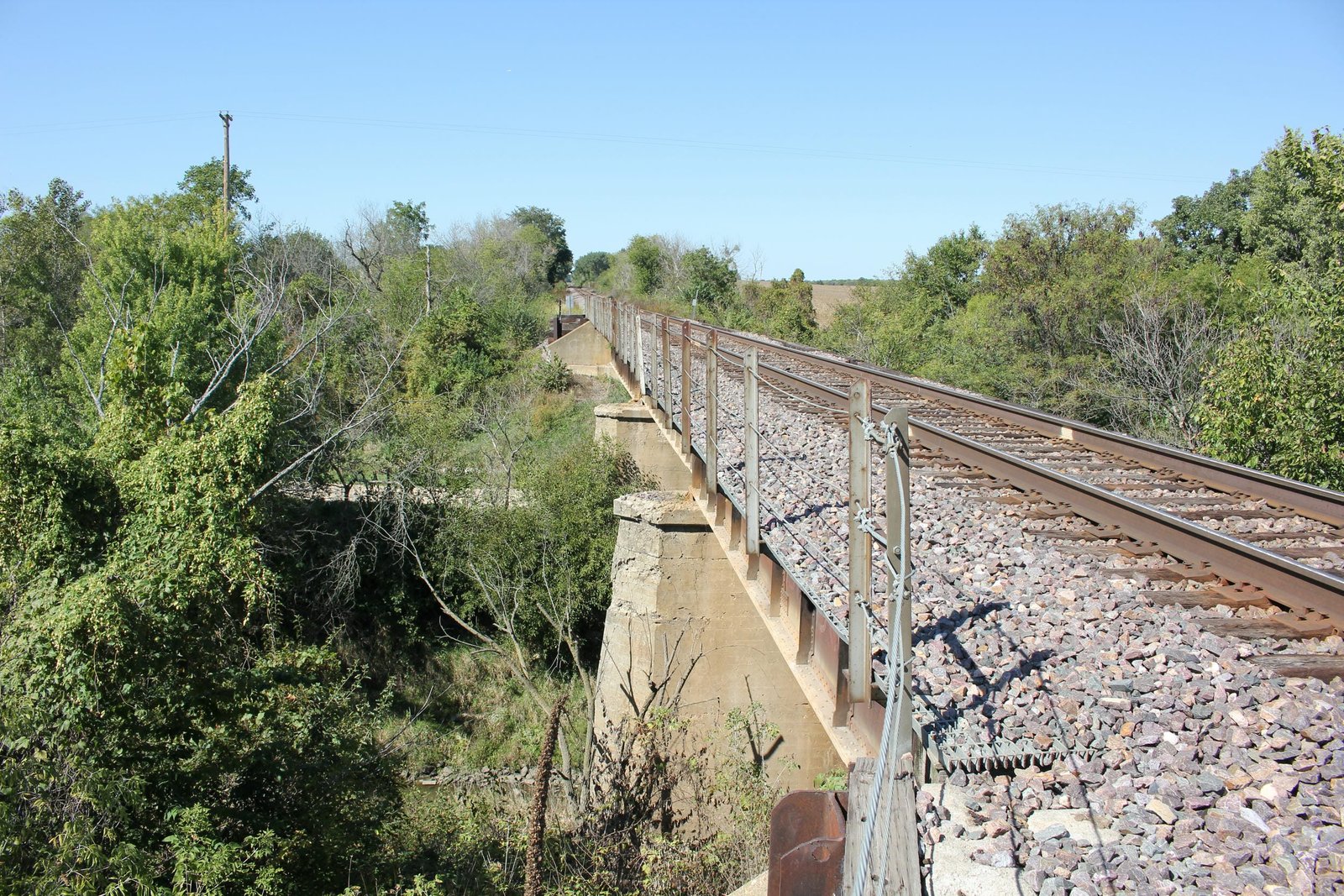

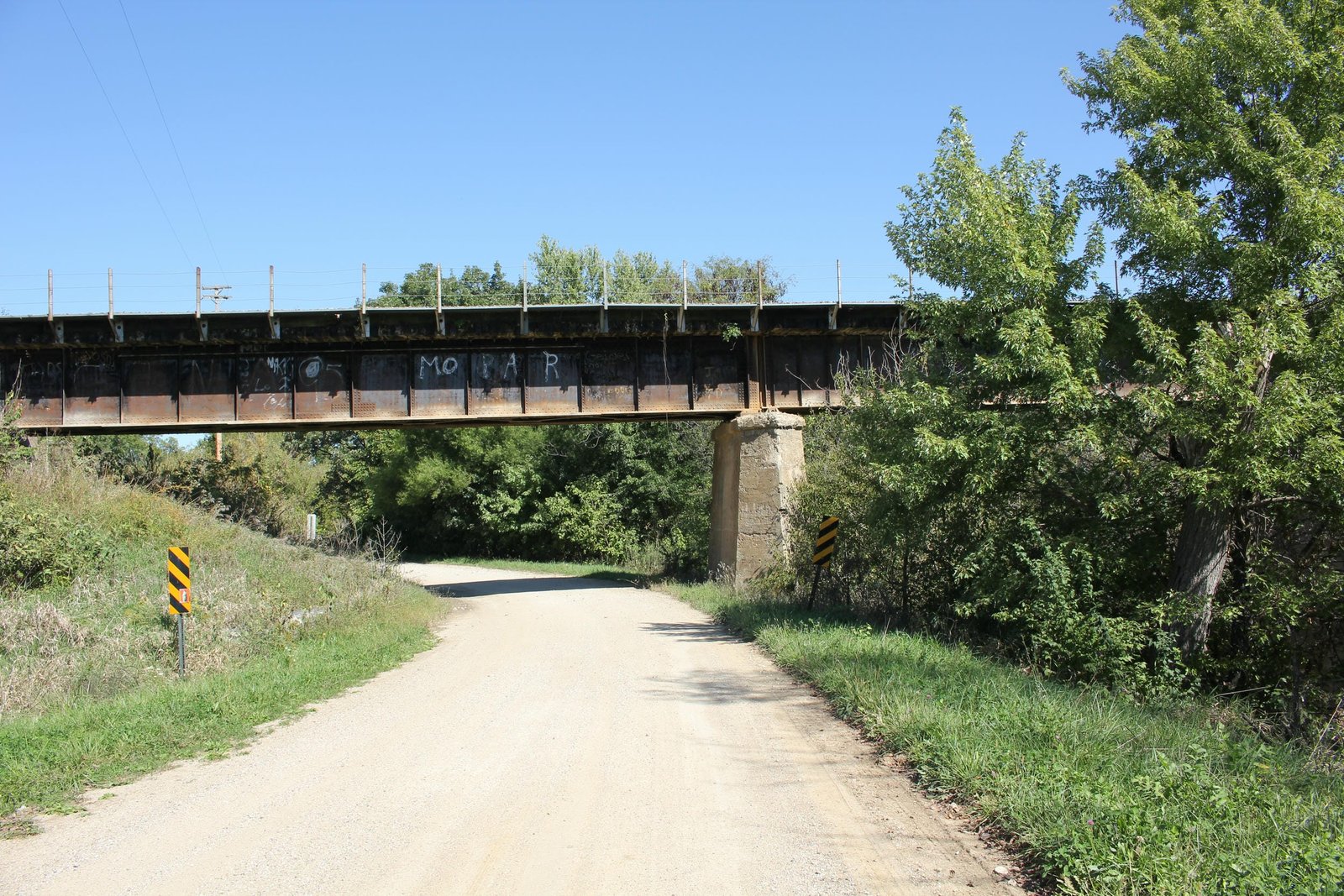

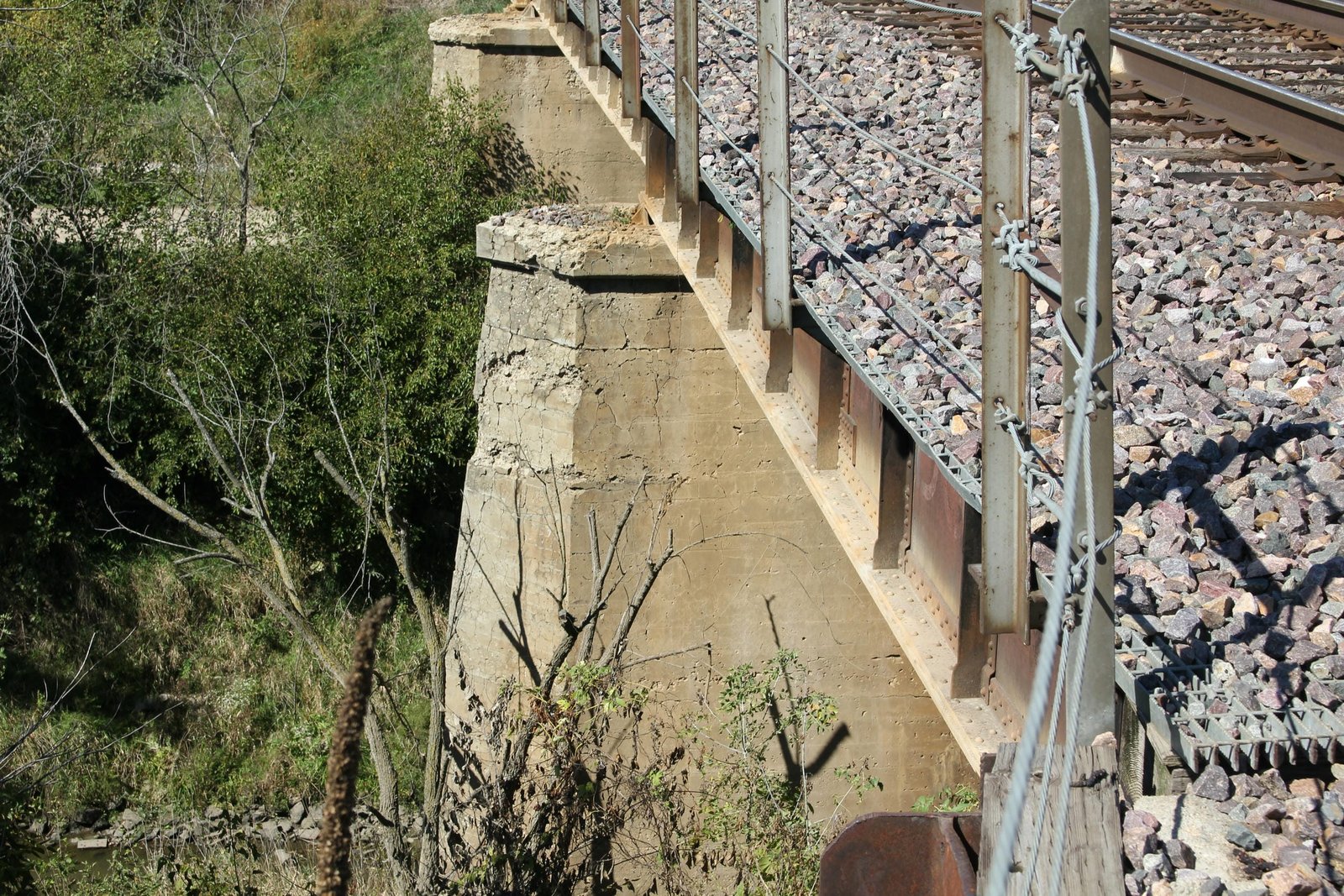

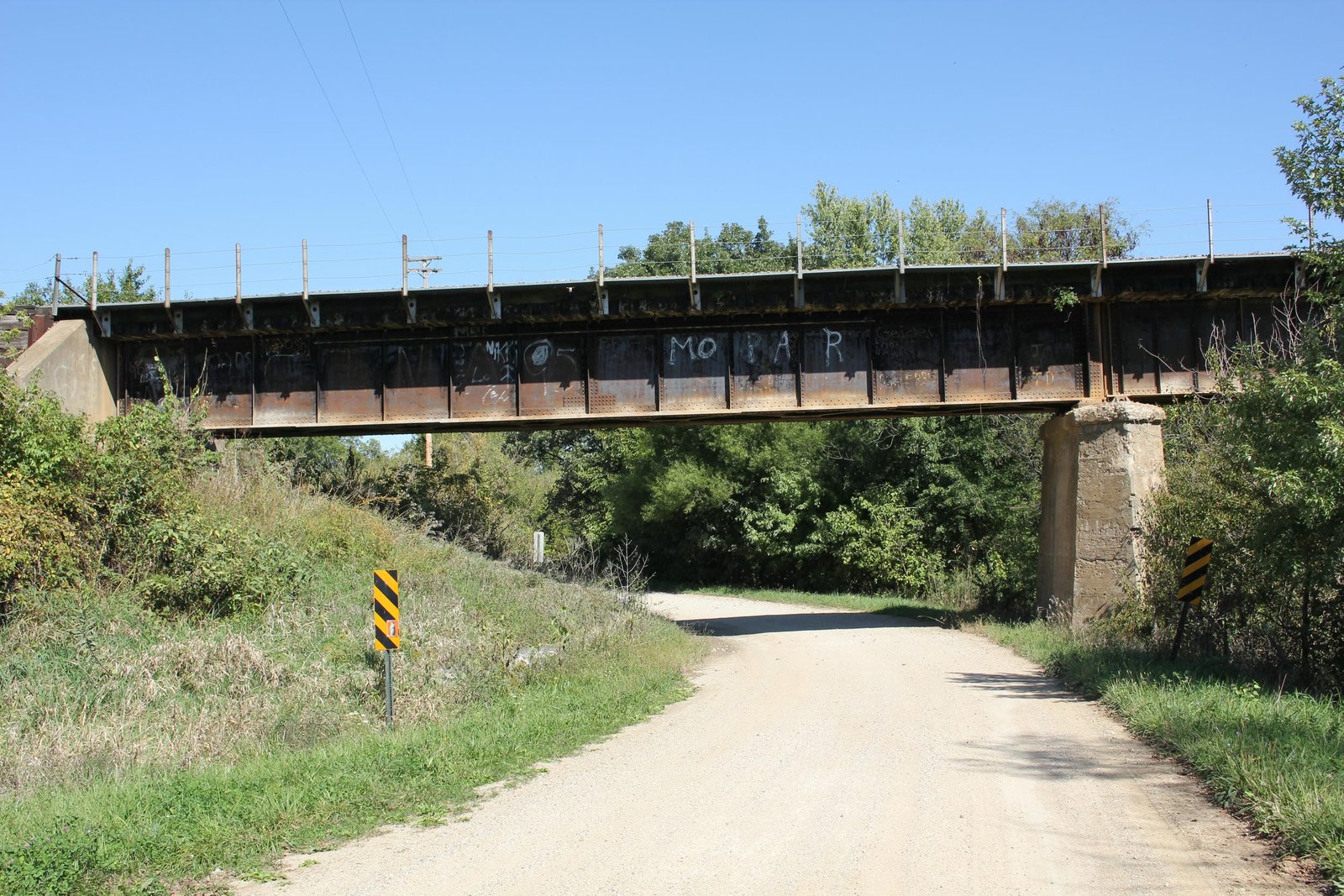

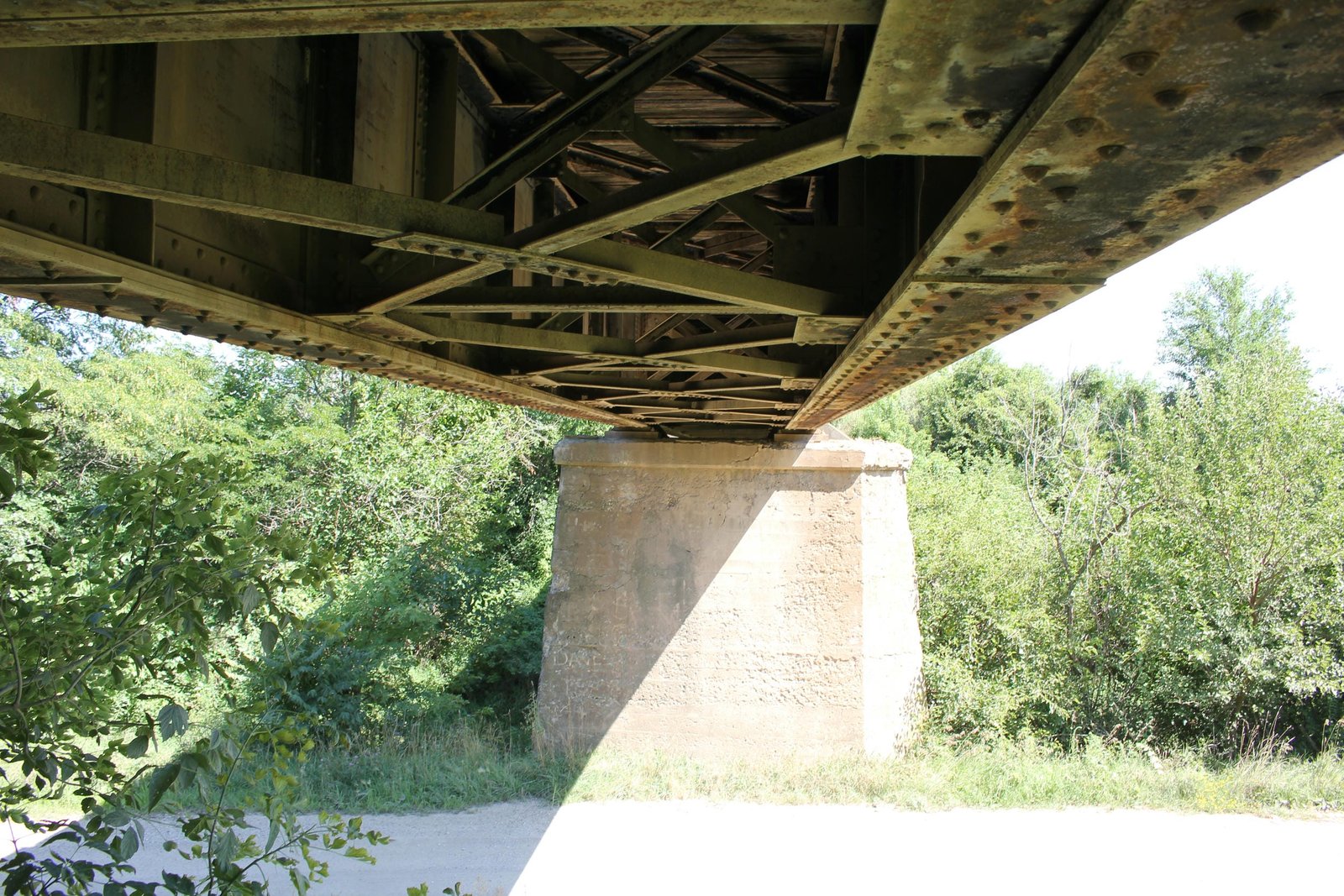

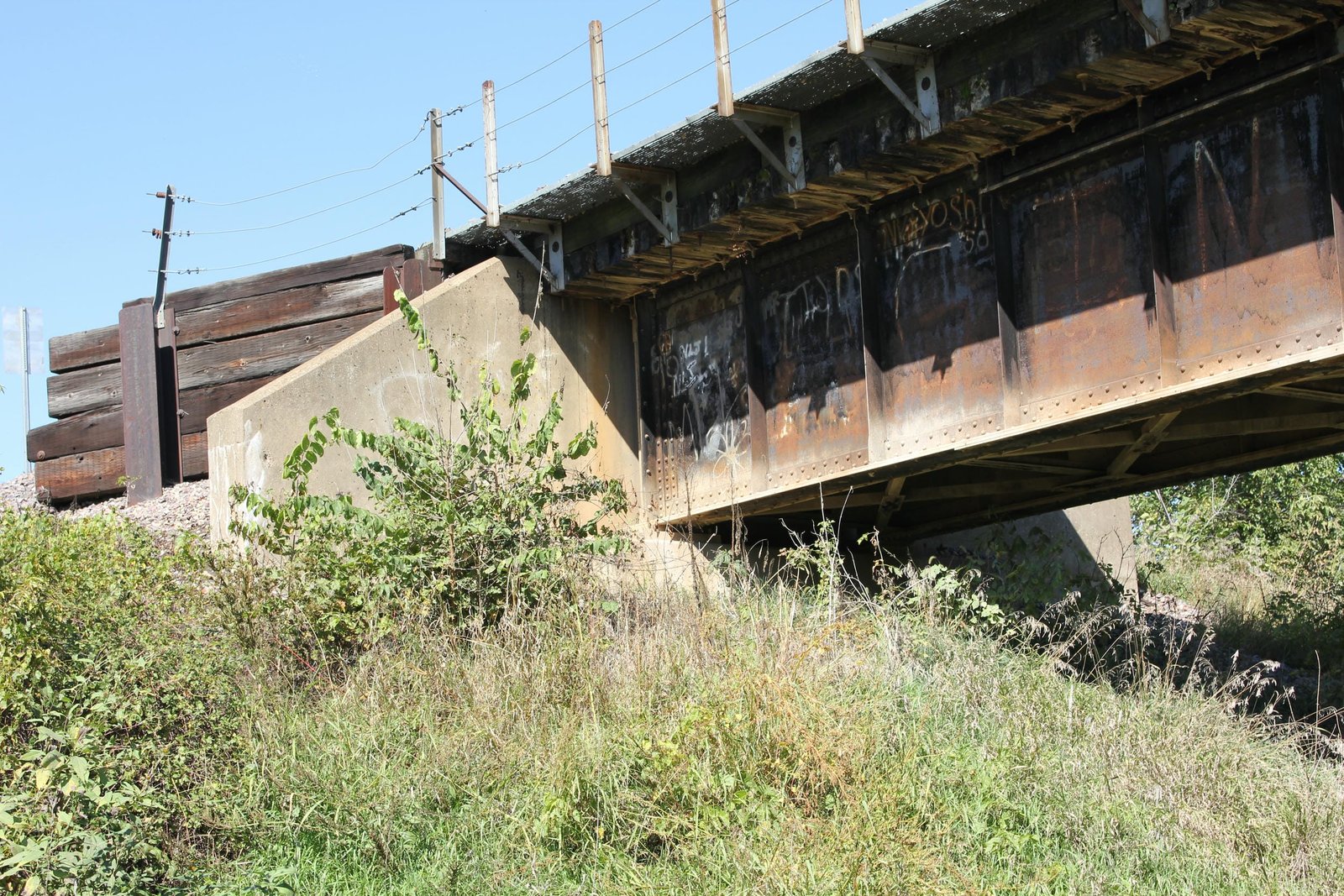

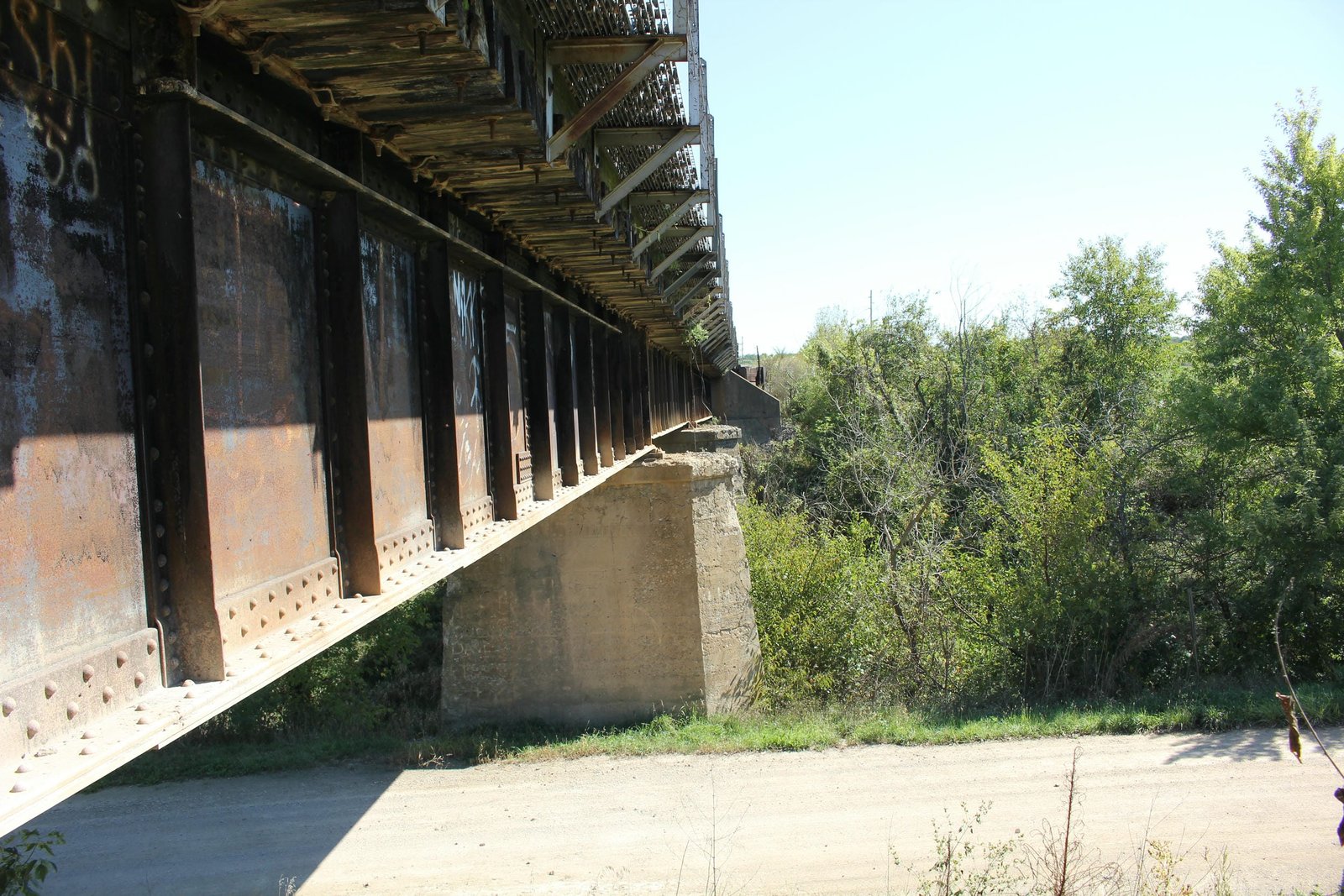

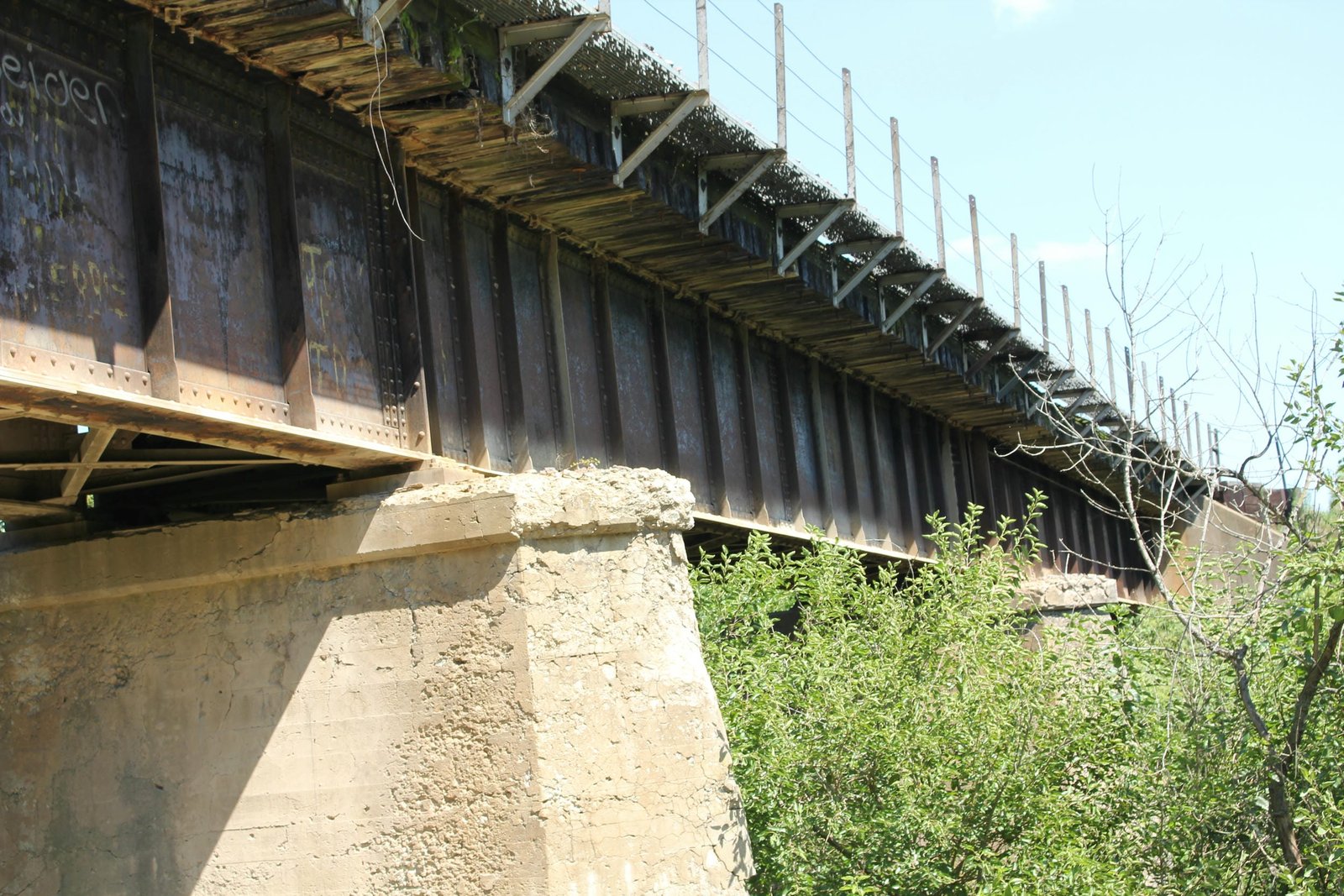

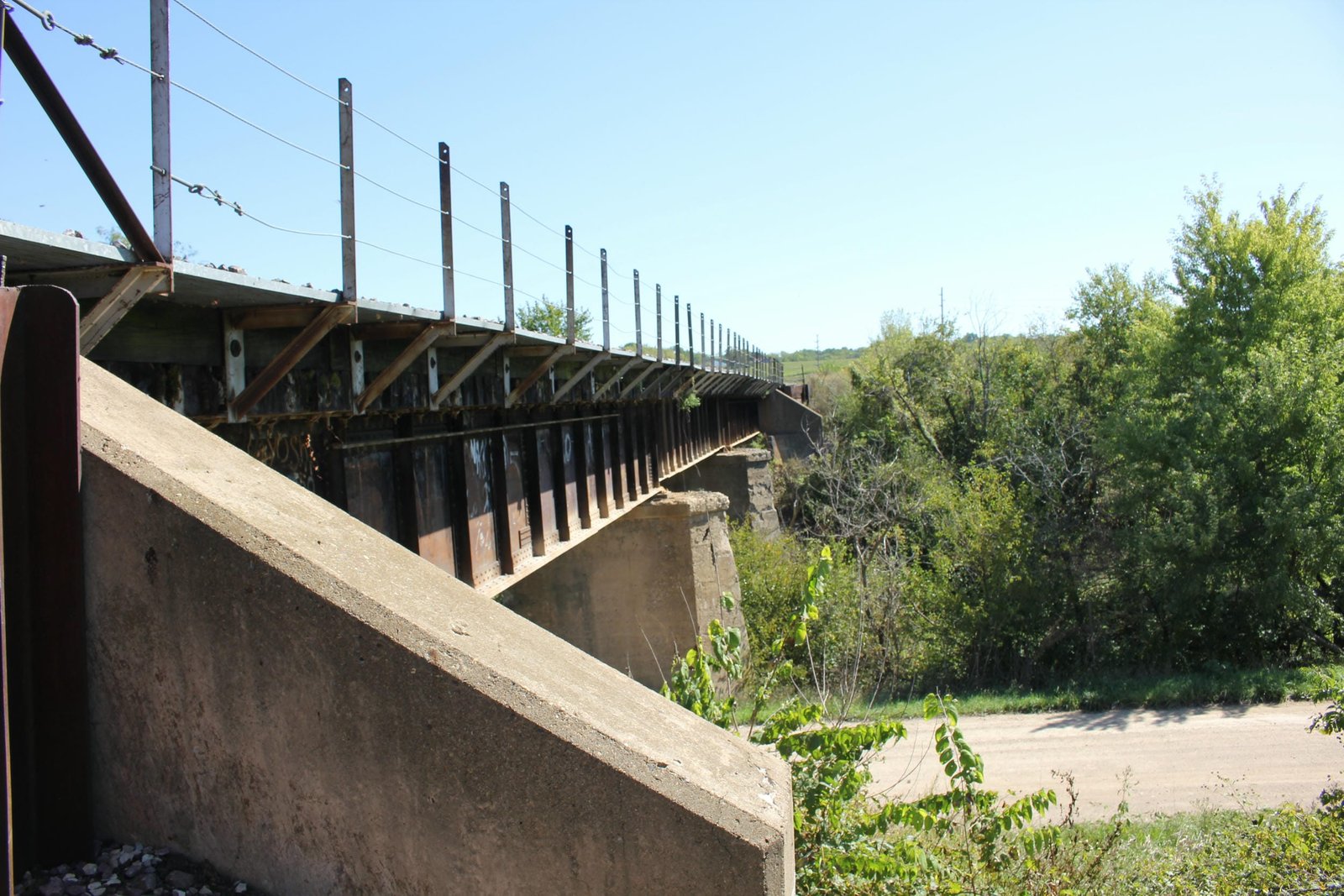

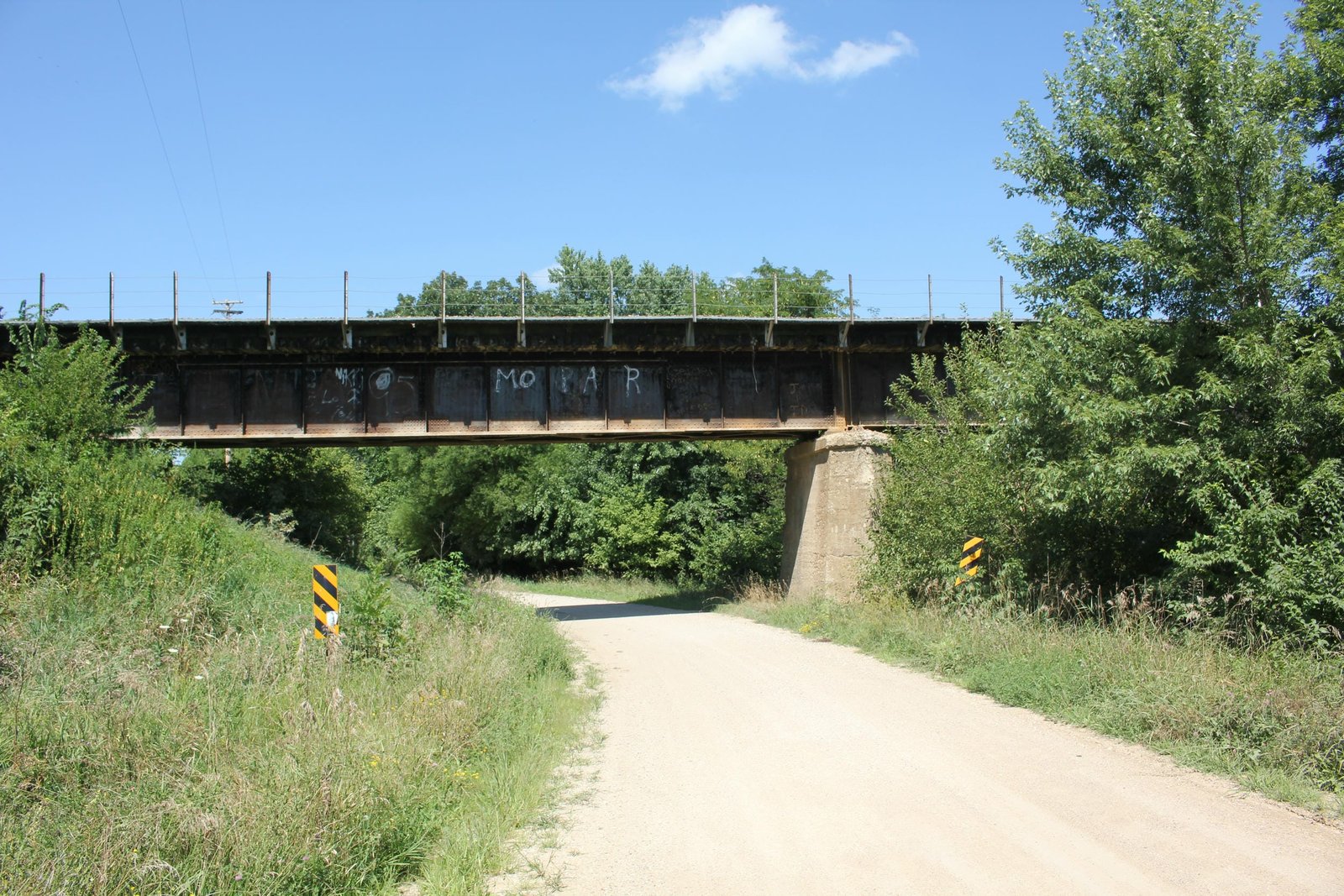

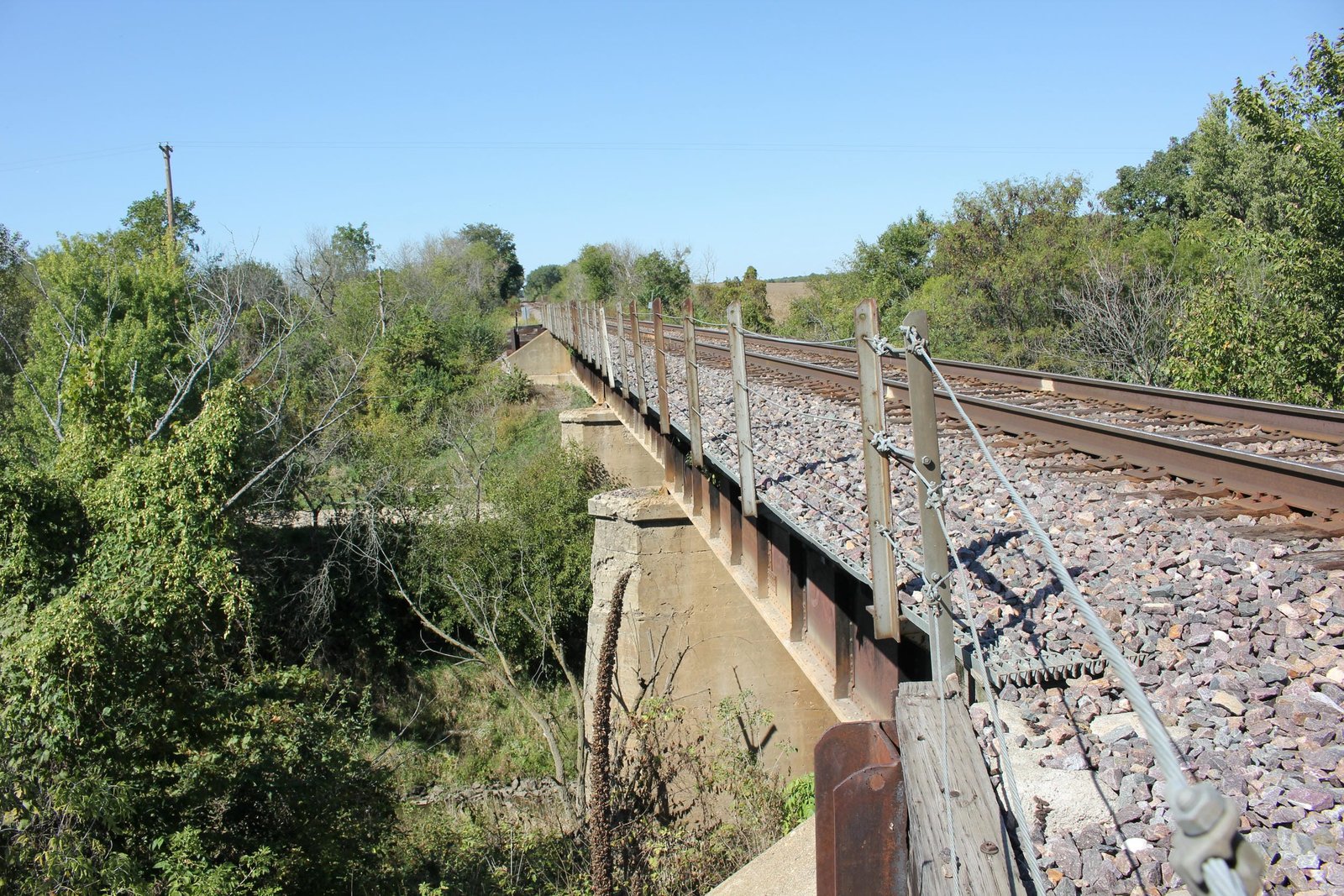

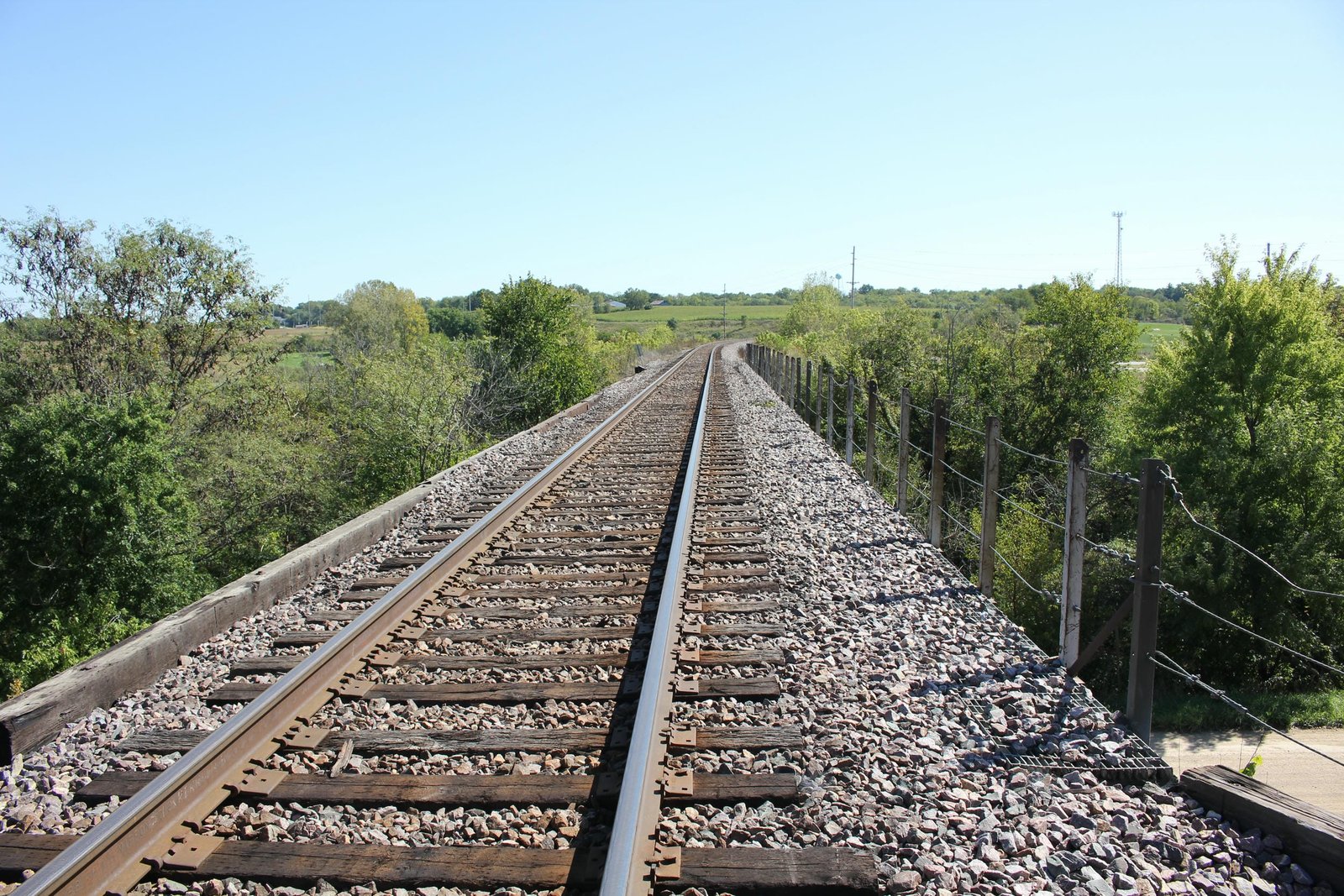

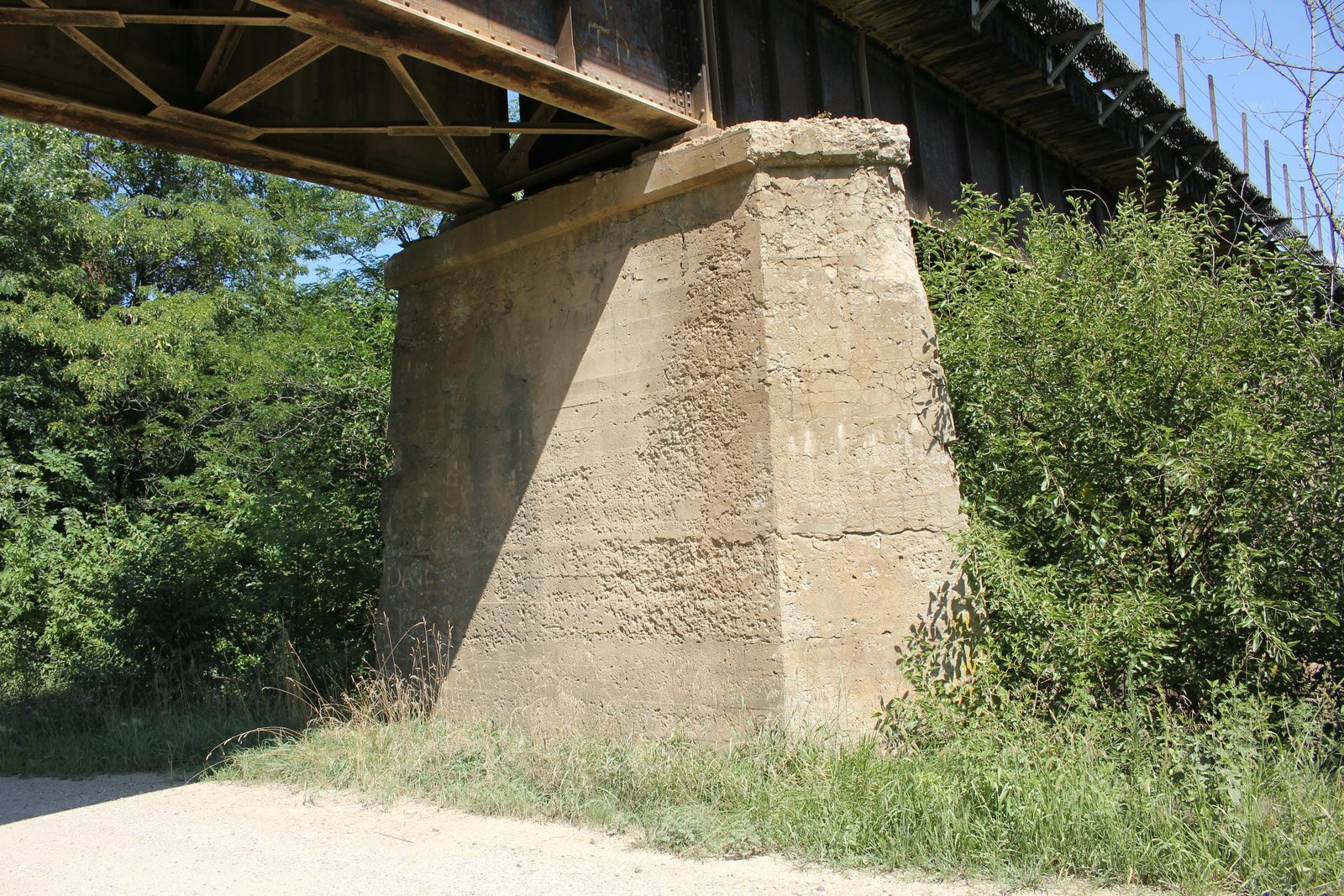

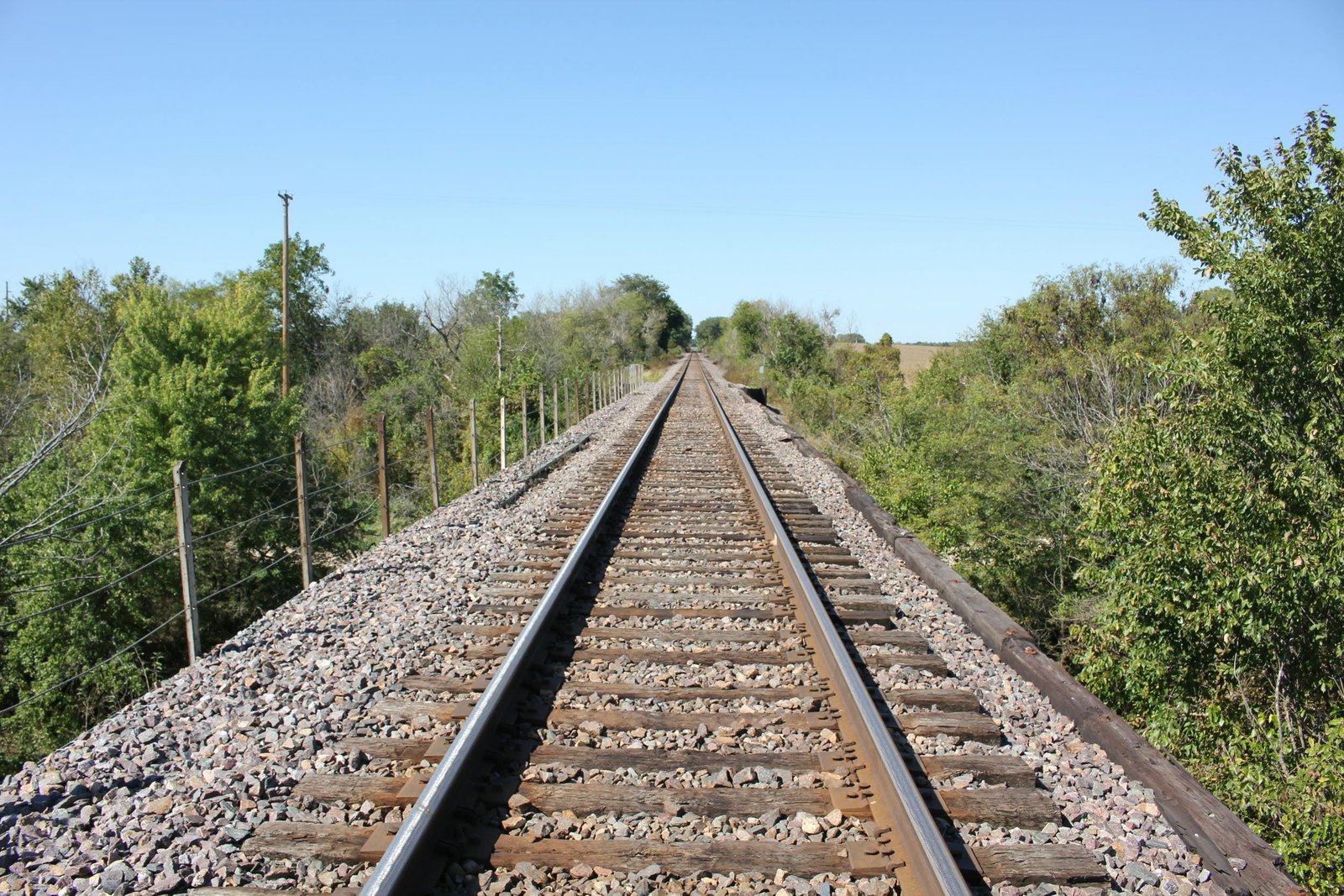

Located near Hartford, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over 205th Street and Butcher Creek. When the Rock Island constructed the St. Paul & Kansas City Short Line between 1911 and 1913, this was one of a handful of steel bridges constructed along the line. Initially, this bridge consisted of a single deck plate girder span, set onto concrete piers and approached by timber pile trestle spans at either end. Timber approaches were commonly used to allow approach embankments to settle without damaging the steel and concrete portions of the bridge. The intention was to either fill or replace these approaches with steel spans as soon as practical. By the early 1940s, the embankments had settled enough to allow for permanent spans to be installed. In late 1940, a contract was awarded to construct an additional deck plate girder span on either end, set onto new abutments. It is believed that the work was completed in early 1941. Currently, the bridge consists of two 60-foot and one 70-foot deck plate girder spans, set onto concrete substructures. The superstructure follows a standard design, consisting of two heavy plate girders per span and a ballast deck formed from creosoted timber. The piers also follow a standard design, and consist of large diamond shaped structures founded on timber piles. The abutments also use a standard design, with short sloped wing walls constructed perpendicular to the bridge. American Bridge Company fabricated the superstructure, while J.C. Dunn constructed the piers. F.K. Ketler Company was awarded the contract for constructing the abutments and erecting the outer spans. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the approaches were reconstructed in 1941, the bridge has seen no significant alterations. Today, the bridge remains in use as part of a Union Pacific Railroad mainline. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked the bridge as being locally significant, due to the common design.


Citations

Build date (center span) Based on construction of line
Builder (center span superstructure) The Iron Age; Volume 87, Issue 20
Builder (piers) The Railway and Engineering Review; May 27, 1911
Build date (approaches) and builder (abutments) Railway Age; Volume 109, Issue 10
Builder (approach spans superstructure) Missing American Bridge Company plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
