UP McCandless Cleghorn Ditch Bridge


Click the photo to view the full-size version

1/10
Date Taken:
Author:
Caption:

Name UP McCandless Cleghorn Ditch Bridge
Chicago & North Western Railway Bridge #543
Built By Chicago & North Western Railway
Currently Owned By Union Pacific Railroad
Superstructure Contractor Pennsylvania Steel Company of Steelton, Pennsylvania
Substructure Contractor Unknown
Length 45 Feet Total
Width 1 Track
Height Above Ground 10 Feet (Estimated)
Superstructure Design Through Plate Girder
Substructure Design Concrete
Date Built 1906, Abutments Constructed 1913
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
Chicago & North Western Railway Bridge Number 543
Union Pacific Railroad Bridge Number 46.77
Significance Local Significance
Documentation Date 5/5/2017

After the Cedar Rapids and Missouri River Railroad (CR&MR) completed a mainline across Iowa in 1867, several branch lines began to develop to connect Iowa to the CR&MR line.  In 1867, the Sioux City and Pacific Rail Road (SC&P) constructed a 50-mile railroad line, extending from California Junction, Iowa to Sloan, Iowa.  The following year, an additional 20 miles were completed to Sioux City, Iowa.  This line closely paralleled the Missouri River, and connected a major western Iowa city in Sioux City to the CR&MR mainline.  In September 1868, the railroad was reorganized, keeping the same name.  In the late 1860s, the SC&P constructed a handful of important branch lines in western Iowa and eastern Nebraska.  In 1873, the SC&P came under control of the Chicago & North Western Railway (C&NW) although was maintained as a separate entity.  The C&NW had also purchased the CR&MR in the 1880s.

Throughout the late 19th Century, the C&NW had developed into a significant railroad network in the midwest, with lines radiating north and west from Chicago.  In particular, the C&NW developed dozens of secondary and branch lines in Iowa to serve agricultural industries and small towns. This line served as a mainline, connecting an existing C&NW mainline at California Junction to the Chicago, St. Paul, Minneapolis & Omaha Railway (Omaha Road) mainline at Sioux City.  The Omaha Road was also controlled by the C&NW.  Between the 1880s and early 20th Century, the C&NW constructed several branch lines, which connected to this line at Mondamin, Iowa; Onawa, Iowa and Sergeant Bluff, Iowa.  In 1901, the C&NW purchased the SC&P and completed ownership of this line.  In the mid-20th Century, the branch lines were abandoned, but this line remained significant for connecting the C&NW mainline to the Omaha Road mainline.  In 1995, the C&NW was purchased by Union Pacific Railroad (UP).  Currently, UP owns this line and operates it as the Sioux City Subdivision.


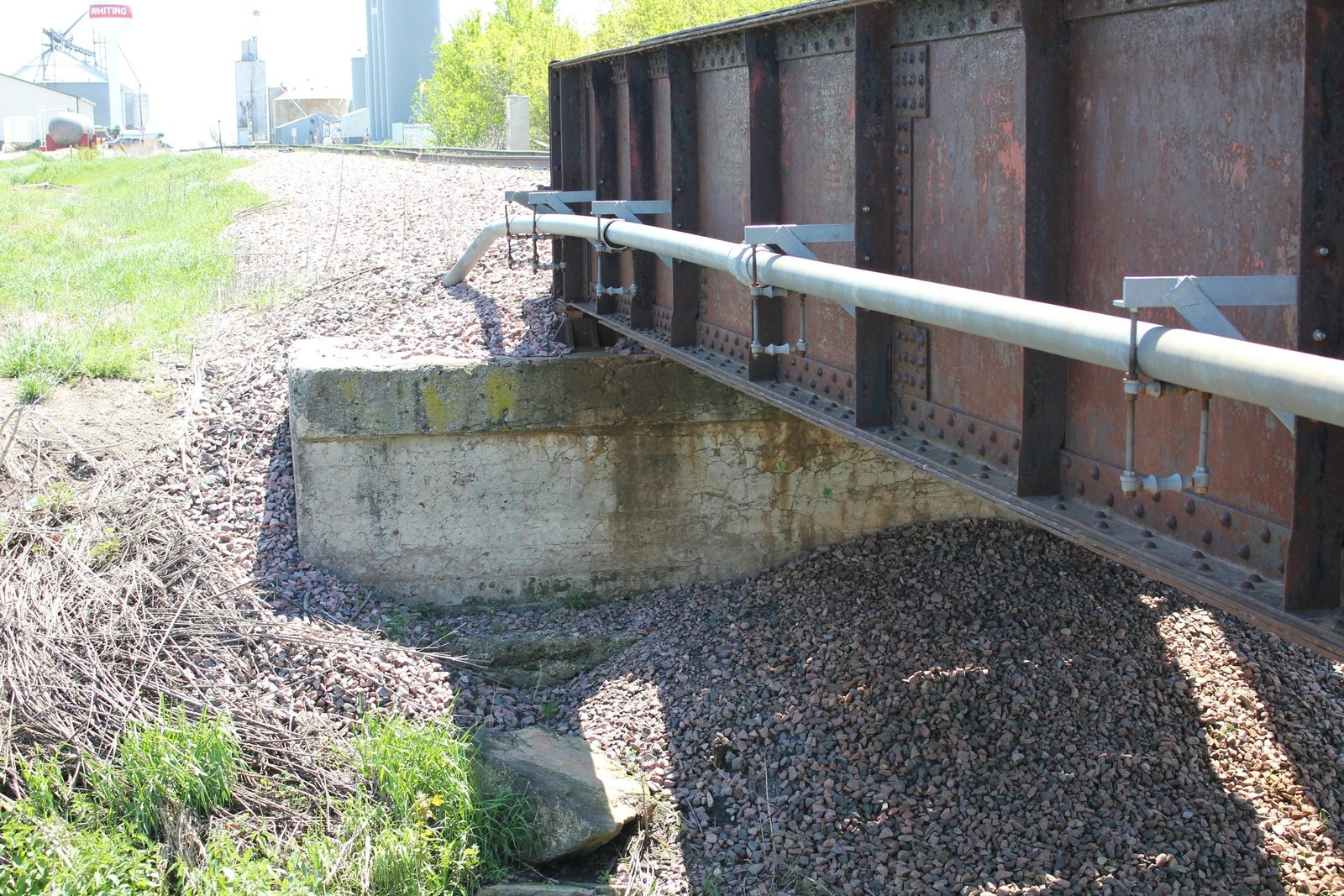

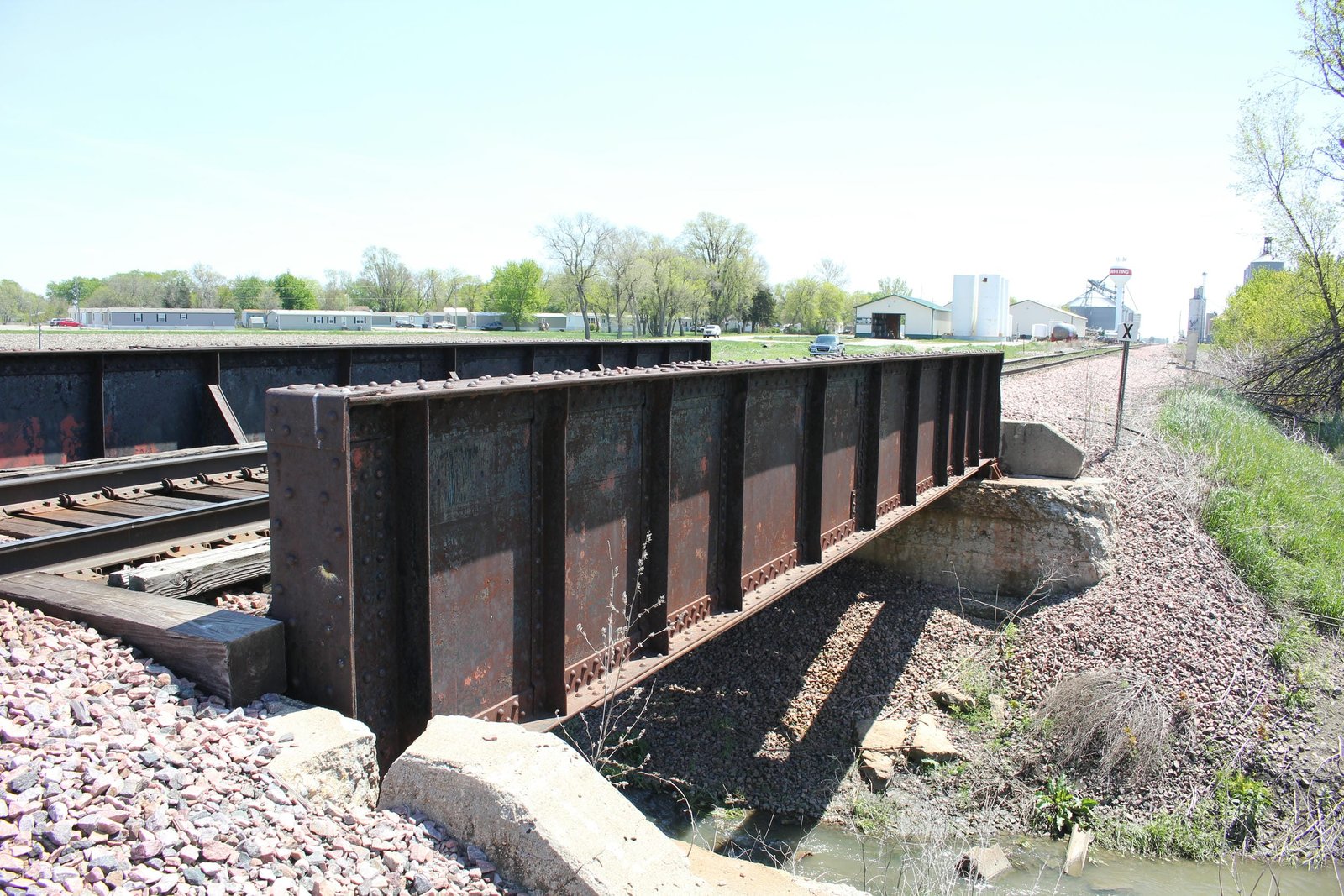

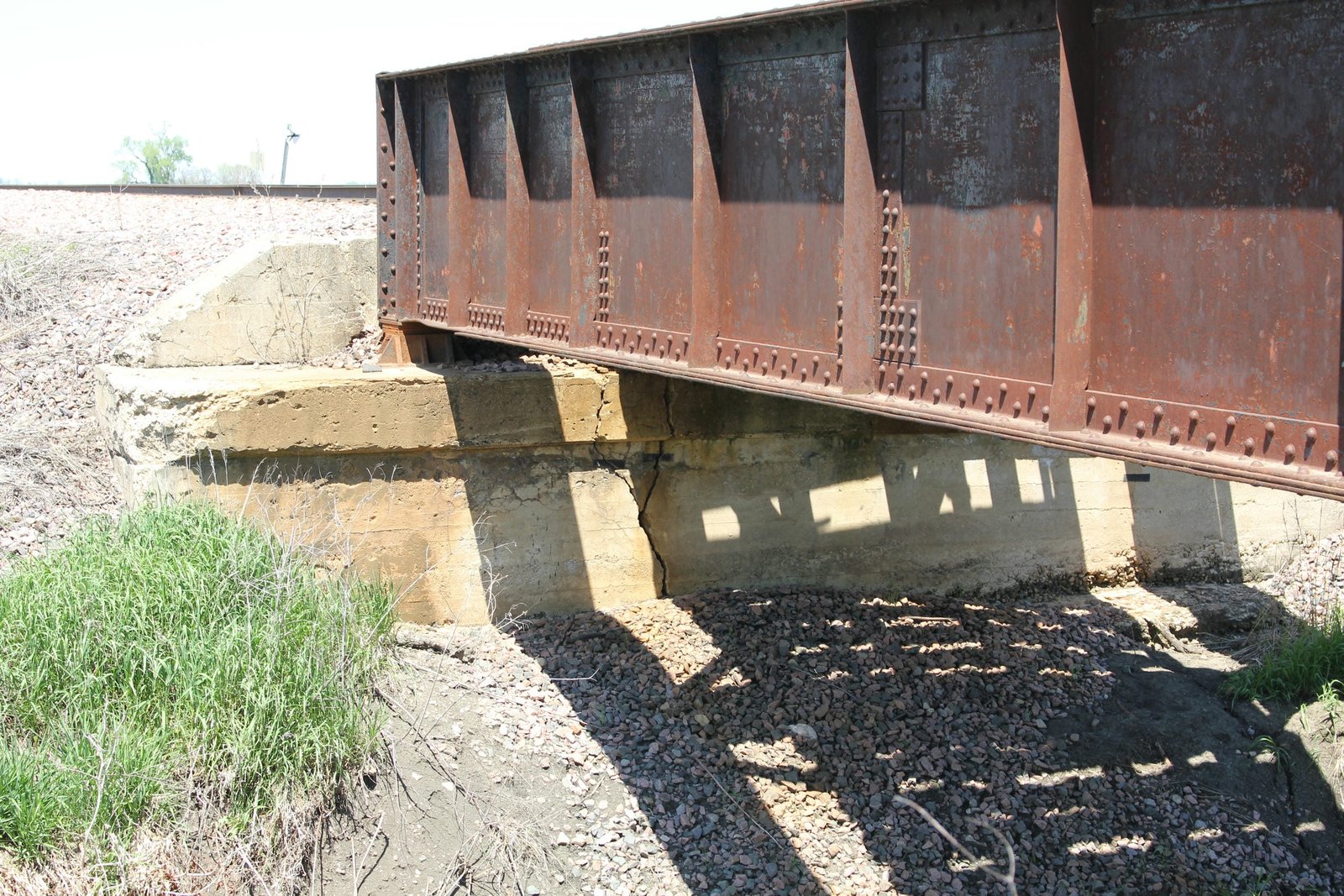

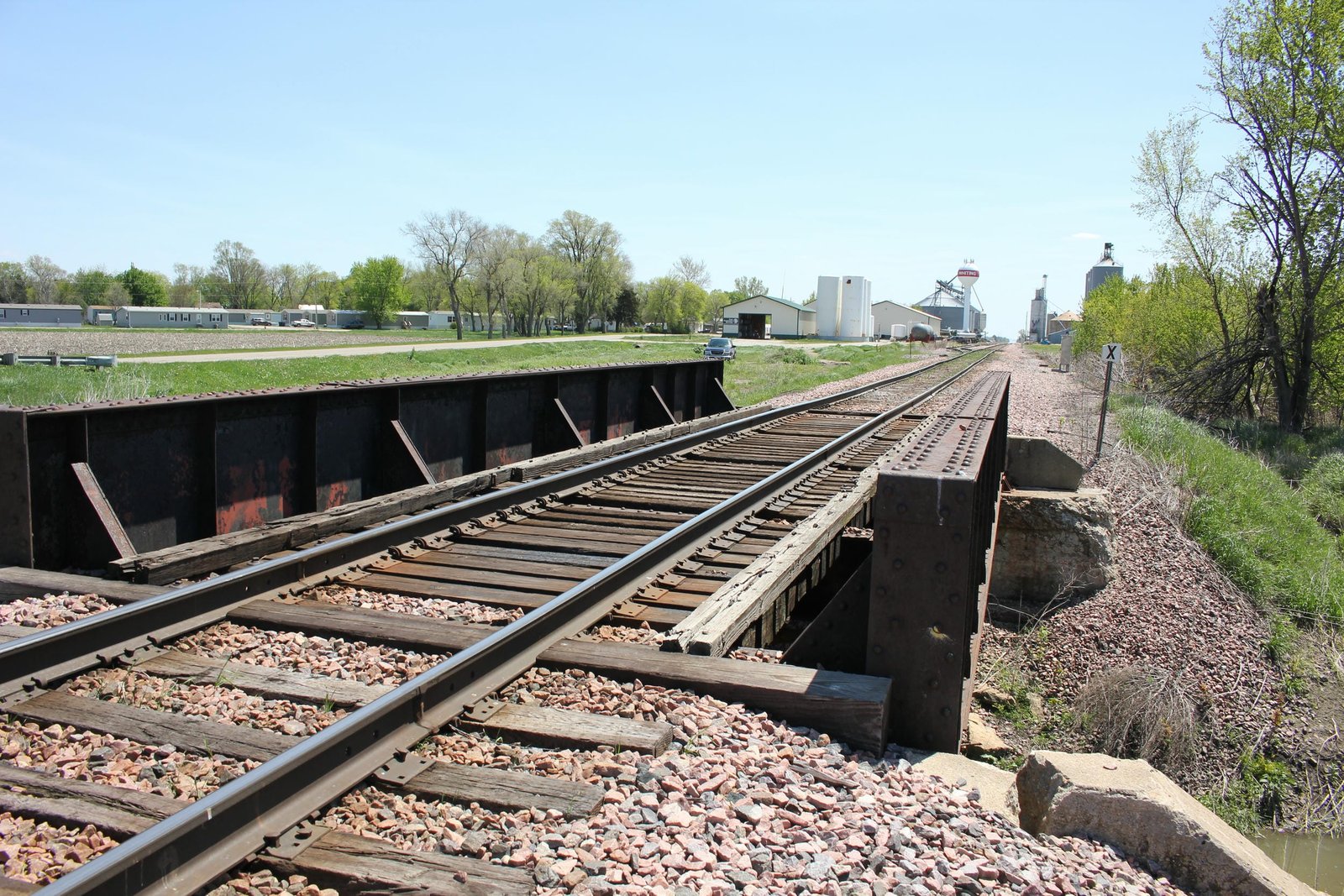

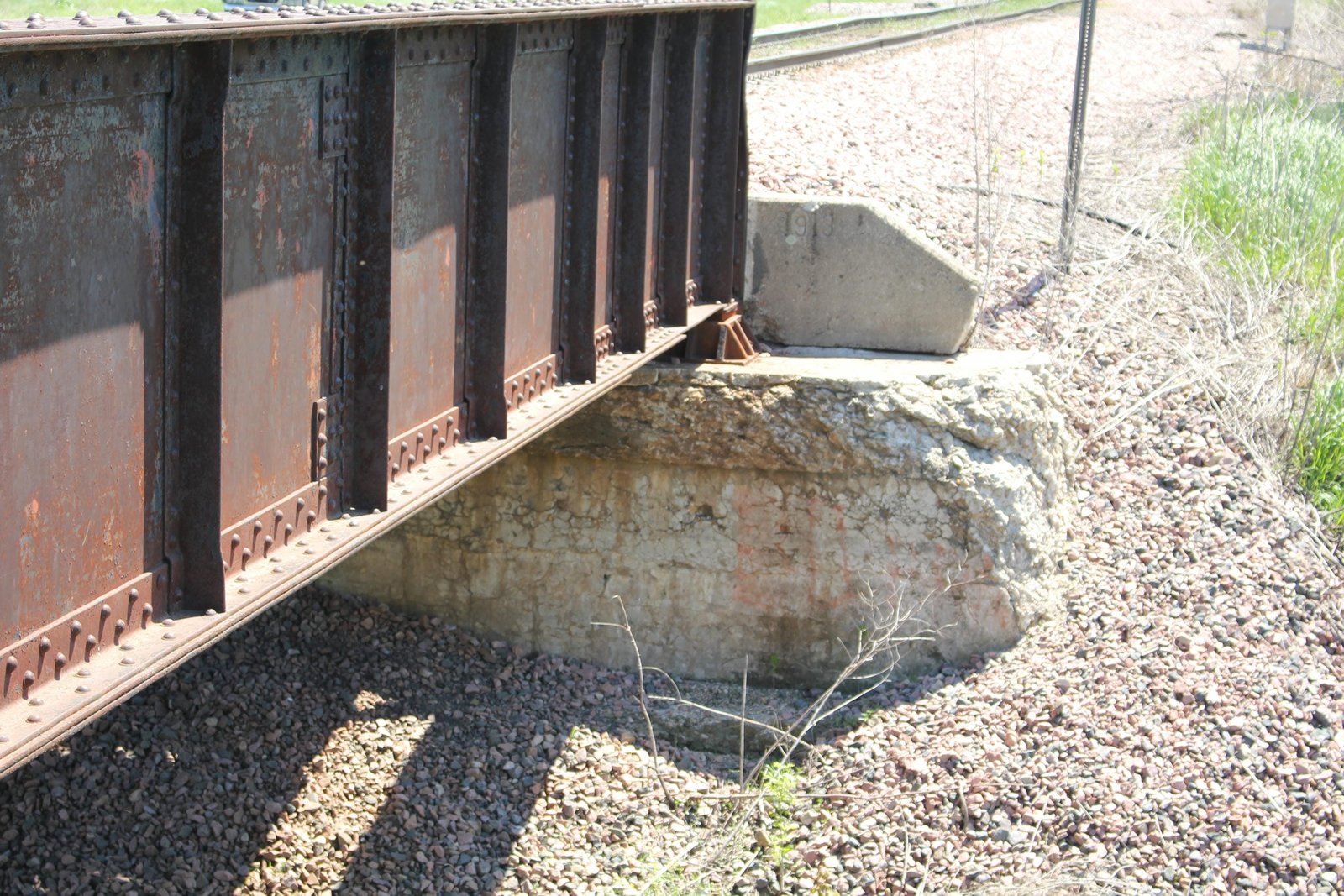

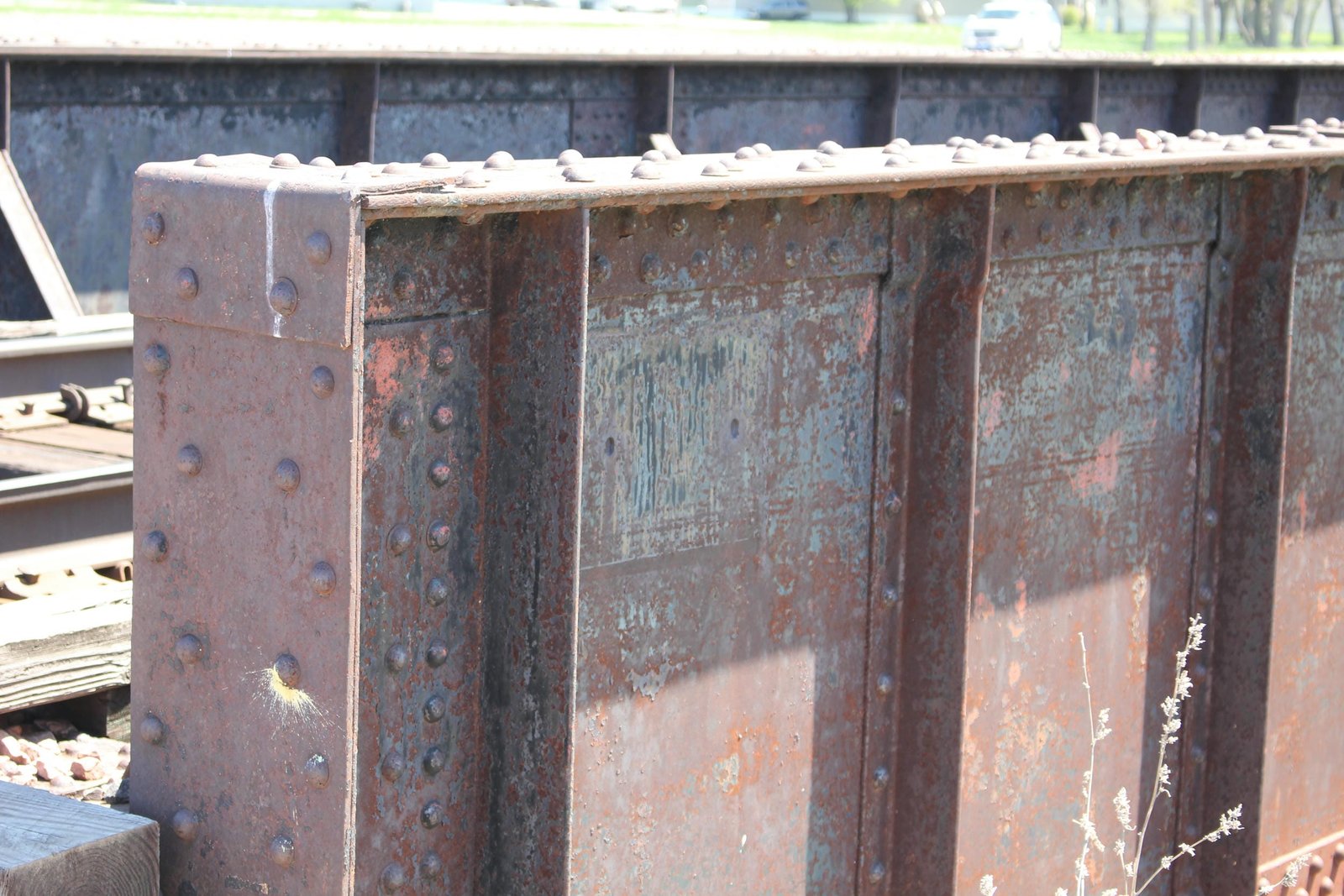

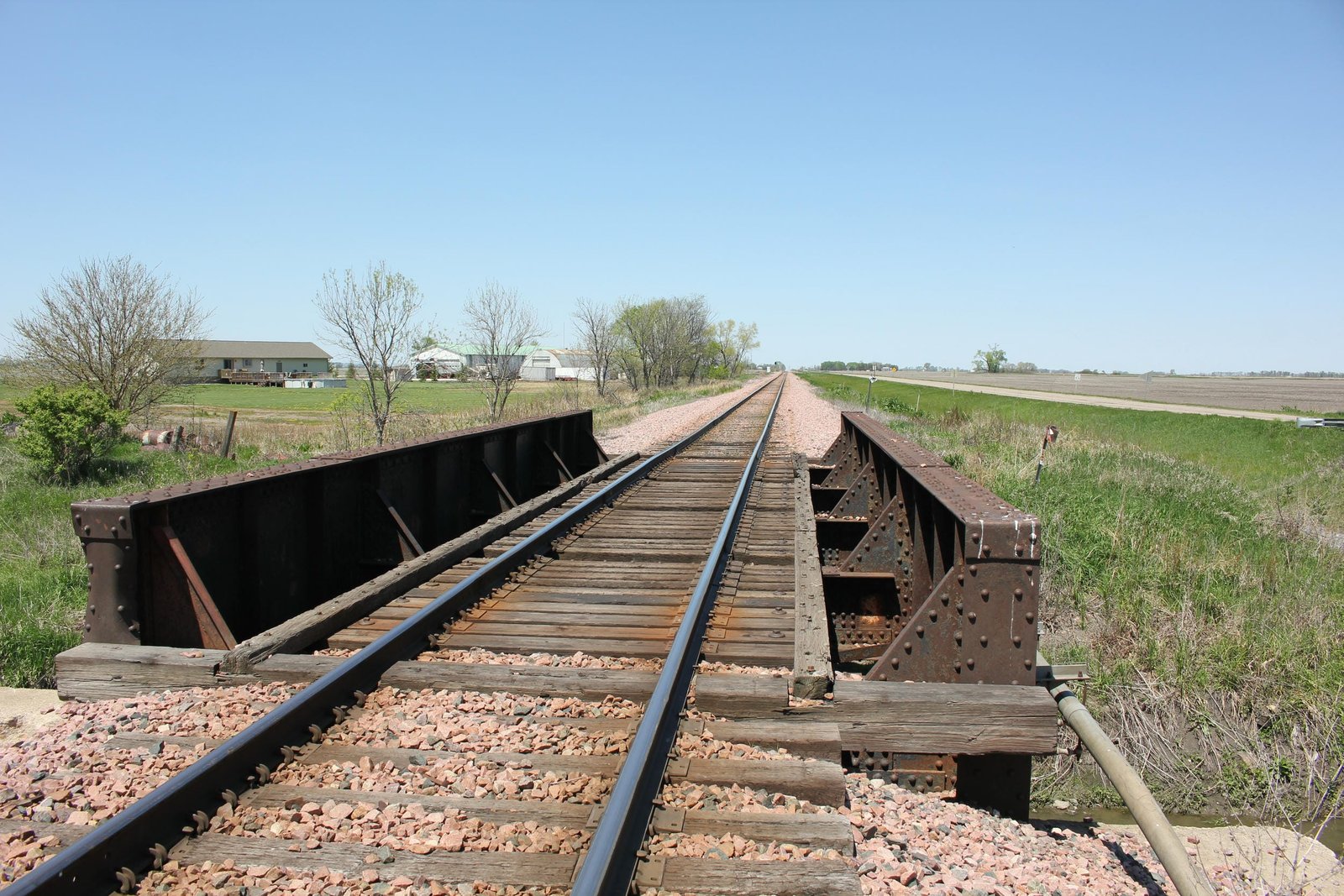

Located alongside County Road K45 in Whiting, this through plate girder bridge carries a former Chicago & North Western Railway mainline over the McCandless Cleghorn Ditch. It is unclear if a bridge previously existed here. Between 1905 and 1906, Monona County contracted to construct a new drainage ditch to improve drainage in areas of northwest Monona County. In 1906, a through plate girder span was installed at this location, and set onto timber pile piers. The only significant alteration to the bridge came in 1913, when concrete abutments were constructed for the bridge. Currently, the bridge consists of a 45-foot through plate girder span, set onto concrete abutments. The superstructure follows a standard design, with modest girders, a standard floor and square girder ends. The abutments follow a typical design, consisting of rectangular shapes with sloped back walls. Pennsylvania Steel Company fabricated the superstructure, while an unknown contractor constructed the abutments. Through plate girder spans were commonly used by railroads, as they were durable and easy to construct. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Build date and builder (superstructure) Chicago & North Western Railway Valuation Notes at the Chicago & North Western Historical Society Archives

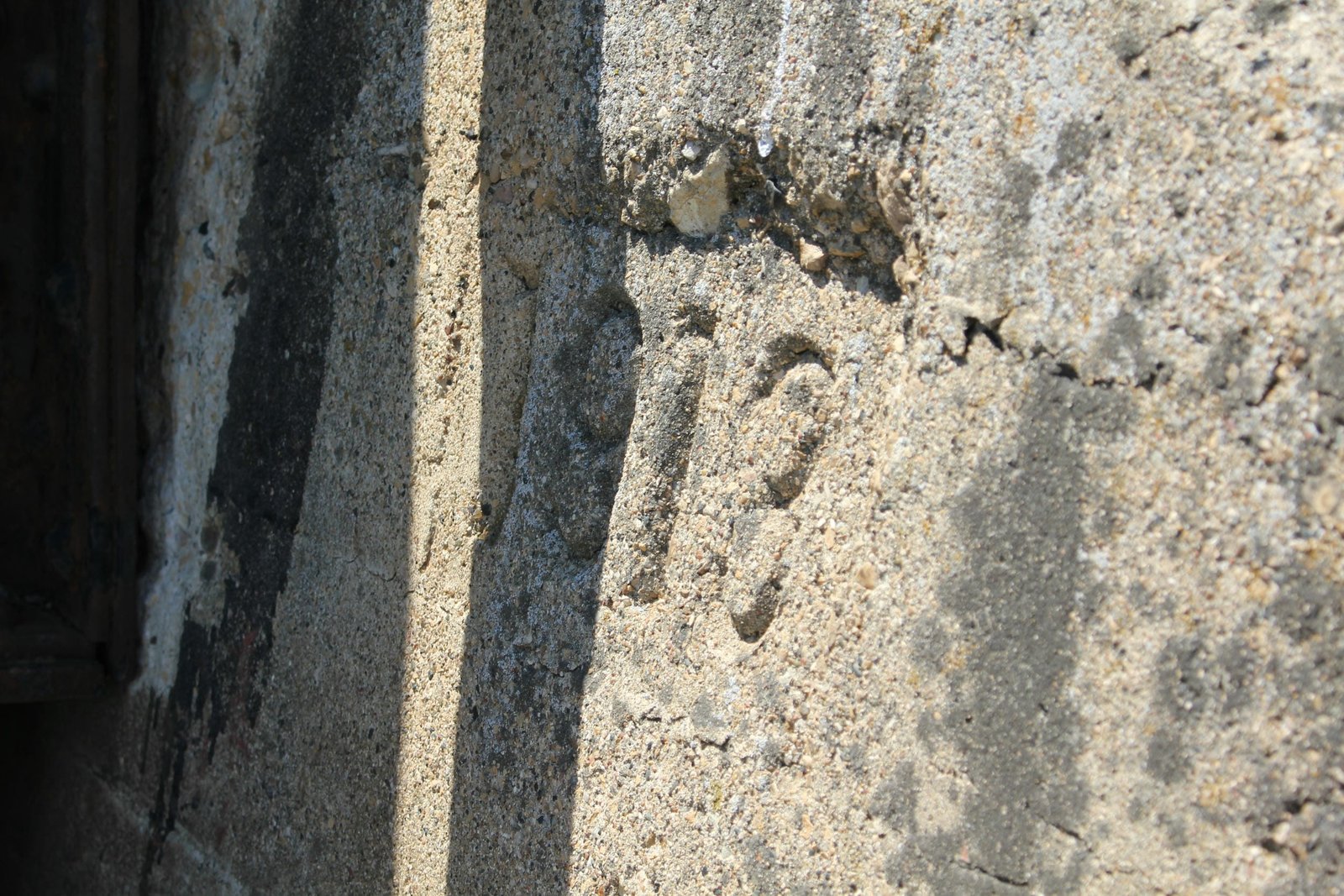

Build date (substructure) Date stamp
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
