Name Chicago Great Western Railway Culvert #K228.62
Built By Chicago Great Western Railway
Currently Owned By Polk County Conservation Board
Contractor Unknown
Length 4 Feet Total
Width 1 Track (55 Feet)
Height Above Ground 5 Feet (Estimated)
Superstructure Design Stone Arch Culvert
Substructure Design Stone Masonry
Date Built c. 1900
Traffic Count 0 Trains/Day (Bridge is Open to Pedestrian Traffic)
Current Status Open to Pedestrian Traffic
Chicago Great Western Railway Bridge Number K228.62 (Old #F255)
Significance Local Significance
Documentation Date 4/11/2017

In 1884, the Wisconsin, Iowa & Nebraska Railway (WI&N) constructed 104 miles of new railroad, extending from Waterloo, Iowa to Des Moines, Iowa. In 1886, the WI&N was sold to the Chicago, St. Paul & Kansas City Railway (CStP&KC).  In 1887, the CStP&KC constructed 27 miles of additional railroad between Oelwein, Iowa and Waterloo; followed by 159 miles between Des Moines and St. Joseph, Missouri in 1888.  In 1891, the Leavenworth & St. Joseph Railway (L&StJ) completed an additional 23 miles between St. Joseph and Beverly, Missouri.  In 1892, the L&StJ was sold to the Chicago Great Western Railway (CGW), followed by the CStP&SJ in 1893.  The CGW would be reorganized as the Chicago Great Western Railroad in 1909.  The CGW had acquired and constructed a modest railroad network throughout Illinois, Iowa, Minnesota and Missouri; connecting major cities in these states.  The CGW was one of the smaller railroads in the area, and was late to develop lines.  As a result, the railroad never saw the fortunes of other railroads in the area. This line served as a principal mainline for the CGW, proving a connection to Kansas City via a swing bridge at Leavenworth, Kansas and trackage rights over the Missouri Pacific Railway.

In the early 20th Century, the CGW was often surviving on razor-thin profit margins.  In 1940, the CGW entered bankruptcy, and was again reorganized as the Chicago Great Western Railway.  At this time, the MC&FD was formally merged into the CGW.  After the bankruptcy, the CGW became an innovative railroad, pioneering intermodal service and becoming one of the first railroads to completely switch to diesel locomotives.  A capital improvement program was launched in 1949, which sought to rebuild and rehabilitate deteriorated infrastructure.  In 1968, the CGW was purchased by the Chicago & North Western Railway (C&NW).  This route provided the C&NW with access to Kansas City, although deteriorated track conditions limited effective operations.  After the C&NW purchased the former Rock Island "Spine Line", the former CGW route became excess.  In 1983, the line between Marshalltown and Bondurant, Iowa was abandoned, followed by the entire line between Des Moines and Beverly in 1984.  Another segment between Waterloo and Marshalltown was abandoned in 1988.

In 1995, C&NW was purchased by Union Pacific Railroad (UP). UP abandoned a section of the line in Des Moines in 2001.  In 2003, UP sold the Oelwein to Waterloo segment to Iowa Northern Railway (IANR).  Another section of the line between Bondurant and Des Moines was abandoned in 2011.  In 2025, IANR was purchased by Canadian National Railway (CN).  Today, CN continues to operate the Oelwein segment as the Oelwein Subdivision.  Several sections of this line have been reused as parts of trails, including the Sargent Road Trail between Waterloo and Hudson; the Chichaqua Valley Trail between Baxter and the north side of Des Moines and the Great Western Trail between the south side of Des Moines and Martensdale.  The remainder of the railroad has been abandoned and reverted to adjacent property owners.  However, much of the original right-of-way is intact.

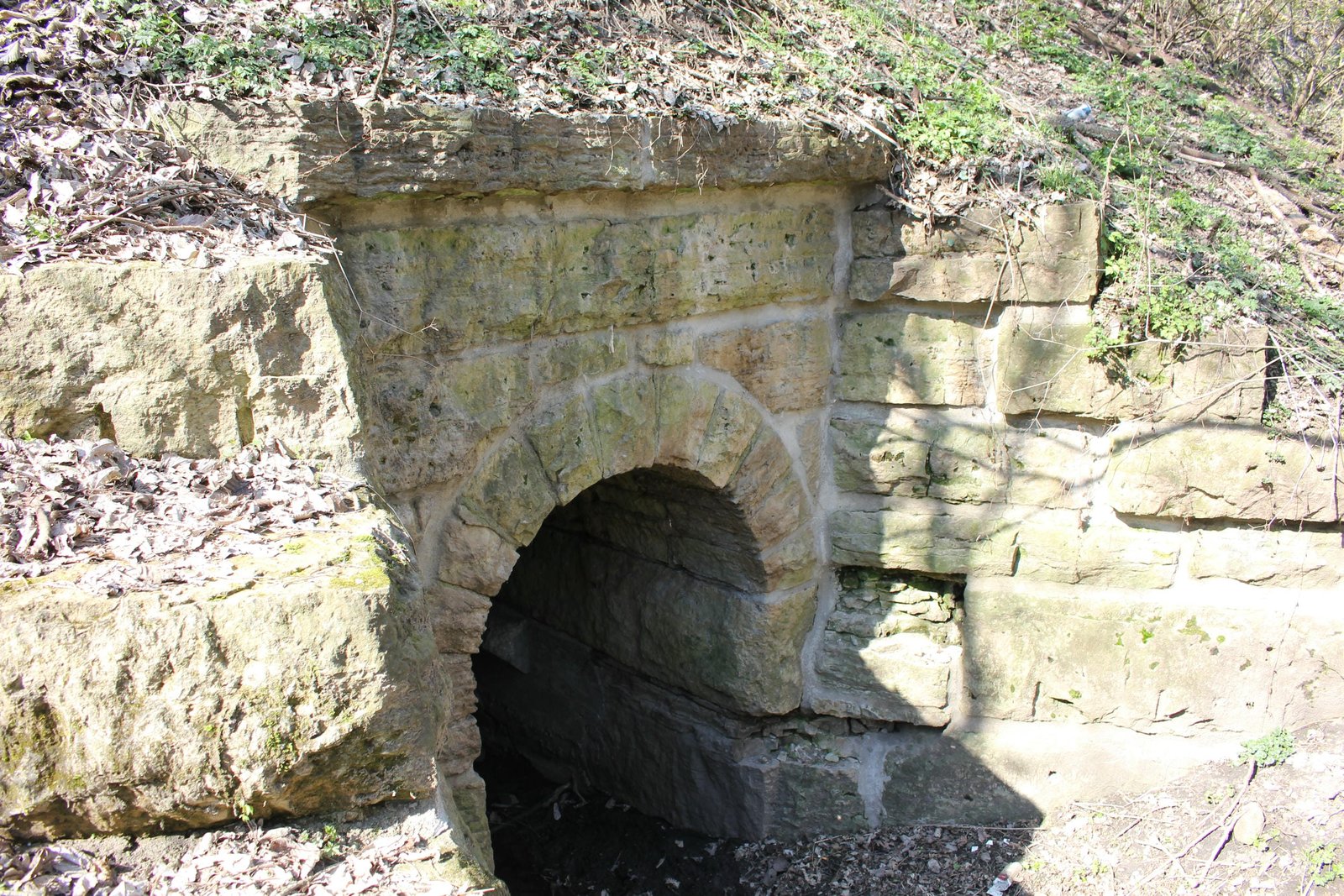

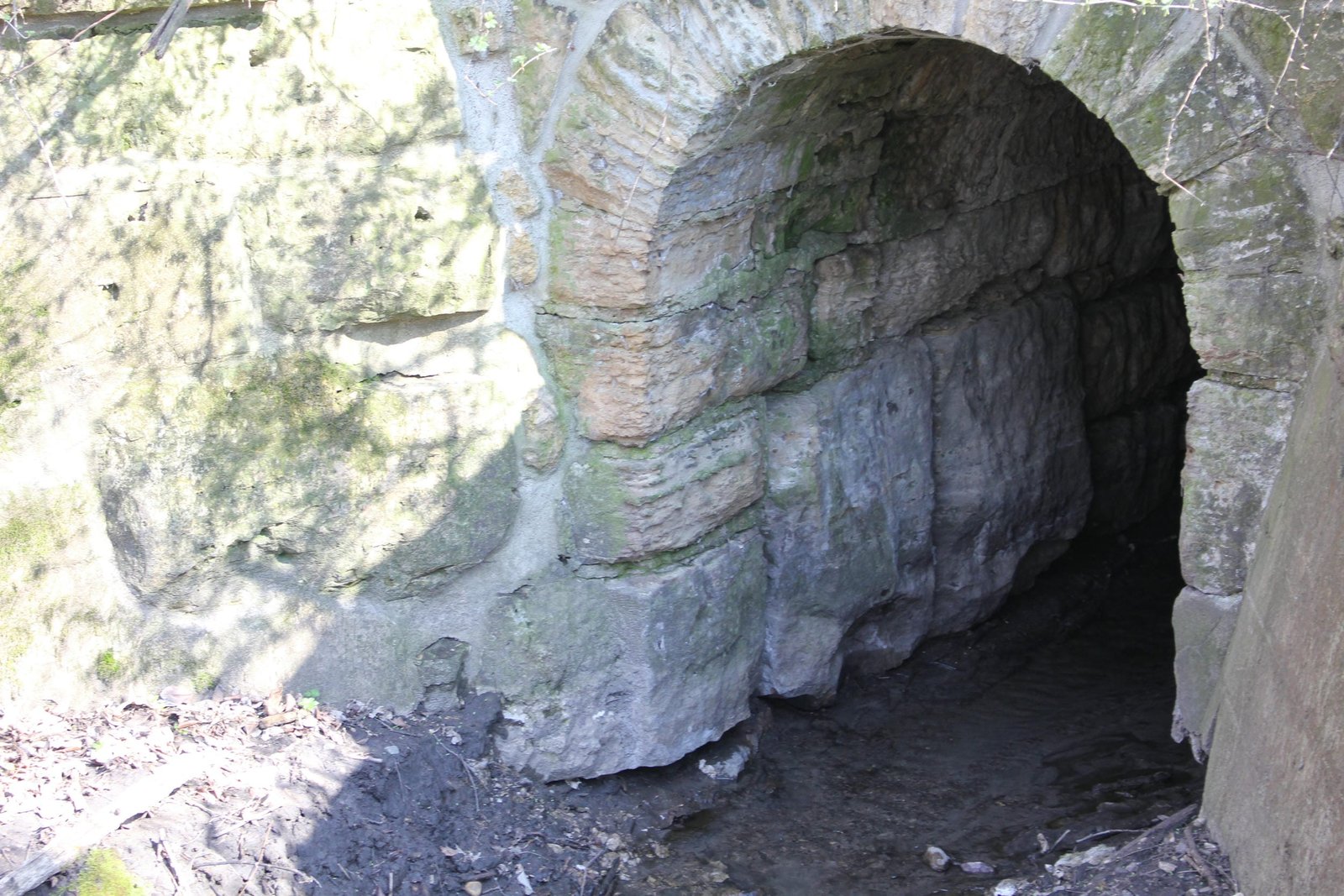

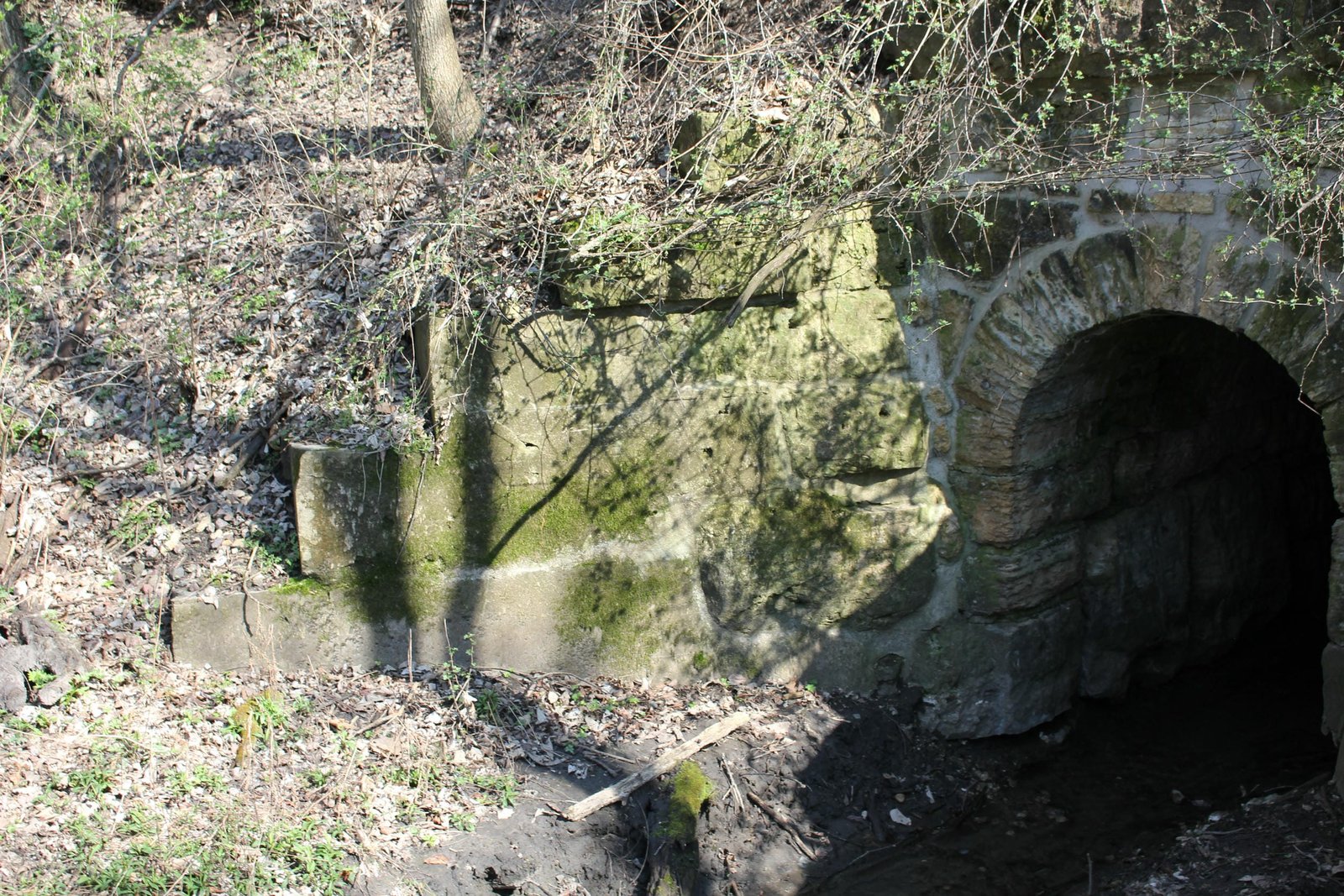

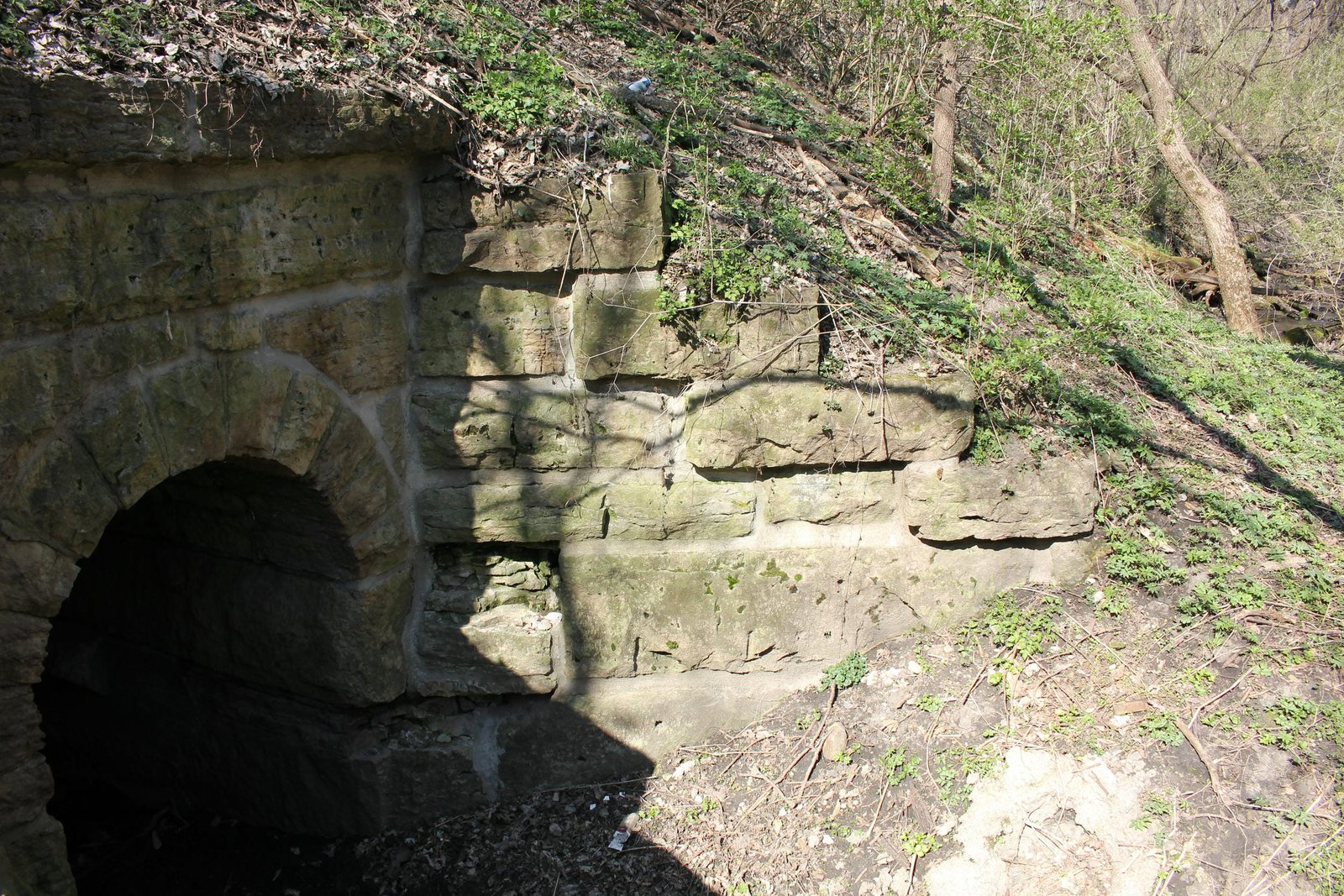

Located northeast of Berwick, this small stone arch culvert carries a former Chicago Great Western Railway mainline over an unnamed creek near Northeast 62nd Avenue. The first bridge at this location was likely a timber pile trestle bridge (#F255), constructed when the line was first built. Between 1897 and 1905, the CGW invested significant capital improving the entire system, upgrading bridges, filling trestles and constructing modern facilities. In approximately 1900, the original trestle was filled and replaced with the present stone arch culvert. Currently, the structure consists of a 4-foot by 6-foot stone arch culvert, set onto stone substructures and constructed for a single track at a width of 55 feet. The superstructure follows a standard design, with a semicircular arch and standard headwalls. The substructure also follows a standard design, with stepped wing walls extending from the structure at an angle. Stone for the culvert consists of a tan limestone, which was quarried at an unknown location. This stone appears to be low grade and has significant green discoloration and pitting throughout. While the CGW used Mankato, Minnesota limestone for some structures, it appears that this stone may be from a different location. It is unclear if the culvert was constructed by railroad company forces or by an unknown contractor. Stone arches were popular for railroad use, particularly during the mid to late 19th Century. The CGW constructed hundreds of stone arches and stone culverts throughout their system, and a majority were constructed between 1897 and 1905. Since the initial construction, the culvert has seen minor alterations, including the partial encasement of a wing wall and mortar repairs to the faces of the arches. It is currently used as part of the Chichaqua Valley Trail. Overall, the culvert appears to be in fair condition, and the mortar repairs have likely extended its life. Compared to other railroads, masonry bridges and culverts along former CGW have a rate of failure that is significantly higher than average. It is unclear why former CGW structures have such a high rate of failure, although it could be due to poor workmanship, poor materials, lack of maintenance or using too small of an opening. The author has ranked this culvert as being locally significant, due to the common design.


Citations

Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
