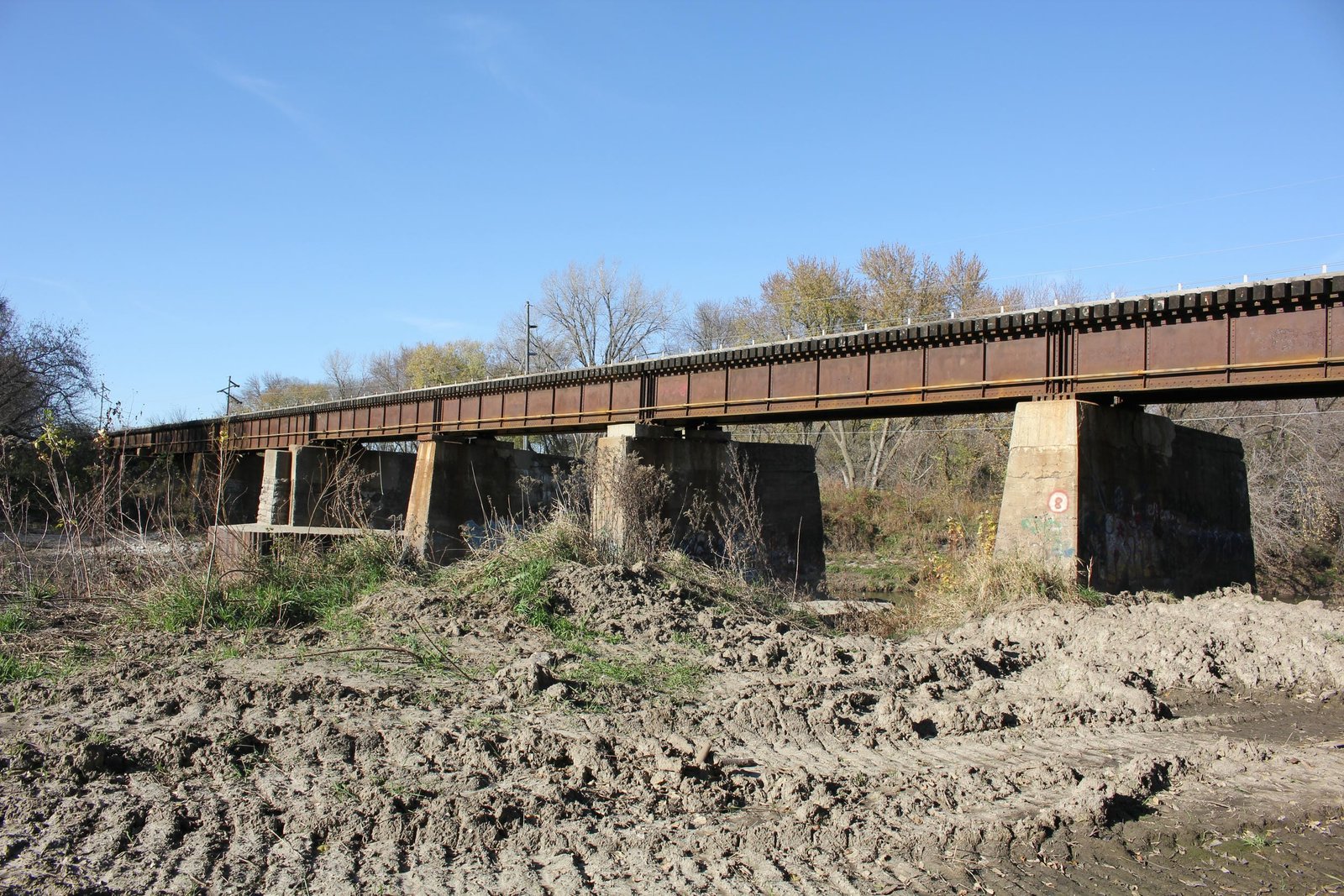

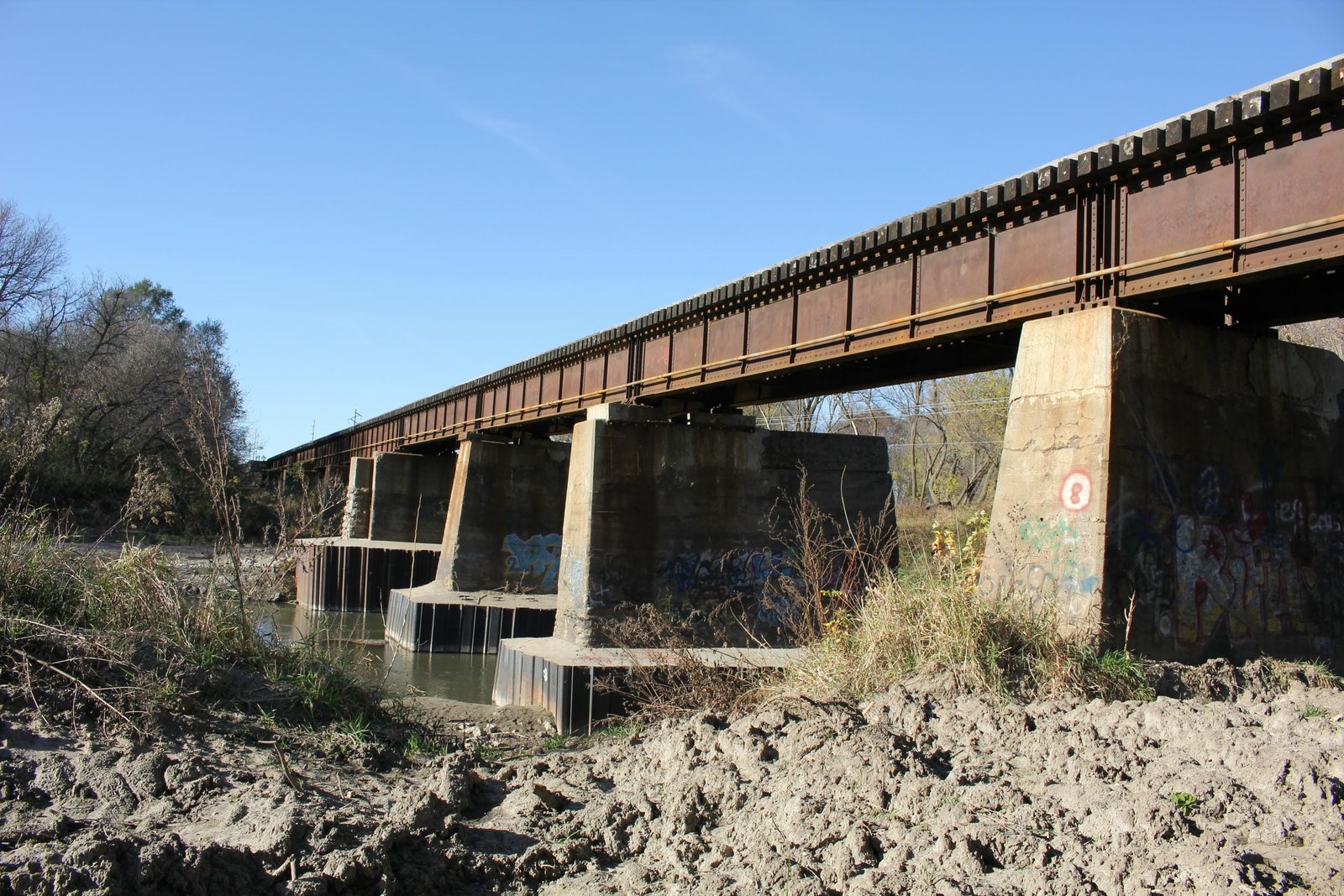

IAIS East Nishnabotna River Bridge


Click the photo to view the full-size version

1/18
Date Taken:
Author:
Caption:

Name IAIS East Nishnabotna River Bridge
Chicago, Rock Island & Pacific Railroad Bridge #4407
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor American Bridge Company of New York
Substructure Contractor Unknown (Piers #4 and #6)
Chicago, Rock Island & Pacific Railway Company Forces (Concrete Substructures)
Length 436 Feet Total, 55 Foot Largest Spans
Width 1 Track, Substructures Built For 2 Tracks
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Stone Masonry and Concrete
Date Built 1902
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 4407
Iowa Interstate Railroad Bridge Number 440.64
Significance Local Significance
Documentation Date 11/9/2016

In 1869, the Chicago, Rock Island & Pacific Railroad (Rock Island) constructed 142 miles of new railroad, extending from the end of the existing mainline at Des Moines, Iowa to Council Bluffs, Iowa.  Originally, the line went west to Atlantic, Iowa; before turning northwest and going through Avoca, Iowa and Shelby, Iowa.  At Shelby, the line would turn back southwest, and run through Neola, Iowa and Underwood, Iowa before arriving in Council Bluffs.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads during the late 19th Century, covering much of the central United States.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.  In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.

The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. During the early 1950s, the Rock Island undertook a series of improvements in Western Iowa to eliminate harsh grades and shorten the line.  Between 1952 and 1953, the Rock Island constructed the Atlantic Cutoff, which included constructing 34 miles of new railroad between Atlantic and McClelland, Iowa.  West of McClelland, the Rock Island used the Chicago Great Western Railway (CGW) tracks to reach Council Bluffs. The new route saved 10 miles, and much of the old route was abandoned in 1953.  A short segment was retained between Walnut, Iowa and Shelby, which was abandoned in 1966.  An additional revision was made near Adair in 1954, which involved straightening the route.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Council Bluffs Subdivision between Des Moines and Council Bluffs.  Except for a short portion near Shelby, the entirety of the original mainline between Atlantic and Council Bluffs remains abandoned.


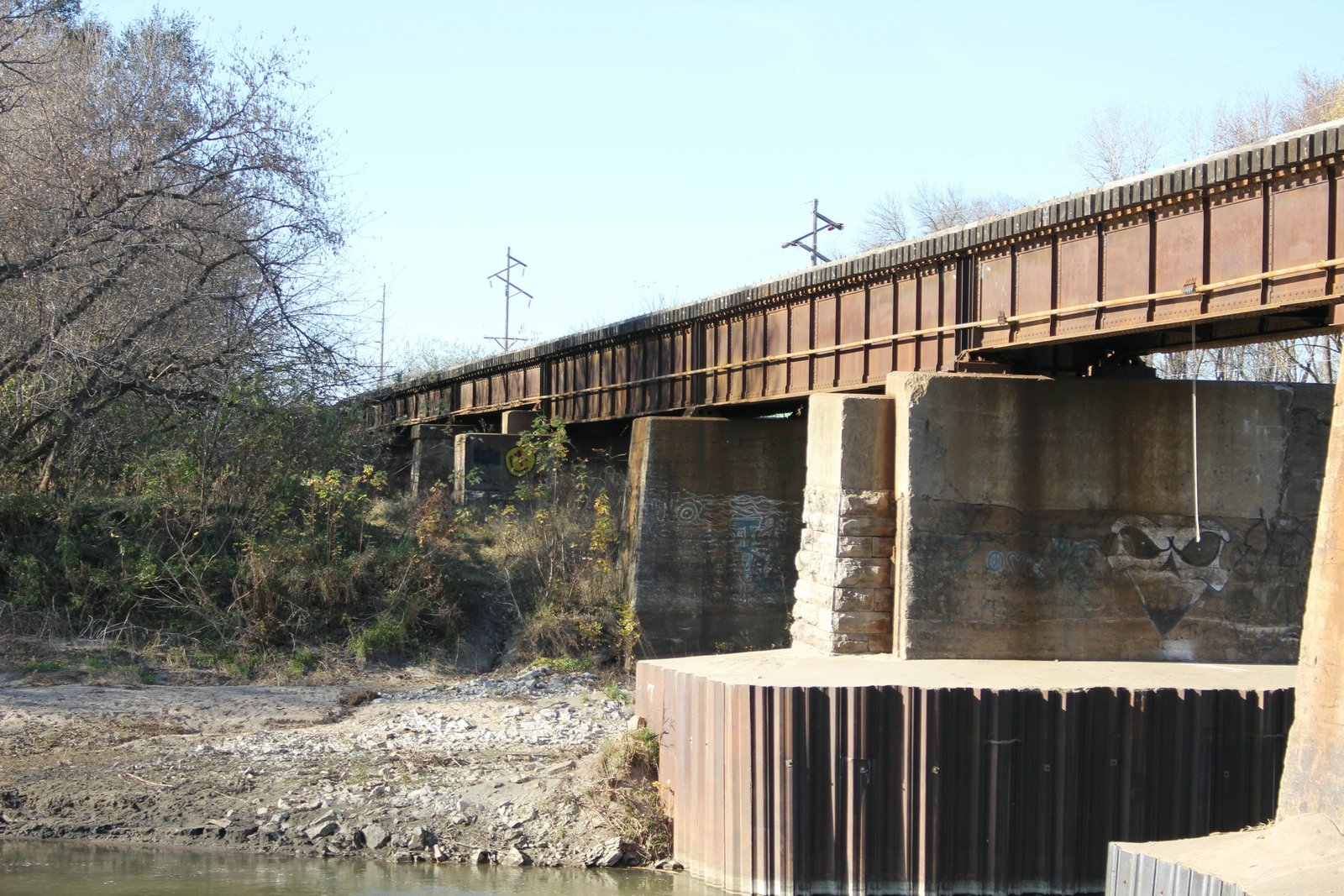

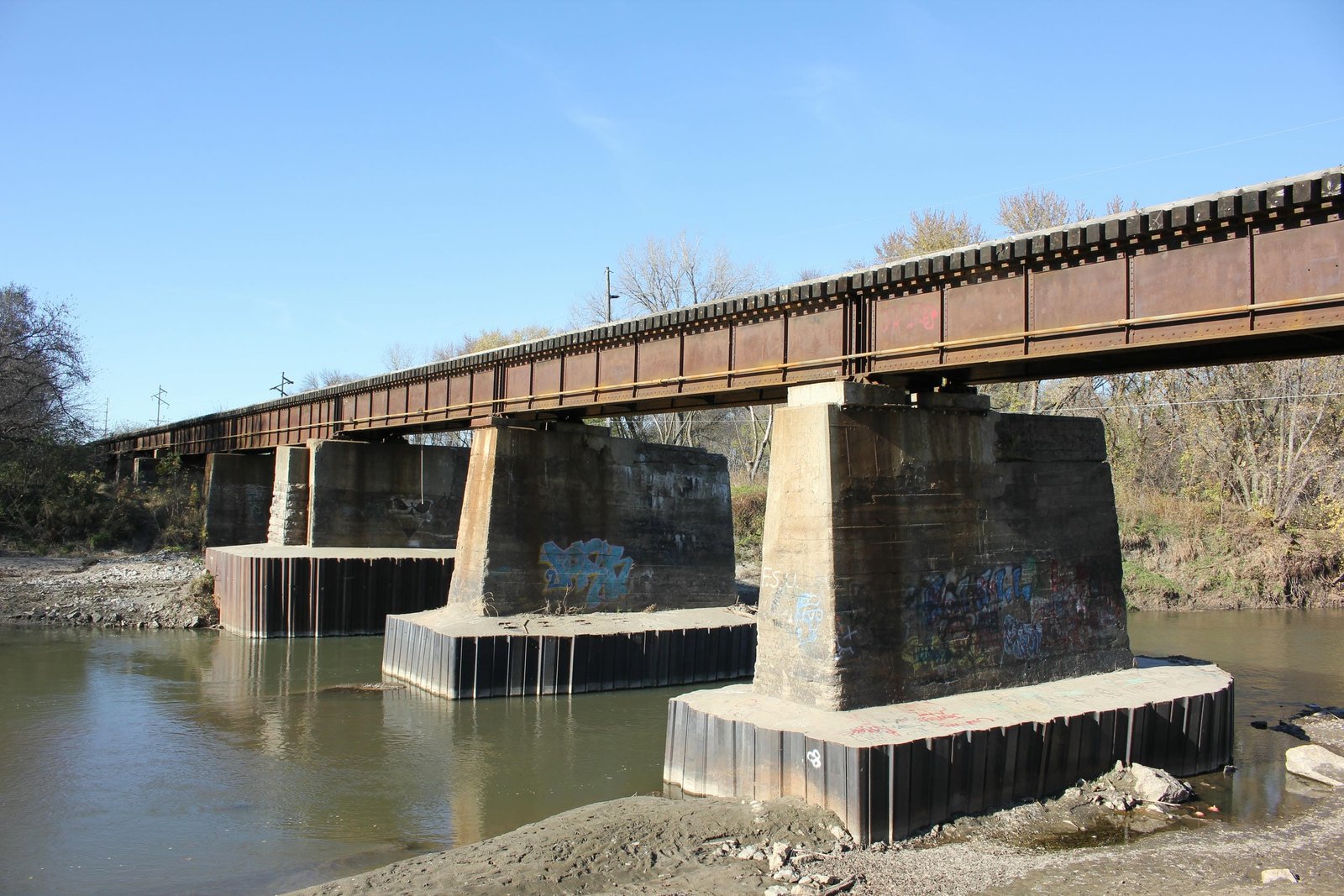

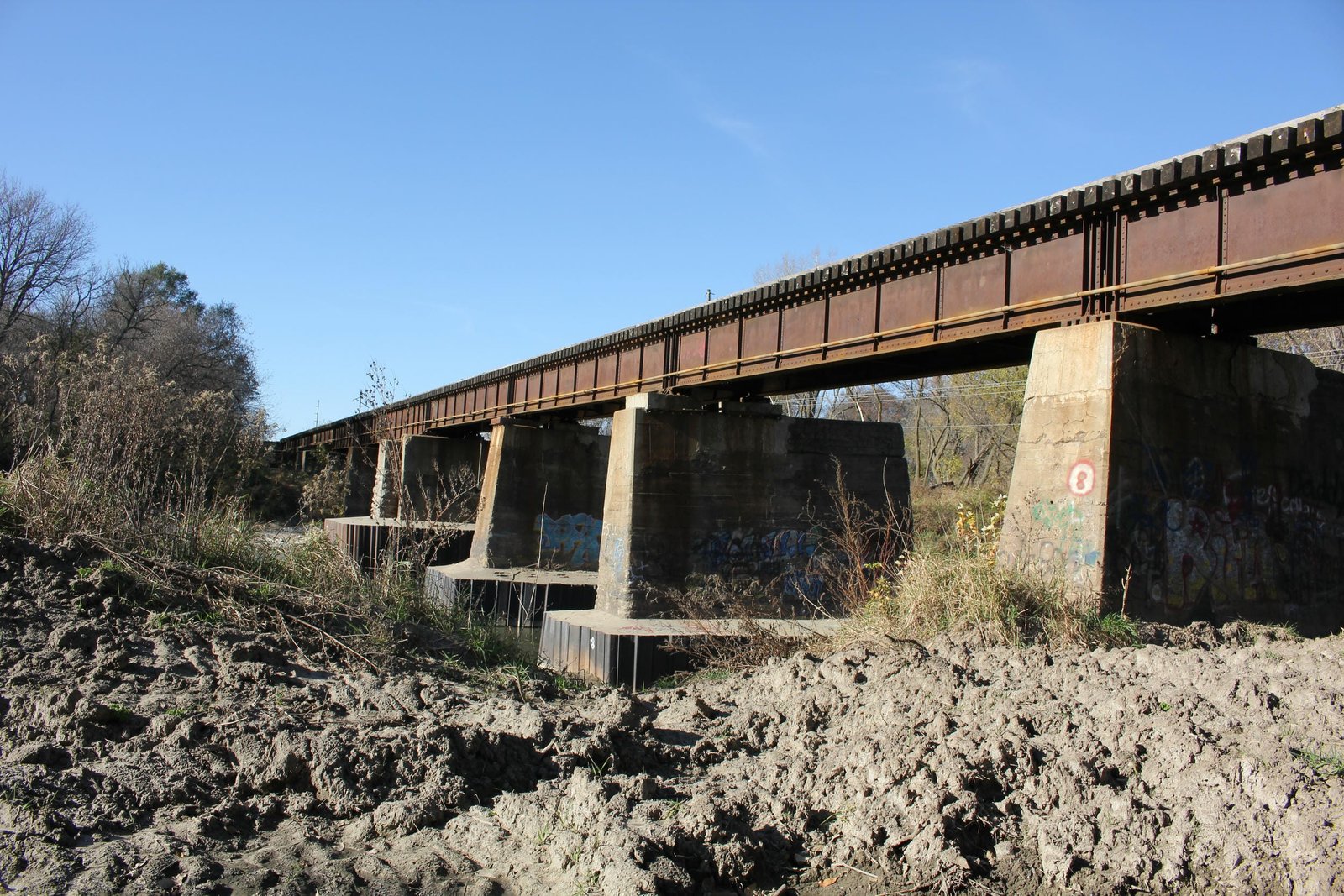

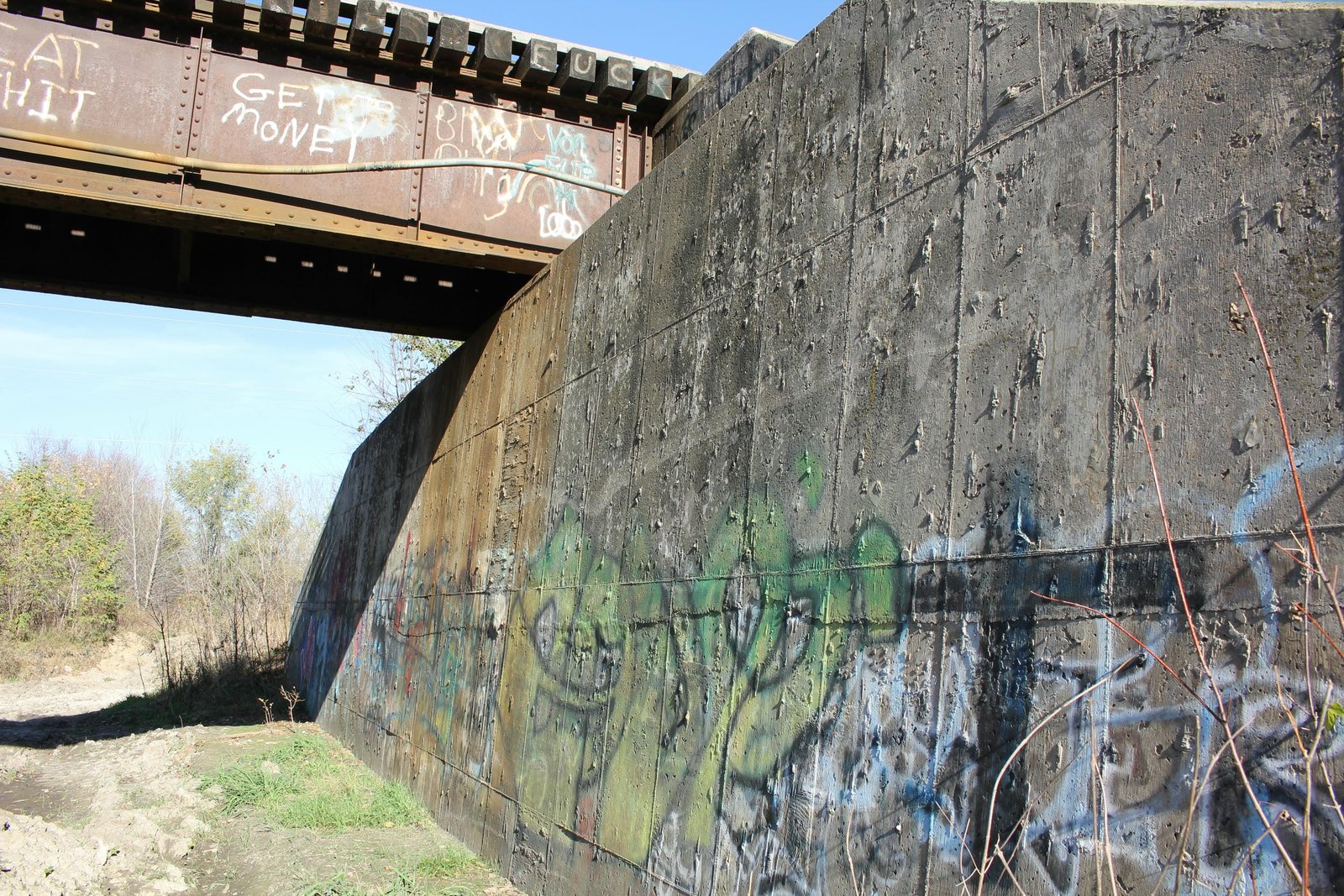

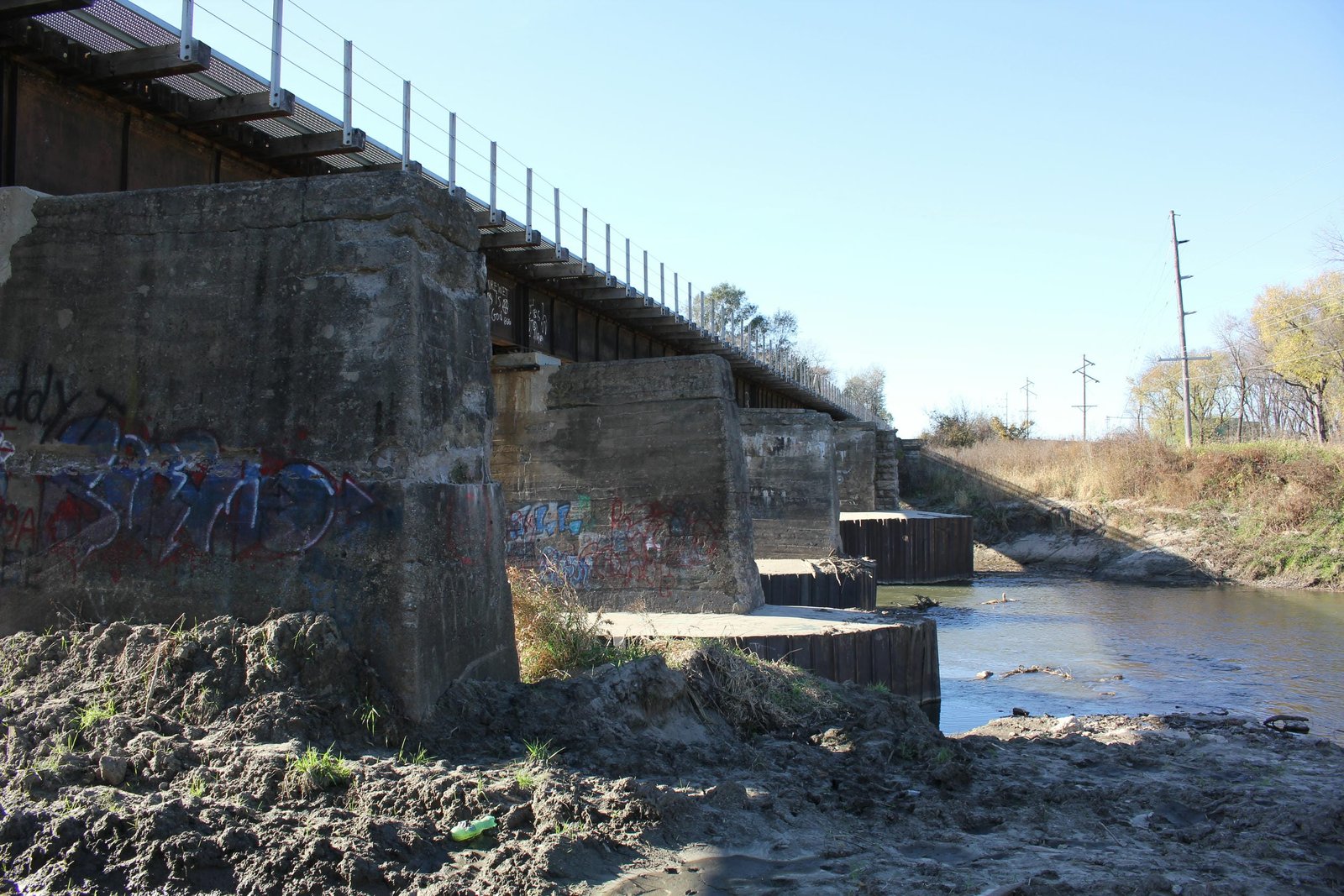

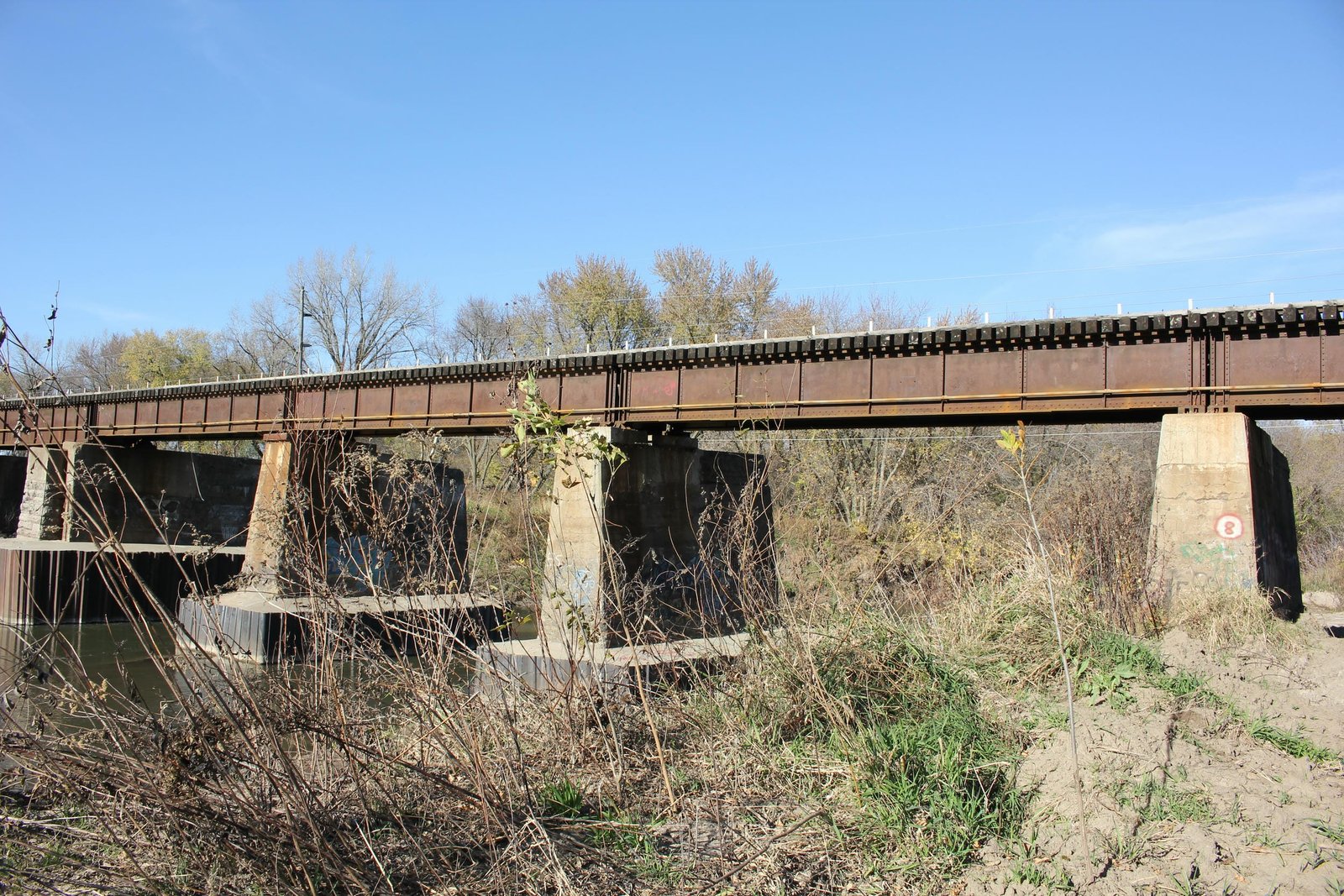

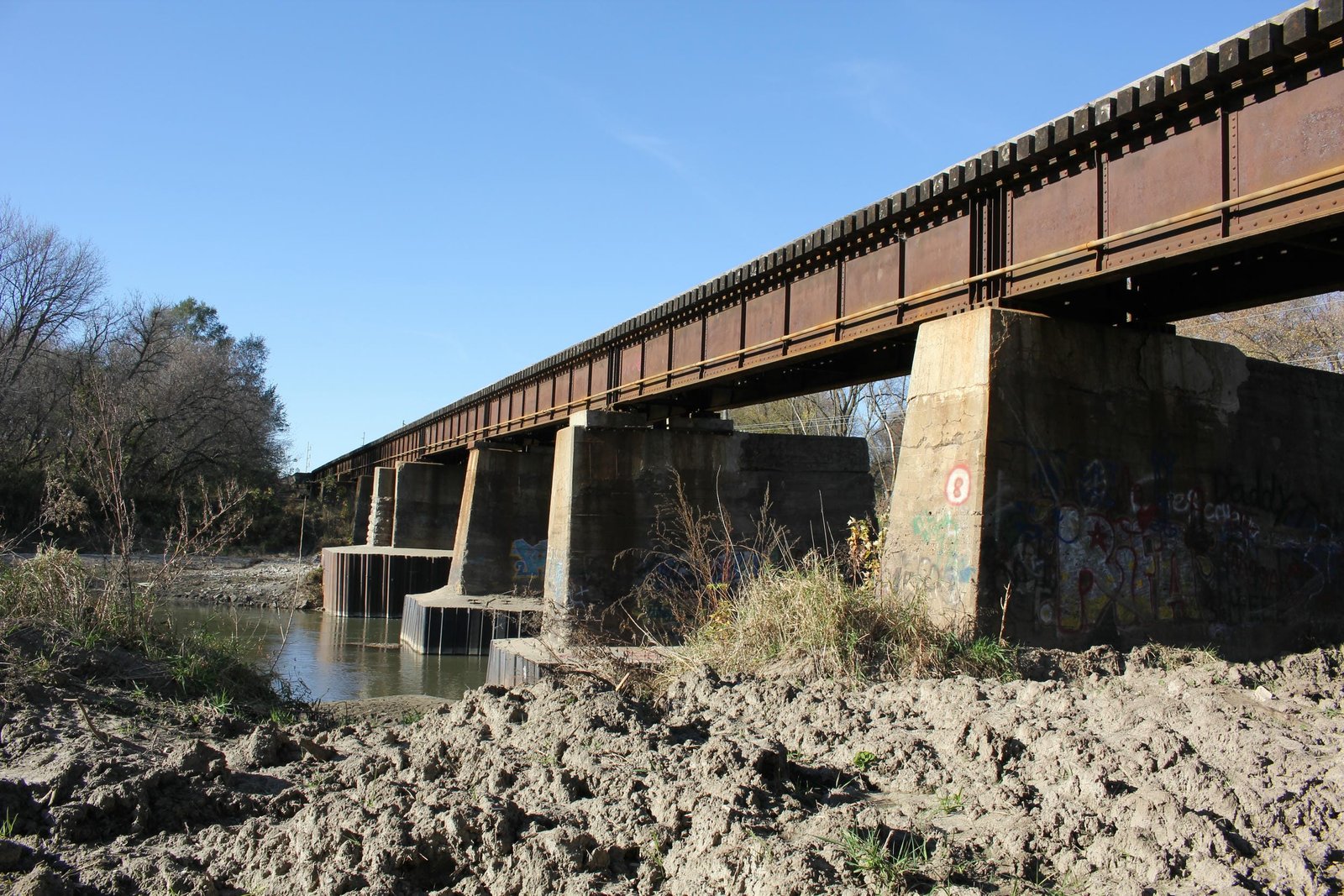

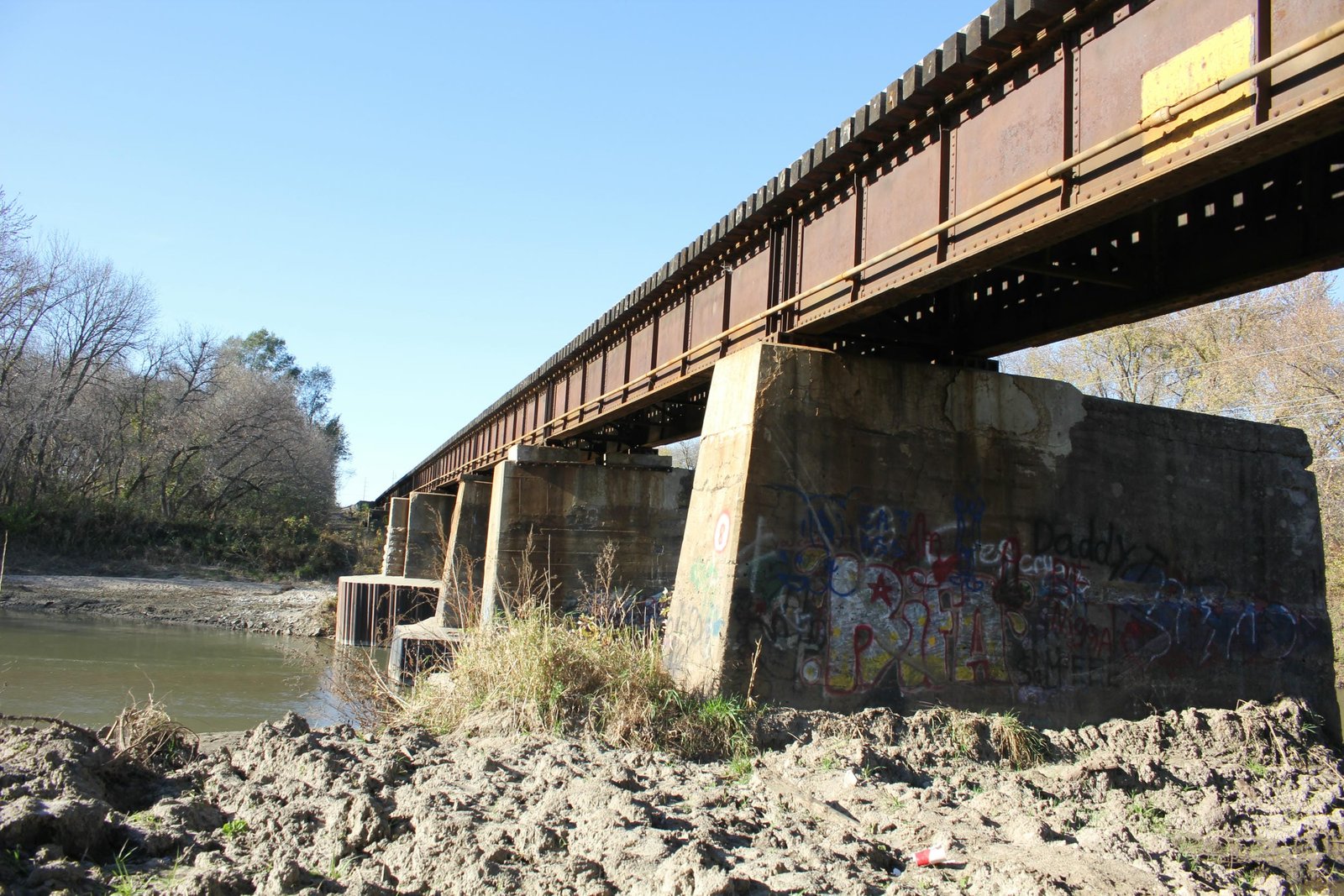

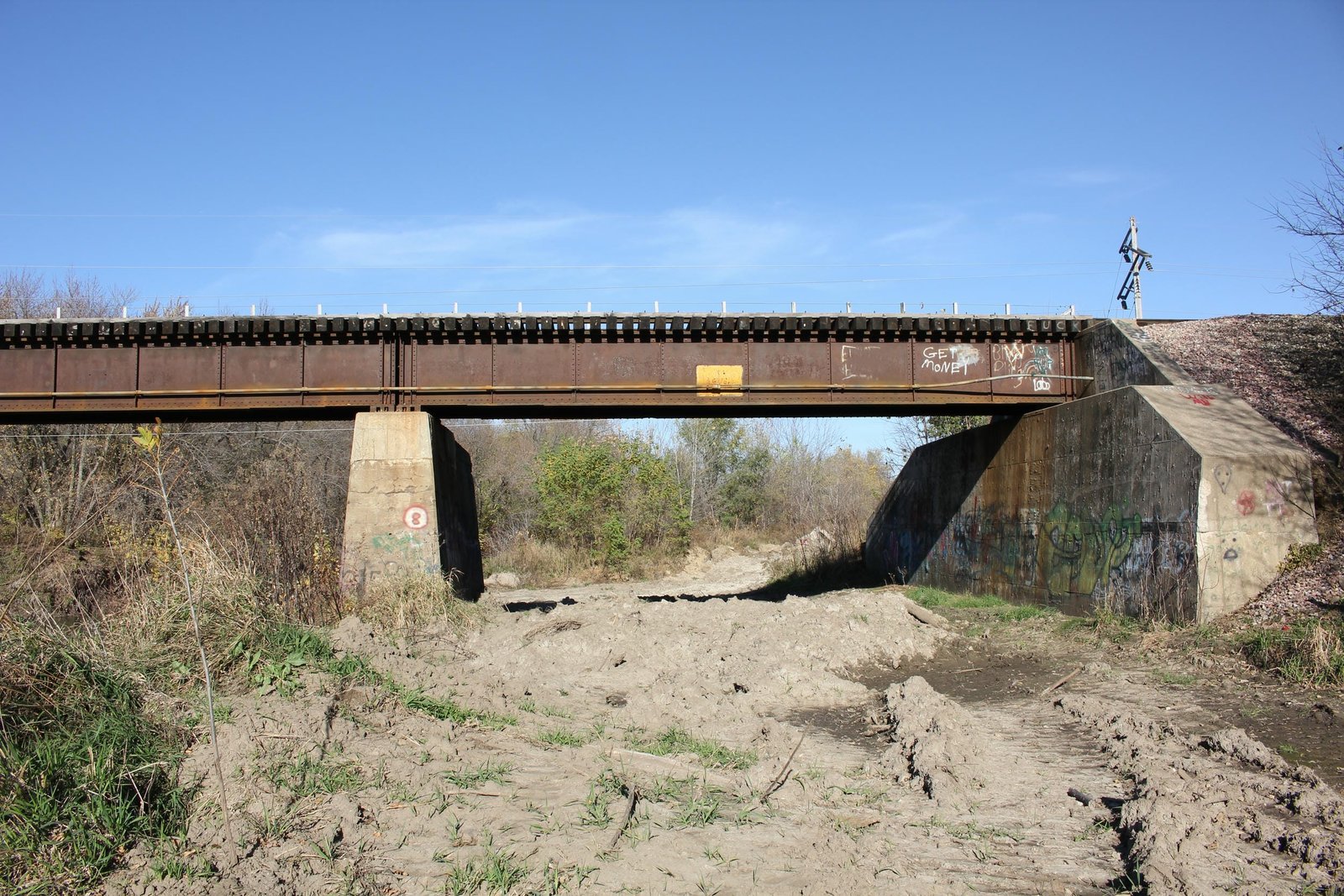

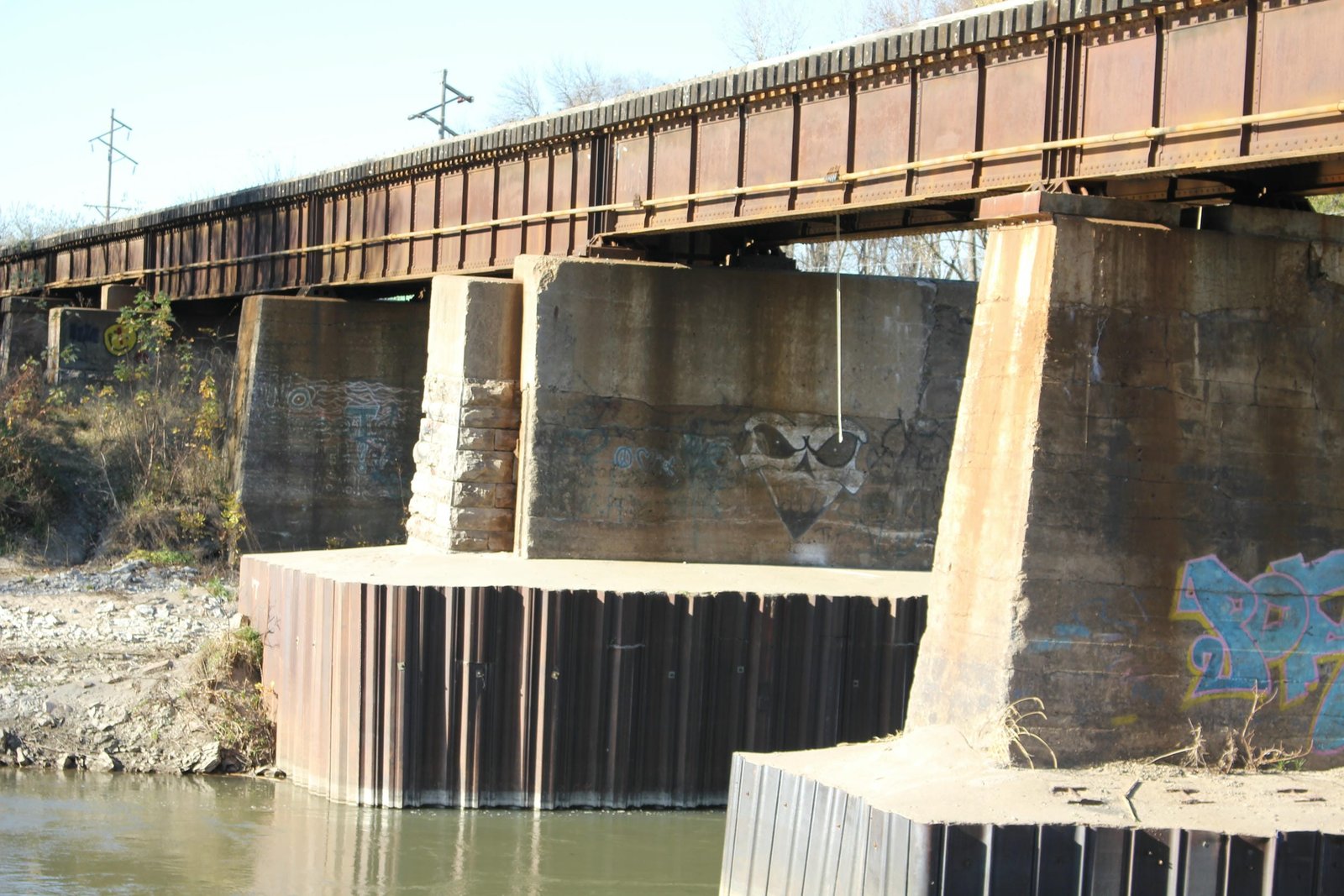

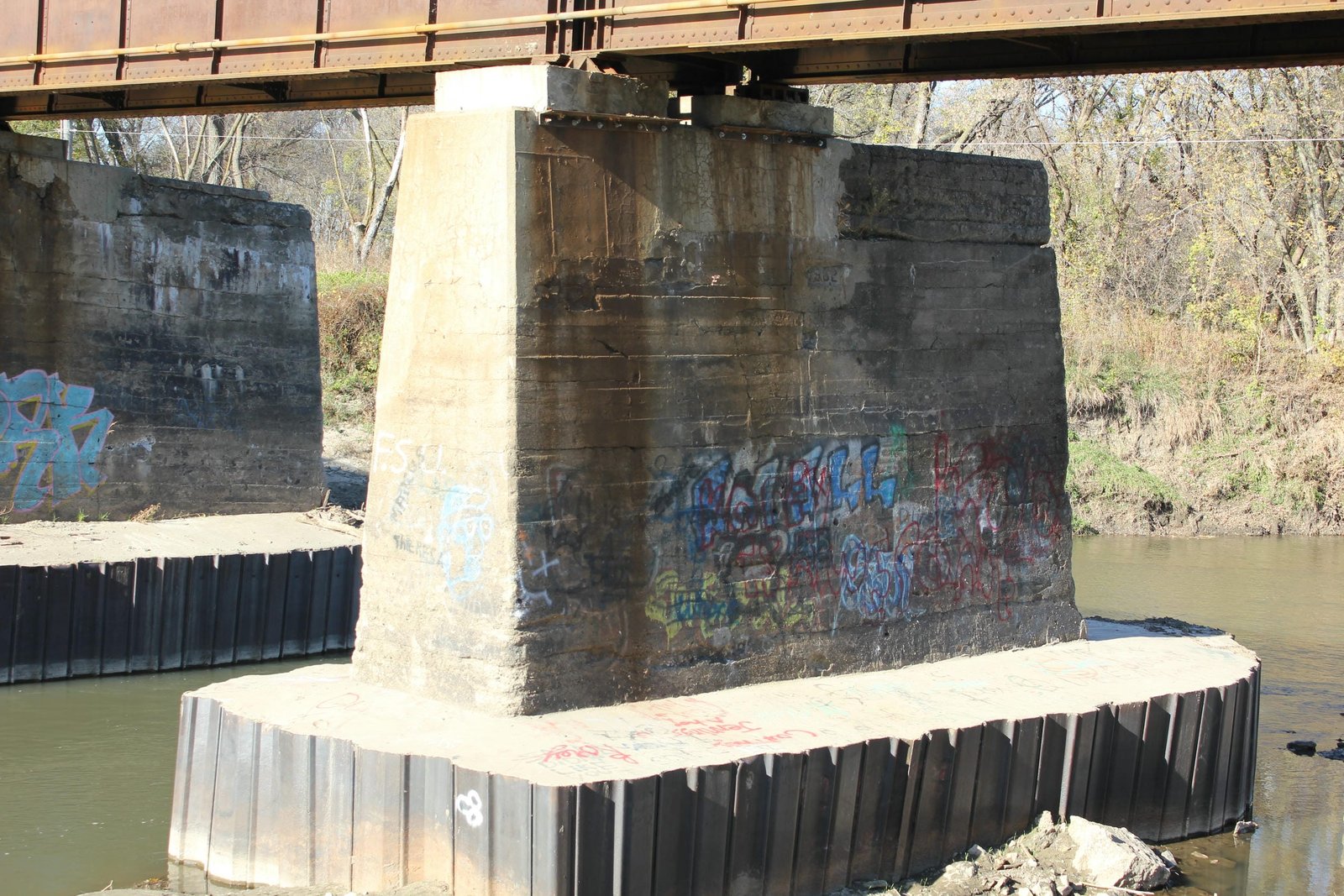

Located on the west side of Atlantic, this large deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over the East Nishnabotna River. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. In the 1880s or early 1890s, the bridge was replaced by a new iron bridge, set onto stone piers. It is unclear what design this bridge was or how many spans it contained. It is known that at least one of the spans was 110 feet long, indicating it was likely a truss span. In the early 20th Century, the Rock Island invested significant capital into this line, replacing timber bridges with new steel and concrete structures. Between 1899 and 1902, several timber and aging iron bridges were replaced with new steel and concrete structures. In 1902, a new double track deck plate girder bridge was constructed at this location. In approximately 1950, the northern track was removed, and the spans were likely reused at other locations. Currently, the bridge consists of two 55-foot, three 50-foot and four 44-foot deck plate girder spans, set mainly onto concrete substructures. Two stone piers (piers #4 and #6) were reused from the previous bridge, and were repaired with concrete. The superstructure follows a standard design, with two heavy plate girders per span and an open deck. The substructures consist of rectangular concrete piers and abutments with sloped wing walls, extending perpendicular from the bridge. A number of upgrades have been made to the substructures, including the encasement of the east abutment, addition of sheet piling around the eastern four piers and the repair of several concrete caps on the western piers. American Bridge Company fabricated the superstructure, while railroad company forces constructed the concrete substructures. An unknown contractor constructed the stone piers, and it is unclear if an unknown contractor or railroad company forces constructed the various repairs to the substructures. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the only significant alterations to the bridge appear to be repairs to the substructures and removal of the northern track. Today, the bridge remains in regular use. Overall, the bridge appears to be in fair condition, with some deterioration noted at various points of the bridge. The author has ranked this bridge as being locally significant, due to the common design.


Citations

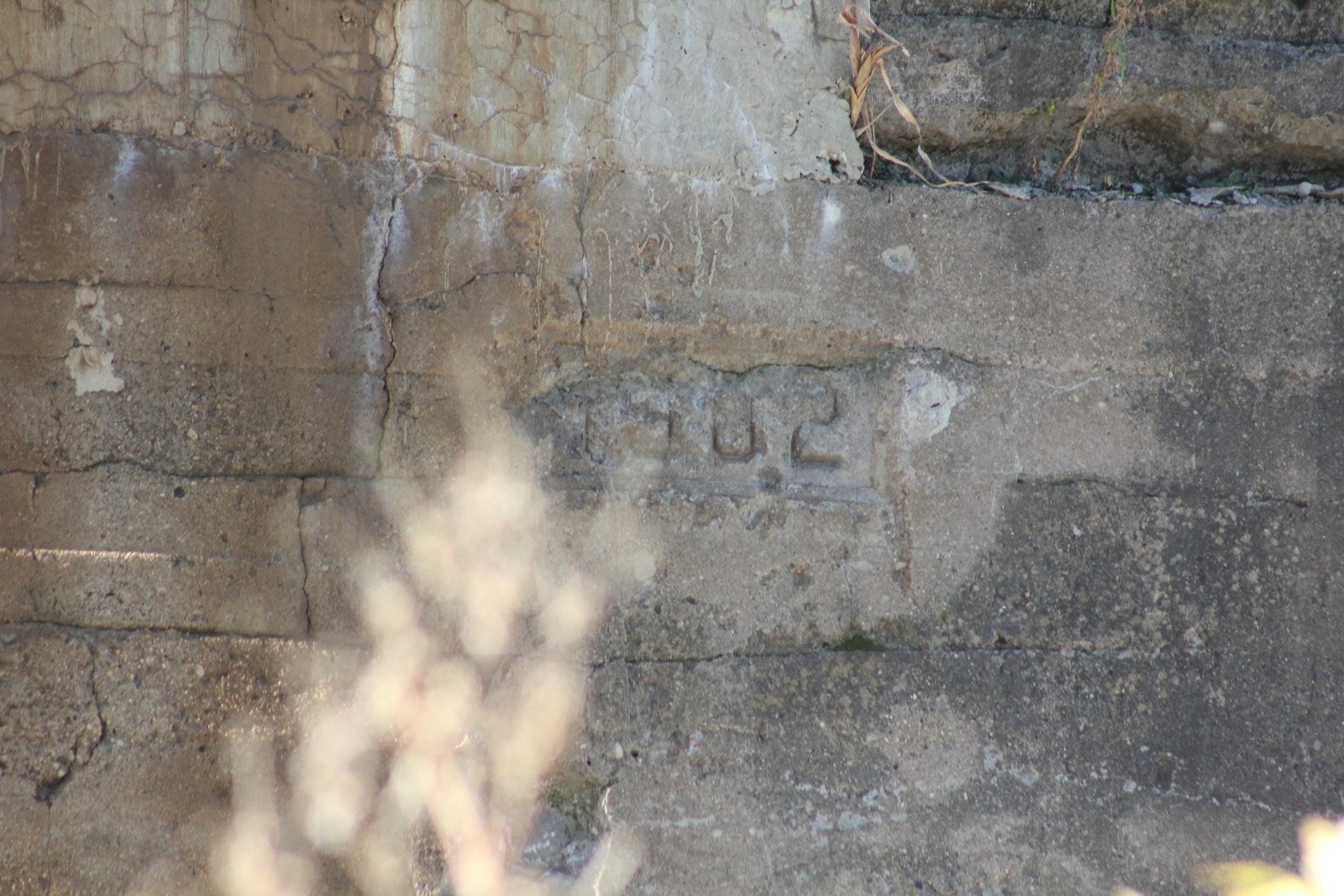

Build date Date stamp

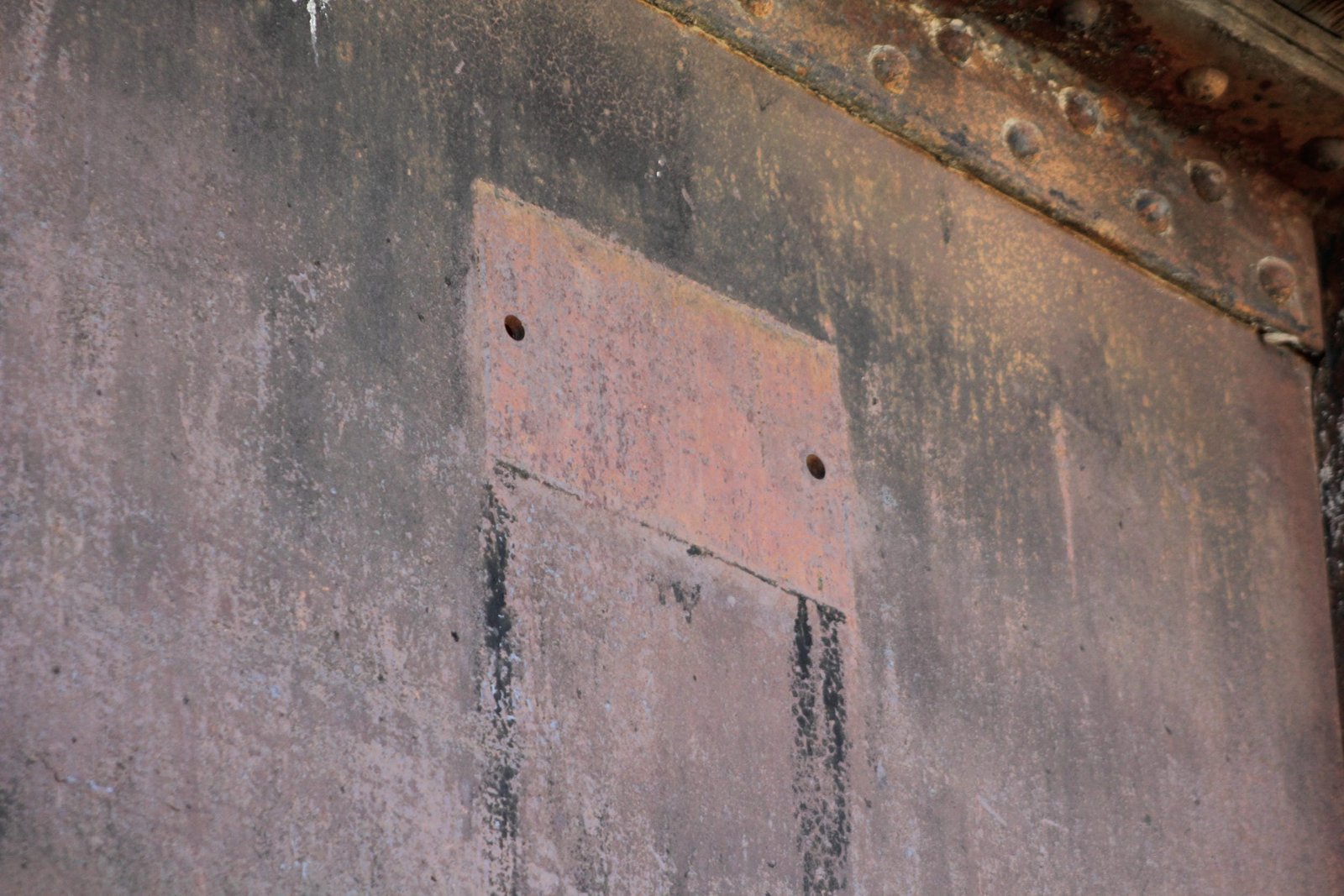

Builder (superstructure) Missing American Bridge Company plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
