Name IAIS Old US-6 Bridge (Menlo)
Chicago, Rock Island & Pacific Railroad Bridge #4011
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Unknown
Substructure Contractor Ross Construction Company of Kansas City, Missouri
Length 38 Feet Total
Width 1 Track
Height Above Ground 14 Feet 0 Inches
Superstructure Design Steel Stringer
Substructure Design Concrete
Date Built 1930
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 4011
Iowa Interstate Railroad Bridge Number 401.20
Significance Local Significance
Documentation Date 11/9/2016

In 1869, the Chicago, Rock Island & Pacific Railroad (Rock Island) constructed 142 miles of new railroad, extending from the end of the existing mainline at Des Moines, Iowa to Council Bluffs, Iowa.  Originally, the line went west to Atlantic, Iowa; before turning northwest and going through Avoca, Iowa and Shelby, Iowa.  At Shelby, the line would turn back southwest, and run through Neola, Iowa and Underwood, Iowa before arriving in Council Bluffs.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads during the late 19th Century, covering much of the central United States.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.  In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.

The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. During the early 1950s, the Rock Island undertook a series of improvements in Western Iowa to eliminate harsh grades and shorten the line.  Between 1952 and 1953, the Rock Island constructed the Atlantic Cutoff, which included constructing 34 miles of new railroad between Atlantic and McClelland, Iowa.  West of McClelland, the Rock Island used the Chicago Great Western Railway (CGW) tracks to reach Council Bluffs. The new route saved 10 miles, and much of the old route was abandoned in 1953.  A short segment was retained between Walnut, Iowa and Shelby, which was abandoned in 1966.  An additional revision was made near Adair in 1954, which involved straightening the route.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Council Bluffs Subdivision between Des Moines and Council Bluffs.  Except for a short portion near Shelby, the entirety of the original mainline between Atlantic and Council Bluffs remains abandoned.


Located between Menlo and Stuart, this steel stringer bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over White Pole Road (former US Highway 6). As roadways developed in Iowa, major routes were named instead of numbered. The "Great White Way" was developed in 1910 to roughly parallel the Rock Island mainline between Council Bluffs and Des Moines. The road became known as "White Pole Road" due to the painted utility poles, and was numbered US Highway 32 in 1926. Prior to the construction of this bridge, the road crossed the Rock Island at grade. Starting in the late 1920s, the Iowa State Highway Commission (ISHC) began working with railroads to construct grade separations at busy grade crossings. In late 1929 or early 1930, contracts were awarded for the construction of an underpass at this location. Work was completed throughout the second half of 1930, with the underpass opening late that year. US Highway 32 was renamed US Highway 6 in 1931, and US Highway 6 was rerouted to follow present-day Interstate 80 in 1981.

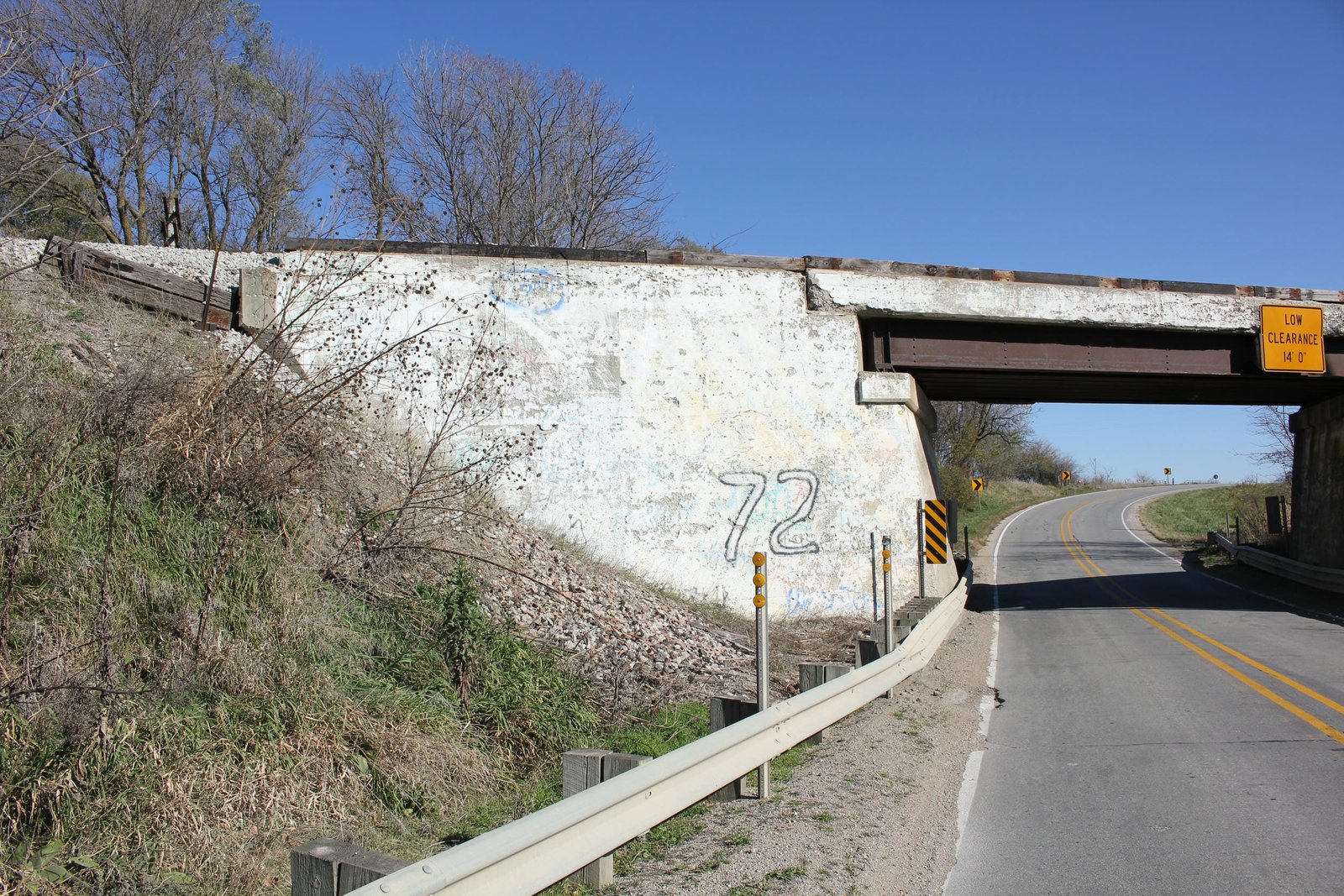

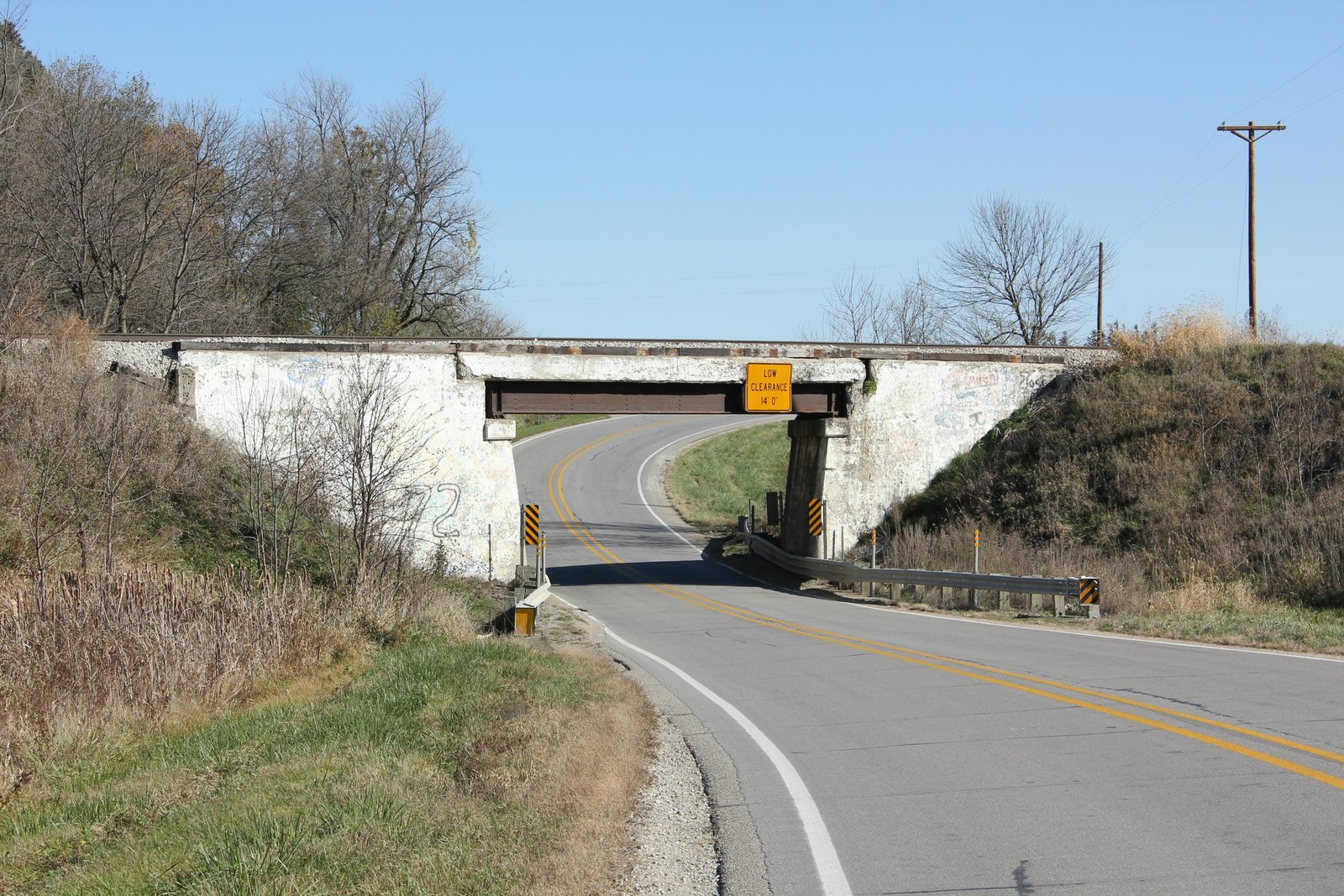

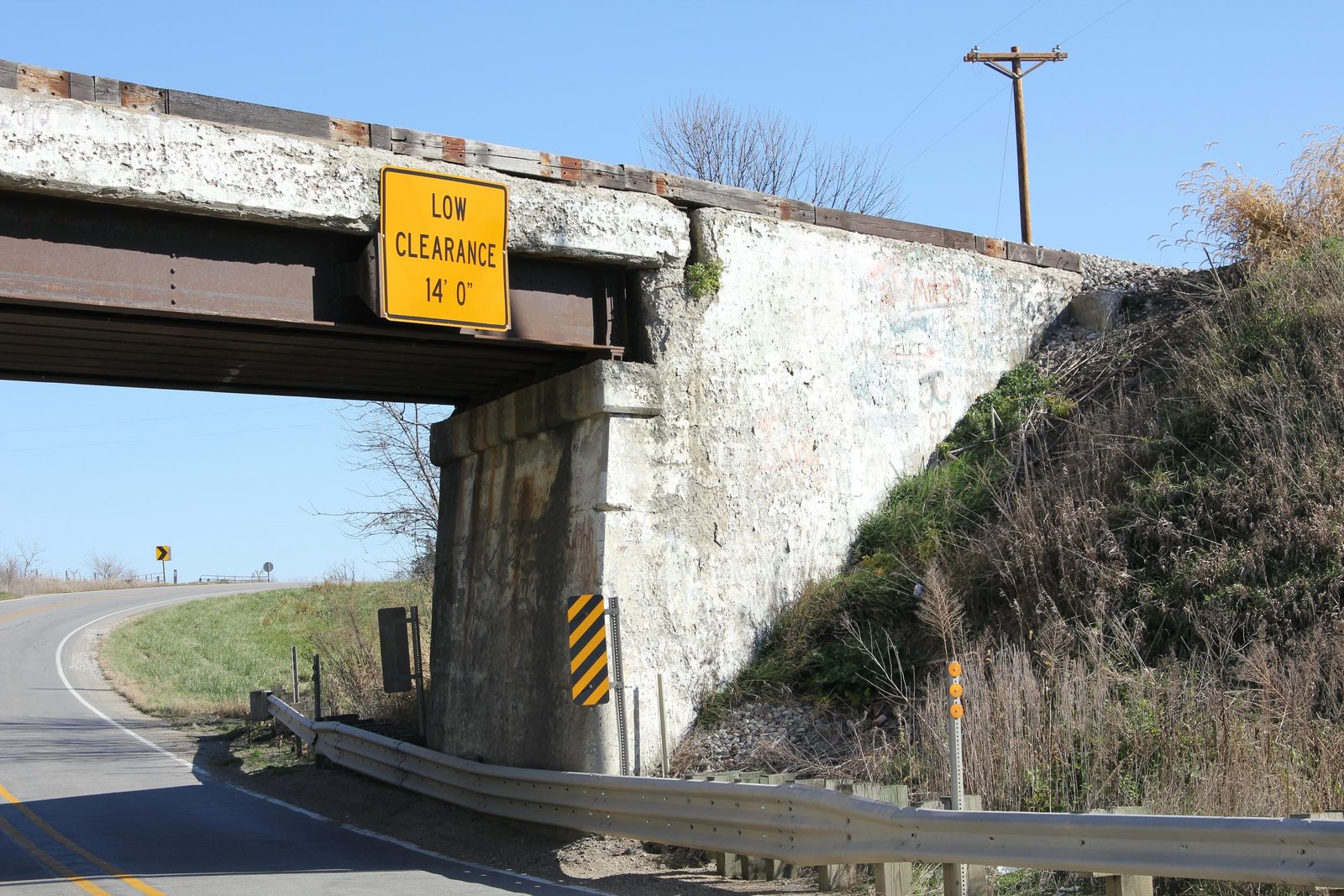

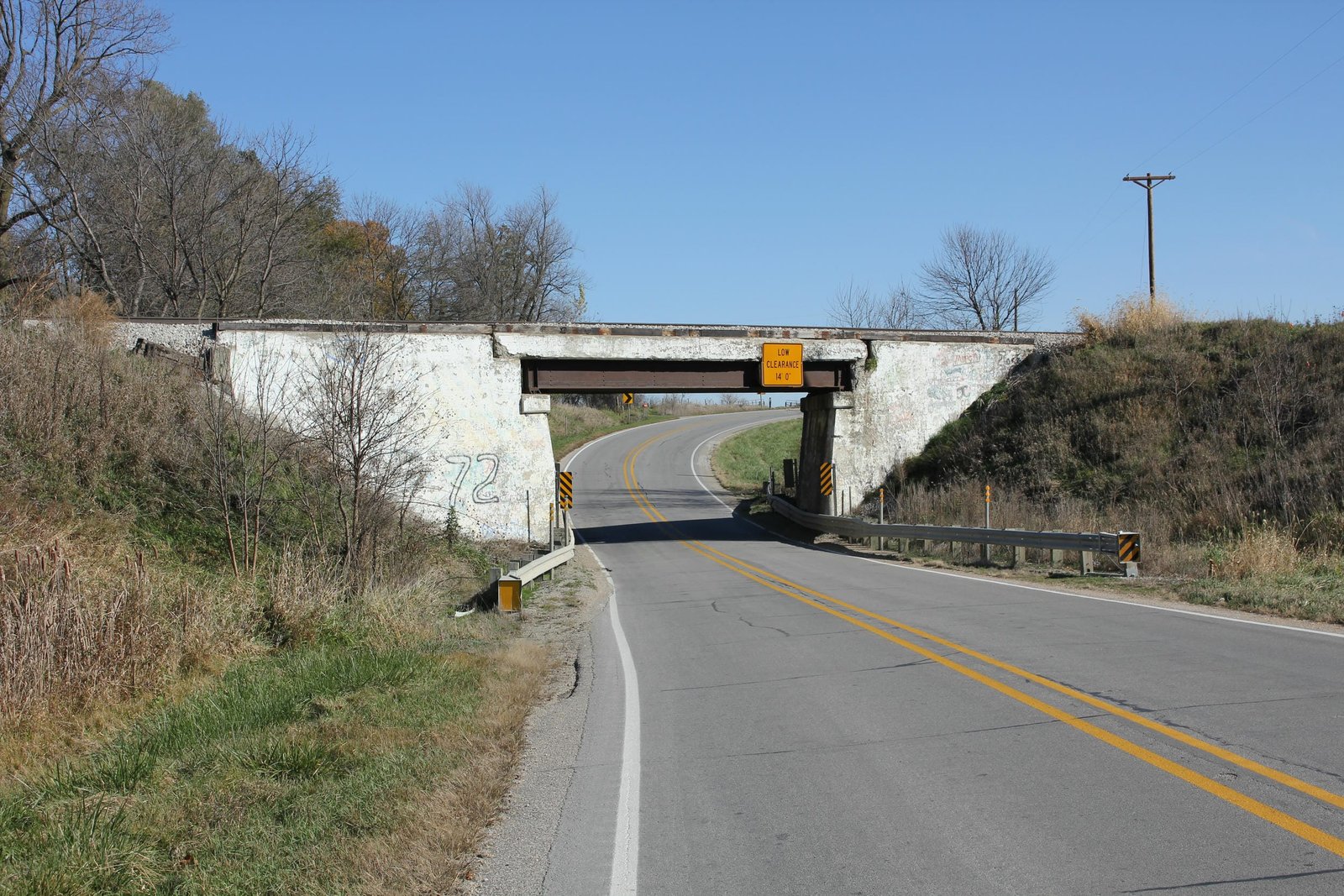

Currently, the bridge consists of a 38-foot steel stringer span, set onto concrete abutments. In addition, the bridge is constructed at a heavy skew. The superstructure uses a standard design for the era, with six shallow beams and a ballast deck. The beams are covered by a fascia beam, which is deeper than the main beams. The abutments use a standard U-shaped design, typical for Rock Island grade separations from this era. An unknown contractor fabricated the superstructure, while Ross Construction Company constructed the abutments. Steel stringer spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations, and remains in regular use. Overall, the bridge appears to be in fair condition, with some spalling noted on the abutments. The author has ranked the bridge as being locally significant, due to the common design.


Citations

Build date and builder (substructure) The Des Moines Register; July 31, 1930
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
