Name Morning Sun Stone Arch
Built By Burlington, Cedar Rapids & Northern Railway
Currently Owned By Private Owner
Contractor Unknown
Length 24 Feet Total, 16 Foot and 8 Foot Spans
Width 1 Track (28 Feet - South Span, 45 Feet - North Span)
Height Above Ground 15 Feet (Estimated)
Superstructure Design Stone Arch
Substructure Design Stone Masonry
Date Built 1886
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
Significance Moderate Significance
Documentation Date 10/22/2016

In 1870, the Burlington, Cedar Rapids & Minnesota Railway (BCR&M) began construction on a new railroad line, constructing 41 miles from Burlington, Iowa north to Columbus Junction, Iowa.  The following year, the railroad was completed an additional 116 miles through Cedar Rapids, Iowa to Waterloo, Iowa.  In 1872, an additional 64 miles was completed to Plymouth, Iowa.  Work on the line resumed in 1877, when the Burlington, Cedar Rapids & Northern Railway (BCR&N) completed an additional 5 miles to Manly, Iowa.  In 1878, the BCR&M became part of the BCR&N, completing a diagonal mainline from far southeast Iowa to north central Iowa.  By the 1880s, the BCR&N had become an important railroad in Iowa, connecting towns and cities in southeast Iowa to northern Iowa.  This line formed the principal mainline of the company, allowing for the construction of many additional branch lines.   By the turn of the 20th Century, the BCR&N operated over 1,000 miles of track throughout Iowa, connecting both small towns and large cities.  This line also served the basis of a northern extension to St. Paul, Minnesota; which was constructed between 1900 and 1901.  In June 1903, the BCR&N was acquired by the Chicago, Rock Island & Pacific Railway (Rock Island), which operated a large railroad network through the central United States. By acquiring the BCR&N, the Rock Island greatly expanded its service area, reaching major hubs such as St. Paul and Sioux Falls, South Dakota.

The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948.  Despite the financial troubles, the Rock Island continued to use this route as a mainline, connecting to major agricultural areas in northern Iowa.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.  In 1981, a group of grain elevators along the route formed a short line railroad to operate over the bankrupt line.

In 1981 and 1982, the railroad was rehabilitated for use, and the route reopened for service.  In 1984, the Iowa Northern Railway (IANR) purchased the line.  A derailment near Burlington in 1985 caused the abandonment of much of the line south of Cedar Rapids, with only a small segment at Columbus Junction being sold to the Soo Line, which was controlled by Canadian Pacific Railway (CP) that year.  In the late 20th Century, the IANR became a profitable railroad, serving a variety of agricultural industries between Cedar Rapids and Manly.  A short segment of the line in Waterloo was abandoned in 1988, as the IANR had acquired trackage rights on a different line.  In 1994, IANR was sold to Iron Road Railways (IRR), a holding company. In 1997, CP would sell the line segment to I&M Rail Link, which was later purchased by the Dakota, Minnesota & Eastern Railroad (DM&E) subsidiary Iowa, Chicago & Eastern Railroad (IC&E).  After the bankruptcy of the IRR in 2003, the IANR was purchased by a former director of IRR, and grew considerably into a significant regional railroad.

The DM&E/IC&E were purchased by Canadian Pacific in 2008, and the line at Columbus Junction abandoned shortly after due to a bridge collapse during the 2008 floods.  In 2025, the IANR was purchased by Canadian National Railway (CN), which already operated a significant railroad network in northern Iowa.  This was considered a somewhat unusual example of a large class-one railroad purchasing a short line with the intention of further growing business.  At the time of purchase, the IANR not only owned the Cedar Rapids to Manly mainline, but also operated branch lines to Oelwein and Forest City.  Today, CN operates the Cedar Rapids Subdivision between Cedar Rapids and Waterloo; and the Manly Subdivision between Waterloo and Manly.  South of Cedar Rapids, portions of the line have become part of the Hoover Nature Trail, while other sections are outright abandoned.

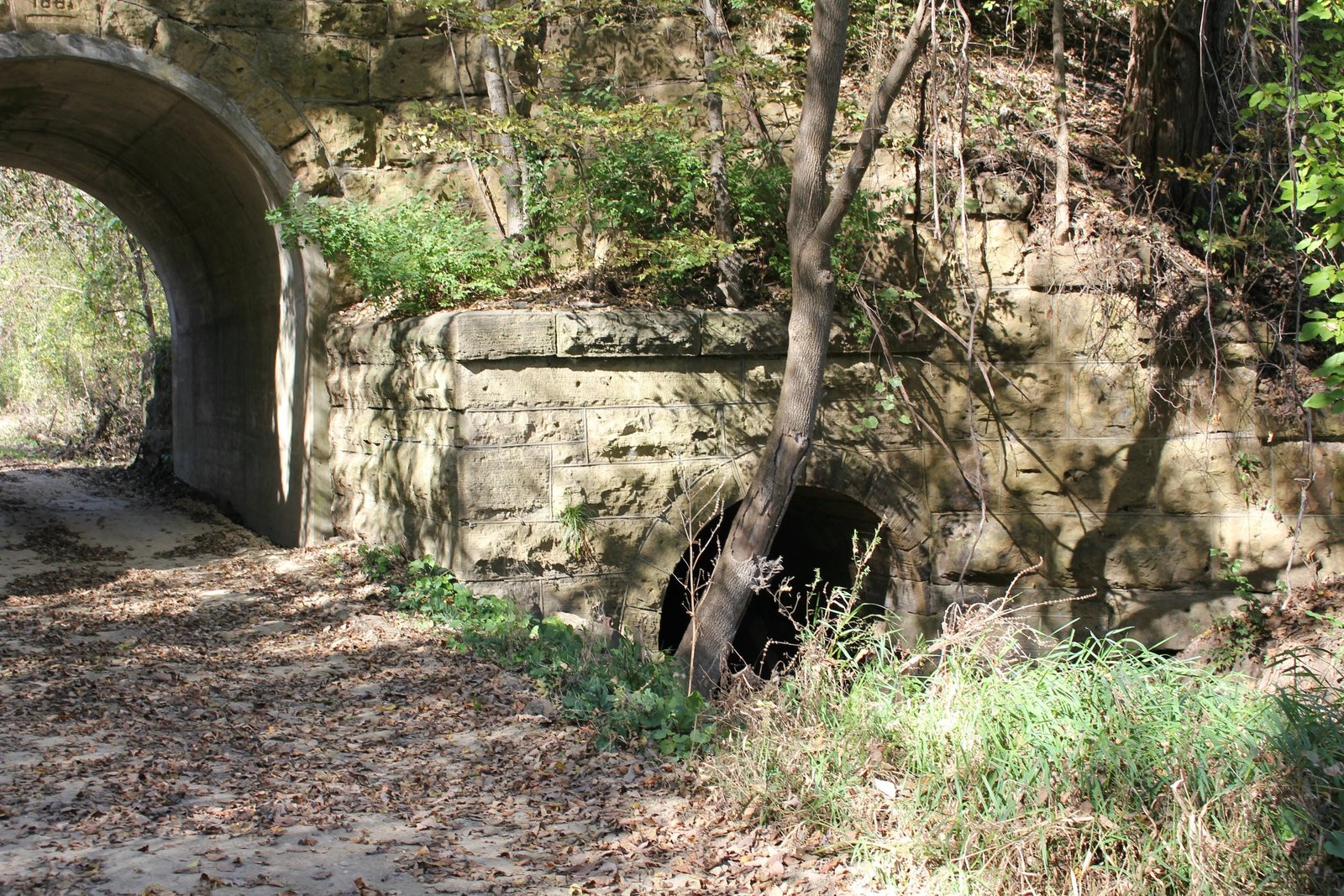

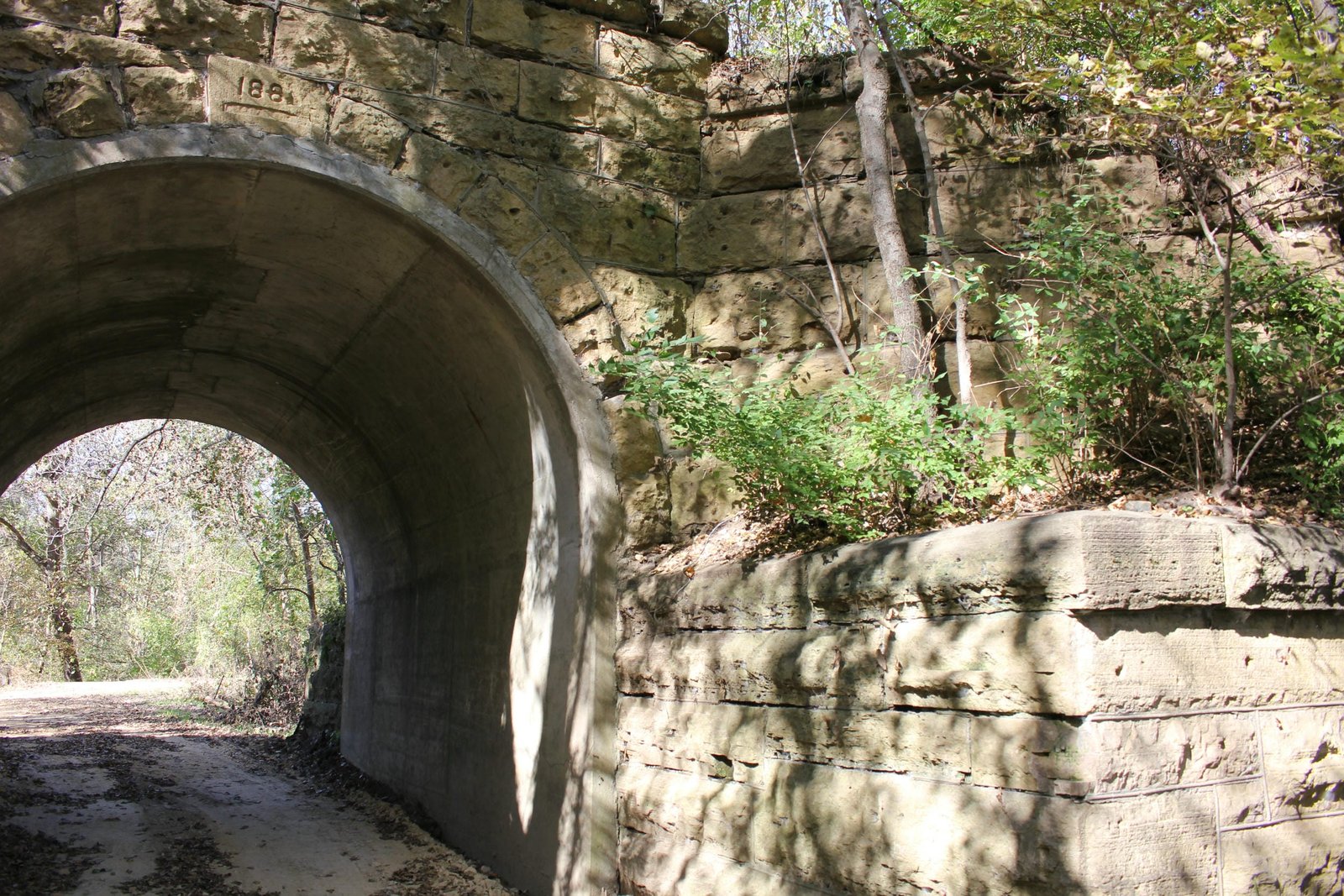

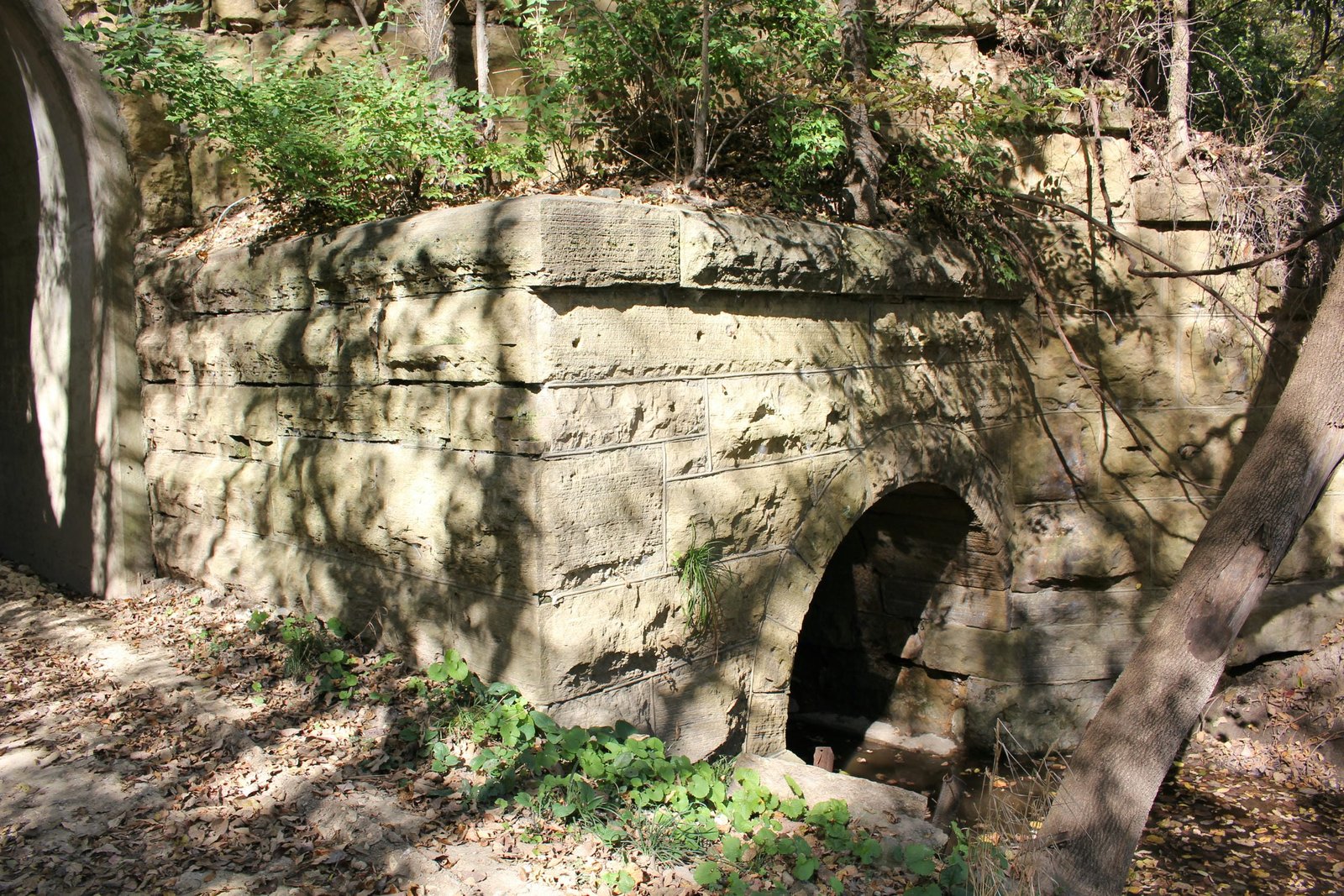

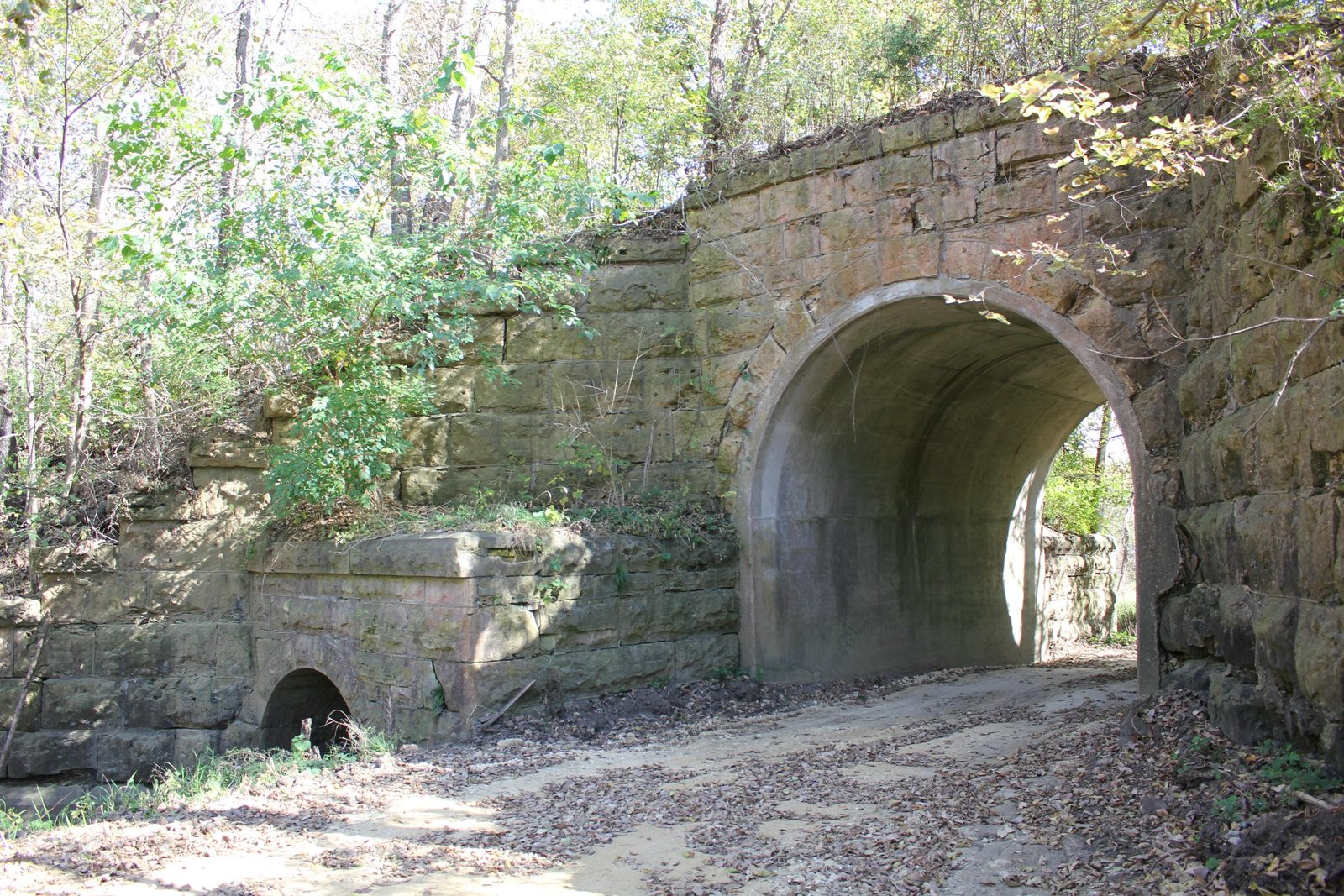

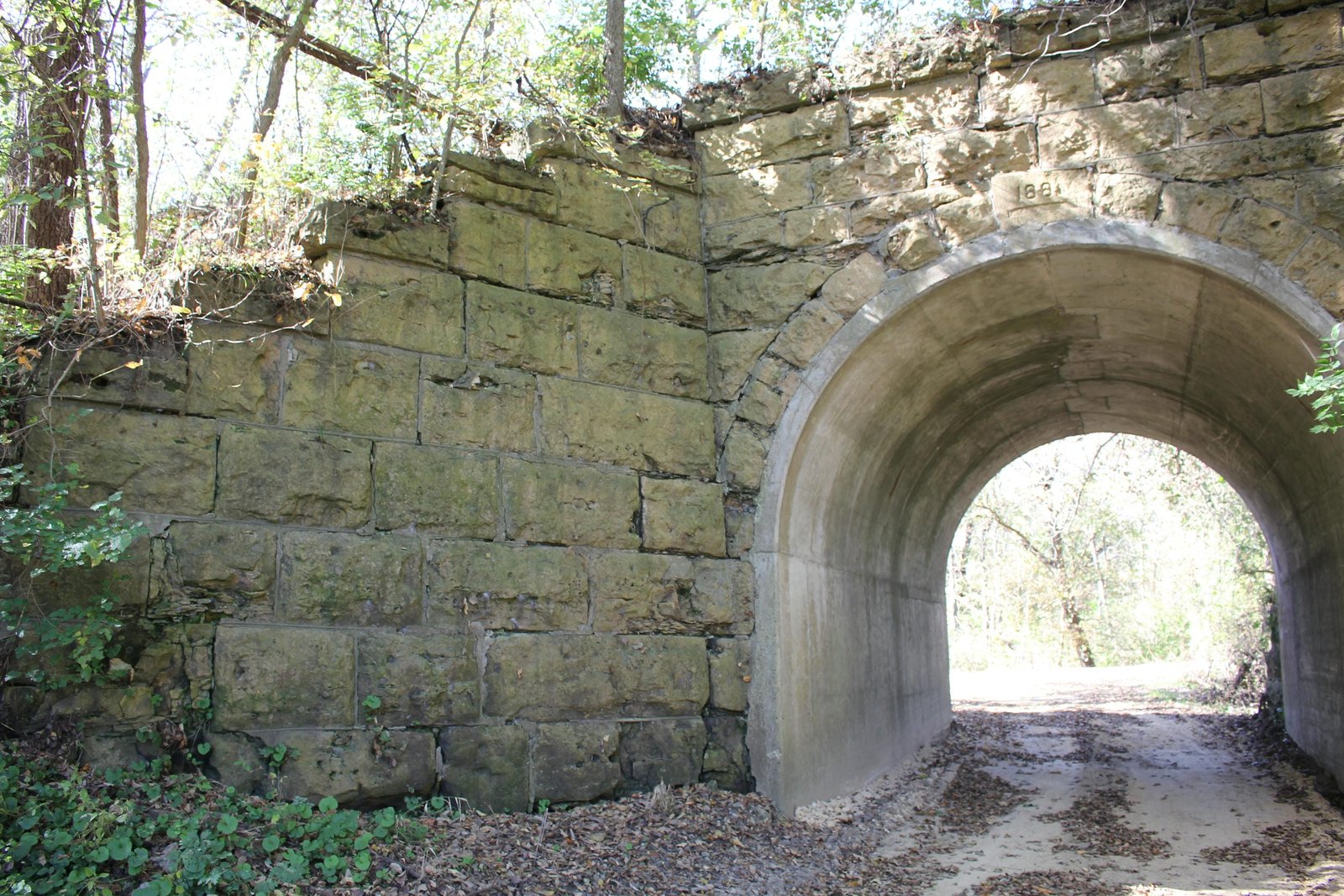

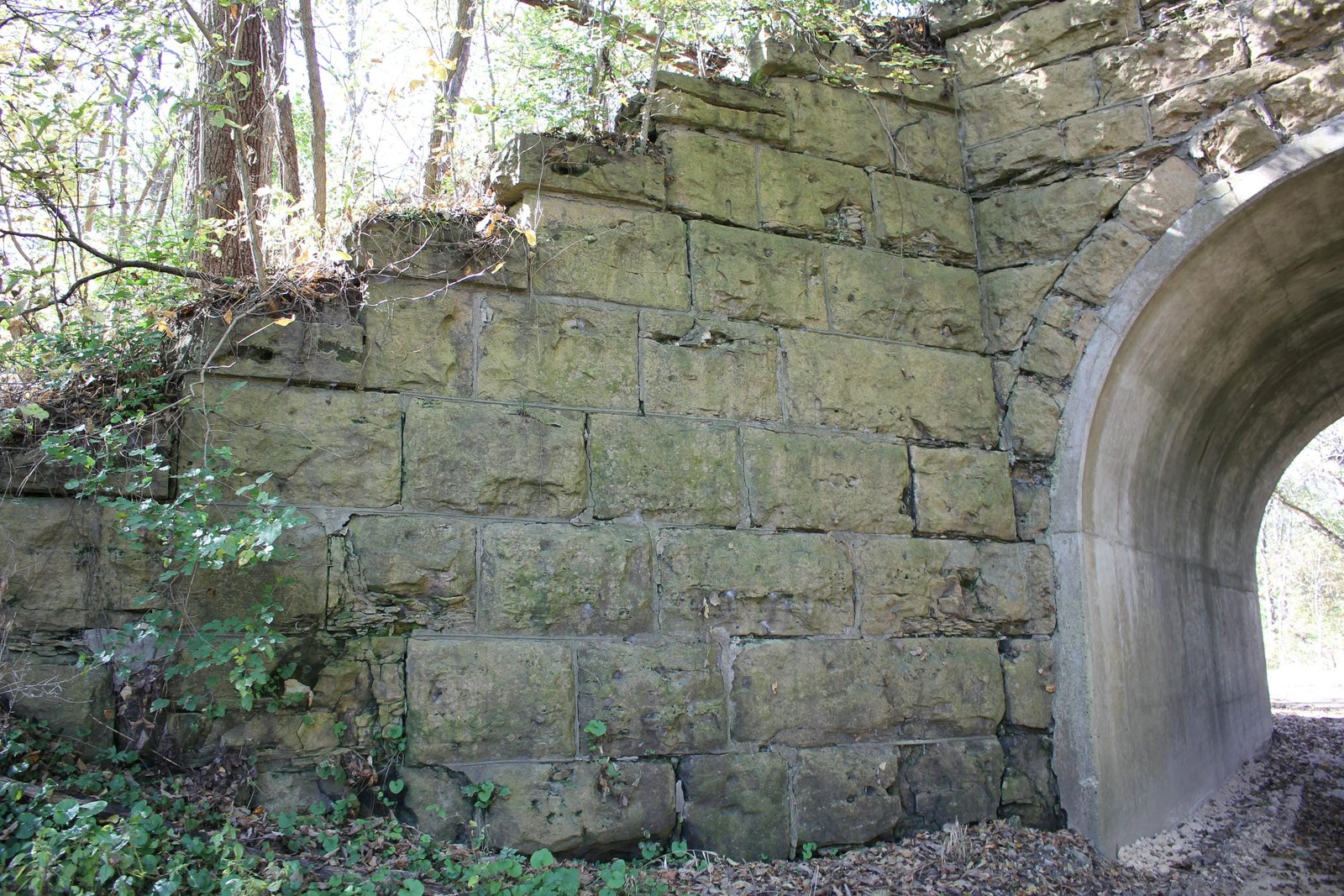

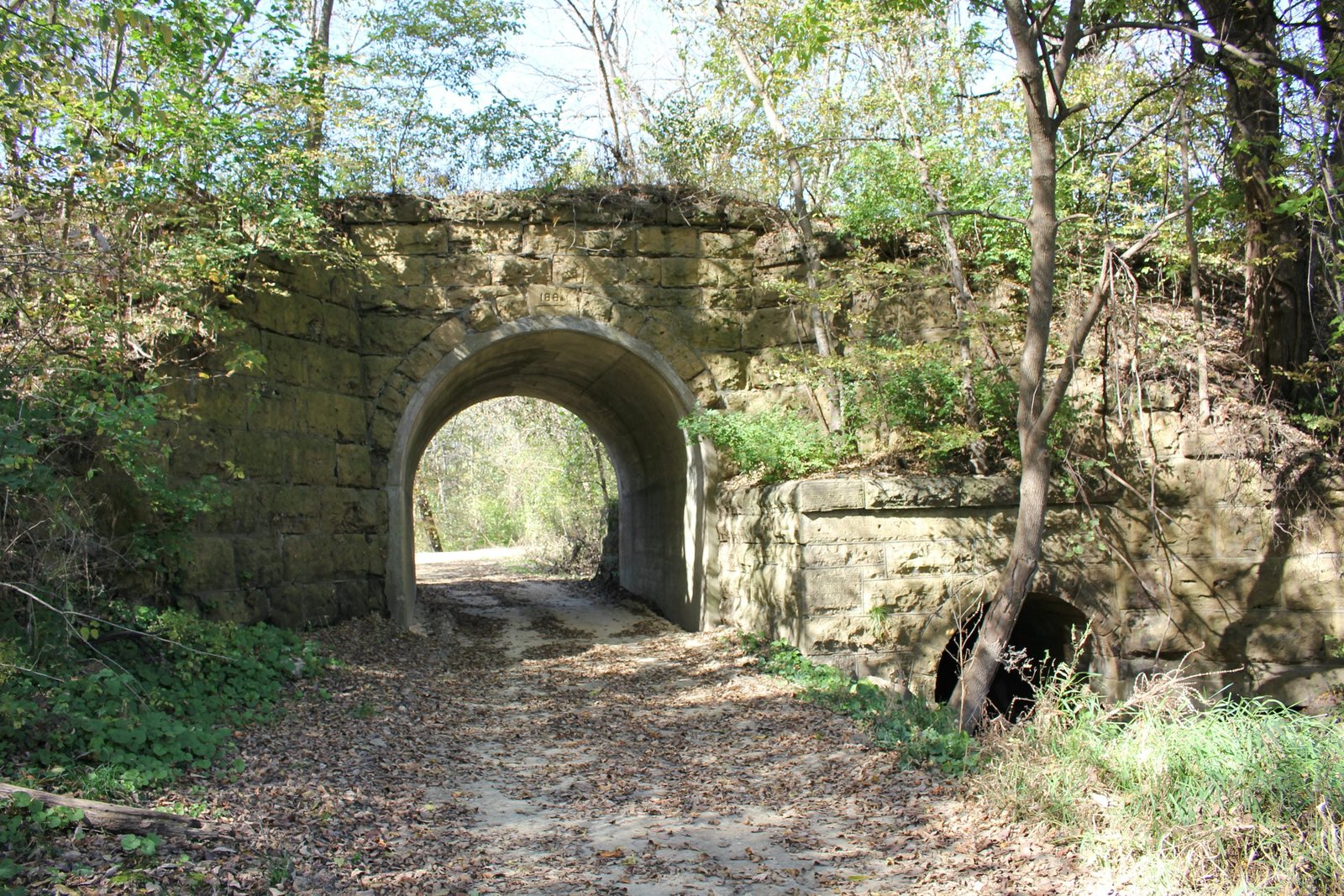

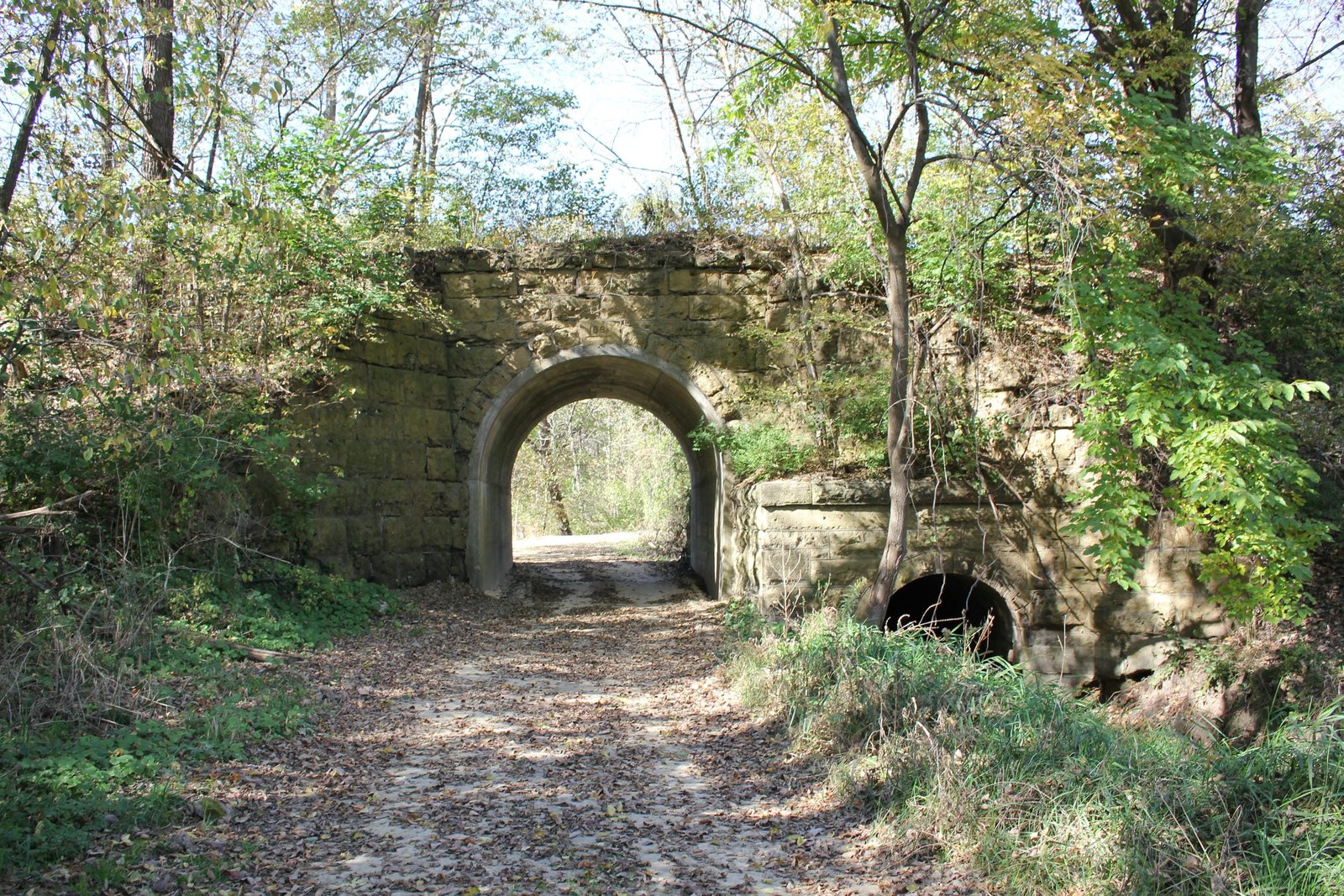

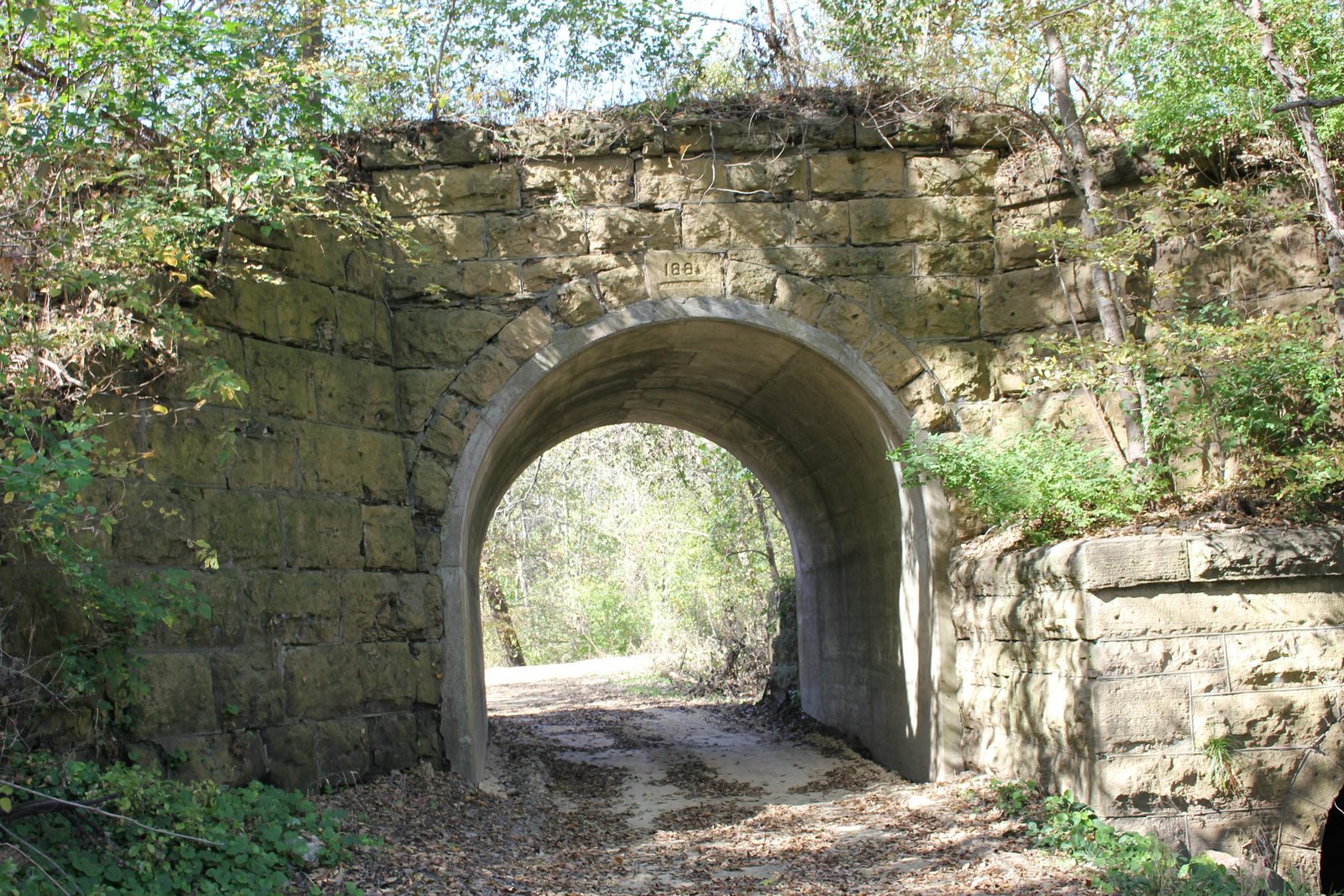

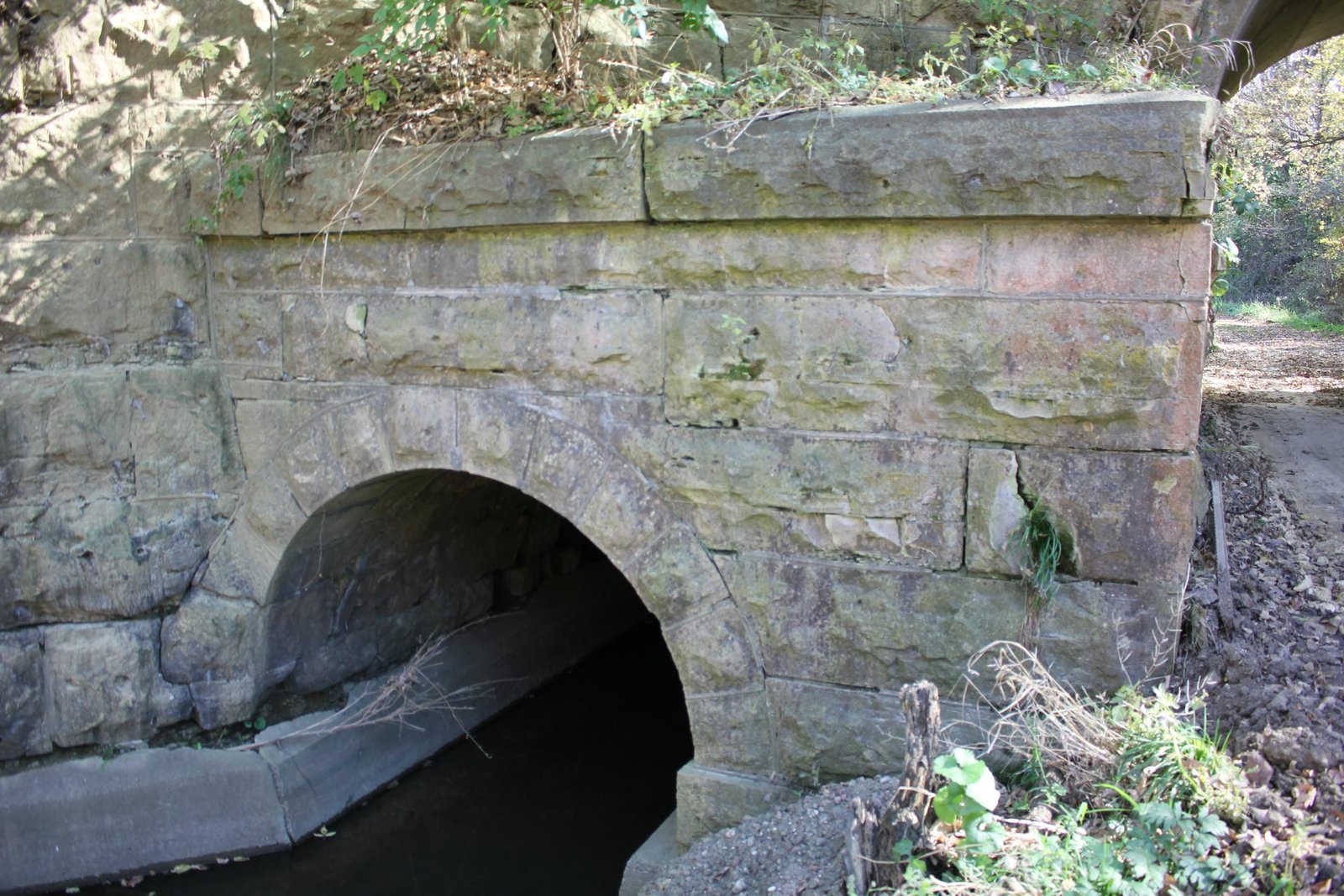

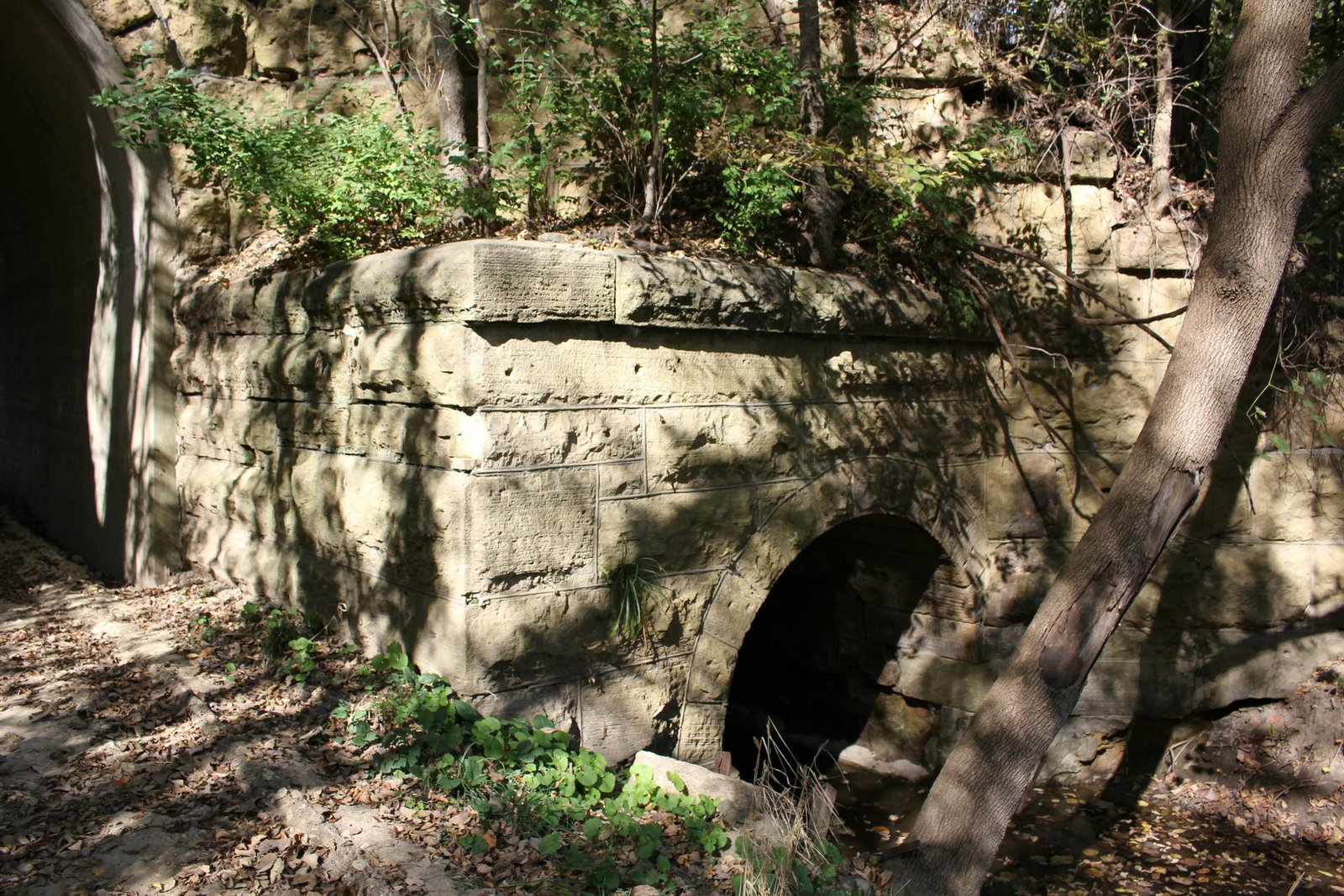

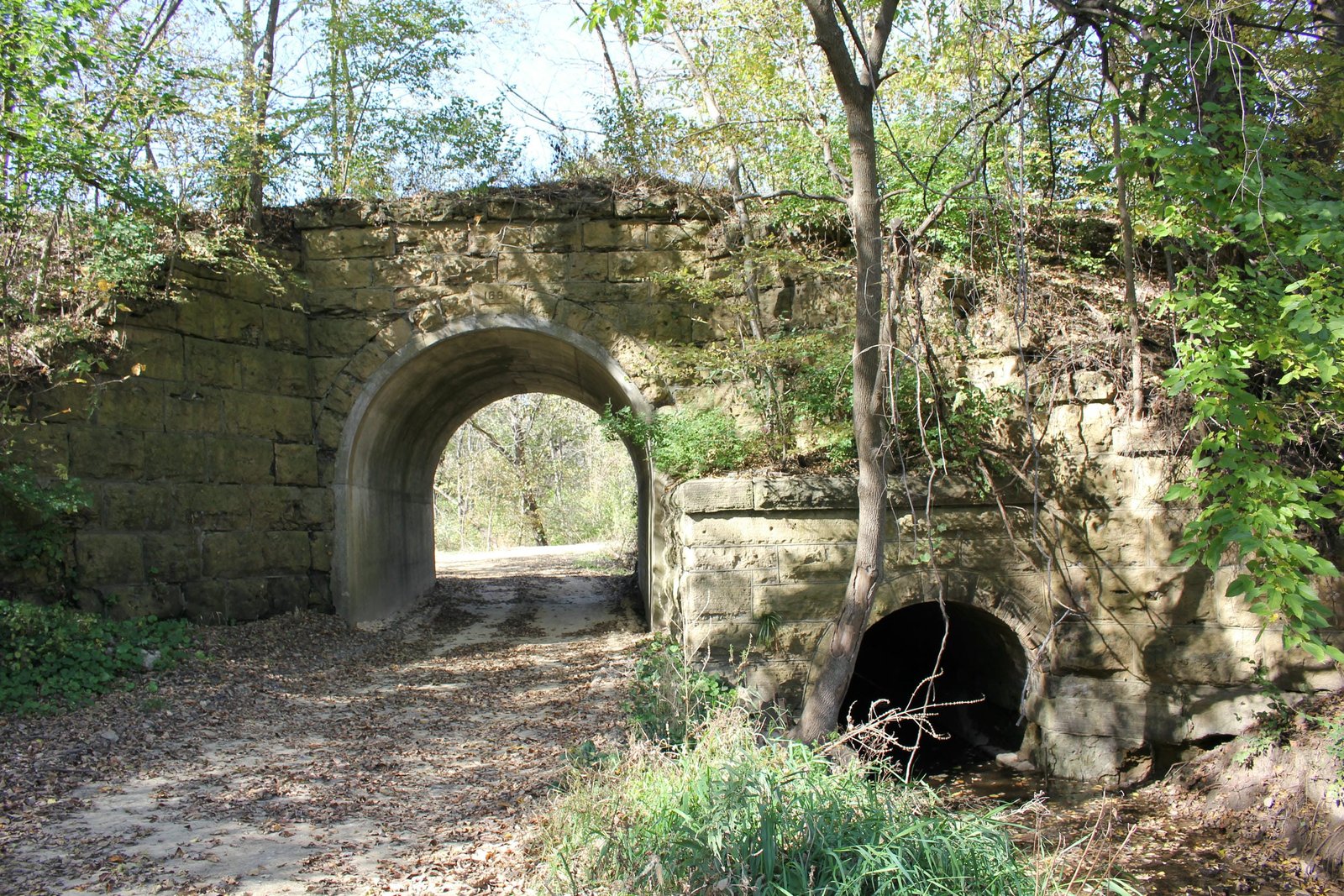

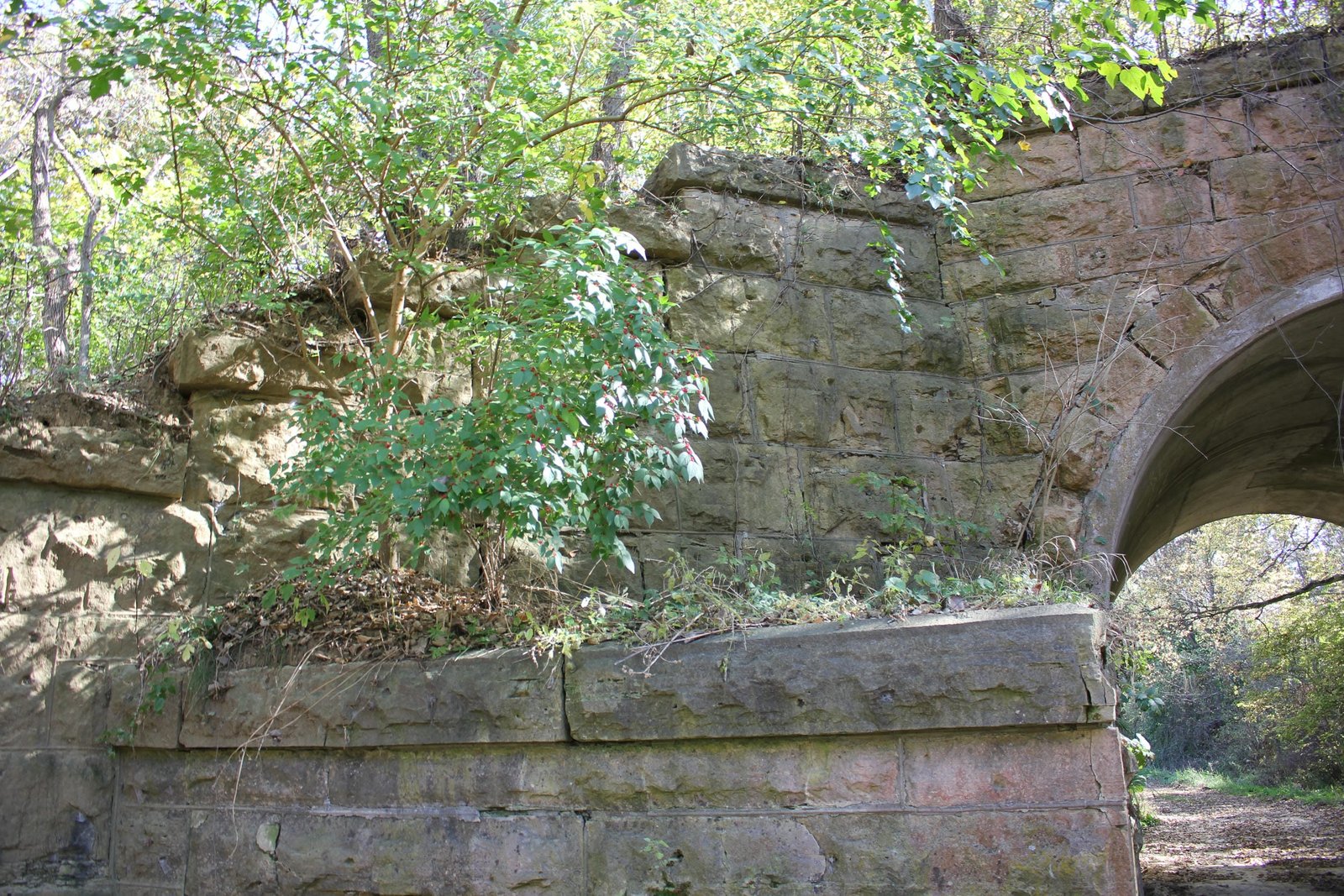

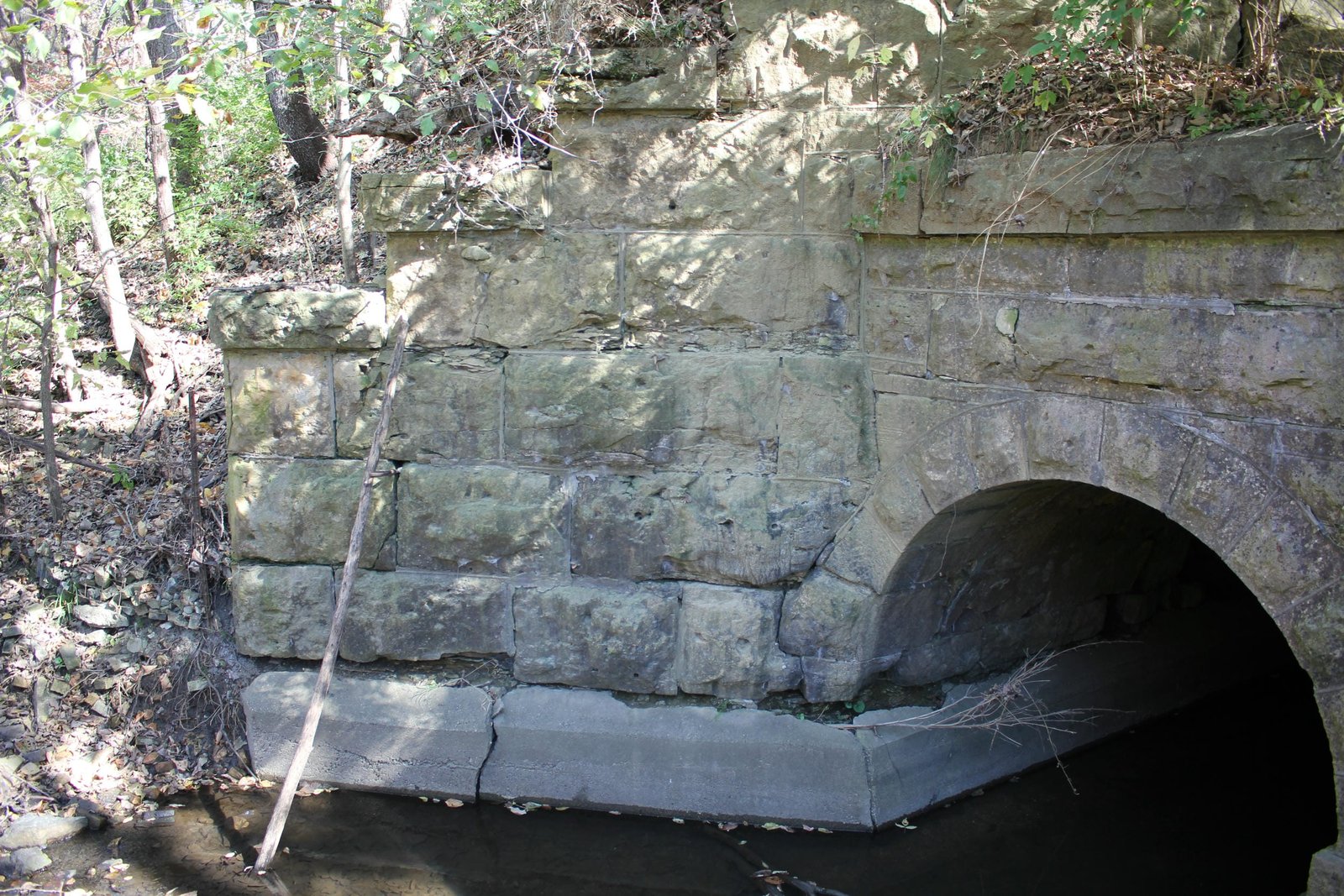

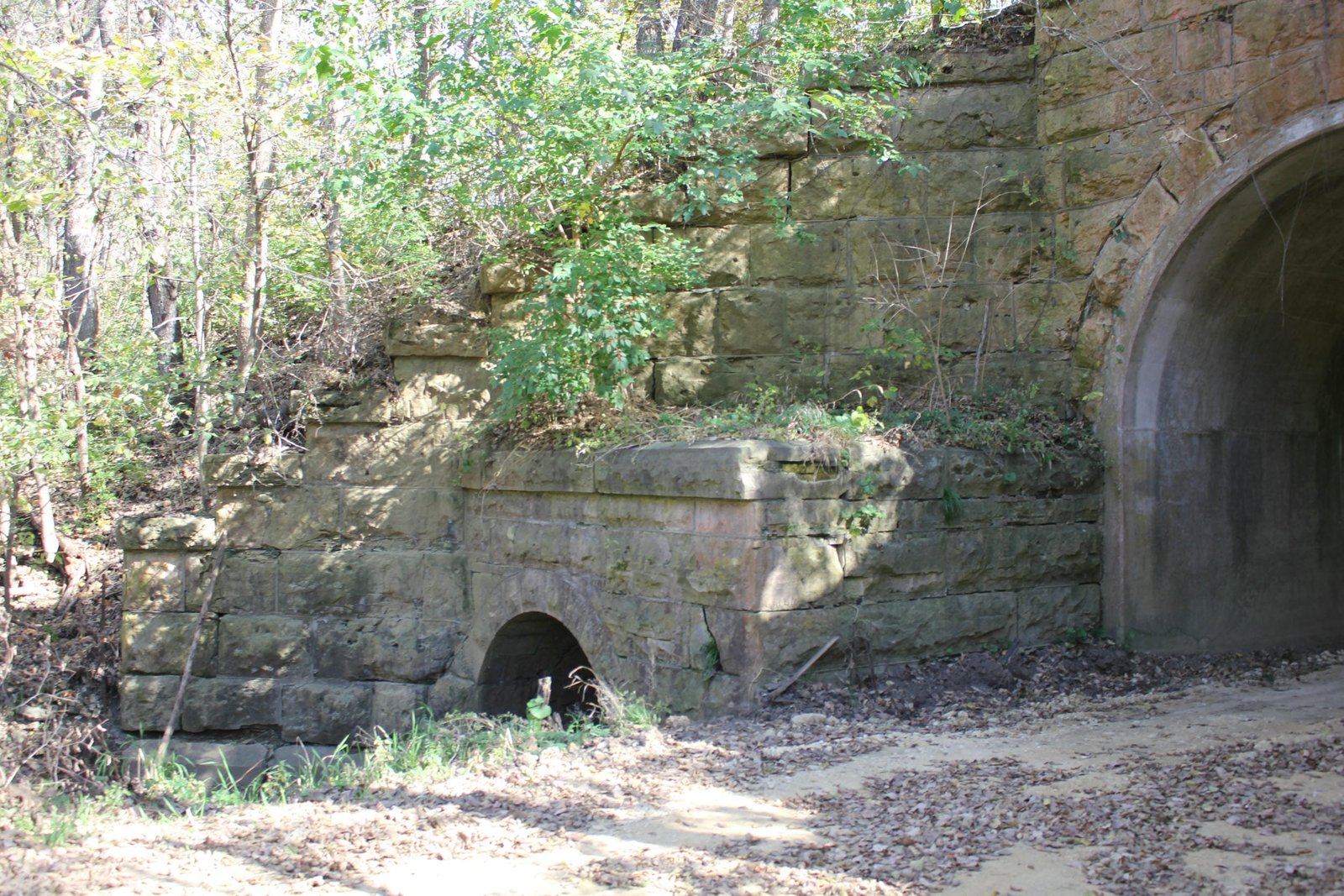

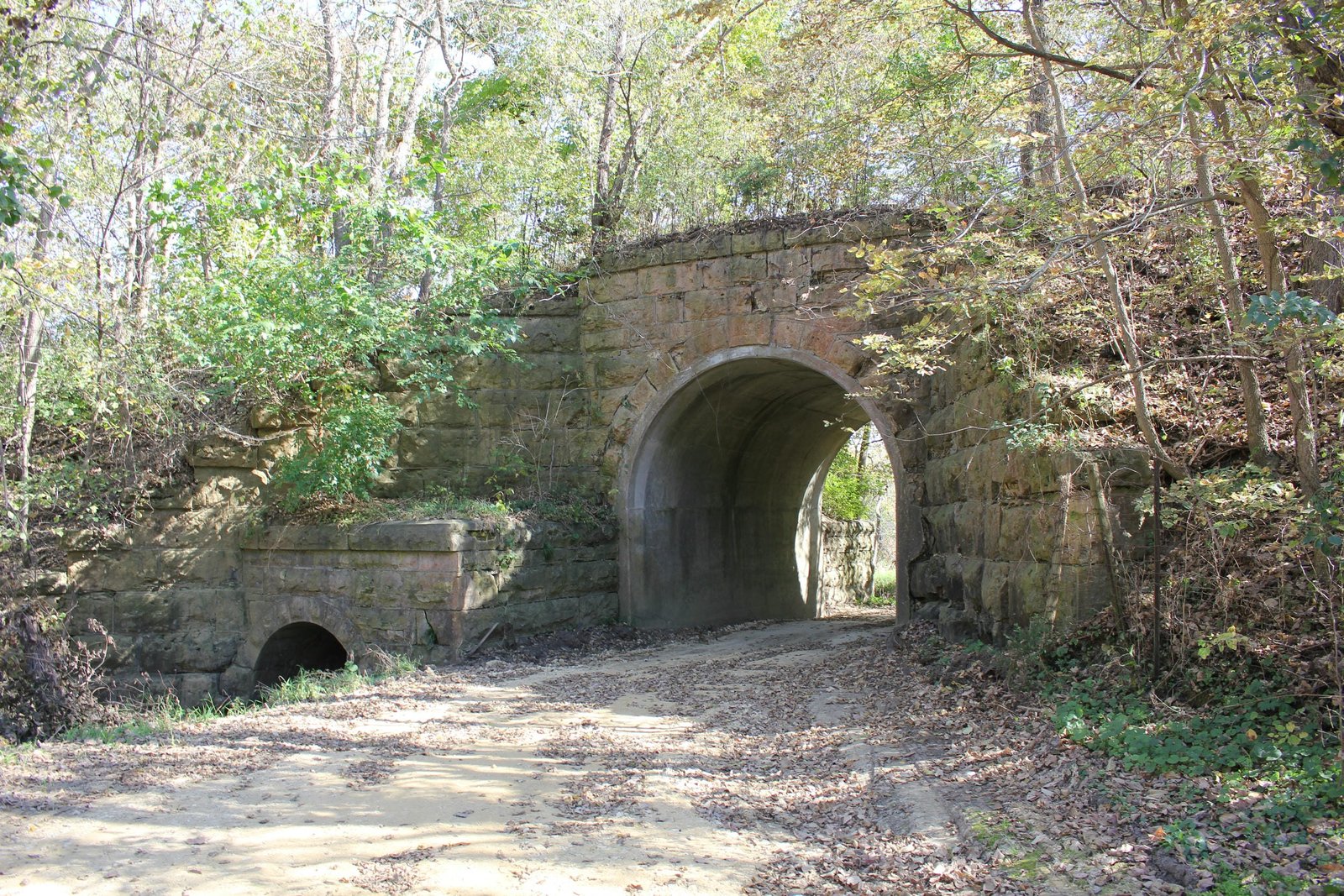

Located north of Morning Sun, this unique stone arch bridge carries a former Chicago, Rock Island & Pacific Railroad mainline over a private driveway and an unnamed creek. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. Starting in the 1880s, the BCR&N invested significant capital into this line, replacing many of the aging timber bridges with new stone and iron structures. In 1886, the original trestle was replaced by the present structure. Currently, the bridge consists of a 16-foot stone arch span (south span) over the driveway and an 8-foot stone arch span (north span) over the creek. The entire bridge is set onto stone substructures and was constructed for a single track at widths of 28 feet (16-foot span) and 45 feet (8-foot span). The bridge uses an unusual design, where the smaller arch is set into and behind the substructure of the larger arch. Both arches use a semicircular shape and are traditionally constructed. The larger arch uses tall headwalls and has stepped wing walls which extend at a diagonal from the bridge. The smaller arch has a flat top that is flush with approximately halfway up the larger arch and the north end is built into the north wing walls. Stone for the structure consists of a yellowish limestone, likely quarried at Cedar Valley, Iowa. It is unclear if the bridge was constructed by an unknown contractor, or by railroad company forces. Stone arches were popular for railroad use, as they were durable and easy to construct. It is unclear why such an unusual design was used at this location, when a single 24-foot stone arch would have been sufficient. Since the initial construction, the bridge has seen some alterations, including lining the main arch with concrete and reinforcing the base of the smaller arch with concrete. Today, the bridge is abandoned, although some sources indicate that it is part of the Hoover Nature Trail. Louisa County property records indicate that the bridge is located on private property, and it is unclear if the bridge is currently, ever has been or ever will be used as part of a trail. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked the bridge as being locally significant, due to the unusual design.


Citations

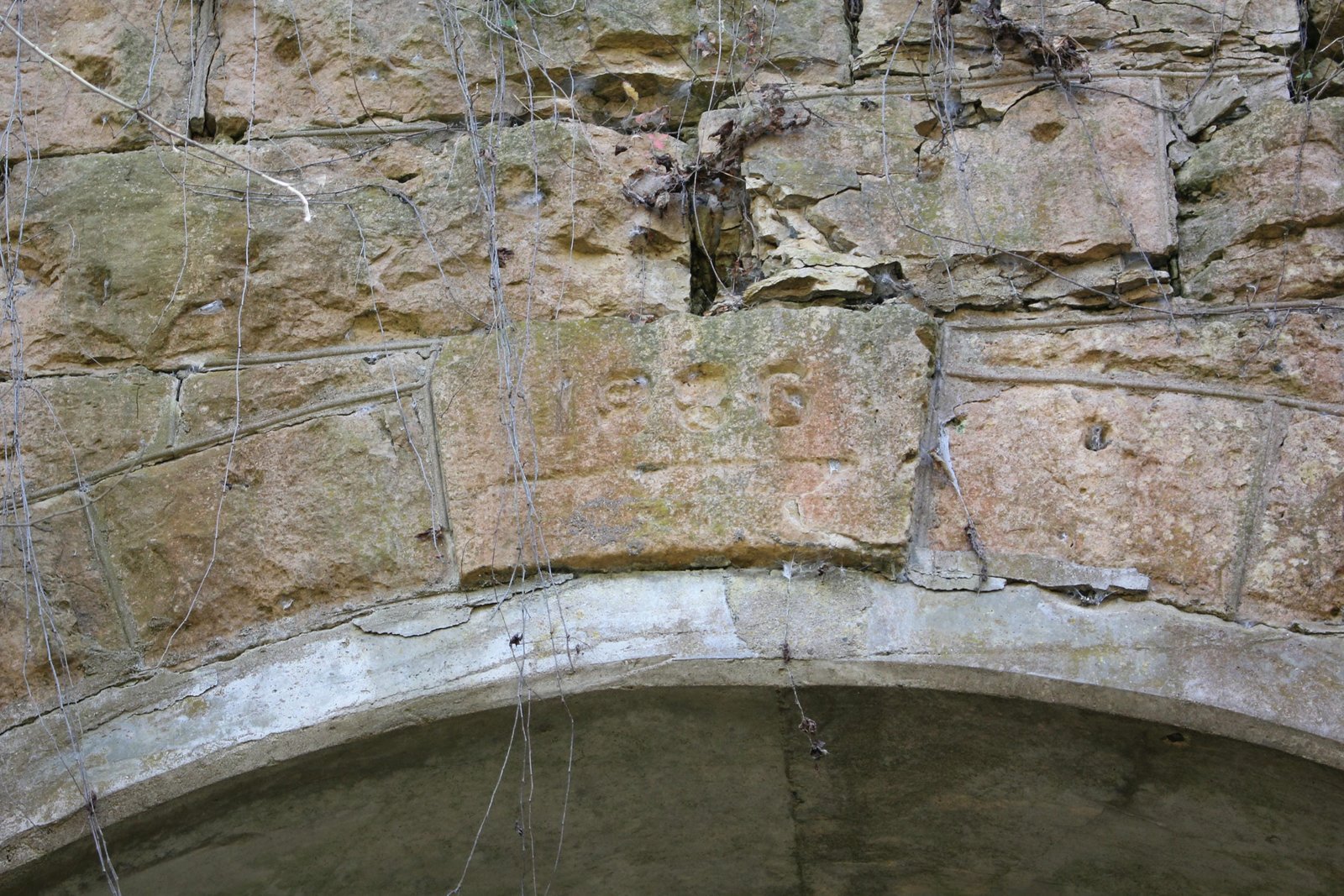

Build date Date carving
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
