Yocum Junction Railroad Bridge


Click the photo to view the full-size version

1/24
Date Taken:
Author:
Caption:

Name Yocum Junction Railroad Bridge
Chicago, Rock Island & Pacific Railroad Bridge #2589
Built By Chicago, Rock Island & Pacific Railway
Chicago, Milwaukee, St. Paul & Pacific Railroad
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Lassig Bridge & Iron Works of Chicago, Illinois (Main Span)
Unknown (Approach Spans)
Substructure Contractor Unknown
Length 117 Feet Total, 55 Foot Main Span
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Design Through Plate Girder and Deck Plate Girder
Substructure Design Concrete
Date Fabricated c. 1895 (Center Span)
c. 1895 (Approach Spans)
Date Erected c. 1940
Original Location Unknown (Center Span)
Unknown (East Span)
Unknown (West Span)
Traffic Count 5 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 2589
Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge Number I-150
Significance Local Significance
Documentation Date 10/22/2016; 11/2/2025

In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa.  As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport.  In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864.  In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867.  In 1869, the line would continue to be extended west towards the Missouri River.  At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.

In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.  Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s.  The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

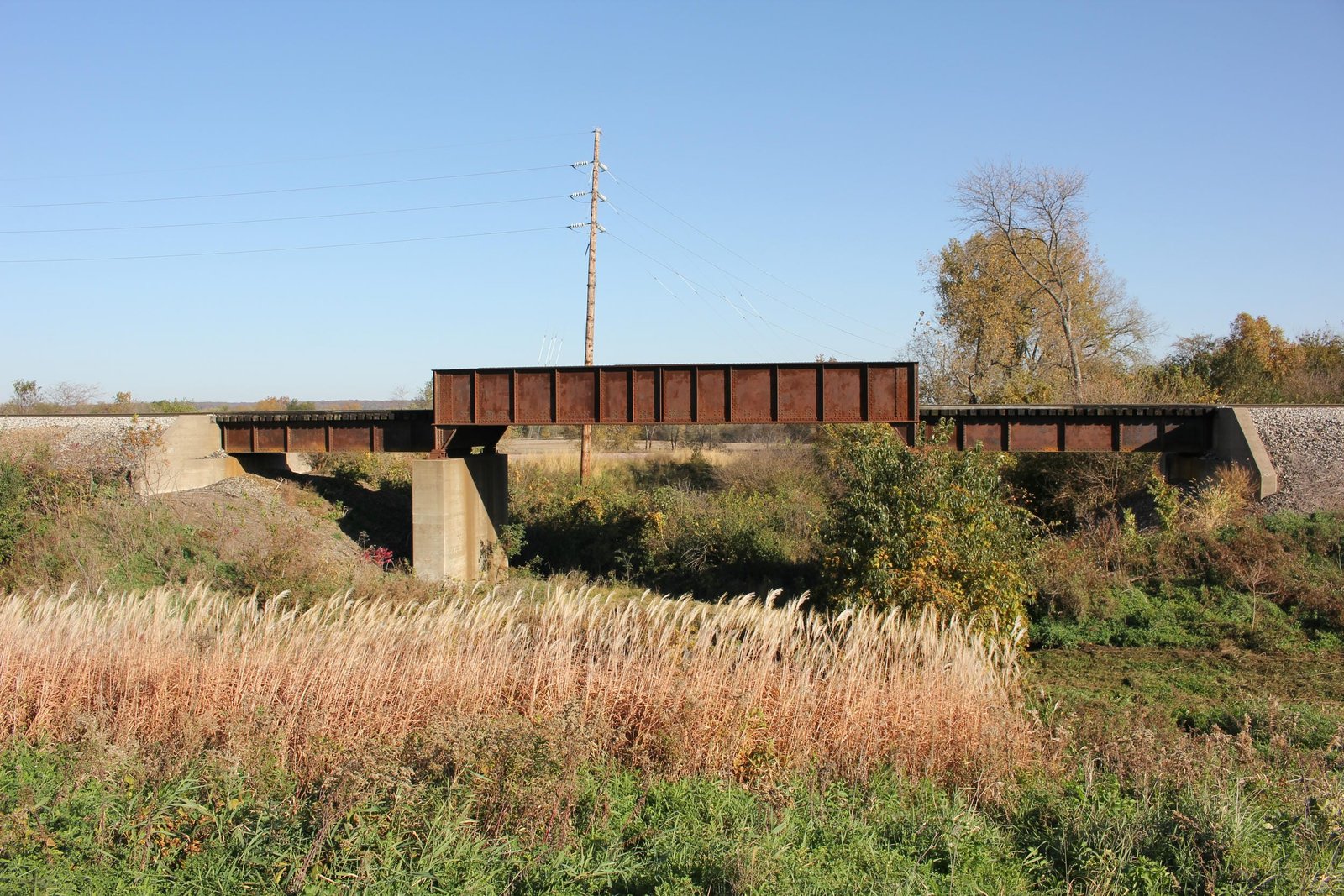

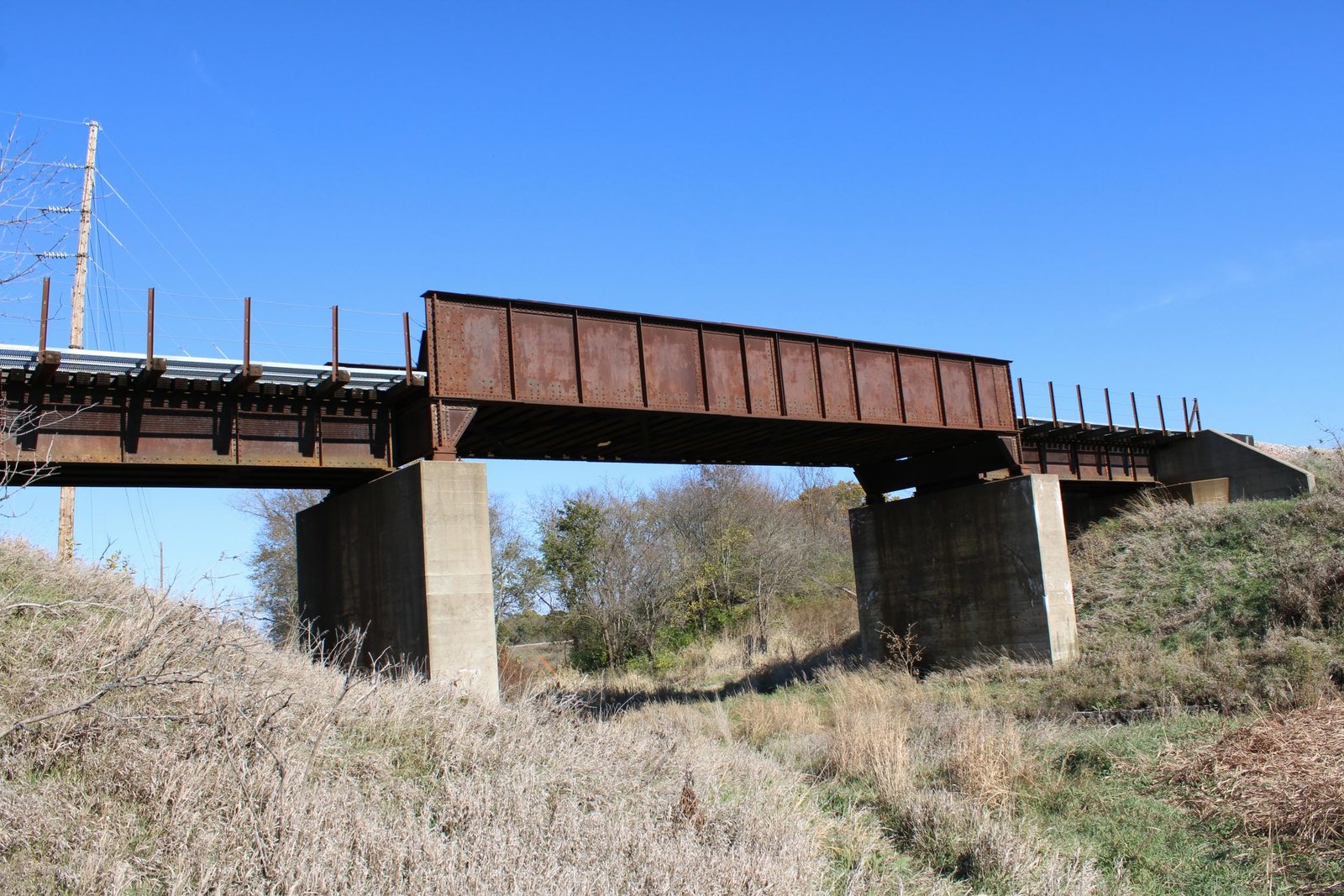

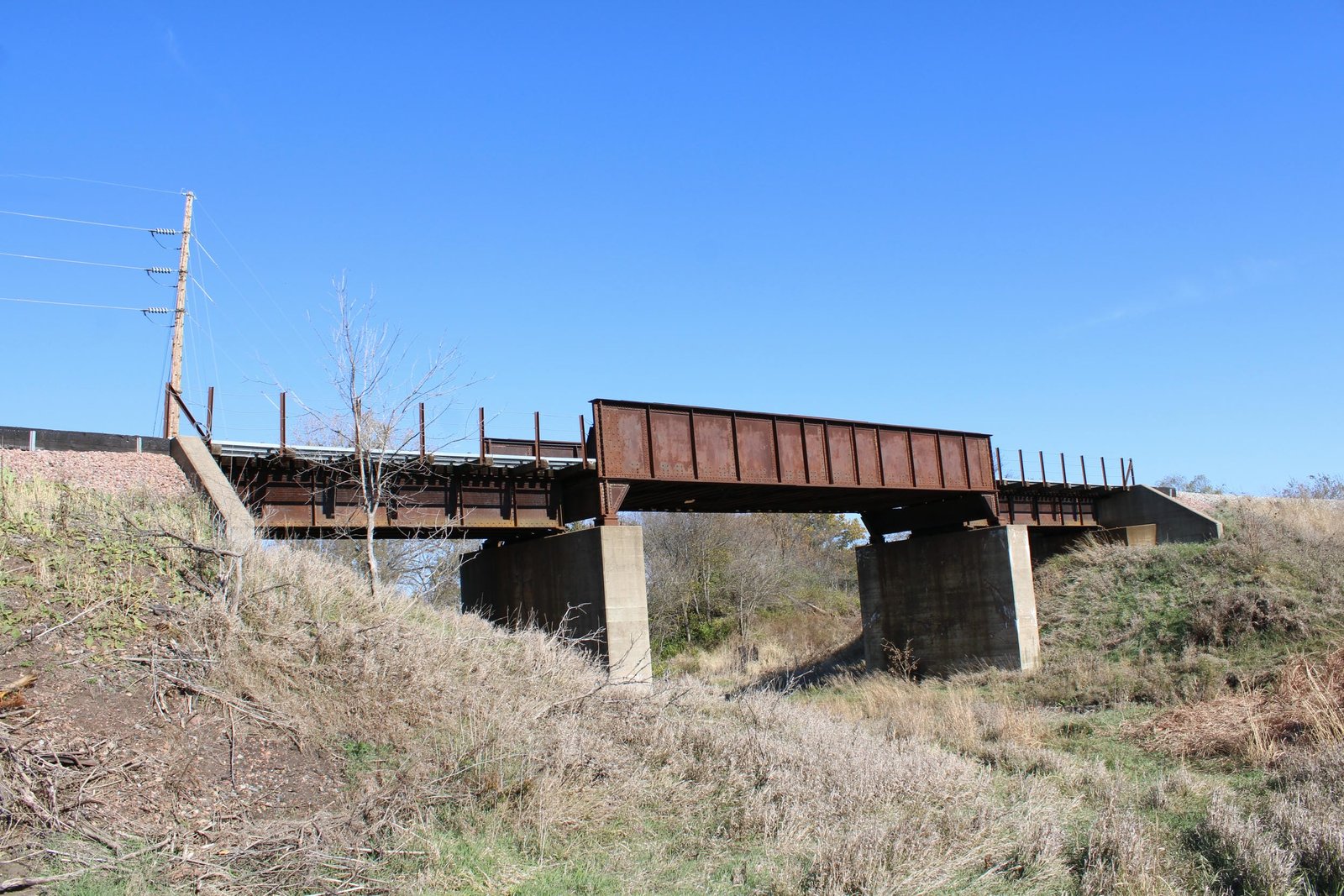

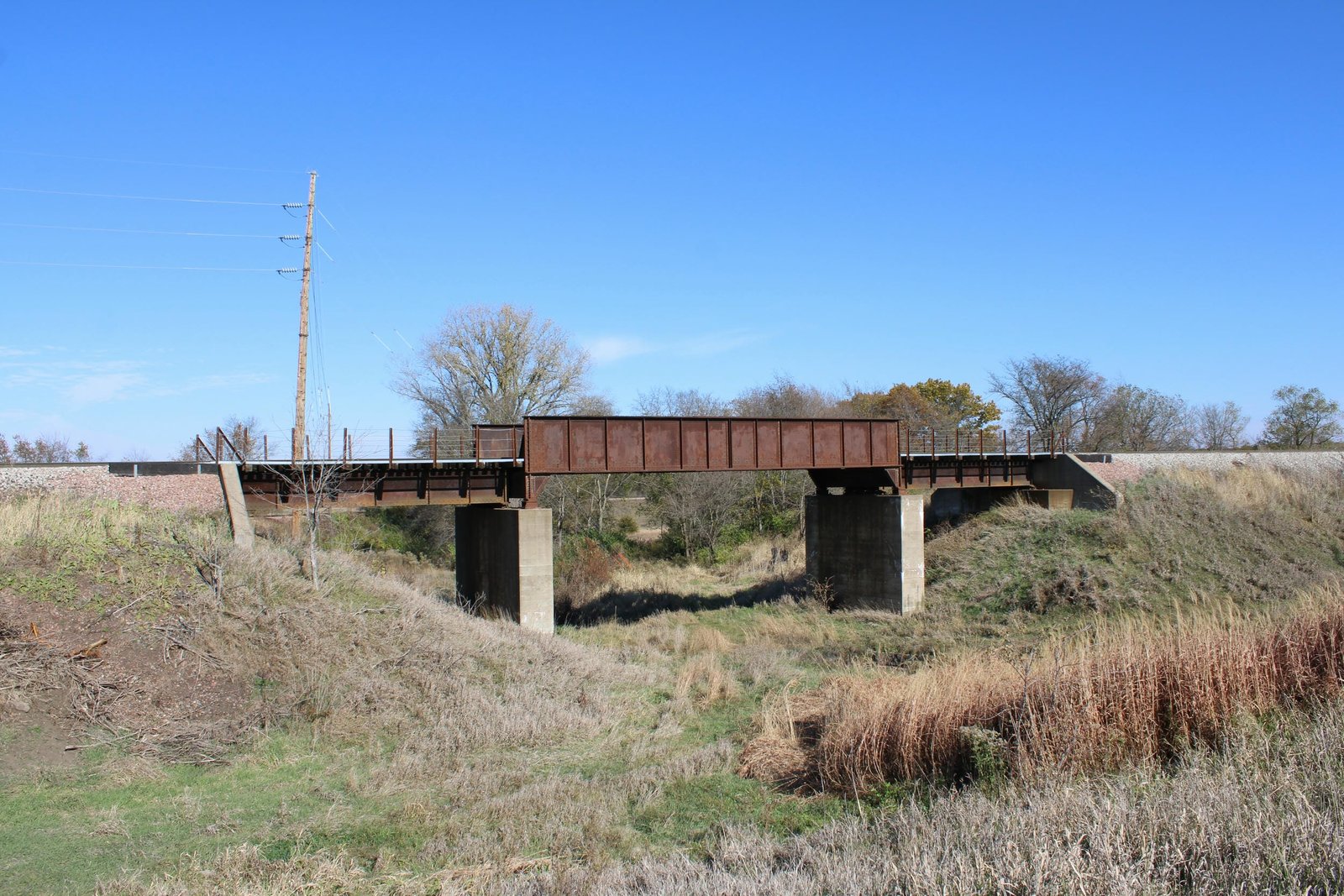

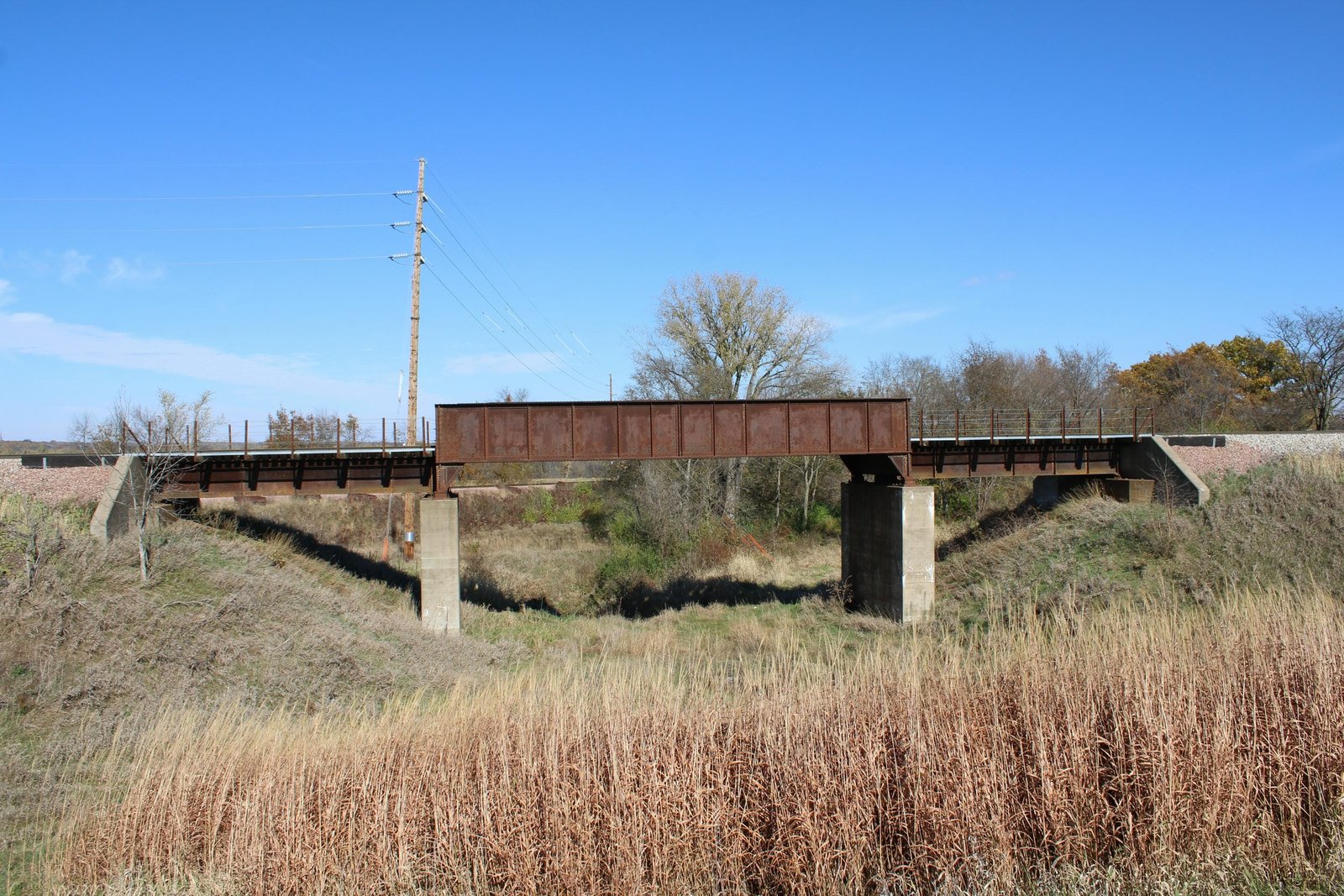

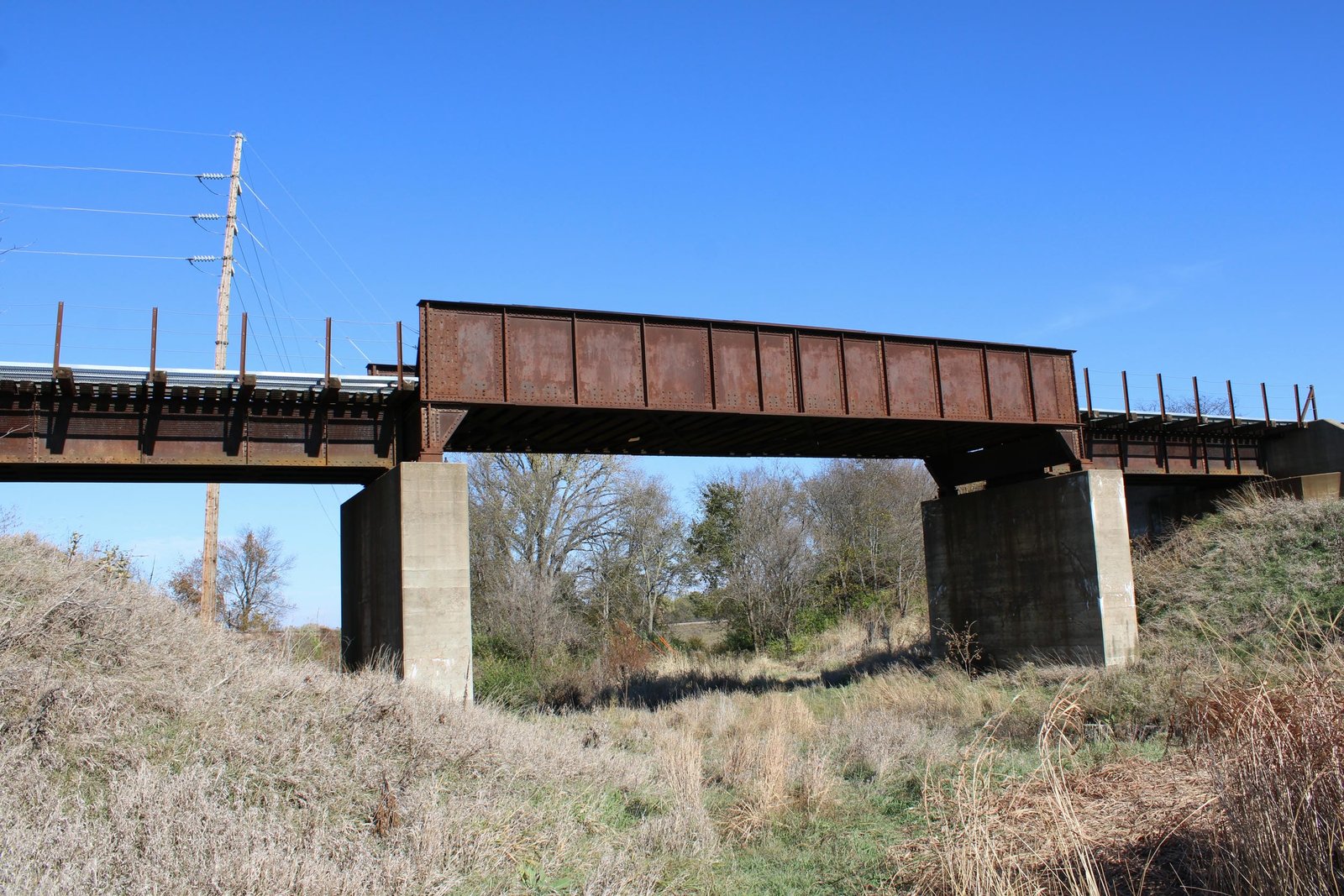

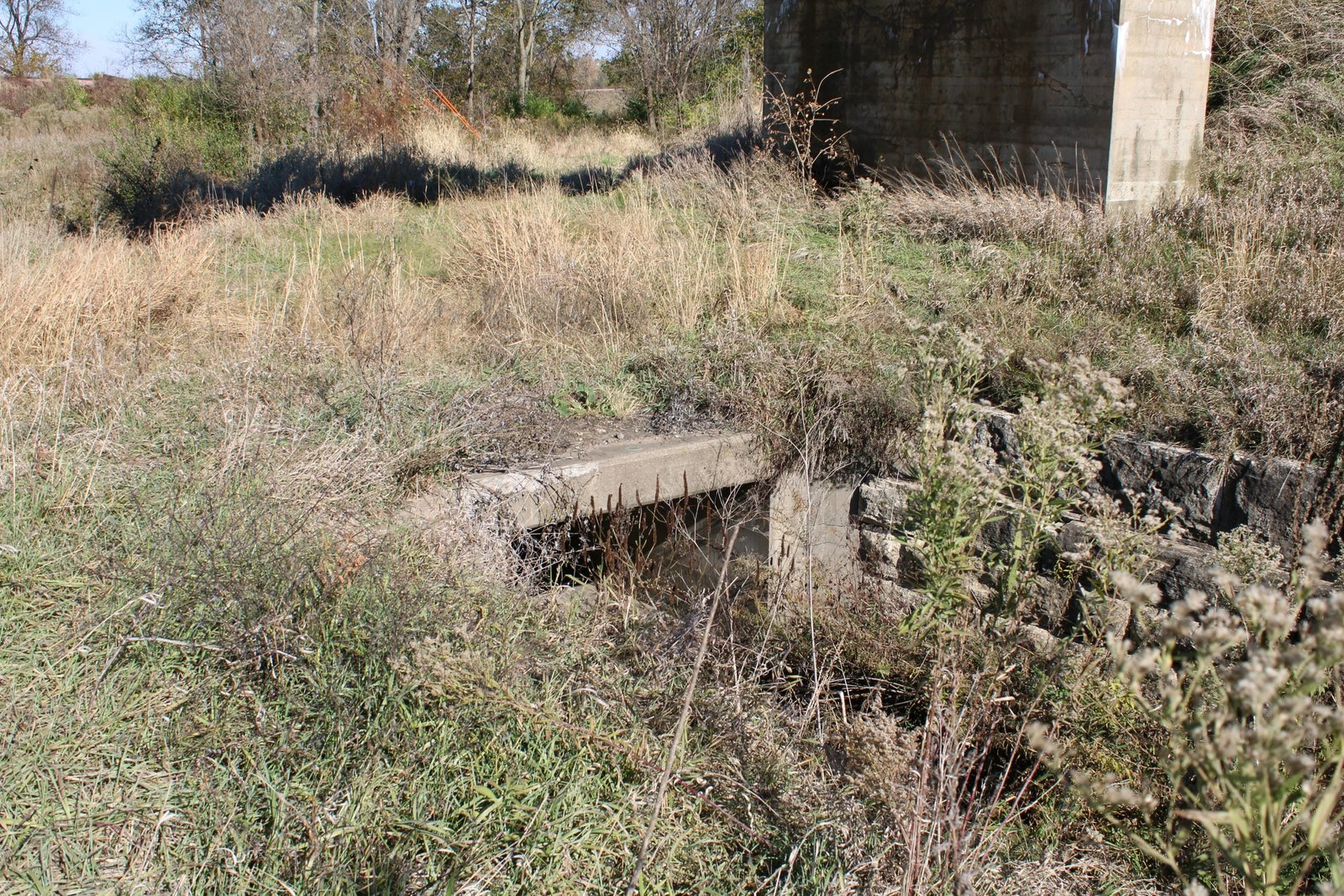

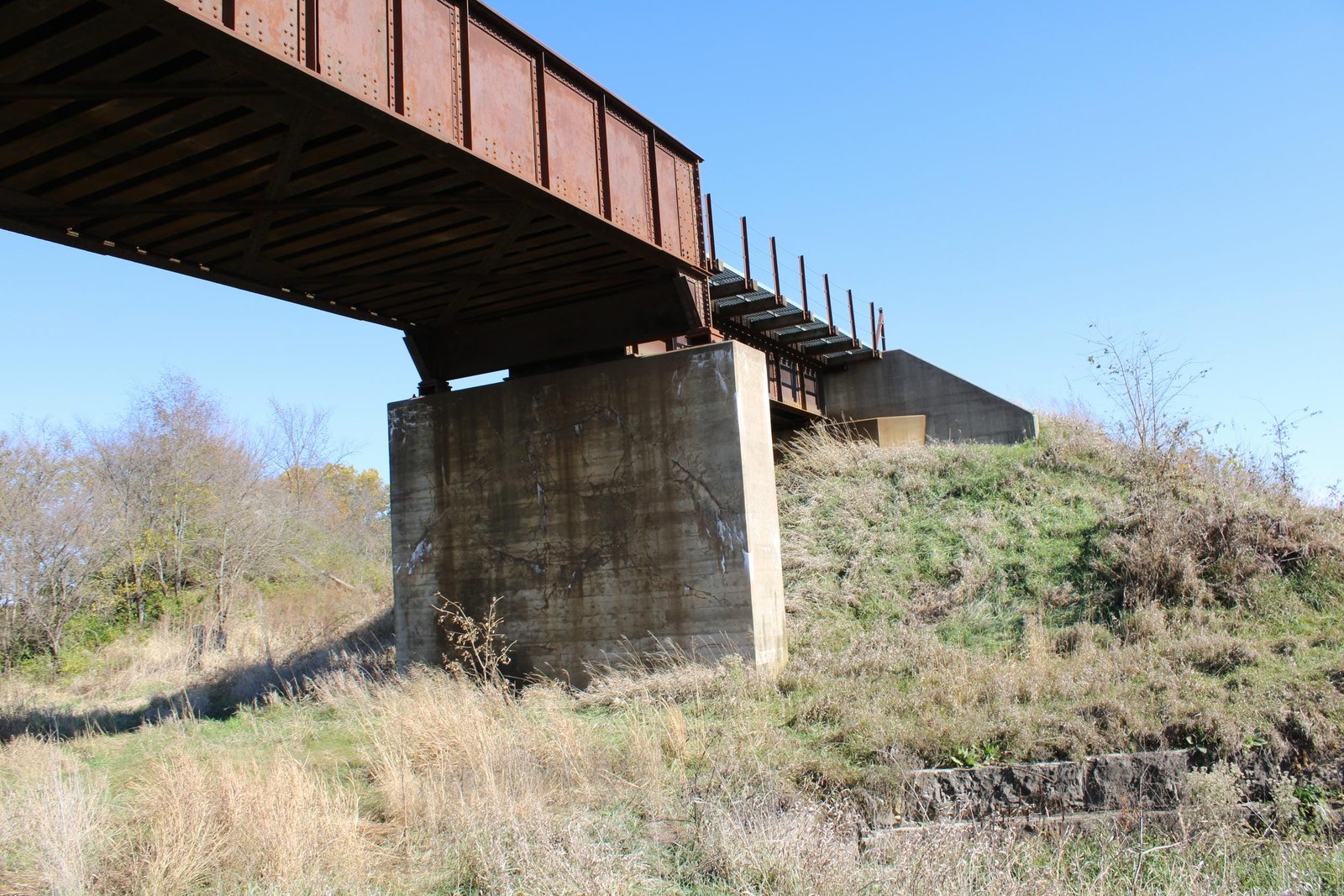

Located alongside US Highways 6 and 151 east of South Amana, this girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over an abandoned Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) secondary line. Little is known about the history of this bridge. It is unclear if maintenance of this bridge was the responsibility of the Milwaukee Road or the Rock Island. Both railroads assigned the bridge their own numbers. The first bridge at this location was constructed in approximately 1887, and consisted of a skewed 28-foot through plate girder span, set onto stone abutments. Judging by aerial imagery, this bridge appears to have lasted into the late 1930s. In approximately 1940, the bridge was reconstructed with the present larger structure. Currently, the bridge consists of one 55-foot through plate girder span, approached by a 31-foot deck plate girder span on either end. The entire bridge is set onto concrete substructures. All three of the spans appear to be secondhand, and were likely reused here from three different unknown locations. It is unclear if the spans were supplied by the Rock Island or the Milwaukee Road, as both railroads used similar designs. It appears that all three of the spans were modified and strengthened upon installation.

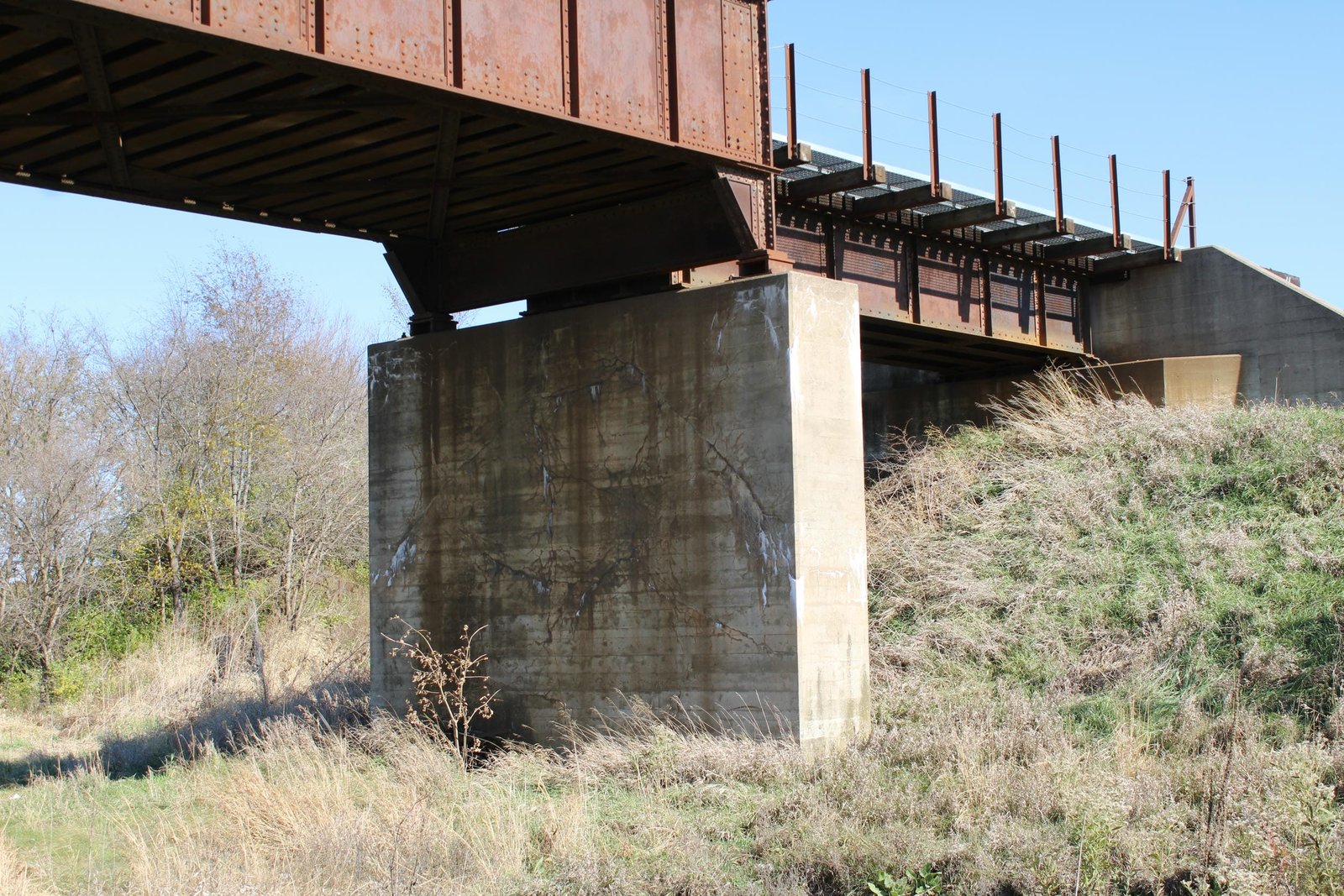

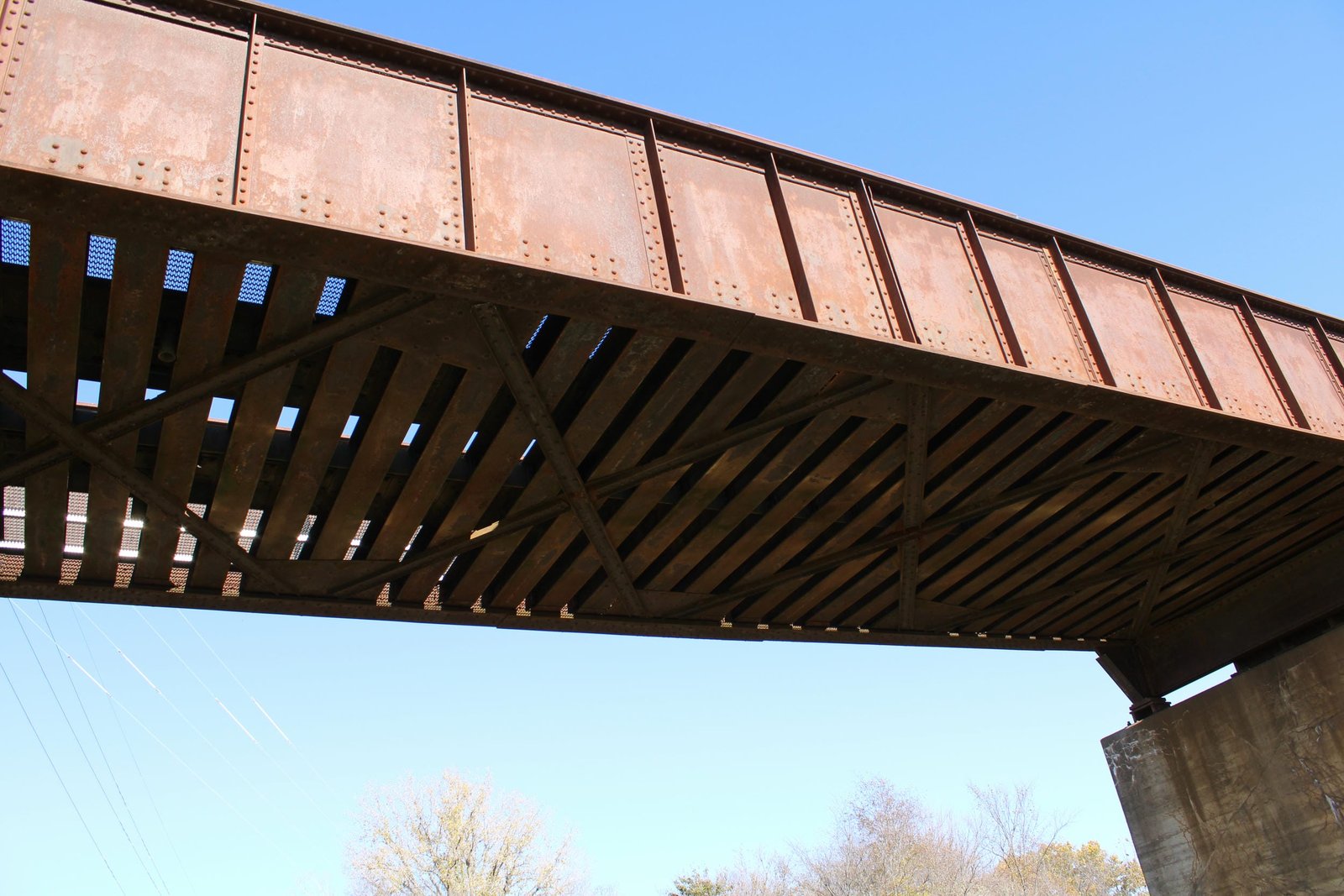

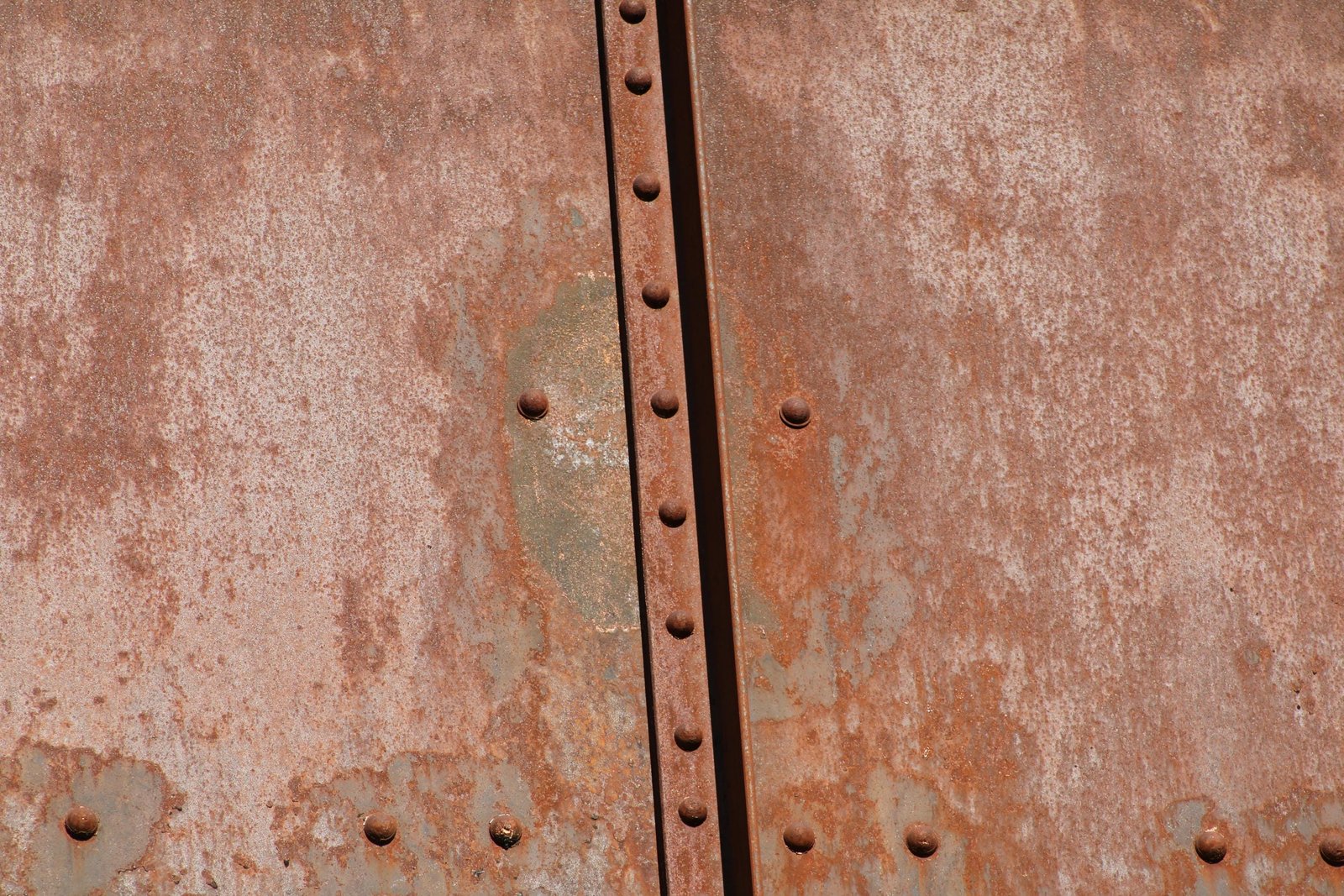

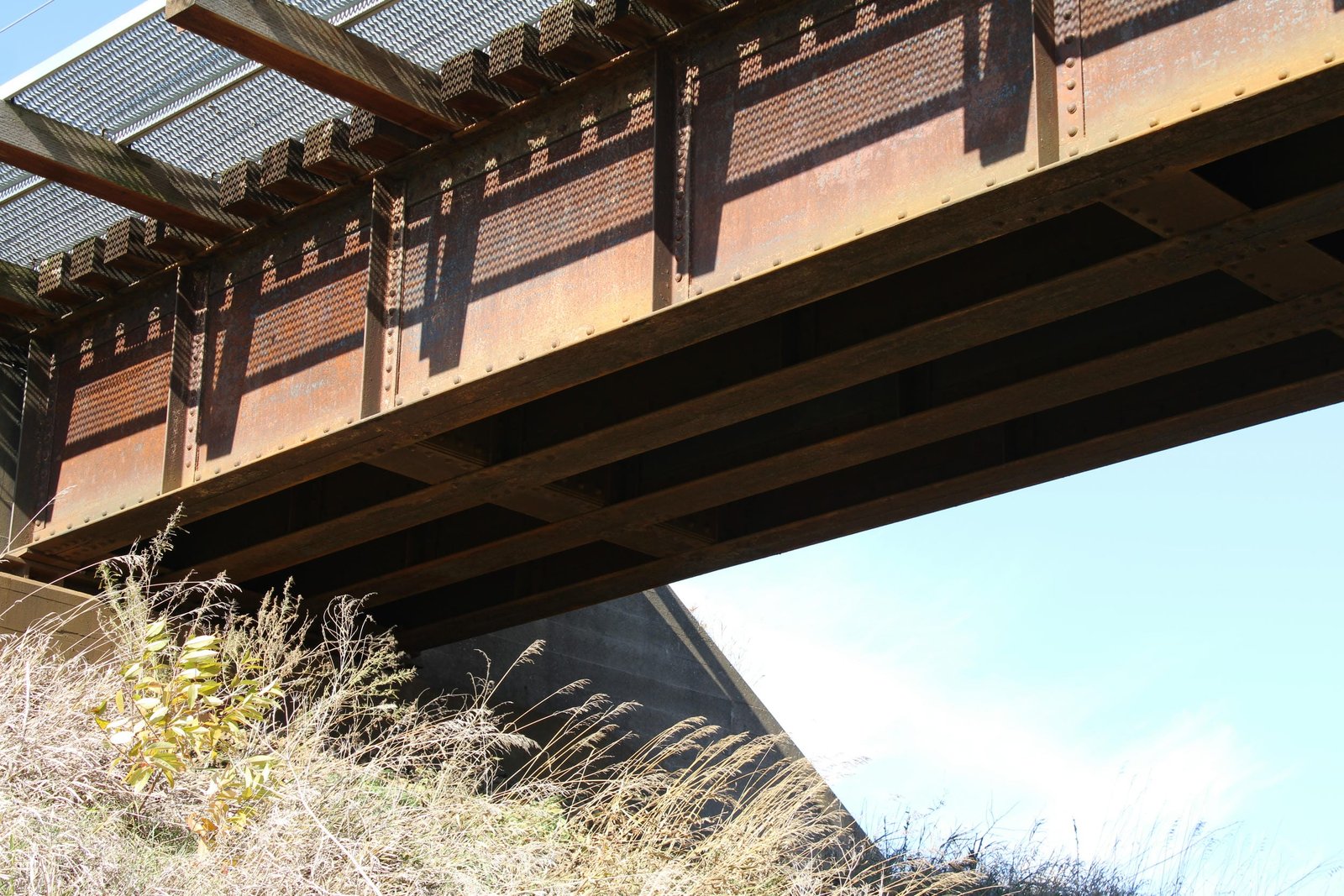

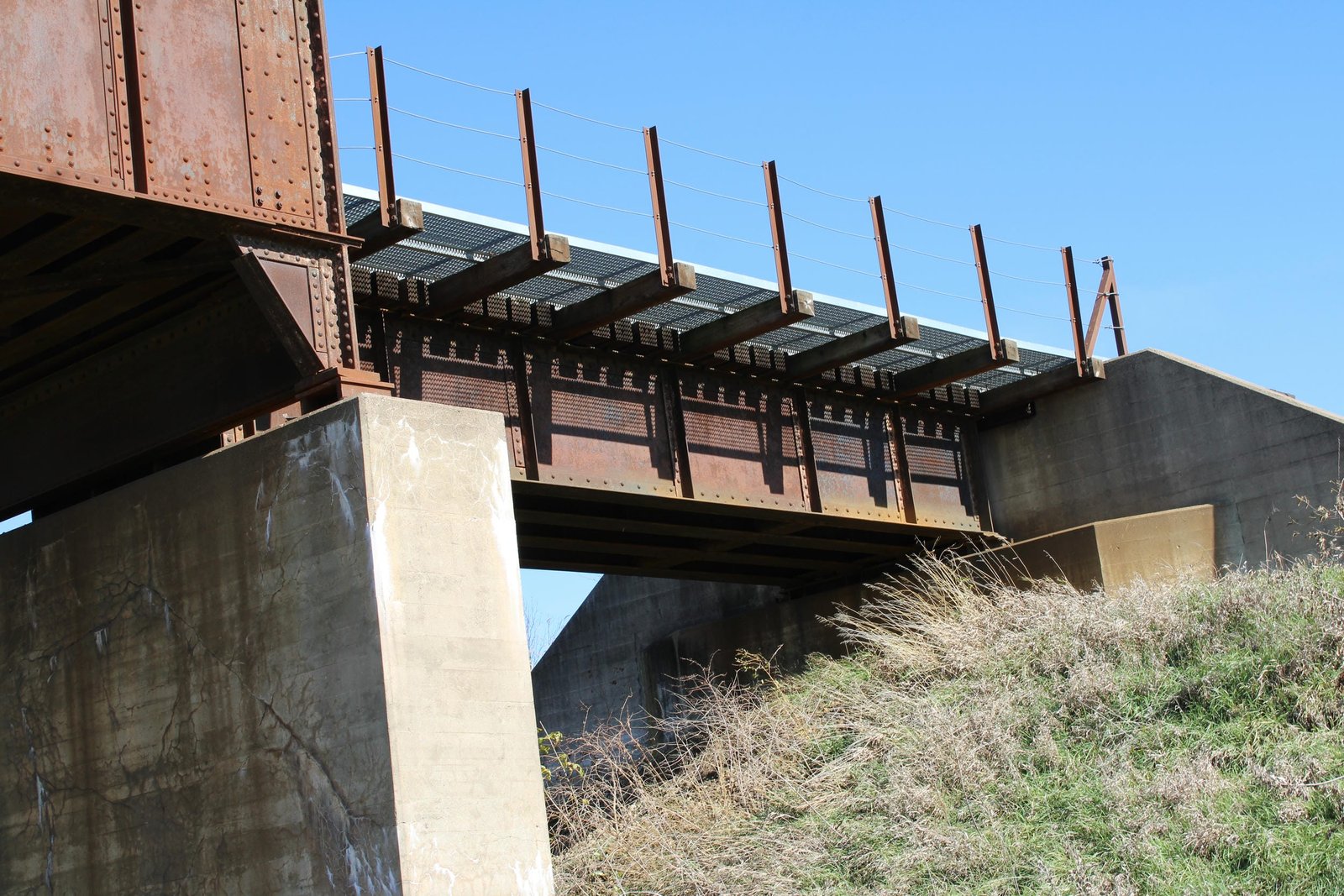

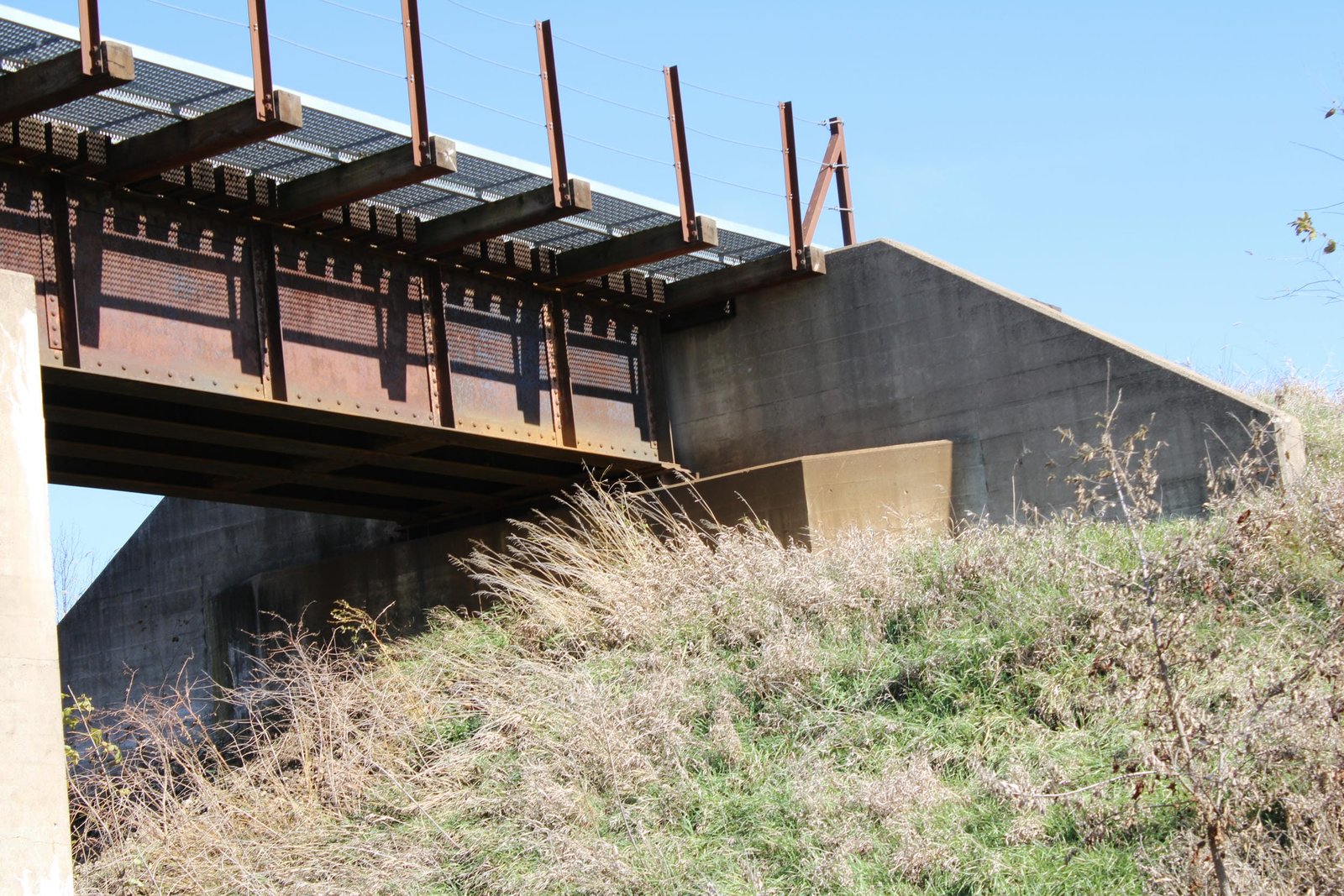

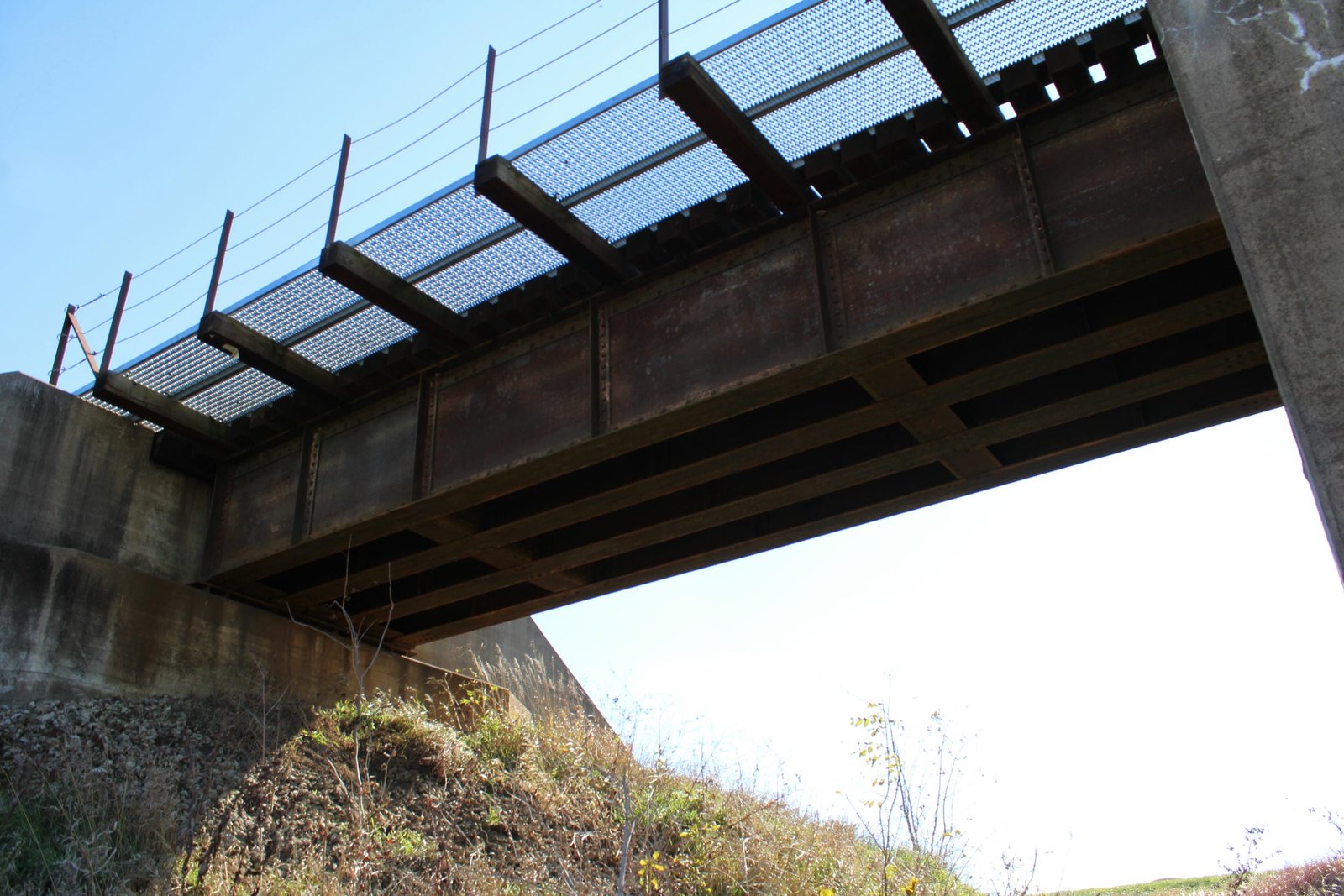

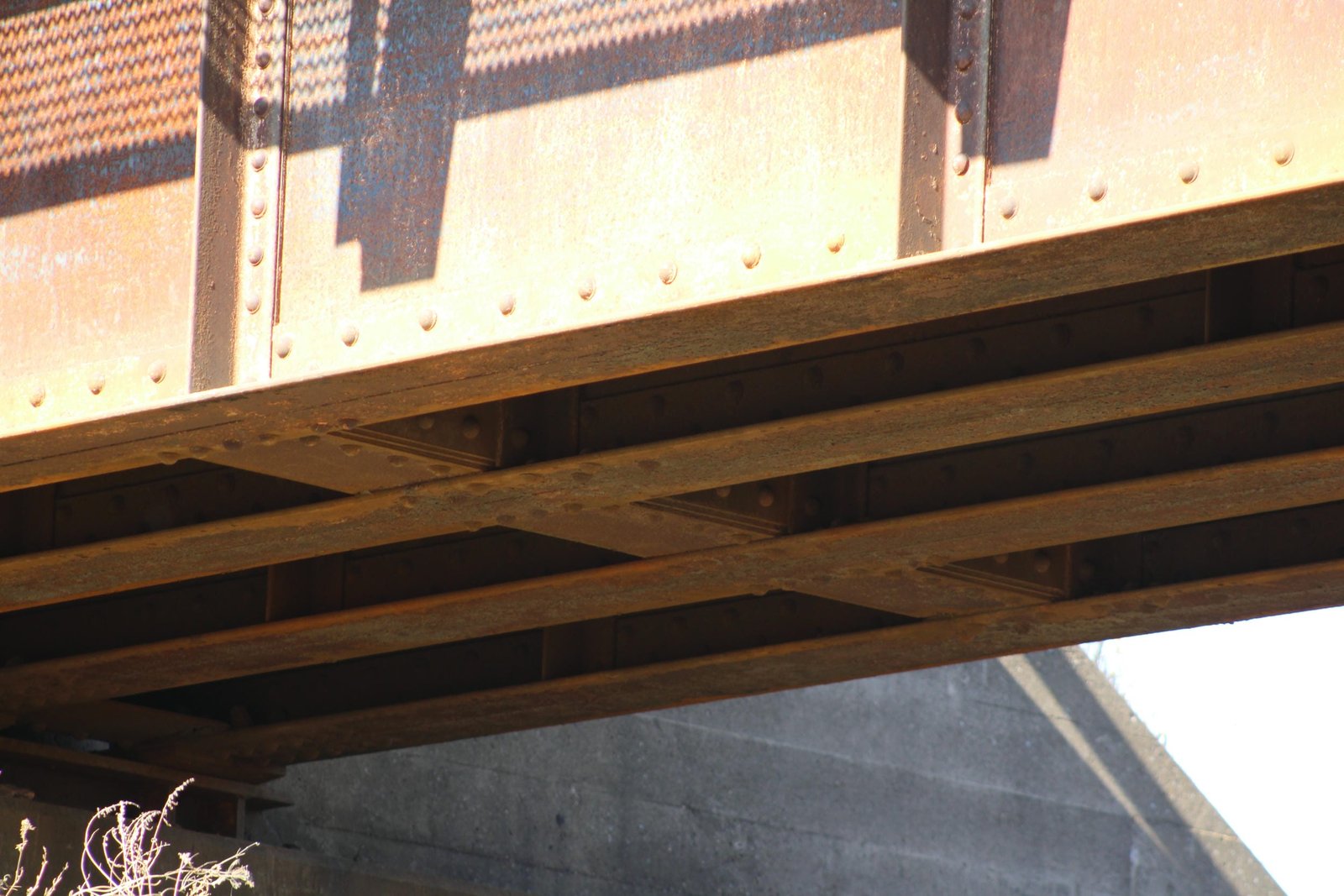

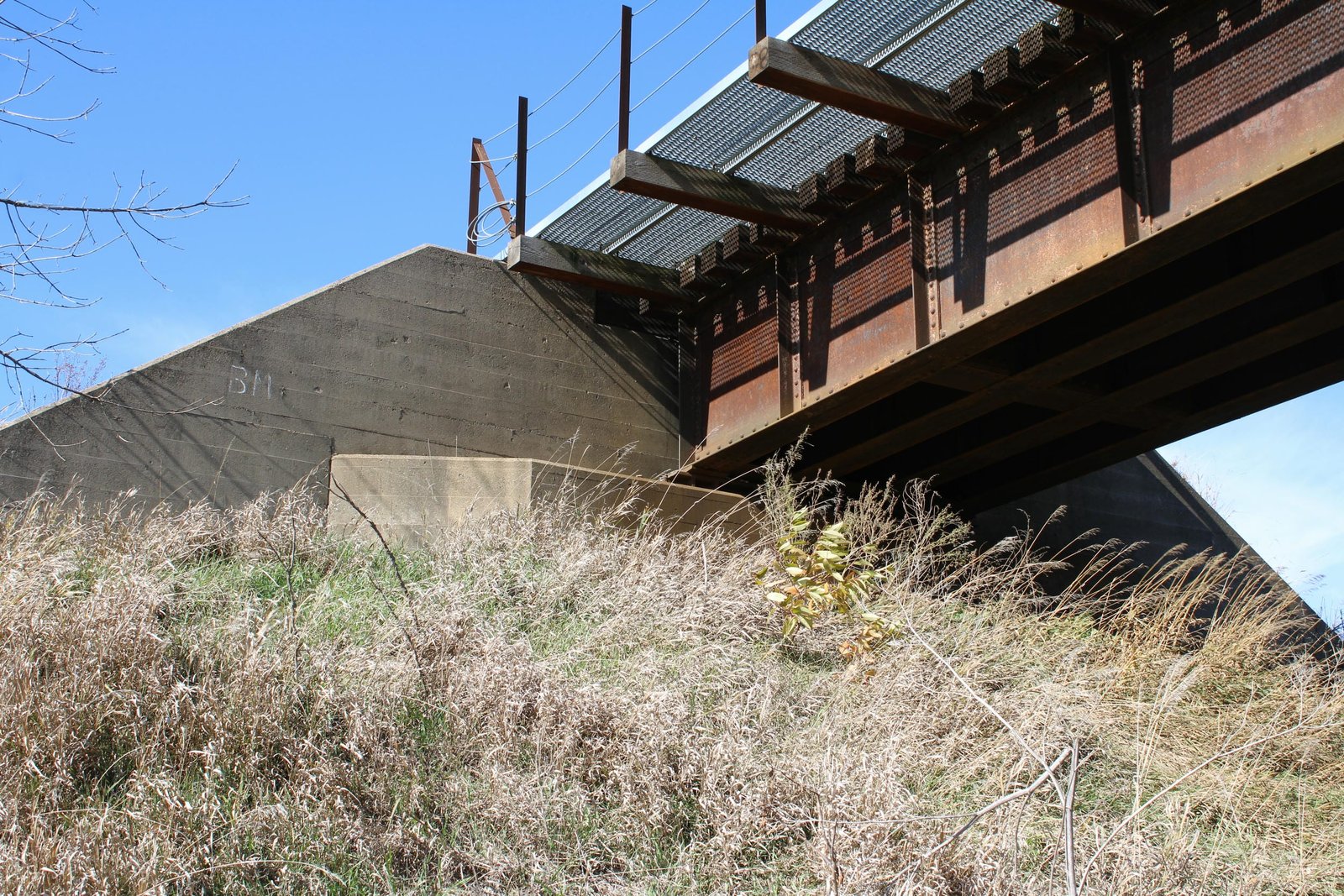

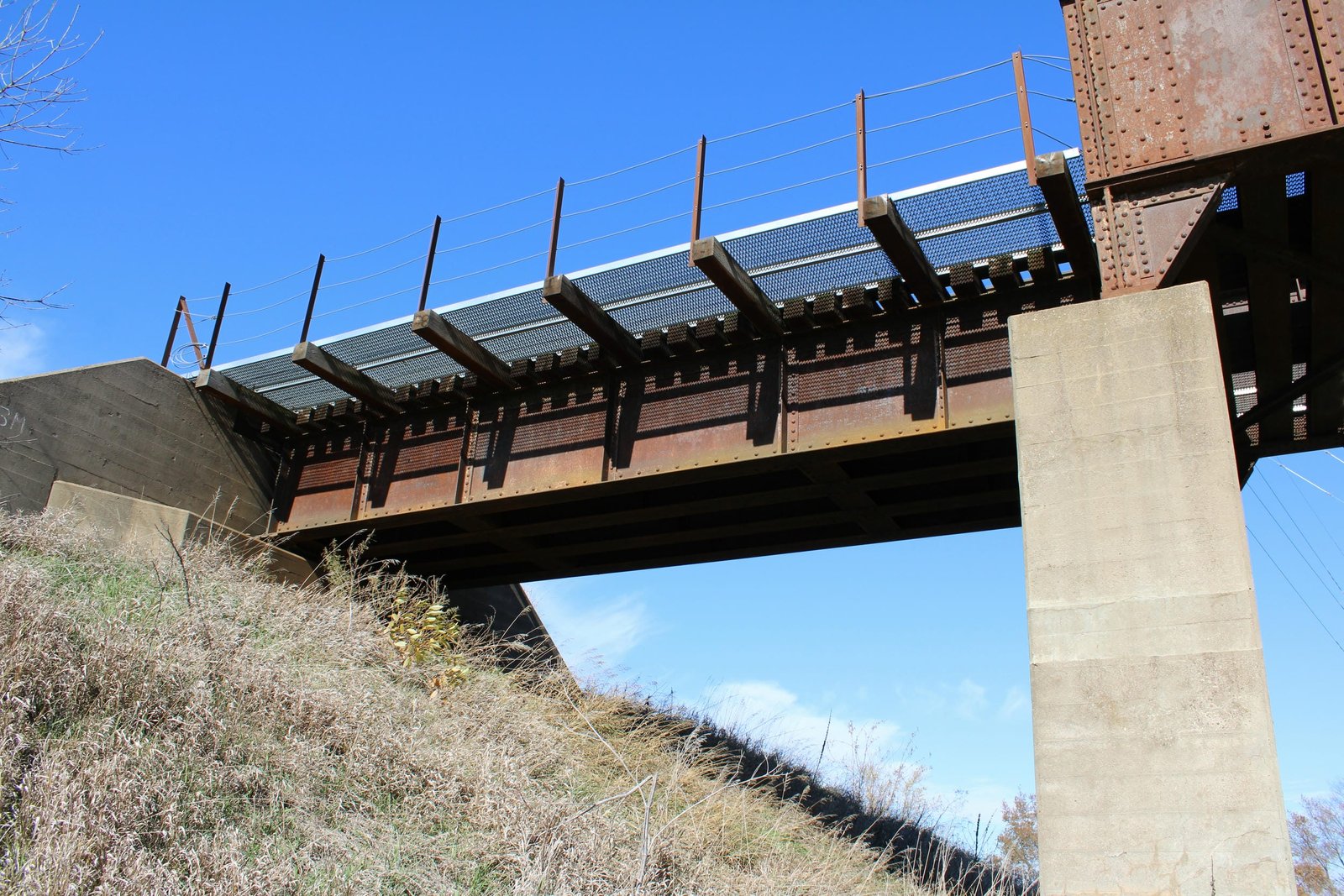

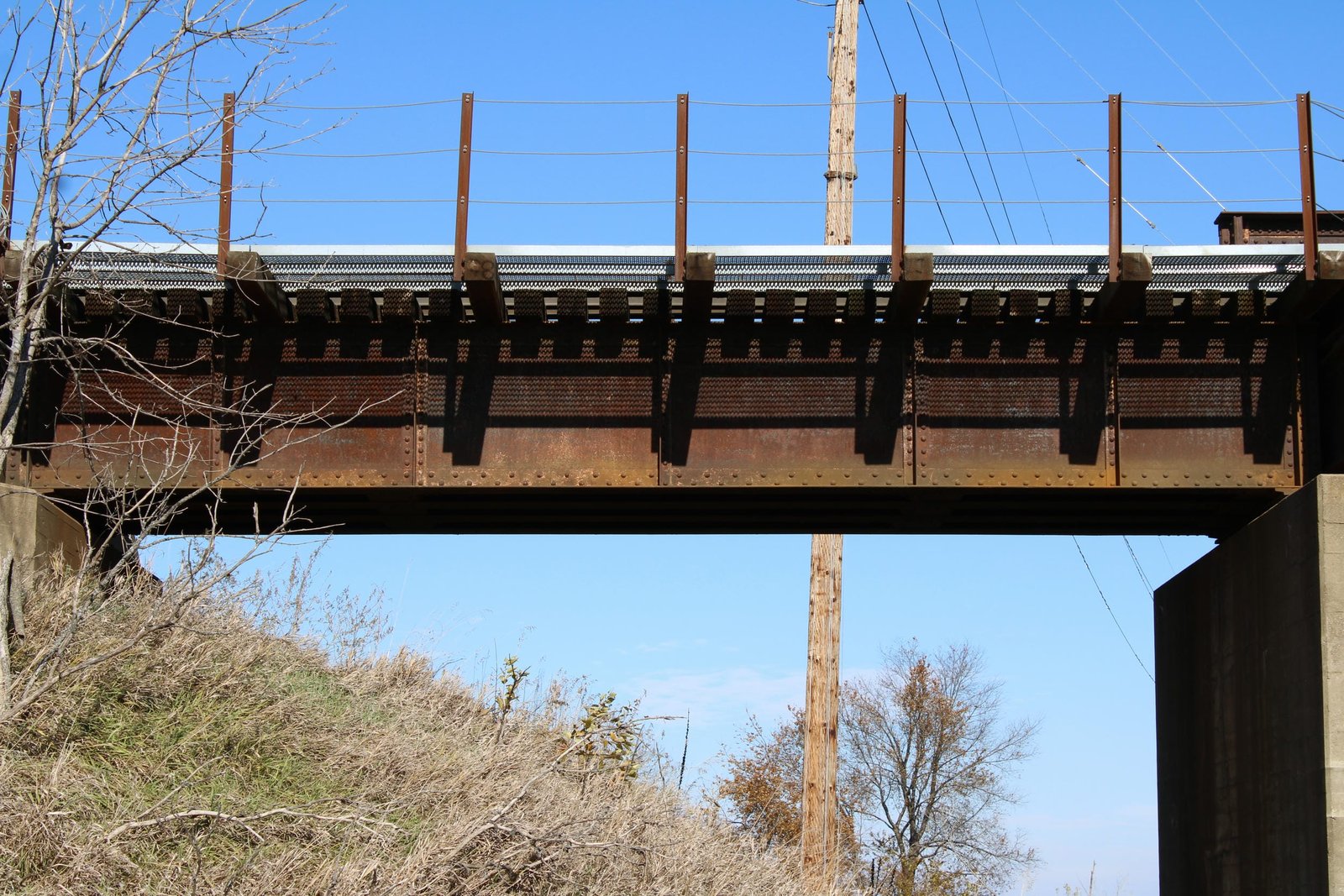

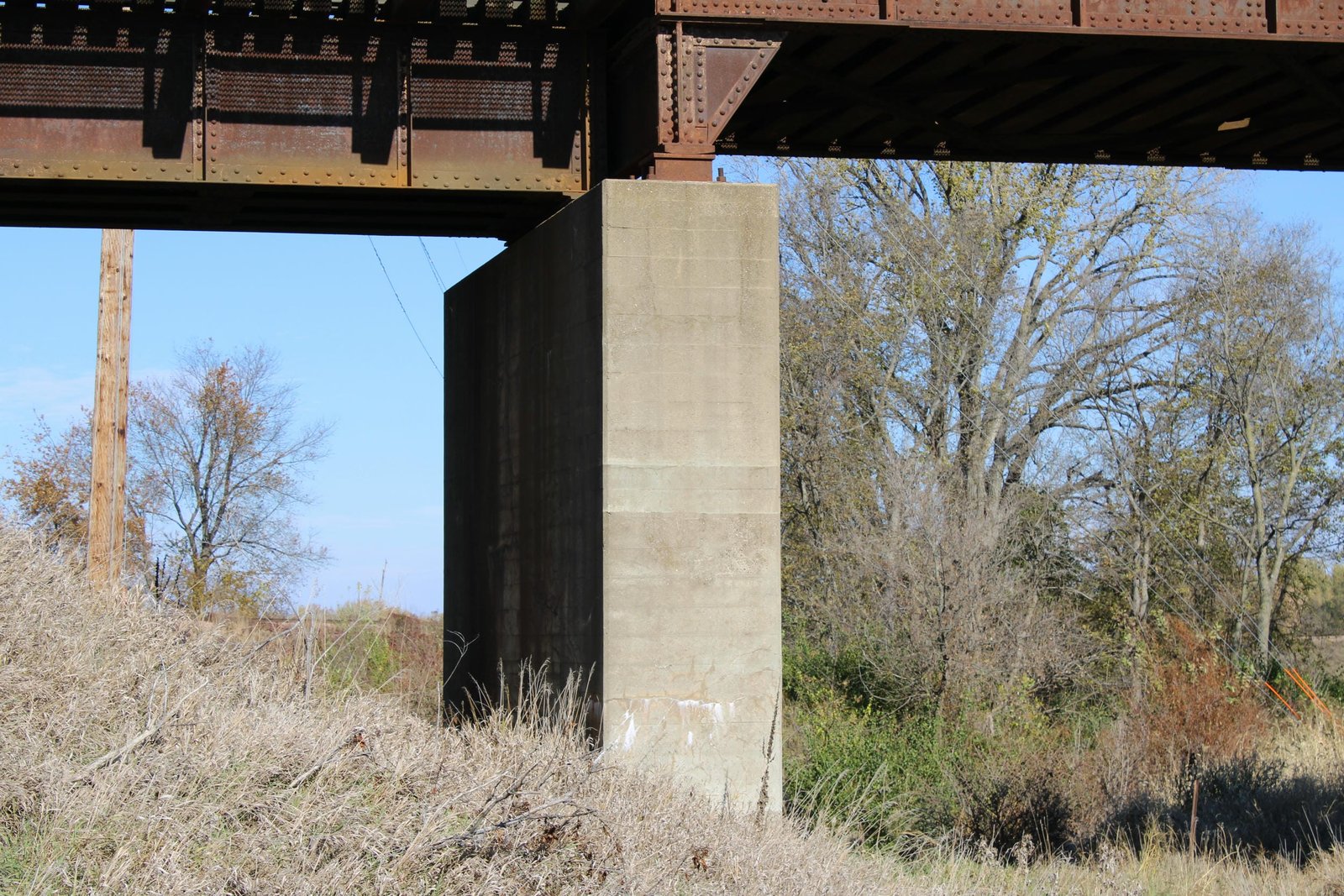

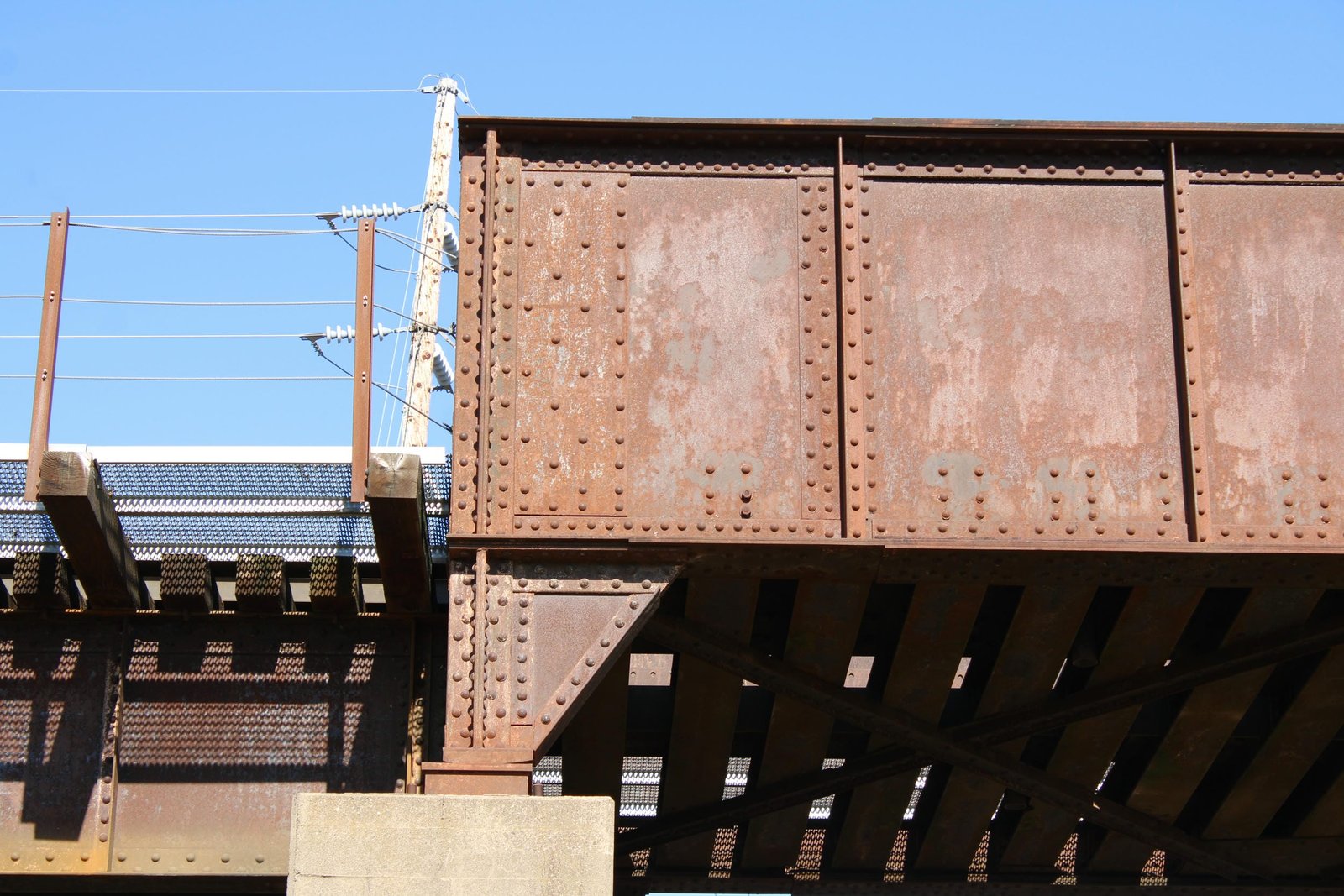

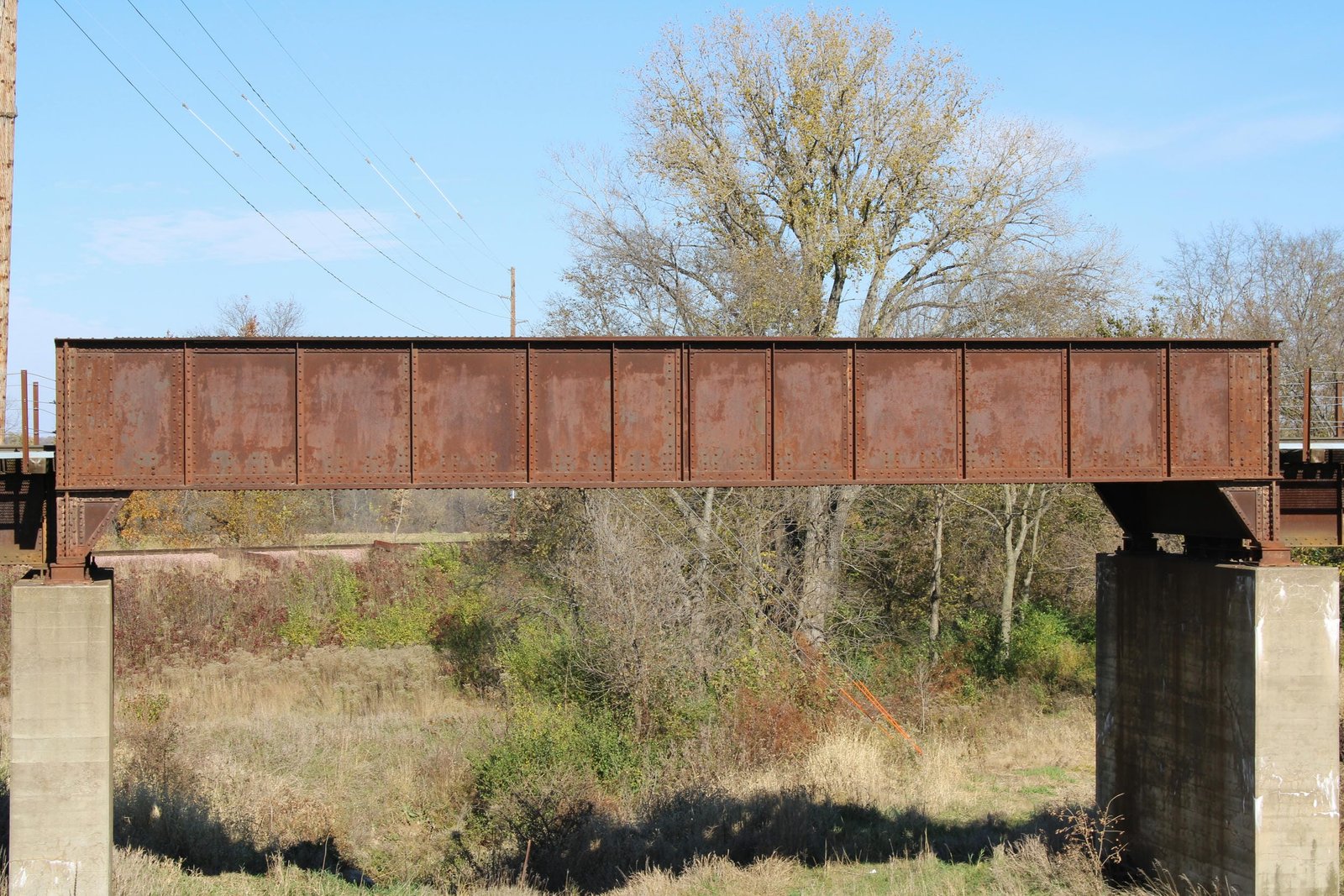

The through plate girder span was fabricated in approximately 1895, and uses an unusual design, consisting of two modest sized girders, square girder ends and a unique floor constructed of numerous parallel I-beams. Instead of using ties, the rails are set directly onto these I-beams. Each approach span also appears to have been fabricated in approximately 1895, and consists of four heavy plate girders and an open deck. It is unclear if the approach spans were originally 31 feet in length, or if they were constructed by cutting down a longer span. It appears that the additional girders were added to these spans at the time of installation. Both piers use a standard rectangular shape, while the abutments use a standard design with short sloped backwalls. Lassig Bridge & Iron Works fabricated the center span, while the approach spans were constructed by an unknown firm. It is unclear if the alterations to the approach spans were made by railroad company forces or by an unknown contractor. A separate unknown contractor completed the substructures. Through and deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Railroads often reused steel and iron spans, as it provided a cost effective way to rebuild bridges without requiring large amounts of new material. Since the initial construction, the bridge has seen no significant alterations. Today, it remains in regular use as part of an Iowa Interstate Railroad mainline, while the Milwaukee Road line underneath was abandoned in the early 1980s. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. It is likely that the bridge will eventually be filled, as the area underneath is no longer used. The author has ranked this bridge as being locally significant, due to the common design and unclear history.


Citations

Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
