UP 2nd Street Bridge (Webster City)


Click the photo to view the full-size version

1/15
Date Taken:
Author:
Caption:

Name UP 2nd Street Bridge (Webster City)
Chicago & North Western Railway Bridge #2456
Built By Chicago & North Western Railway
Currently Owned By Union Pacific Railroad
Superstructure Contractor Unknown
Substructure Contractor Wickes Engineering & Construction Company of Des Moines, Iowa
Length 86 Feet Total, 50 Foot Main Span
Width 1 Track
Height Above Ground 13 Feet 8 Inches
Superstructure Design Through Plate Girder and Concrete Slab
Substructure Design Concrete
Date Built 1934
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
Chicago & North Western Railway Bridge Number 2456
Union Pacific Railroad Bridge Number 35.69
Significance Local Significance
Documentation Date 10/4/2017; 3/28/2021

In 1872, the Toledo and Northwestern Railway (T&NW) completed a 3-mile railroad line, extending from Tama, Iowa to Toledo, Iowa.  At Tama, the line connected to the existing Chicago & North Western Railway (C&NW) mainline.  In 1879, the C&NW leased the property of the T&NW and funded further expansions in northern Iowa.  In 1880, the T&NW completed an additional 83 miles from Toledo to Jewell Junction, Iowa.  The following year, an additional 14 miles were completed to Webster City, Iowa; followed by 66 additional miles completed northwards to Elmore, Minnesota in 1882.  At Elmore, the line would connect to an existing branch line of the Chicago, St. Paul, Minneapolis & Omaha Railway (Omaha Road). In the early 1880s, the T&NW constructed a respectable railroad network in northern Iowa, eventually reaching both South Dakota and Minnesota. In 1890, the T&NW was sold to the C&NW. This line served as a secondary line for the C&NW, providing connections to branch lines in northern Iowa and a connection to the leased Omaha Road at Elmore.  During the early 20th Century, the C&NW invested significant capital into this line, replacing timber bridges with stone and steel structures, and upgrading other buildings.

By the early 20th Century, the C&NW had developed into a significant midwest railroad network, with lines radiating north and west from Chicago.  In particular, the C&NW developed dozens of secondary and branch lines in Iowa to serve agricultural industries and small towns.  This line remained an important secondary route for the C&NW through much of the 20th Century, providing a connection between lines in Minnesota to the principal mainline across Iowa.   In 1968, two segments of this line were abandoned; including between Eldora Junction, Iowa and Lawn Hill, Iowa and between Ledyard, Iowa and Elmore.  A segment between Conrad, Iowa and Eldora Junction was abandoned in 1976.  A short segment between Bancroft, Iowa and Ledyard was abandoned in 1978.  In 1981, the C&NW purchased the St. Paul to Kansas City "Spine Line" from the bankrupt Chicago, Rock Island & Pacific Railroad (Rock Island).  This line paralleled the Rock Island for much of its length, and the Rock Island was a better constructed route.  As a result, portions of this line quickly became excess for the C&NW.

Following the purchase of the Rock Island line, redundant sections of this line were quickly abandoned.  In 1981, two additional segments were abandoned between Tama and Gladbrook, Iowa and between Lawn Hill and Ellsworth, Iowa.  A segment between Gladbrook and Conrad was abandoned in 1983.  The segment between Burt, Iowa and Bancroft would be abandoned in 1985.  The remainder of the line between Ellsworth and Burt was kept intact to serve various agricultural industries and connect to remaining C&NW-owned branch lines.  In 1995, the C&NW was purchased by Union Pacific Railroad (UP).  A short segment from Ellsworth to Jewell was abandoned in 2006.  Today, UP operates the Jewell to Burt segment as the Jewell Subdivision, which provides access to several branch lines serving northern Iowa.  A short portion between Ellsworth and Jewell has been reused as the JewEllsworth Trail, while the remainder of the line has been abandoned.  Much of the abandoned segments have reverted to adjacent property owners, and been repurposed for farm fields.

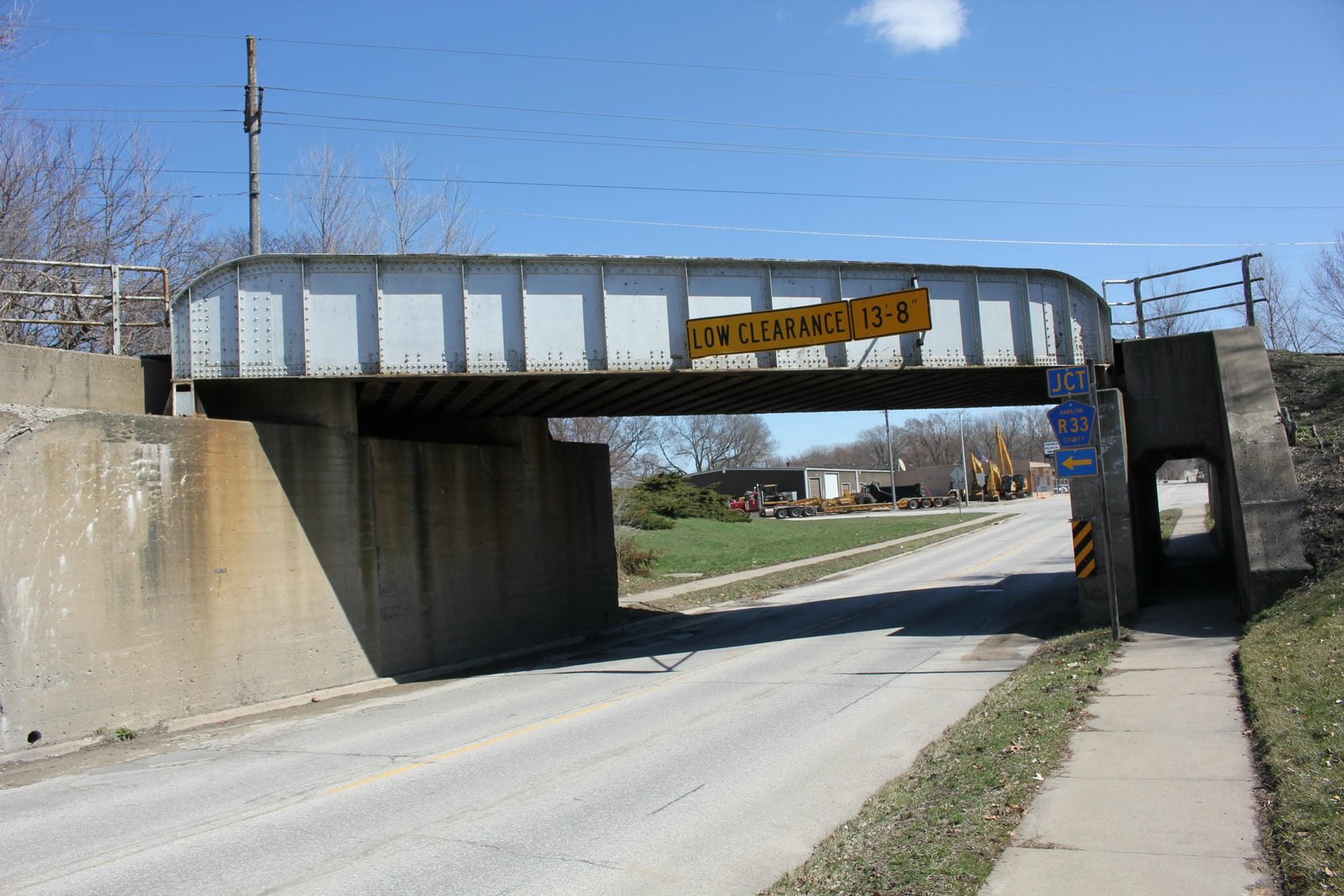

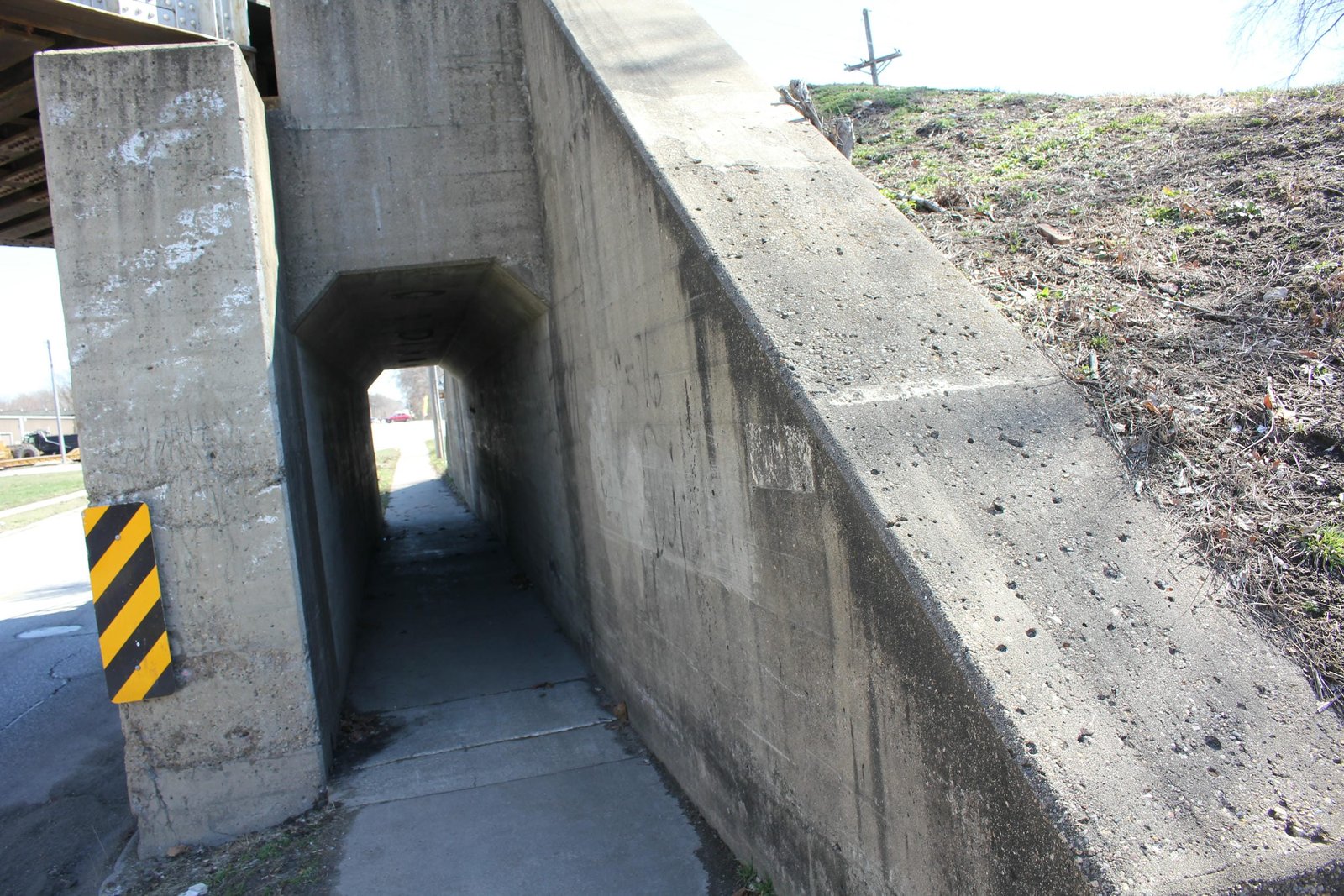

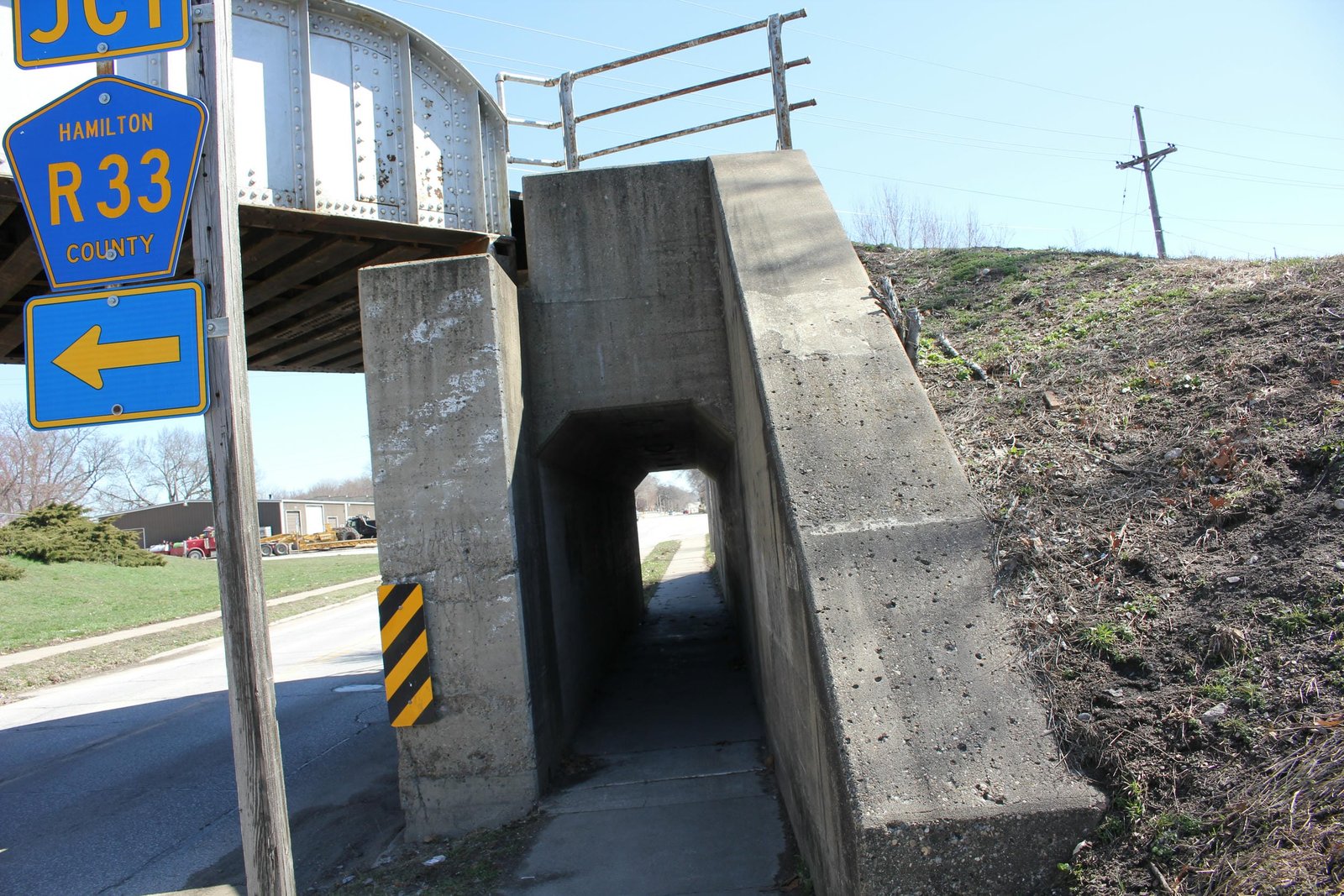

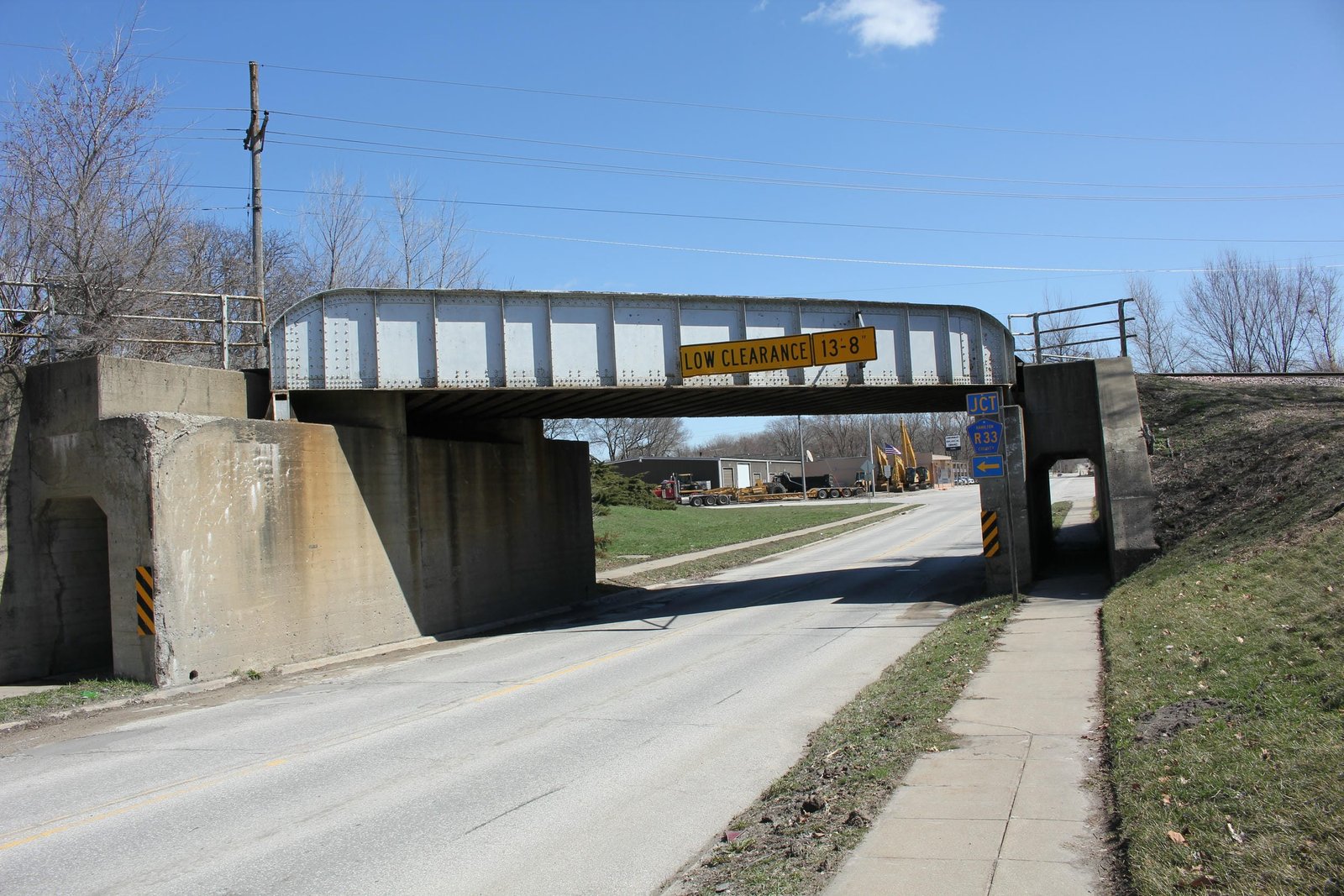

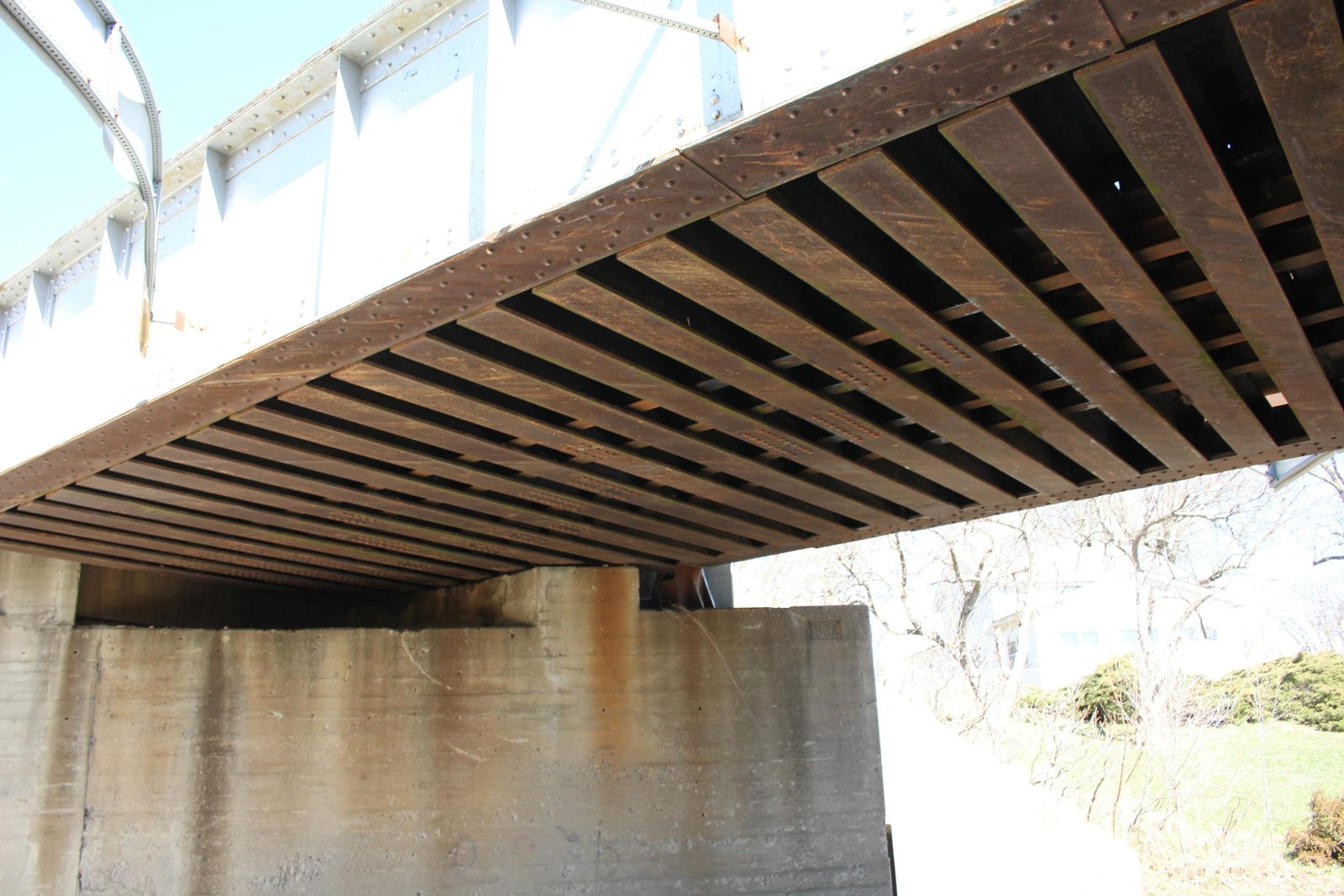

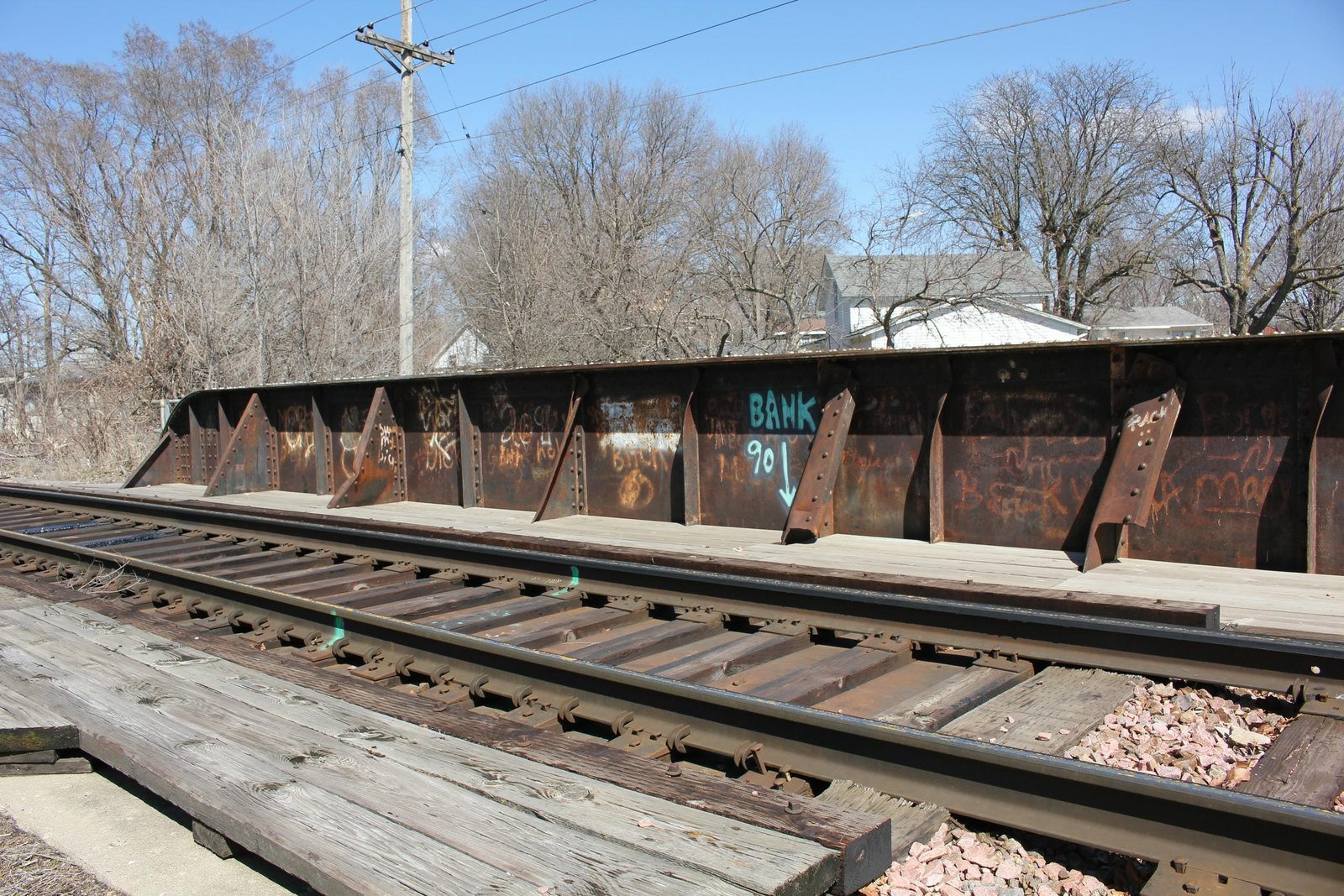

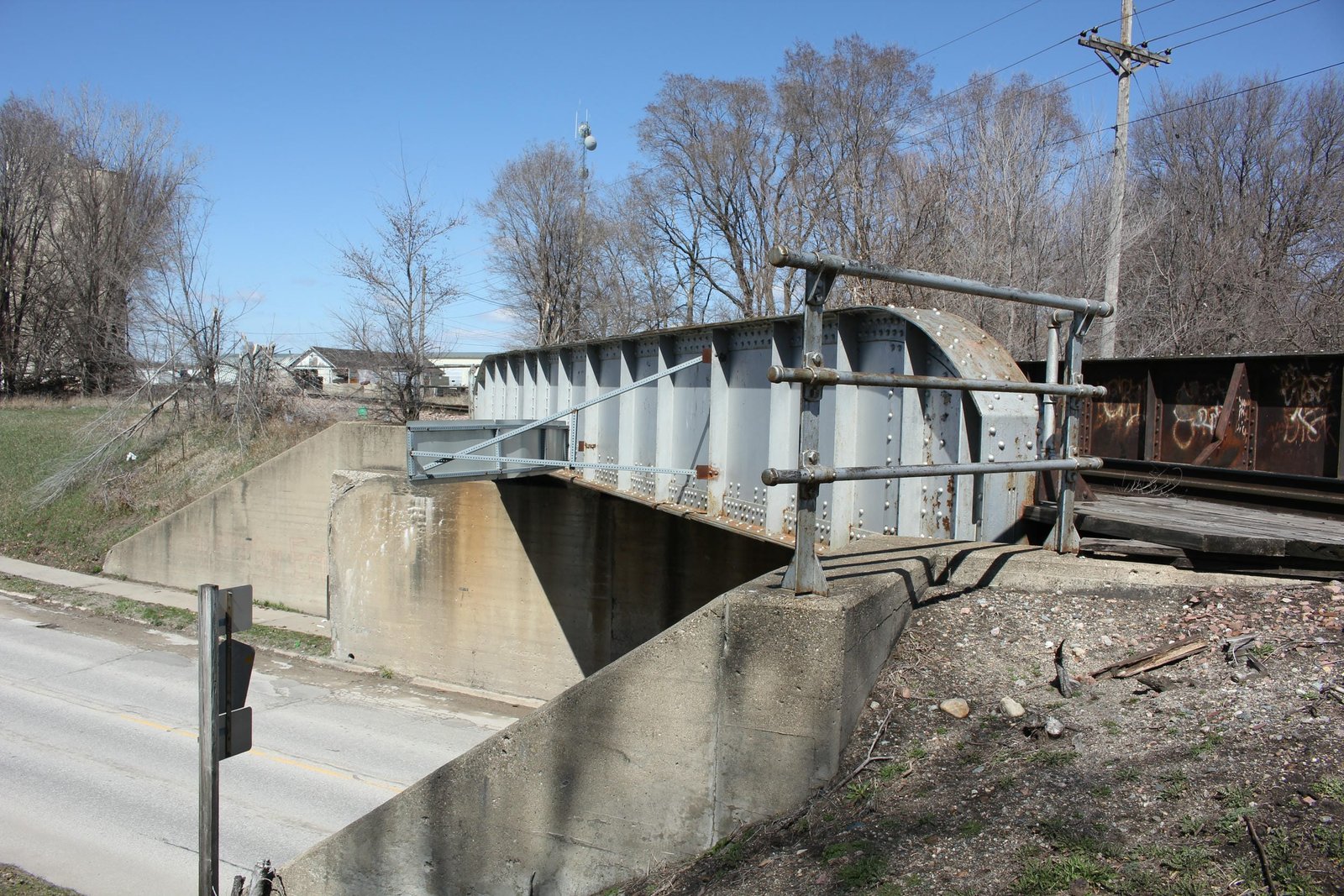

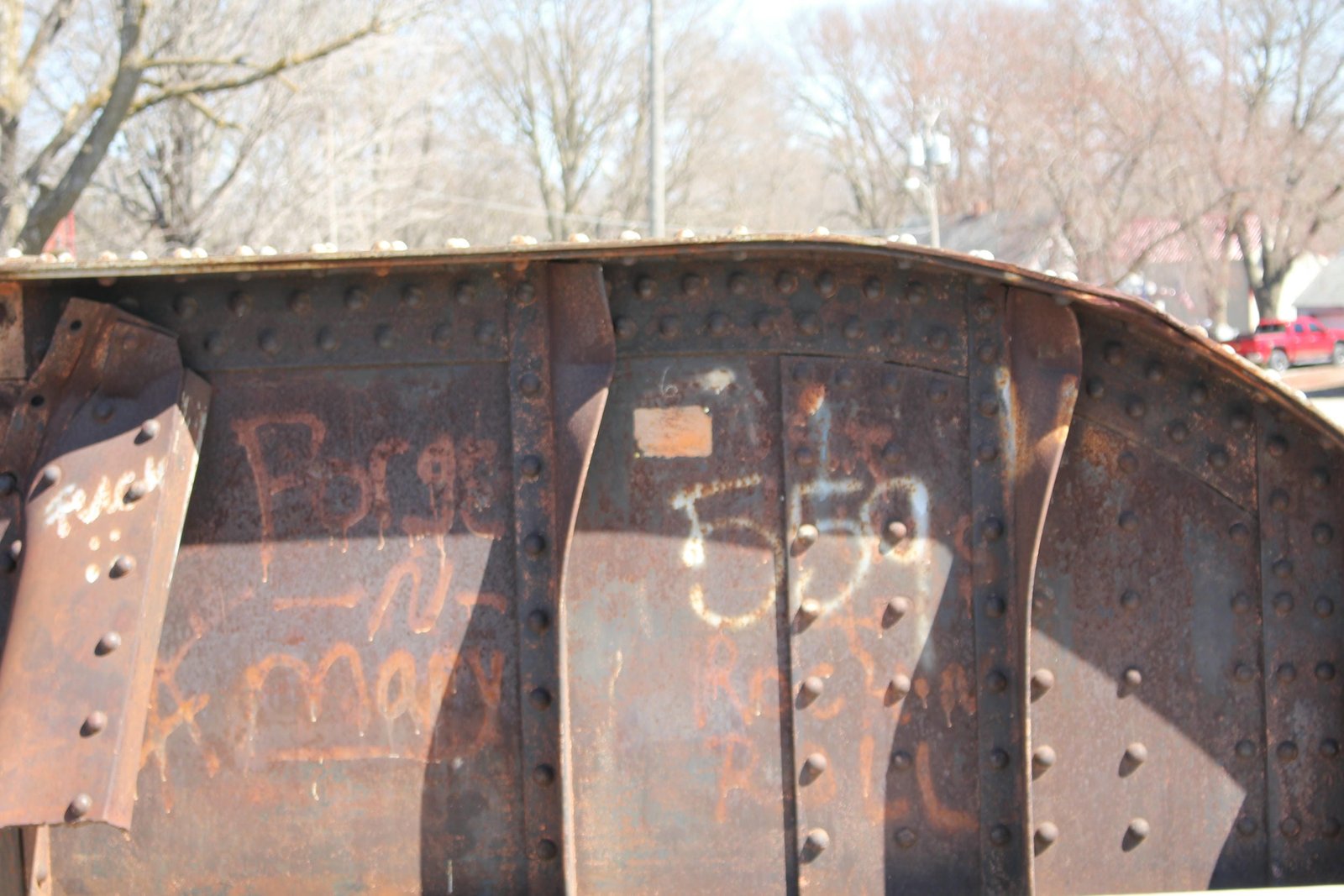

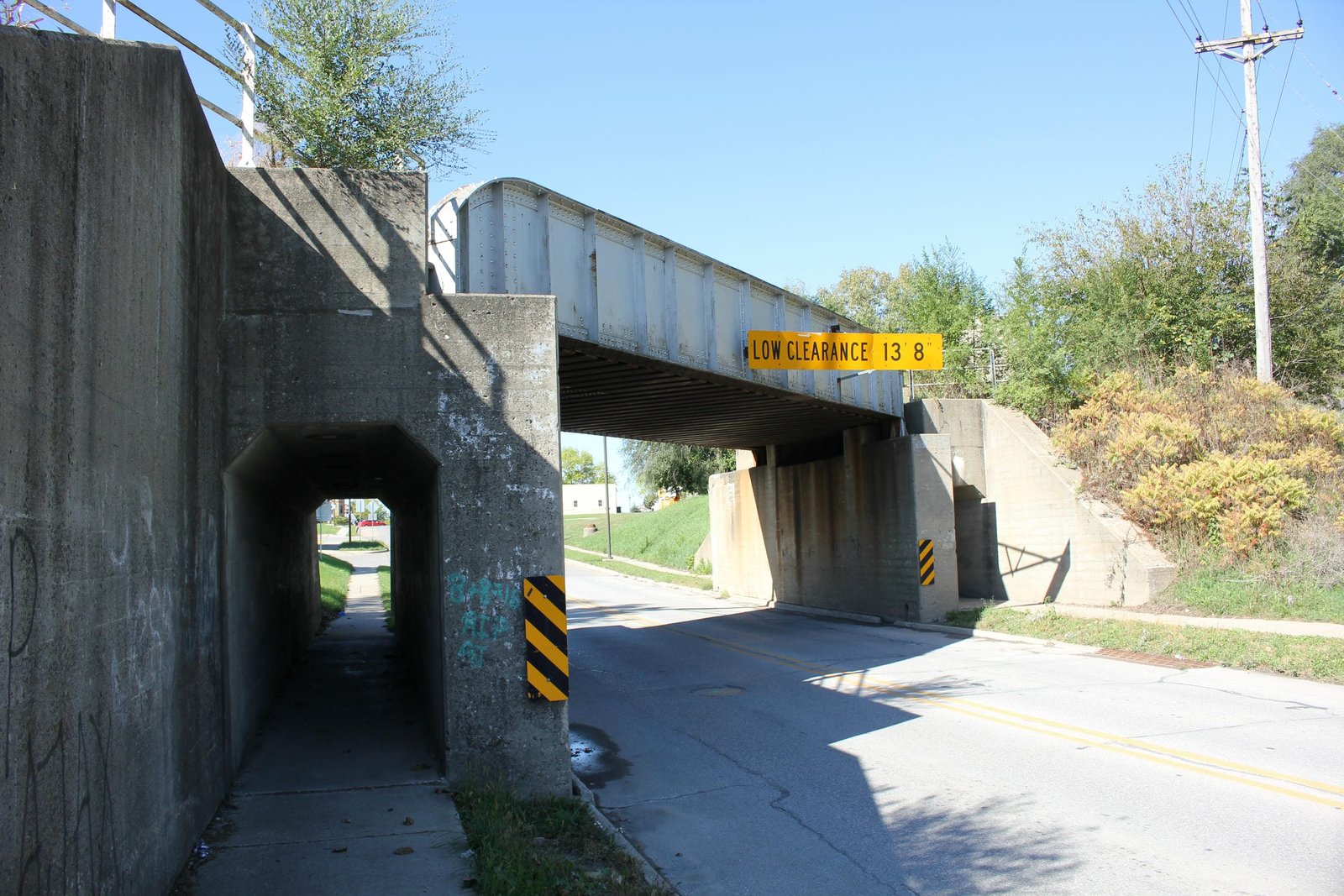

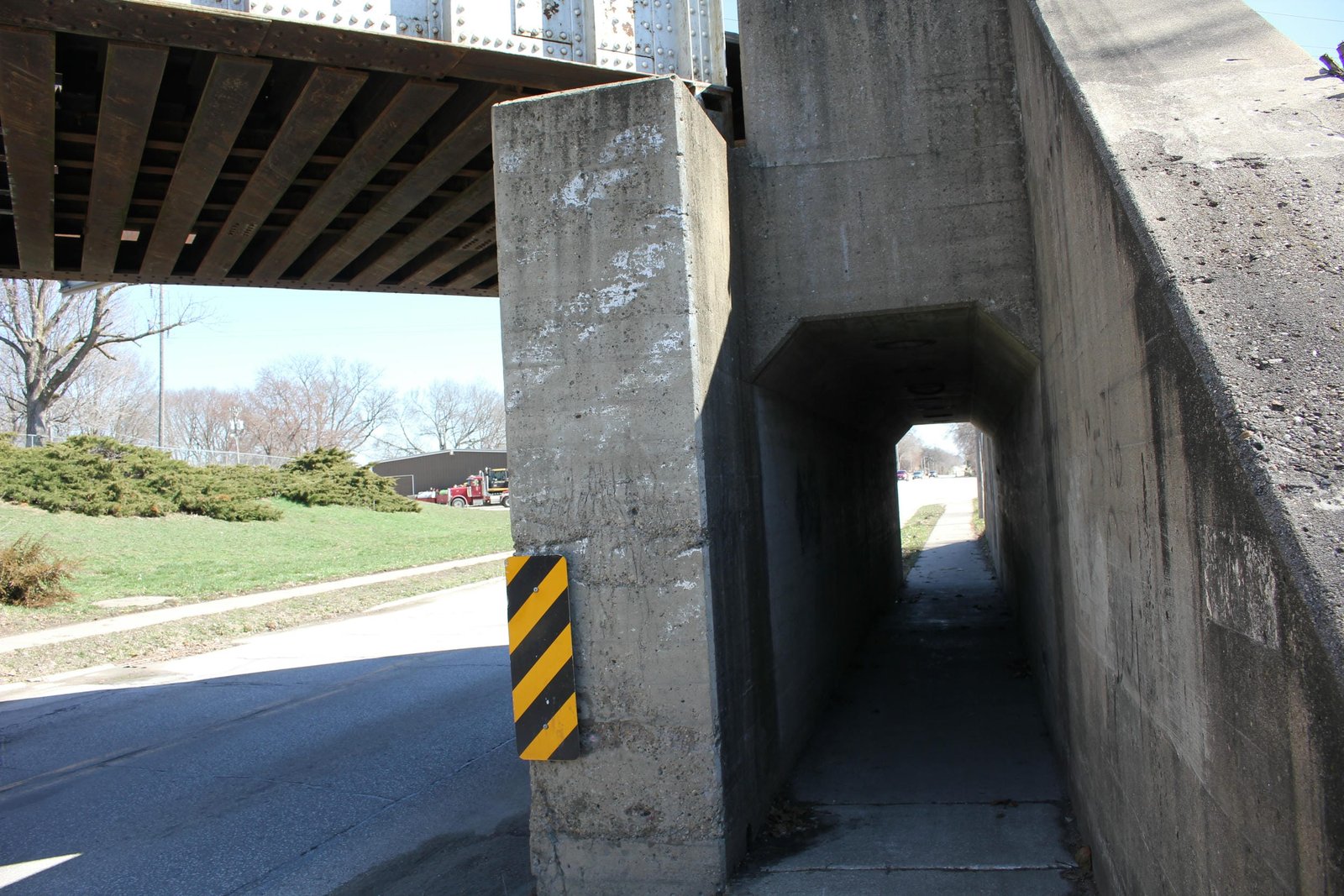

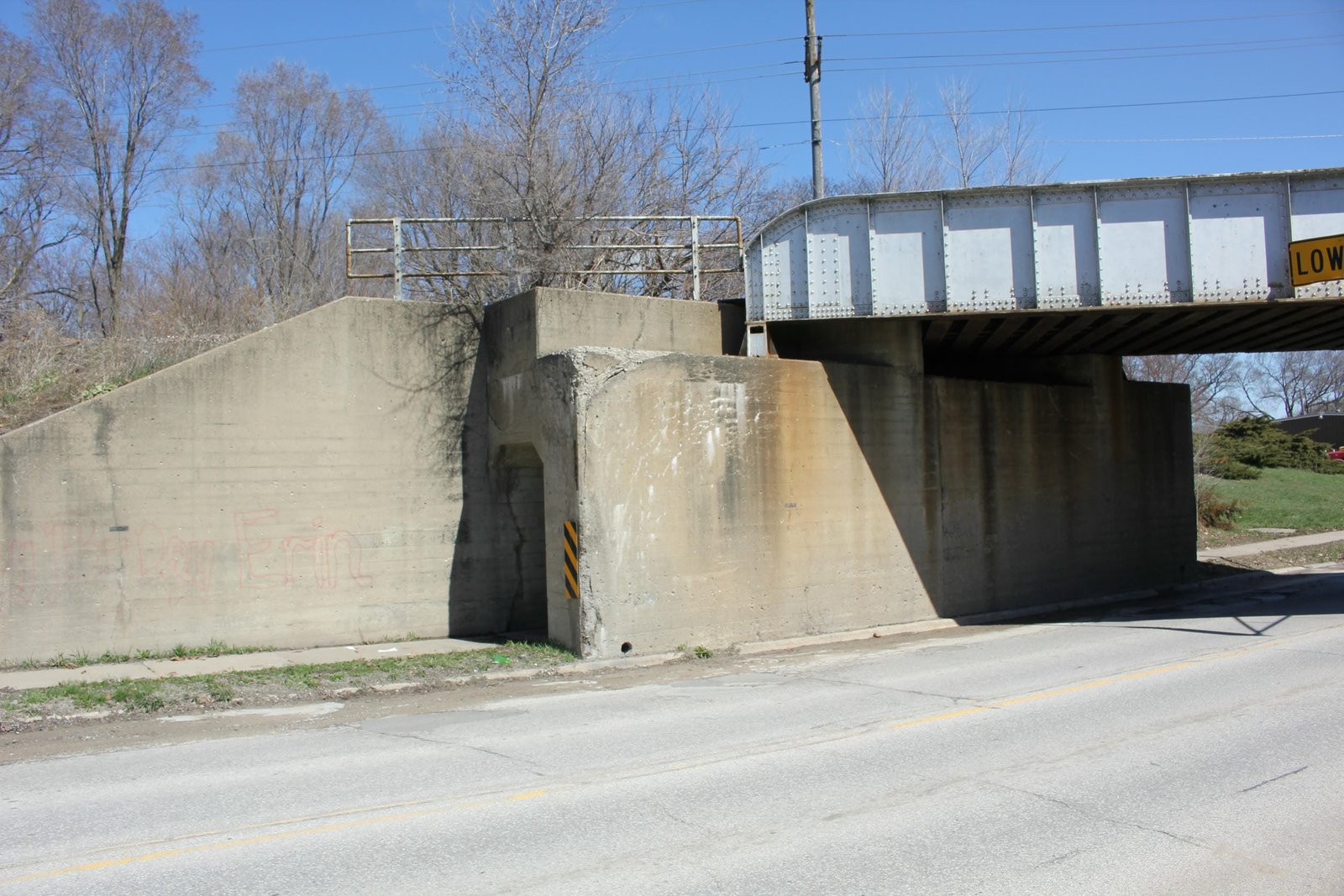

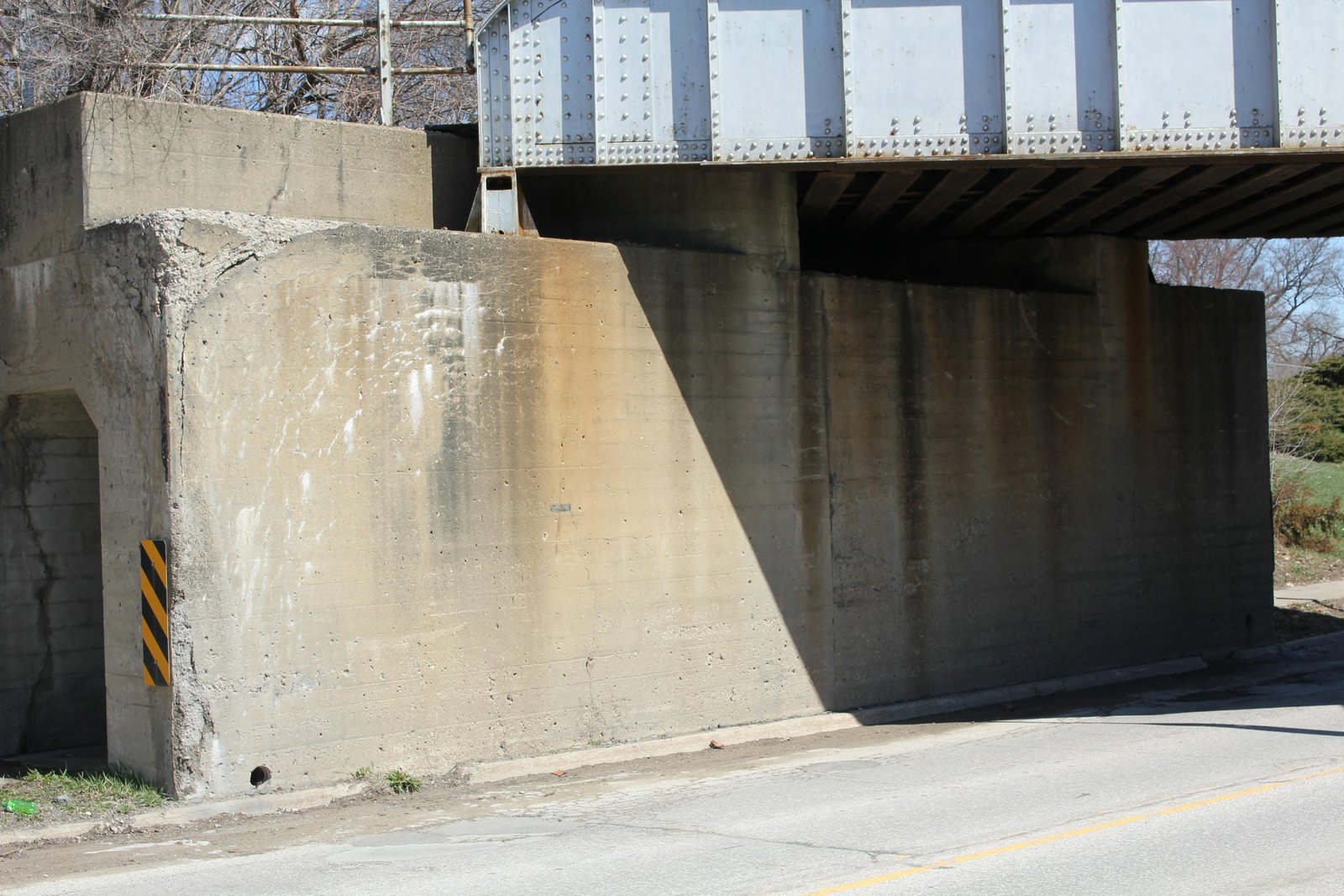

Located in Webster City, this through plate girder bridge carries a former Chicago & North Western Railway line across Iowa 2nd Street (former US Highway 20). In the 1920s and 1930s, the Iowa Highway Commission worked to improve highways throughout the state. As part of several projects, grade separations were proposed at busy railroad crossings. Working with the railroad companies, the Iowa Highway Commission reached agreements to construct dozens of grade separations throughout the state. In 1933, an underpass was proposed at a busy grade crossing in Webster City. Contracts were awarded in early 1934, and work on the underpass was completed that summer. Currently, the bridge consists of a 50-foot through plate girder span, approached by an 8-foot concrete slab span on either end. The entire bridge is set onto concrete substructures, the bridge is set onto a sharp 5.5-degree curve and the main span is heavily skewed. The superstructure follows a standard design, with heavy girders, rounded girder ends and a ballast deck floor composed of parallel I-beams. The substructures follow a standard design for the era, with the approach spans having been constructed monolithically with the abutments and piers. An unknown contractor fabricated the superstructure, and the Wickes Engineering & Construction Company constructed the substructures and approaches. Through plate girder spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations, and the bridge remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

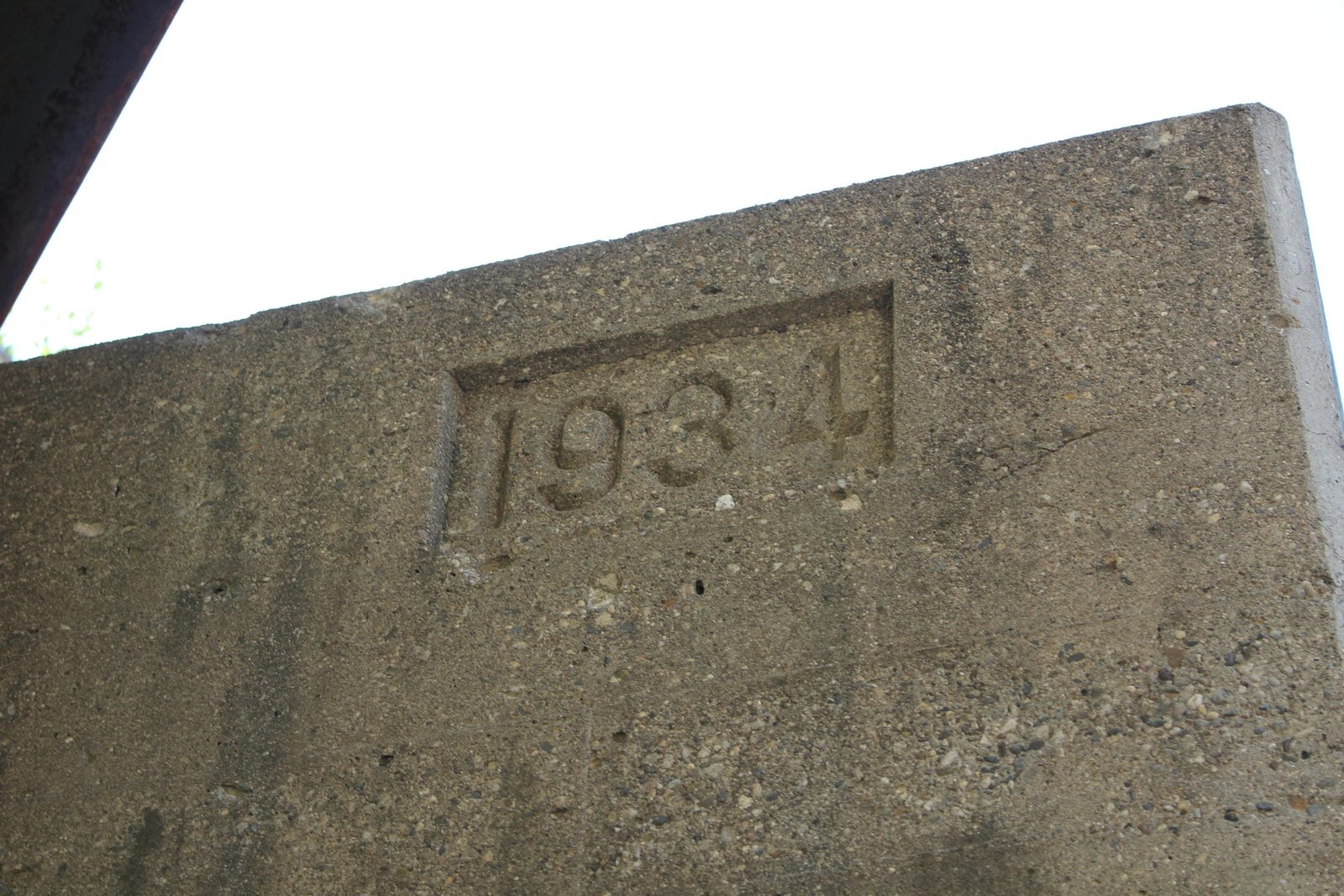

Build date Date stamp
