UP Otter Creek Bridge (Goldfield)


Click the photo to view the full-size version

1/27
Date Taken:
Author:
Caption:

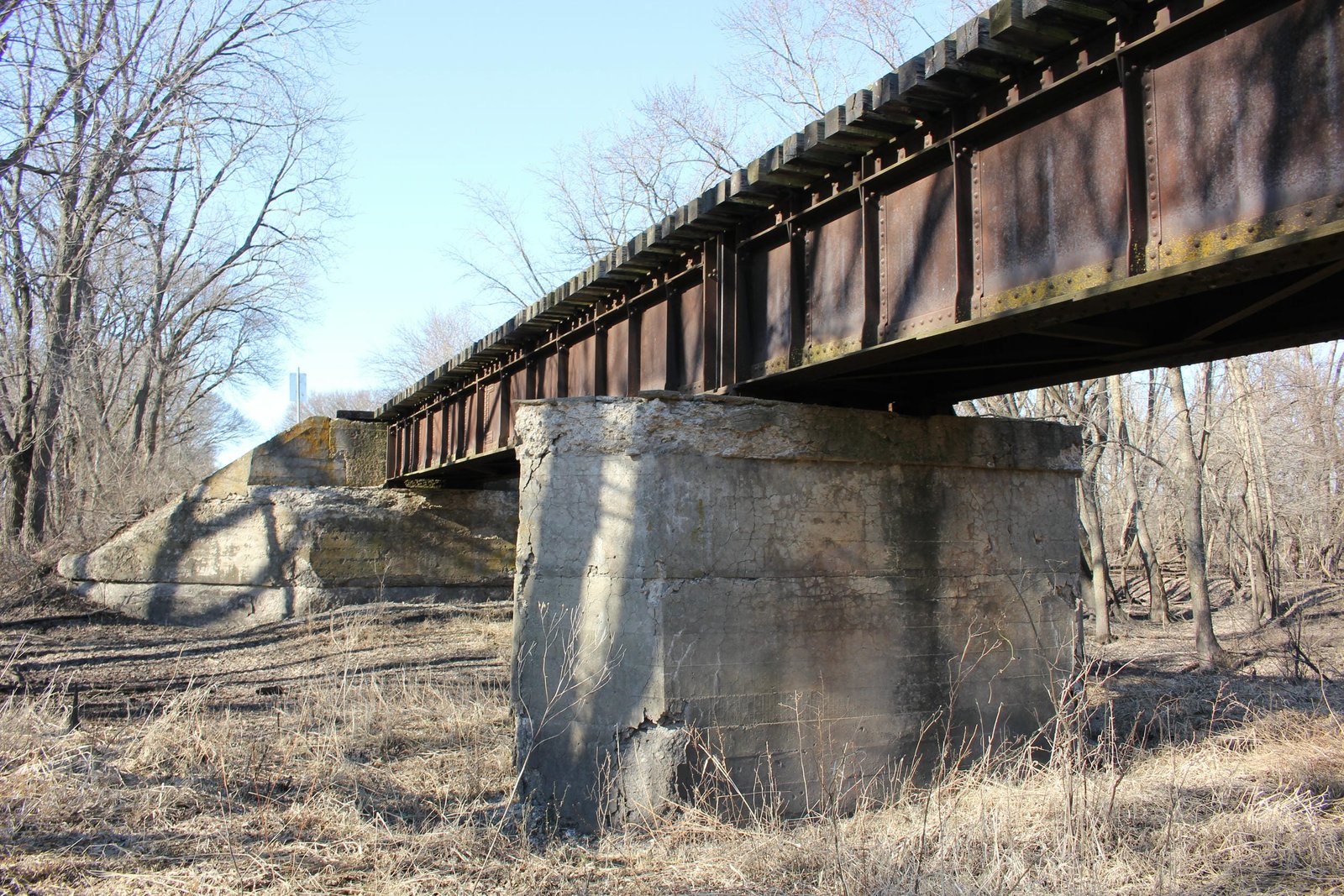

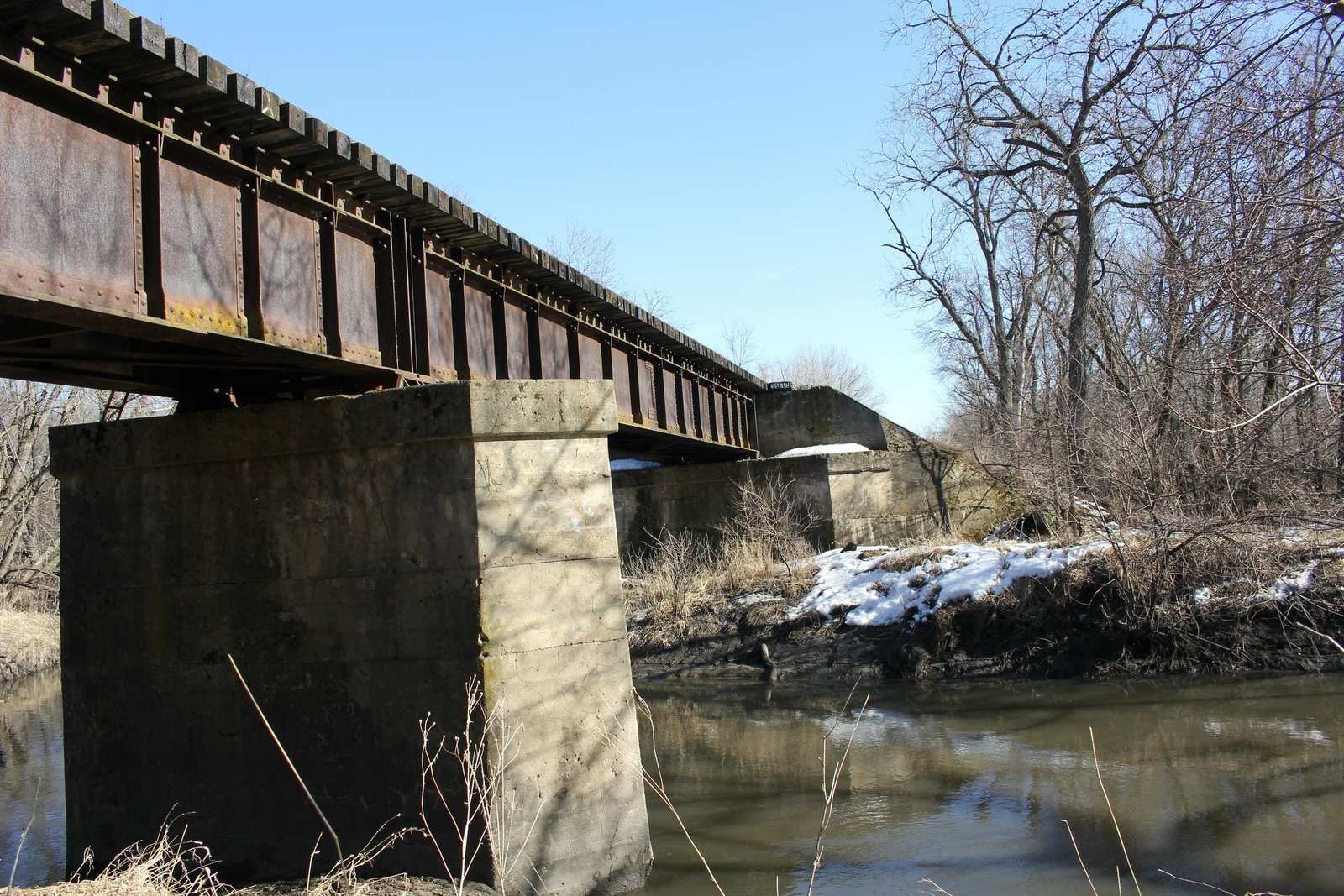

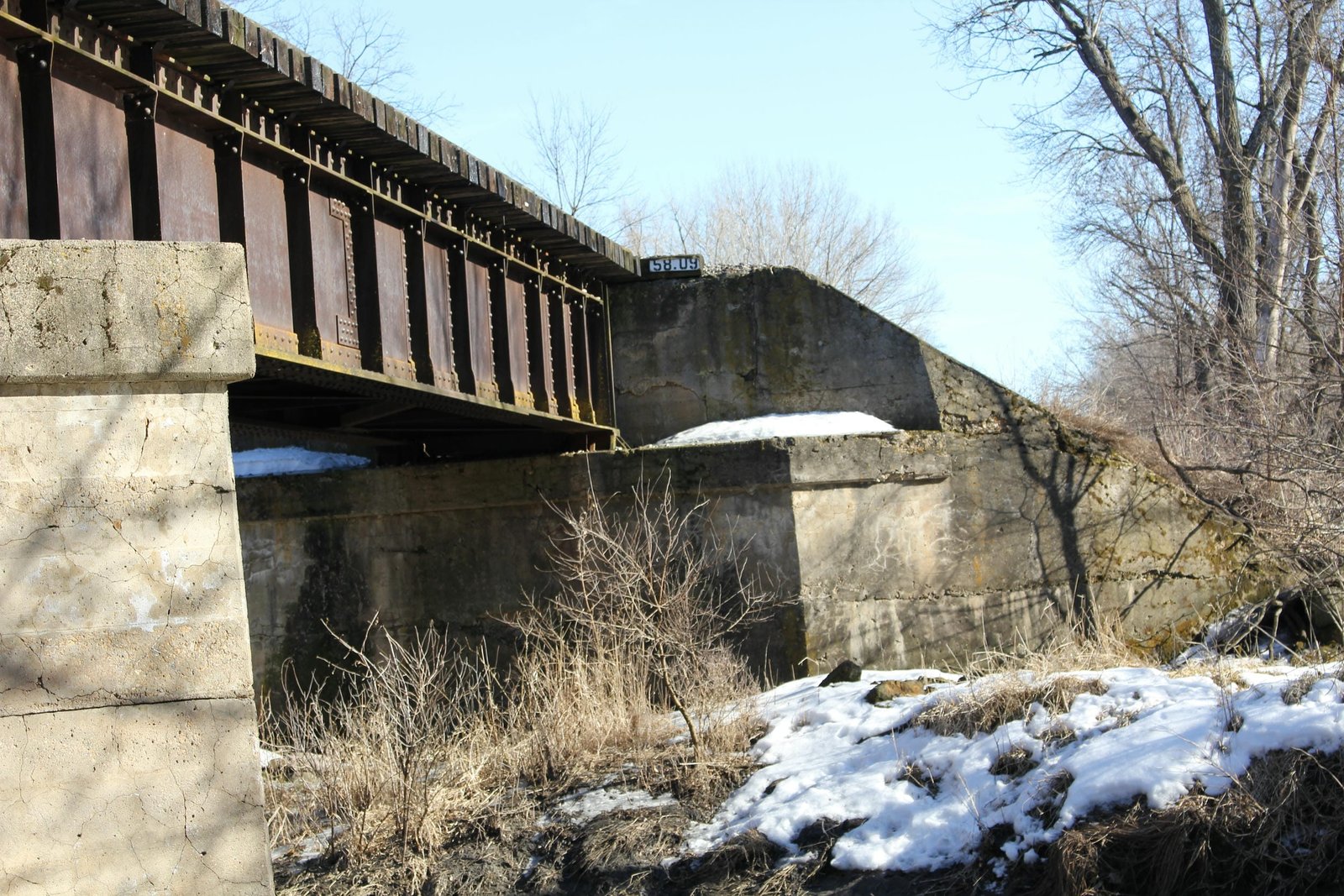

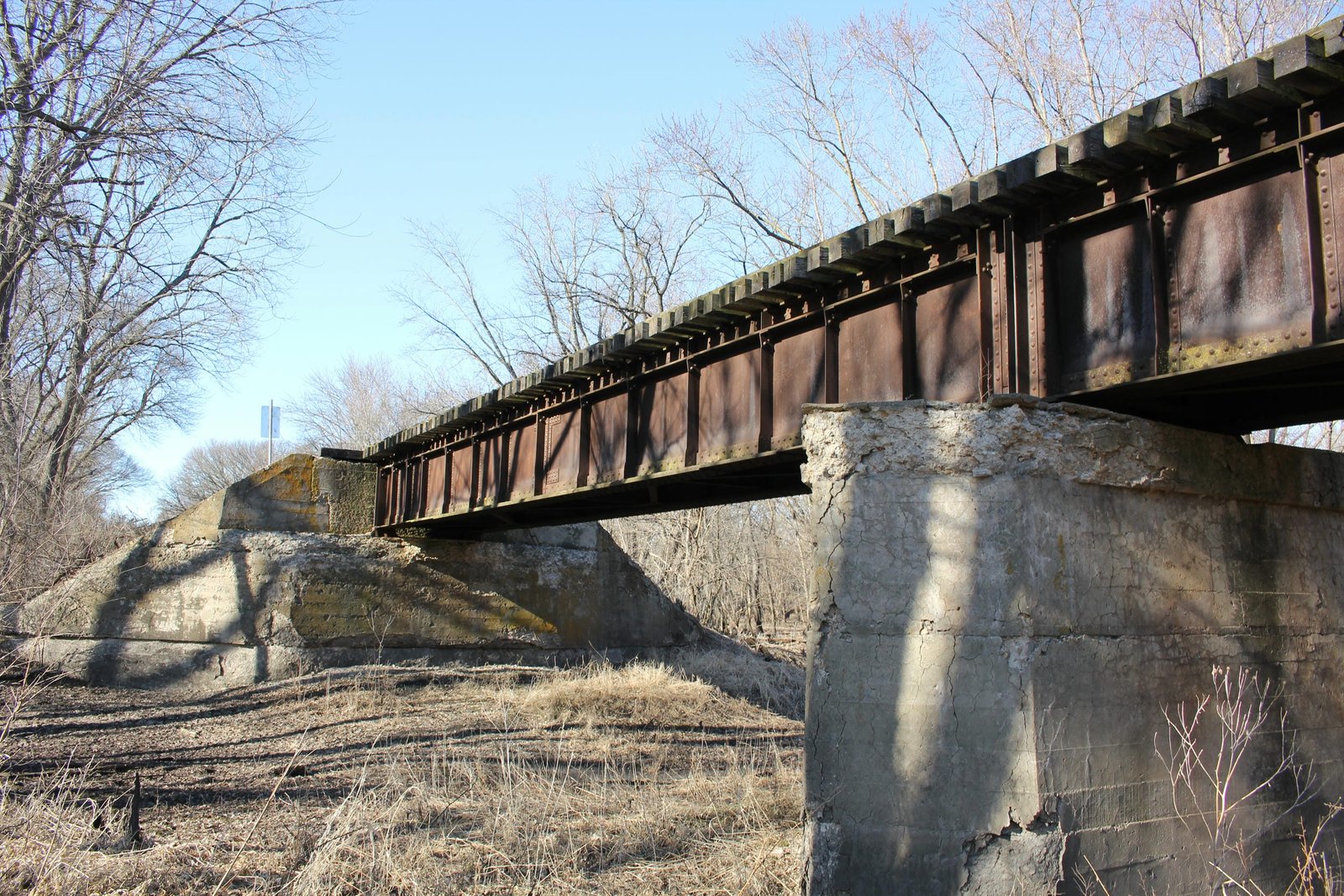

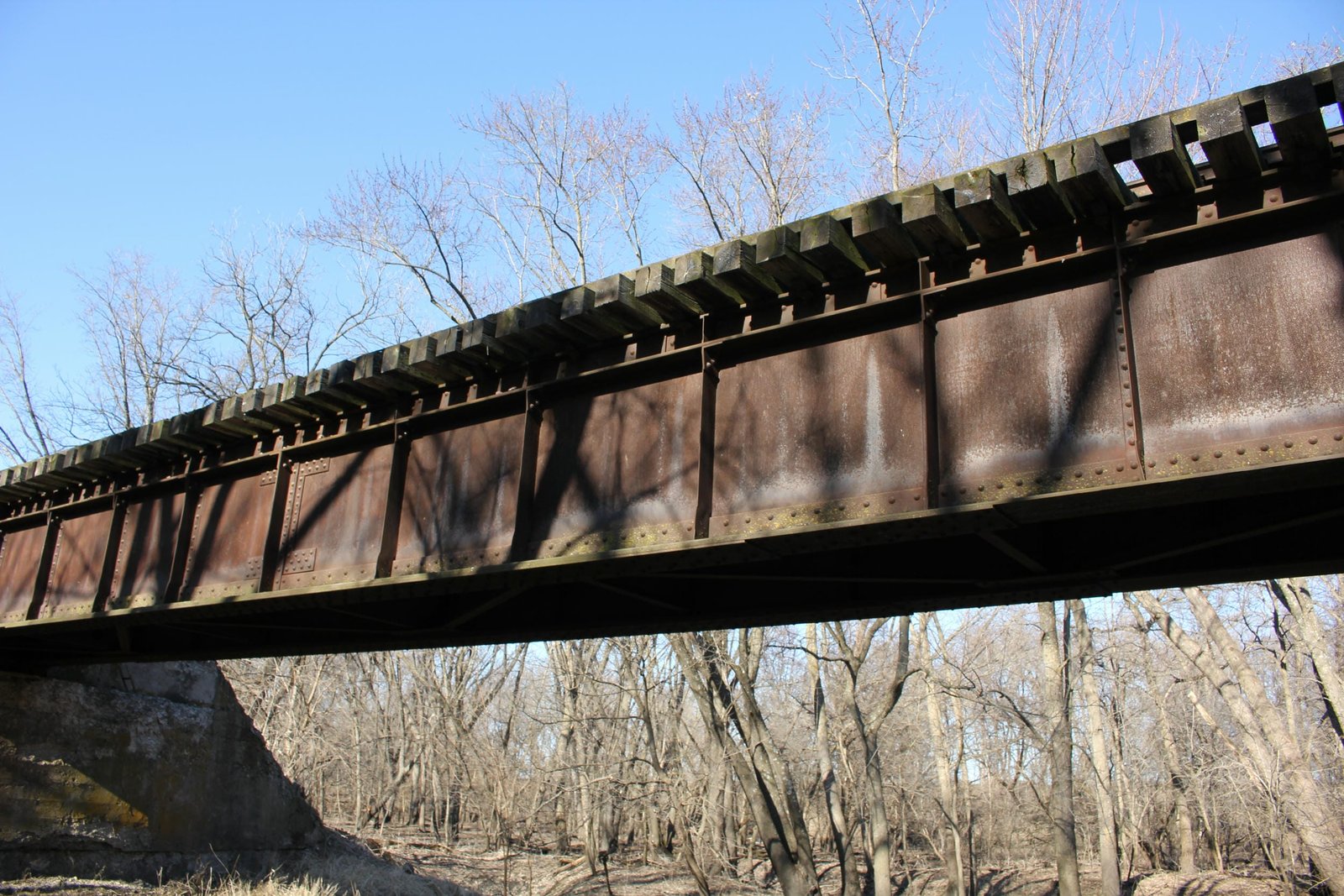

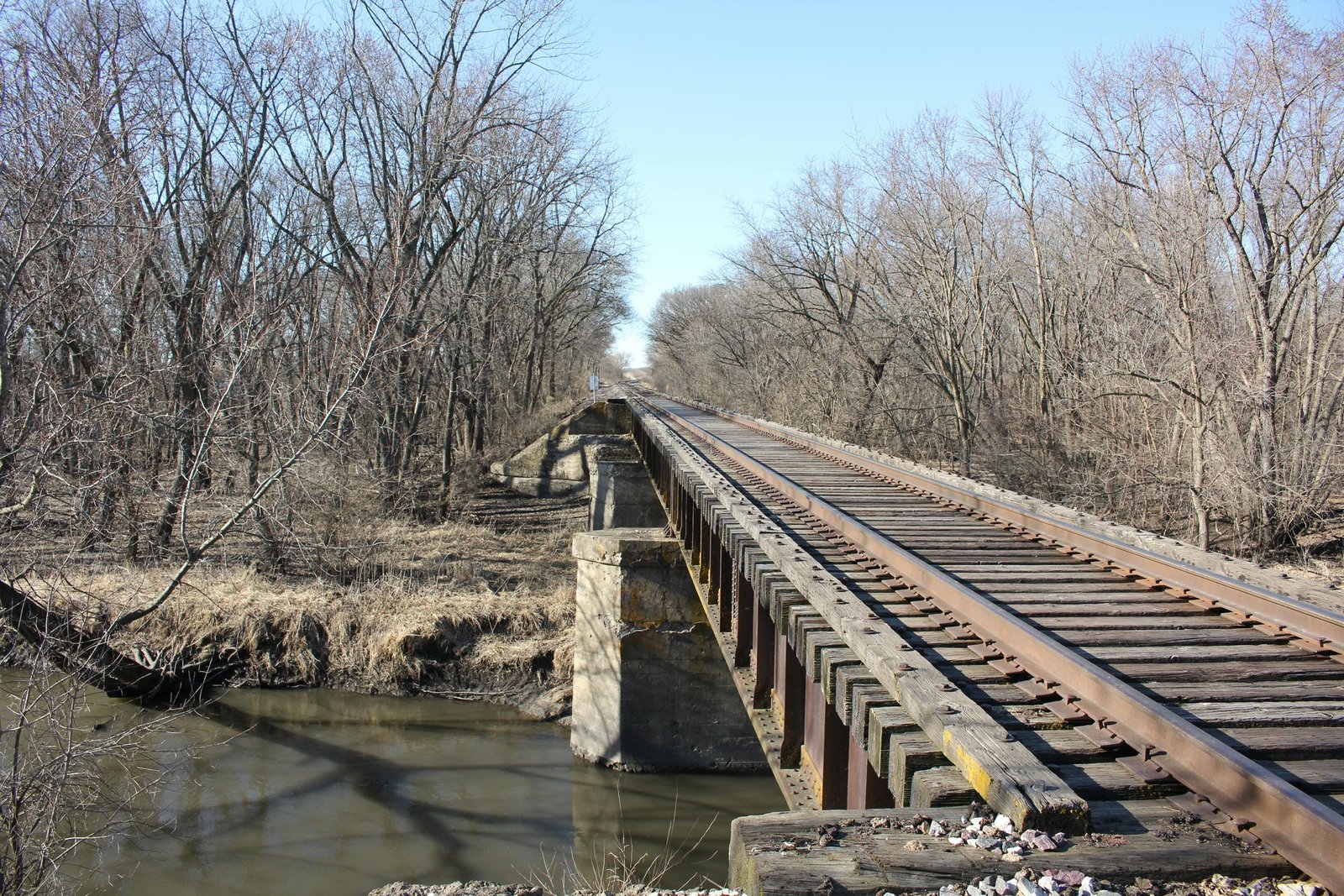

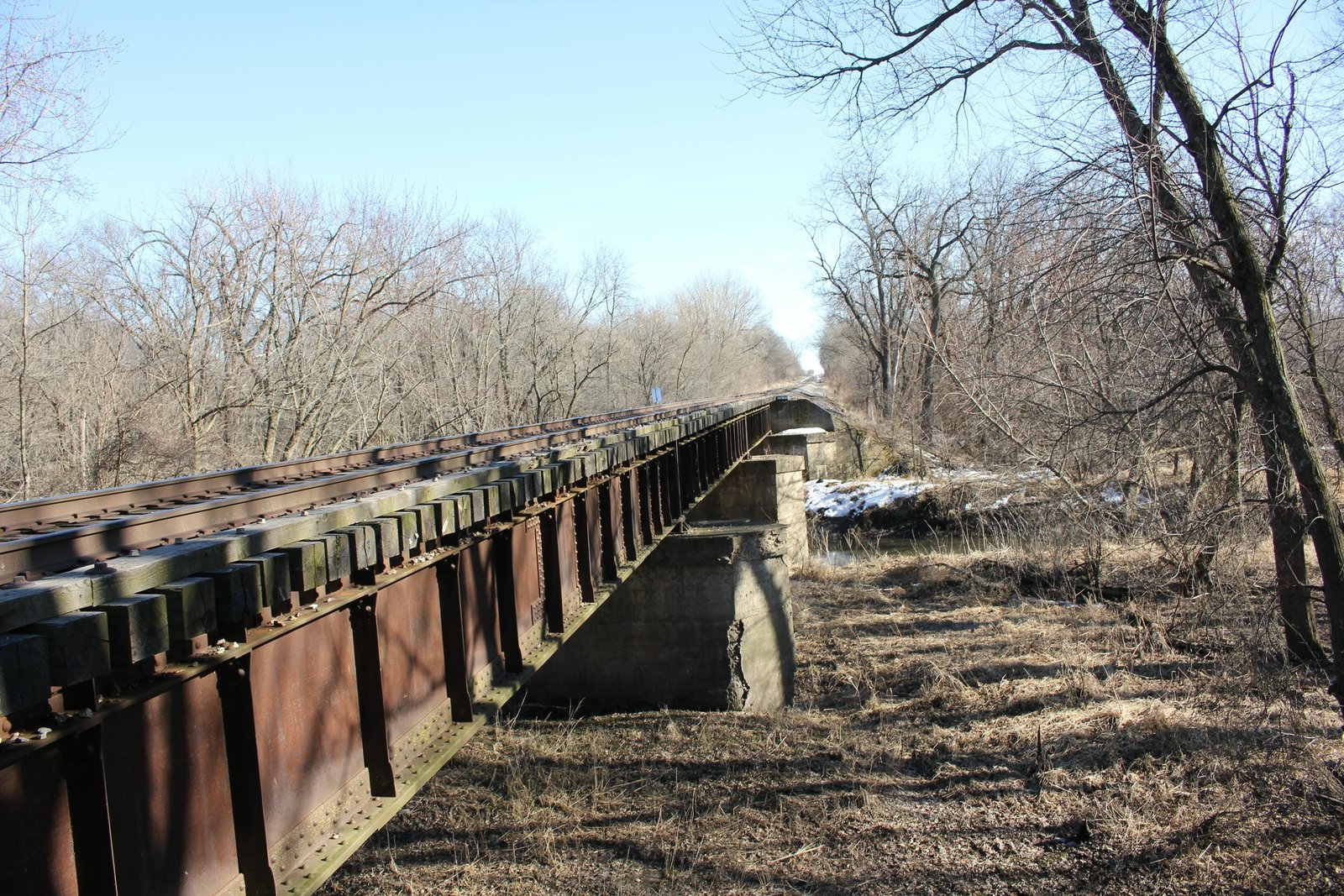

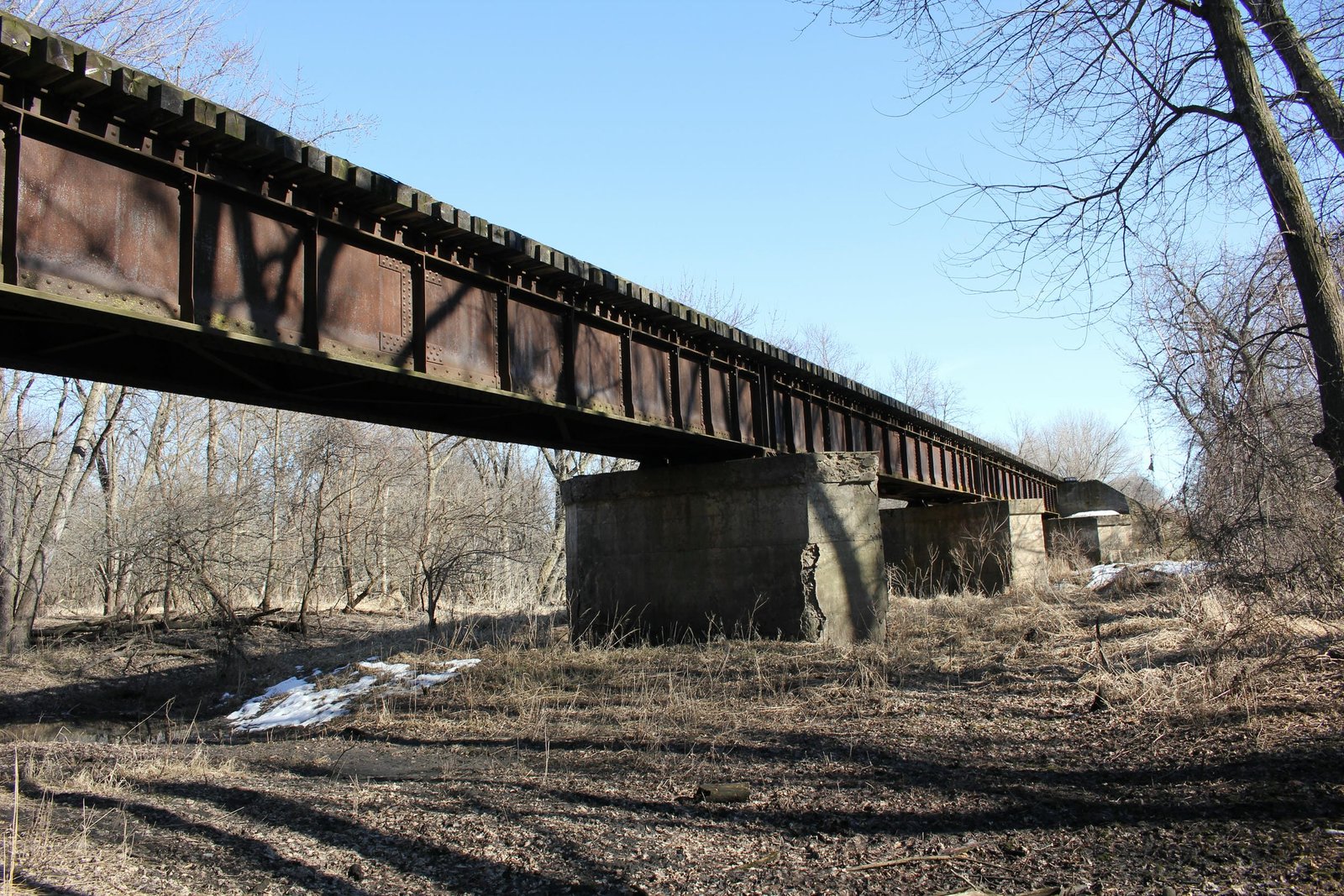

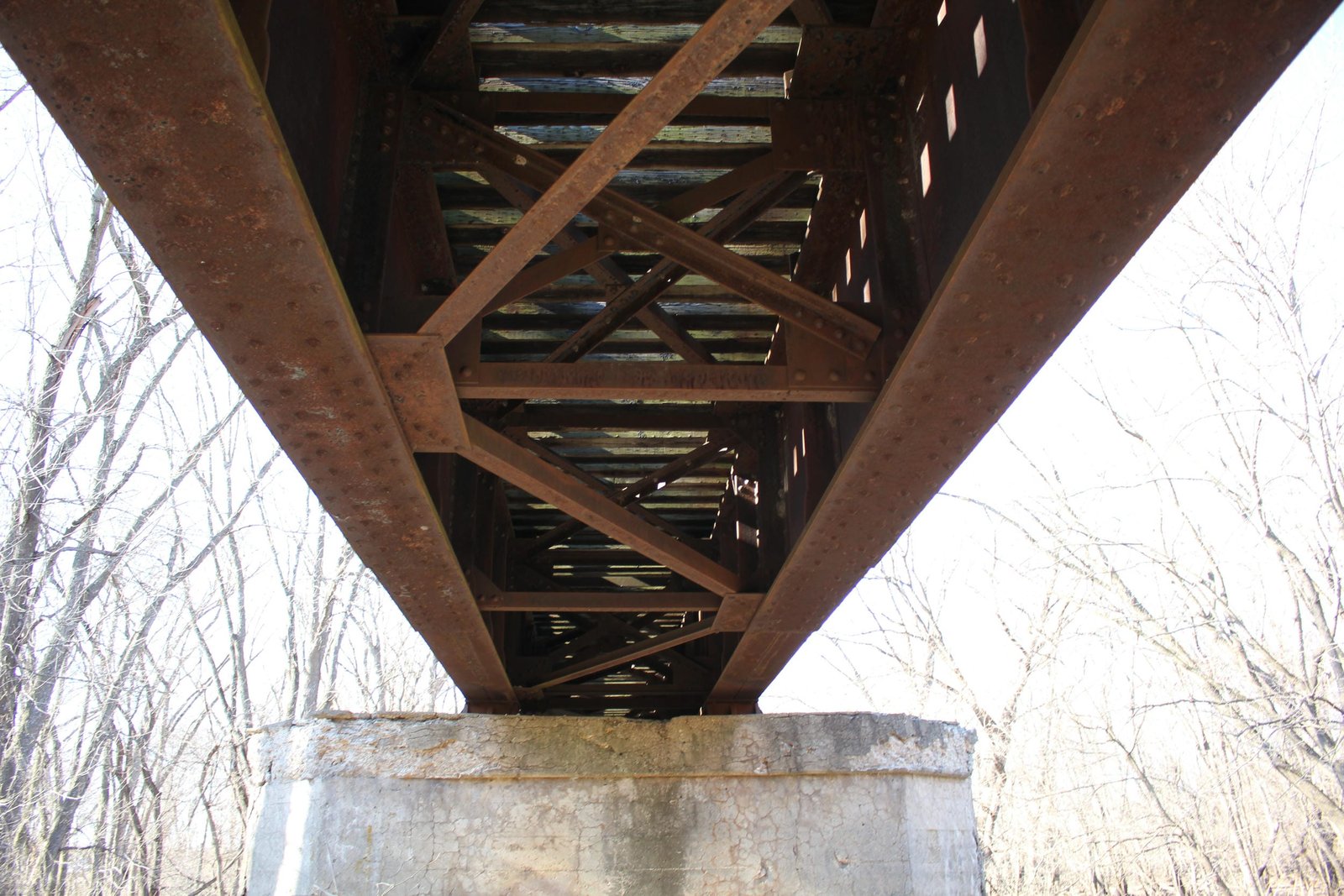

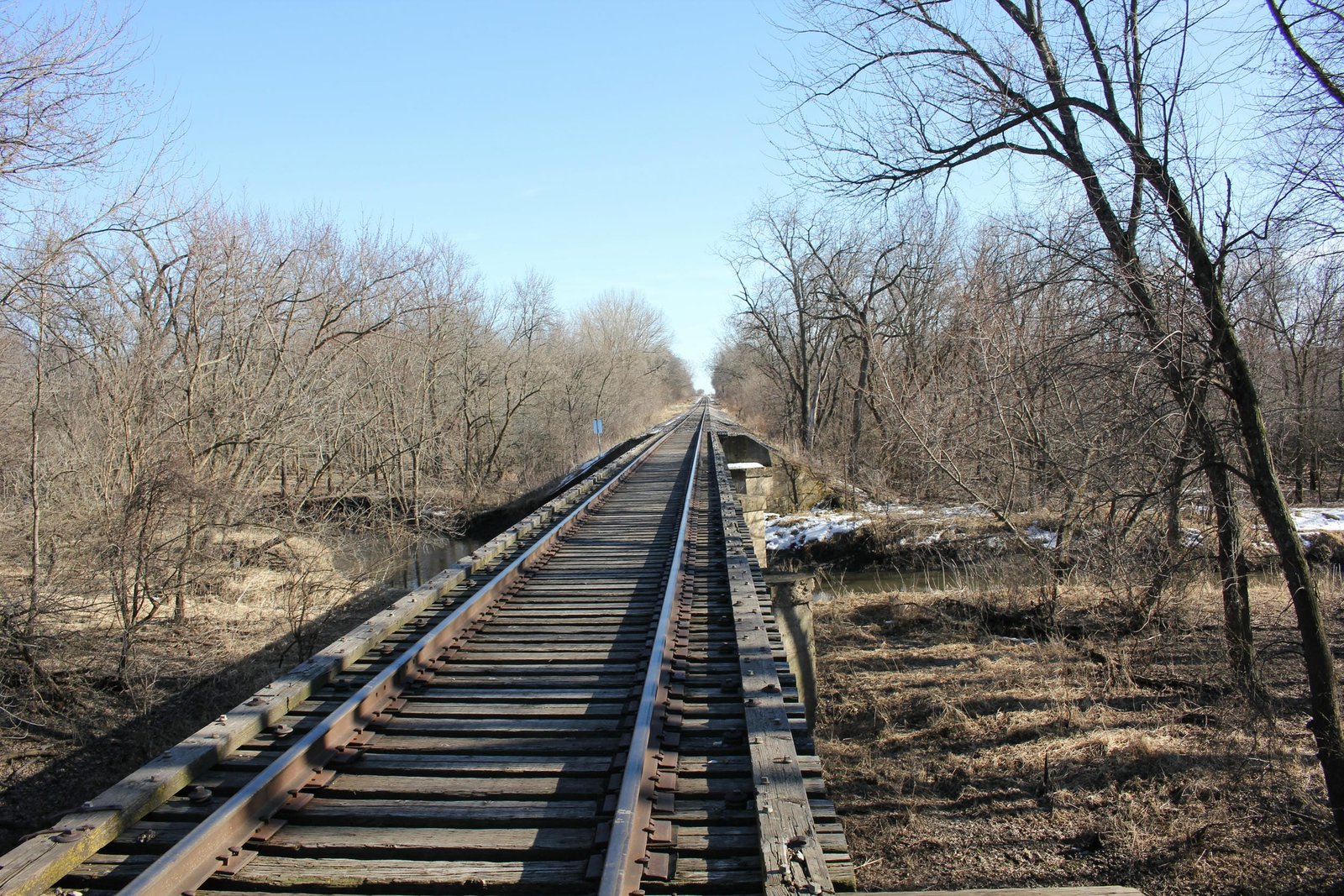

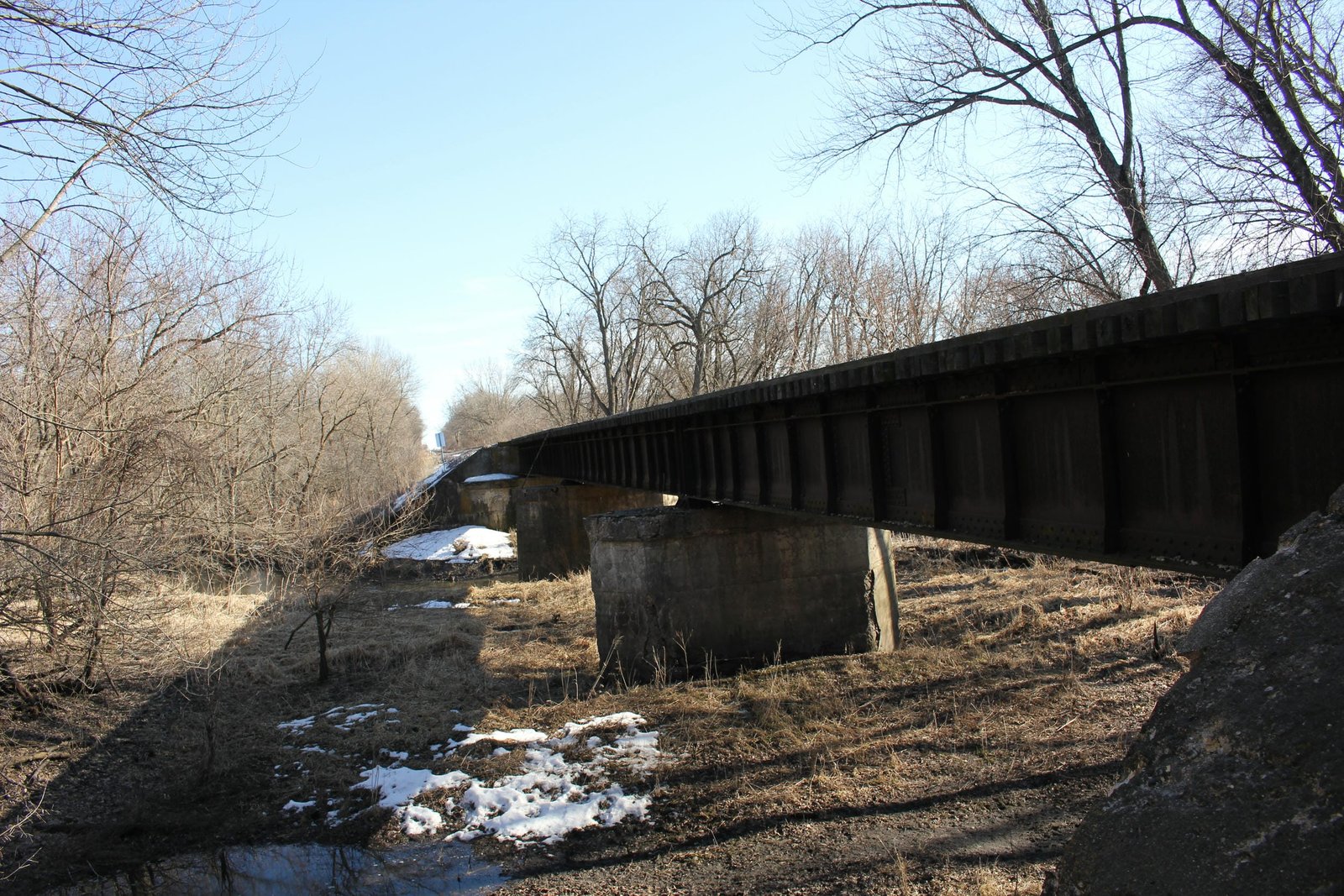

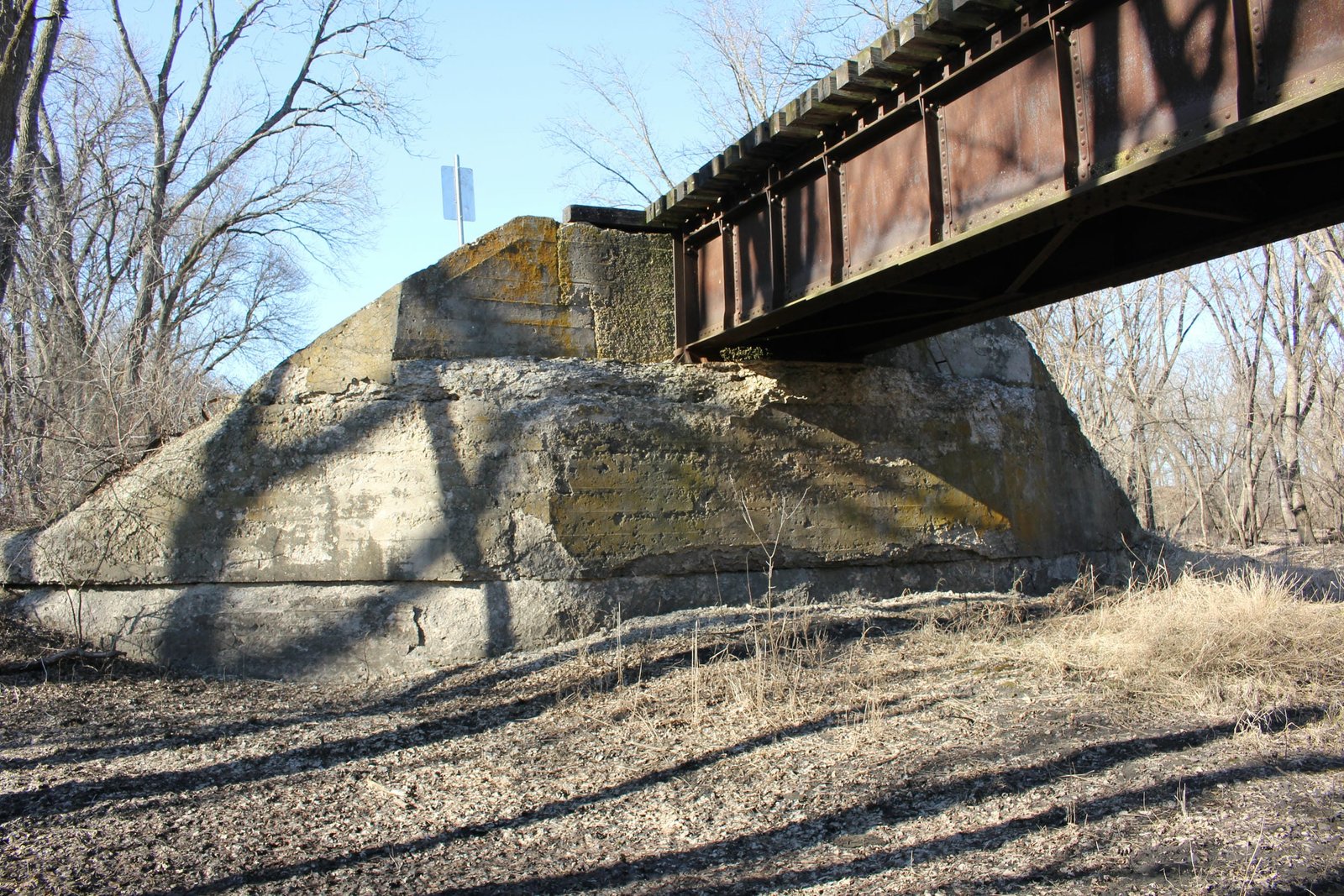

Name UP Otter Creek Bridge (Goldfield)
Chicago & North Western Railway Bridge #715
Built By Chicago & North Western Railway
Currently Owned By Union Pacific Railroad
Superstructure Contractor American Bridge Company of New York
Substructure Contractor Unknown
Length 180 Feet Total, 60 Foot Spans
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1909
Traffic Count 1 Train/Day (Estimated)
Current Status In Use
Chicago & North Western Railway Bridge Number 715
Union Pacific Railroad Bridge Number 58.09
Significance Local Significance
Documentation Date 3/6/2020

In 1872, the Toledo and Northwestern Railway (T&NW) completed a 3-mile railroad line, extending from Tama, Iowa to Toledo, Iowa.  At Tama, the line connected to the existing Chicago & North Western Railway (C&NW) mainline.  In 1879, the C&NW leased the property of the T&NW and funded further expansions in northern Iowa.  In 1880, the T&NW completed an additional 83 miles from Toledo to Jewell Junction, Iowa.  The following year, an additional 14 miles were completed to Webster City, Iowa; followed by 66 additional miles completed northwards to Elmore, Minnesota in 1882.  At Elmore, the line would connect to an existing branch line of the Chicago, St. Paul, Minneapolis & Omaha Railway (Omaha Road). In the early 1880s, the T&NW constructed a respectable railroad network in northern Iowa, eventually reaching both South Dakota and Minnesota. In 1890, the T&NW was sold to the C&NW. This line served as a secondary line for the C&NW, providing connections to branch lines in northern Iowa and a connection to the leased Omaha Road at Elmore.  During the early 20th Century, the C&NW invested significant capital into this line, replacing timber bridges with stone and steel structures, and upgrading other buildings.

By the early 20th Century, the C&NW had developed into a significant midwest railroad network, with lines radiating north and west from Chicago.  In particular, the C&NW developed dozens of secondary and branch lines in Iowa to serve agricultural industries and small towns.  This line remained an important secondary route for the C&NW through much of the 20th Century, providing a connection between lines in Minnesota to the principal mainline across Iowa.   In 1968, two segments of this line were abandoned; including between Eldora Junction, Iowa and Lawn Hill, Iowa and between Ledyard, Iowa and Elmore.  A segment between Conrad, Iowa and Eldora Junction was abandoned in 1976.  A short segment between Bancroft, Iowa and Ledyard was abandoned in 1978.  In 1981, the C&NW purchased the St. Paul to Kansas City "Spine Line" from the bankrupt Chicago, Rock Island & Pacific Railroad (Rock Island).  This line paralleled the Rock Island for much of its length, and the Rock Island was a better constructed route.  As a result, portions of this line quickly became excess for the C&NW.

Following the purchase of the Rock Island line, redundant sections of this line were quickly abandoned.  In 1981, two additional segments were abandoned between Tama and Gladbrook, Iowa and between Lawn Hill and Ellsworth, Iowa.  A segment between Gladbrook and Conrad was abandoned in 1983.  The segment between Burt, Iowa and Bancroft would be abandoned in 1985.  The remainder of the line between Ellsworth and Burt was kept intact to serve various agricultural industries and connect to remaining C&NW-owned branch lines.  In 1995, the C&NW was purchased by Union Pacific Railroad (UP).  A short segment from Ellsworth to Jewell was abandoned in 2006.  Today, UP operates the Jewell to Burt segment as the Jewell Subdivision, which provides access to several branch lines serving northern Iowa.  A short portion between Ellsworth and Jewell has been reused as the JewEllsworth Trail, while the remainder of the line has been abandoned.  Much of the abandoned segments have reverted to adjacent property owners, and been repurposed for farm fields.

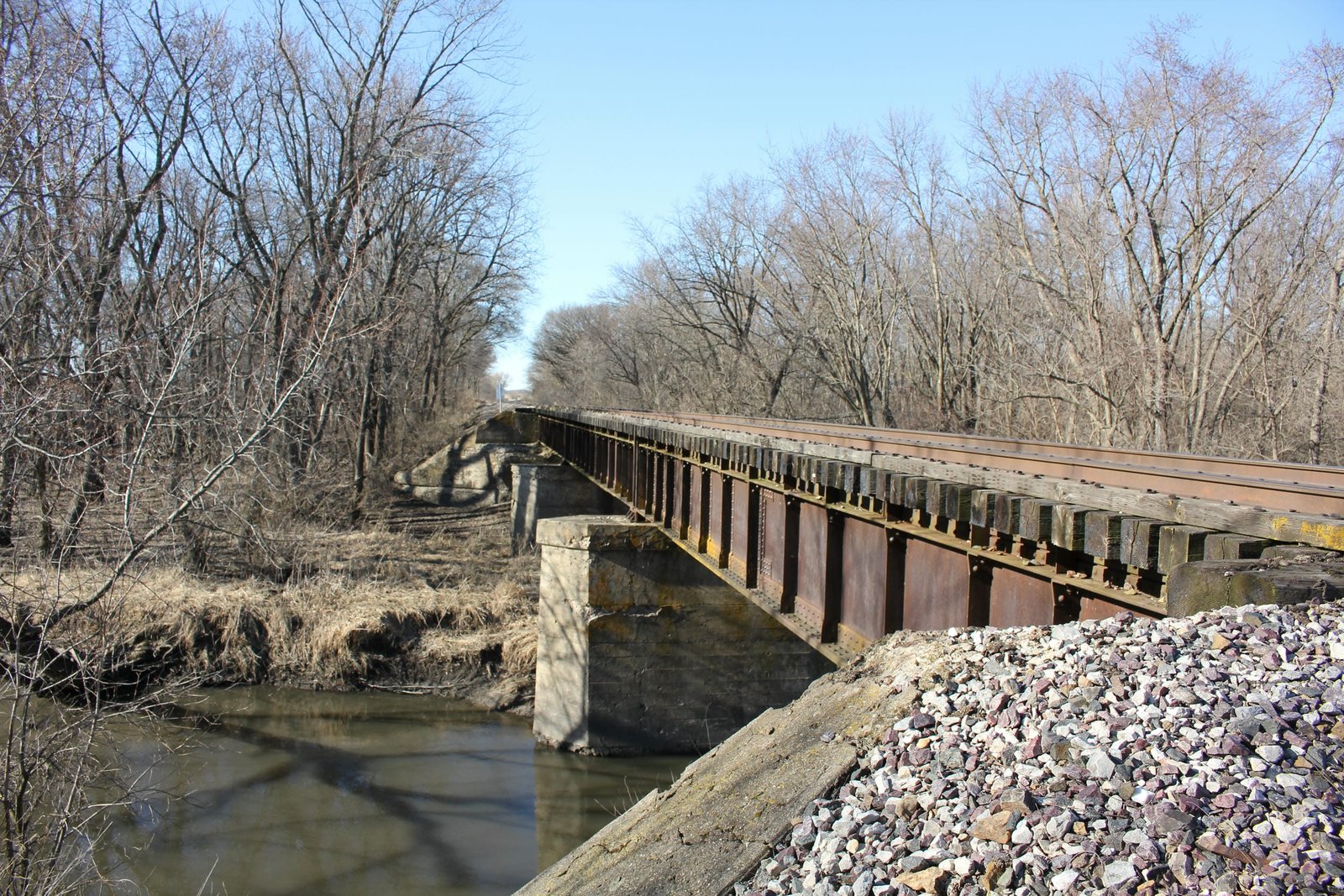

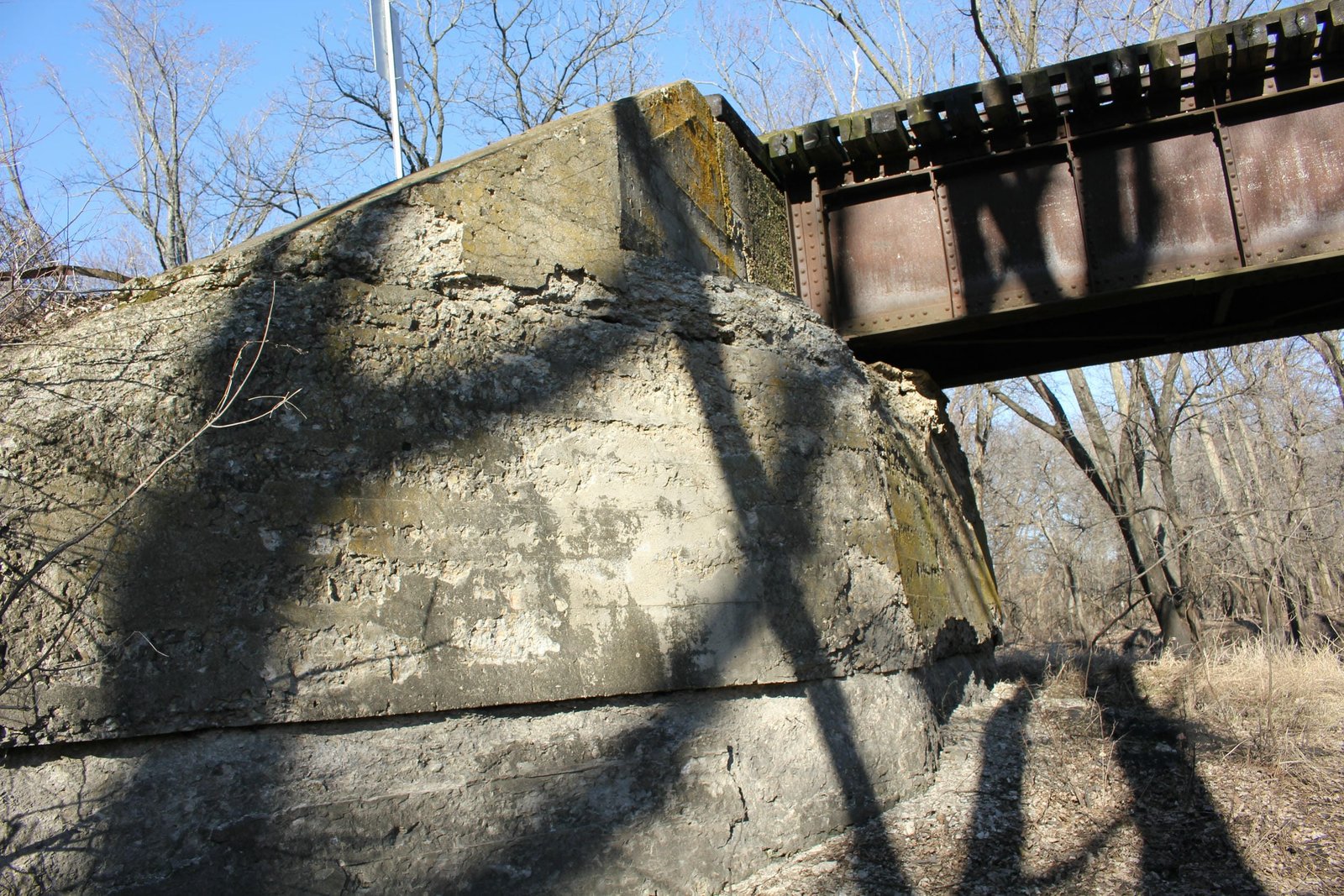

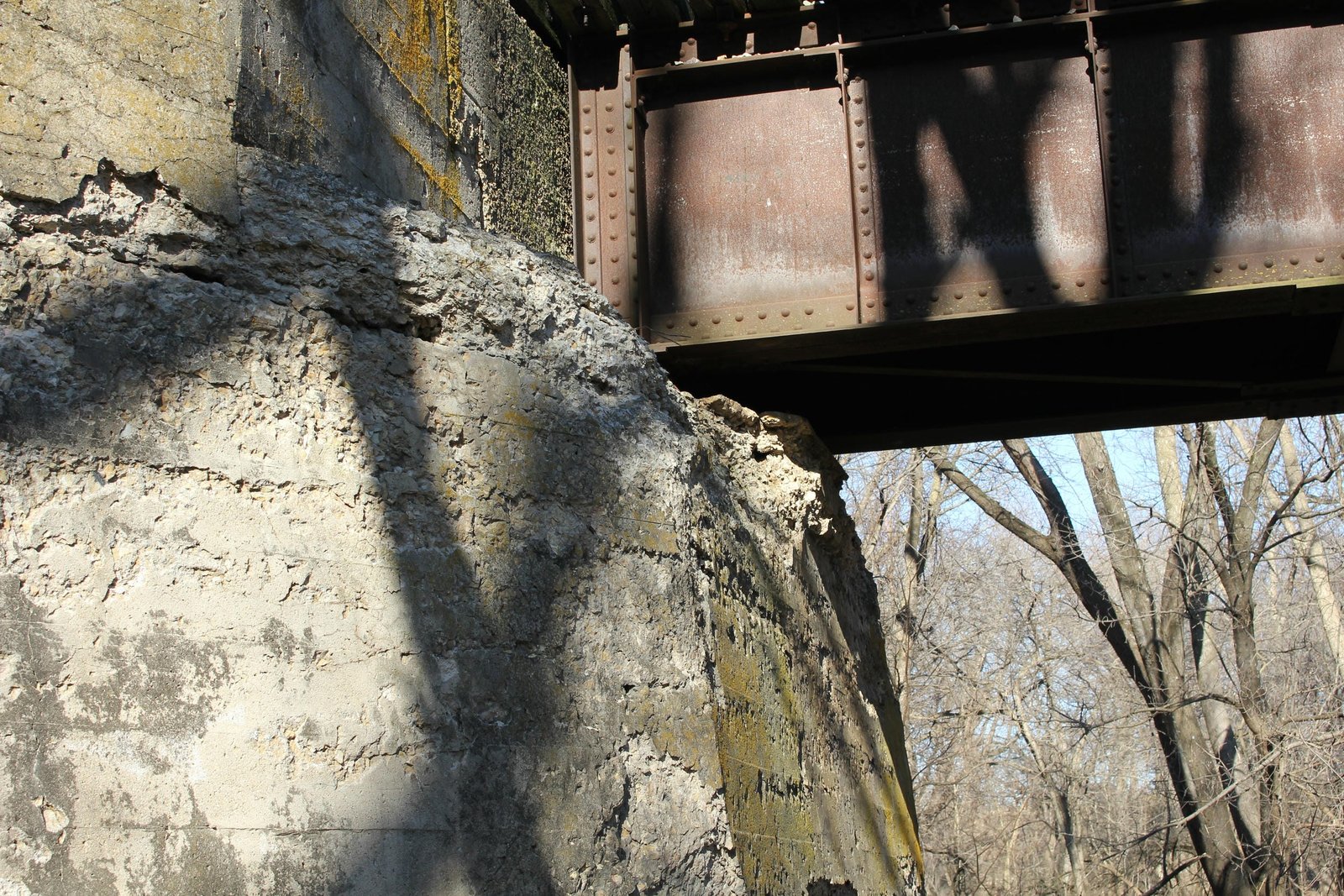

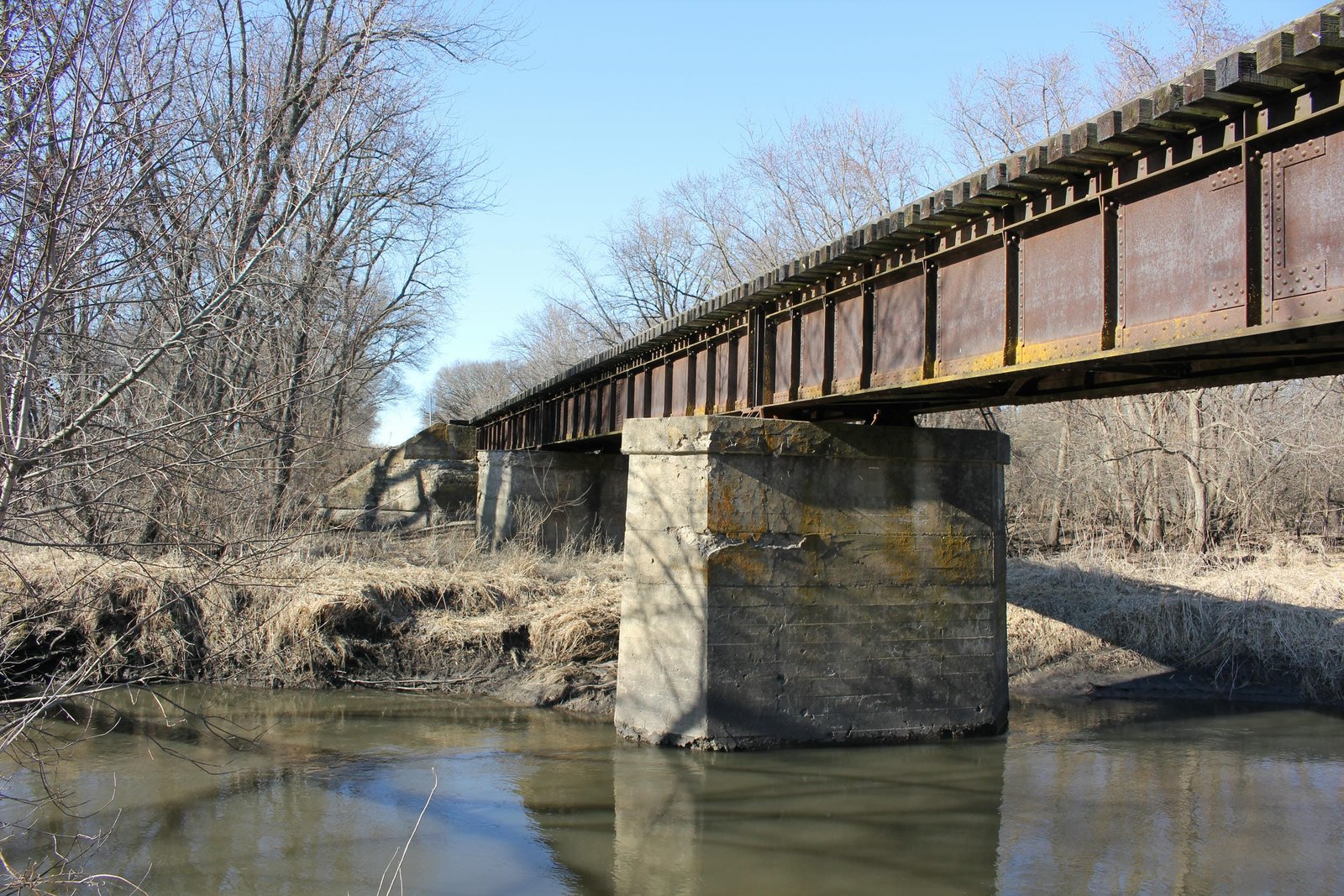

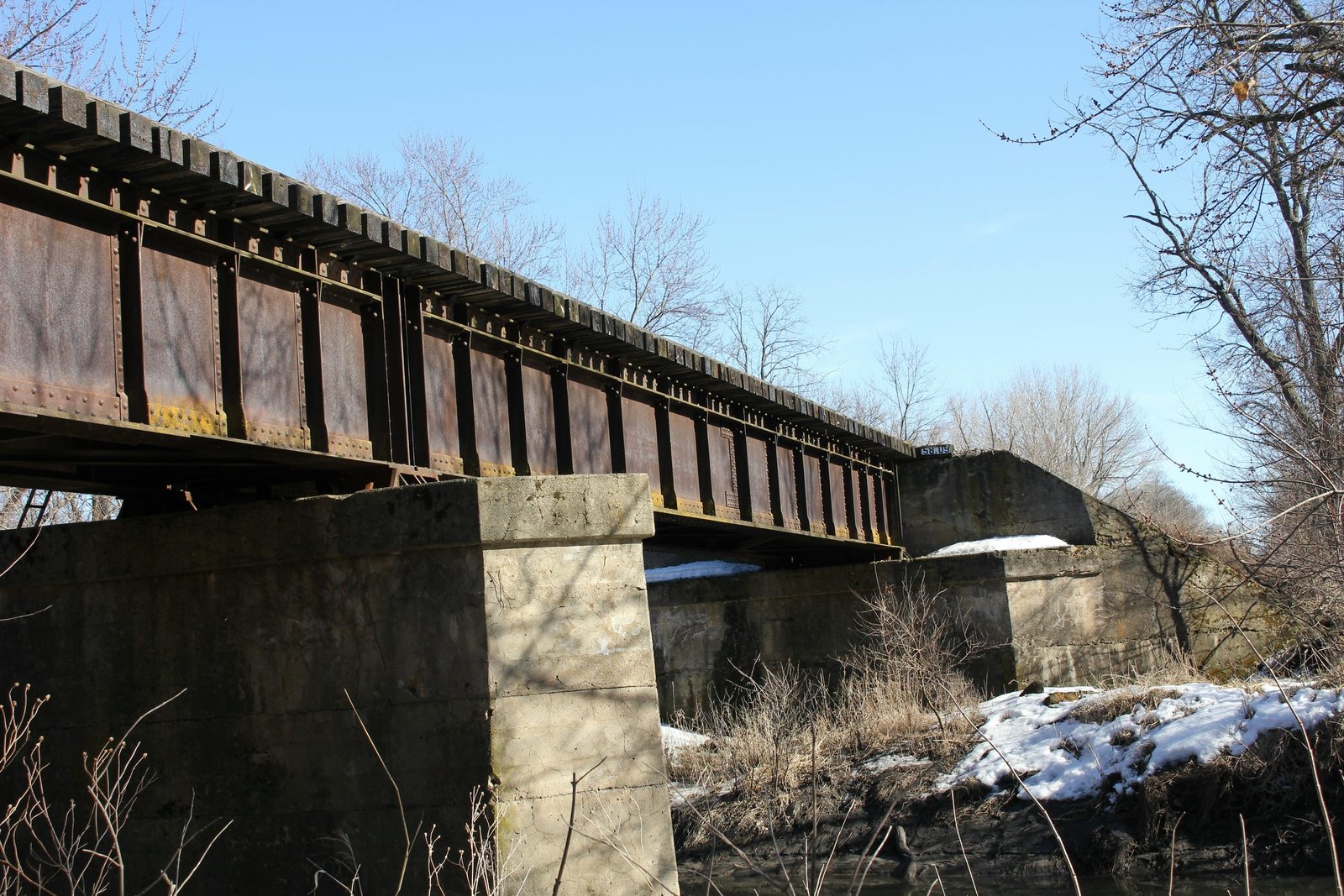

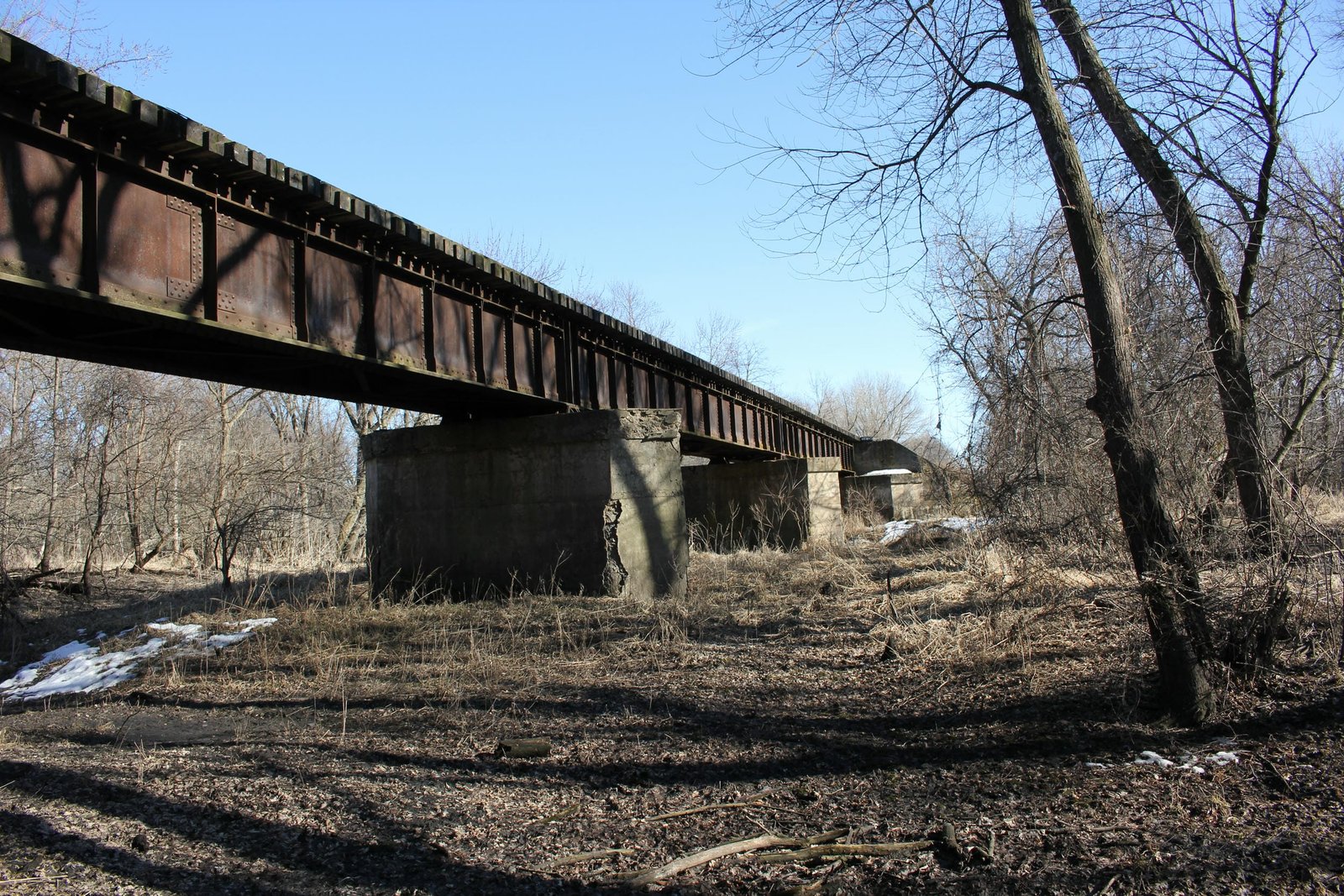

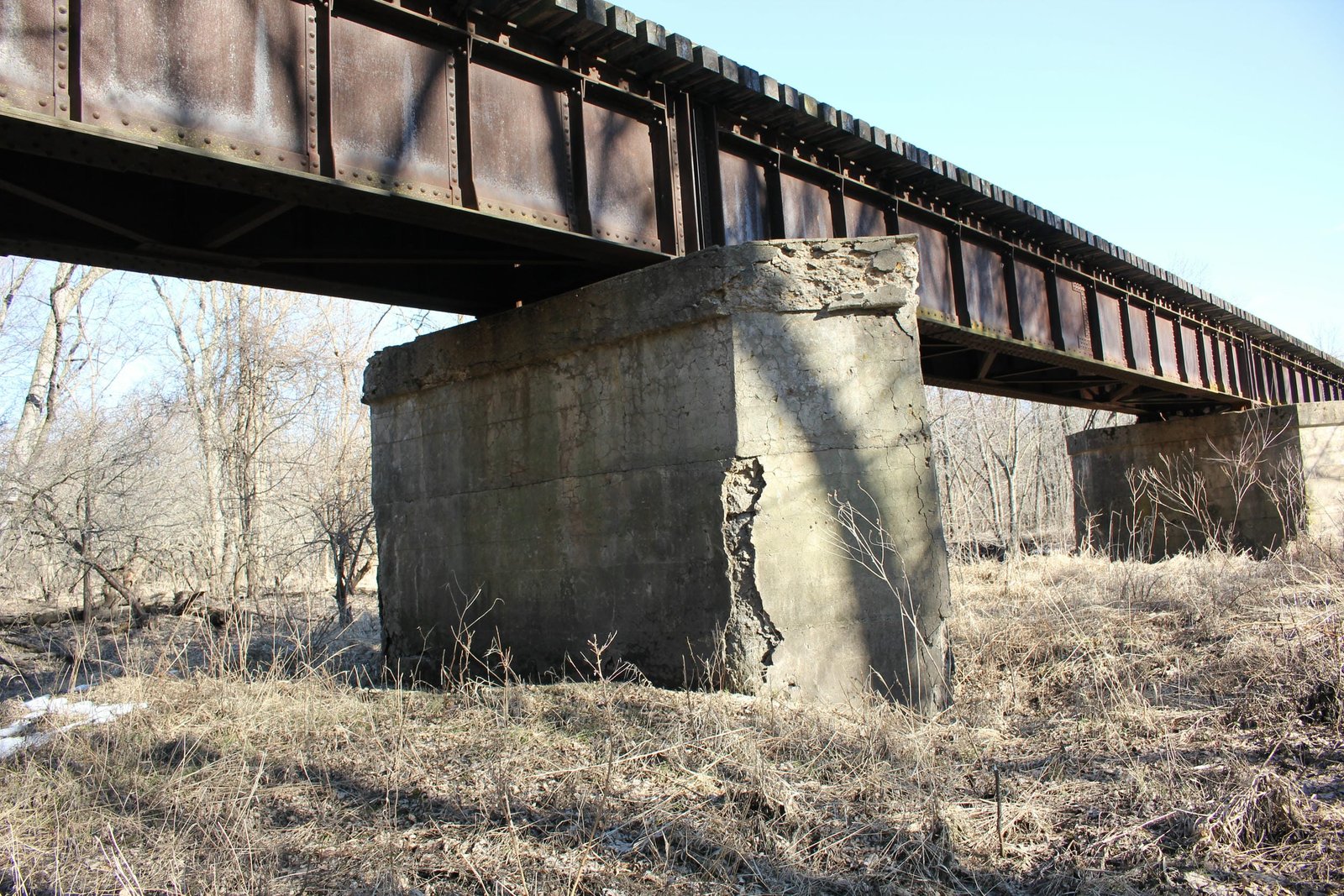

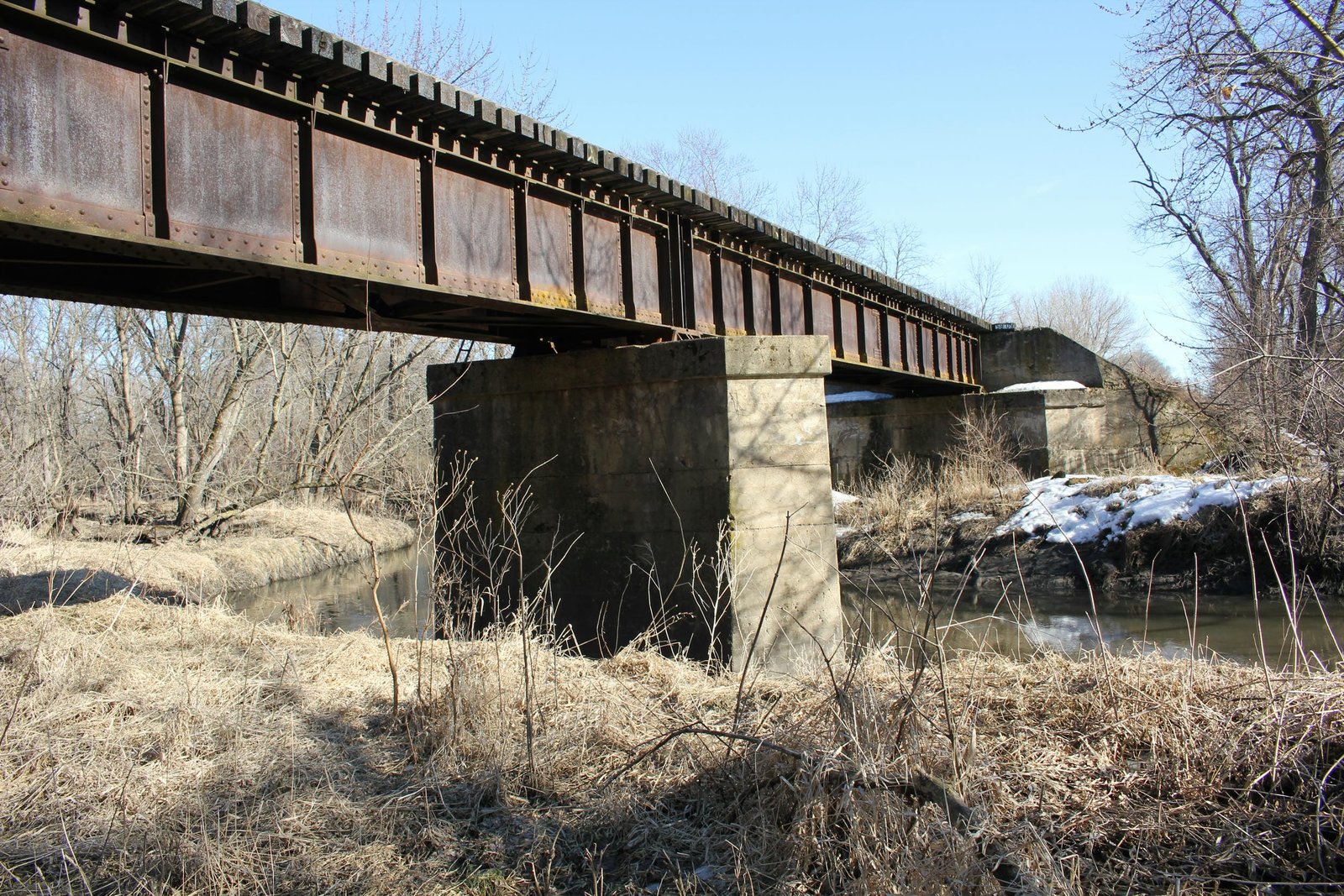

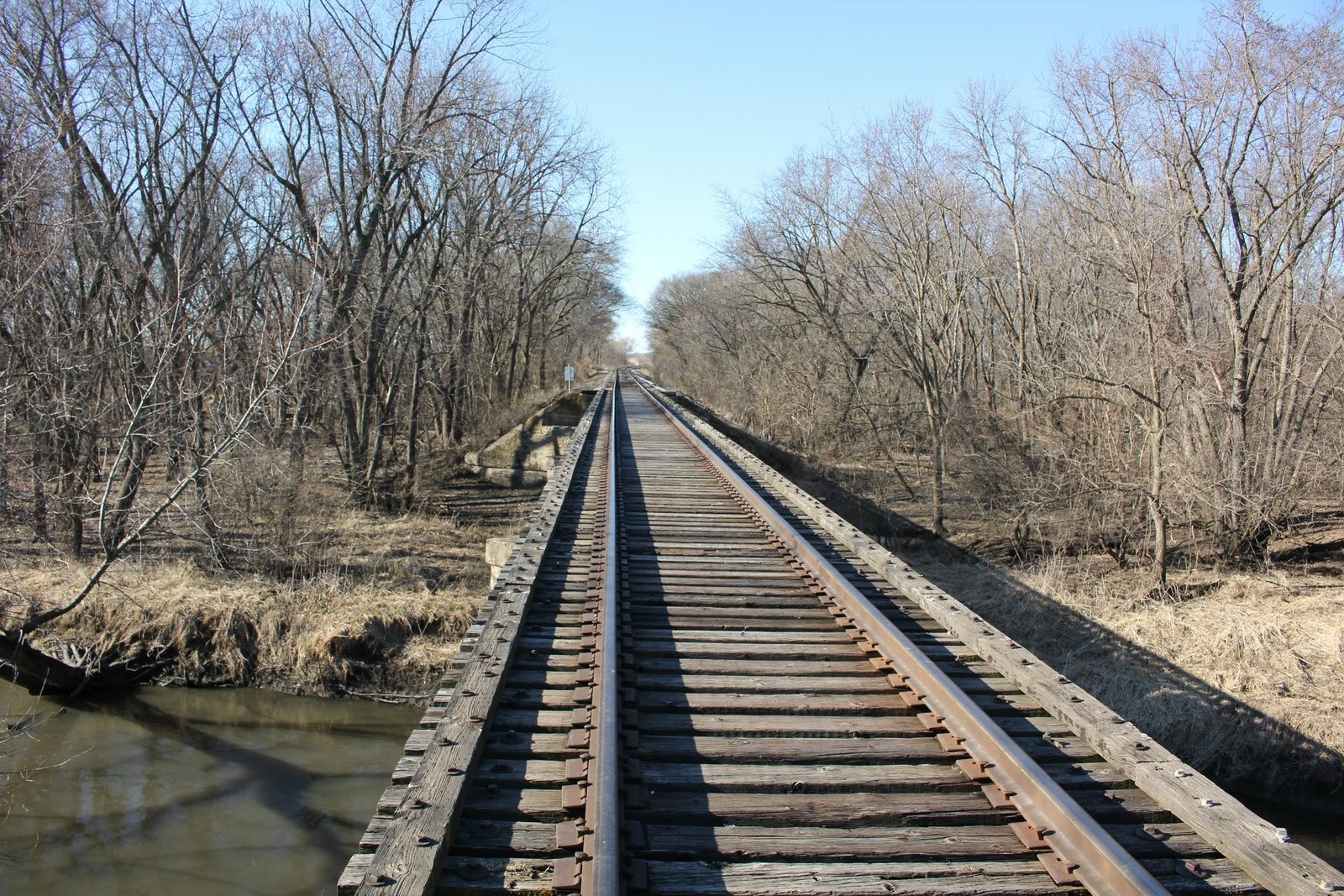

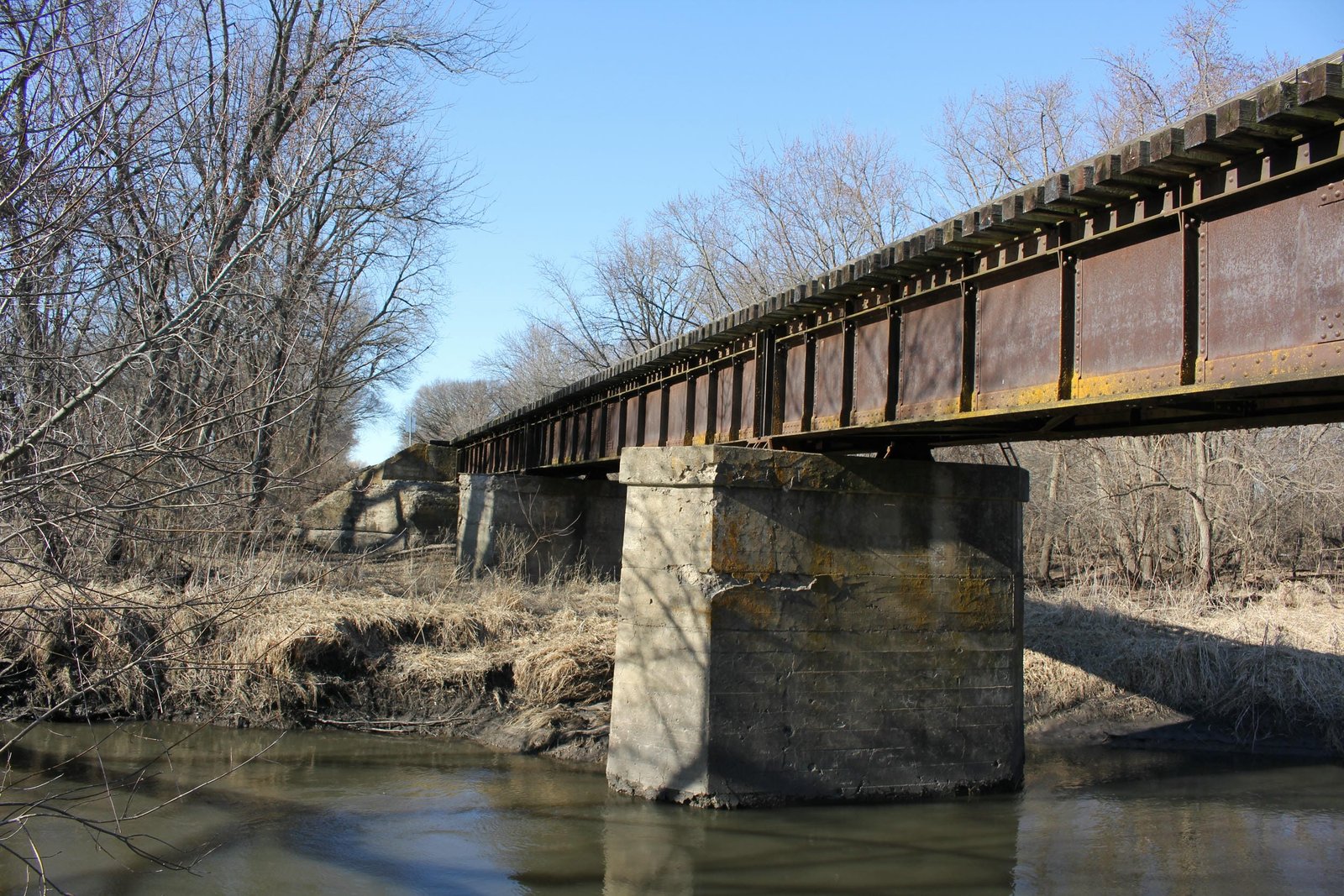

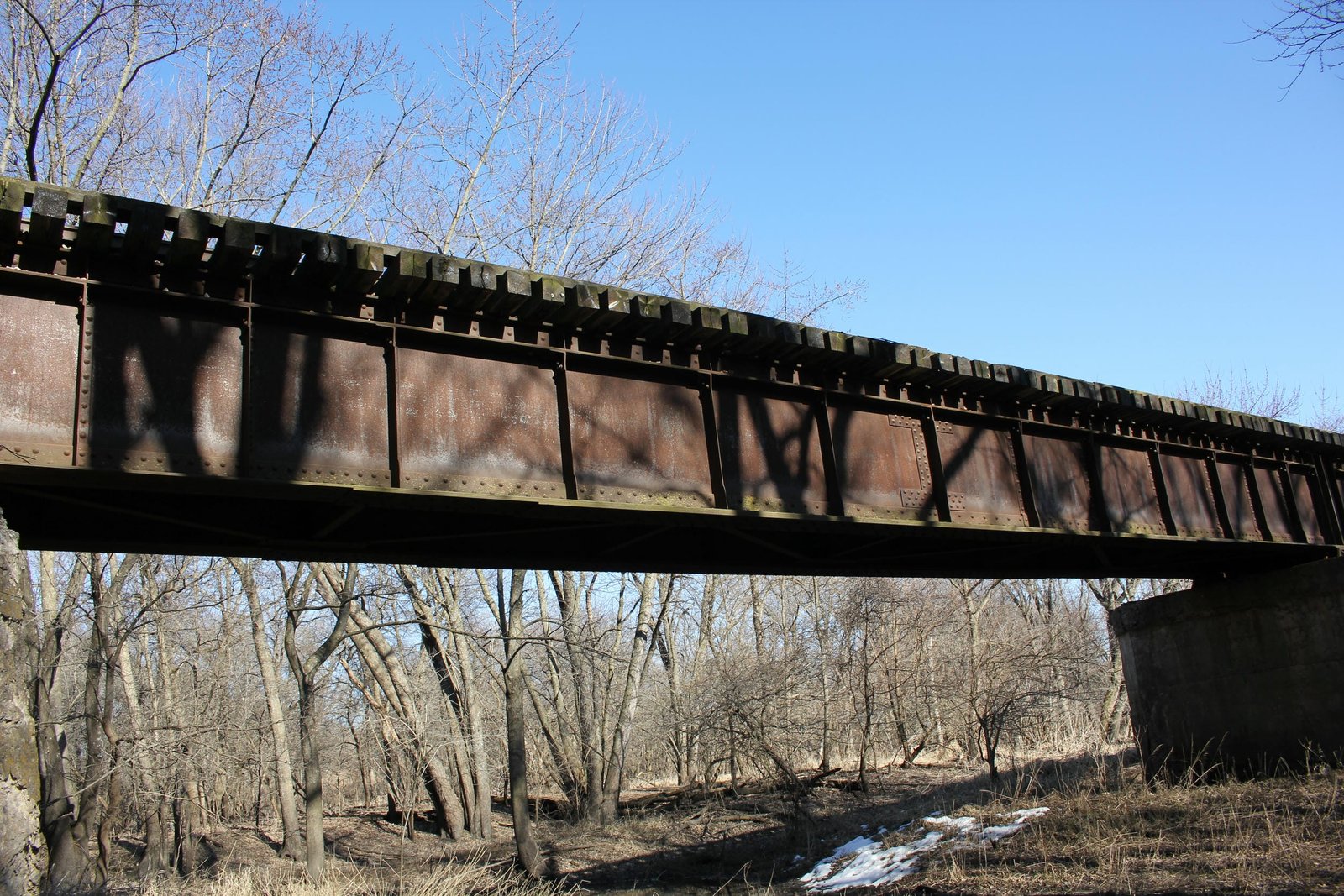

Located near the ghost town of Thrall north of Goldfield, this deck plate girder bridge carries a former Chicago & North Western Railway line over Otter Creek. The first bridge at this location was likely a timber bridge, constructed when the line was first built. This bridge was located in a large sag along the line, which created heavy grades on either end. During the early years of the 20th Century, the C&NW invested significant capital into this line, replacing timber bridges with heavier stone, concrete and steel structures. In the summer of 1909, a grade reduction project was commenced and a new taller bridge constructed at this location. Currently, the bridge consists of three 60-foot deck plate girder spans, set onto concrete substructures. The superstructure follows a standard design, with two modest sized plate girders and an open deck. The substructure also follows a standard design, with diamond shaped piers and abutments with sloped wing walls. American Bridge Company fabricated the superstructure, while an unknown contractor constructed the substructure. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations and remains in use today. Overall, the bridge appears to be in fair condition, with some significant spalling noted on the concrete portions of the bridge. The author has ranked the bridge as being locally significant, due to the common design.


Citations

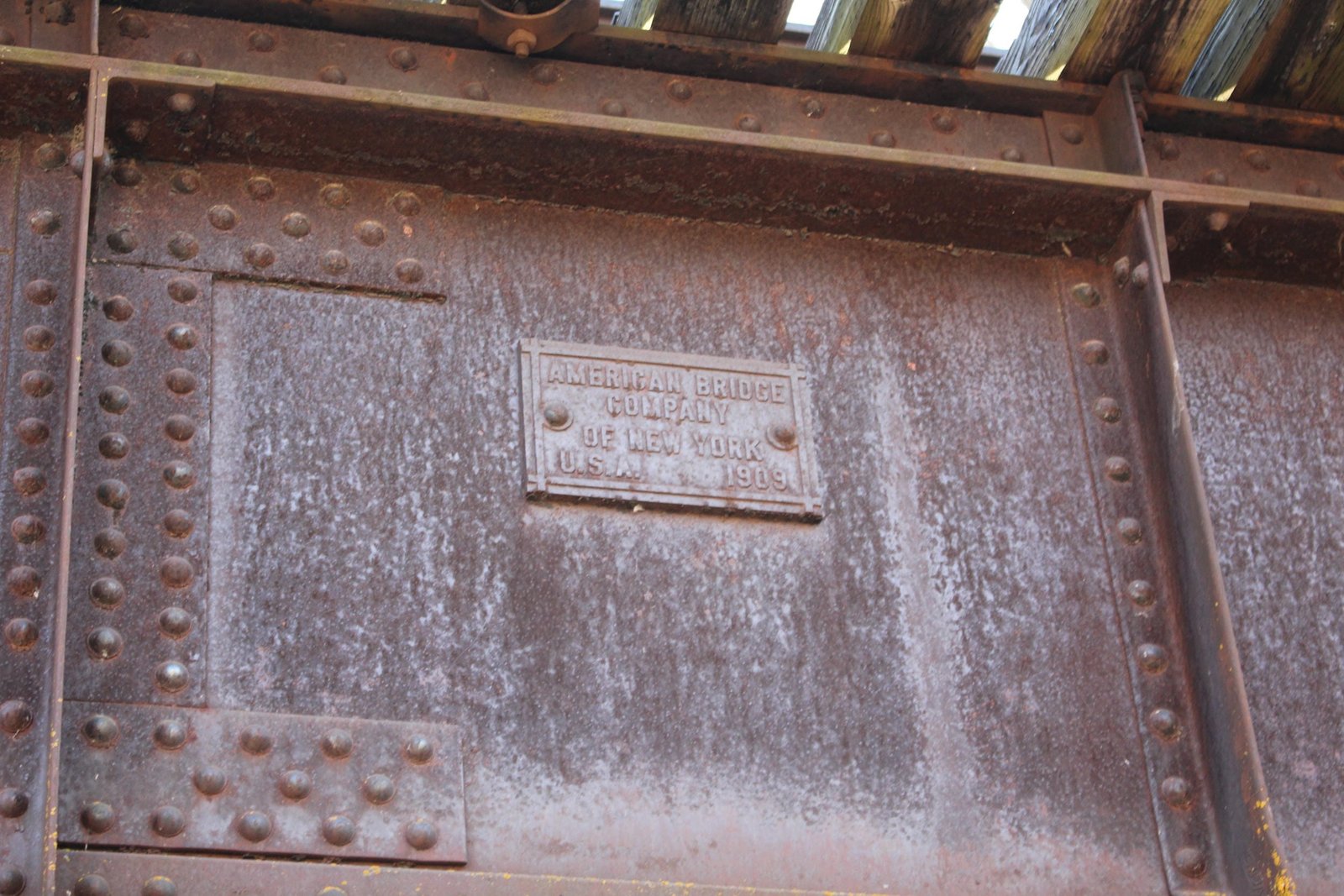

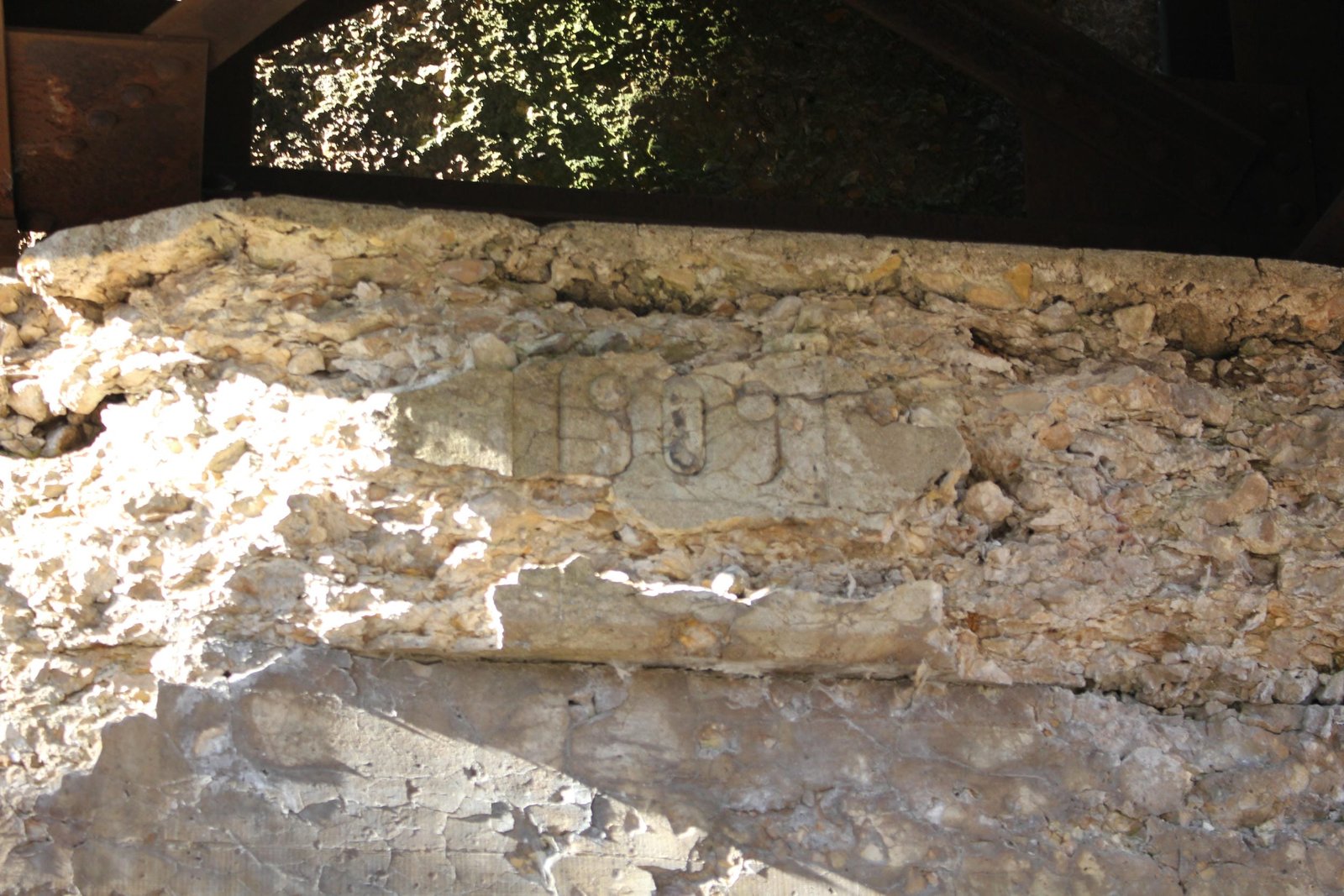

Build date and builder (superstructure) American Bridge Company plaque
