Iowa Great Lakes Trail - Little Ocheyedan River Bridge


Click the photo to view the full-size version

1/16
Date Taken:
Author:
Caption:

Name Iowa Great Lakes Trail - Little Ocheyedan River Bridge
Chicago, Rock Island & Pacific Railroad Bridge #2515
Built By Burlington, Cedar Rapids & Northern Railway
Currently Owned By Osceola County
Superstructure Contractor Unknown
Substructure Builder Burlington, Cedar Rapids & Northern Railway Company Forces
Length 80 Feet Total, 40 Foot Spans
Width 1 Track
Height Above Ground 10 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1901, Rehabilitated 2018
Traffic Count 0 Trains/Day (Bridge is Open to Pedestrian Traffic)
Current Status Open to Pedestrian Traffic
Chicago, Rock Island & Pacific Railroad Bridge Number 2515
Significance Local Significance
Documentation Date 11/23/2019

In 1873, the Burlington, Cedar Rapids & Minnesota Railway (BCR&M) constructed 24 miles of new railroad, extending from an existing line at Vinton, Iowa to Traer, Iowa.  In 1877, the Burlington, Cedar Rapids & Northern Railway constructed an additional 24 miles of new railroad, extending from Traer to Holland.  In 1878, the BCR&M was acquired by the BCR&N.  In 1880, the Cedar Rapids, Iowa Falls & Northwestern Railway (CRIF&NW) constructed an additional 79 miles of new railroad, extending from Holland to Clarion, Iowa.  The following year, an additional 59 miles of railroad were constructed, reaching Emmetsburg, Iowa.  In 1882, an additional 70 miles of new railroad were constructed, extending from Emmetsburg, through Estherville and Lake Park, Iowa, to Worthington, Minnesota.  In 1884, the line was completed from Lake Park, through Pipestone, Minnesota, to Watertown, South Dakota.  The CRIF&NW was leased by the BCR&N in 1884.  Throughout the 1880s, the BCR&N became a major railroad in Iowa, connecting towns in the eastern and northern portions of the state. This line served as a secondary mainline for the BCR&N, providing access to agricultural areas in northwest Iowa, southwest Minnesota and east central South Dakota.  In 1900, the CRIF&NW constructed an additional 36 miles of new railroad, extending from Worthington to Hardwick, Minnesota, on the existing line.  The CRIF&NW was outright purchased by the BCR&N in May 1902.  The BCR&N was in turn purchased by the Chicago, Rock Island & Pacific Railway (Rock Island) in June 1903.  The Rock Island operated a large railroad network through the central United States, serving diverse industries.

Between Vinton and Estherville, the Rock Island operated this line as a secondary line.  The Rock Island operated the lines towards Watertown as branch lines. The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948.  A section between Luverne, Minnesota and Kanaranzi, Minnesota was abandoned in 1962.  In 1969, the Rock Island abandoned segments between Lismore, Minnesota and Watertown; between Ellsworth, Minnesota and Karanzi and between Luverne and Hardwick.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  A short section from Little Rock, Iowa to Ellsworth was abandoned in 1977.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.  In 1980, several sections of this line were abandoned, including the Traer to Dows section; the Clarion, Iowa to Goldfield, Iowa section; the Lake Park to Lismore section section and the Sibley, Iowa to Little Rock section.

Three separate lines of this line were sold to other railroads.  Between Vinton and Dysart, the line was acquired by the Iowa Northern Railway (IANR) for use as a branch line.  Between Dows and Clarion, the Chicago & North Western Railway (C&NW) acquired the line as an industrial lead.  Between Goldfield and Sibley, the line was also sold to the C&NW for use as a secondary line to serve agricultural industries.  A short segment between Allendorf, Iowa and Sibley, Iowa was abandoned by the C&NW in 1981.  It is believed that the Superior, Iowa to Allendorf segment was sold to the Iowa Northwestern Railroad (IANW) around the same time.  In 1994, IANR abandoned the Vinton to Traer segment of this line.  In 1995, the C&NW was acquired by Union Pacific Railroad (UP).  IANW abandoned the line between Ocheyedan, Iowa and Allendorf in 2004, followed by the segment between Superior, Iowa and Ocheyedan in 2008.  Today, UP operates the Estherville Subdivision between Goldfield and Superior, as well as the Dows Industrial Lead between Dows and Clarion.  Three sections of the line have been reused as trails, including the segment between Vinton and Dysart as the Old Creamery Trail, the segment between Reinbeck and Holland as the Pioneer Trail and the segment between Allendorf and Sibley as the Ed Winkel Memorial Trail.  An additional trail is currently being developed between Superior and Allendorf, and will be known as the Iowa Great Lakes Trail.

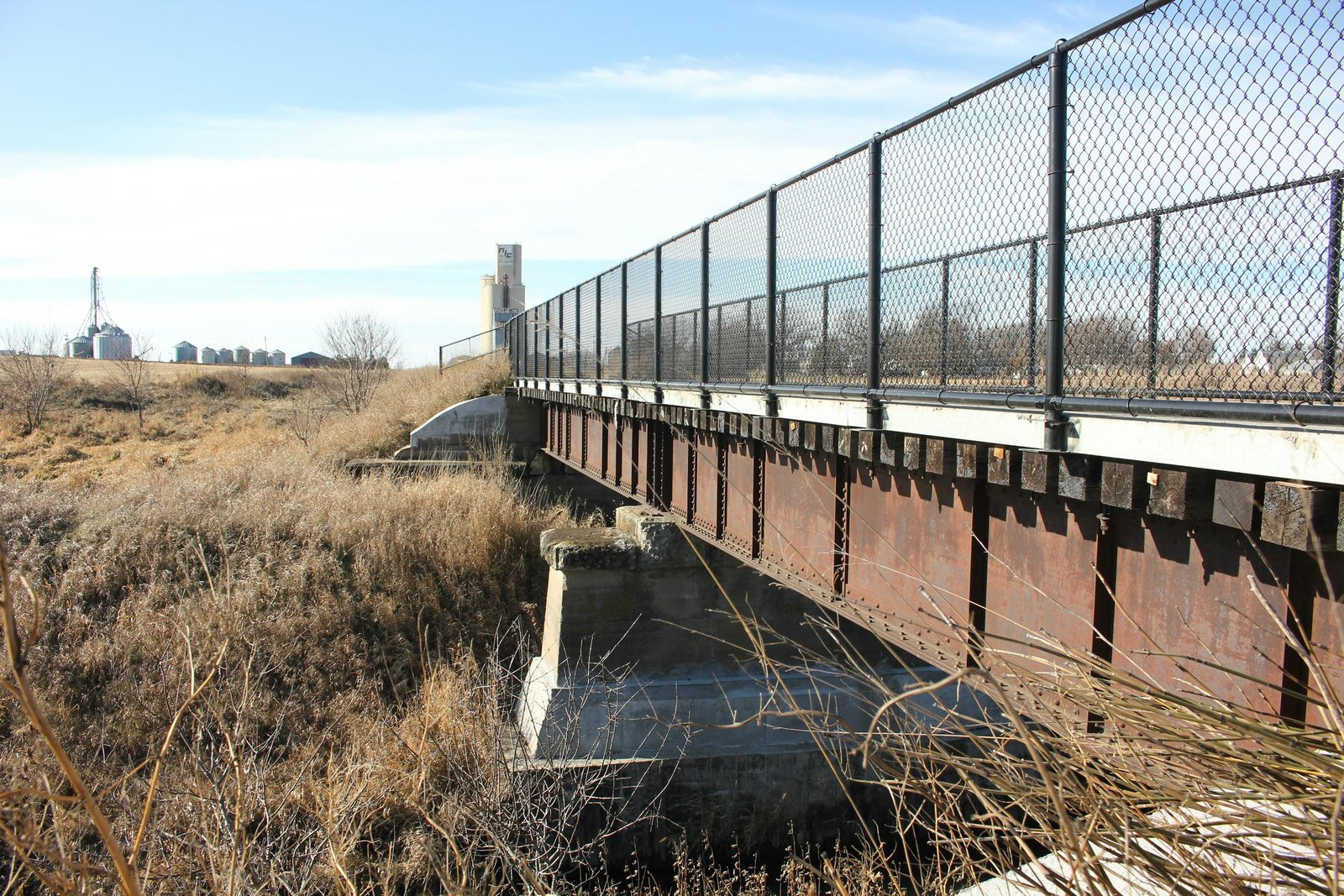

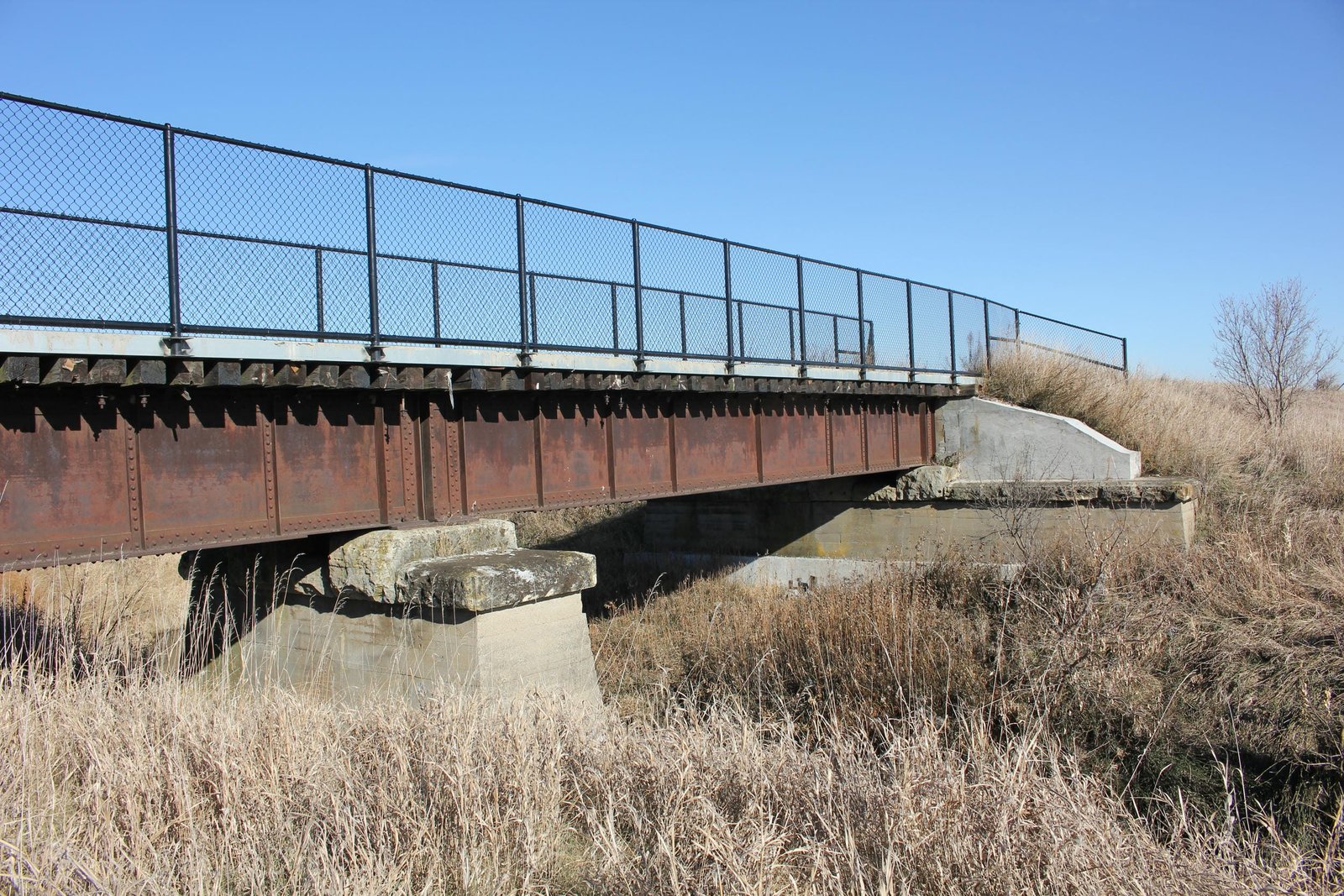

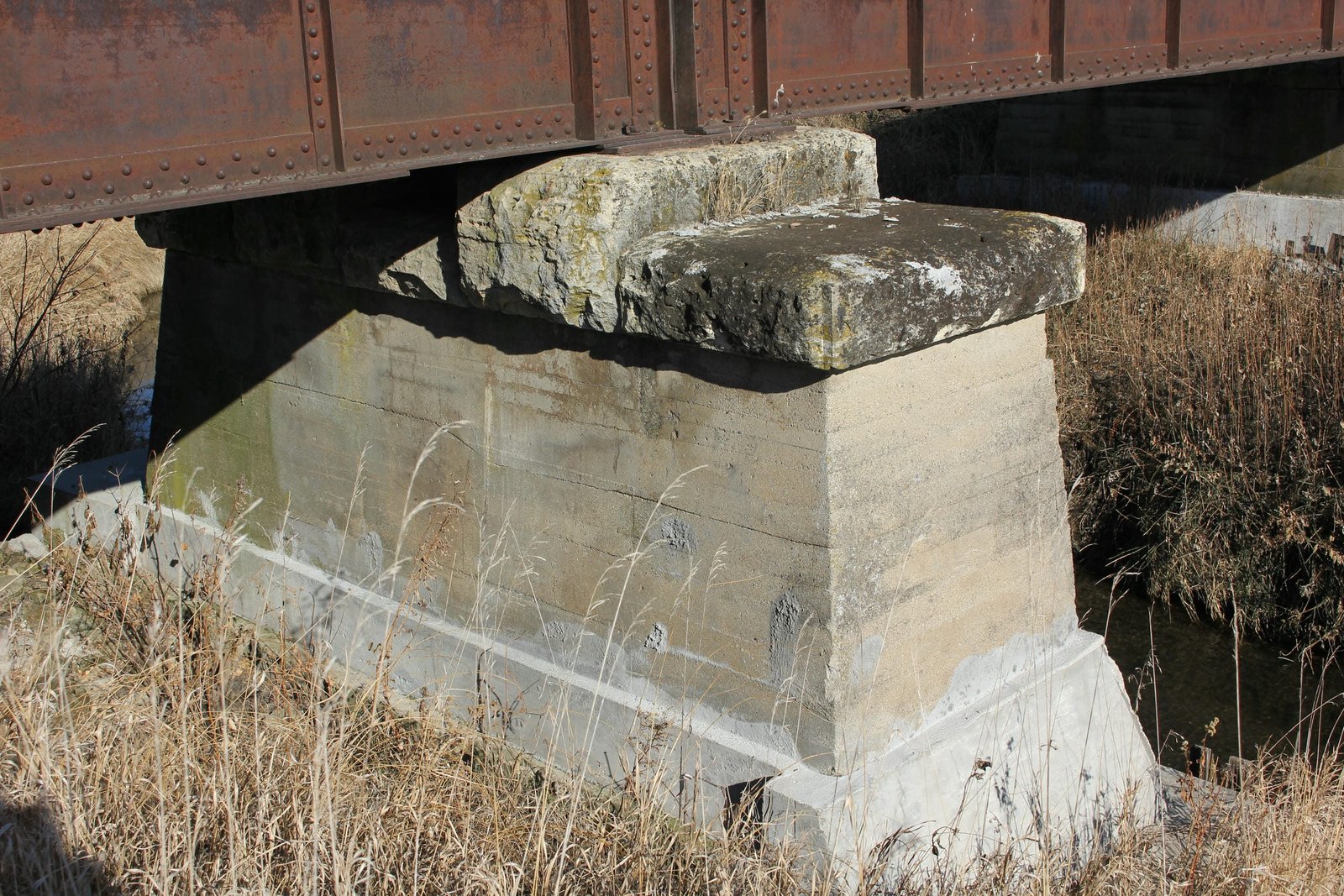

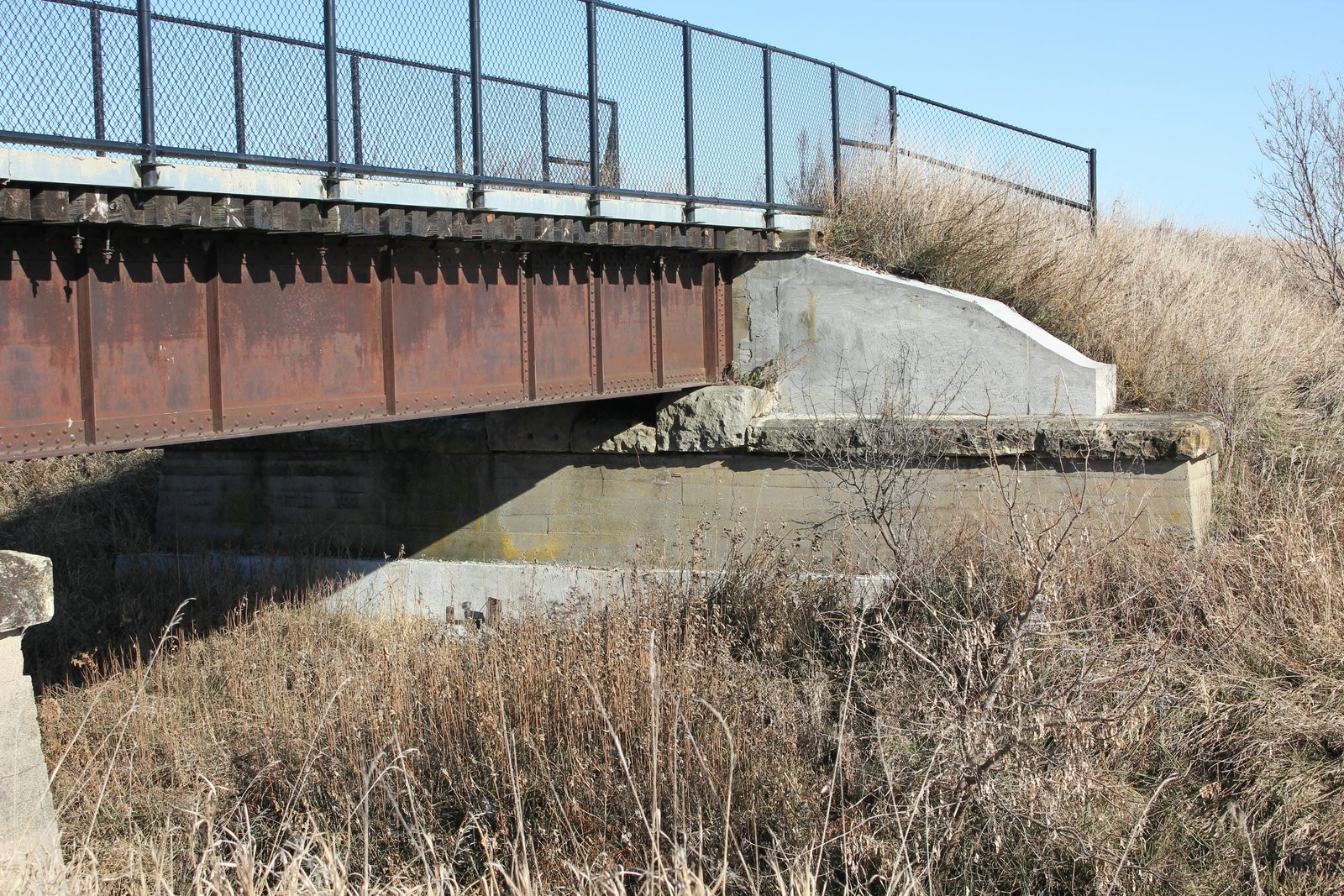

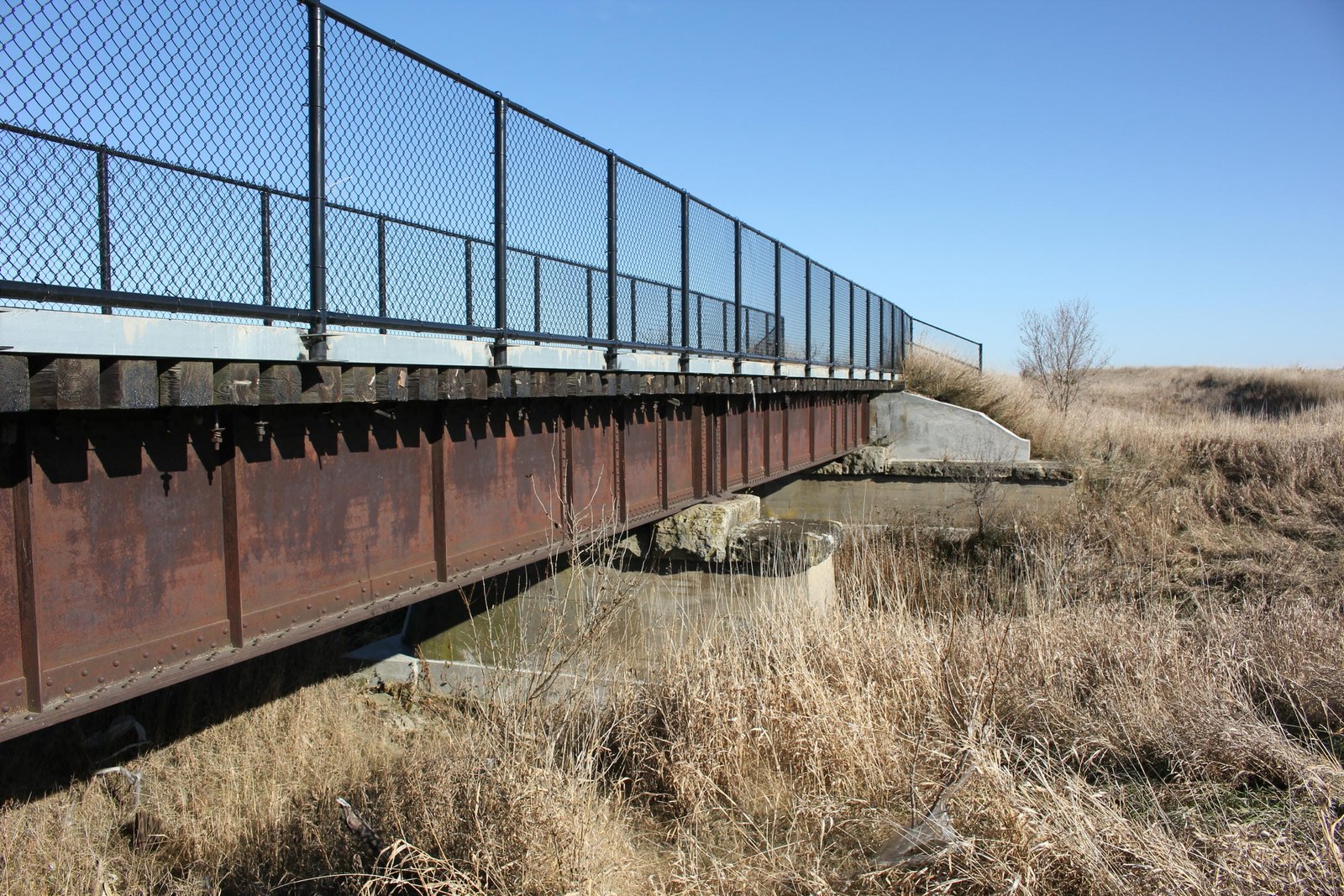

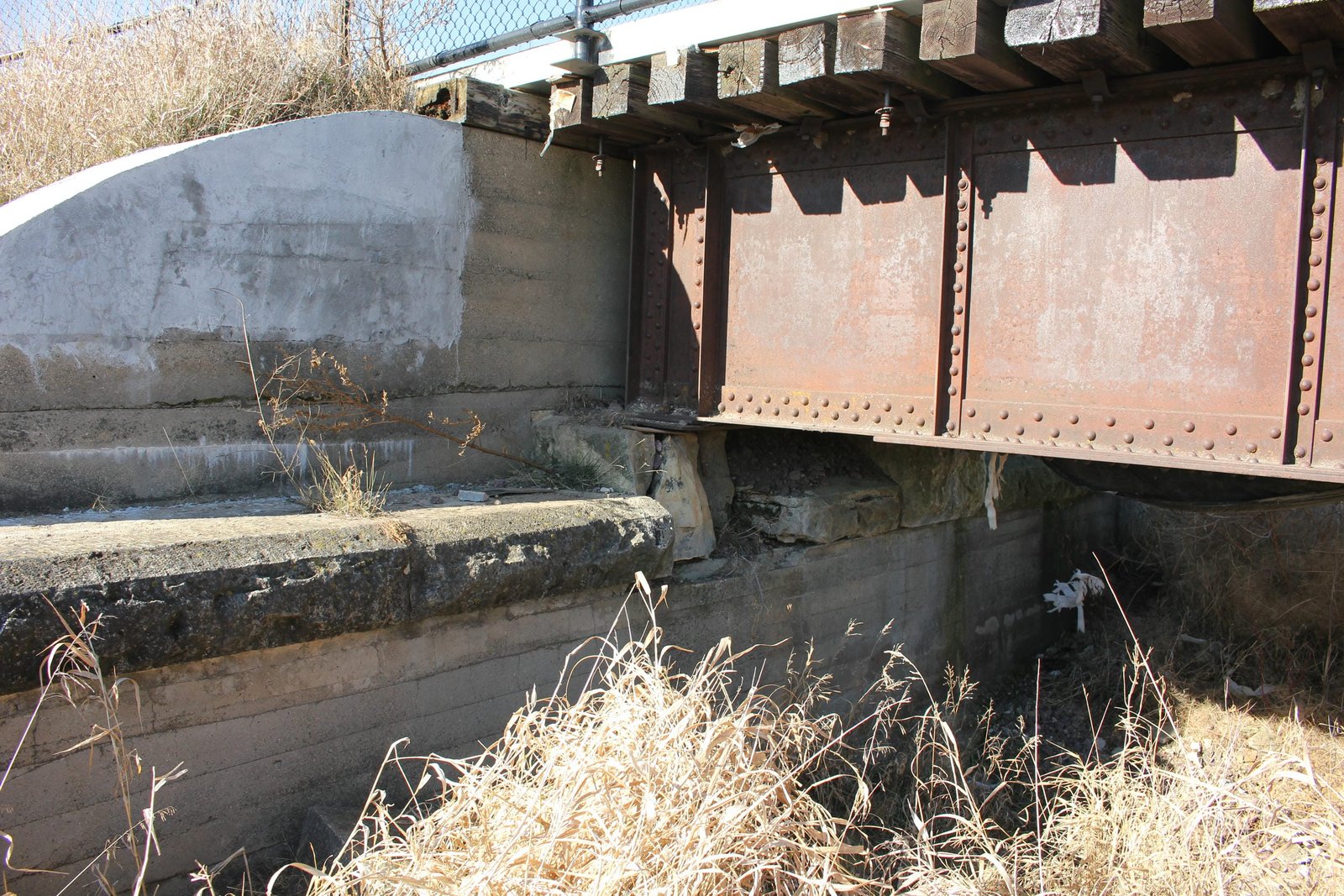

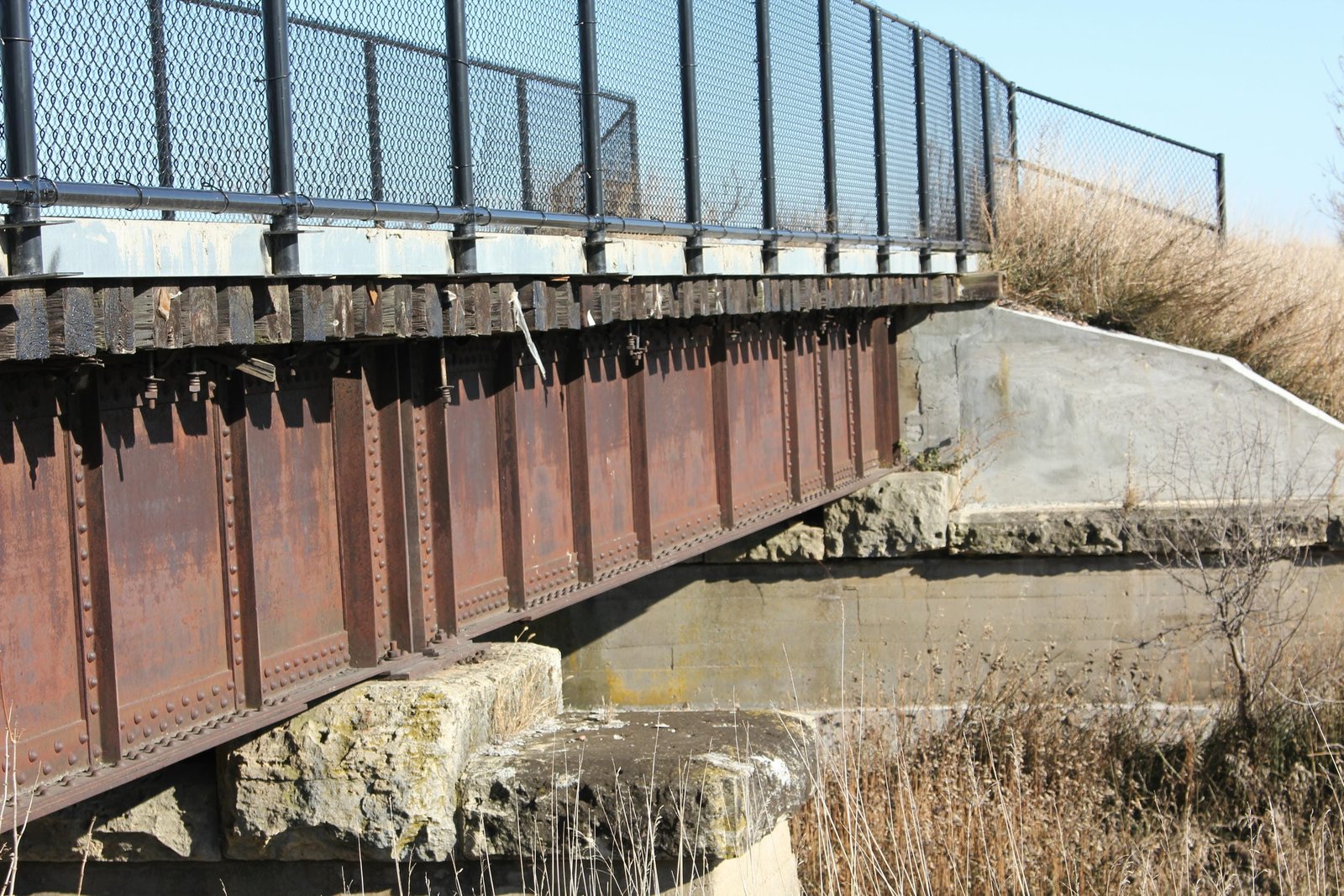

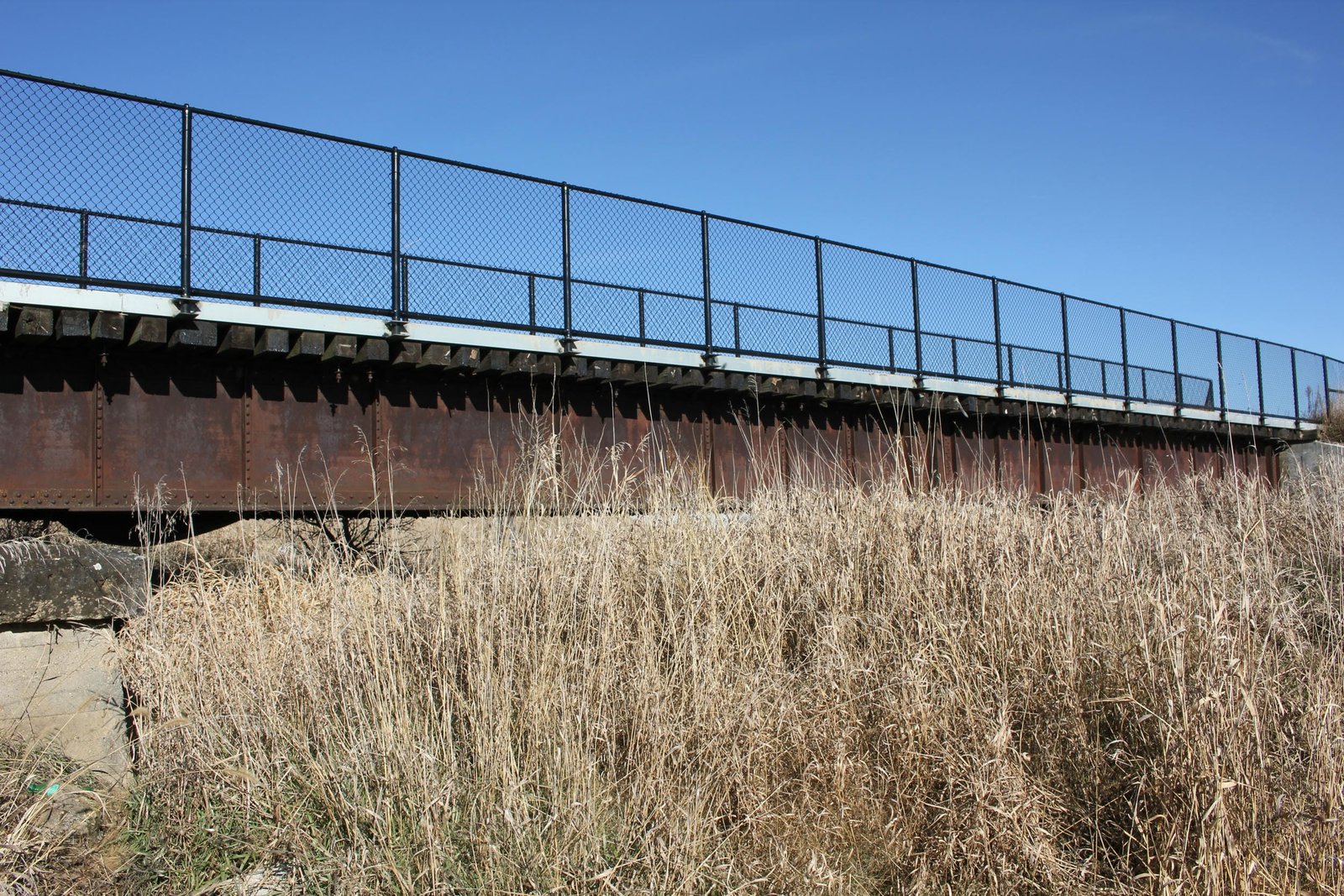

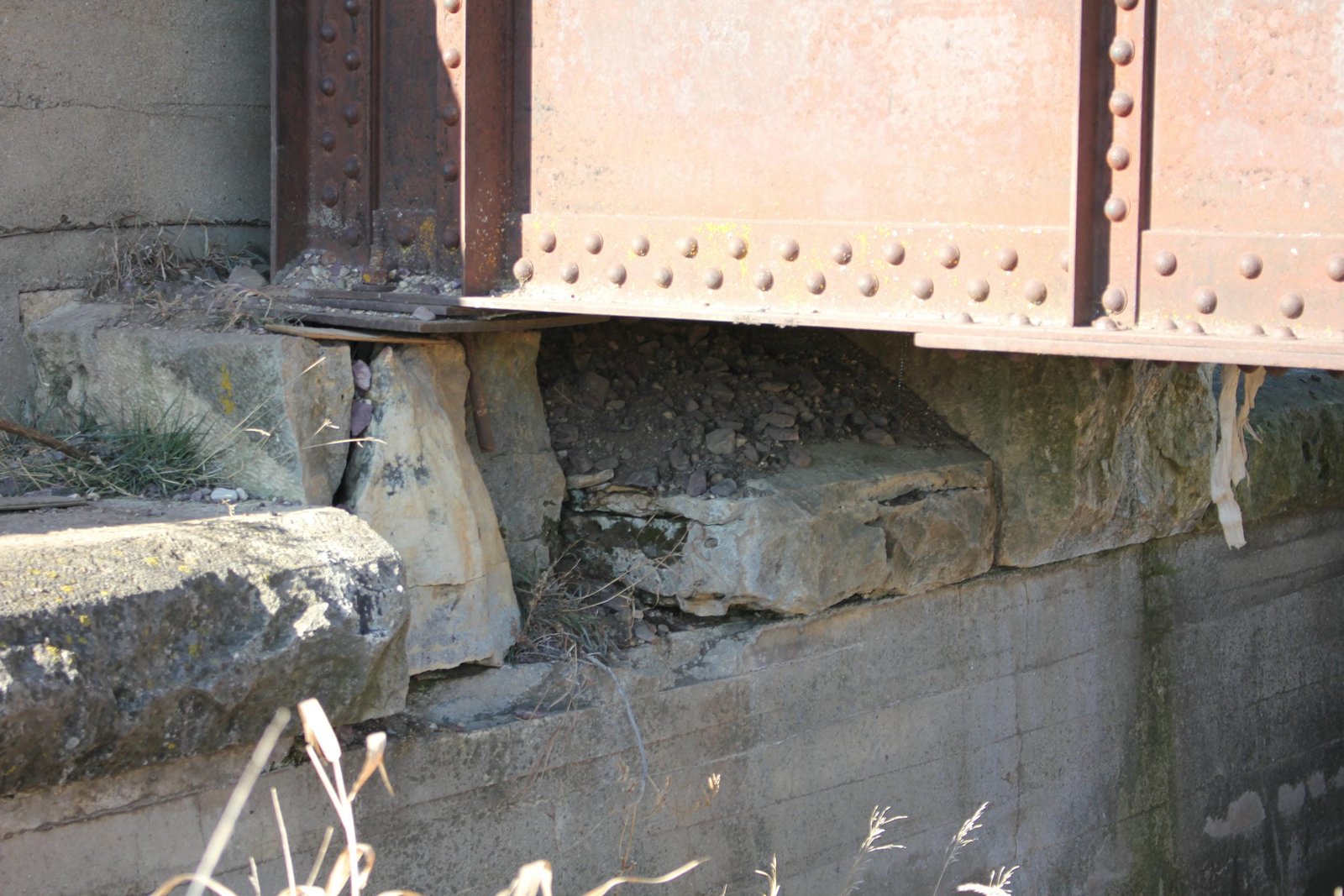

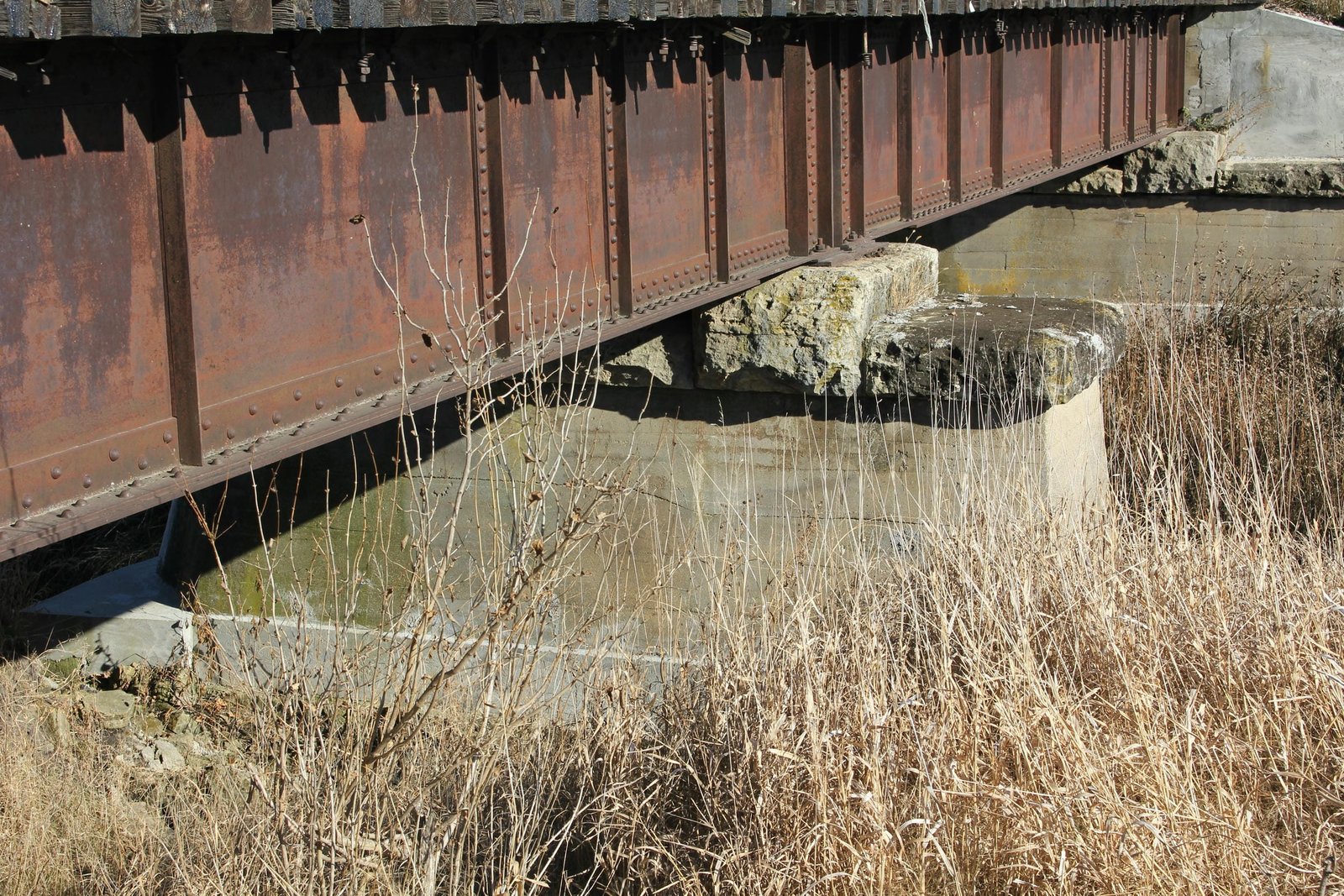

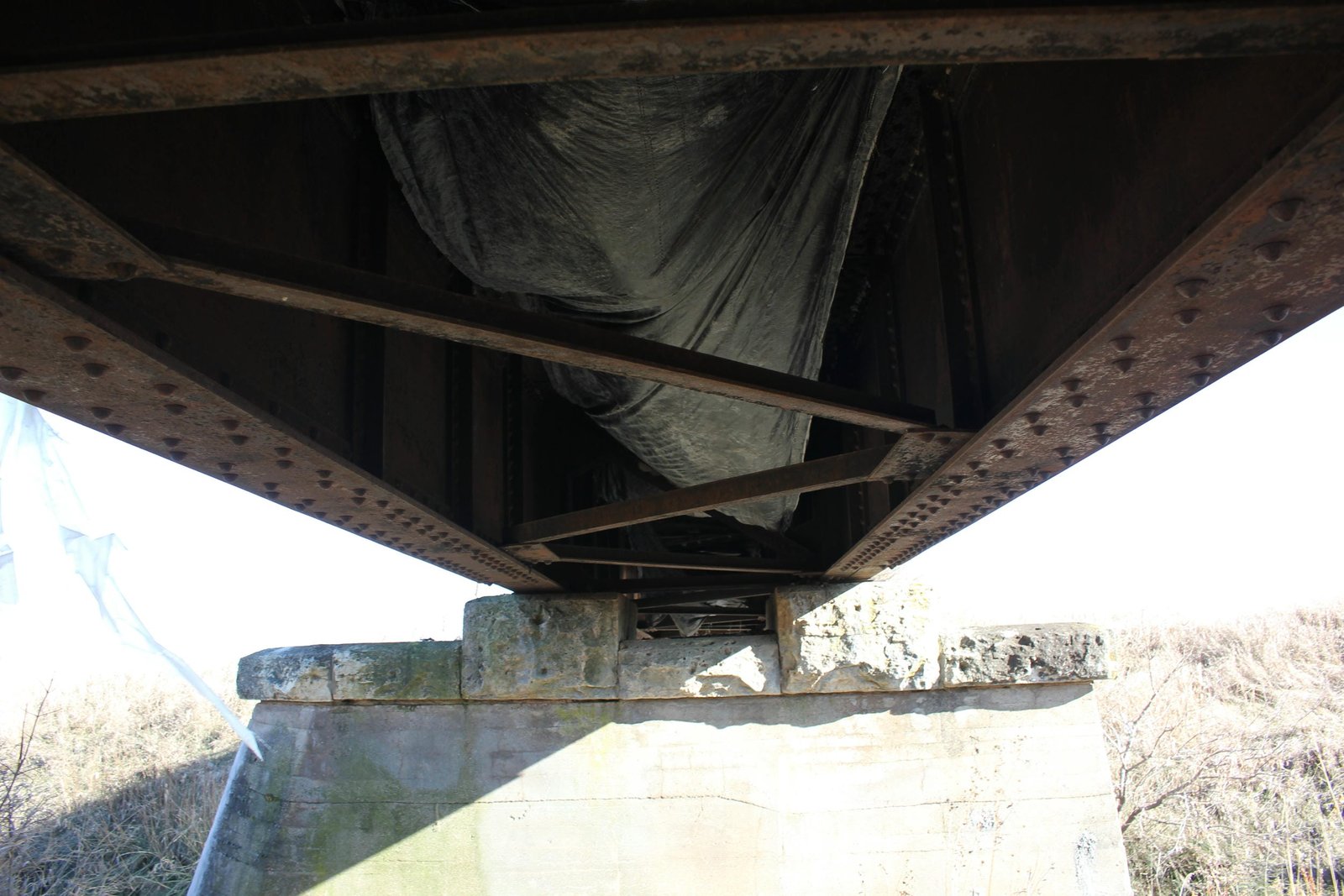

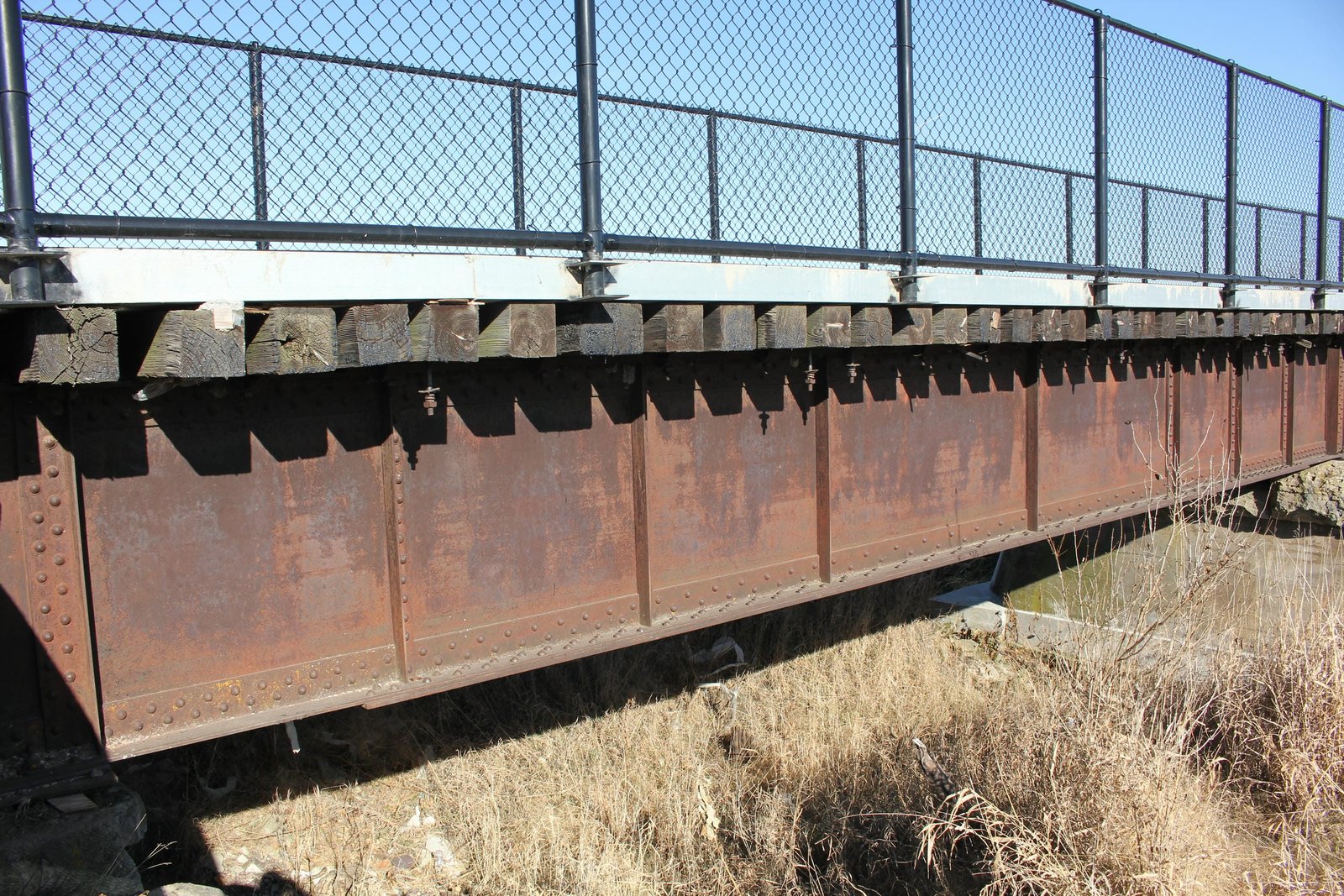

Located on the east side of Allendorf, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railway line over the Little Ocheyedan River. The first bridge at this location was likely a timber pile trestle, constructed when the line was built. In the late 1890s and early 1900s, the BCR&N and Rock Island invested significant capital into this line, replacing timber bridges with steel, stone and concrete structures. The present structure was constructed in March 1901. Currently, the bridge consists of two 40-foot deck plate girder spans, set onto concrete substructures. The superstructure follows a standard design, using two heavy plate girders. The substructures also follow a standard design, and consist of a rectangular pier and standard abutments with stepped back walls and sloped wing walls. Unique to this bridge, the concrete substructures are capped with stone blocks. An unknown contractor fabricated the superstructure, and it is believed that labor employed by the BCR&N constructed the substructures. The BCR&N switched from using stone to concrete in the late 1890s, and it was customary for this company to construct their own concrete structures. Stone capping may have been used to provide a stronger bearing point. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. In 2018, the bridge received an extensive rehabilitation, and deteriorated concrete was repaired. A damaged bearing in the southwest quadrant of the bridge was not replaced during the rehabilitation. At this time, a concrete deck and fences were added to the structure, and it will carry the Iowa Great Lakes Trail in the future. Overall, the bridge appears to be in fair condition, and should be capable of carrying pedestrians for years to come. The damaged bearing on the southwest corner of the west span will likely need to be replaced in the coming years. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Build date Sibley Gazette; March 7, 1901
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
