| Name | Three Rivers Trail - W. Fork Des Moines River Bridge Chicago & North Western Railway Bridge #2570 |
| Built By | Chicago & North Western Railway |
| Currently Owned By | Humboldt County Conservation Board |
| Superstructure Contractor | American Bridge Company of New York (Spans #3 and #4) Unknown (Spans #1 and #2) Unknown (Span #5) |
| Substructure Contractor | Unknown (Piers #2, #3 and #4) Unknown (East Abutment and Pier #1) Unknown (West Abutment) |
| Length | 350 Feet Total, 70 Foot Spans |
| Width | 1 Track |
| Height Above Ground | 15 Feet (Estimated) |
| Superstructure Design | Deck Plate Girder |
| Substructure Design | Stone Masonry and Concrete |
| Date Built | 1902 (Spans #3 and #4) 1917 (Spans #1 and #2) c. 1920 (Span #5) |
| Traffic Count | 0 Trains/Day (Bridge is Open to Pedestrian Traffic) |

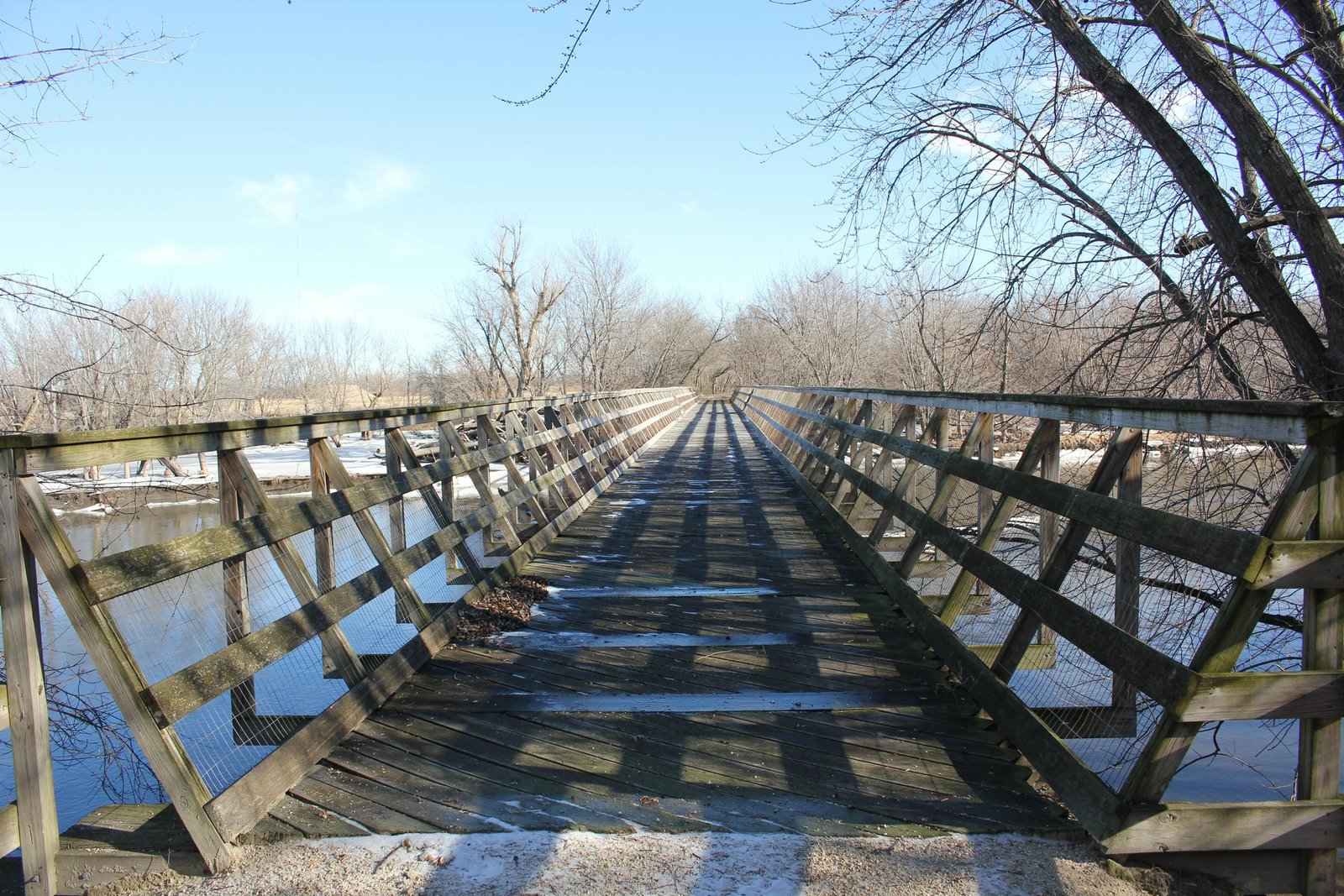

| Current Status | Open to Pedestrian Traffic |
| Chicago & North Western Railway Bridge Number | 2570 |
| Significance | Local Significance |
| Documentation Date | 1/4/2019 |
In 1881, the Toledo & Northwestern Railway (T&NW) began construction on a 160-mile railroad line extending from Eagle Grove, Iowa towards Hawarden, Iowa. The T&NW had been leased by the Chicago & North Western Railway (C&NW) in 1879, and was awarded funding to construct additional lines in northern Iowa. The first 30 miles were completed to Bradgate, Iowa at the end of the year, followed by an additional 115 miles between Bradgate and Hawarden in 1882. In 1883, the Dakota Central Railway (DC) continued the line, constructing an additional 125 miles between Hawarden and Iroquois, South Dakota. The DC was another railroad leased by the C&NW, and was also awarded funding to complete railroad lines in South Dakota. The T&NW was purchased by the C&NW in 1890, and the DC was purchased by the C&NW in 1902. By the early 20th Century, the C&NW had developed into a significant railroad network in the midwest, with lines radiating north and west from Chicago. In particular, the C&NW developed dozens of secondary and branch lines in Iowa to serve agricultural industries and small towns. This line served as a secondary mainline, connecting lines in western Iowa and South Dakota. In addition, the line connected the Dakota Division mainline at Iroquois to the Iowa Division mainline at Tama, Iowa.
Due to the rapid expansion of the C&NW in the late 19th and early 20th Century, this line paralleled several other routes. By the mid-20th Century, this line had largely become a branch line, connecting agricultural industries and small towns in western Iowa and eastern South Dakota. By the 1970s, the C&NW sought to abandon excess trackage and consolidate service. The first segment abandoned was from Orange City, Iowa to Hawarden in 1975. The Beresford, South Dakota to Iroqouis segment was abandoned in 1979, and the Hawarden to Beresford segment sold to the State of South Dakota in 1980. The Marathon, Iowa to Orange City segment was also abandoned in 1980. The D&I Railroad began operations over the Beresford Branch in 1980. The line was further abandoned in 1982, when the Alton, Iowa to Orange City segment was abandoned. The Eagle Grove to Rolfe, Iowa segment was abandoned in 1988, and would be sold to Wright, Humboldt and Pochahontas Counties for trail usage. In 1995, the C&NW would be purchased by the Union Pacific Railroad (UP). Currently, UP operates the Rolfe to Marathon segment as part of the Laurens Subdivision, and the D&I operates the Hawarden to Beresford segment. The State of South Dakota sold the Hawarden to Beresford segment to D&I in 2021 as part of an effort to sell state-owned railroad lines. The Rolfe to Eagle grove segment used as part of the Three Rivers Trail. Remaining segments have been abandoned and the right-of-way largely reverted to adjacent landowers.

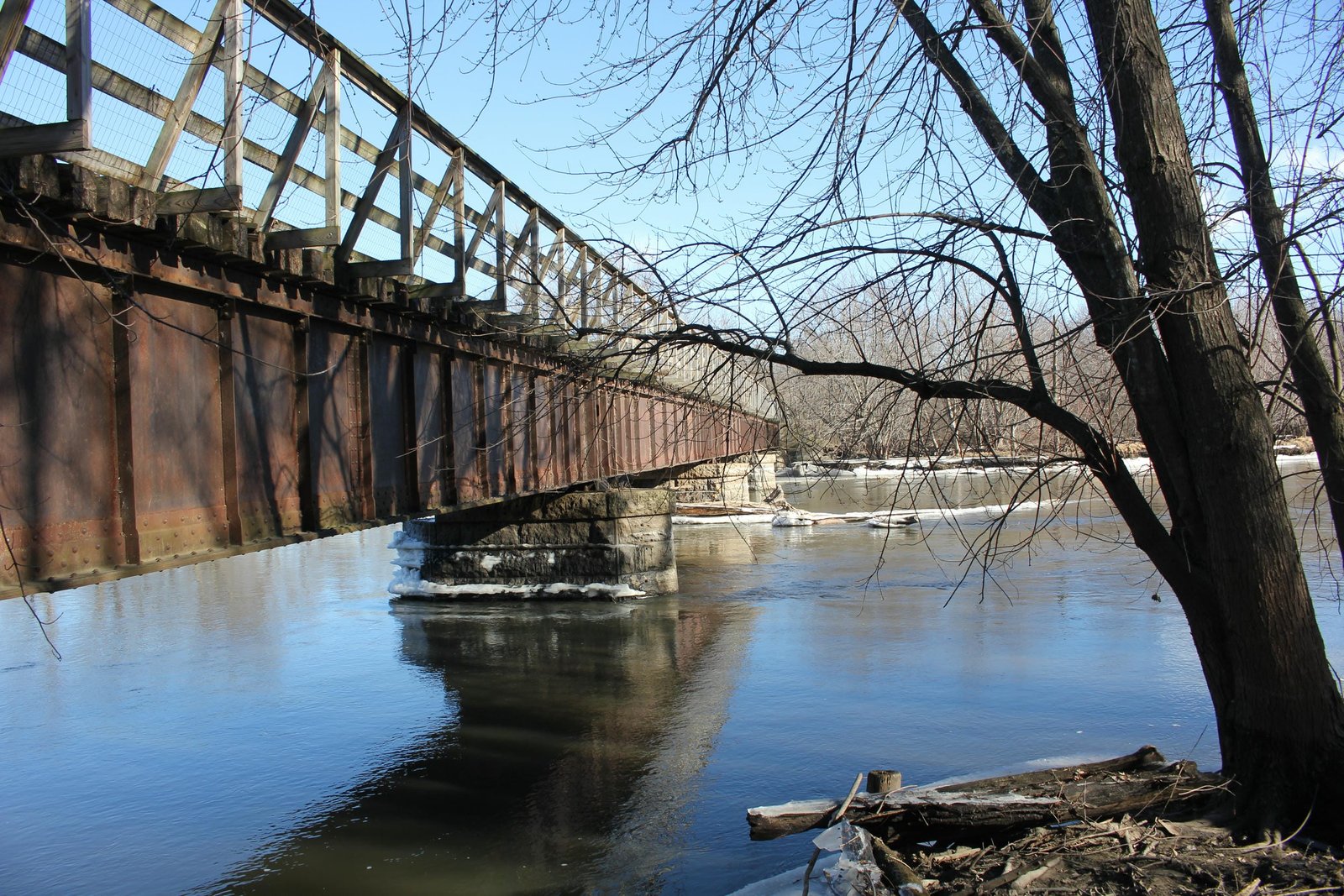

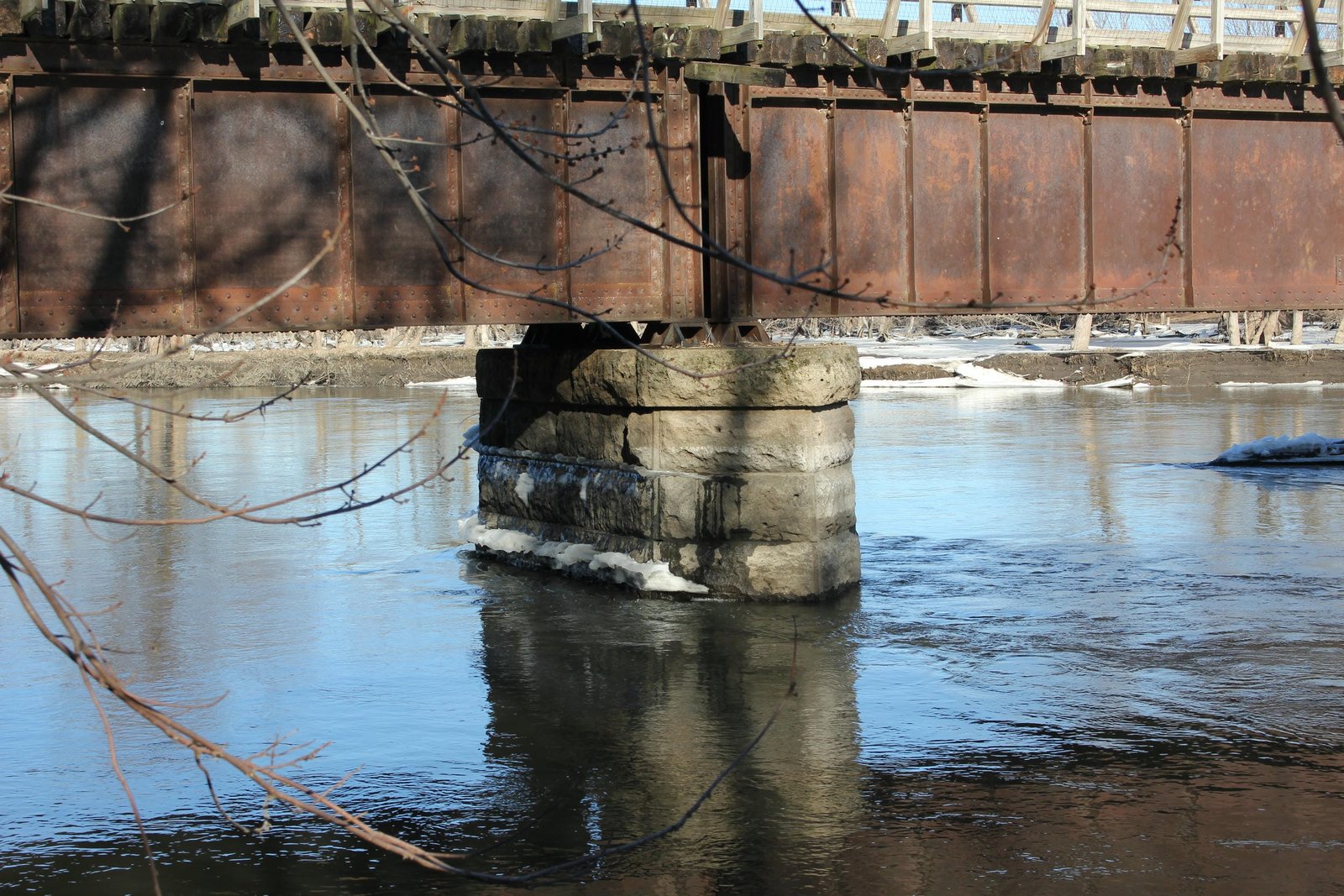

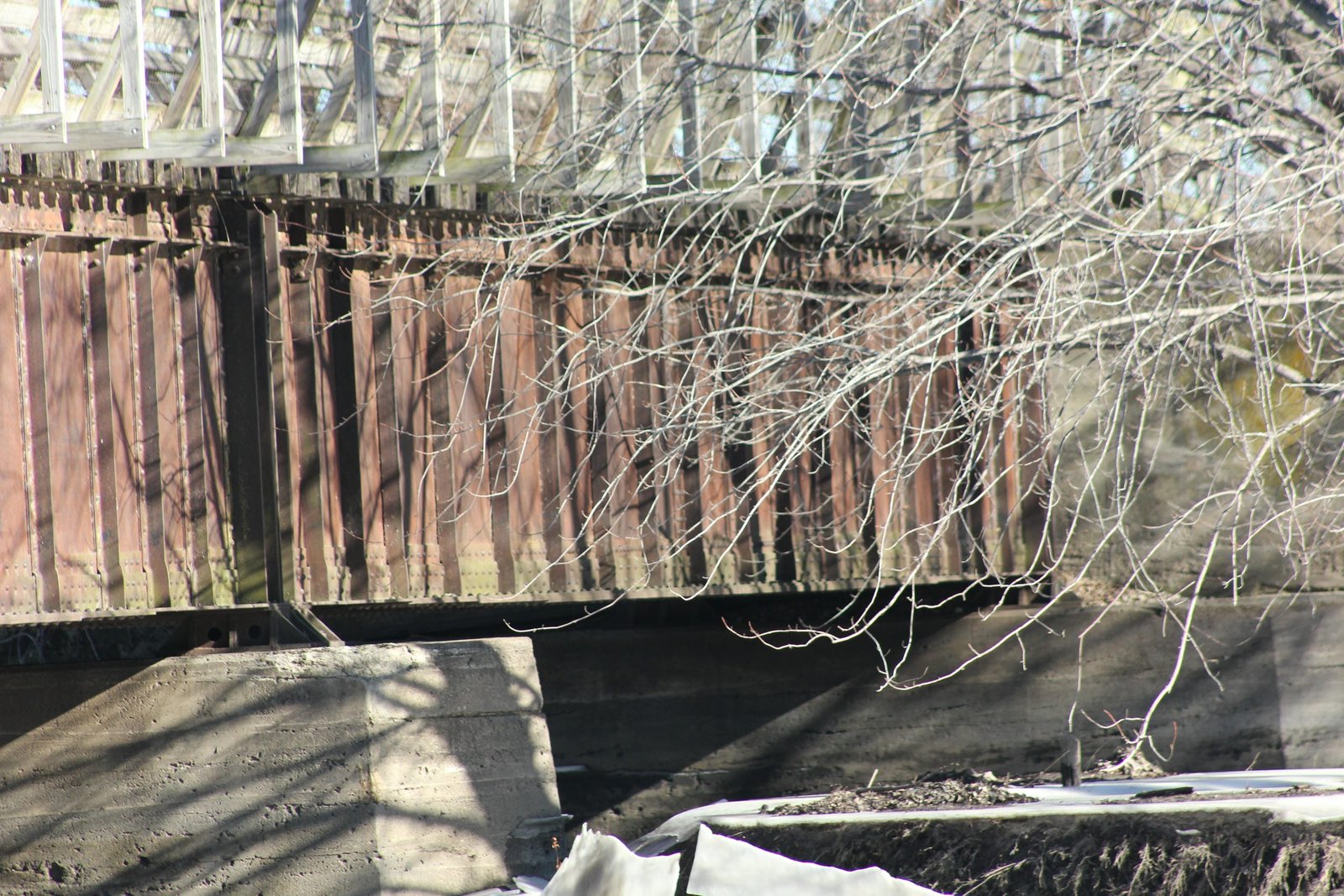

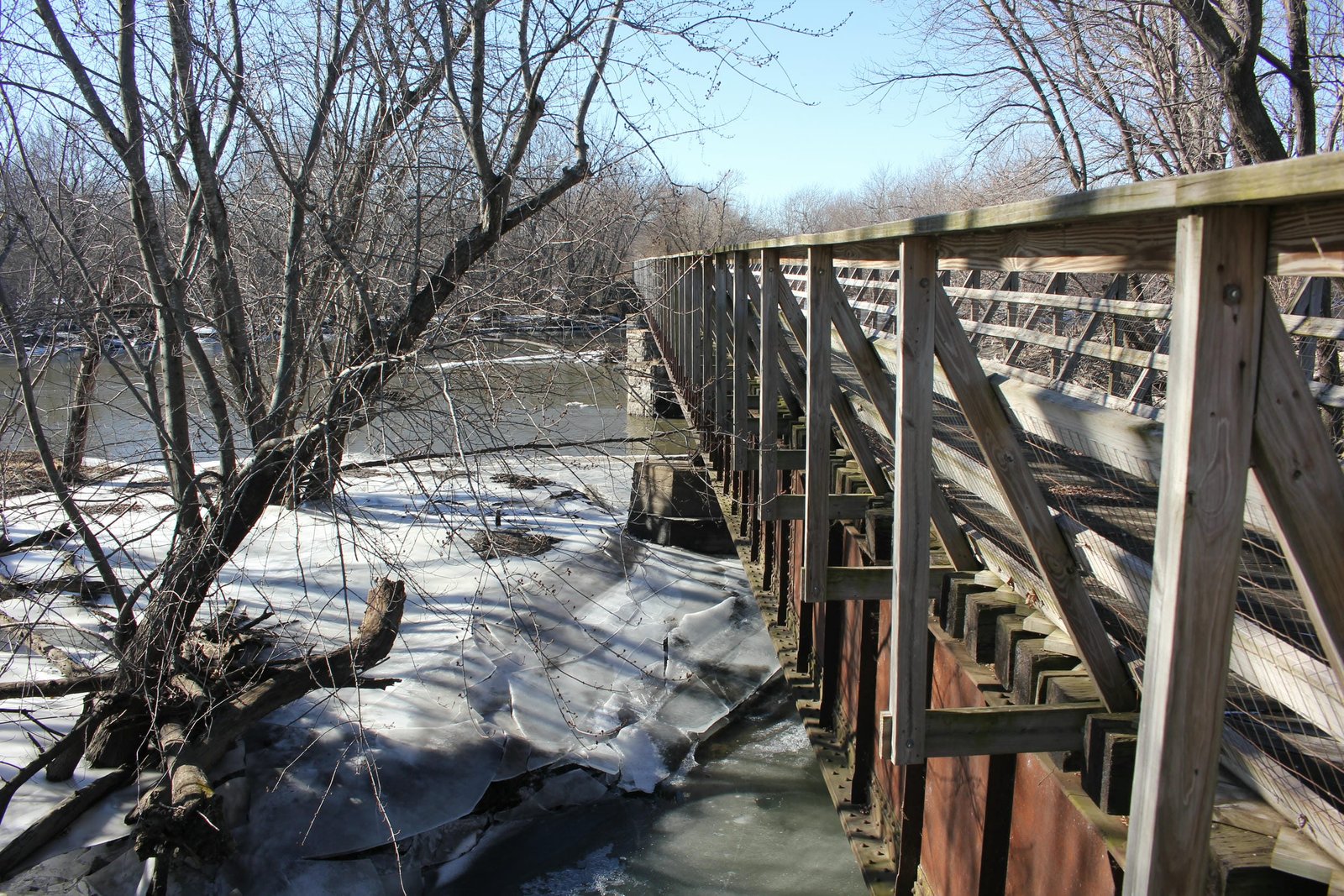

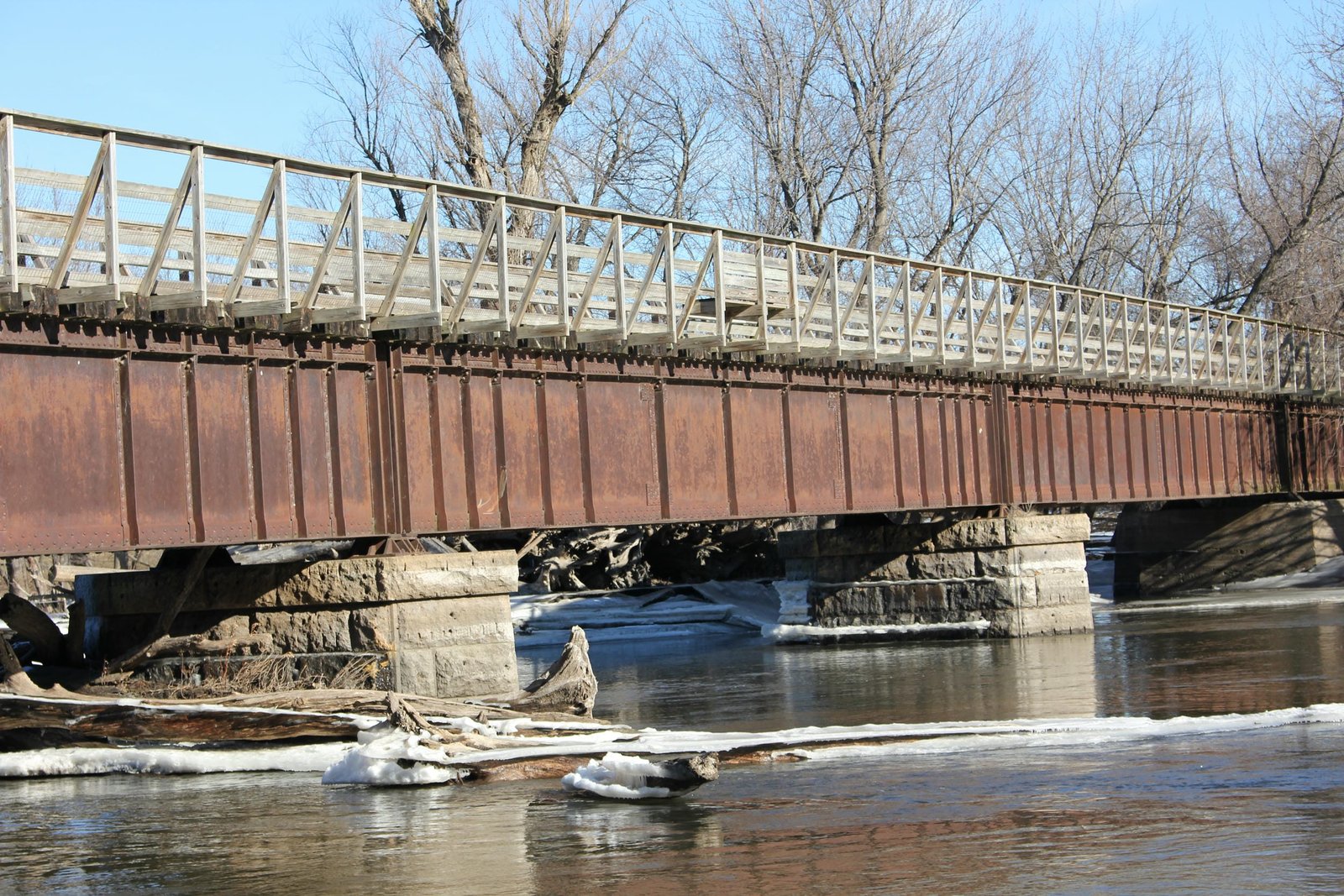

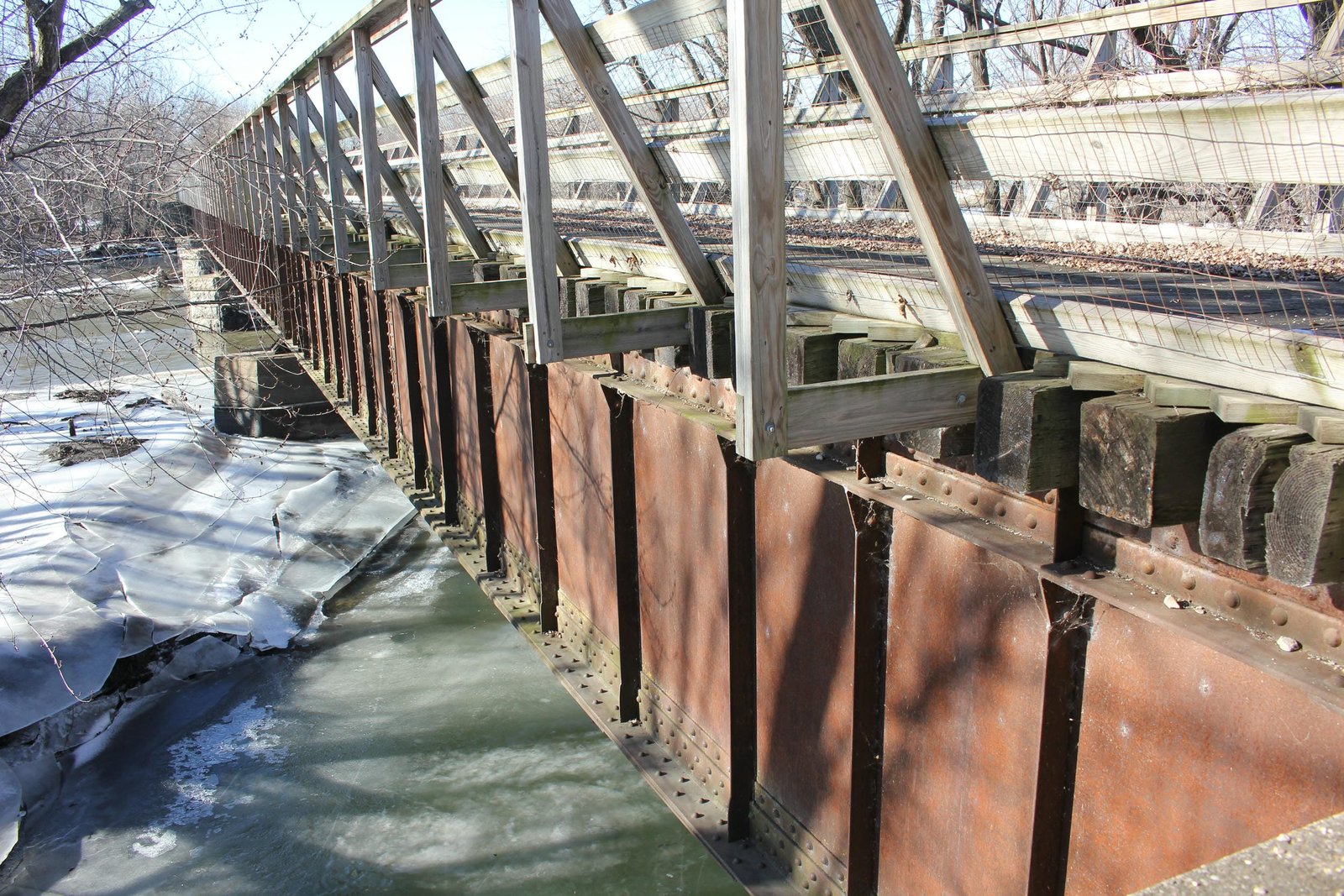

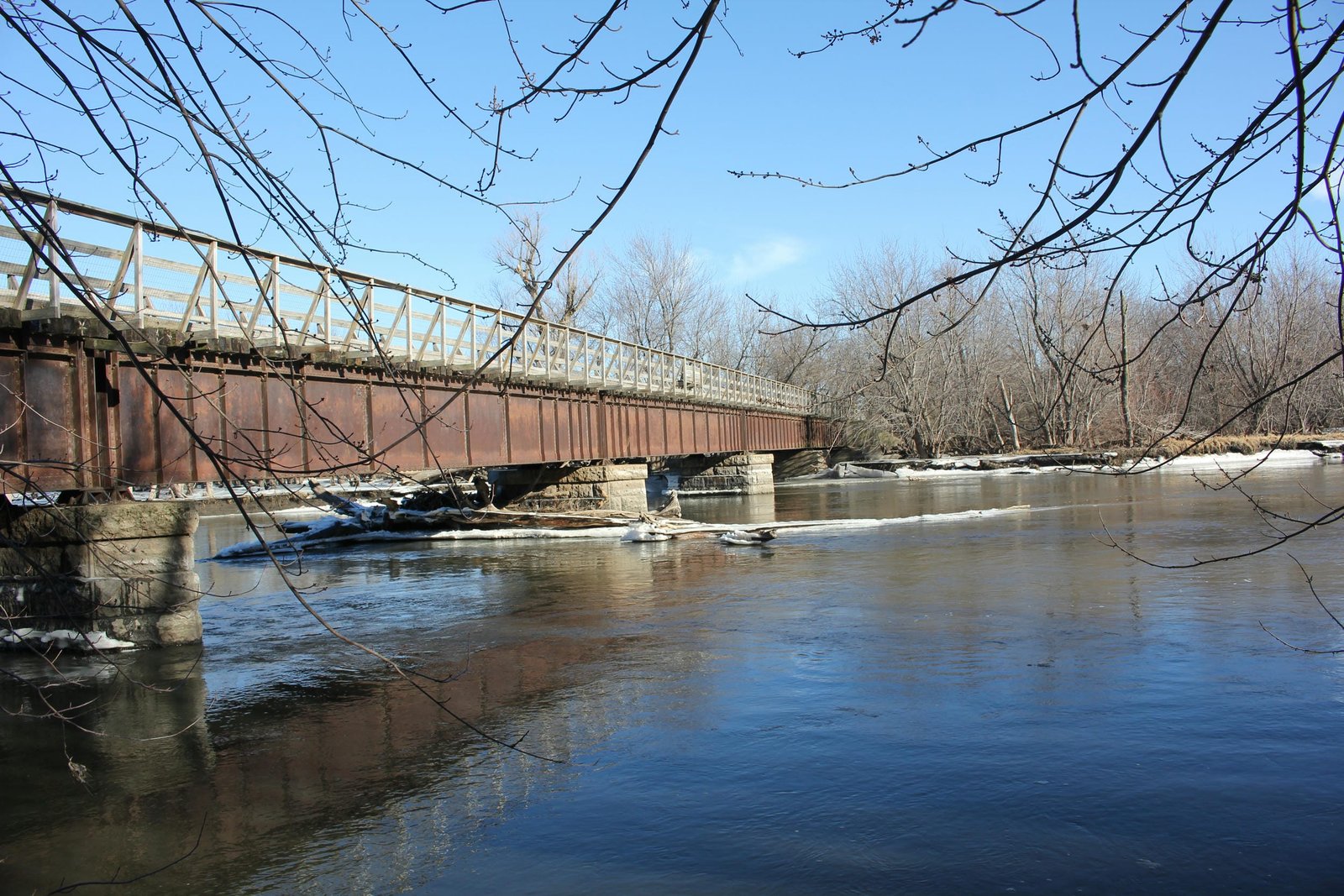

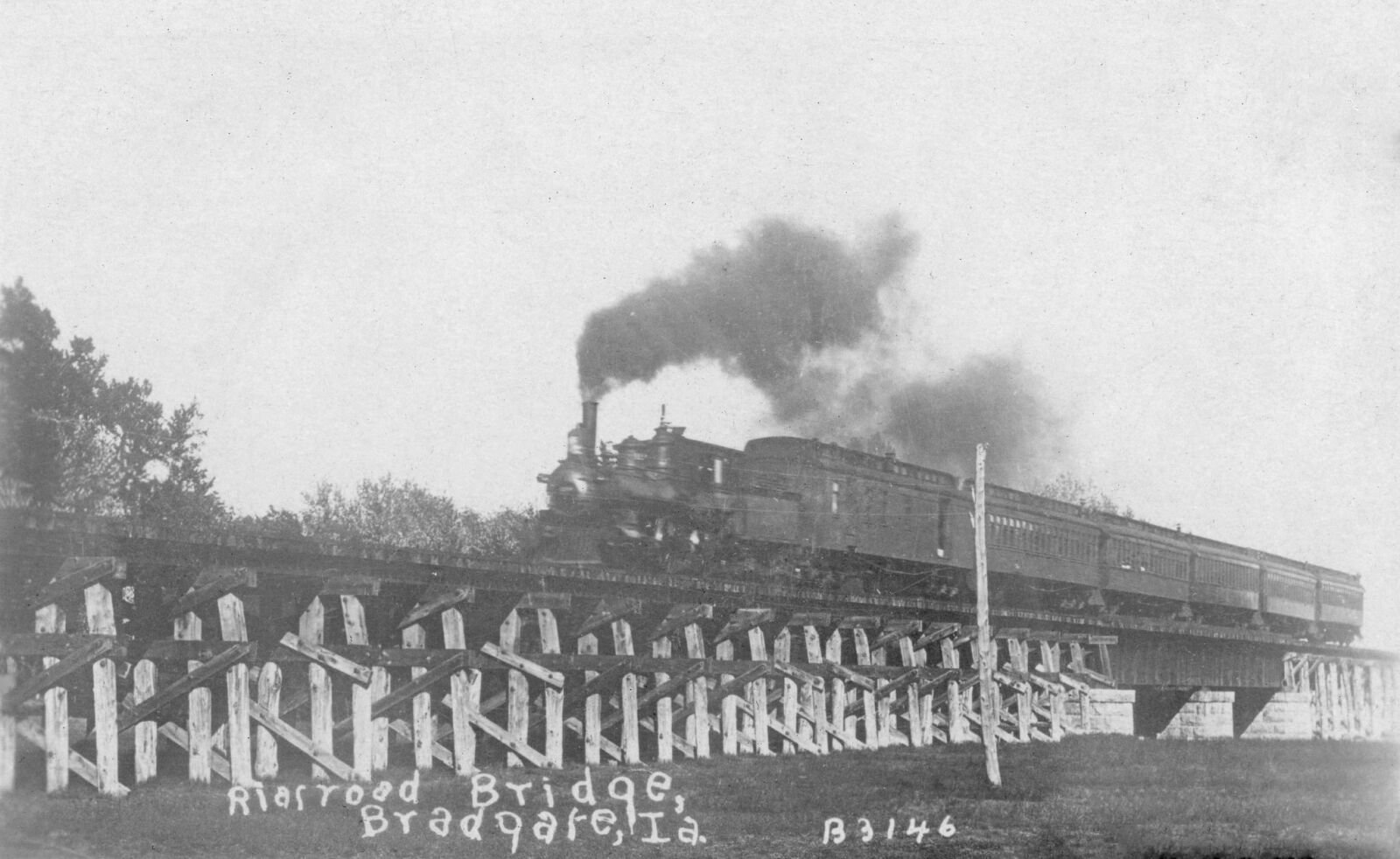

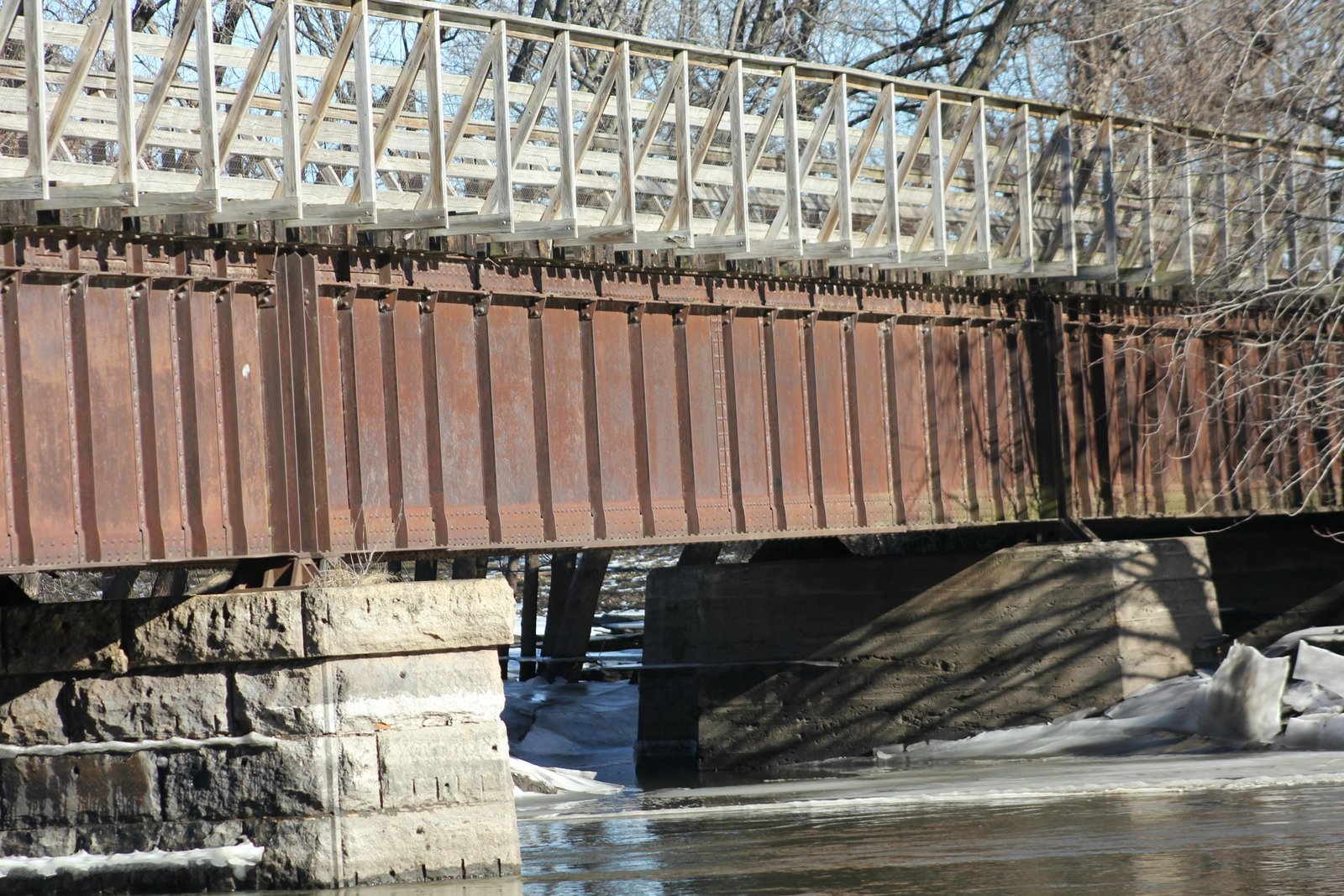

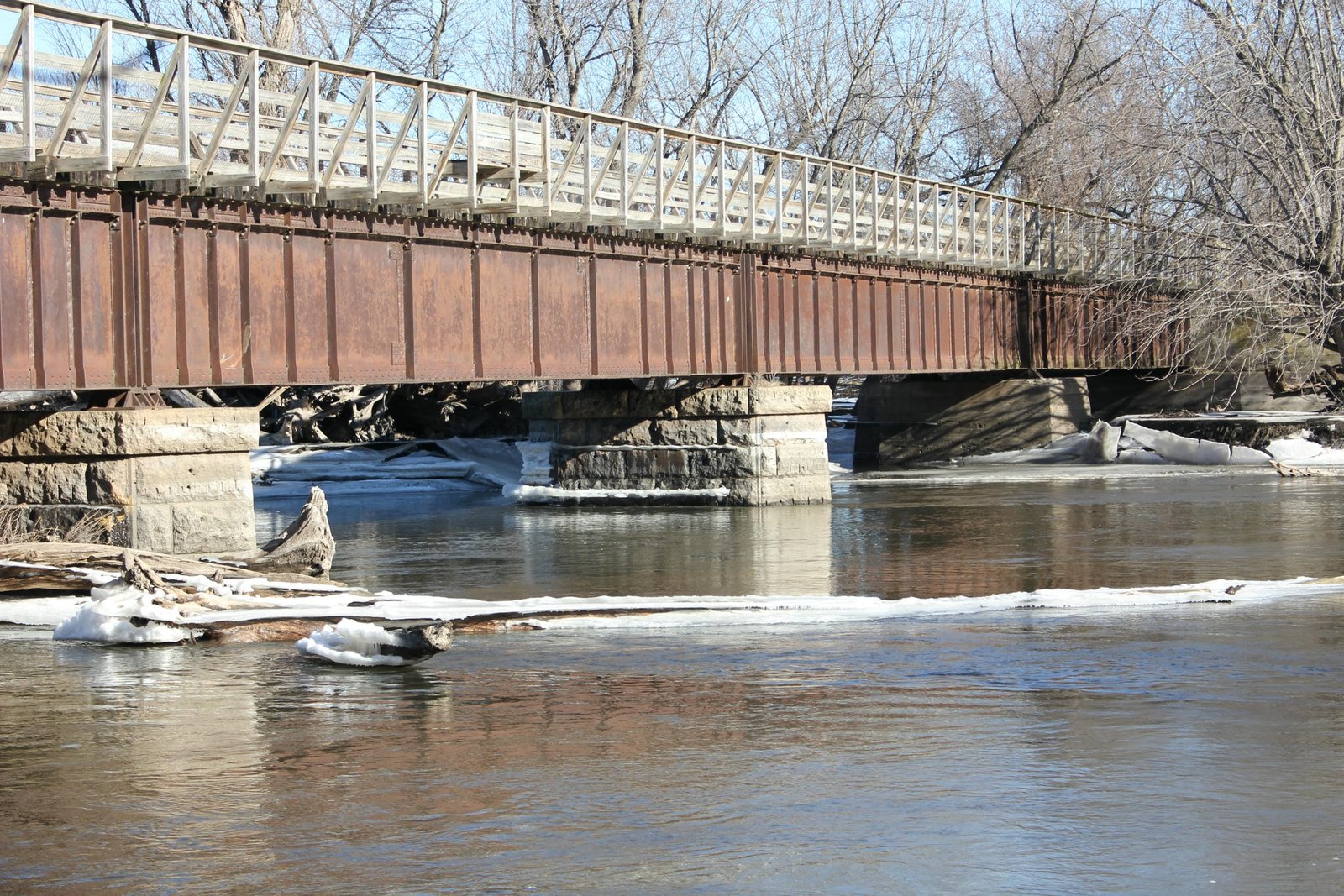

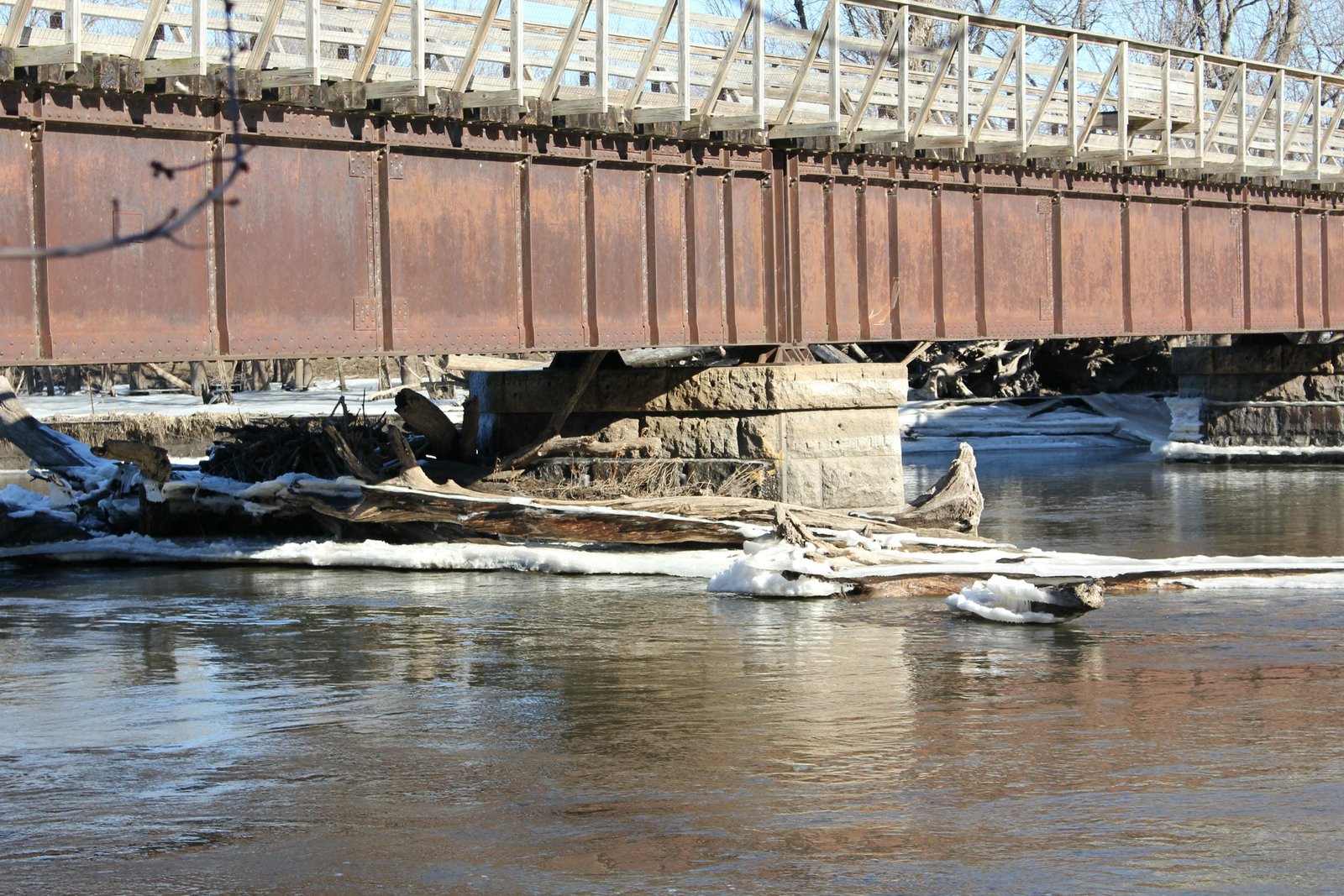

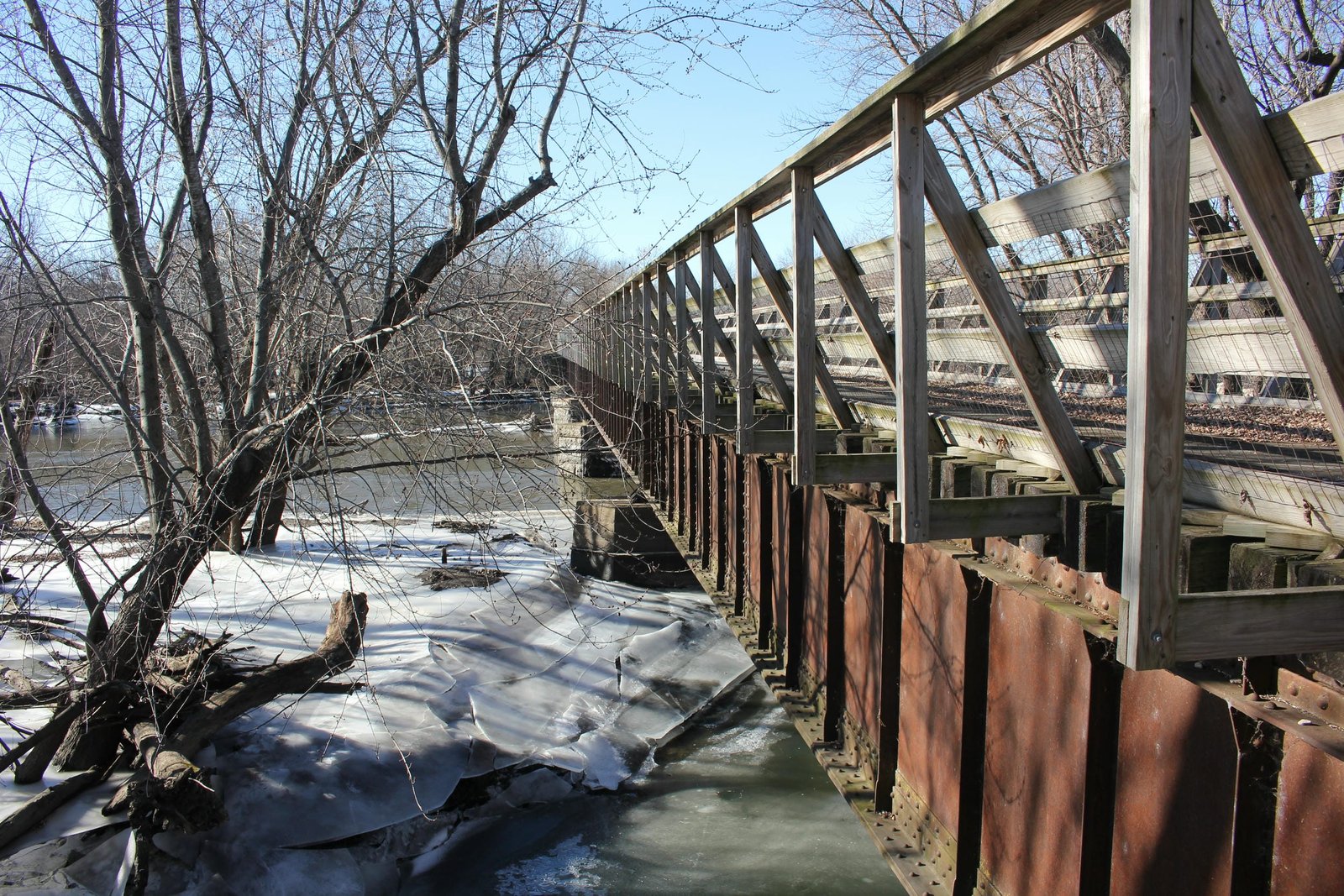

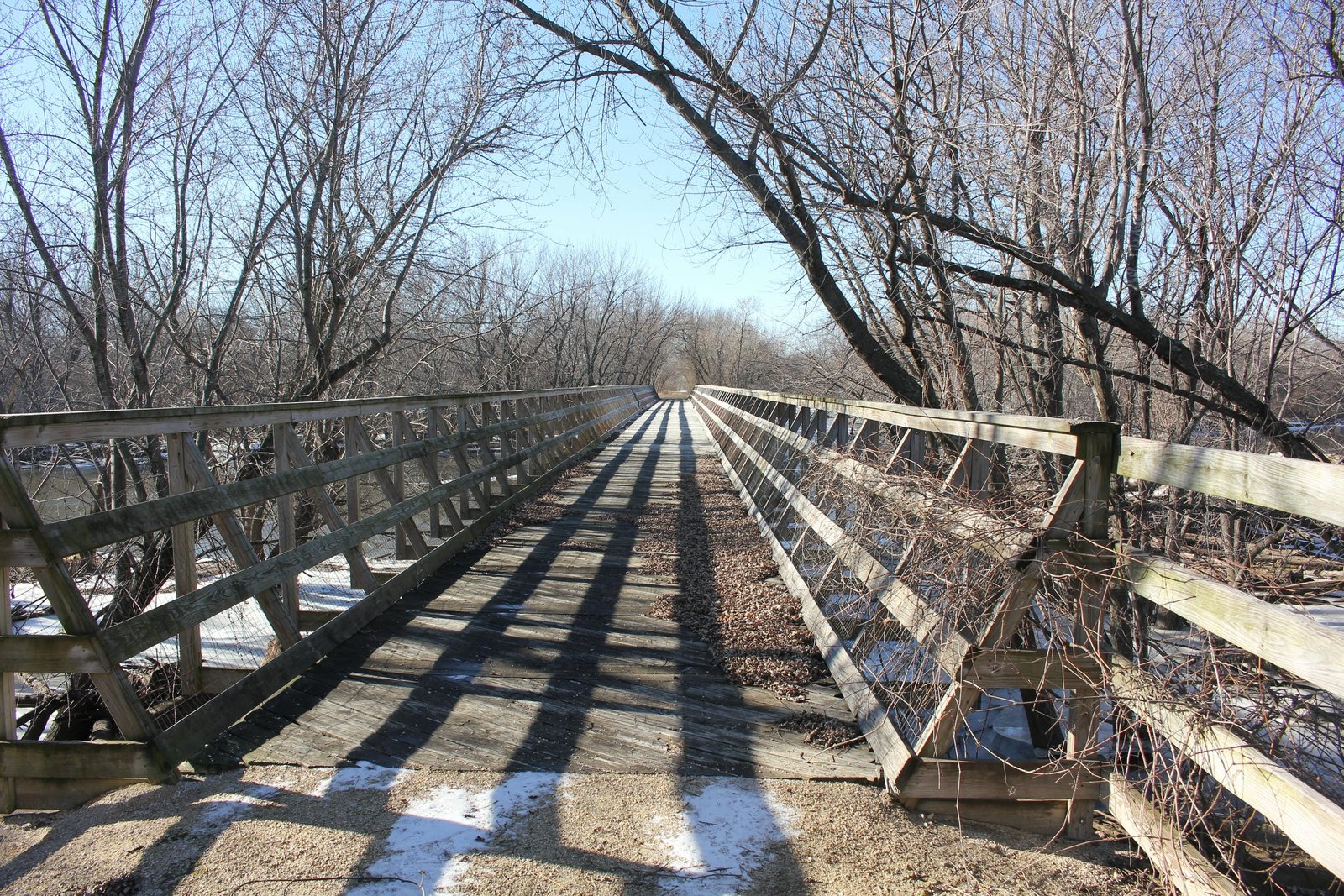

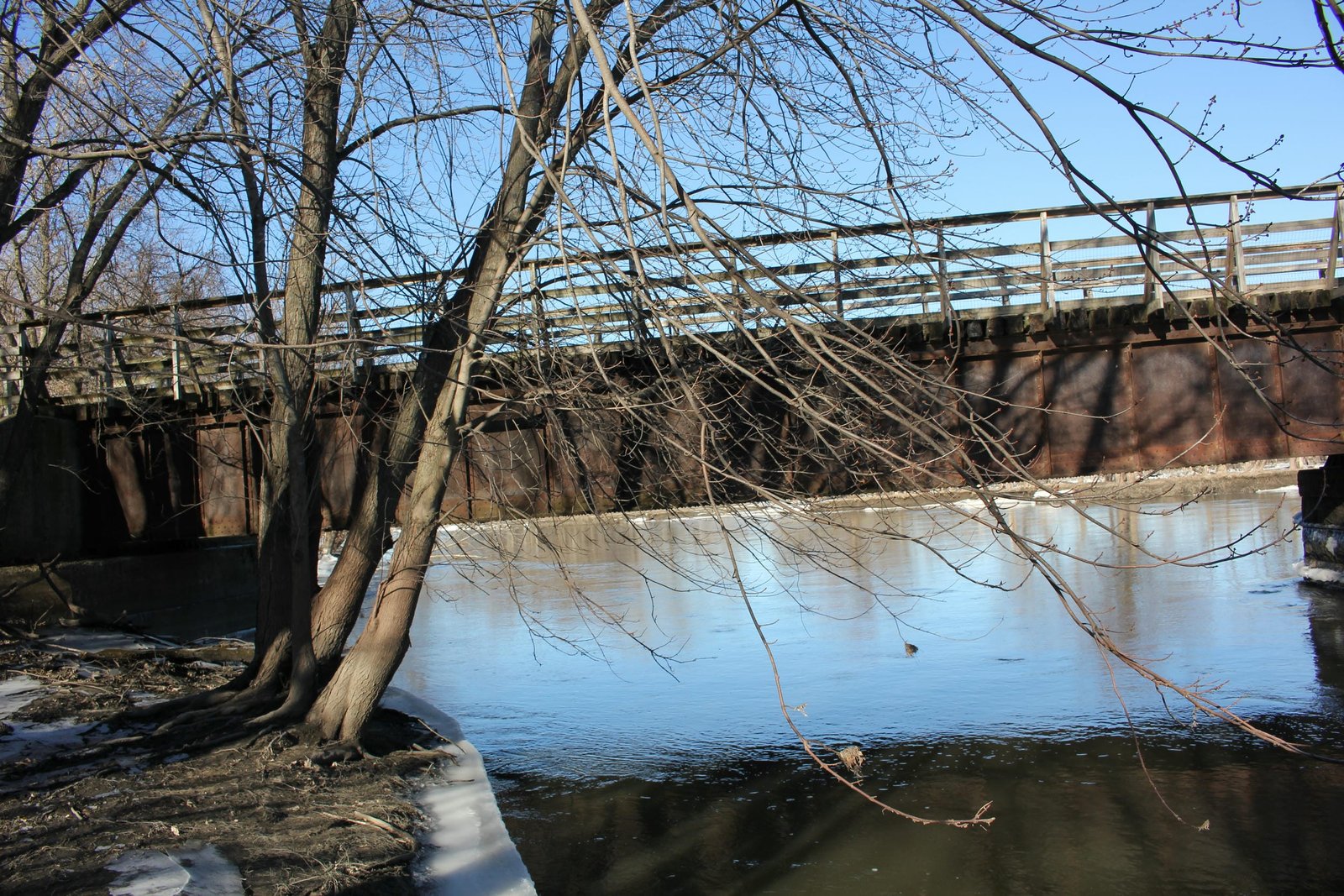

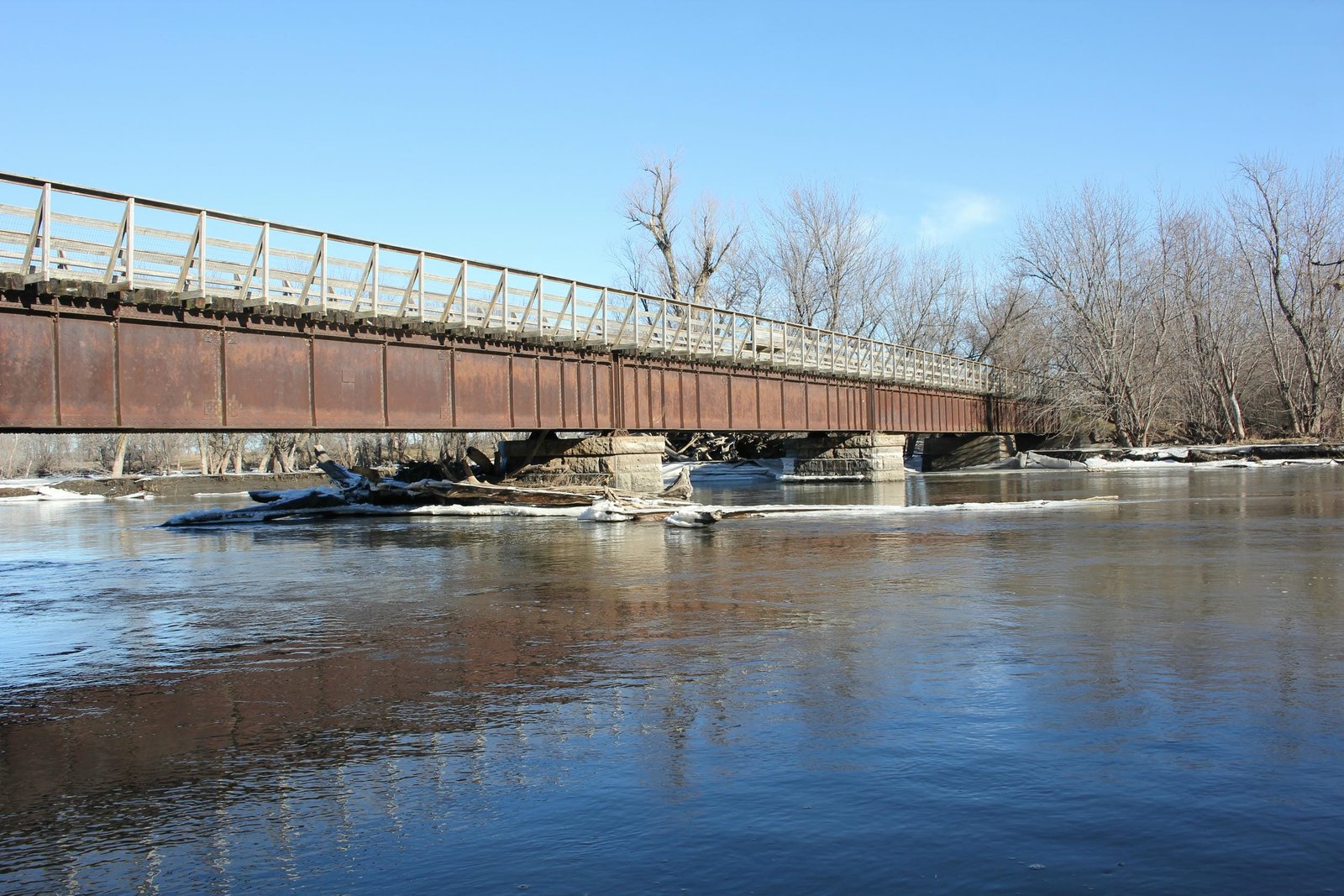

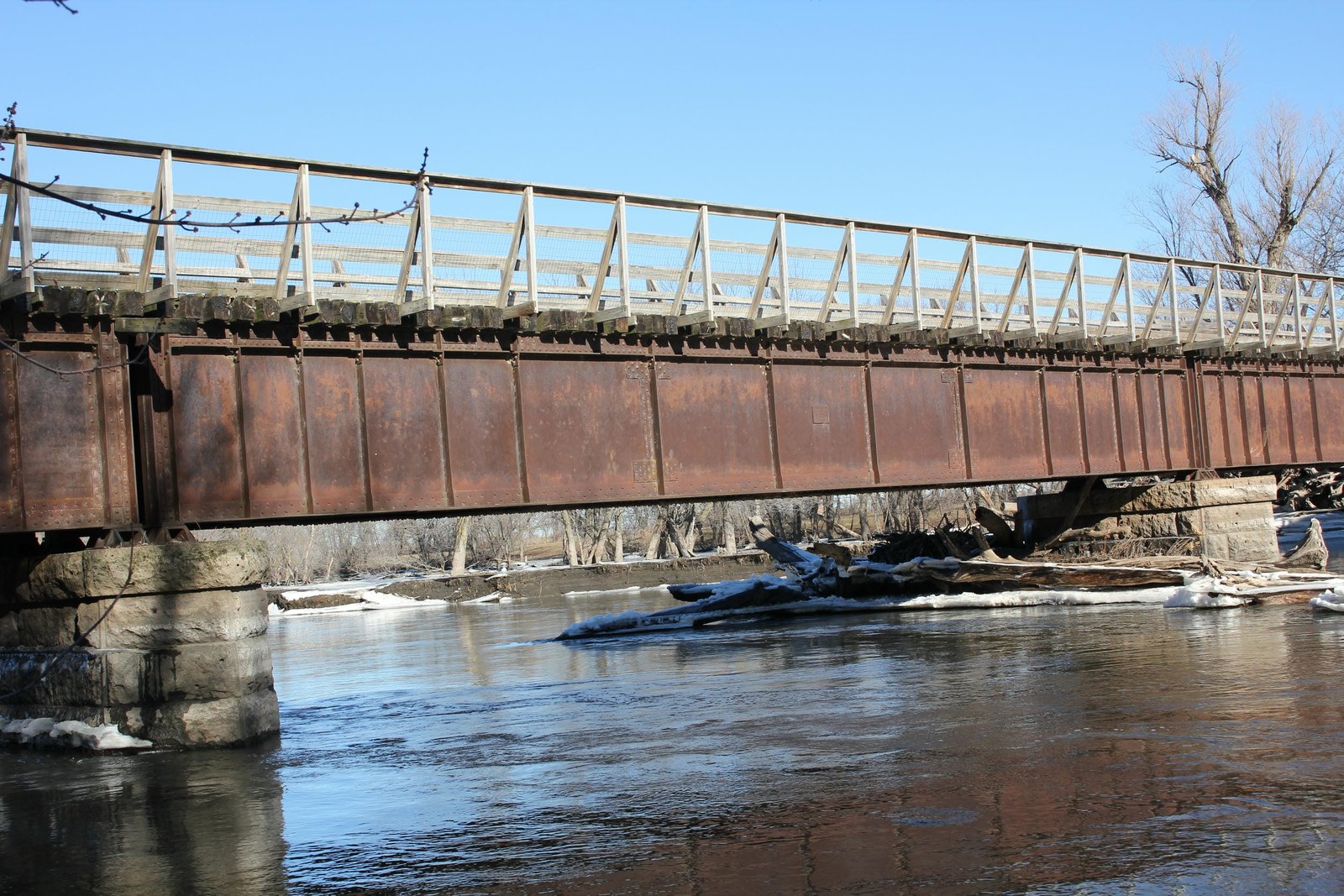

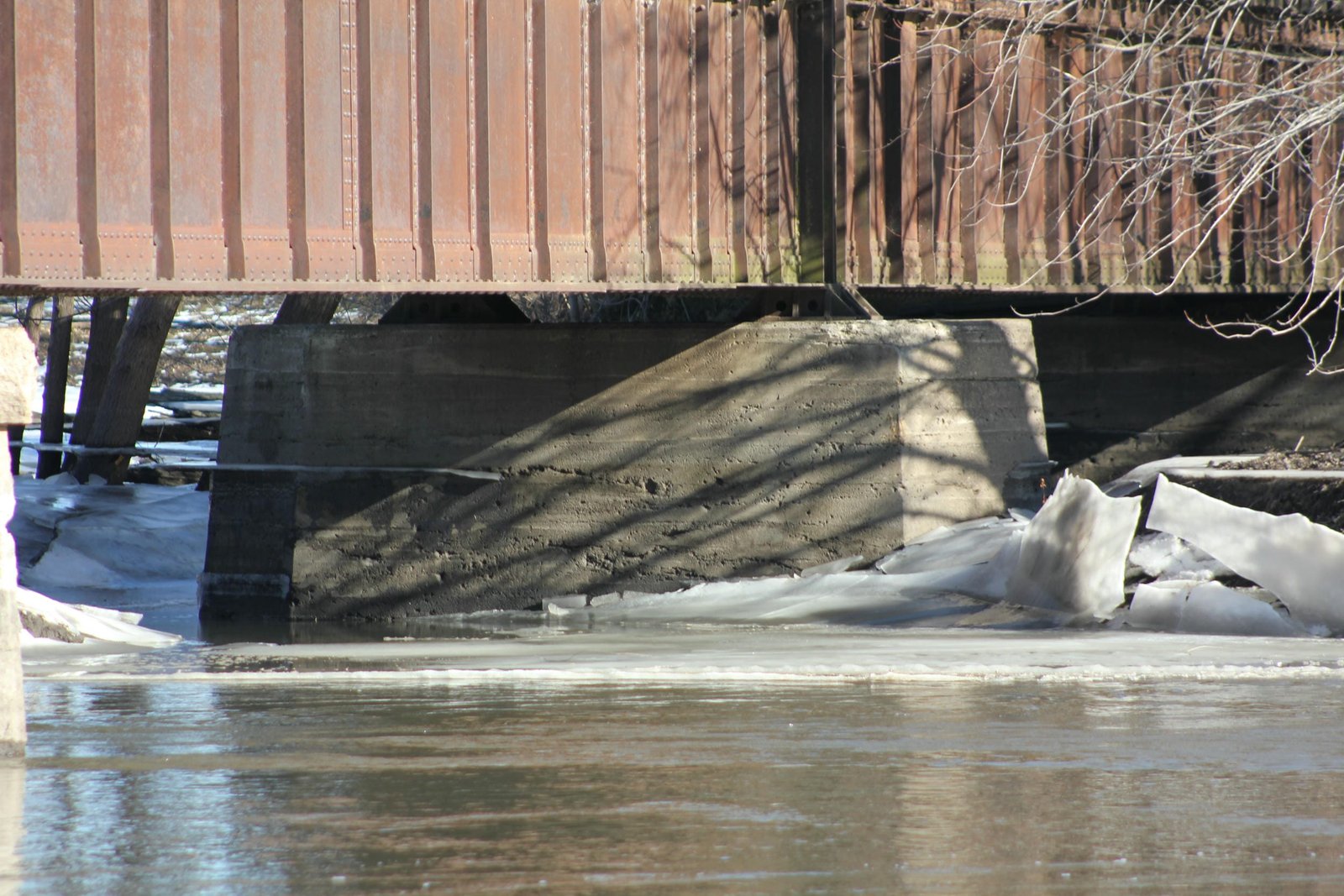

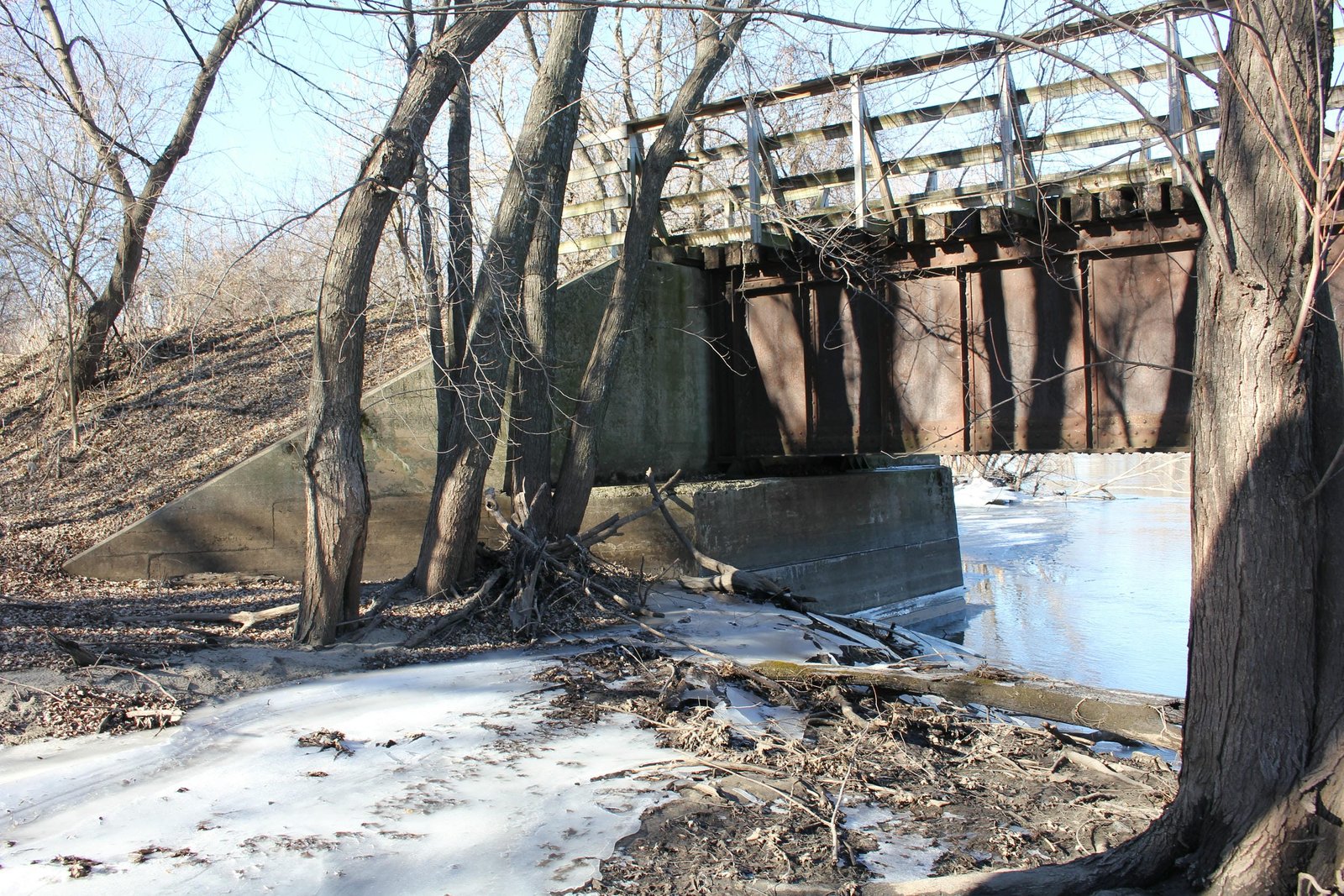

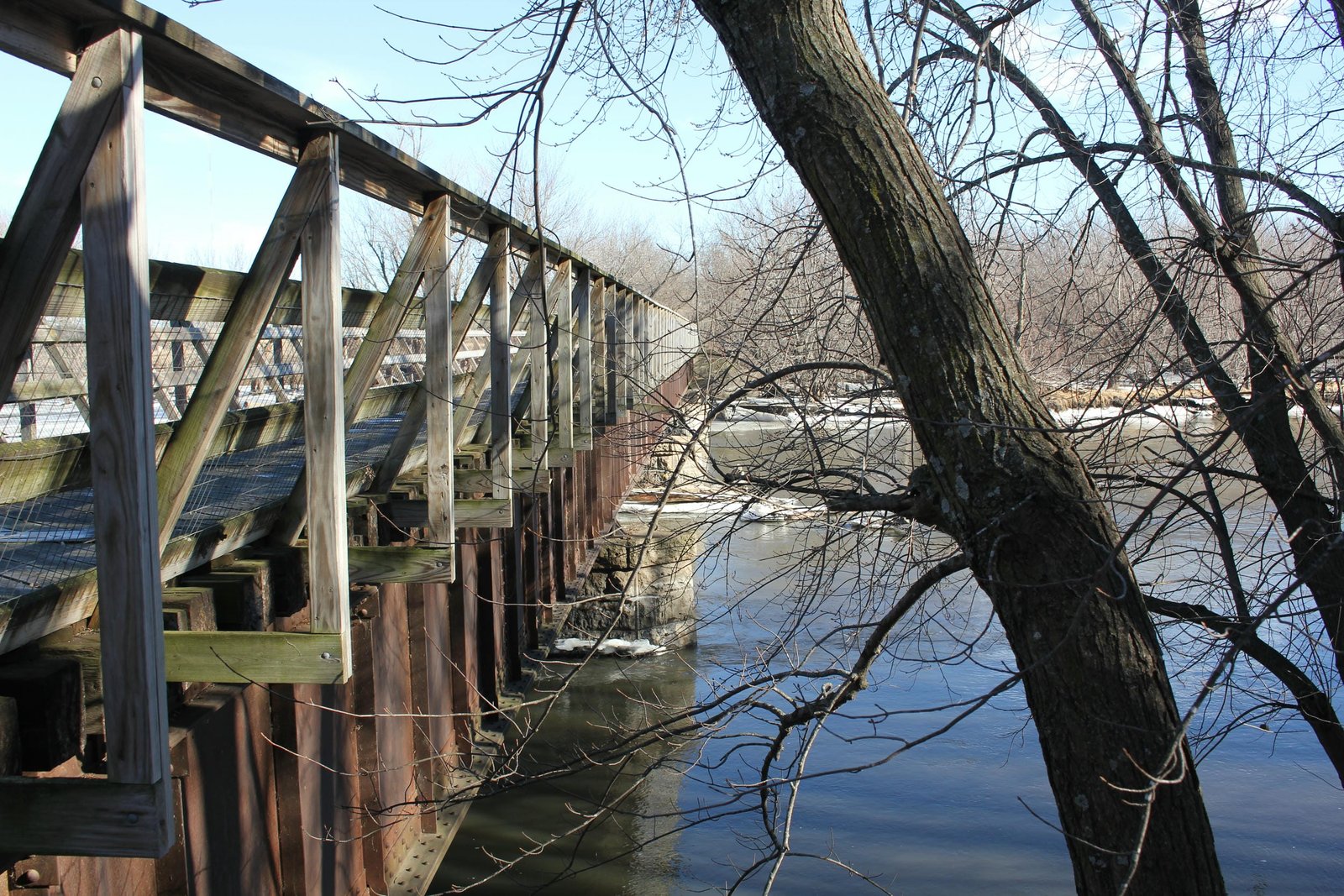

Located west of Bradgate, this large deck plate girder bridge carries a former Chicago & North Western Railway line over the West Fork Des Moines River. The first bridge at this location was likely a timber truss bridge, set onto timber pile piers and approached by timber pile trestle spans. During the early years of the 20th Century, the C&NW invested significant capital into this line, replacing timber bridges with heavier stone and steel structures. In 1902, the bridge was rebuilt with two deck plate girder spans, set onto three stone piers and retaining timber pile trestle approaches on either end. Another alteration was made in 1917, when the east approach was replaced by two additional deck plate girder spans, a concrete pier and a concrete abutment. The most recent alteration came in approximately 1920, when the west approach was replaced with a deck plate girder span and a concrete abutment, giving the bridge its present configuration. Currently, the bridge consists of five 70-foot deck plate girder spans, set onto stone and concrete substructures. The superstructure follows a standard design, with two heavy girders and an open deck. The substructures also follow a standard design, with diamond shaped piers and sloped wing walls at the abutments. Stone for piers #2, #3 and #4 consists of a yellow limestone, likely quarried at Mankato, Minnesota. American Bridge Company fabricated spans #3 and #4 in 1902, while the remaining spans were fabricated by unknown contractor(s). The stone piers were constructed by an unknown contractor, while the concrete substructures were also constructed by an additional unknown contractor. It is possible that the 1902-era stonework was constructed by the Widell Company of Mankato, Minnesota, which reportedly had a large contract for all Iowa Division stone bridges in 1901-02. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. Today, the bridge is used as part of the Three Rivers Trail, and a wooden deck and railings have been added to the bridge. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked the bridge as being locally significant, due to the common design.
Citations
| Build dates (spans #1 through #4) | Chicago & North Western Railway Valuation Notes at the Chicago & North Western Historical Society Archives |

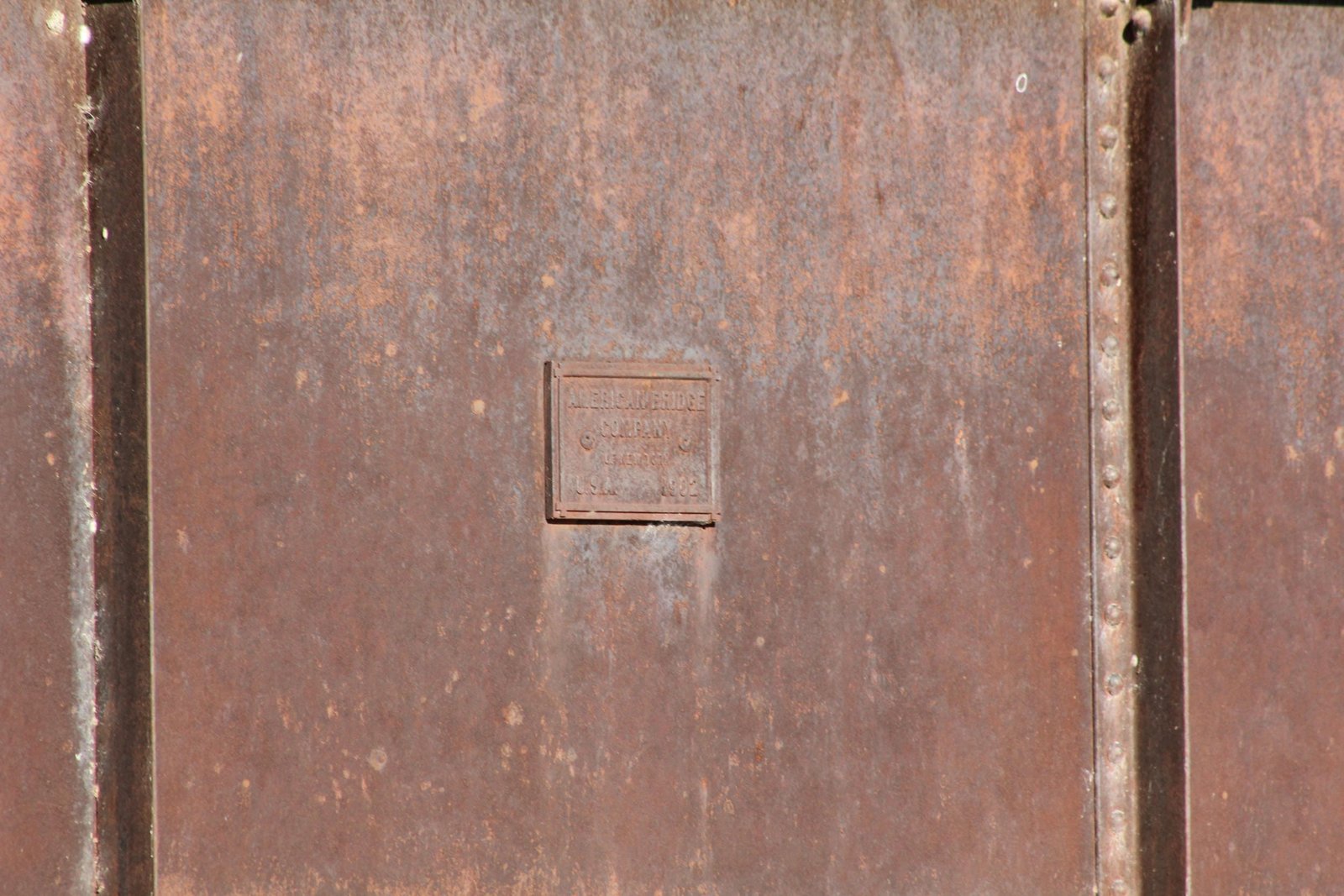

| Builder (spans #3 and #4 superstructure) | American Bridge Company plaque |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
