Name UP 140th Avenue Bridge
Chicago, Rock Island & Pacific Railroad Bridge #336
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Union Pacific Railroad
Superstructure Contractor American Bridge Company of New York
Substructure Contractor Unknown
Length 30 Feet Total
Width 1 Track
Height Above Ground 11 Feet 0 Inches
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1905
Traffic Count 0 Trains/Day (Bridge is Closed To Traffic)
Current Status Closed to all Traffic
Chicago, Rock Island & Pacific Railroad Bridge Number 336
Union Pacific Railroad Bridge Number 24.10
Significance Local Significance
Documentation Date 7/7/2017

Between 1892 and 1893, the Burlington, Cedar Rapids & Northern Railway completed 47-miles of new railroad, extending from Forest City, Iowa to Armstrong, Iowa.  When initially constructed, this line was separated from the remainder of the BCR&N system.  A connection to the remaining system was not constructed until 1895, when a leased railroad constructed additional trackage south from Forest City.  In 1900, the BCR&N constructed two significant additions to this line, including a 19-mile extension from Armstrong to Estherville, Iowa and a 44-mile line from Lakota, Iowa to Albert Lea, Minnesota.  The intention of these extensions was to connect this line to the BCR&N system at multiple points.  The BCR&N had constructed and acquired a large amount of track in southeast and northern Iowa during the late 19th Century, and had become a modest railroad in the Midwest.  By the turn of the 20th Century, the BCR&N operated over 1,000 route miles, connecting several major terminals in Iowa, Minnesota and South Dakota.   In June 1903, the BCR&N was acquired by the Chicago, Rock Island & Pacific Railway (Rock Island), which operated a large railroad network through the central United States.

This line served as a secondary line for the Rock Island, serving mainly agricultural industries and connecting more significant Rock Island routes.  The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In 1981, the Chicago & North Western Railway (C&NW) purchased the profitable section of this line between Estherville and Bricelyn, Minnesota.  The segment between Bricelyn and Albert Lea was abandoned in 1982, and the segment between Lakota and Forest City was abandoned in 1985.  Throughout the late 1980s and early 1990s, the C&NW invested capital into this line, replacing deteriorated bridges, ties and rail.  In 1995, the C&NW was purchased by the Union Pacific Railroad (UP).  Today, UP operates the Rake Subdivision between Estherville and Bricelyn.  However, a large segment of the line between Gruver and west of Lakota is currently out of service, and has not seen a train since the early 2000s.

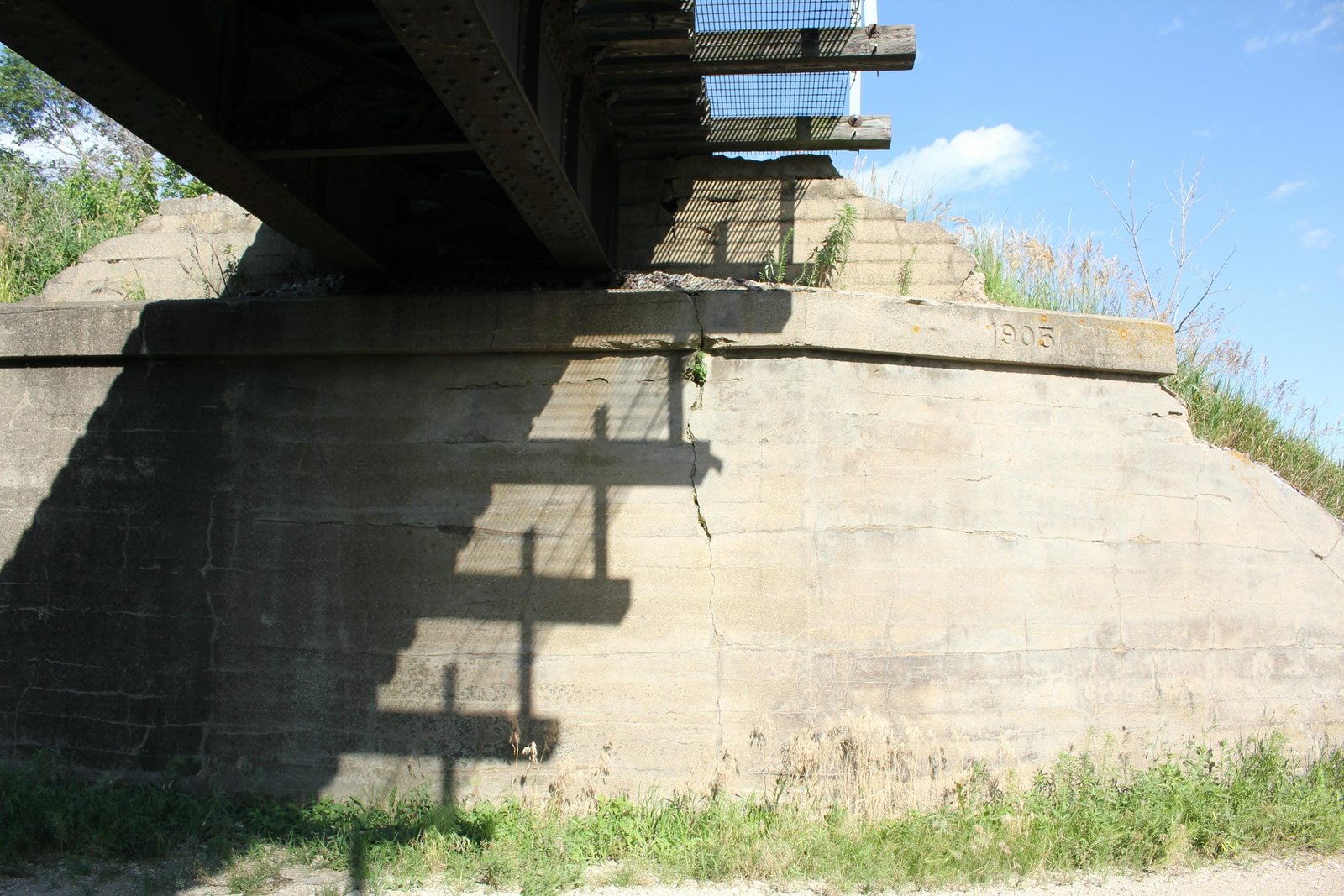

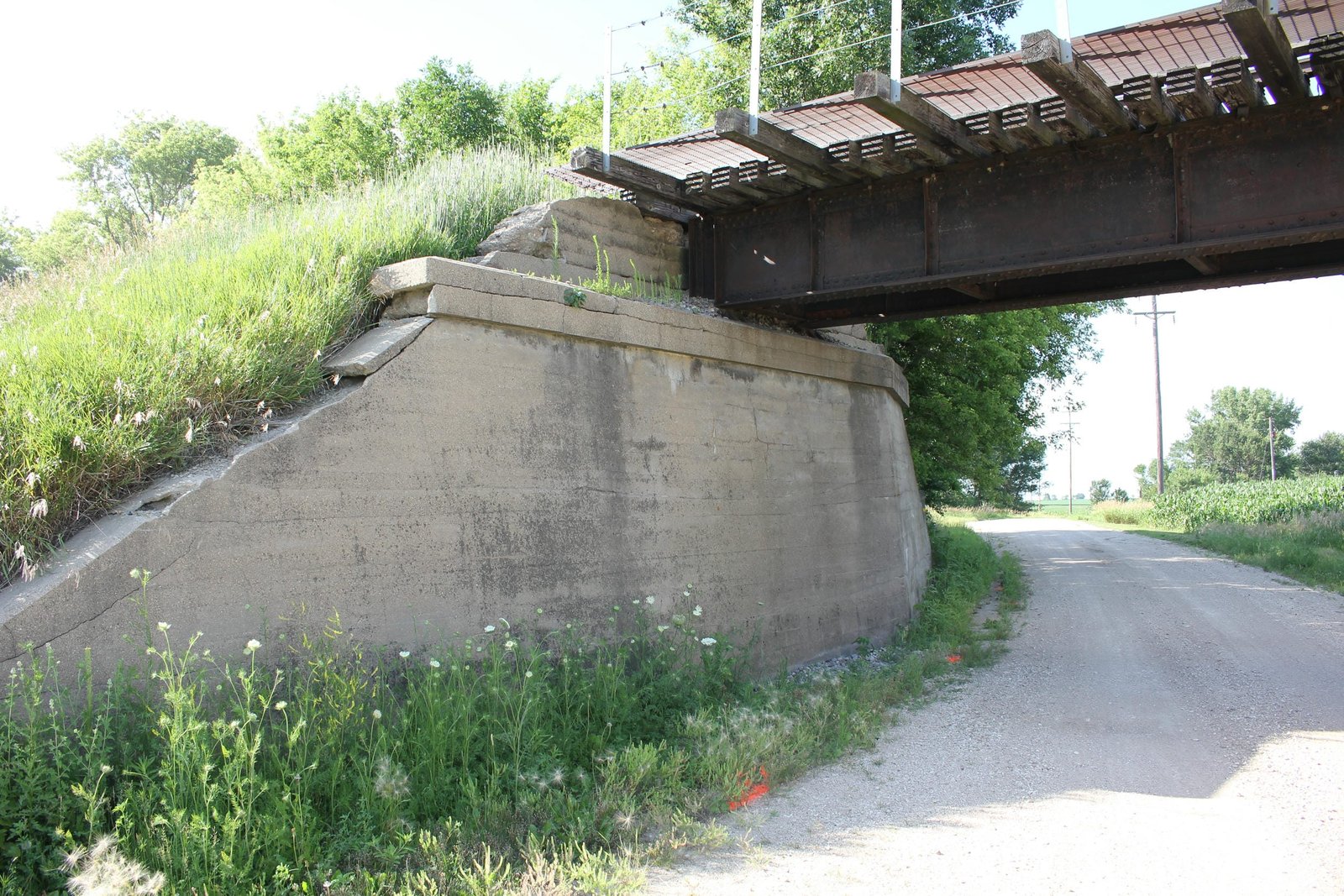

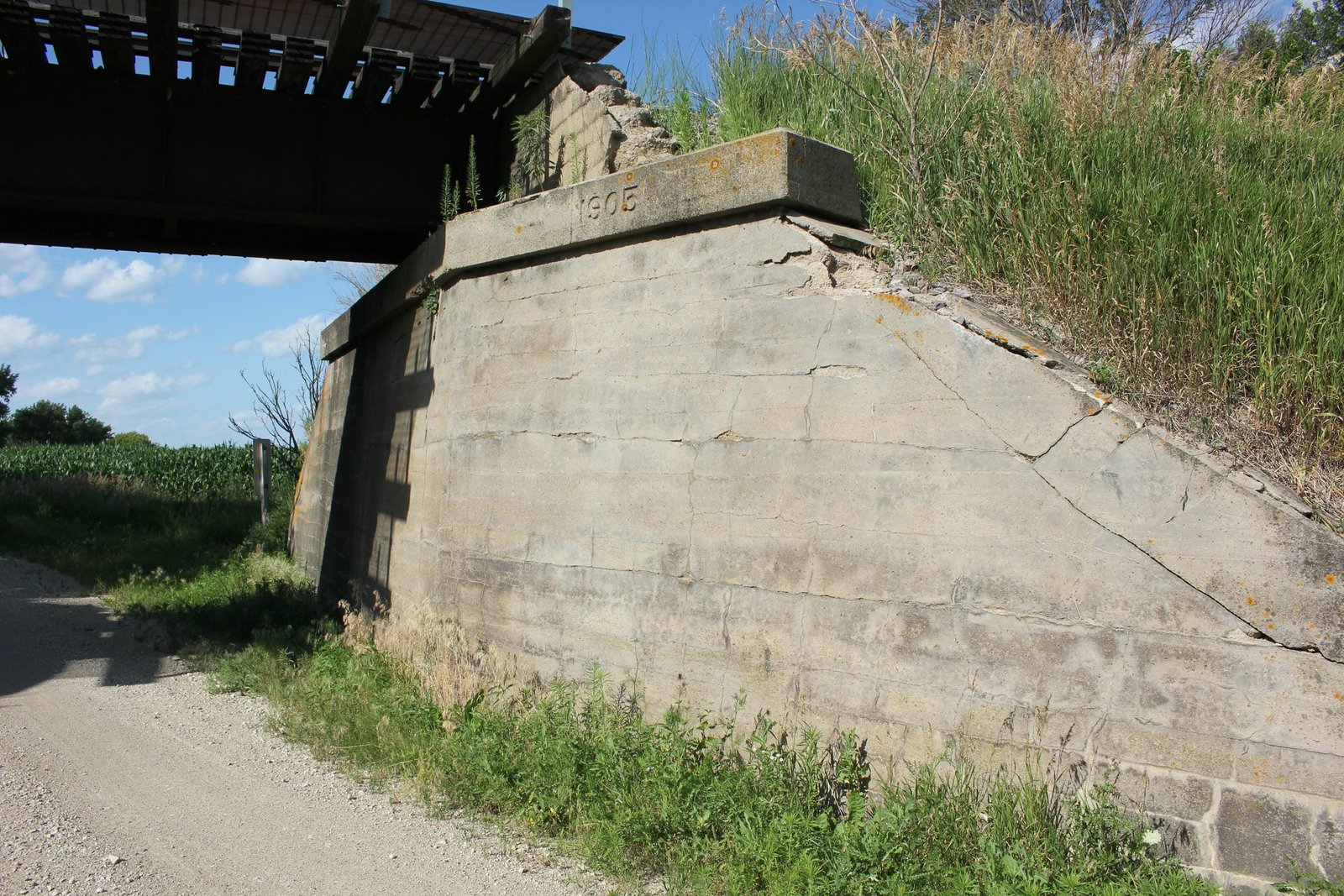

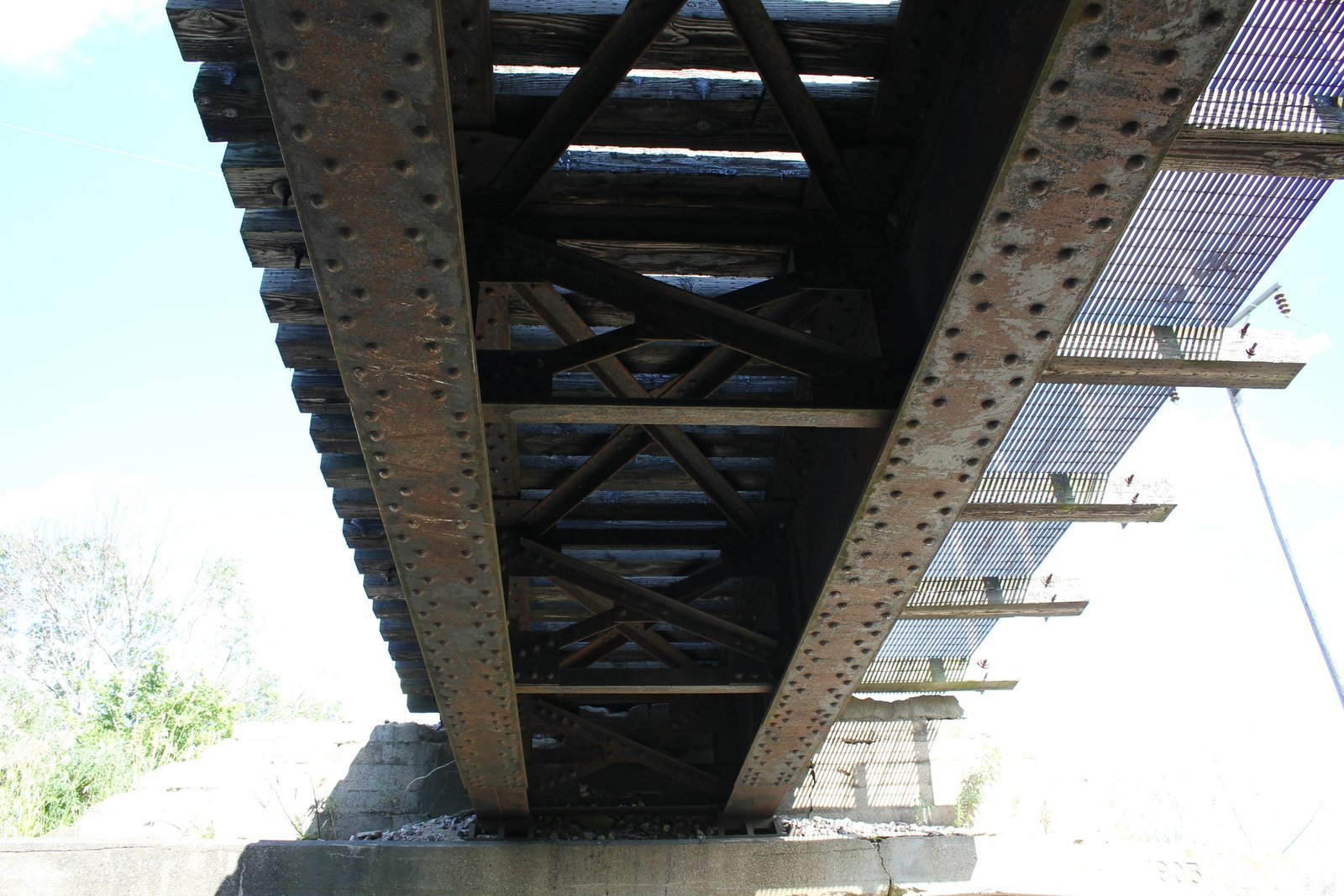

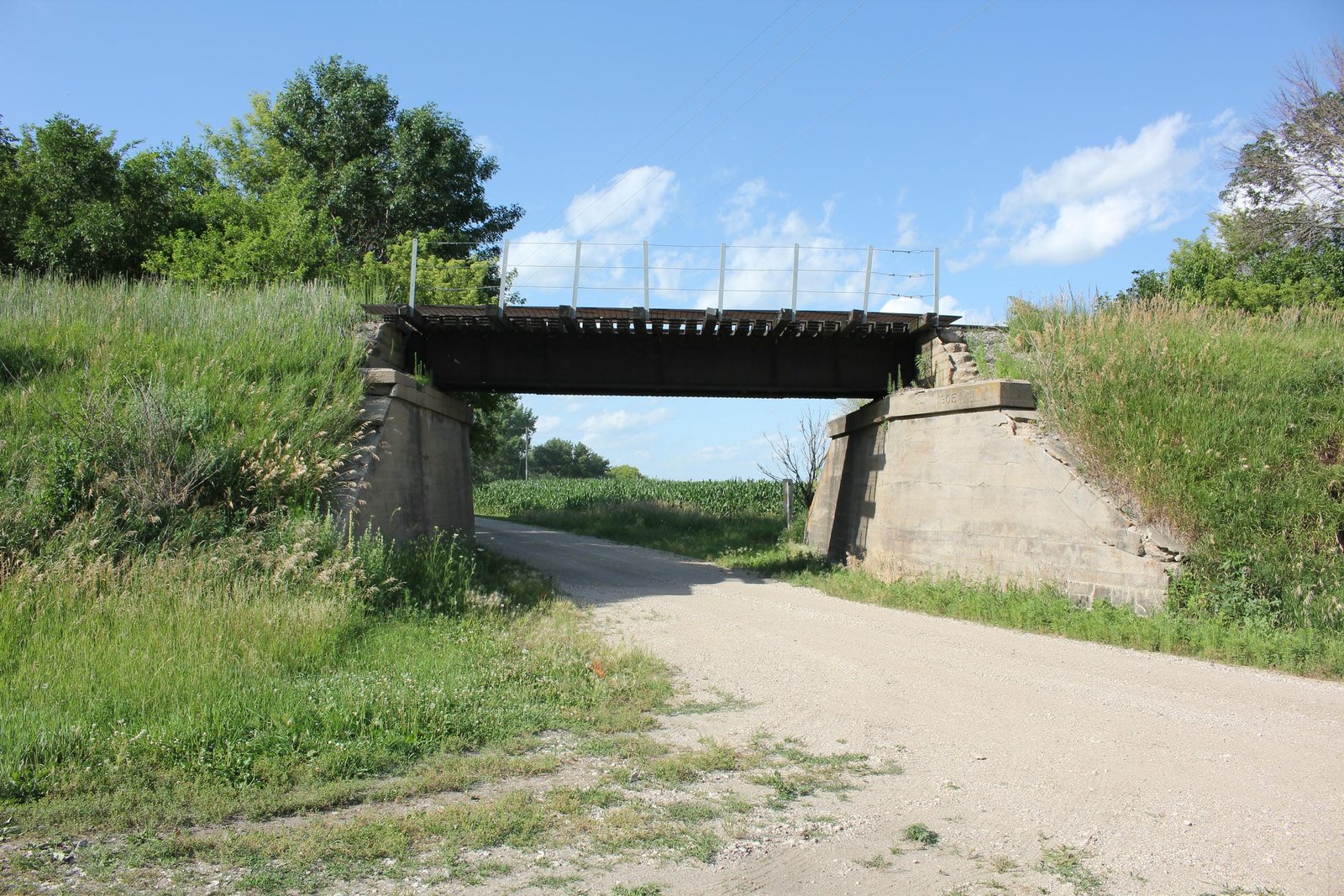

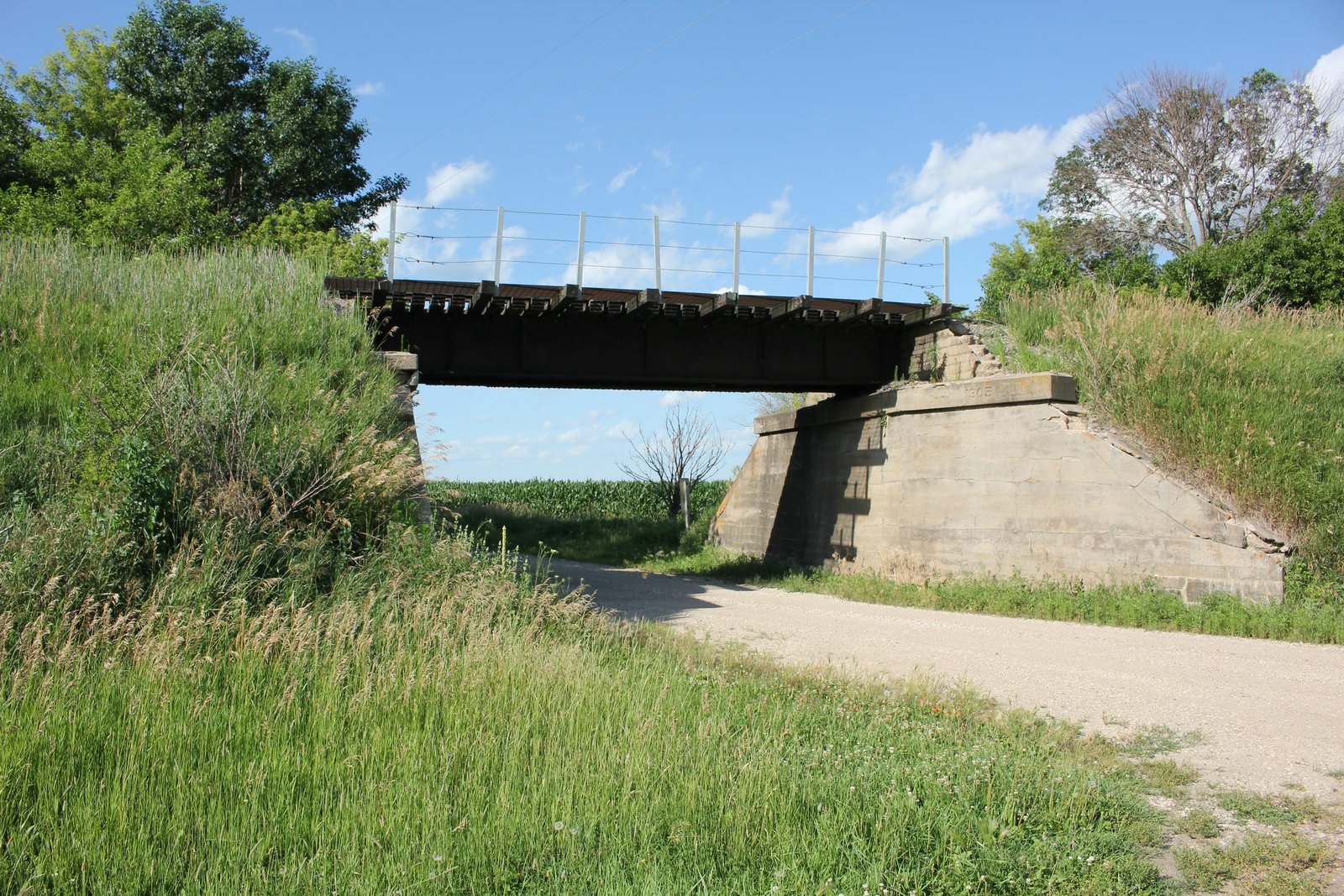

Located between Lakota and Swea City, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) line over 140th Avenue south of Iowa Highway 9. The first bridge at this location likely consisted of a timber pile trestle, constructed when the line was first built. In the early 20th Century, the Rock Island upgraded timber bridges along this line, constructing new steel and concrete structures. The present bridge was constructed in 1905. Currently, the bridge consists of a 30-foot deck plate girder, set onto concrete abutments. The superstructure follows a standard design, with modest sized girders and an open deck. The substructures also follow a standard design, with sloped wing walls extending diagonal from the structure. The superstructure was fabricated by American Bridge Company, while the substructure was constructed by an unknown contractor. Deck plate girder spans were often used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. Overall, the bridge appears to be in fair condition, with some cracking on the abutments. Currently, the bridge is out of service, although not abandoned. The author has ranked this bridge as being locally significant, due to the common design.


Citations

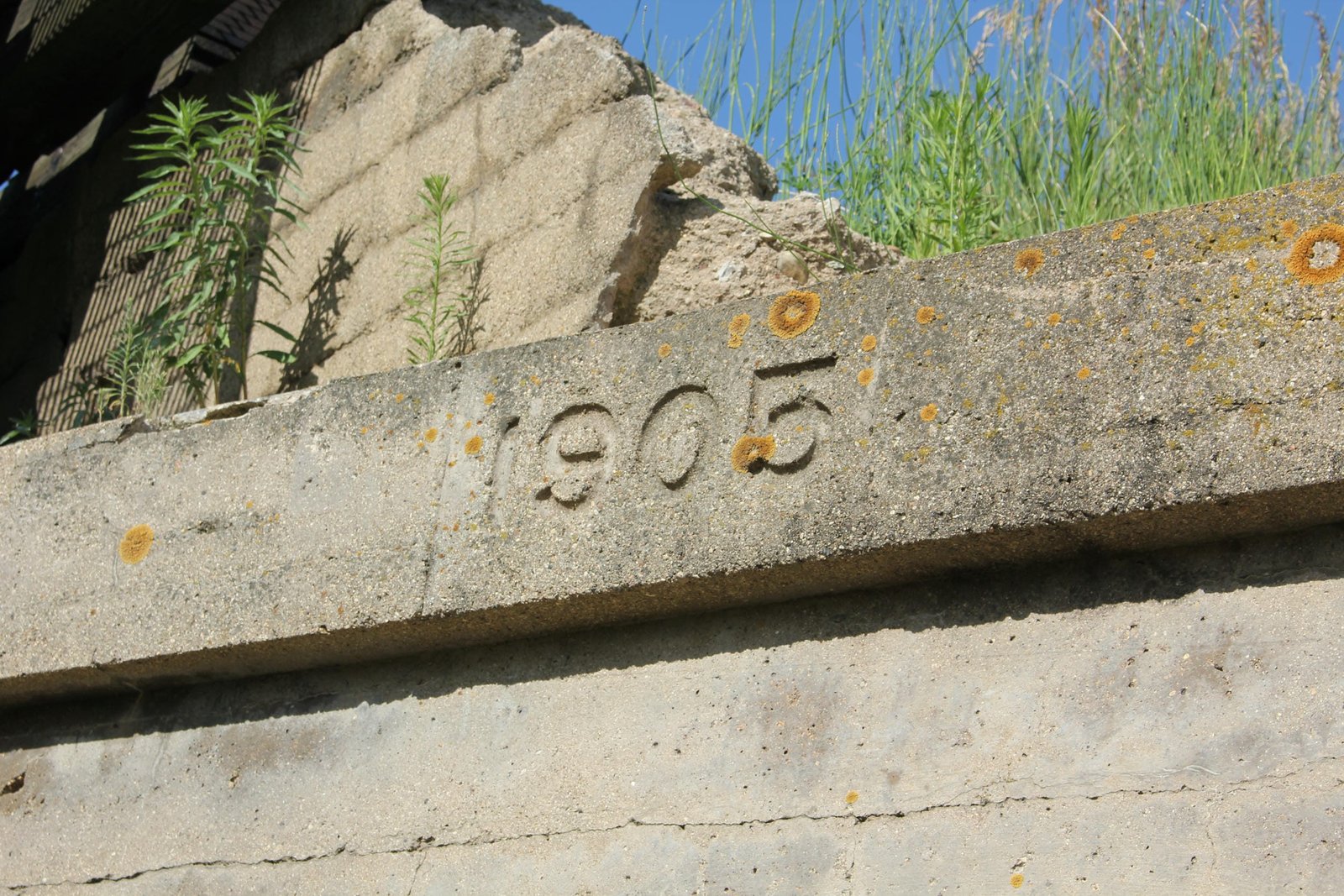

Build date Date stamp
Builder (superstructure) Missing American Bridge Company plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
