| Name | CPKC US-169 Bridge (Algona) Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge #R-578 1/2 |
| Built By | Chicago, Milwaukee, St. Paul & Pacific Railroad |
| Currently Owned By | Canadian Pacific Kansas City Limited |
| Superstructure Contractor | Unknown |
| Substructure Contractor | Amos Melberg Company of Cedar Rapids, Iowa |
| Length | 140 Feet Total, 55 Foot Main Span |
| Width | 1 Track |
| Height Above Ground | 15 Feet (Estimated) |
| Superstructure Design | Deck Plate Girder |
| Substructure Design | Concrete |
| Date Built | 1954 |
| Traffic Count | 2 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge Number | R-578 1/2 |
| Significance | Local Significance |
| Documentation Date | 7/7/2017 |
In 1864, the McGregor Western Railway (MW) charted a new line, which would extend across the northern portion of Iowa. The first 28 miles were completed between Marquette, Iowa and Castalia, Iowa in 1864. In 1865, an additional 15 miles were completed to Calmar, Iowa; where the line would continue north into Minnesota. In 1867, the MW was conveyed to the Milwaukee & St. Paul Railway (M&StP). In 1869, the McGregor and Sioux City Railway (M&SC) completed an additional 64 miles to Nora Springs, Iowa. At the end of 1869, the M&SC changed its name to the McGregor and Missouri River Railway (M&MR). After completion, the line between Calmar and Nora Springs was conveyed to the M&StP. In 1870, an additional 62 miles were constructed from Nora Springs to Algona, Iowa; and the line was conveyed to the M&StP at the end of the year. In 1874, the M&StP was reorganized as the Chicago, Milwaukee & St. Paul Railway (Milwaukee Road). In 1878, the Milwaukee Road completed another 98 miles between Algona and Hull, Iowa. In 1879, an additional 28 miles were completed to Canton, South Dakota; completing the line across Iowa. A short 9-mile connection was made between Rock Valley, Iowa and Hudson, South Dakota in 1880. After completion of the line, the remaining assets of the M&MR were sold to the Milwaukee Road. By the late 19th Century, the Milwaukee Road had developed a large railroad network throughout the Midwest. This line served as a mainline, connecting the railroad network in Wisconsin to towns in Iowa, and serving as a basis for further westward expansion into South Dakota.
The short Rock Valley to Hudson branch was abandoned in 1918, as it was considered excess. The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928. Despite the financial strain, this line remained an important mainline for the Milwaukee Road. Financial hardship continued through the 20th Century for the Milwaukee Road, and the railroad again filed for bankruptcy in 1977. In 1980, the line west of Sheldon, Iowa was abandoned. By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986. In 1997, CP would sell this line to I&M Rail Link, which was purchased by the Dakota, Minnesota & Eastern Railroad (DM&E) subsidiary Iowa, Chicago & Eastern Railroad (IC&E) in 2002. The DM&E/IC&E were purchased by Canadian Pacific in 2008. CP merged with Kansas City Southern Railway in 2023 to form CPKC, the current owner of the line. Today, CPKC operates the Mason City Subdivision between Marquette and Mason City and the Sheldon Subdivision between Mason City and Sheldon. West of Sheldon, the line has been abandoned and largely has reverted to adjacent landowners.

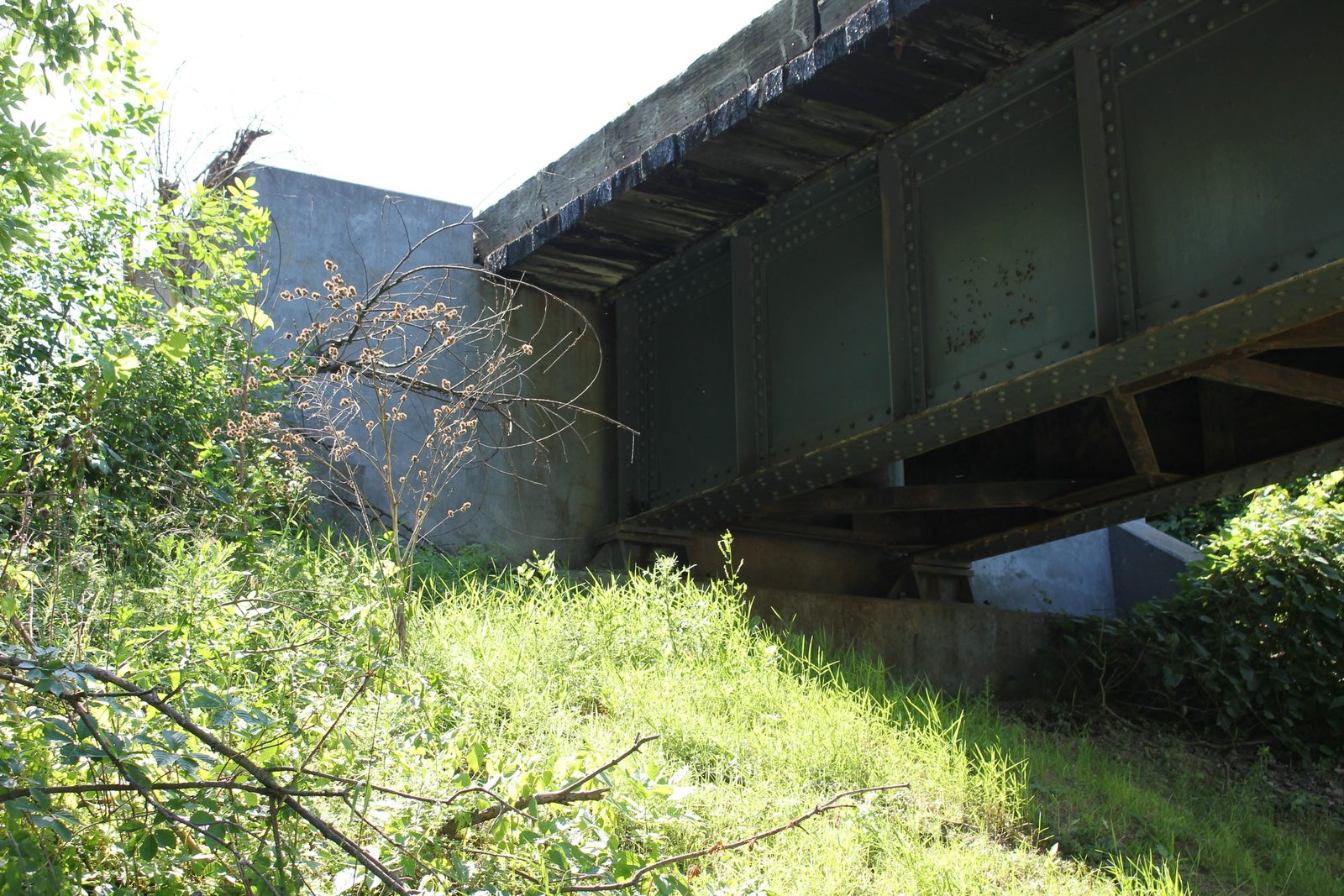

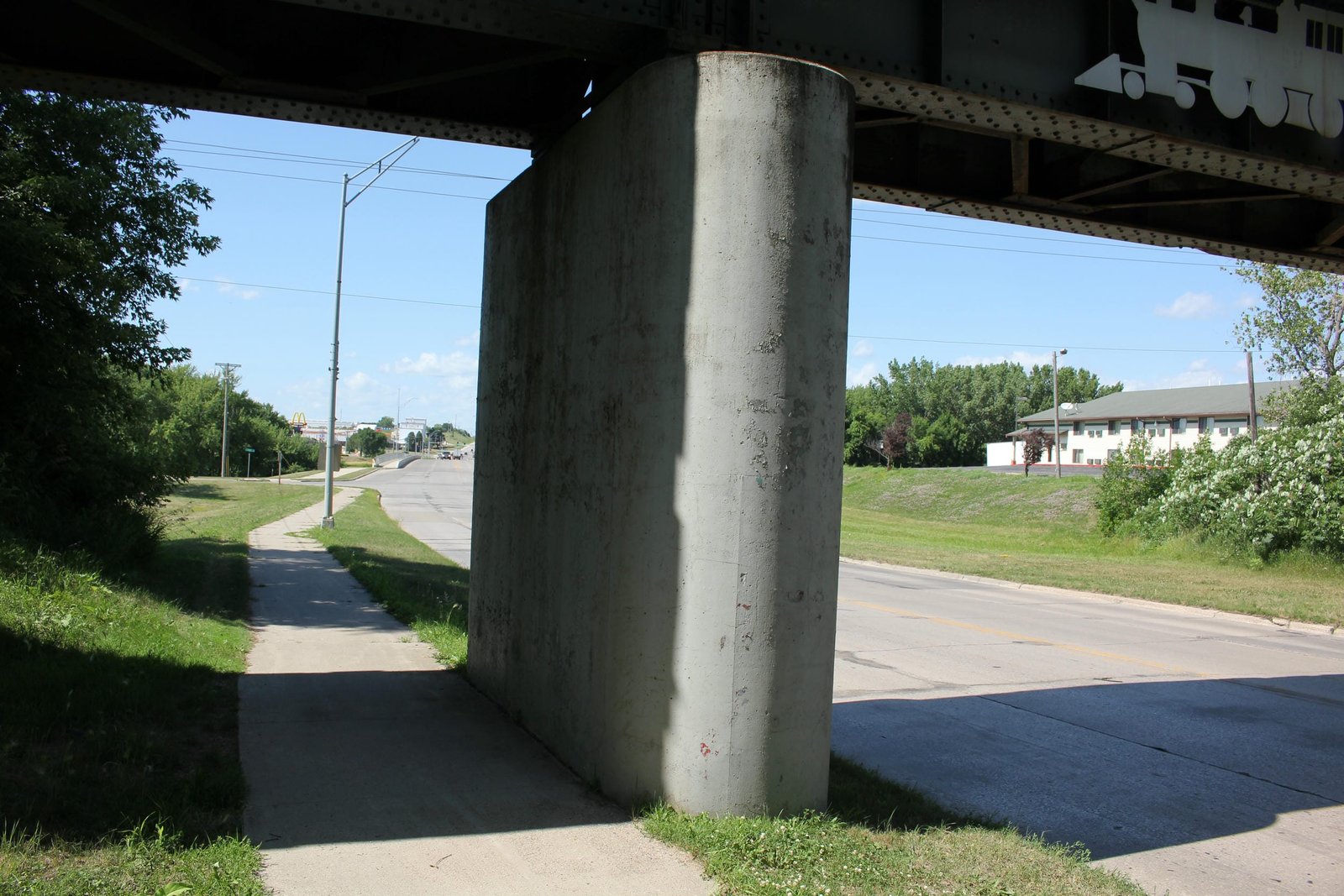

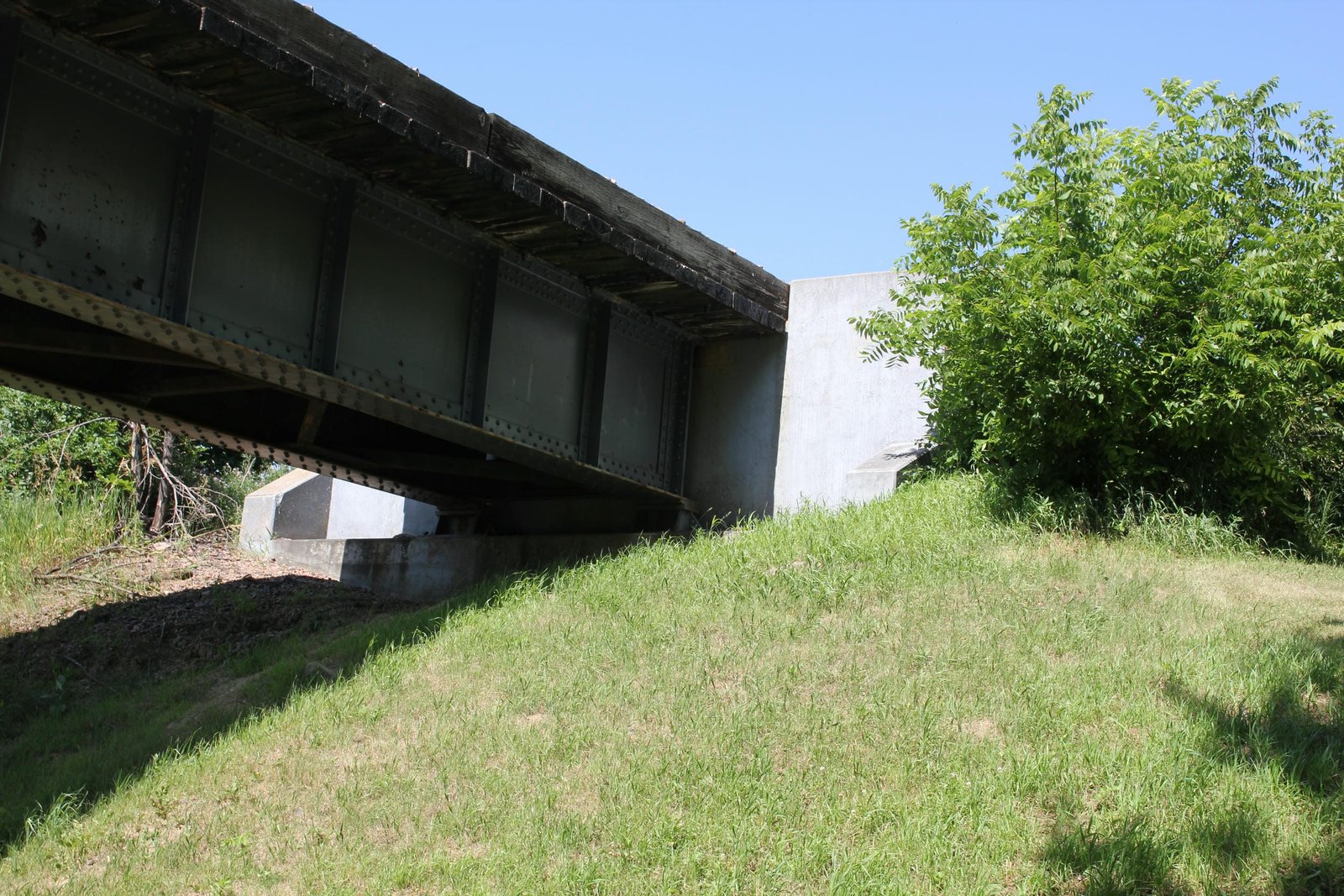

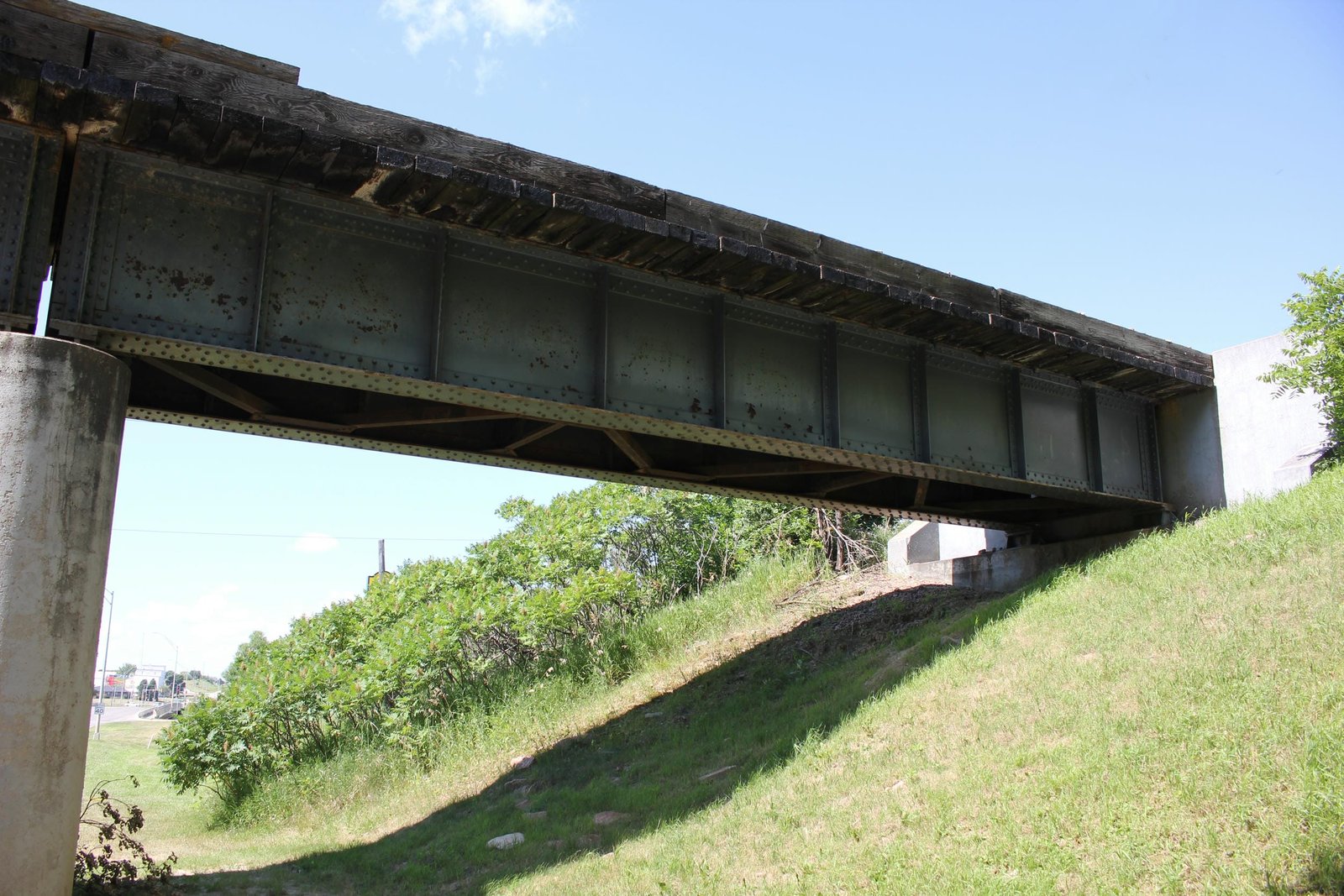

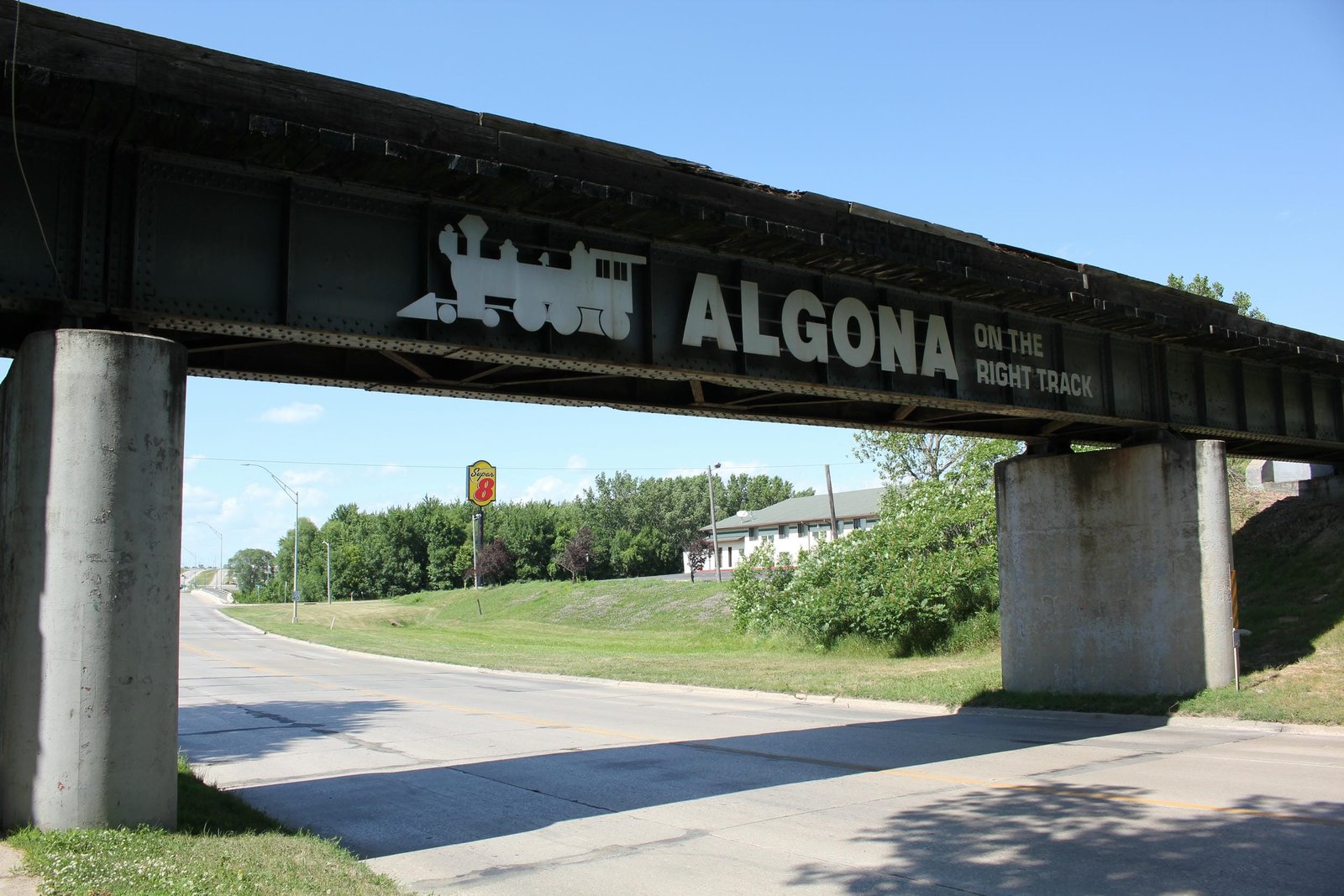

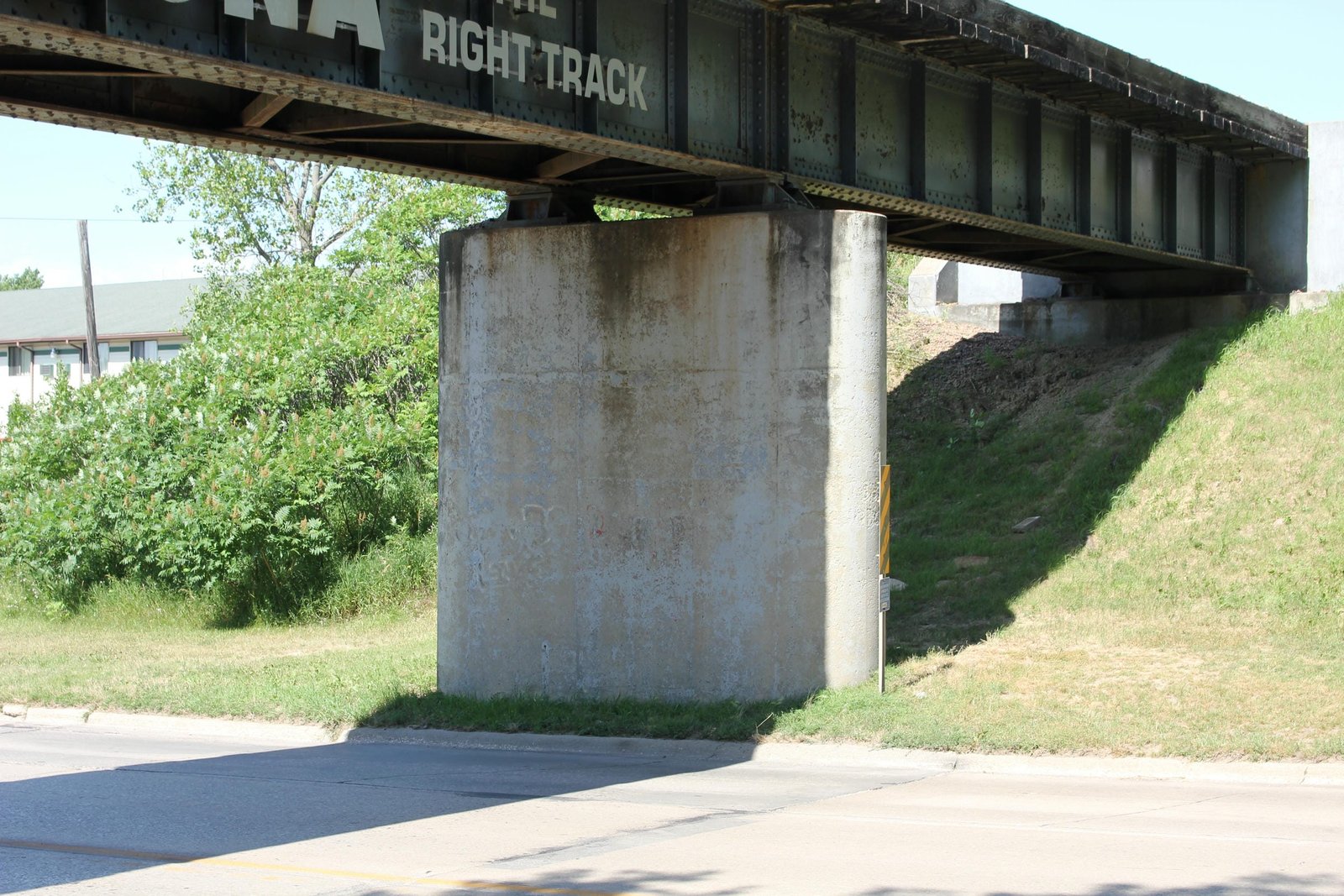

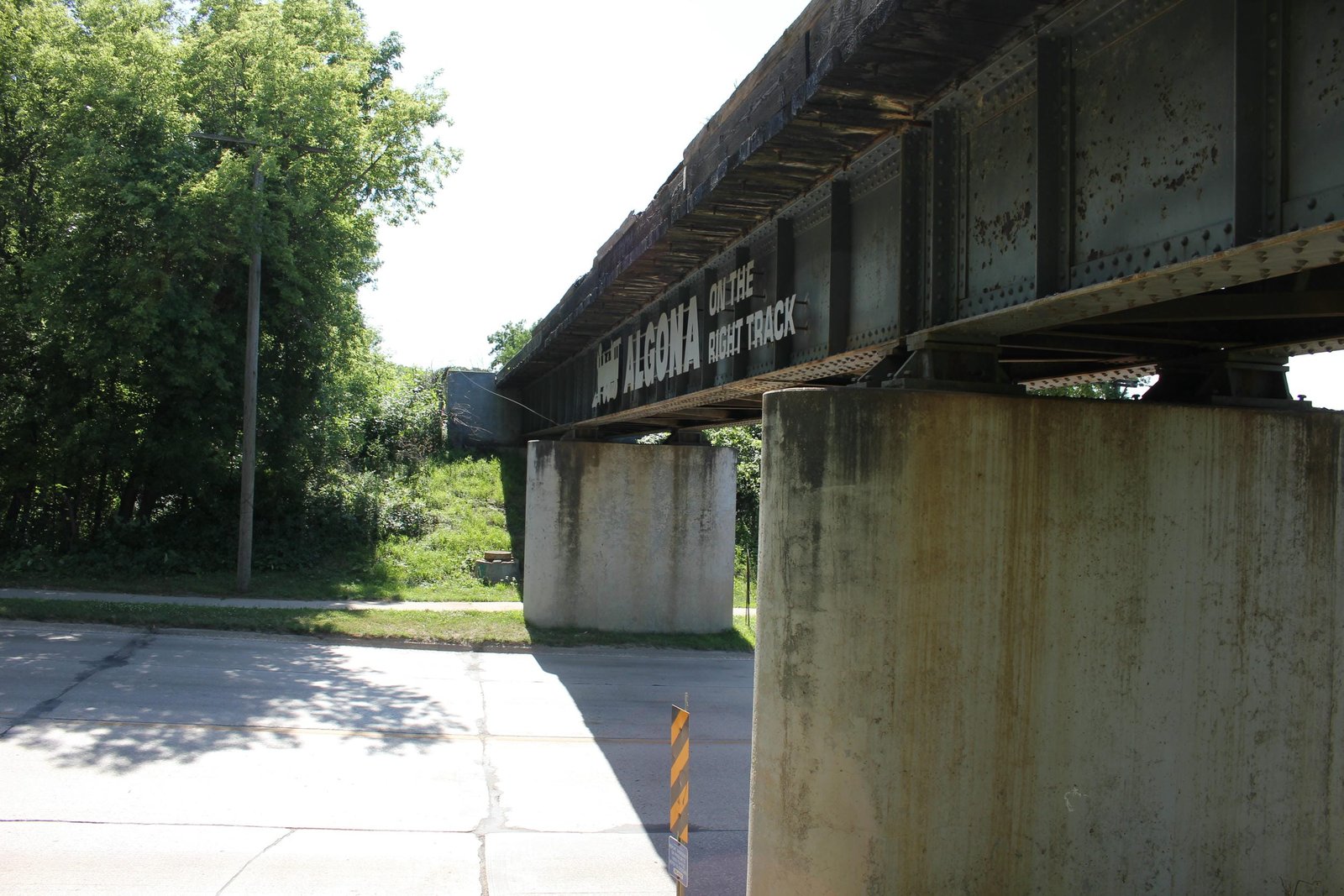

Located in Algona, this deck plate girder bridge carries a former Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) line over US Highway 169 (Jones Street). The previous bridge at this location likely consisted of a short deck girder span, set onto timber pile piers and approached by timber pile trestle spans. In the 1940s and 1950s, the Iowa State Highway Commission worked to improve existing highways and grade separations, constructing wider and safer roads and underpasses. Negotiations for realigning US Highway 169 and constructing a new underpass began in the early 1950s, and contracts were awarded in June 1953, with work beginning shortly after. The underpass was completed in early 1954, with the roadway opening later that year. Currently, the bridge consists of a 55-foot deck plate girder span, approached by a 45-foot deck plate girder span on the east end and a 40-foot span on the west end. The entire bridge is set onto concrete substructures. The superstructure follows a standard design, with heavy girders and a ballast deck. The substructures also follow a standard design, with rounded piers and U-shaped abutments. An unknown contractor fabricated the superstructure, while the Amos Melberg Company constructed the substructures and erected the superstructure. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations, and remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design and newer age.
Citations
| Build date | National Bridge Inventory (NBI) |
| Build date (substructure) | The Algona Upper Des Moines; June 4, 1953 |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
