Name IAIS I-80 Bridge
Chicago, Rock Island & Pacific Railroad Bridge #3918
Built By Chicago, Rock Island & Pacific Railroad
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Unknown
Substructure Contractor Brogan Construction Company of Des Moines, Iowa
Length 241 Feet Total, 69 Foot Largest Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1960
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 3918
Iowa Interstate Railroad Bridge Number 3918
Significance Minimal Significance
Documentation Date 11/9/2016

In 1869, the Chicago, Rock Island & Pacific Railroad (Rock Island) constructed 142 miles of new railroad, extending from the end of the existing mainline at Des Moines, Iowa to Council Bluffs, Iowa.  Originally, the line went west to Atlantic, Iowa; before turning northwest and going through Avoca, Iowa and Shelby, Iowa.  At Shelby, the line would turn back southwest, and run through Neola, Iowa and Underwood, Iowa before arriving in Council Bluffs.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads during the late 19th Century, covering much of the central United States.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.  In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.

The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. During the early 1950s, the Rock Island undertook a series of improvements in Western Iowa to eliminate harsh grades and shorten the line.  Between 1952 and 1953, the Rock Island constructed the Atlantic Cutoff, which included constructing 34 miles of new railroad between Atlantic and McClelland, Iowa.  West of McClelland, the Rock Island used the Chicago Great Western Railway (CGW) tracks to reach Council Bluffs. The new route saved 10 miles, and much of the old route was abandoned in 1953.  A short segment was retained between Walnut, Iowa and Shelby, which was abandoned in 1966.  An additional revision was made near Adair in 1954, which involved straightening the route.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Council Bluffs Subdivision between Des Moines and Council Bluffs.  Except for a short portion near Shelby, the entirety of the original mainline between Atlantic and Council Bluffs remains abandoned.

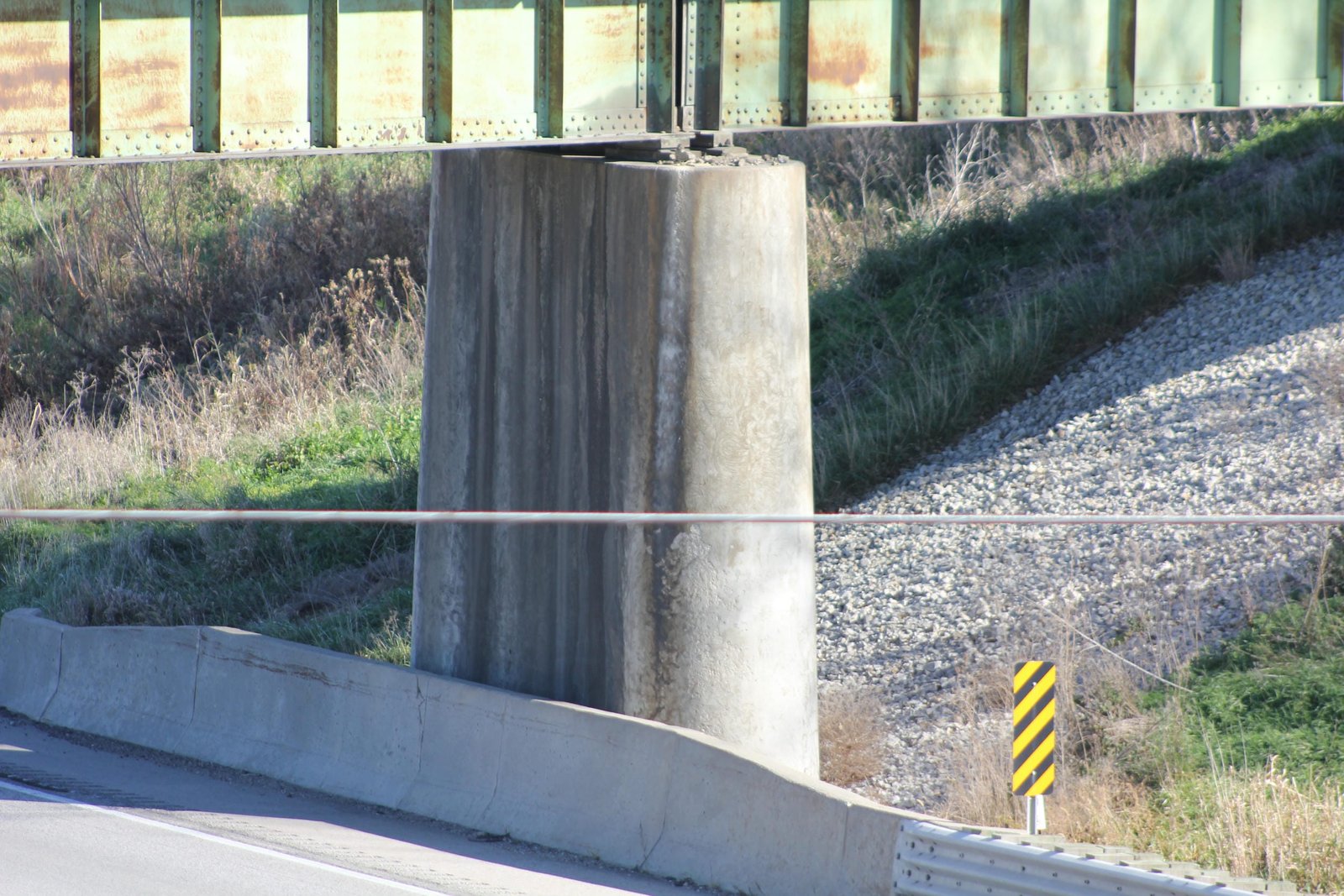

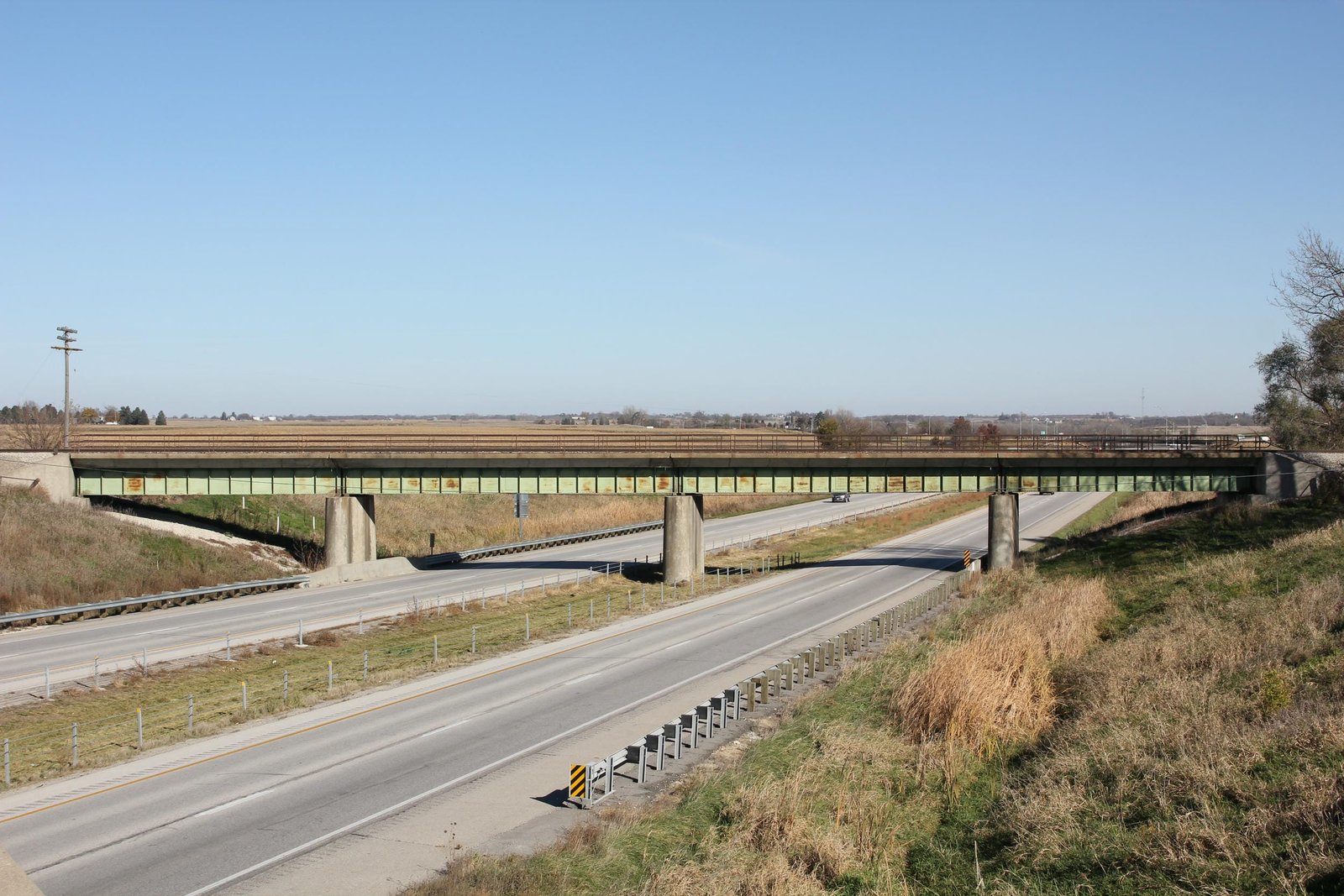

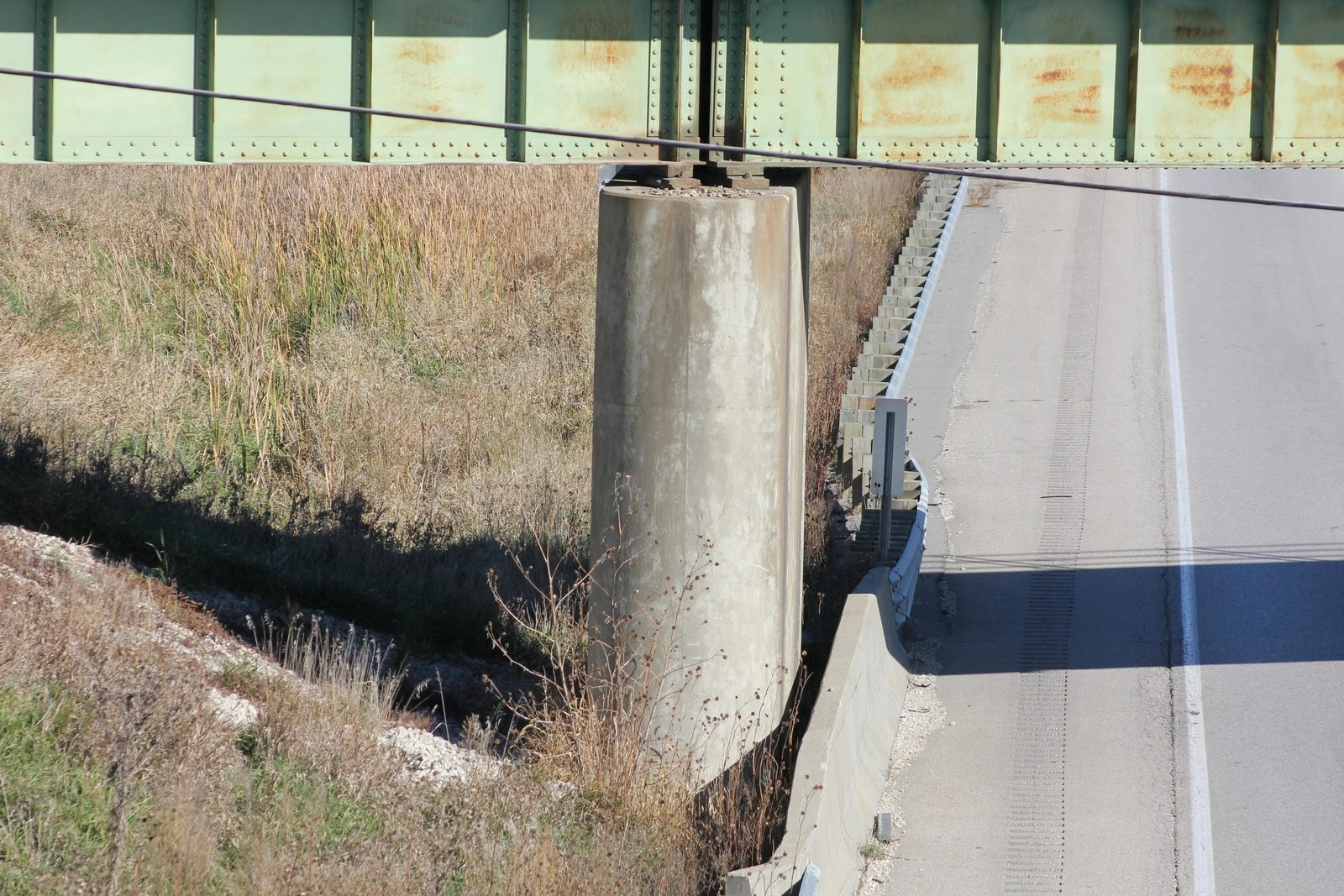

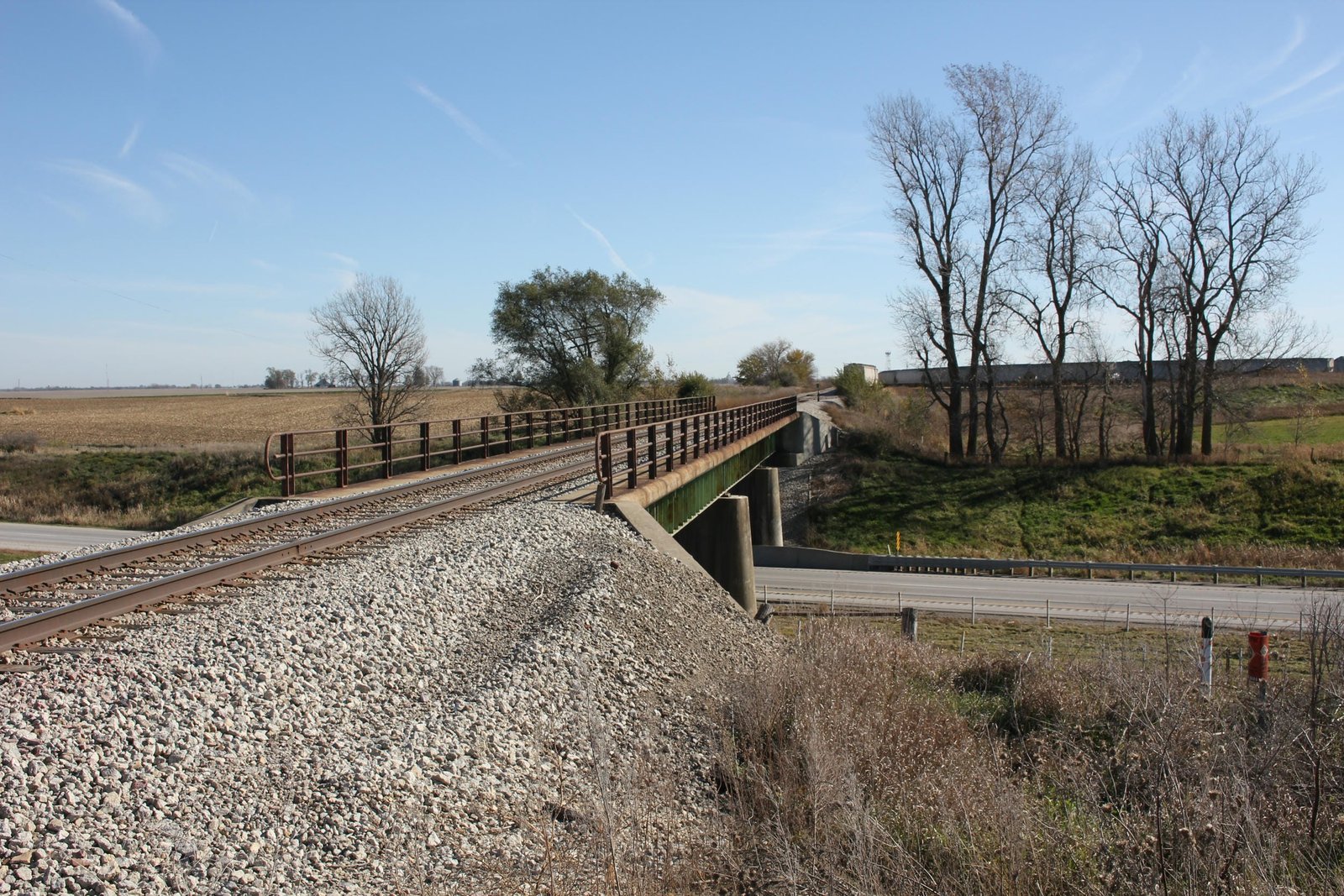

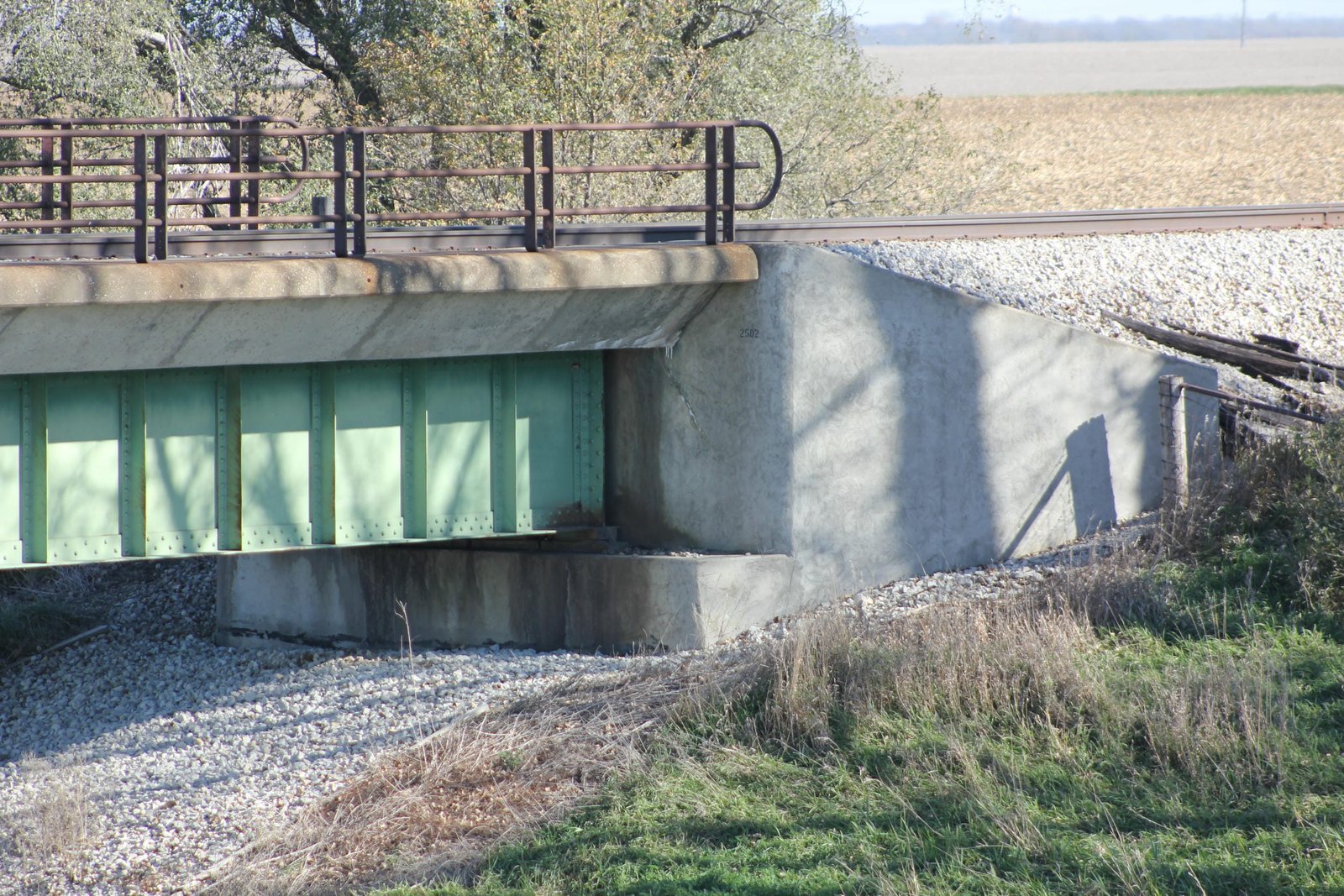

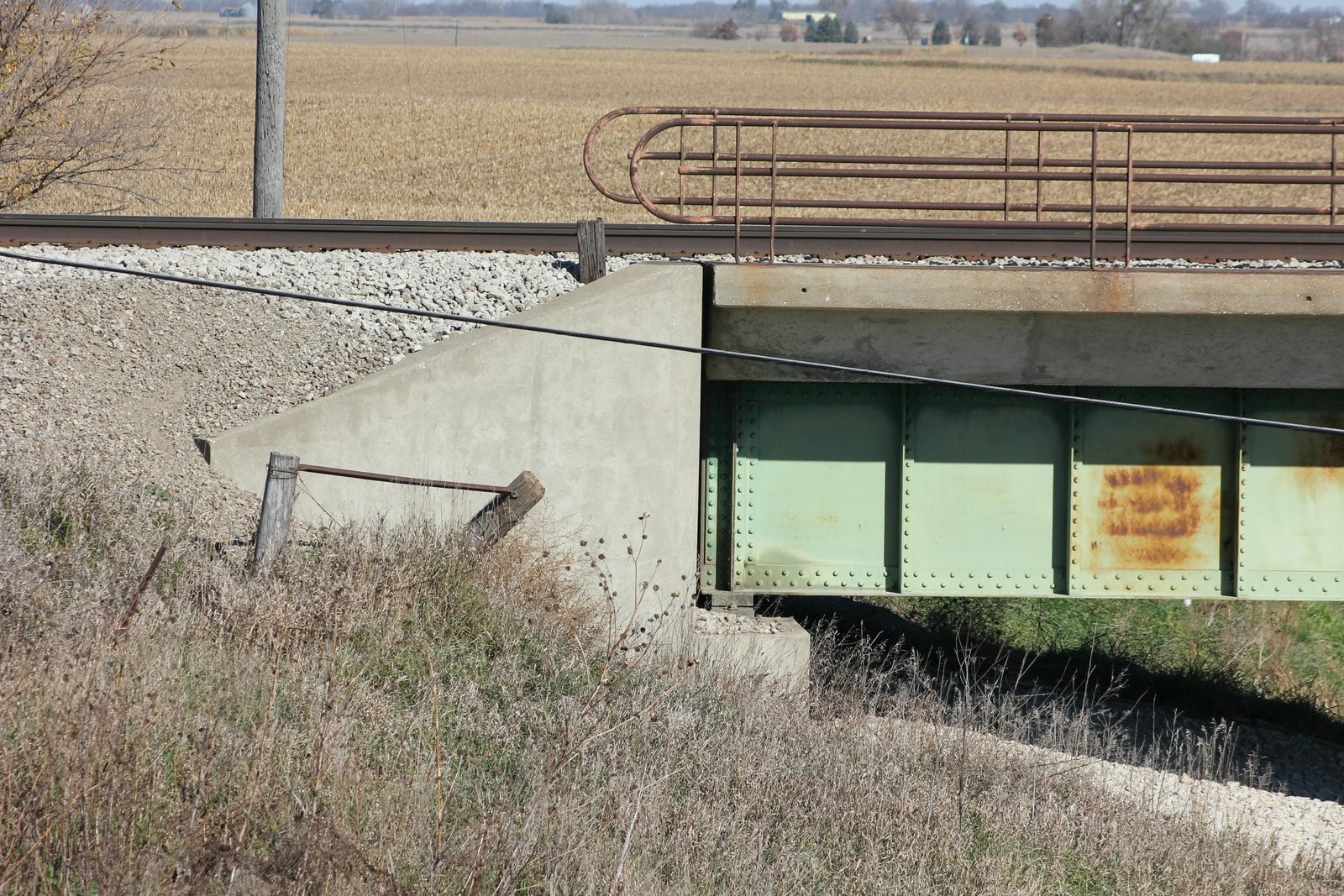

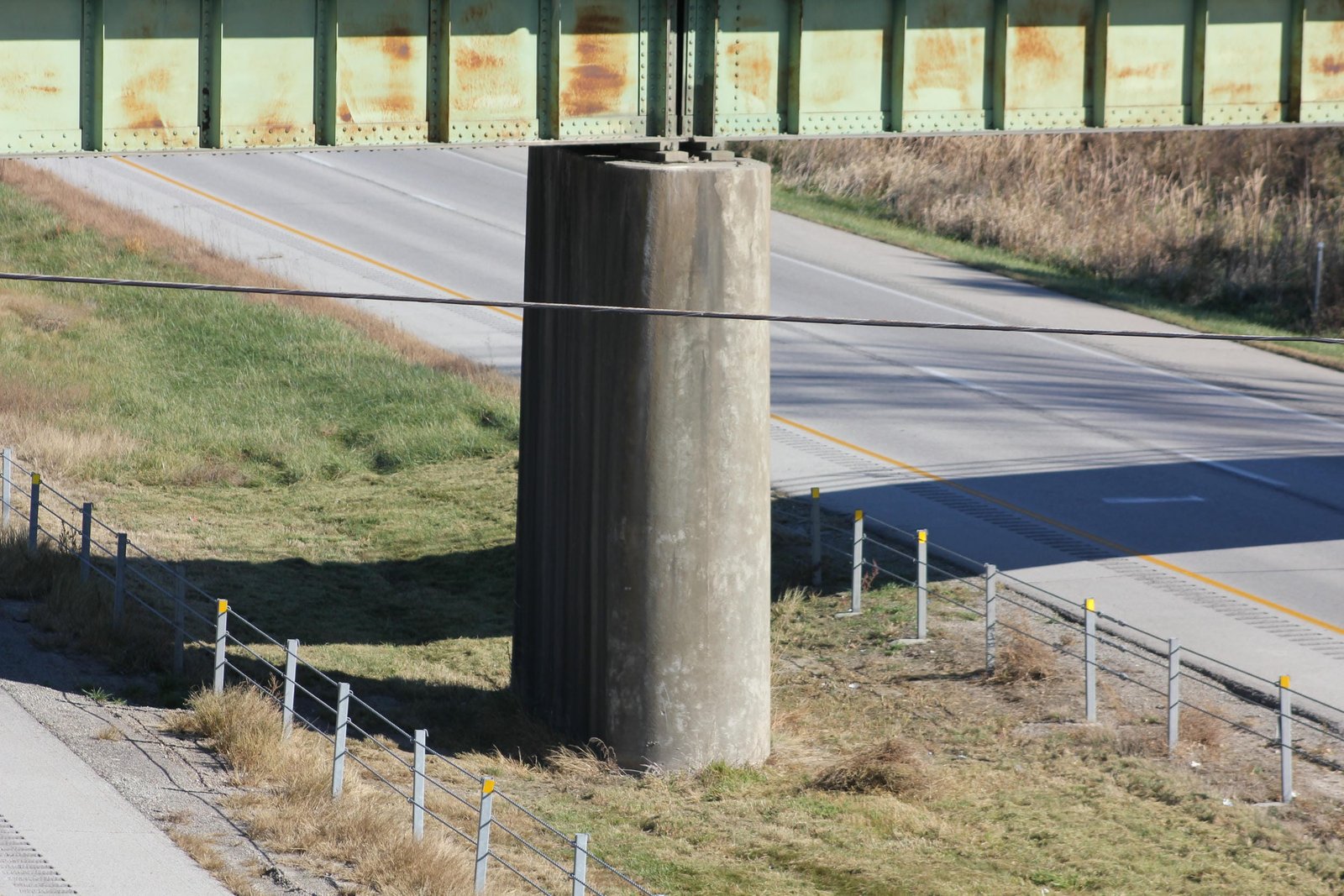

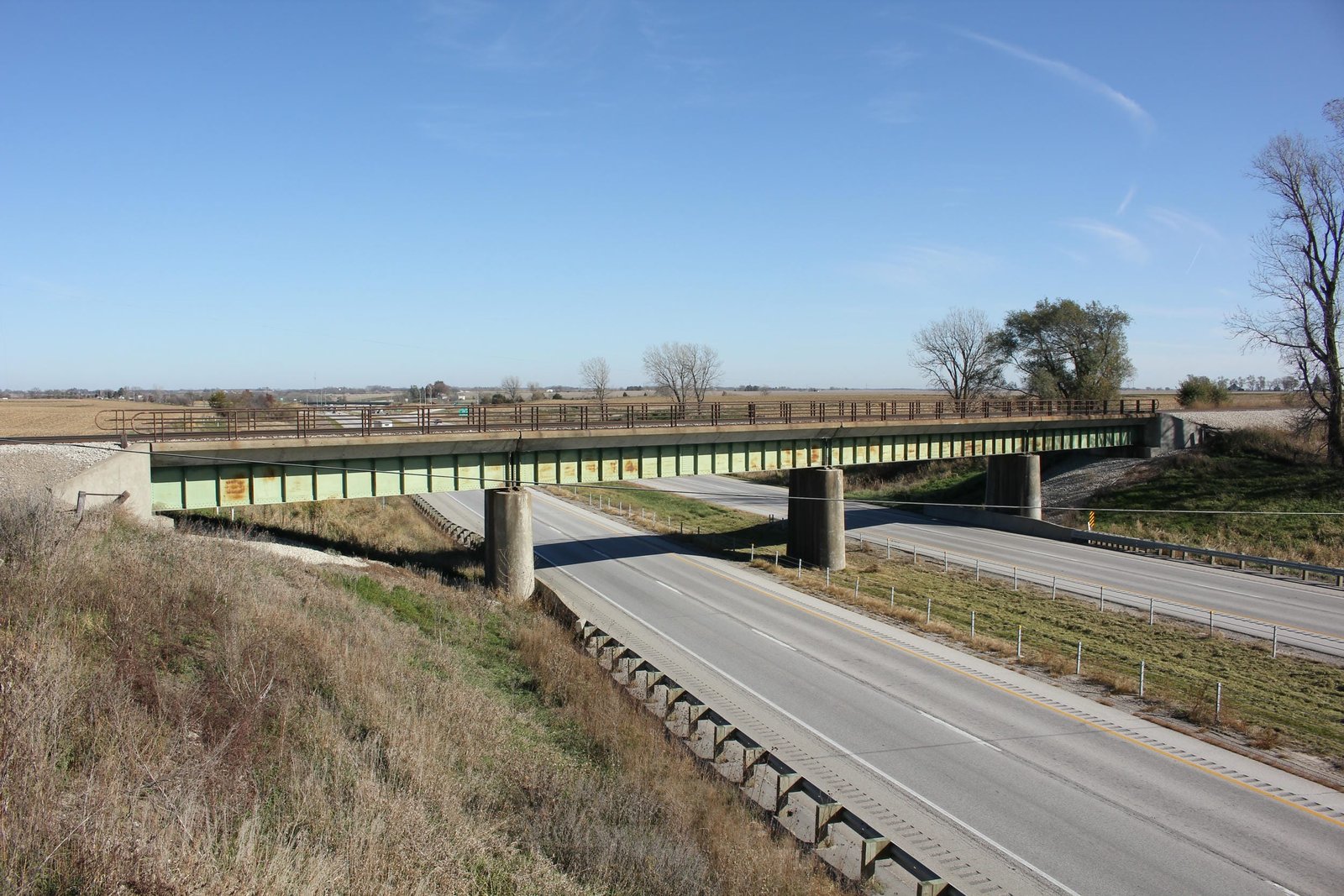

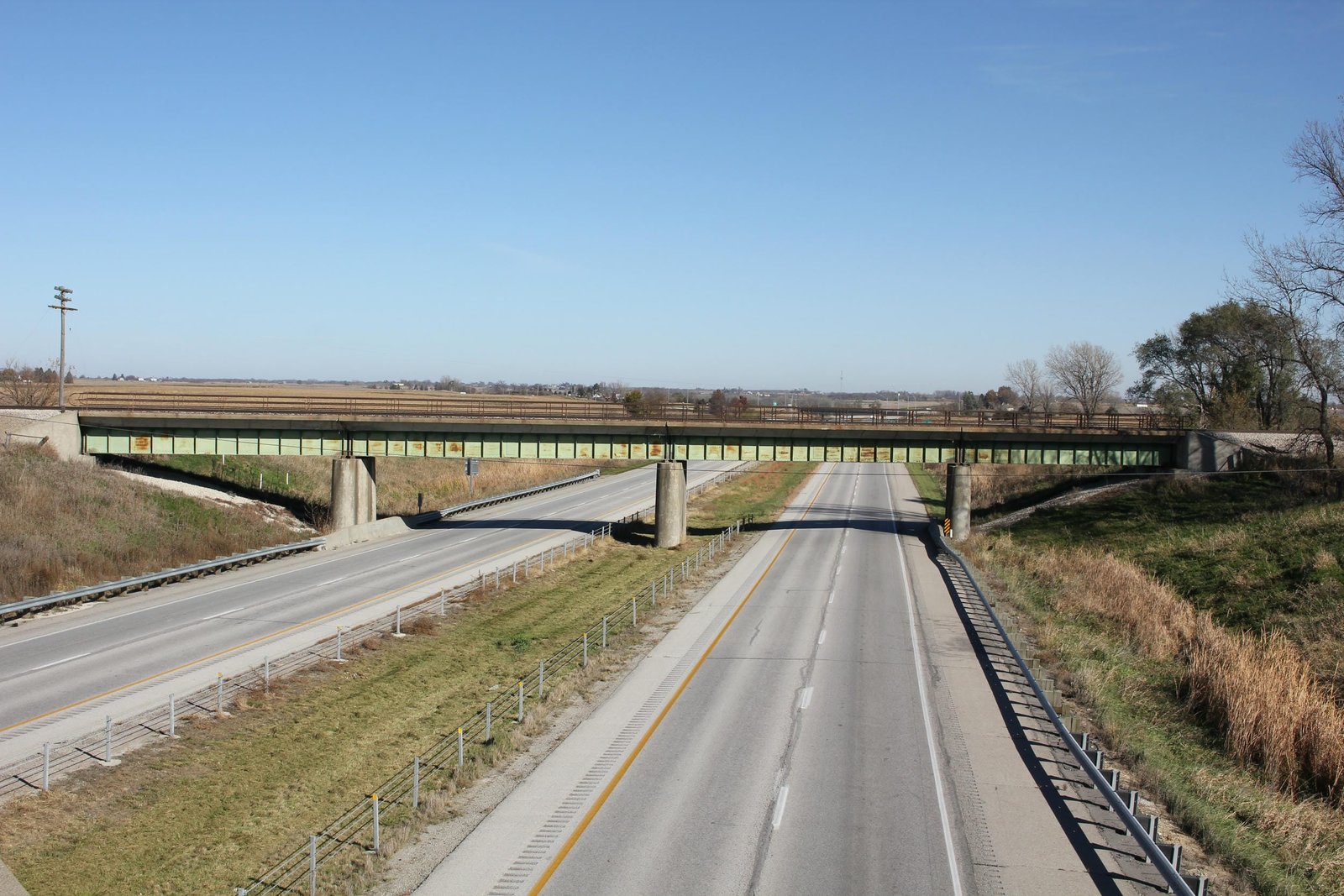

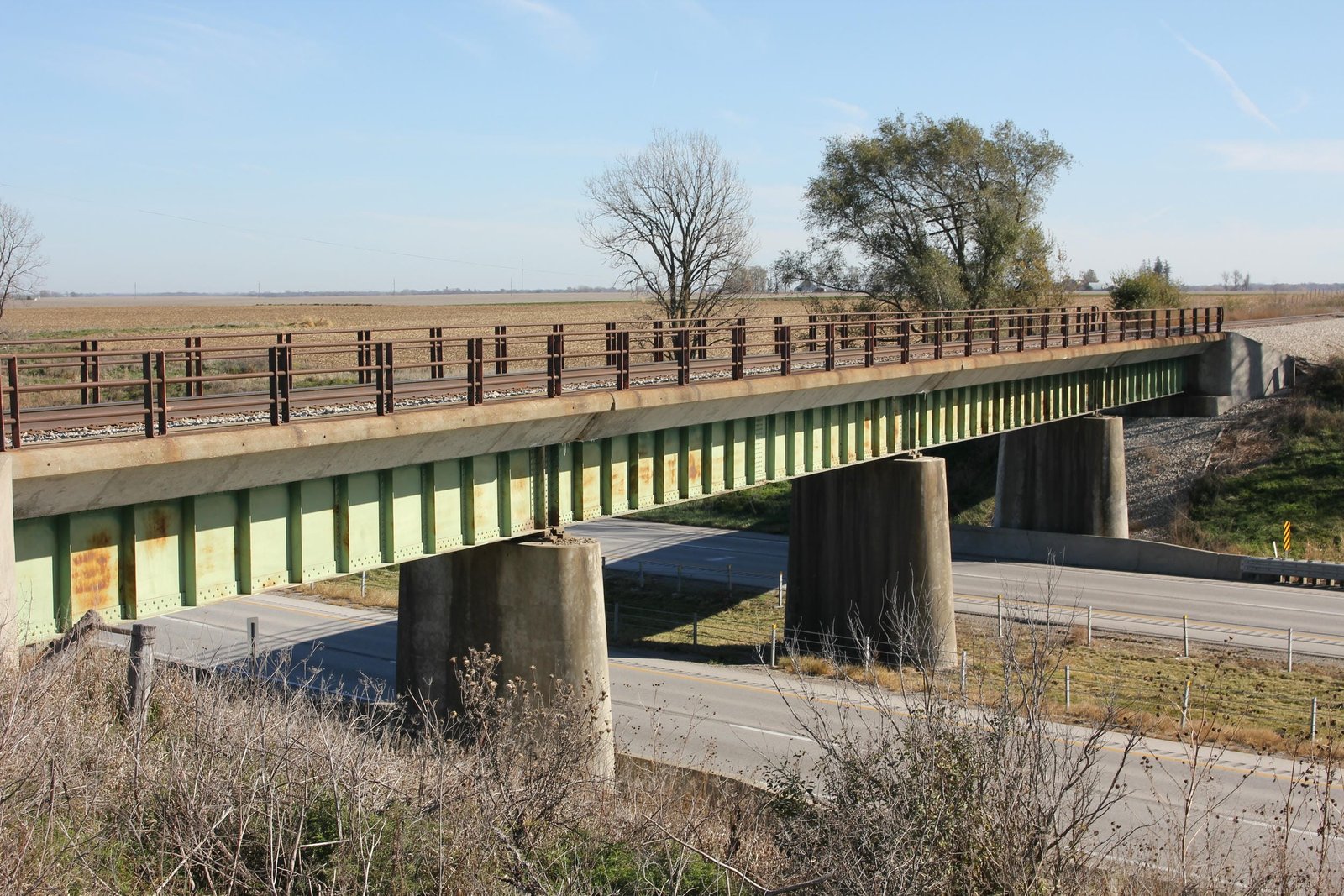

Located east of Dexter, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Interstate 80 near Exit 100. In the late 1950s, Iowa was quickly developing an Interstate Highway network through the state. By the end of 1958, contracts had been awarded for a significant portion of Interstate 80 (I-80) across Iowa, including a 41-mile section between Dexter and north of Atlantic. As part of the work, a railroad underpass was required near Dexter, where I-80 would temporarily end until the highway could be completed east to Des Moines. Construction was mainly completed in 1959, with final work completed in early 1960. Currently, the bridge consists of a 69-foot deck plate girder span over the westbound lanes and a 66-foot deck plate girder span over the eastbound lanes. These spans are approached by a 54-foot span on the west end and a 52-foot span on the east end. The entire bridge is set onto concrete substructures and runs at a heavy skew. The superstructure follows a standard design for the era, with four plate girders per span and a ballast deck. The substructures do not use any decorative details, and consist of standard piers and U-shaped abutments. An unknown contractor fabricated the superstructure, while the Brogan Construction Company built the substructures and erected the superstructure. This firm also built other bridges in "group 8", which covered a section in the vicinity of Dexter. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. Today, the bridge remains in regular use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being minimally significant, due to the common design and newer age. Despite this, this bridge is an excellent example of an Interstate-era grade separation in Iowa. Only a handful of railroad-over-road bridges were constructed as part of Interstate projects in Iowa. It is believed this is the second oldest such structure in Iowa, with an underpass over Interstate 35 at Osceola, Iowa having opened the year prior.


Citations

Build date National Bridge Inventory (NBI)
Builder (substructure) Engineering News-Record; Volume 161, Issue 18
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
