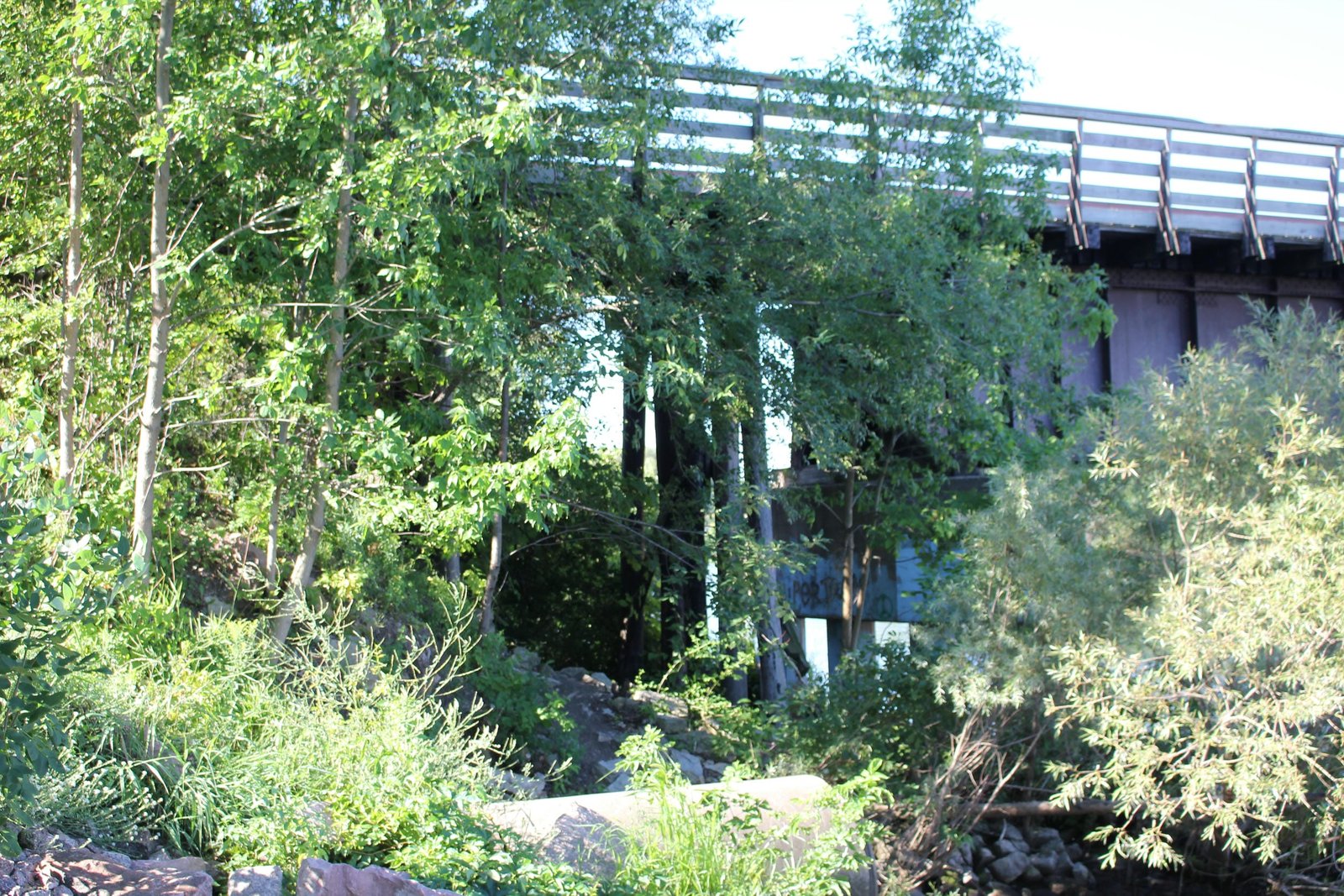

Name Mountain-Bay State Trail - Wolf River Bridge
Chicago & North Western Railway Bridge #C-25
Built By Chicago & North Western Railway
Currently Owned By Wisconsin Department of Natural Resources
Superstructure Contractor American Bridge Company of New York (80-Foot Spans)
American Bridge Works of Chicago, Illinois (38-Foot Span)
Substructure Contractor Unknown
Length 330 Feet Total, 80 Foot Main Spans
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder and Timber Pile Trestle
Substructure Design Concrete Pile and Timber Pile
Date Fabricated 1907 (80-Foot Spans)
1897 (38-Foot Span)
Date Erected 1938
Original Location Bridge #1523 1/2; Marquette Avenue Bridge; South Milwaukee, Wisconsin
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Open to Pedestrian Traffic
Chicago & North Western Railway Bridge Number C-25
Chicago & North Western Railway Bridge Number 1648
Significance Local Significance
Documentation Date 8/5/2016

In 1880, the Milwaukee, Lake Shore & Western Railway (MLS&W) constructed a 24 mile branch line from the newly constructed mainline at Eland, Wisconsin to Wausau, Wisconsin.  A short spur was extended northwards in Wausau between 1881 and 1883, crossing the Barker-Stewart Island.  In 1892, an additional 40 miles would be constructed from Wausau to Marshfield, Wisconsin.  This line served as a branch line for the MLS&W, serving industries in the Milwaukee area and connecting to other railroads at Marshfield.  The MLS&W had constructed a modest network of railroads through northern and eastern Wisconsin, primarily serving industrial interests.  Due to the success of the MLS&W, the railroad was purchased by the Chicago & North Western Railway in 1893 (C&NW).  The C&NW had acquired and constructed a vast network of railroad lines throughout the Midwest during the late 19th Century, and the MLS&W system provided more opportunities for expansion.

During the early 20th Century, the C&NW sought to improve operations by constructing new lines and improving existing lines.  The C&NW had become one of the premiere Midwest railroads, and sought to stay profitable and competitive.  The Manitowoc, Green Bay and North Western Railway (MGB&NW) was incorporated as a subsidiary of the C&NW in 1904, and constructed 61 miles between Duck Creek Junction, Wisconsin and Eland in 1906 and 1907.  The MGB&NW was formally merged into the C&NW in 1909.  Upon completion of the new line, this line served as a connection between several C&NW lines through eastern and central Wisconsin.  Throughout the 20th Century, this line remained a secondary line for the C&NW.

By the late 20th Century, the C&NW sought to consolidate operations and abandon or sell unprofitable lines.  In 1981, the line between Wausau and Marshfield was abandoned.  In 1994, the segment between Duck Creek and Weston, Wisconsin would be abandoned, and the remainder of the trackage in the Wausau area sold to Wisconsin Central, Ltd. (WC).  WC had purchased a large amount of former Soo Line and Milwaukee Road trackage in central and eastern Wisconsin in 1987, primarily to continue serving industries in the area.  As part of the 1994 abandonment, the line between Duck Creek and Weston was purchased by the Wisconsin Department of Natural Resources for use as a trail.   In 2001, WC was purchased by Canadian National Railway (CN), and became the American subsidiary of the railroad.  In 2021, the Wausau area trackage was sold to the Fox Valley & Lake Superior Rail System (FOXY).  Today, FOXY operates trackage in Wausau, including a spur through Barker-Stewart Island.  The segment between Duck Creek and Weston is now part of the Mountain-Bay State Trail.


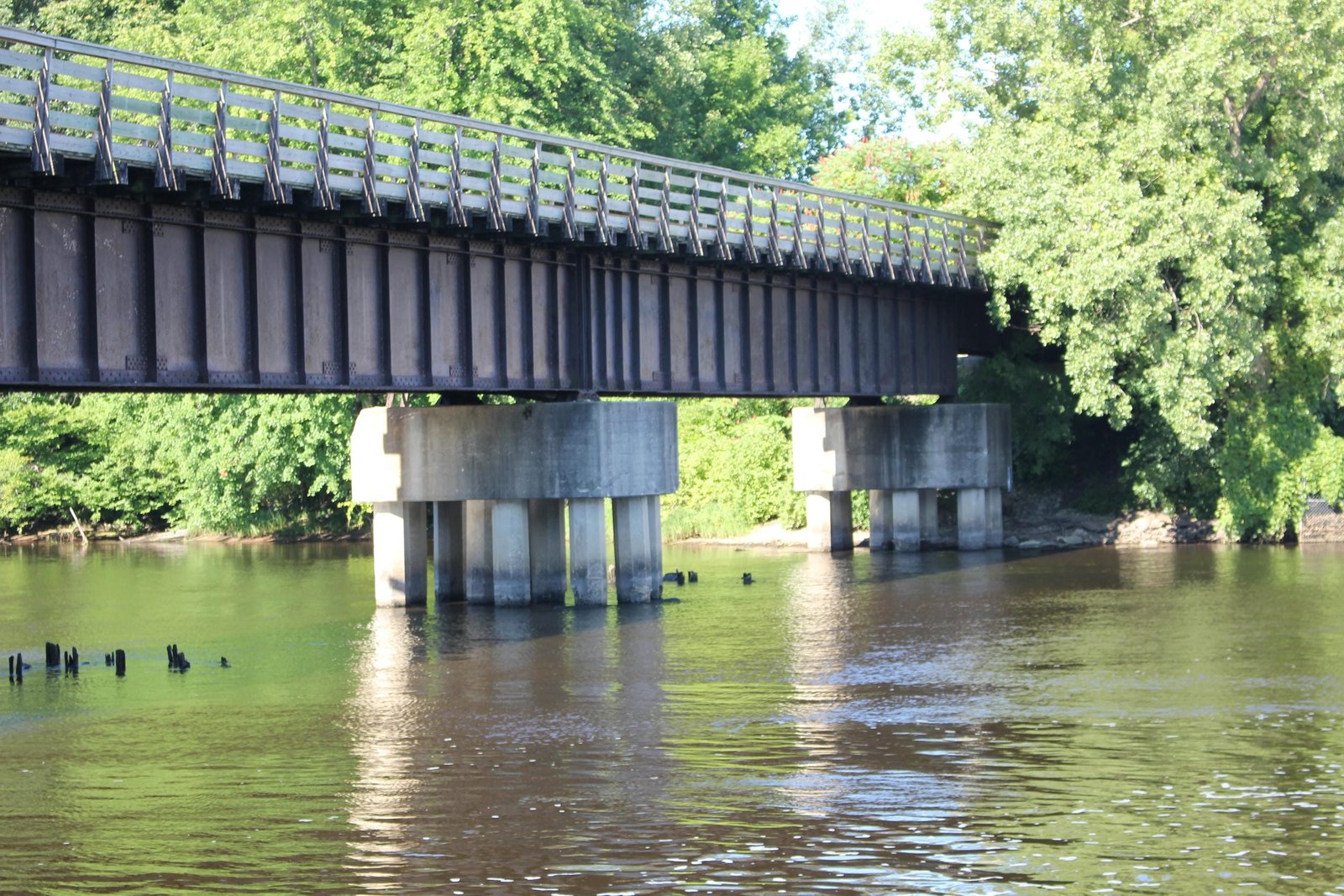

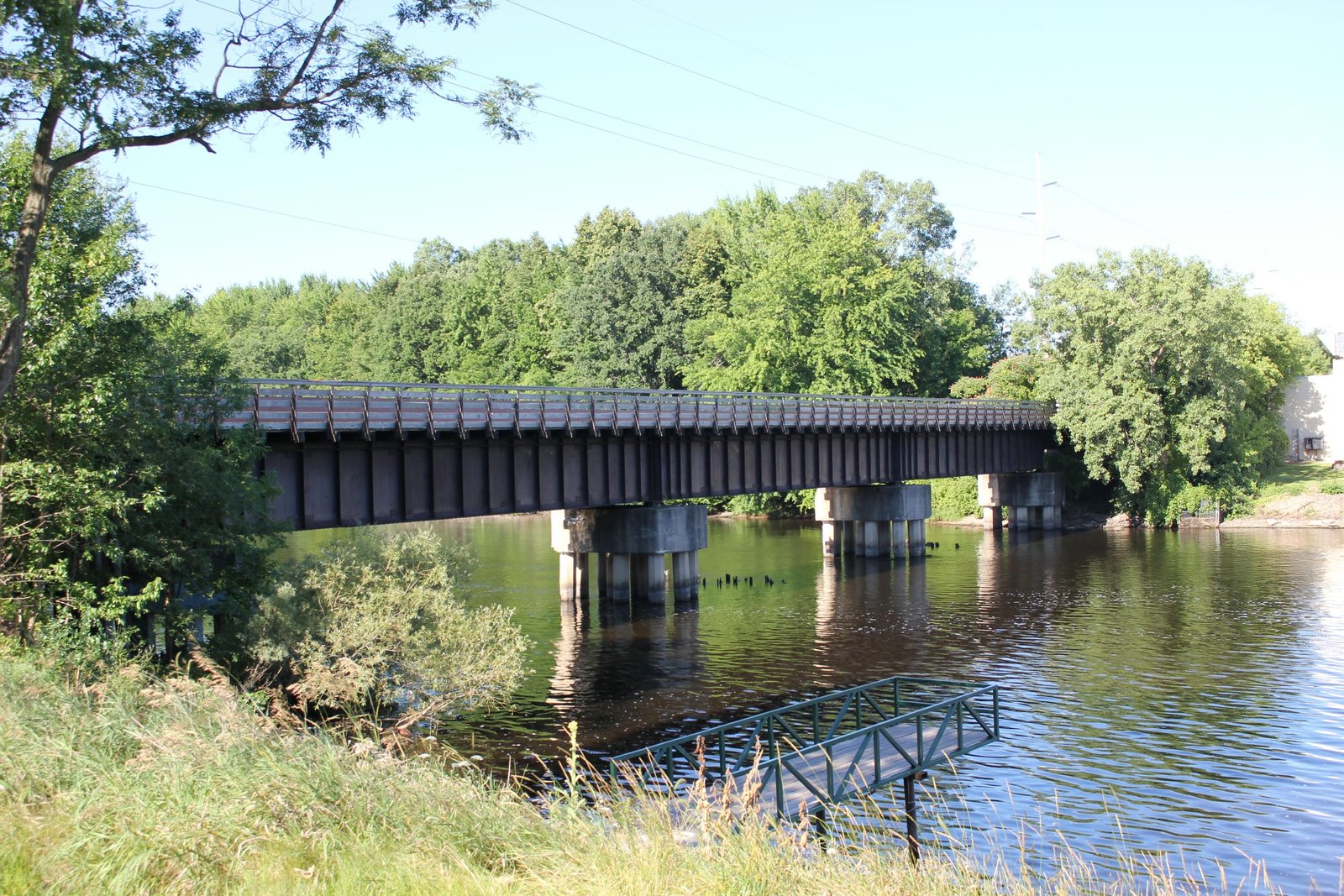

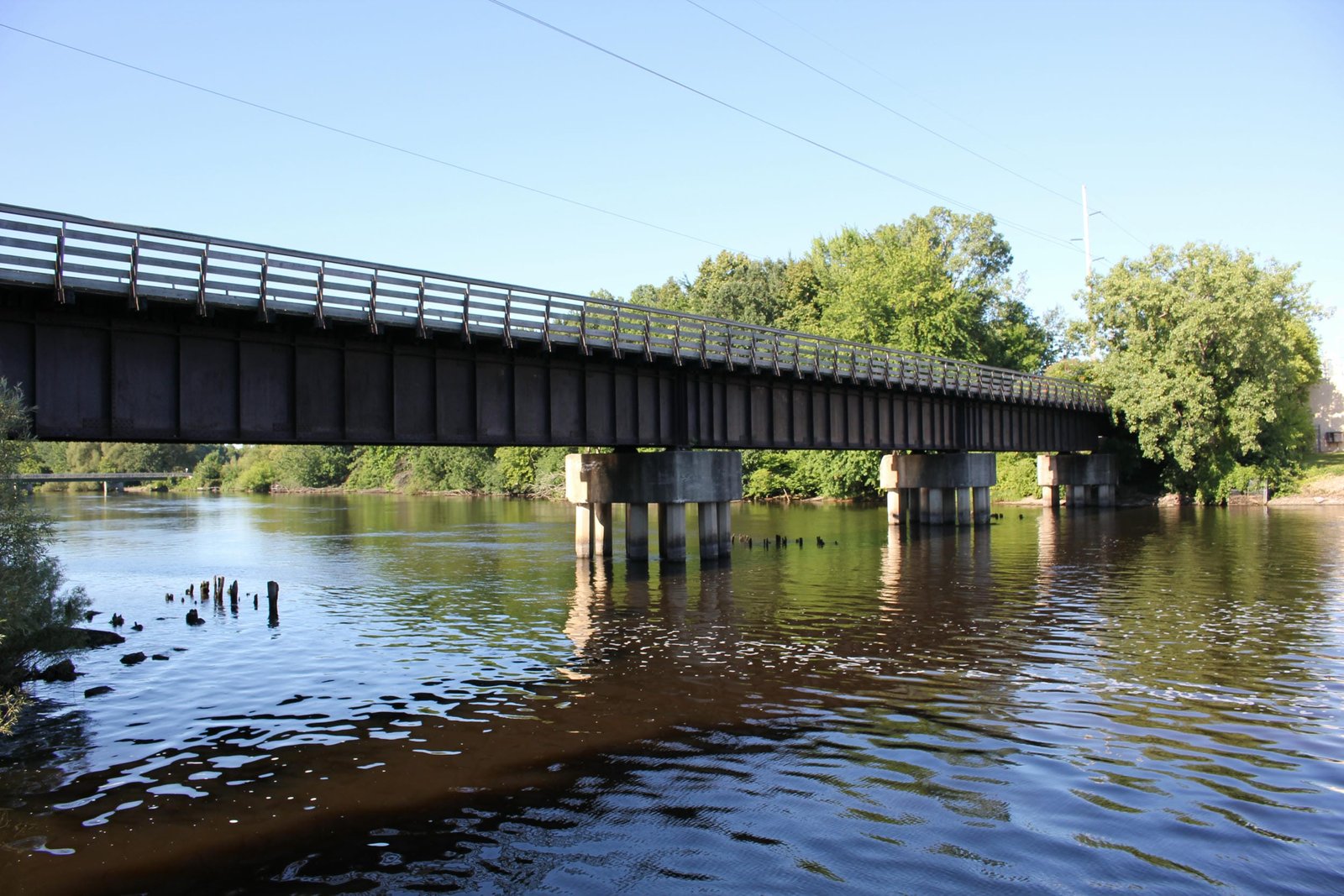

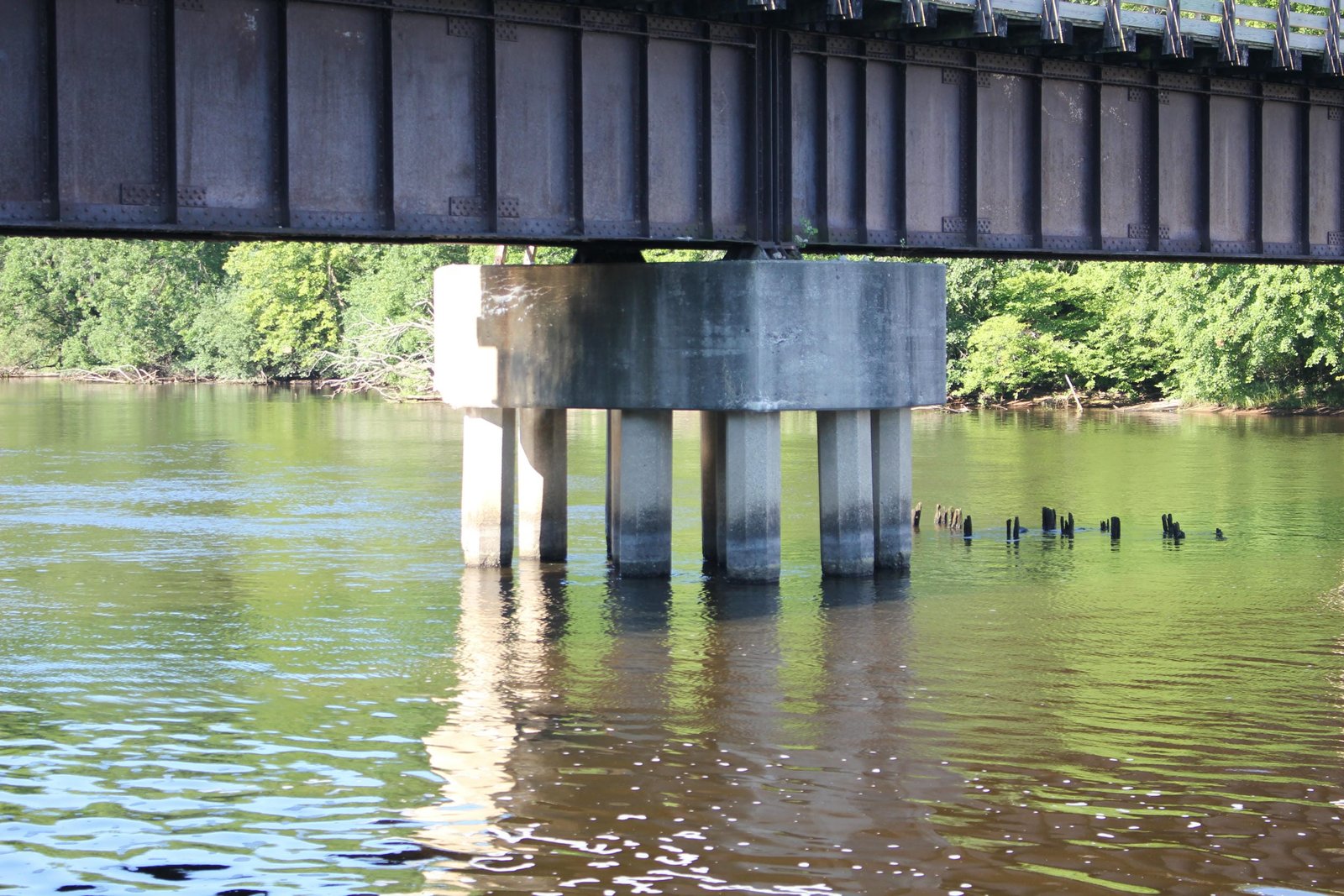

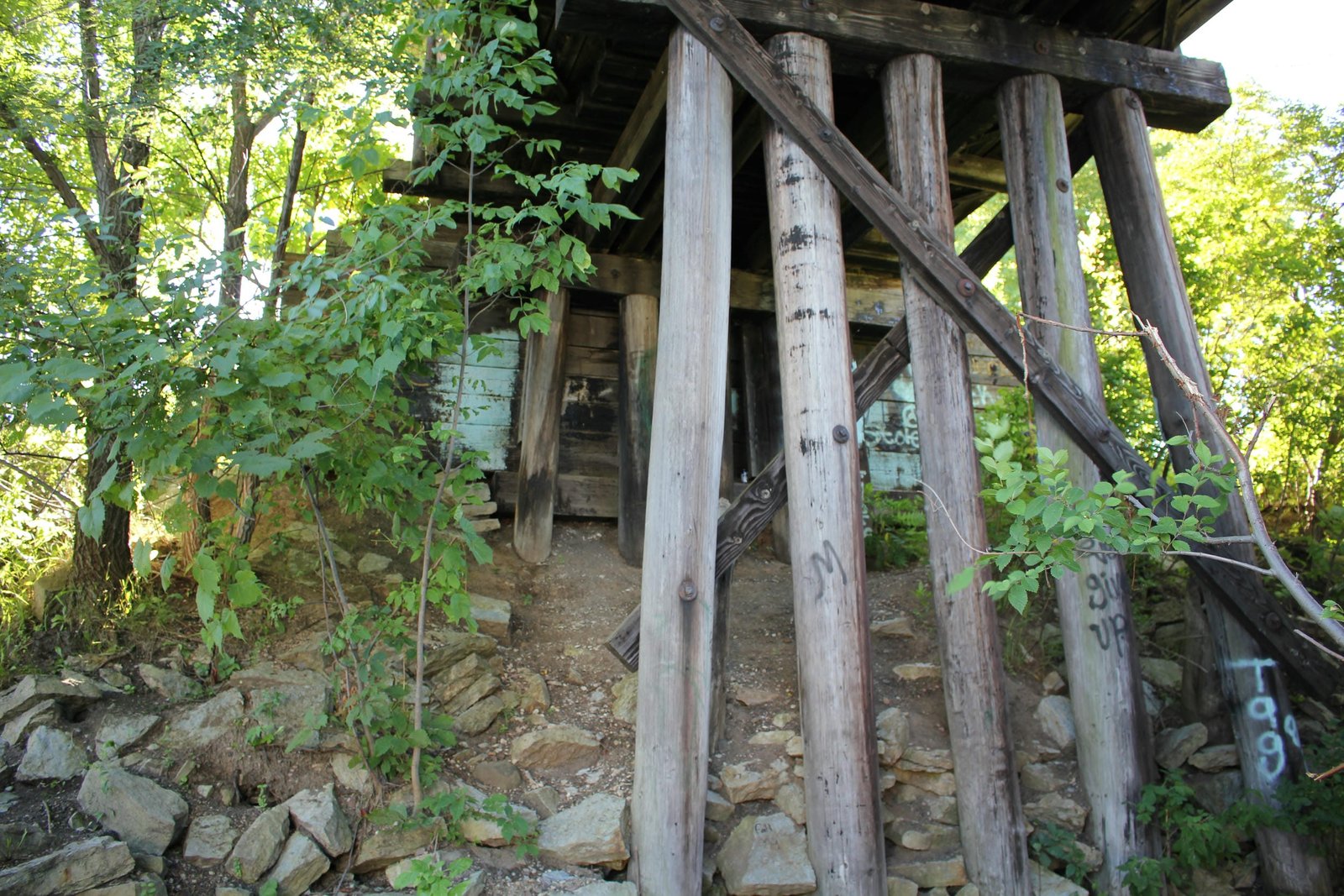

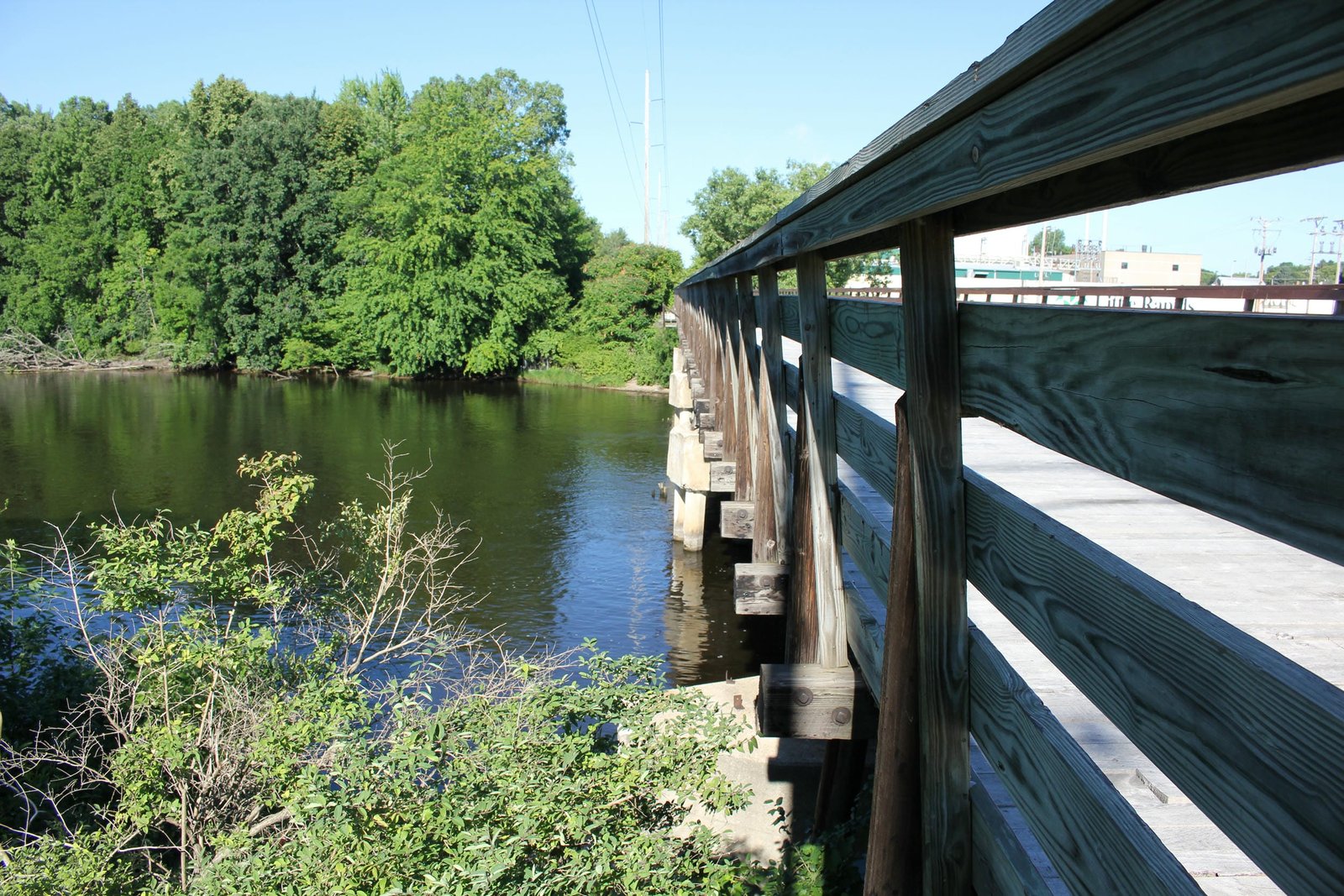

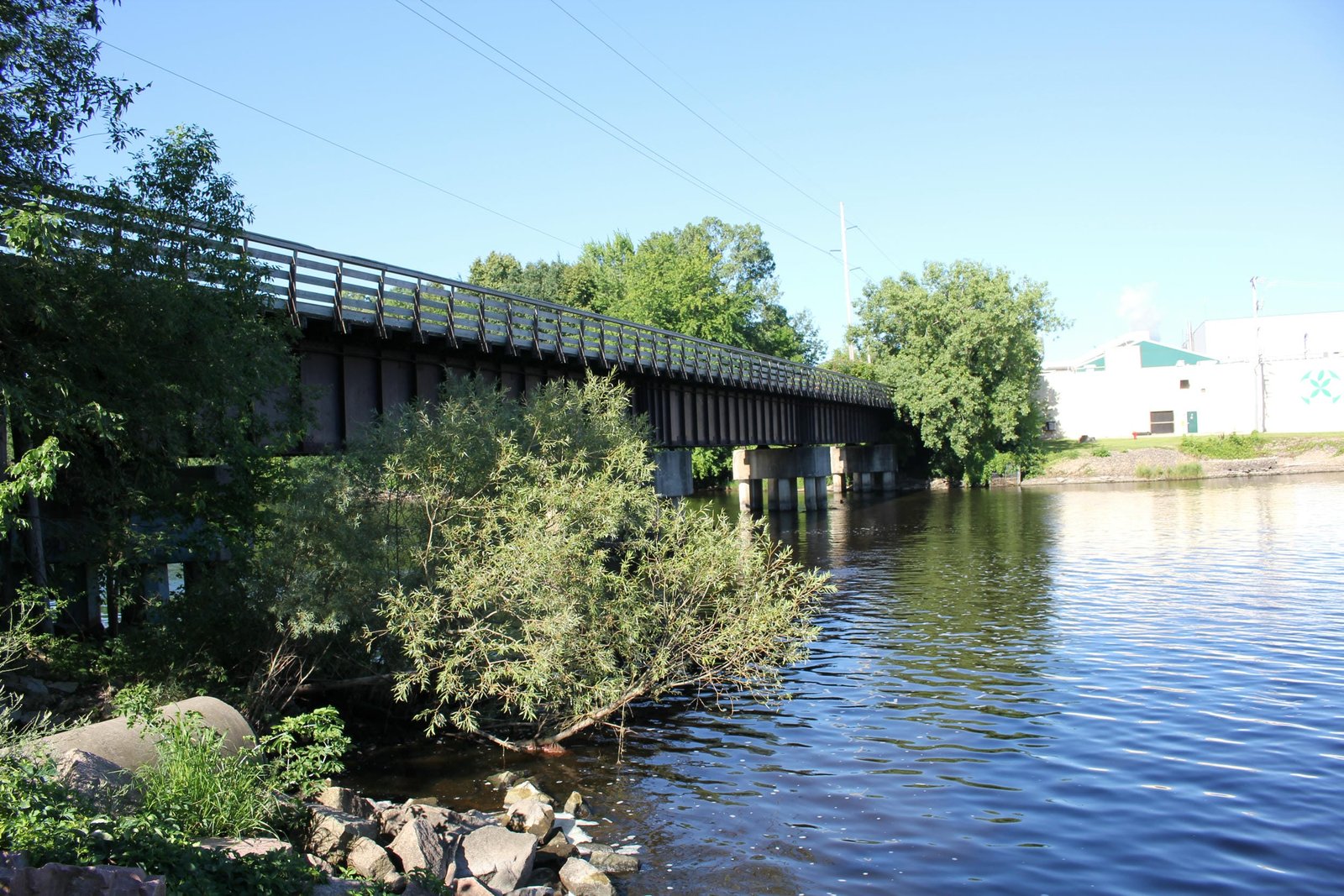

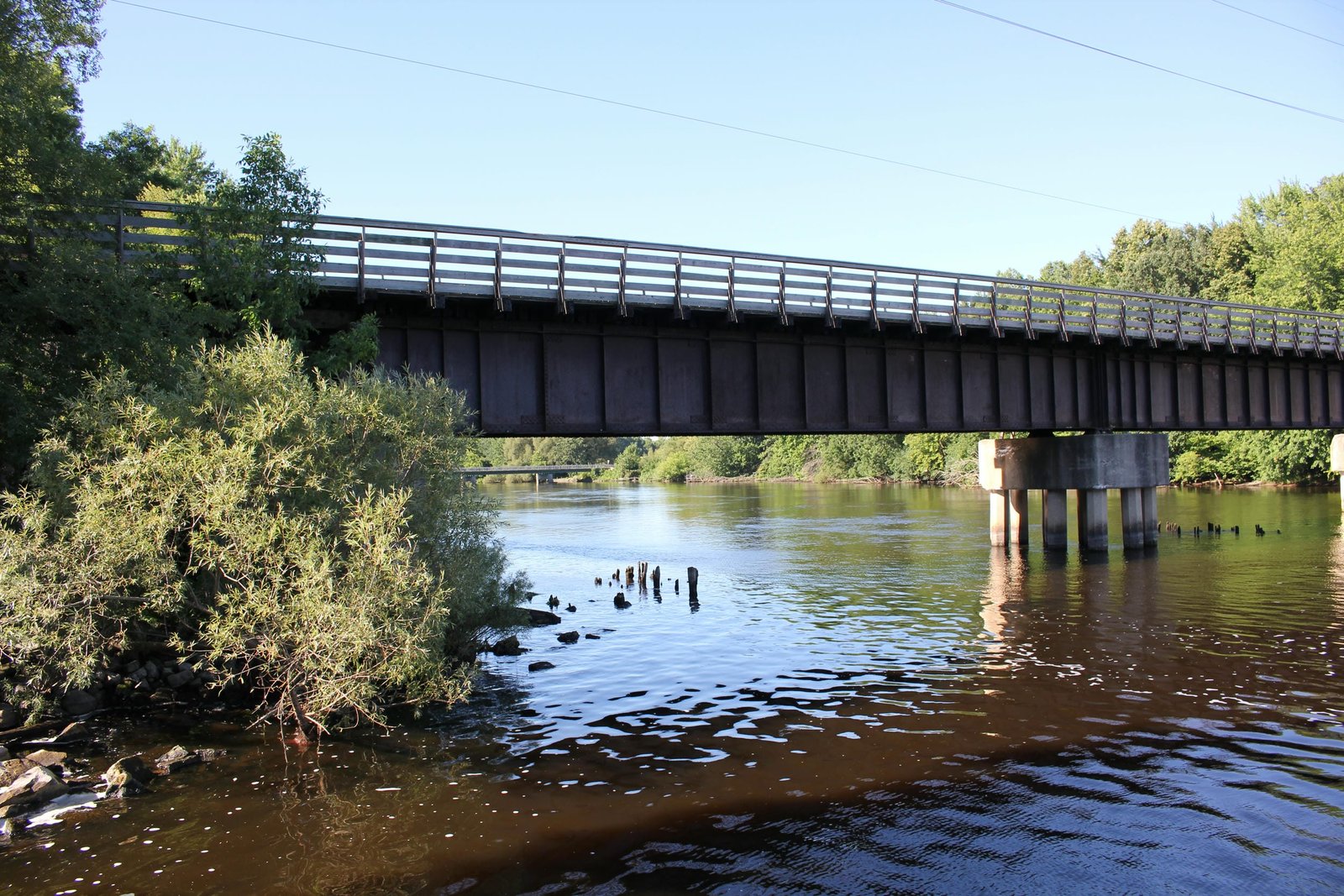

Located in Shawano, this deck plate girder bridge carries the former Chicago & North Western Railway over the Wolf River. The first bridge at this location was likely a timber truss bridge, constructed when the line was first built in 1883. In 1892, a new combination through truss bridge was constructed at this line. When the new line between Duck Creek and Eland was constructed, it was decided to replace the light timber truss bridge with a new steel deck girder bridge approached by timber pile trestle spans. This bridge remained in service until 1938, when it was upgraded with new concrete piers and a new approach, giving the structure its present configuration. Currently, the bridge consists of three 80-foot deck plate girder spans, approached by a 38-foot deck plate girder span on the west end and timber pile trestle spans on the east end. With the exception of the east approach, the entire bridge is set onto concrete pile substructures. The main deck girder spans use a standard design, with heavy girders and an open floor. The west approach uses a shallow girder, and was originally fabricated in 1897 for Bridge #1523 1/2 across Marquette Avenue in South Milwaukee. When that bridge was replaced in the late 1930s, the old spans were stored at the bridge yard in Chicago; and one span was shortened from 40 feet to the present 38 feet before being installed here. American Bridge Company fabricated the 80-foot spans, while American Bridge Works fabricated the 38-foot span. It is unknown if the concrete substructures were constructed by an unknown contractor or by railroad company forces. It is believed that alterations to the 38-foot span were made by railroad company forces. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. This type of concrete pile substructure was popular with the C&NW in the mid-20th Century, as it could be constructed offsite and installed with minimal interruption to traffic. Currently, the bridge is used by the Mountain-Bay State Trail; and wooden decking and handrails have been added to the structure. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Builders and build dates Chicago & North Western Valuation Notes at the Chicago & North Western Historical Society Archives
Erection date and relocation history Chicago & North Western Railway Drawing Collection at the Chicago & North Western Historical Society Archives
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
