Name RI - I&M Canal Bridge (Utica)
Built By Chicago, Rock Island & Pacific Railroad
Currently Owned By Illinois Department of Natural Resources
Superstructure Contractor Unknown
Substructure Contractor Unknown
Length 88 Feet Total
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Double Intersection Warren Pony Truss
Substructure Design Stone Masonry
Date Built 1891
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
Significance Regional Significance
Documentation Date 10/29/2022; 3/22/2025

In 1852, the Chicago and Rock Island Rail Road Company (C&RI) constructed 40 miles of new railroad, extending from Chicago, Illinois to Joliet, Illinois.  The following year, the railroad constructed an additional 119 miles of new railroad to Geneseo, followed by an additional 22 miles to Rock Island, Illinois in 1854.  Work was continued in 1856 by the Mississippi and Missouri Rail Road Company (M&M), which constructed a bridge across the Mississippi River to Davenport, Iowa and continued the line westwards across Iowa. In 1866, the two railroads were consolidated into the Chicago, Rock Island & Pacific Railroad, which was renamed the Chicago, Rock Island & Pacific Railway (Rock Island) in 1880.  The line between Chicago and Joliet was double tracked prior to 1874, due to the heavy use.  The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s.  This line served as a principal mainline for the railroad, connecting Chicago to the network of railroad lines west of the Mississippi River.

In approximately 1892, the remainder of the line would be double tracked, and in the late 1890s, additional tracks were added in Chicago.  Track elevation projects within Chicago were made throughout the late 1890s and early 1900s. Throughout the 20th Century, the line continued to be a critical component of the Rock Island system.  In 1913, the Rock Island elevated the line through Joliet.  The Rock Island was a poor railroad, facing financial trouble regularly and often in bankruptcy.  This route hosted passenger trains known as "Rockets" for many years, and the Rock Island offered a suburban commuter service over the line.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes.  By 1964, the Rock Island began attempts to merge with Union Pacific, and restructure railroads west of the Mississippi River.  This merger was eventually denied, and Rock Island turned its last profit in 1965.

In the mid-1970s, the railroad was in serious decline.  The railroad received loans to attempt to fix slow orders, received new equipment and turn a profit.  By 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.  Between Joliet and Chicago, the line would be sold to the Regional Transportation Authority.  From Joliet to Utica, the line would be sold to the Chessie System, which became part of CSX Transportation in 1986.  The portion from Utica into Iowa would be sold to the Iowa Interstate Railroad (IAIS).  Today, the Chicago to Joliet segment is operated by Metra as the Rock Island District; CSX operates the line between Joliet and Utica as the New Rock Subdivision; and IAIS operates the Rock Island to Utica section as the Blue Island Subdivision.

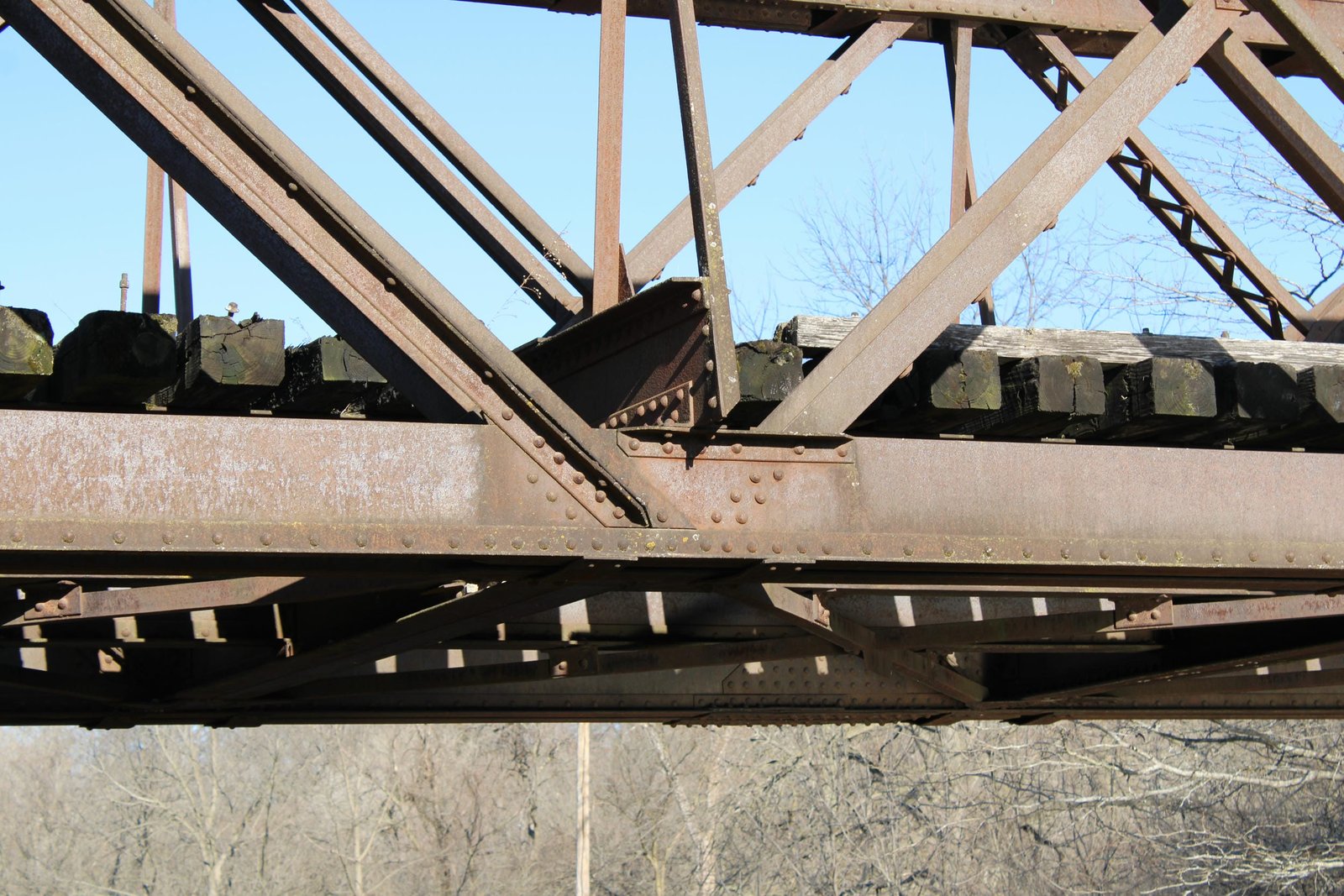

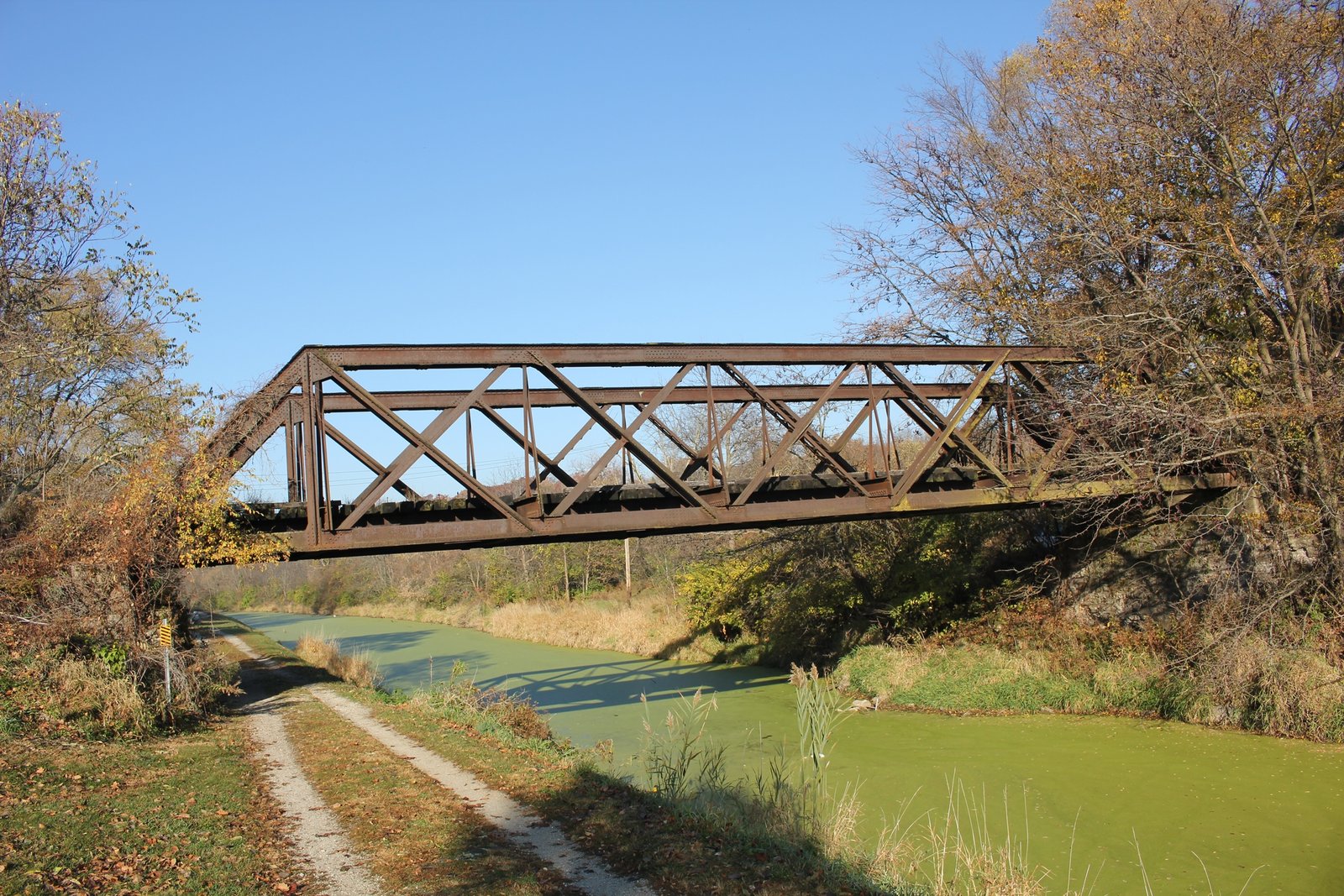

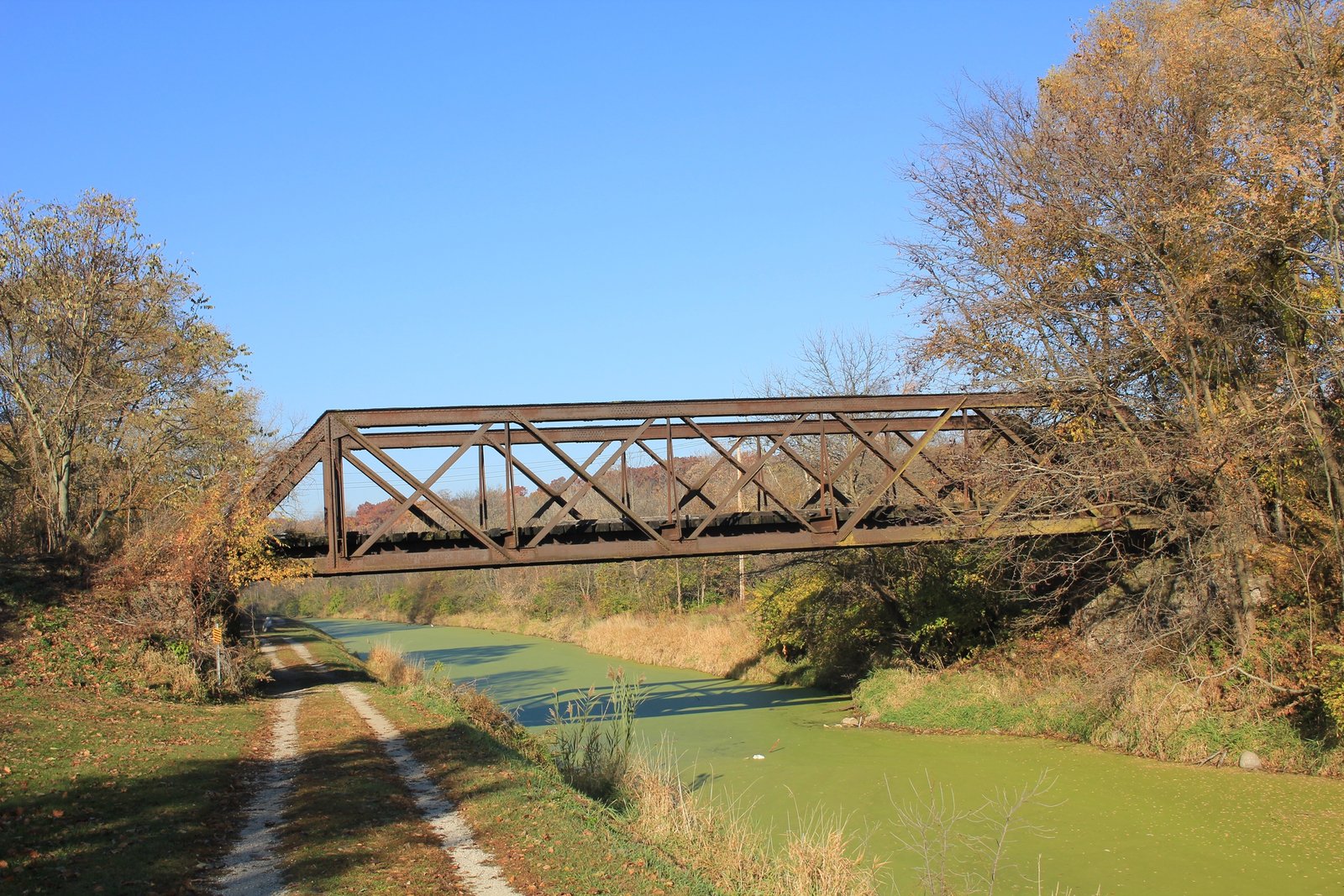

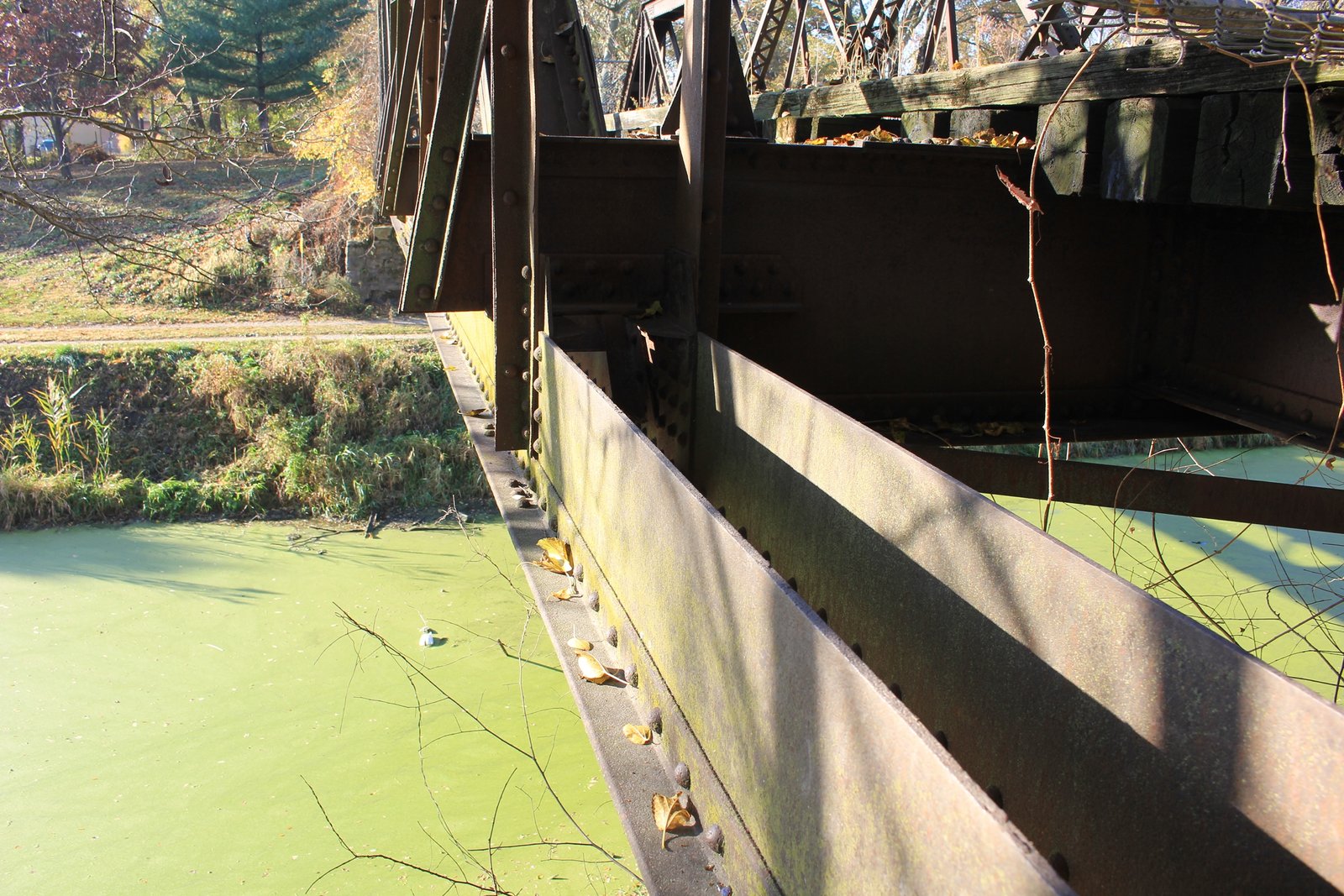

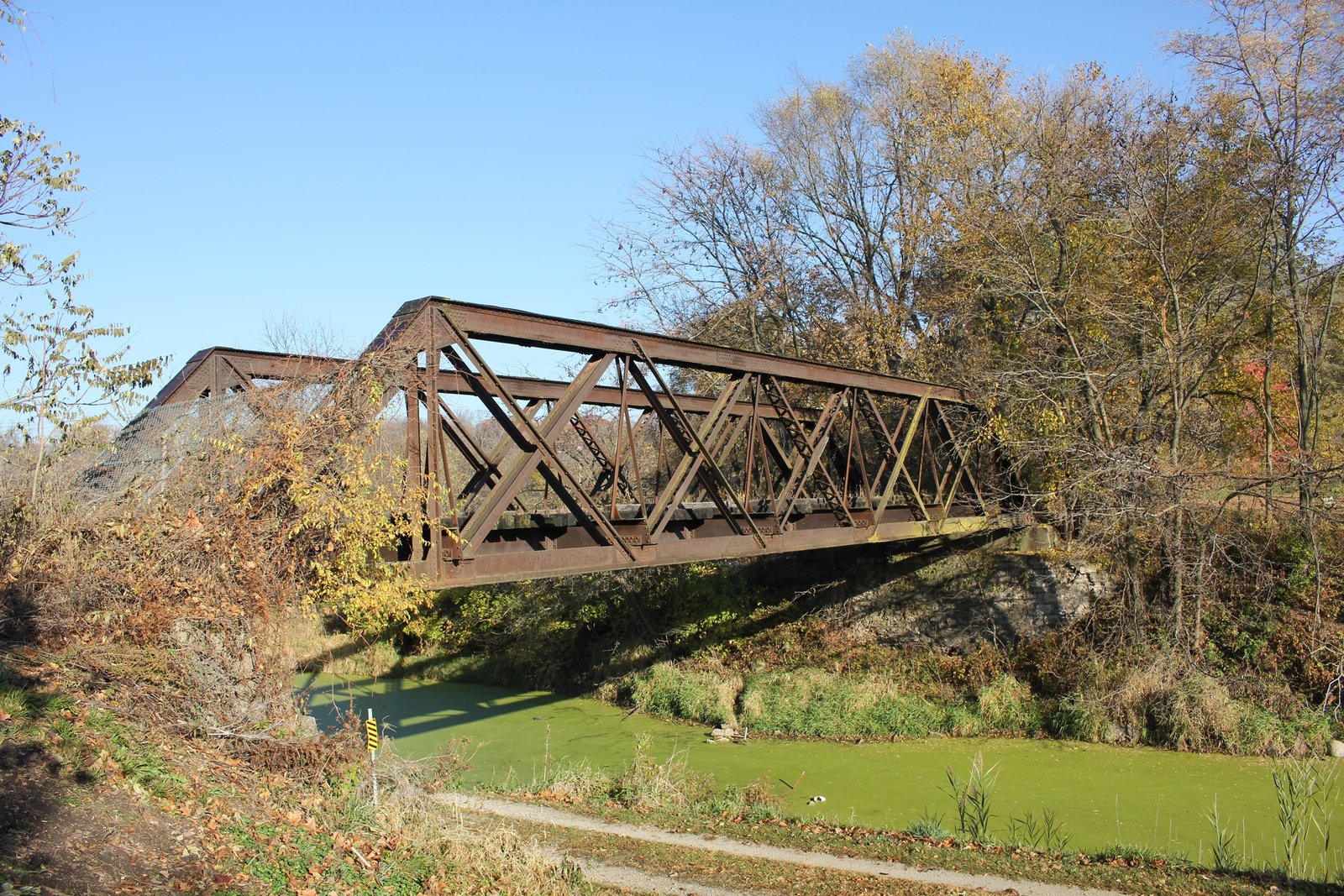

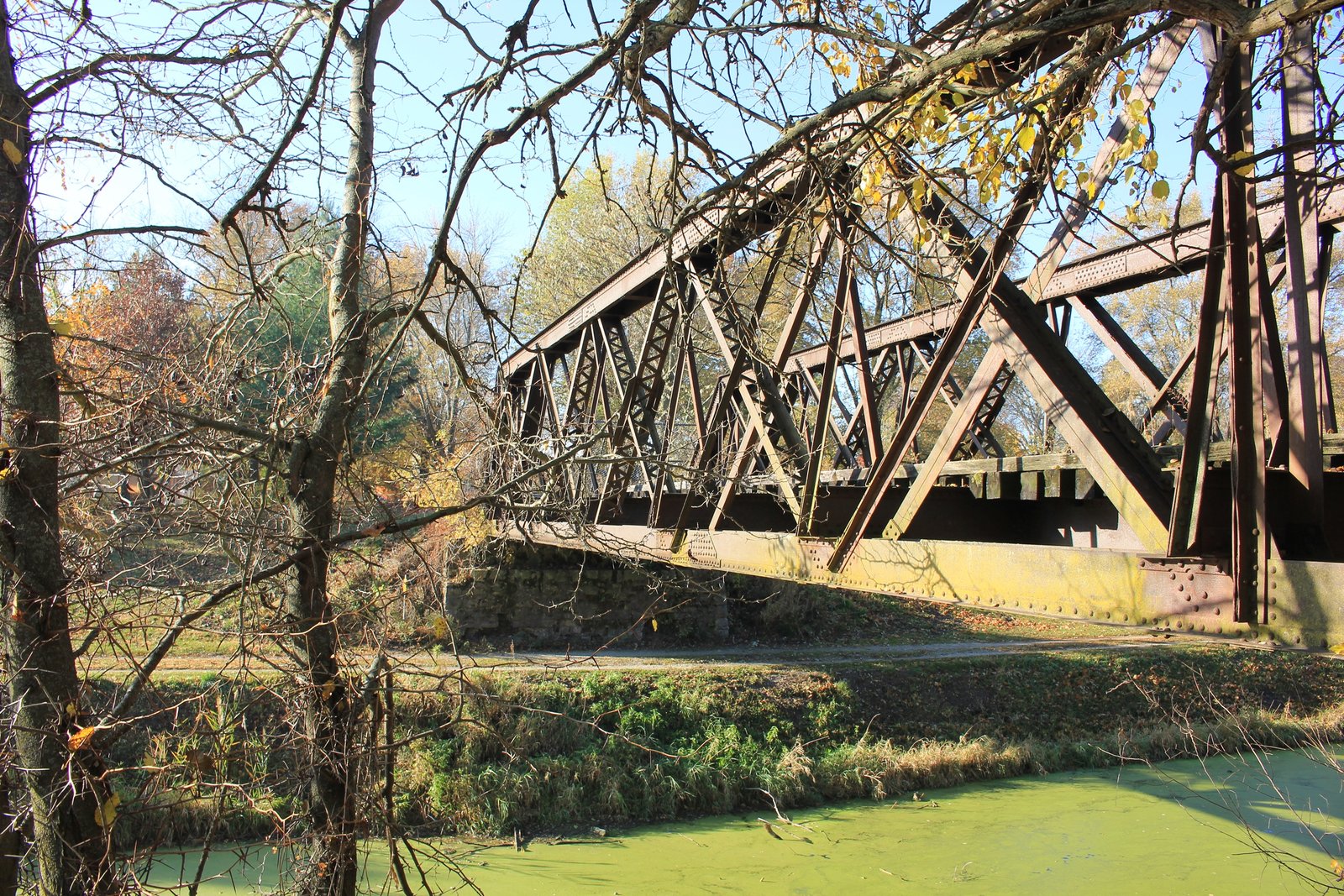

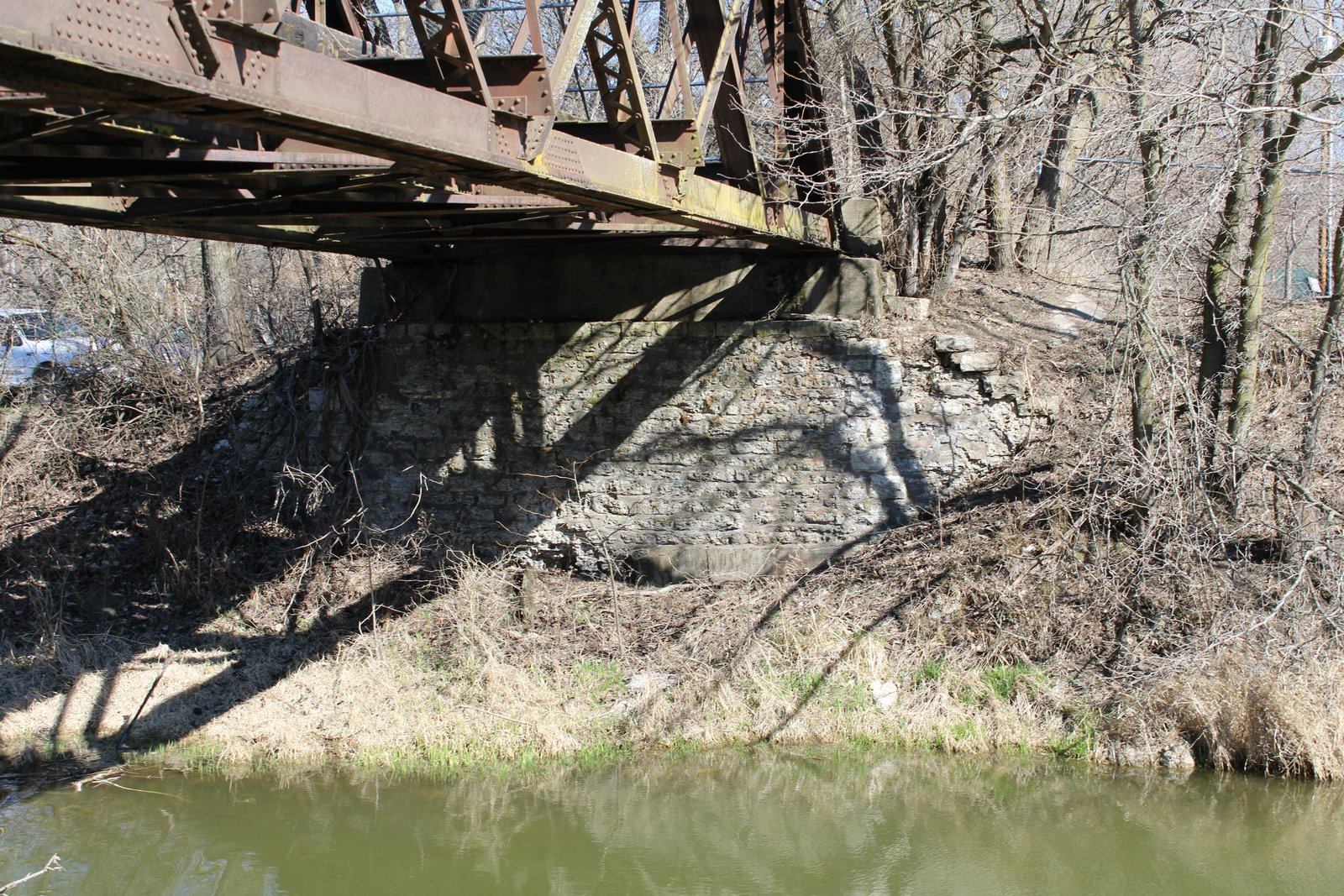

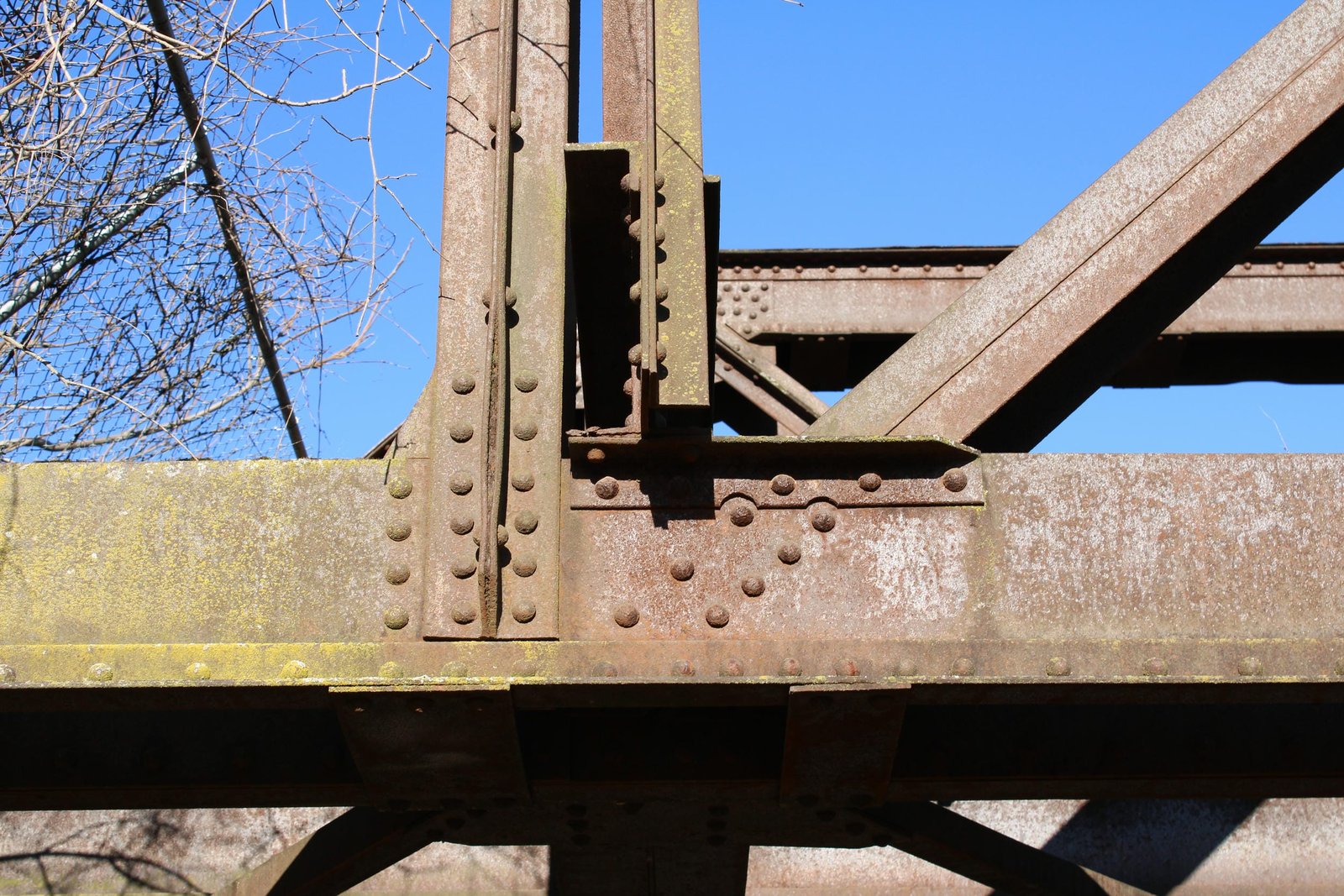

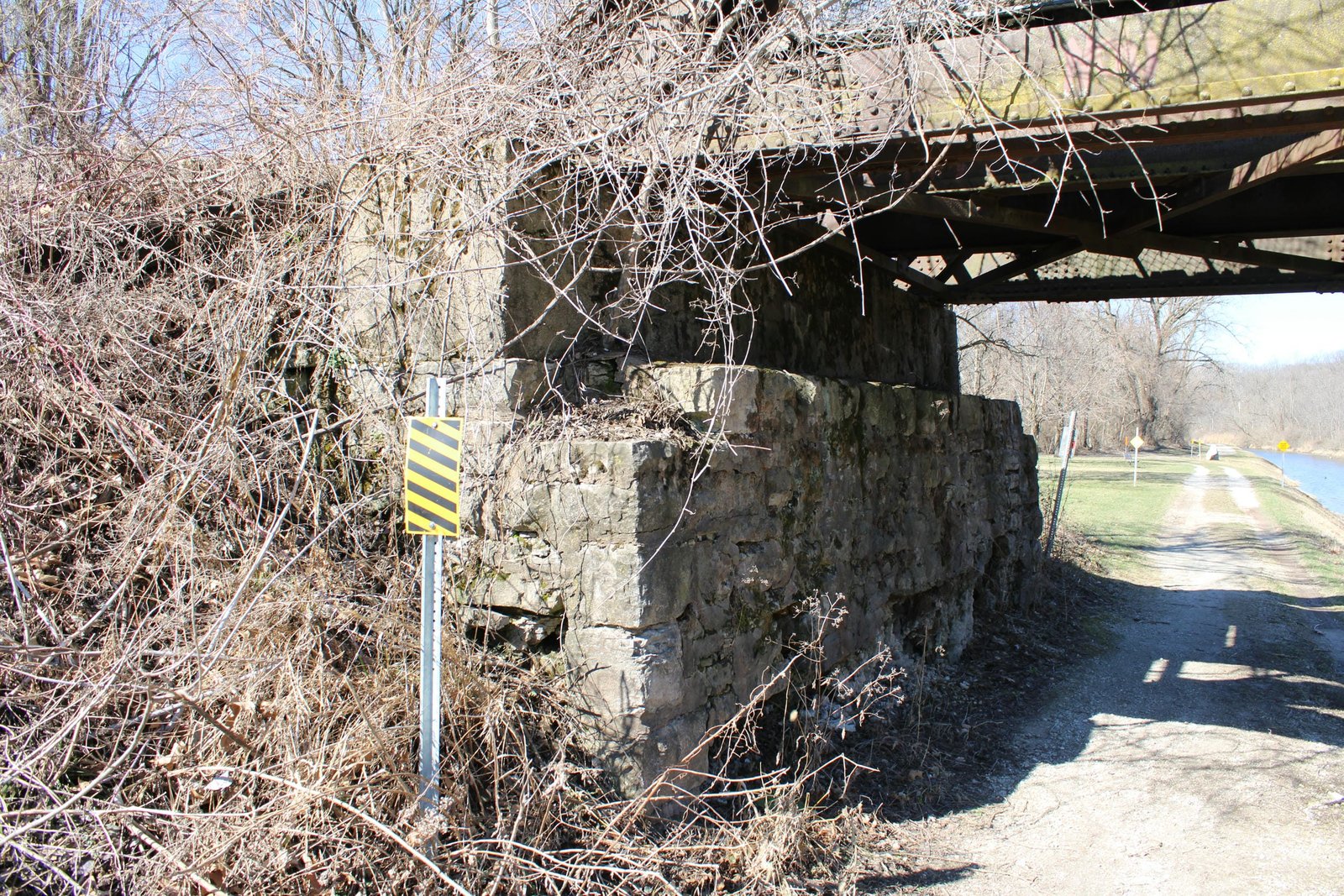

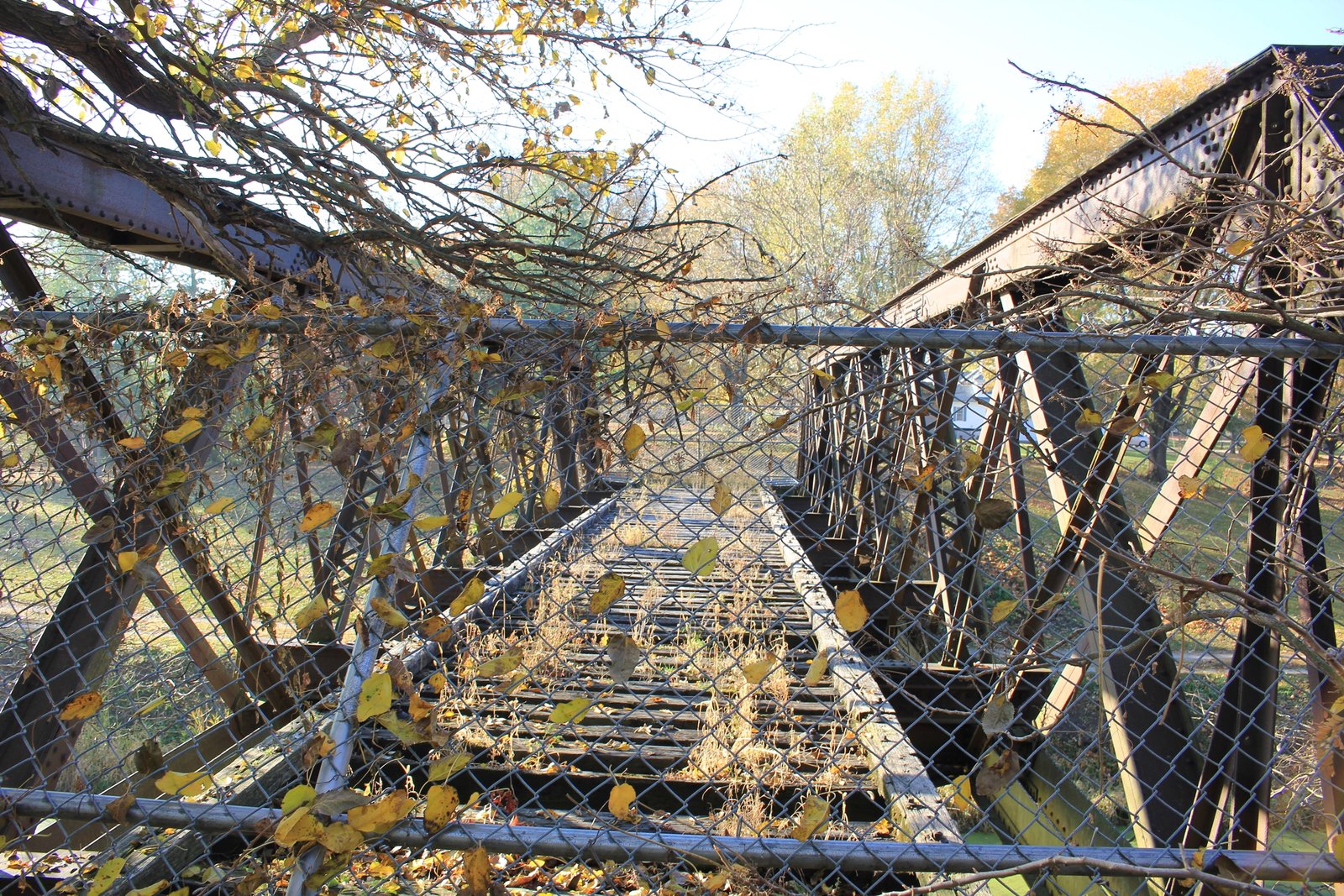

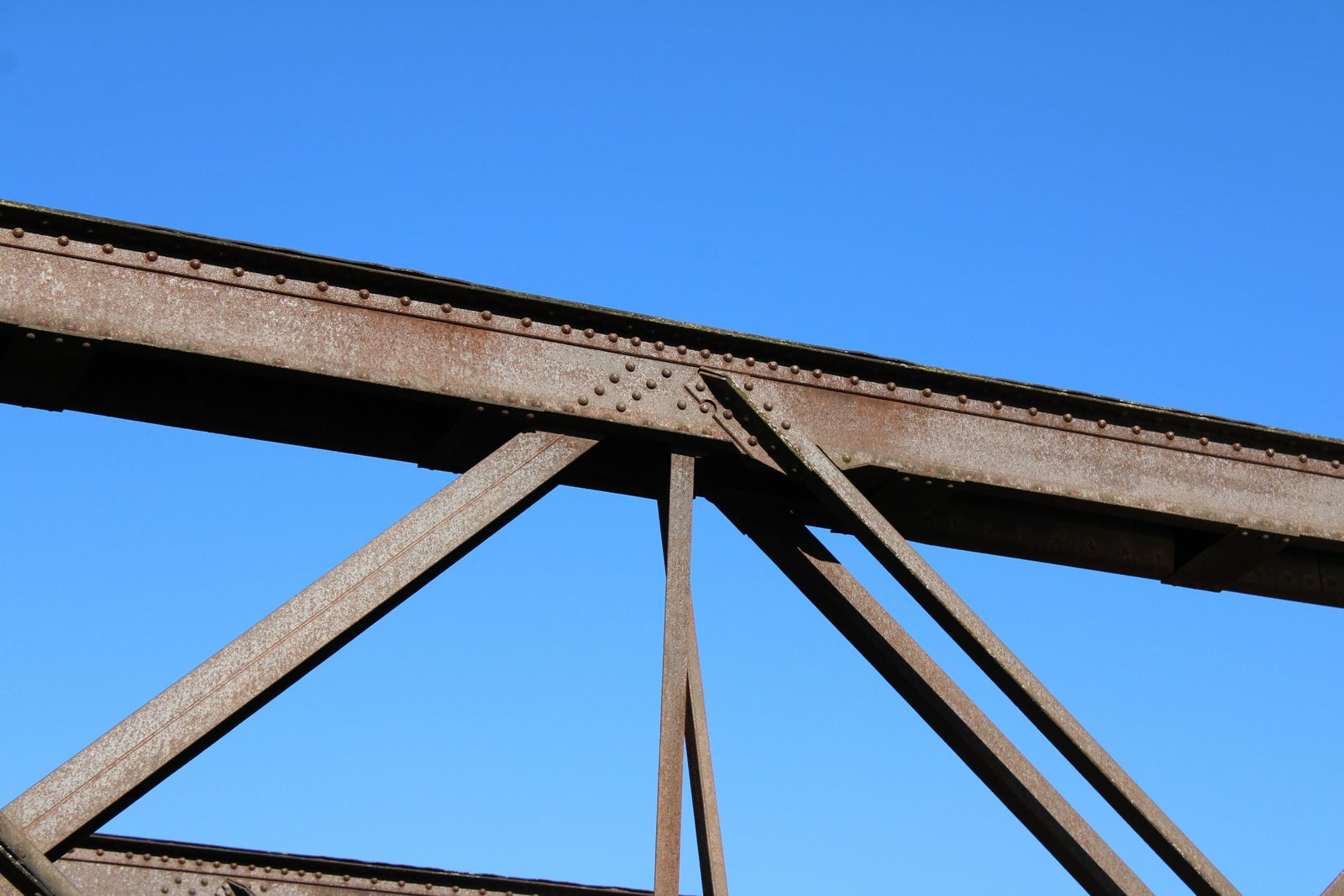

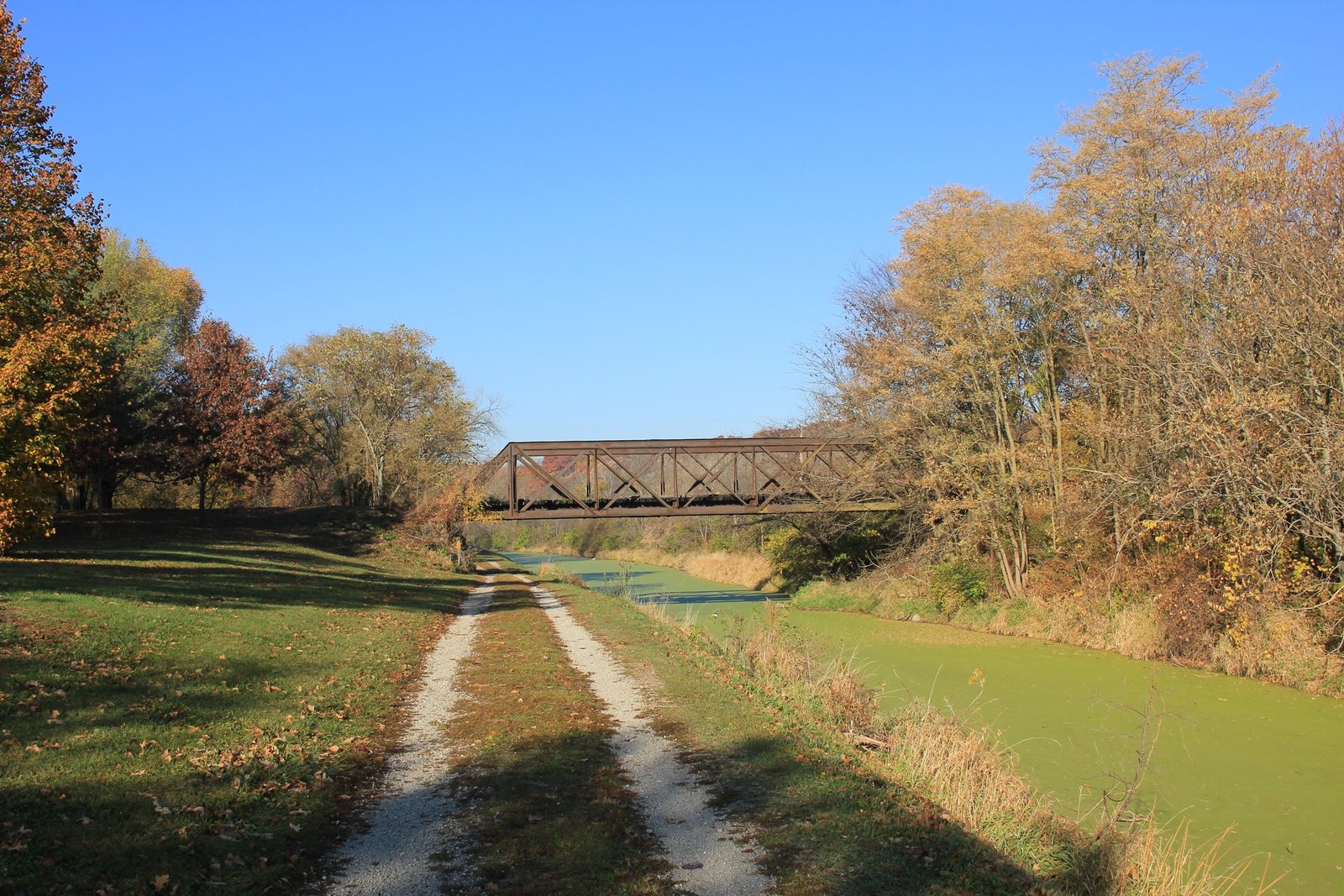

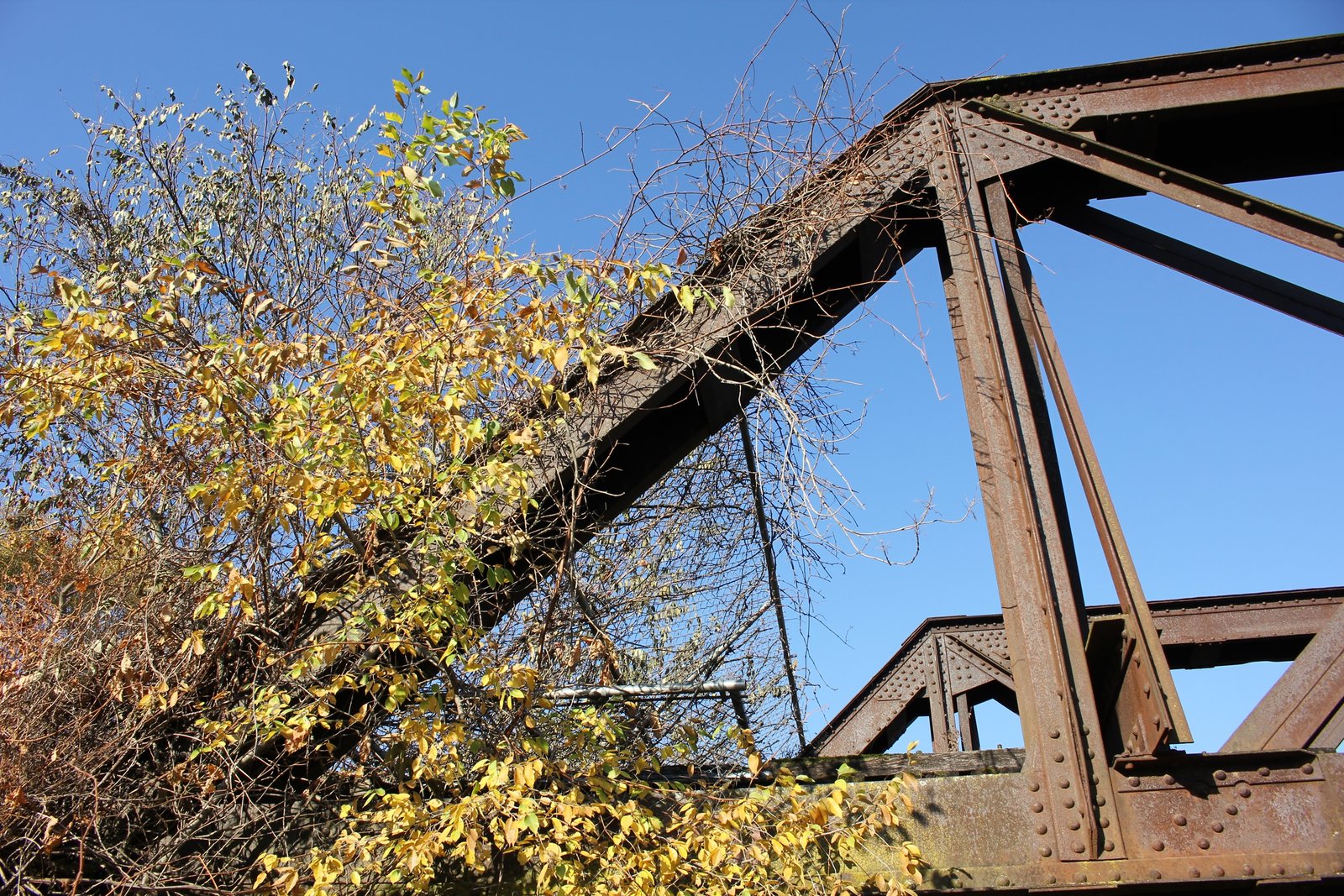

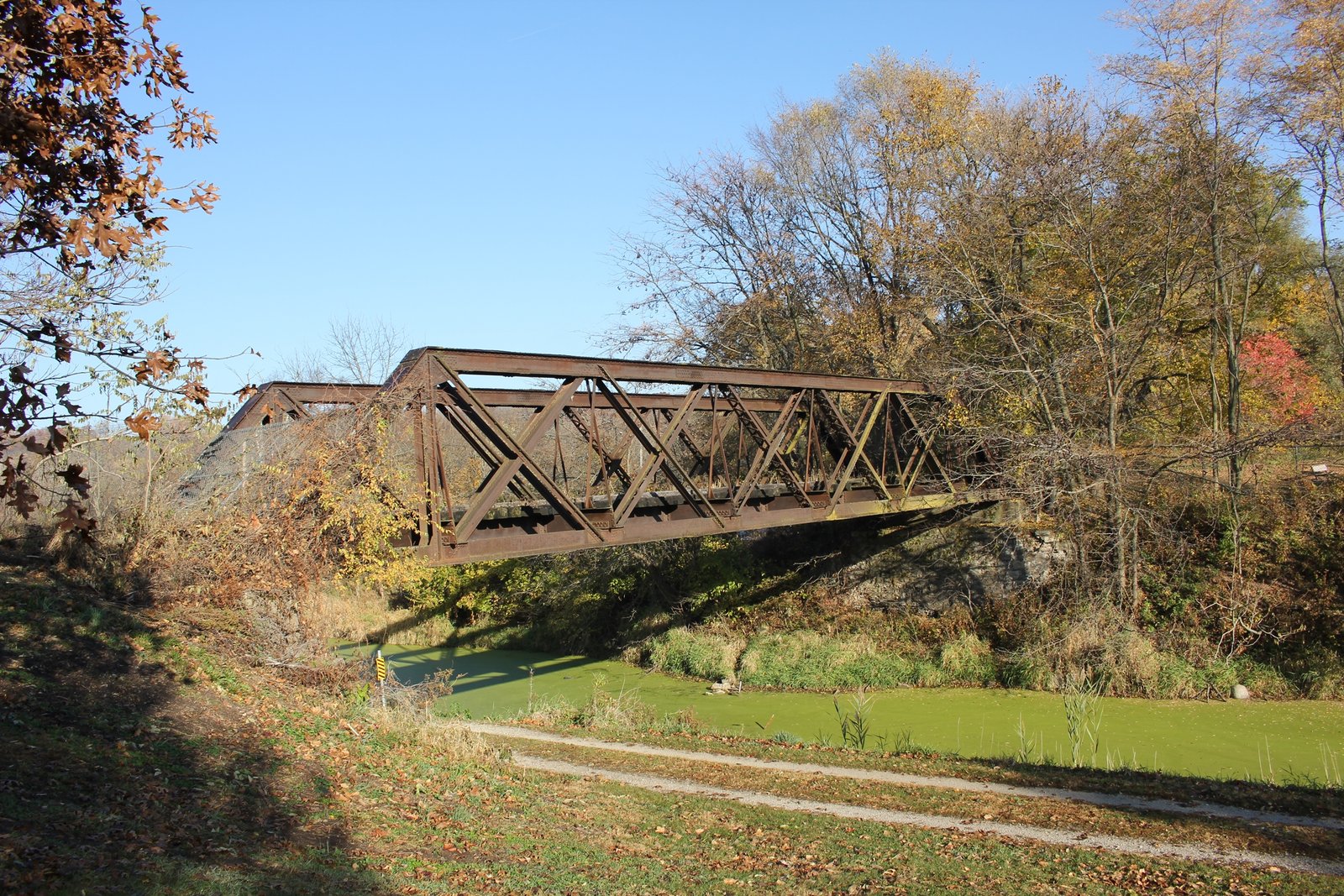

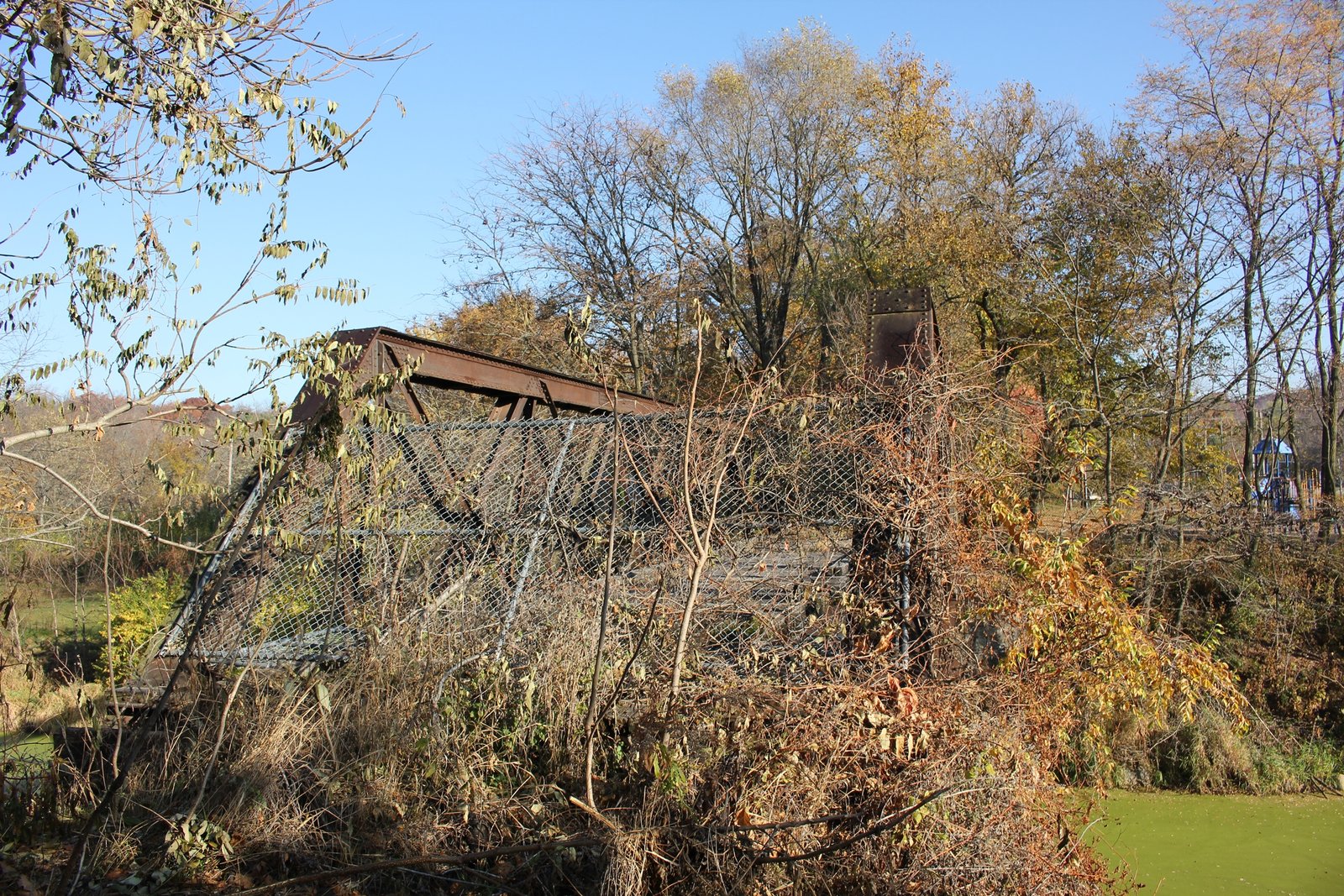

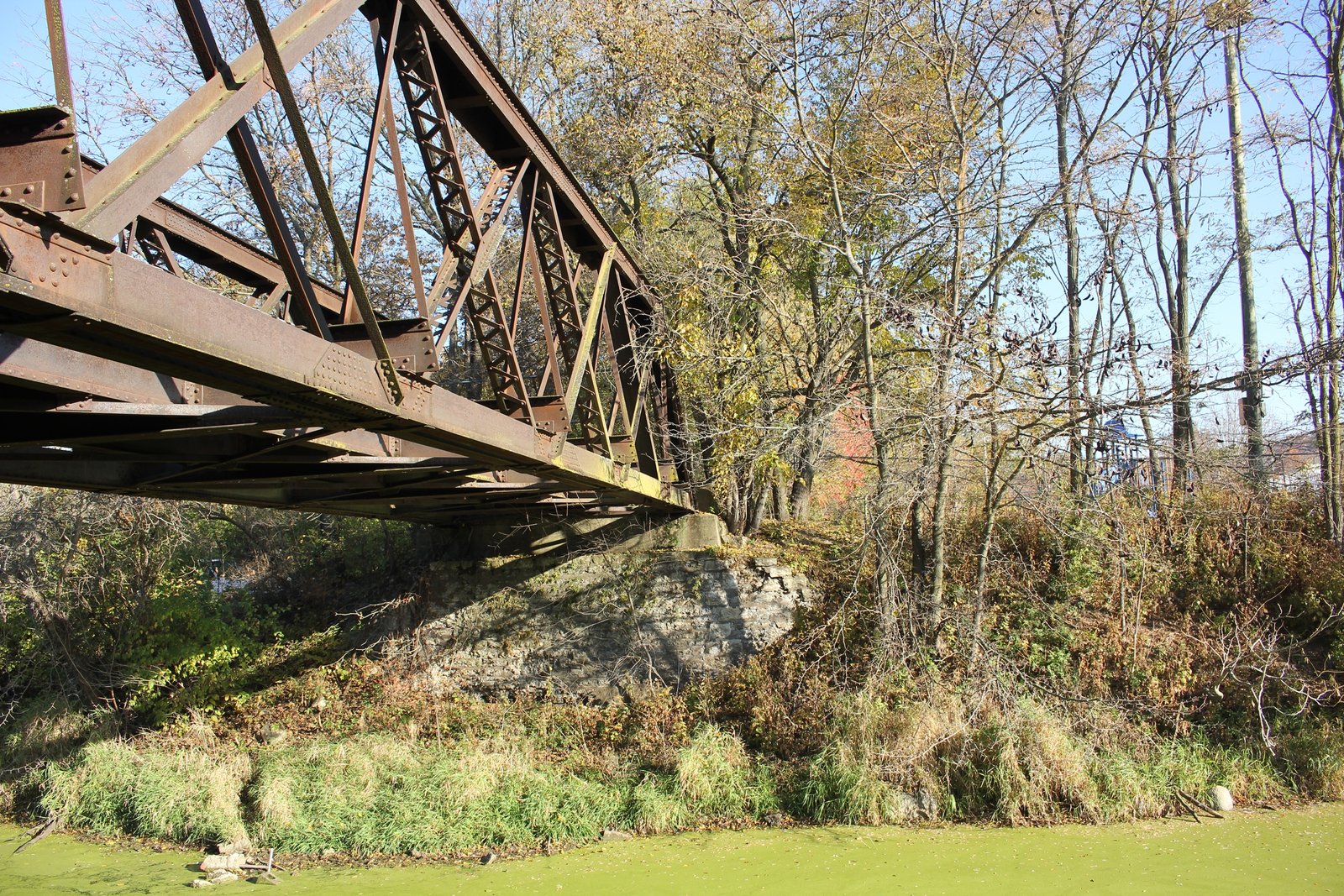

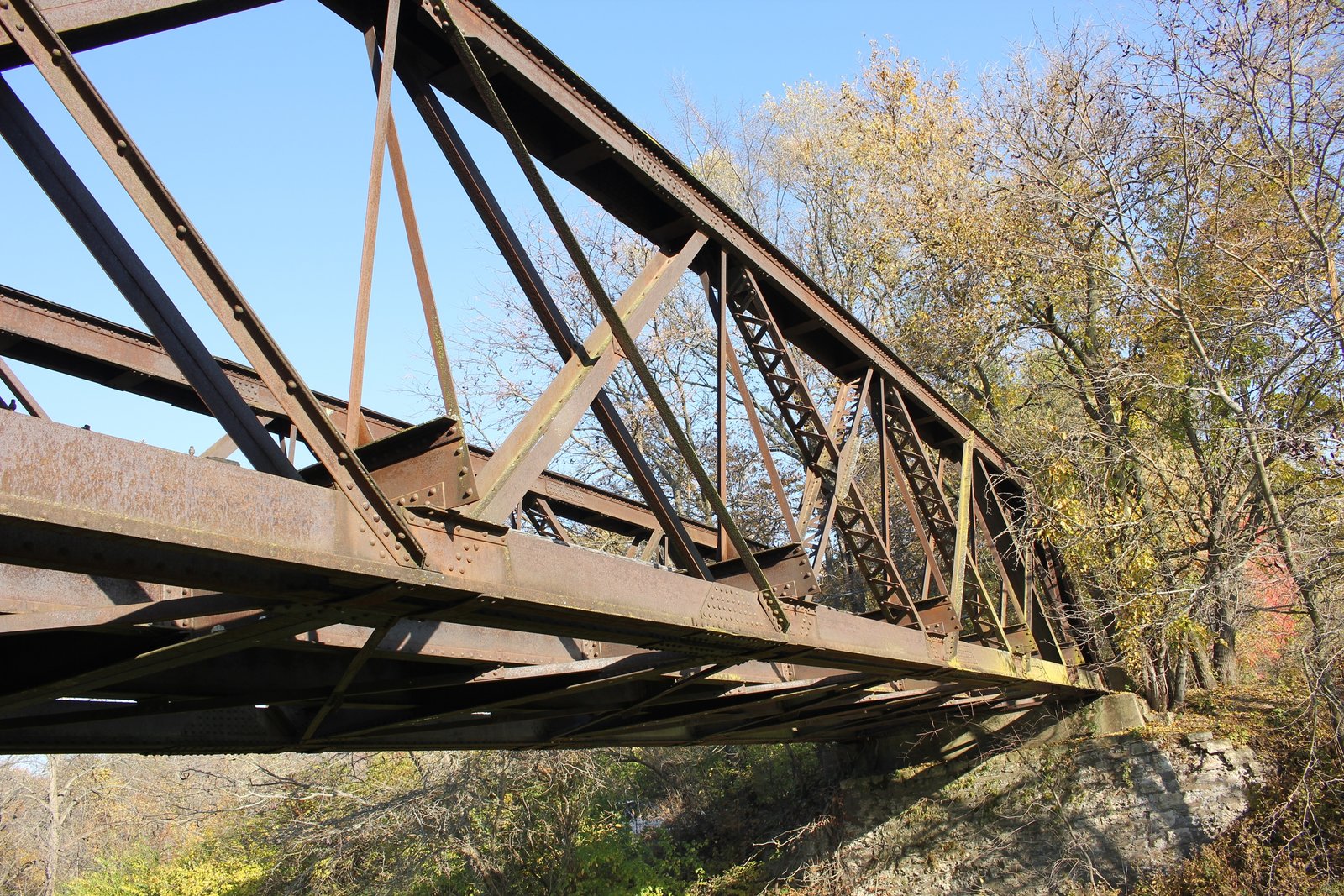

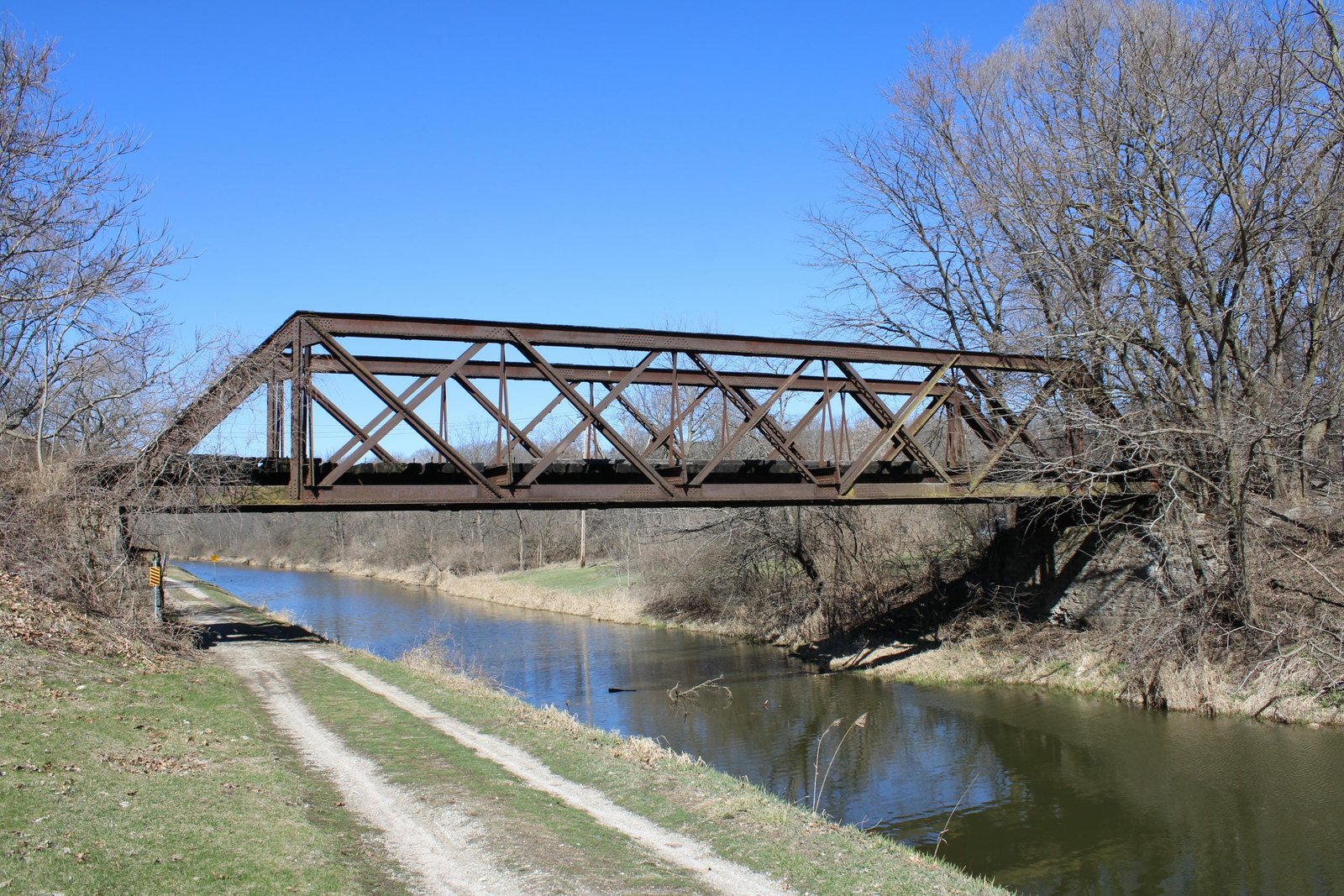

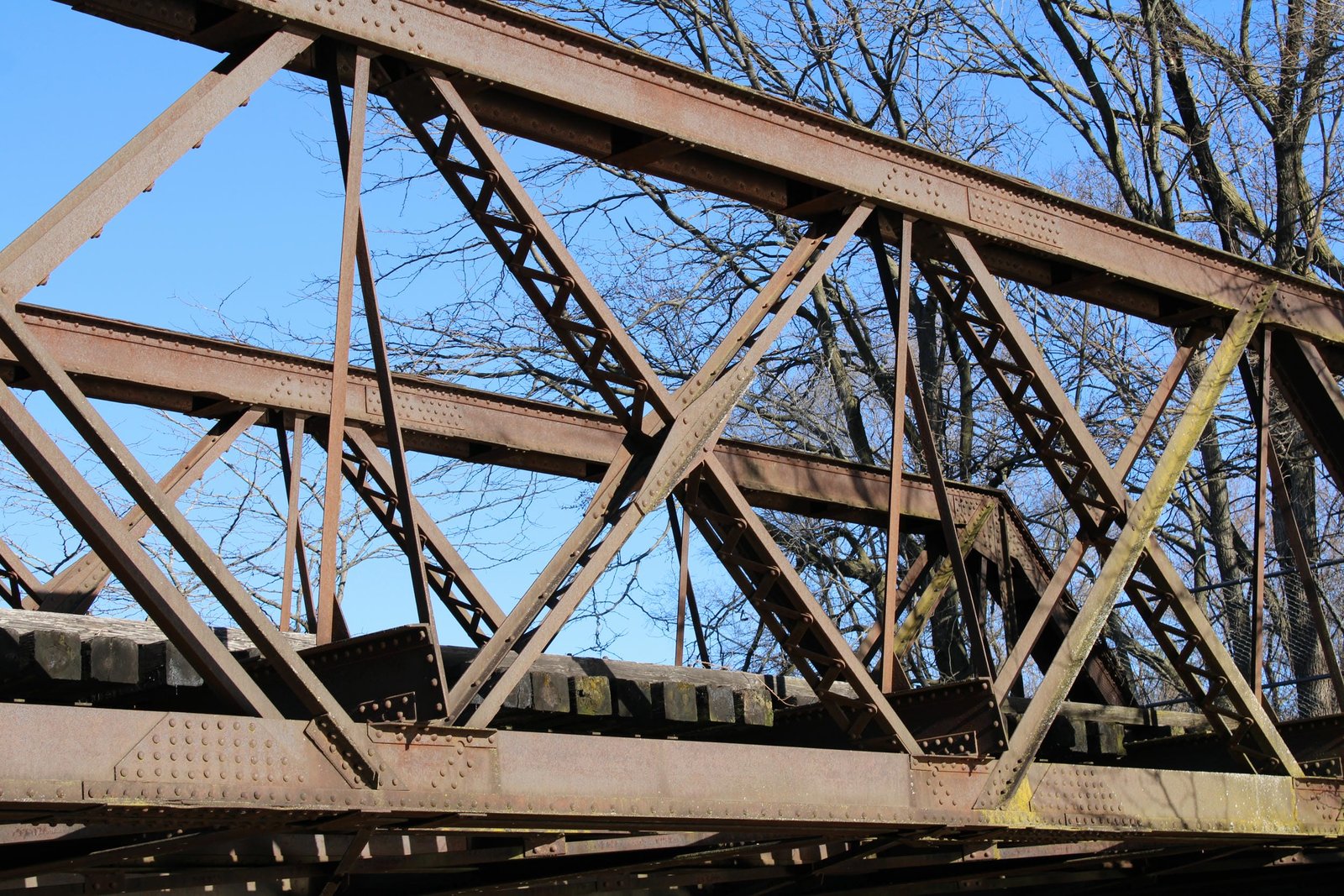

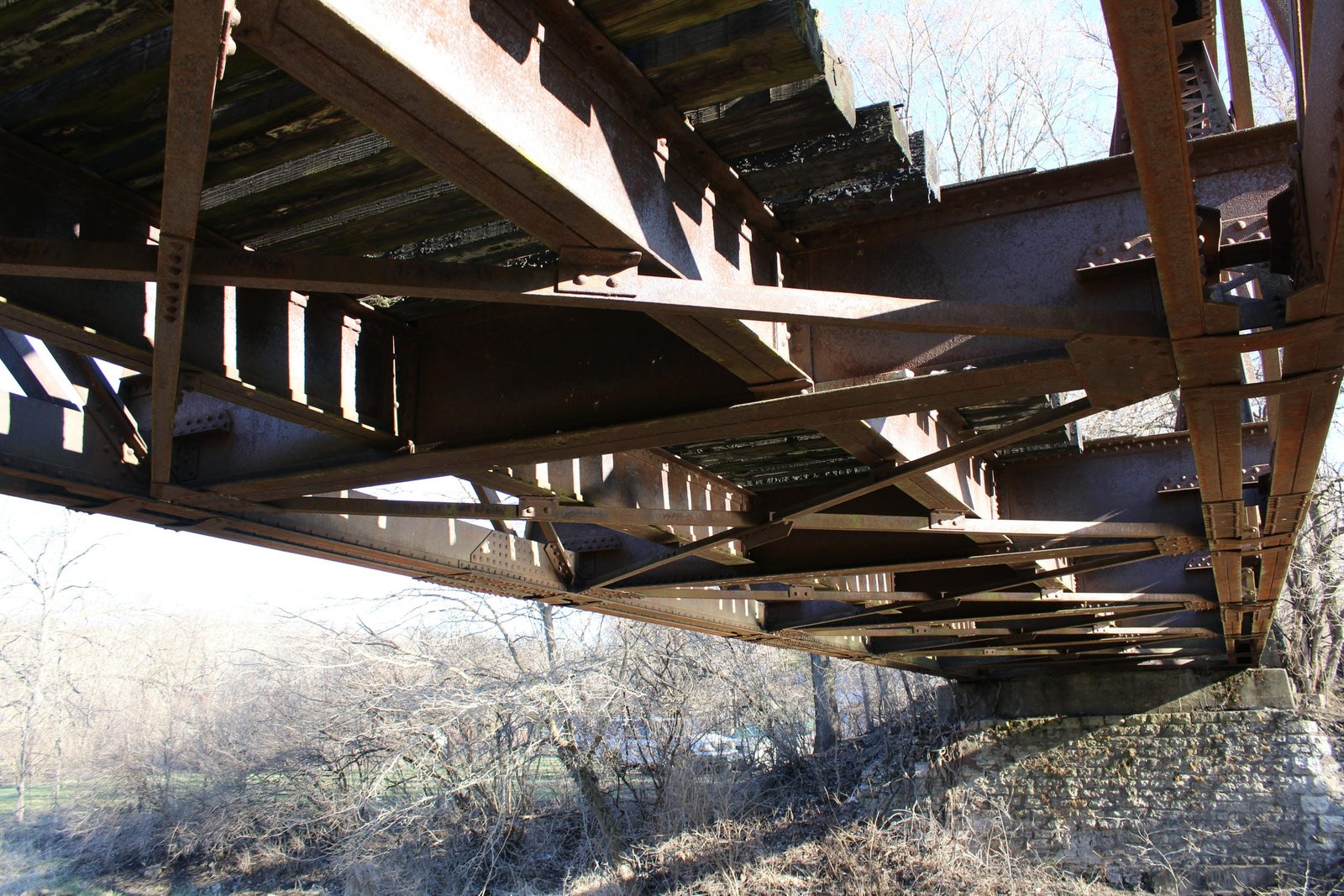

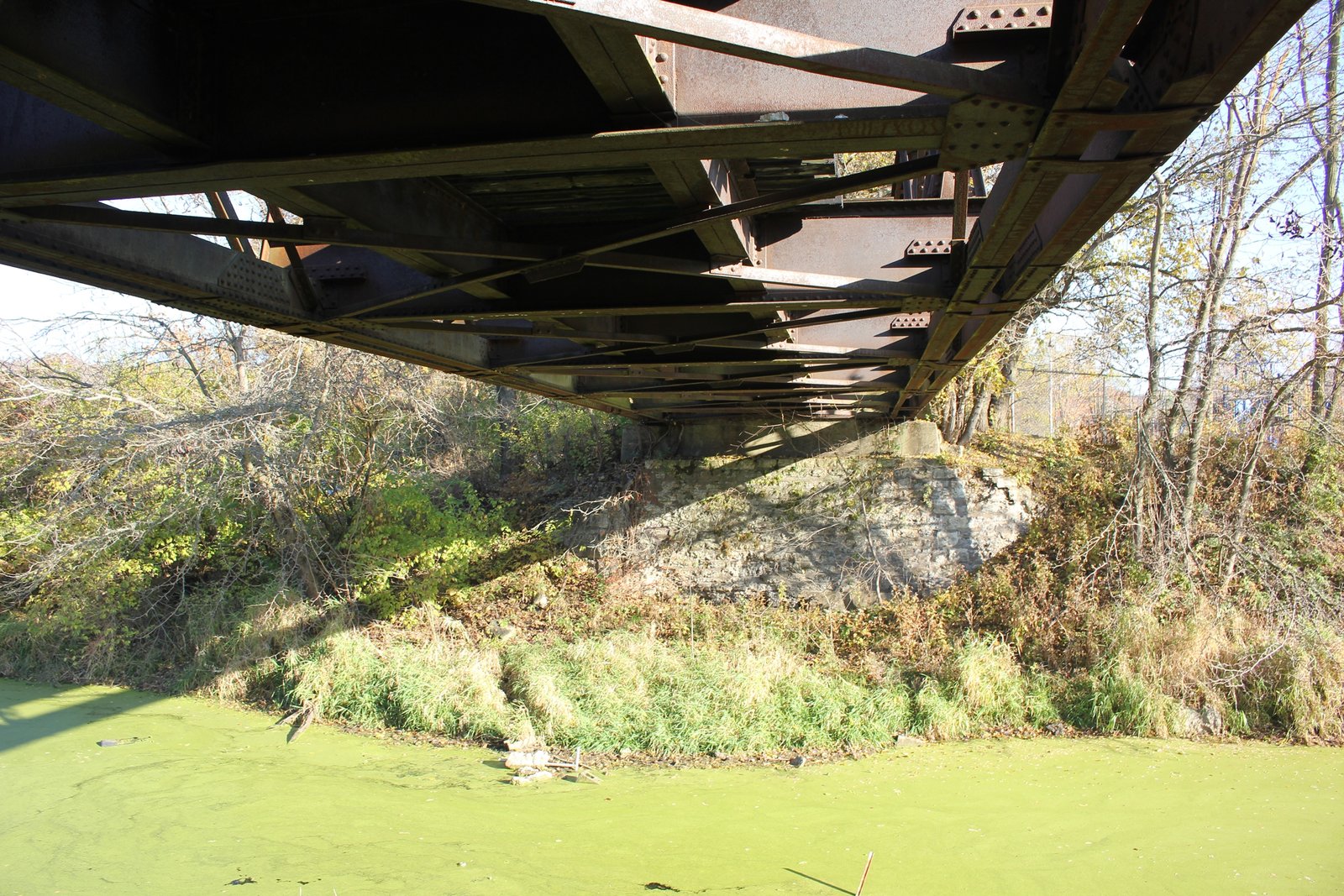

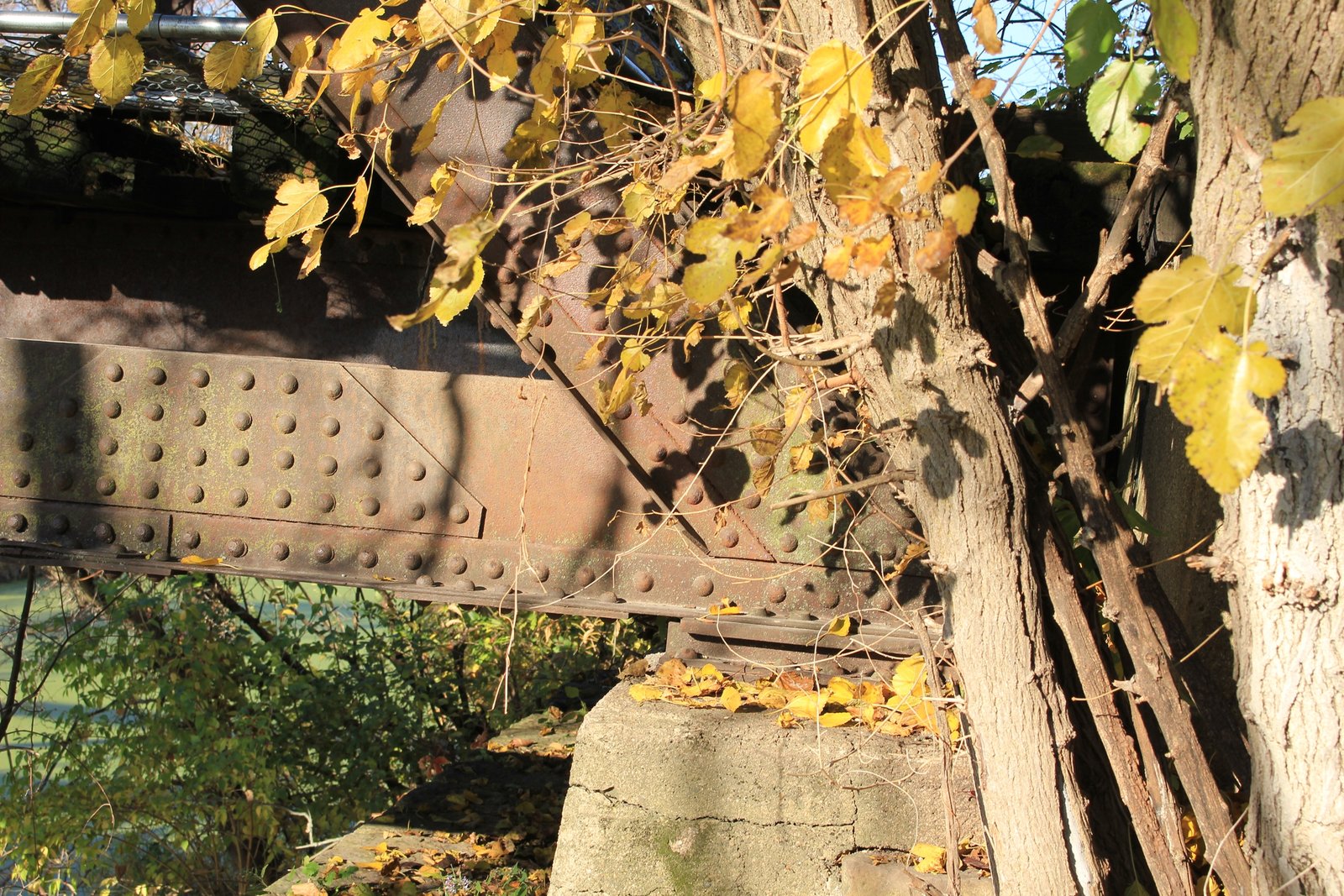

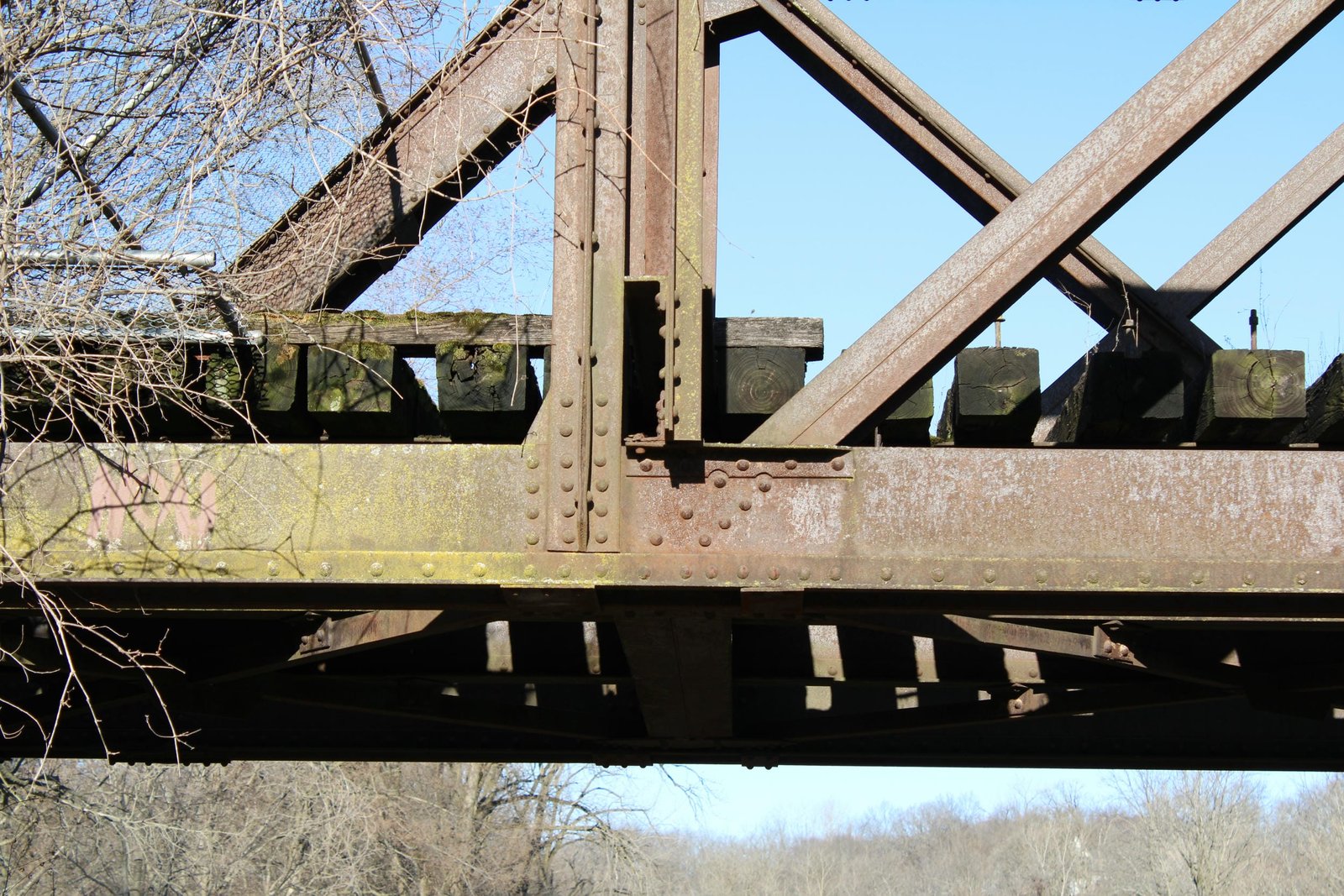

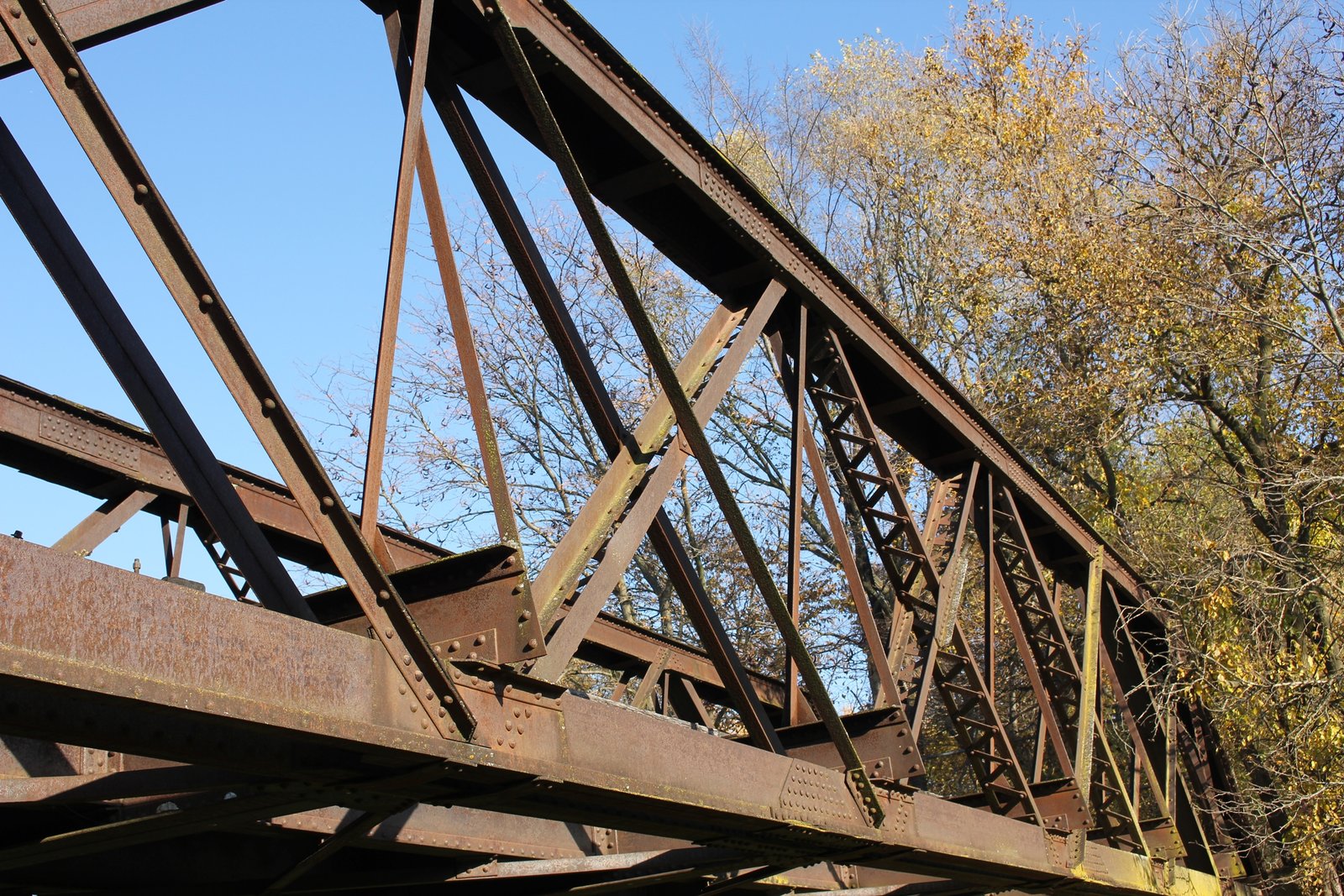

Located on the west side of Utica, this pony truss bridge once carried a spur of the Chicago, Rock Island & Pacific Railway to a quarry and cement plant. Some sources report that a previous bridge existed at this location. Annual reports of the railroad indicate that the present bridge was constructed in 1891. Currently, the bridge consists of an 88-foot, 7-panel, riveted double intersection Warren pony truss span, set onto stone abutments. The truss span uses a standard design for the era, with heavy compression members, riveted connections and modestly deep trusses. The top chord and endposts both use a channel, which is connected by a plate on the top. The bottom chord is composed of two L-shaped plates which are connected by small plates on the bottom at the panel points. The diagonal members use a combination of built-up solid beams, V-laced beams and L-shaped bars. The floor system is composed of two plate girder stringers and plate girder floorbeams. The floorbeams are notched at the ends and sit over the bottom chord. Both abutments consist of a low quality rubble masonry, which has been repaired with mortar at various spots. An unknown contractor fabricated the superstructure, and an additional unknown contractor constructed the abutments. It is also unclear if the superstructure was originally fabricated for use at this location, or if it was possibly reused from another location.

This design of span was popular with some railroads during the 1880s and early 1890s, as it was durable and easy to construct. Numerous examples of this type of span were constructed for the Rock Island, mainly by Alden and Lassig Bridge & Iron Works and Lassig Bridge & Iron Works. By the late 1890s, heavier girders and pony trusses became common for spans this length, and this design fell out of favor. This particular span appears to be unaltered, an oddity considering most surviving spans of this type have been significantly modified. This spur last served an elevator immediately east of the bridge, located along the south bank of the canal. The bridge was abandoned in approximately 1980, and has remained unused since. The bridge is considered a part of the I&M Canal National Heritage Area, likely preventing its demolition or significant alteration. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. With minor repairs, railings and a new deck, this bridge could feasibly serve as a pedestrian crossing, and would enhance the surrounding area. Despite the design having been commonly used in the 1880s, many spans of this design were scrapped in the 20th Century, leaving relatively few examples of this design remaining in the United States. The author has ranked this bridge as being regionally significant, due to the truss design and lack of alterations.


Citations

Build date Annual Report of the Chicago, Rock Island & Pacific Railway, 1891
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
