Name Northwestern Trail - Silver Creek Bridge
Chicago & North Western Railway Bridge #1013 1/2
Built By Chicago & North Western Railway
Currently Owned By City of Ripon
Superstructure Contractor Unknown
Length 20 Feet Total
Width 1 Track (46 Feet)
Height Above Ground 20 Feet (Estimated)
Superstructure Design Concrete Arch
Substructure Design Concrete
Date Built 1920
Traffic Count 0 Trains/Day (Bridge is Open to Pedestrian Traffic)
Current Status Open to Pedestrian Traffic
Chicago & North Western Railway Bridge Number 1013 1/2
Significance Local Significance
Documentation Date 4/6/2024

In 1859, the Sheboygan and Mississippi Railroad (S&M) constructed 14 miles of new railroad, extending from Sheboygan, Wisconsin to Plymouth, Wisconsin.  The following year, an additional 5 miles were constructed to Glenbeulah, Wisconsin.  The S&M was foreclosed in 1861, and was reorganized as the Sheboygan and Fond du Lac Railroad (S&FdL).  In 1868, the S&FdL constructed an additional 24 miles of railroad from Glenbeulah to Fond du Lac, Wisconsin; followed by 35 additional miles to Princeton, Wisconsin in 1871.  The S&FdL was foreclosed in 1880, and became the Sheboygan & Western Railway (S&W) the same year.  The S&W was consolidated into the Chicago, Milwaukee and North Western Railway (CM&NW) in 1881, which was sold to the Chicago & North Western Railway (C&NW) in 1883.  In the late 19th Century, the C&NW constructed and acquired a number of railroad lines throughout the Midwest, eventually developing a vast network.

In the early 20th Century, the C&NW began expanding existing branch lines to provide greater connectivity throughout the system.  The Princeton and North Western Railway (P&NW) was charted as a subsidiary of the C&NW, and constructed 86 additional miles between Princeton and Marshfield, Wisconsin in 1901.  Later that year, the P&NW was fully purchased by the C&NW.  This line connected a number of C&NW lines throughout central Wisconsin, and terminated at Marshfield, which was also the junction of another C&NW secondary line and a Chicago, St. Paul, Minneapolis & Omaha Railway (Omaha Road, a C&NW subsidiary) line.  In addition, the line allowed the construction of branches from Bannerman, Wisconsin to Red Granite, Wisconsin and from Wisconsin Rapids, Wisconsin to Nekoosa, Wisconsin.  As this route was mainly a connecting line, some segments were abandoned early on.  The segment between Arpin and Marshfield was abandoned in 1937 in favor of trackage rights over the parallel Soo Line.  The line between Plymouth and Peebles, Wisconsin was abandoned in 1954, followed by the segment between Fond du Lac and Peebles in 1969 and the Red Granite branch in 1970.

Through the second half of the 20th Century, the remaining route remained a secondary line, mainly carrying timber to paper mills in central Wisconsin.  The segment between Bancroft, Wisconsin and Wisconsin Rapids would be abandoned in 1975, followed by the Ripon, Wisconsin to Bancroft segment in 1981 and the Wisconsin Rapids to Marshfield segment and the Nekoosa Branch in 1982.  The final segment to be abandoned was between Fond du Lac and Ripon in 1987.  In 1995, the C&NW was purchased by the Union Pacific Railroad (UP).  In 2015, the State of Wisconsin acquired the Kohler, Wisconsin to Plymouth segment of this line, leasing it to Wisconsin & Southern Railroad (WSOR).  Today, UP operates the Sheboygan-Kohler segment as the Kohler Industrial Lead and WSOR operates the Plymouth Subdivision between Kohler and Plymouth.  A segment of the line in Peebles is used as part of the Peebles Trail, while the Fond du Lac to Rosendale segment is part of the Mascoutin Valley State Trail.  An additional short segment has been reused as a trail near Ripon, and WSOR also owns a short stub of the former line in Ripon.  The remainder of the line remains abandoned.

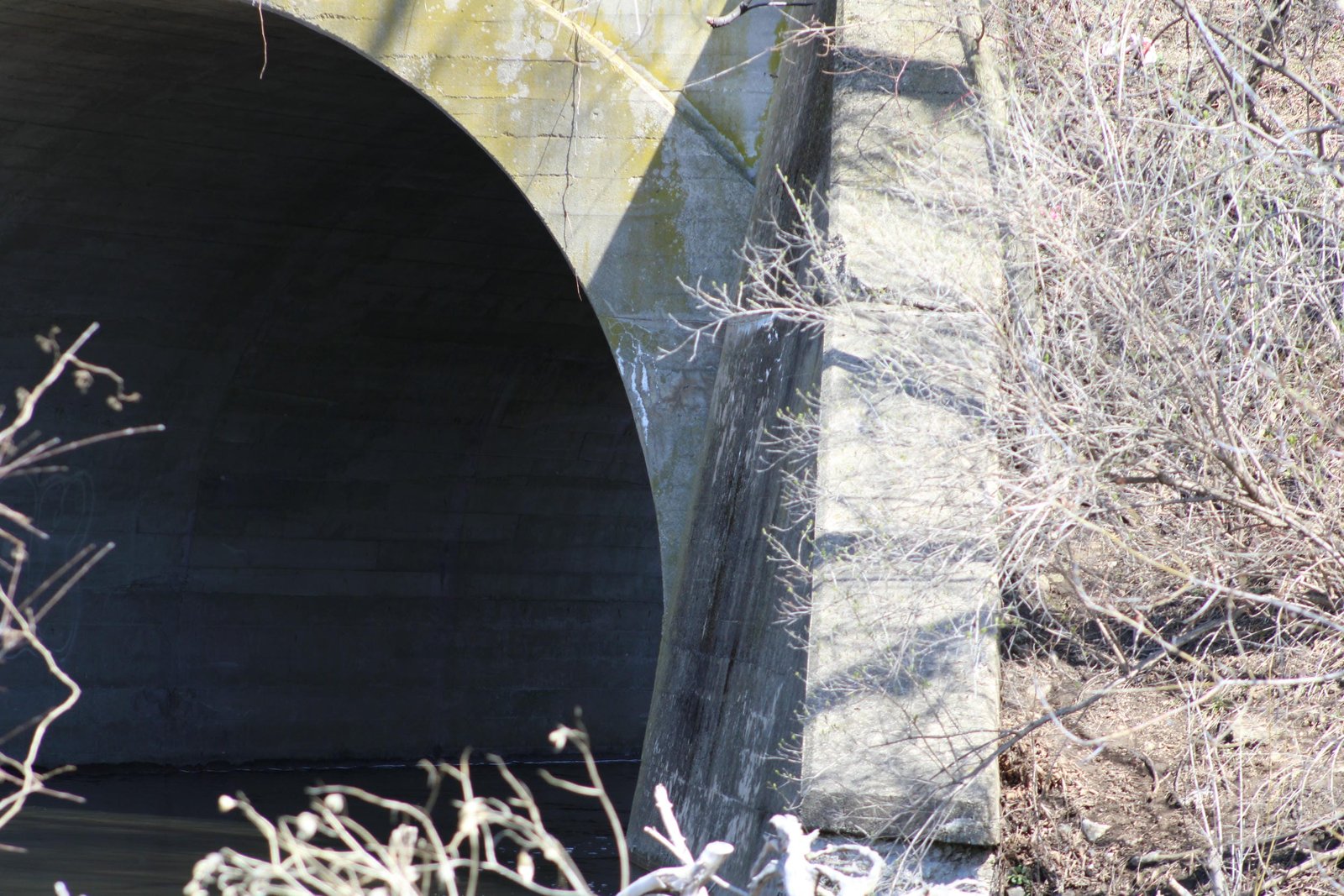

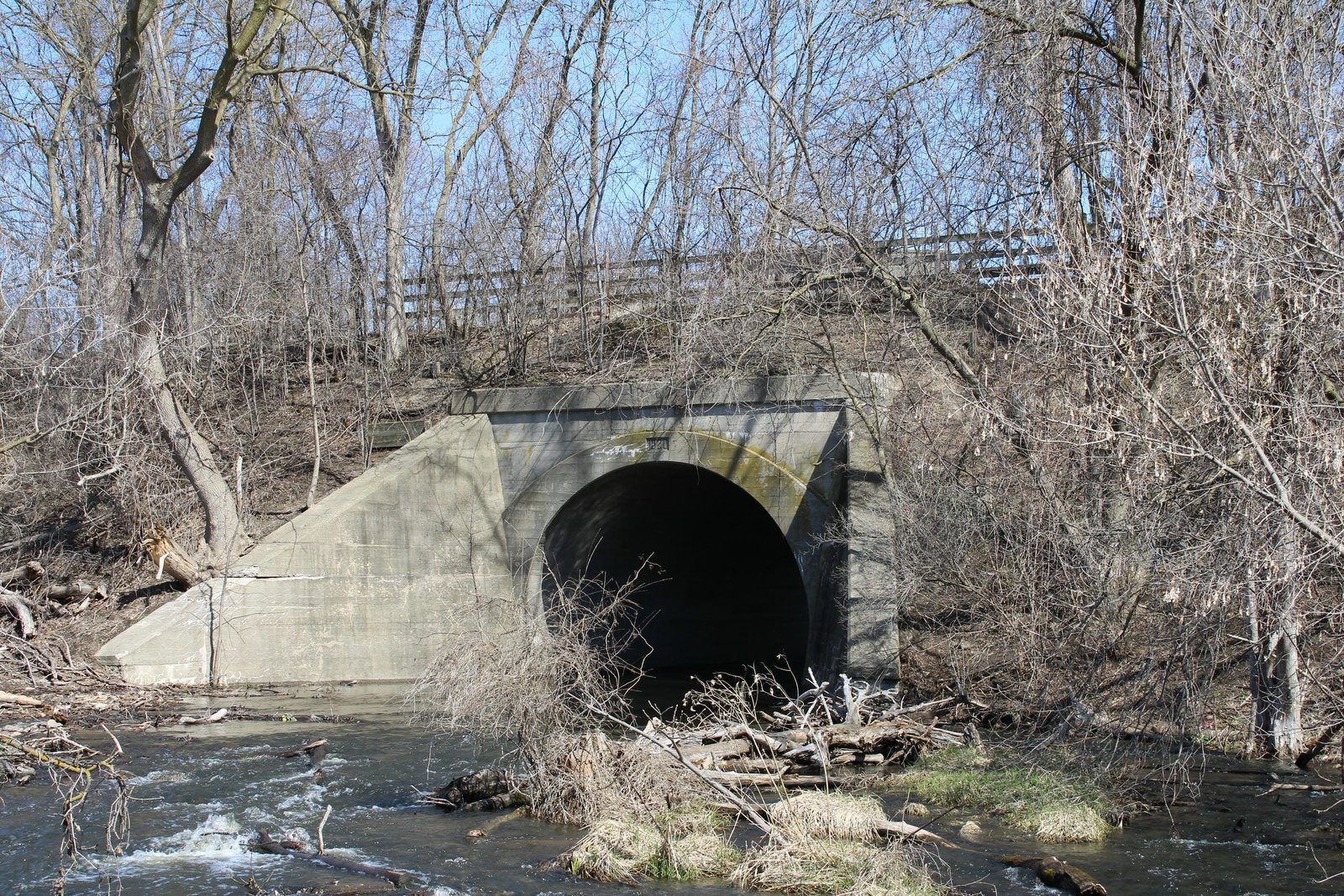

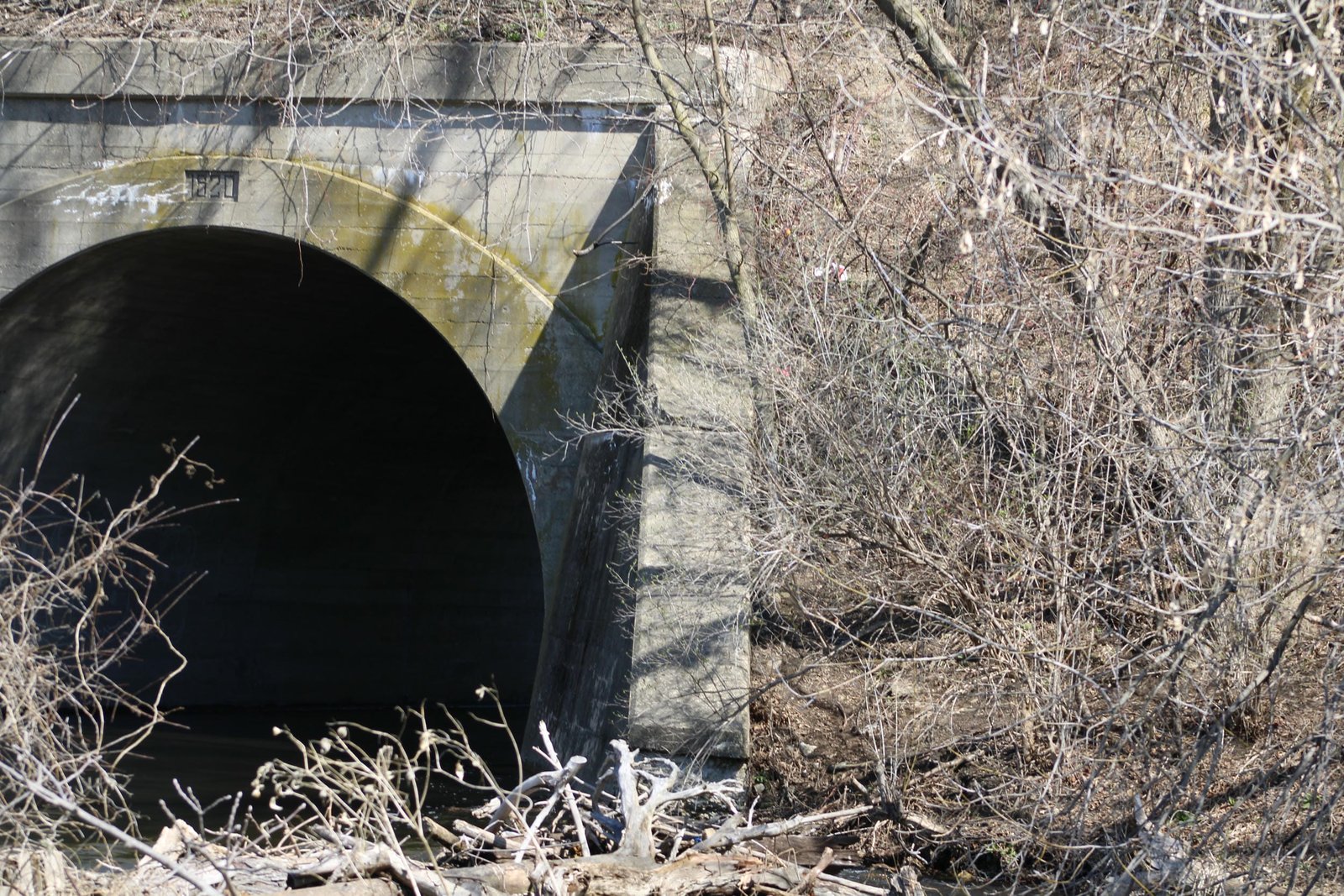

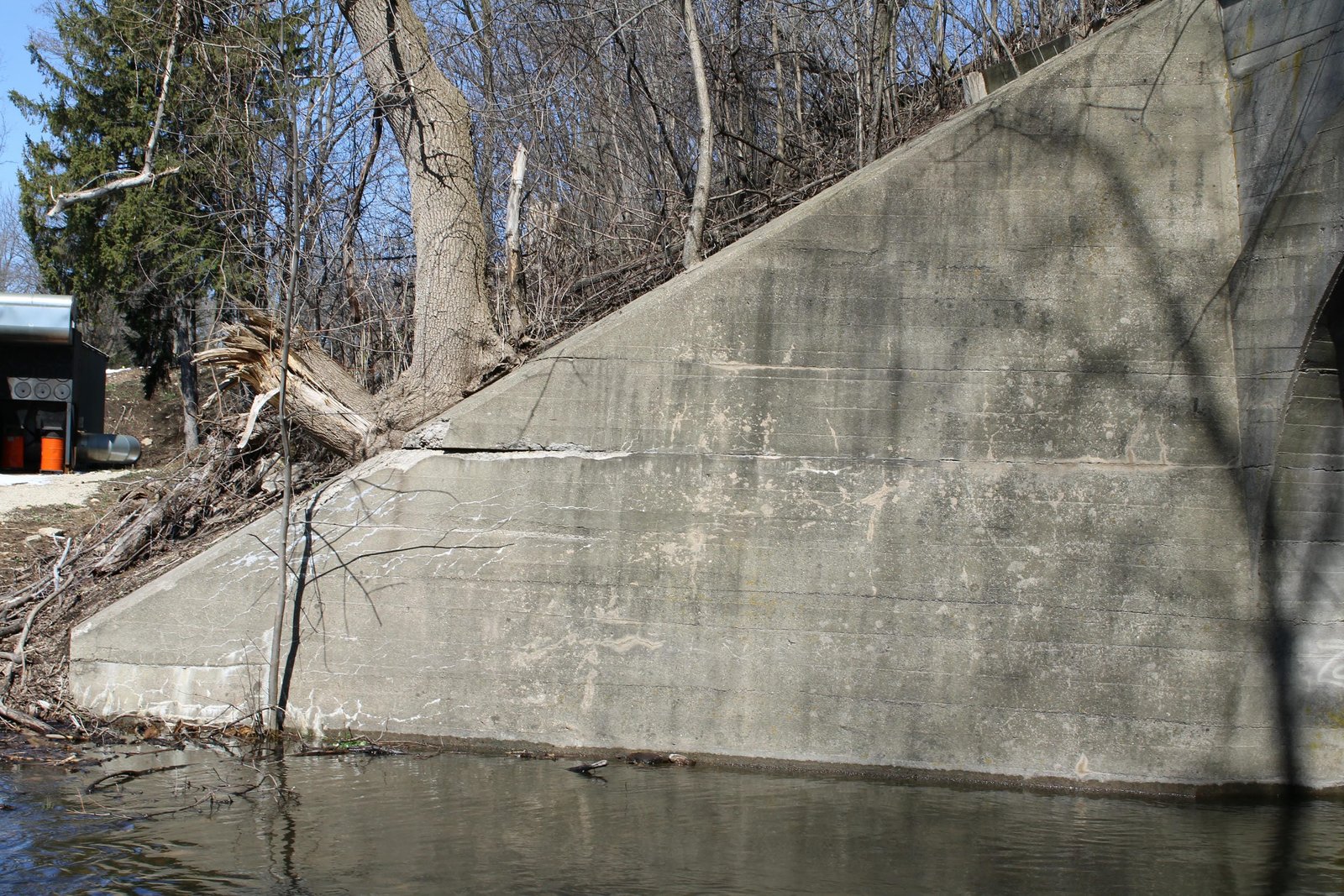

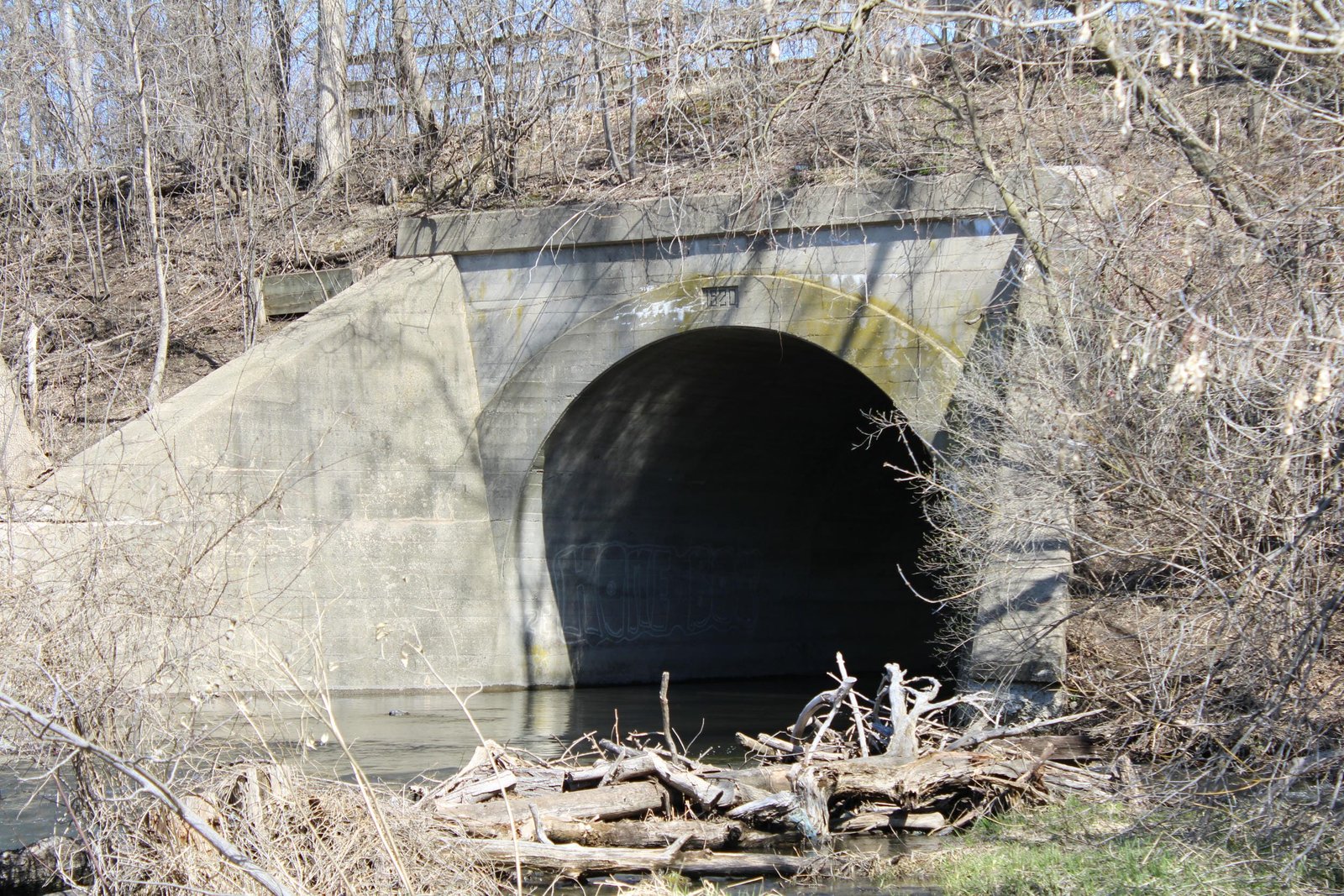

Located in downtown Ripon, this large concrete arch bridge carries the former Chicago & North Western Railway branch line over Silver Creek. The first bridge at this location consisted of a lengthy and tall timber pile trestle bridge, which spanned both Silver Creek and Pacific Street and was last renewed in 1896. In 1919, work began to fill the trestle and construct permanent bridges across Silver Creek and Pacific Street. Work on the present bridge across Silver Creek began in mid-1920, and was completed in October of that year. Currently, the bridge consists of a 20-foot standard concrete arch, set onto concrete substructures and constructed at a width of 46 feet. The bridge follows a standard C&NW design, with a semicircular arch and sloped wing walls which extend from the bridge at an angle. An unknown contractor constructed the arch, and it is believed that railroad forces were responsible for filling the timber trestle. To cross Pacific Street, a 40-foot through plate girder and two 15-foot steel stringer spans were installed. Concrete arches were commonly used by railroads, as they were durable and easy to construct. After this line was abandoned, the bridge across Pacific Street was removed, and the bridge across Silver Creek was reused as part of the Northwestern Trail, a pedestrian trail which extends from Pacific Street to County Road PP west of Ripon. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Build date Date stamp
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
