Name WSOR US-14 Bridge
Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge #E-148 2/4
Built By Chicago, Milwaukee, St. Paul & Pacific Railroad
Currently Owned By State of Wisconsin (Operated by Wisconsin & Southern Railroad)
Superstructure Contractor Unknown
Substructure Contractor Kopplin & Williams of Green Lake, Wisconsin
Length 65 Feet Total, 45 Foot Main Span
Width 1 Track
Height Above Ground 13 Feet 9 Inches
Superstructure Design Steel Stringer and Concrete Slab
Substructure Design Concrete
Date Built 1932
Traffic Count 1 Train/Day (Estimated)
Current Status In Use
Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge Number E-148 2/4
Wisconsin & Southern Railroad Bridge Number E-148 2/4
Significance Local Significance
Documentation Date 2/19/2023

In 1855, the Racine and Mississippi Rail Road (R&MRR) constructed 69 miles of new railroad, extending from Lake Michigan at Racine, Wisconsin; to Beloit, Wisconsin.  The railroad would be reorganized as the Racine and Mississippi Railroad (R&M) in 1856.  In 1857, the R&M completed an additional 35 miles of railroad to Freeport, Illinois.  Between 1861 and 1865, the Northern Illinois Railroad (NIR) completed an additional 76 miles between Freeport and Port Byron, Illinois, running through Savanna, Illinois. In 1862, the Warsaw, Rock Island and Galena Railroad (WRI&G) constructed an additional 9 miles from Port Byron to Rock Island, Illinois.  The NIR became part of the Western Union Rail Road (WURR) in 1866, the R&M was consolidated into the WURR in 1868 and the WRI&G was consolidated in 1872.  In 1879, the railroad would be leased by the Chicago, Milwaukee & St. Paul Railway, known as the Milwaukee Road.  The railroad would be purchased outright by the Milwaukee Road in 1900.  The railroad connected to the Davenport, Rock Island & North Eastern Railway (DRI&NW) at East Moline.

The Milwaukee Road had become a prominent railroad in the United States, operating a network of railroad lines primarily in the Midwest.  The railroad sought for a shortened route for traffic going between Chicago and Kansas City.  In addition to constructing a new line in Iowa, the Milwaukee Road built a cutoff between Ashdale Junction and Ebners in 1902.  This line allowed trains to bypass the steep grades and congested conditions at Savanna.  The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928.  During the 20th Century, this line served as a secondary connecting line between the Quad Cities and mainline to Kansas City with Lake Michigan.  The Ashdale Cutoff would be abandoned in 1952.  Throughout the 20th Century, conditions on the Milwaukee Road continued to deteriorate.  The railroad entered bankruptcy in 1977, and was forced to liquidate  unprofitable lines.  Much of the Rockton to Kittredge line was abandoned in 1980, as well as the line from Savanna to Albany.  In 1980, the segment from Beloit to Clinton, Wisconsin was sold to the Chicago & North Western Railway (C&NW); and the segment from Allens Grove to Elkhorn was sold to the Wisconsin Southern Railroad (WSOR).

By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986.  In 1995, the segment from East Moline to Cordova was acquired Burlington Northern Railroad (BN) when the DRI&NW was dissolved.   C&NW was merged into Union Pacific Railroad (UP) in 1995, and BN was merged with Atchison, Topeka & Santa Fe Railway in 1996 to form BNSF Railway.   In 1997, CP would sell the portion of this line between Savanna and Kittredge to I&M Rail Link, which was purchased by the Dakota, Minnesota & Eastern Railroad (DM&E) subsidiary Iowa, Chicago & Eastern Railroad (IC&E). Portions of the route between Albany and Cordova would be abandoned in 2006.  The DM&E/IC&E were purchased by Canadian Pacific in 2008.  CP merged with Kansas City Southern Railway in 2023 to form CPKC.

Today, much of the line is abandoned, but some portions remain in service.  Between Rock Island and Cordova, BNSF Railway continues to operate the line as the Nitrin Subdivision.  Between Savanna and Kittredge, the line is operated as part of the larger CPKC Chicago Subdivision.  UP operates the State Line Industrial Lead between Beloit and Clinton; and Wisconsin & Southern continues to operate the Elkhorn Branch.  Between Elkhorn and Kansasville, the White River State Trail now uses the railroad grade.  Some industrial trackage in Burlington is still in use.  Between Sturtevant and Kansasville, the railroad is operated by CPKC as an industrial lead.

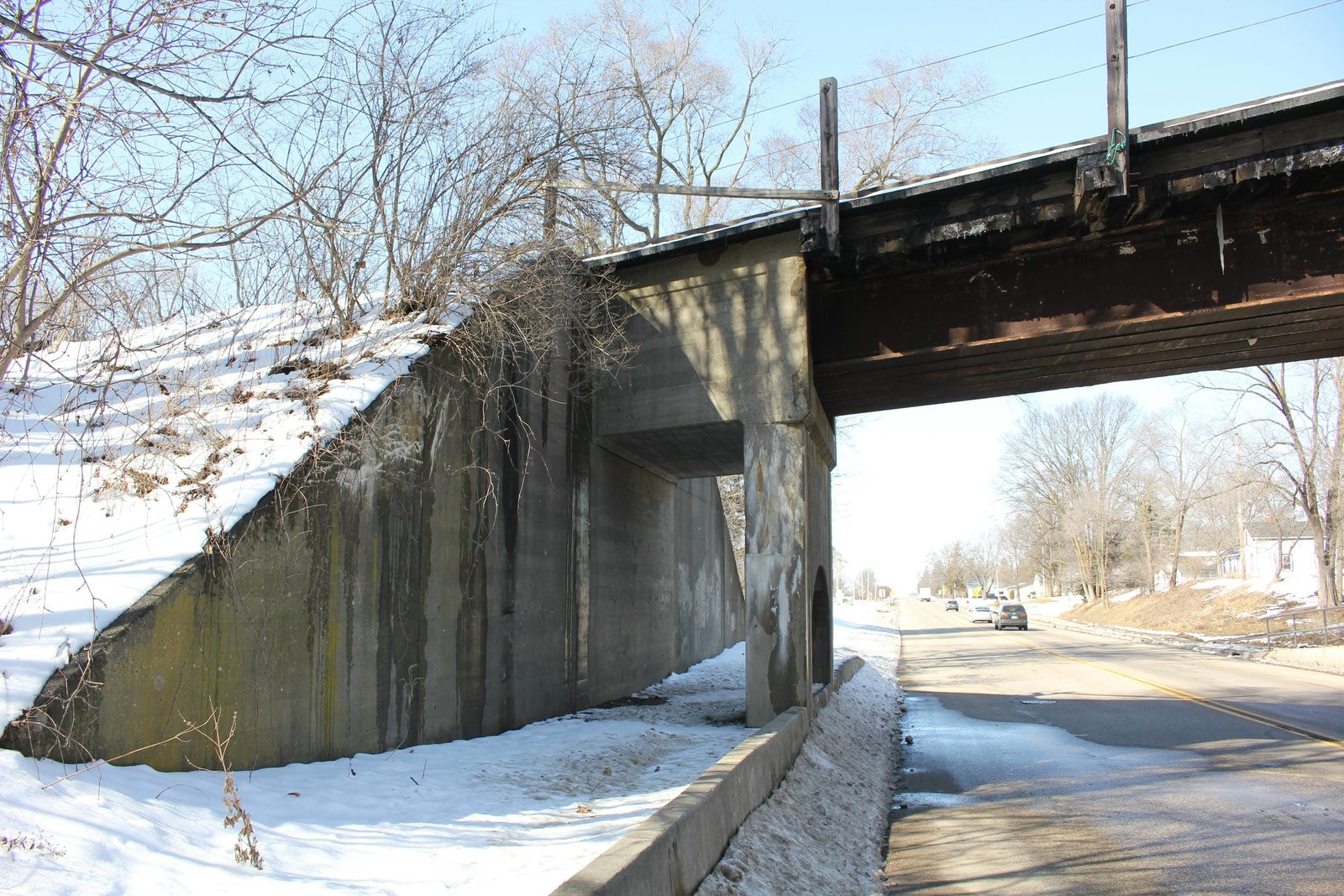

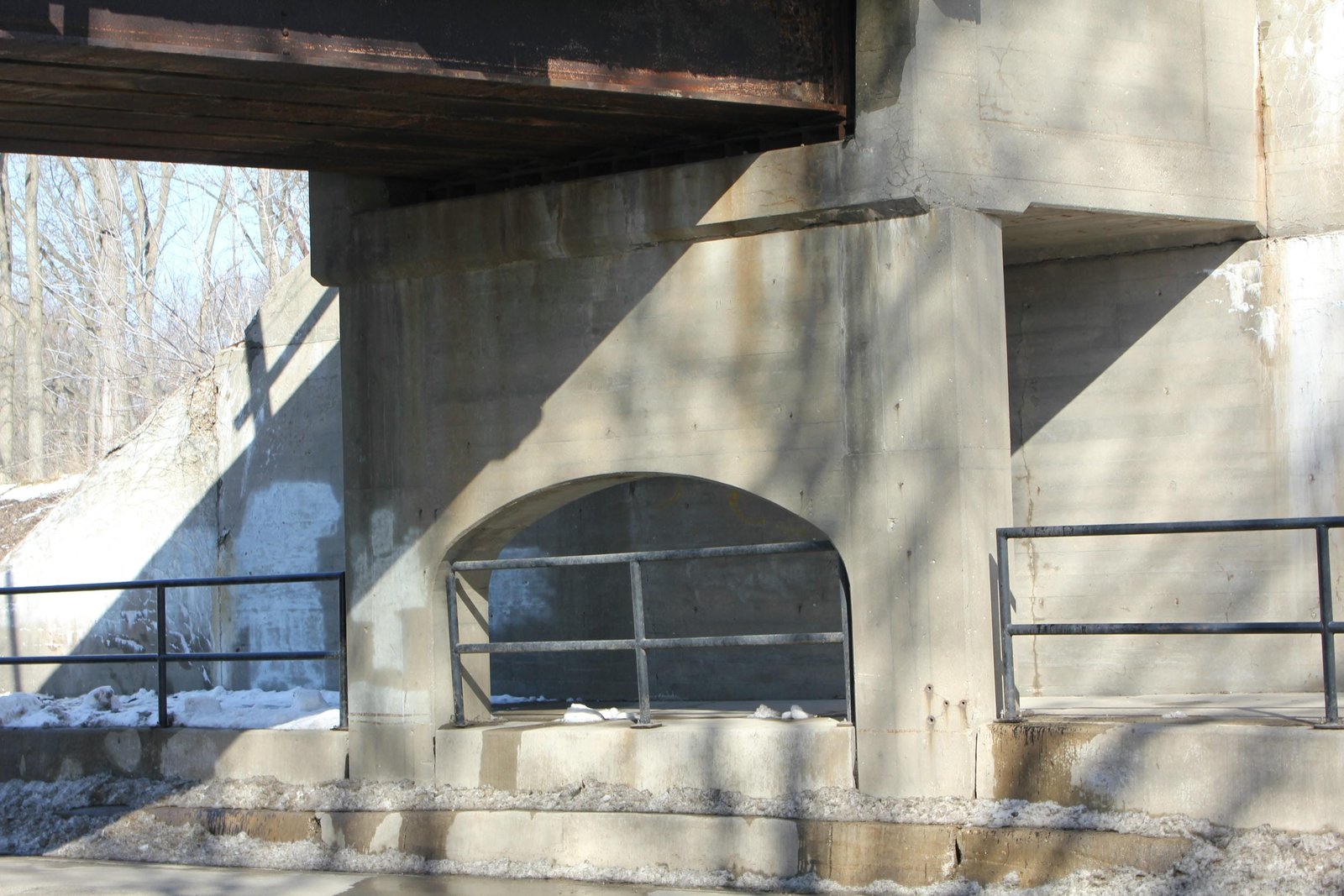

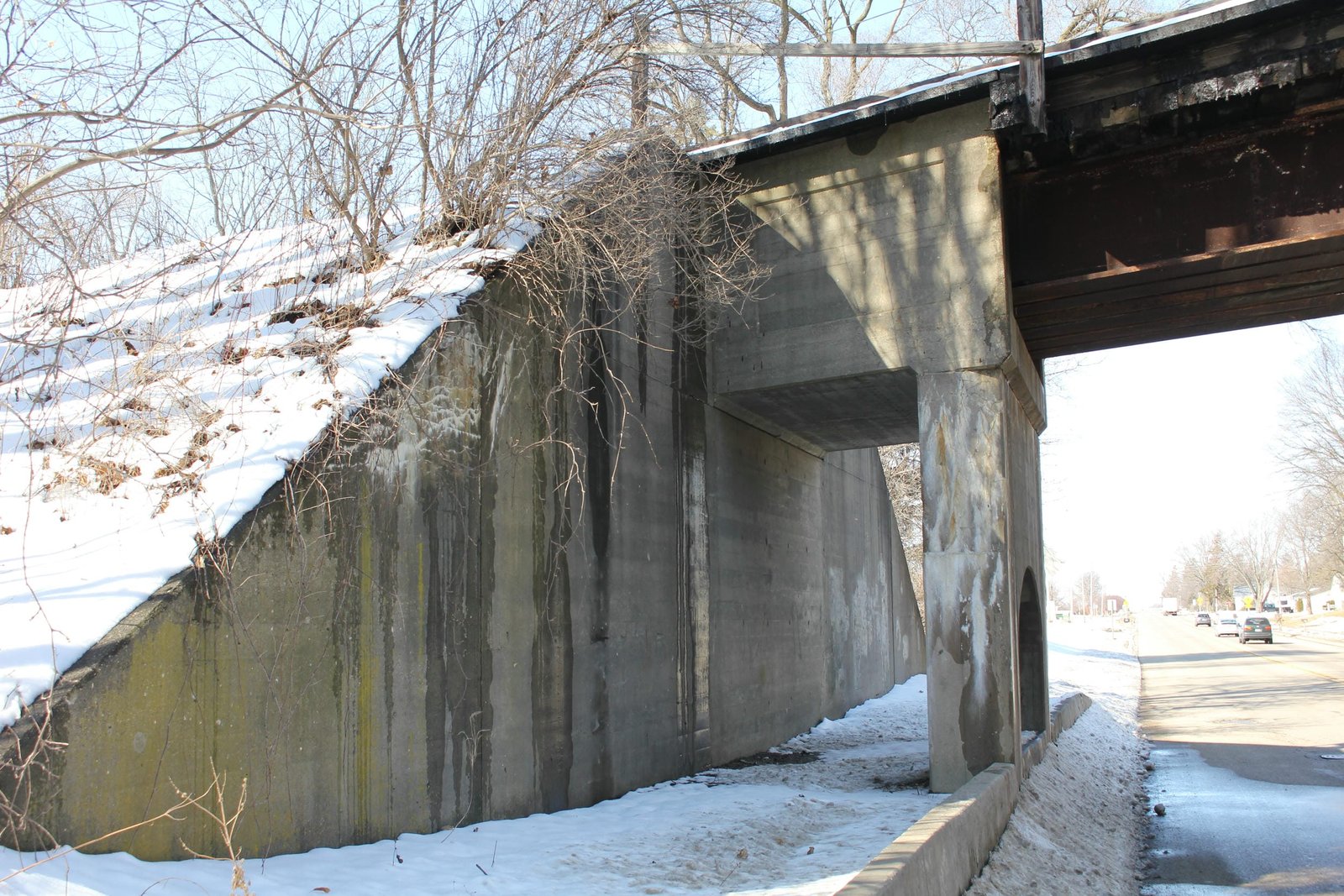

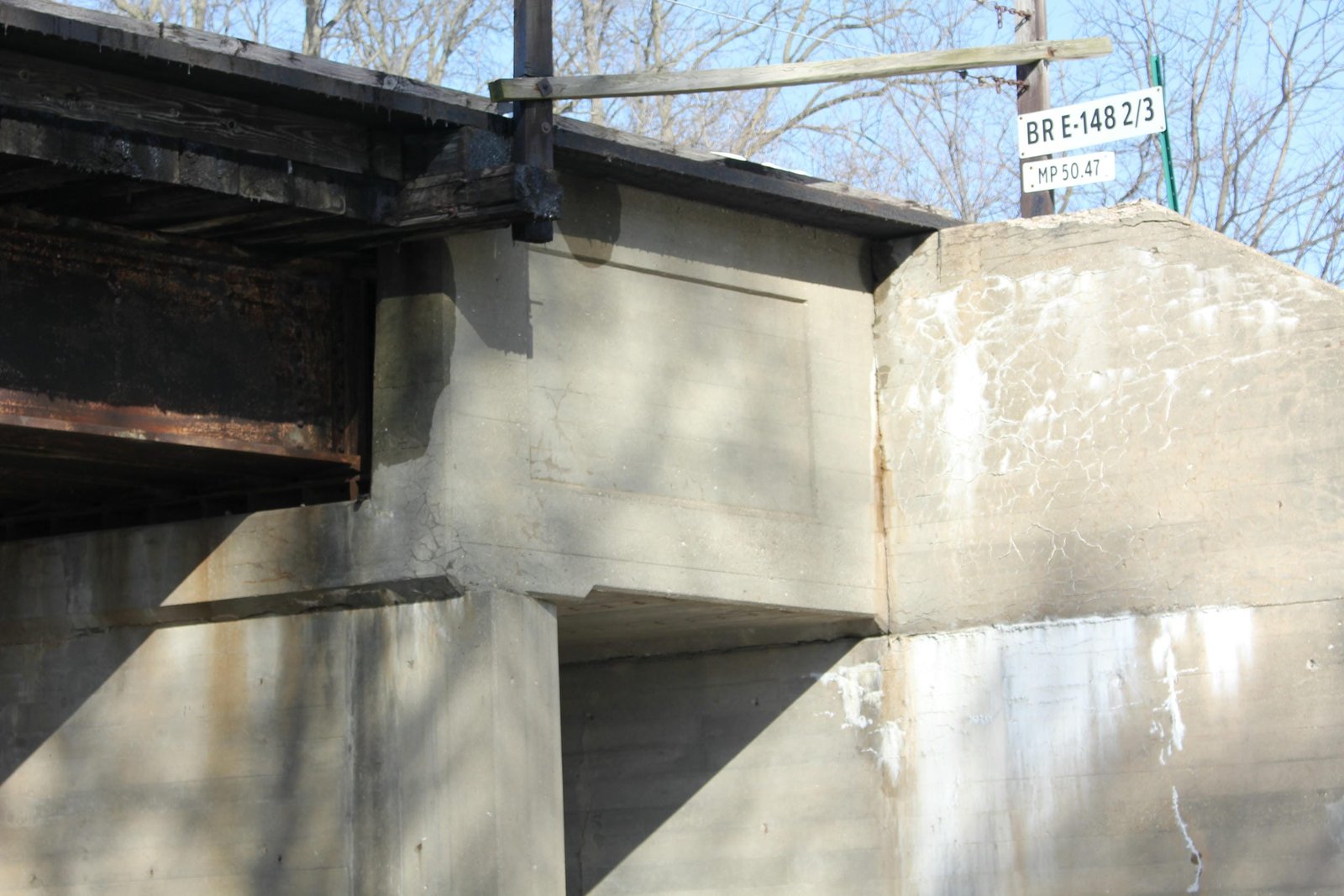

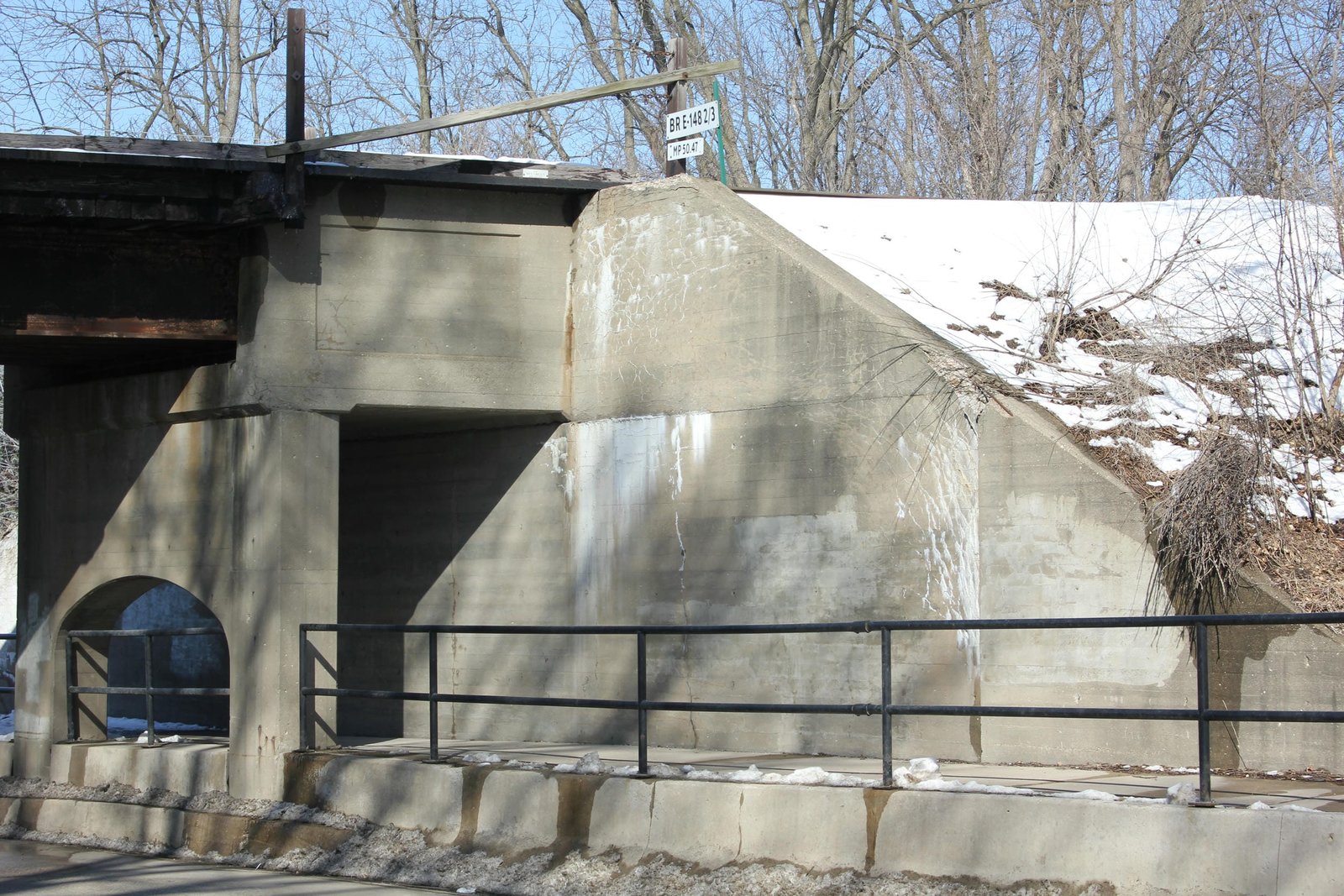

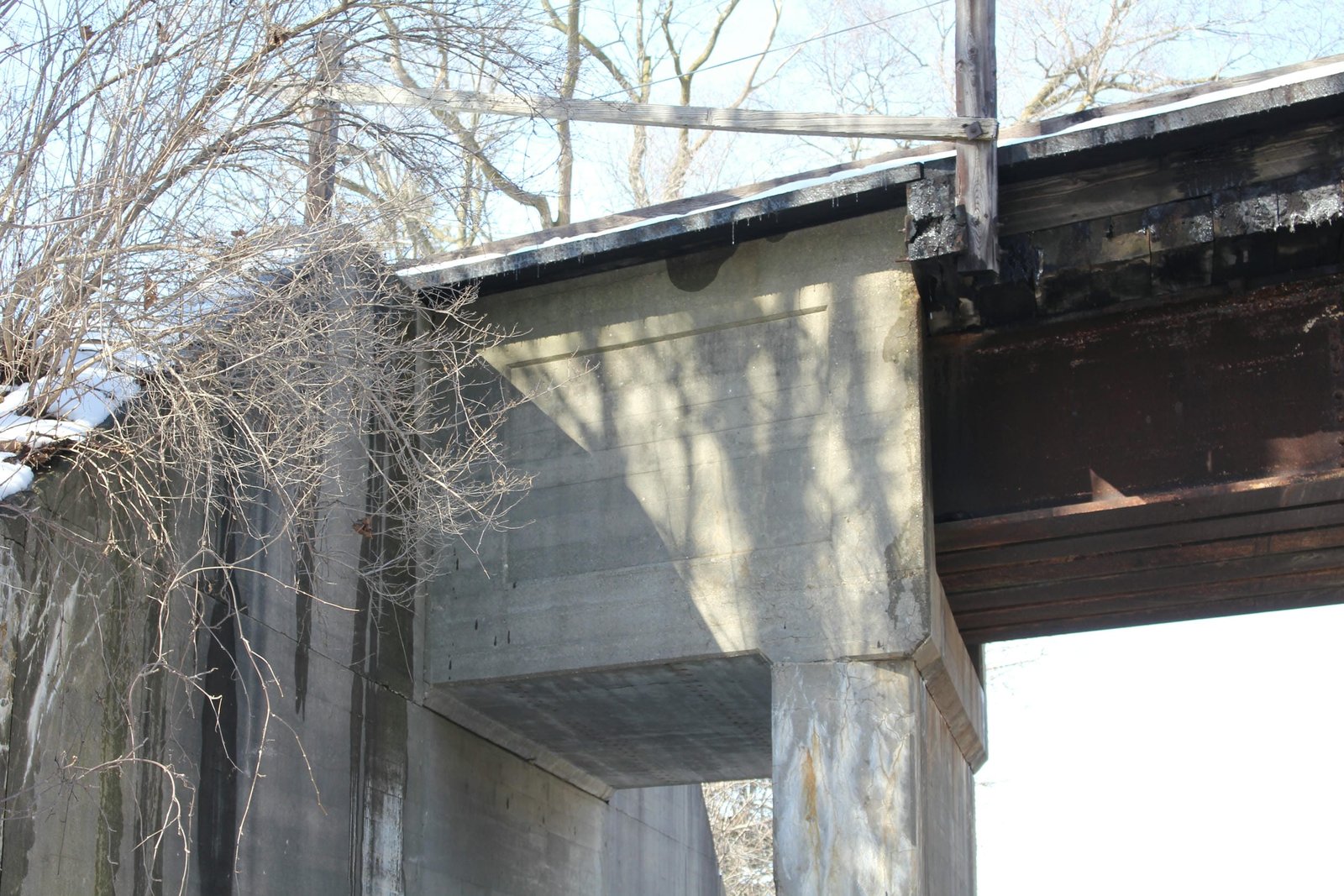

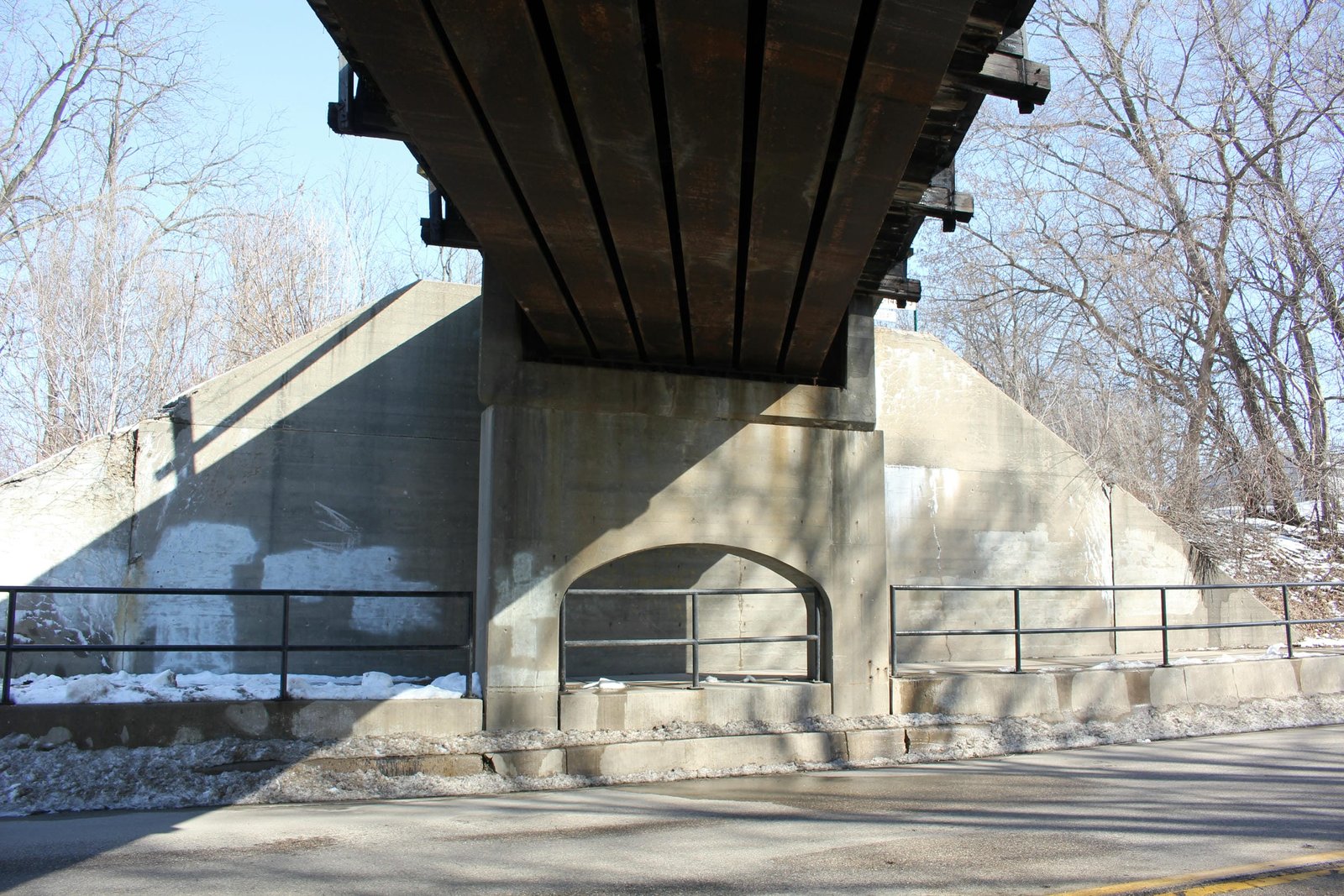

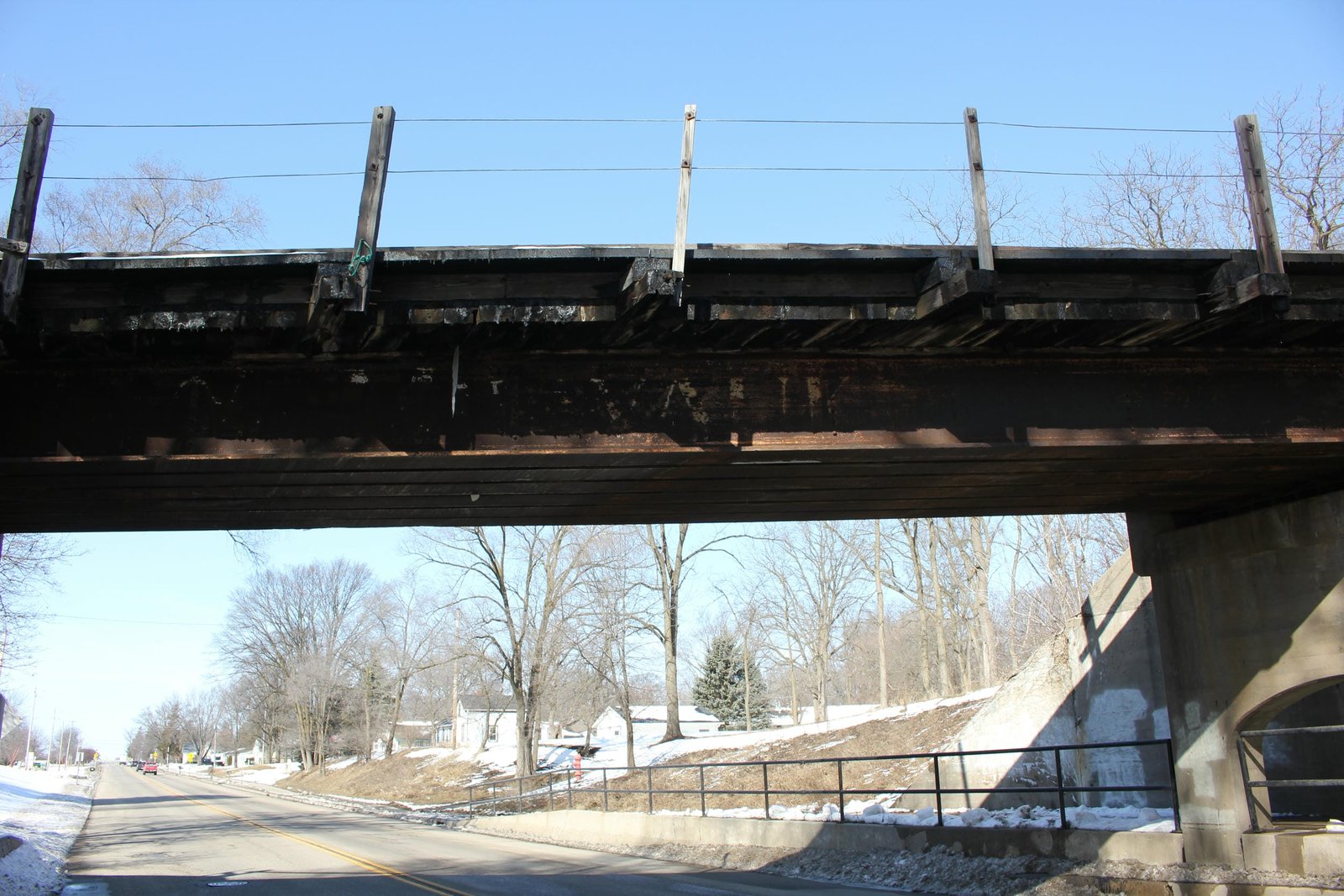

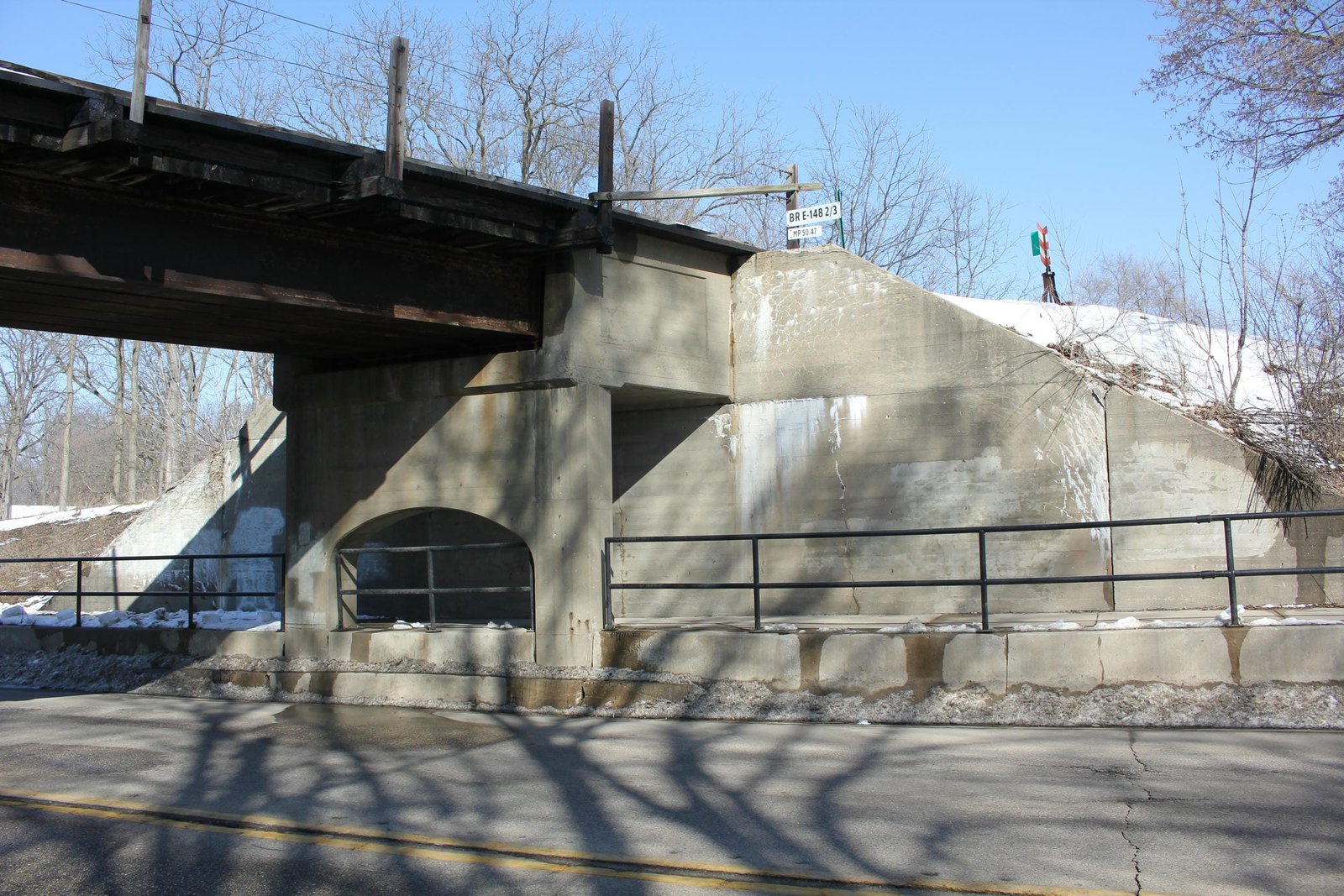

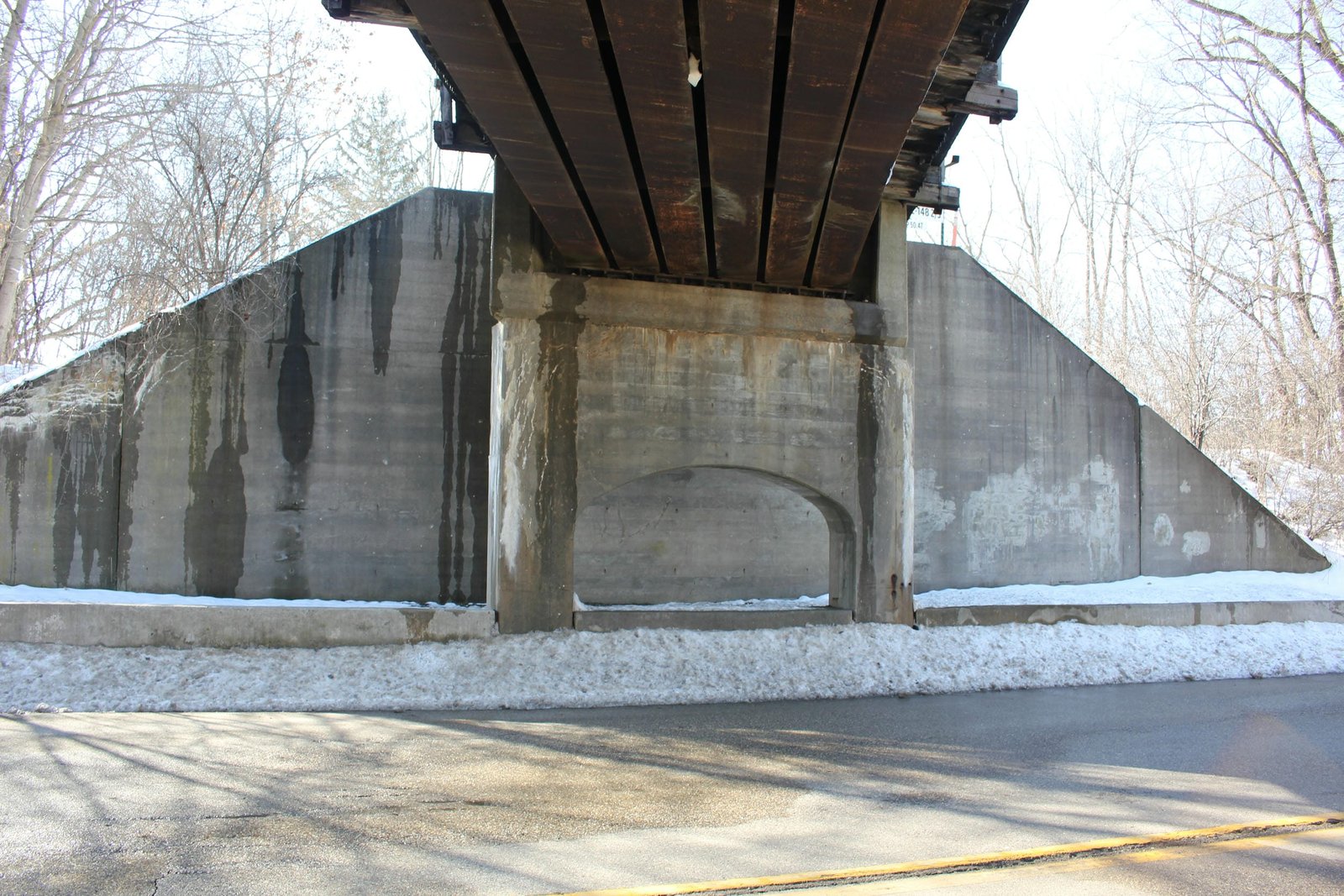

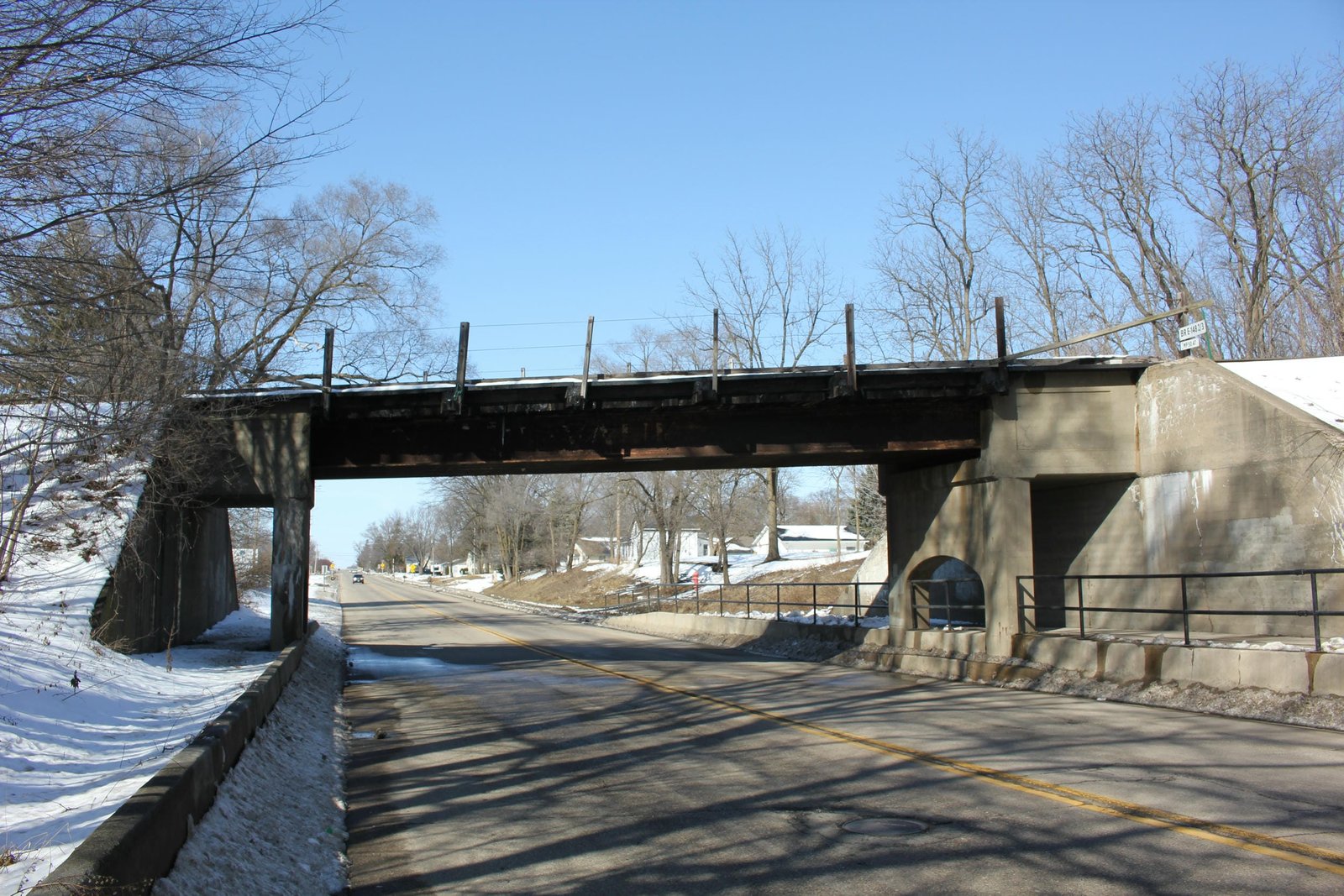

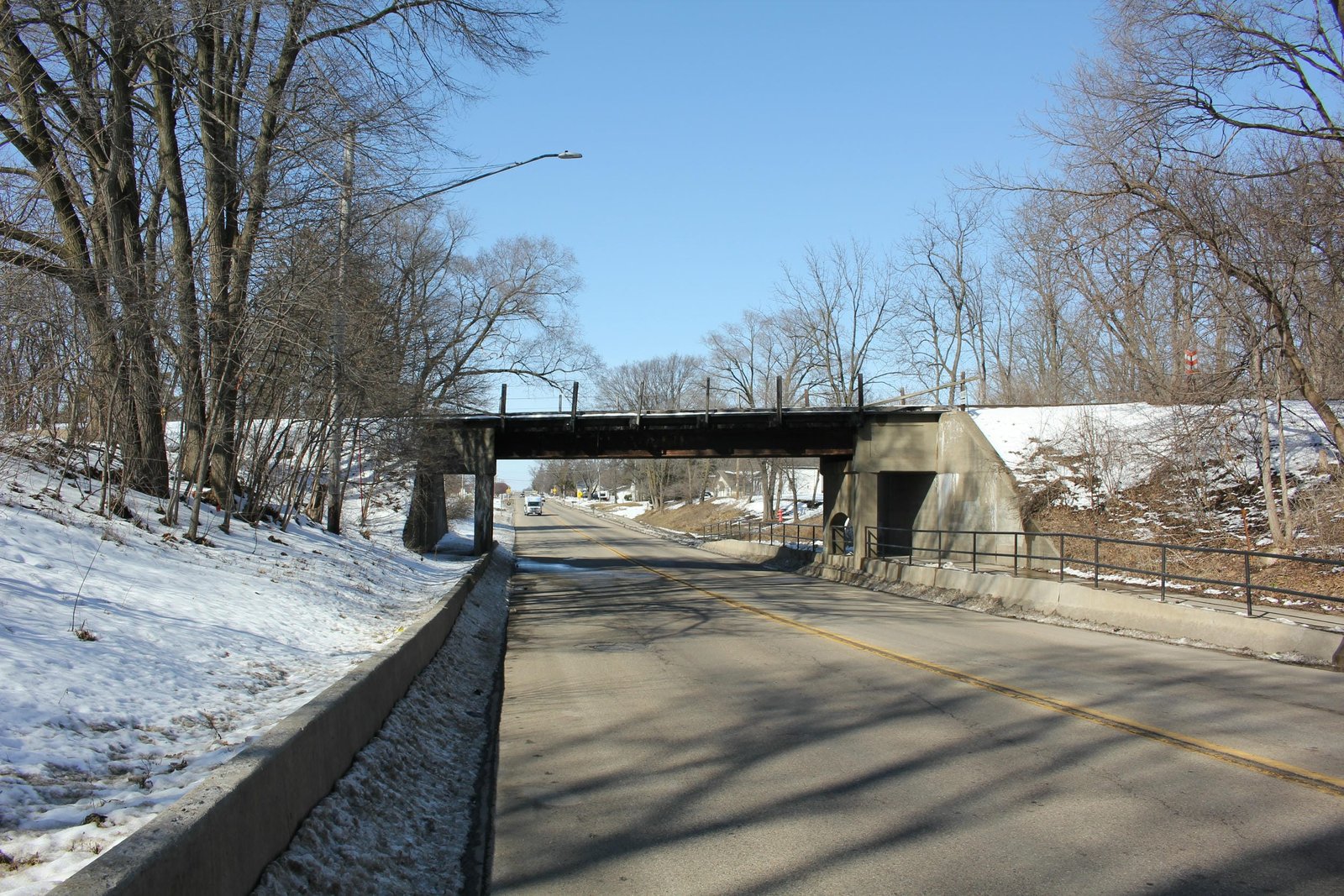

Located in Darien, this steel stringer bridge carries a former Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) line over Walworth Street (US Highway 14). In the late 1920s and early 1930s, the Wisconsin State Highway Commission began working with various railroad companies to construct grade separations at busy grade crossings. One of the priority projects was constructing a grade separation between the Milwaukee Road and US Highway 14 in Darien. Contracts for the project were awarded in late 1931, and the subway was constructed the following year. Currently, the bridge consists of a 45-foot steel stringer span, set onto concrete substructures and approached by a 10-foot concrete slab span on either end. The steel stringer span uses a standard design, with six shallow beams. The approach spans also use a typical design for the era, with decorative paneling stamped on the outside. Typical of bridges from this era, the piers use a decorative design, with two columns connected by a concrete arch. An unknown contractor fabricated the main span, while Kopplin & Williams constructed the approaches and substructure. Steel stringer spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations, and remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.
