Name FOXY Pierce Avenue Bridge
Chicago & North Western Railway Bridge #496
Built By Chicago & North Western Railway
Currently Owned By Fox Valley & Lake Superior Rail System
Superstructure Contractor Unknown
Substructure Contractor Cleary-White Construction Company of Chicago, Illinois
Length 64 Feet Total
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1913, Using a Span Fabricated 1887
Original Location Bridge #732; Hardin Creek Bridge; Jefferson, Iowa
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Chicago & North Western Railway Bridge Number 496
Canadian National Railway Bridge Number 496
Significance Local Significance
Documentation Date 10/8/2022

In 1876, the Milwaukee, Lake Shore and Western Railway (MLS&W) constructed 20 miles of new railroad, extending from Appleton, Wisconsin to New London, Wisconsin.  Work continued in 1878, with an additional 16 miles opening to Clintonville, Wisconsin.  19 additional miles were completed to Tigerton, Wisconsin in 1879, followed by 22 additional miles to Aniwa, Wisconsin in 1880.  An additional 26 miles to Summit Lake, Wisconsin opened in 1881, followed by 29 additional miles to Three Lakes, Wisconsin in 1882; 57 additional miles to Gogebic, Michigan in 1883, 41 miles to Hurley, Wisconsin in 1884 and 40 miles to Ashland, Wisconsin in 1885.  This line served as the mainline for the MLS&W, connecting Lake Michigan, the Fox River and Lake Superior.  Due to the success of the MLS&W, the railroad was purchased by the Chicago & North Western Railway in 1893.  The C&NW had acquired and constructed a vast network of railroad lines throughout the Midwest during the late 19th Century, and the MLS&W system provided more opportunities for expansion.

By the early 20th Century, the C&NW had constructed and acquired a large railroad network throughout the Midwest, making it one of the premiere railroads of the area. Throughout the first half of the 20th Century, this line remained critical for the C&NW, as it provided connections to a number of lines throughout central Wisconsin and the Upper Peninsula of Michigan.  Throughout the mid-20th Century, pulpwood business and passenger trains provided a bulk of the business over the southern portion of the line, and transporting iron ore from the Gogebic Range to the ore docks at Ashland provided business for the northern part of this line.  As industry began to diminish in this area, this line would be abandoned over a three year period.  In 1981, segments from Clintonville to Eland and from Marenisco, Michigan to Hurley, Wisconsin would be abandoned.  In 1982, the segment from Monico, Wisconsin to Watersmeet, Michigan would be abandoned.  In 1983, segments from Watersmeet to Marenisco, Eland to Monico and New London to Clintonville would be abandoned.

In 1988, the C&NW sold the Appleton to New London segment to the Fox River Valley Railroad, which became the Fox Valley and Western Ltd. (FV&W) in 1993.  The FV&W was a subsidiary of the successful Wisconsin Central Ltd. (WC), which had acquired a large amount of former Milwaukee Road and Soo Line trackage in Wisconsin. In 2001, WC was purchased by Canadian National Railway (CN), and became the American subsidiary of the railroad. In 2021, the Appleton to New London segment was sold to the Fox Valley & Lake Superior Rail System (FOXY).  Today, FOXY operates the remaining line between Appleton and New London.  Significant portions of the remaining line have been reused as bicycle and ATV/snowmobile trails.

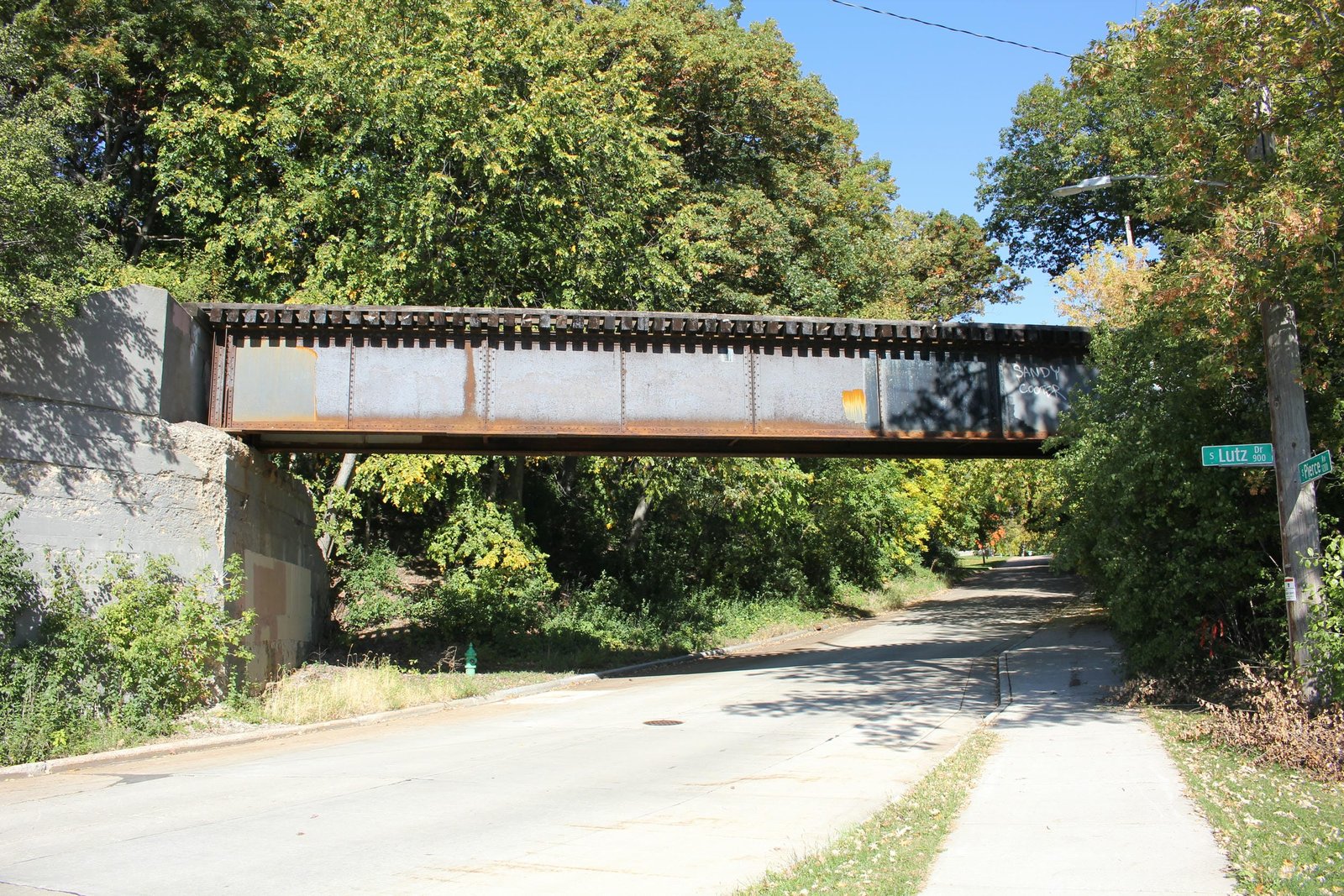

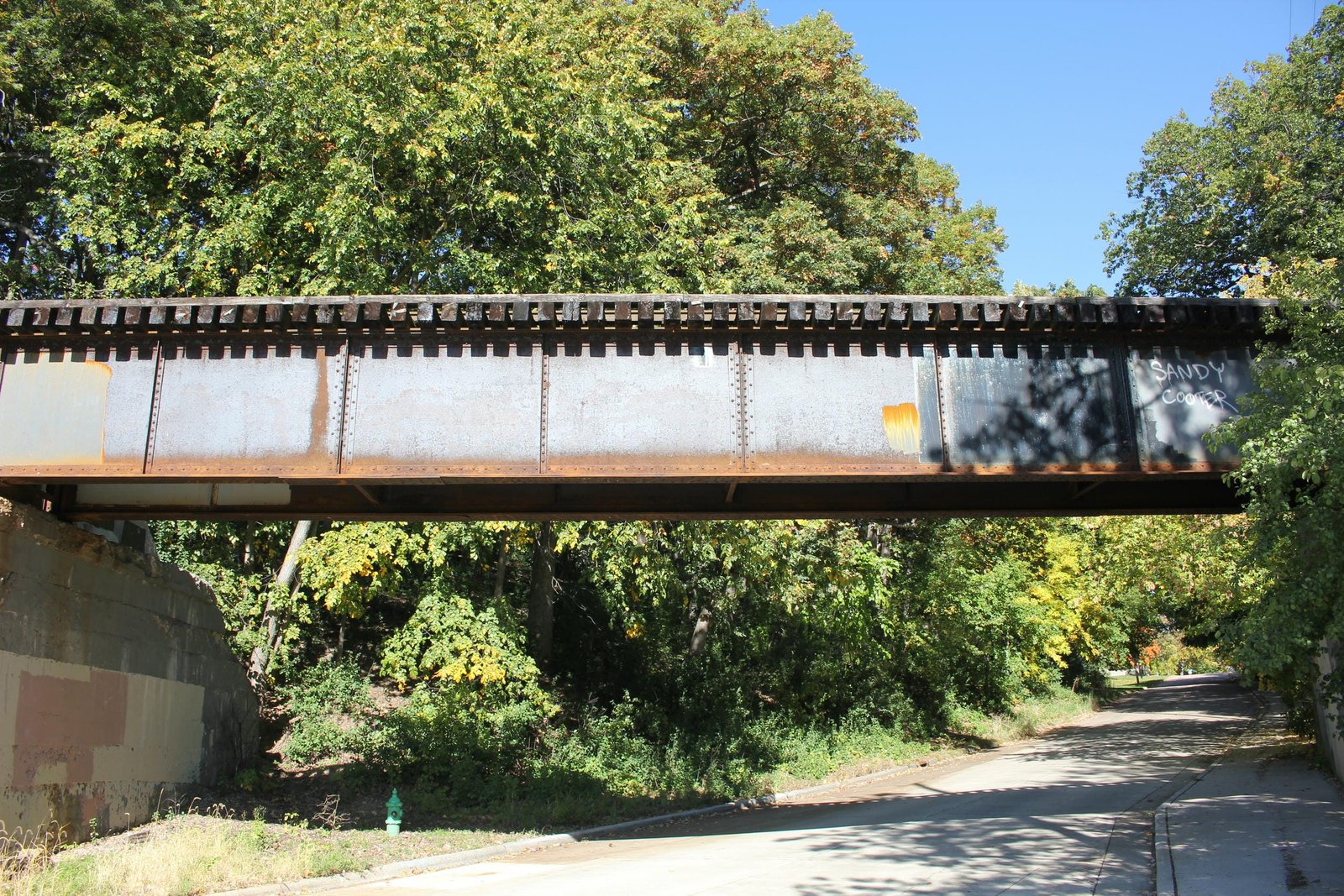

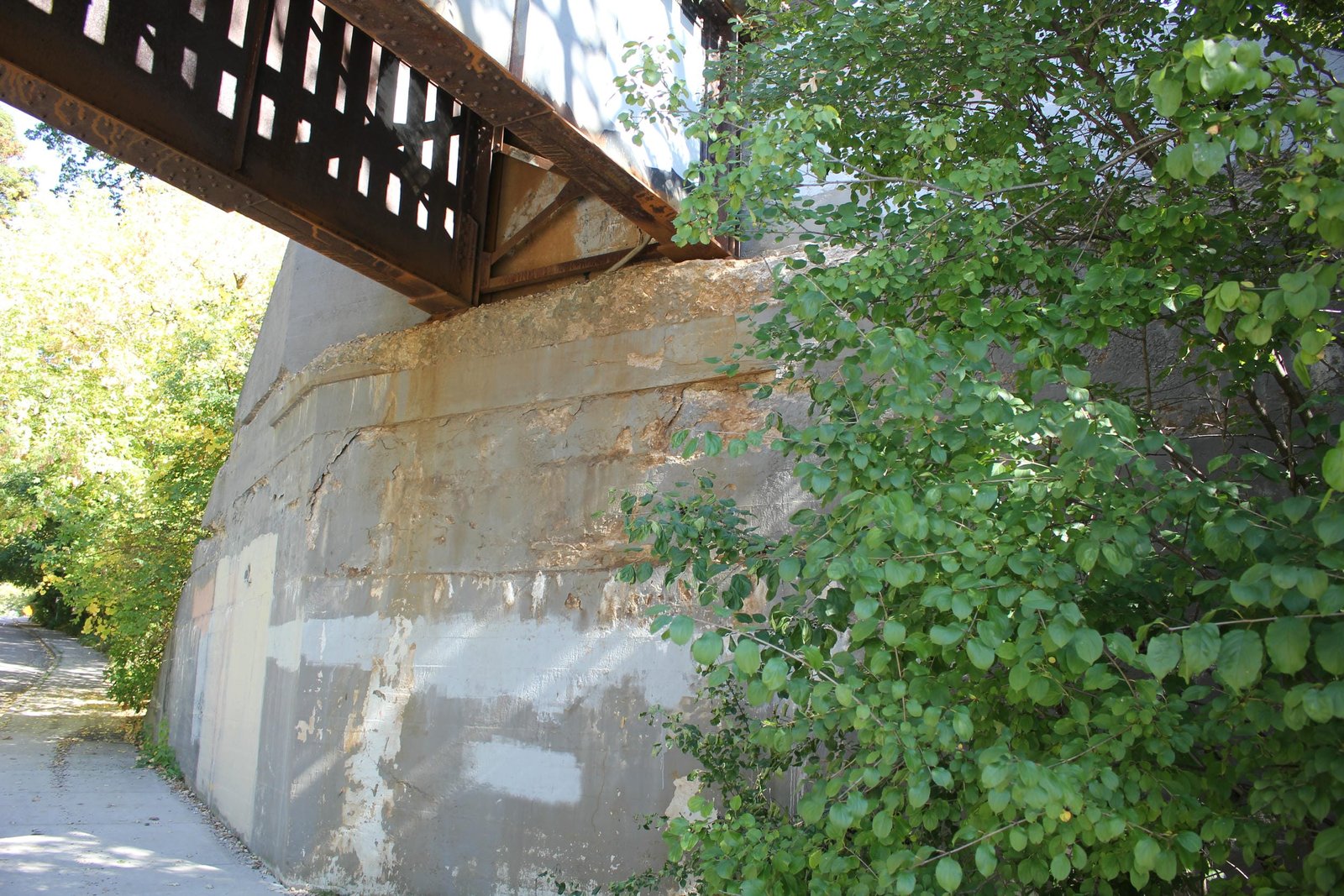

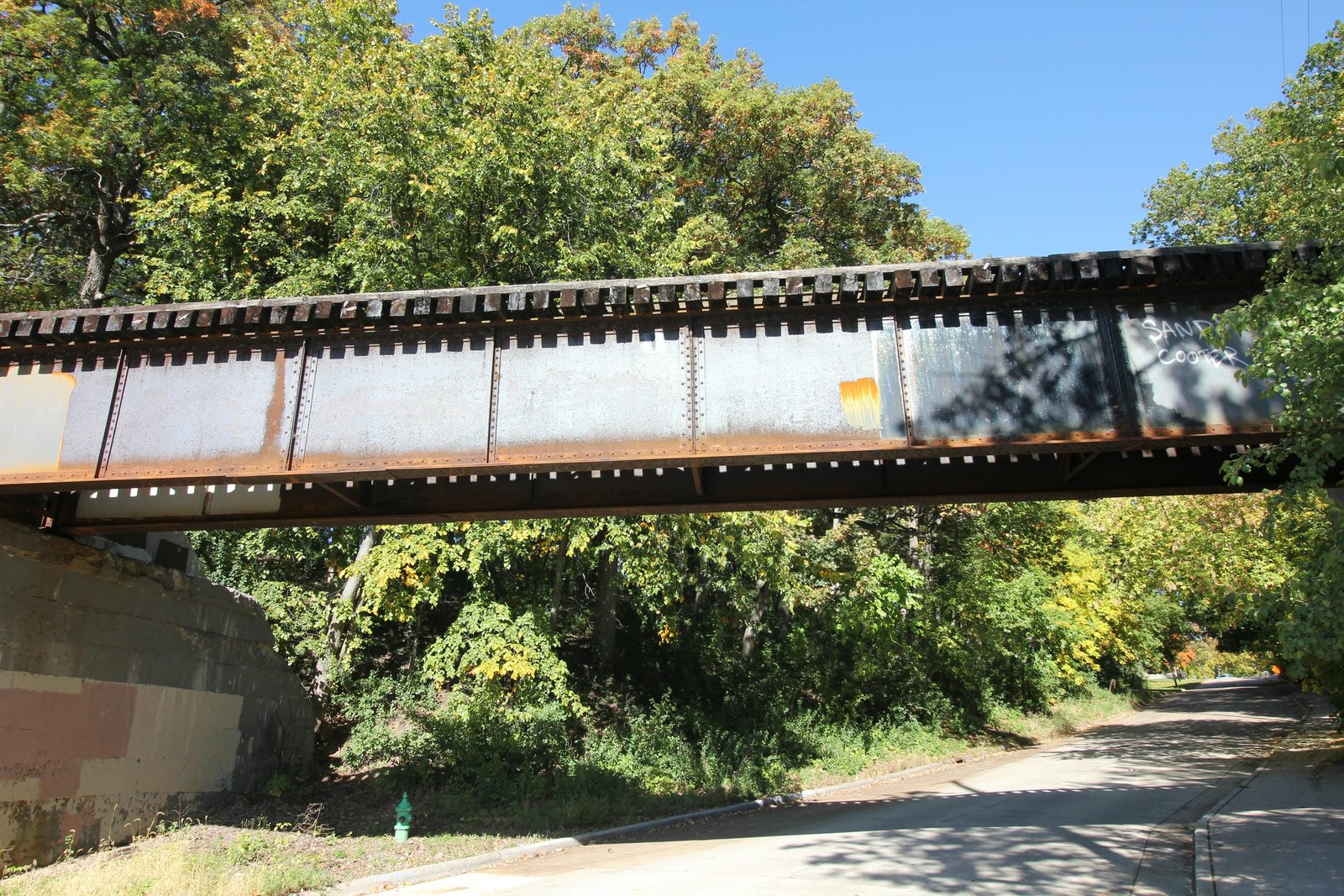

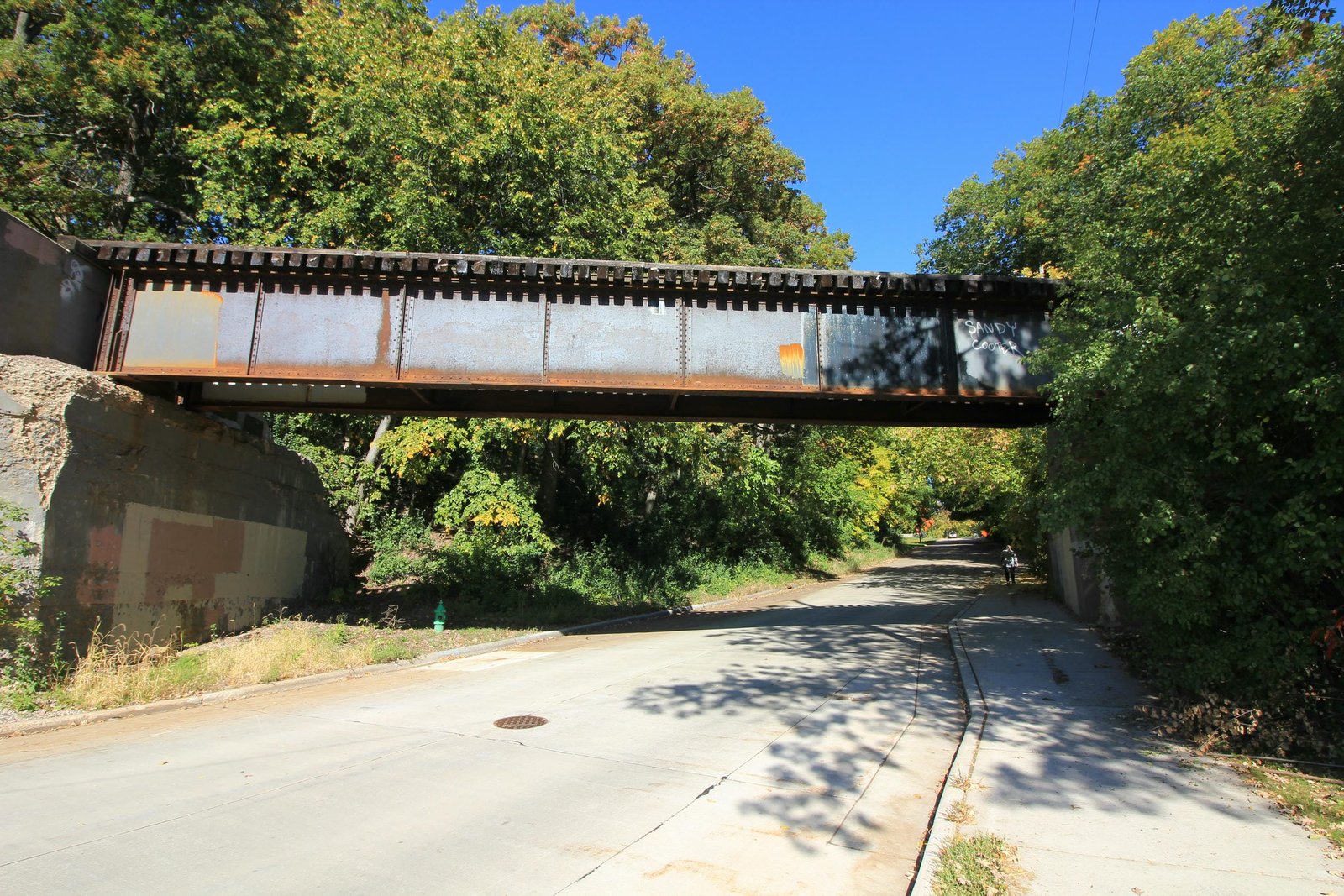

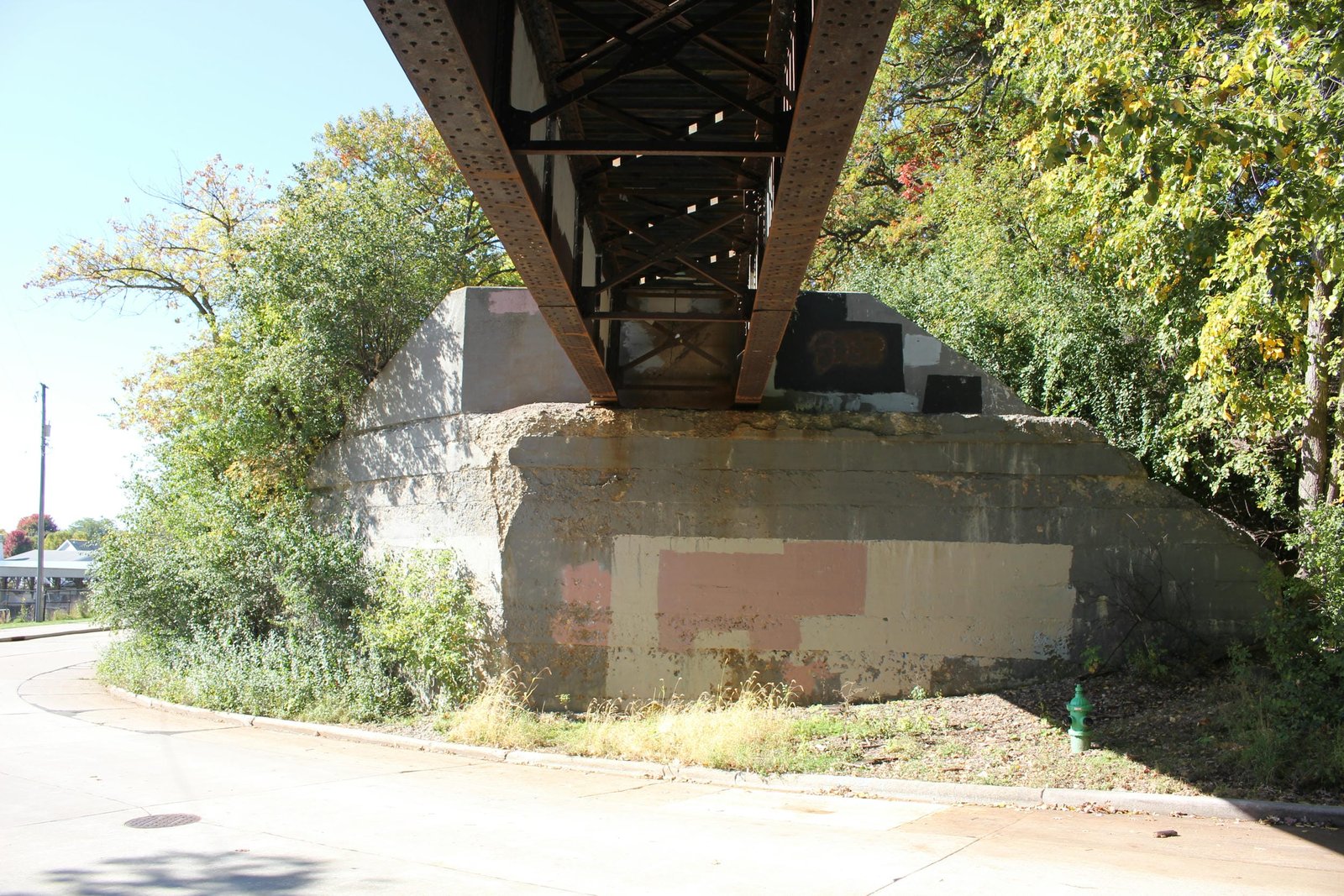

Located in Appleton, this deck plate girder bridge carries the former Chicago & North Western Railway mainline across Pierce Avenue. It is unclear if there was a previous bridge at this location. In 1901, a new bridge would be constructed, using a secondhand deck plate girder span, believed to have been set onto timber pile substructures. In 1913, the timber components of the bridge were replaced with concrete, giving the bridge its present configuration. Currently, the bridge consists of a 64-foot deck plate girder span, set onto concrete abutments. The girder span was originally fabricated in 1887 for use at Bridge #732 across Hardin Creek, east of Jefferson, Iowa. When that line was double tracked, the two spans were released for reuse. One of the spans was installed here, and the other was installed at Bridge #G-24 near Malvern, Wisconsin; which has since been removed. The superstructure follows a standard design for the the late 1880s and early 1890s, with heavy plate girders and lighter internal bracing. The abutments also use a standard design, with sloped wing walls extending in different directions. An unknown contractor fabricated the superstructure, while the Cleary-White Construction Company constructed the abutments. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Railroads often reused steel and iron spans, as it provided a cost effective way to replace bridges without requiring large amounts of new material. Since the initial construction, the bridge has seen no notable alterations, and remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The lack of section loss and age of the superstructure may indicate this span was fabricated from wrought iron. The author has ranked this bridge as being locally significant, due to the common design and unknown builders.


Citations

Build date and builder (substructure) Chicago & North Western Railway Valuation Notes at the Chicago & North Western Historical Society Archives
Relocation history Chicago & North Western Railway Drawing Collection at the Chicago & North Western Historical Society Archives
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
