| Name | CN Mason Street Bridge (Appleton) Chicago & North Western Railway Bridge #374 1/2 |
| Built By | Chicago & North Western Railway |
| Currently Owned By | Canadian National Railway |
| Superstructure Contractor | Milwaukee Bridge Company of Milwaukee, Wisconsin |
| Substructure Contractor | Bartz & Sullivan of Appleton, Wisconsin |
| Length | 66 Feet Total, 42 Foot Main Span |
| Width | 1 Track, Substructures Built For 2 Tracks |
| Height Above Ground | 12 Feet 2 Inches |
| Superstructure Design | Deck Plate Girder and Steel Stringer |
| Substructure Design | Concrete and Steel Bent |
| Date Built | 1911 |
| Traffic Count | 4 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago & North Western Railway Bridge Number | 374 1/2 |
| Canadian National Railway Bridge Number | 374 1/2 |
| Significance | Local Significance |
| Documentation Date | 10/8/2022 |
In 1854, the Rock River Valley Union Railroad Company (RRVU) constructed 18 miles of new railroad, extending from Chester, Wisconsin to Fond du Lac, Wisconsin. In 1855, the railroad began construction on an additional 11 miles, prior to being consolidated into the Chicago, St. Paul and Fond du Lac Railroad (CStP&FdL) early that year. The CStP&FdL completed the 11 miles south to Minnesota Junction, Wisconsin (present-day Clyman Junction) in 1855. The CStP&FdL was sold to the Chicago & North Western Railway (C&NW) in 1859. The C&NW constructed an additional 57 miles of railroad between Janesville, Wisconsin and Minnesota Junction in 1859. The same year, the C&NW completed 17 additional miles between Fond du Lac and Oshkosh, Wisconsin; followed by 20 miles between Oshkosh and Appleton, Wisconsin in 1861 and an additional 28 miles between Appleton and Green Bay, Wisconsin in 1862. The C&NW was reorganized in 1864, and the line would be extended north into Michigan in the 1860s and early 1870s.
During the second half of the 20th Century, the C&NW had constructed and acquired a large amount of trackage throughout the Midwest. By the 20th Century, the C&NW was operating an extensive railroad network, which radiated north and west from Chicago. This line served as a mainline, connecting the mainline at Janesville to industrial areas along Lake Winnebago and to Lake Michigan at Green Bay. While the line served as a mainline, it was one of two parallel routes between southern Wisconsin and Green Bay, with the other line following the shore of Lake Michigan north from Milwaukee. By the late 20th Century, the C&NW had begun to consolidate operations and abandon excess lines to remain a profitable railroad. The line between Clyman Junction and Fond du Lac would be abandoned in 1985, and purchased for trail use.
In 1988, the C&NW sold the Fond du Lac to Green Bay segment of this line to the Fox River Valley Railroad, which became the Fox Valley and Western Ltd. (FV&W) in 1993. The FV&W was a subsidiary of the successful Wisconsin Central Ltd. (WC), which had acquired a large amount of former Milwaukee Road and Soo Line trackage in Wisconsin. The C&NW was purchased by Union Pacific Railroad (UP) in 1995. The segment between Janesville and Fort Atkinson, Wisconsin would be abandoned in 1998, and portions acquired for trail use. Portions of the line between Oshkosh and Neenah were also abandoned in the late 1990s. In 2001, WC was purchased by Canadian National Railway (CN), and became the American subsidiary of the railroad. After CN acquired the line, portions of the line in Fond du Lac were abandoned in 2003, and the Fond du Lac to Oshkosh segment would be heavily rebuilt. Today, the Fond du Lac to Clyman Junction segment is used as part of the Wild Goose State Trail, and portions near Fort Atkinson and Neenah are also used by trails. UP operates the Clyman Junction to Fort Atkinson segment as the Clyman Industrial Lead, and CN operates the North Fond du Lac to Green Bay segment as the Fox River Subdivision.

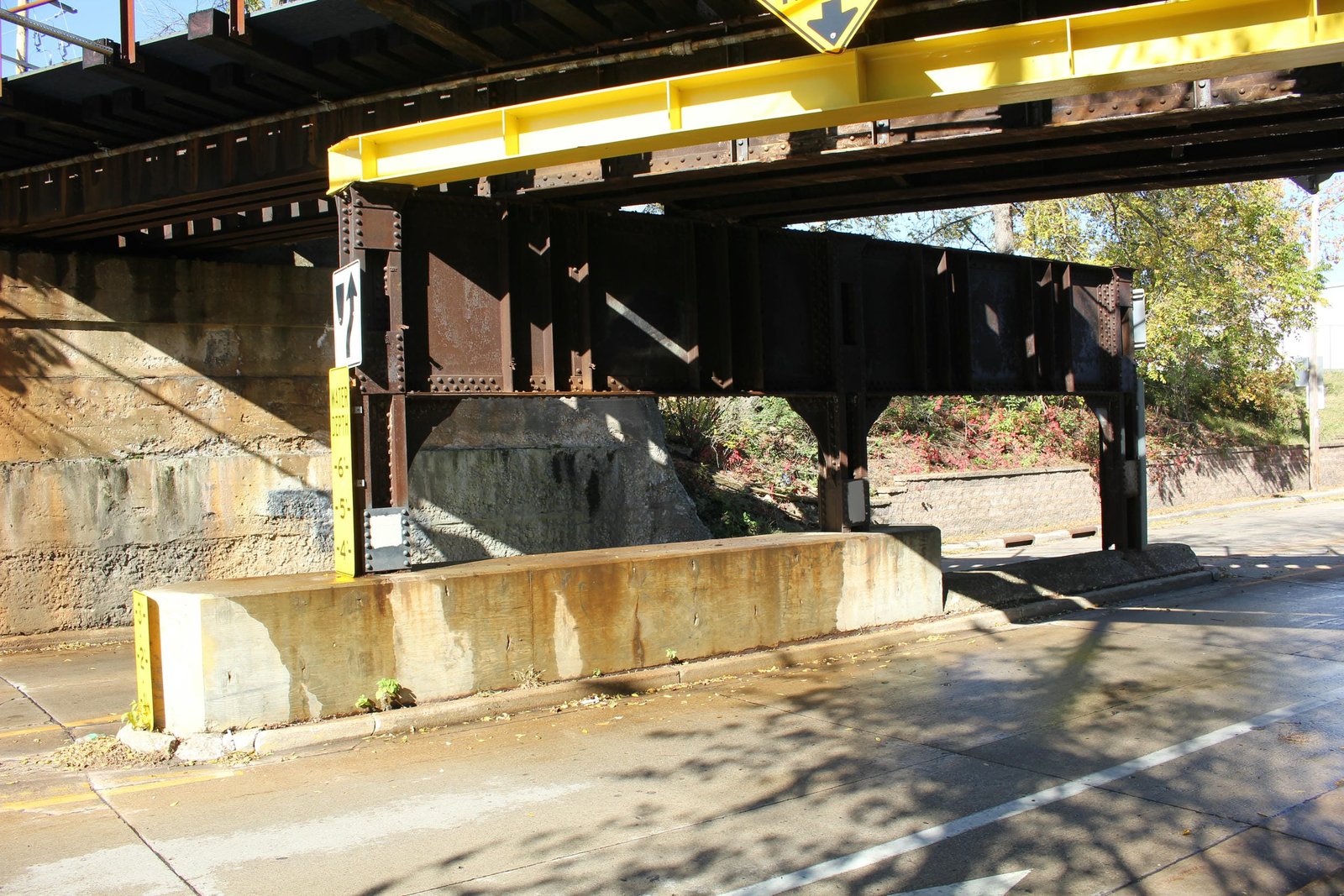

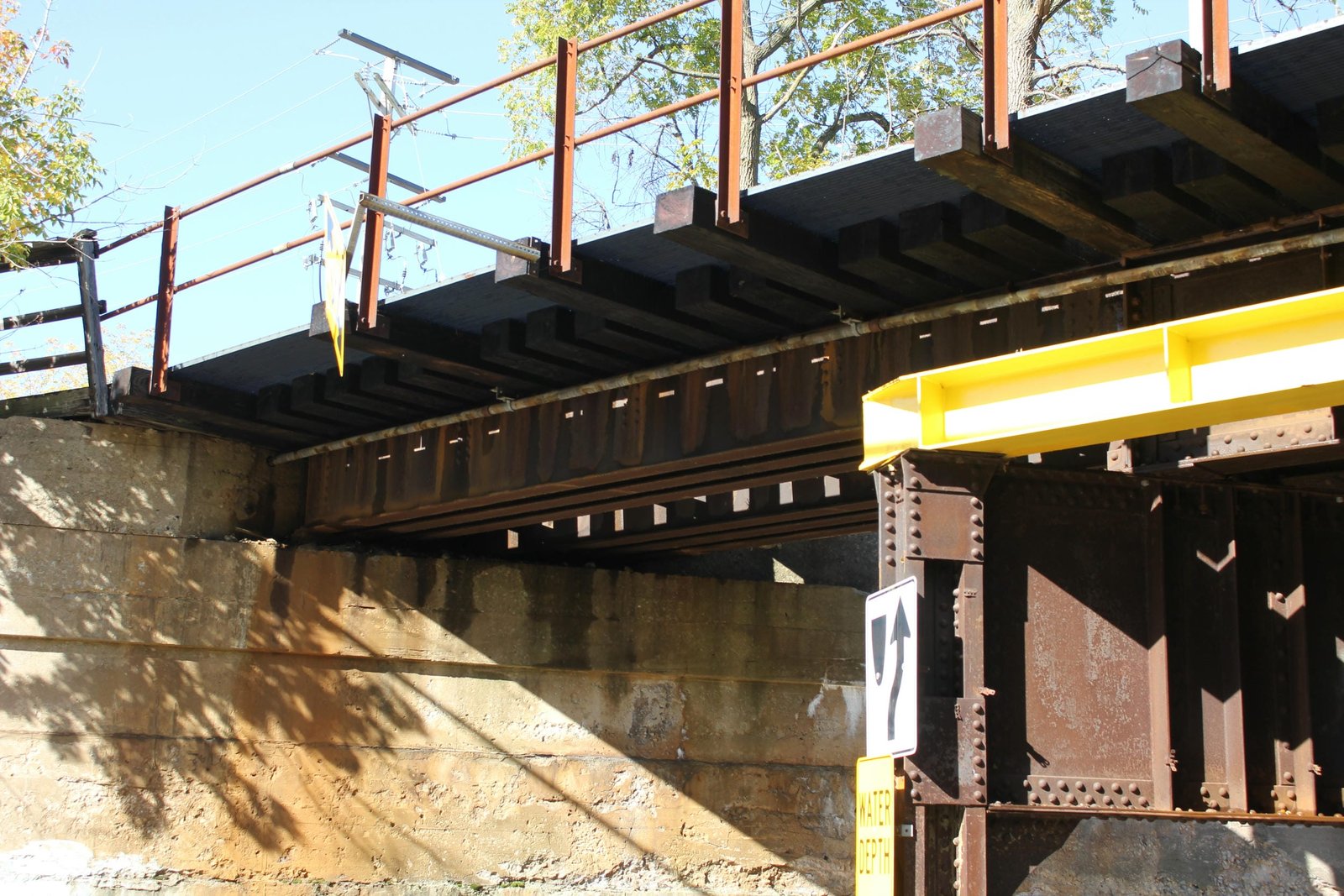

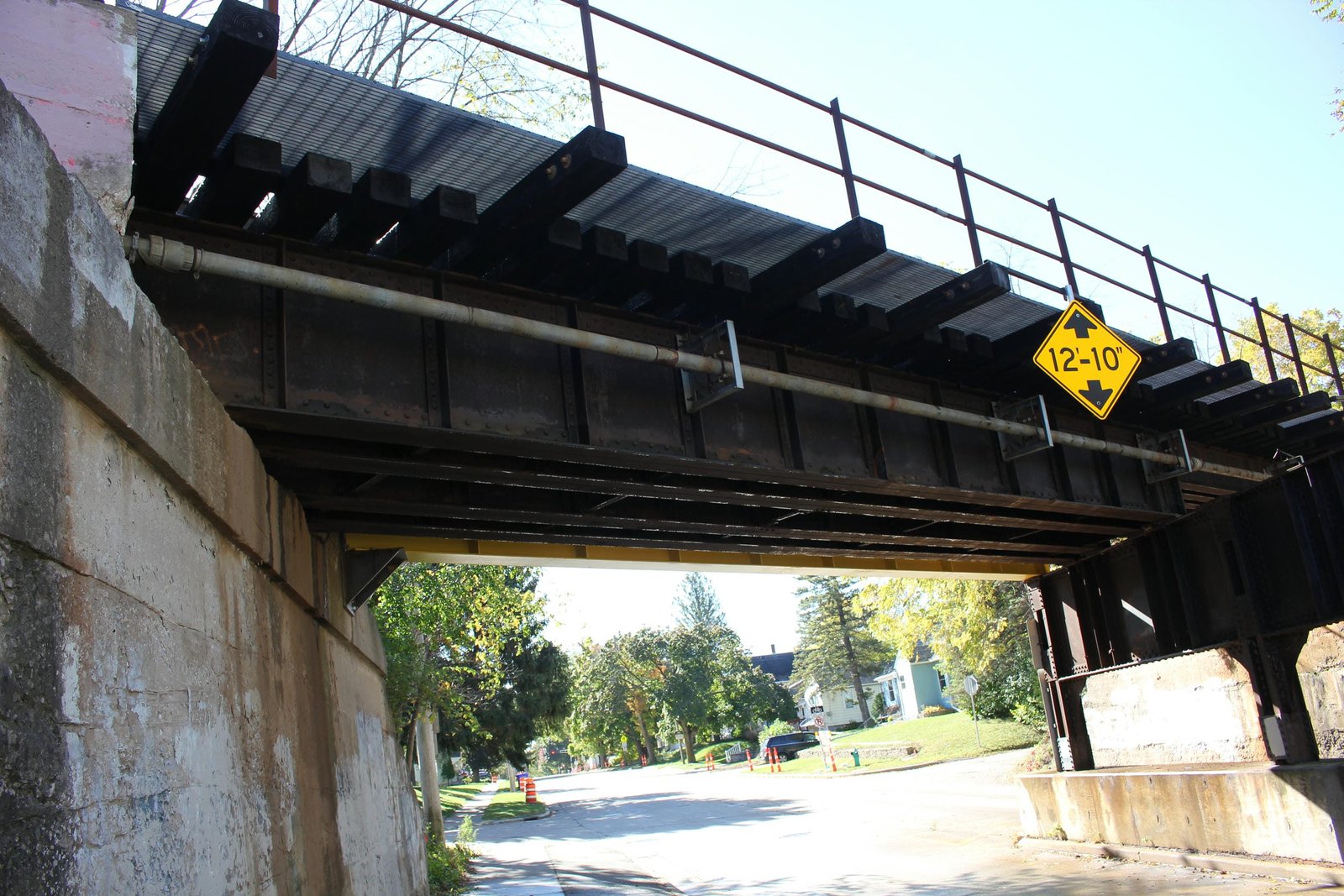

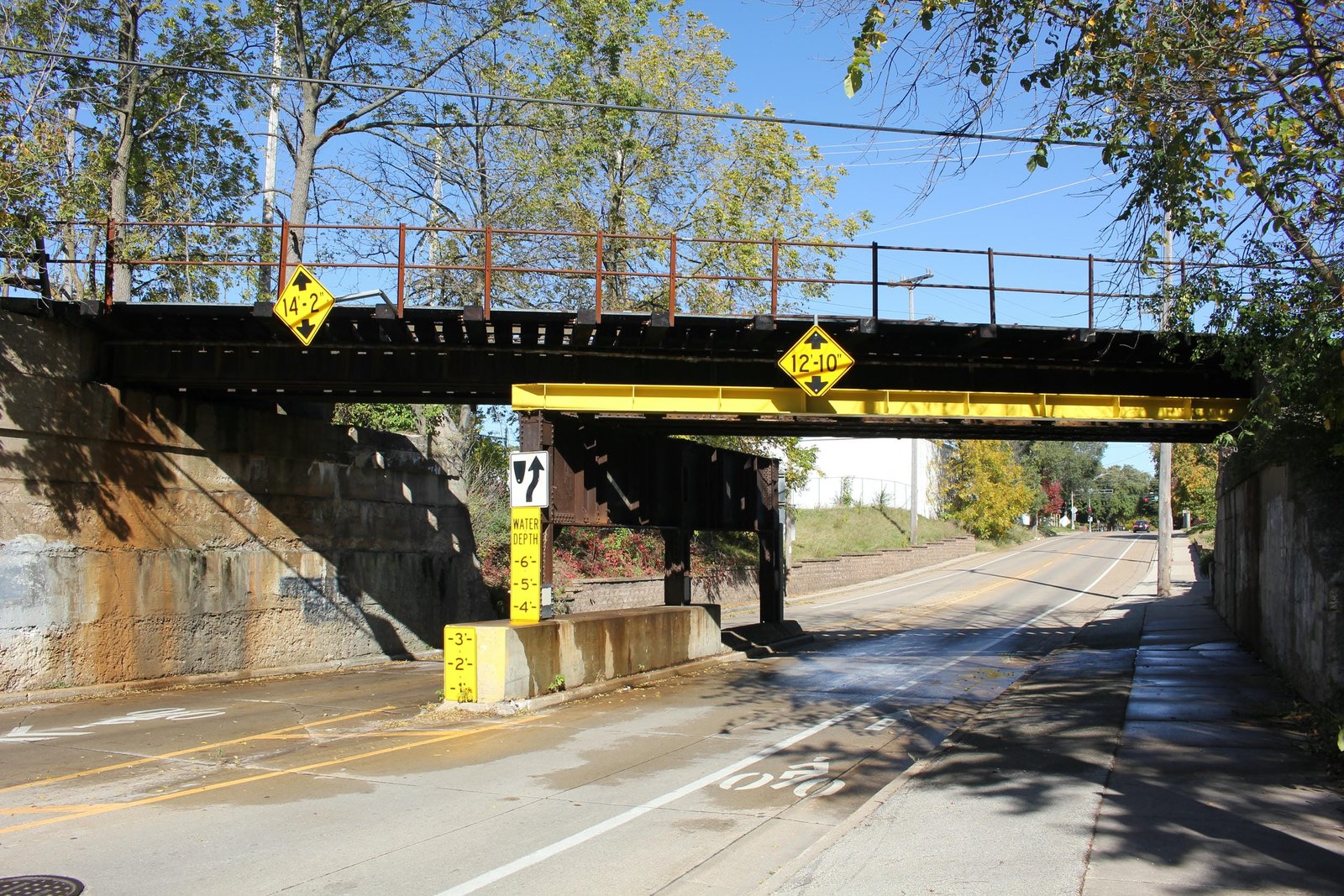

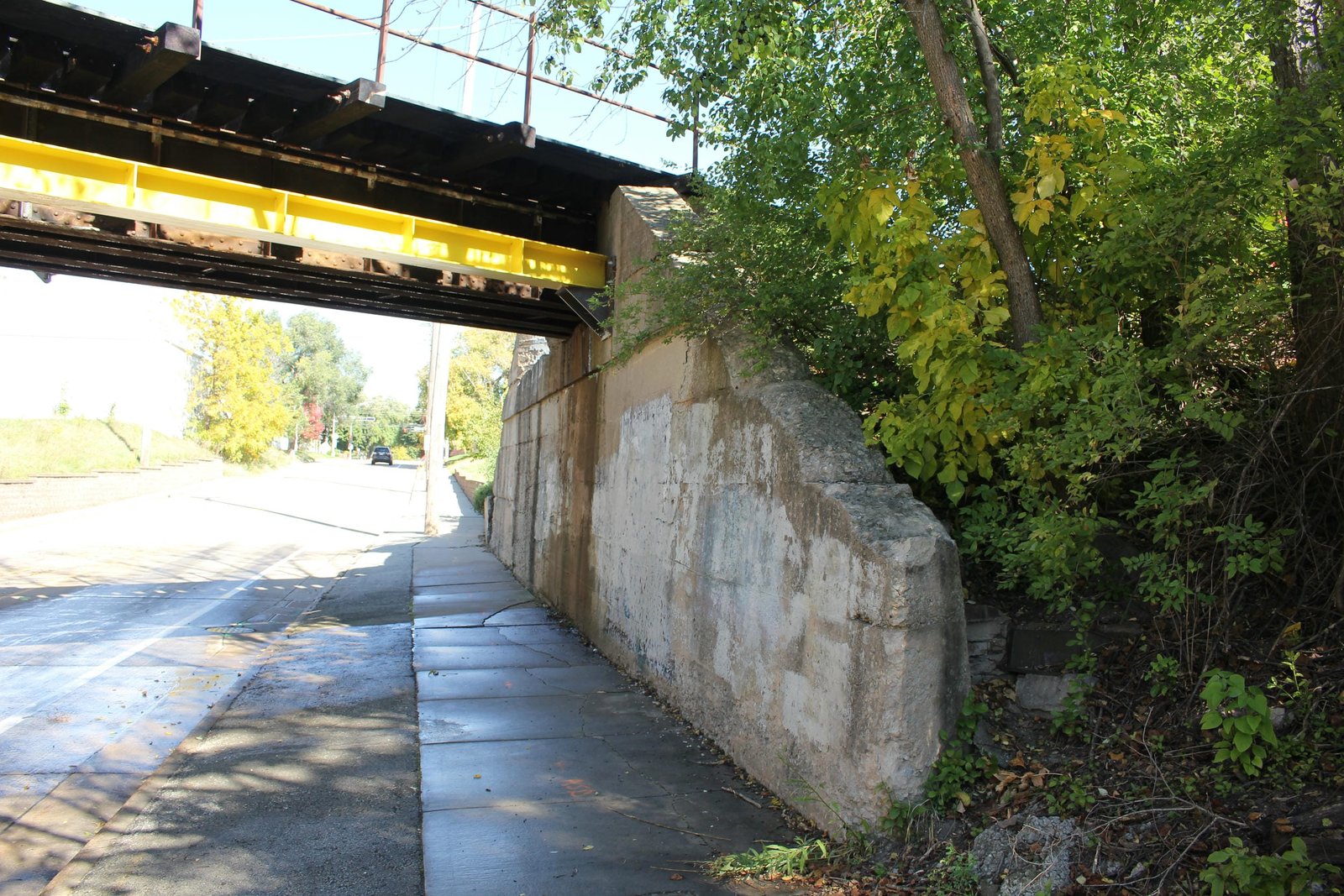

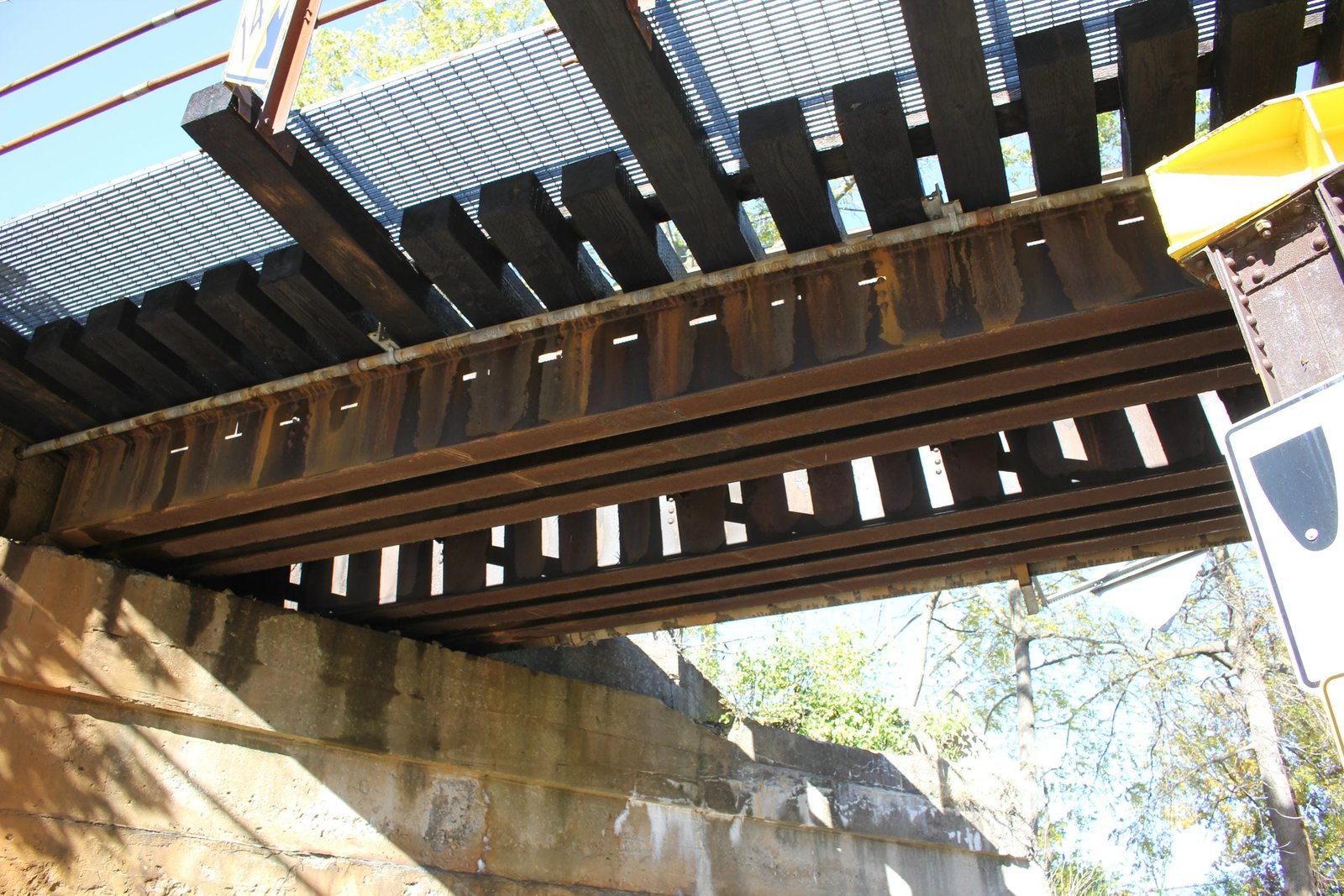

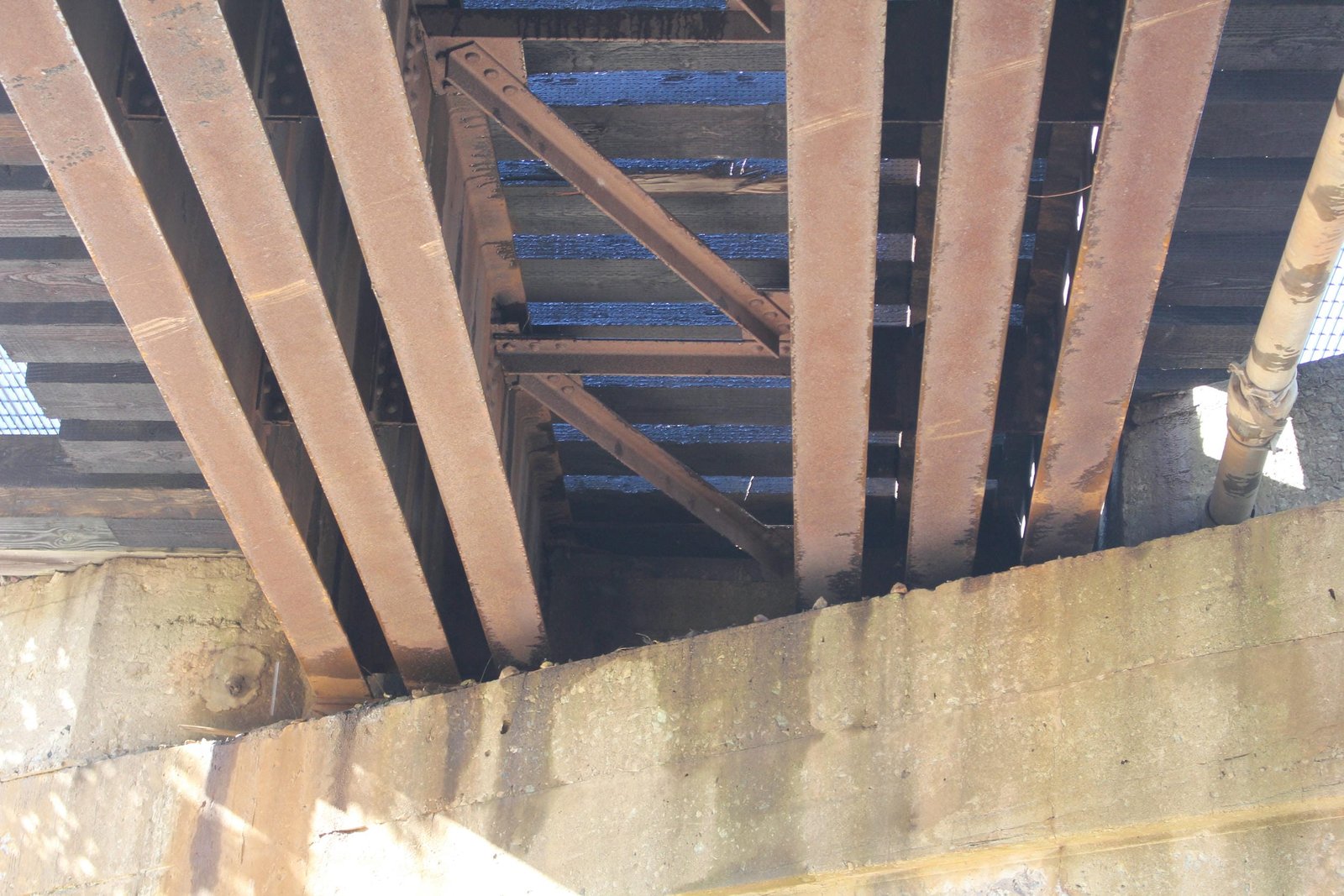

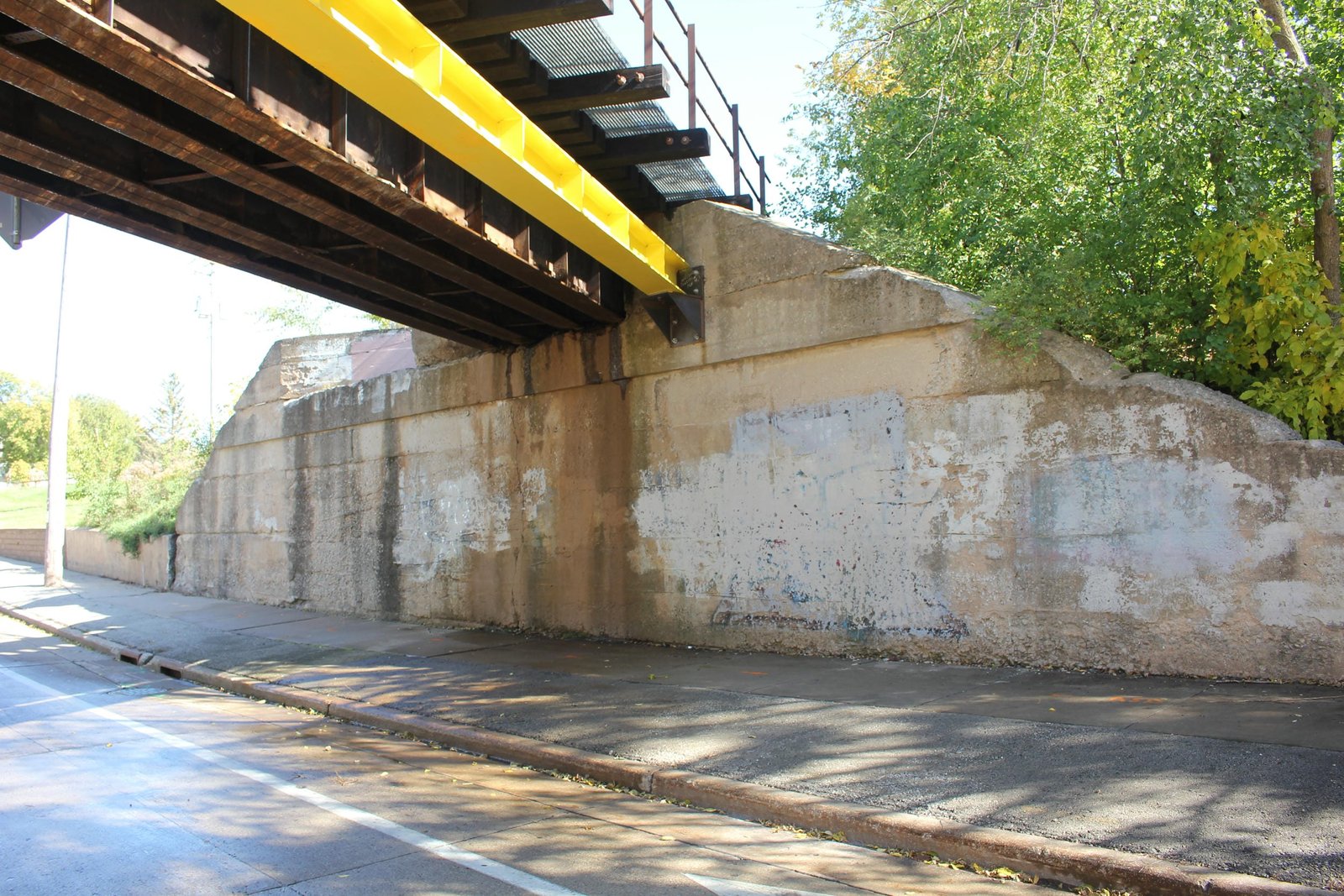

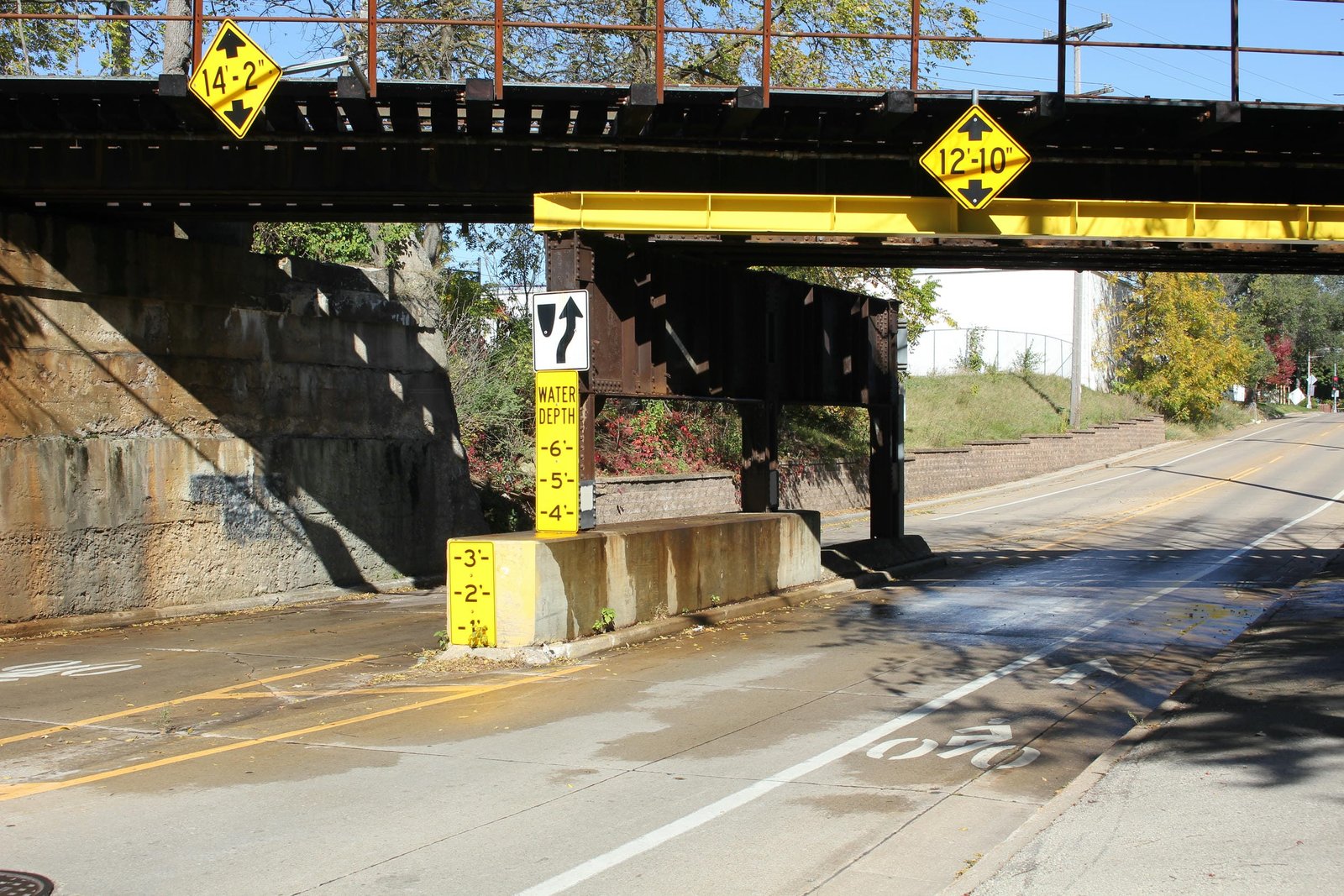

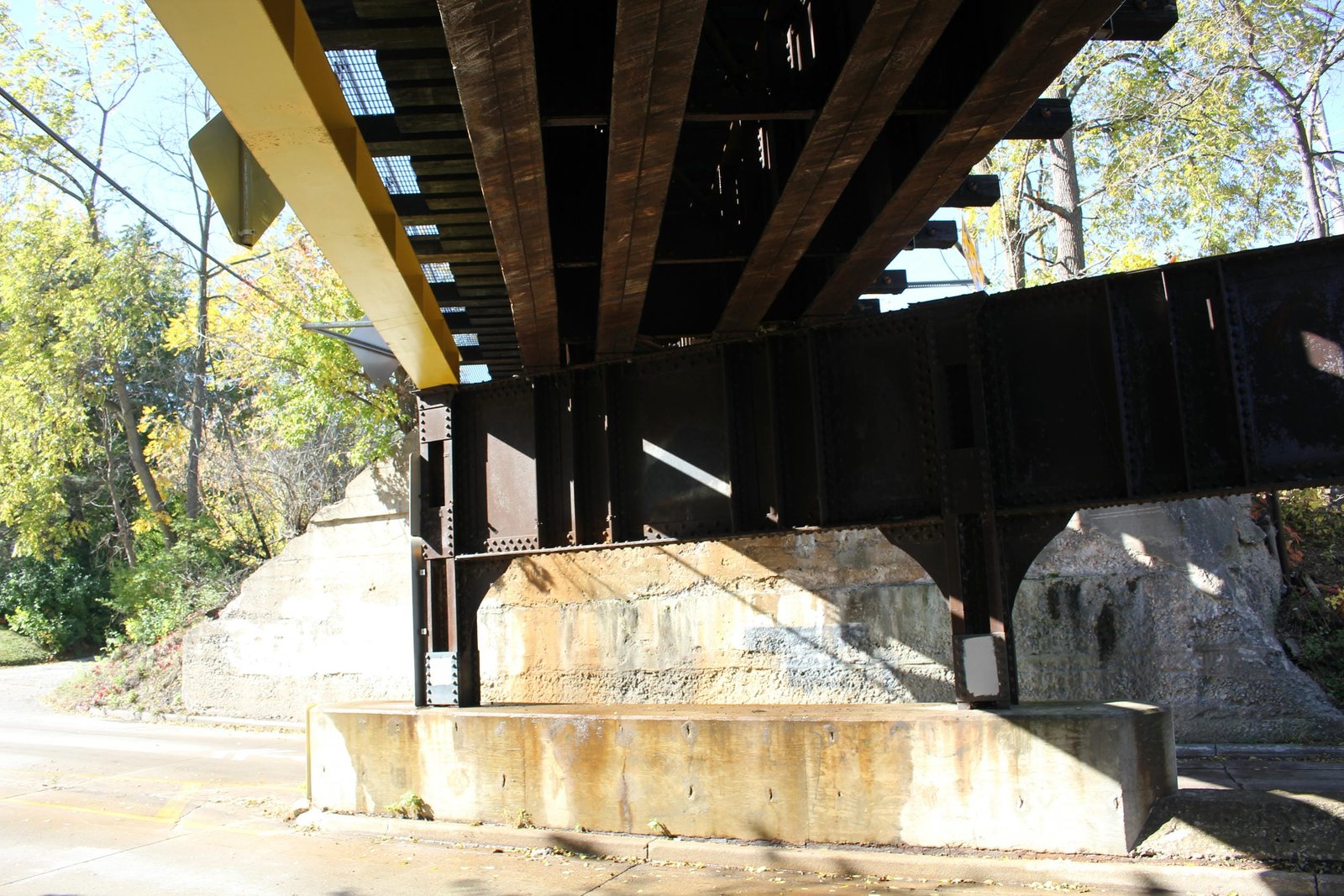

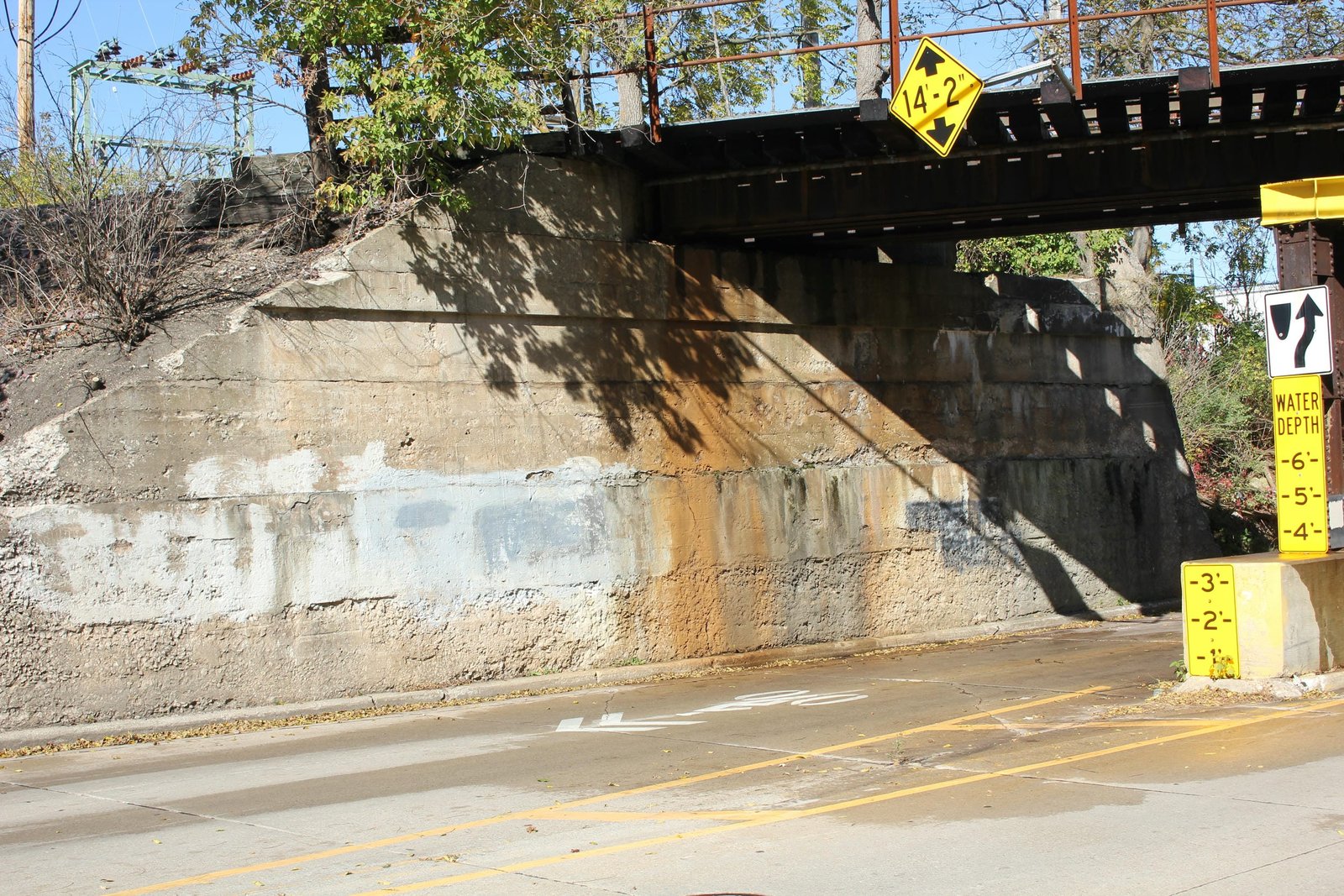

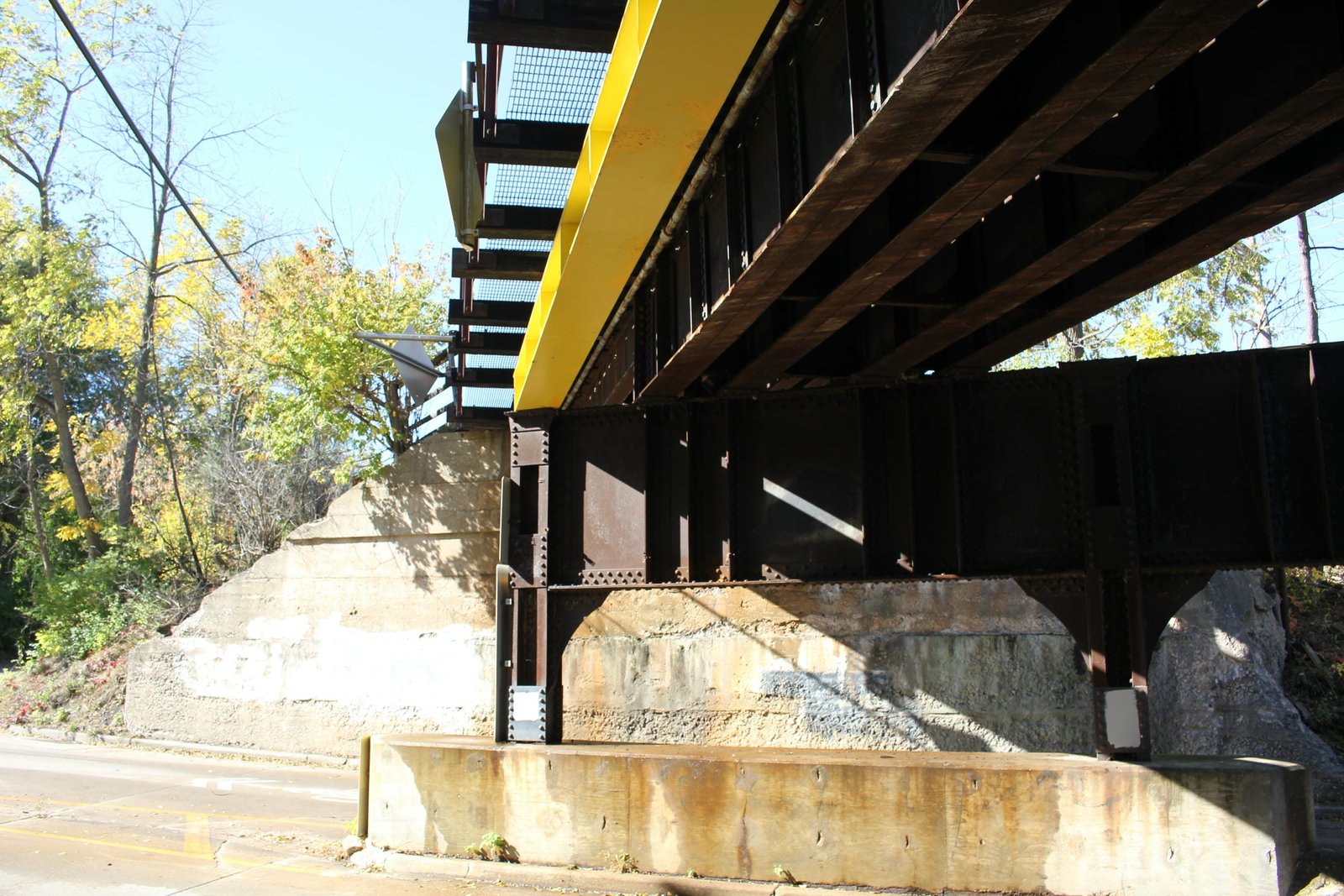

Located in Appleton, this deck plate girder and steel stringer bridge carries the former Chicago & North Western Railway mainline across Mason Street. In the late 1900s and early 1910s, the City of Appleton worked with railroads to construct grade separations at a limited number of locations. One of the identified locations was at Mason Street, where an interurban line was planned to cross under the C&NW. Contracts for the bridge were awarded in 1910, with construction beginning later that year. Steel for the bridge was placed in January 1911, and the bridge completed soon after. Currently, the bridge consists of a 42-foot deck plate girder span and a 24-foot steel stringer span, set onto concrete abutments and a steel bent pier. The northern span consists of four girder lines, which use shallow girders. The south span uses six beams, arranged into two sets of two. The pier consists of three steel columns, connected by a large plate girder at the top, while the abutments use a standard design with sloped wing walls. While the bridge was originally constructed for two tracks, the deck was removed from the northern track by 1917, and the spans were removed prior to the 1930s. It is unclear if the spans were reused elsewhere. Because the bridge was a joint effort between the C&NW and the City of Appleton, the C&NW awarded the contract for the steel, while the city awarded the contract for the concrete and excavation. Milwaukee Bridge Company fabricated the superstructure, while local contractor Bartz & Sullivan constructed the substructures. Deck plate girder and steel stringer spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no notable alterations, and remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.
Citations
| Build date and builder (superstructure) | Chicago & North Western Railway Valuation Notes at the Chicago & North Western Historical Society Archives |
| Builder (substructure) | Engineering-Contracting; Volume 34, Issue 1 |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
