UP Broadway Bridge (Rockford)


Click the photo to view the full-size version

1/11
Date Taken:
Author:
Caption:

Name UP Broadway Bridge (Rockford)
Chicago & North Western Railway Bridge #455
Built By Chicago & North Western Railway
Currently Owned By Union Pacific Railroad
Superstructure Contractor American Bridge Company of New York
Substructure Contractor Unknown
Length 64 Feet Total, 32 Foot Spans
Width 1 Track
Height Above Ground 12 Feet 3 Inches
Superstructure Design Through Plate Girder
Substructure Design Concrete and Steel Bent
Date Built 1917
Traffic Count 1 Train/Day (Estimated)
Current Status In Use
Chicago & North Western Railway Bridge Number 455
Union Pacific Railroad Bridge Number 90.72
Significance Local Significance
Documentation Date 4/20/2019

In 1836, the Galena and Chicago Union Railroad (G&CU) was charted to construct a railroad line between Chicago and Galena, Illinois.  After attempts to construct the railroad in the late 1830s, the company came to a halt due to lack of funds.  William B. Ogden was elected director of the G&CU in 1847, and construction on the railroad began in 1848.  That year, the first four miles to present day Oak Park were constructed.  In 1849, the railroad reached Turner Junction (West Chicago), thirty miles west of downtown Chicago.  By the end of 1850, the railroad had reached Elgin, and in 1852, the railroad would reach Rockford.  In 1853, the line would be extended to Freeport, Illinois; where it connected to the Illinois Central Railroad.  The G&CU realized the company would be better served by constructing a mainline west towards Iowa, and never extended the line past Freeport.  In total, the line would be 121 miles in length.  The G&CU was consolidated with the Chicago & North Western Railway (C&NW) in 1864.  The C&NW was beginning to construct and acquire a large network of railroads throughout the Midwest.  The West Chicago to Freeport line formed a secondary route, connecting industries to Chicago.

Through the 20th Century, this route began to decline in significance.  The C&NW would become a prominent railroad in the midwest, eventually building a system over 11,000 miles long.  By the 1970s, industries had closed and passenger traffic disappeared.  In 1981, the C&NW would abandon the segment between Rockford and Freeport.  The right-of-way would be purchased by Commonwealth Edison, and portions of the line converted to the Pecatonica Prairie Path.  In 1995, the C&NW would be purchased by the Union Pacific Railroad.  Today, Union Pacific operates the West Chicago to Rockford segment as the Belvidere Subdivision, which mainly serves the Stellanis Plant in Belvidere.  Metra service is scheduled to begin to Rockford in 2027, and utilize this line between Elgin and Rockford.  West of Rockford, much of the route has become part of the Pecatonica Prairie Path.

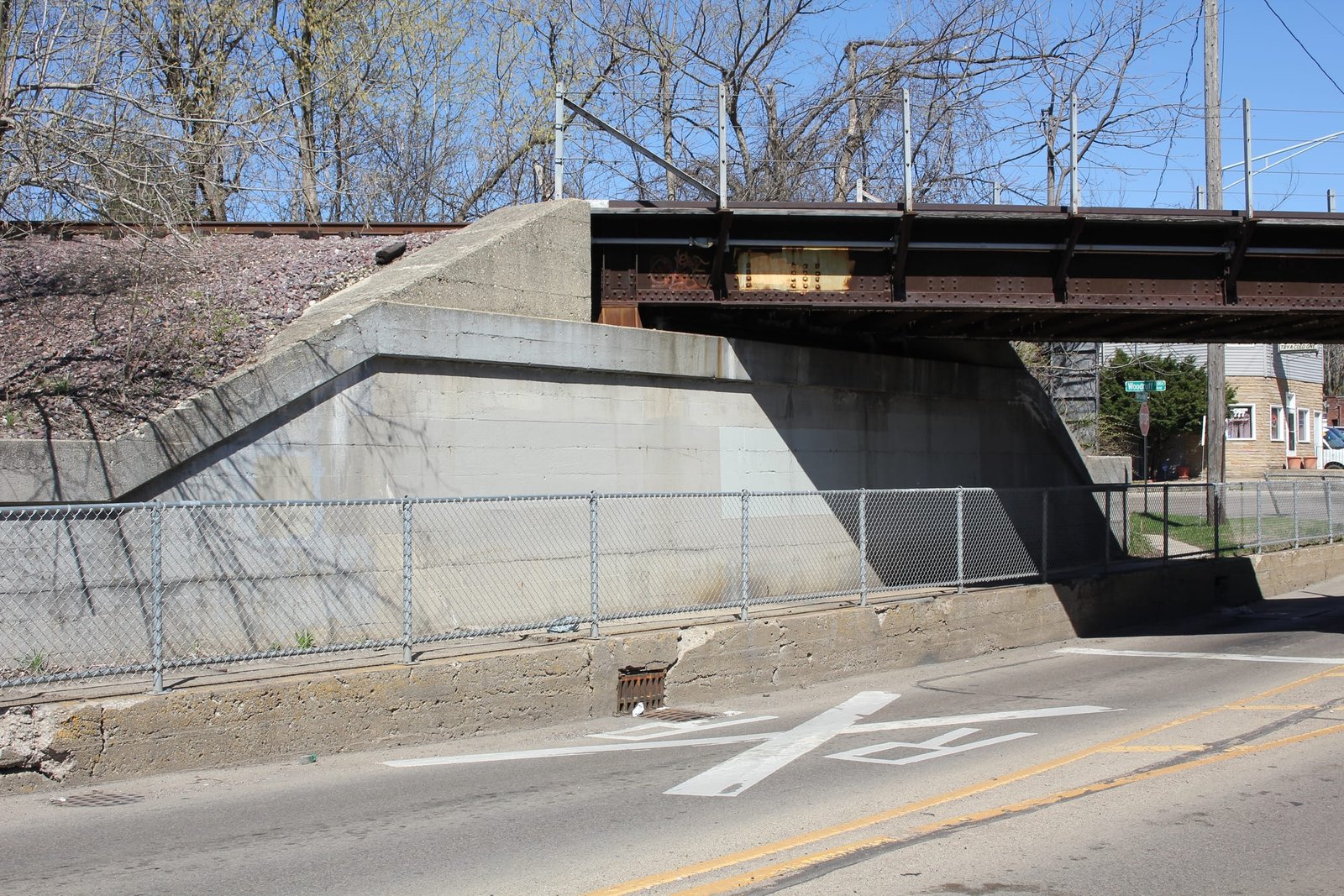

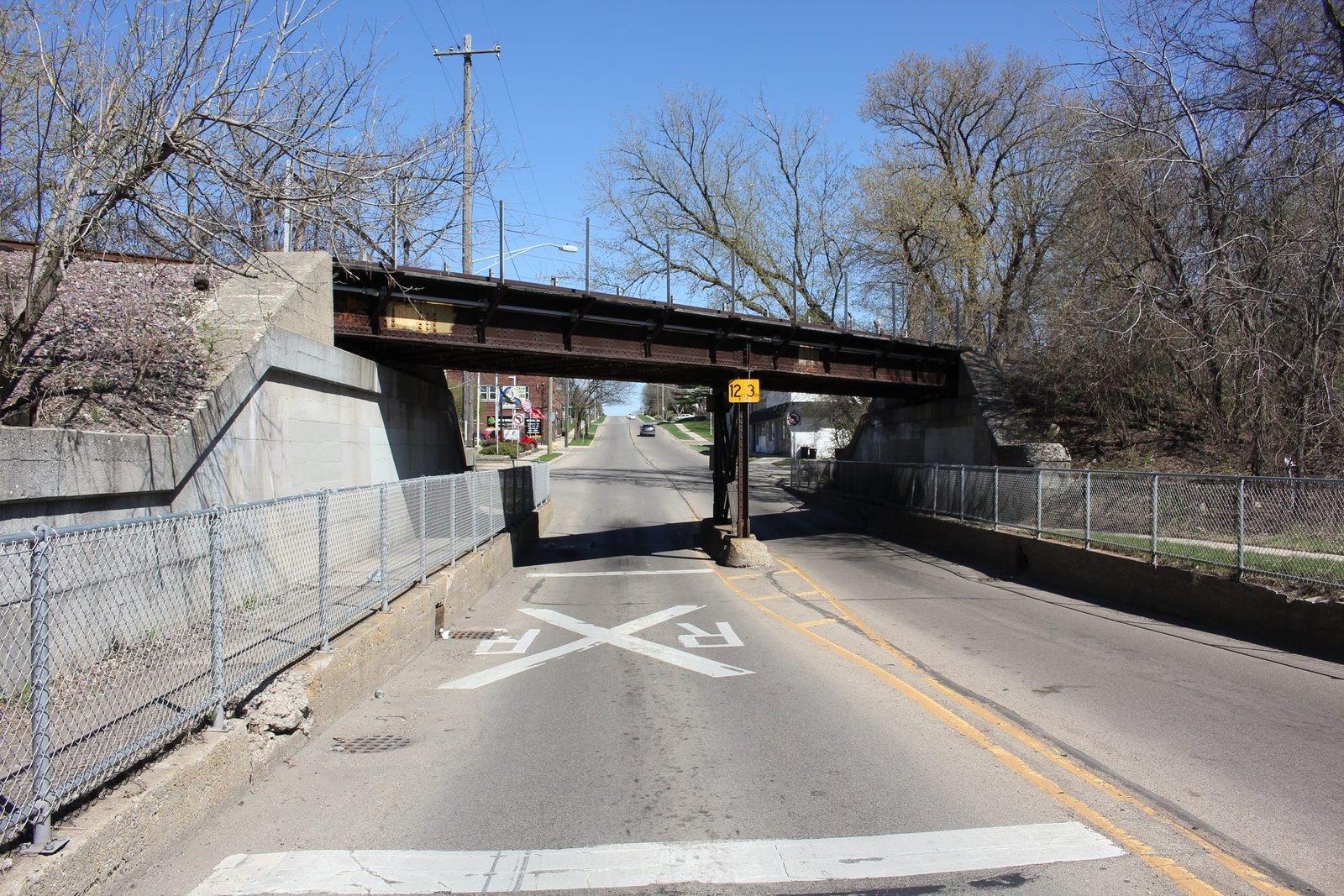

Located in Rockford, this through plate girder bridge carries the former Chicago & North Western Railway over Broadway (formerly 14th Street). Built in 1917, the bridge consists of two 32-foot through plate girder spans, set onto concrete abutments and a steel bent pier. The superstructure utilizes a typical design for the era, including a ballast deck and a floor constructed of numerous parallel steel stringer spans. In addition, the bridge runs at a heavy skew. American Bridge Company fabricated the superstructure, and an unknown contractor completed the concrete abutments. This type of bridge became popular in the early 20th Century, as it was durable and easy to construct. Railroads began to prefer ballast decks, as they reduced maintenance of the bridge. Overall, the bridge appears to be in fair to poor condition, with significant areas of section loss. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Build date Chicago & North Western Valuation Notes at the Chicago & North Western Historical Society Archives
Builder American Bridge Company plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
