Name Trail 2 - Montreal River Bridge
Chicago & North Western Railway Bridge #A-1141
Built By Chicago & North Western Railway
Currently Owned By Iron County (WI)/Gogebic County (MI)
Superstructure Contractor King Bridge Company of Cleveland, Ohio
Substructure Contractor Unknown
Length 75 Feet Total
Width 2 Tracks
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder

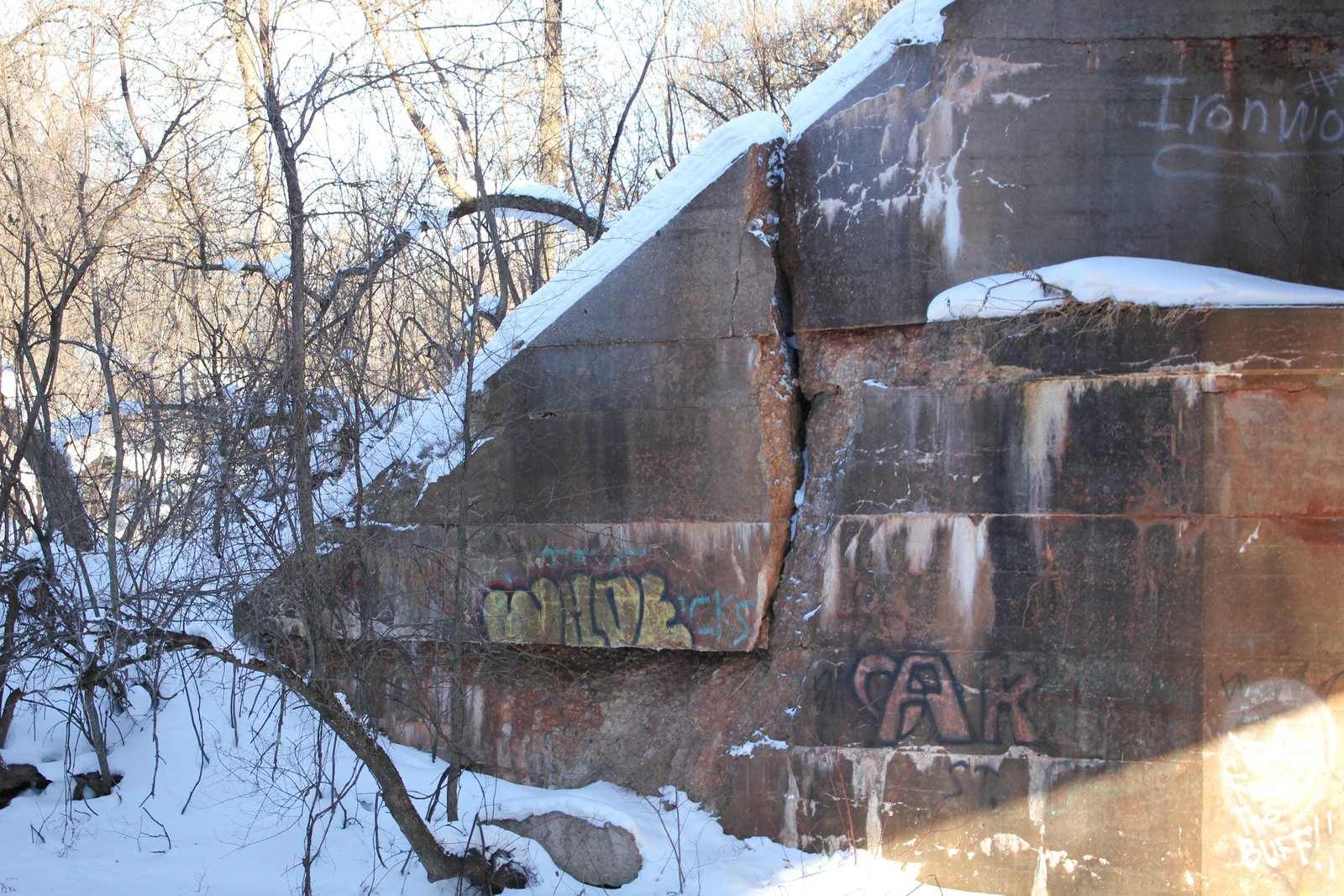

Substructure Design Concrete

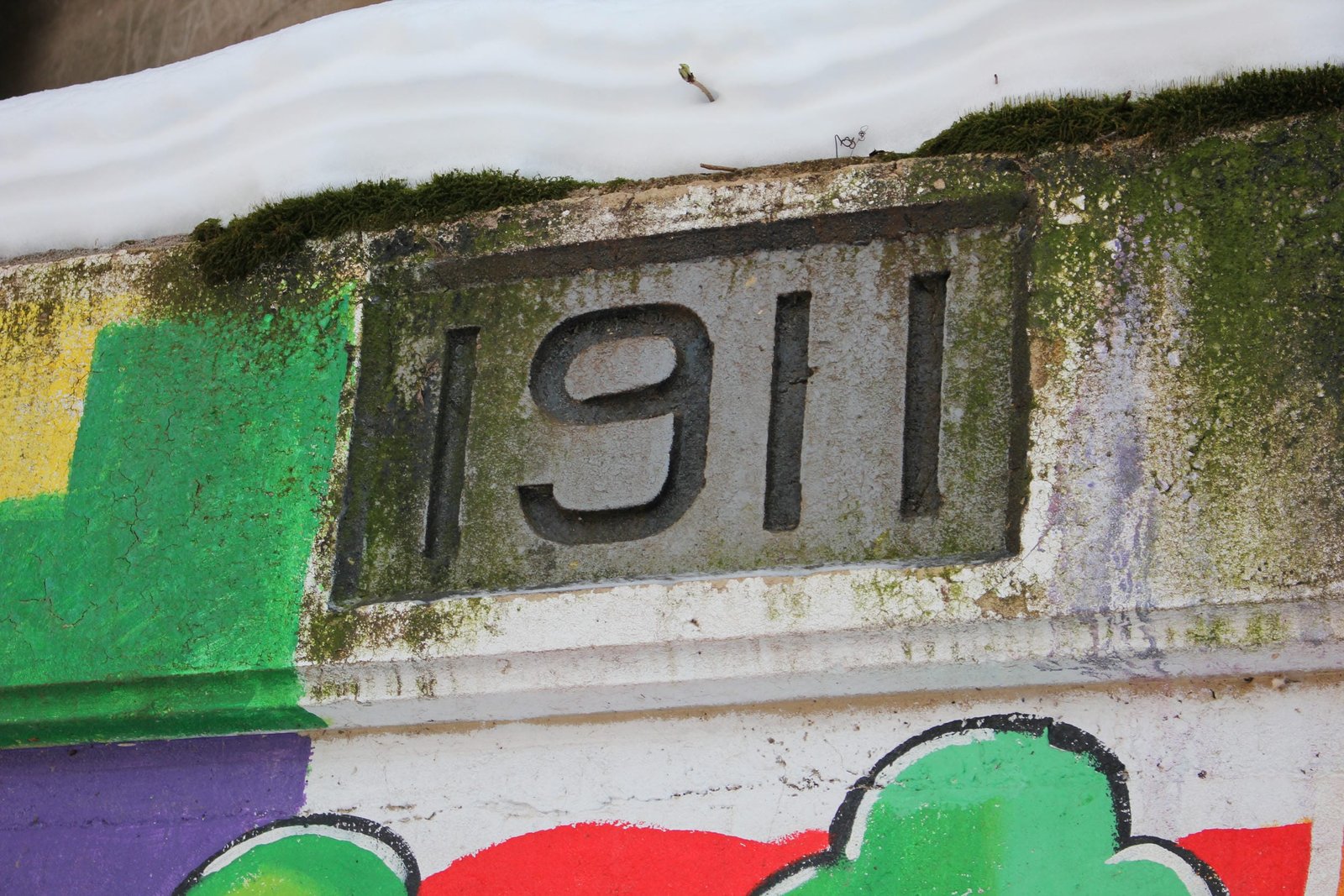

Date Built 1911
Traffic Count 0 Trains/Day (Bridge Is Open to Off-Road Vehicle Traffic)

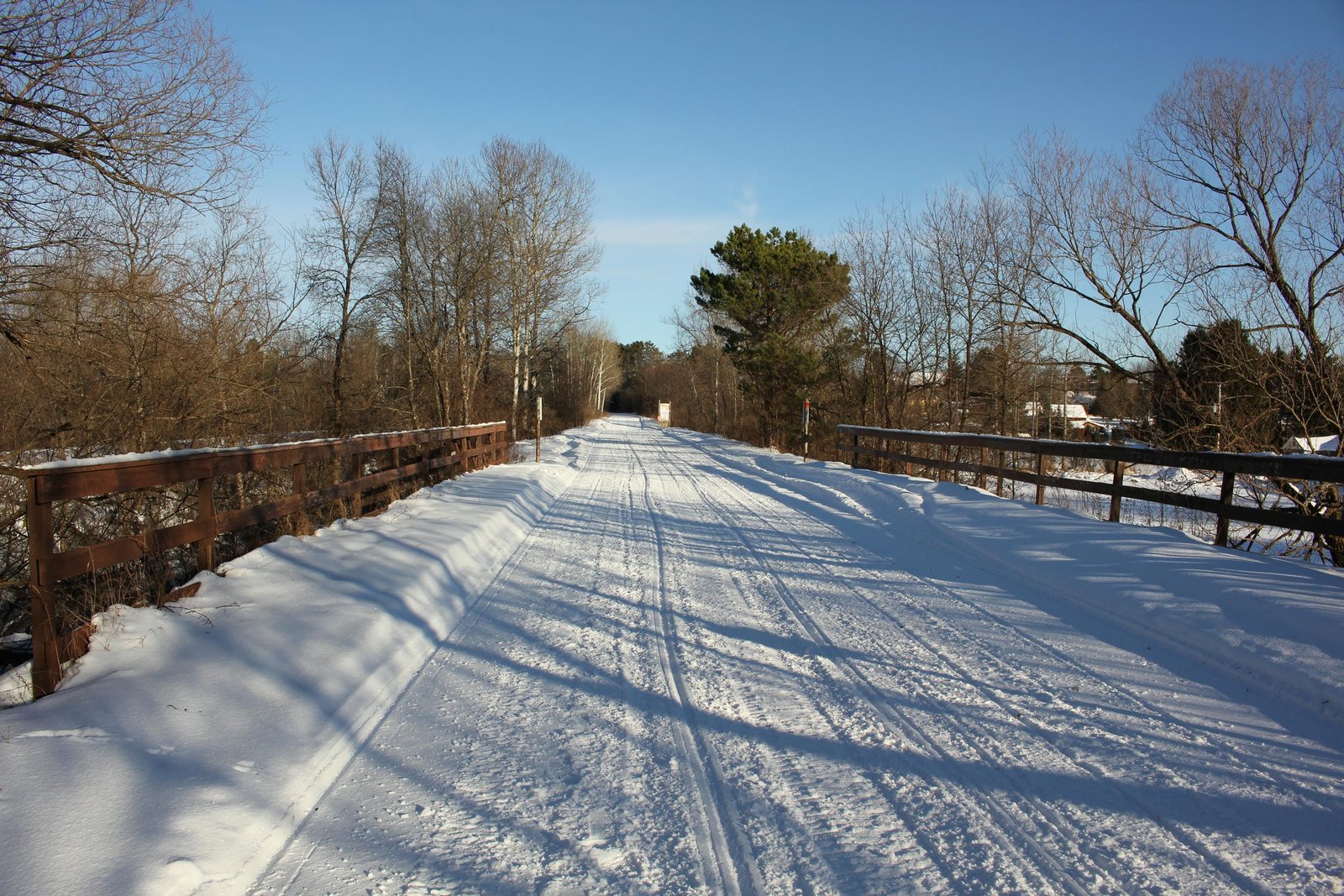

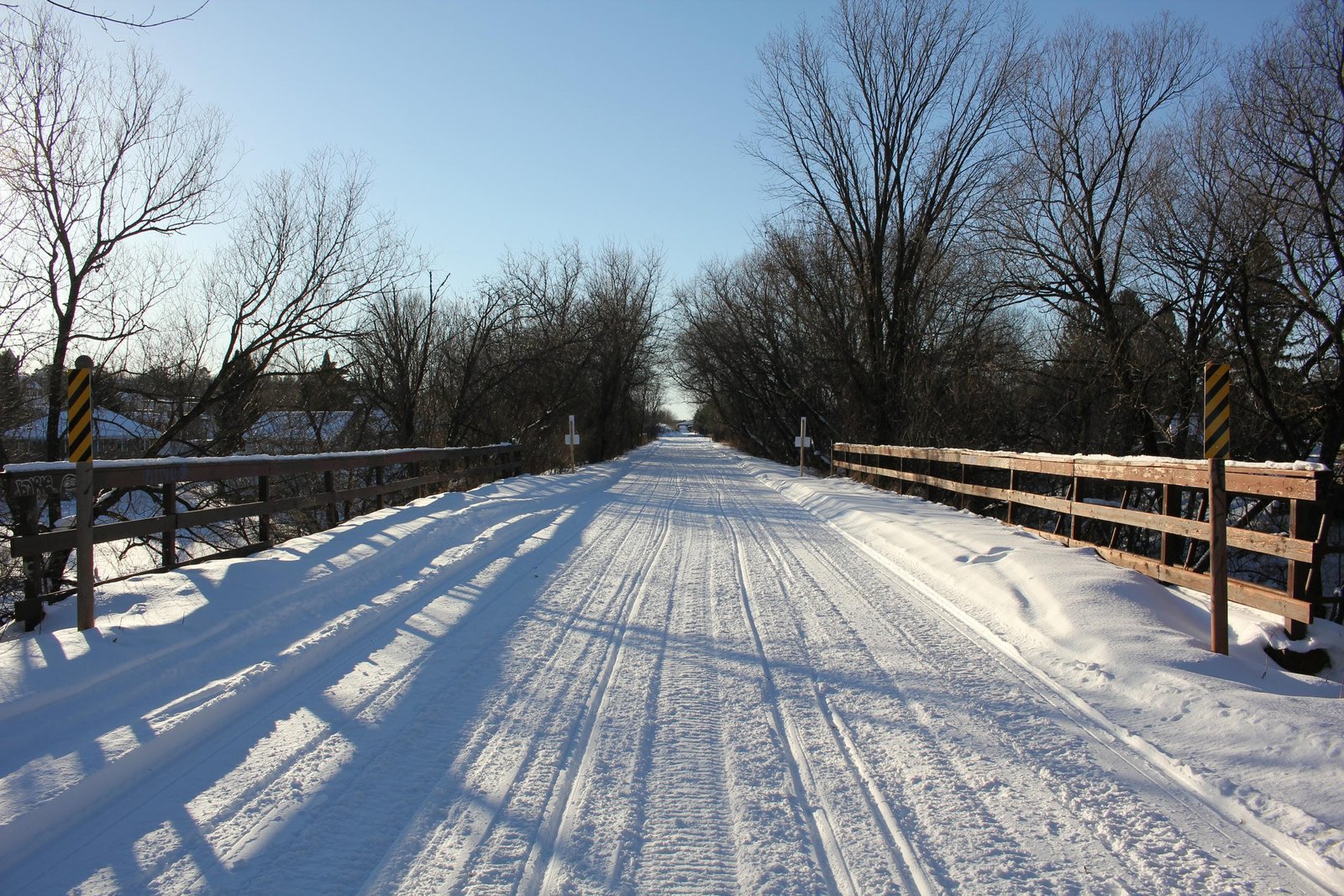

Current Status Open to Off-Road Vehicle Traffic
Chicago & North Western Railway Bridge Number A-1141
Significance Local Significance
Documentation Date 12/22/2016

In 1876, the Milwaukee, Lake Shore and Western Railway (MLS&W) constructed 20 miles of new railroad, extending from Appleton, Wisconsin to New London, Wisconsin.  Work continued in 1878, with an additional 16 miles opening to Clintonville, Wisconsin.  19 additional miles were completed to Tigerton, Wisconsin in 1879, followed by 22 additional miles to Aniwa, Wisconsin in 1880.  An additional 26 miles to Summit Lake, Wisconsin opened in 1881, followed by 29 additional miles to Three Lakes, Wisconsin in 1882; 57 additional miles to Gogebic, Michigan in 1883, 41 miles to Hurley, Wisconsin in 1884 and 40 miles to Ashland, Wisconsin in 1885.  This line served as the mainline for the MLS&W, connecting Lake Michigan, the Fox River and Lake Superior.  Due to the success of the MLS&W, the railroad was purchased by the Chicago & North Western Railway in 1893.  The C&NW had acquired and constructed a vast network of railroad lines throughout the Midwest during the late 19th Century, and the MLS&W system provided more opportunities for expansion.

By the early 20th Century, the C&NW had constructed and acquired a large railroad network throughout the Midwest, making it one of the premiere railroads of the area. Throughout the first half of the 20th Century, this line remained critical for the C&NW, as it provided connections to a number of lines throughout central Wisconsin and the Upper Peninsula of Michigan.  Throughout the mid-20th Century, pulpwood business and passenger trains provided a bulk of the business over the southern portion of the line, and transporting iron ore from the Gogebic Range to the ore docks at Ashland provided business for the northern part of this line.  As industry began to diminish in this area, this line would be abandoned over a three year period.  In 1981, segments from Clintonville to Eland and from Marenisco, Michigan to Hurley, Wisconsin would be abandoned.  In 1982, the segment from Monico, Wisconsin to Watersmeet, Michigan would be abandoned.  In 1983, segments from Watersmeet to Marenisco, Eland to Monico and New London to Clintonville would be abandoned.

In 1988, the C&NW sold the Appleton to New London segment to the Fox River Valley Railroad, which became the Fox Valley and Western Ltd. (FV&W) in 1993.  The FV&W was a subsidiary of the successful Wisconsin Central Ltd. (WC), which had acquired a large amount of former Milwaukee Road and Soo Line trackage in Wisconsin. In 2001, WC was purchased by Canadian National Railway (CN), and became the American subsidiary of the railroad. In 2021, the Appleton to New London segment was sold to the Fox Valley & Lake Superior Rail System (FOXY).  Today, FOXY operates the remaining line between Appleton and New London.  Significant portions of the remaining line have been reused as bicycle and ATV/snowmobile trails.

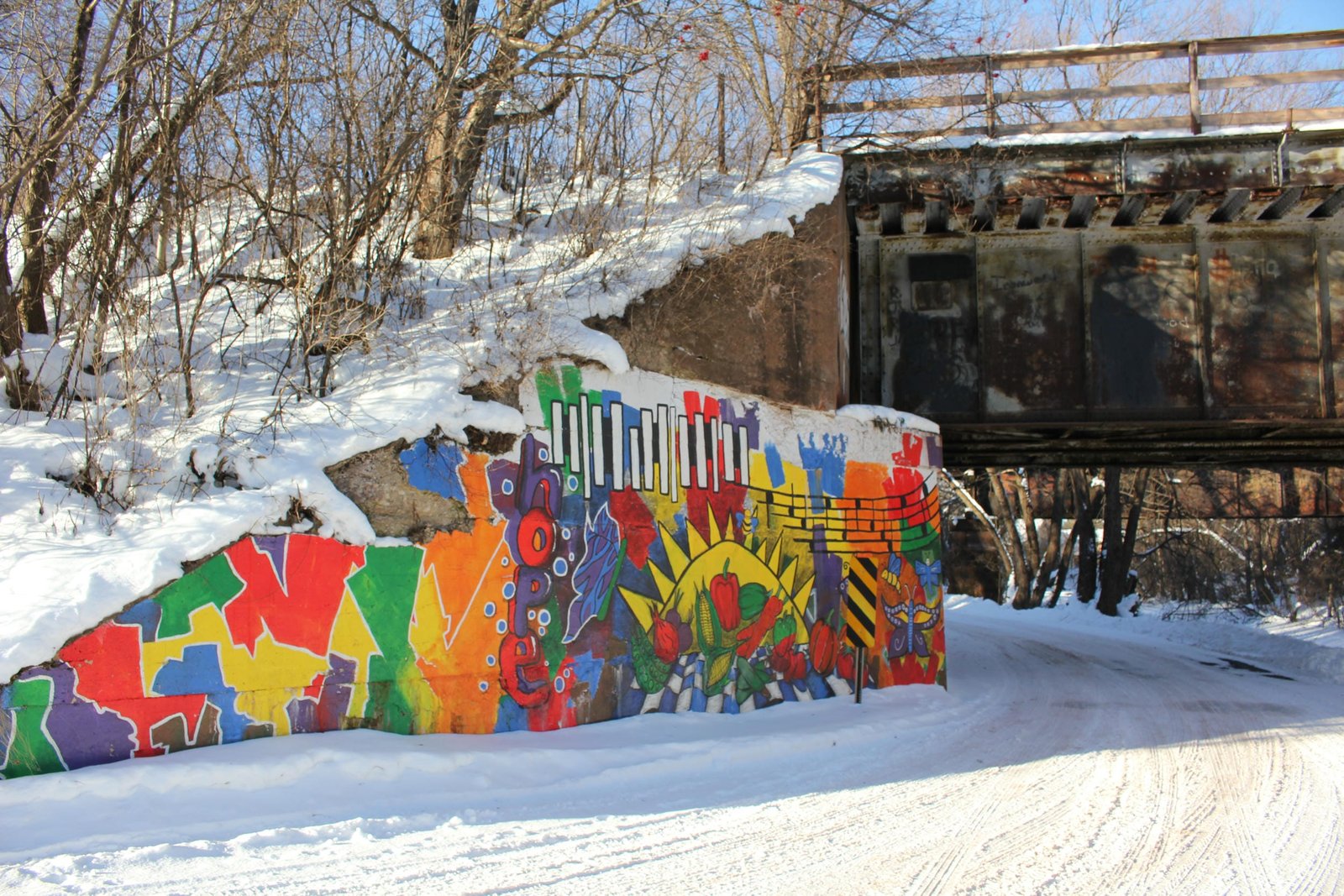

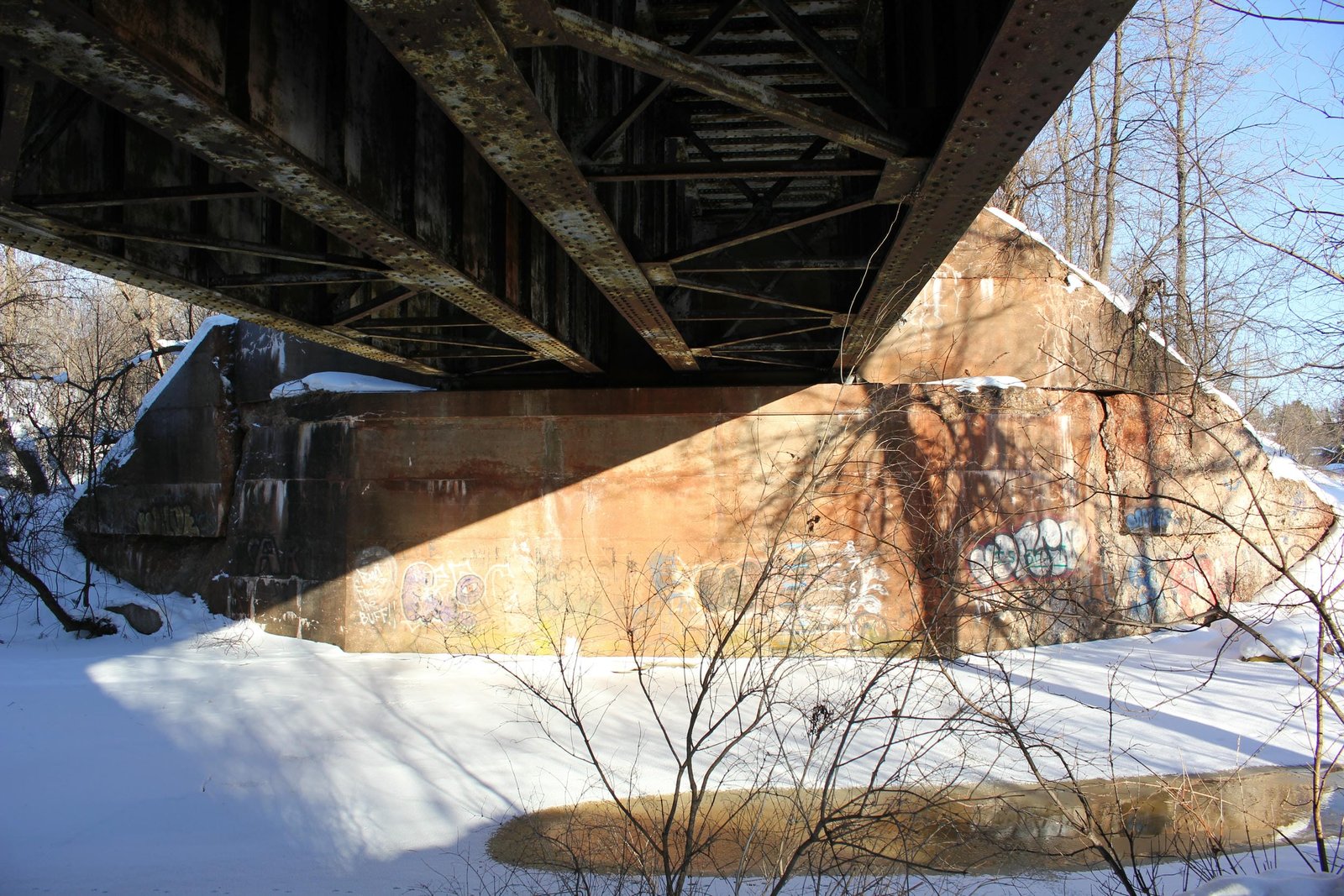

Located between Ironwood and Hurley, this deck plate girder bridge carries the former Chicago & North Western Railway across the Montreal River alongside the former Soo Line bridge. The first bridge at this location was likely a timber pile trestle bridge, constructed when the line was first built. It is unknown if the bridge was rebuilt with a metal structure at a later date. By the early 20th Century, traffic over this line warranted constructing a second track. In 1911, the previous bridge was replaced by the present structure. Currently, the bridge consists of a double track, 75-foot deck plate girder span, set onto concrete abutments. The superstructure uses a standard design, with heavy girders and a ballast deck floor composed of parallel beams covered by a sheet metal deck. King Bridge Company fabricated the superstructure, while an unknown contractor constructed the substructure. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. This style of floor became popular with the C&NW in the early 20th Century, as it helped reduce maintenance. Since the initial construction, the bridge has seen few alterations. A handrail has been added to the bridge, and it is currently used as part of Trail 2, a ATV/UTV/snowmobile trail. Overall, the bridge appears to be in fair condition, with some significant cracking noted to the abutments. The northeast wing wall will likely need to be stabilized in the coming years to prevent structural failure. The author has ranked this bridge as being locally significant, due to the common design.


Citations

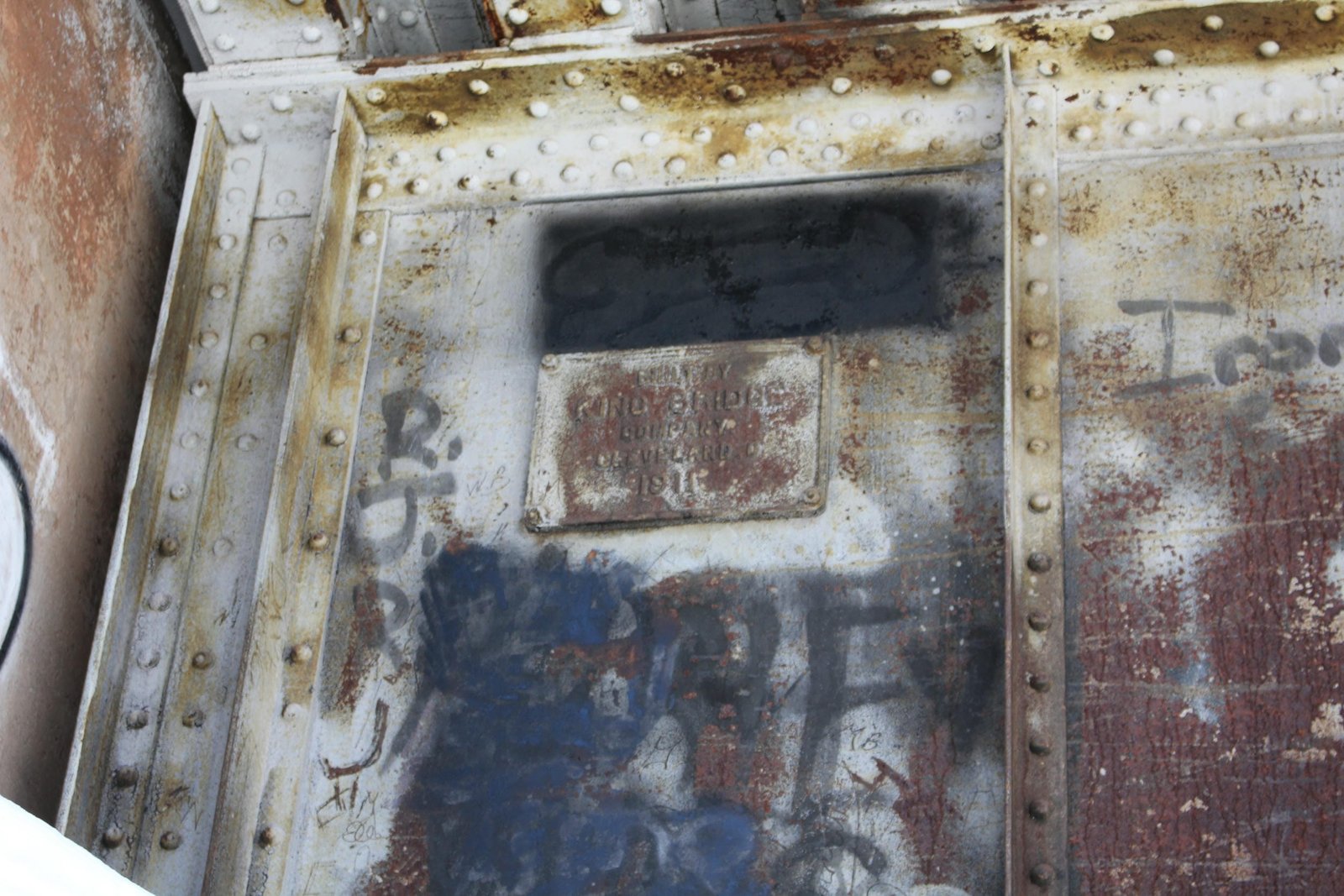

Builder and build date King Bridge Company plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
