Name Moonshine Alley Road - Schramm Creek Bridge
Chicago & North Western Railway Bridge #393
Built By Chicago, St. Paul, Minneapolis & Omaha Railway
Currently Owned By Mason Township
Superstructure Contractor Unknown
Length 16 Feet Total
Width 1 Track (90 Feet)
Height Above Ground 10 Feet (Estimated)
Superstructure Design Stone Arch
Substructure Design Stone Masonry
Date Built 1892
Traffic Count 0 Trains/Day (Bridge is Open to Automobile Traffic)
Current Status Open to Automobile Traffic
Chicago & North Western Railway Bridge Number 393
Significance Local Significance
Documentation Date 12/22/2016

In 1871, the North Wisconsin Railway (NW) began construction of a 13 mile railroad line between Northline (east of Hudson, Wuisconsin) and New Richmond, Wisconsin.  The line was extended an additional 25 miles to Clayton, Wisconsin in 1874, followed by 18 miles to Cumberland, Wisconsin in 1878 and 26 miles to Spooner, Wisconsin in 1879.  In 1880, the NW was consolidated into the Chicago, St. Paul, Minneapolis & Omaha Railway (Omaha Road).  That year, the Omaha Road constructed an additional 39 miles between Spooner and Cable, Wisconsin, followed by 30 additional miles to Mason, Wisconsin in 1882.  That year, the Omaha Road came under control of the Chicago & North Western Railway, which operated a growing railroad network in the Midwest.  In 1883, an additional 28 miles to Bayfield, Wisconsin was completed, and a short 4 mile branch to Ashland, Wisconsin was opened.  This line served as one of the northern mainlines of the Omaha Road, and would share the right-of-way with the other mainline between Spooner and Trego, Wisconsin.  These two mainlines formed a large X through northwest Wisconsin.  The line was critical to serving a booming logging and forestry industry in northwest Wisconsin.

The C&NW constructed and acquired a large amount of trackage through the Midwest, and the Omaha Road provided additional lines in western Wisconsin, southern Minnesota and parts of Iowa, Nebraska and South Dakota.  By the early 20th Century, the Omaha Road operated a respectable network of railroad lines, serving in conjunction with the C&NW lines.  The Omaha Road would formally be merged into the C&NW in 1959.  As traffic over this line diminished, the line would be subject to abandonment.  During the late 20th Century, the C&NW sought to sell or abandon unprofitable and excess lines.  The first segment to be abandoned was between Hayward and Bayfield in 1978, followed by the Northline to Spooner segment in 1981.  The branch to Ashland would be abandoned in early 1982.  In 1992, the Spooner to Hayward segment would be sold to Wisconsin Central, Ltd. (WC) as part of a larger sale of the other mainline between Cameron, Wisconsin and Superior, Wisconsin. In 1997, the State of Wisconsin acquired the Trego to Hayward Junction segment of the line, and Wisconsin Great Northern Railroad (WGN) began operating a tourist railroad between Trego and Hayward.  Today, much of the segment south of Spooner is abandoned, while much of the segment north of Hayward has been reused as part of ATV/snowmobile trails.  The Wild Rivers Trail uses the segment between Spooner and Trego.  WGN continues to operate the Trego to Hayward segment.

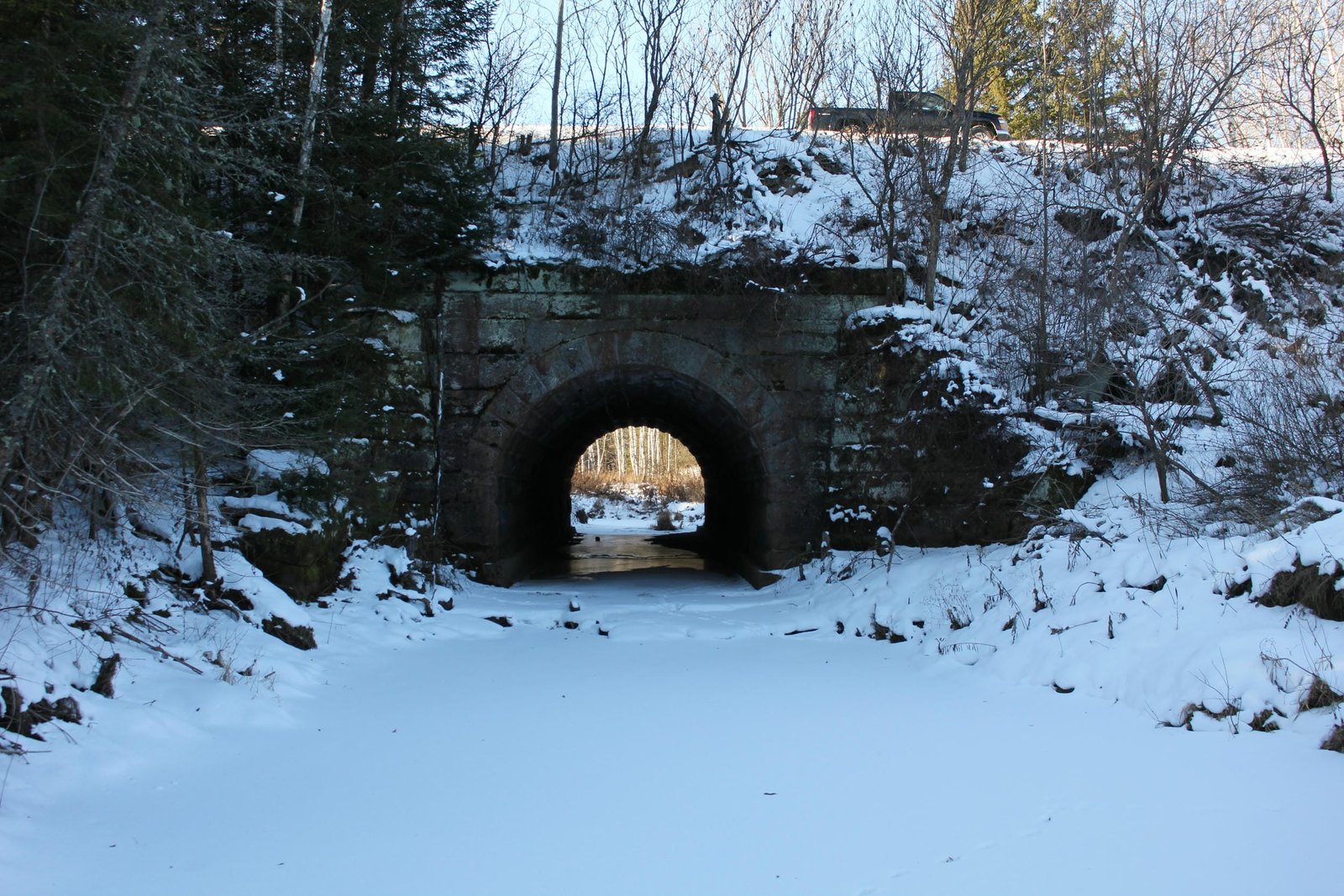

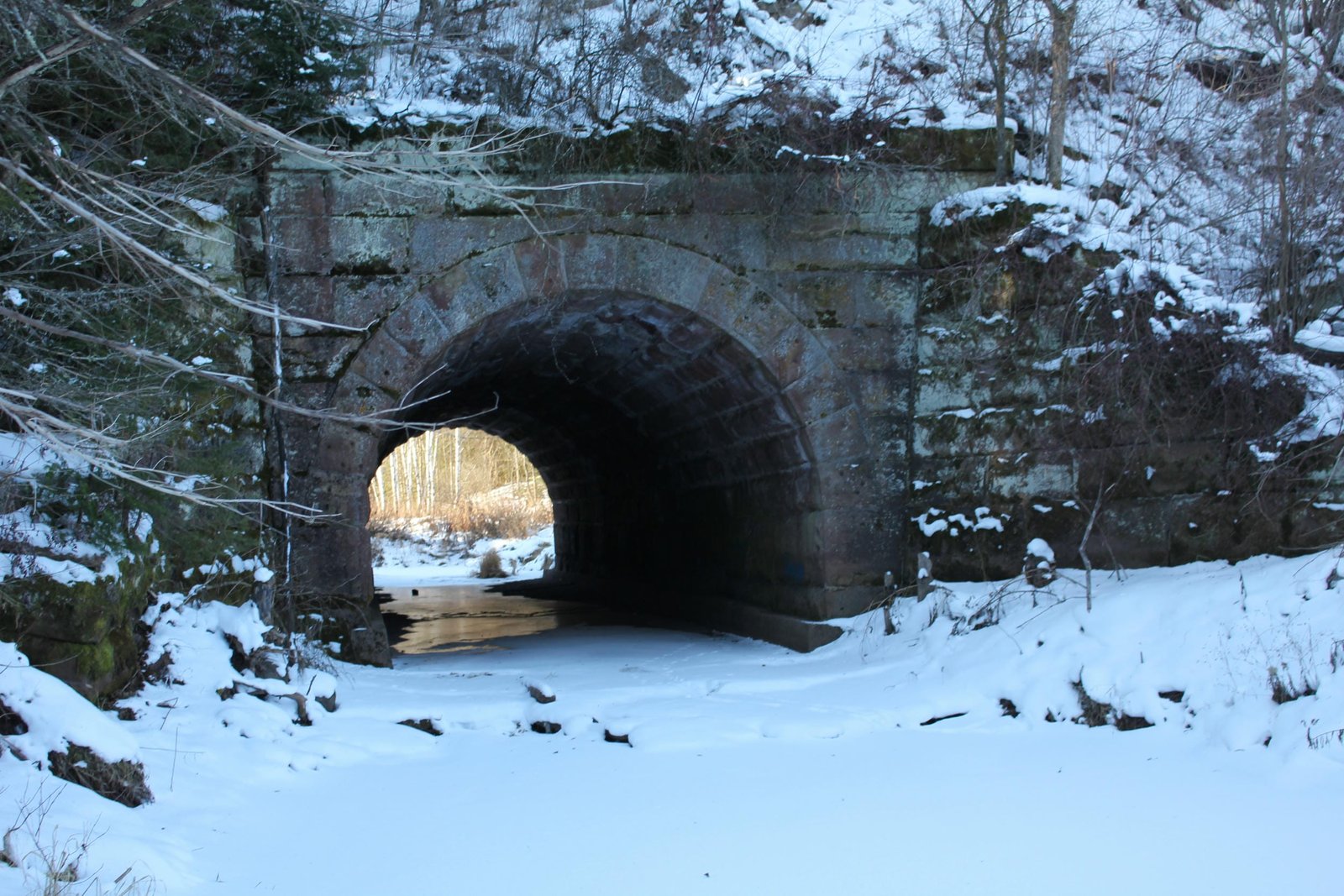

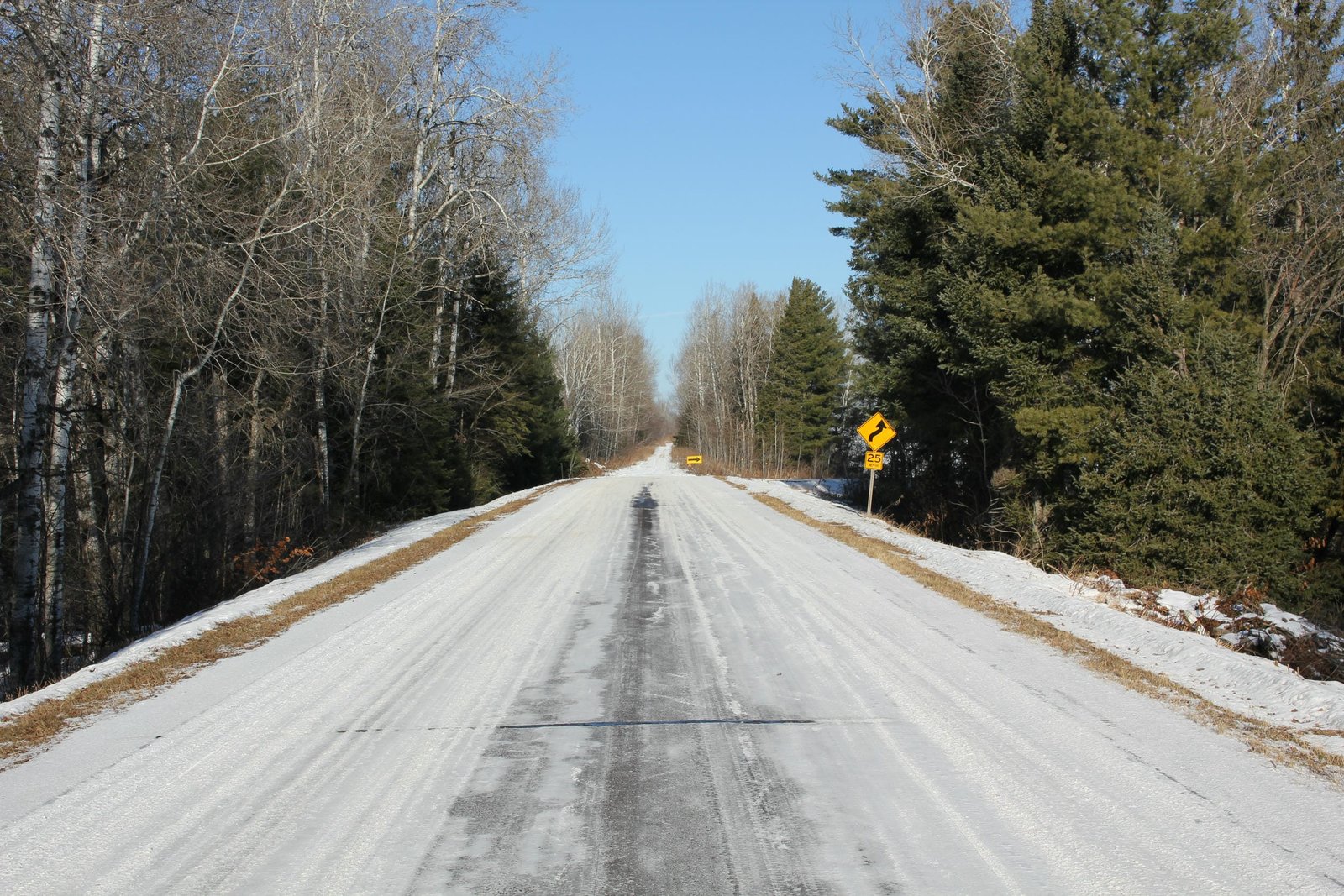

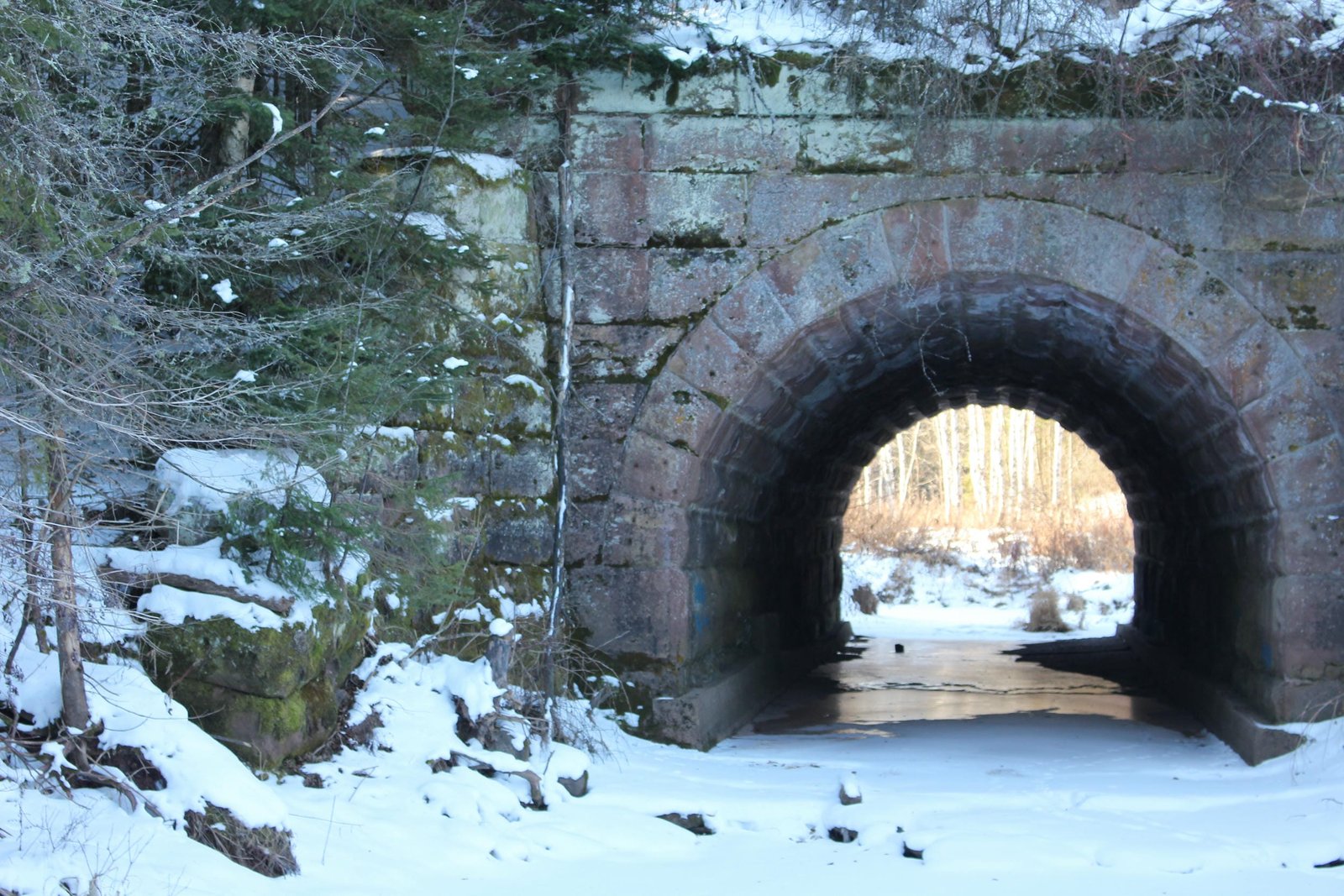

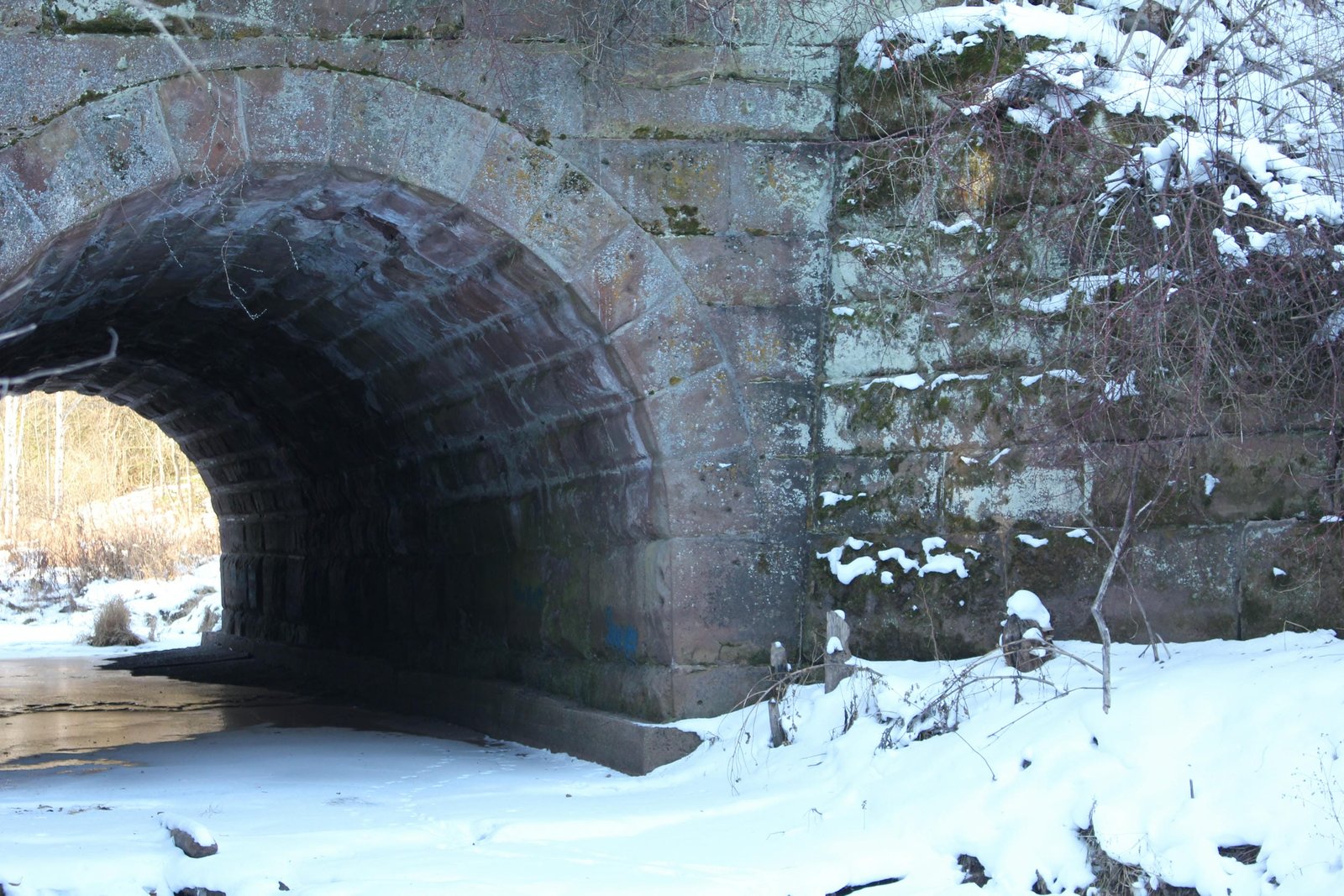

Located south of Benoit, this stone arch bridge carries the former Chicago, St. Paul, Minneapolis & Omaha Railway over Schramm Creek. The first bridge at this location was a tall timber pile trestle bridge, constructed when the line was first built. During the late 1880s and early 1890s, the Omaha Road made significant upgrades to this route, replacing timber bridges with steel and stone. This bridge was constructed in 1892 to replace the previous timber bridge. The bridge consists of a 16-foot stone arch, constructed at a width of 90 feet. Typical of Omaha Road stone arches, the bridge uses a semicircular arch and wing walls which extend diagonally from the bridge. An unknown contractor constructed the bridge, using a reddish stone quarried at an unknown location. Stone arches were commonly used by railroads, as they were durable and easy to construct. Since abandonment, the bridge has been acquired by Mason Township and now carries Moonshine Alley Road. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked the bridge as being locally significant, due to the common design.


Citations

Build date Chicago, St. Paul, Minneapolis & Omaha Railway Valuation Notes at the Chicago & North Western Historical Society Archives
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
