| Name | CPKC Oconomowoc River Bridge (East) Chicago, Milwaukee & St. Paul Railway Bridge #C-64 |
| Built By | Chicago, Milwaukee & St. Paul Railway |
| Currently Owned By | Canadian Pacific Kansas City Limited |
| Superstructure Contractor | Milwaukee Road Bridge & Building Department Labor |
| Charles Frederick Loweth | |
| Length | 32 Feet Total |
| Width | 2 Tracks, 1 In Use (34 Feet) |
| Height Above Ground | 15 Feet (Estimated) |
| Superstructure Design | Brick and Stone Lined Concrete Arch |
| Substructure Design | Stone Masonry and Concrete |

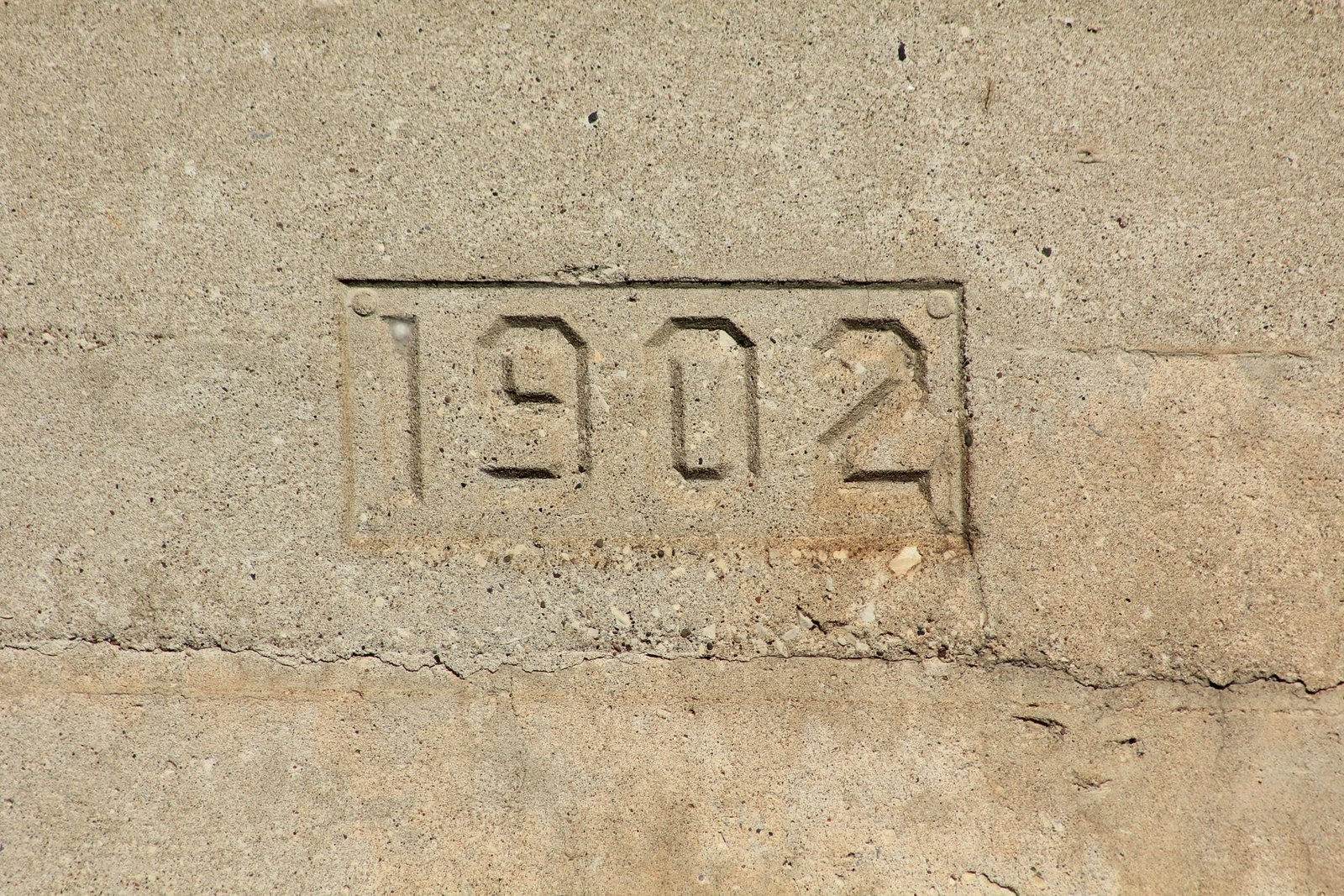

| Date Built | 1902 |
| Traffic Count | 20 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago, Milwaukee & St. Paul Railway Bridge Number | C-64 |
| Significance | Local Significance |
| Documentation Date | 10/7/2023 |
In 1850, the Milwaukee & Mississippi Rail Road (M&M) began construction on a new railroad line, with the intention of connecting Lake Michigan at Milwaukee with the Mississippi River. The first 12 miles between Milwaukee and Brookfield opened in 1851, and the line eventually continued west. In Milwaukee, this line followed the south side of the Menomonee River. In 1854, the Milwaukee and Watertown Railroad (M&W) began construction on a new line, leaving the original line at Brookfield, Wisconsin. 32 miles of new railroad were completed to Watertown, Wisconsin by 1855. The M&W was acquired by the La Crosse and Milwaukee Railroad (LC&M) in 1856. This railroad had previously constructed a more northerly route between Milwaukee and Portage, Wisconsin. Between 1857 and 1858, the LC&M constructed 103 miles of new railroad, extending from Portage to the Mississippi River at La Crosse, Wisconsin. The M&M was acquired by the Milwaukee and Prairie du Chien Railway (M&PdC) in 1861. The western division of the LC&M, extending from Portage to La Crosse, was sold to the Milwaukee & St. Paul Railway (M&StP) in 1863. In 1864, the M&StP constructed an additional 47 miles of railroad between Watertown and Portage, connecting the two lines. In addition, a 7-mile "airline" would be constructed between Elm Grove and Milwaukee in 1864, allowing for a more direct route into Milwaukee. In 1867, the M&PdC would be sold to the M&StP. In 1874, the M&StP changed its name to the Chicago, Milwaukee & St. Paul Railway (Milwaukee Road).
The Milwaukee to La Crosse line became a critical backbone for the Milwaukee Road, serving as the middle section of a longer line between Chicago and Minneapolis/St. Paul. This line also allowed for the construction of numerous branch lines, as well as the rapid expansion of the Milwaukee Road in the Midwest. Between 1874 and 1876, a bridge across the Mississippi River was constructed at La Crosse. A second track was constructed between Milwaukee and Brookfield during the early 1880s. In 1902, 90 additional miles of second track would be constructed between Brookfield and Watertown, between Portage and Camp Douglas and between West Salem and La Crosse. An additional 47 miles of double track were constructed between Watertown and Portage in 1906, followed by an additional 44 miles of double track between Camp Douglas and West Salem in 1910. The same year, the "airline" was also double tracked. During the 20th Century, the Milwaukee Road had become a prominent railroad in the United States, operating an extensive network of railroad lines primarily in the Midwest.
The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928. Despite the financial troubles of the railroad, this line remained a critical line and was well maintained. Financial hardship continued through the 20th Century for the Milwaukee Road, and the railroad again filed bankruptcy in 1977. By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986. Upgrades were made to the route, including the installation of CTC. As a result, sections of the second track were removed, and the remaining sections became sidings. The Elm Grove to Milwaukee airline was abandoned in the 1990s, and has since become the Hank Aaron Trail. CP merged with Kansas City Southern Railway in 2023 to form CPKC. CPKC currently operates the Milwaukee to Portage segment as the Portage Subdivision, and the Watertown to La Crosse segment as the Tomah Subdivision. The route remains well used, and hosts both freight and Amtrak trains.

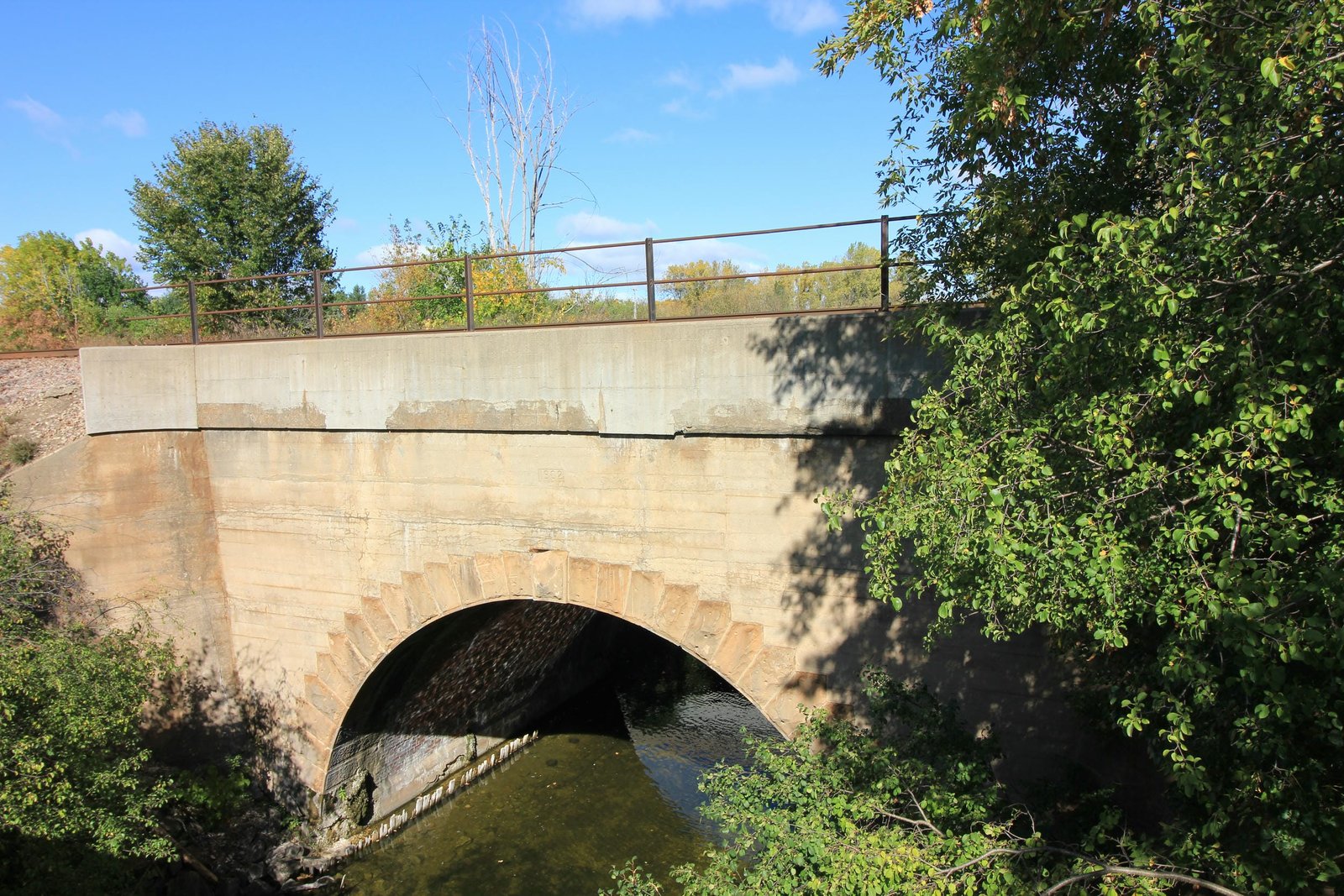

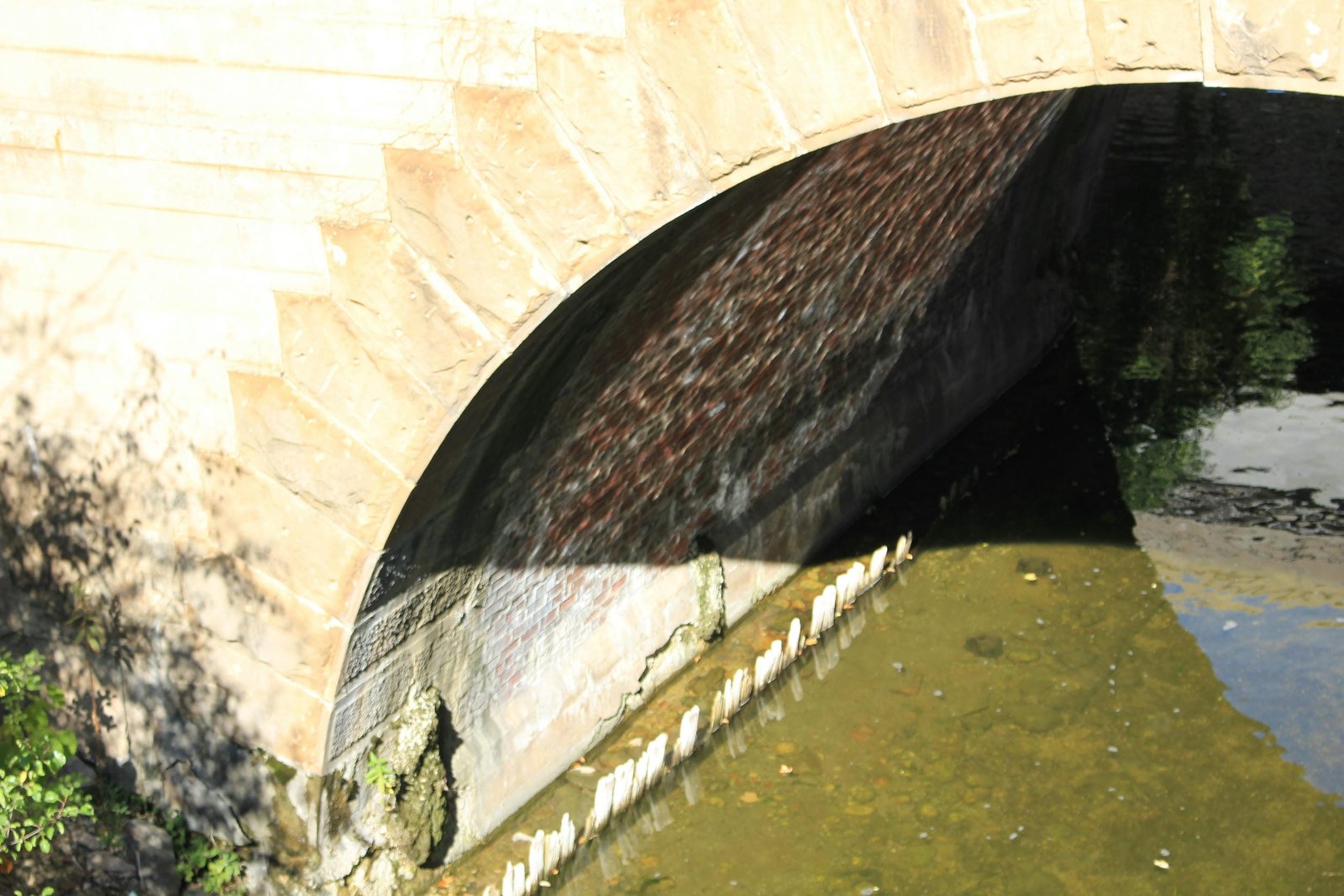

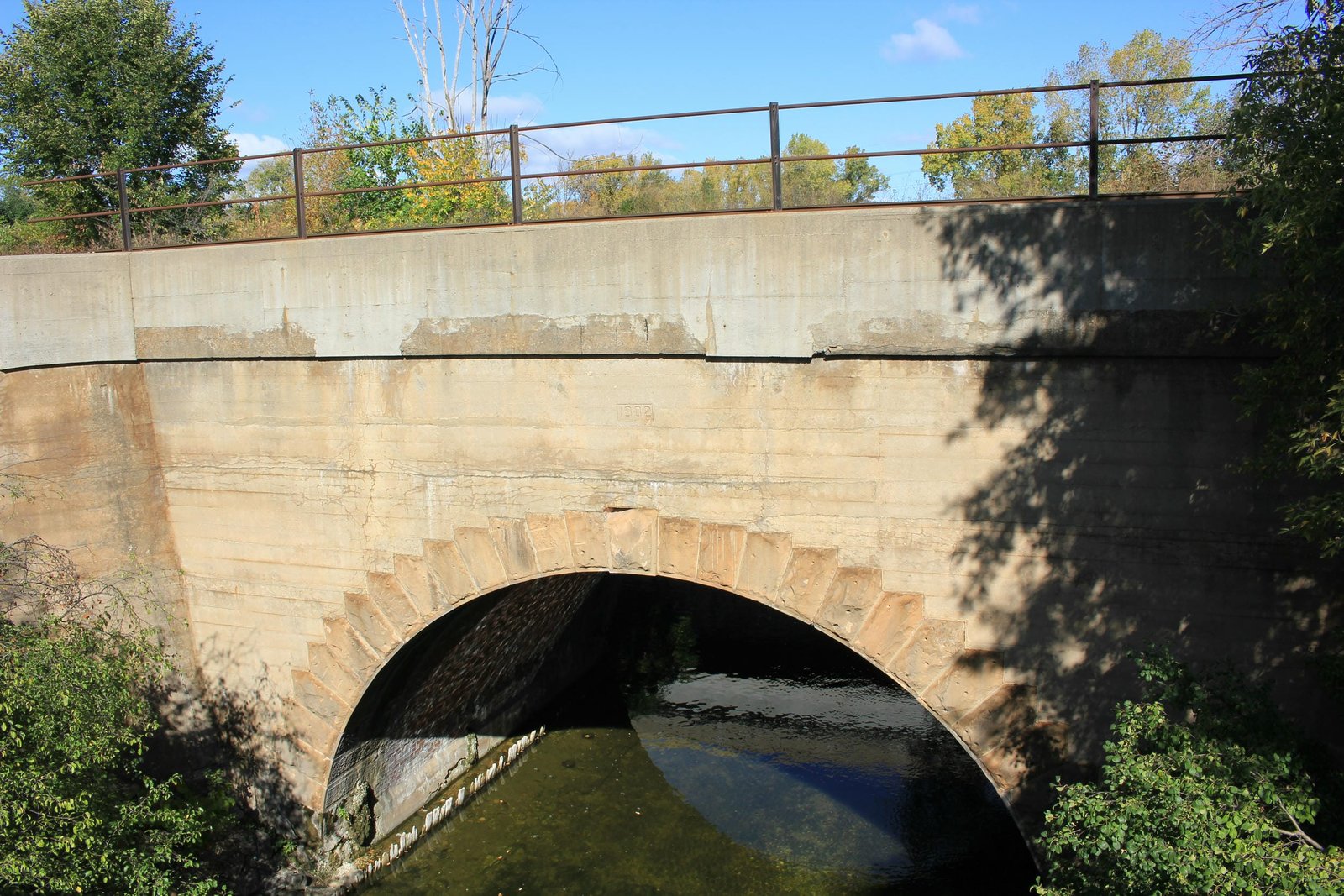

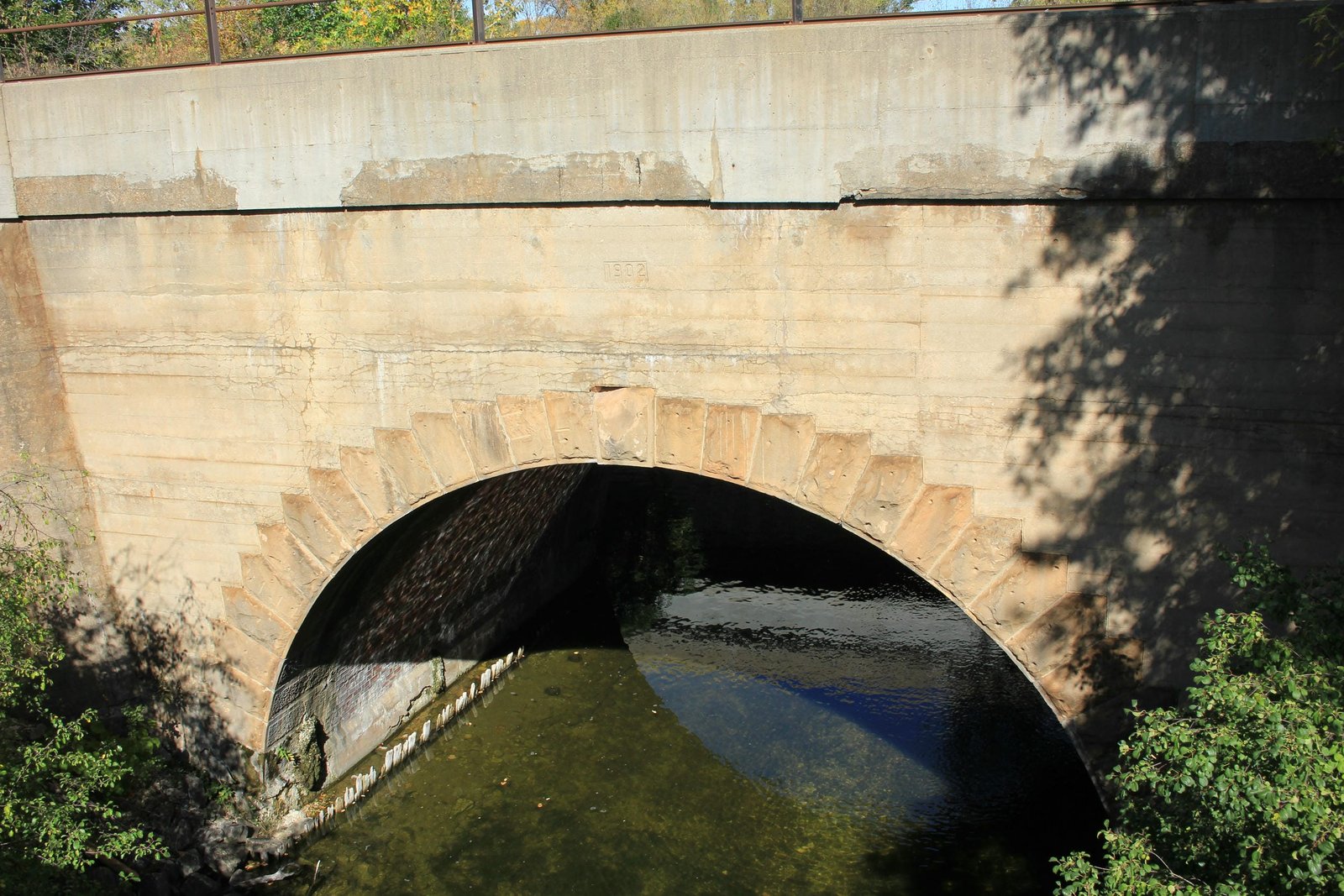

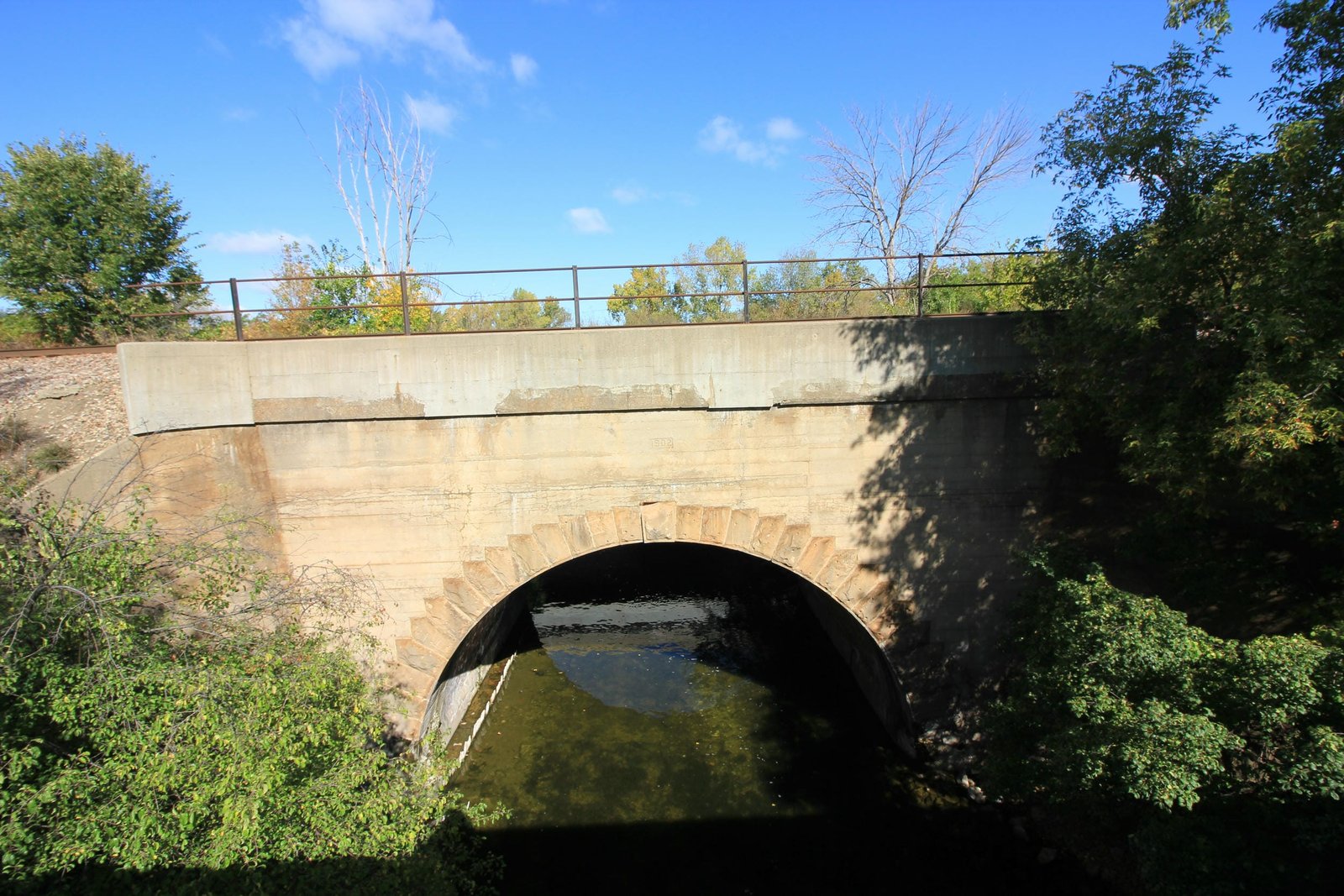

Located alongside Wisconsin Highway 16 east of Oconomowoc, this unique arch bridge carries the former Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) mainline over the Oconomowoc River. The first bridge at this location likely consisted of a timber pile trestle, constructed when the line was first built. It is unknown if the bridge was rebuilt with an iron and stone structure in the 1880s. In 1899, the bridge was replaced with a 60-foot deck plate girder span, set onto stone abutments. This bridge was short lived, as the Milwaukee Road decided to double track this line in the first years of the 20th Century. Instead of widening the girder bridge, it was decided to completely replace it with the present arch bridge, constructed in 1902. The previous girder span was likely reused at another location after replacement. Currently, the bridge consists of a 32-foot brick and stone lined concrete arch bridge, constructed at a width of 34 feet. The general policy of the Milwaukee Road at this time was to use stone or brick linings for large arch bridges. The outside lines of the arch are constructed using stone which appears to have been quarried at Stone City, Iowa; while the interior of the arch line is constructed of brick. The spandrel walls, wing walls and abutments of the structure are constructed of concrete. The bridge was designed by C.F. Loweth, Superintendent of Bridges and Buildings; and was likely constructed under the direction of J.C. Hain, Engineer of Masonry Construction. Typical of masonry bridges constructed by the Milwaukee Road, the structure was constructed by labor employed by the Bridge & Building Department. Arch bridges were commonly used by railroads, although it is unusual to have a structure which is composed of stone, brick and concrete. Since the initial construction, the bridge has seen no significant changes, and only the south track remains in use today. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.
Citations
| Build date and engineer | Milwaukee Road Drawing Collection, located at the Milwaukee Road Archives at the Milwaukee Public Library |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
