Name | Mountain-Bay State Trail - Middle Branch Embarrass River Bridge Chicago & North Western Railway Bridge #1727 |
Built By | Chicago & North Western Railway |
Currently Owned By | Wisconsin Department of Natural Resources |
Superstructure Contractor | Milwaukee Bridge Company of Milwaukee, Wisconsin |
Length | 145 Feet Total, 60 Foot Main Span |
Width | 1 Track |
Height Above Ground | 15 Feet (Estimated) |
Superstructure Design | Deck Plate Girder and Timber Pile Trestle |
Substructure Design | Timber Pile |
Date Built | 1906 |
Traffic Count | 0 Trains/Day (Bridge is Open to Pedestrian Traffic) |
Current Status | Open to Pedestrian Traffic |
Chicago & North Western Railway Bridge Number | 1727 |
Significance | Local Significance |
Documentation Date | 8/5/2016 |
In 1880, the Milwaukee, Lake Shore & Western Railway (MLS&W) constructed a 24 mile branch line from the newly constructed mainline at Eland, Wisconsin to Wausau, Wisconsin. A short spur was extended northwards in Wausau between 1881 and 1883, crossing the Barker-Stewart Island. In 1892, an additional 40 miles would be constructed from Wausau to Marshfield, Wisconsin. This line served as a branch line for the MLS&W, serving industries in the Milwaukee area and connecting to other railroads at Marshfield. The MLS&W had constructed a modest network of railroads through northern and eastern Wisconsin, primarily serving industrial interests. Due to the success of the MLS&W, the railroad was purchased by the Chicago & North Western Railway in 1893 (C&NW). The C&NW had acquired and constructed a vast network of railroad lines throughout the Midwest during the late 19th Century, and the MLS&W system provided more opportunities for expansion.
During the early 20th Century, the C&NW sought to improve operations by constructing new lines and improving existing lines. The C&NW had become one of the premiere Midwest railroads, and sought to stay profitable and competitive. The Manitowoc, Green Bay and North Western Railway (MGB&NW) was incorporated as a subsidiary of the C&NW in 1904, and constructed 61 miles between Duck Creek Junction, Wisconsin and Eland in 1906 and 1907. The MGB&NW was formally merged into the C&NW in 1909. Upon completion of the new line, this line served as a connection between several C&NW lines through eastern and central Wisconsin. Throughout the 20th Century, this line remained a secondary line for the C&NW.
By the late 20th Century, the C&NW sought to consolidate operations and abandon or sell unprofitable lines. In 1981, the line between Wausau and Marshfield was abandoned. In 1994, the segment between Duck Creek and Weston, Wisconsin would be abandoned, and the remainder of the trackage in the Wausau area sold to Wisconsin Central, Ltd. (WC). WC had purchased a large amount of former Soo Line and Milwaukee Road trackage in central and eastern Wisconsin in 1987, primarily to continue serving industries in the area. As part of the 1994 abandonment, the line between Duck Creek and Weston was purchased by the Wisconsin Department of Natural Resources for use as a trail. In 2001, WC was purchased by Canadian National Railway (CN), and became the American subsidiary of the railroad. In 2021, the Wausau area trackage was sold to the Fox Valley & Lake Superior Rail System (FOXY). Today, FOXY operates trackage in Wausau, including a spur through Barker-Stewart Island. The segment between Duck Creek and Weston is now part of the Mountain-Bay State Trail.

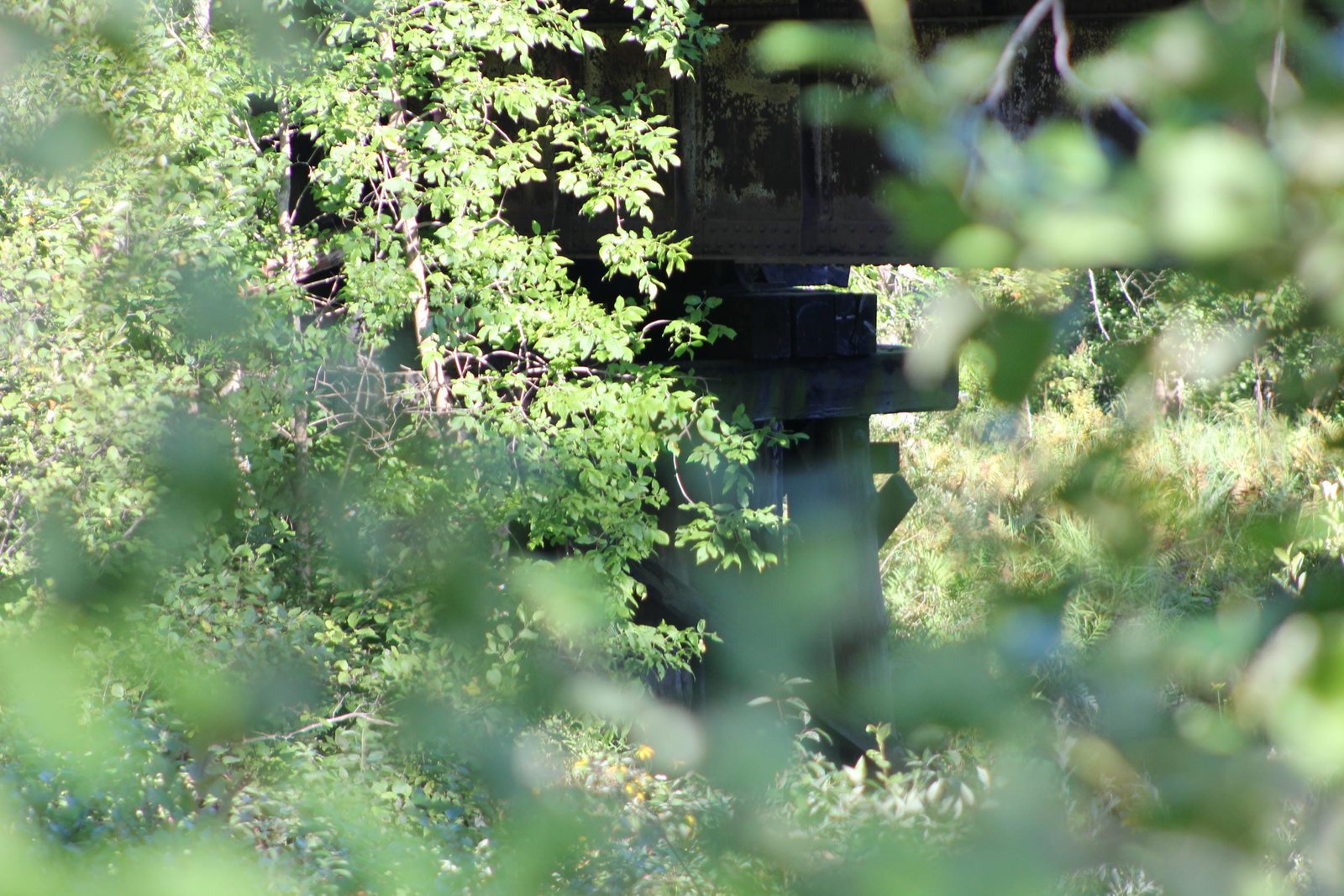

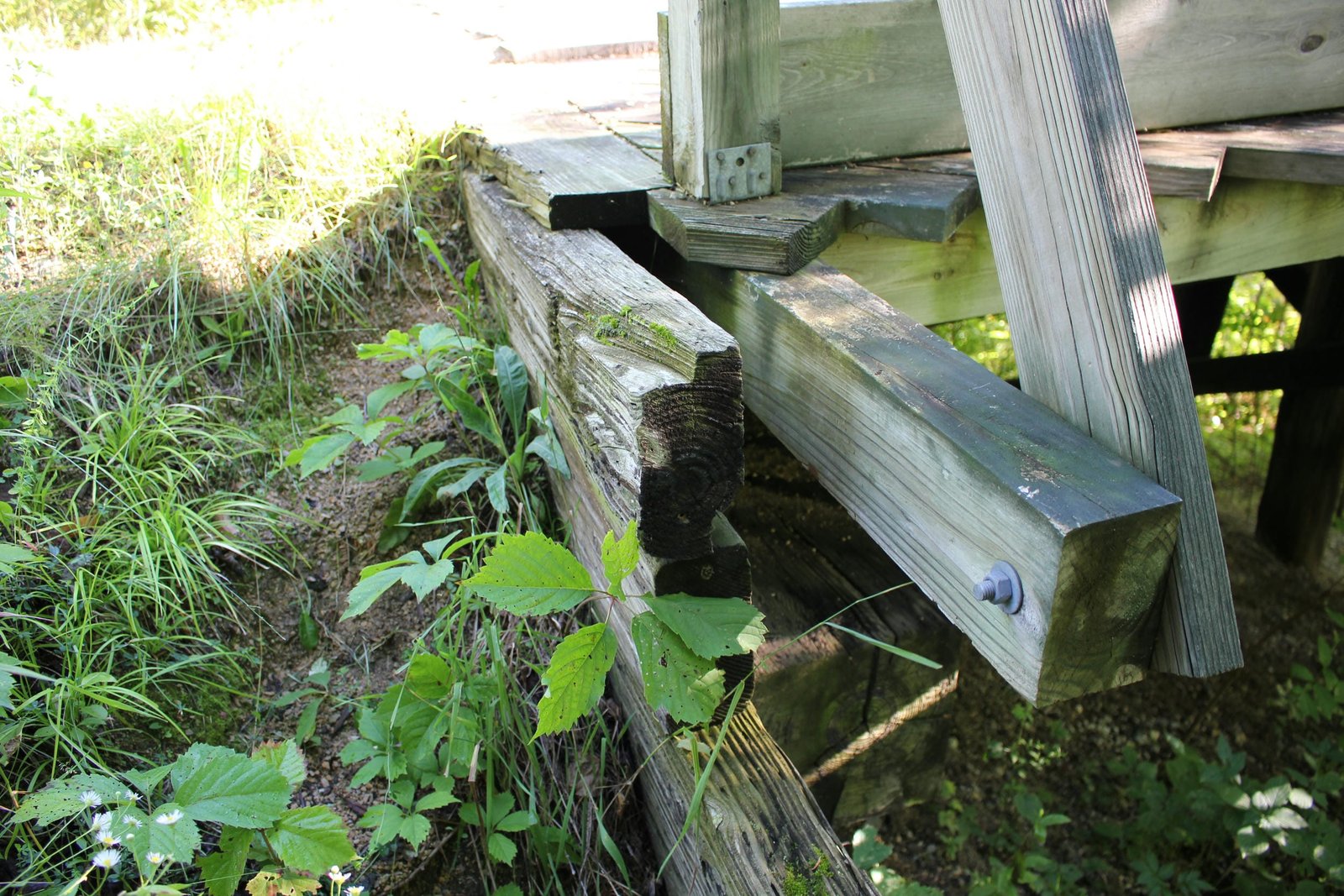

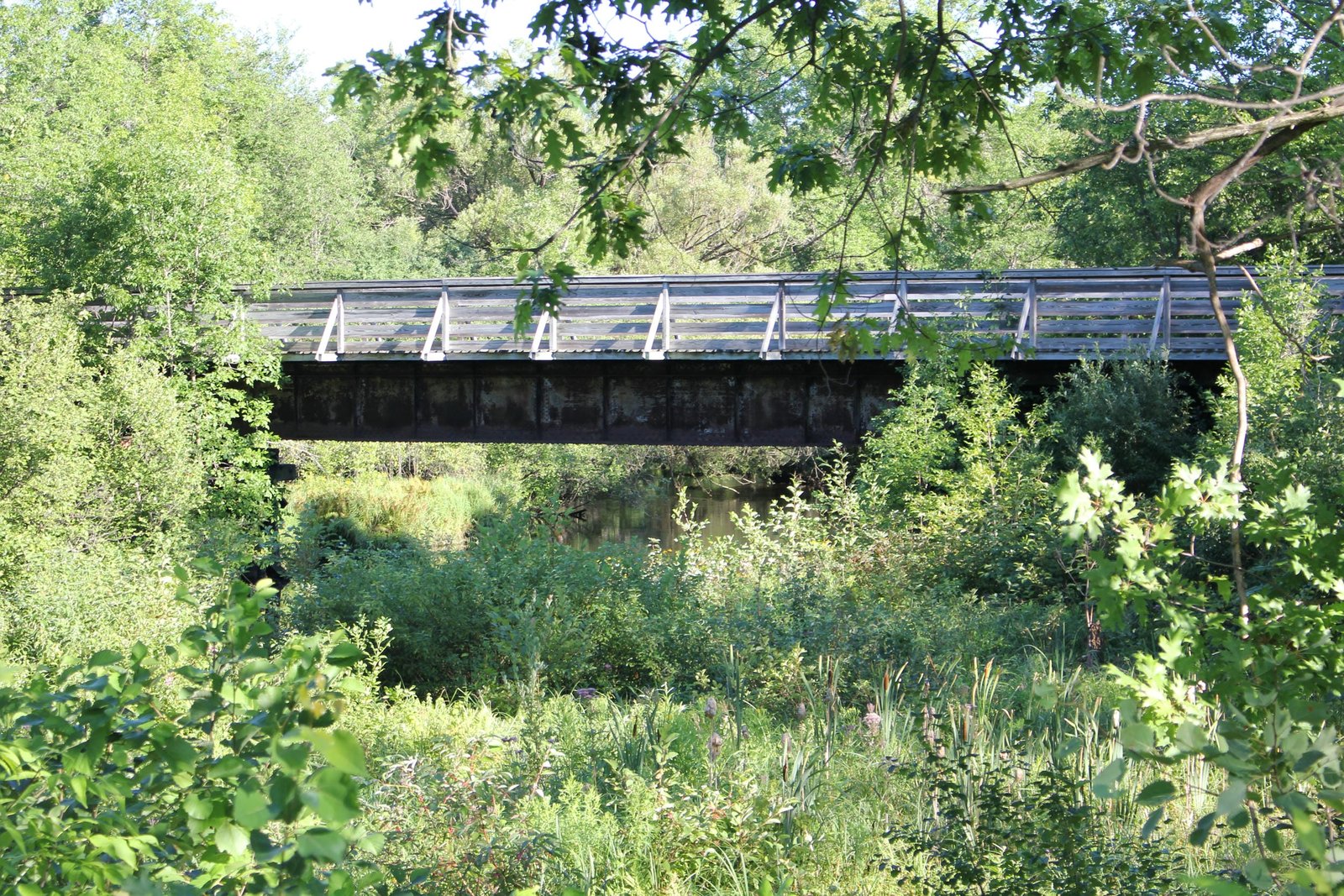

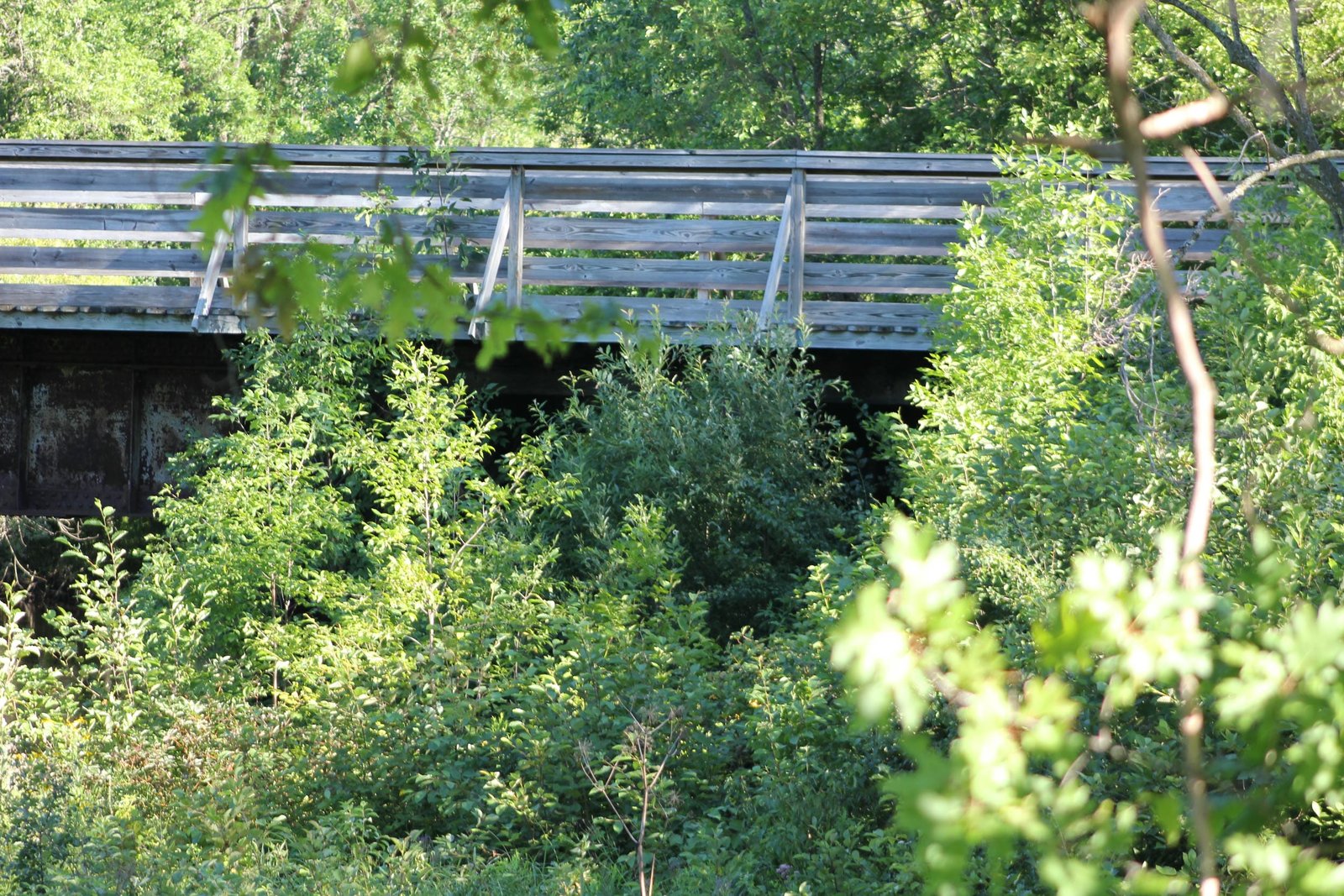

Located near US Highway 45 east of Eland, this deck plate girder bridge carries the former Chicago & North Western Railway over the Middle Branch Embarrass River. Built in 1906, the bridge consists of a 60-foot deck plate girder span, approached by timber pile trestle spans on either end. The entire bridge is set onto timber substructures. It is likely that the timber components have been rebuilt a number of times since the bridge was first constructed. The superstructure uses a standard design, with modest sized girders and an open deck. Milwaukee Bridge Company fabricated the superstructure, while railroad company forces completed the timber components of the bridge. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Outside of renewal of the timber components, the bridge has seen few alterations since it was first constructed. Currently, it serves the Mountain-Bay State Trail, and has been modified with a wooden deck and handrails. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked the bridge as being locally significant, due to the common design.
Citations
Builder and build date | Chicago & North Western Valuation Notes at the Chicago & North Western Historical Society Archives |
Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
