Name IAIS Hennepin Canal Bridge (Bureau Junction, East)
Chicago, Rock Island & Pacific Railroad Bridge #1151
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Lassig Bridge & Iron Works of Chicago
Length 145 Feet Total, 55 Foot Main Span
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Design Through Plate Girder and Steel Stringer
Substructure Design Concrete and Steel Tower
Date Built 1900, South Approach Added c. 1980
Traffic Count 5 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 1151
Iowa Interstate Railroad Bridge Number 1151
Significance Local Significance
Documentation Date 10/29/2022

In 1853, the The Peoria and Bureau Valley Railroad (P&BV) began construction on a 47-mile railroad line, extending from the Chicago & Rock Island Railroad (C&RI) mainline at Bureau Junction, Illinois to Peoria, Illinois.  In 1854, the P&BV would be leased by the C&RI, and the line would be completed in 1855.  In 1866, the C&RI consolidated into the Chicago, Rock Island & Pacific Railroad, which was renamed the Chicago, Rock Island & Pacific Railway (Rock Island) in 1880.  The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s.  This line served as a secondary mainline, connecting the Rock Island mainline to terminals in Peoria.

The Rock Island was a poor railroad, facing financial trouble regularly and often in bankruptcy.  This route hosted passenger trains known as "Rockets" for many years.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes.  By 1964, the Rock Island began attempts to merge with Union Pacific.  This merger was eventually denied, and Rock Island turned its last profit in 1965. In the mid-1970s, the railroad was in serious decline.  The railroad received loans to attempt to fix slow orders, received new equipment and turn a profit.  By 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.  From Bureau Junction to Henry, the line would be sold to the Chessie System, which became part of CSX Transportation in 1986.  The line from Henry to Peoria would be sold to the Lincoln & Southern Railroad (L&S), owned by BF Goodrich.  In 1987, the Iowa Interstate Railroad was granted rights to operate over the L&S; and the IAIS purchased the Bureau Junction to Peoria line in 2006.  Today, IAIS continues to operate the line as the 2nd Subdivision.

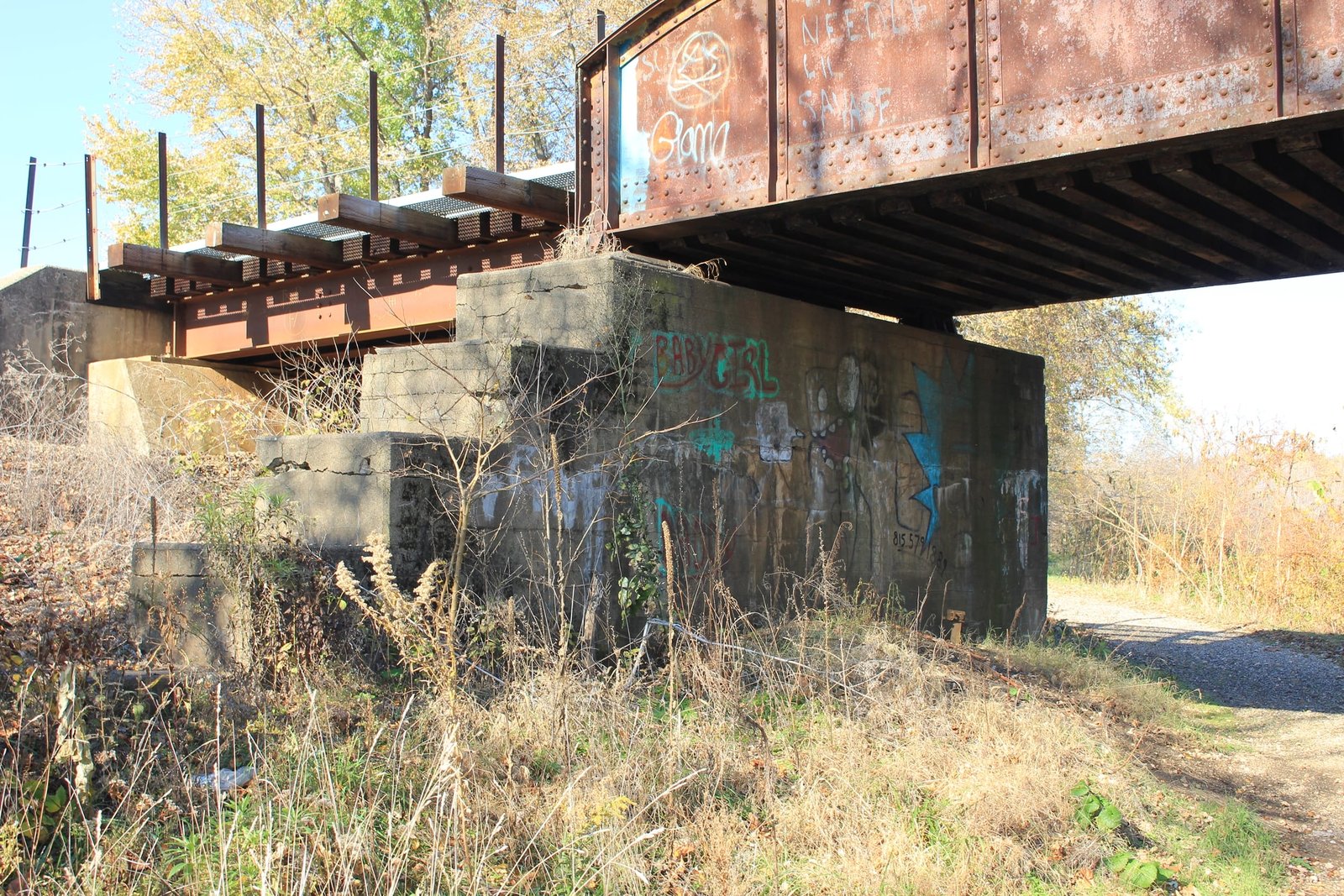

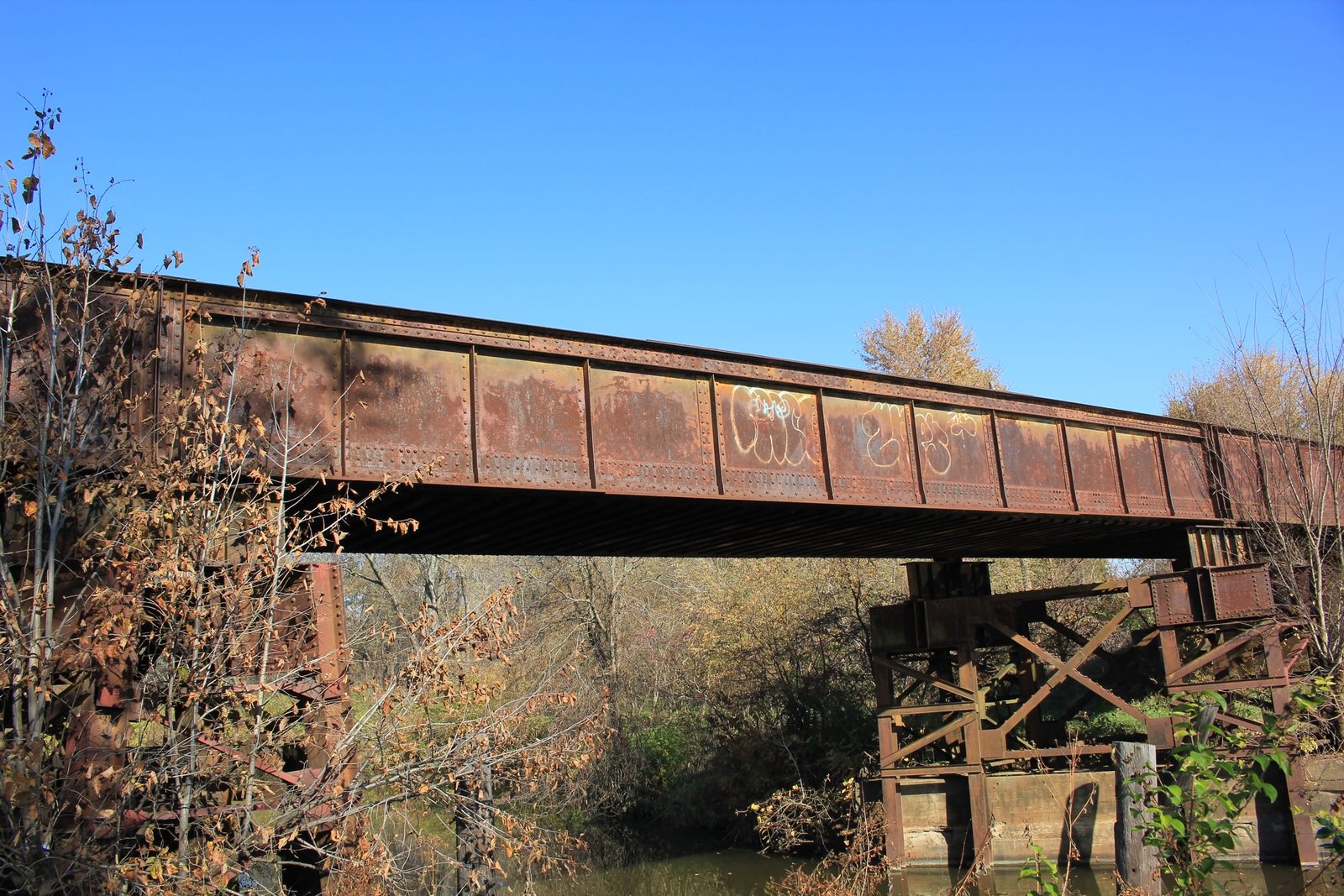

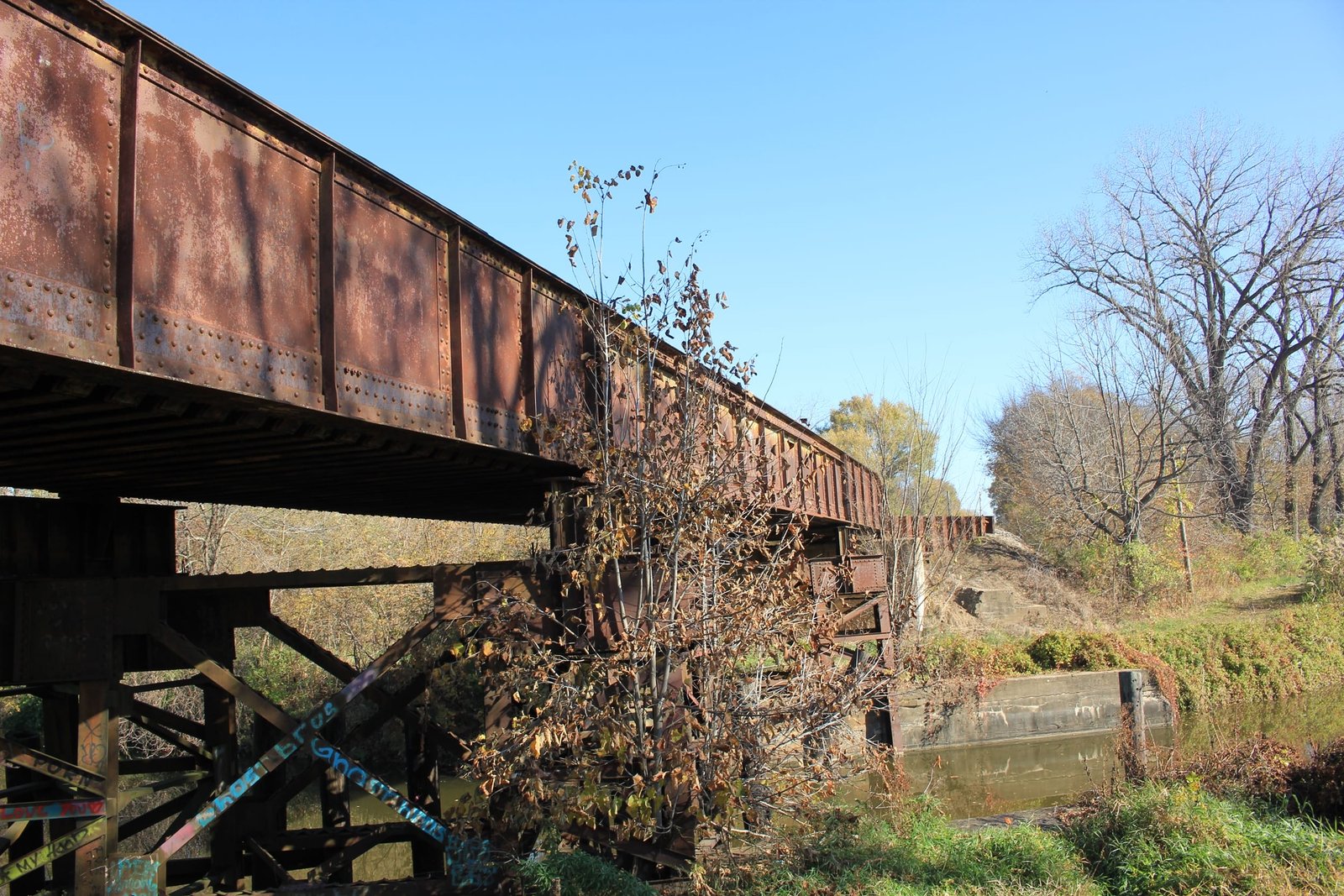

Located south of Bureau Junction, this through plate bridge carries the former Rock Island line to Peoria across the Hennepin Canal and Hennepin Canal Parkway Trail. Between 1890 and 1907, the United States Government constructed the Illinois & Mississippi Canal, later renamed the Hennepin Canal, to connect the Illinois and Mississippi Rivers. The new canal and feeder canal would require eight railroad bridges and sixty-three roadway bridges. Between 1899 and 1900, significant portions of the canal would be constructed in Bureau County, and a bridge carrying the Rock Island would be required. Construction on the bridge began in 1899, and was completed in 1900. The bridge consists of a single track 55-foot through plate girder span, approached by a 35-foot span of the same design on either end. The bridge was fabricated by the Lassig Bridge & Iron Works, which was a major fabricator of railroad bridges in the Midwest and western United States. The bridge utilizes a typical design for through girder spans over the Hennepin Canal, including tapered and rounded ends and a floor composed of parallel floorbeams. This style of bridge was commonly used by railroads throughout the United States, as it was durable and easy to construct. A similar bridge carries the former Rock Island mainline to Peoria across the canal a few miles west of this location. Since the initial construction, the south end of the bridge was extended with a 20-foot steel stringer span in approximately 1980, and the concrete substructures were repaired. Overall, the bridge appears to be in fair condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Builder and build date Annual reports of the Chief of the US Army Corps of Engineers for the fiscal year ended June 30, 1900; Volume 5
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
