Name | CPKC Farmers Valley Creek Bridge Chicago, Milwaukee & St. Paul Railway Bridge #C-428 |
Built By | Chicago, Milwaukee & St. Paul Railway |
Currently Owned By | Canadian Pacific Kansas City Limited |
Superstructure Contractor | Unknown |
Length | 52 Feet Total |
Width | 2 Tracks |
Height Above Ground | 15 Feet (Estimated) |
Superstructure Design | Deck Plate Girder |
Substructure Design | Concrete |
Date Built | 1901 (North Track) 1907 (West Abutment) 1936 (East Abutment) c. 2000 (South Track) |
Traffic Count | 10 Trains/Day (Estimated) |
Current Status | In Use |
Chicago, Milwaukee & St. Paul Railway Bridge Number | C-428 |
Significance | Local Significance |
Documentation Date | 11/13/2020 |
In 1850, the Milwaukee & Mississippi Rail Road (M&M) began construction on a new railroad line, with the intention of connecting Lake Michigan at Milwaukee with the Mississippi River. The first 12 miles between Milwaukee and Brookfield opened in 1851, and the line eventually continued west. In Milwaukee, this line followed the south side of the Menomonee River. In 1854, the Milwaukee and Watertown Railroad (M&W) began construction on a new line, leaving the original line at Brookfield, Wisconsin. 32 miles of new railroad were completed to Watertown, Wisconsin by 1855. The M&W was acquired by the La Crosse and Milwaukee Railroad (LC&M) in 1856. This railroad had previously constructed a more northerly route between Milwaukee and Portage, Wisconsin. Between 1857 and 1858, the LC&M constructed 103 miles of new railroad, extending from Portage to the Mississippi River at La Crosse, Wisconsin. The M&M was acquired by the Milwaukee and Prairie du Chien Railway (M&PdC) in 1861. The western division of the LC&M, extending from Portage to La Crosse, was sold to the Milwaukee & St. Paul Railway (M&StP) in 1863. In 1864, the M&StP constructed an additional 47 miles of railroad between Watertown and Portage, connecting the two lines. In 1867, the M&PdC would be sold to the M&StP. In 1874, the M&StP changed its name to the Chicago, Milwaukee & St. Paul Railway (Milwaukee Road).
The Milwaukee to La Crosse line became a critical backbone for the Milwaukee Road, serving as the middle section of a longer line between Chicago and Minneapolis/St. Paul. This line also allowed for the construction of numerous branch lines, as well as the rapid expansion of the Milwaukee Road in the Midwest. Between 1874 and 1876, a bridge across the Mississippi River was constructed at La Crosse. A second track was constructed between Milwaukee and Brookfield during the early 1880s. In 1902, 90 additional miles of second track would be constructed between Brookfield and Watertown, between Portage and Camp Douglas and between West Salem and La Crosse. An additional 47 miles of double track were constructed between Watertown and Portage in 1906, followed by an additional 44 miles of double track between Camp Douglas and West Salem in 1910. During the 20th Century, the Milwaukee Road had become a prominent railroad in the United States, operating an extensive network of railroad lines primarily in the Midwest.
The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928. Despite the financial troubles of the railroad, this line remained a critical line and was well maintained. Financial hardship continued through the 20th Century for the Milwaukee Road, and the railroad again filed bankruptcy in 1977. By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986. Upgrades were made to the route, including the installation of CTC. As a result, sections of the second track were removed, and the remaining sections became sidings. CP merged with Kansas City Southern Railway in 2023 to form CPKC. CPKC currently operates the Milwaukee to Portage segment as the Portage Subdivision, and the Watertown to La Crosse segment as the Tomah Subdivision. The route remains well used, and hosts both freight and Amtrak trains.

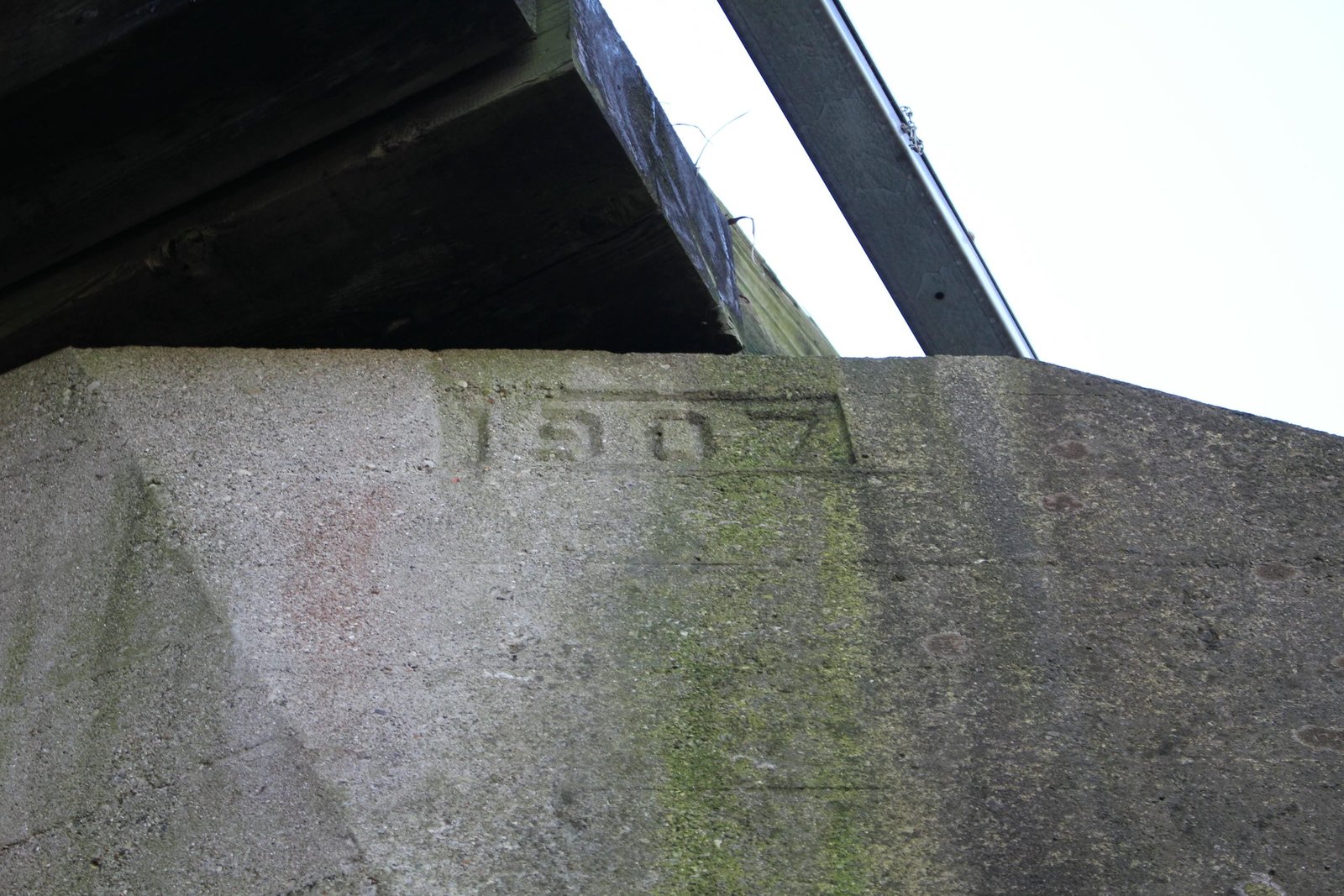

Located in Sparta, this deck plate girder bridge carries the former Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) mainline over Farmers Valley Creek. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. In 1863, the bridge would be replaced by a single track 56-foot wooden Howe deck truss bridge, set onto stone abutments. It is likely that the truss span was upgraded at least once in the late 19th Century. During the late 19th and early 20th Centuries, the Milwaukee Road worked to upgrade bridges along this route, replacing light wooden bridges with heavier steel and concrete structures. In 1901, the bridge would be replaced by a new deck plate girder span, set onto a concrete east abutment and stone west abutment. The west abutment was replaced with concrete in 1907, and the bridge was widened for a second track on the south in 1910. After a flood destroyed the east abutment in August 1935, the east abutment was rebuilt the following year, and the north span strengthened in 1937. The most recent upgrades to the bridge came in approximately 2000, when the original south track span was replaced by a modern span of the same design, giving the bridge its present appearance.

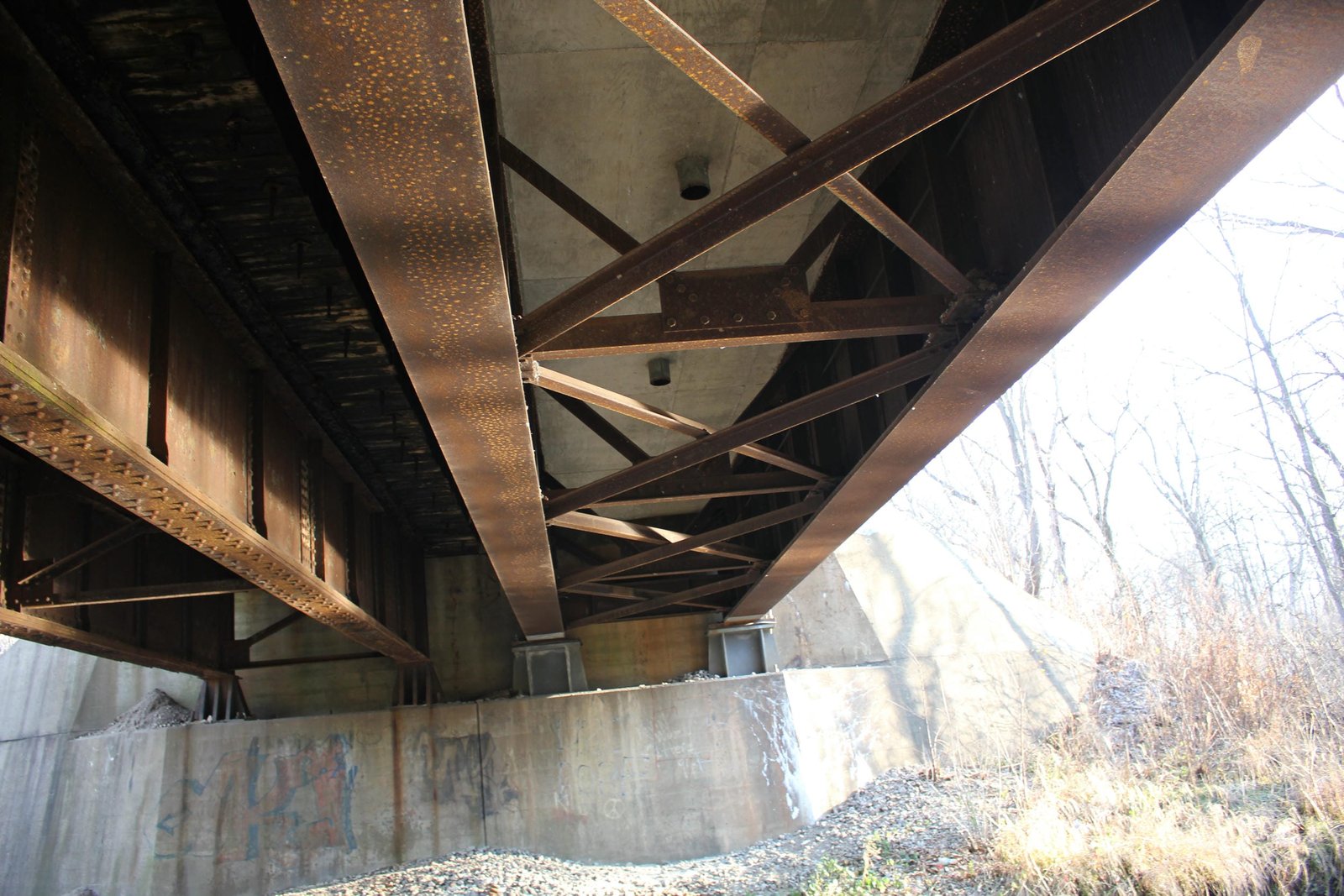

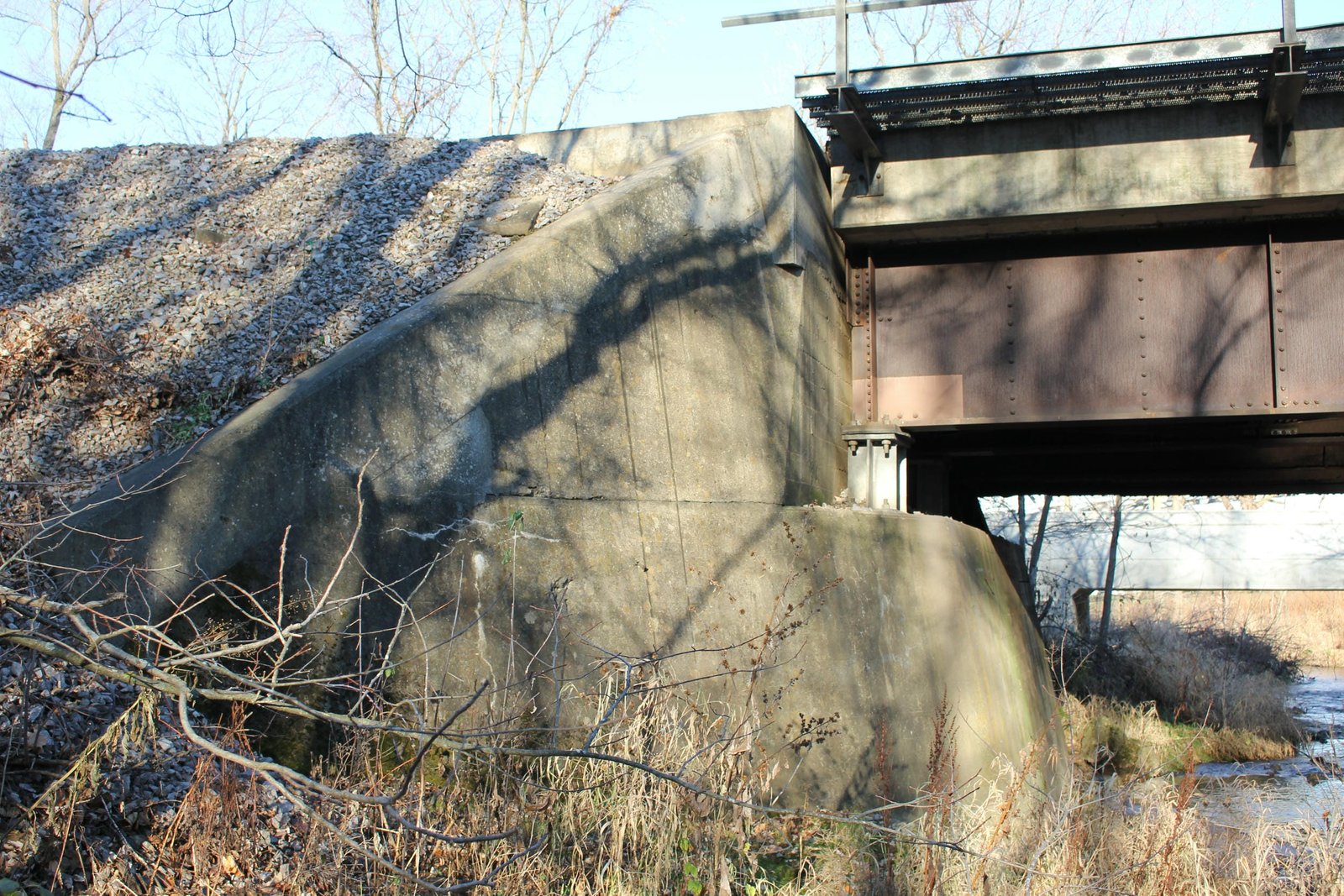

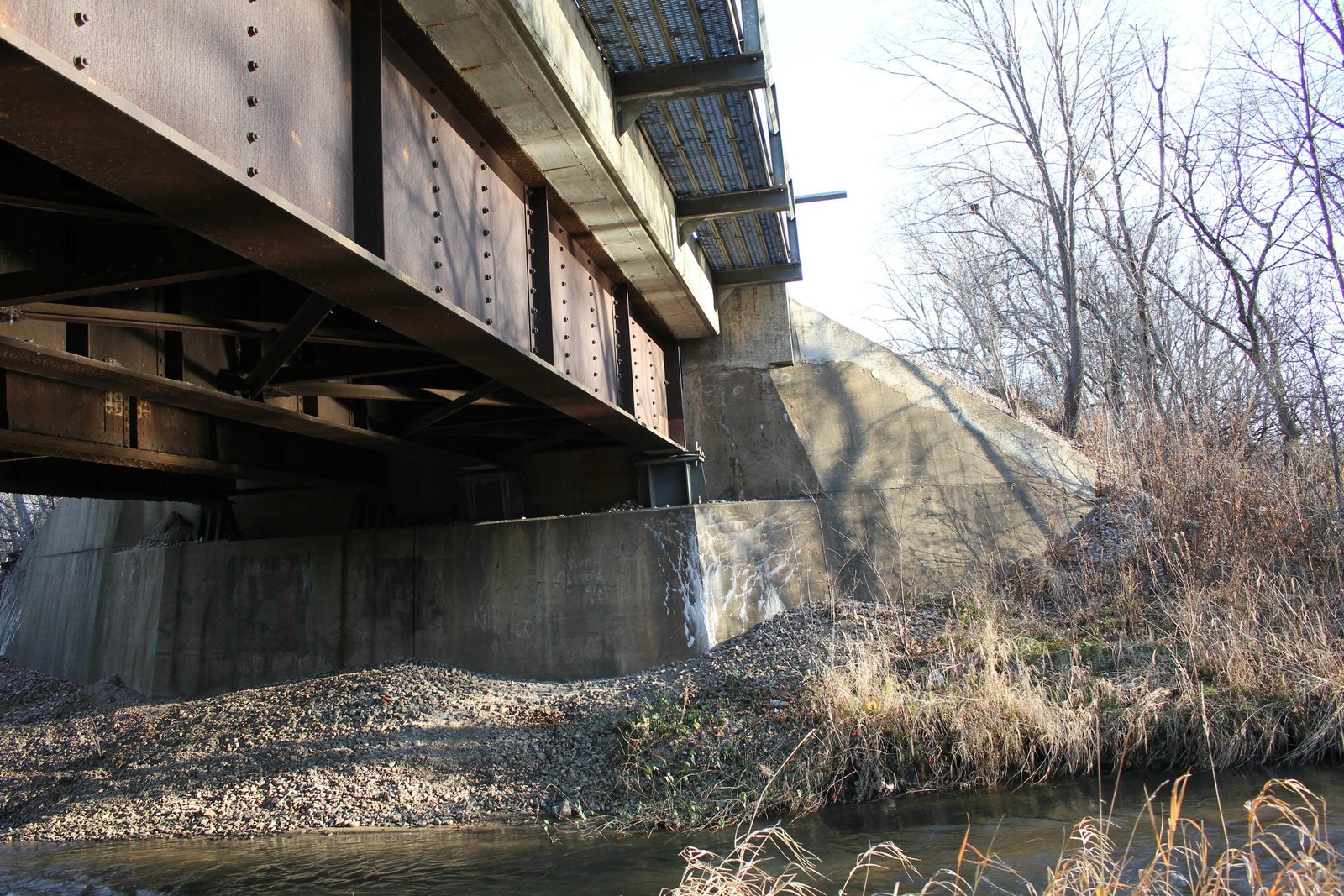

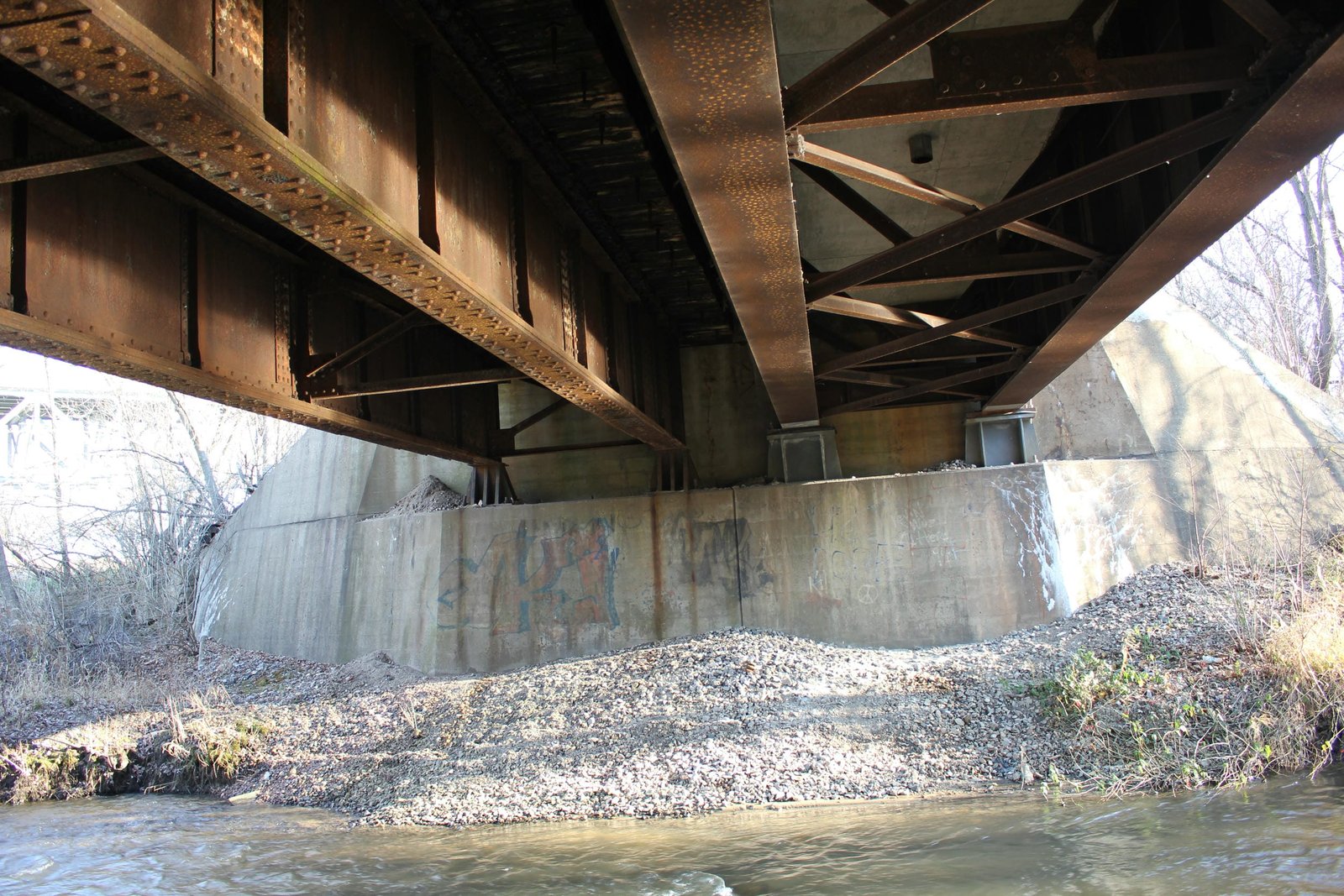

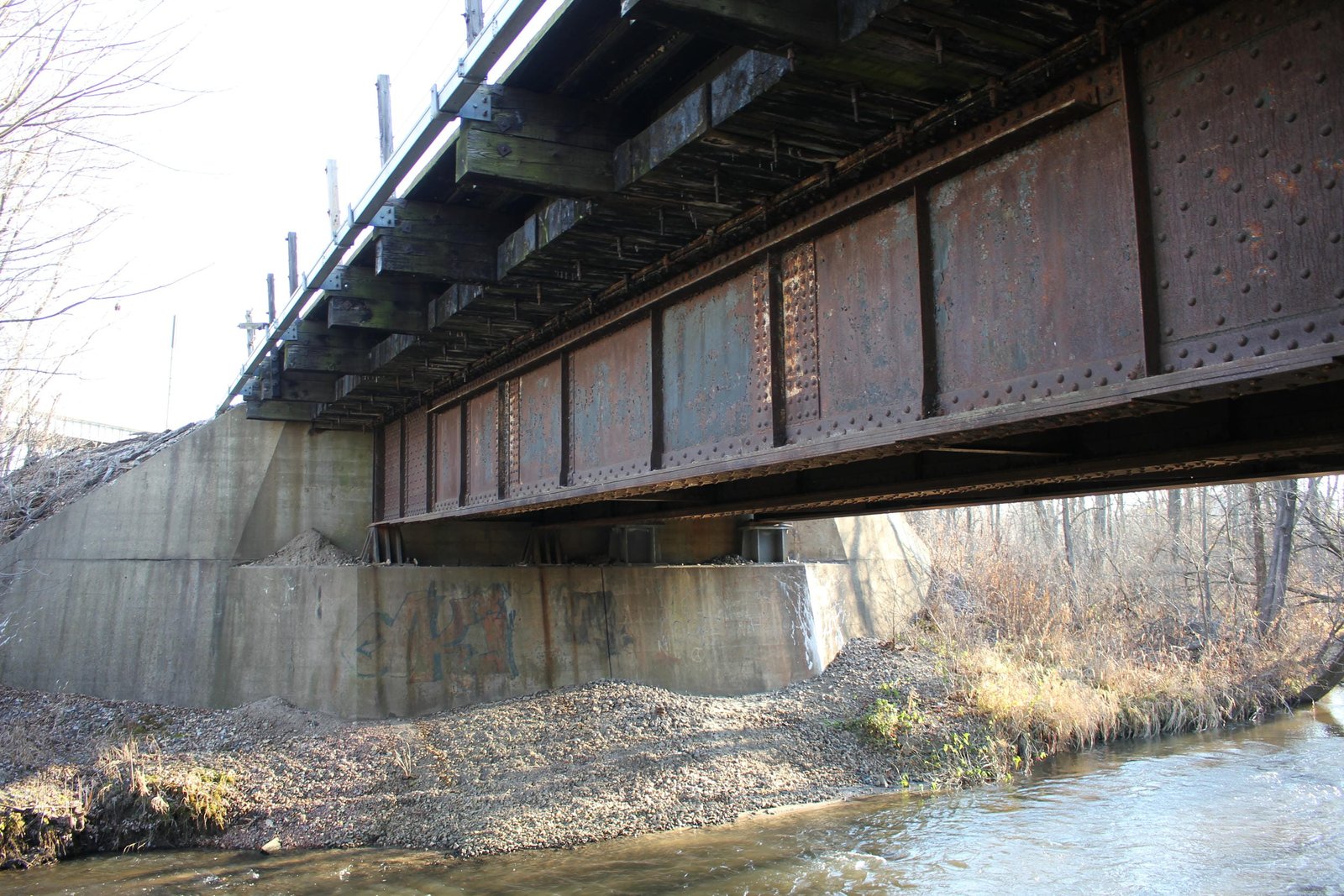

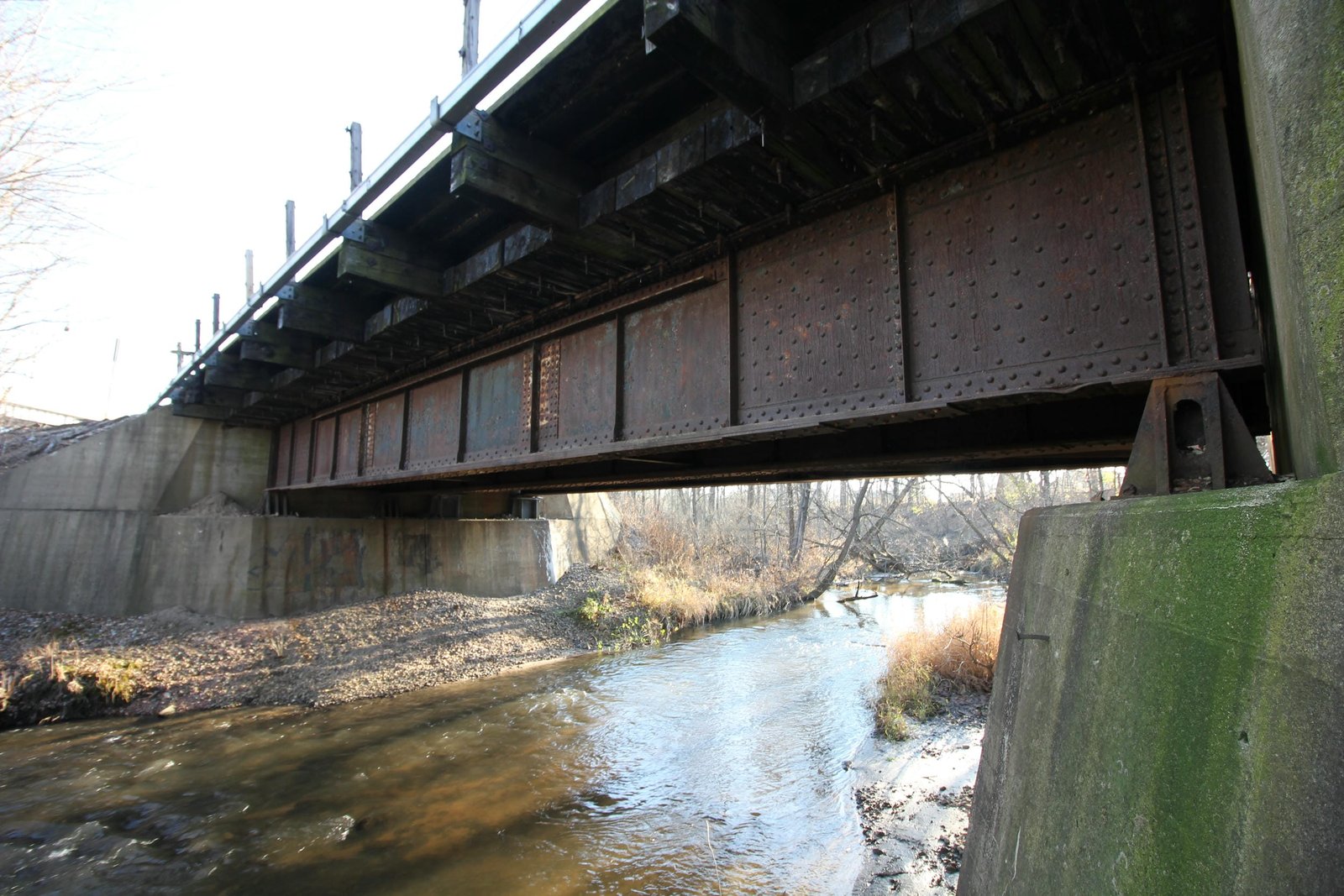

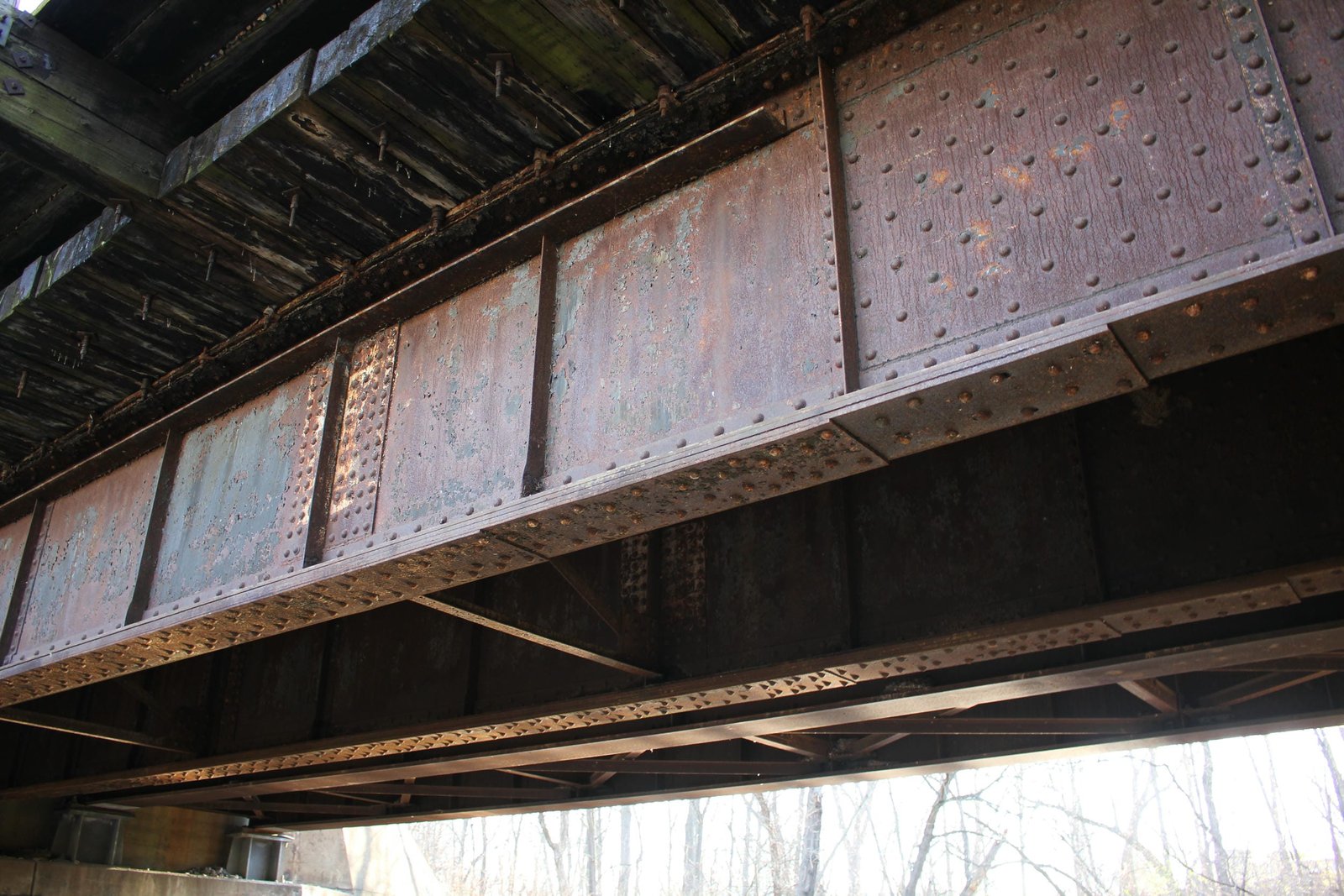

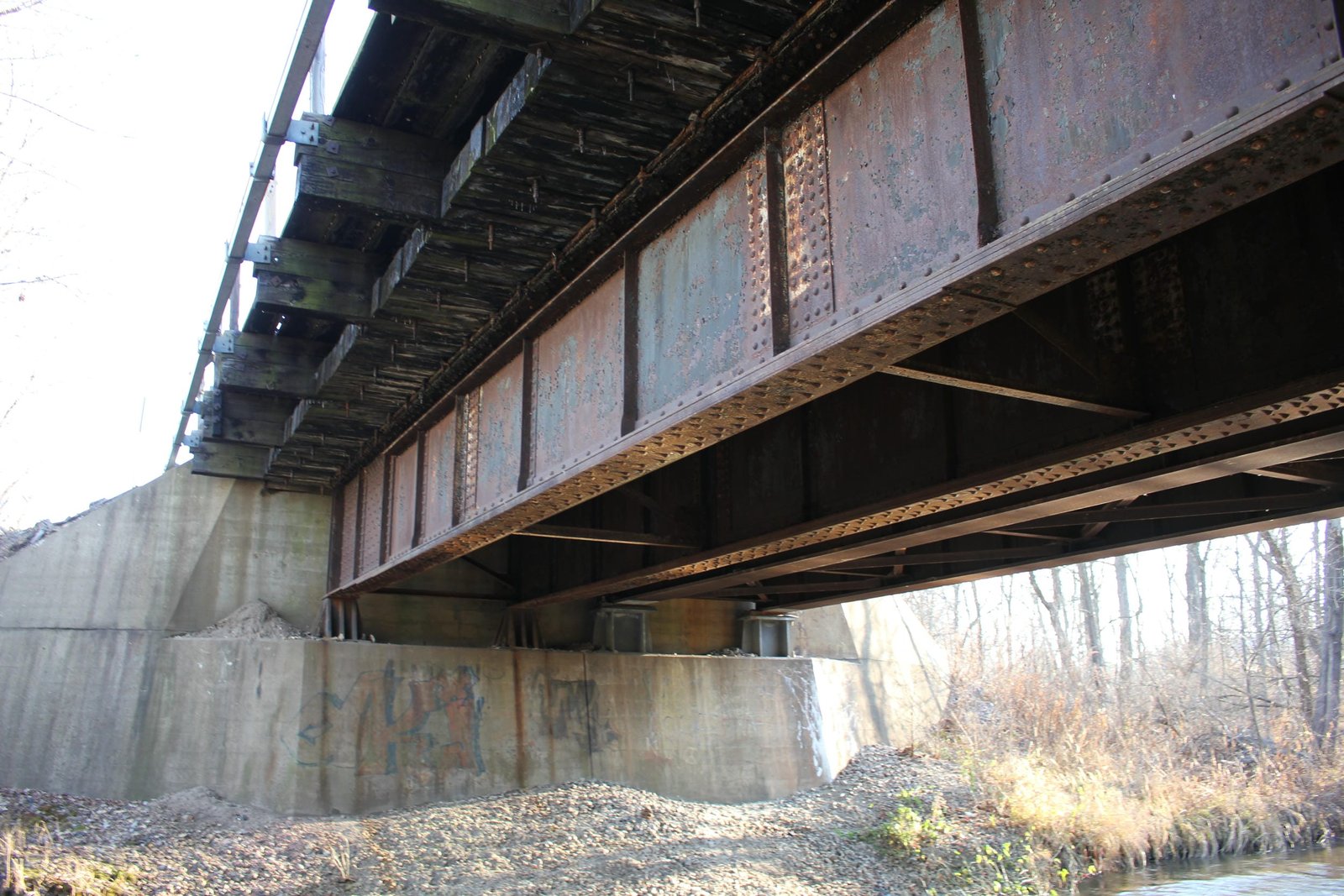

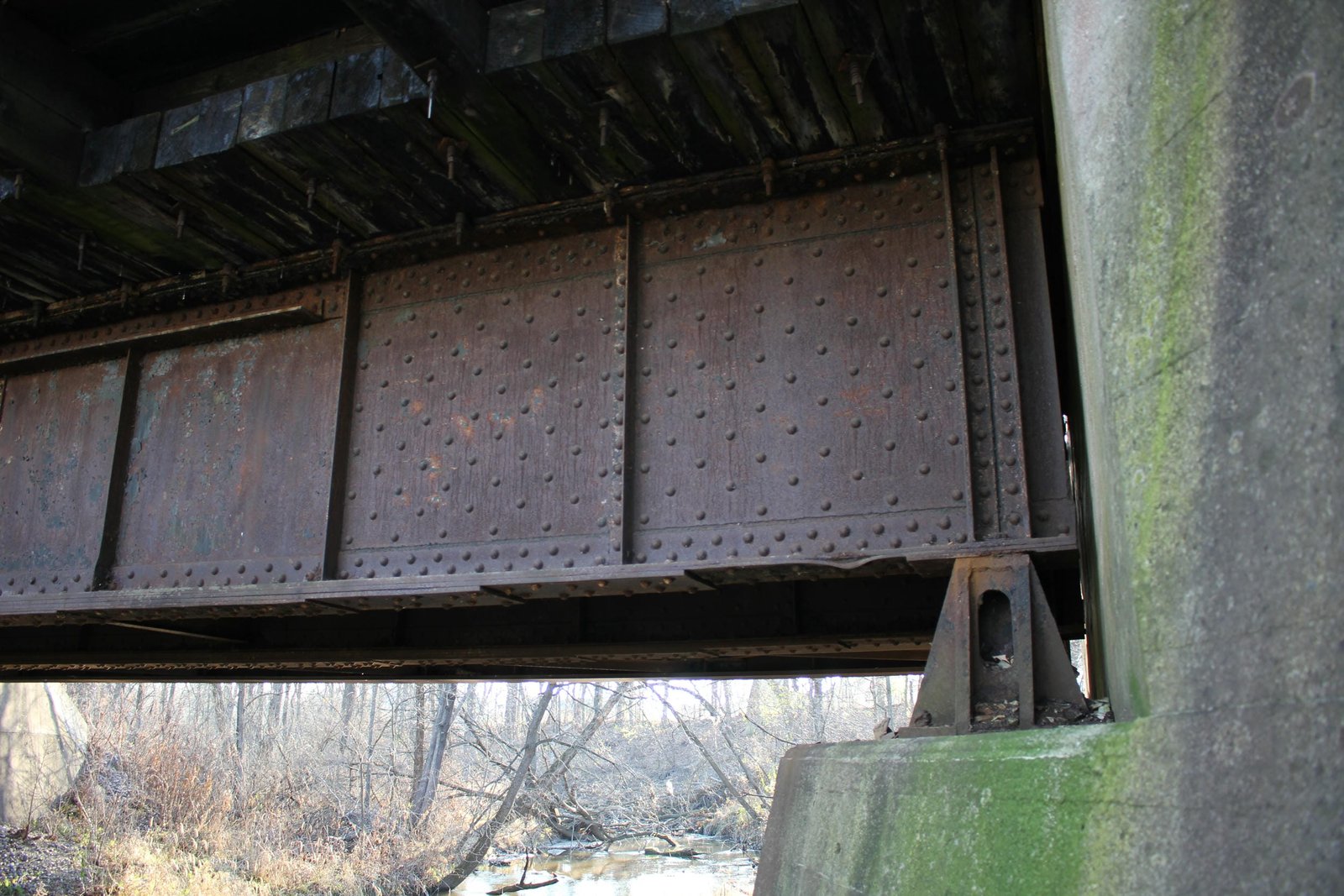

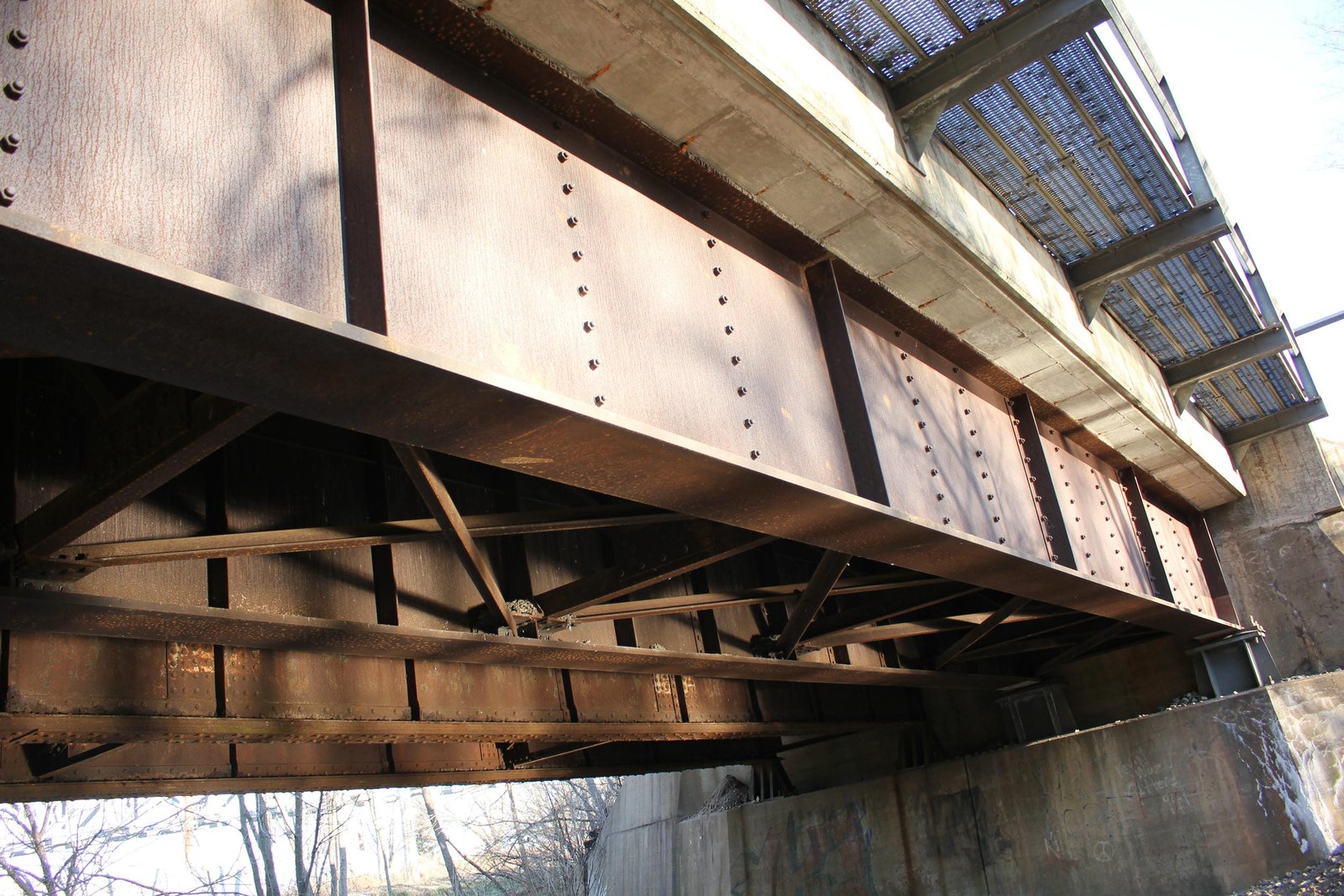

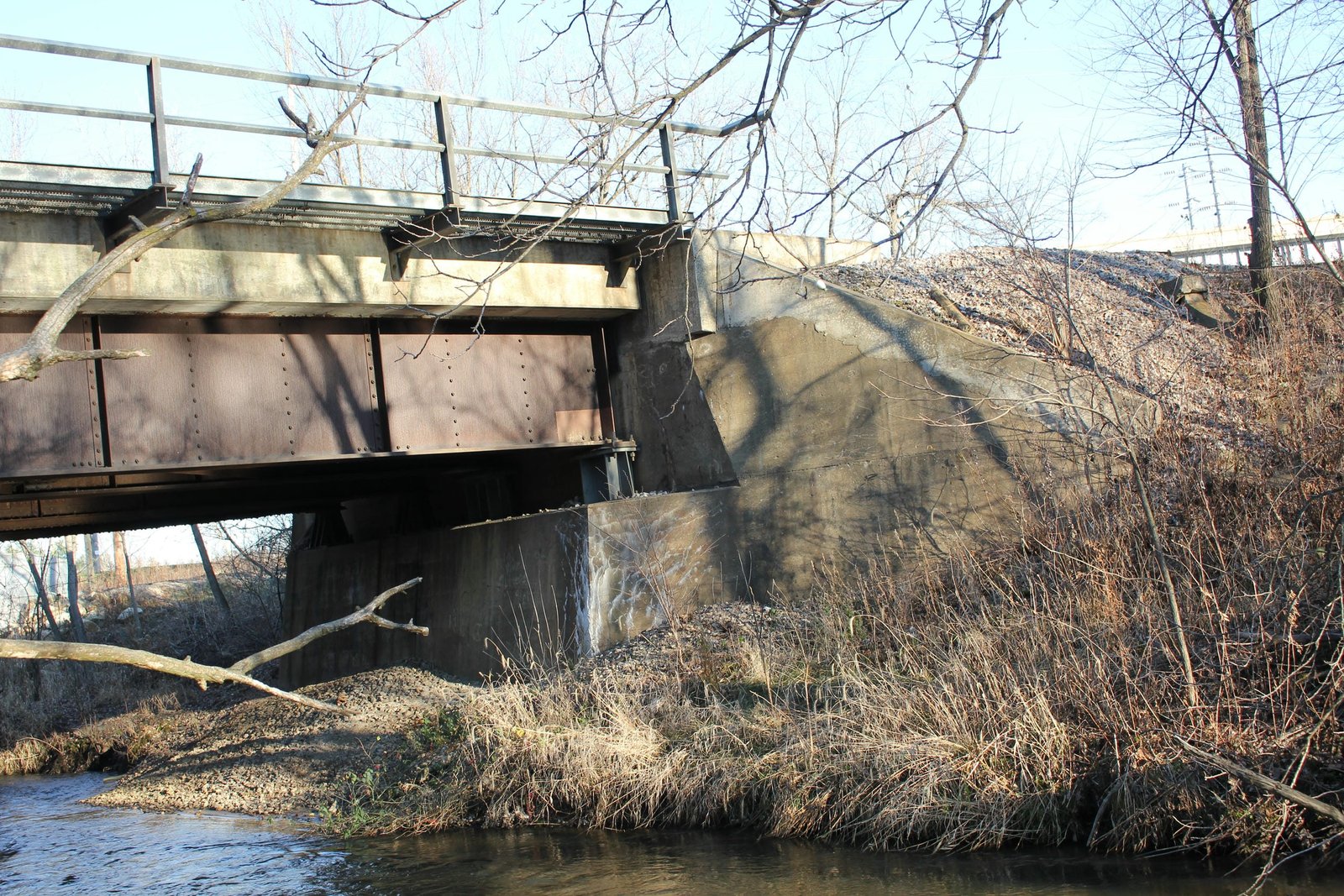

Currently, the bridge consists of a double track 52-foot deck plate girder span, set onto concrete abutments. The north track and original south track spans both used a similar design, with heavy girders and a ballast deck constructed of timber. During the 1937 strengthening, the north span was rebuilt with additional rivets, plates and brackets, giving the span an unusual appearance. The current south track span uses a standard modern design, with bolted connections and weathered steel. Both abutments use a similar design, with an angular shape and diagonal wing walls. The concrete abutments are founded on timber piles. An unknown contractor fabricated the north track superstructure, and an additional unknown contractor fabricated the original south track superstructure. Railroad company forces likely constructed the west abutment, and it is unknown if the east abutment was constructed by an unknown contractor or by railroad company forces. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. Both tracks remain in use today. The author has ranked this bridge as being locally significant, due to the common design.
Citations
Build dates | Milwaukee Road Bridge Index, located at the Milwaukee Road Archives at the Milwaukee Public Library |
Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
