Name | CN Smokey Road Bridge |
Built By | Minneapolis, St. Paul & Sault Ste. Marie Railroad |
Currently Owned By | Canadian National Railway |
Superstructure Contractor | Unknown |
Length | 94 Feet Total, 39 Foot Main Span |
Width | 1 Track |
Height Above Ground | 14 Feet 0 Inches |
Superstructure Design | Steel Stringer and Timber Pile Trestle |
Substructure Design | Timber Pile |
Date Built | c. 1950 |
Date Replaced | 2022 |
Traffic Count | 0 Trains/Day (Bridge has been Replaced) |
Current Status | Replaced by a new bridge |
Canadian National Railway Bridge Number | 239.60 |
Significance | Minimal Significance |
Documentation Date | 9/27/2014 |
In 1871, the Wisconsin Central Railway (WC) constructed 61 miles of new railroad, extending from Neenah, Wisconsin to Menasha, Wisconsin. Between 1872 and 1874, an additional 100 miles would be constructed to Worcester, Wisconsin as part of a larger project to reach Ashland, Wisconsin. The WC was reorganized as the Wisconsin Central Railroad (WC) in 1871, which was again reorganized as the Wisconsin Central Railway (WC) in 1899. This line provided the central section of mainline across Wisconsin for the WC, connecting lines towards Ashland and Minneapolis, Minnesota with the line towards Chicago, Illinois. In 1909, the WC would be leased by the Minneapolis, St. Paul & Sault Ste. Marie Railway (Soo Line), which itself was controlled by the Canadian Pacific Railway (CP). The Soo Line had constructed a large network of railroads, connecting the Upper Midwest with Canadian Railroads. During the early 20th Century, a number of upgrades were made to this line, aimed at improving operations, reducing grades and shortening travel time. In 1910, the WC constructed a 19 mile segment between Spencer, Wisconsin and Owen, Wisconsin, providing a shorter route for traffic between Chicago and the Twin Cities. This diagonal line reduced the importance of the Spencer-Abbotsford-Owen segment, and saved several miles.
Throughout the 20th Century, the Neenah to Owen segment remained a critical component of the Soo Line system. In 1961, the WC would be merged with other CP subsidiaries Duluth, South Shore & Atlantic Railroad and the Soo Line to form Soo Line Railroad, a company controlled by CP. In 1984, the Soo Line would be reorganized as the Soo Line Corporation in advance of a pending purchase of the Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road). After the Soo Line acquired the Milwaukee Road in 1986, this route became less important, as the Milwaukee Road purchase provided Soo with additional connections between Chicago and Minneapolis. In 1987, the route would be sold to Wisconsin Central, Ltd. (WC). Known as the "new" Wisconsin Central, the railroad acquired several excess rail lines from the Soo Line, Milwaukee Road and Chicago & North Western Railway, before being acquired as the American subsidiary of Canadian National Railway (CN) in 2001. Today, CN continues to operate the Neenah to Spencer, Wisconsin portion of this line as a part of their mainline between the Twin Cities and Chicago. The segment between Neenah and Stevens Point, Wisconsin is known as the Neenah Subdivision, and the segment between Stevens Point and Owen is the southern portion of the Superior Subdivision.

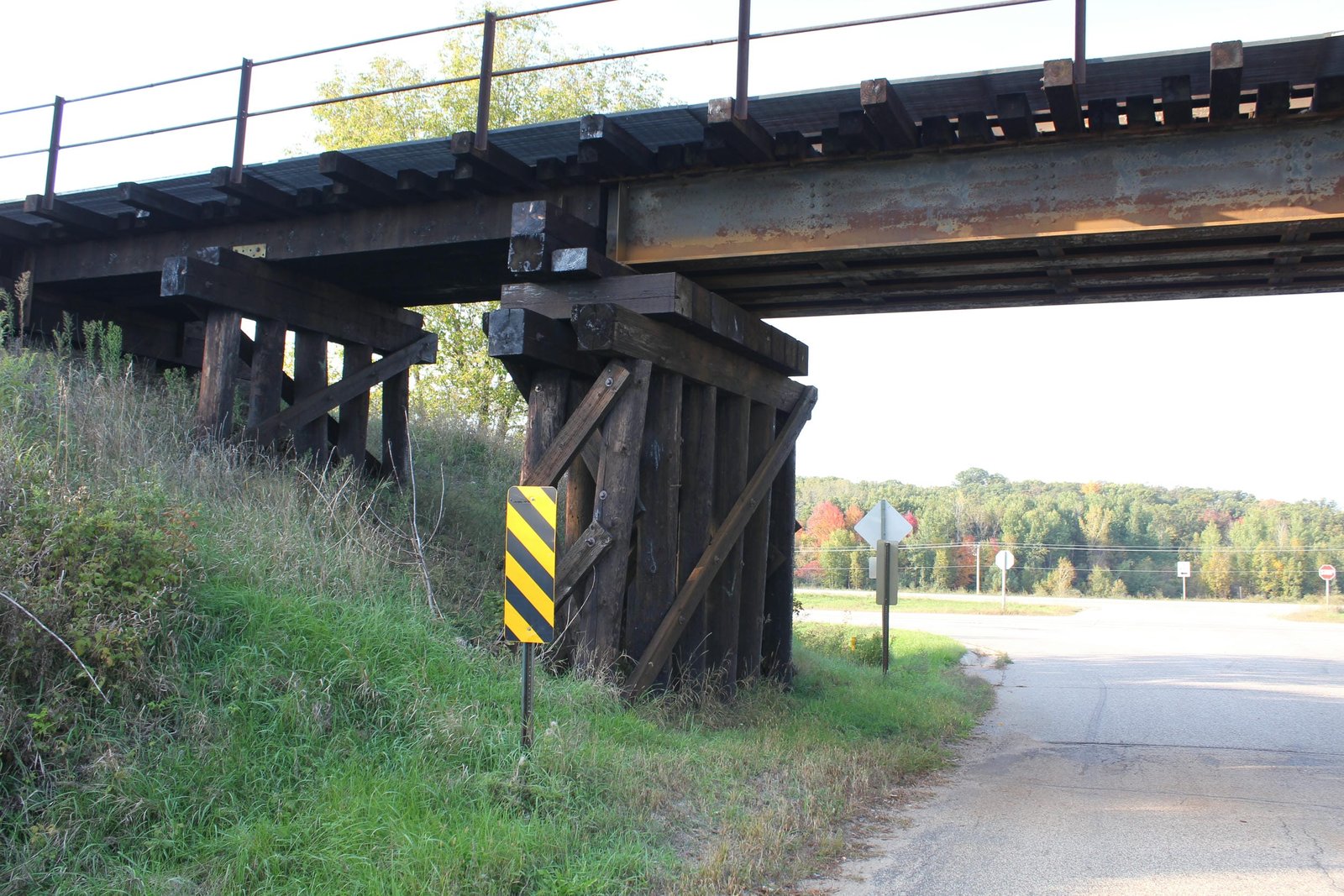

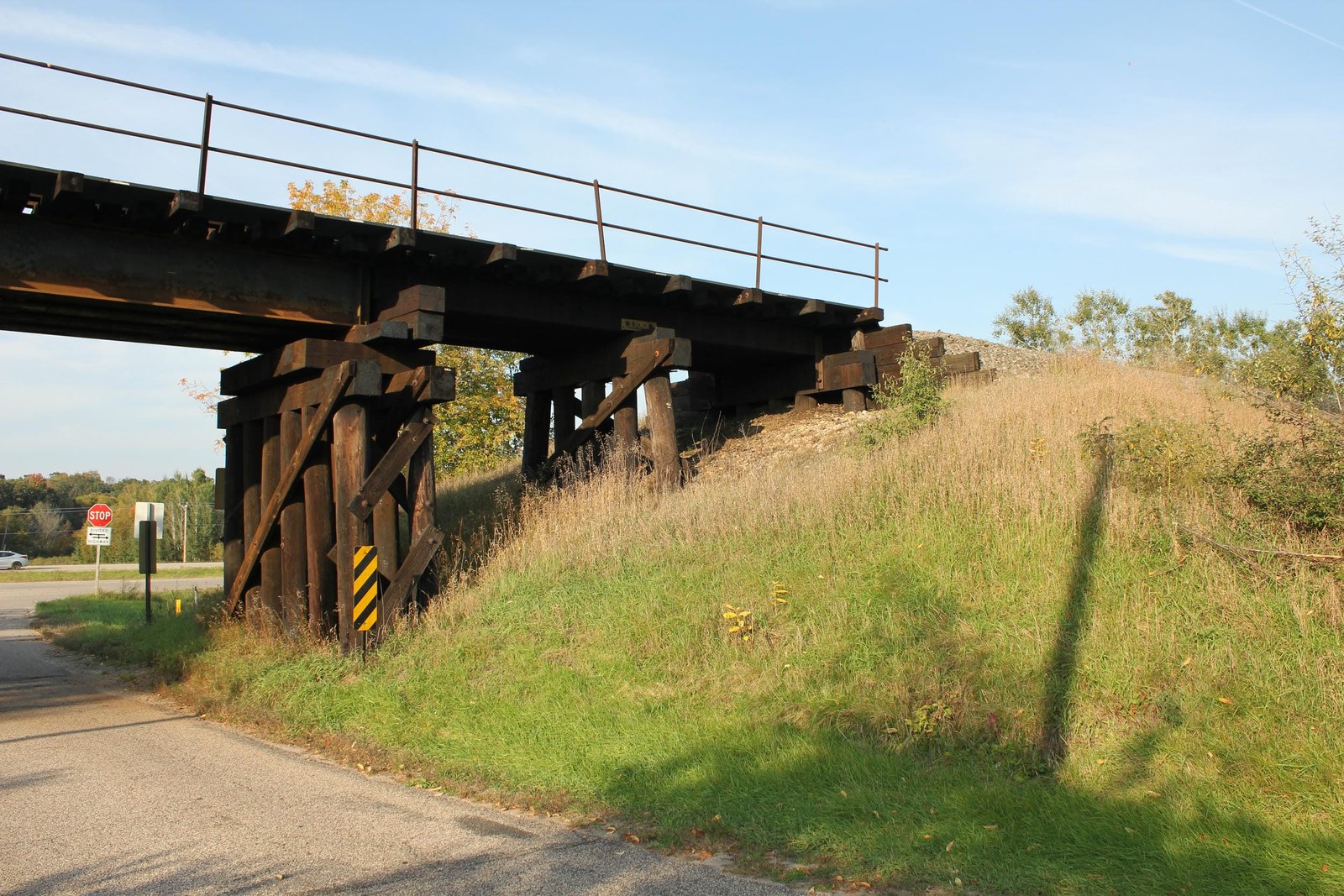

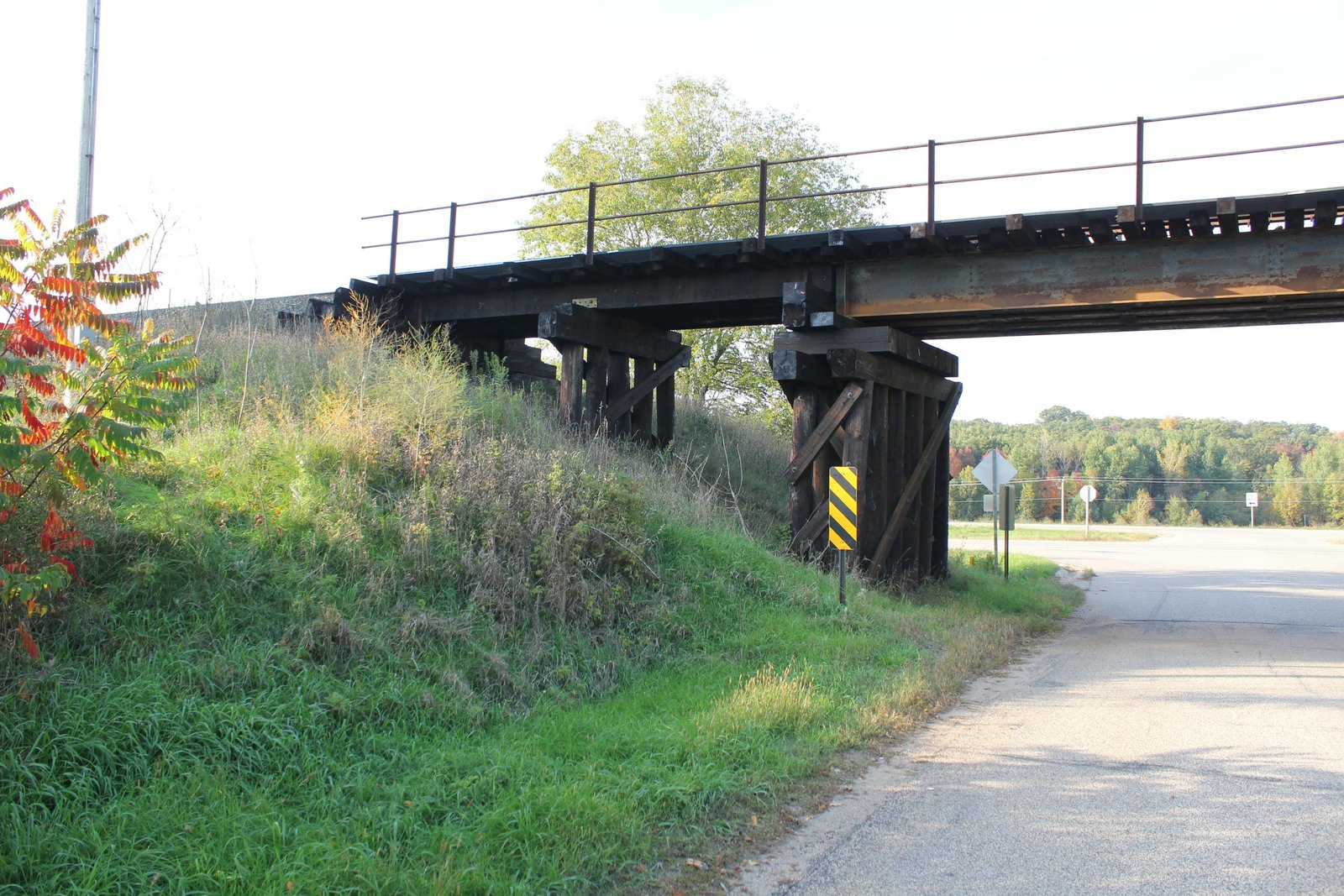

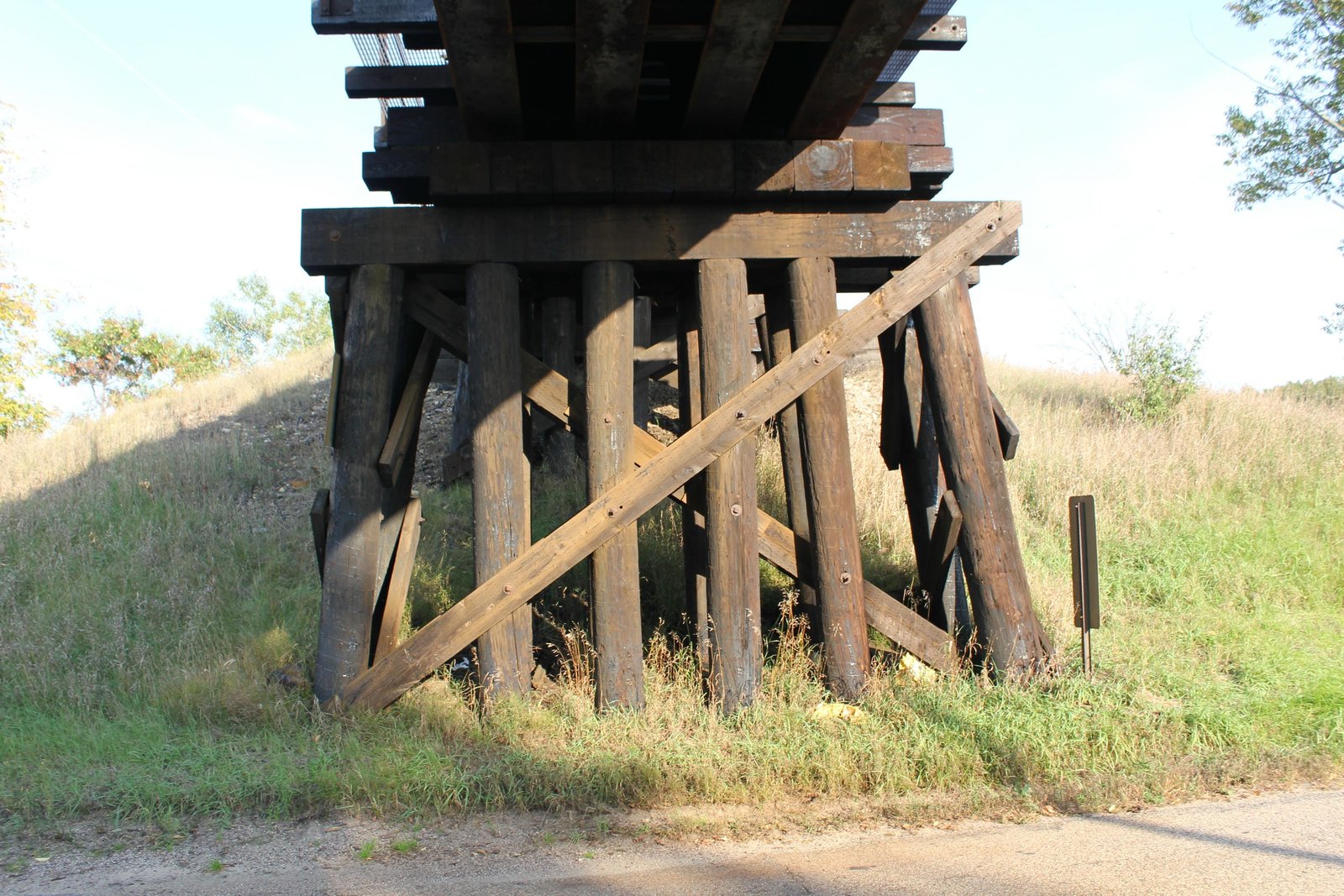

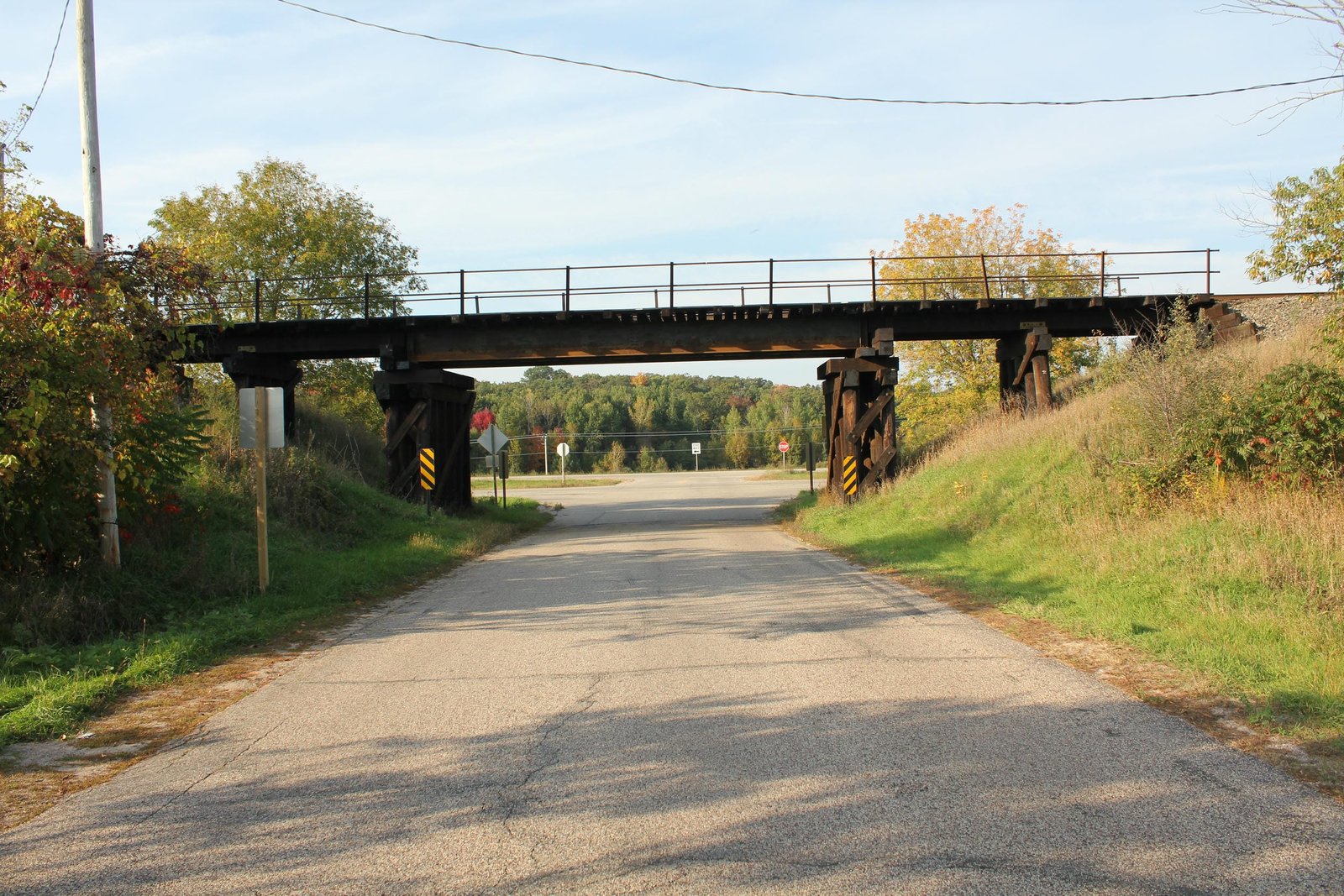

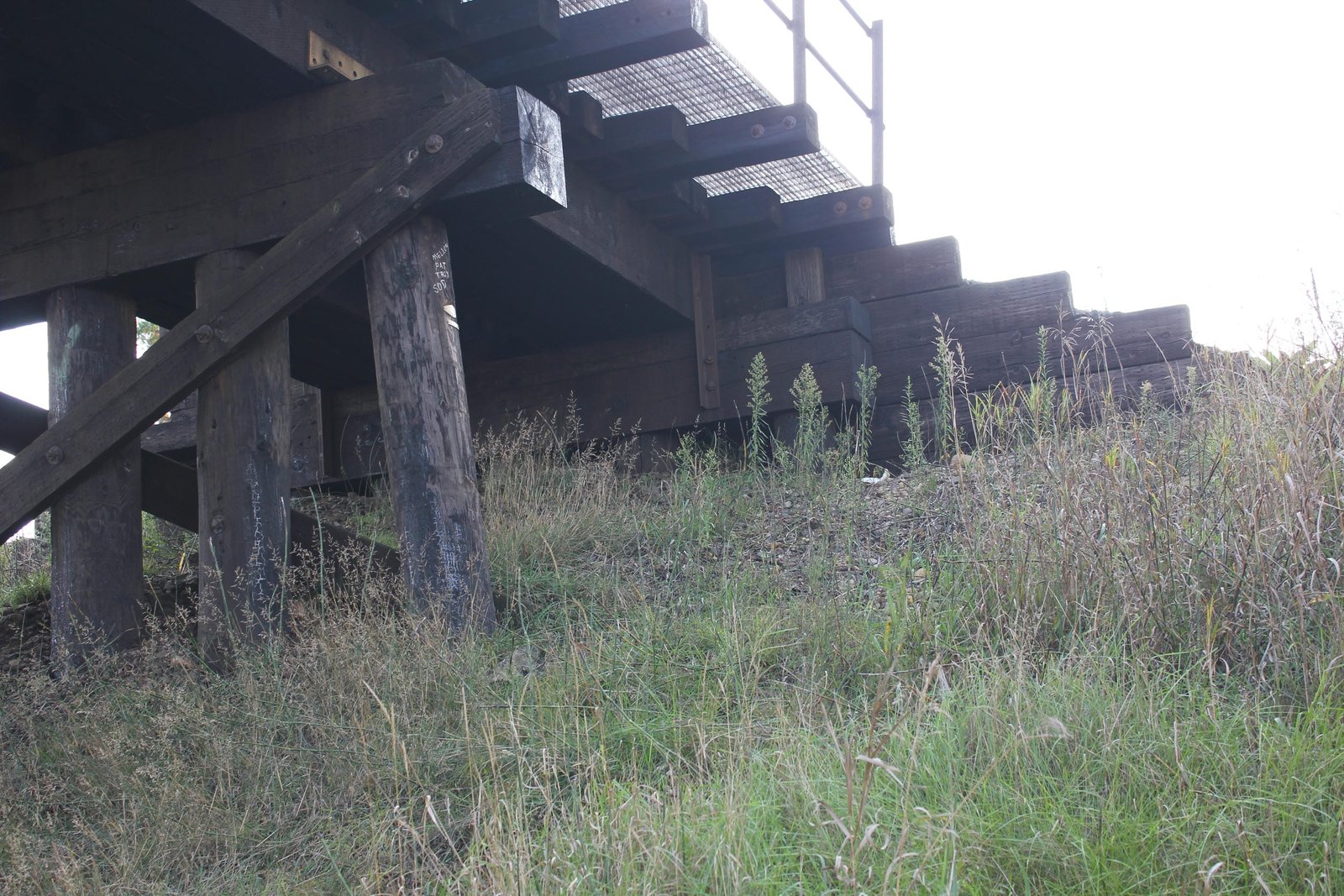

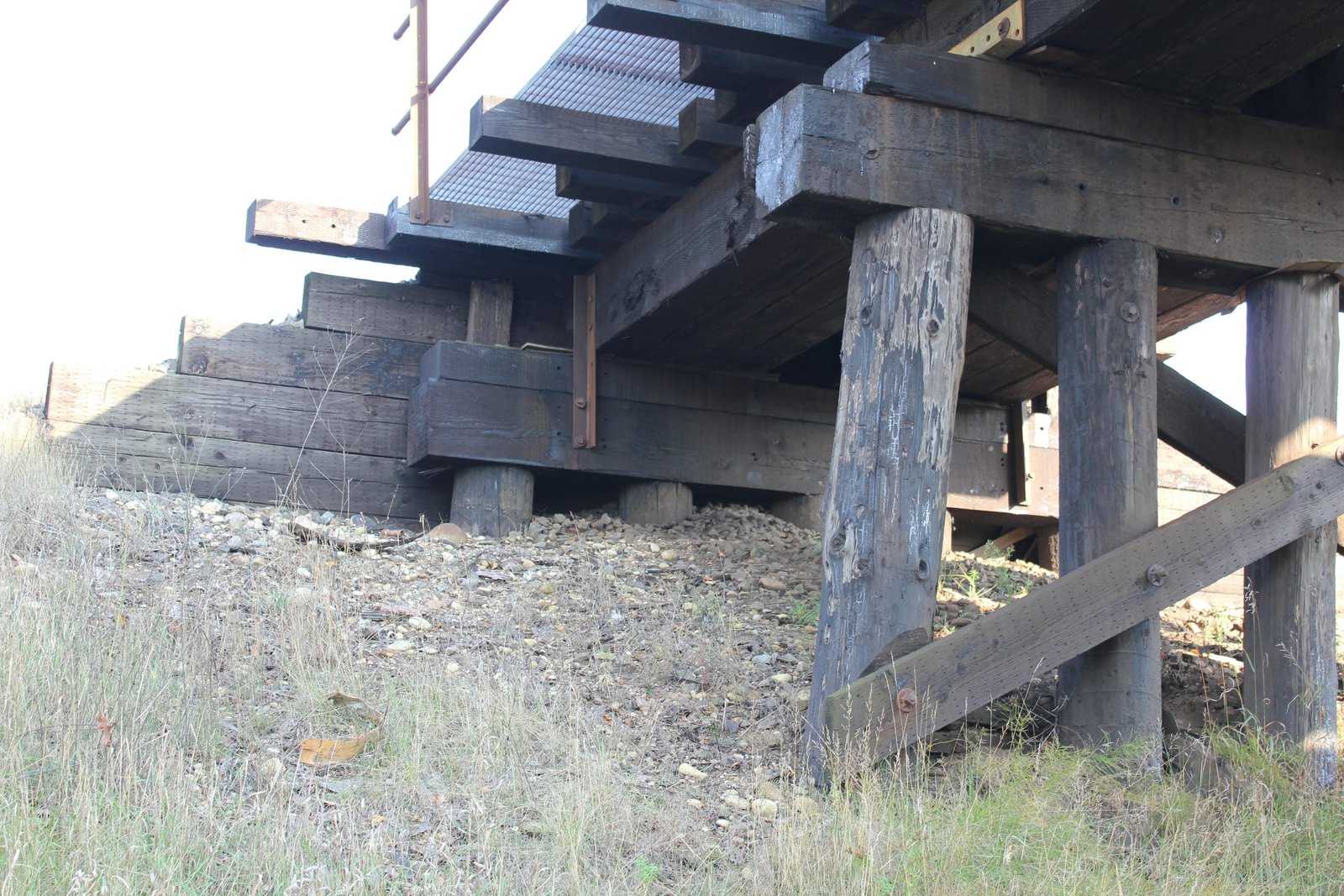

Located alongside US Highway 10 east of Custer, this standard steel stringer and timber pile trestle bridge carried the former Soo Line over Smokey Road. Little is known about the history of this bridge. A previous bridge at this location had existed since at least 1916, and consisted exclusively of timber. It is believed that the most recent bridge was constructed in approximately 1950. The bridge consisted of a 39-foot steel stringer span, set onto timber pile piers and approached by two timber pile trestle spans on either end. The main span of the bridge used four beams, constructed similarly to other Soo Line bridges of this design. It is unknown what contractor fabricated the steel span, and it is likely that the bridge was erected by railroad company forces. Steel stringer and trestle bridges were exceptionally common along railroads throughout the United States, as they were cost effective and easy to construct. Between 2021 and 2022, the bridge would be replaced by a new concrete and steel bridge. For a short period, the original main span was retained until a new steel span could be furnished. Overall, the bridge appeared to be in fair condition, with no significant deterioration noted. The author has ranked this bridge as being minimally significant, due to the common design and newer age.
Citations
Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
