Name | CPKC County Road 69 Bridge Chicago, Milwaukee & St. Paul Bridge #O-98 1/4 |
Built By | Chicago, Milwaukee, St. Paul & Pacific Railroad |
Currently Owned By | Canadian Pacific Kansas City Limited |
Superstructure Contractor | Unknown |
Substructure Contractor | Kraus-Anderson Construction Company of St. Paul, Minnesota |
Length | 241 Feet Total, 73 Foot Main Spans |
Width | 1 Track |
Height Above Ground | 16 Feet 2 Inches |
Superstructure Type | Through Plate Girder and Steel Stringer |
Substructure Type | Concrete |
Date Built | 1957 |
Traffic Count | Less than 1 Train/Day (Estimated) |
Current Status | Open to Traffic |
Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge Number | O-98 1/2 |
Minnesota Highway Department Bridge Number | 6885 |
Significance | Local Significance |
Documentation Date | 8/1/2013 |
In 1872, the Hastings and Dakota Railway completed 72 miles of new railroad between Hastings, Minnesota and Glencoe, Minnesota. Later that year, the H&D would convey this line to the Milwaukee and St. Paul Railway, which would change its name to the Chicago, Milwaukee and St. Paul Railway Company (CM&StP) in 1874. Known as the Milwaukee Road, the railroad was beginning to amass a large collection of railroads throughout Wisconsin, Minnesota and Iowa. The line would later be extended westwards, eventually reaching Aberdeen, South Dakota. In 1882, the Milwaukee Road built the Benton Cutoff, a new direct route between Minneapolis and Cologne, reducing the importance of the original line.
The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928. The segment of this line between Hastings and Farmington was removed in 1935. As the Milwaukee Road continued to face financial hardship during the 1970s, numerous branch lines would be abandoned, including the segment between Shakopee and Cologne in 1977. The Chaska to Shakopee segment, including the large truss swing bridge over the Minnesota River, were purchased for trail use. The segment between Shakopee and Farmington was abandoned in 1980, and the Milwaukee Road utilized trackage rights over the Chicago & North Western to reach Rahr Malting in Shakopee. The Milwaukee Road would eventually be purchased by the Soo Line in 1986, which has since become part of CPKC. During the 1980s, the segment between Chaska and Shakopee was converted to the Chaska-Shakopee Trail. Due to a failing pier, the Minnesota River bridge was removed in 1996, and the Chaska segment of the trail has been abandoned. Union Pacific Railroad now operates the remaining spur of track in Shakopee.

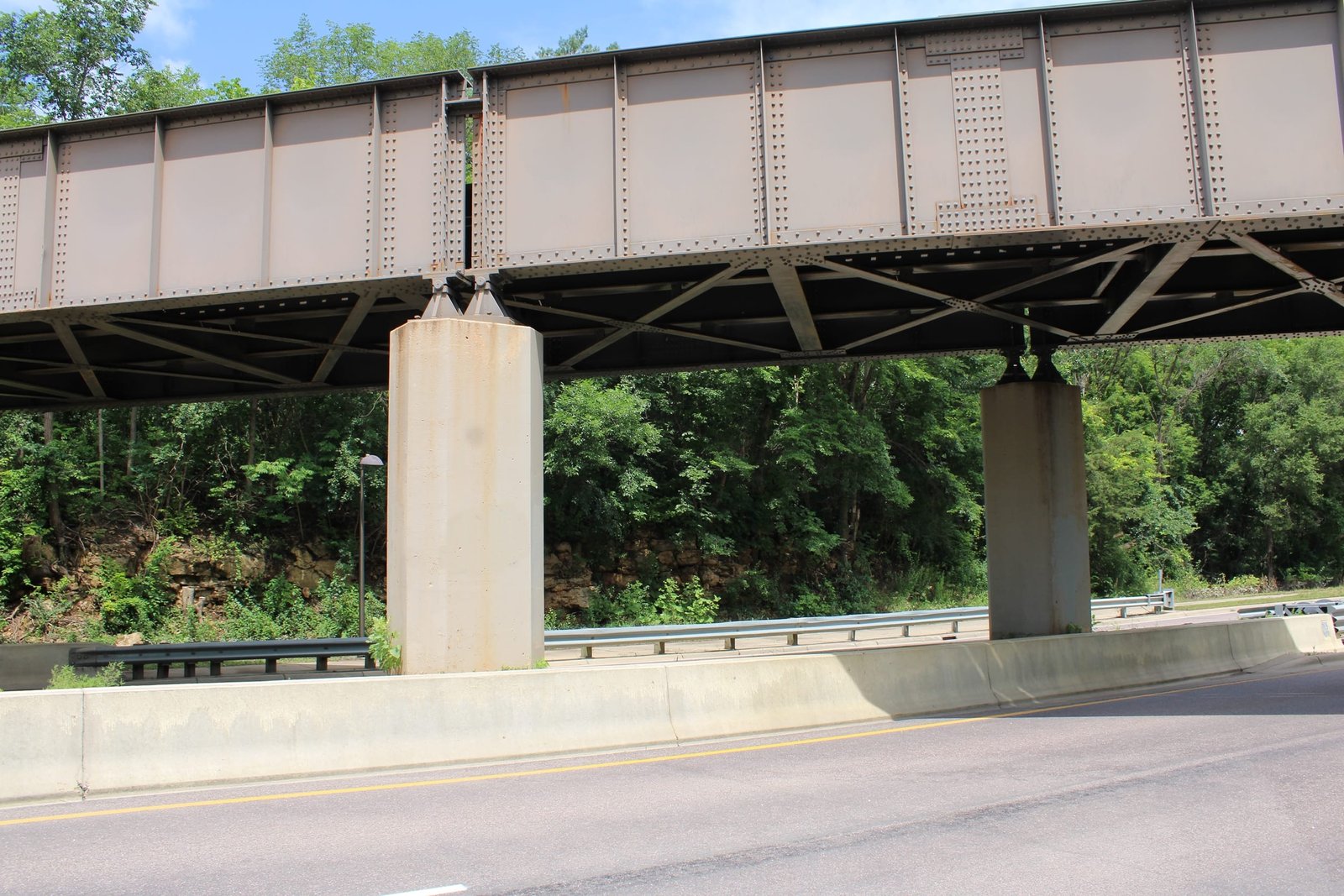

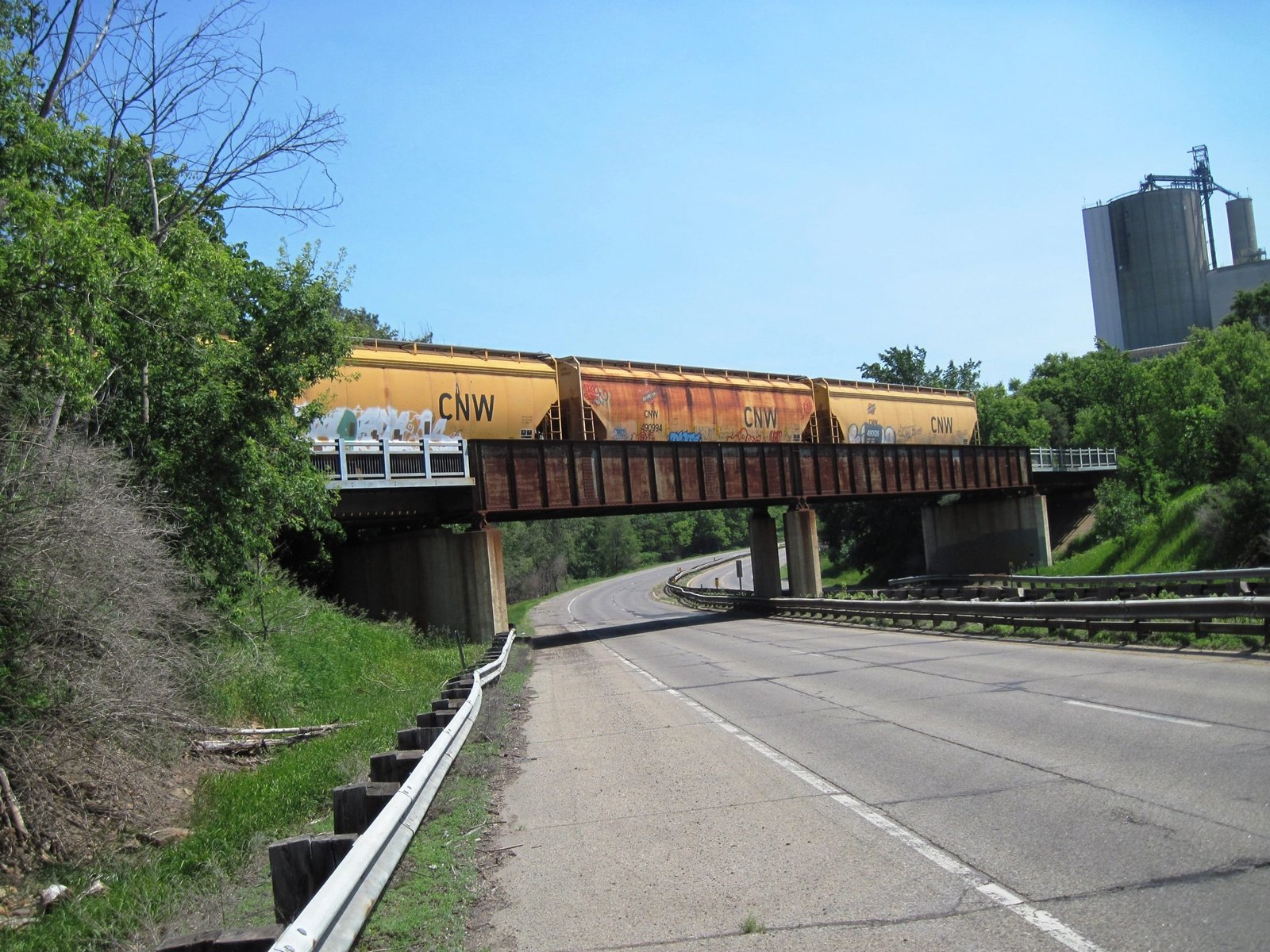

Located on the west side of Shakopee, this bridge carries the remaining spur of the original Hastings & Dakota line across County Road 69 (former US Highway 169). Located parallel to the former Chicago & North Western Railway bridge, this bridge was constructed in 1957 to replace an older deck plate girder and trestle bridge. The bridge consists of two 73-foot through plate girder spans, approached by a 45-foot steel stringer span on the west and a 50-foot steel stringer span on the east. The entire bridge is set onto concrete substructures, and the center pier is comprised of two large concrete columns. The bridge is set at a 46-degree left skew, and uses a ballast deck. An unknown contractor fabricated the steel for this bridge, while the Kraus-Anderson Construction Company constructed the substructure and erected the bridge. Typical of grade separations from this era, this bridge features a handful of decorative features, such as attractive railings. This type of bridge was commonly used by railroads for grade separations, as it was durable and easy to construct. A bypass of Shakopee opened in 1995, and the roadway underneath this bridge reverted to Scott County ownership. As part of a major construction project, the bridge was rehabilitated in 2012, which included repairing deteriorated concrete and repainting the entire bridge. Overall, the bridge appears to be in fair to good condition, and the bridge was rehabilitated in 2012. The author has ranked this bridge as being locally significant, due to the newer age.
Citations
Build Date | National Bridge Inventory (NBI) plaque |
Builder (substructure) | The Minneapolis Star; February 7, 1956 |
Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
