CPKC Little La Crosse River Bridge


Click the photo to view the full-size version

1/14
Date Taken:
Author:
Caption:

Name CPKC Little La Crosse River Bridge
Chicago, Milwaukee & St. Paul Railway Bridge #C-434
Built By Chicago, Milwaukee & St. Paul Railway
Currently Owned By Canadian Pacific Kansas City Limited
Superstructure Contractor Unknown
Length 130 Feet Total, 65 Foot Spans
Width 2 Tracks, 1 In Use
Height Above Ground 15 Feet (Estimated)
Superstructure Design Through Plate Girder
Substructure Design Concrete
Date Built 1908
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
Chicago, Milwaukee & St. Paul Railway Bridge Number C-434
Significance Local Significance
Documentation Date 11/13/2020

In 1850, the Milwaukee & Mississippi Rail Road (M&M) began construction on a new railroad line, with the intention of connecting Lake Michigan at Milwaukee with the Mississippi River.  The first 12 miles between Milwaukee and Brookfield opened in 1851, and the line eventually continued west.  In Milwaukee, this line followed the south side of the Menomonee River.  In 1854, the Milwaukee and Watertown Railroad (M&W) began construction on a new line, leaving the original line at Brookfield, Wisconsin.  32 miles of new railroad were completed to Watertown, Wisconsin by 1855.  The M&W was acquired by the La Crosse and Milwaukee Railroad (LC&M) in 1856.  This railroad had previously constructed a more northerly route between Milwaukee and Portage, Wisconsin.  Between 1857 and 1858, the LC&M constructed 103 miles of new railroad, extending from Portage to the Mississippi River at La Crosse, Wisconsin.  The M&M was acquired by the Milwaukee and Prairie du Chien Railway (M&PdC) in 1861.  The western division of the LC&M, extending from Portage to La Crosse, was sold to the Milwaukee & St. Paul Railway (M&StP) in 1863.  In 1864, the M&StP constructed an additional 47 miles of railroad between Watertown and Portage, connecting the two lines.  In 1867, the M&PdC would be sold to the M&StP.  In 1874, the M&StP changed its name to the Chicago, Milwaukee & St. Paul Railway (Milwaukee Road).

The Milwaukee to La Crosse line became a critical backbone for the Milwaukee Road, serving as the middle section of a longer line between Chicago and Minneapolis/St. Paul.  This line also allowed for the construction of numerous branch lines, as well as the rapid expansion of the Milwaukee Road in the Midwest.  Between 1874 and 1876, a bridge across the Mississippi River was constructed at La Crosse.  A second track was constructed between Milwaukee and Brookfield during the early 1880s.  In 1902, 90 additional miles of second track would be constructed between Brookfield and Watertown, between Portage and Camp Douglas and between West Salem and La Crosse. An additional 47 miles of double track were constructed between Watertown and Portage in 1906, followed by an additional 44 miles of double track between Camp Douglas and West Salem in 1910.  During the 20th Century, the Milwaukee Road had become a prominent railroad in the United States, operating an extensive network of railroad lines primarily in the Midwest.

The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928.  Despite the financial troubles of the railroad, this line remained a critical line and was well maintained.   Financial hardship continued through the 20th Century for the Milwaukee Road, and the railroad again filed bankruptcy in 1977.  By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986. Upgrades were made to the route, including the installation of CTC.  As a result, sections of the second track were removed, and the remaining sections became sidings.  CP merged with Kansas City Southern Railway in 2023 to form CPKC. CPKC currently operates the Milwaukee to Portage segment as the Portage Subdivision, and the Watertown to La Crosse segment as the Tomah Subdivision.  The route remains well used, and hosts both freight and Amtrak trains.

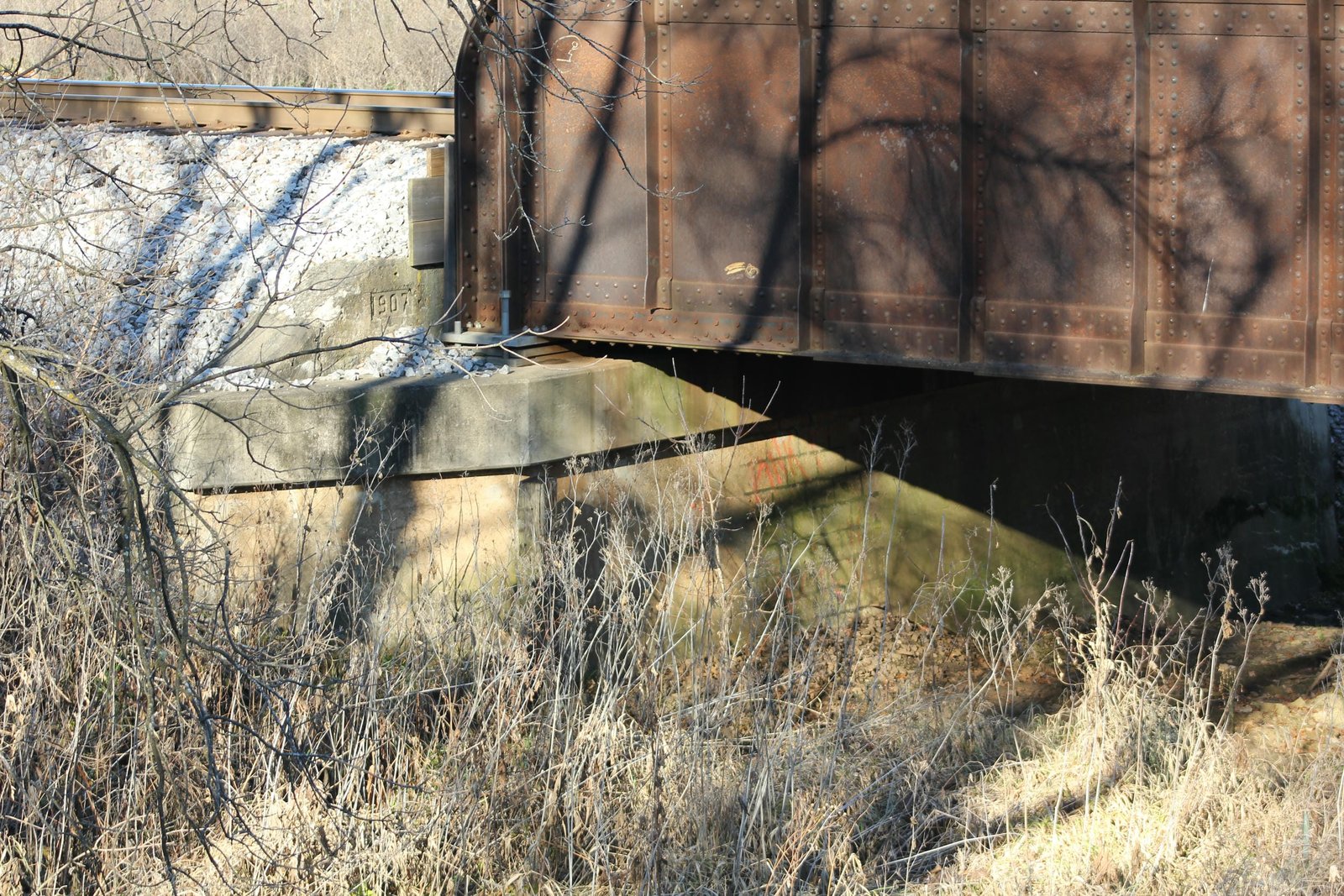

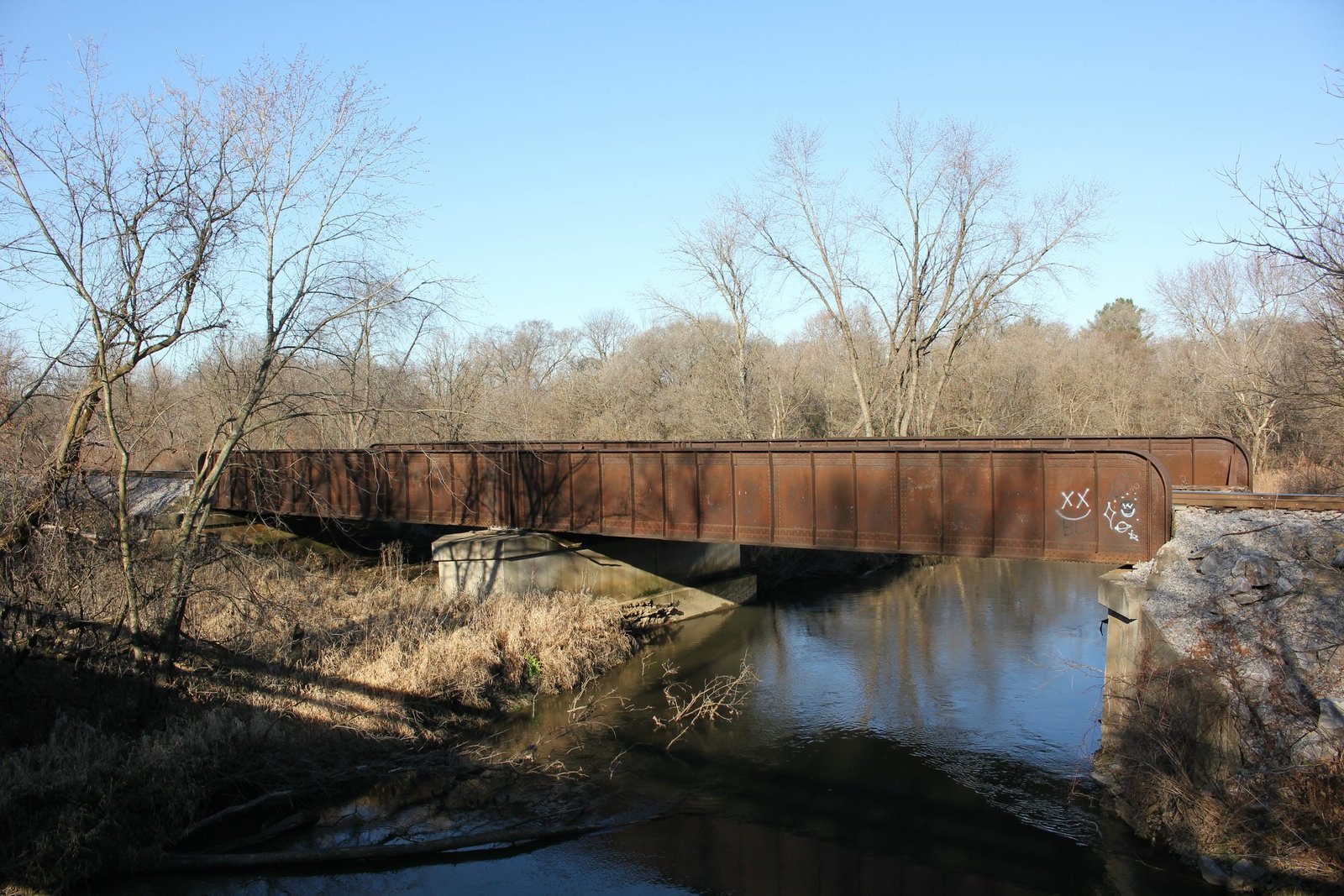

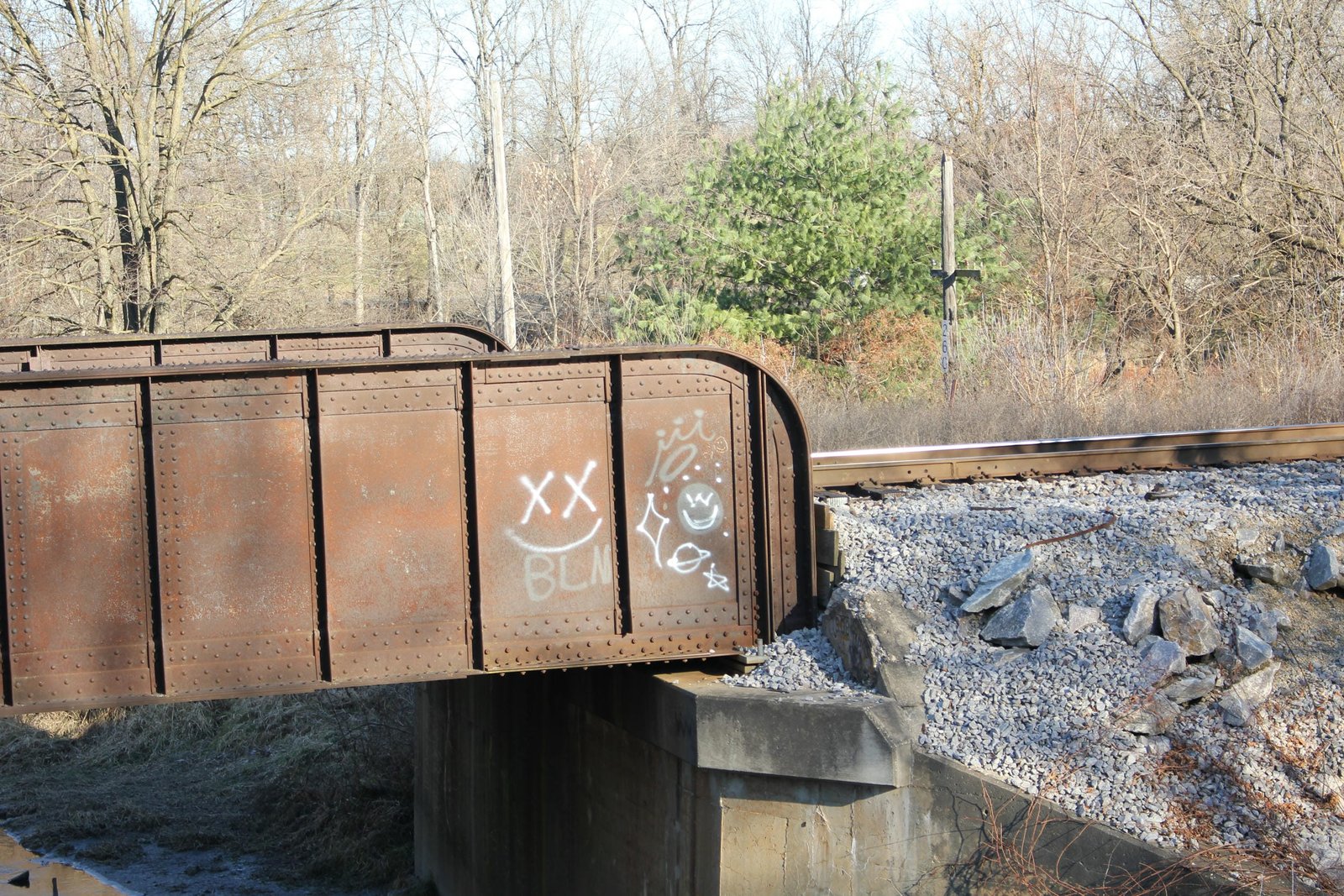

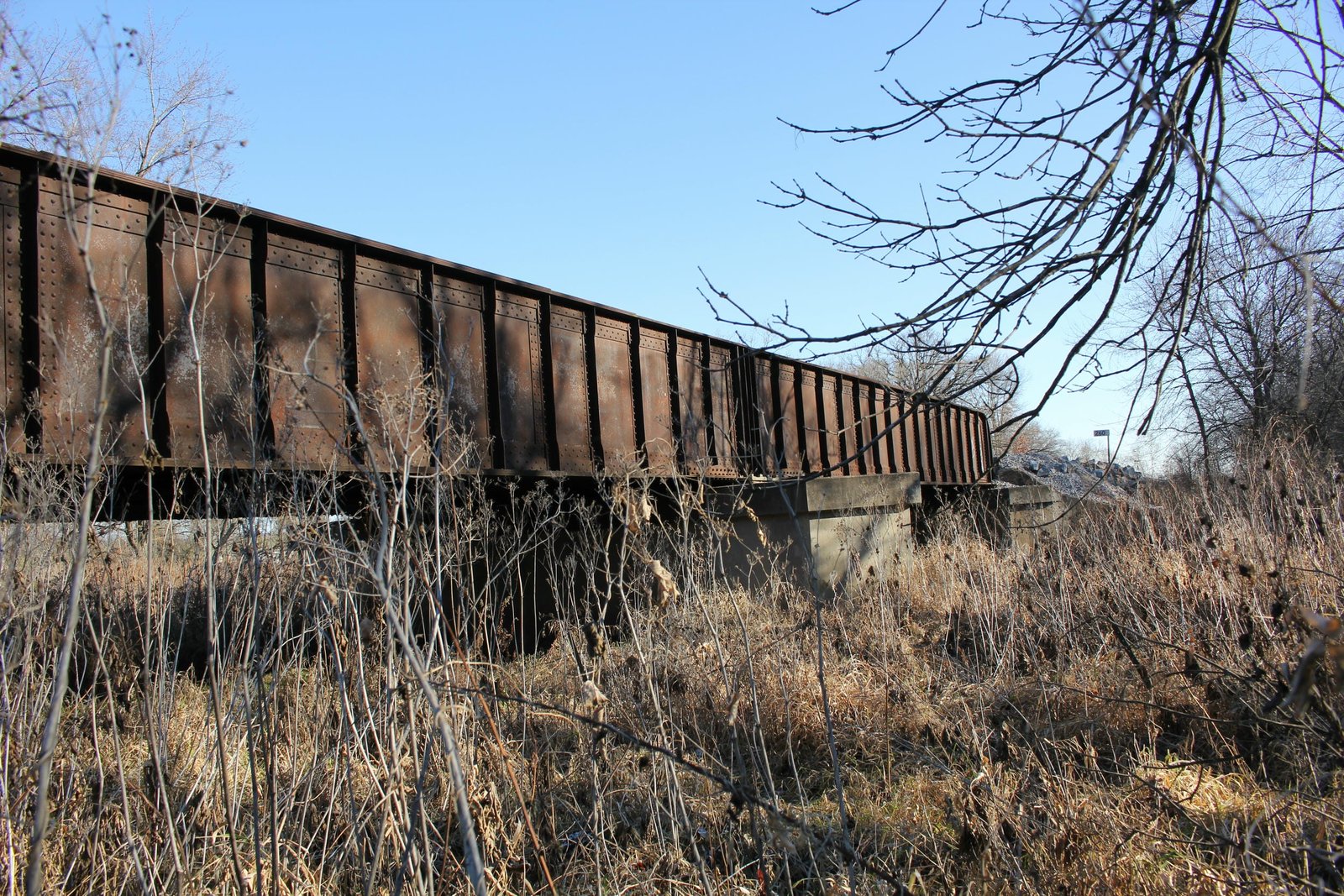

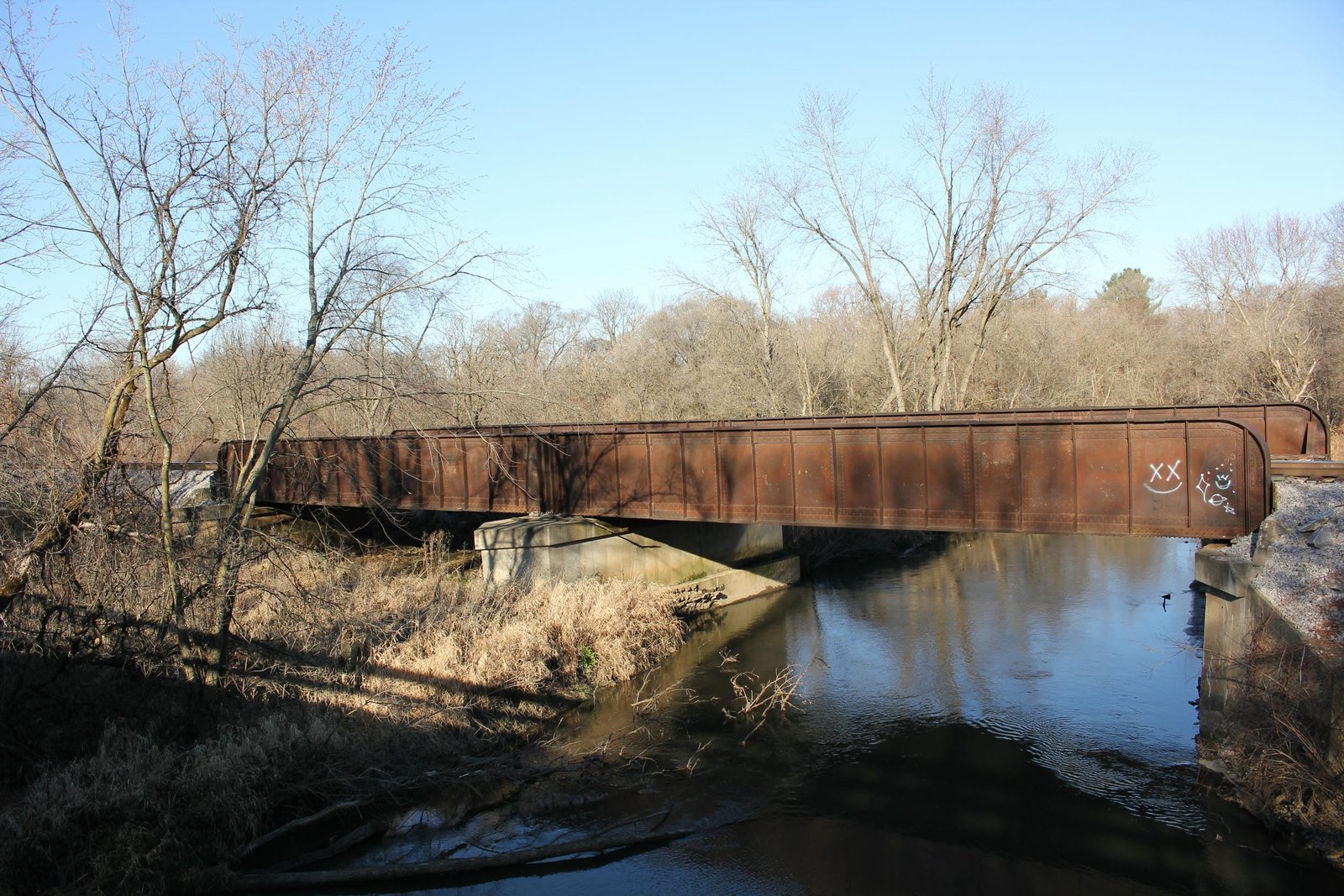

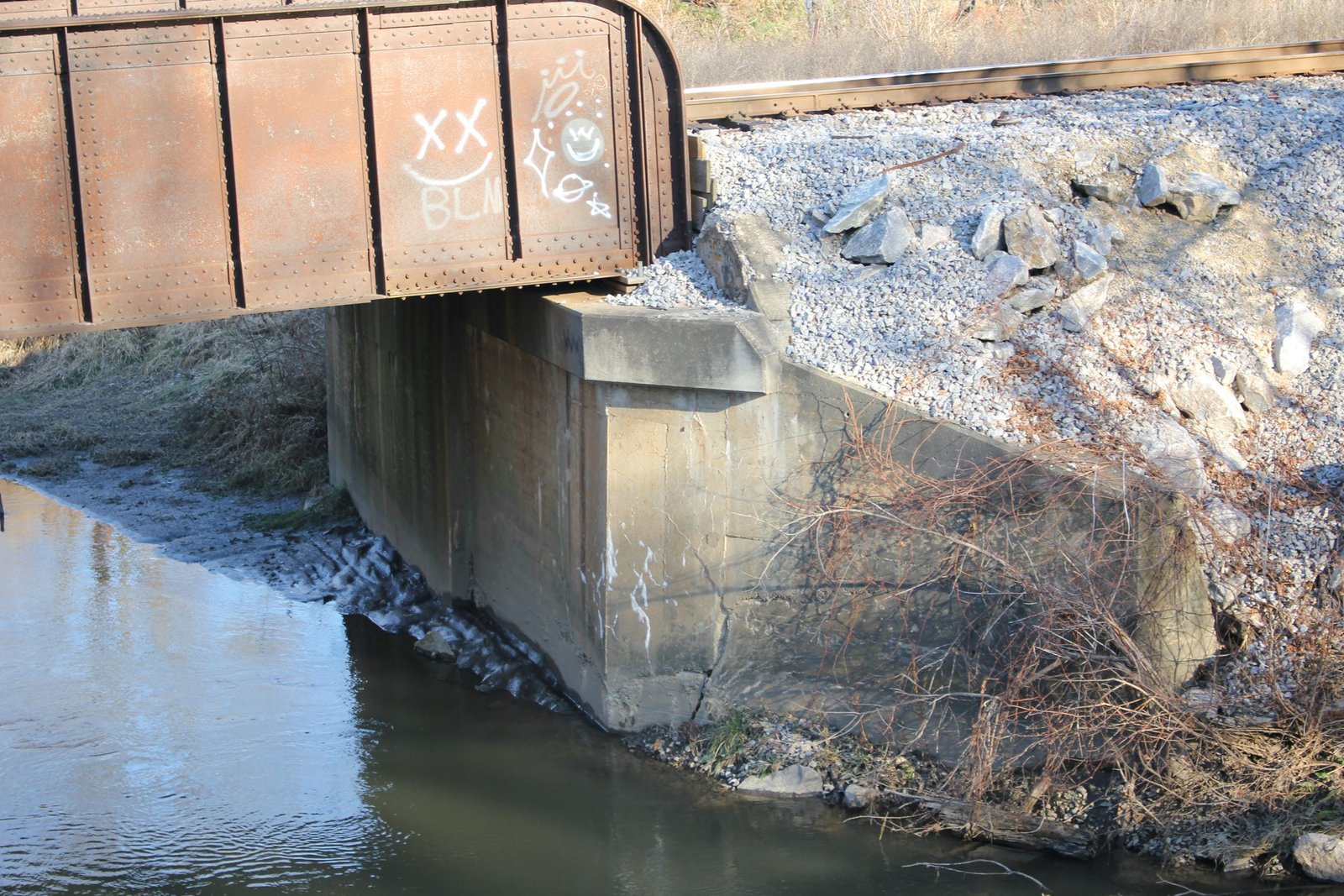

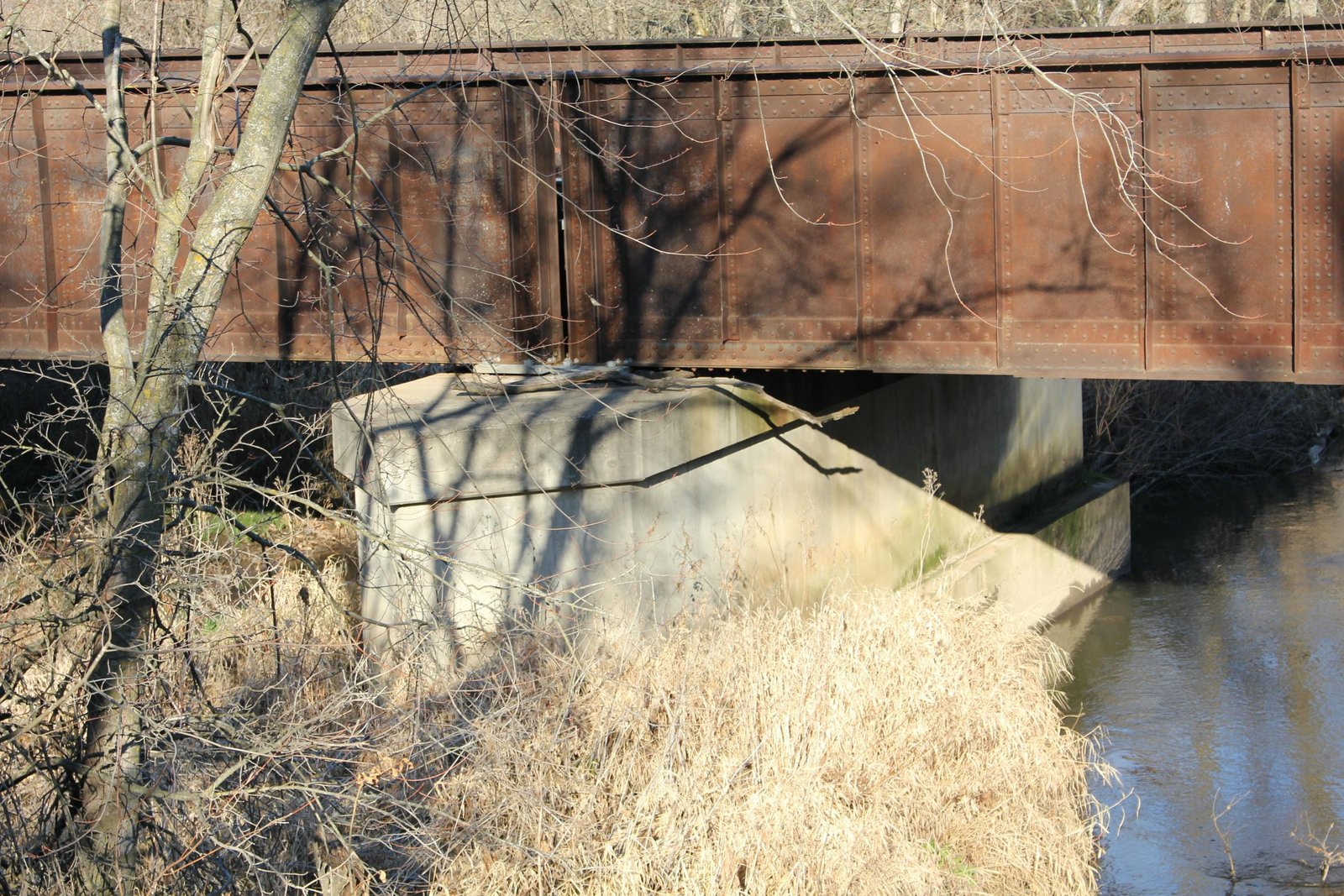

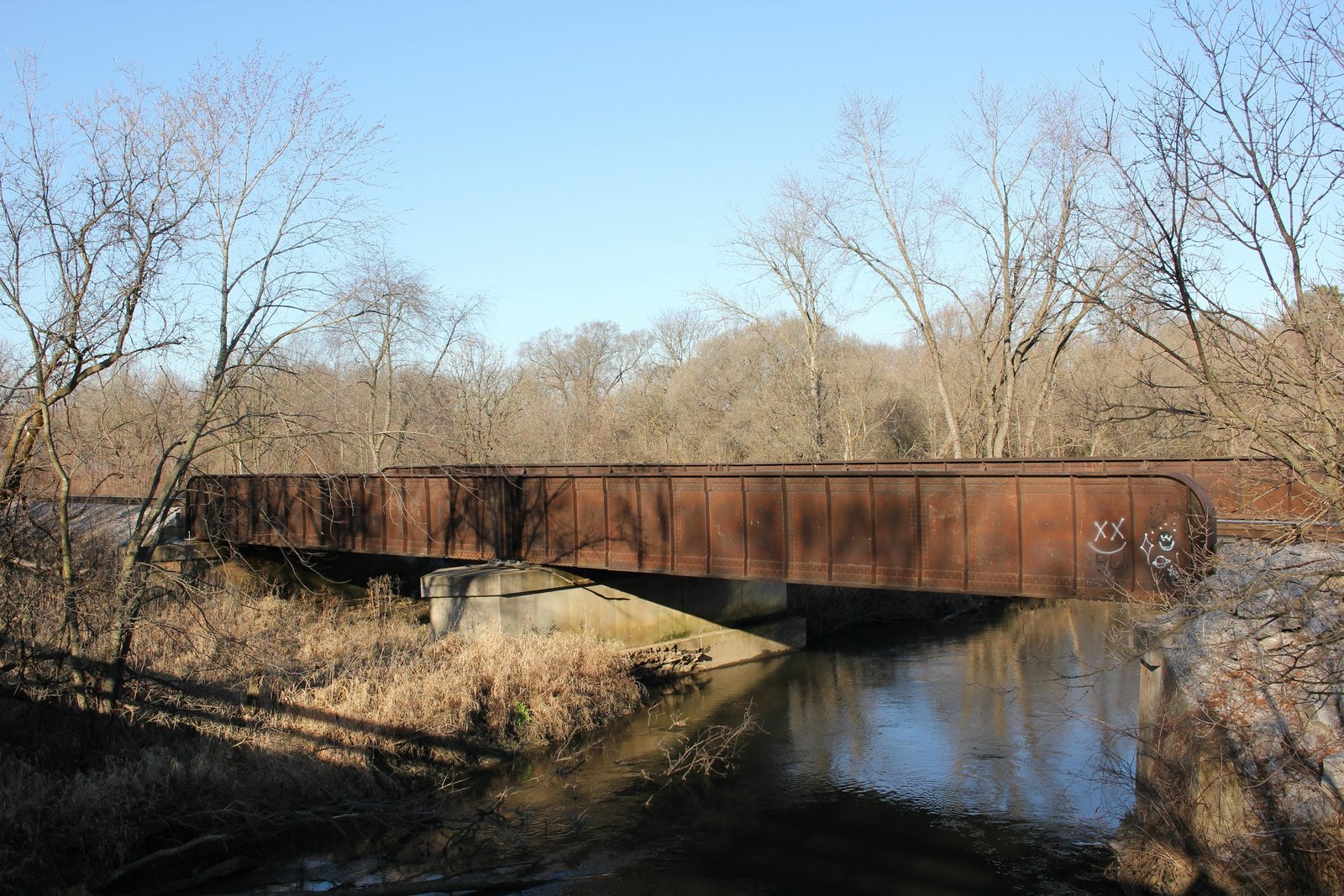

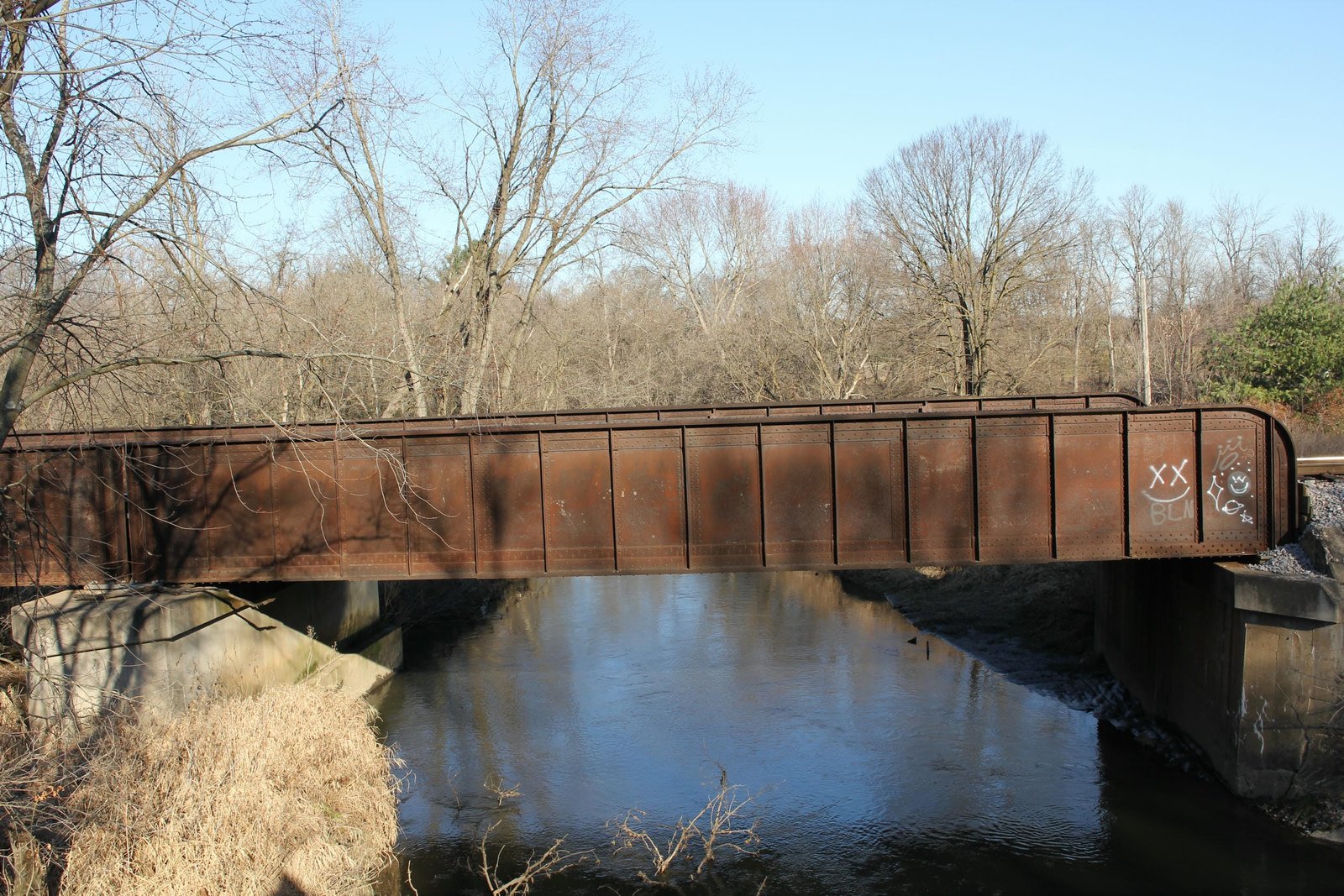

Located west of Sparta, this large through plate girder bridge carries the former Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) mainline over the Little La Crosse River. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. It is believed that the first bridge was rebuilt in the 19th Century, likely using a wooden truss bridge. Between 1907 and 1908, the Milwaukee Road double tracked this section of line, and the present structure would be constructed. Currently, the bridge consists of two 65-foot double track type C4 through plate girder spans, set onto concrete substructures. The girders use a standard design, with heavily constructed girders, a standard floor and rounded girder ends. The substructures also use a standard design, and are constructed of concrete founded on timber piles. C4 girders differ from C3 girders in the design of the floor. While a C3 girder uses four stringers spaced equally under the entire track, a C4 girder utilizes a more traditional floor with two stringers, placed under the rails. An unknown contractor fabricated the superstructure, while Milwaukee Road forces constructed the concrete substructures. Through plate girder spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen few alterations. It appears that some rivets were replaced with high strength bolts in the 1990s or 2000s. Today, only the south track remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Build date Milwaukee Road Bridge Index, located at the Milwaukee Road Archives at the Milwaukee Public Library
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
