UP Kiegly Branch Bridge

Stone Arch Bridge over Kiegly Branch
Near Gilbert, Story County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name UP Kiegly Branch Bridge
Built By Chicago & North Western Railway
Contractor Unknown
Currently Owned By Union Pacific Railroad
Length 20 Feet Total
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Type Stone Arch
Substructure Type Stone Masonry
Date Built 1901
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
C&NW Bridge Number D-2193
Significance Local Significance
Documentation Date November 2016 (Photos 1-5), February 2017 (Photos 6-16)
In 1874 the Des Moines and Minneapolis Railway constructed a line from Des Moines to Story City, in central Iowa. It was a narrow guage railroad, later standard in 1880.

The line was continued north by the Toledo & Northwestern Railway in late 1879, and was completed to Blue Earth, Minnesota by 1883. It was a standard gauge line. The entire line came into the Chicago North Western Railway system by 1884. The C&NW owned a large amount of track around Iowa at the time.
The line was a critical C&NW route to connect to the Twin Cities.
Starting from Des Moines, the line would start in downtown, and head north towards Ankeny.
The line would cross the east/west Milwaukee Road mainline at Slater, It would go through Kelley, crossing the Fort Dodge, Des Moines & Southern before arriving in Ames.
In Ames, it would cross Squaw Creek, and the busy C&NW east/west mainline.
Near Story City, it had to cross a high trestle over Keigly Creek, which was later filled and replaced with a stone bridge.
The line continued through Randall, crossed an east/west C&NW branch line in Jewell, and came into Webster City after crossing the Boone River.
In Webster City, it crossed the Illinois Central line again, and left town crossing the Boone River again.
Continuing north, the route went through Woolstock, and in Eagle Grove crossed a Chicago Great Western Line, and had a CNW line towards Humboldt break off.
It crossed another CGW line in Goldfield, and continued through Renwick and Lu Verne.
At Algona, it crossed over another Milwaukee Road main, and continued through Burt and Bancroft before crossing a Rock Island line near Lakota.

It crossed into Minnesota at Elmore, and joined with another CNW line at Blue Earth.

Several sections were abandoned over time. This included:

Ledyard to Blue Earth in 1968, Ledyard to Bancroft in 1978, Burt to Bancroft in 1985, and Ankeny to Ames in 1985.

The C&NW merged into Union Pacific in 1995. Since this merger, the Ankeny to Des Moines route has been abandoned and will be reused a trail.
The remaining segment, from Burt to Ames is known as the Jewell Subdivision.
06/26/21


At this site was once the largest wooden trestle in central Iowa.
During 1901, this narrow and oftentimes rickety trestle was replaced with the stone arch currently at this site.
The arch was built by local stonemasons, and consists of an all stone structure.
Overall, the bridge remains in great condition, as another testament to the well-built designs of these arches.

The author has ranked the bridge as being locally significant, due to the common design in the area.

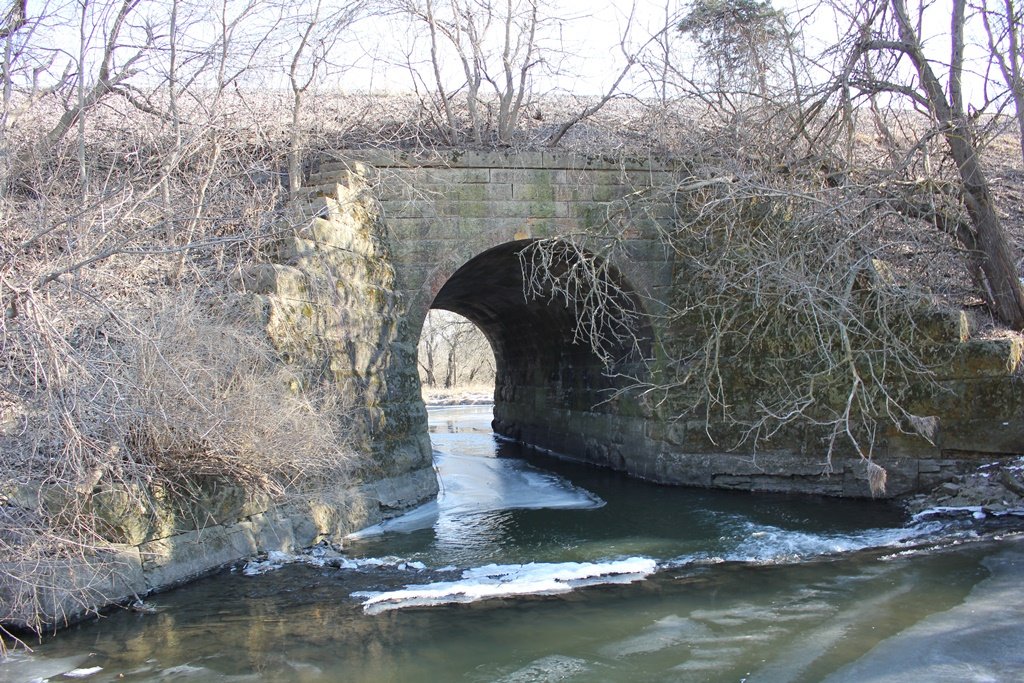

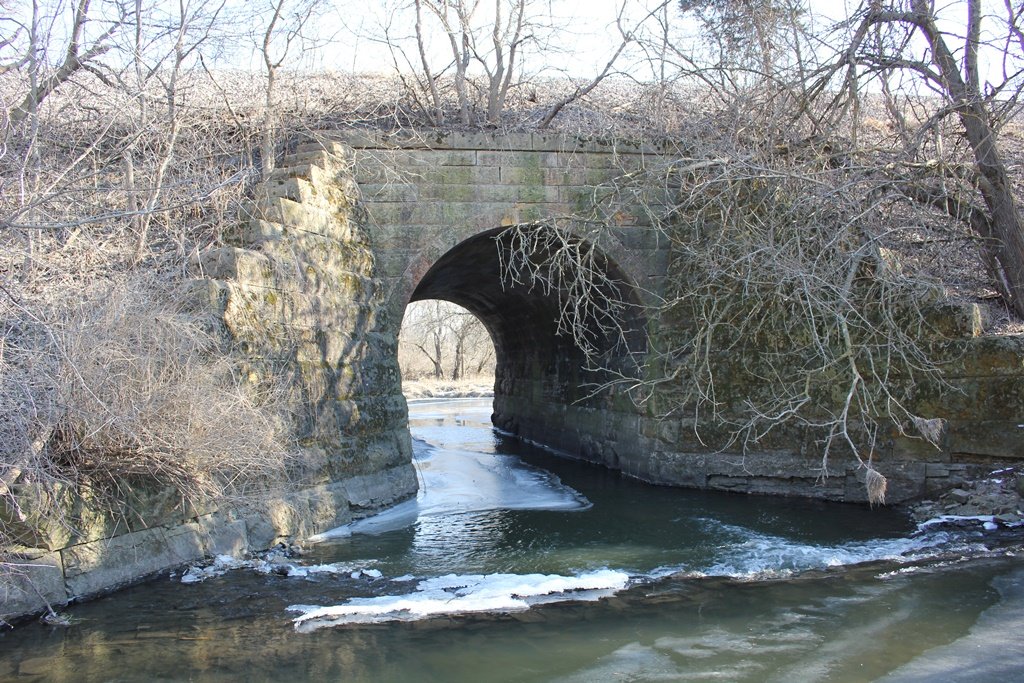

The photo above is an overview. The bridge is very difficult to access, but can be done so from 140th Street.
