UP Grand Avenue Bridge (Ames)

I-Beam Bridge over Grand Avenue (US-69)
Ames, Story County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name UP Grand Avenue Bridge (Ames)
Built By Chicago & North Western Railway
Contractor American Bridge Company of New York
Currently Owned By Union Pacific Railroad
Length 119 Feet (Track 1), 91 Feet (Track 2)
Width 4 Tracks, 3 In Use
Height Above Ground 20 Feet (Estimated)
Superstructure Type I-Beam
Substructure Type Concrete
Date Built 1937
Traffic Count 75 Trains/Day (Estimated)
Current Status In Use
UP Bridge Number 189.05
Significance Local Significance
Documentation Date October 2017
A brief history of the Chicago & North Western Iowa Division mainline, now part of the Overland Route:


This standard 1930s bridge crosses Grand Avenue (US-69) in the heart of Ames.
The structure was built in 1937 in response to a grade crossing issue. This structure, along with another C&NW bridge to the north as well as the Main Street bridge were all built at this time.

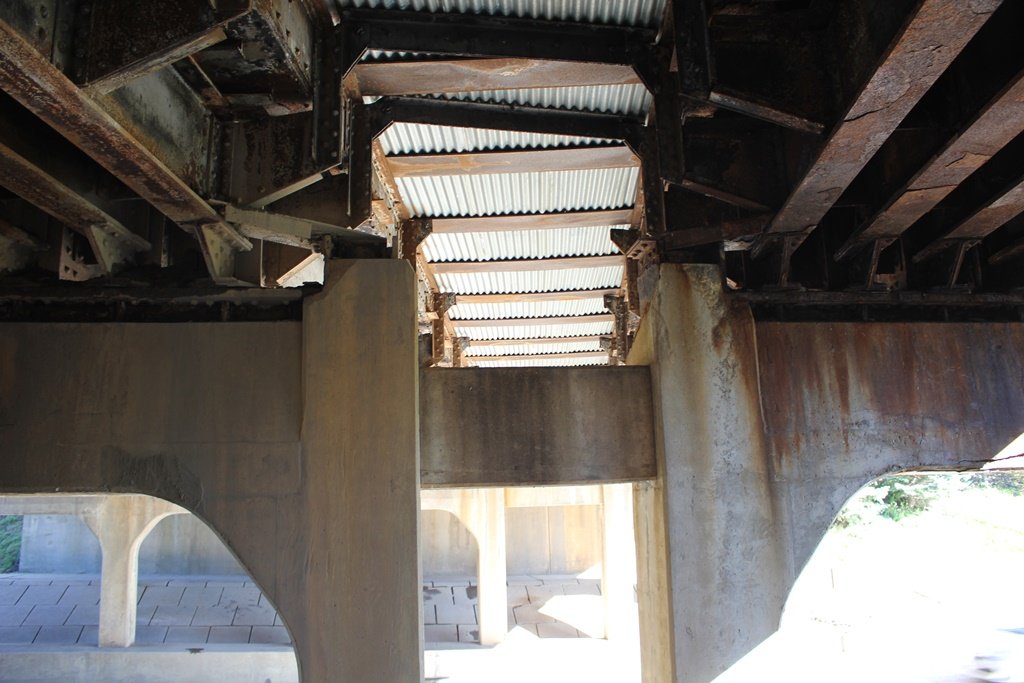

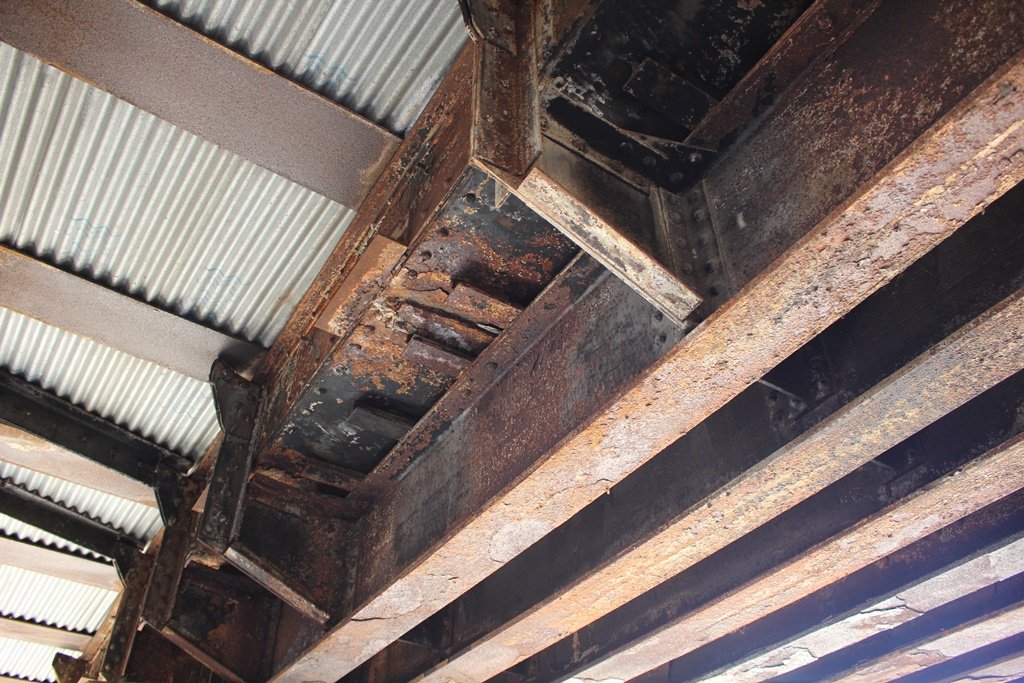

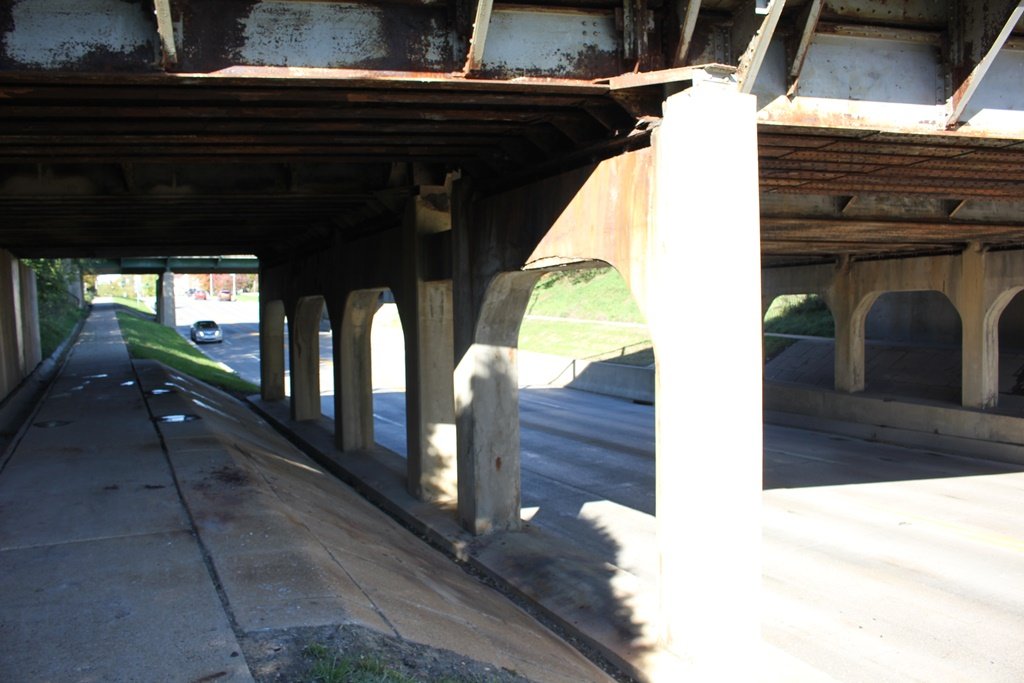

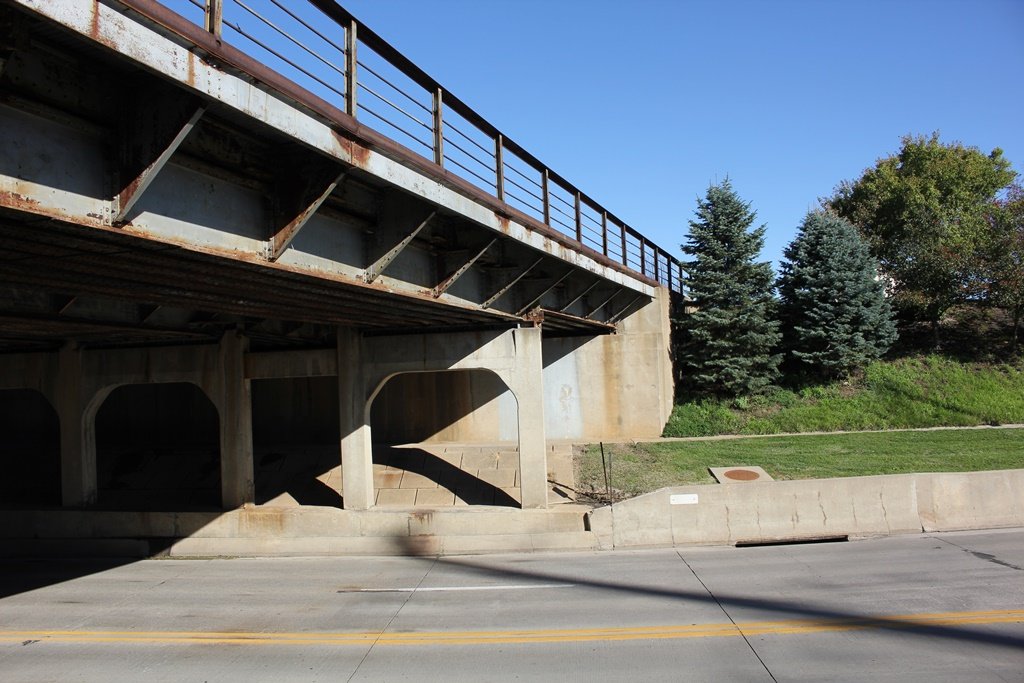

The structure consists of three I-Beam spans, arranged in a typical way for the era. The substructures are a typical concrete art deco design.

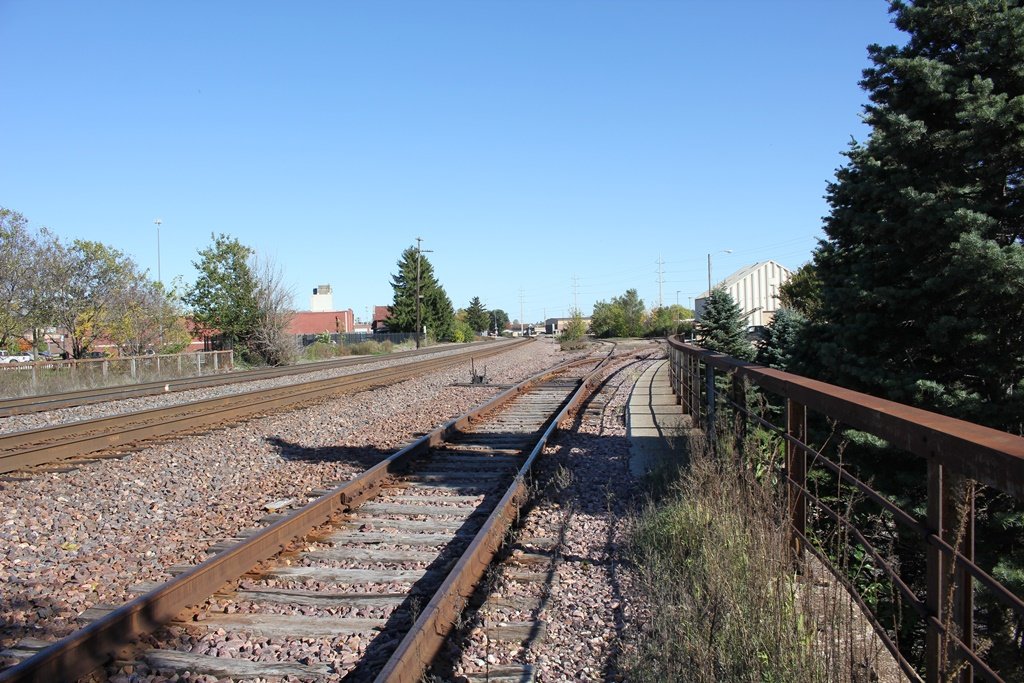

In addition to carrying three main Chicago & North Western tracks, the bridge was also built to carry a Fort Dodge, Des Moines & Southern track.

The author has ranked the bridge as being locally significant, due to the common design.

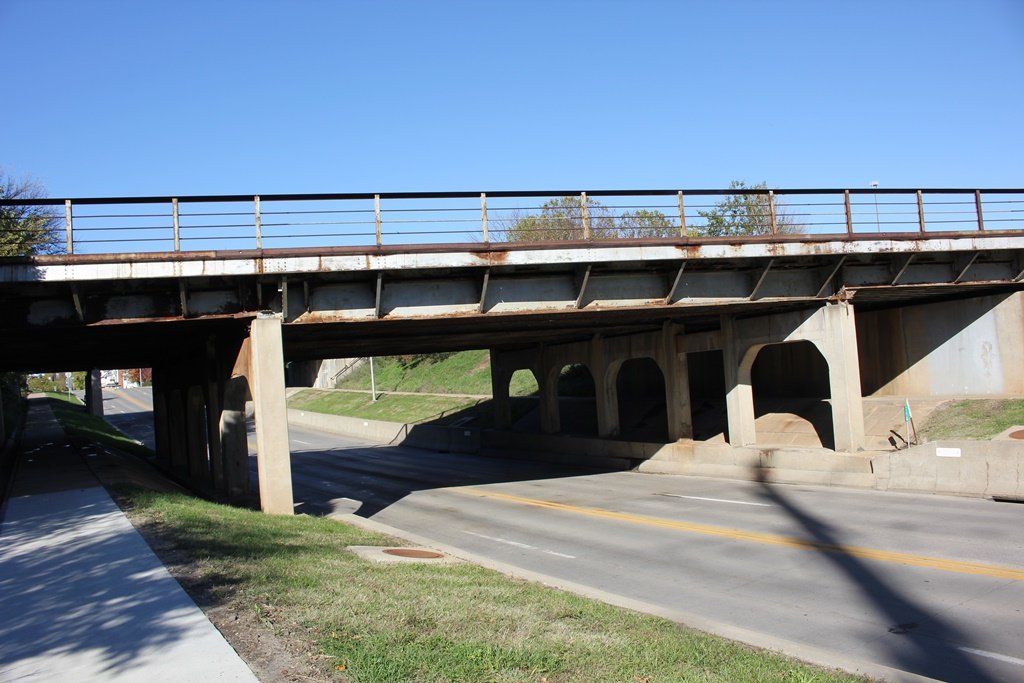

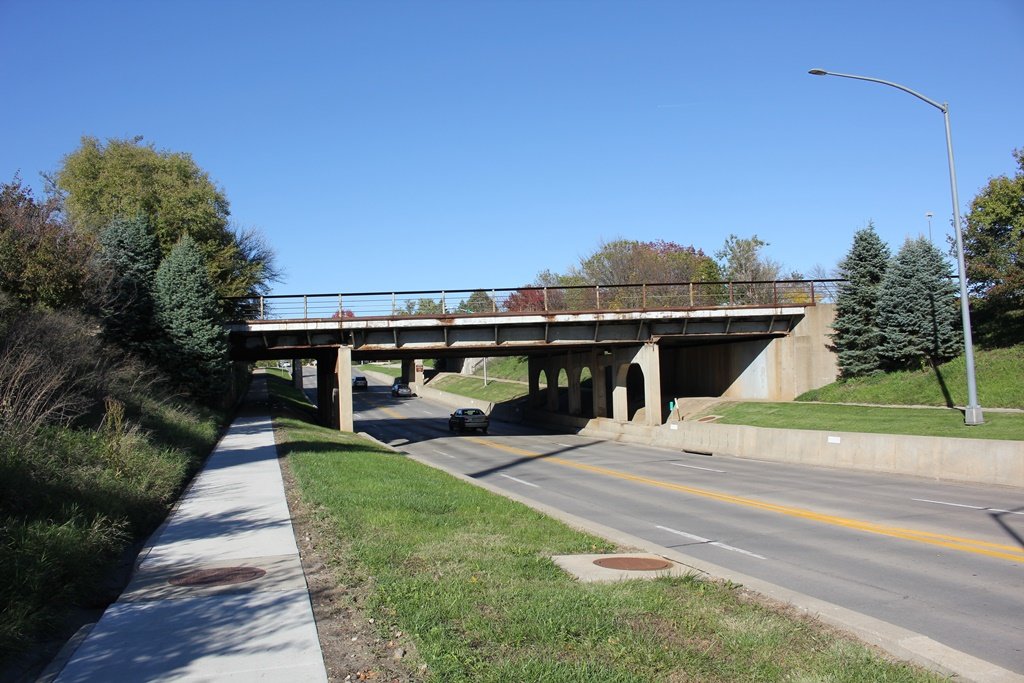

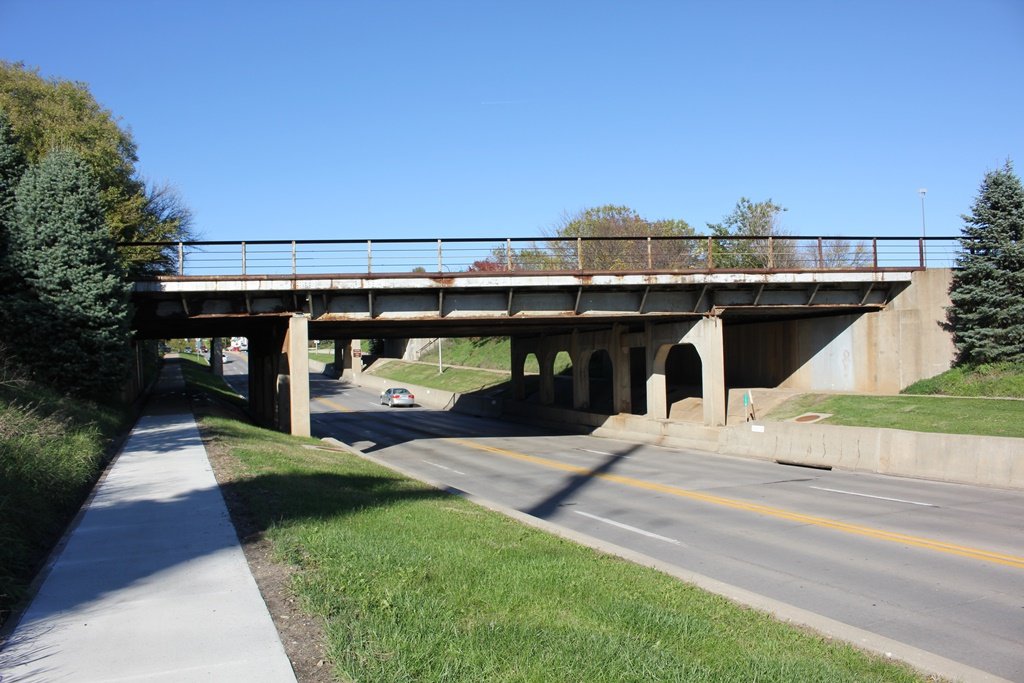

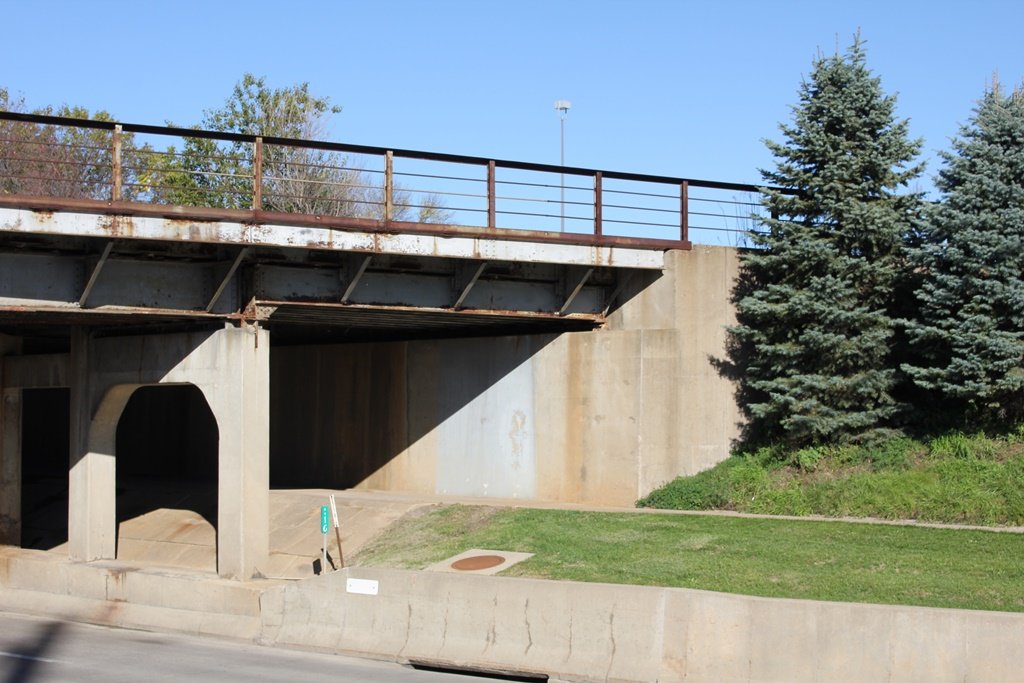

The photo above is an overview. The bridge can be accessed from the road below.


Source Type

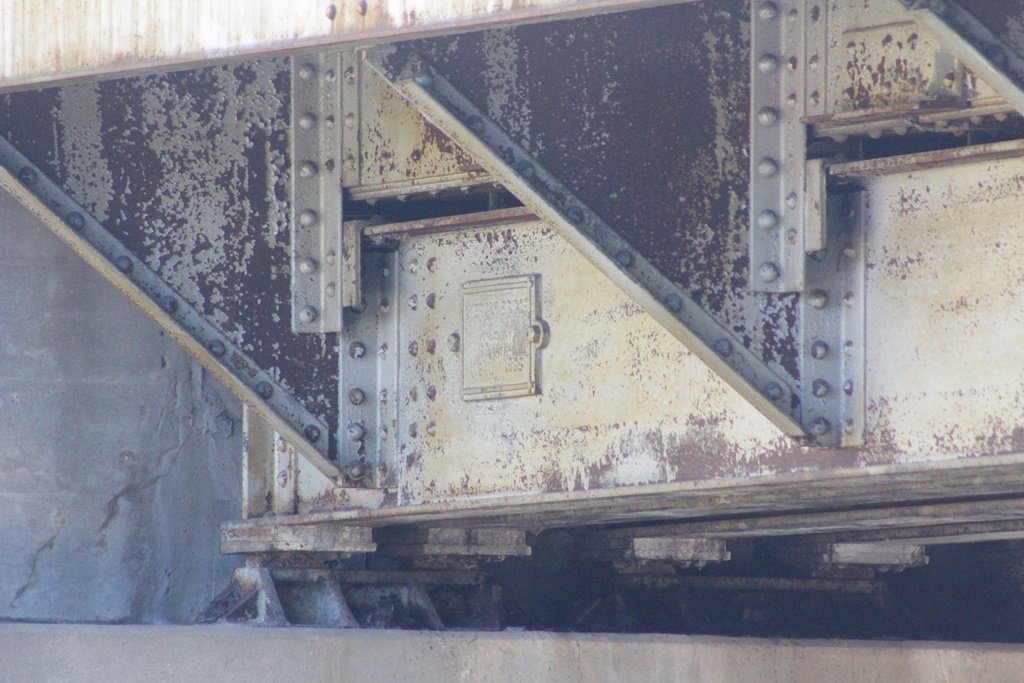

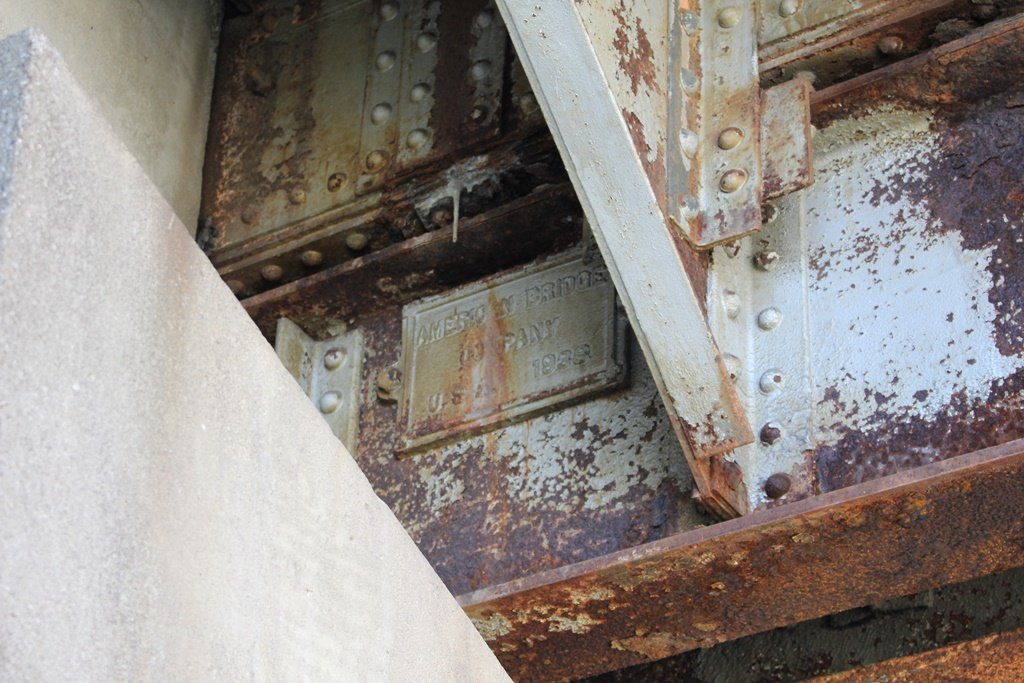

Build Date American Bridge Company plaque
Contractor American Bridge Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
