UP Middle River Bridge

Deck Plate Girder Bridge over Middle River
Carlisle, Warren County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name UP Middle River Bridge
Built By Chicago, Rock Island & Pacific Railroad
Contractor Unknown
Currently Owned By Union Pacific Railroad
Length 300 Feet Total, 85 Foot Main Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Type Deck Plate Girder
Substructure Type Concrete
Date Built 1912
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
UP Bridge Number 63.80
Significance Local Significance
Documentation Date September 2017


View an article about the construction of this route.

Located south of Carlisle, this large deck girder bridge crosses the Middle River.
Built in 1912, the bridge consists of four standard deck girder spans, set onto concrete substructures. It is unknown if these spans were originally built here, or if they were moved from elsewhere, as some other bridges on this line were.
Girder bridges like these are common in multiple span structures to cross larger rivers and streams.
Overall, the bridge appears to be in good condition.

The author has ranked this bridge as being locally significance, due to the common design.

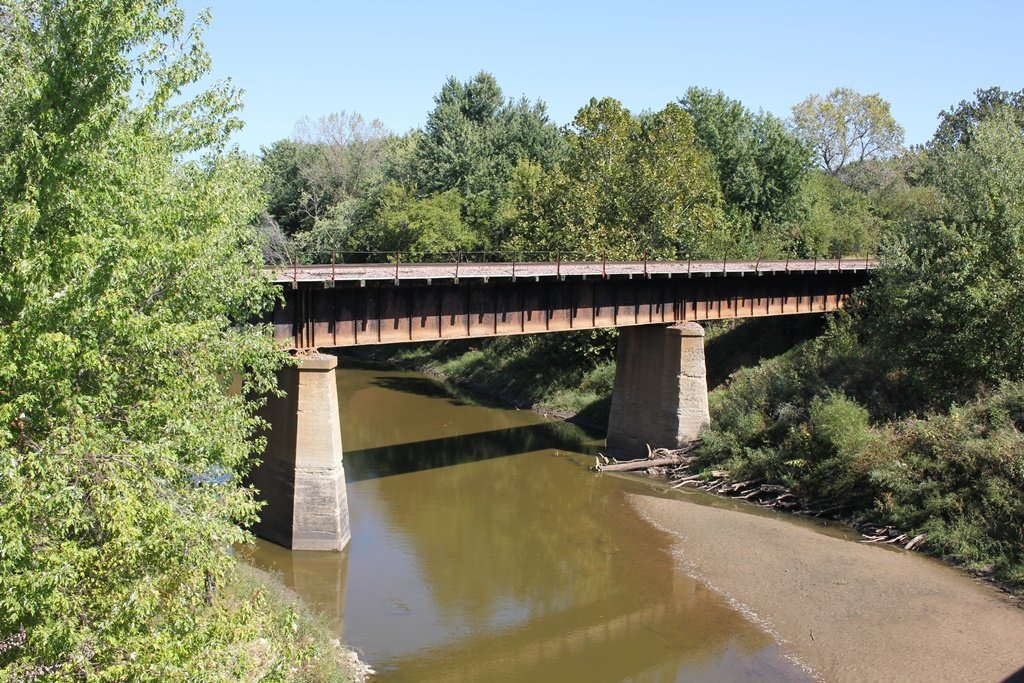

The photo above is an overview.

Citations

Source Type

Source

Build Date Estimated
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
