Soo Line High Bridge

Massive Steel Arch Viaduct Over St. Croix River
Somerset, St. Croix County, Wisconsin
To
Stillwater, Washington County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name Soo Line High Bridge
Nickname Arcola High Bridge
Built By Minneapolis, St. Paul & Sault Ste. Marie Railway
Contractor (Superstructure) American Bridge Company of New York
Contractor (Erection) Kelly-Atkinson Construction Company of Chicago
Engineer C.A.P. Turner of Minneapolis, Minnesota
Currently Owned By Canadian National Railway
Length 2,682 Feet Total; 350 Foot Main Spans
Width 1 Track
Height Above Ground 185 Feet
Superstructure Type Hinged Steel Deck Arch and Deck Girder Viaduct

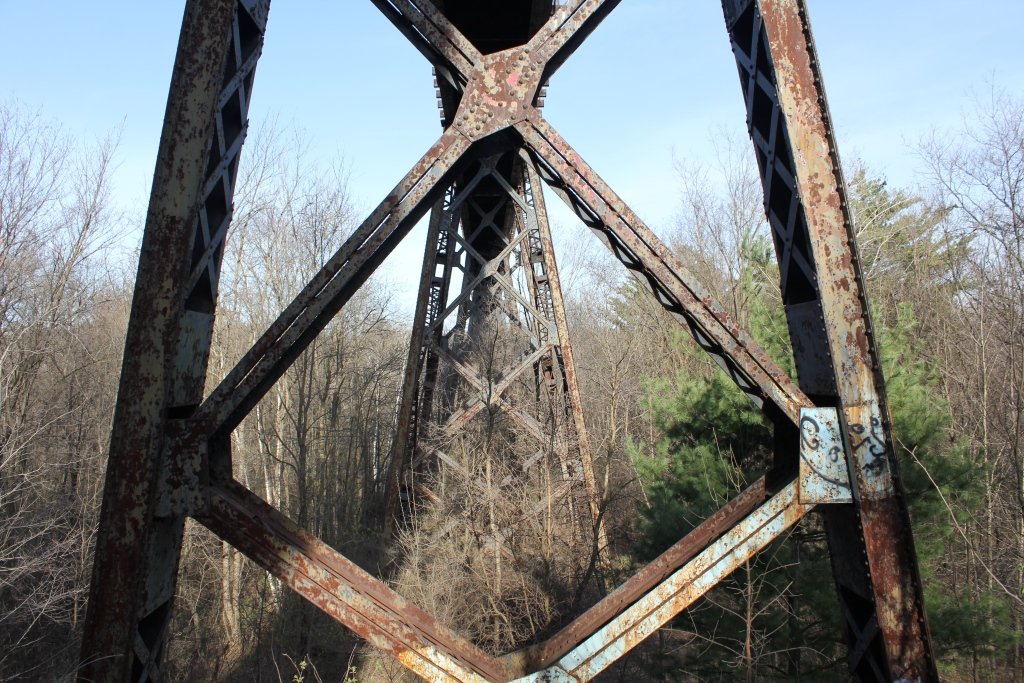

Substructure Type Concrete and Steel Tower
Date Built 1911
Traffic Count 6 Trains/Day (Estimated)
Current Status In Use
CN Bridge Number 424.25
Significance National Significance
In 1880, the Wisconsin and Minnesota Railroad built a 54 mile route between Chippewa Falls, Wisconsin and Abbotsford, Wisconsin.
In 1887, the Wisconsin Central Company constructed a 108 mile route between St. Paul, Minnesota and Chippewa Falls. The W&M became part of the WC in 1888.
The same year, the Minneapolis & St. Croix Railroad built a 36 mile line between Cardigan Junction and Shoreham, in North Minneapolis. That railroad became part of the Minneapolis, St. Paul & Sault Ste. Marie Railway the following year.
Additional routes also included a 10 mile route between Eau Claire and Chippewa Falls, completed at the same time.

The WC was leased by the Minneapolis, St. Paul & Sault Ste. Marie Railway (Soo Line) in 1908, and was fully merged in 1961.
By 1984, the Soo Line became a subsidary of Canadian Pacific Railway. CP sold the St. Paul (Cardigan Junction) to Wisconsin line to the Wisconsin Central, Ldt. in 1987. CP retained ownership of the Cardigan Junction-Shoreham segment, as their Withrow Subdivision.
WC became part of Canadian National in 2001, who now operates the Cardigan Junction-Abbotsford route as its Minneapolis Subdivision.
11/21/21


View an article regarding the construction of this bridge.

This beautiful and quite impressive bridge was built in response to the need for a new bridge across the St. Croix River for the Soo Line.
The previous bridge, a deck and through truss bridge constructed in 1884 and was still structurally sound, but grades on either side of the bridge made it a problem.
As a result, the Soo Line employed a team of engineers to design the best solution. The top solution was a signature deck arch bridge, although this could be tricky and expensive to build.
Other ideas included the use of a large traditional girder viaduct, although this would prove to be problematic. A viaduct of this magnitude would require large piles at alternating 100 foot and 40 foot intervals, which proved to be cost prohibitive.
Another idea was the traditional viaduct, using large deck truss spans (similar to the Fort Dodge High Bridge) at the river spans.

Historic Photo

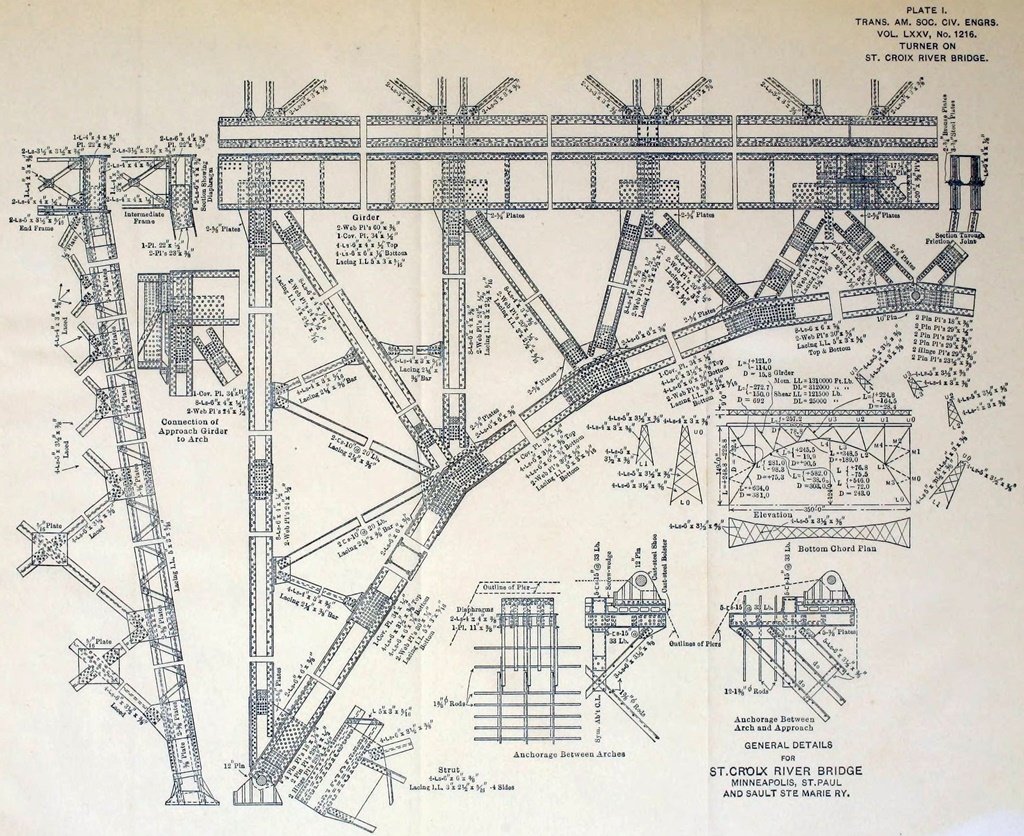

Plan of the bridge, from the Railway Age-Gazette; Volume 51

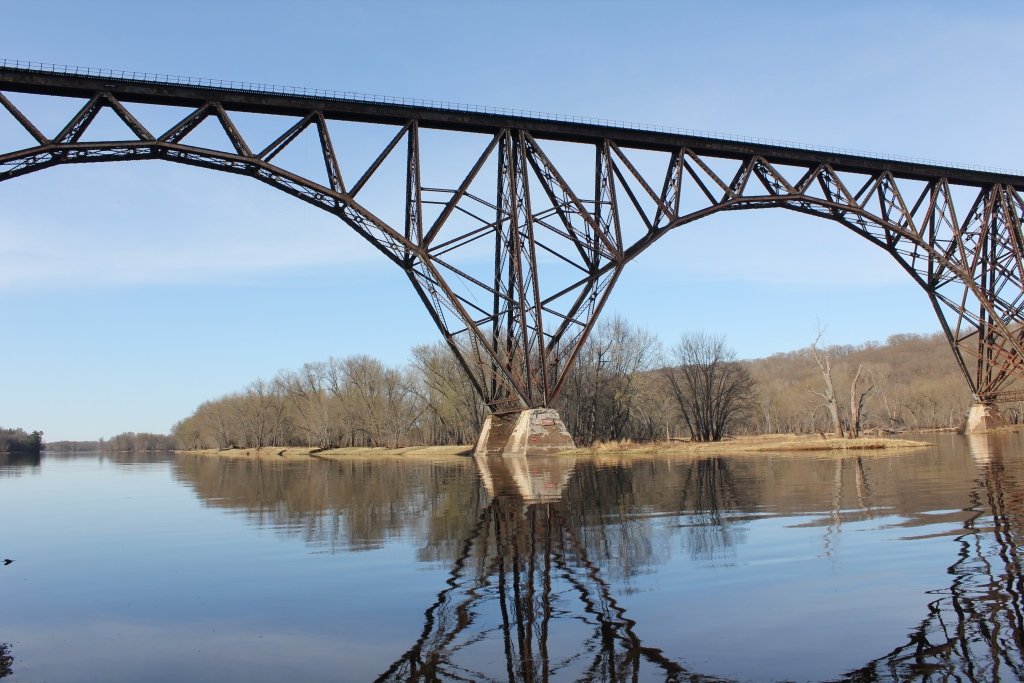

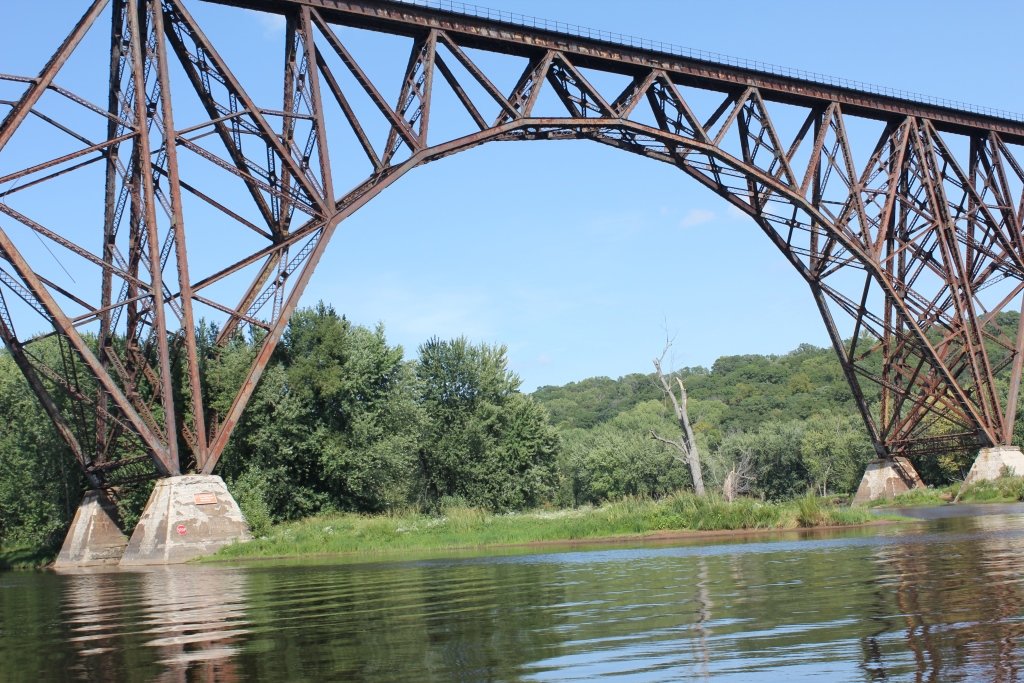

However, after much consideration, the arch was chosen. Five large hinged deck arches, with span lengths of 350 feet would be built over 180 feet above the floor of the valley on a new cutoff, about 3/4 of a mile north of the existing bridge.

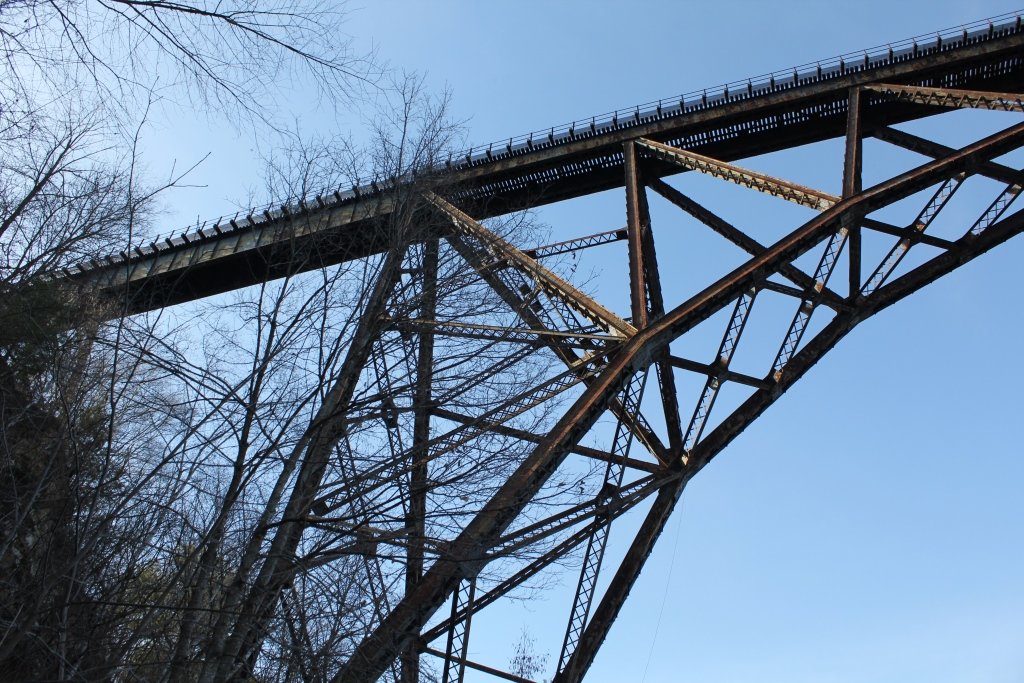

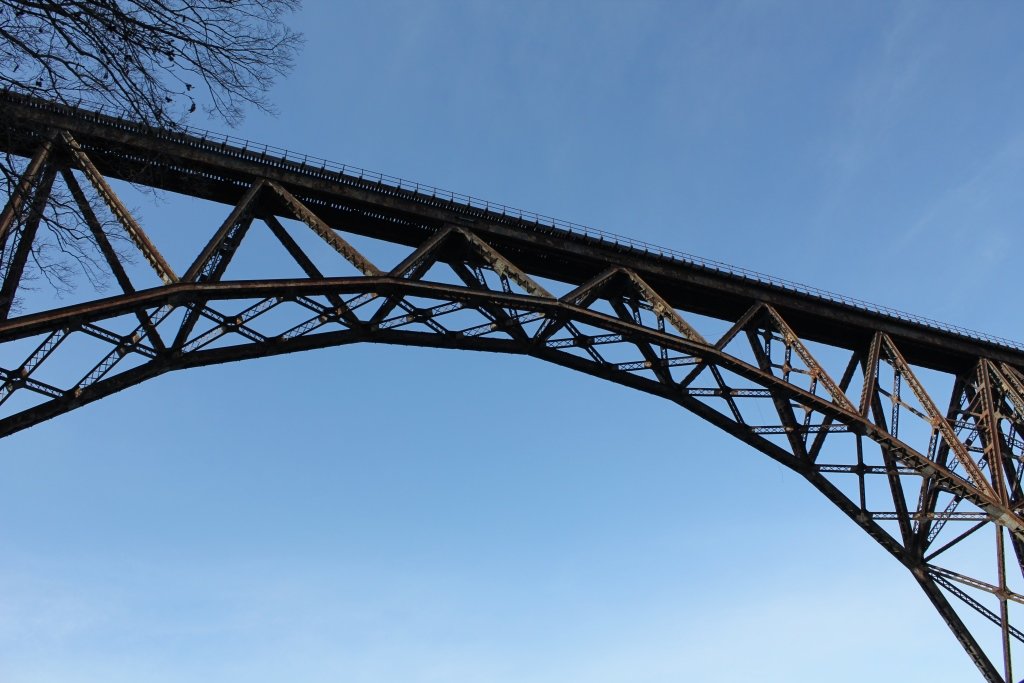

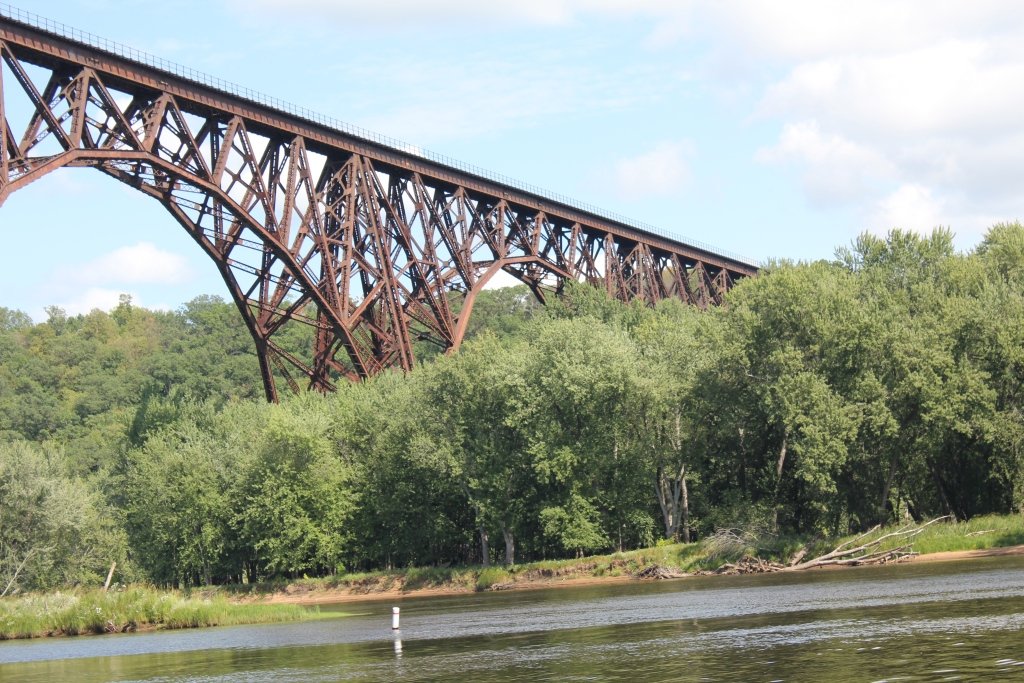

The first part of the bridge that makes it unique is the hinged deck arches. This means, at the base, the arch is wider than at the top.

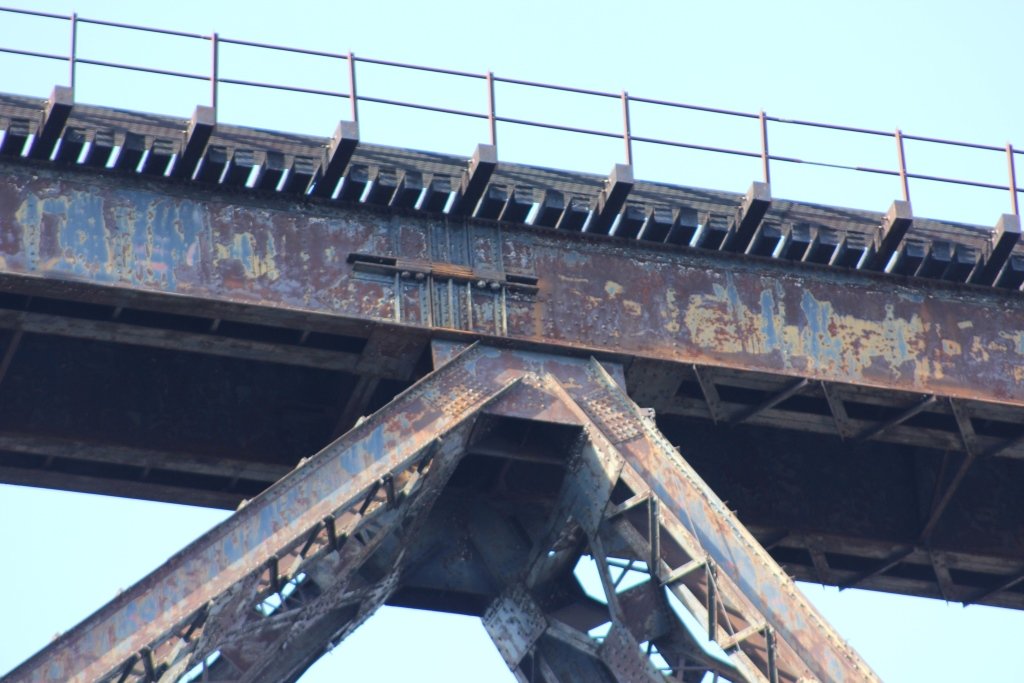

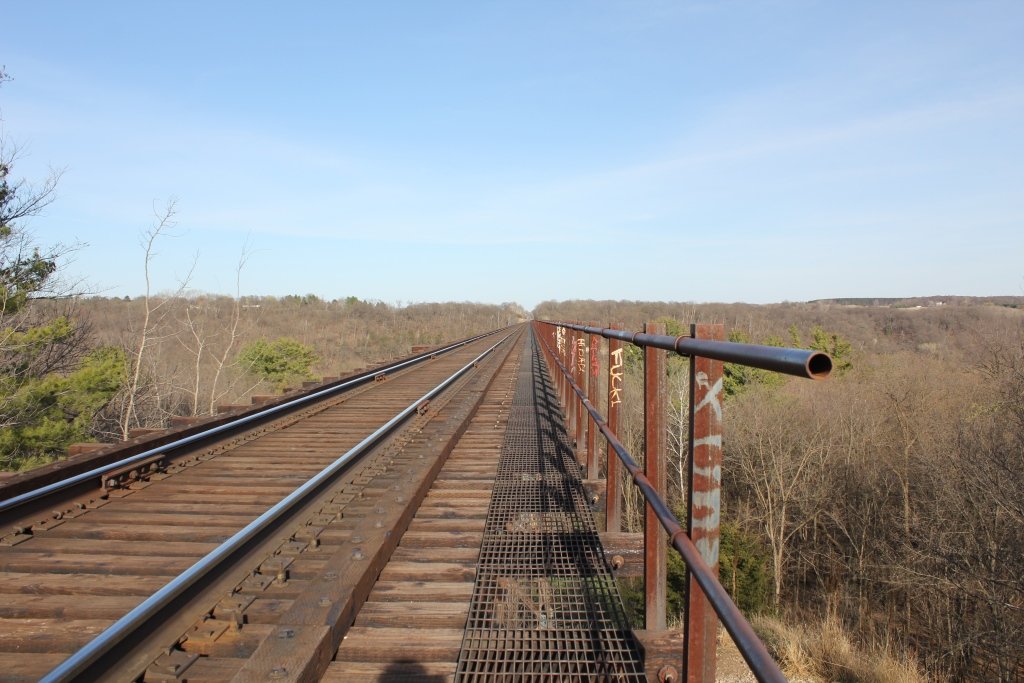

To counter this, a unique deck system would be used. Girders were placed directly above the bracings supporting the arch. This allowed some cost cutting by reducing the need of stringers and floor beams.
While three hinged arches were typically considered undesirable for railroad use, this structure was built with a substantial depth above the arch. This counters the lack of rigidity. Also, the crown hinge features a very unique piece. Friction plates, which lock together during a live load crossing make the bridge act like a two hinged arch, creating even more rigidity.

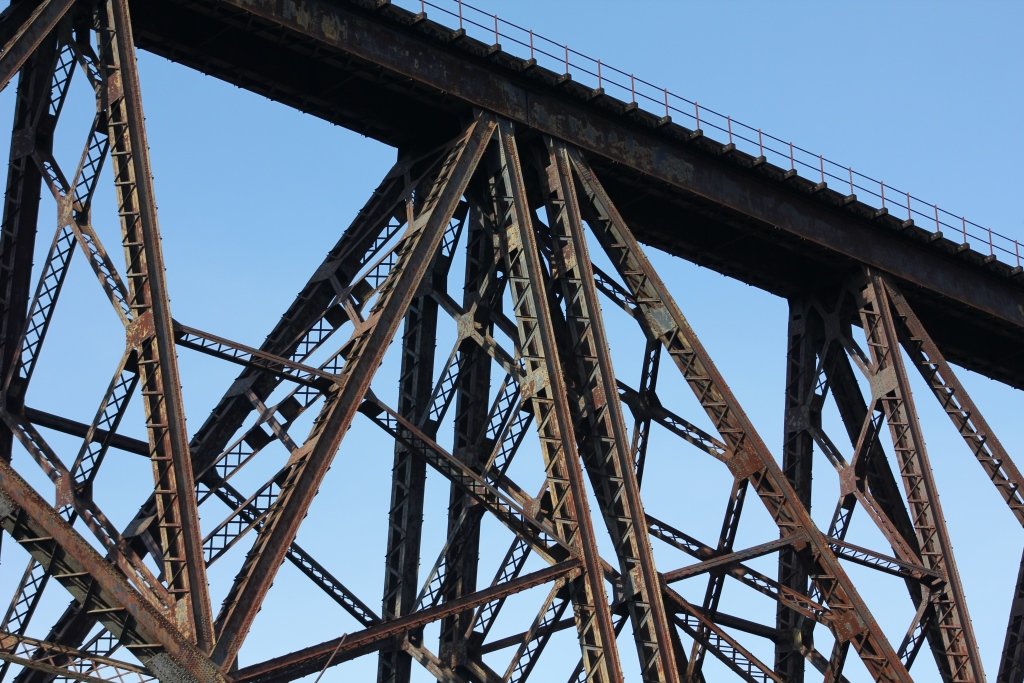

A final interesting detail is the lack of verticals above the arch, creating more of a Warren Truss appearance.
As Nathan Holth, author of Historicbridges notes; this lack of verticals is not surprising considering that Turner went on to invent the Turner Truss, which excluded verticals.

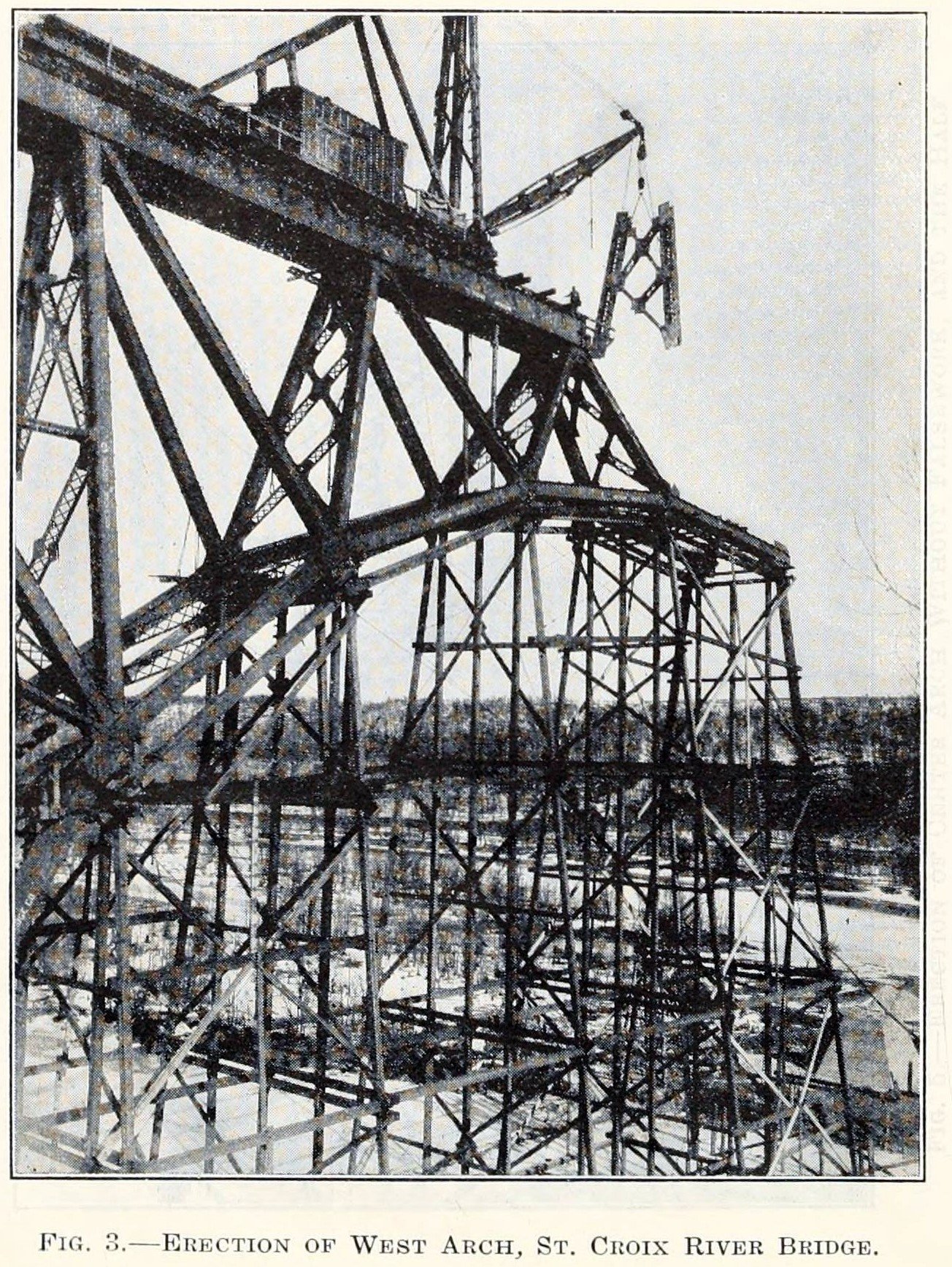

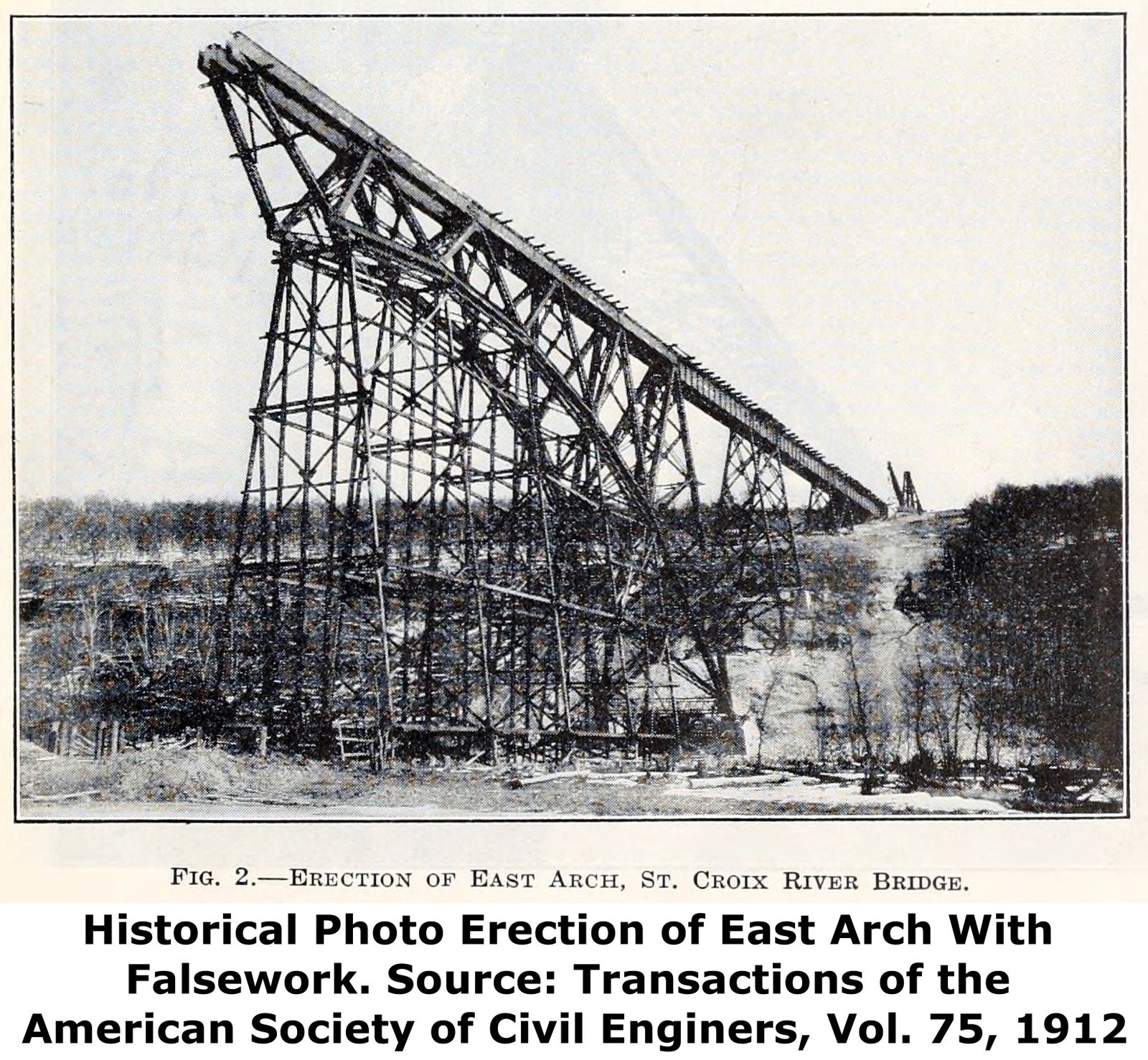

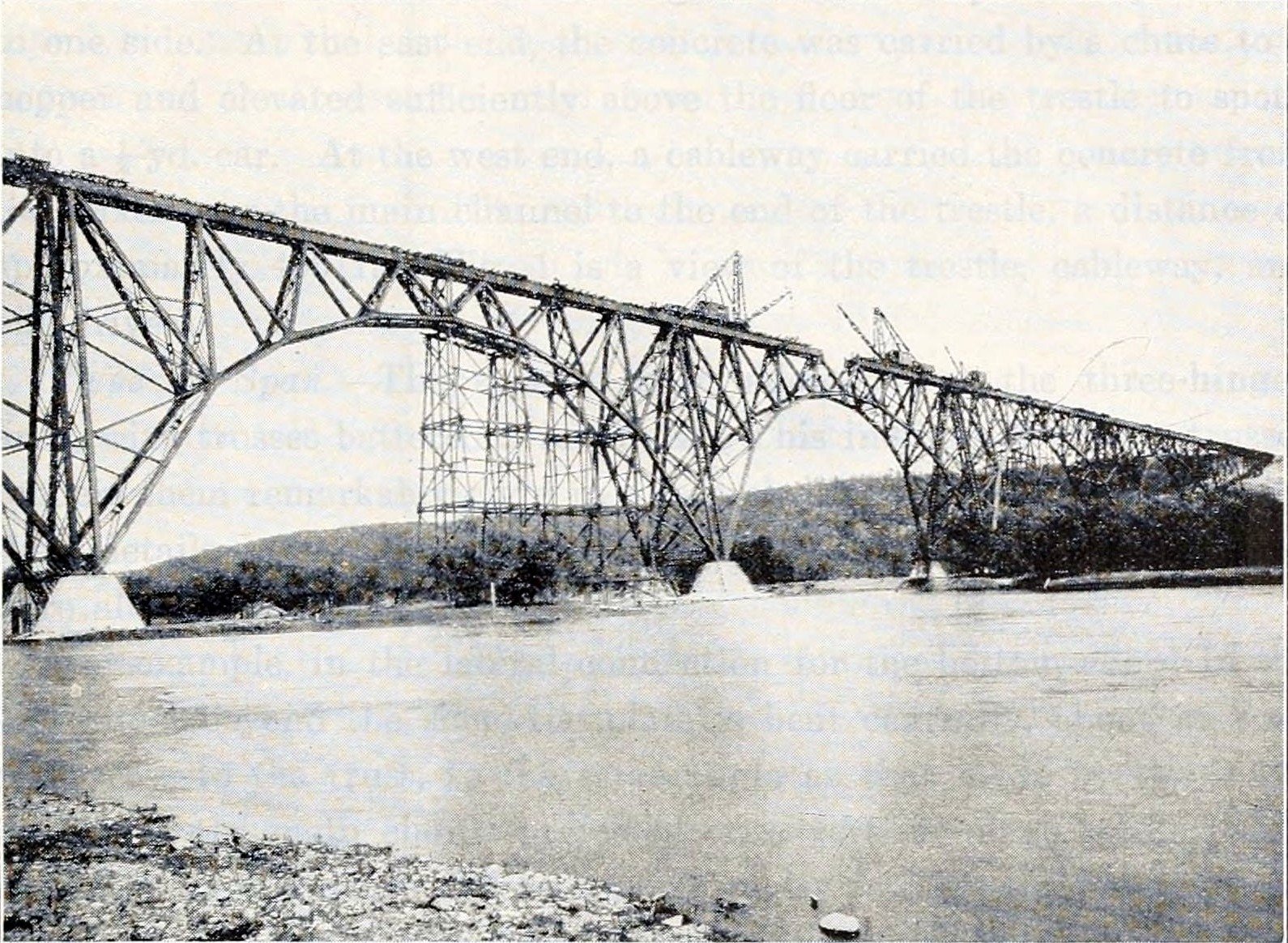

Historic Photo

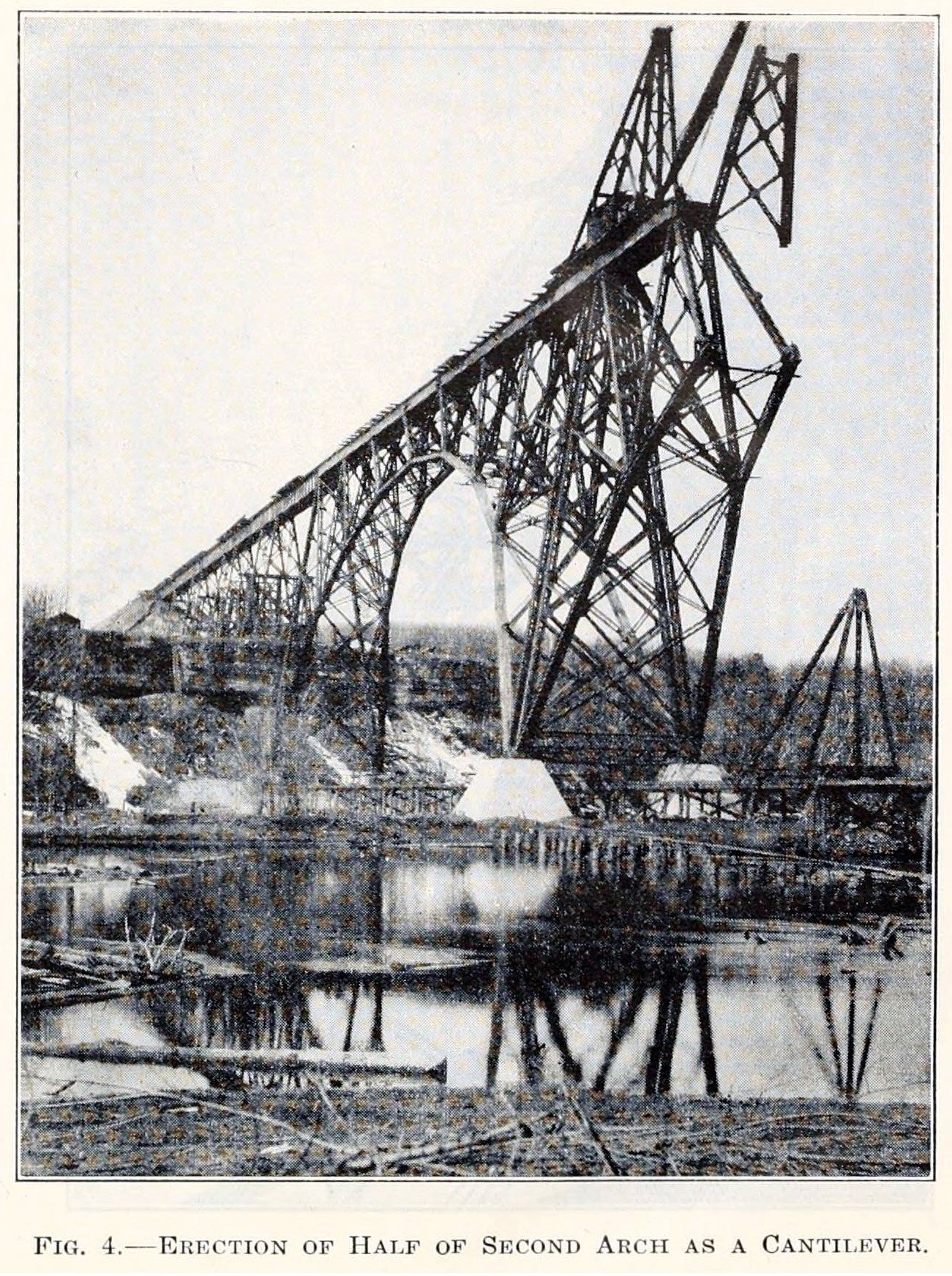

Construction of the bridge, from the Railway Age-Gazette; Volume 51

Work on the bridge began in early 1910, and was completed by late 1911. Because of the remote location, special considerations were taken when building this bridge.
This includes things such as special concrete chutes down the valley, false work construction for the outer spans and cantilevered construction of the center spans.

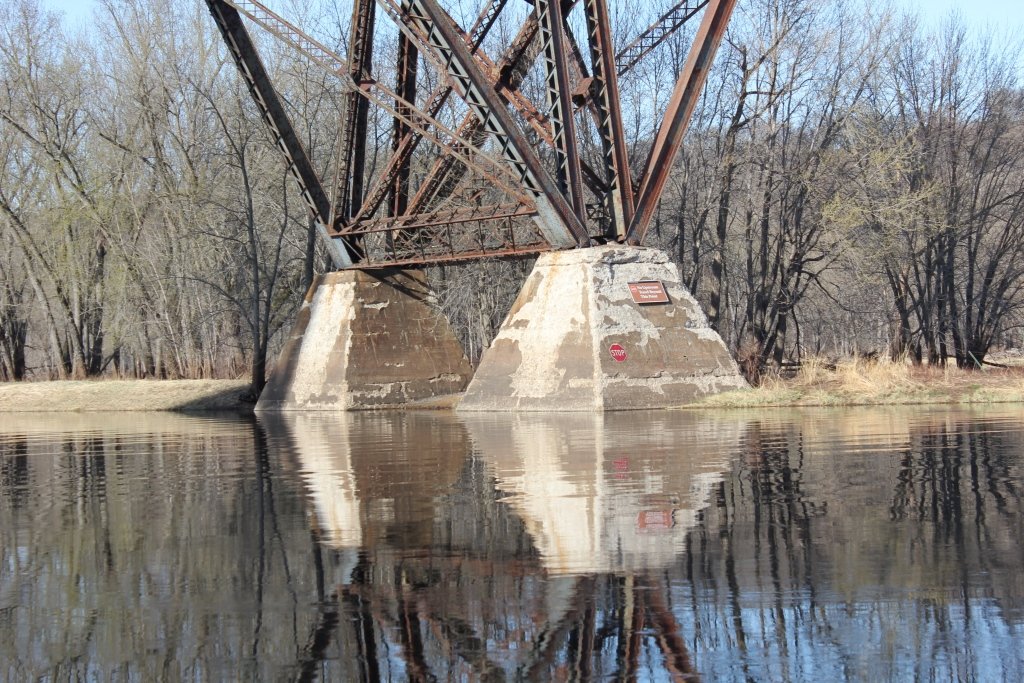

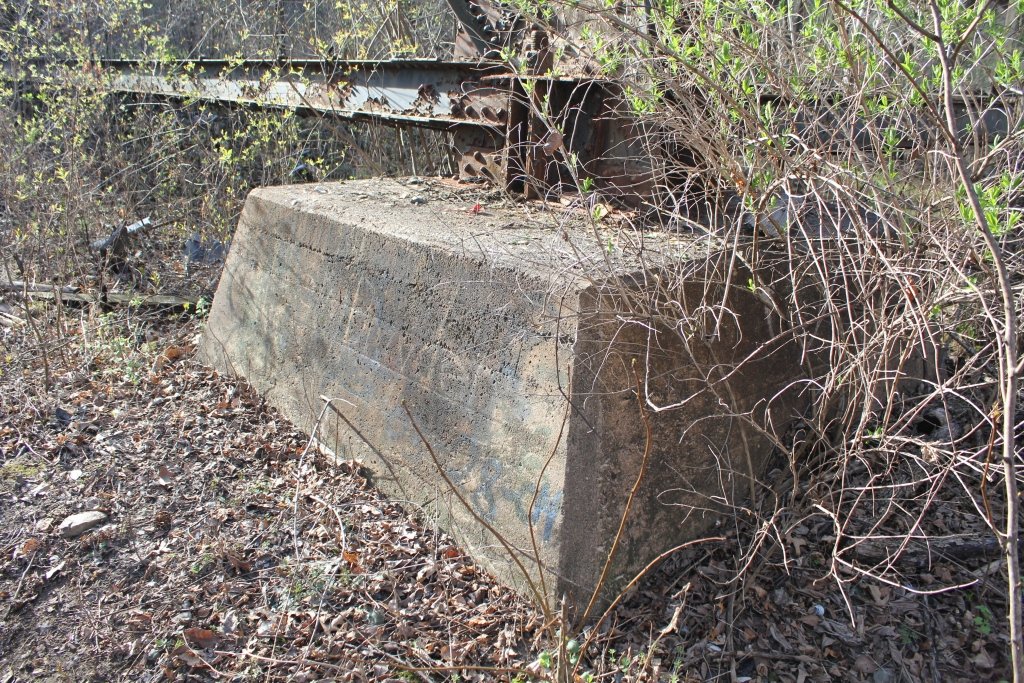

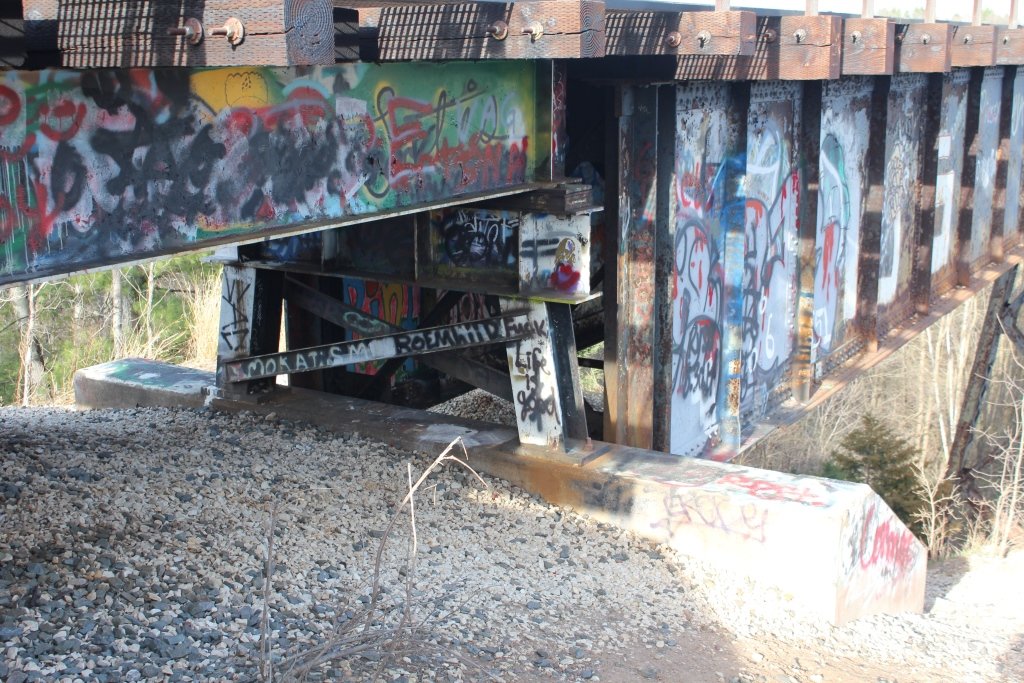

The massive blocks on which the bridge rest area created of concrete. In addition, a single jump span was added on the west end of the bridge. This I-Beam span was likely added in the 60s.

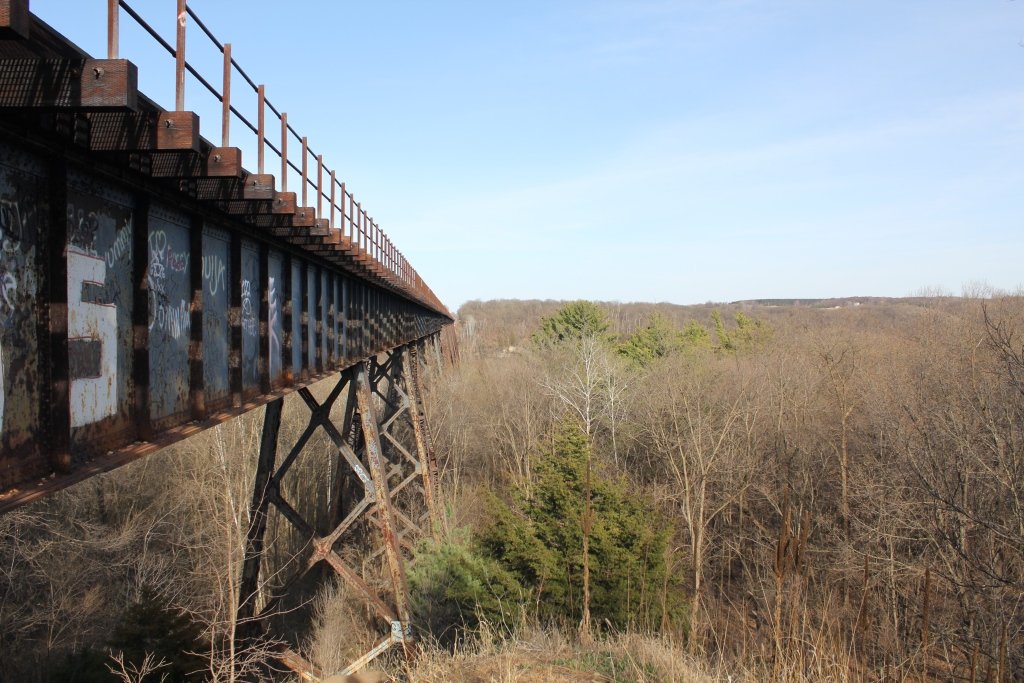

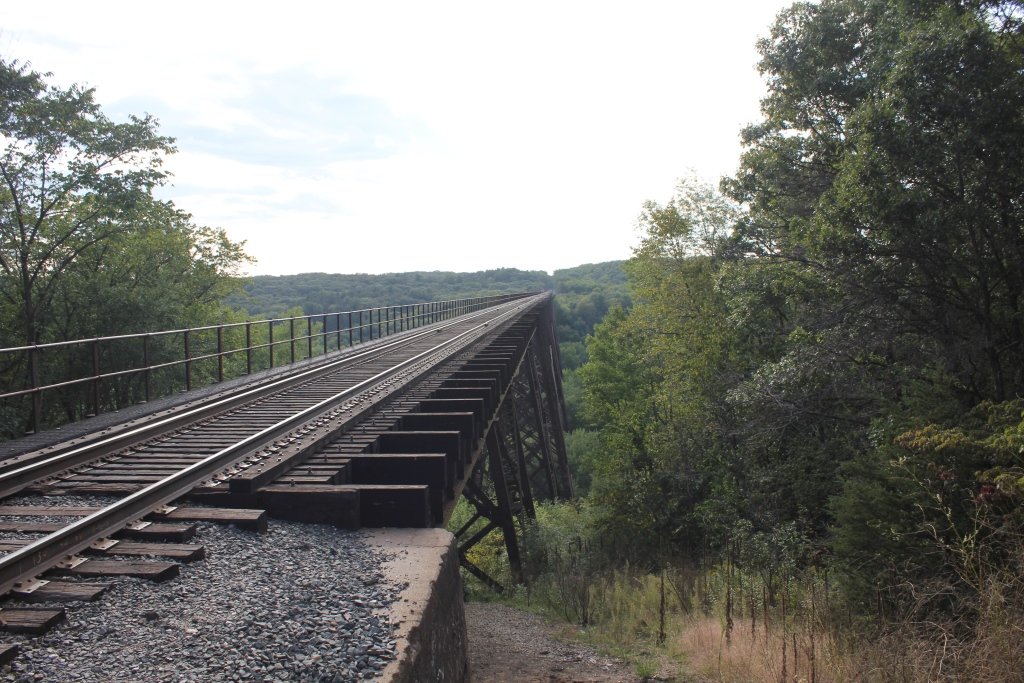

Approaches on each side are traditional deck girder viaduct spans. The Wisconsin side contains 2 towers, while the Minnesota side contains 4.

Upon completion, the bridge became an instant icon. Oftentimes considered to be one of the most unique railroad bridges in the nation, it is unfortunately quite hidden from the public eye.
On the Minnesota side, a series of well beat down trails lead to the riverbank from Arcola Trail.
On the Wisconsin side, views are extremely limited. Trespassing on the bridge is ABSOLUTELY forbidden and has led to fatalities in the years past.

The author has ranked this bridge as being nationally significant, due to the extremely unique design.

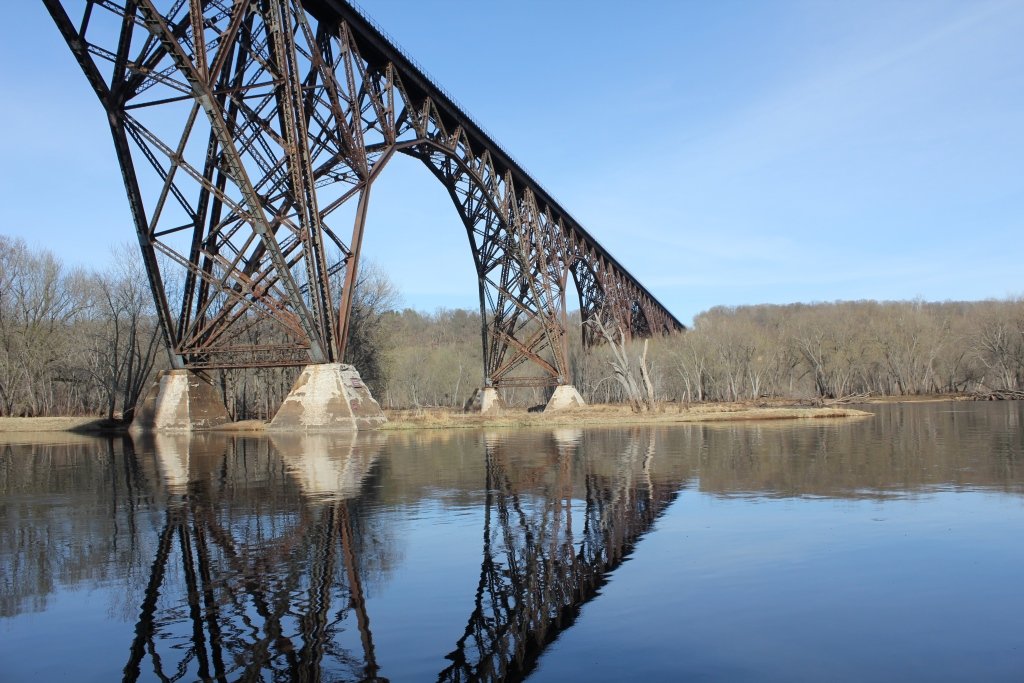

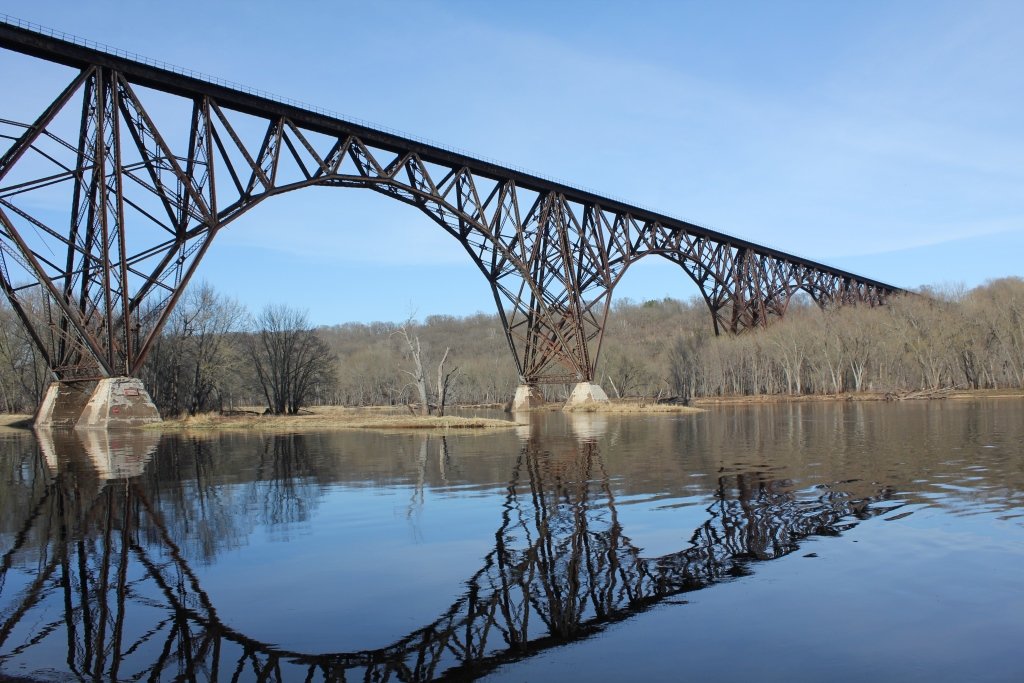

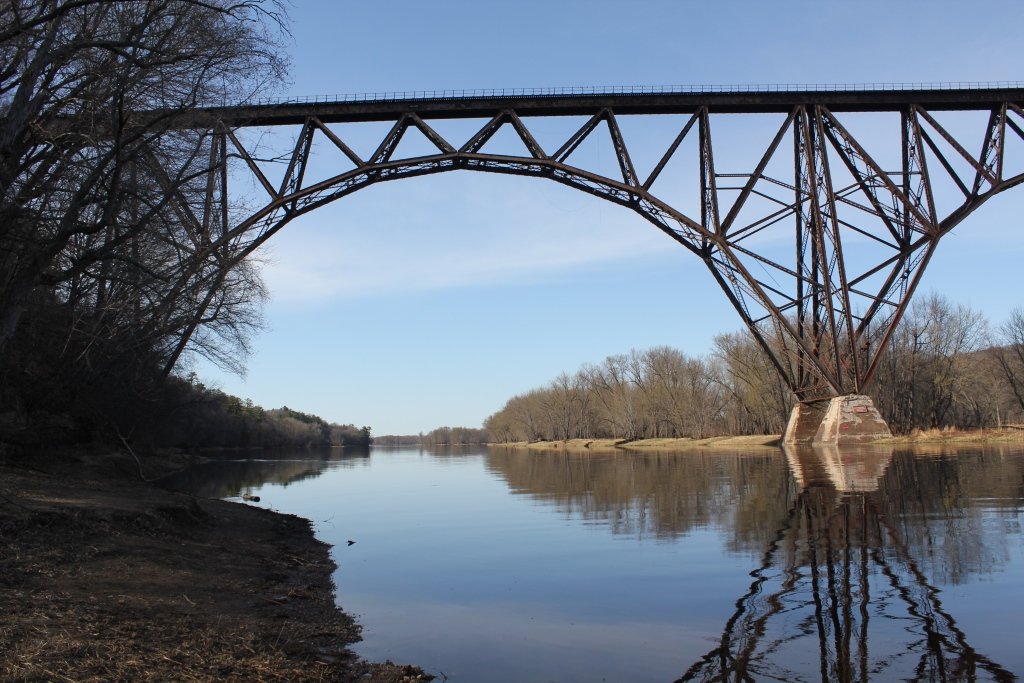

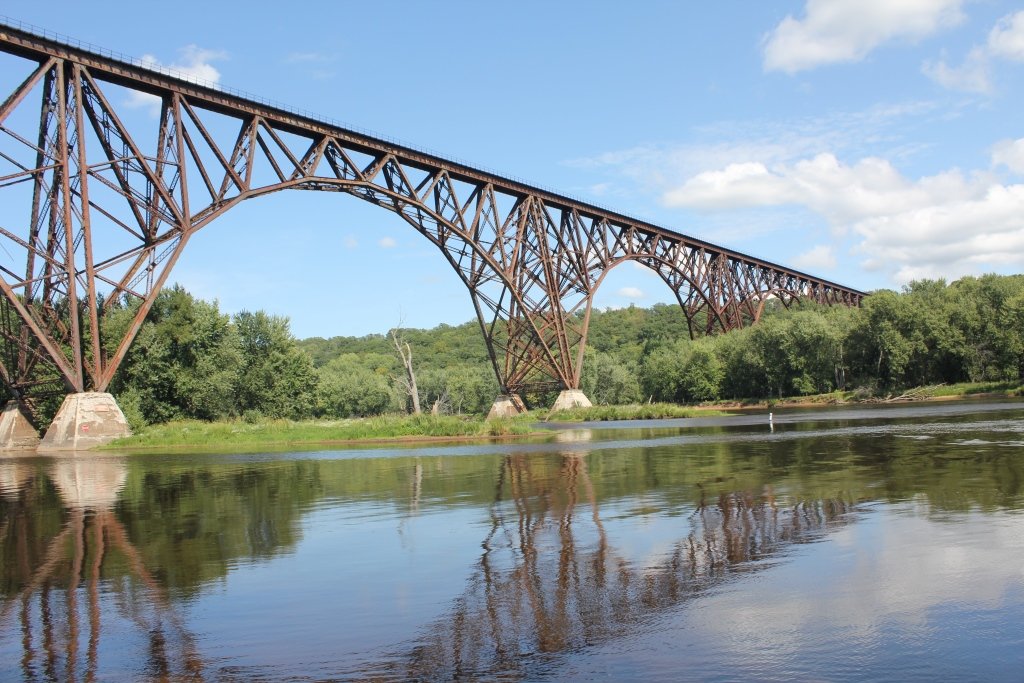

The photo above is an overview, from the Minnesota side. This specific angle is from a bluff near the first arch.
The historic photos come from The Transactions of The American Society of Civil Engineers, 1912.

St. Croix River Railroad Bridges
Upstream Cedar Bend Drawbridge
Downstream Wisconsin Central High Bridge
