Keller Lake Trail Bridge

Concrete Arch Bridge over Keller Lake Outlet
St. Paul, Ramsey County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name Keller Lake Trail Bridge
Built By Minneapolis, St. Paul & Sault Ste. Marie Railway
Contractor Unknown
Currently Owned By Minnesota DNR
Length 75 Feet Total, 35 Foot Main Spans
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Type Concrete Arch
Substructure Type Concrete
Date Built 1906
Traffic Count 0 Trains/Day (Bridge is a Trail)
Current Status Rails to Trails
Significance Local Significance
In 1884, the Wisconsin Central Railway built a route heading east of St. Paul towards Wisconsin.
An additional route was built in 1888 by the Wisconsin Central, connecting to the junction of the Minneapolis, St. Paul & Sault Ste. Marie Railway in Minneapolis.
A spur to the St. Paul Union Depot from Little Canada was constructed in 1906. The Wisconsin Central remained independent until 1961, when it formally merged with the MStP&StM to form the Soo Line.

In 1982, the Soo Line abandoned a portion between St. Paul and Oakdale. This segment has largely become the Gateway State Trail.
In 1985, the Soo Line was purchased by Canadian Pacific. The Minneapolis-Stillwater portion was sold to Wisconsin Central Ltd, and became Canadian National in 2001.
11/12/21

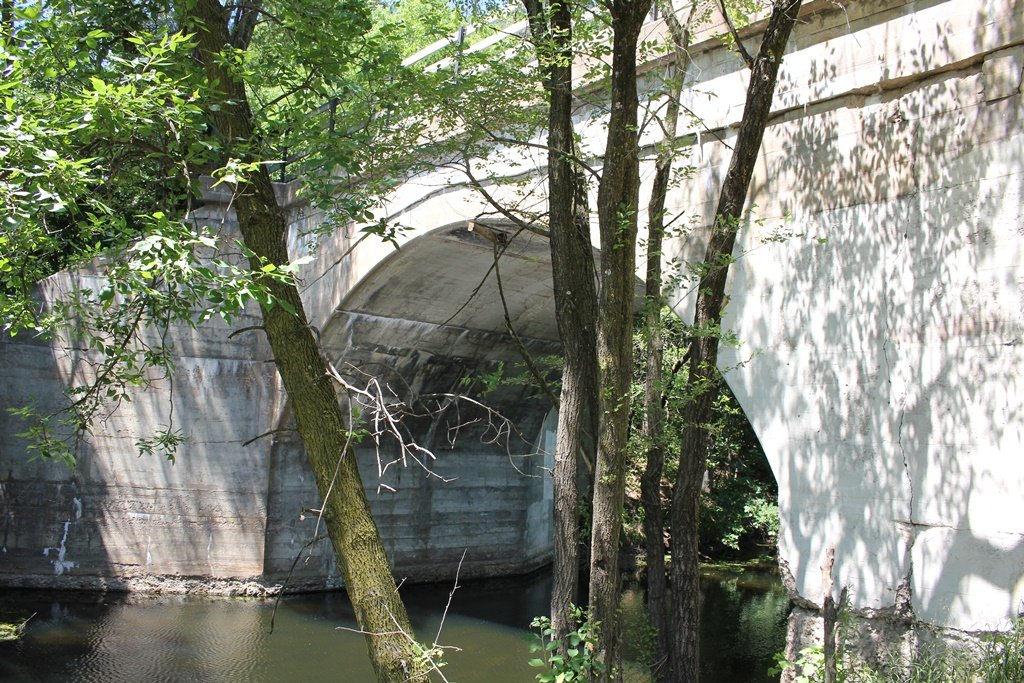

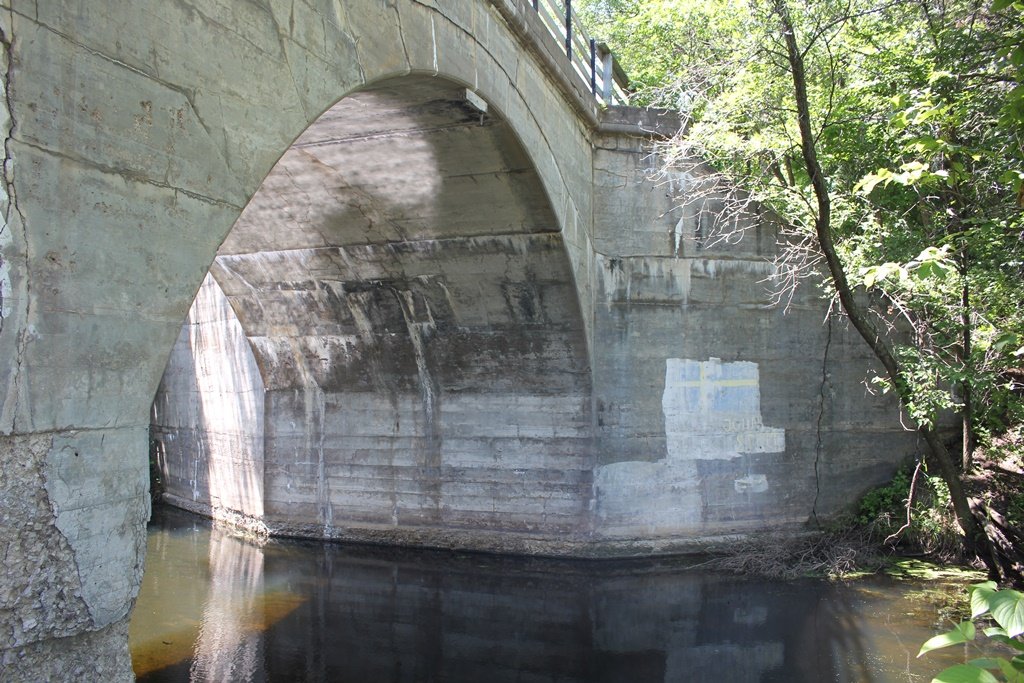

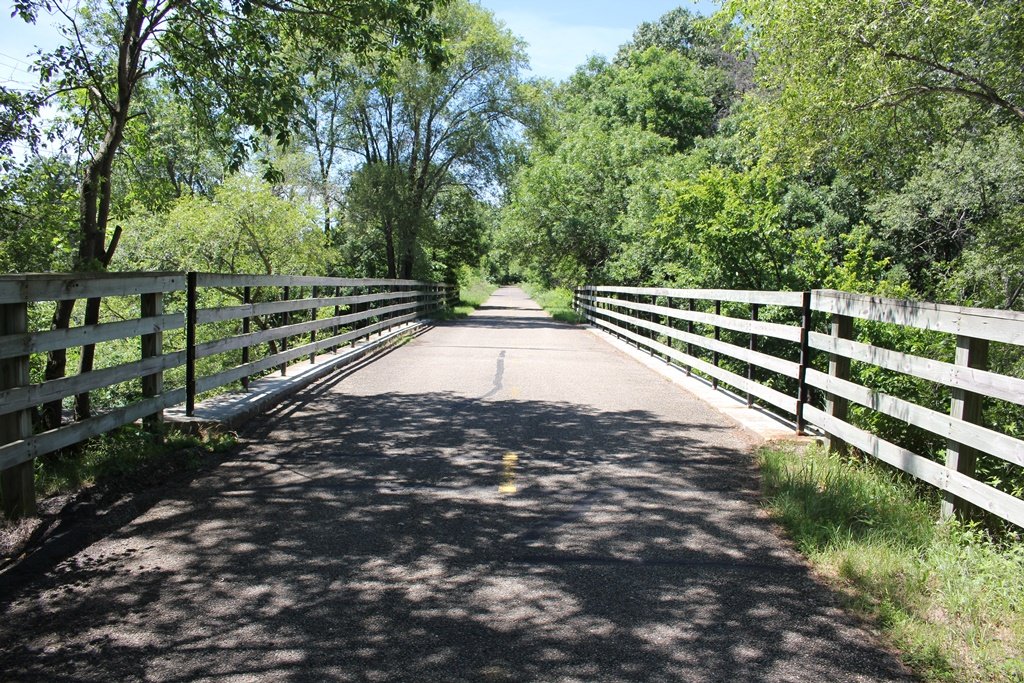

This two span concrete arch carries the Gateway Trail over the Keller Lake outlet along Frost Avenue.

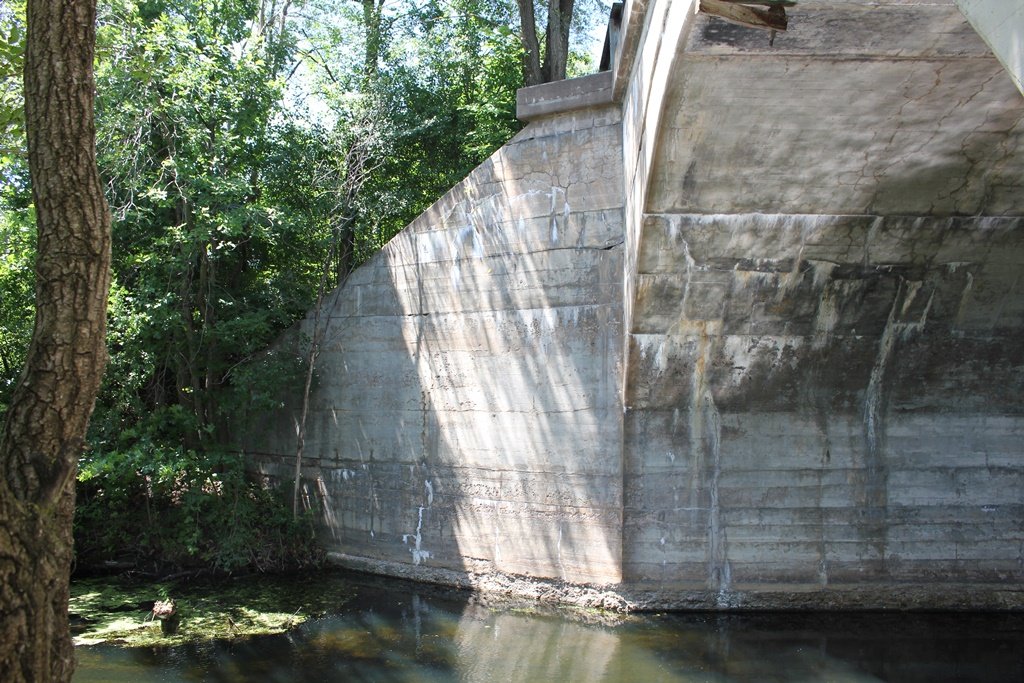

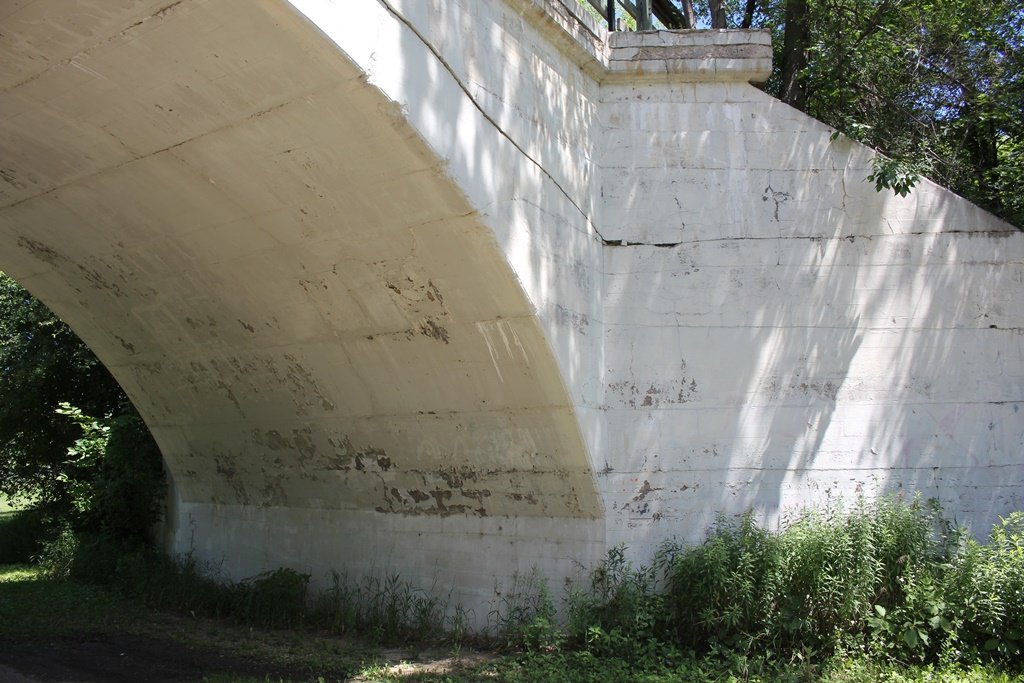

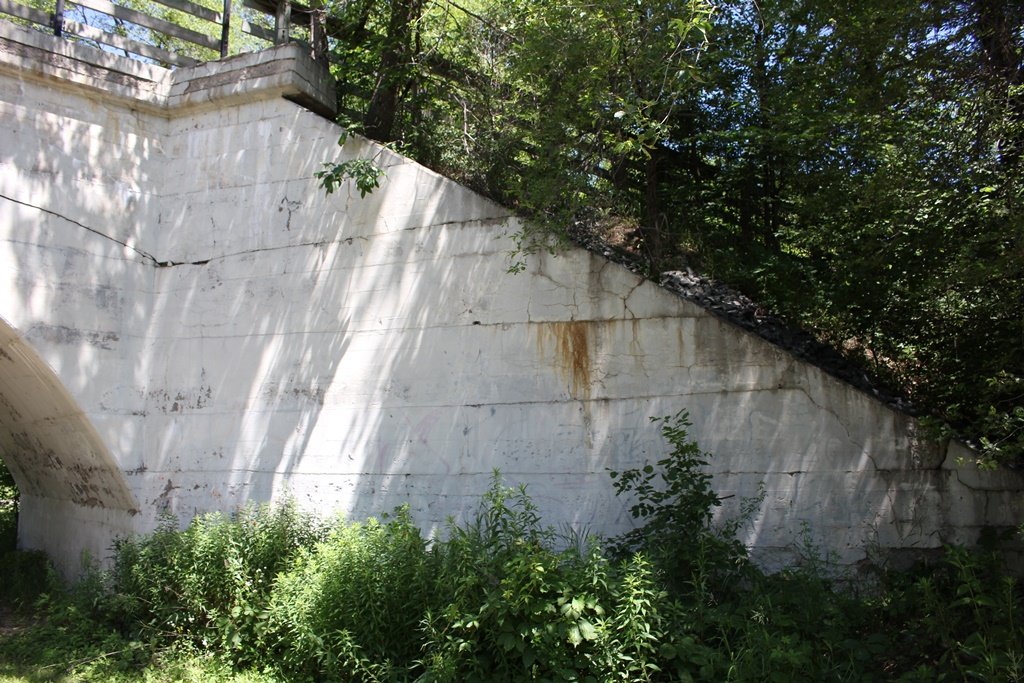

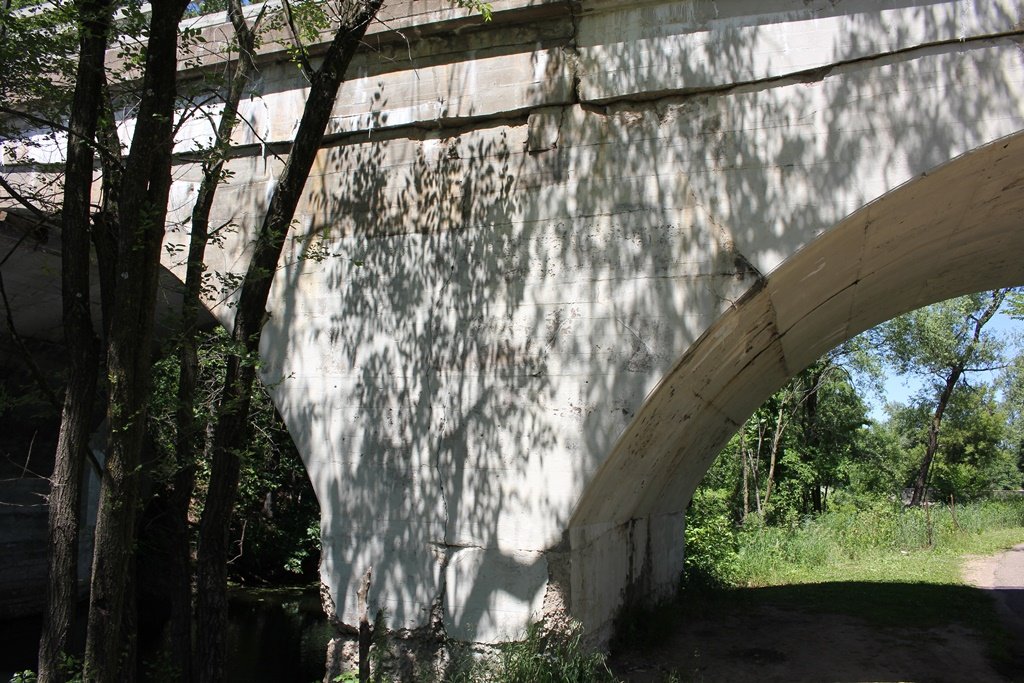

Built in 1906 across a channel flowing out of Lake Phalen, the bridge features a pair of concrete arch spans. These spans rest on concrete substructures.

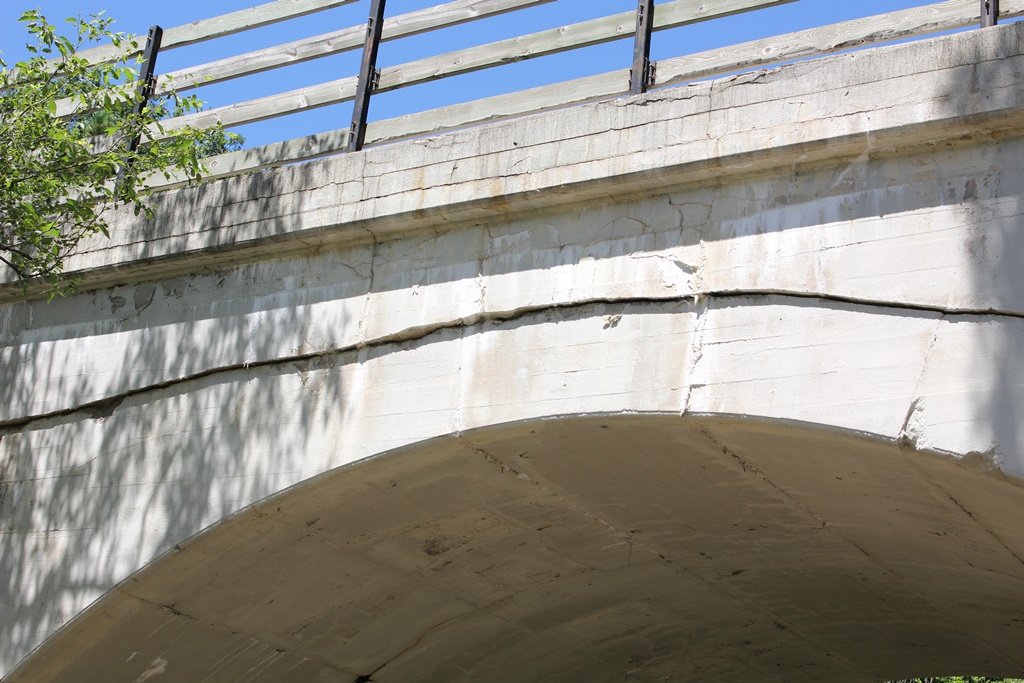

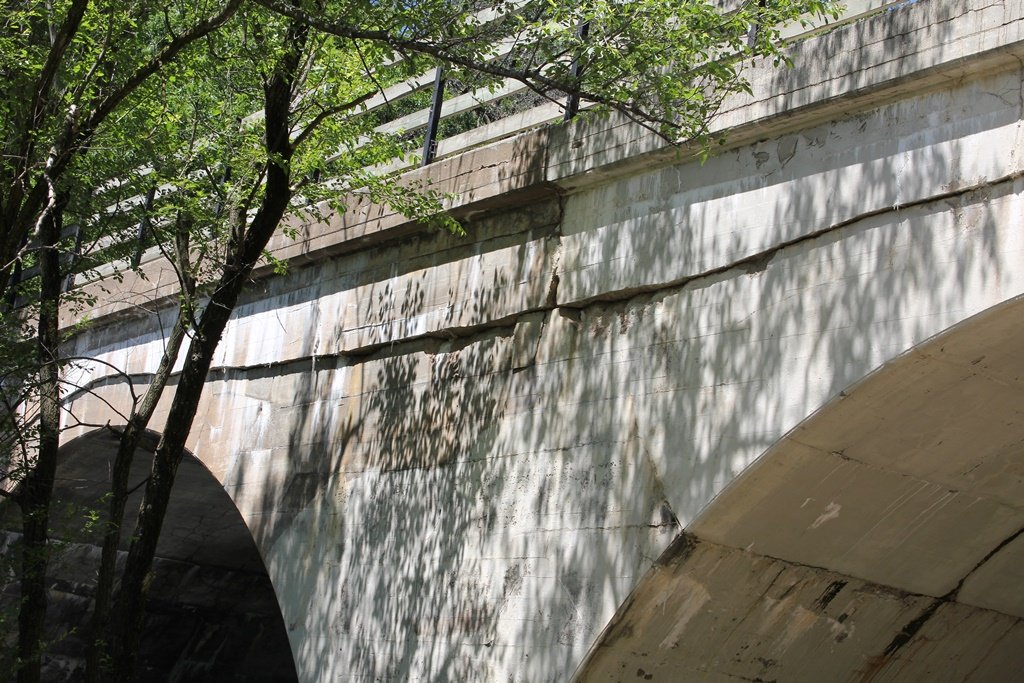

This bridge features a common design. Overall, it appears to be in poor condition. Major cracks have developed in the superstructure.

The author has ranked this bridge as being locally significant, due to the common design.

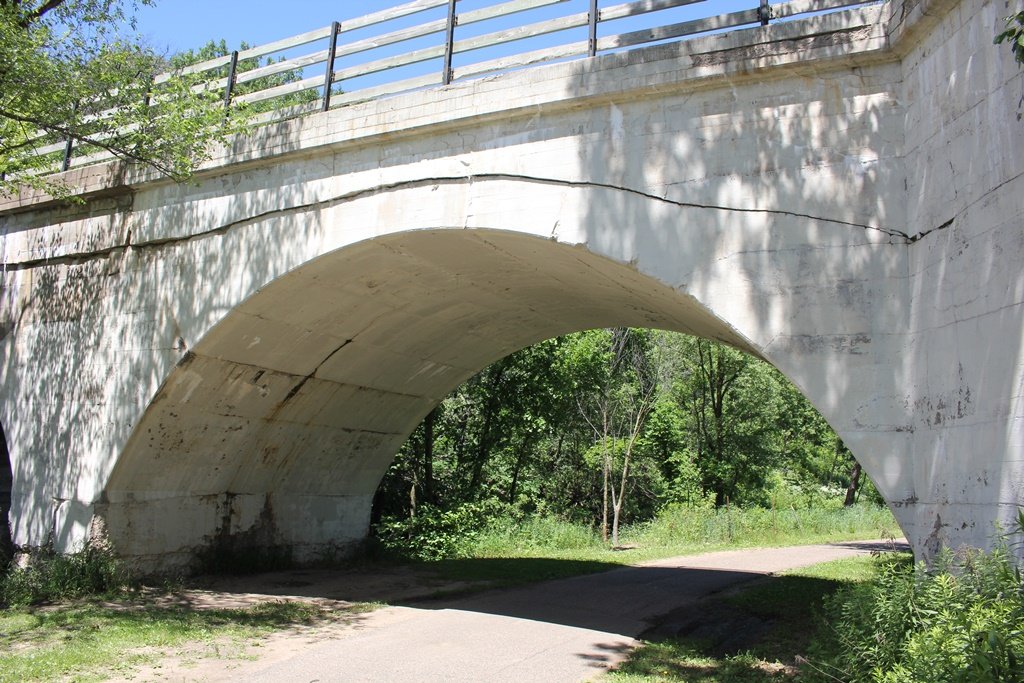

The photo above is an overview.

Citations

Source Type

Source

Build Date Ramsey-Washington Metro Watershed District
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
