CP MN-13 Bridge

Through Girder and I-Beam Bridge over Minnesota Highway 13
Savage, Scott County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name CP MN-13 Bridge
Built By Minneapolis, Northfield & Southern Railway
Contractor Unknown
Currently Owned By Canadian Pacific Railway
Length 320 Feet Total, 35 Foot Main Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Type Through Girder, I-Beam and Trestle
Substructure Type Concrete, Steel and Timber Pile
Date Built 1908, Extended 1939
Traffic Count 0 Trains/Day (Bridge is Closed)
Current Status Closed to All Traffic
Significance Local Significance
In 1910, the Minneapolis, St. Paul, Rochester & Dubuque Electric Traction Company built a 37 mile route between Northfield and 44th Street in Minneapolis.
A second route would be constructed in 1915, connecting Auto Club Junction (along the Minnesota River) to West Minneapolis.
These two routes became a part of the Minneapolis, Northfield & Southern Railway in 1918.
The MNS was a small local freight hauler in the Minneapolis area. It served independently until 1982, when it was purchased by the Soo Line.
In 1984, Canadian Pacific Railway gained complete control of the Soo Line. Unfortunately for this route, the major connections of the Milwaukee Road, Chicago & North Western, Rock Island and Chicago Great Western all sold or removed their area trackage.

Currently, Canadian Pacific owns the route between West Minneapolis and Lakeville, although Savage to Lakeville does not operate. The bridge across the Minnesota River is owned by the Twin Cities & Western Railroad, and Progressive Rail owns the tracks between Lakeville and Northfield.

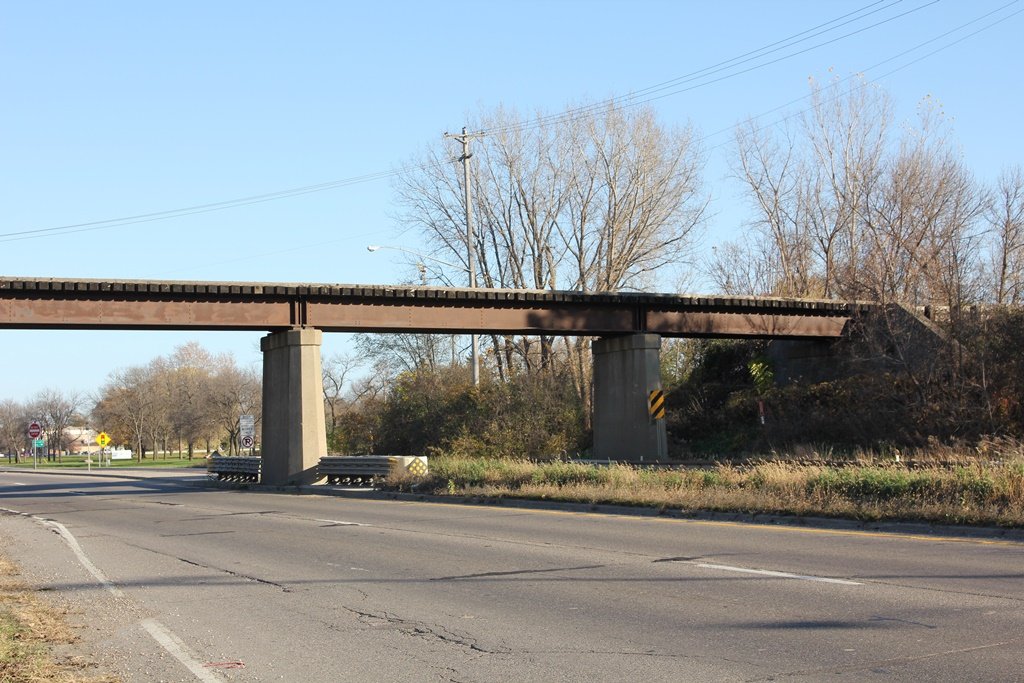

This standard beam bridge crosses over Minnesota Highway 13 in Savage.

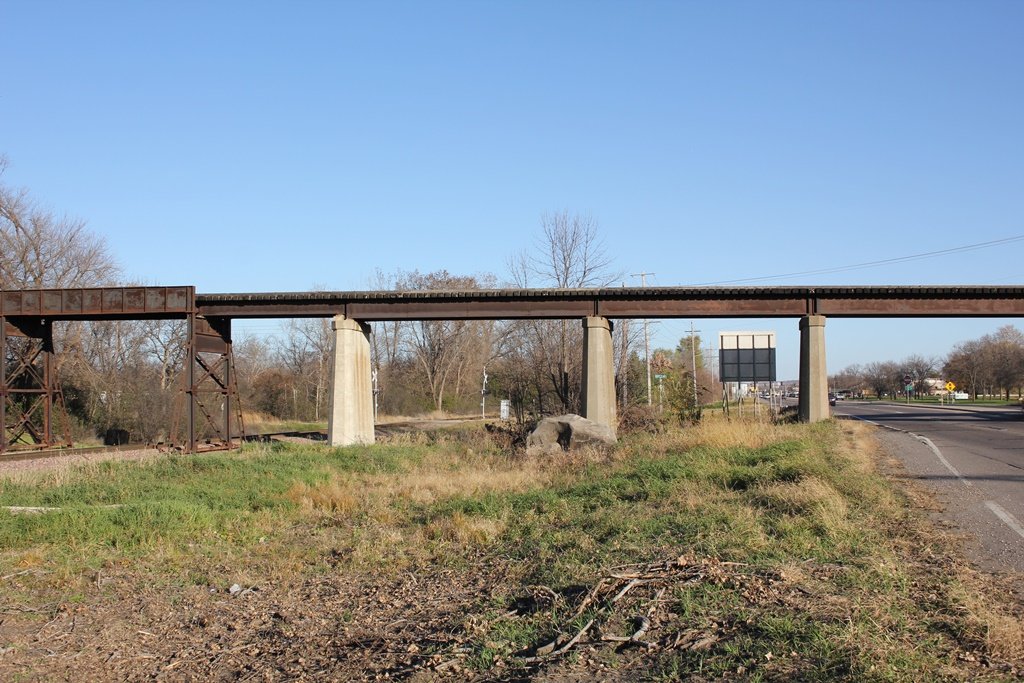

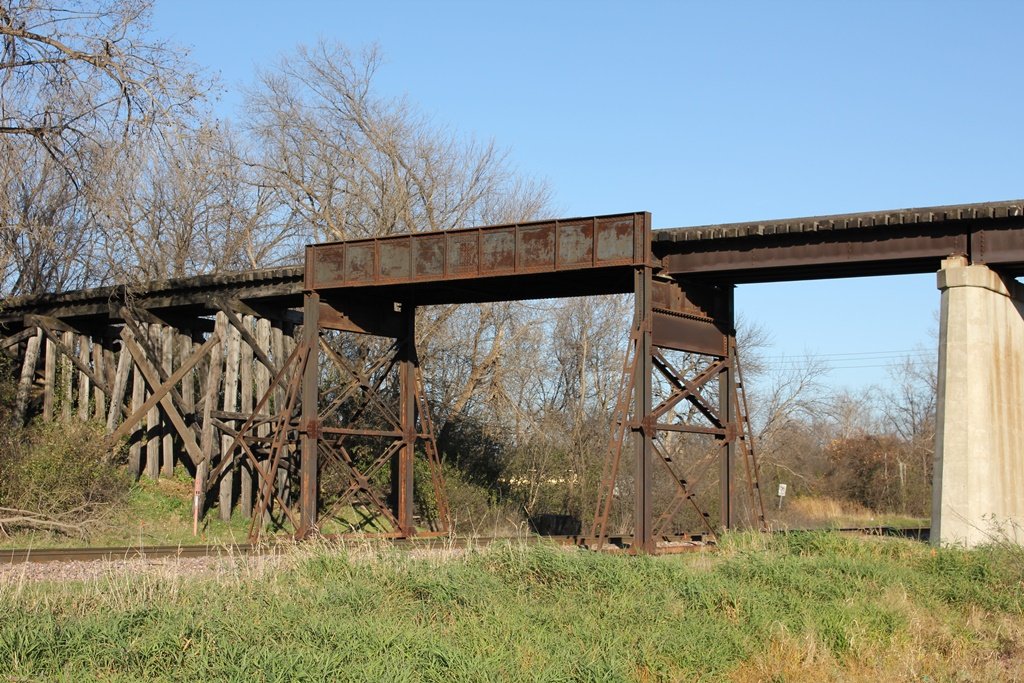

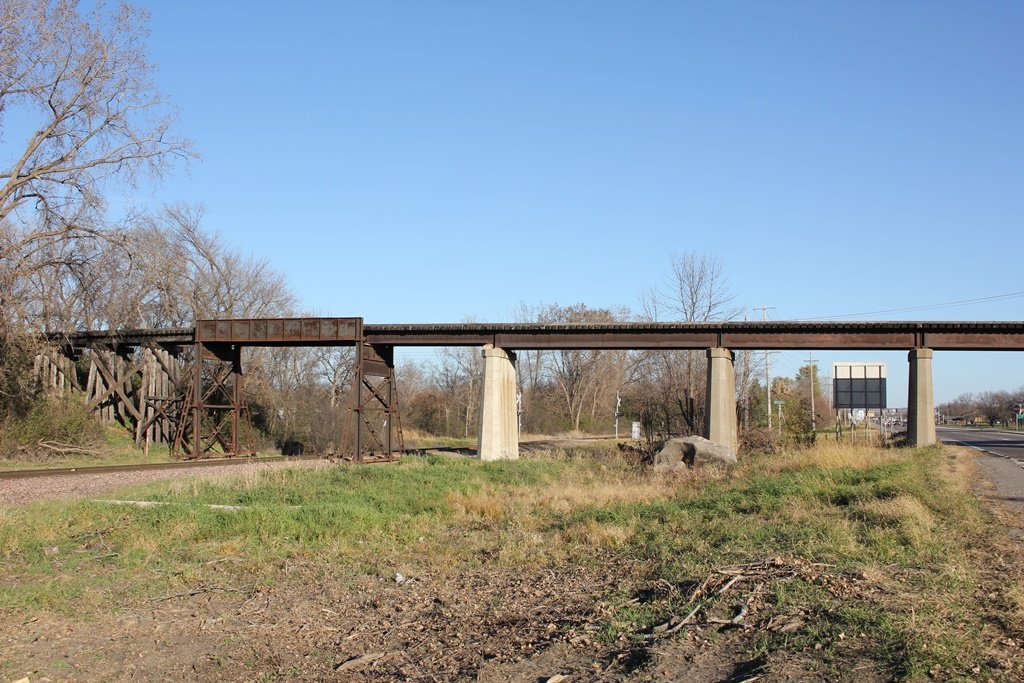

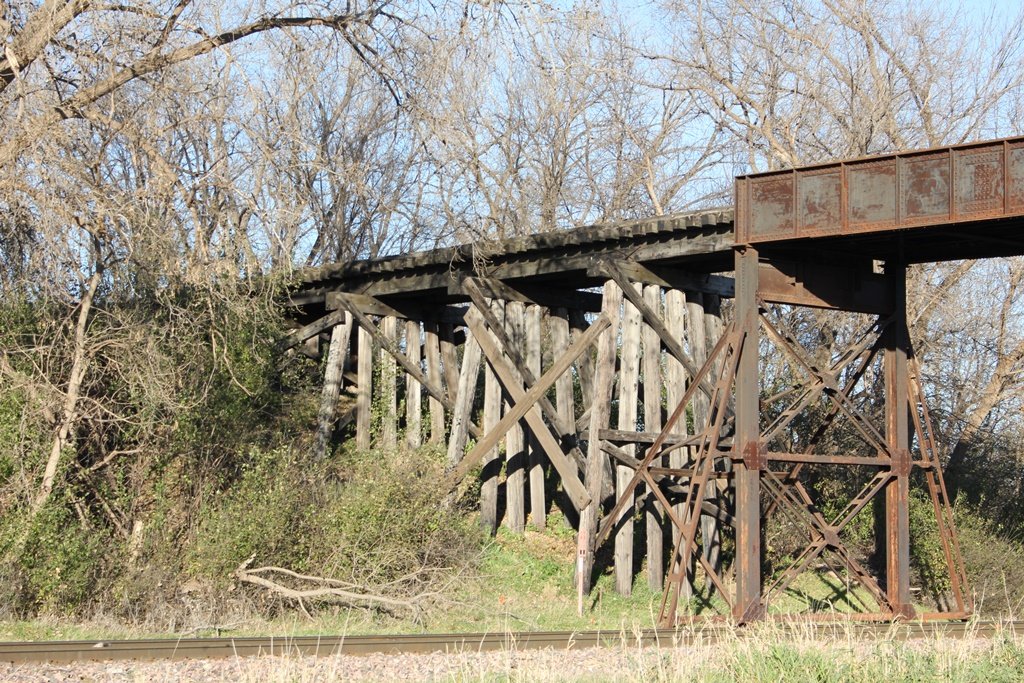

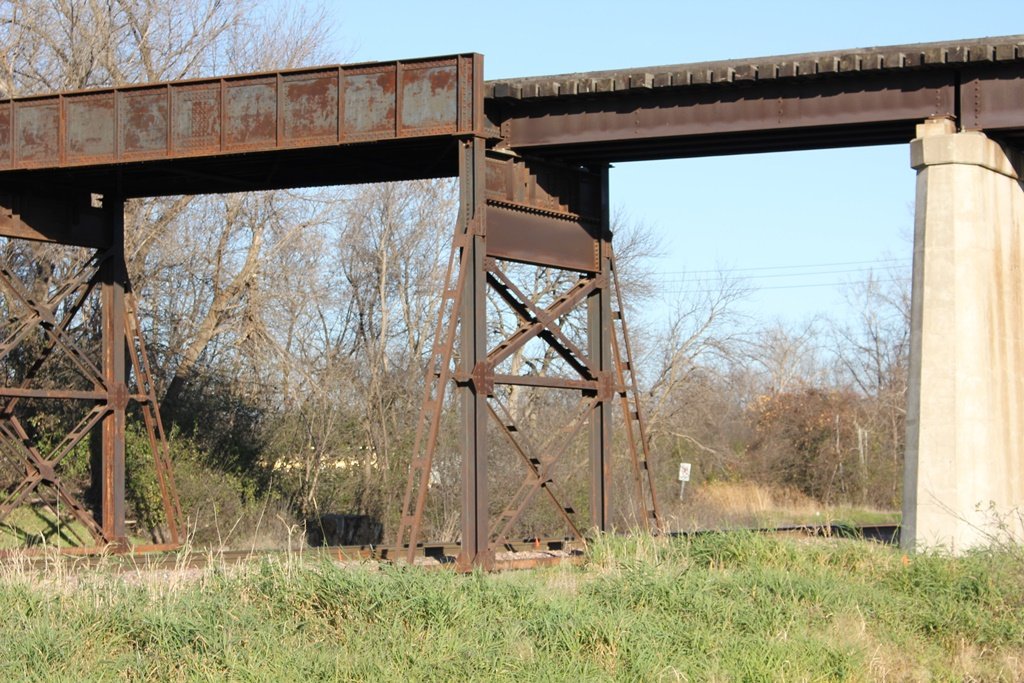

Built in 1908, the bridge originally featured a through girder span with trestle approaches, built to cross the Omaha Road. In 1939, six I-Beam spans were added to the south side of the bridge.

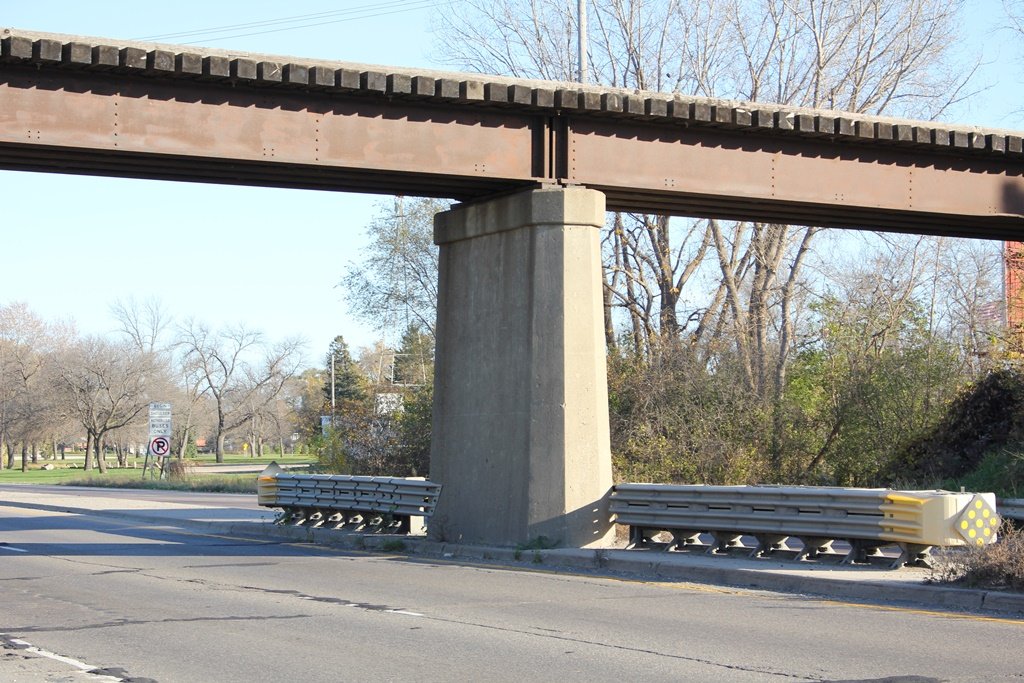

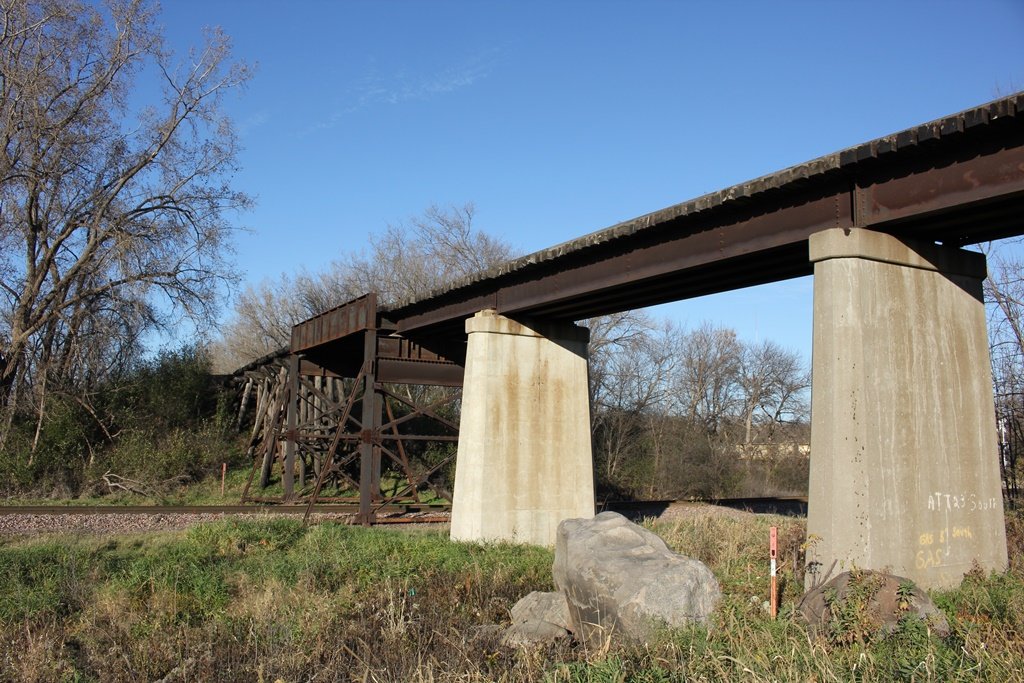

The entire bridge rests on concrete, steel and wood substructures.
Overall, the bridge appears to be in good condition. The bridge may be replaced in the near future, because of the awkward roadway geometry.

The author has ranked this bridge as being locally significant, due to the common design.

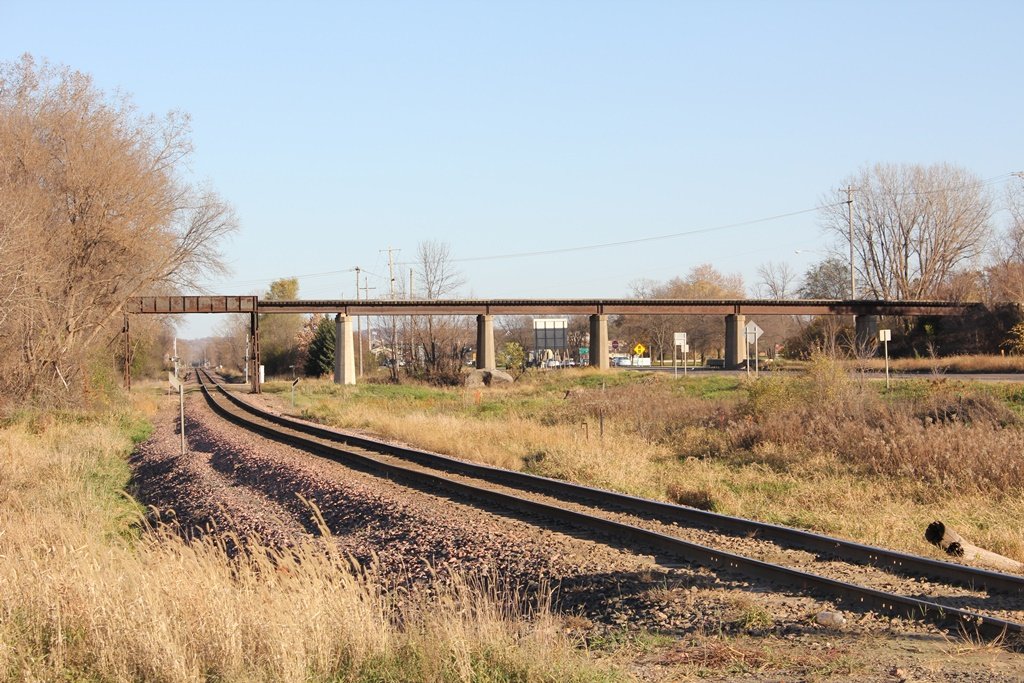

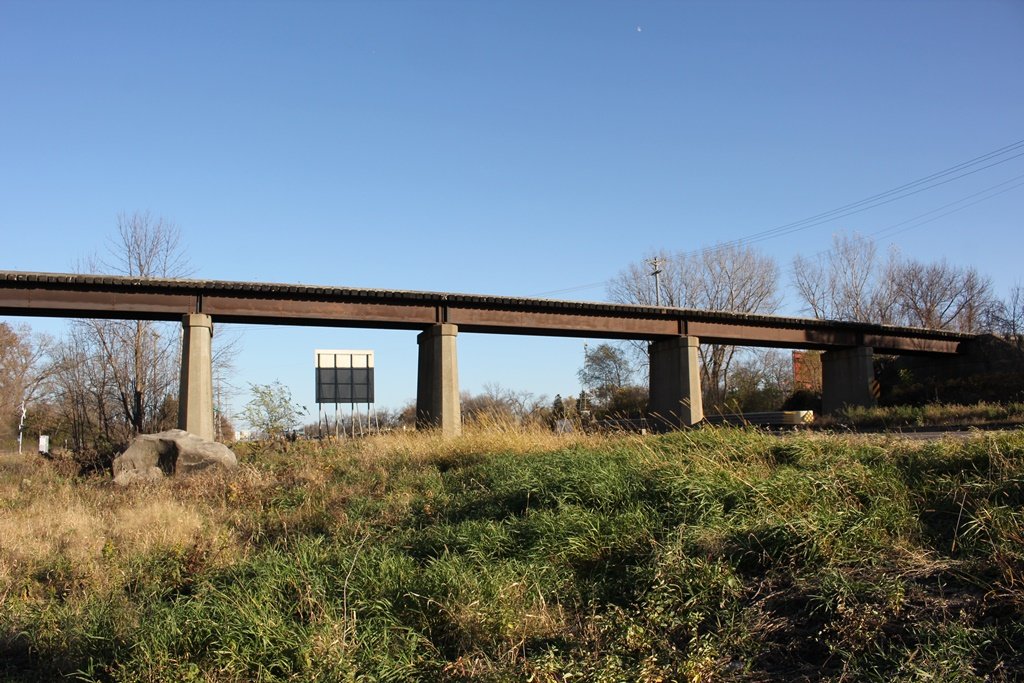

The photo above is an overview. The bridge can be accessed from the road it crosses.


Source Type


Build Date Based on construction of line
Build Date 2012 National Bridge Inventory
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
