CP Addison Street Bridge (Irving Park)

Through Plate Girder Bridge over W. Addison Street
Irving Park, Chicago, Cook County, Illinois

Click the Photo Above to See All Photos of This Bridge!
Name CP Addison Street Bridge (Irving Park)
Built By Chicago, Milwaukee & St. Paul Railroad
Contractor Lassig Bridge & Iron Works of Chicago
Currently Owned By Canadian Pacific Railway
Length 75 Feet Total
Width 2 Tracks
Height Above Ground 13 Feet 10 Inches
Superstructure Type Through Plate Girder
Substructure Type Concrete
Date Built 1898
Traffic Count 100 Trains/Day (Estimated)
Current Status In Use
MILW Bridge Number A-30
Significance Local Significance
Documentation Date July 2018


Located in the Irving Park neighborhood of Chicago, this through girder bridge crosses West Addison Street near N. Kilbourne Avenue.
Built in 1898, the bridge features a single through girder span, set onto concrete substructures.

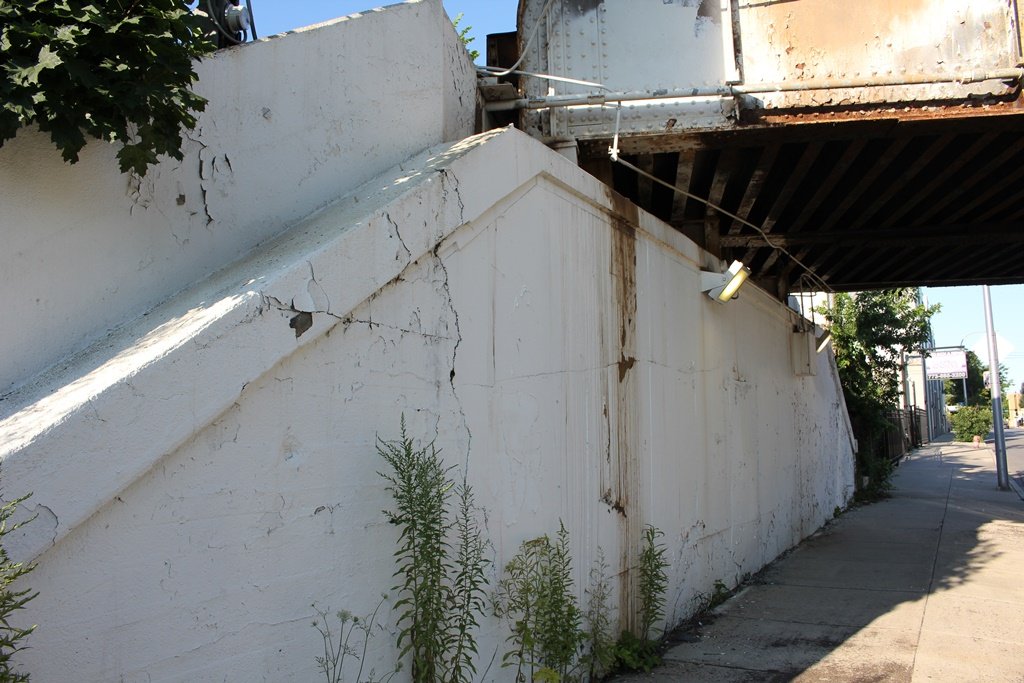

As one of the earliest ordered track elevations in Chicago, this bridge and the others in the area feature steel structures. The concrete substructures on this bridge are unique, as stone was still commonly used at this time.
Overall, the bridge appears to be in fair condition, with minimal significant deterioration. A rehabilitation of this bridge is planned for 2021-2023.

The author has ranked this bridge as being locally significant, due to the common design and large numbers of similar bridges in the area.

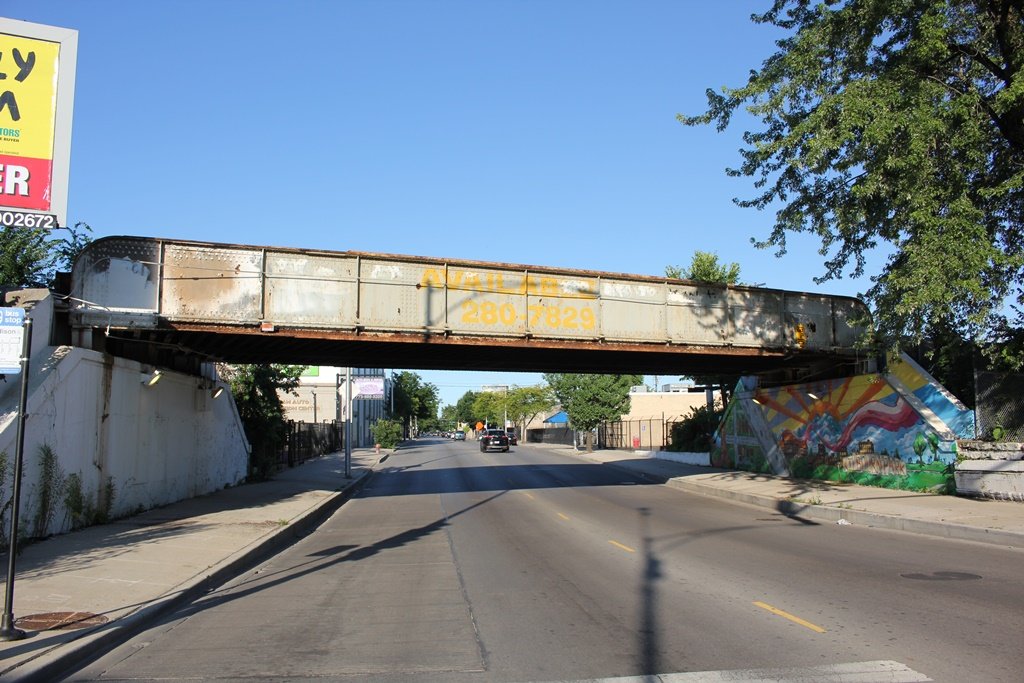

The photo above is an overview.

Citations

Source Type

Source

Build Date Chicago Track Elevation Ordinance
Contractor Missing Lassig Bridge & Iron Works plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
