CN Rock City Road Bridge

Concrete Slab Bridge over Rock City Road and Wickham Creek
Freeport, Stephenson County, Illinois

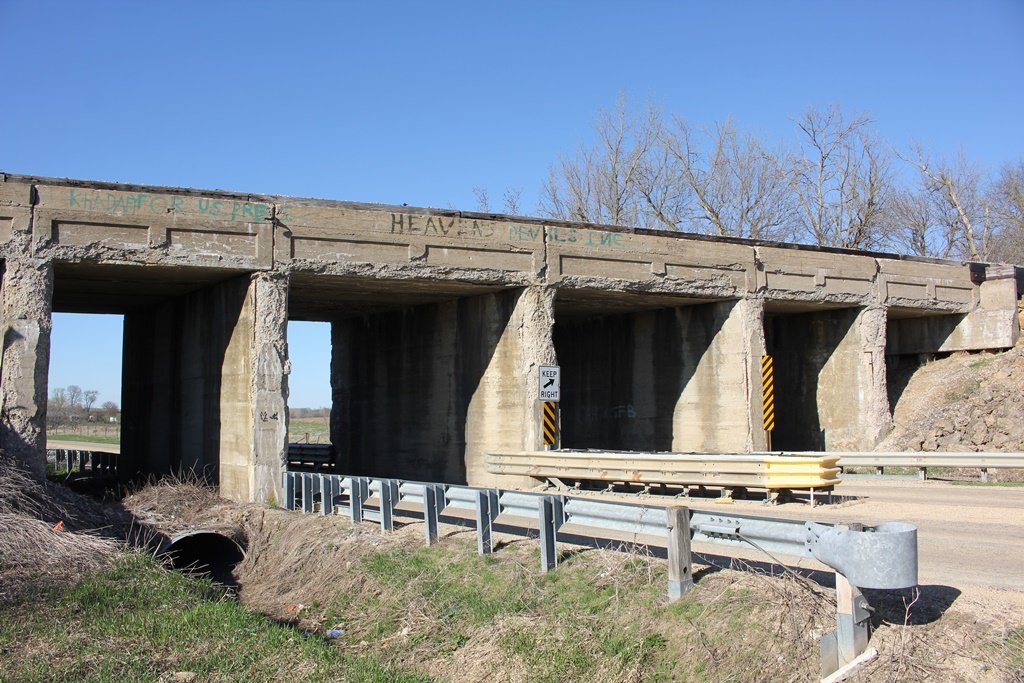

Click the Photo Above to See All Photos of This Bridge!
Name CN Rock City Road Bridge
Built By Illinois Central Railroad
Contractor Unknown
Currently Owned By Canadian National Railway
Length 94 Feet Total, 19 Foot Largest Span
Width 2 Tracks, 1 In Use
Height Above Ground 11 Feet 4 Inches
Superstructure Type Concrete Slab
Substructure Type Concrete
Date Built 1918
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
CN Bridge Number 106.37
Significance Local Significance
Documentation Date April 2019

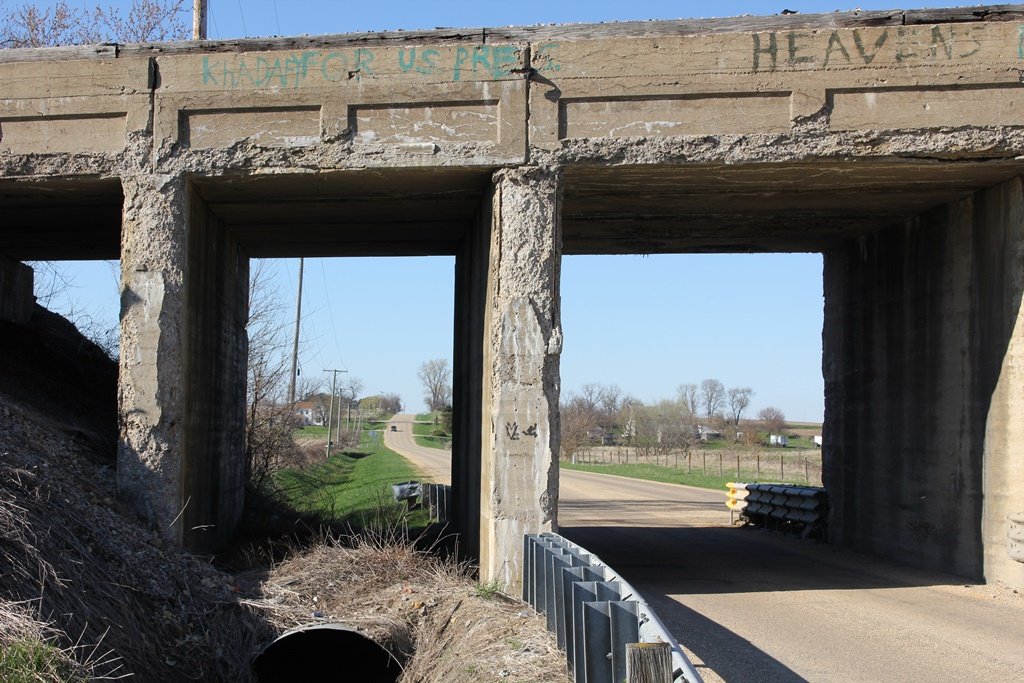

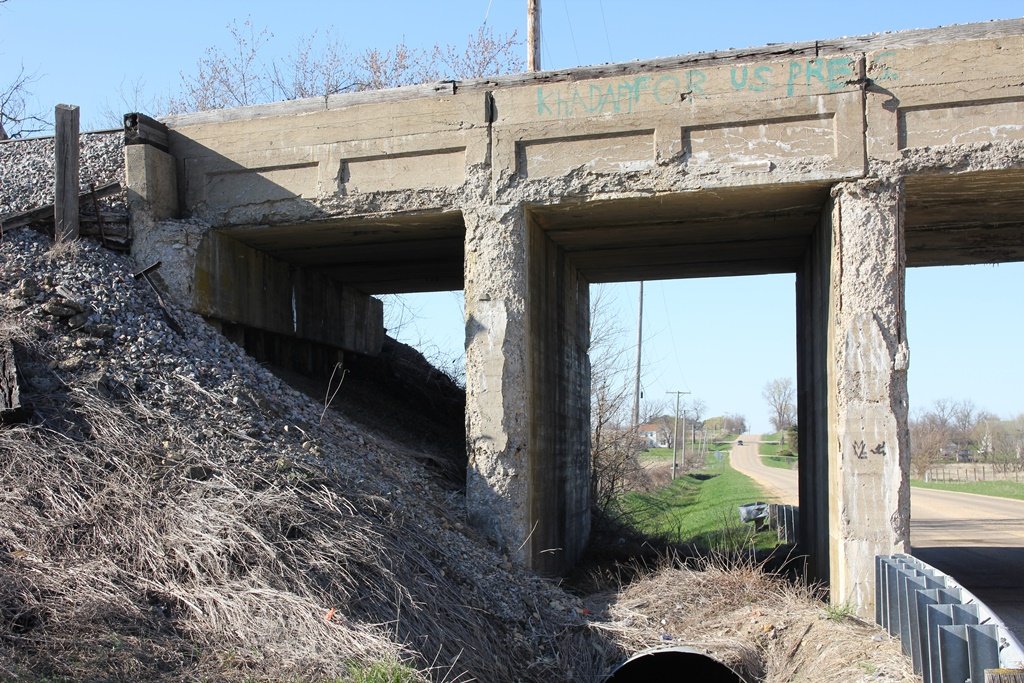

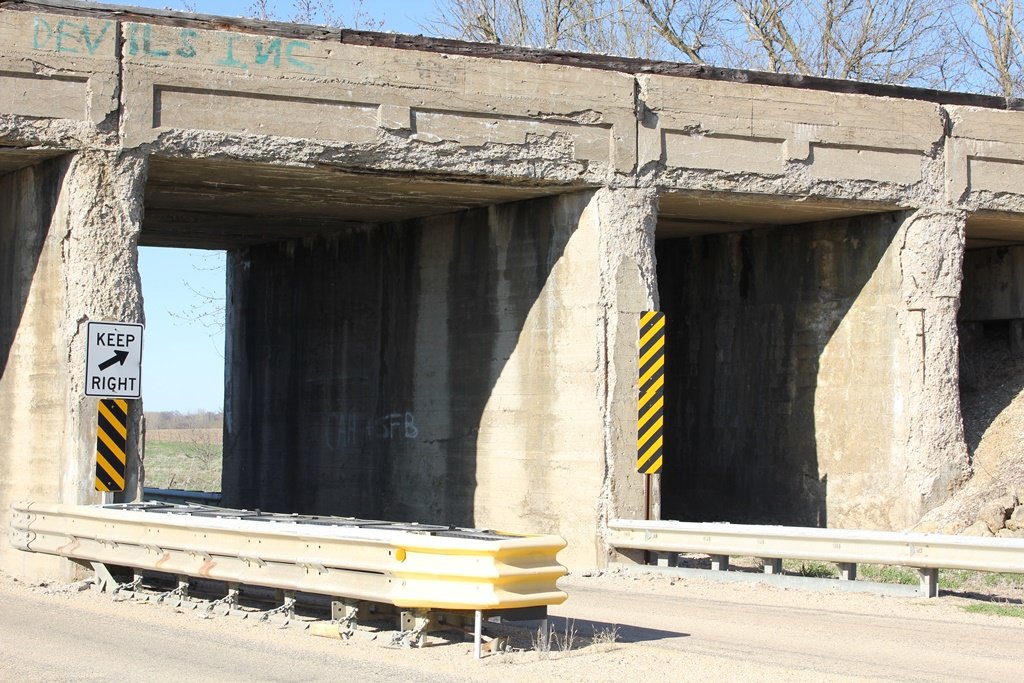

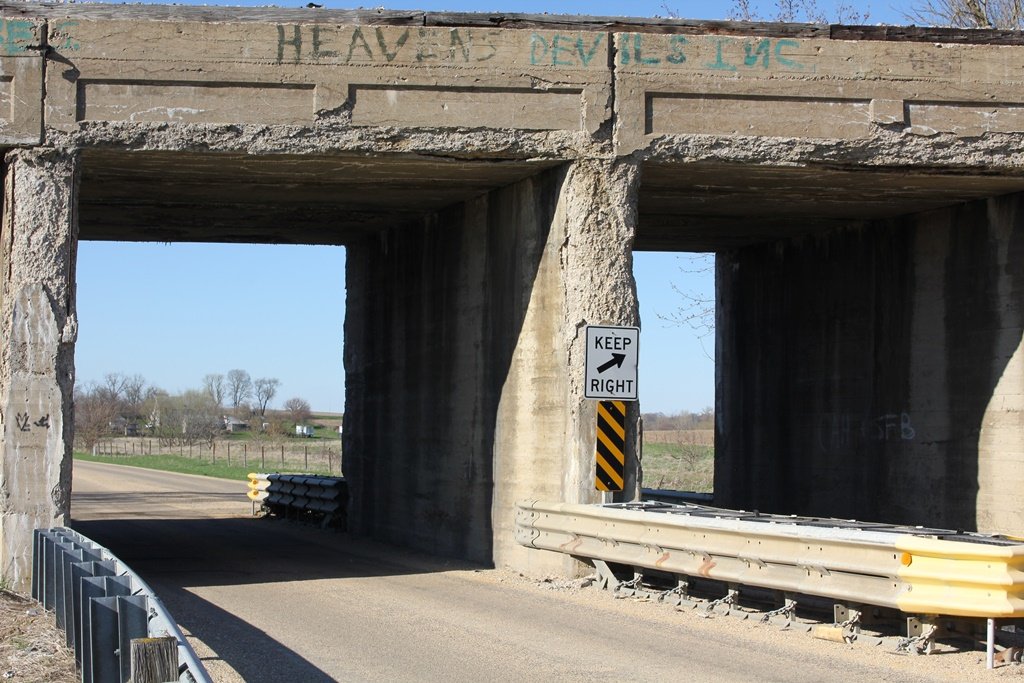

Located east of Freeport, this large concrete slab bridge crosses Rock City Road and Wickham Creek.

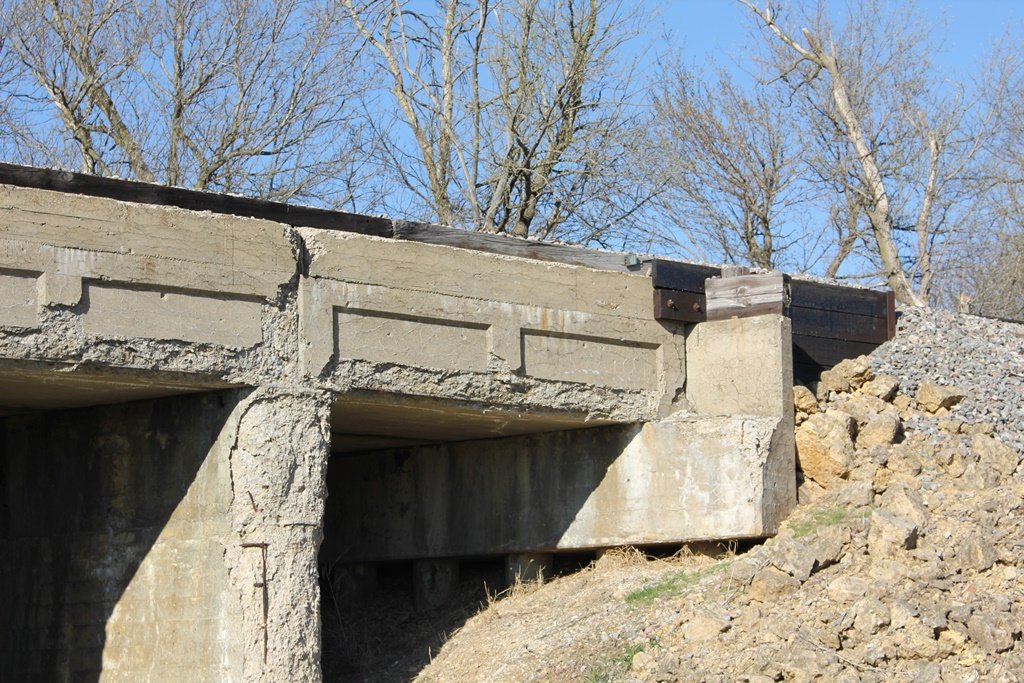

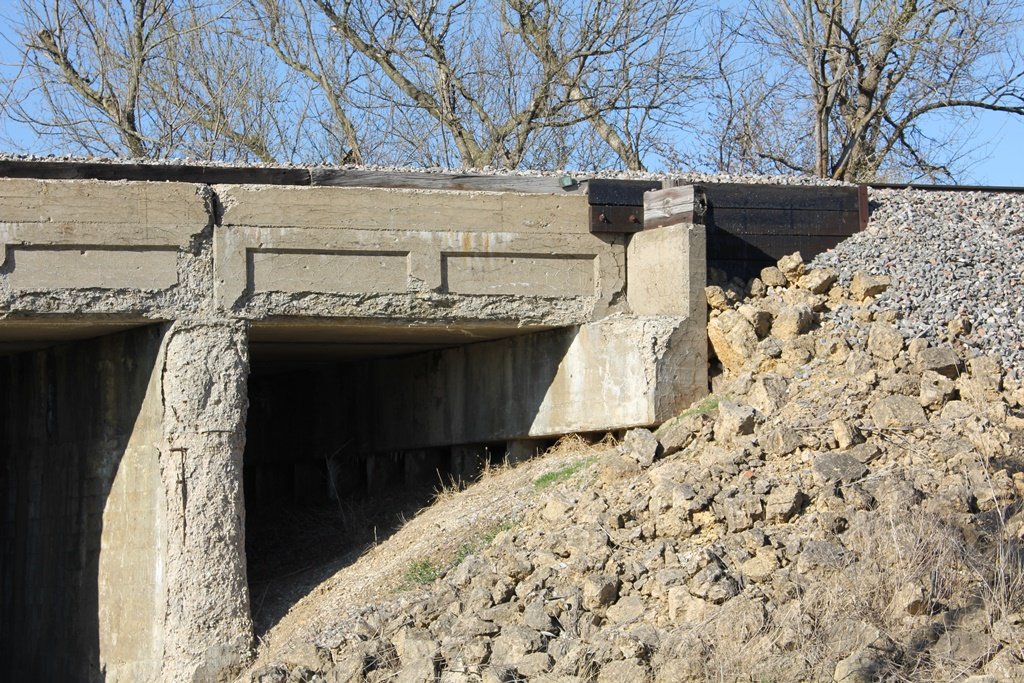

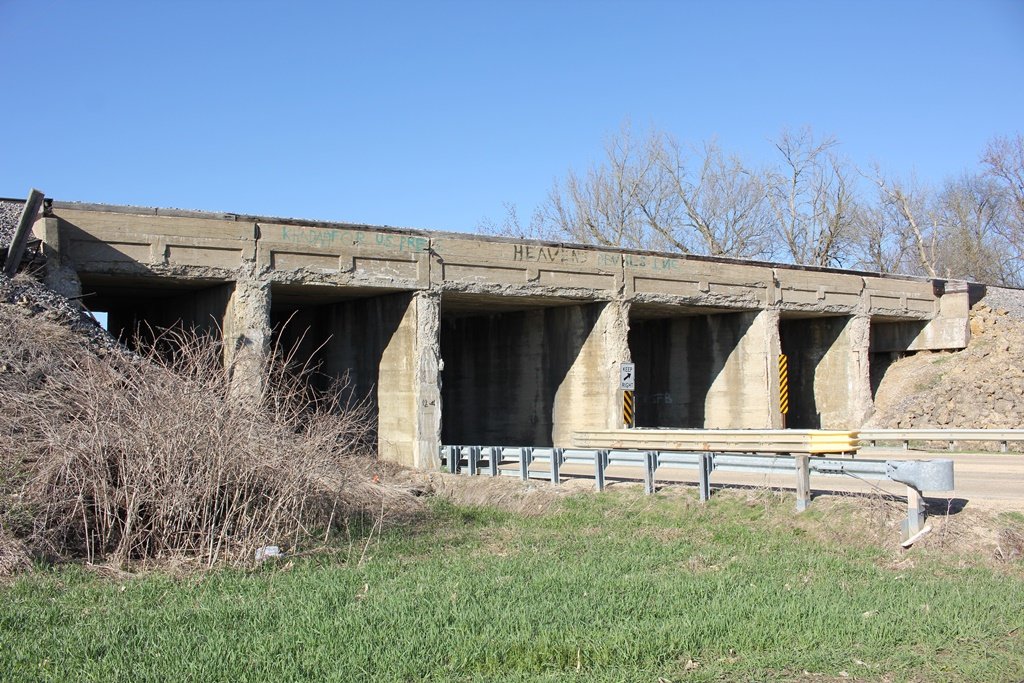

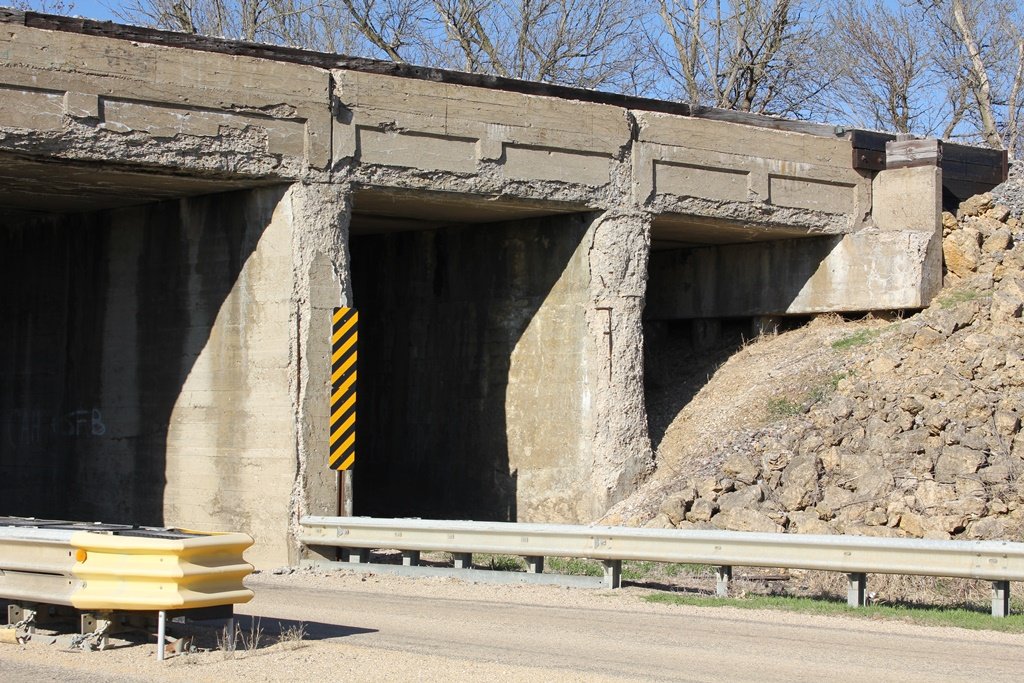

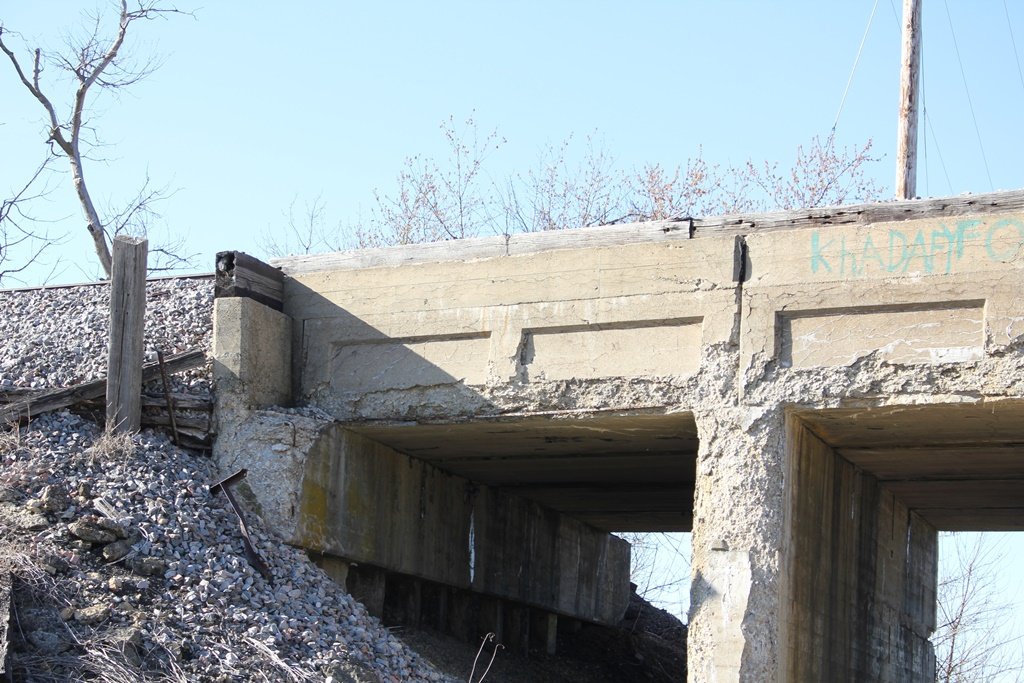

Built in 1918, this six span concrete slab bridge was built for two tracks. The bridge was built on concrete substructures.
These types of bridge were commonly used to cross creeks and roads. The second track was removed at an unknown date.

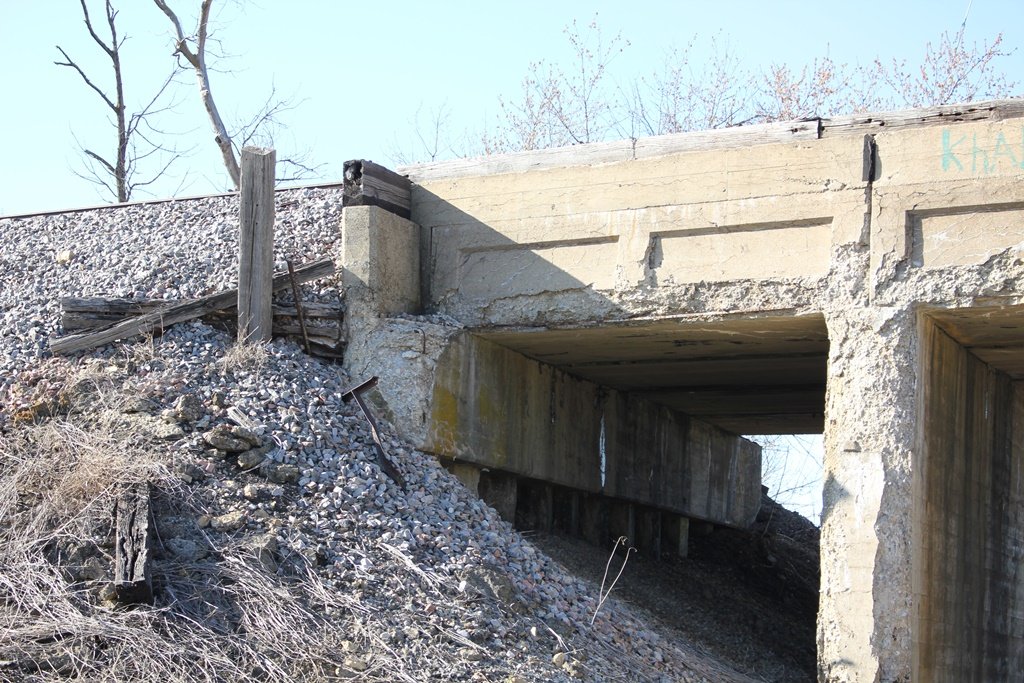

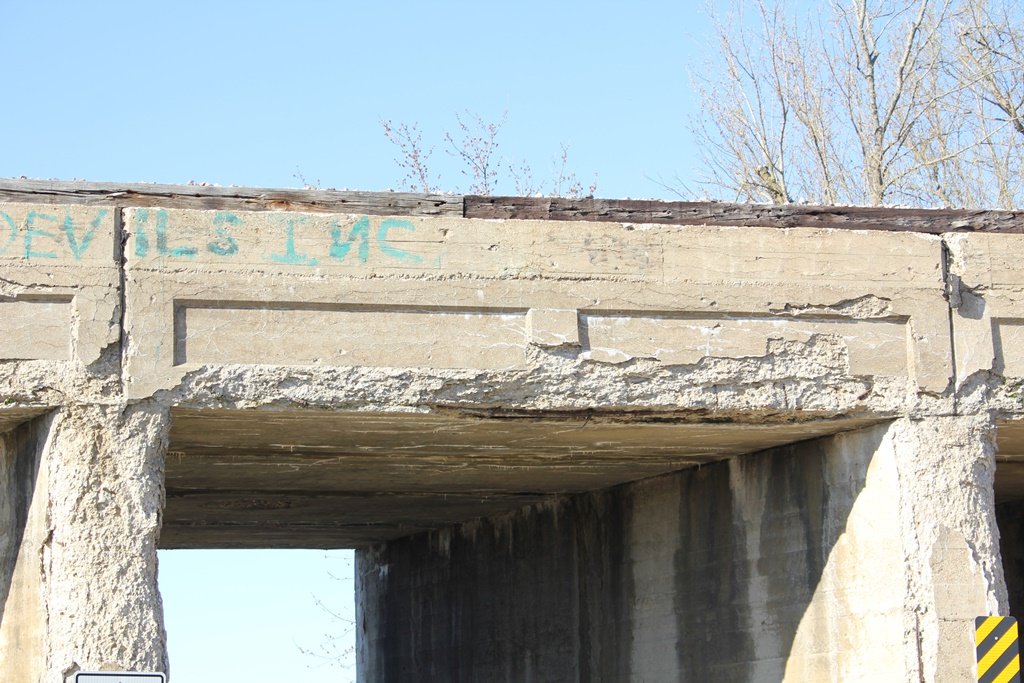

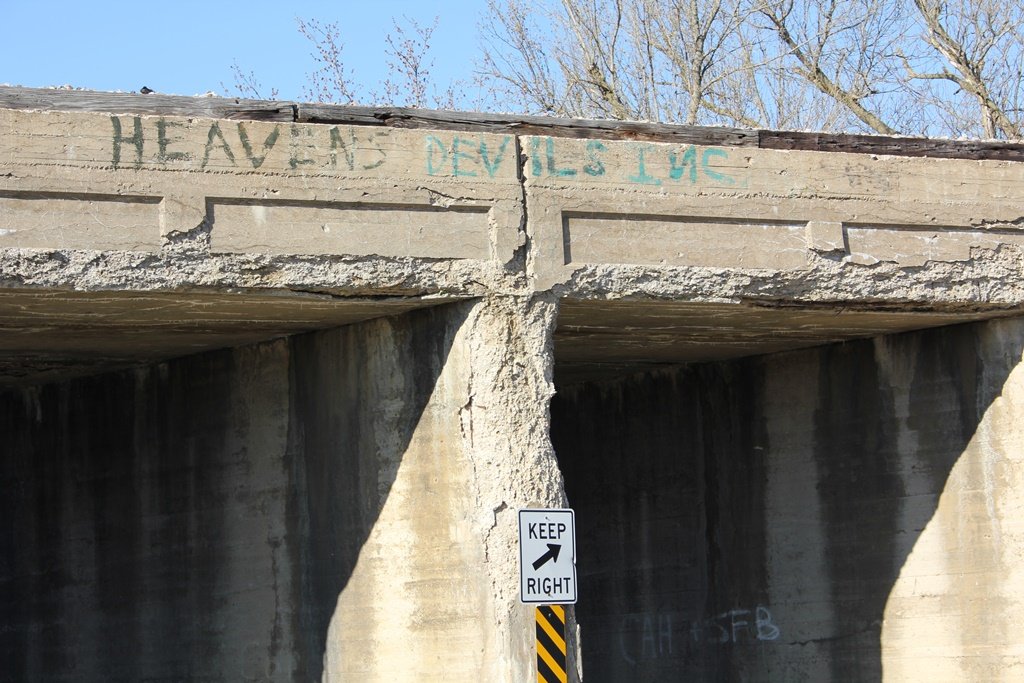

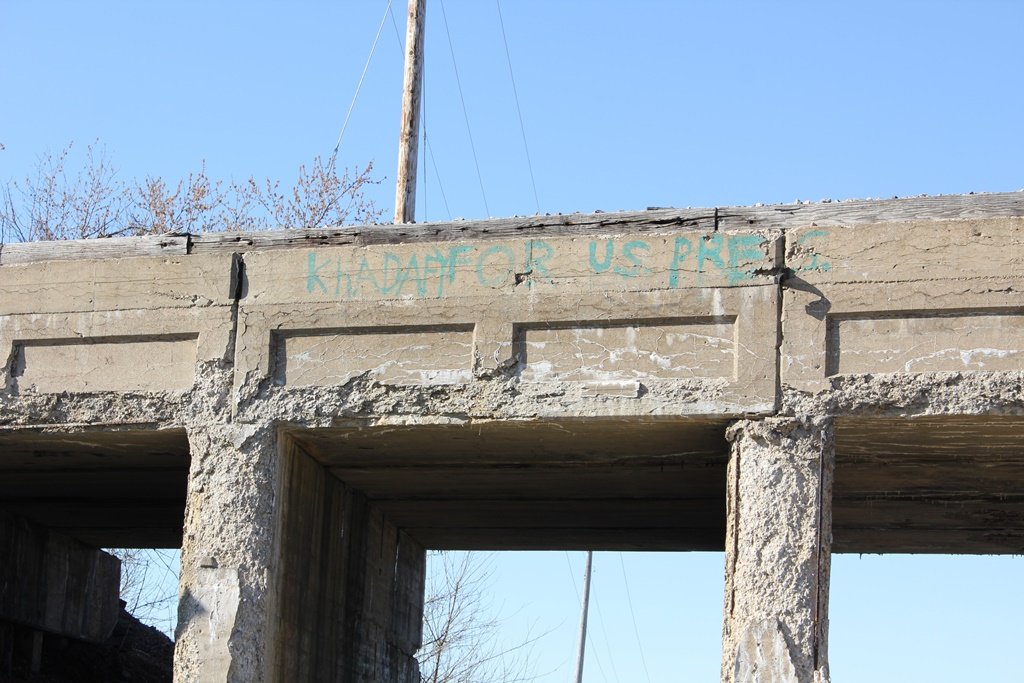

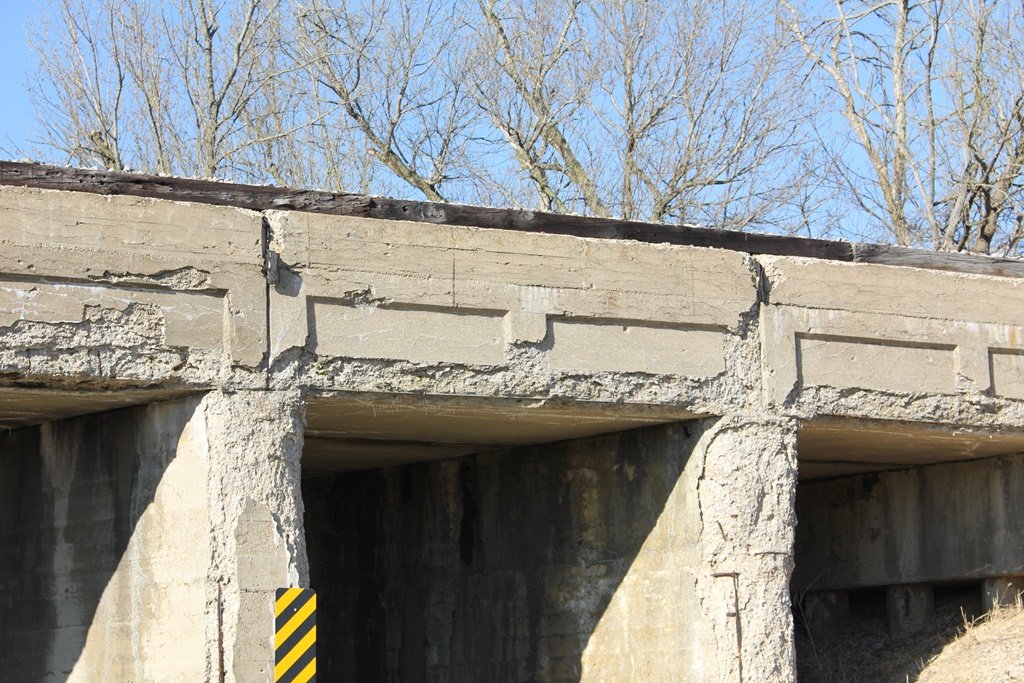

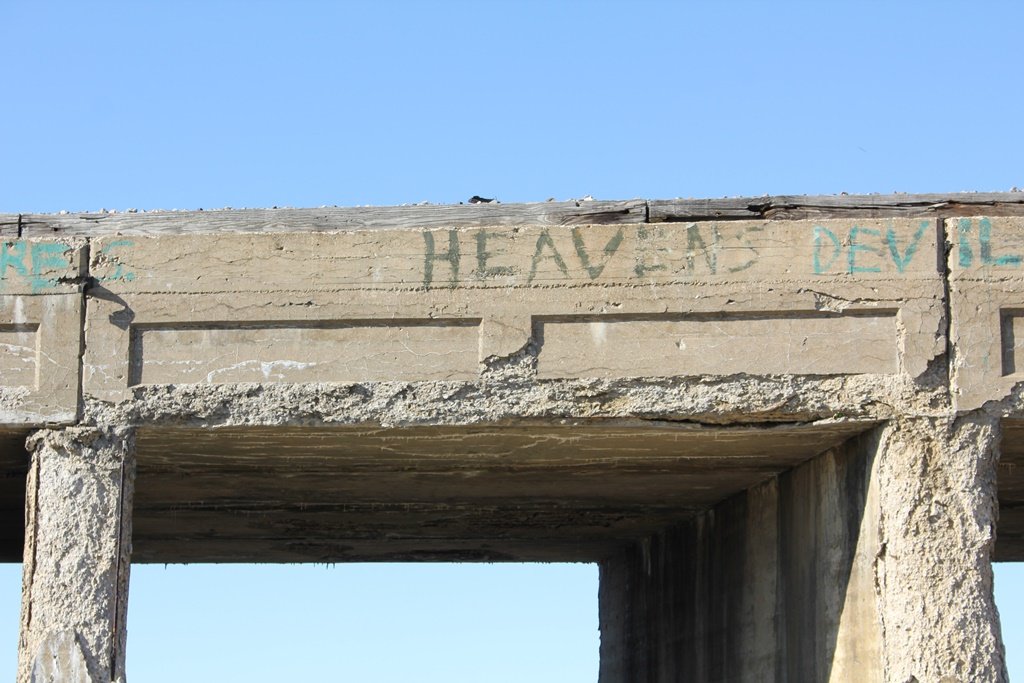

Overall, the bridge appears to be in fair to poor condition. Some significant deterioration has begun to show up on the bridge.

The author has ranked the bridge as being locally significant, due to the common design.

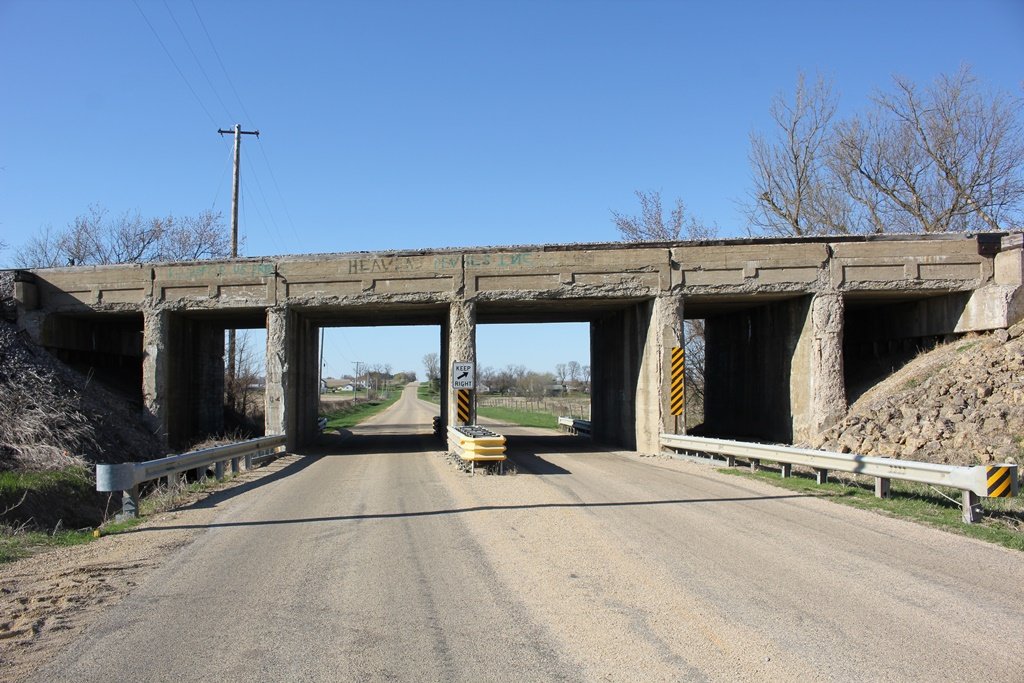

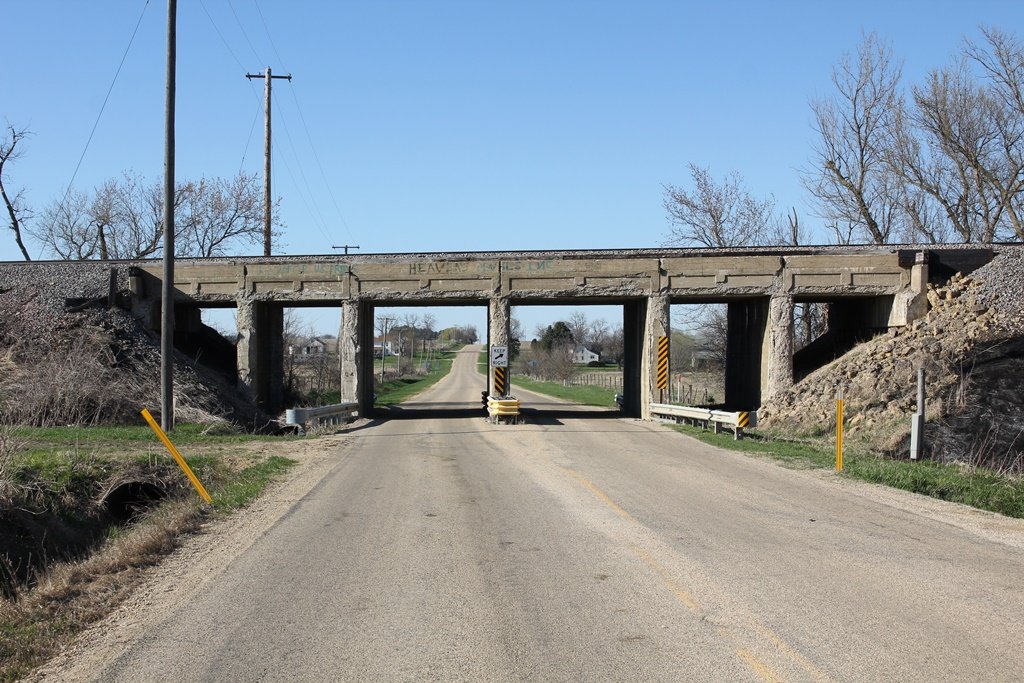

The photo above is an overview.

Citations

Source Type

Source

Build Date 1973 Illinois Central track profile
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
